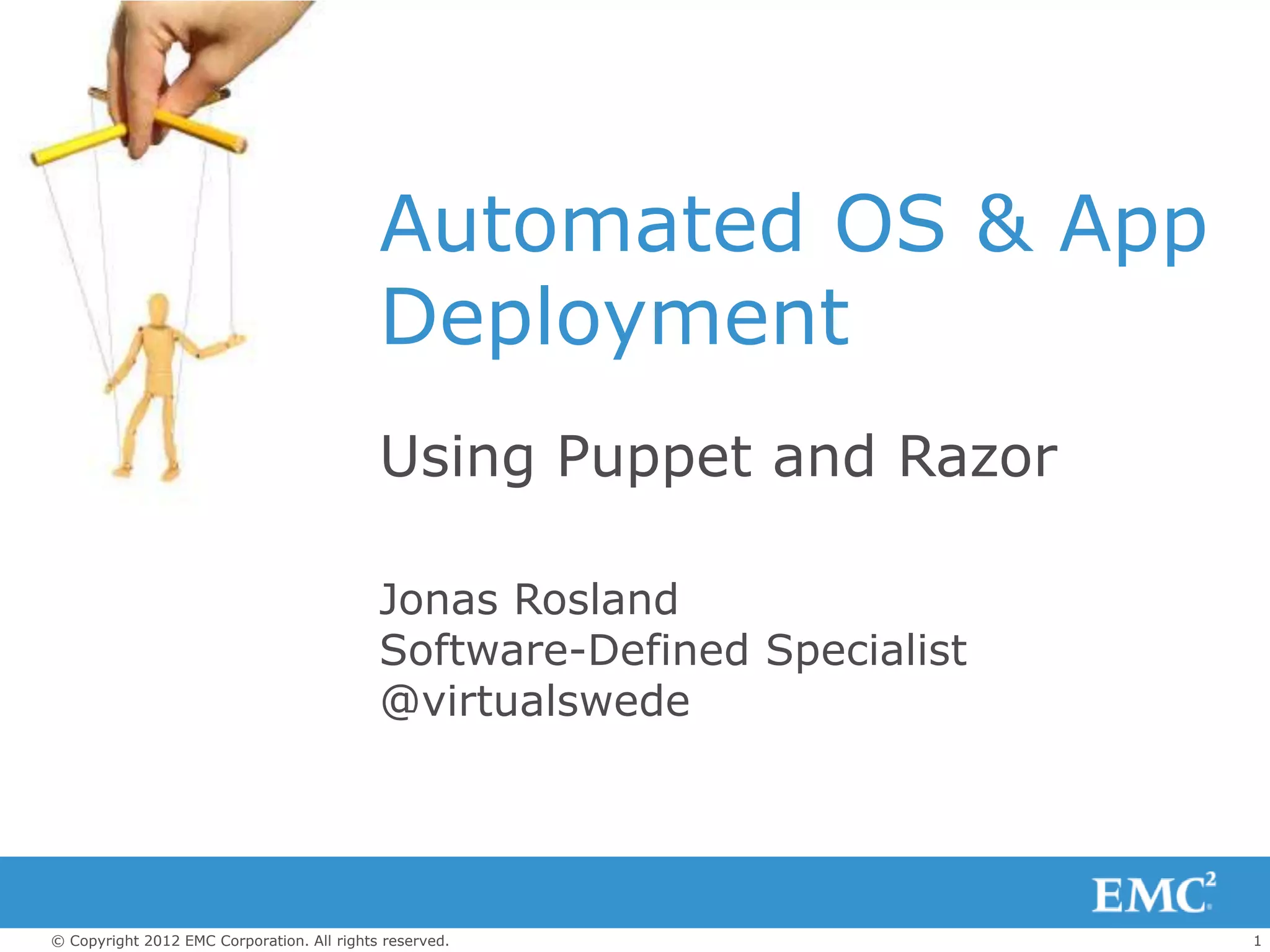

Automated OS & App
                                            Deployment
                                            Using Puppet and Razor

                                            Jonas Rosland
                                            Software-Defined Specialist
                                            @virtualswede




© Copyright 2012 EMC Corporation. All rights reserved.                    1
Image credit: @mpyeager, http://ow.ly/i/1P9YU
 © Copyright 2012 EMC Corporation. All rights reserved.   2
So what’s Razor?
    Cloud provisioning tool
    Operating Systems AND Hypervisors
    Physical AND virtual
    Event-driven instead of user-driven




© Copyright 2012 EMC Corporation. All rights reserved.   3
Why not just use templates?
    They get old fast
    Pre-packages bits are harder to maintain
    No easy upgrade to next distro version




© Copyright 2012 EMC Corporation. All rights reserved.   4
So how does it work?




© Copyright 2012 EMC Corporation. All rights reserved.   5
Auto-Discovered Real-Time Inventory
Data
    Boots a Micro-Kernel
    Primarily using facter
    For every hardware node
    Eliminating inefficient, error-prone manual
    processes
    Full insight into the latest, up-to-date status
    of your hardware inventory




© Copyright 2012 EMC Corporation. All rights reserved.   6
Dynamic Image Selection
    Selects the correct operating system image
    Based on auto-discovered, real-time
    inventory data
    No manual intervention needed




© Copyright 2012 EMC Corporation. All rights reserved.   7
Model-Based Provisioning
    Models the desired state of each hardware
    node and its operating system
    Automatically tracks provisioning progress
    toward this state
    Full control over a node’s boot sequence and
    a complete log of its lifecycle




© Copyright 2012 EMC Corporation. All rights reserved.   8
Open APIs and Plug-in Architecture
    RESTful open APIs
    Full programmatic control of the rules and
    models that govern operating system image
    selection and hardware provisioning
    Enables the Puppet community to collaborate
    and share plug-ins to support any operating
    system and any boot sequence




© Copyright 2012 EMC Corporation. All rights reserved.   9
Metal-to-Cloud Application Lifecycle
Management
    No need for siloed management tools!




© Copyright 2012 EMC Corporation. All rights reserved.   10
Puppet + Razor = Good!




© Copyright 2012 EMC Corporation. All rights reserved.   11
Razor installation using Puppet
node razor {
    class { 'sudo':
        config_file_replace => false,
    }
    include razor
}




© Copyright 2012 EMC Corporation. All rights reserved.   12
Add a broker
rz_broker { 'puppet_broker':
    ensure => present,
    plugin => 'puppet',
    metadata => {
        broker_version => '2.7.18',
        server => 'puppet.purevirtual.lab',
    }
  }



© Copyright 2012 EMC Corporation. All rights reserved.   13
Add an image to deploy
rz_image { "ubuntu_precise_image":
    ensure => present,
    type                => 'os',
    version => '12.04.1',
 source =>
"http://ftp.sunet.se/pub/os/Linux/distributions/ubunt
u/ubuntu-cd/12.04.1/ubuntu-12.04.1-server-
amd64.iso",
}



© Copyright 2012 EMC Corporation. All rights reserved.   14
Add a model for deployment
rz_model { 'install_ubuntu_precise':
    ensure => present,
    description => 'Ubuntu Precise',
    image => 'ubuntu_precise_image',
  metadata => {'domainname' => 'purevirtual.lab',
'hostname_prefix' => 'ubuntu-', 'root_password' =>
'password'},
    template => 'ubuntu_precise',
}



© Copyright 2012 EMC Corporation. All rights reserved.   15
Finally, create a policy to tie it all
together
rz_policy { 'ubuntu_precise_policy':
    ensure => present,
    broker => 'puppet_broker',
    model                  => 'install_ubuntu_precise',
    enabled => 'true',
    tags                => ['memsize_1GiB'],
    template => 'linux_deploy',
    maximum => 10,
}


© Copyright 2012 EMC Corporation. All rights reserved.    16
DEMOTIME!




© Copyright 2012 EMC Corporation. All rights reserved.   17
Wanna get started?
How to and best practices on my blog:
http://purevirtual.eu/category/automation/puppet/
http://purevirtual.eu/category/automation/razor/


                                          Send me an email/tweet!
                                           jonas.rosland@emc.com
                                                         @virtualswede




© Copyright 2012 EMC Corporation. All rights reserved.                   18
