This document discusses using Puppet Catalog Diff to analyze the impact of changes between Puppet environments or catalogs. It provides the command line usage and options for Puppet Catalog Diff. It also discusses how to integrate Puppet Catalog Diff into CI/CD pipelines for automated impact analysis when merging code changes. Additional resources like GitHub projects and Dev.to posts are provided for learning more about diffing Puppet environments and catalogs.

1. Impact Analysis with Puppet Catalog Diff
Raphaël Pinson

2. 2/28www.camptocamp.com /
Raphaël Pinson
○ Infrastructure Developer / DevOps
○ Puppet / Terraform / Kubernetes
@raphink

3. 3/28www.camptocamp.com /

4. 4/28www.camptocamp.com /

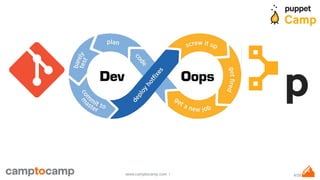

5. 5/28www.camptocamp.com /
Dev Ops

6. 6/28www.camptocamp.com / Photo credits: Montecruz Foto, CC-BY

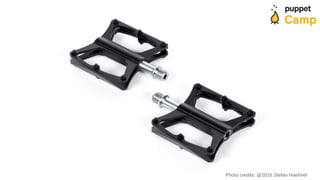

7. 7/28www.camptocamp.com / Photo credits: @2016 Stefan Haehnel

8. 8/28www.camptocamp.com /

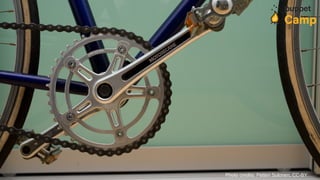

9. 9/28www.camptocamp.com / Photo credits: Petteri Sulonen, CC-BY

10. 10/28www.camptocamp.com /

11. 11/28www.camptocamp.com /

12. 12/28www.camptocamp.com /

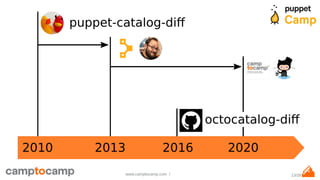

13. 13/28www.camptocamp.com /

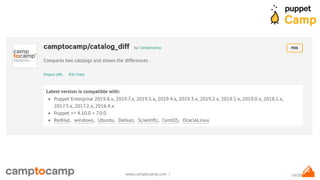

14. 14/28www.camptocamp.com /

15. 15/28www.camptocamp.com /
Command line call
> puppet module install camptocamp/catalog_diff
> puppet catalog diff
puppet5.example.com:8140/production
puppet6.example.com:8140/production
--use_puppetdb
--filter_old_env
--old_catalog_from_puppetdb
--certless
--show_resource_diff
--content_diff
--changed_depth 1000
--configtimeout 1000
--debug
--threads 50

16. 16/28www.camptocamp.com /

17. 17/28www.camptocamp.com /

18. 18/28www.camptocamp.com /
Catalog Compilation Authz: classic
{
# Allow nodes to retrieve their own catalog
match-request: {
path: "^/puppet/v3/catalog/([^/]+)$"
type: regex
method: [get, post]
}
allow: ["$1","catalog-diff"]
sort-order: 500
name: "puppetlabs catalog"
},

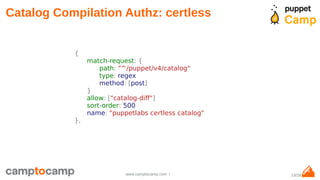

19. 19/28www.camptocamp.com /
Catalog Compilation Authz: certless
{
match-request: {
path: "^/puppet/v4/catalog"
type: regex
method: [post]
}
allow: ["catalog-diff"]
sort-order: 500
name: "puppetlabs certless catalog"
},

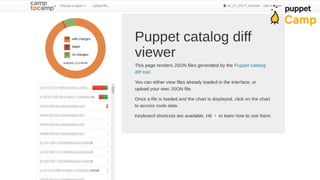

20. 20/28www.camptocamp.com /

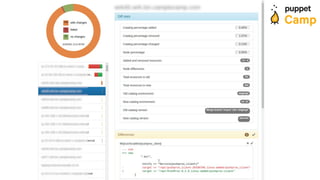

21. 21/28www.camptocamp.com /

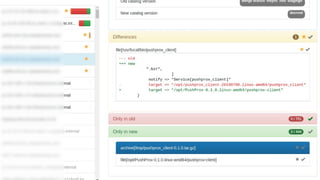

22. 22/28www.camptocamp.com /

23. 23/28www.camptocamp.com /
CI/CD Integration
Branch
Merge
Request

24. 24/28www.camptocamp.com /
GitLab CI Integration
Standardized pipelines:
https://github.com/camptocamp/puppet-gitlabci-pipelines

25. 25/28www.camptocamp.com /
Going further
Dev.to posts:
○ https://dev.to/camptocamp-ops/diffing-puppet-environments-1fno
○ https://dev.to/camptocamp-ops/automated-puppet-impact-analysis-1
c1
GitHub projects:
○ https://github.com/camptocamp/puppet-catalog-diff
○ https://github.com/camptocamp/puppet-catalog-diff-viewer
○ https://github.com/camptocamp/puppet-gitlabci-pipelines
