The TR-SL Series is a smaller, powerful client adapter (CPE) that features NAT routing, QoS, encryption, and other functions similar to Tranzeo's TR-CPQ Series. It is available in 2.4GHz, 5.8GHz, and 900MHz frequencies and has a low power draw of only 4 watts, making it suitable for solar and alternative power sources. The TR-SL9 model provides a high gain output of +29dBm and adjustable power levels for different installation needs.

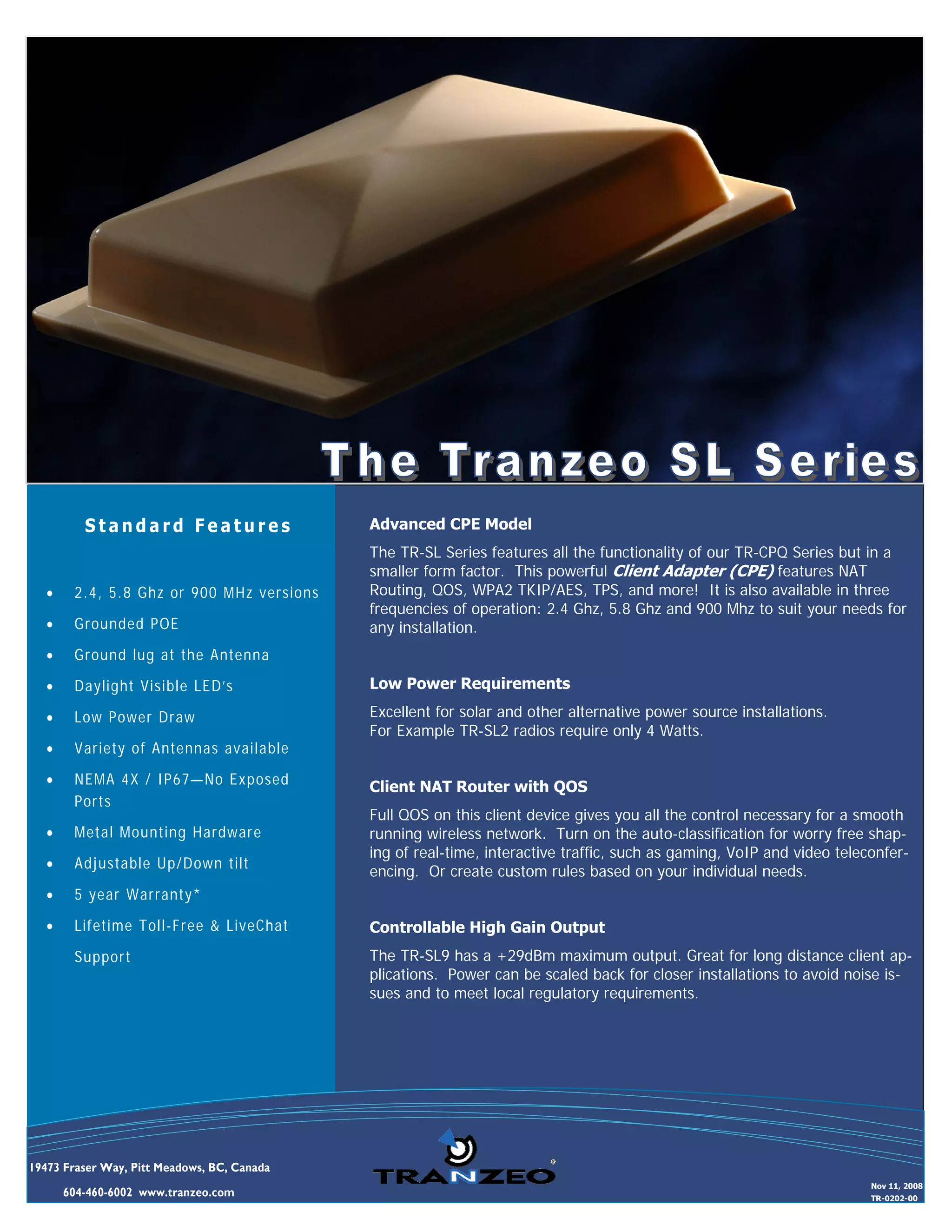

1. Standard Features Advanced CPE Model
The TR-SL Series features all the functionality of our TR-CPQ Series but in a
smaller form factor. This powerful Client Adapter (CPE) features NAT
• 2.4, 5.8 Ghz or 900 MHz versions Routing, QOS, WPA2 TKIP/AES, TPS, and more! It is also available in three
frequencies of operation: 2.4 Ghz, 5.8 Ghz and 900 Mhz to suit your needs for
• Grounded POE any installation.
• Ground lug at the Antenna
• Daylight Visible LED’s Low Power Requirements
• Low Power Draw Excellent for solar and other alternative power source installations.
For Example TR-SL2 radios require only 4 Watts.
• Variety of Antennas available
• NEMA 4X / IP67—No Exposed Client NAT Router with QOS
Ports
Full QOS on this client device gives you all the control necessary for a smooth
• Metal Mounting Hardware running wireless network. Turn on the auto-classification for worry free shap-
ing of real-time, interactive traffic, such as gaming, VoIP and video teleconfer-
• Adjustable Up/Down tilt
encing. Or create custom rules based on your individual needs.
• 5 year Warranty*
• Lifetime Toll-Free & LiveChat Controllable High Gain Output
Support The TR-SL9 has a +29dBm maximum output. Great for long distance client ap-
plications. Power can be scaled back for closer installations to avoid noise is-
sues and to meet local regulatory requirements.
19473 Fraser Way, Pitt Meadows, BC, Canada
Nov 11, 2008
604-460-6002 www.tranzeo.com TR-0202-00

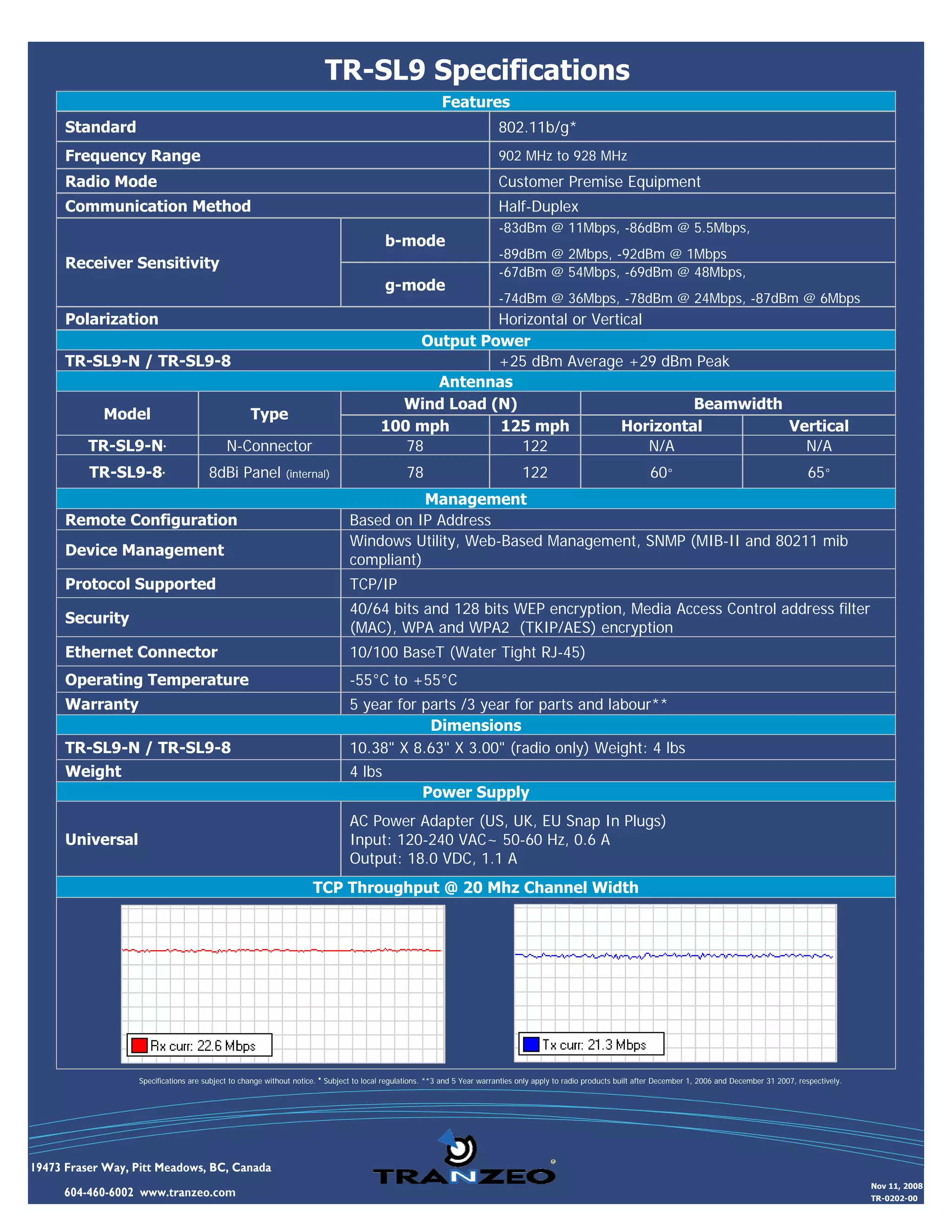

2. TR-SL9 Specifications
Features
Standard 802.11b/g*
Frequency Range 902 MHz to 928 MHz
Radio Mode Customer Premise Equipment
Communication Method Half-Duplex
-83dBm @ 11Mbps, -86dBm @ 5.5Mbps,
b-mode
-89dBm @ 2Mbps, -92dBm @ 1Mbps
Receiver Sensitivity
-67dBm @ 54Mbps, -69dBm @ 48Mbps,
g-mode
-74dBm @ 36Mbps, -78dBm @ 24Mbps, -87dBm @ 6Mbps
Polarization Horizontal or Vertical
Output Power
TR-SL9-N / TR-SL9-8 +25 dBm Average +29 dBm Peak
Antennas
Wind Load (N) Beamwidth
Model Type
100 mph 125 mph Horizontal Vertical
TR-SL9-N ●
N-Connector 78 122 N/A N/A
TR-SL9-8 ●
8dBi Panel (internal) 78 122 60° 65°
Management
Remote Configuration Based on IP Address
Windows Utility, Web-Based Management, SNMP (MIB-II and 80211 mib
Device Management
compliant)
Protocol Supported TCP/IP
40/64 bits and 128 bits WEP encryption, Media Access Control address filter
Security
(MAC), WPA and WPA2 (TKIP/AES) encryption
Ethernet Connector 10/100 BaseT (Water Tight RJ-45)
Operating Temperature -55°C to +55°C
Warranty 5 year for parts /3 year for parts and labour**
Dimensions
TR-SL9-N / TR-SL9-8 10.38" X 8.63" X 3.00" (radio only) Weight: 4 lbs
Weight 4 lbs
Power Supply
AC Power Adapter (US, UK, EU Snap In Plugs)
Universal Input: 120-240 VAC~ 50-60 Hz, 0.6 A
Output: 18.0 VDC, 1.1 A
TCP Throughput @ 20 Mhz Channel Width
●
Specifications are subject to change without notice. Subject to local regulations. **3 and 5 Year warranties only apply to radio products built after December 1, 2006 and December 31 2007, respectively.
