Pros & Cons of Microservices Architecture
The document discusses the pros and cons of microservices architecture for cloud applications, emphasizing the transition from monolithic applications to smaller, independently deployable services. It outlines common issues in software development, such as technical debt and improper tooling, while proposing microservices as a potential solution and detailing their benefits and drawbacks. Additionally, it highlights the importance of understanding application and organizational qualifications for adopting microservices, along with best practices for cloud-native development.
More Related Content
Similar to Pros & Cons of Microservices Architecture
Pros & Cons of Microservices Architecture
- 2. Patterns, Practices thatwork! Architecting applications for the cloud Pros and Cons of Micro Services • Ashwini Kuntamukkala • Sr. Enterprise Solutions Architect, Vizient, Inc • Twitter @akuntamukkala
- 3.

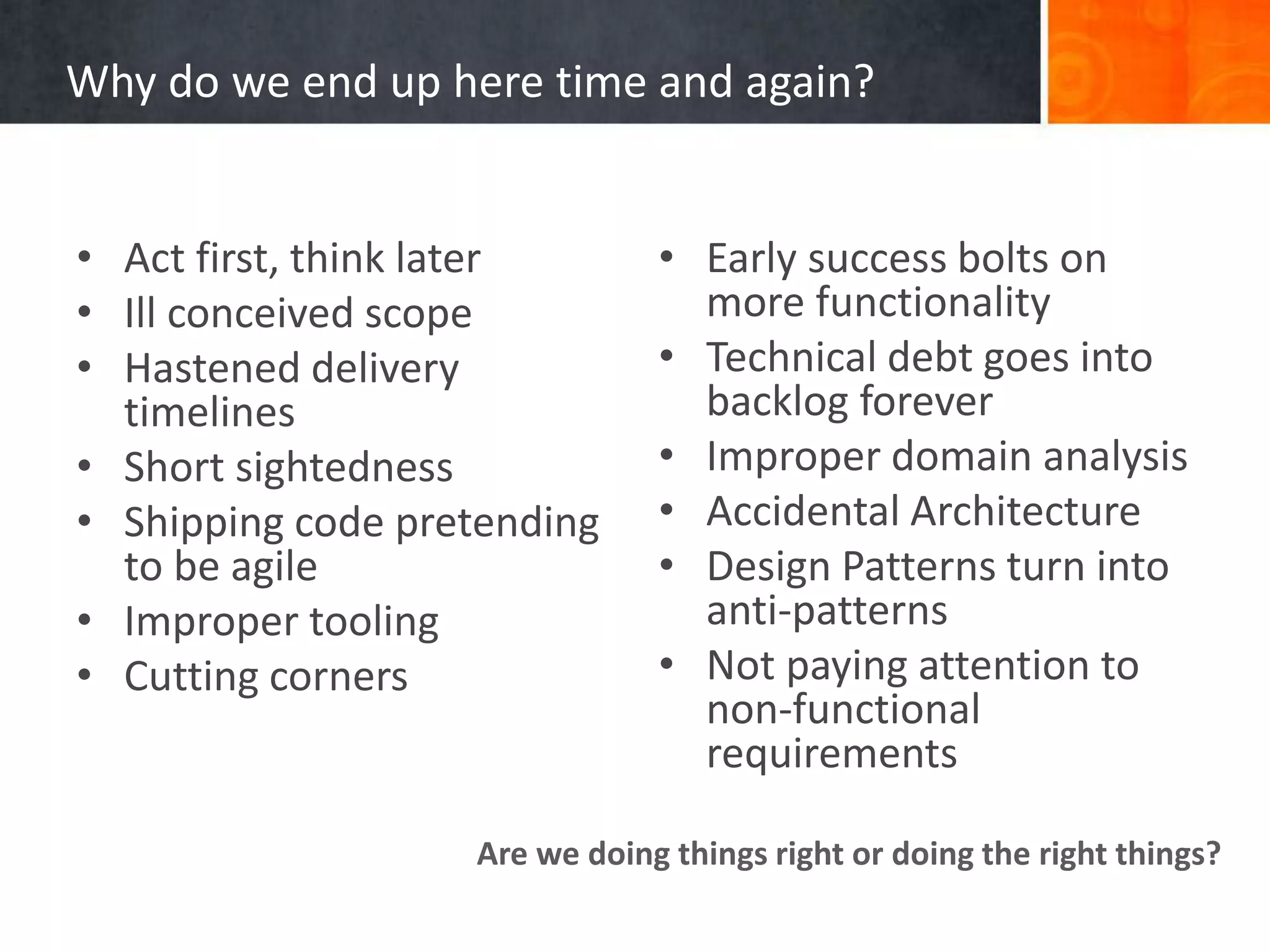

- 5. Why do weend up here time and again? • Act first, think later • Ill conceived scope • Hastened delivery timelines • Short sightedness • Shipping code pretending to be agile • Improper tooling • Cutting corners • Early success bolts on more functionality • Technical debt goes into backlog forever • Improper domain analysis • Accidental Architecture • Design Patterns turn into anti-patterns • Not paying attention to non-functional requirements Are we doing things right or doing the right things?

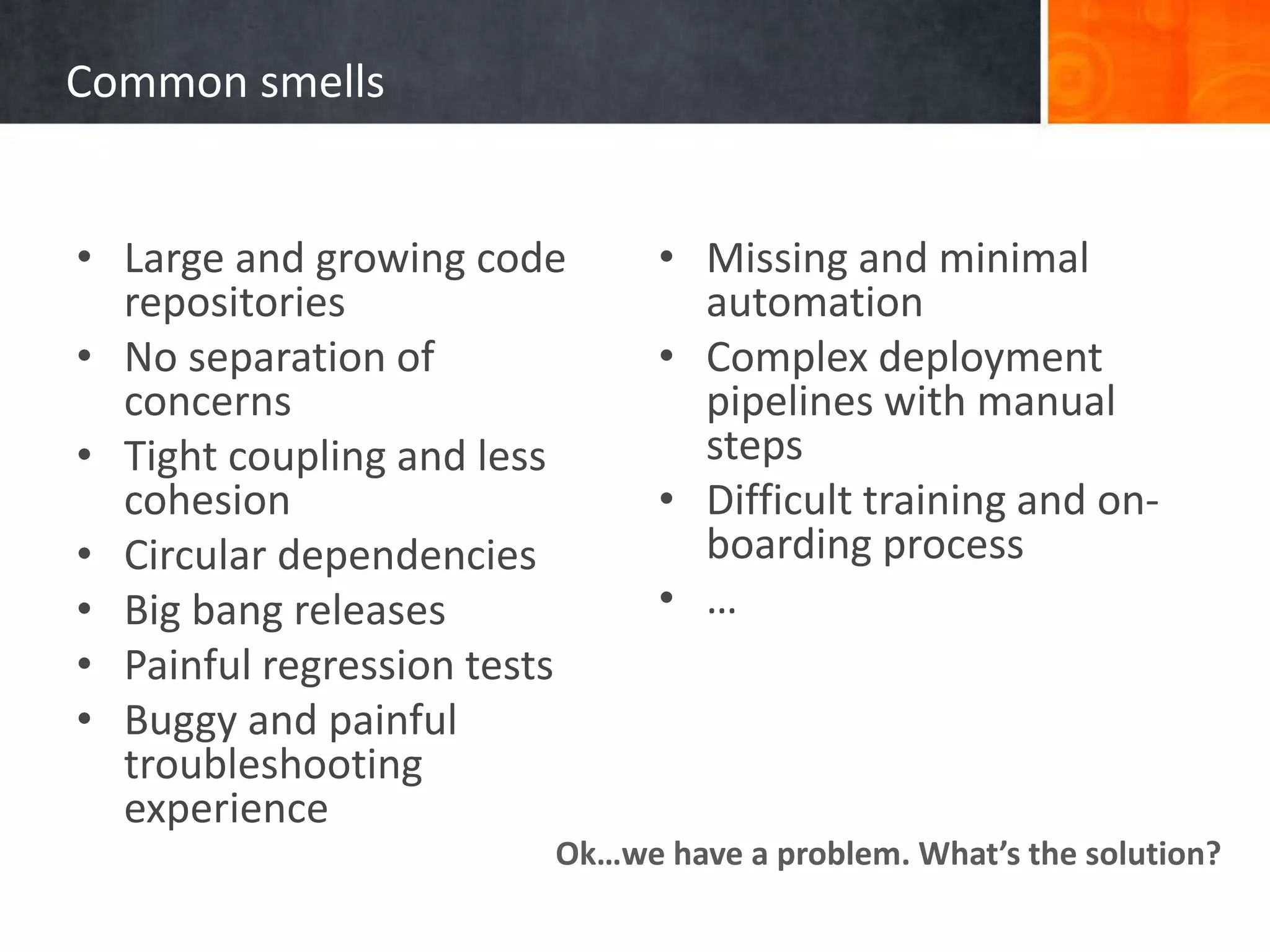

- 6. Common smells • Largeand growing code repositories • No separation of concerns • Tight coupling and less cohesion • Circular dependencies • Big bang releases • Painful regression tests • Buggy and painful troubleshooting experience • Missing and minimal automation • Complex deployment pipelines with manual steps • Difficult training and on- boarding process • … Ok…we have a problem. What’s the solution?
- 7. Micro services...but isit really? • Buzz word? • Fad? • COTS? • Library? • Framework? • Platform? • Architecture Pattern?

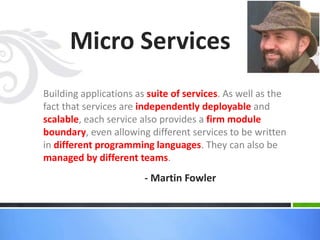

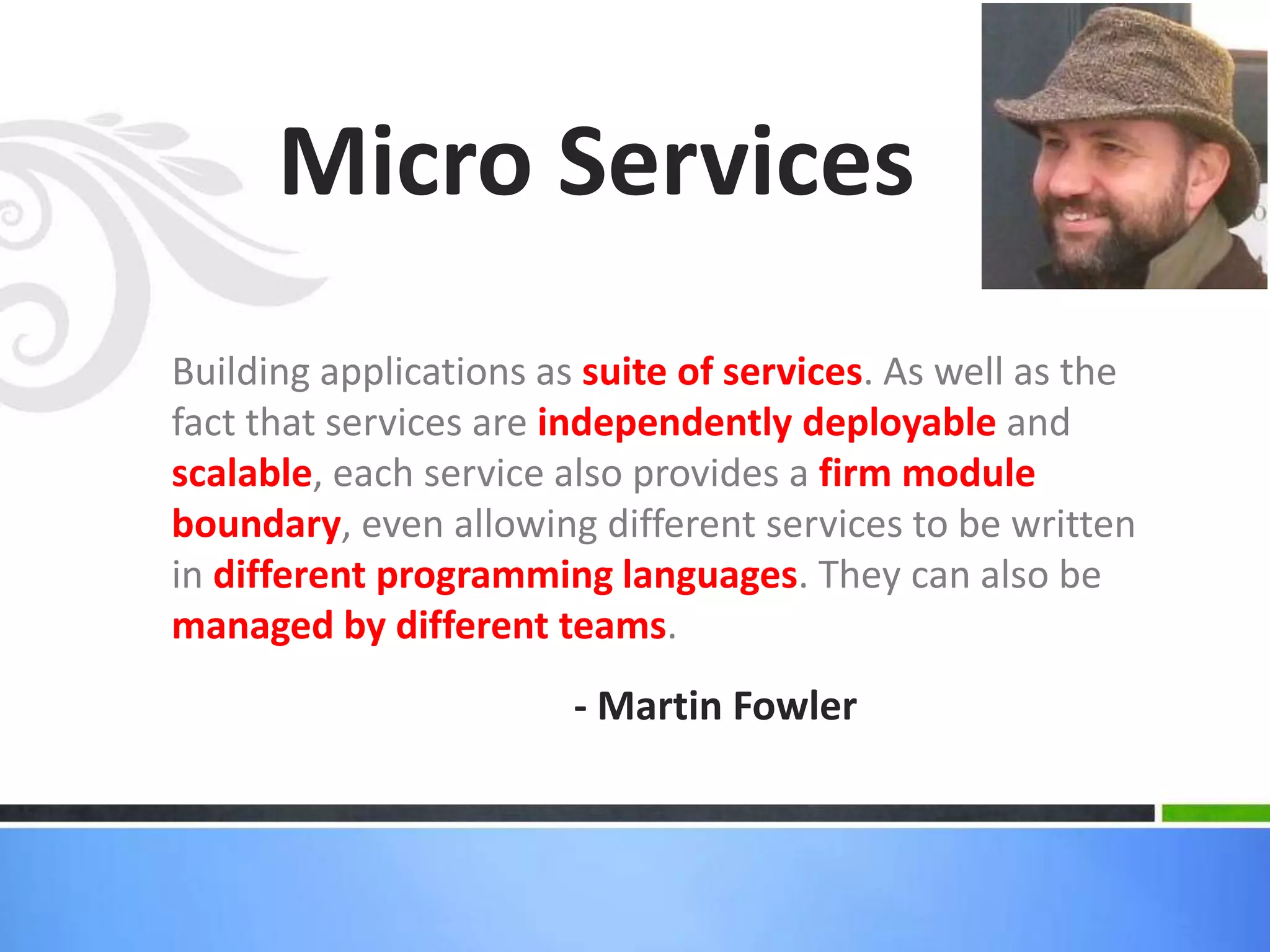

- 8. Building applications assuite of services. As well as the fact that services are independently deployable and scalable, each service also provides a firm module boundary, even allowing different services to be written in different programming languages. They can also be managed by different teams. Micro Services - Martin Fowler

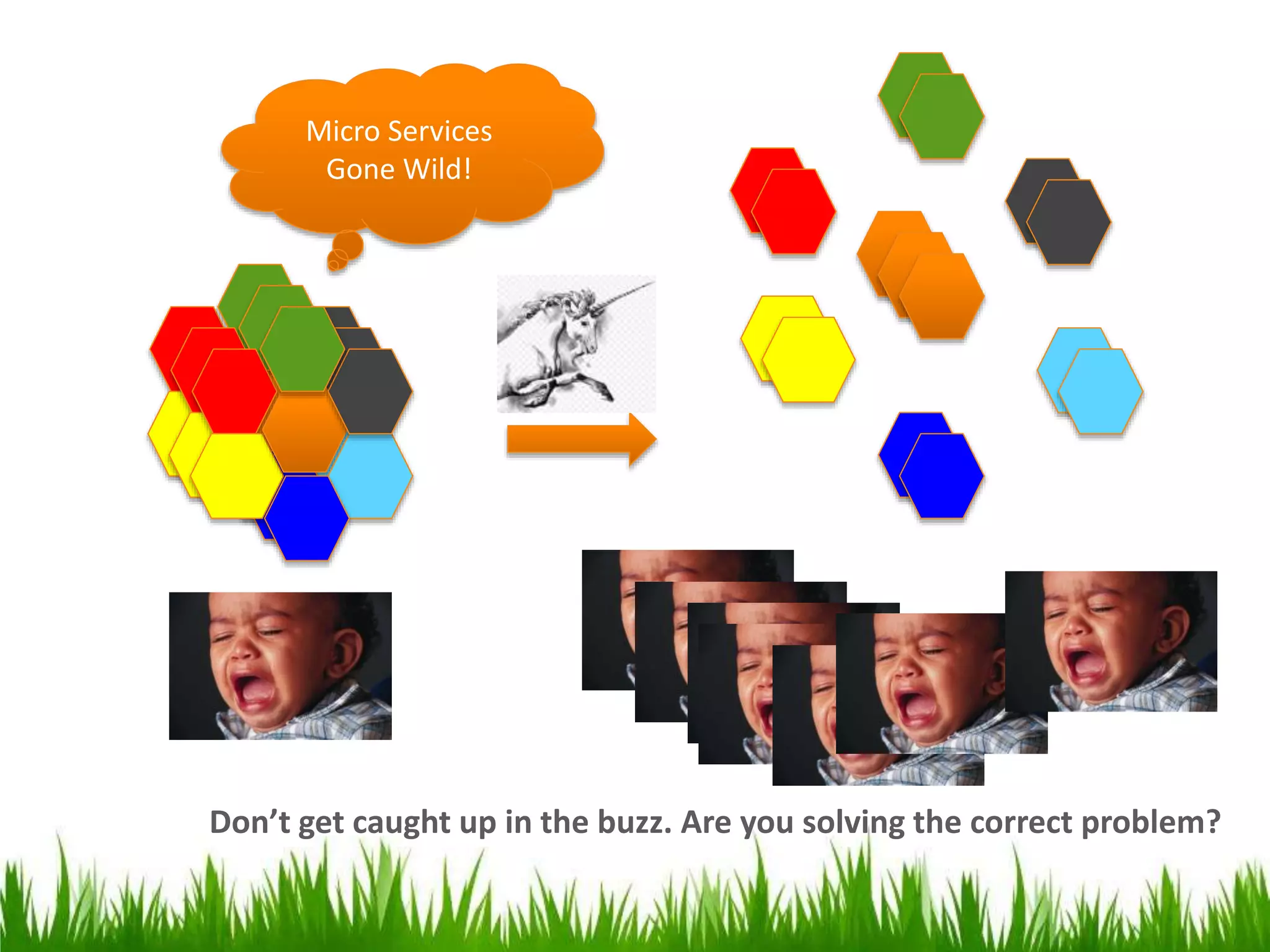

- 9. Don’t get caughtup in the buzz. Are you solving the correct problem? Micro Services Gone Wild!

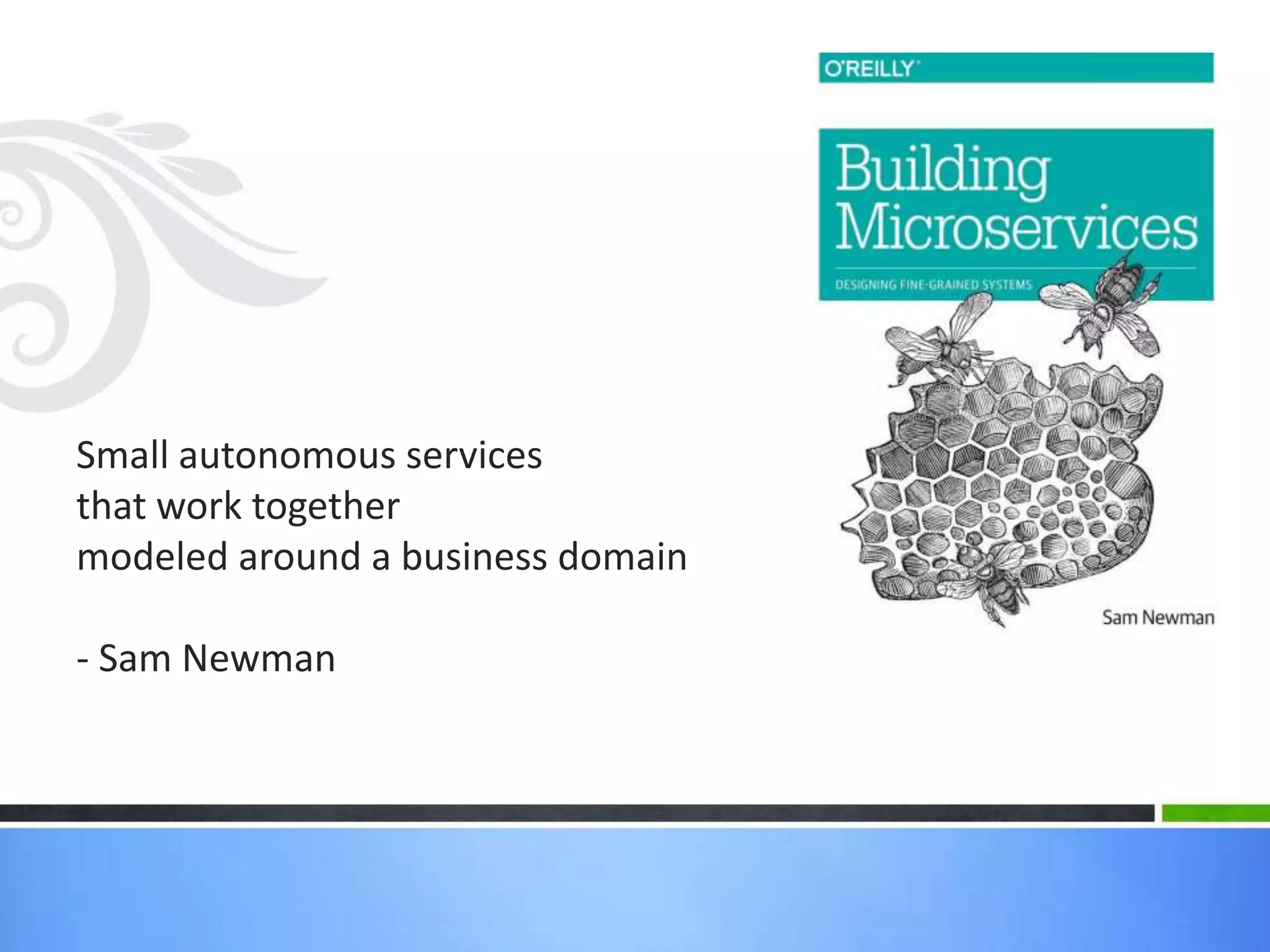

- 10. Small autonomous services thatwork together modeled around a business domain - Sam Newman

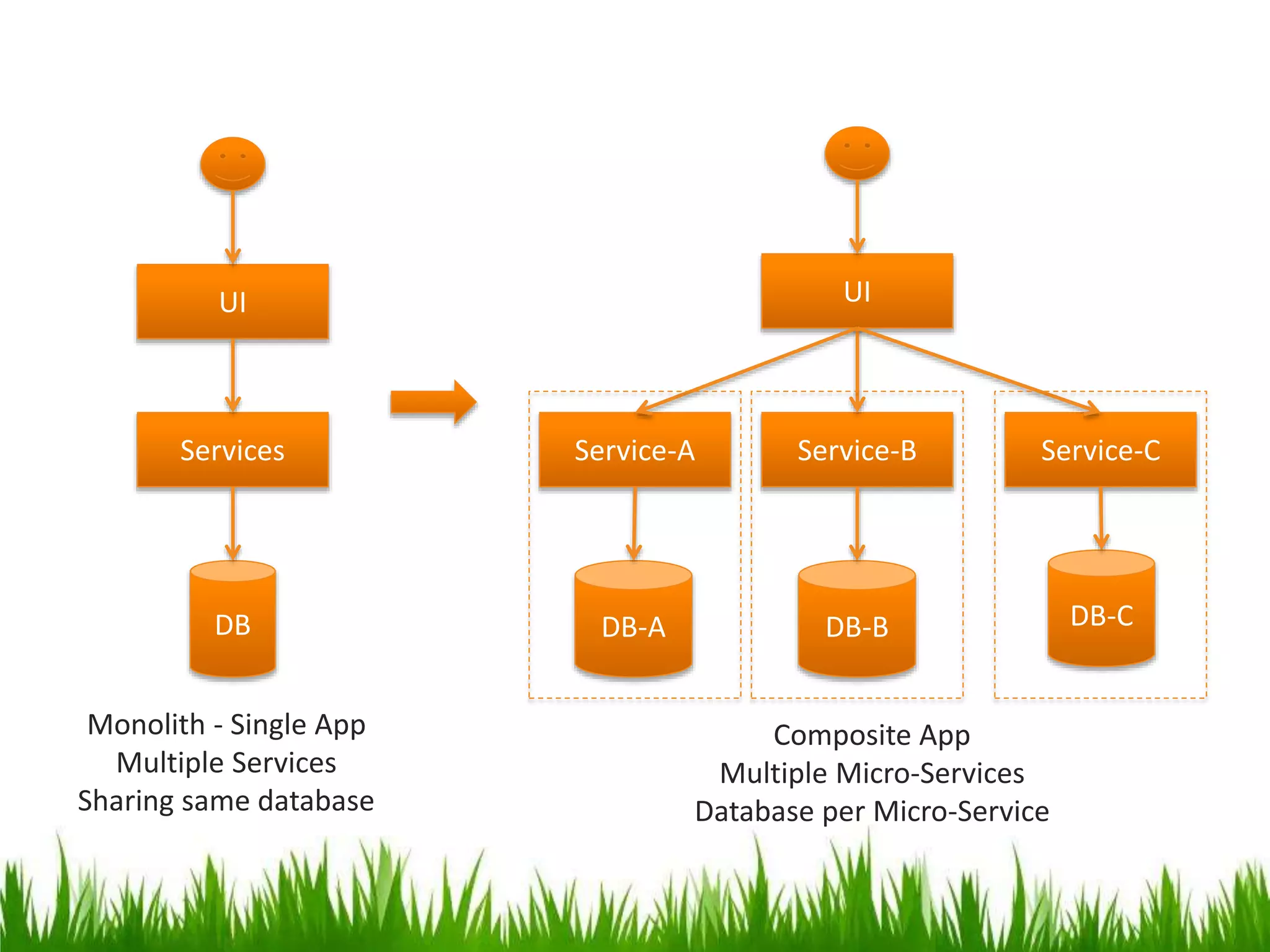

- 11. UI Services DB UI Service-A DB-A Service-B DB-B Service-C DB-C Monolith - SingleApp Multiple Services Sharing same database Composite App Multiple Micro-Services Database per Micro-Service

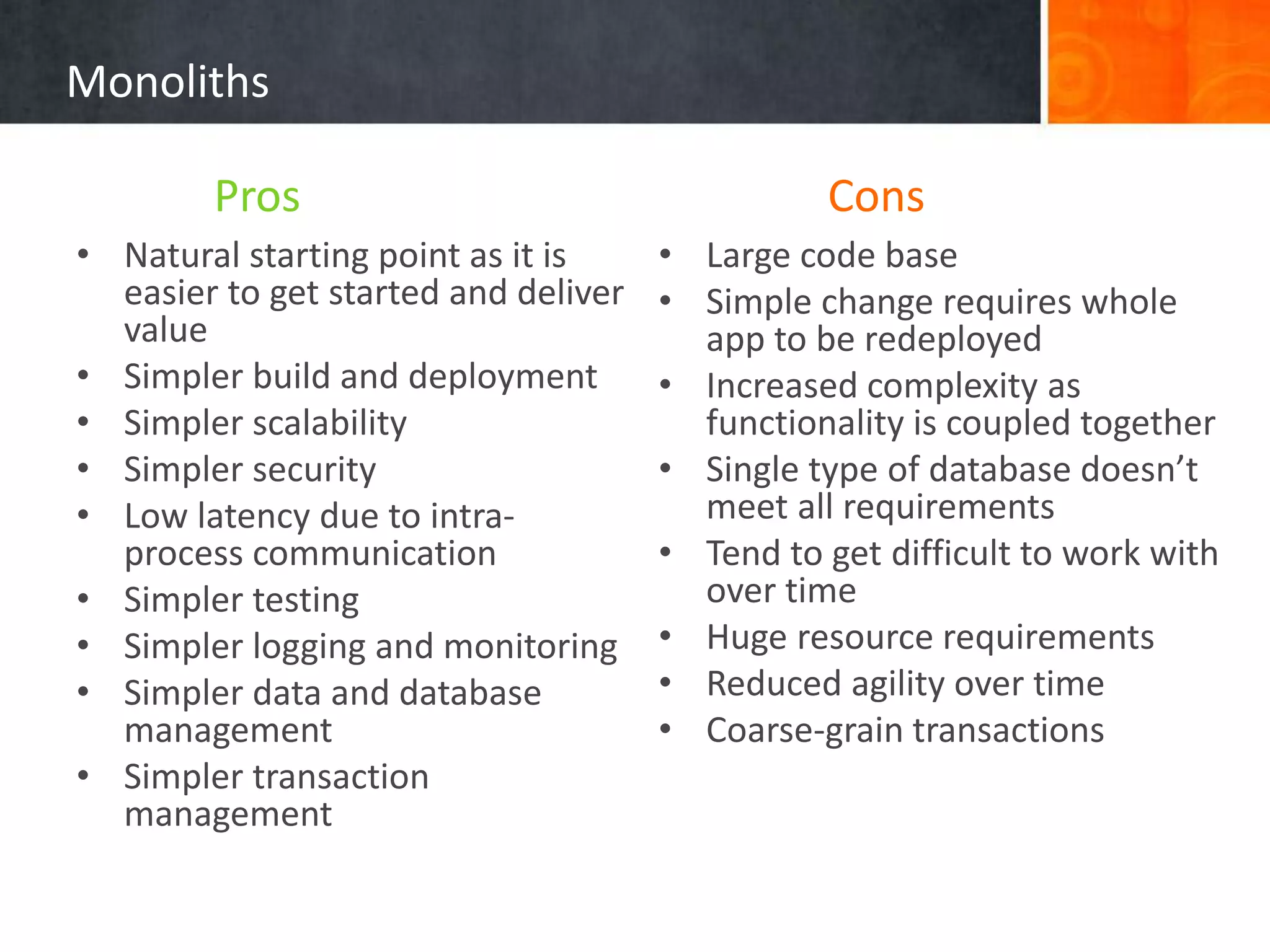

- 12. Monoliths • Natural startingpoint as it is easier to get started and deliver value • Simpler build and deployment • Simpler scalability • Simpler security • Low latency due to intra- process communication • Simpler testing • Simpler logging and monitoring • Simpler data and database management • Simpler transaction management • Large code base • Simple change requires whole app to be redeployed • Increased complexity as functionality is coupled together • Single type of database doesn’t meet all requirements • Tend to get difficult to work with over time • Huge resource requirements • Reduced agility over time • Coarse-grain transactions Pros Cons
- 13.

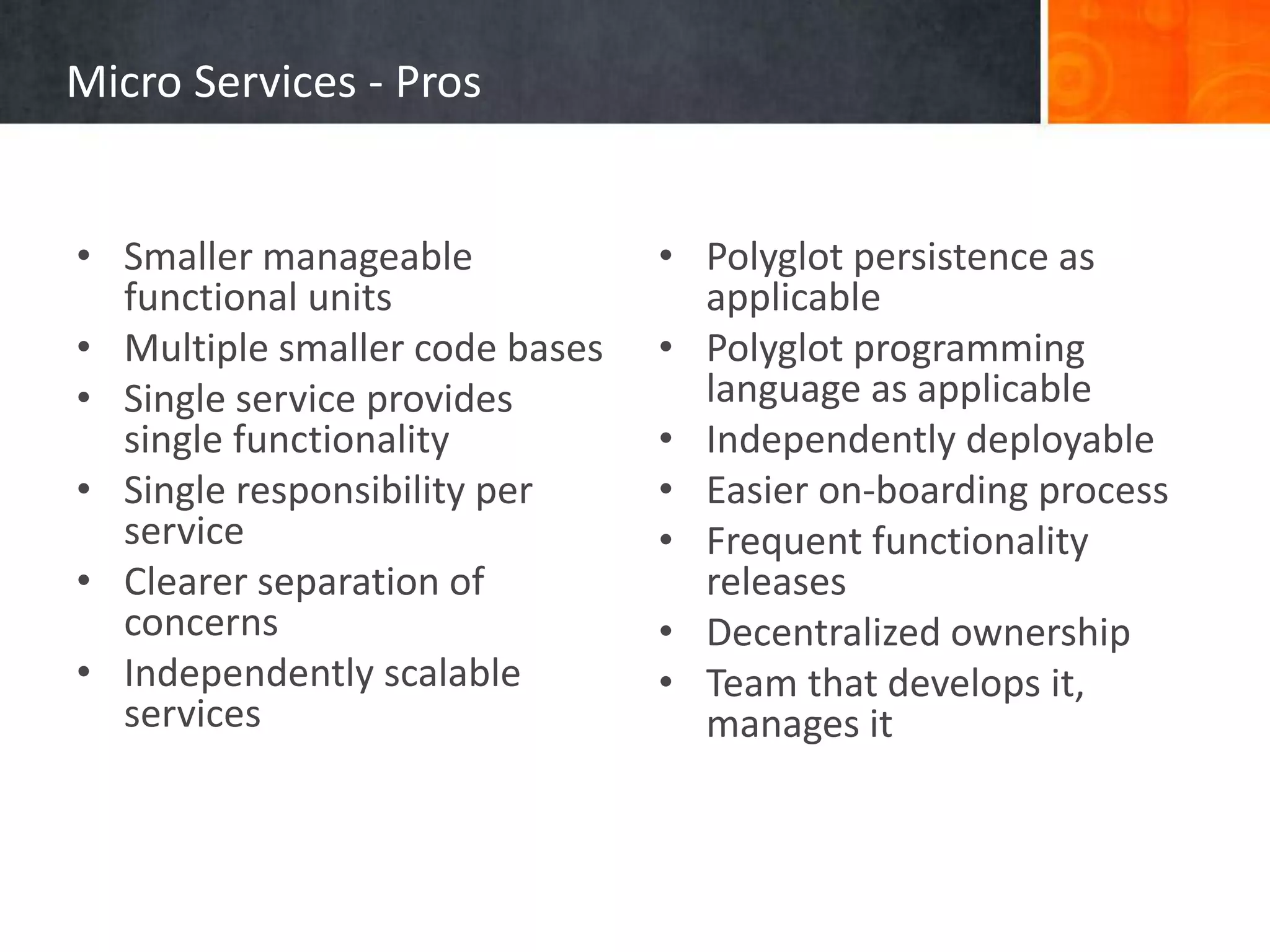

- 14. Micro Services -Pros • Smaller manageable functional units • Multiple smaller code bases • Single service provides single functionality • Single responsibility per service • Clearer separation of concerns • Independently scalable services • Polyglot persistence as applicable • Polyglot programming language as applicable • Independently deployable • Easier on-boarding process • Frequent functionality releases • Decentralized ownership • Team that develops it, manages it

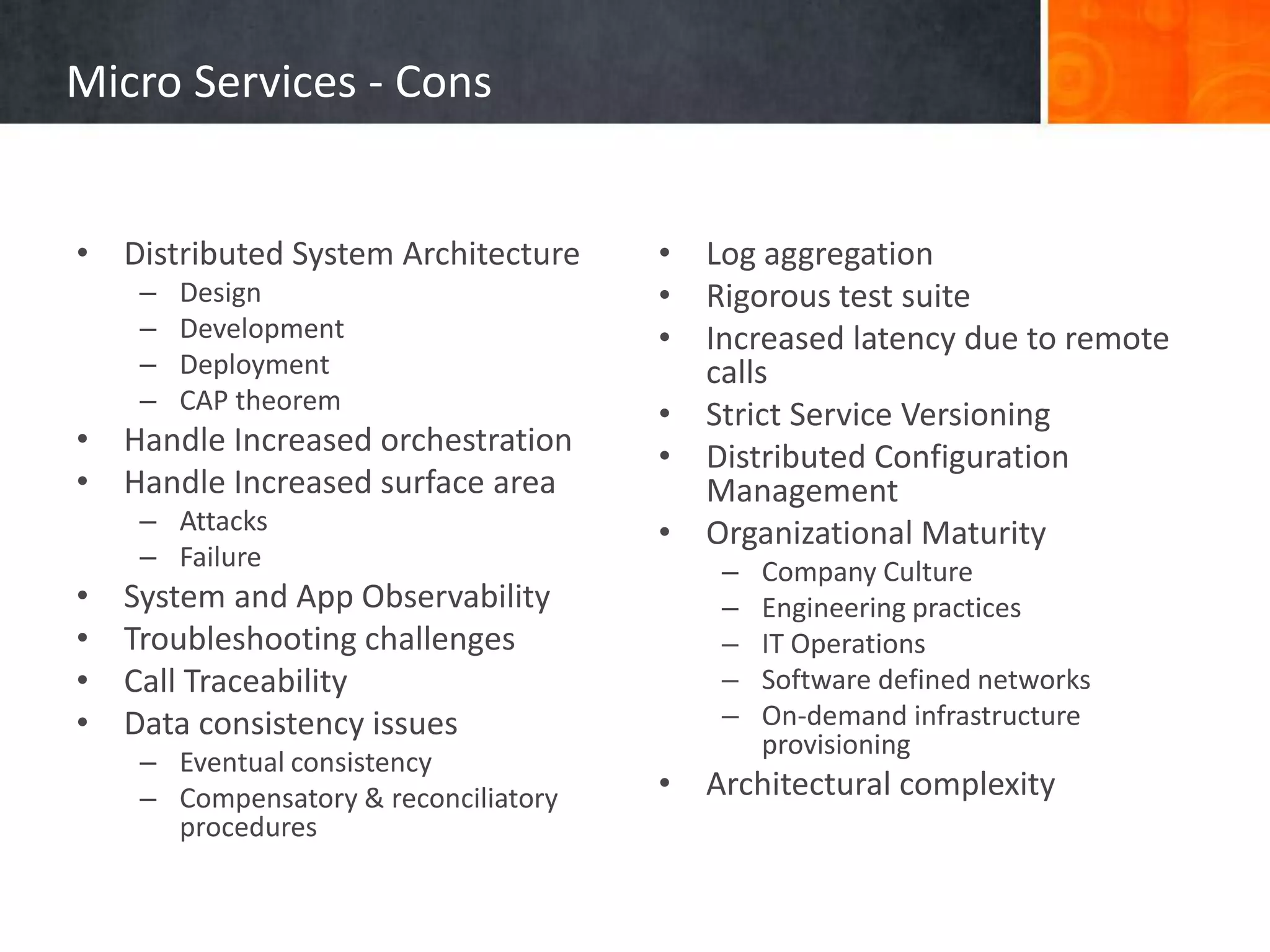

- 15. Micro Services -Cons • Distributed System Architecture – Design – Development – Deployment – CAP theorem • Handle Increased orchestration • Handle Increased surface area – Attacks – Failure • System and App Observability • Troubleshooting challenges • Call Traceability • Data consistency issues – Eventual consistency – Compensatory & reconciliatory procedures • Log aggregation • Rigorous test suite • Increased latency due to remote calls • Strict Service Versioning • Distributed Configuration Management • Organizational Maturity – Company Culture – Engineering practices – IT Operations – Software defined networks – On-demand infrastructure provisioning • Architectural complexity
- 16. Source: https://martinfowler.com/bliki/MicroservicePrerequisites.html • Ondemand IT provisioning • System and App Monitoring • Mature CI/CD pipelines • DevOps culture
- 17. Qualifications for microservices - Application - Organization

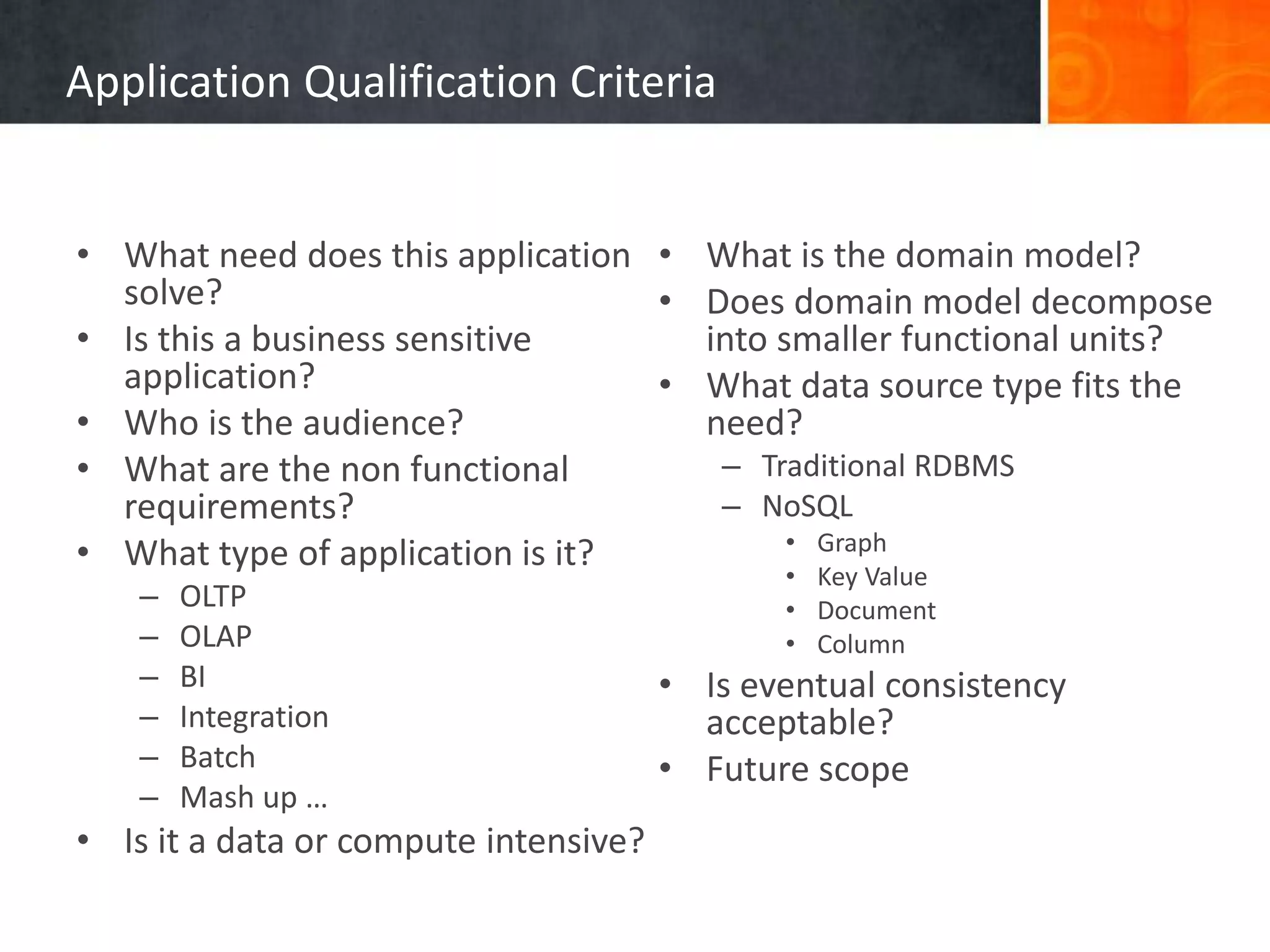

- 18. Application Qualification Criteria •What need does this application solve? • Is this a business sensitive application? • Who is the audience? • What are the non functional requirements? • What type of application is it? – OLTP – OLAP – BI – Integration – Batch – Mash up … • Is it a data or compute intensive? • What is the domain model? • Does domain model decompose into smaller functional units? • What data source type fits the need? – Traditional RDBMS – NoSQL • Graph • Key Value • Document • Column • Is eventual consistency acceptable? • Future scope

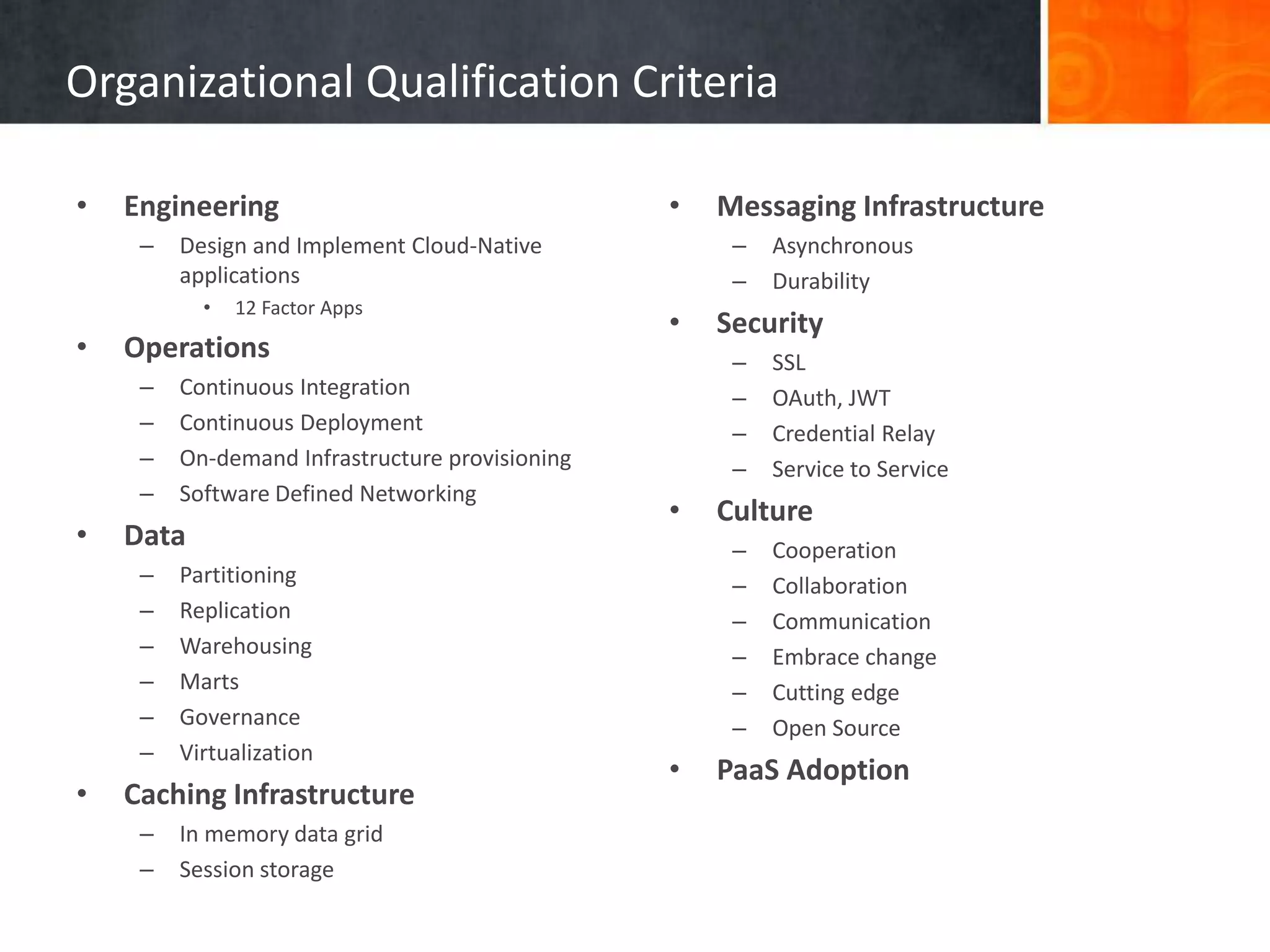

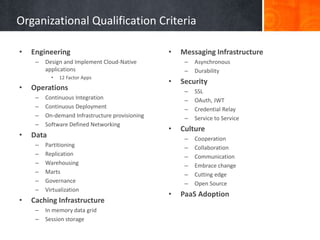

- 19. Organizational Qualification Criteria •Engineering – Design and Implement Cloud-Native applications • 12 Factor Apps • Operations – Continuous Integration – Continuous Deployment – On-demand Infrastructure provisioning – Software Defined Networking • Data – Partitioning – Replication – Warehousing – Marts – Governance – Virtualization • Caching Infrastructure – In memory data grid – Session storage • Messaging Infrastructure – Asynchronous – Durability • Security – SSL – OAuth, JWT – Credential Relay – Service to Service • Culture – Cooperation – Collaboration – Communication – Embrace change – Cutting edge – Open Source • PaaS Adoption

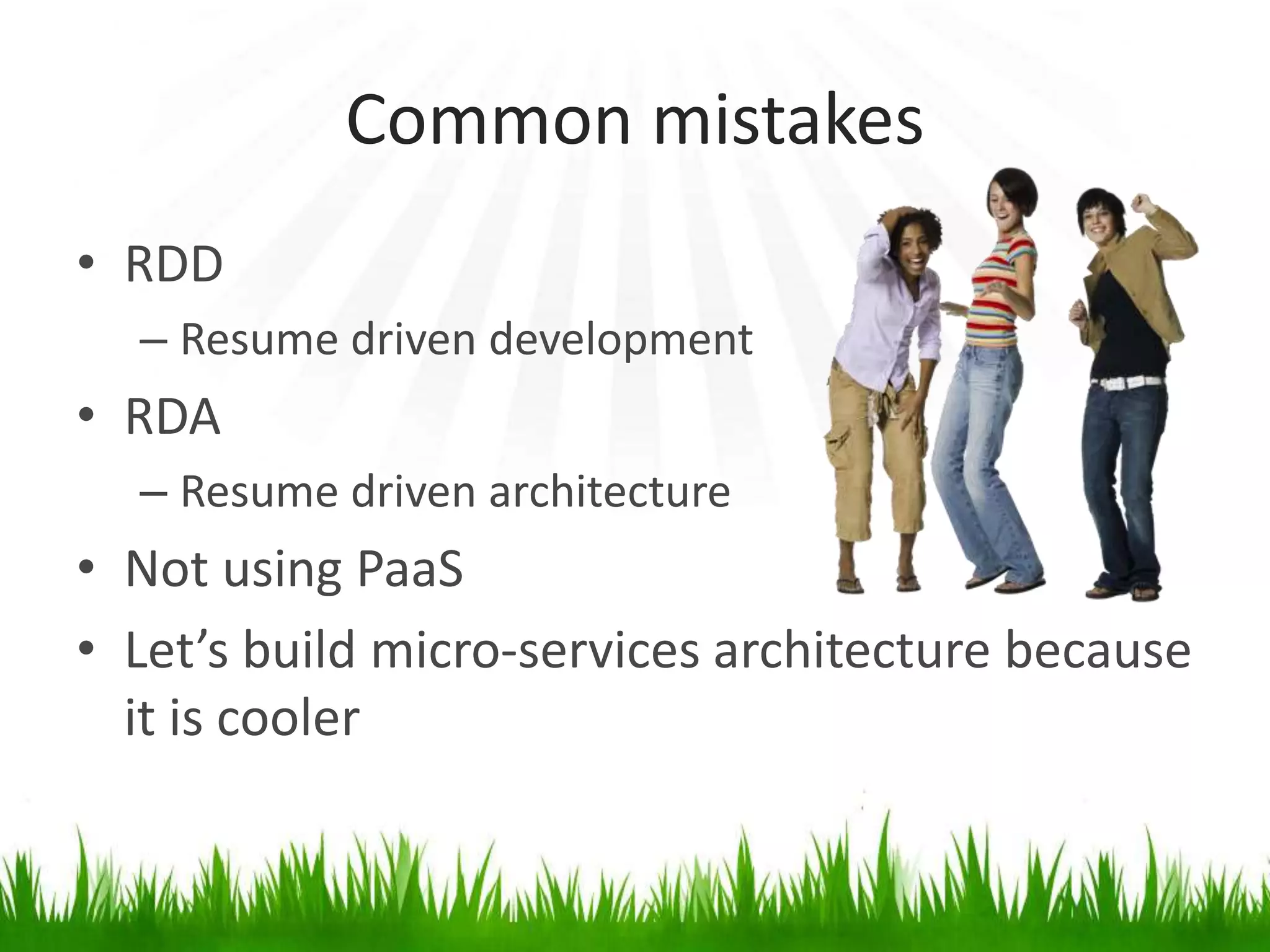

- 20. Common mistakes • RDD –Resume driven development • RDA – Resume driven architecture • Not using PaaS • Let’s build micro-services architecture because it is cooler
- 21. Building Cloud-Native Applications So youthink you are ready to embark on this journey…

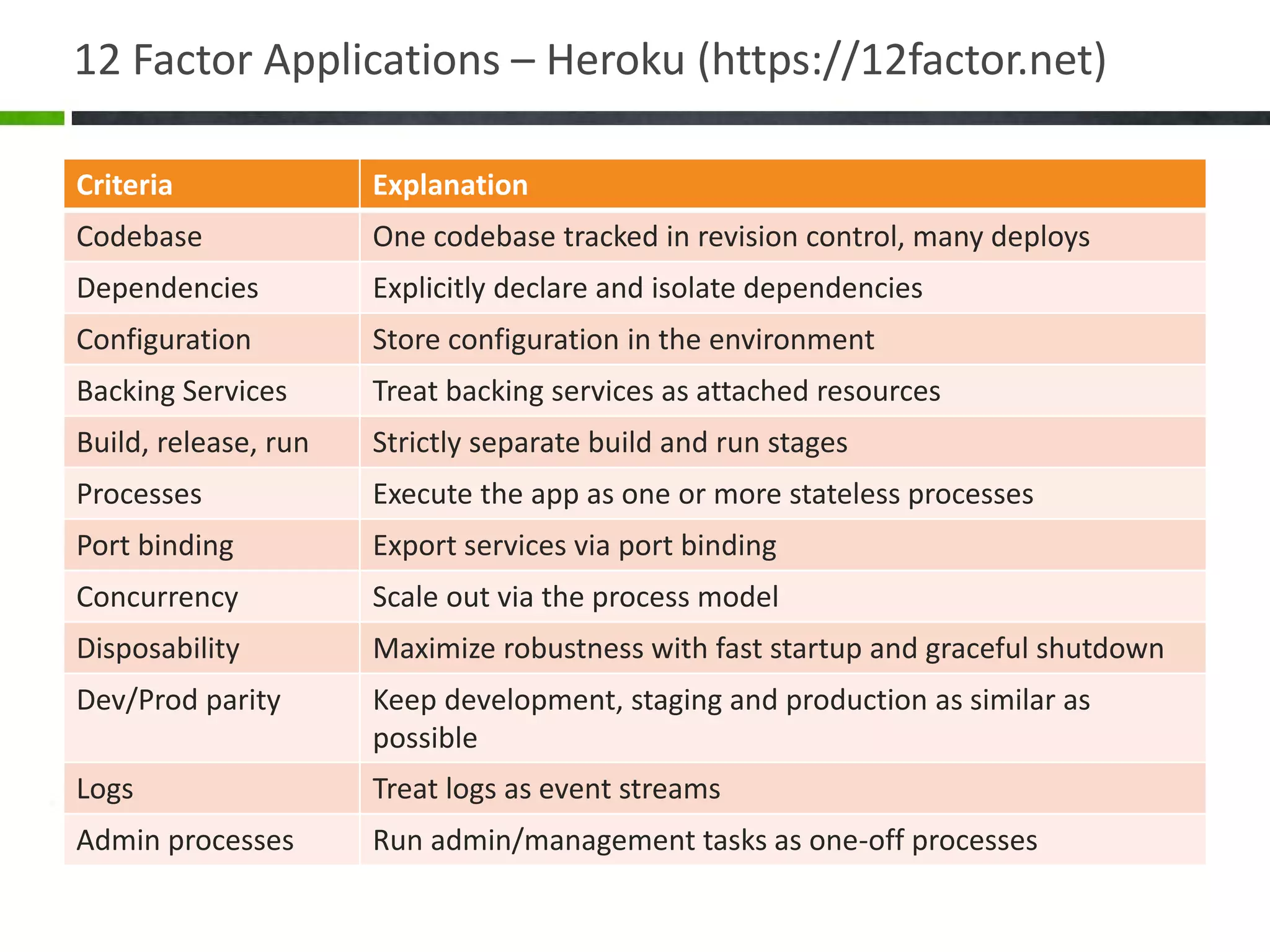

- 22. 12 Factor Applications– Heroku (https://12factor.net) Criteria Explanation Codebase One codebase tracked in revision control, many deploys Dependencies Explicitly declare and isolate dependencies Configuration Store configuration in the environment Backing Services Treat backing services as attached resources Build, release, run Strictly separate build and run stages Processes Execute the app as one or more stateless processes Port binding Export services via port binding Concurrency Scale out via the process model Disposability Maximize robustness with fast startup and graceful shutdown Dev/Prod parity Keep development, staging and production as similar as possible Logs Treat logs as event streams Admin processes Run admin/management tasks as one-off processes

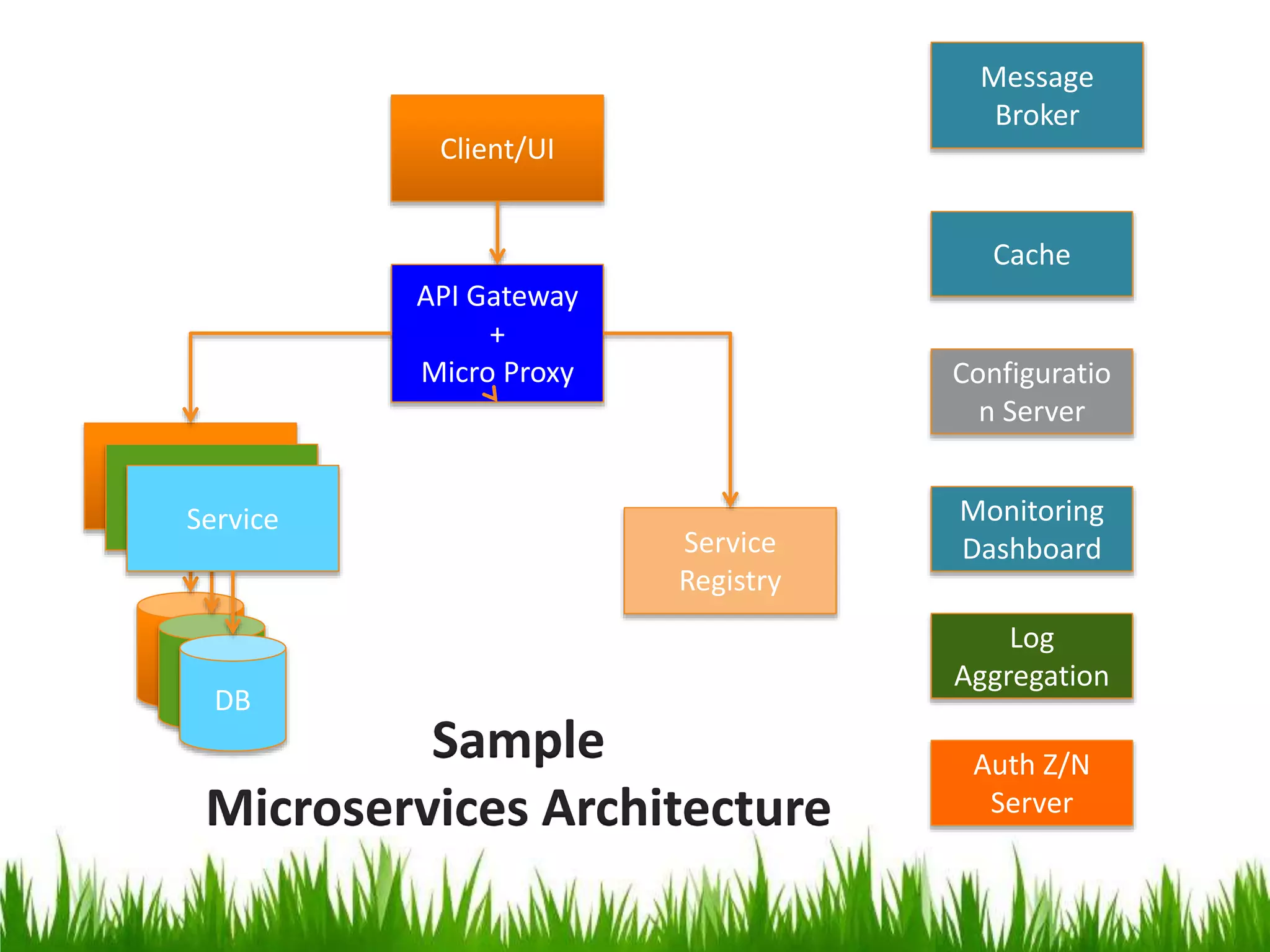

- 23. API Gateway + Micro Proxy Client/UI Service Registry Service DB Service DB Service DB Monitoring Dashboard Configuratio nServer Auth Z/N Server Log Aggregation Sample Microservices Architecture Cache Message Broker
- 24.

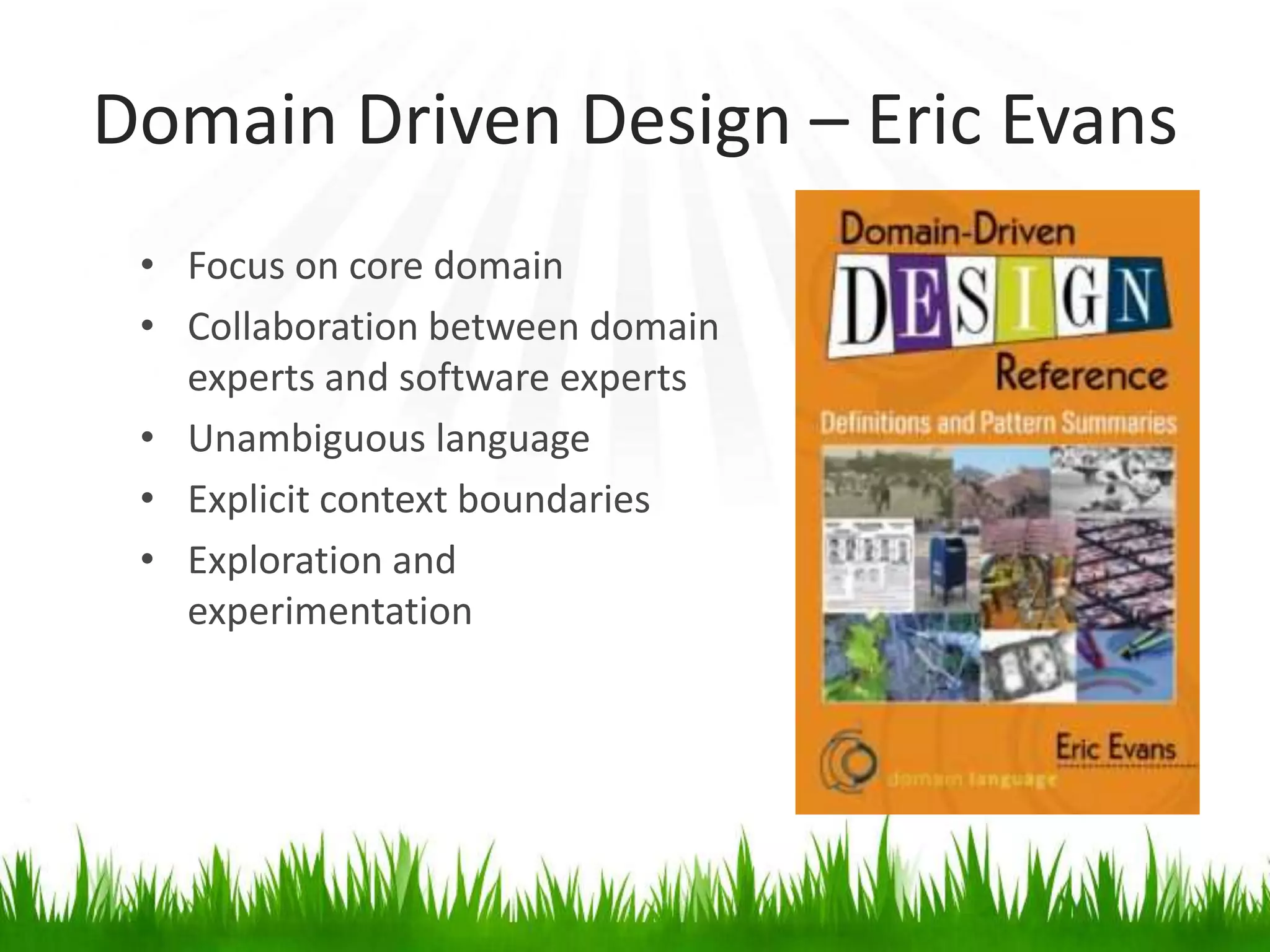

- 25. Domain Driven Design– Eric Evans • Focus on core domain • Collaboration between domain experts and software experts • Unambiguous language • Explicit context boundaries • Exploration and experimentation

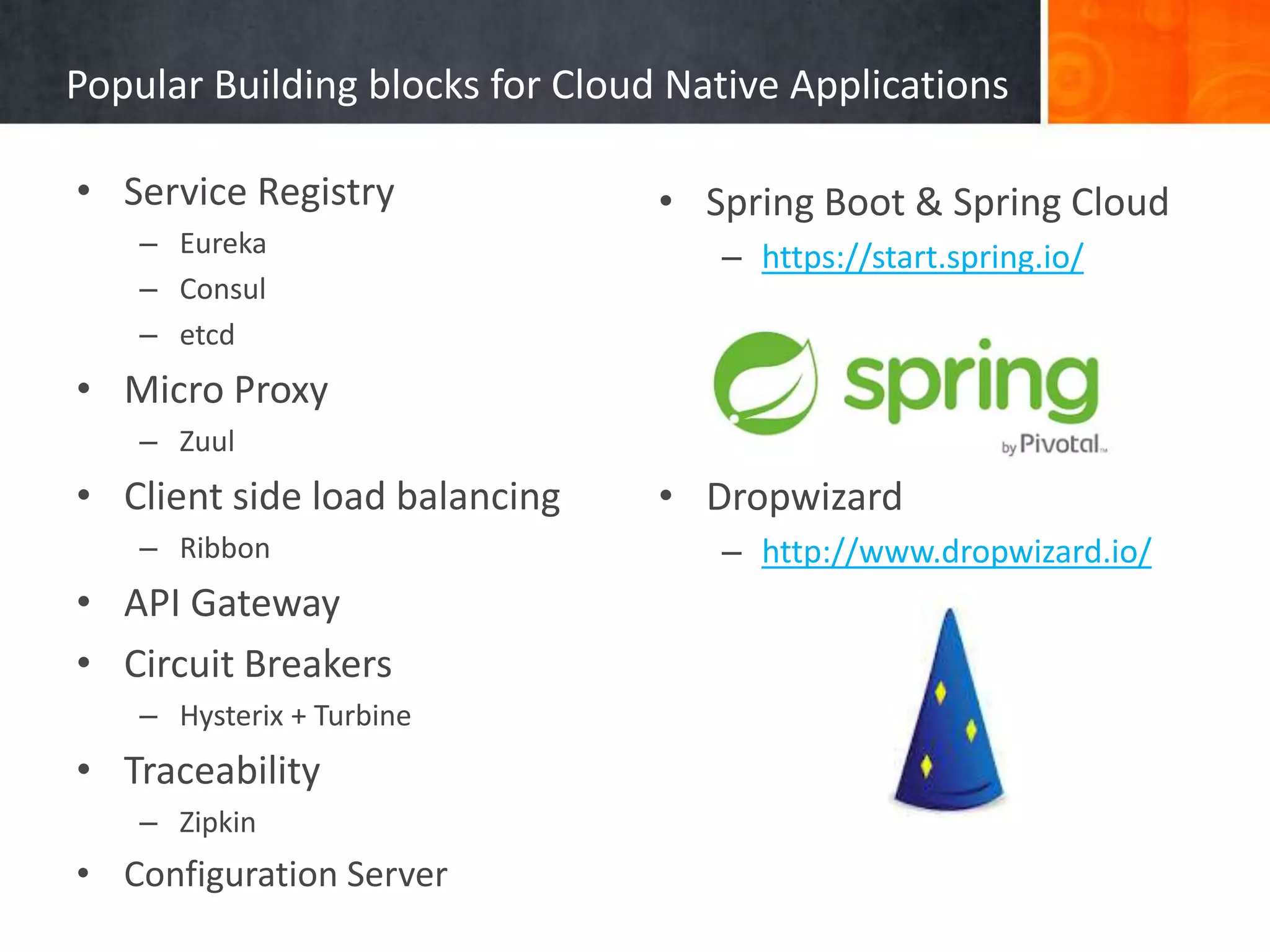

- 26. Popular Building blocksfor Cloud Native Applications • Service Registry – Eureka – Consul – etcd • Micro Proxy – Zuul • Client side load balancing – Ribbon • API Gateway • Circuit Breakers – Hysterix + Turbine • Traceability – Zipkin • Configuration Server • Spring Boot & Spring Cloud – https://start.spring.io/ • Dropwizard – http://www.dropwizard.io/

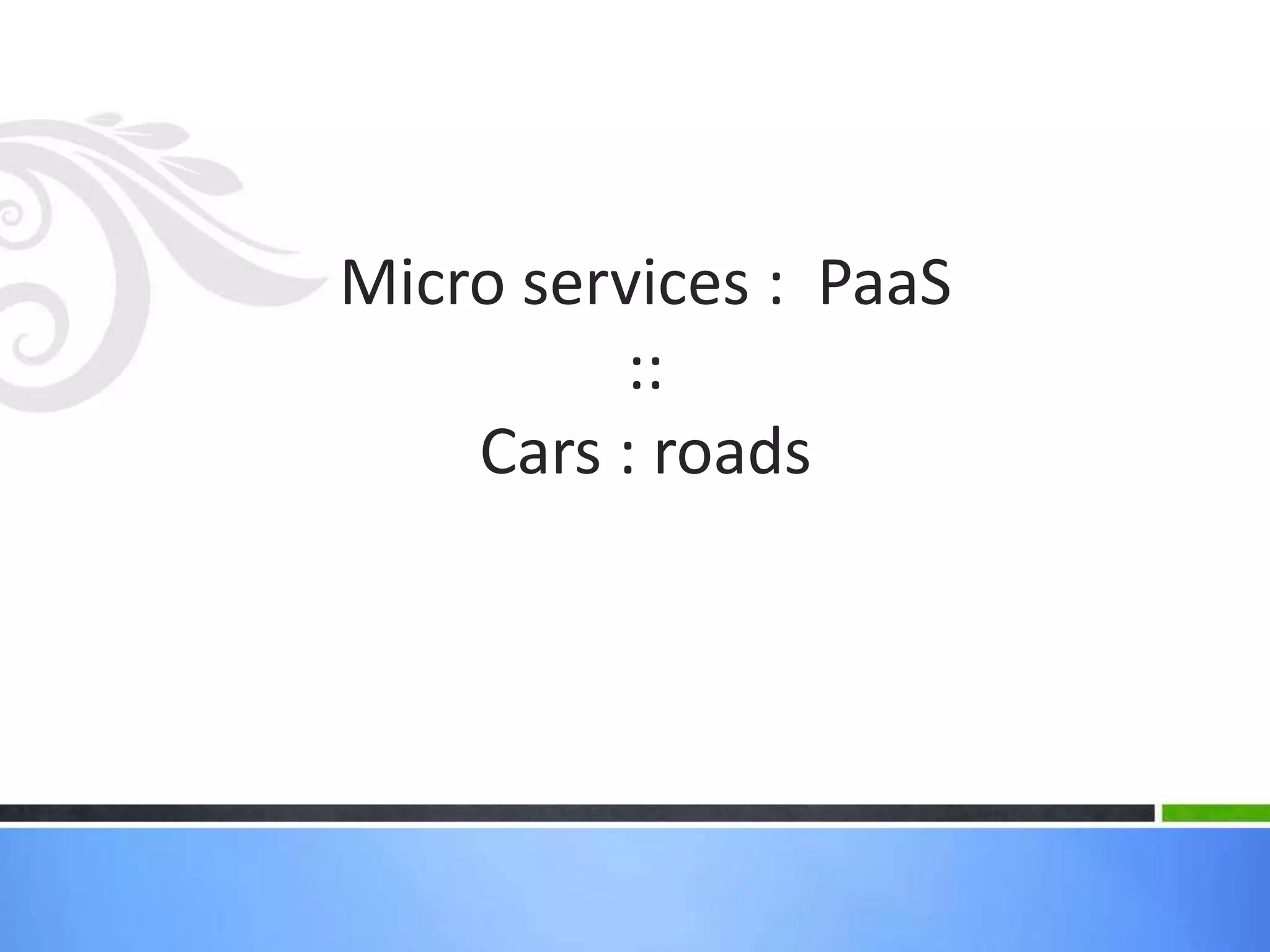

- 27. Micro services :PaaS :: Cars : roads
- 28.

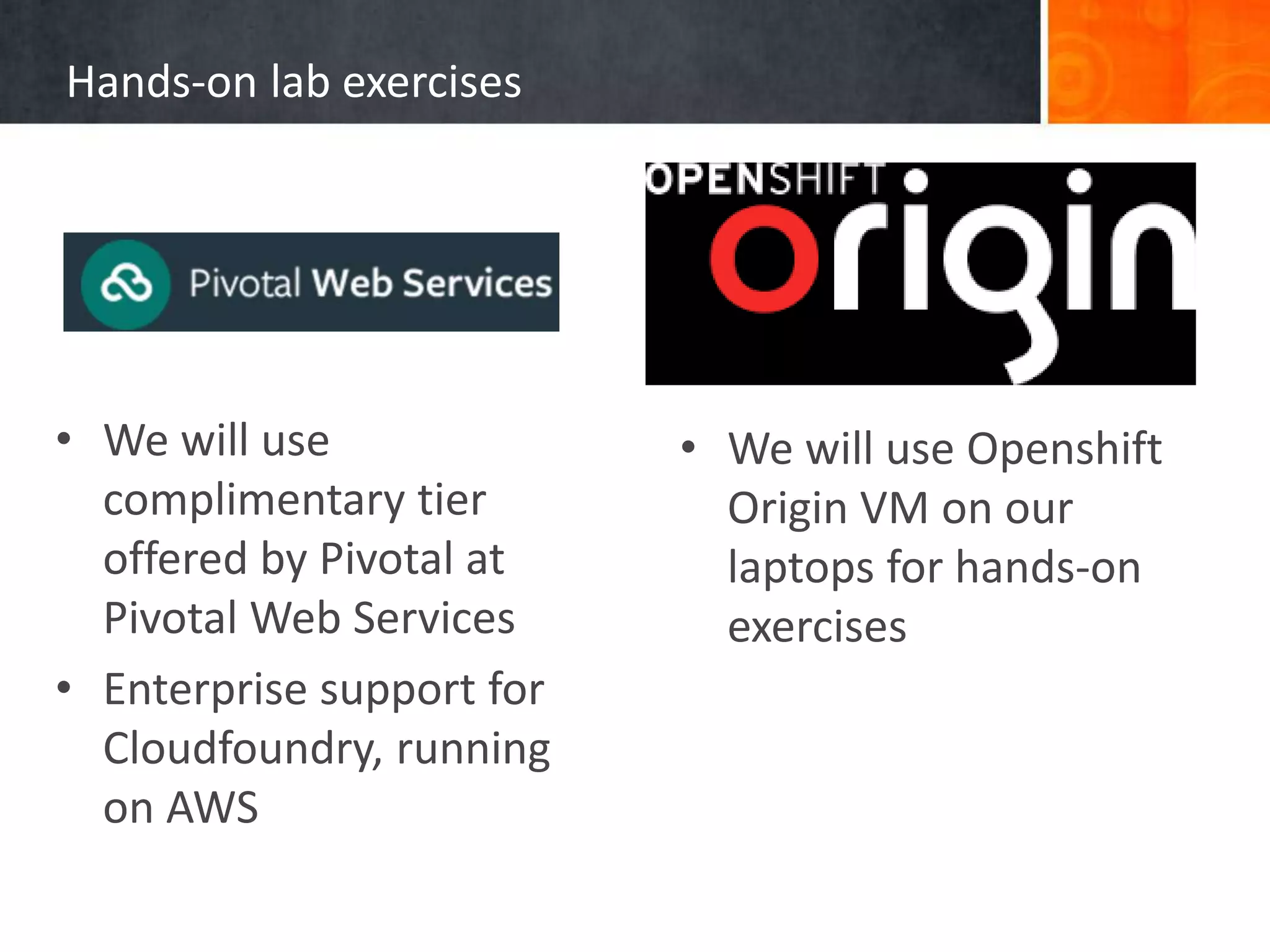

- 29. Hands-on lab exercises •We will use complimentary tier offered by Pivotal at Pivotal Web Services • Enterprise support for Cloudfoundry, running on AWS • We will use Openshift Origin VM on our laptops for hands-on exercises
- 30.

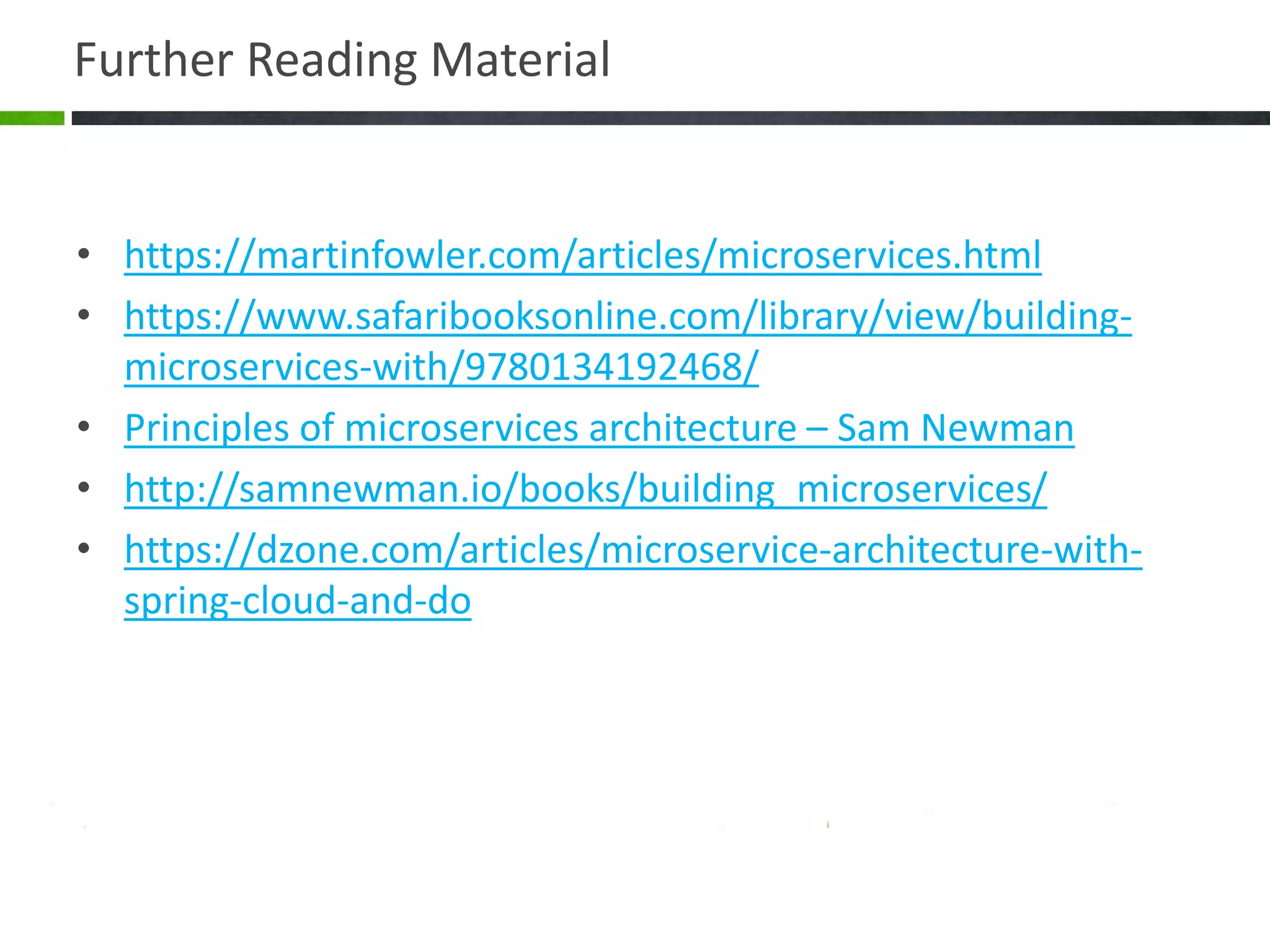

- 31. Further Reading Material •https://martinfowler.com/articles/microservices.html • https://www.safaribooksonline.com/library/view/building- microservices-with/9780134192468/ • Principles of microservices architecture – Sam Newman • http://samnewman.io/books/building_microservices/ • https://dzone.com/articles/microservice-architecture-with- spring-cloud-and-do
