The document provides instructions for drawing the projections of a pentagonal pyramid with a base size of 30mm and axis length of 60mm. The pyramid rests on its base side on the horizontal plane (HP) with one triangular face perpendicular to both the vertical plane (VP) and HP and its axis parallel to VP. The top and front views of the pyramid are drawn showing the necessary points marked and joined to illustrate the projections.

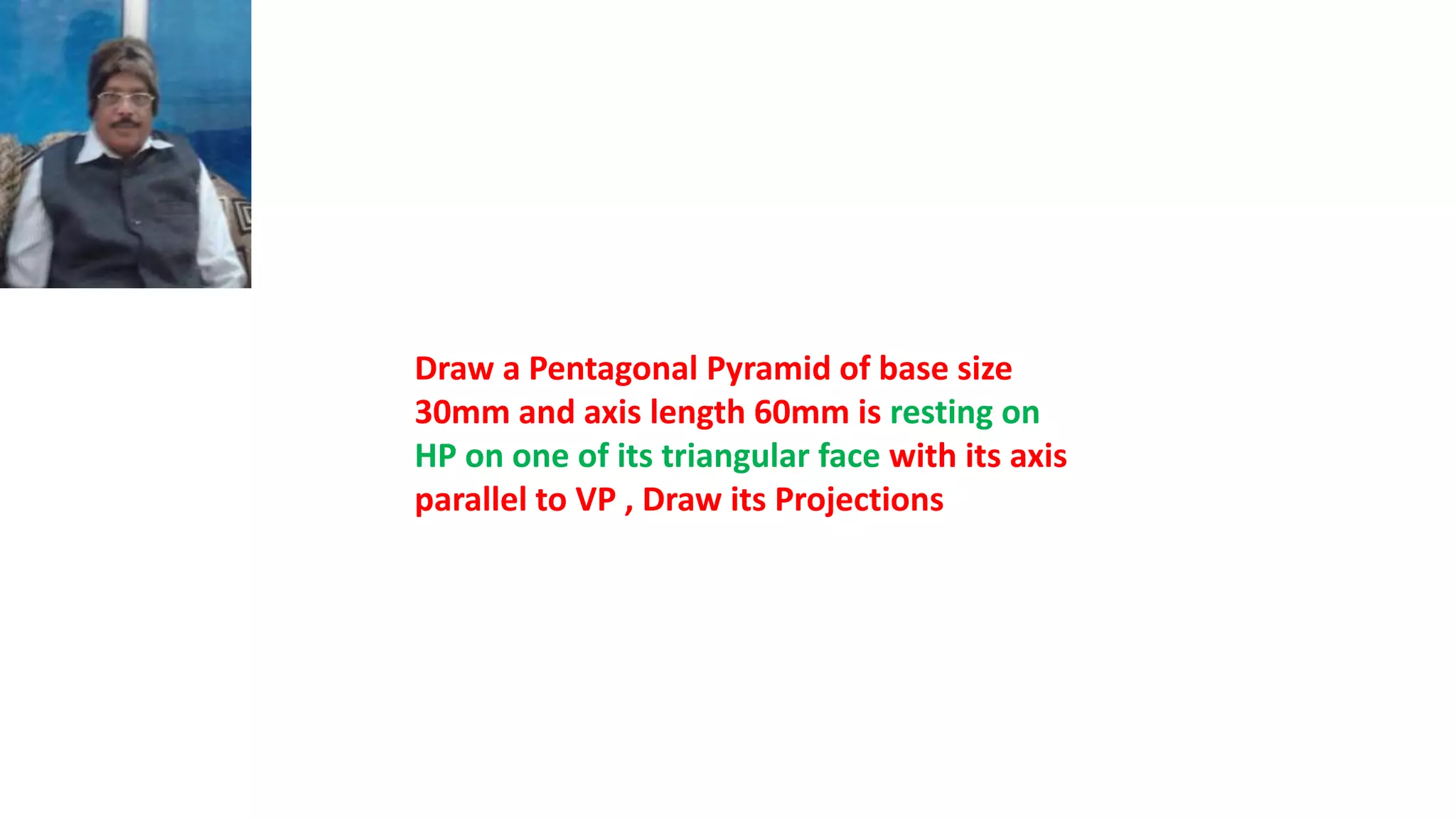

1. Draw a Pentagonal Pyramid of base size
30mm and axis length 60mm is resting on
HP on one of its triangular face with its axis
parallel to VP , Draw its Projections

2. X Y

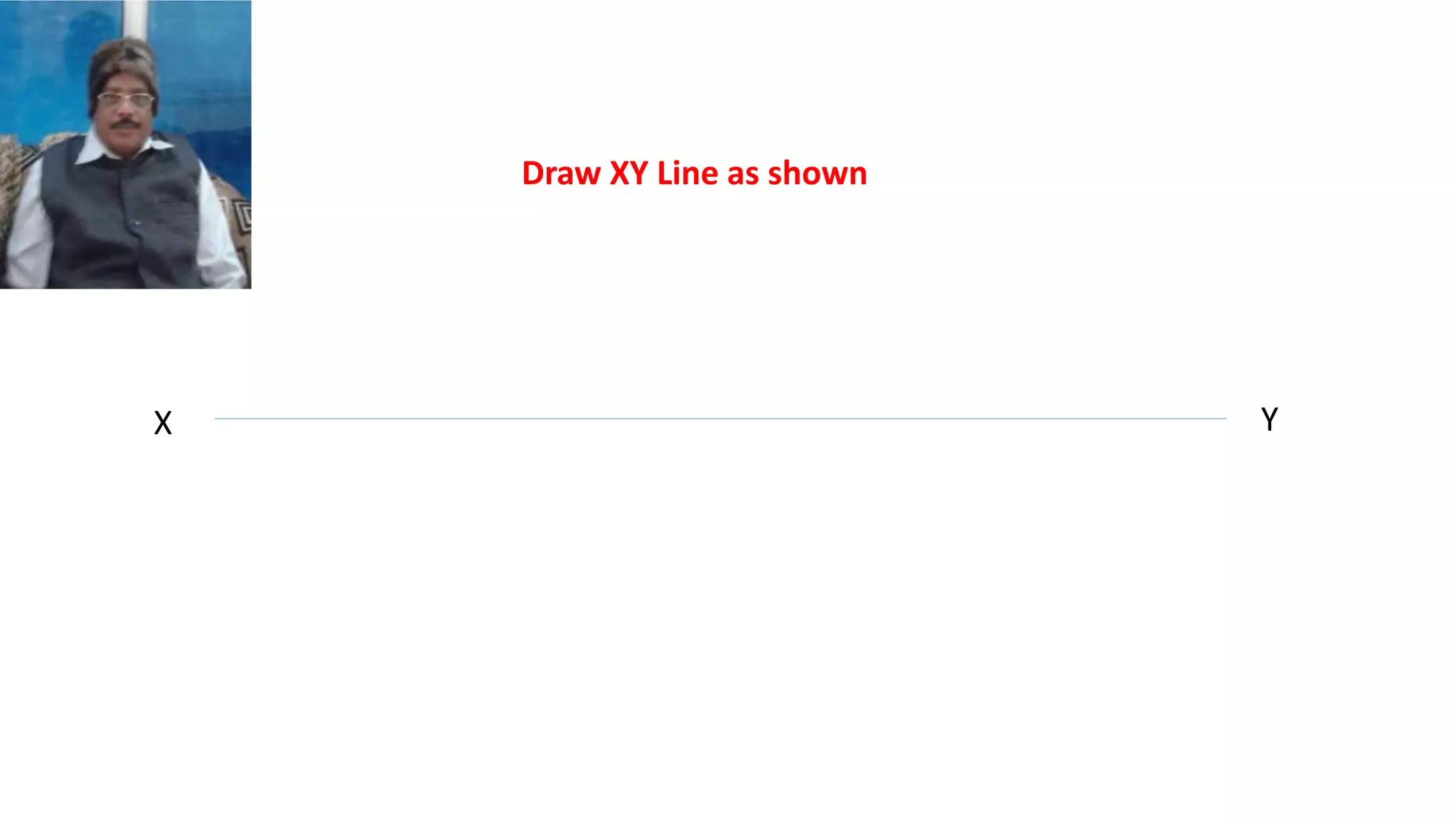

Draw XY Line as shown

3. X Y
30

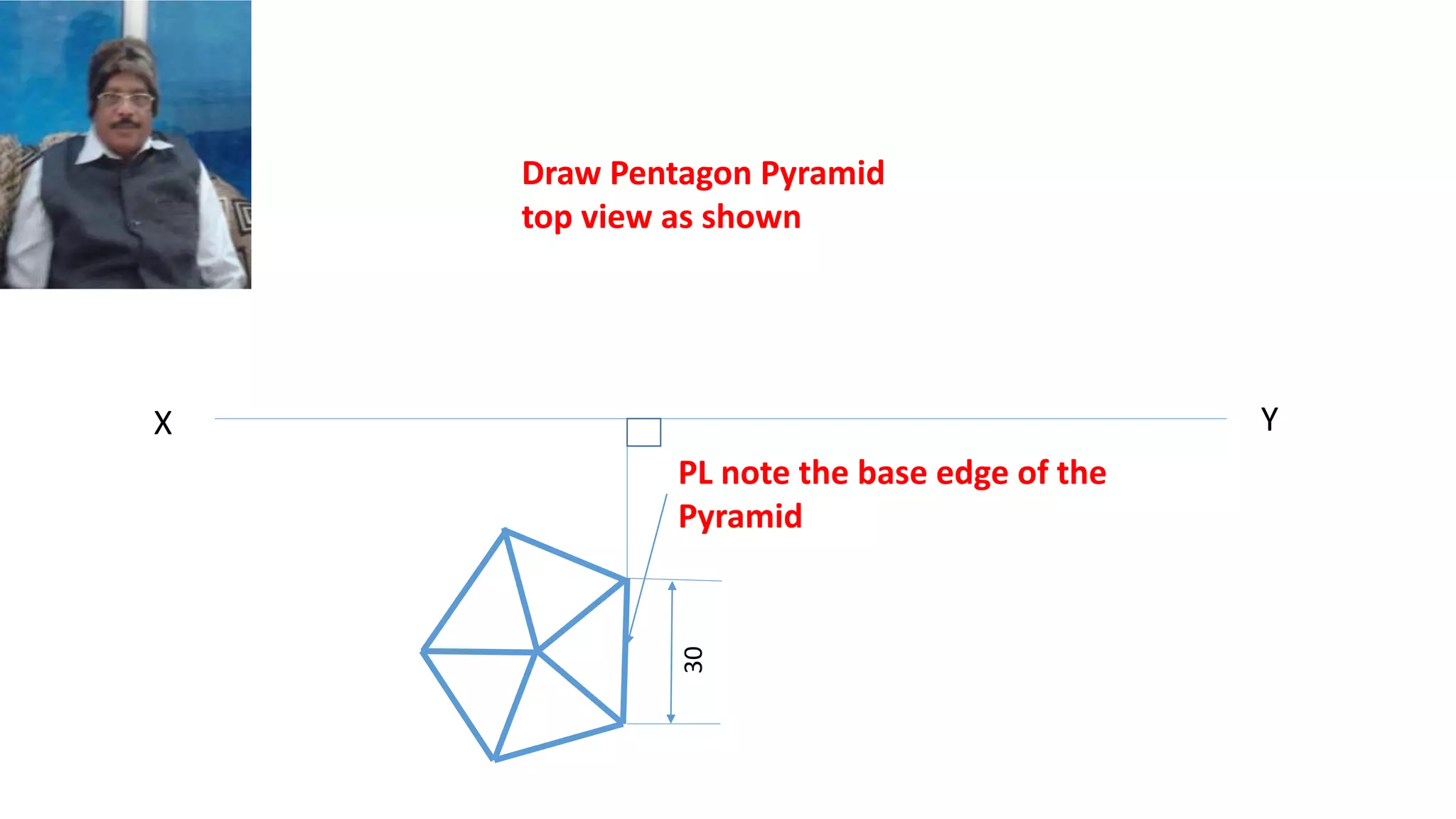

Draw Pentagon Pyramid
top view as shown
PL note the base edge of the
Pyramid

4. X Y
a
b
c
d
e
o
Name the points as shown

5. X Y
a
b
c
d
e
o
Draw projectors as shown

6. X Y
a
b
c
d
e
o
60
o’

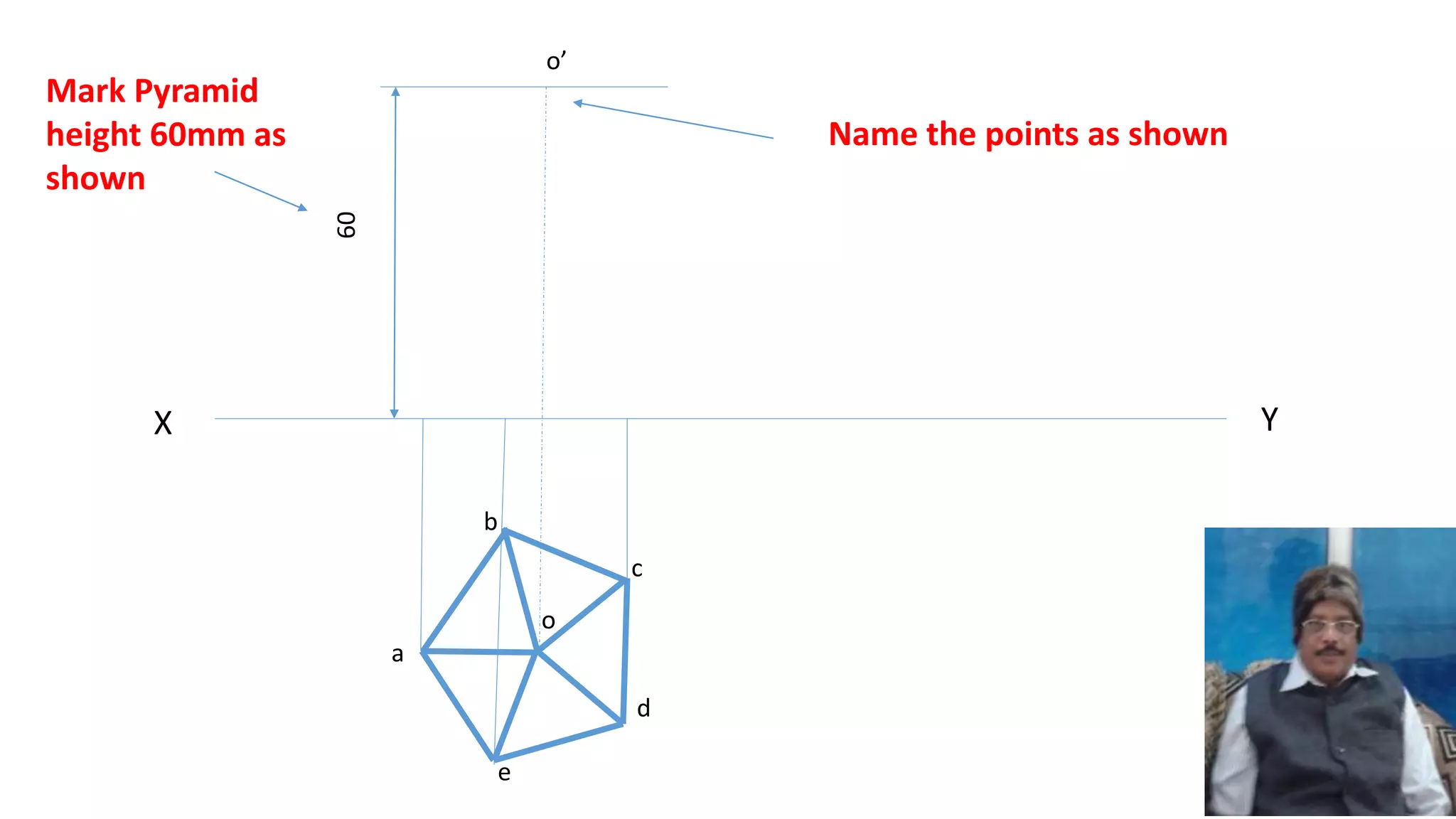

Mark Pyramid
height 60mm as
shown
Name the points as shown

7. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)

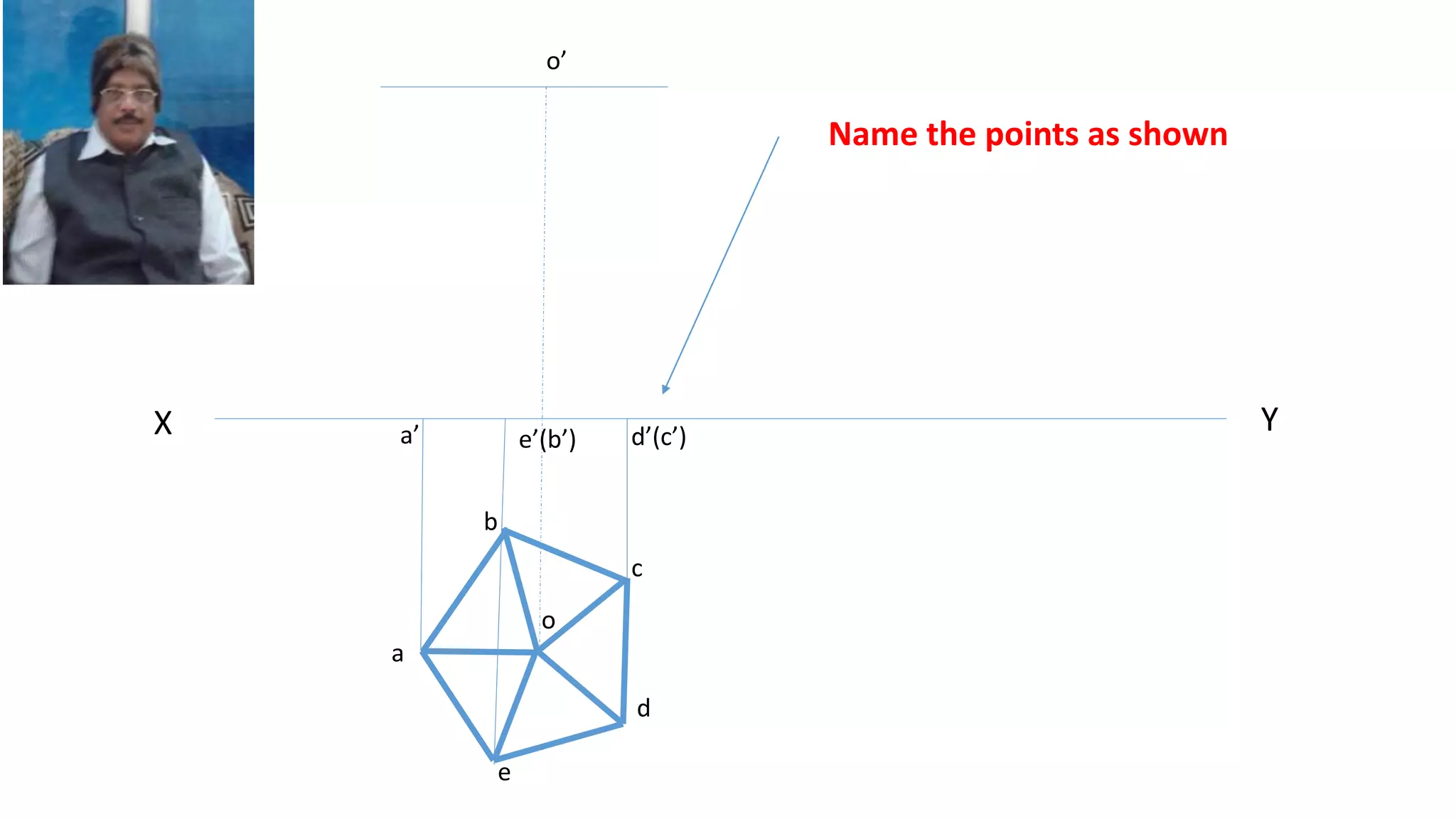

Name the points as shown

8. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)

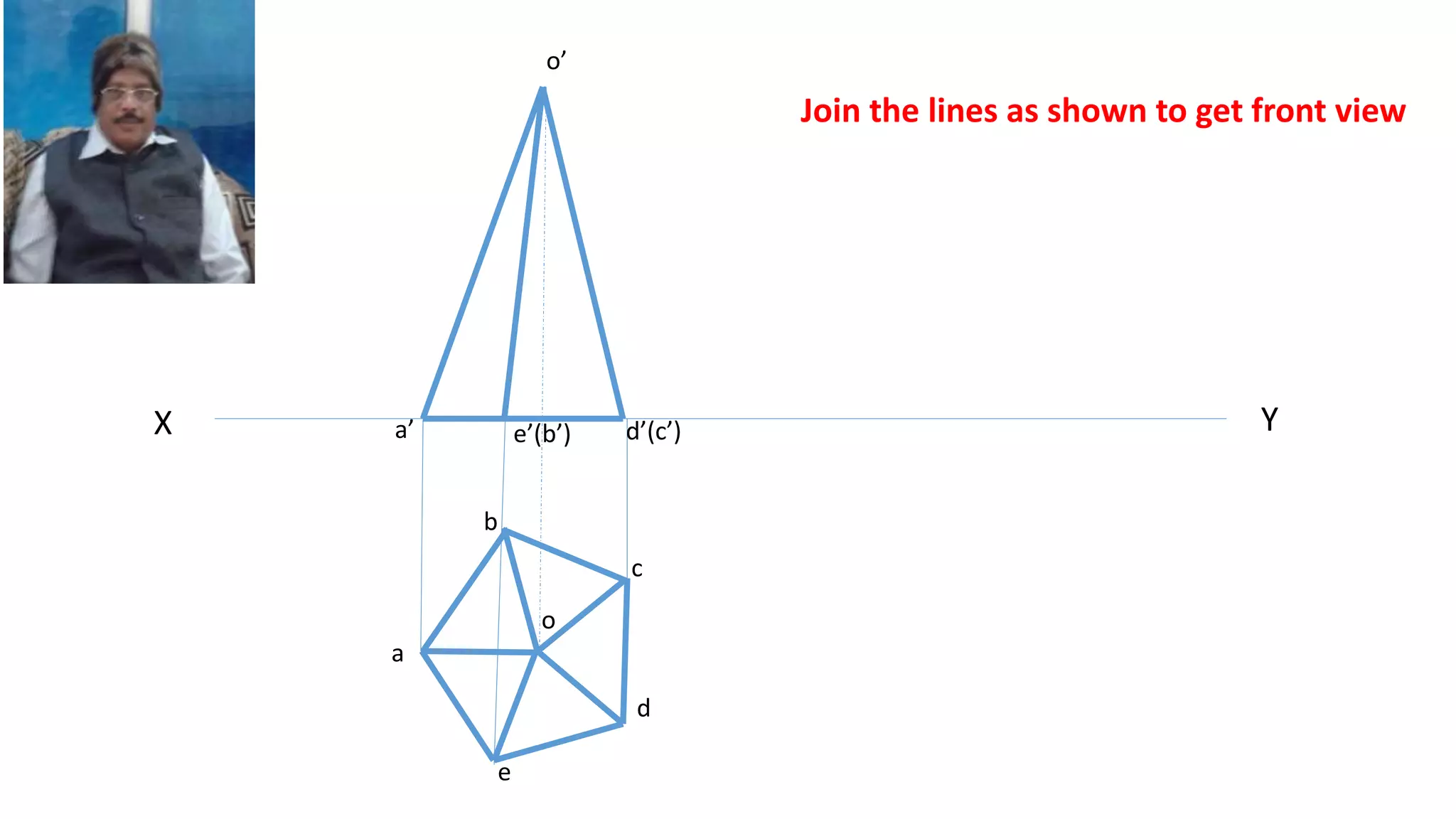

Join the lines as shown to get front view

9. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
o1’

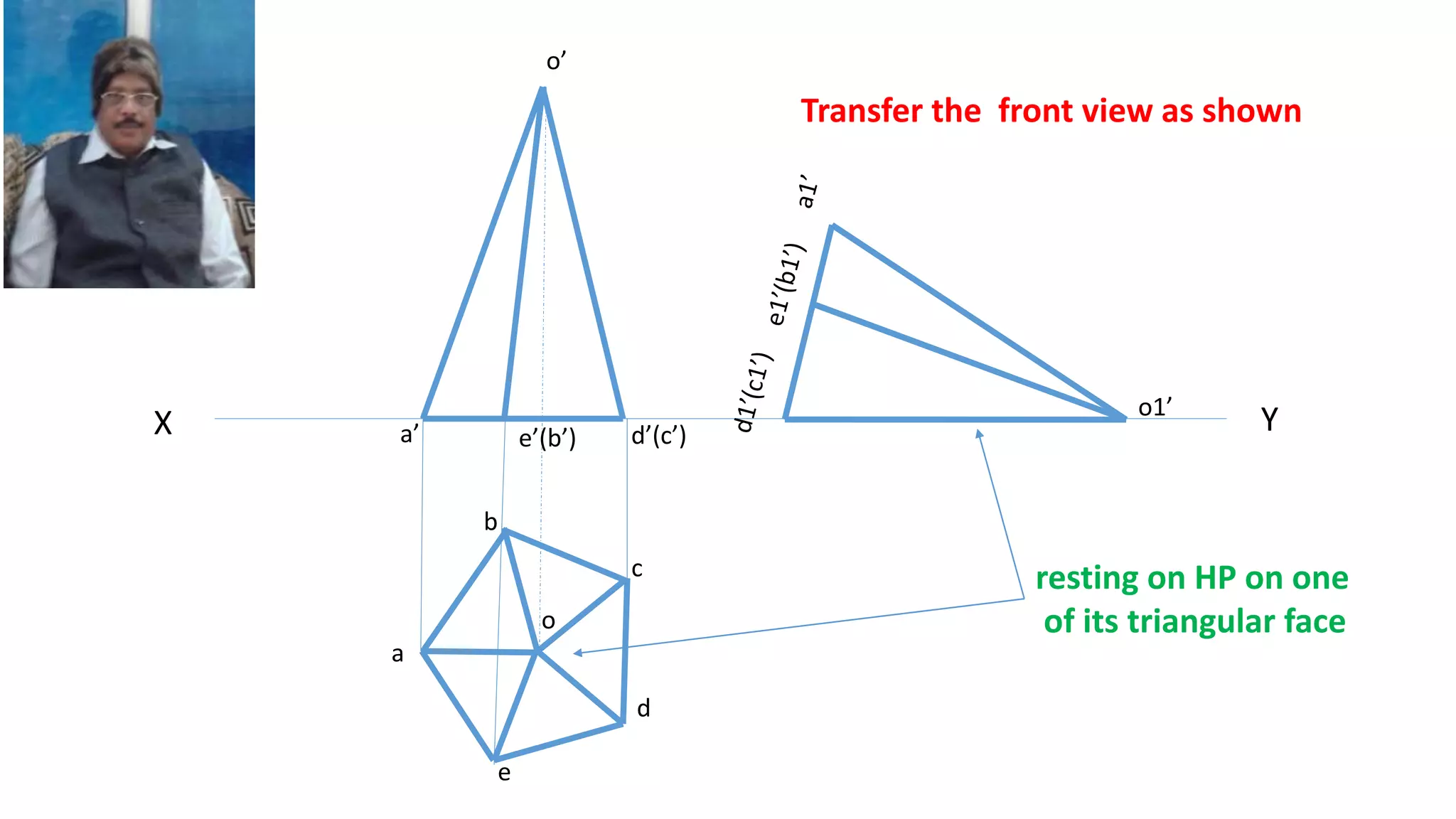

Transfer the front view as shown
resting on HP on one
of its triangular face

10. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
o1’

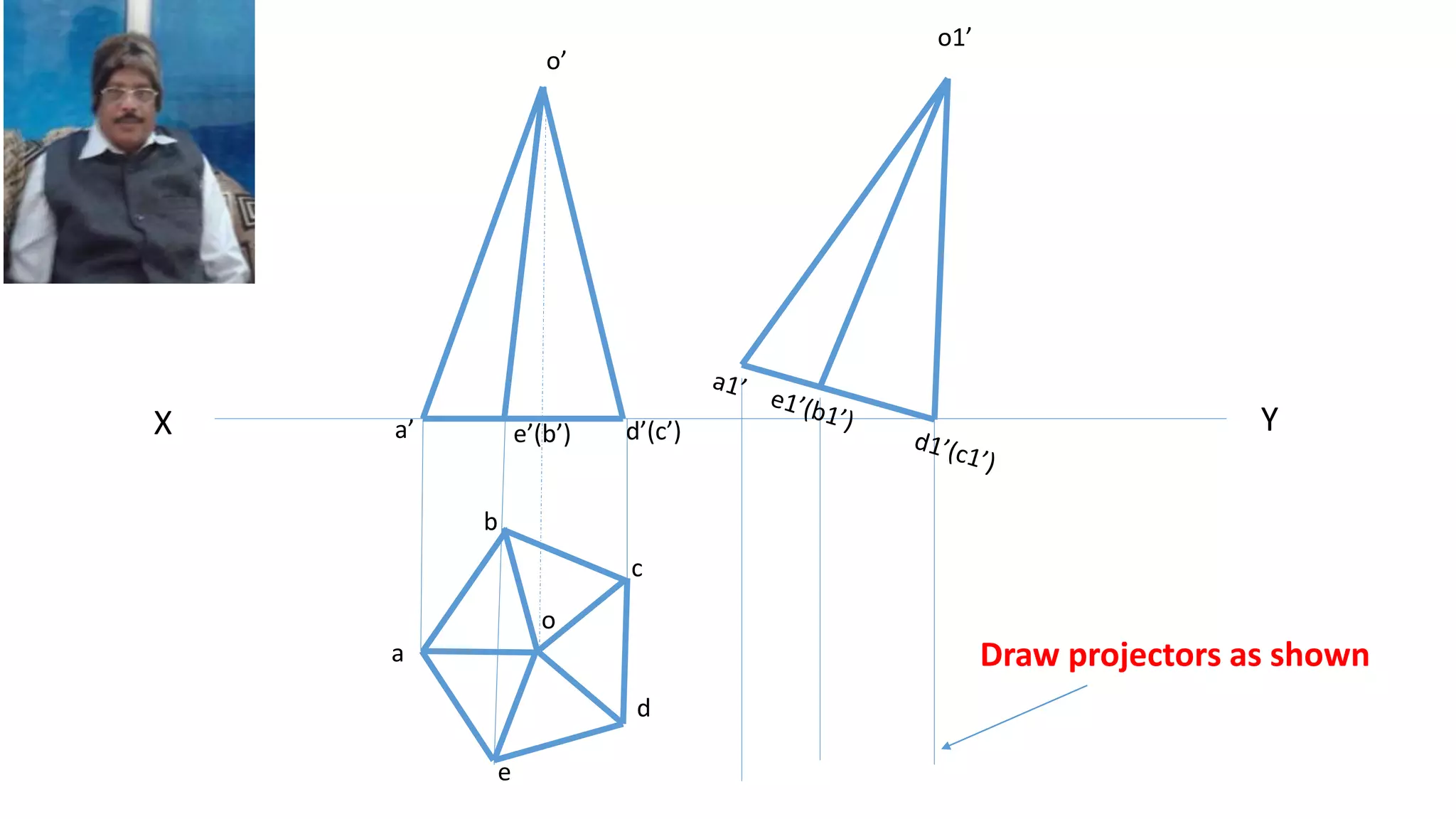

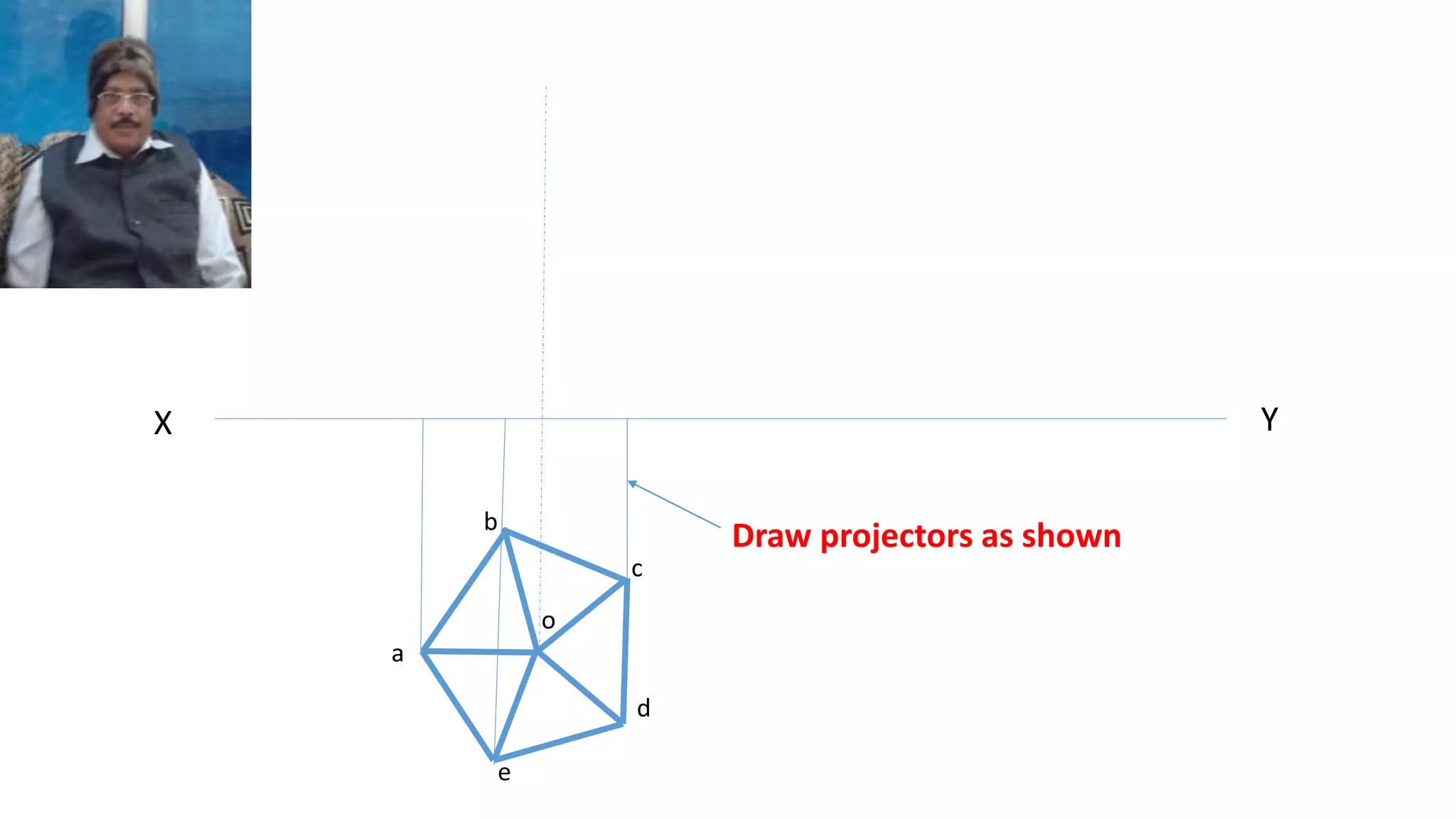

Draw projectors as shown

11. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
o1’

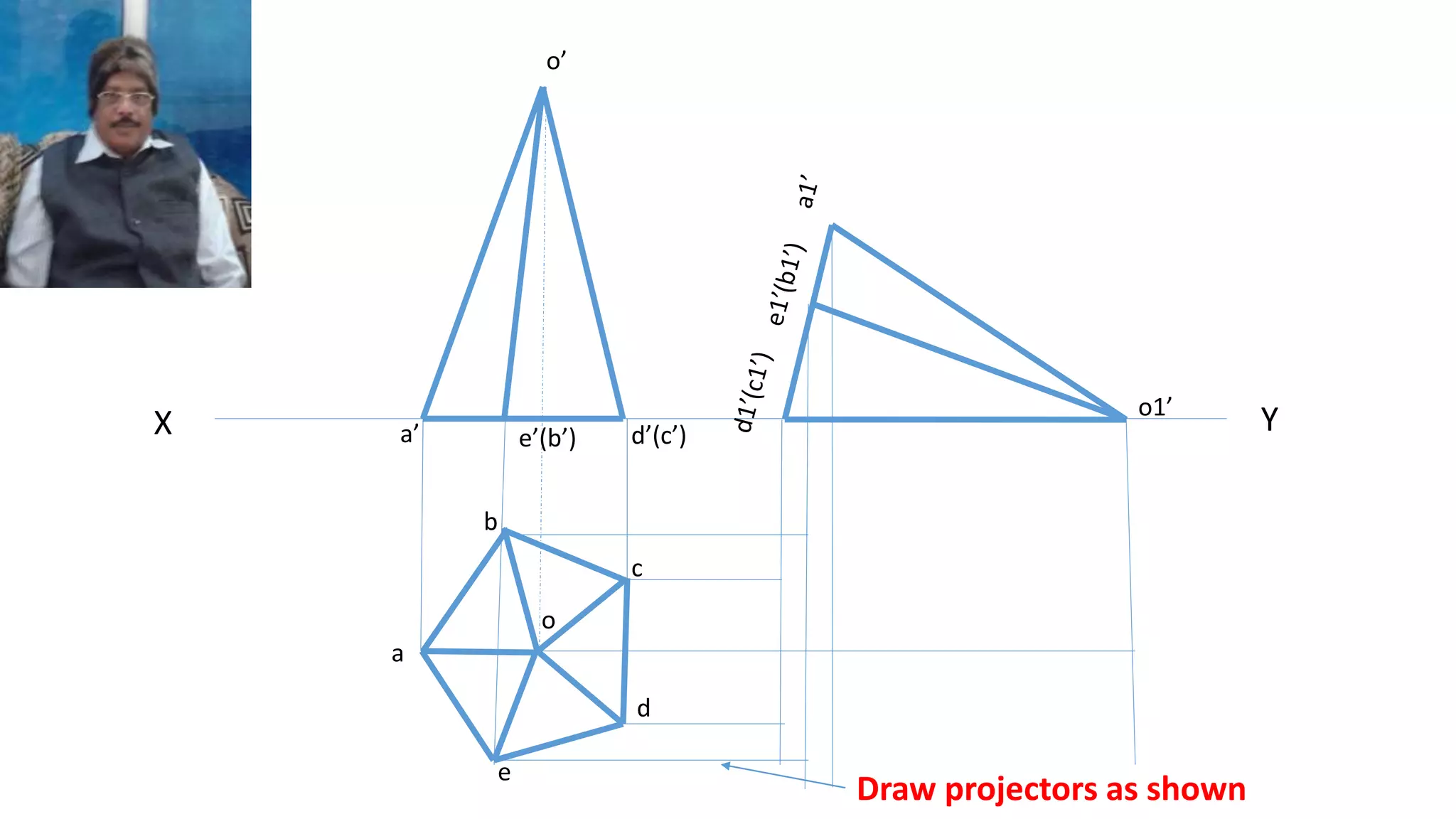

Draw projectors as shown

12. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
o1’
a1
b1
c1
d1
e1
o1

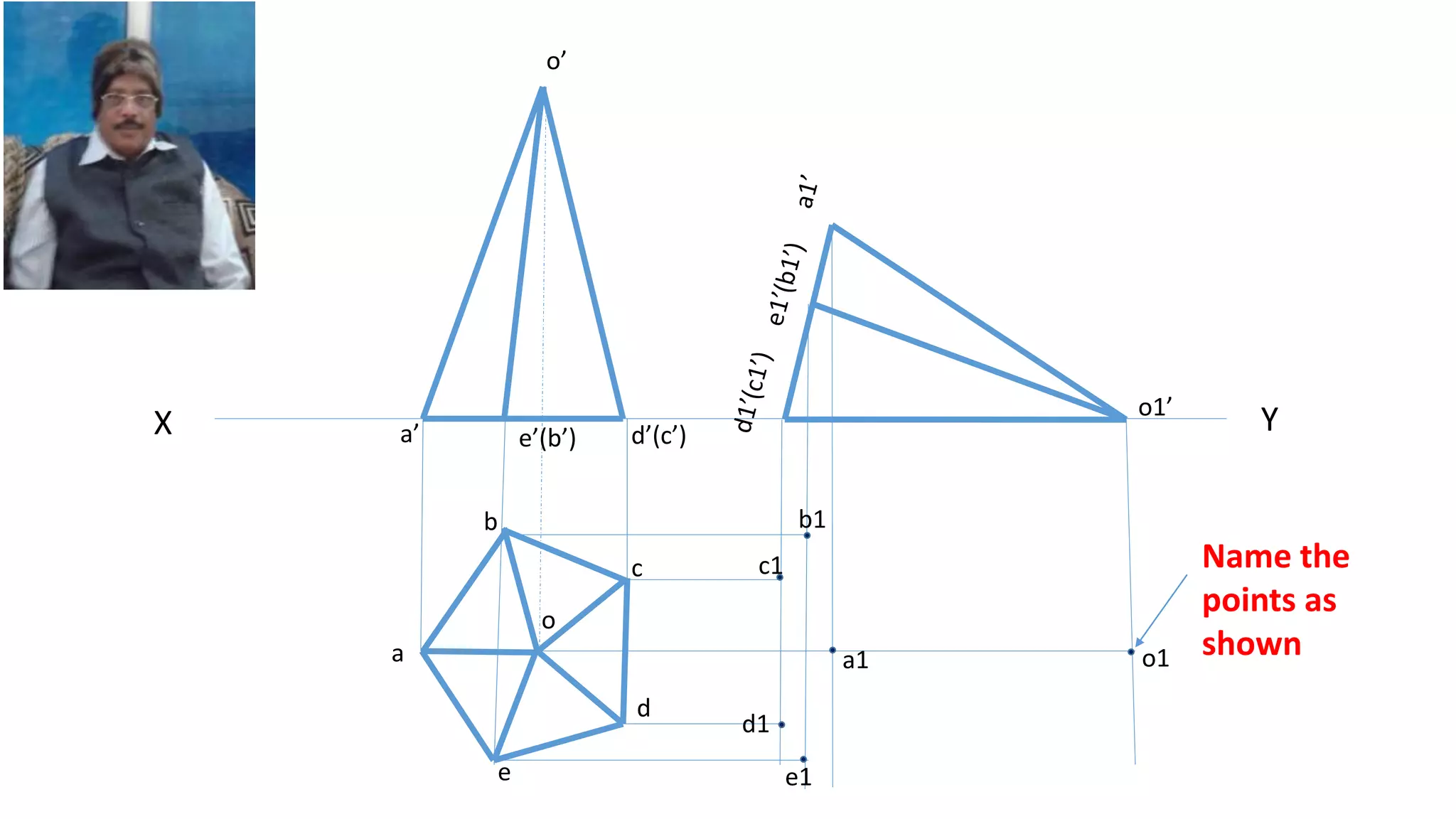

Name the
points as
shown

13. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
o1’
a1
b1
c1
d1
e1
o1

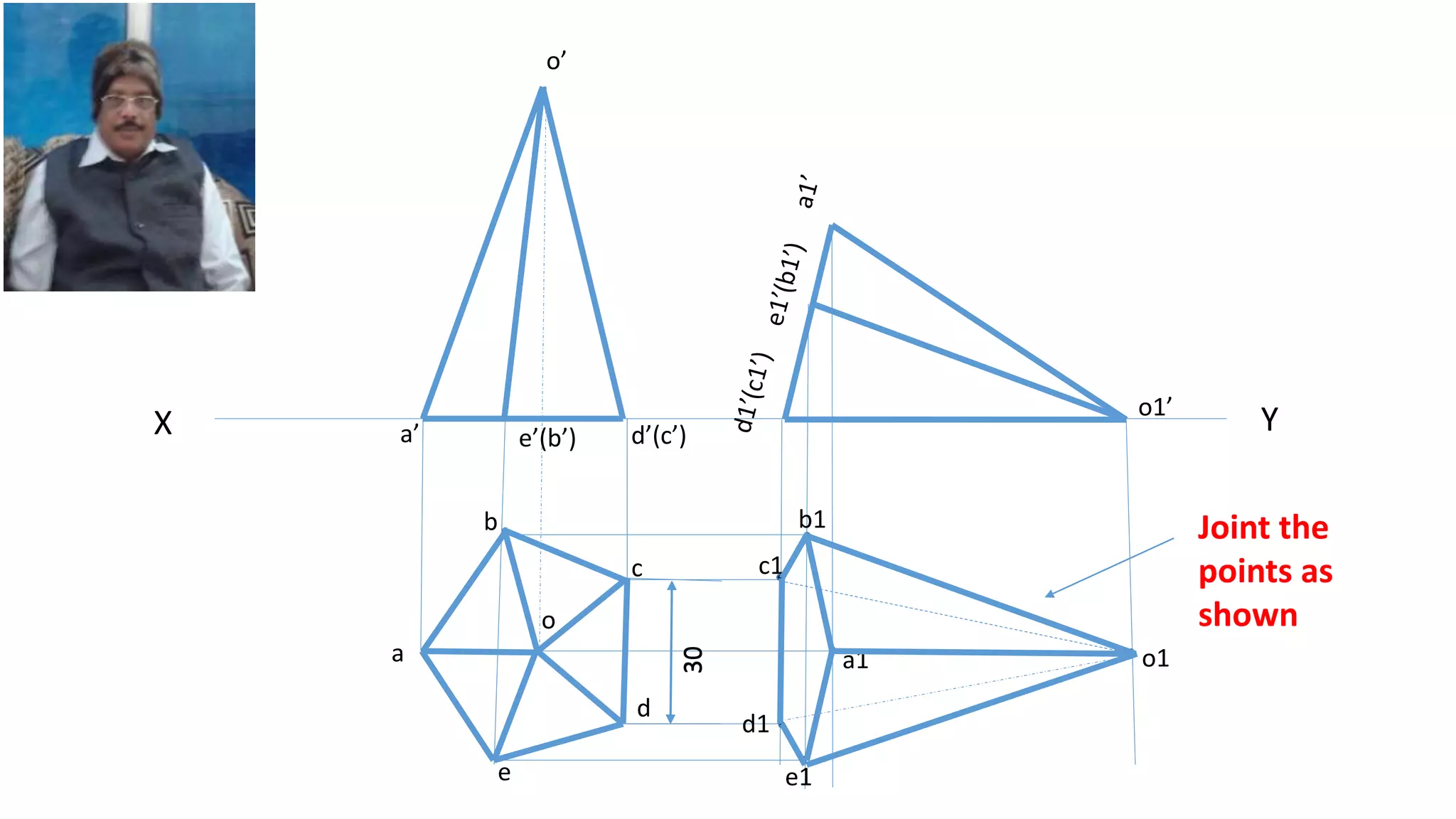

Joint the
points as
shown
3030

14. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
o1’
a1
b1
c1
d1
e1
o1

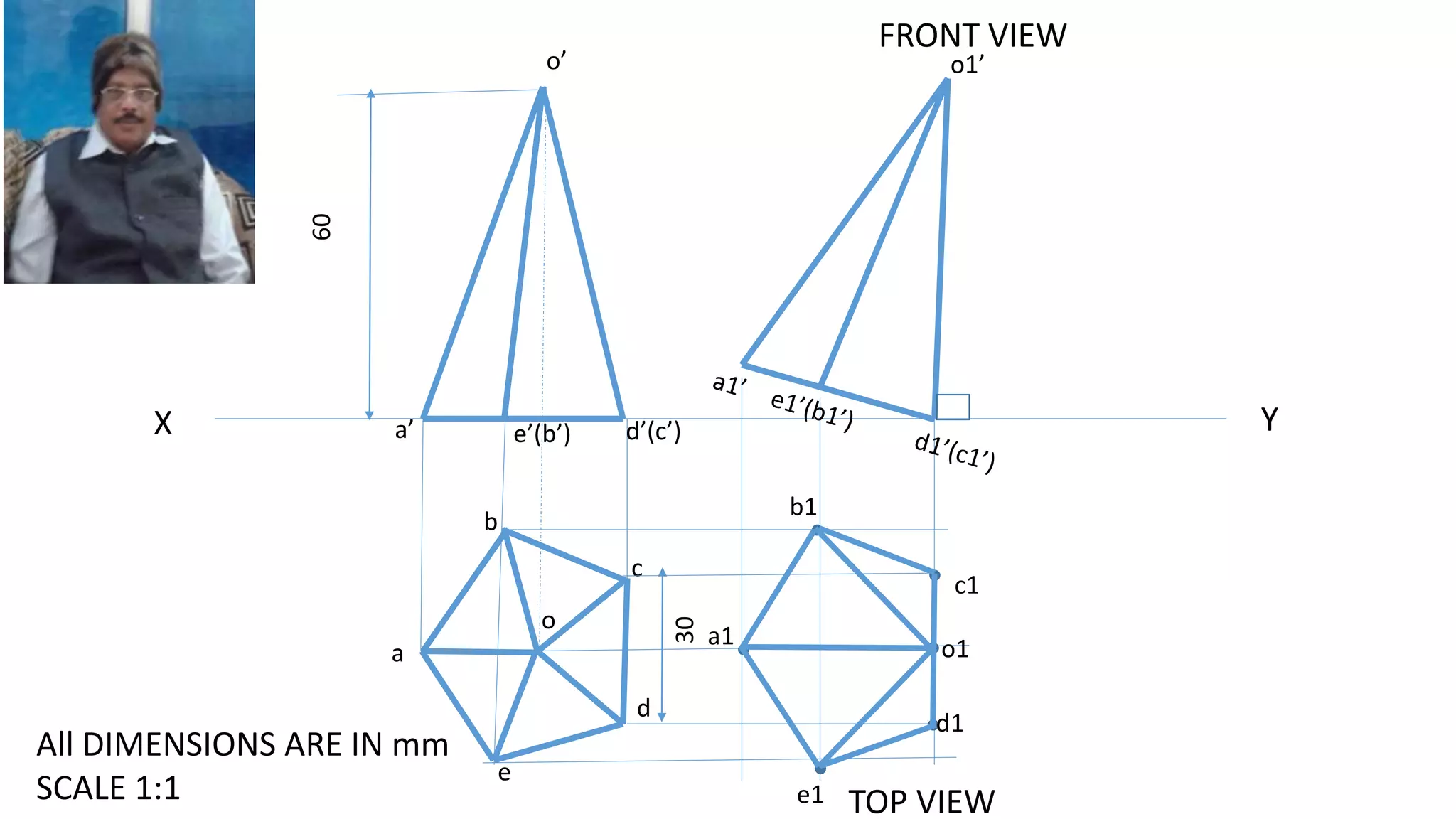

FRONT VIEW
TOP VIEWAll DIMENSIONS ARE IN mm
SCALE 1:1
60
30

15. Draw a Pentagonal Pyramid of base size 30mm and axis
length 60mm is resting on HP on one of its base side and
triangular face containing that base side is Perpendicular
to both VP and HP with its axis parallel to VP , Draw its
Projections

16. X Y
Draw XY Line as shown

17. X Y
30
Draw Pentagon Pyramid
top view as shown
PL note the base edge of the
Pyramid

18. X Y
a
b
c
d
e
o
Name the points as shown

19. X Y
a
b
c
d
e
o
Draw projectors as shown

20. X Y
a
b
c
d
e
o
60
o’
Mark Pyramid
height 60mm as
shown
Name the points as shown

21. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
Name the points as shown

22. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
Join the lines as shown to get front view

23. X Y
Draw XY Line as shown

24. X Y
30
Draw Pentagon Pyramid
top view as shown
PL note the base edge of the
Pyramid

25. X Y
a
b
c
d
e
o
Name the points as shown

26. X Y
a
b
c
d
e
o
Draw projectors as shown

27. X Y
a
b
c
d
e
o
60
o’
Mark Pyramid
height 60mm as
shown
Name the points as shown

28. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
Name the points as shown

29. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
Join the lines as shown to get front view

30. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
o1’

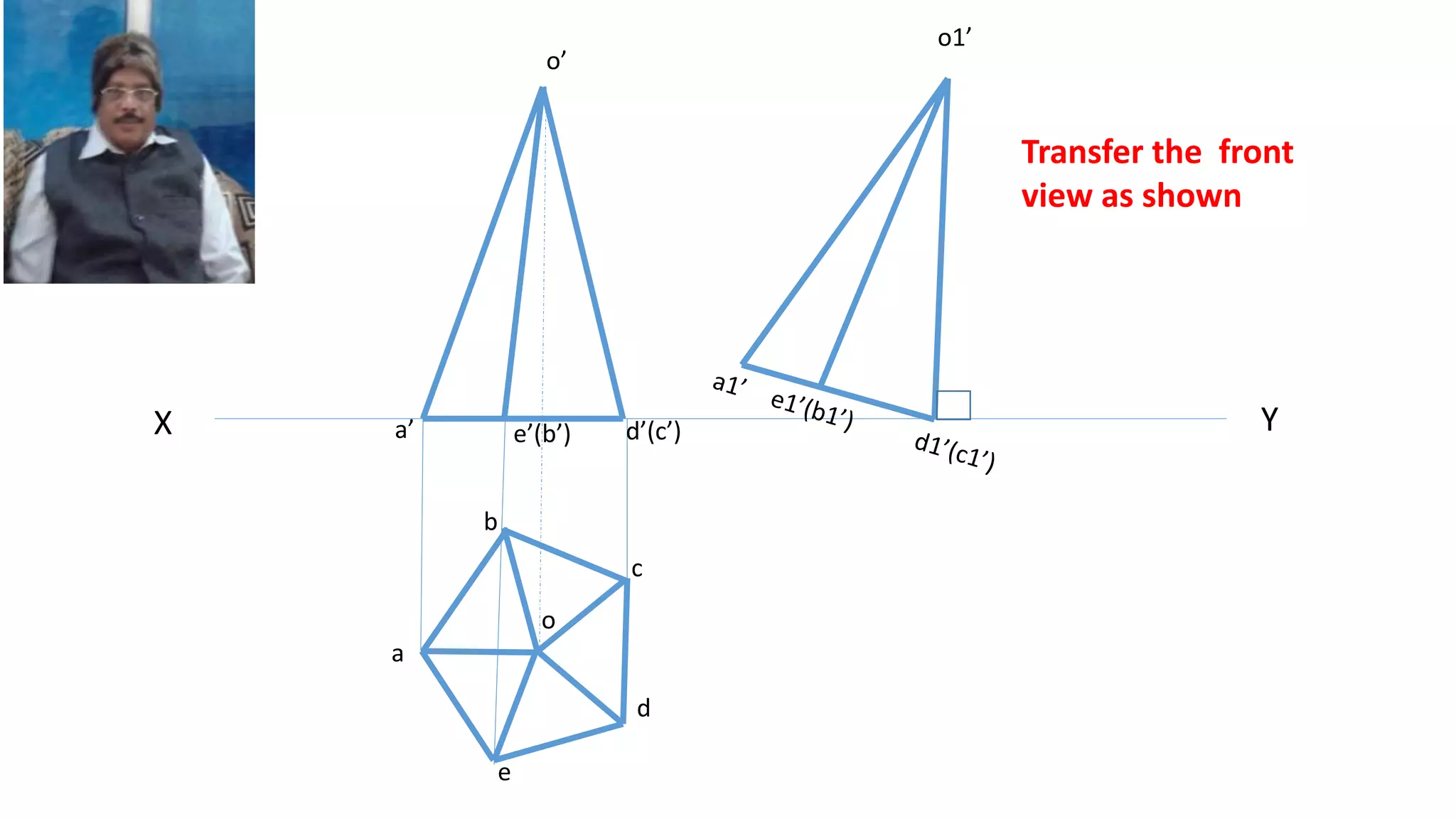

Transfer the front
view as shown

31. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
o1’
Draw projectors as shown

32. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
o1’

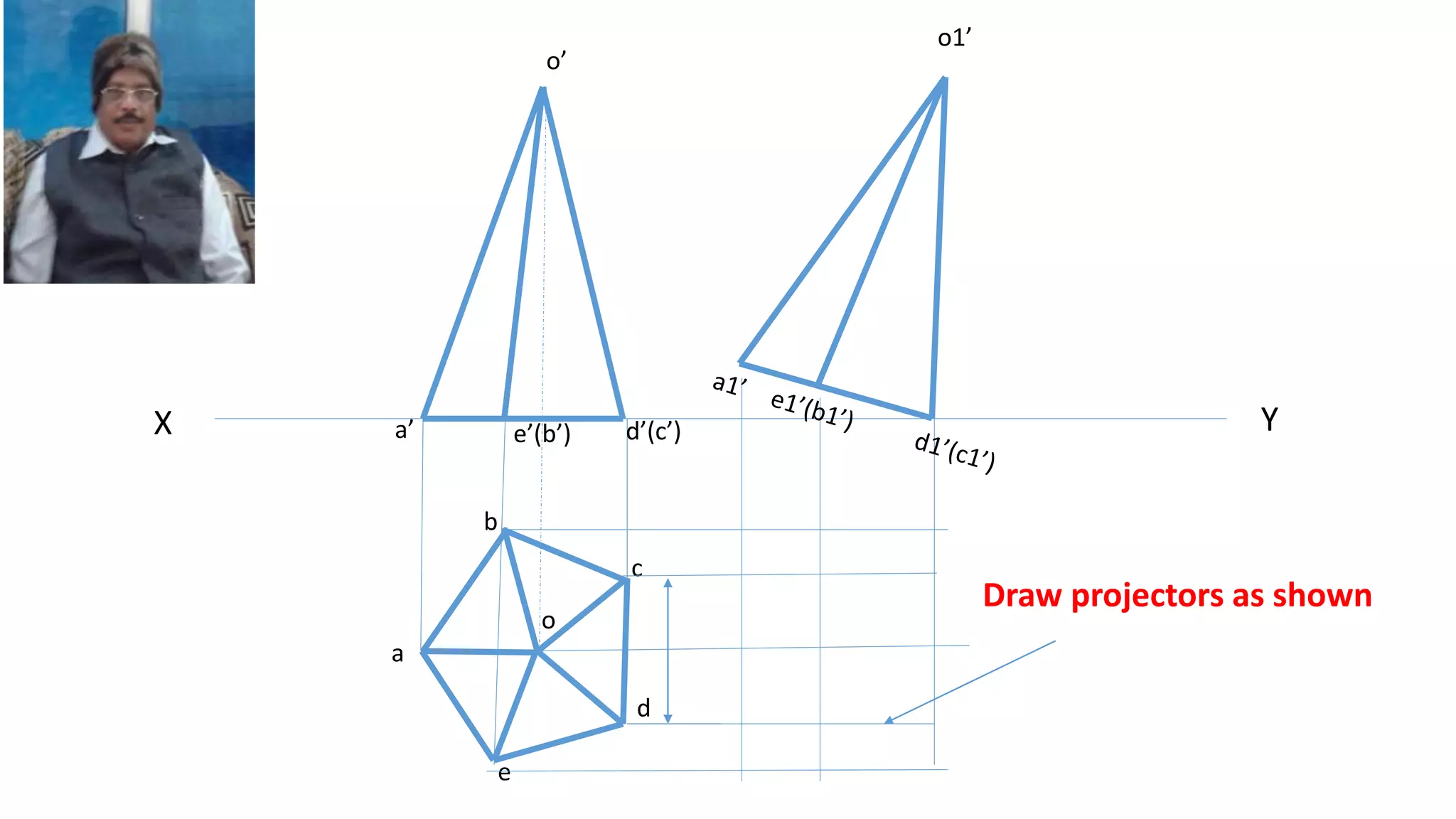

Draw projectors as shown

33. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
o1’

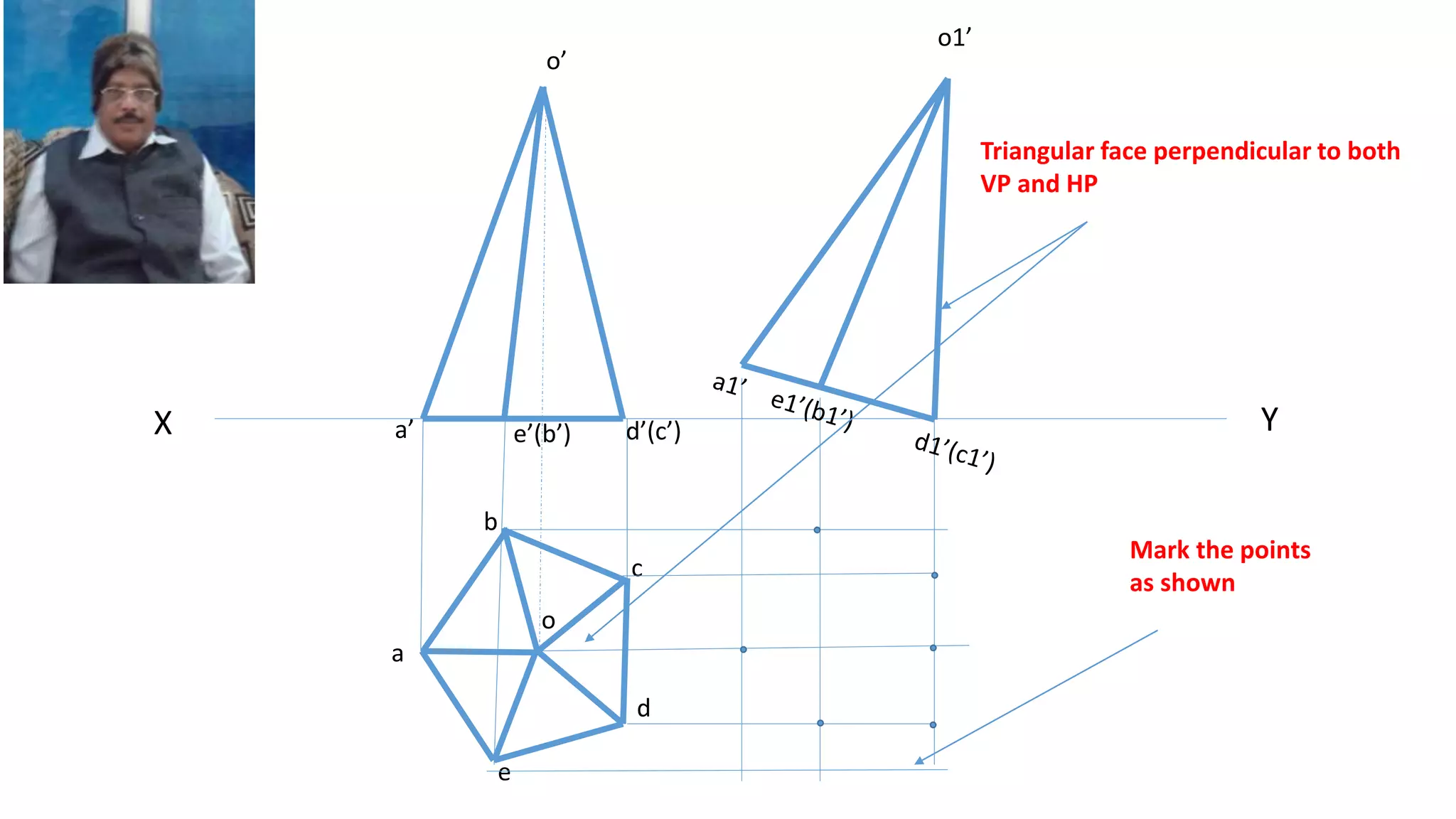

Triangular face perpendicular to both
VP and HP
Mark the points
as shown

34. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
o1’

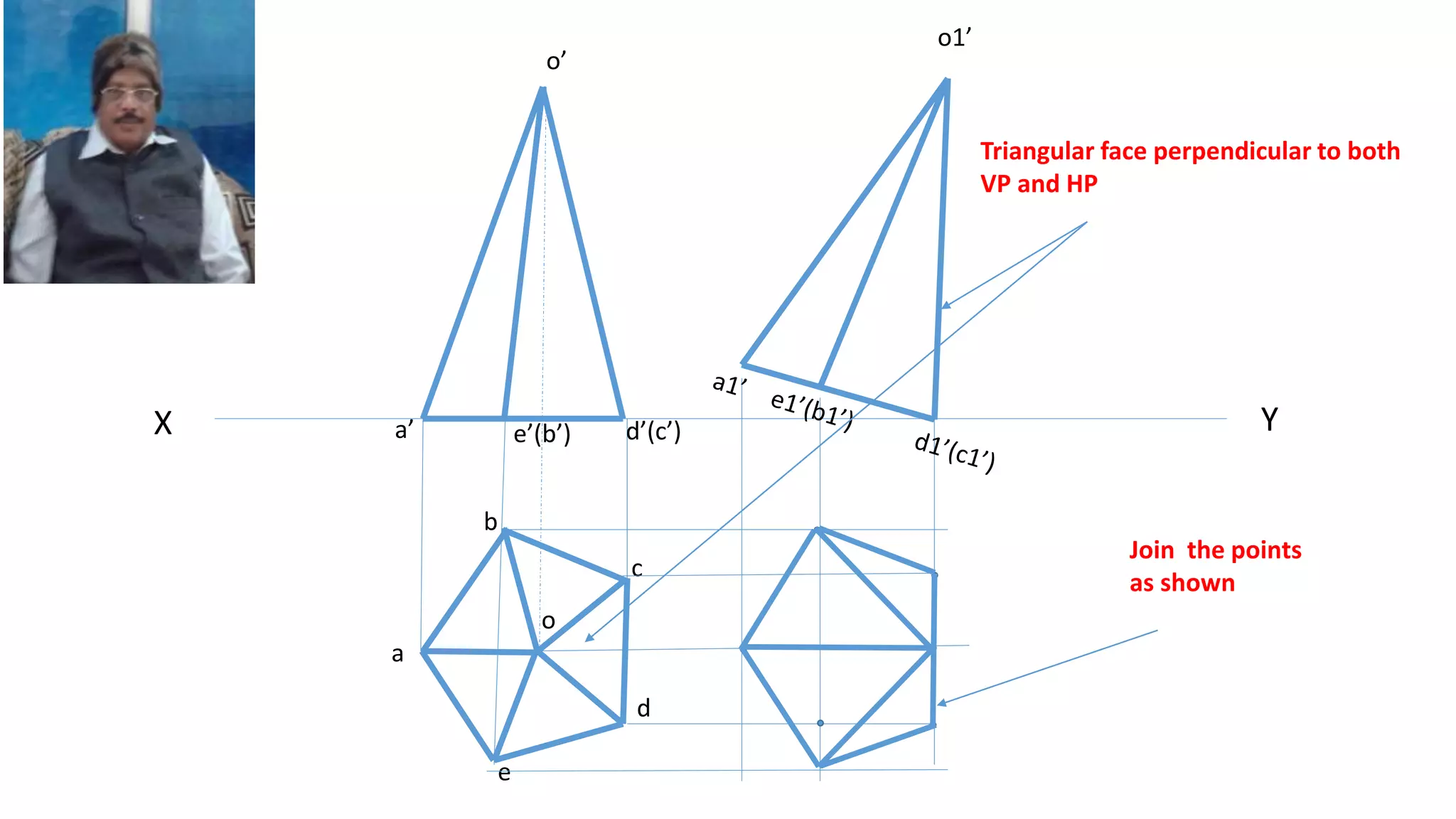

Triangular face perpendicular to both
VP and HP
Join the points
as shown

35. X Y
a
b
c
d
e
o
o’
a’ e’(b’) d’(c’)
a1
b1
c1
d1
e1
o1
o1’
30
60
TOP VIEW
FRONT VIEW
All DIMENSIONS ARE IN mm
SCALE 1:1
