A regular hexagon with a 40mm side has one corner located in the horizontal plane (HP). The surface containing this hexagon is inclined at 45 degrees to the HP and is perpendicular to the vertical plane (VP). When viewed from above, the diagonal passing through the corner in the HP makes an angle of 60 degrees with the VP. Draw the front, top, and side views of this hexagon and diagonal.

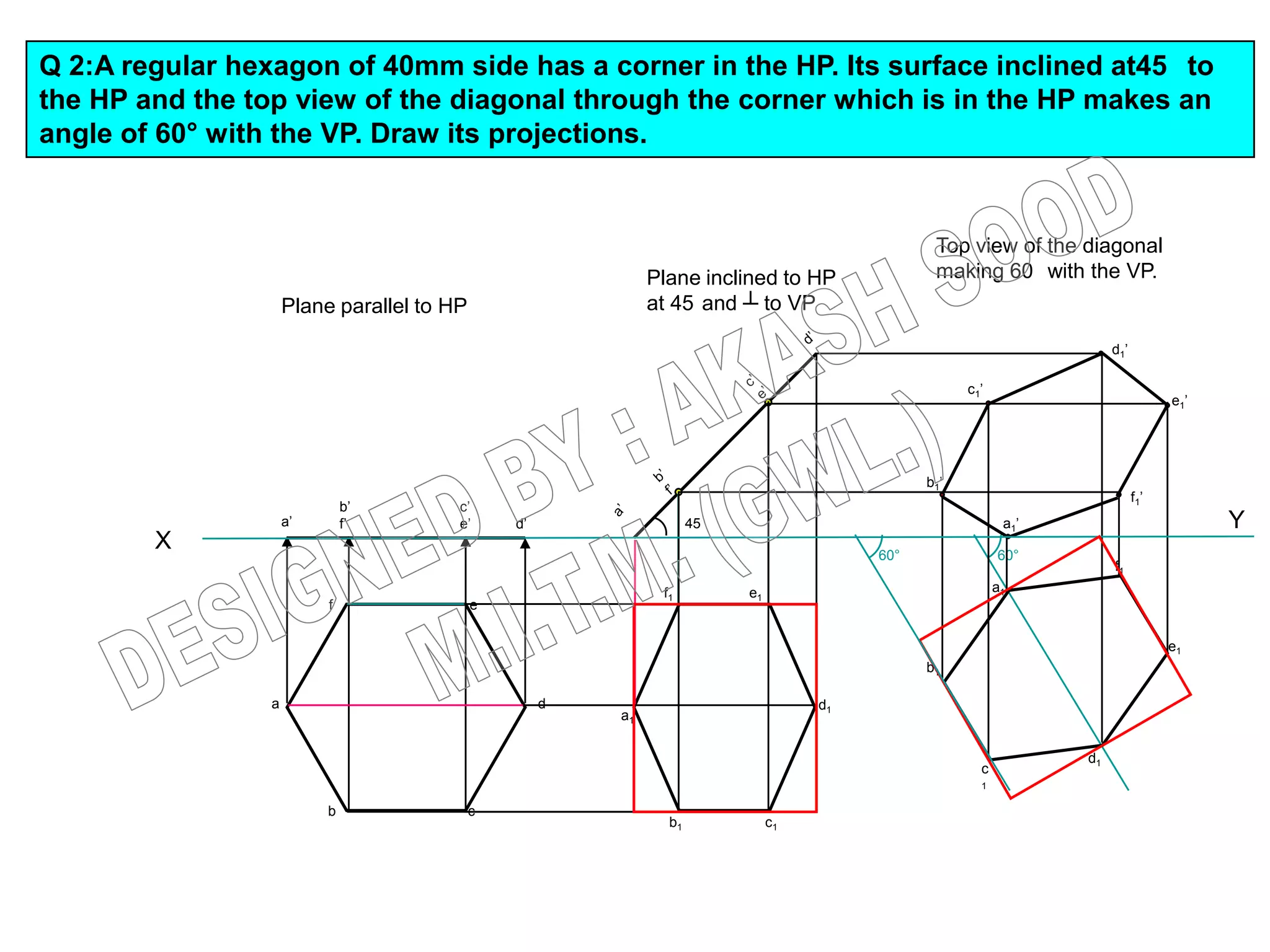

1. Q 2:A regular hexagon of 40mm side has a corner in the HP. Its surface inclined at45 to
the HP and the top view of the diagonal through the corner which is in the HP makes an
angle of 60° with the VP. Draw its projections.
Top view of the diagonal
Plane inclined to HP making 60 with the VP.
Plane parallel to HP at 45 and ┴ to VP
d1’
c1’
e1’
b1’
f1’
b’ c’
a’ f’ e’ d’ 45 a1’ Y
X 60° 60°
f1
f1 e1 a1
f e
e1
b1
a d d1
a1
d1
c
1
b c
b1 c1
