1. DIGITAL LOGIC DESIGN
SIII EE
INTRODUCTION TO PLDs

2. INTRODUCTION TO PLDs
• In digital electronics, ICs are divided into two
categories;
• Fixed Function Logic ICs
• Programmable Logic Devices

3. INTRODUCTION TO PLDs
• Fixed function logic ICs contain fixed logic
circuits which are neither created by user nor
can be changed by them.
• For eg ICs of Gates, Flip Flops, Full Adders etc
contain fixed circuits, which are not alterable
by user

4. Programmable Logic Devices
• ‘PLDs’ stand for Programmable Logic Devices
• PLDs are logic ICs that are used to build
customized logic circuits
• Each PLD contains some amount of logic
components like
• Arrays of Gates (OR, AND & NOT Gates etc)
and arrays of Flip Flops etc

5. Programmable Logic Devices
• Or PLDs contain ‘macro cells’, which contain these
logic components and other etc
• Based on available logic components in a PLD user can
create/develop logic circuits as desired
• Creation/development of logic circuits in a PLD is done
by programming the PLD
• A PLD is a combination of a logic device and a memory
device. The memory is used to store the pattern that
was given to the chip during programming

6. Programmable Logic Devices
• Categories/Types of PLDs;
• PLDs are divided into different categories, as
mentioned below;
• SPLDs
• CPLDs
• FPGA

7. Programmable Logic Devices
• SPLDs = Simple Programmable Logic Devices
• CPLDs = Complex Programmable Logic Devices
• FPGA = Field Programmable Gate Arrays

8. Programmable Logic Devices
• SPLDs (Simple Programmable Logic Devices)
are further divided into following types
• PAL
• PLA
• GAL

9. Programmable Logic Devices
• Types of SPLDs;
• PAL = Programmable Array Logic
• PLA = Programmable Logic Array
• GAL = Generic Array Logic

10. Types of SPLDs
• PLA has a programmable AND gate array, which links to a
programmable OR gate array, which can then be
conditionally complemented to produce an output.
• PAL devices have arrays arranged in a "fixed-OR and
“programmable-AND" array used to implement logic
equations
• GAL This device has the same logical properties as the
PAL but can be erased and reprogrammed. The GAL is
very useful in the prototyping stage of a design, when
any bugs in the logic can be corrected by reprogramming.

11. SPLDs & CPLDs
• PALs and GALs are available only in small sizes,
equivalent to a few hundred logic gates.
• CPLDs or Complex PLDs can be used for bigger
logic circuits,. These contain the equivalent of
several PALs linked by programmable
interconnections, all in one I.C.
• CPLDs can replace thousands, or even
hundreds of thousands, of logic gates.

12. CPLDs & FPGAs
• FPGAs use a grid of logic gates, and once stored, the data doesn't
change, similar to that of an ordinary gate array. The term "field-
programmable" means the device is programmed by the
customer, not the manufacturer.
• The difference between FPGAs and CPLDs is that FPGAs are
internally based on ‘Look Up Tables’(LUTs) whereas CPLDs form
the logic functions with sea-of-gates (e.g. SOP).
• CPLDs are meant for simpler designs while FPGAs are meant for
more complex designs. In general, CPLDs are a good choice for
wide combinational logic applications, whereas FPGAs are more
suitable for large state machines such as microprocessors.

13. FPGAs
• What are FPGAs?
• FPGA is a single chip, comprised of thousands
of units called logic blocks, that are linked with
programmable interconnects. The FPGA’s circuit
is made by connecting several configurable
blocks, and it has a rigid internal structure.

14. Programmable Logic Devices
• By programming PLDs, desired logic circuit is created
inside the PLD
• PLDs can be programmed by using different methods
like;
1. Text Based Entry
2. Graphical Entry
Many PAL programming devices accept input in a
standard file format, commonly referred to as ‘JEDEC
files'. They are analogous to software compilers.

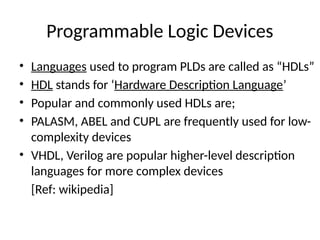

15. Programmable Logic Devices
• Languages used to program PLDs are called as “HDLs”
• HDL stands for ‘Hardware Description Language’
• Popular and commonly used HDLs are;
• PALASM, ABEL and CUPL are frequently used for low-
complexity devices
• VHDL, Verilog are popular higher-level description
languages for more complex devices
[Ref: wikipedia]
