The document discusses the Product Designer Hub, which aims to take the HDF data format to the web by developing a system with the following key components: 1. A data store to manage user accounts, projects, file structures and metadata. 2. A RESTful server to enable exporting HDF files and data to various formats like JSON, CSV, and importing from formats like XML, MATLAB, and Python. 3. A web service that can ingest metadata from various XML dialects, transform it to HDF groups and attributes, and generate HDF files, JSON, and code templates from the metadata. 4. A client-server architecture where client software like web applications can access HDF files and data through the REST

1. Product Designer Hub –
Taking HPD to the Web
1
Ted Habermann
Director of Earth Science
thabermann@hdfgroup.org

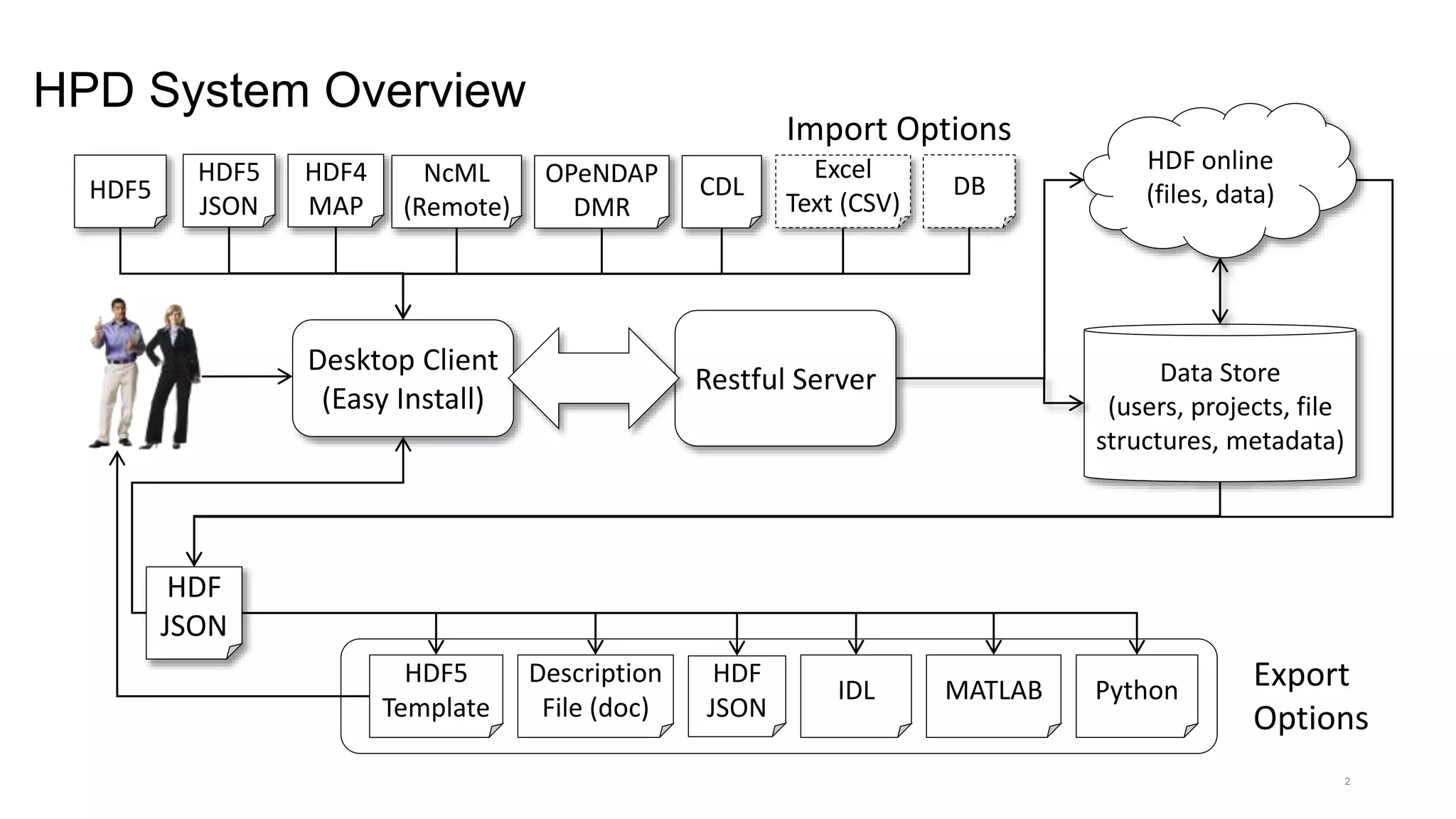

2. HPD System Overview
2
Data Store
(users, projects, file
structures, metadata)
Desktop Client
(Easy Install)
Restful Server
Export
Options
HDF5
JSON
HDF4
MAP
NcML
(Remote)
HDF online
(files, data)
OPeNDAP
DMR
CDLHDF5
Excel
Text (CSV)
DB
HDF
JSON
Import Options
IDL MATLAB Python
Description
File (doc)
HDF5
Template
HDF
JSON

3. HPD System Overview
3
Data Store
(users, projects, file
structures, metadata)
Desktop Client
(Easy Install)
Restful Server
Export
Options
HDF5
JSON
HDF4
MAP
NcML
(Remote)
HDF online
(files, data)
OPeNDAP
DMR
CDLHDF5
Excel
Text (CSV)
DB
HDF
JSON
Import Options
IDL MATLAB Python
Description
File (doc)
HDF5
Template
HDF
JSON

4. Product Designer Hub - Overview
Browser WebService
HDF
JSON
XML
ISO / NcML / WaterML / SensorML / EML
HDF online
(files, data)
IDL MATLAB Python
Description
File (doc)
HDF5
Template
HDF
JSON
Validators / Evaluators
GeoNetwork
Annotators
File Browser / Compass

5. Community Metadata in HDF
1) Many communities use metadata dialects that include XML representations.
2) There is a straightforward correspondence between XML structures and HDF groups and
attributes.
3) We can create a web service that
A. ingests metadata in XML
B. transforms that XML into HDF Groups and Attributes (either HDF-XML or NcML)
C. creates an HDF file that includes the metadata
D. use that file to create
A. HDF-JSON
B. code in IDL, matlab, or python
C. A design document in Word

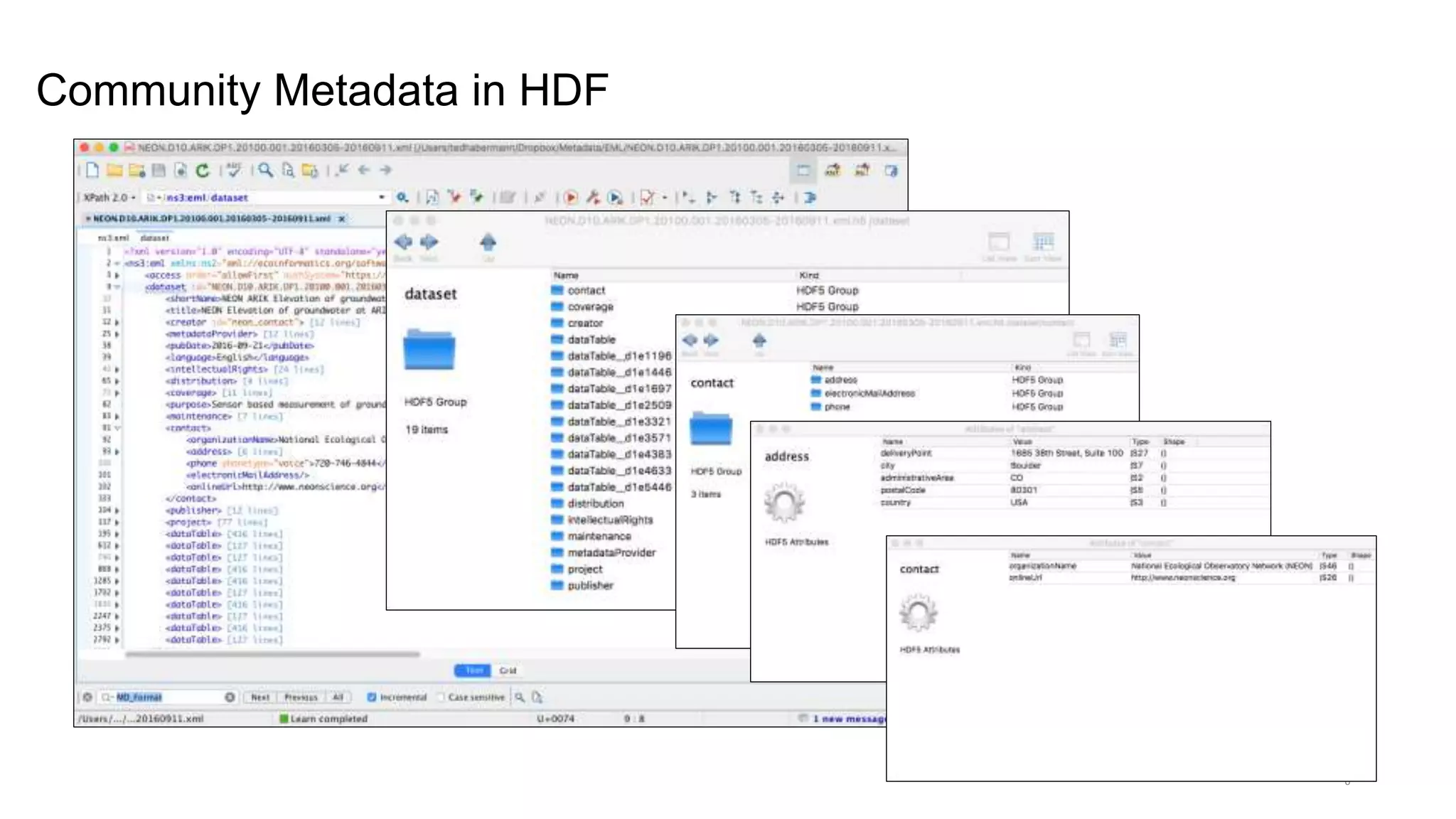

6. Community Metadata in HDF
6

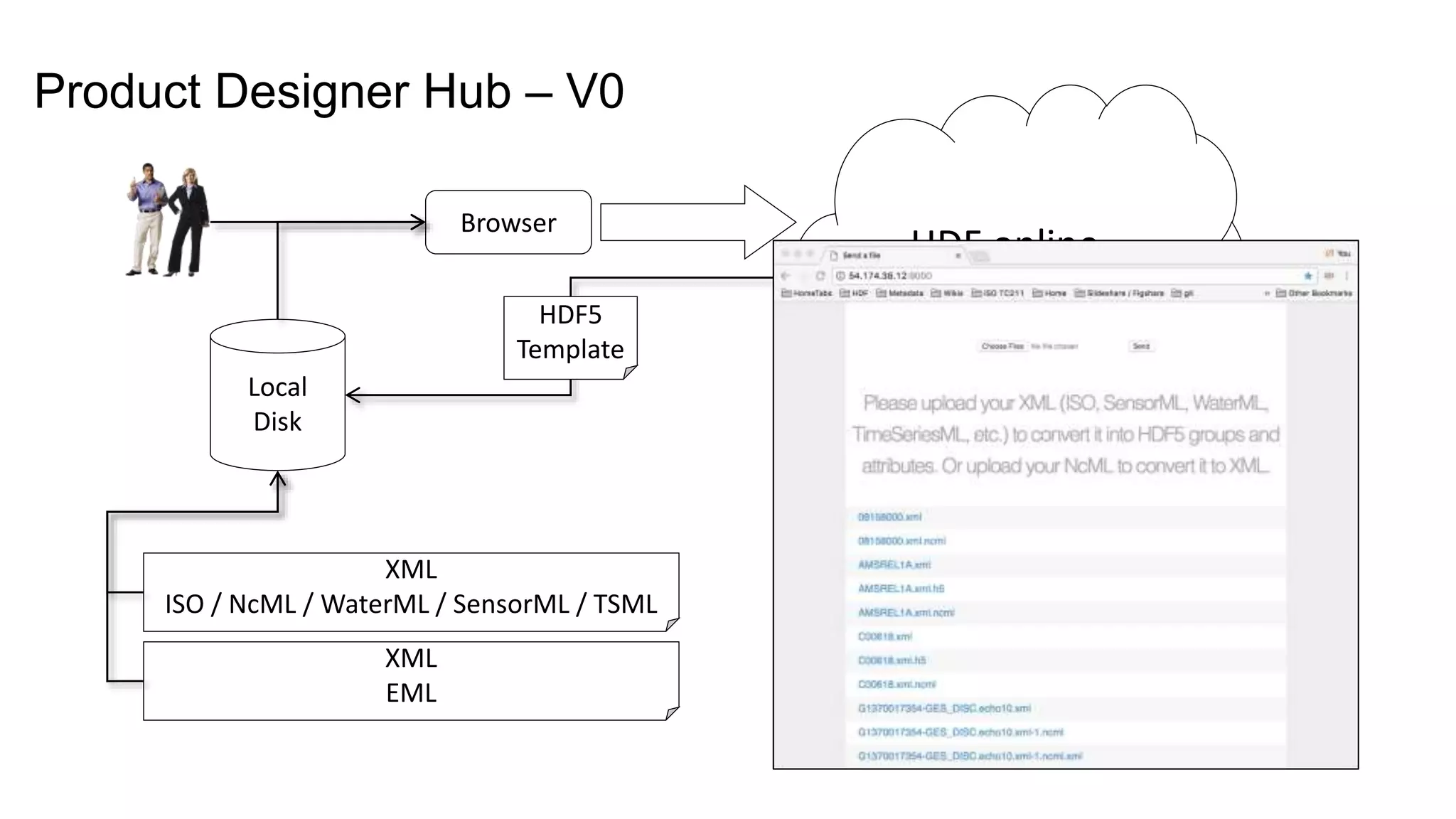

7. Product Designer Hub – V0
Browser
XML
ISO / NcML / WaterML / SensorML / TSML
HDF online
(files, data)
Local
Disk
The web service:
1. receives the uploaded file
2. checks the XML dialect
3. if is is one of the known dialects:
1. translate the XML to NcML
2. ingest the NcML into HDF
3. return HDF file to user
HDF5
Template
XML
EML

8. Client/Server Architecture
Client Software Stack HDF Service (h5serv or …)
HDF5 Lib REST VOL
NetCDF4
Lib
C/Fortran
Application
h5pyd
REST
Backend
Python
Applications
CMD Line
Tools
Note: Clients don’t
need to know
what’s going on
inside this box!
Browser
Web
Application
HDF REST API
(http)
S3 VFD

9. Web UI – Display HDF Content in a browser
https://data.hdfgroup.org

10. Thank You!
Questions?
10
thabermann@hdfgroup.org
