SAP CDX Product Content Excellence
Modeling & Design Framework
Process Navigator

© 2023 SAP SE or an SAP affiliate company. All rights reserved. | Public
Limited
process
visibility
Simplification &
Standardization
Flexibility
& Reusability
Reference
business
architecture
support
BPaaS
Vision

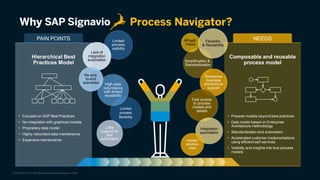

Why Process Navigator?
Hierarchical Best
Practices Model
• Focused on SAP Best Practices
• No integration with graphical models
• Proprietary data model
• Highly redundant data maintenance
• Expensive maintenance
PAIN POINTS
Limited
process
flexibility
Lack of
integration
automation
High data
redundancy
with limited
reusability
No end-
to-end
scenarios
Composable and reusable
process model
• Process models beyond best practices
• Data model based on Enterprise
Architecture methodology
• Standardization and automation
• Accelerated customer implementations
using efficient self-services
• Visibility and insights into true process
models
NEEDS
Little
support for
test
automation
Fast access
to process
models and
assets
Integration
automation
Holistic
solution
view

Process Navigator is …
a cloud native service integrated in ‘SAP for Me’ providing insights into SAP’s process
portfolio following a business and solution process-centric data model and design.
delivering process models, process documentation, process related implementation
accelerators, country and industry specific implementation scope.
providing process related context data such as solution components, roles, integration
automation information, applications along process flows and supported solution capabilities.
a tailormade service to help businesses “implement simple” in all deployment types, public
and private cloud, on-premise or hybrid scenarios.
providing a lightweight consumer grade usability with SAP Fiori, on any device, with in-app
search and filtering options enabling access to SAP’s process portfolio at any point in time.

Business
Architecture Domain
IT Solution
Architecture Domain
Capability
View
Process
View
Business
Capability
Model
Business
Process
Model
Data
View
Business
Data
Model
Solution
Capability
Model
& Product
Map
Solution
Process
Model
Solution
Data
Model

Solution Process Model
Solution Capability Model
Business Capability Model
Business Process Model
can bundle
consists of
consists of
consists of
enables
consists of
consists of
Is structured by
Business Scenario
A business scenario is a group of business processes
relevant for one or multiple industries .
Business Activity
A granular business process that creates a defined
business value.
Enterprise Domain
Level 1 structure on an Enterprise according to its core
functions.
Business Domain
Level 2 grouping of Business Capabilities along
functional similarities.
Business Area
Level 3 grouping of Business Capabilities along
functional similarities.
Business Capability
Level 4 is defining ‘what’ the business does,
constituting a particular ability or capability that a
business may possess or exchange to achieve a
specific purpose or outcome.
enables
is provided by
is realized by
consists of
is represented by
can bundle
Solution Capability
Solution capabilities are implementations of business
capabilities realized by a combination of software
products (one or many).
Solution Component
A solution component represents one or a group of
software products (application or service).
Solution Activity
A solution activity represents one or more actions which
take place in a solution component. A business activity
is typically implemented by a set of solution activities
within one or across different solution components.
Solution Process Flow
A solution process is represented by typically multiple
solution process flows. An overview flow should show
how the different sub-flows integrate to implement the
entire process.
Solution Process
A solution process is an implementation of a business
process (or a subset of it) by a defined set of solution
components.
Solution Scenario
A solution scenario is an implementation of a business
scenario (or a subset of it) using a defined set of
solution components
Business Architecture Solution Architecture
is assigned to
is realized by
is realized by
Business Process
A structured representation of value generation for an
enterprise that creates a defined outcome for a
stakeholder. We differentiate between generic
Business Processes (templates) and Business
Process Variants (implementable process).
Business Process Module
A Business Process which typically consists of one or
multiple lower or same level granularity Business
Processes (Segment or nested Modules).
Business Process Segment
A Business Process consisting of one or multiple
Business Activities which are grouped for form a
smaller, re-usable process.
is realized by
Solution Action
A solution action is something that is done so as to
accomplish a purpose.
Solution
Value
Flow
Diagram
Solution
Data
Flow
Diagram
Solution
Component
Diagram
Solution
Process
Flow
Diagram
Business
Value
Flow
Diagram

in implementation projects
Run
Deploy
Realize
Explore
Discover Prepare
Continuous Innovation
Trial
Qualification Onboard Project Team
Finalized scope and backlog
with delta requirements
Go-Live Readiness
Assessment
Buy Go-Live
New Feature
Delivery
Activate new
scope / add
countries
Test Scripts
Solution Process
Flow Diagram
Solution Process Description
Master Data Overview
Process steps, roles, apps
Integration Automation
Scenarios
Organizational Data Overview
Solution Scenario
Documentation
Value Flow Diagram
Business Scenario and
Process Variant
Description
Solution Component Diagram
Data Flow Diagram
Innovate, Operate,
Support
Onboard Users
and Deploy
Scope and
Configure
Migrate, Integrate,
Extend
Fit-to-
Standard
Test
Setup and
Enablement
Value
Discovery

Consume updates about recent changes
Tour list of available Solution Scenarios
Find your processes by lines-of-business
Learn with embedded learning content
Get recommendations on latest innovations
Bookmark favorites
Review most recently scenarios
Homepage

Scenario Details
Solution process overview
Target release information
Scenario specific assets
Country selector
Asset mass download
Solution process list along lines-
of-business and business areas
Implementation guidance

Process Details
BPMN process flow diagram
Process Documentation
Country selector
List of available process diagrams
Diagram full screen mode
Relevance of the process for different countries

Business Scenario
Business Process Variant
Business Process Module
Business Process Segment
Business Activity
1…n
n
1…m
m
n n
n
m
n
Solution Process
1 n
Solution Process Flow
(Variant)
m
1..m
m
Solution Activity
Defines the Business Scope Describes the Solution Architecture
Solution Action
n
1
1..m
n
m
Solution Scenario
n
m
1 1…n
Get insights into
Business Capabilities
Understand the standard process, pre-
delivered settings and self-service
configurationoptions
Get insights into detailed process
flows and available variations
Get insights into process
flow and its variants
Show individual executables
and applicationroles
Provide overview about the implemented
business value and required solution
components. Show sample data.
Describe the end-to-
end solution scenario.
Understand the reference
business processes and
the value they generate
Get insights into
market standards
Show me ‘what’s new’
and ‘what’s changed’
Provide the test
procedure and test script
Explore value flow
hierarchies on multiple levels
Show me country
specific setting
Provide integration
and extensibility
options
Align with APQC classification

Business and
Application roles
SAP Fiori and SAP
GUI application
information
Integration Automation
Scenarios
Business and
Solution Capabilities
Standardized
documentation
for all entities
Solution
Component and
Versions
Graphical modeling capabilities
with Signavio
Extensibility Information
(*) integration on development roadmap
*
*
*
*
*

SAP for Me → Service & Support → Application Lifecycle Management

Link to SAP for Me
https://me.sap.com
Link to Process Navigator
https://me.sap.com/processnavigator
Documentation
https://help.sap.com/docs/cloud-alm/getting-started-process-navigator

https://blogs.sap.com/2022/11/17/sap-best-practices-explorer-service-will-end-june-30th-2023/

• The Best Practices Explorer (‘BPX’) service was started in 2016 to expose scope item
information shortly after SAP S/4HANA program was launched
• However today, BPX does not fulfill requirements of a modern process platform, context data
and connectivity is not supported, the data model is insufficient
• Consequently BPX will be deprecated in Q3/23
• Process navigator is not a successor of Best Practices Explorer
• Data model, scope, focus and functionality of process navigator are very different
• Some functionality of BPX is no longer required as it does not adhere to product standards or is
just not used by stakeholders
• SAP Best Practices content was mapped against the EARL data model and all active packages
have been migrated to EARL by now
