1. PROMARK 800
Product Presentation

2. PRODUCT DESCRIPTION
 ProMark 800 GNSS Sensor
– Multi-Constellations – 120 Channels
 GPS – GLONASS – GALILEO – SBAS
– Multi-Frequencies
ProMark 800 Product Presentation
 L1 – L2 – L5 – E1 – E5
– Z-BLADE TECHNOLOGY
 GNSS-Centric Signal Processing
– SOFTWARE SUPPORT
 SURVEY PRO
 SPECTRA PRECISION SURVEY OFFICE
– HARDWARE SUPPORT
 RANGER 3
 PROMARK 100

3. PRODUCT DESCRIPTION
 ProMark 800 Constellations and Signals
– GPS L1 C/A, L1/L2 P-Code, L2C, L5
– GLONASS L1 C/A and L2 C/A
– GALILEO E1 and E5
ProMark 800 Product Presentation
– SBAS Code and Carrier
 Embedded Z-BLADE™ Technology
– GNSS-Centric Signal Processing
– Advanced Multi-Path Mitigation
– Better…
 Time To First Fix
 Reliability and Availability
 Protection From Jamming

4. PRODUCT DESCRIPTION
 ProMark 800 Precision
– Real-Time
 Real-Time Kinematic (RTK)
 Horizontal: 10 mm (0.33 ft) + 1 ppm
ProMark 800 Product Presentation
 Vertical: 20 mm (0.65 ft) + 1 ppm
 DGPS Horizontal: < 25 cm (0.82 ft) + 1 ppm
 SBAS Horizontal: < 50 cm (1.64 ft)
– Post-Processed
 Static, Rapid Static
 Horizontal: 5 mm (0.016 ft) + 0.5 ppm
 Vertical: 10 mm (0.33 ft) + 0.5 ppm
 Kinematic: Same as RTK Above

5. PRODUCT DESCRIPTION
 ProMark 800 Data Characteristics
– Update rates to 20 Hz
– Recording Intervals 0.05 to 999 Seconds
ProMark 800 Product Presentation
– Real-Time Support For:
 RTCM 3.x
 RTCM 2.x
 CMR/CMR+
 DBN/LRK
 NMEA 0183 Output
 RTK Networks
– 128 MB Internal Memory (~ 83 MB Available For
Data)
 Over 400 hours @ 15 seconds with 18 satellites

6. PRODUCT DESCRIPTION
 ProMark 800 Physical Characteristics
– Size: ~23 x 19 x 8 cm (~9 x 7 x 3 in)
– Weight: 1.4 kg (3.1 lb)
ProMark 800 Product Presentation
– OLED Monitoring Screen
– RS232, RS422, USB, Bluetooth
– Operating Temperatures: -30° to +55°C (-22° to
+131°F)
– Storage Temperatures: -40° to +70°C (-40° to
+158°F)
– Shock: ETS300 019, 2m (6.56 ft) Pole Drop
– Vibration: EN60945
– Li-Ion Battery: 7.4V – 4600 mAh,
 ~8 hours @ 20°C (68°F) – GSM and UHF Off

7. PRODUCT DESCRIPTION
 ProMark 800 Bottom View
ProMark 800 Product Presentation

8. PRODUCT DESCRIPTION
 ProMark 800 Interface Buttons and Display
ProMark 800 Product Presentation

9. PRODUCT DESCRIPTION
 ProMark 800 Antenna Characteristics
– NGS Calibration: ASH802147_A
ProMark 800 Product Presentation

10. PRODUCT DESCRIPTION
 ProMark 800 Display
– Boot Screens
ProMark 800 Product Presentation
– System Status
– Memory Statistics
– System Information

11. PRODUCT DESCRIPTION
 ProMark 800 Display (Continued)
– Position Information
ProMark 800 Product Presentation
– Debug Recording
– Internal UHF Radio
– USB File Management

12. PRODUCT DESCRIPTION
 ProMark 800 Comm-Links
– Communication Modules
ProMark 800 Product Presentation
 Pacific Crest UHF Radio (Rx)
 430 to 450 MHz & 450 to 470 MHz
 GSM/GPRS/EDGE/3.5G Quad-Band Modem
– Transmitter Kit
 Pacific Crest UHF Radio (Rx/Tx)
 430 – 470 MHz

13. PRODUCT DESCRIPTION
 ProMark 800 Battery and Charger
ProMark 800 Product Presentation

14. PRODUCT DESCRIPTION
 NTRIP Connections with embedded cell phone
ProMark 800 Product Presentation

15. PRODUCT DESCRIPTION
 NTRIP Connections with embedded cell phone
ProMark 800 Product Presentation

16. PRODUCT DESCRIPTION
 NTRIP Connections with embedded cell phone
ProMark 800 Product Presentation

17. PRODUCT DESCRIPTION
 NTRIP Connections with embedded cell phone
ProMark 800 Product Presentation

18. PRODUCT DESCRIPTION

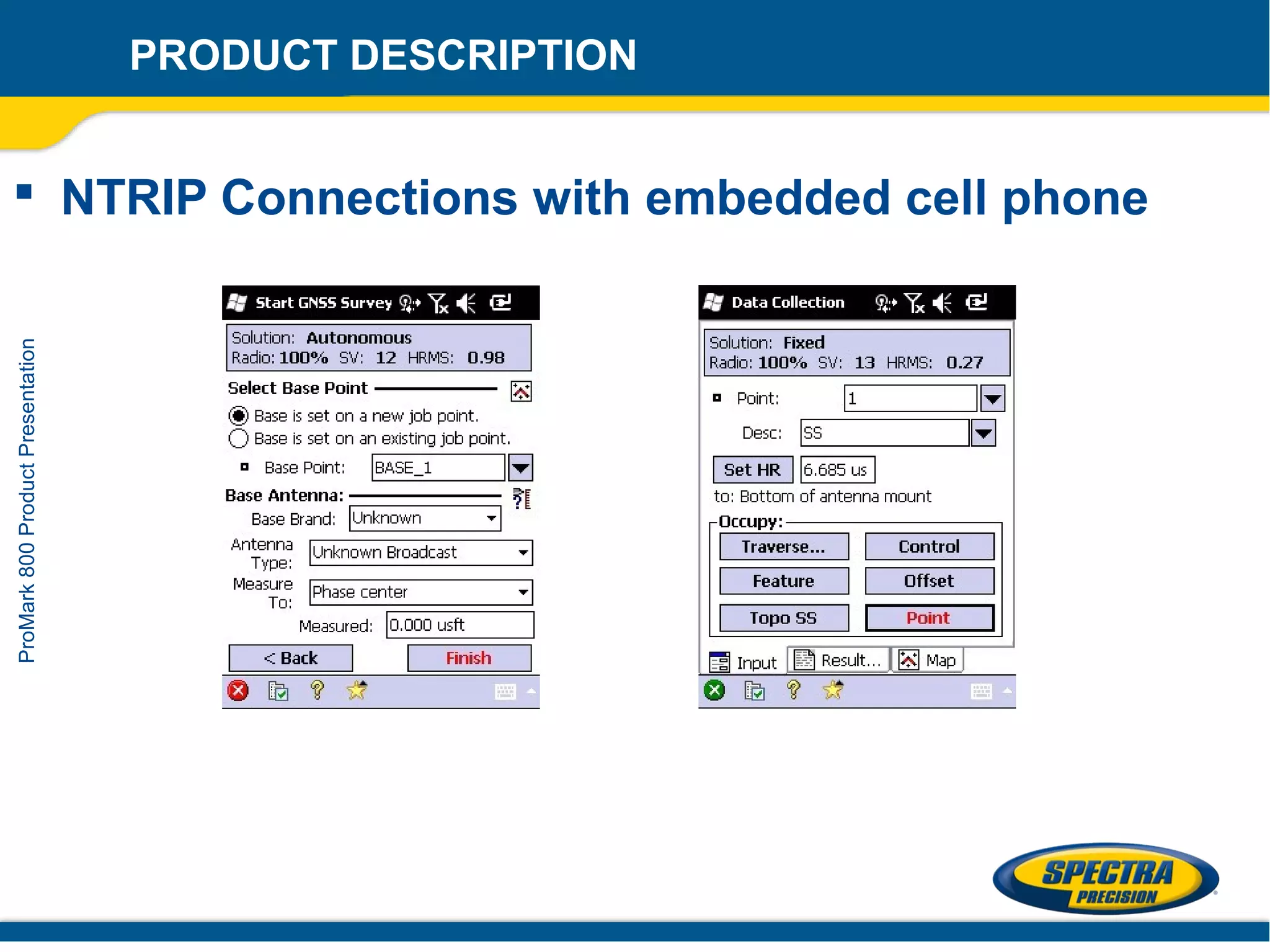

 NTRIP Connections with embedded cell phone
ProMark 800 Product Presentation

19. PRODUCT DESCRIPTION
 NTRIP Connections with embedded cell phone
ProMark 800 Product Presentation

20. PRODUCT DESCRIPTION
 NTRIP Connections with embedded cell phone
ProMark 800 Product Presentation

21. PRODUCT DESCRIPTION
 ProMark 800 Accessories
– HI Tape Measure
– USB Host & Device Cables
ProMark 800 Product Presentation
– Antenna Extension & Washer
– Battery & Charger Kit
 ProMark 800 Options
– GPS L5, Fast Output (20 Hz), Galileo & GSM
– Spectra Precision Survey Office Software
– ADLConf Dealer Software Dongle
– Universal Hard Case

22. PROJECT MANAGEMENT
 Potential Error Sources
– Spatial Reference Systems
 Projected
ProMark 800 Product Presentation
 Local
 Transformations
– GPS Elevations
– Correction Source(s)
– Control Files
– Units (meters and feet)
– Epoch dates – Timeframe Considerations

23. PROJECT MANAGEMENT
 Site Selection
– Base Station Requirements
ProMark 800 Product Presentation
 Unobstructed Sky
 No Reflective Surfaces
 Prominent Location
– Web Mission Planning
 Effective Time Management

24. ProMark 800 - high-end GNSS solution
 An extremely productive and reliable RTK survey solution
delivering precise GNSS positioning in a smart, rugged
and cable-free design
ProMark 800 Product Presentation

25. ProMark Product Family
 ProMark 800 – highest range within ProMark family
– Fully featured multi-frequency / multi-constellation solution
– Flexibility and upgradeability approach
ProMark 800 Product Presentation
Price
ProMark 800
ProMark 220
ProMark 120
Performance

26. Updated Hardware (from ProMark 500)
 First Z-Blade based GNSS receiver
 New GNSS board
– Galileo tracking capable
ProMark 800 Product Presentation
– GPS L5 tracking capable
 New built-in 3.5G cellular modem
 New built-in Pacific Crest UHF radio
(ADLRXO)
 New color; new branding
– Light grey housing
– Spectra Precision powered by Ashtech

27. Key selling points
 Advanced Z-Blade Technology
– New Z-Blade GNSS centric signal processing
– Outstanding reliability in urban canyons and under tree canopy
– Short time-to-fix, and long-range RTK positioning
– Multi-frequency and multi-constellation ready
ProMark 800 Product Presentation
 All-in-one Flexibility
– UHF and GSM/GPRS/3.5G built-in communication modules
– Multiple operating modes and configurations
– Extended support of protocols and data formats
– Choice of state-of-the-art field terminals
 Built for Intensive Use
– Waterproof and shock resistant
– All-day battery life
– Field-proven ergonomic design
– Total weight under 2 kg

28. Competitive advantage
 ProMark 800 – a very competitive offer
– Leading GNSS performance and specifications
– Unique Z-Blade technology for superior performance in difficult environments
ProMark 800 Product Presentation
– More reliable and better performing than low-cost solutions

29. ProMark 800 updated offering
 ProMark 800 GNSS single receiver kit
– ALL options included
 GLONASS, unlimited RTK, GSM, Fast Output, L5, GALILEO
ProMark 800 Product Presentation
– Similar to the previous Ultimate kit
– At decreased price
 More competitive
 Better aligned with competition
 Still providing comfortable margins

30. ProMark 800 Controllers
 Choice of data collectors
– Ranger 3
– ProMark 100
ProMark 800 Product Presentation
– MobileMapper 10
– T41
 Choice of field software
– Survey Pro
– FAST Survey
 Choice of office software
– Survey Office
– GNSS Solutions
