The document discusses industry tailored mobile phones. It describes the specifications of a sample mobile phone including its dimensions, screen size, memory, camera, and protective casing. It also outlines various expansion ports and how the phone can be configured for different industries through accessories like barcode scanners, printers, and RFID readers. Finally, it compares the phone to other models based on features and price points.

1. Industry Tailored Mobile Phones
july 2011
1
Monday, August 1, 11

2. 2
Monday, August 1, 11

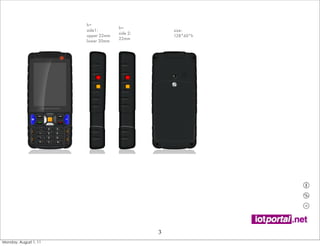

3. h=
h=
side1: size:
side 2:
upper 22mm 128*60*h
22mm
lower 20mm
3
Monday, August 1, 11

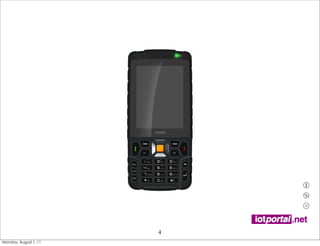

4. 4
Monday, August 1, 11

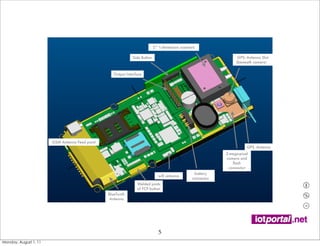

5. 2* 1-dimension scanners
Side Button GPS- Antenna Slot
(beneath camera）
Output Interface
GSM Antenna Feed point
GPS- Antenna
2-mega-pixel
camera and
flash
connector
battery
wifi antenna
connector
Welded joints
of FCP button
BlueTooth
Antenna
5
Monday, August 1, 11

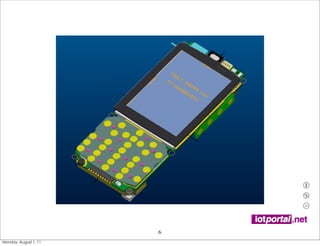

6. 6
Monday, August 1, 11

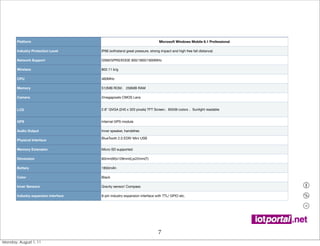

7. Platform Microsoft Windows Mobile 6.1 Professional
Industry Protection Level IP66 (withstand great pressure, strong impact and high free fall distance)
Network Support GSM/GPRS/EDGE 900/1800/1900MHz
Wireless 802.11 b/g
CPU 460MHz
Memory 512MB ROM； 256MB RAM
Camera 2megapixels CMOS Lens
LCD 2.8" QVGA (240 x 320 pixels) TFT Screen，65536 colors ，Sunlight readable
GPS internal GPS module
Audio Output Inner speaker, handsfree
BlueTooth 2.0 EDR/ Mini USB
Physical Interface
Memory Extension Micro SD supported
Dimension 60mm(W)x128mm(L)x22mm(T)
Battery 1850mAh
Color Black
Inner Sensors Gravity sensor/ Compass
Industry expansion interface 8-pin industry expansion interface with TTL/ GPIO etc.
7
Monday, August 1, 11

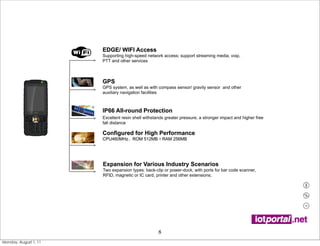

8. EDGE/ WIFI Access
Supporting high-speed network access; support streaming media, voip,
PTT and other services
GPS
GPS system, as well as with compass sensor/ gravity sensor and other
auxiliary navigation facilities
IP66 All-round Protection
Excellent resin shell withstands greater pressure, a stronger impact and higher free
fall distance
Configured for High Performance
CPU460MHz ROM 512MB RAM 256MB
Expansion for Various Industry Scenarios
Two expansion types: back-clip or power-dock, with ports for bar code scanner,
RFID, magnetic or IC card, printer and other extensions;
8
Monday, August 1, 11

9. 9
Monday, August 1, 11

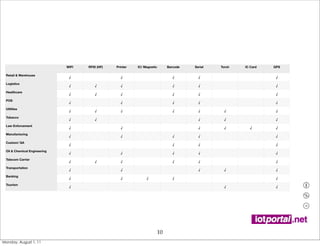

10. WIFI RFID (HF) Printer IC/ Magnetic Barcode Serial Torch IC Card GPS
Retail & Warehouse
√ √ √ √ √
Logistics
√ √ √ √ √ √
Healthcare
√ √ √ √ √ √
POS
√ √ √ √ √
Utilities
√ √ √ √ √ √ √
Tobacco
√ √ √ √ √
Law Enforcement
√ √ √ √ √ √
Manufacturing
√ √ √ √ √
Custom/ QA
√ √ √ √
Oil & Chemical Engineering
√ √ √ √ √
Telecom Carrier
√ √ √ √ √ √
Transportation
√ √ √ √ √
Banking
√ √ √ √ √
Tourism
√ √ √
10
Monday, August 1, 11

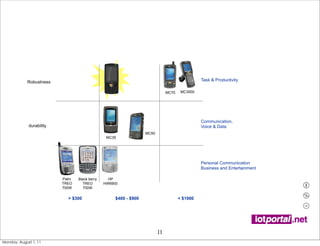

11. Robustness Task & Productivity
MC70 MC3000
Communication,
durability Voice & Data
MC50
MC35
Personal Communication
Business and Entertainment
Palm Black berry HP
TREO TREO HW6900
700W 700W
> $300 $400 - $900 < $1000
11
Monday, August 1, 11

12. $600 ~ $800
Casio
DT-950
MC3000
$400 ~ $600 Intermec CK-1
MC1000
Casio
DT-900
< $400
Performance low high Wireless +
high performance
12
Monday, August 1, 11

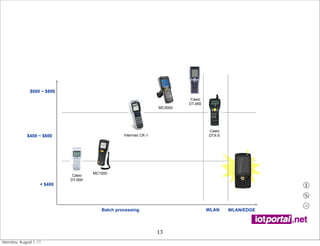

13. $600 ~ $800
Casio
DT-950
MC3000
Casio
$400 ~ $600 Intermec CK-1 DTX-5
MC1000
Casio
DT-900
< $400
Batch processing WLAN WLAN/EDGE
13
Monday, August 1, 11

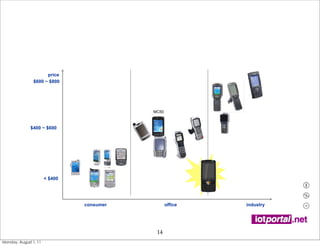

14. price
$600 ~ $800
MC50
$400 ~ $600
< $400
consumer office industry
14
Monday, August 1, 11

15. Contact
• Long Zhang
• +86-10-6515 1437
• zlong@iotportal.net
