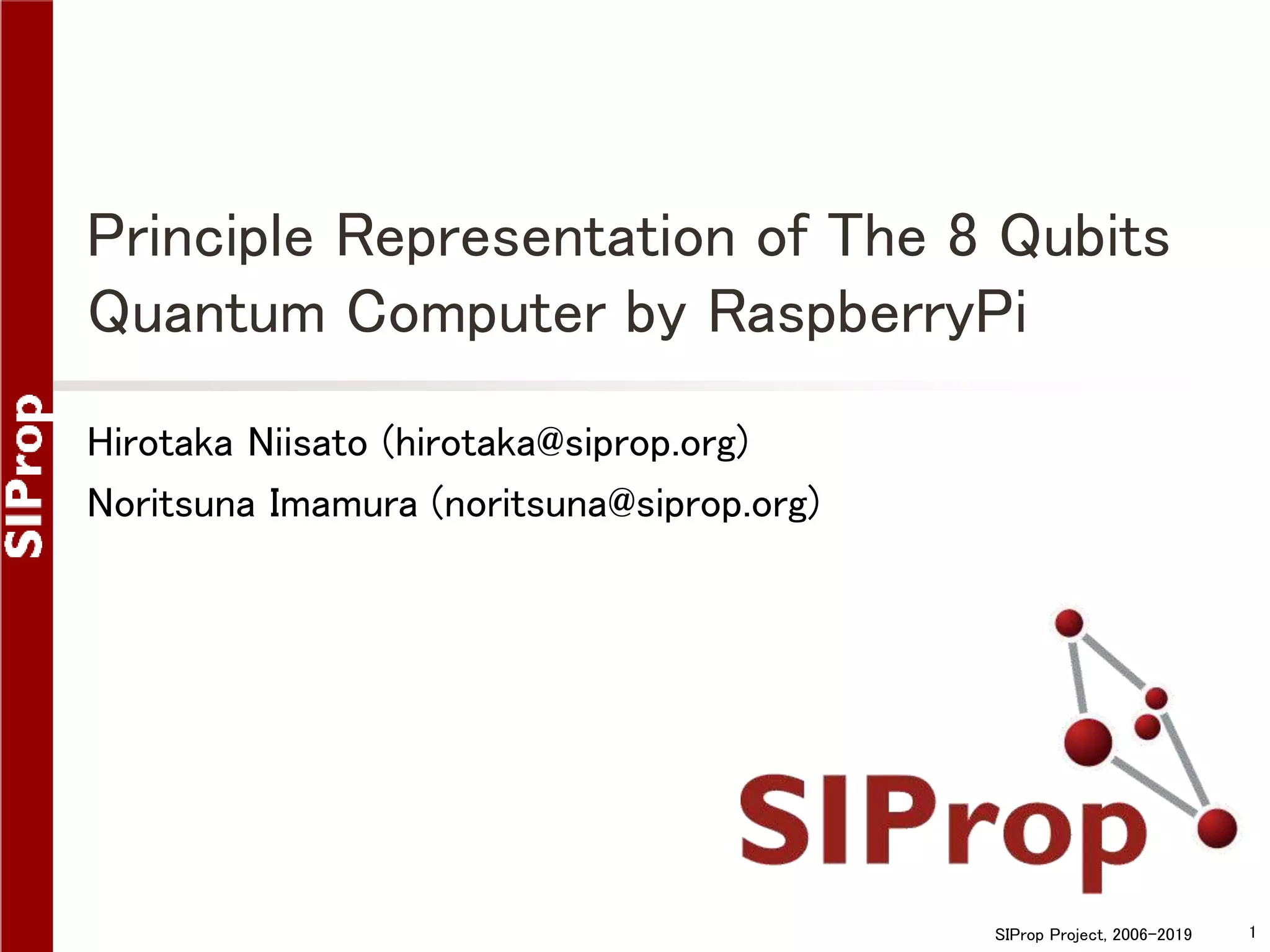

Principle Representation of The 8 Qubits Quantum Computer by RaspberryPi.

1. SIProp Project, 2006-2019 1
Principle Representation of The 8 Qubits
Quantum Computer by RaspberryPi
Hirotaka Niisato (hirotaka@siprop.org)
Noritsuna Imamura (noritsuna@siprop.org)

2. SIProp Project, 2006-2017 2

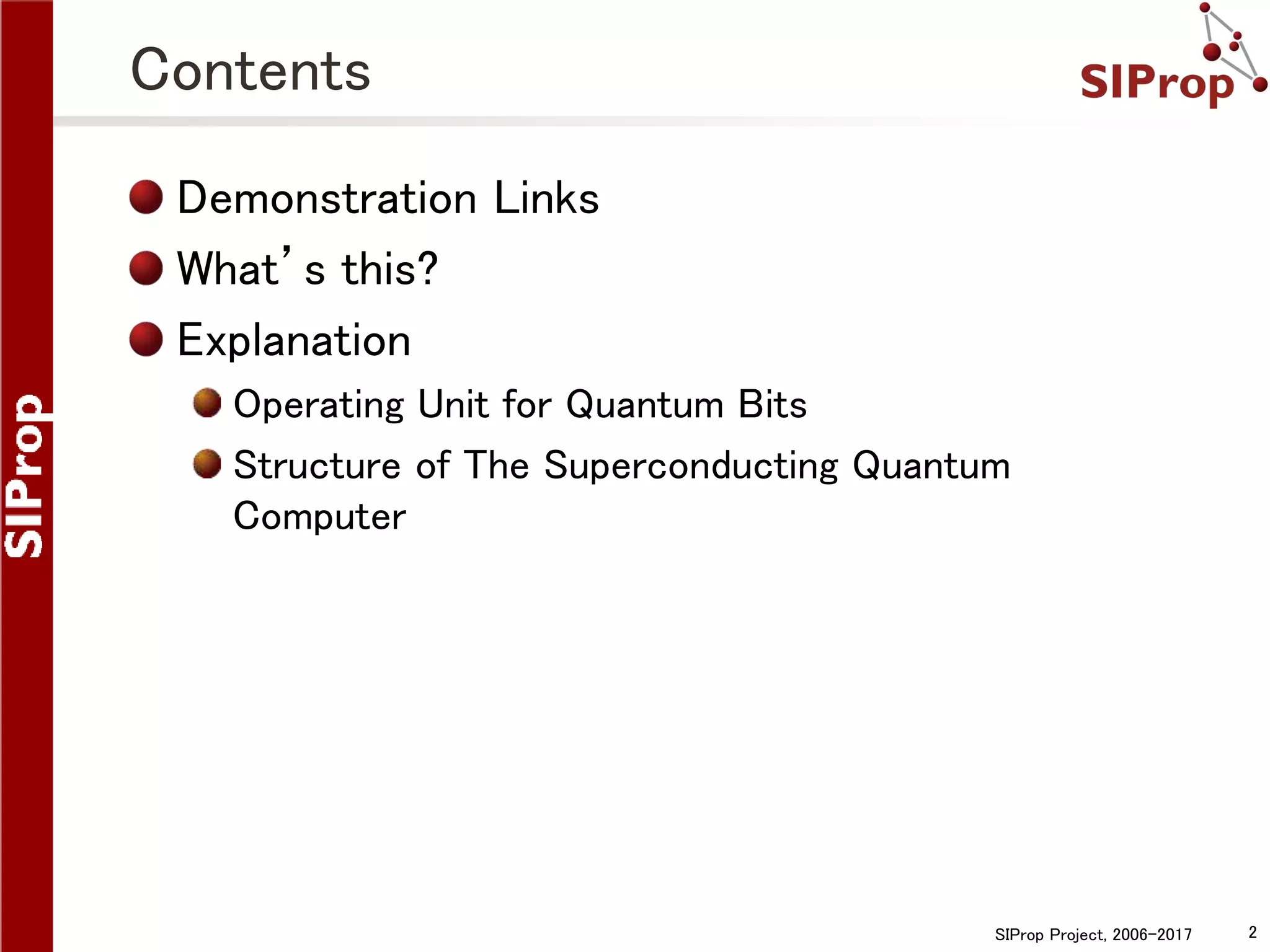

Contents
Demonstration Links
What’s this?
Explanation
Operating Unit for Quantum Bits
Structure of The Superconducting Quantum
Computer

3. SIProp Project, 2006-2017 3
QPU（RaspberryPi）
Quantum Computer
Controller
（RaspberryPi+Node-RED）
LAN
Microwave Receiver
（SDR）
Gate Controller
Microwave Analyzer
（GNURadio）
Qubit（Speaker）
Qubit Controlling Unit（RaspberryPi）
Microwave Transmitter
（SDR）
Gate Controller
Microwave Generator
（GNURadio）
Gate Controller
Sound Wave Converter
（GNURadio）
Audio Sound Wave
Chladni Converter
（Power AMP）
Chladni Figure
Indicator
（Speaker）
Radio Wave
Demonstration
Video： https://www.youtube.com/watch?v=qXVOGrkACug
Site
https://makeprojects.com/project/8-bit
https://quantum.siprop.org/
GNURadio:GR-Quantum
https://github.com/noritsuna/gr-quantum
Qubit Controlling Unit
(RaspberryPi&SDR)
QPU(RaspberryPi)
Qubit(Speaker)

4. SIProp Project, 2006-2017 4
What?
= IBM Q

5. SIProp Project, 2006-2017 5
Interior of The Superconducting
Quantum Computer
Ｄ

6. SIProp Project, 2006-2017 6
Interior Structure of The
Superconducting Quantum Computer
Microwave

7. SIProp Project, 2006-2017 7
Operating Unit for Quantum Bits

8. SIProp Project, 2006-2017 8
The Classical Computer Operating Unit

9. SIProp Project, 2006-2017 9
The Quantum Computer Operating Unit

10. SIProp Project, 2006-2017 10
Temporal variation of state vectors and wave
functions of quantum systems described by the
time-dependent Schrödinger equation
Hamiltonian of electrons interacting with
classical electromagnetic fields
Transformation of The Wave Function

11. SIProp Project, 2006-2017 11
The Wave Function can be transformed into a
resonant circuit.
Transformation of The Wave Function

12. SIProp Project, 2006-2017 12
Operation of The Quantum Circuit
Microwave
Microwave
Gate
Oparation

13. SIProp Project, 2006-2017 13
Operation of The Quantum Bits
Gate Operation
&
Microwave
Resonant
Phenomenon

14. SIProp Project, 2006-2017 14
Chladni Figure
Chladni Figure Phenomenon = Sound Wave Resonant

15. SIProp Project, 2006-2017 15
Structure of
The Superconducting
Quantum Computer

16. SIProp Project, 2006-2017 16
Block Figure: The Superconducting
Quantum Computer
QPU
Qubit
Microwave
Generator & Transmitter
Qubit Controlling Unit

17. SIProp Project, 2006-2017 17
Qubit Controlling Unit: The
Superconducting Quantum Computer
Microwave Transmitter
Microwave Generator

18. SIProp Project, 2006-2017 18
QPU & Qubit: The Superconducting
Quantum Compute
Microwave
Resonant
Circuit
Qubit

19. SIProp Project, 2006-2017 19
Contrast that with the demonstration
Qubit
(Speaker)
Sound Wave
Chladni Converter
(Power AMP)
Qubit State
(Chladni Figure)
QPU
(Microwave Receiver
Sound Wave Converter)
Qubit Controlling Unit
(Microwave
Generator & Transmitter)

20. SIProp Project, 2006-2017 20
Sources
Demonstration of Two-Qubit Algorithms with a Superconducting
Quantum Processor
https://arxiv.org/abs/0903.2030
A Quantum Engineer's Guide to Superconducting Qubits
https://arxiv.org/abs/1904.06560
An Experimental Microarchitecture for a Superconducting Quantum
Processor
https://arxiv.org/abs/1708.07677
Engineering the quantum-classical interface of solid-state qubits
https://tel.archives-ouvertes.fr/tel-00857654/file/thesis_Dewes_web.pdf
Demonstrating Quantum Speed-Up with a Two-Transmon Quantum
Processor
https://tel.archives-ouvertes.fr/tel-00857654
量子計算実験基礎
https://www.appi.keio.ac.jp/Itoh_group/abe/pdf/nquic.pdf
