1. Preserving access:
Making more informed
“guesses” about what works
Prepared by: Maxine Davis, Collaboration Research Officer
Presented by: David Pearson, Acting Director
Web Archiving & Digital Preservation,
National Library of Australia
IIPC Open Day, San Francisco, 7 October 2009
1

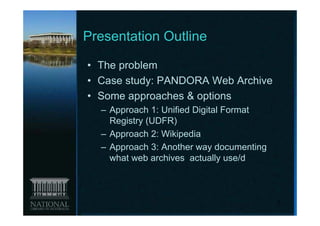

2. Presentation Outline
• The problem
• Case study: PANDORA Web Archive
• Some approaches & options
– Approach 1: Unified Digital Format
Registry (UDFR)
– Approach 2: Wikipedia
– Approach 3: Another way documenting
what web archives actually use/d
2

3. The problem
• The World Wide Web is constantly
evolving
– Requires combinations of software/hardware
to render web content
– But what is used for creation and access
changes
• Web archives
– Contain snapshots of websites taken at
different times (different sites or same sites
multiple times)
– Lots of files, many file formats, various
versions
– Aim for ongoing access
3

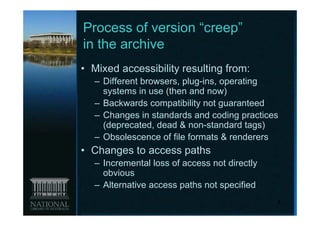

4. Process of version “creep”
in the archive
• Mixed accessibility resulting from:
– Different browsers, plug-ins, operating
systems in use (then and now)
– Backwards compatibility not guaranteed
– Changes in standards and coding practices
(deprecated, dead & non-standard tags)
– Obsolescence of file formats & renderers
• Changes to access paths
– Incremental loss of access not directly
obvious
– Alternative access paths not specified
4

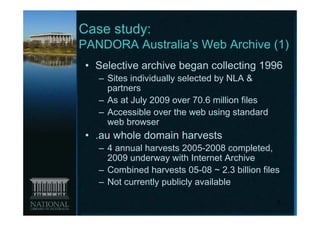

5. Case study:
PANDORA Australia’s Web Archive (1)
• Selective archive began collecting 1996
– Sites individually selected by NLA &
partners
– As at July 2009 over 70.6 million files
– Accessible over the web using standard
web browser
• .au whole domain harvests
– 4 annual harvests 2005-2008 completed,
2009 underway with Internet Archive
– Combined harvests 05-08 ~ 2.3 billion files
– Not currently publicly available
5

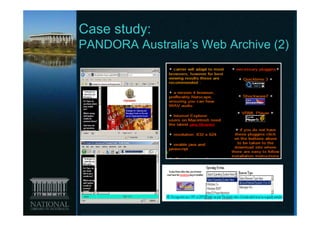

6. Case study:
PANDORA Australia’s Web Archive (2)
6

7. IIPC Preservation Working Group
discussions
• Need for documenting the
technical environment
• Support required for alternative
preservation action strategies
– Emulation of past environments
– Migration to standard formats
– Risk notification
– Recording conversion and alternate
access paths
• Exploring different approaches
• Sharing information sensible
7

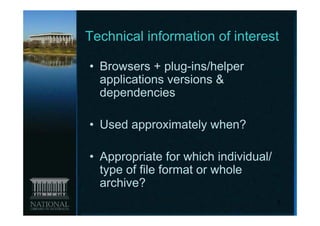

8. Technical information of interest
• Browsers + plug-ins/helper
applications versions &
dependencies
• Used approximately when?
• Appropriate for which individual/
type of file format or whole
archive?
8

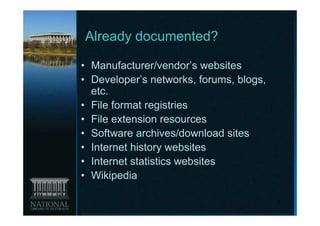

9. Already documented?
• Manufacturer/vendor’s websites
• Developer’s networks, forums, blogs,
etc.
• File format registries
• File extension resources
• Software archives/download sites
• Internet history websites
• Internet statistics websites
• Wikipedia
9

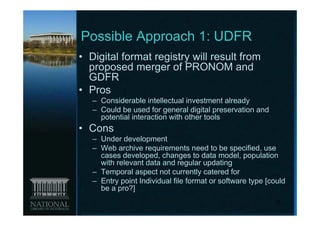

10. Possible Approach 1: UDFR
• Digital format registry will result from
proposed merger of PRONOM and
GDFR
• Pros
– Considerable intellectual investment already
– Could be used for general digital preservation and
potential interaction with other tools
• Cons
– Under development
– Web archive requirements need to be specified, use
cases developed, changes to data model, population
with relevant data and regular updating
– Temporal aspect not currently catered for
– Entry point Individual file format or software type [could
be a pro?]
10

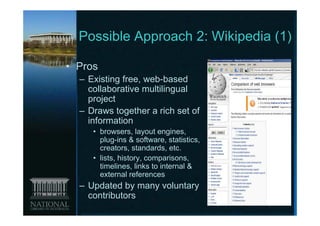

11. Possible Approach 2: Wikipedia (1)
• Pros
– Existing free, web-based
collaborative multilingual
project
– Draws together a rich set of
information
• browsers, layout engines,
plug-ins & software, statistics,
creators, standards, etc.
• lists, history, comparisons,
timelines, links to internal &
external references
– Updated by many voluntary
contributors
11

12. Possible Approach 2: Wikipedia (2)
• Cons
– General audience, not specific to web archive
requirements or specific web archive
– Amount of detail varies (between different
language versions, articles)
– Can be edited by multiple users (+ & -)
– Not designed to interact with other digital
preservation tools as UDFR has potential to do
12

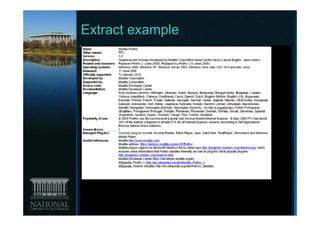

13. Extract example
13

14. Possible Approach 3:
Documenting what web archives
are using/used
• Pros
– Time based software suite approach
– Starting point for
• Potential UDFR seed list
• Identifying commonly used software
• Inferring additional software requirements
• Identifying alternate access paths
• Cons
– Easier to document current versions
– Obscure/obsolete material in our collections
may be unknown
14

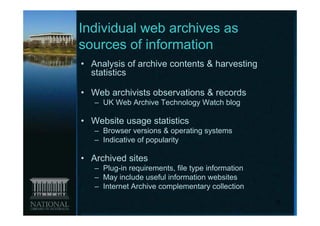

15. Individual web archives as
sources of information
• Analysis of archive contents & harvesting
statistics
• Web archivists observations & records
– UK Web Archive Technology Watch blog
• Website usage statistics
– Browser versions & operating systems
– Indicative of popularity
• Archived sites
– Plug-in requirements, file type information
– May include useful information websites
– Internet Archive complementary collection
15

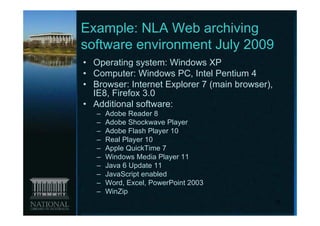

16. Example: NLA Web archiving
software environment July 2009
• Operating system: Windows XP
• Computer: Windows PC, Intel Pentium 4
• Browser: Internet Explorer 7 (main browser),
IE8, Firefox 3.0
• Additional software:
– Adobe Reader 8
– Adobe Shockwave Player
– Adobe Flash Player 10
– Real Player 10
– Apple QuickTime 7
– Windows Media Player 11
– Java 6 Update 11
– JavaScript enabled
– Word, Excel, PowerPoint 2003
– WinZip
16

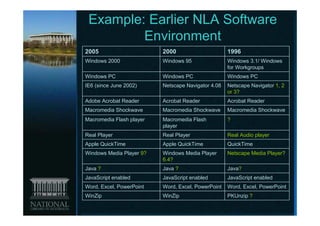

17. Example: Earlier NLA Software
Environment
2005 2000 1996
Windows 2000 Windows 95 Windows 3.1/ Windows
for Workgroups
Windows PC Windows PC Windows PC
IE6 (since June 2002) Netscape Navigator 4.08 Netscape Navigator 1, 2
or 3?
Adobe Acrobat Reader Acrobat Reader Acrobat Reader
Macromedia Shockwave Macromedia Shockwave Macromedia Shockwave
Macromedia Flash player Macromedia Flash ?
player
Real Player Real Player Real Audio player
Apple QuickTime Apple QuickTime QuickTime
Windows Media Player 9? Windows Media Player Netscape Media Player?
6.4?
Java ? Java ? Java?
JavaScript enabled JavaScript enabled JavaScript enabled
Word, Excel, PowerPoint Word, Excel, PowerPoint Word, Excel, PowerPoint
WinZip WinZip PKUnzip ?
17

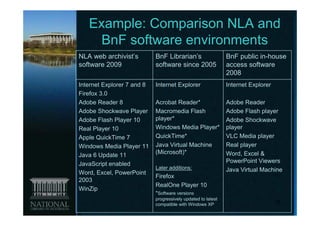

18. Example: Comparison NLA and
BnF software environments
NLA web archivist’s BnF Librarian’s BnF public in-house
software 2009 software since 2005 access software
2008
Internet Explorer 7 and 8 Internet Explorer Internet Explorer
Firefox 3.0
Adobe Reader 8 Acrobat Reader* Adobe Reader
Adobe Shockwave Player Macromedia Flash Adobe Flash player
Adobe Flash Player 10 player* Adobe Shockwave
Real Player 10 Windows Media Player* player
Apple QuickTime 7 QuickTime* VLC Media player
Windows Media Player 11 Java Virtual Machine Real player
Java 6 Update 11 (Microsoft)* Word, Excel &
JavaScript enabled PowerPoint Viewers
Later additions: Java Virtual Machine
Word, Excel, PowerPoint
Firefox
2003
RealOne Player 10
WinZip
*Software versions
progressively updated to latest
compatible with Windows XP 18

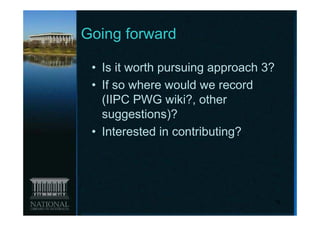

19. Going forward
• Is it worth pursuing approach 3?
• If so where would we record
(IIPC PWG wiki?, other
suggestions)?
• Interested in contributing?
19

20. Questions?
Contact
• David Pearson
dapearson@nla.gov.au
• Maxine Davis
madavis@nla.gov.au
Report to IIPC PWG by
end October 2009
