The document presents an overview of Cisco Prime for IP NGN, detailing its architecture and capabilities for managing and assuring network services. It emphasizes the integration of various network elements, efficient inventory management, and robust alarm correlation to enhance operational efficiency. Key benefits include reduced troubleshooting times and improved service delivery in evolving network environments.

1. Cisco Confidential 1C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved.
Cisco Prime for IP NGN
Technical Education Series:
Introduction to Prime Network
Dieter Famula
Product Manager
Network Management Technology Group
April 25, 2012

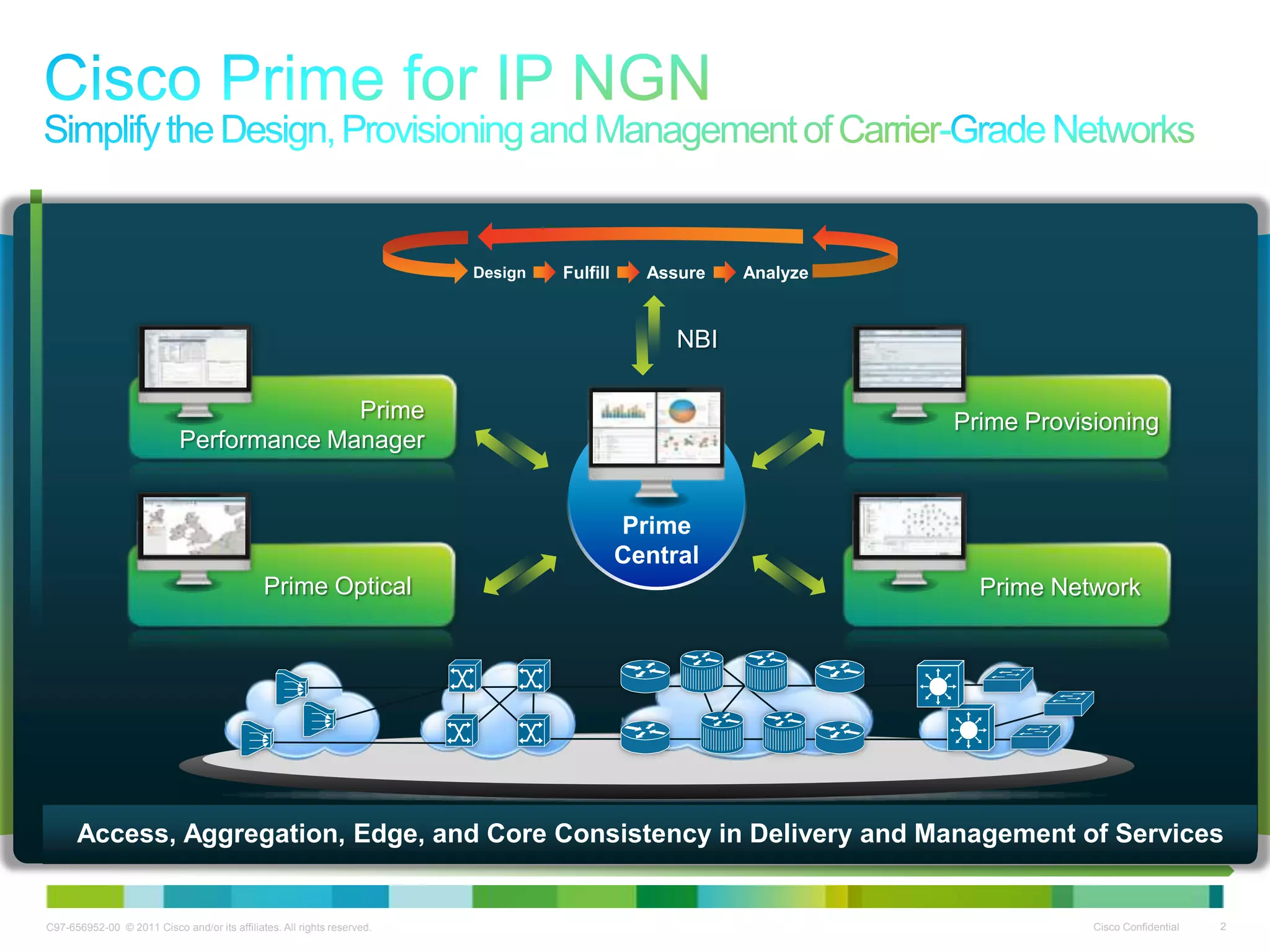

2. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 2
Access, Aggregation, Edge, and Core Consistency in Delivery and Management of Services
Prime
Central
Prime
Performance Manager
Prime Provisioning
Prime Optical Prime Network
Design AnalyzeAssureFulfill
NBI

3. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3

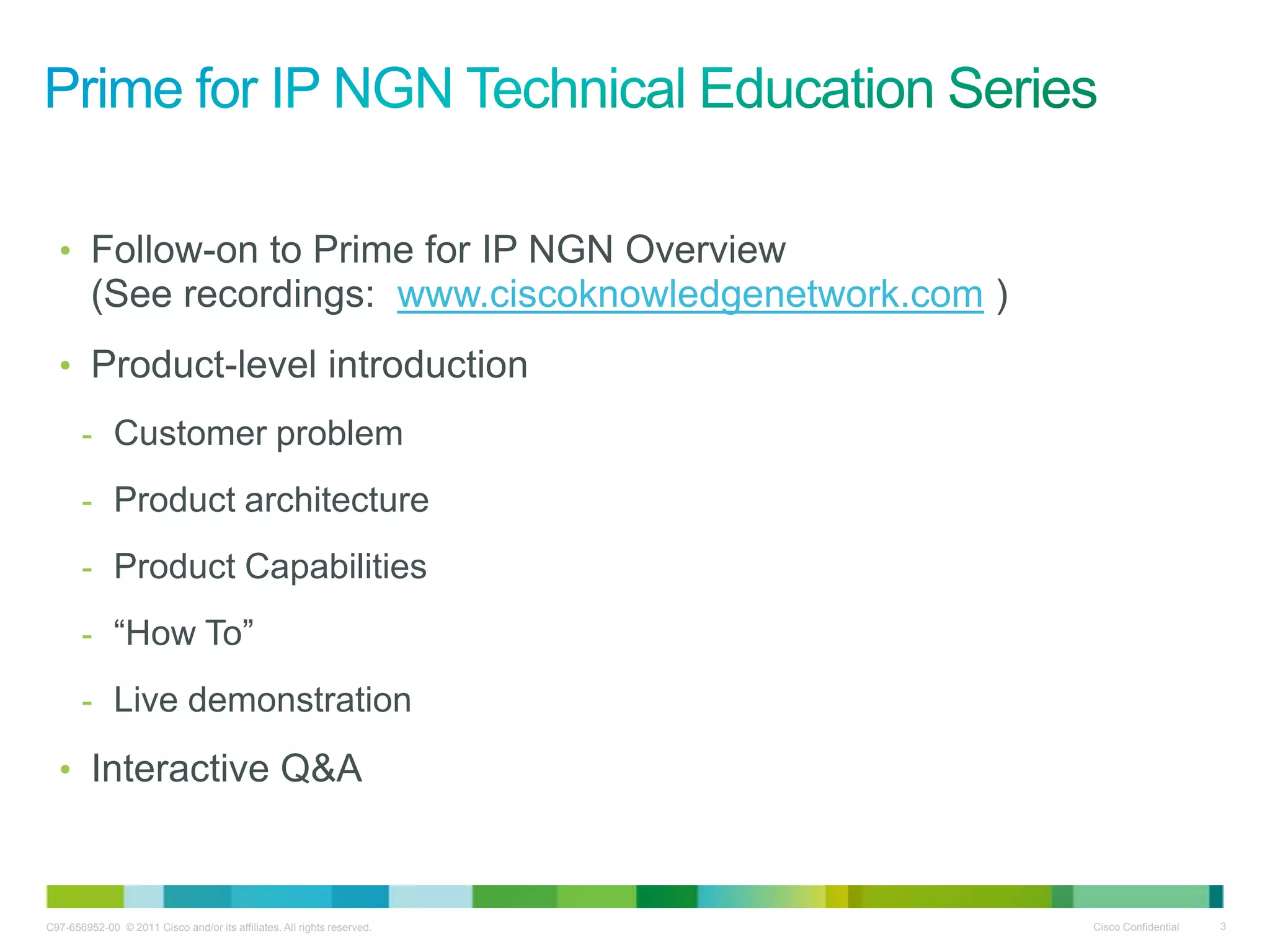

• Follow-on to Prime for IP NGN Overview
(See recordings: www.ciscoknowledgenetwork.com )
• Product-level introduction
- Customer problem
- Product architecture
- Product Capabilities
- ―How To‖
- Live demonstration
• Interactive Q&A

4. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 4

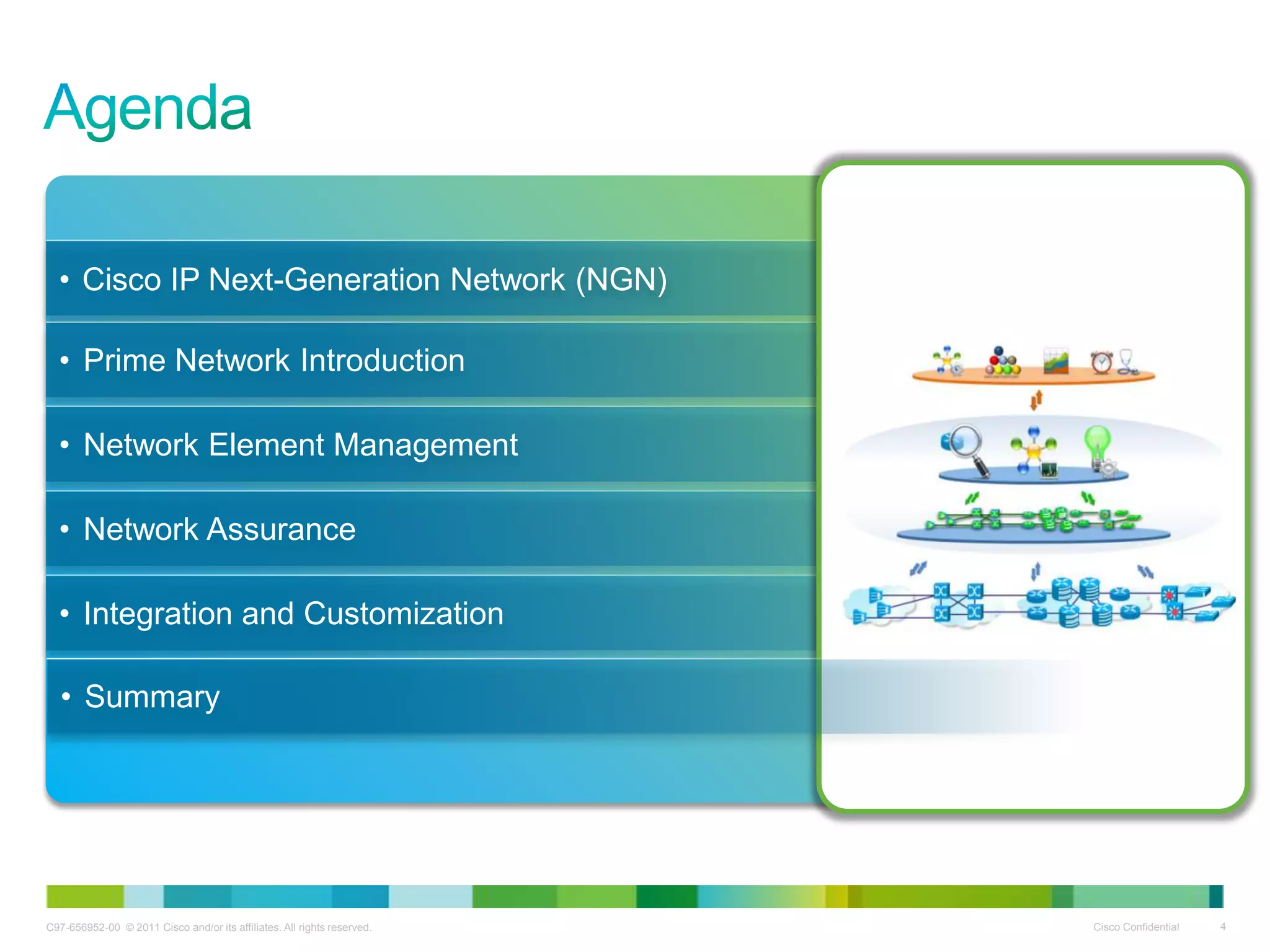

• Integration and Customization
• Network Assurance
• Network Element Management
• Prime Network Introduction
• Cisco IP Next-Generation Network (NGN)
• Summary

6. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 6

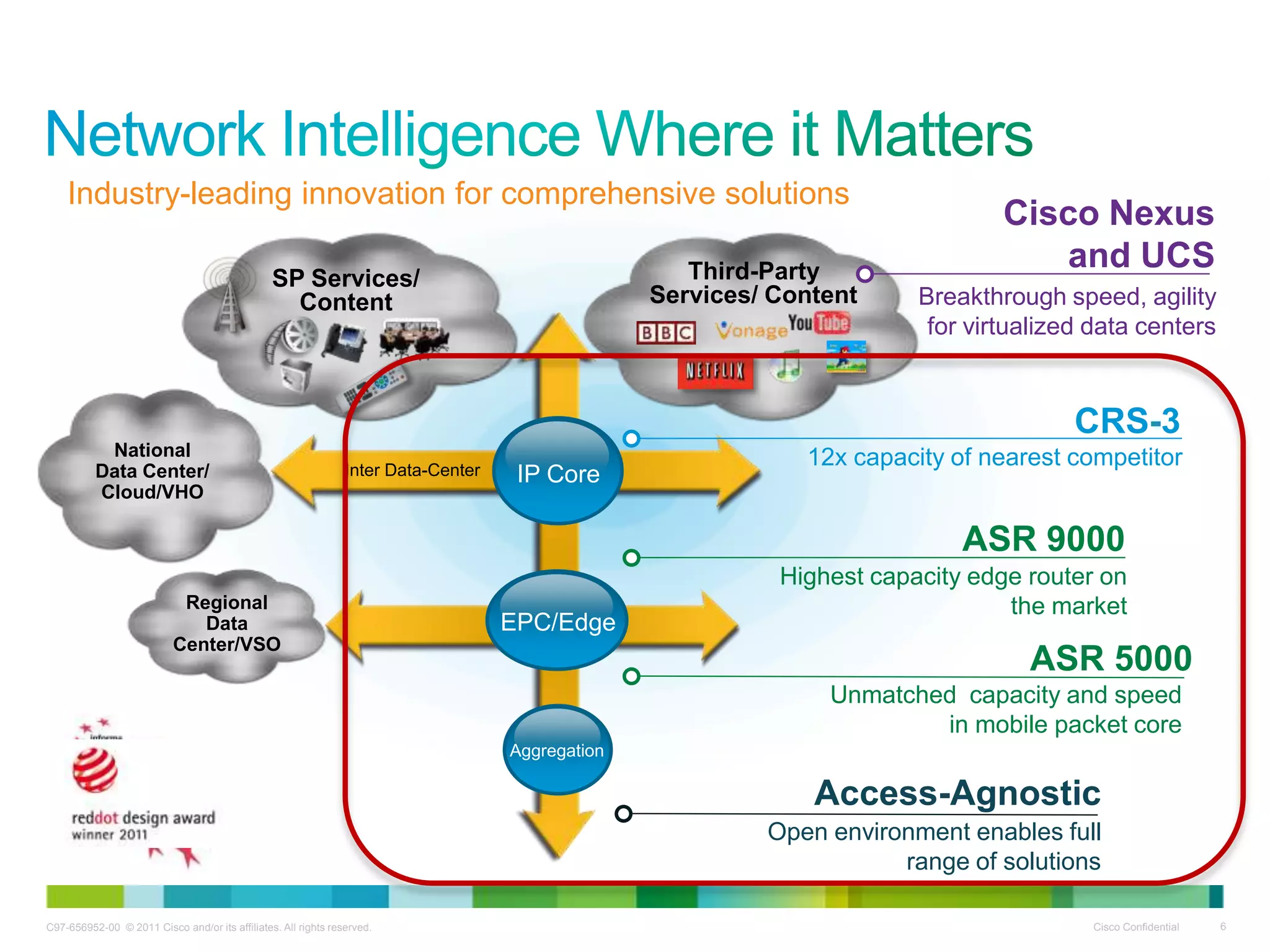

Open environment enables full
range of solutions
Third-Party
Services/ Content
National
Data Center/
Cloud/VHO
Regional
Data
Center/VSO
EPC/Edge
Aggregation
Inter Data-Center IP Core
SP Services/
Content
CRS-3
12x capacity of nearest competitor
Access-Agnostic
ASR 9000
Highest capacity edge router on
the market
ASR 5000
Unmatched capacity and speed
in mobile packet core
Cisco Nexus
and UCS
Breakthrough speed, agility
for virtualized data centers
Industry-leading innovation for comprehensive solutions

8. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 8

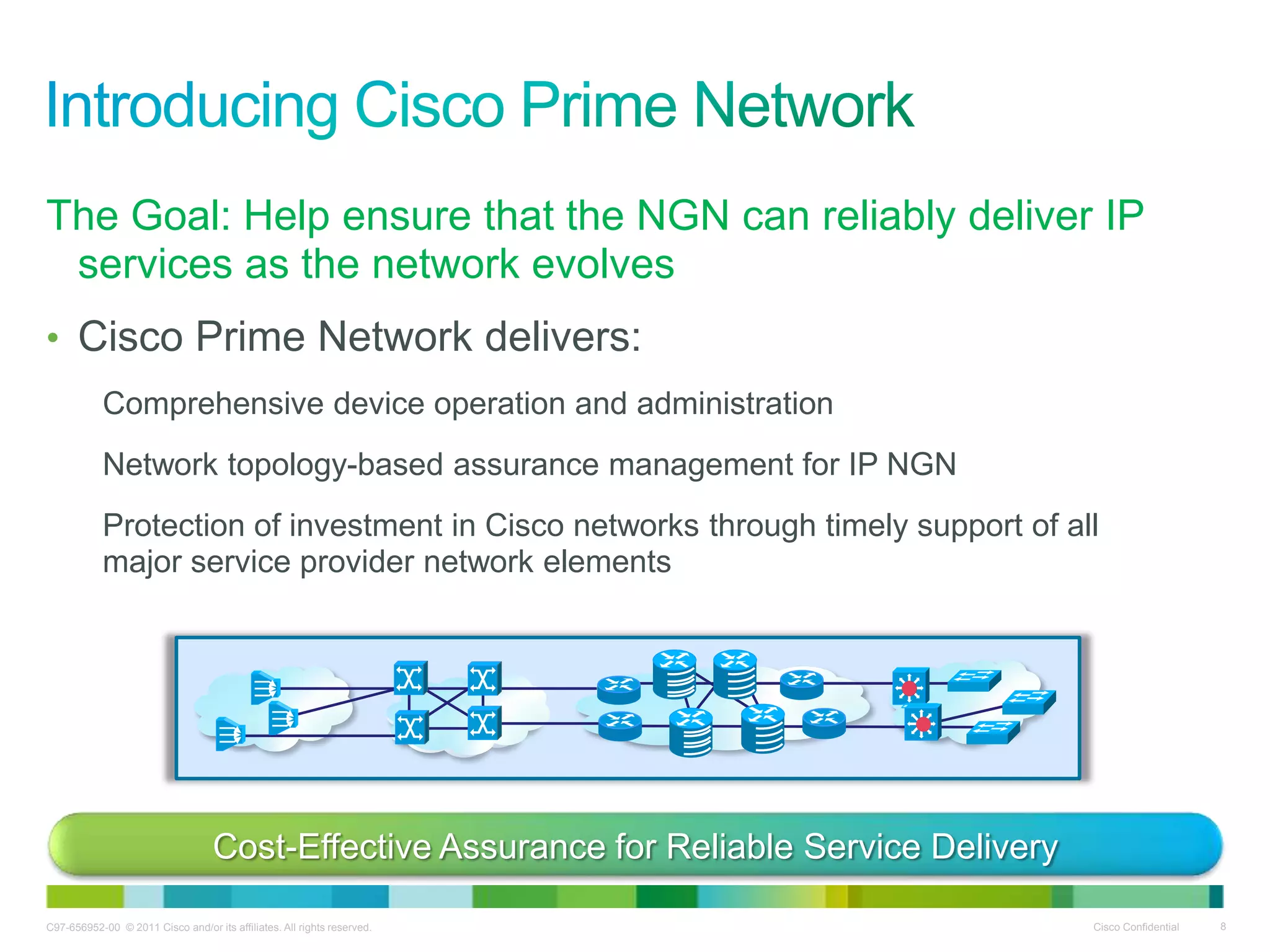

The Goal: Help ensure that the NGN can reliably deliver IP
services as the network evolves
• Cisco Prime Network delivers:
Comprehensive device operation and administration
Network topology-based assurance management for IP NGN
Protection of investment in Cisco networks through timely support of all
major service provider network elements
Cost-Effective Assurance for Reliable Service Delivery

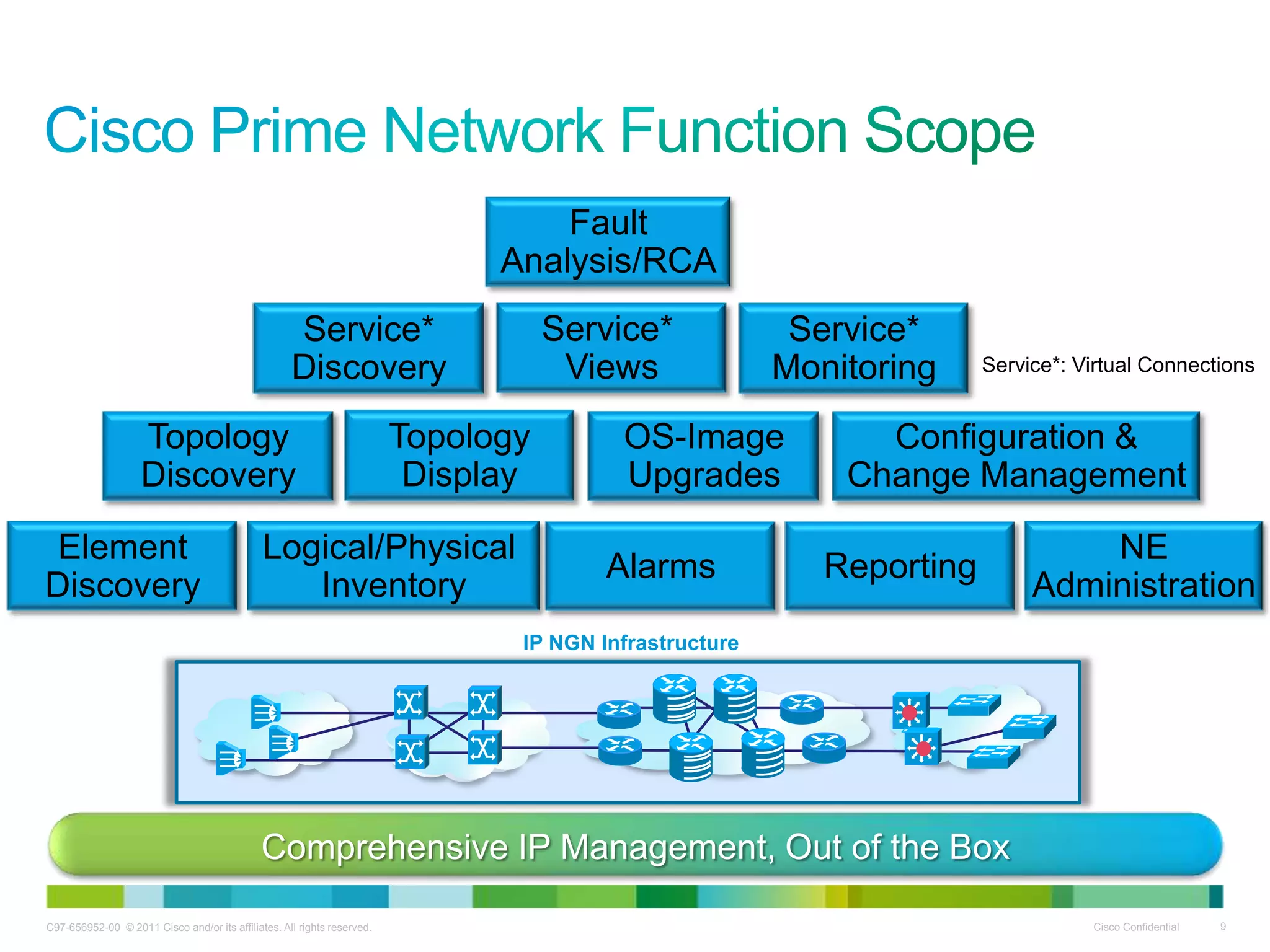

9. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 9
Logical/Physical
Inventory
ReportingAlarms
Topology
Discovery
OS-Image
Upgrades
Configuration &
Change Management
Element
Discovery
Service*
Discovery
Service*
Monitoring
Fault
Analysis/RCA
NE
Administration
Comprehensive IP Management, Out of the Box
IP NGN Infrastructure
Service*: Virtual Connections
Topology
Display
Service*
Views

10. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 10

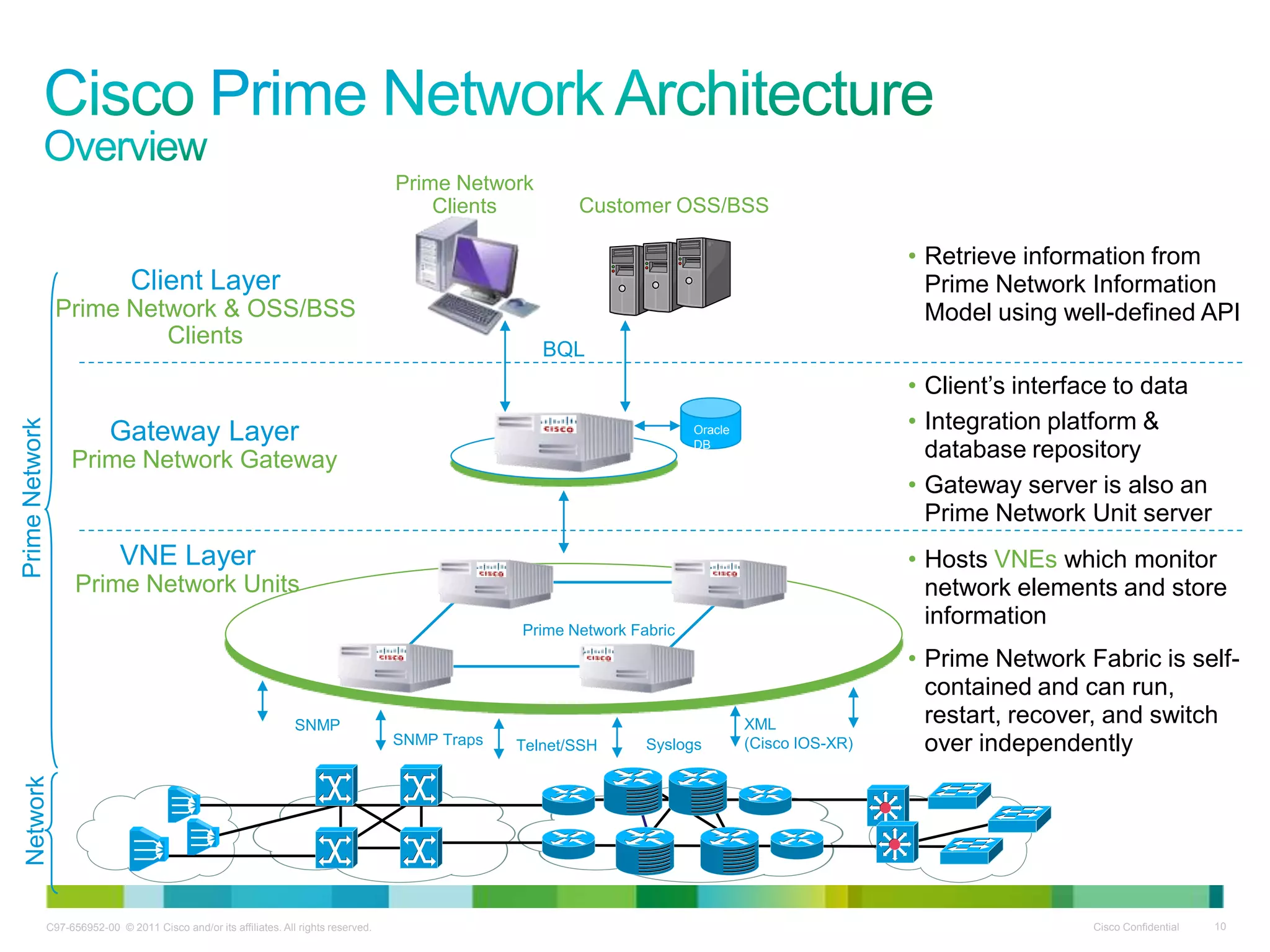

Client Layer
Prime Network & OSS/BSS
Clients
• Hosts VNEs which monitor
network elements and store
information
• Prime Network Fabric is self-
contained and can run,
restart, recover, and switch
over independently
• Client’s interface to data
• Integration platform &
database repository
• Gateway server is also an
Prime Network Unit server
Customer OSS/BSS
Oracle
DB
Gateway Layer
Prime Network Gateway
VNE Layer
Prime Network Units
Prime Network Fabric
Network
Prime Network
Clients
• Retrieve information from
Prime Network Information
Model using well-defined API
BQL
PrimeNetwork
SNMP
SNMP Traps Telnet/SSH Syslogs
XML
(Cisco IOS-XR)

11. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 11

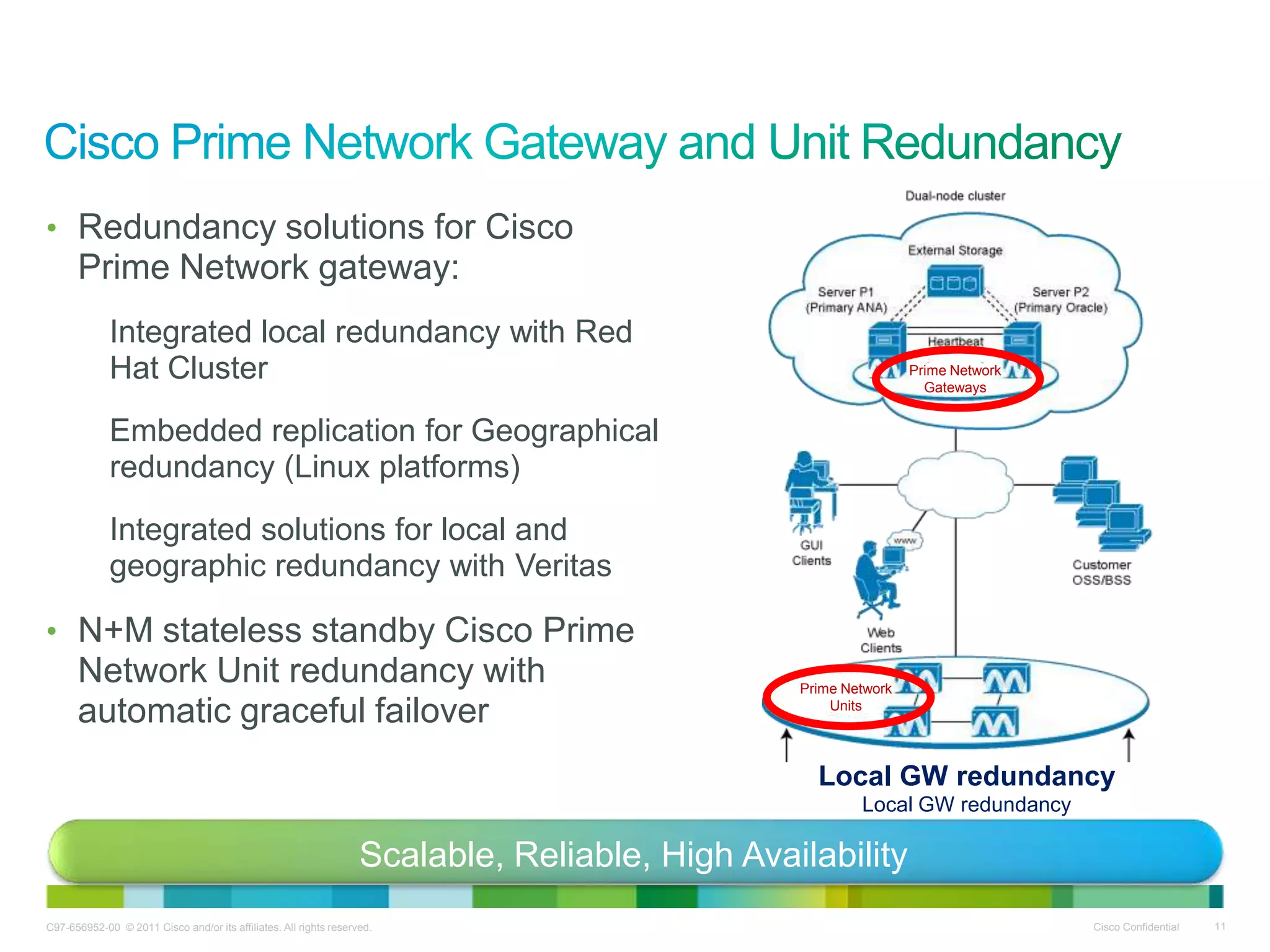

• Redundancy solutions for Cisco
Prime Network gateway:
Integrated local redundancy with Red
Hat Cluster
Embedded replication for Geographical
redundancy (Linux platforms)
Integrated solutions for local and
geographic redundancy with Veritas
• N+M stateless standby Cisco Prime
Network Unit redundancy with
automatic graceful failover
Local GW redundancy
Scalable, Reliable, High Availability
Local GW redundancy
Prime Network
Gateways
Prime Network
Units

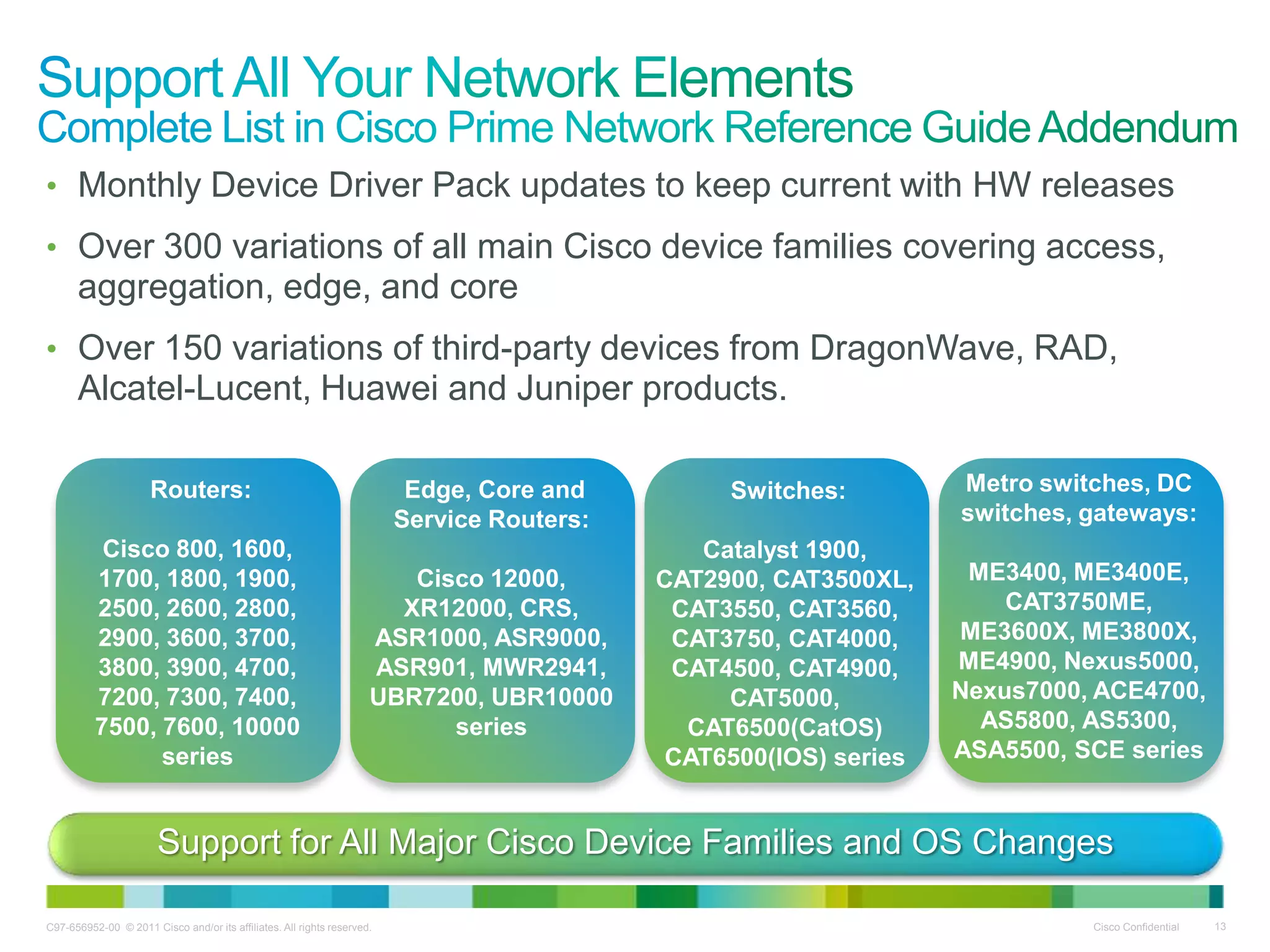

13. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 13
• Monthly Device Driver Pack updates to keep current with HW releases
• Over 300 variations of all main Cisco device families covering access,
aggregation, edge, and core
• Over 150 variations of third-party devices from DragonWave, RAD,
Alcatel-Lucent, Huawei and Juniper products.
Routers:
Cisco 800, 1600,
1700, 1800, 1900,
2500, 2600, 2800,
2900, 3600, 3700,
3800, 3900, 4700,
7200, 7300, 7400,
7500, 7600, 10000
series
Metro switches, DC
switches, gateways:
ME3400, ME3400E,
CAT3750ME,
ME3600X, ME3800X,
ME4900, Nexus5000,
Nexus7000, ACE4700,
AS5800, AS5300,
ASA5500, SCE series
Edge, Core and
Service Routers:
Cisco 12000,
XR12000, CRS,
ASR1000, ASR9000,
ASR901, MWR2941,
UBR7200, UBR10000
series
Support for All Major Cisco Device Families and OS Changes
Switches:
Catalyst 1900,
CAT2900, CAT3500XL,
CAT3550, CAT3560,
CAT3750, CAT4000,
CAT4500, CAT4900,
CAT5000,
CAT6500(CatOS)
CAT6500(IOS) series

14. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 14

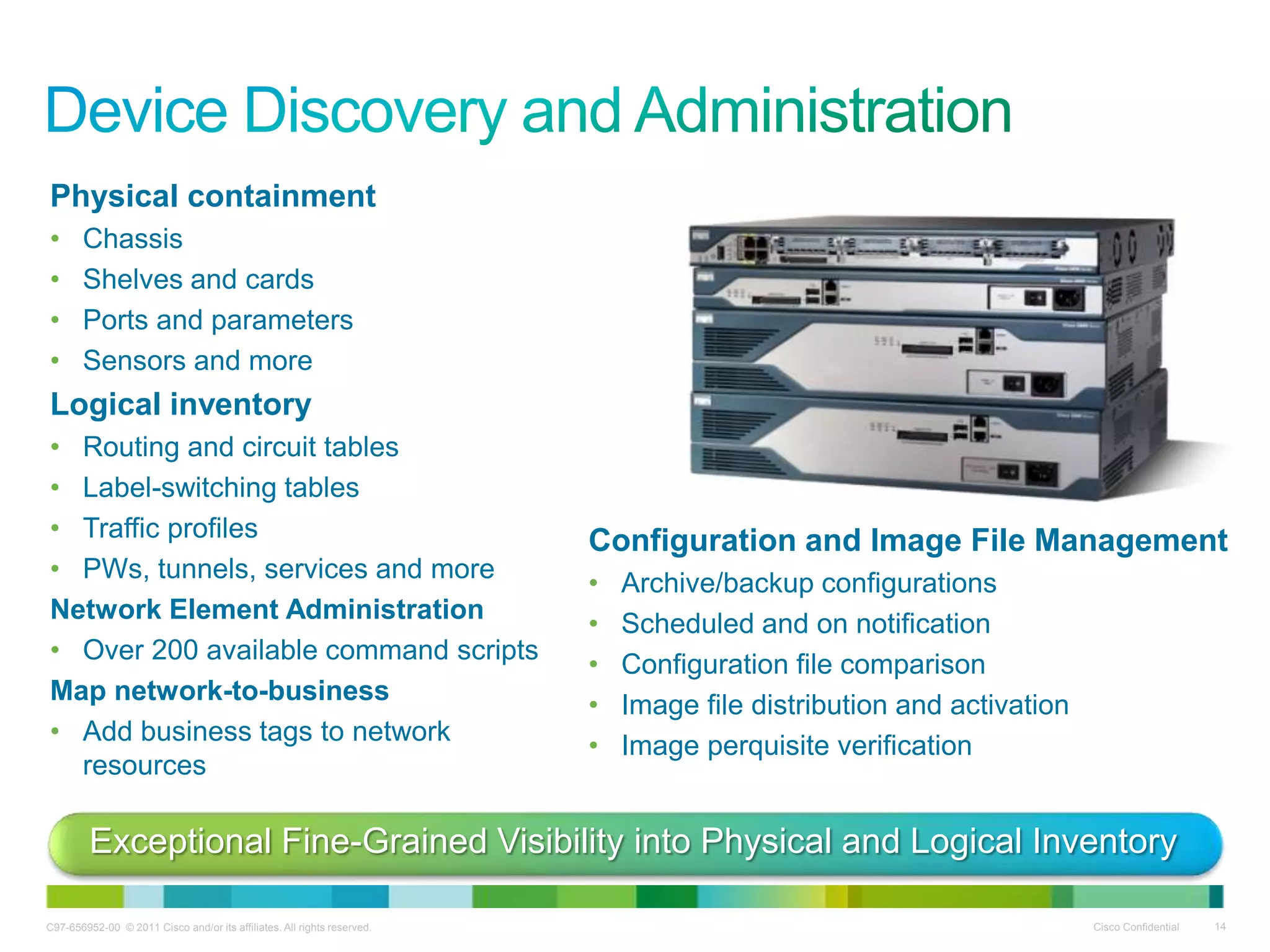

Physical containment
• Chassis
• Shelves and cards
• Ports and parameters
• Sensors and more
Logical inventory
• Routing and circuit tables
• Label-switching tables
• Traffic profiles
• PWs, tunnels, services and more
Network Element Administration
• Over 200 available command scripts
Map network-to-business
• Add business tags to network
resources
Exceptional Fine-Grained Visibility into Physical and Logical Inventory
Configuration and Image File Management
• Archive/backup configurations
• Scheduled and on notification
• Configuration file comparison
• Image file distribution and activation
• Image perquisite verification

16. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 16

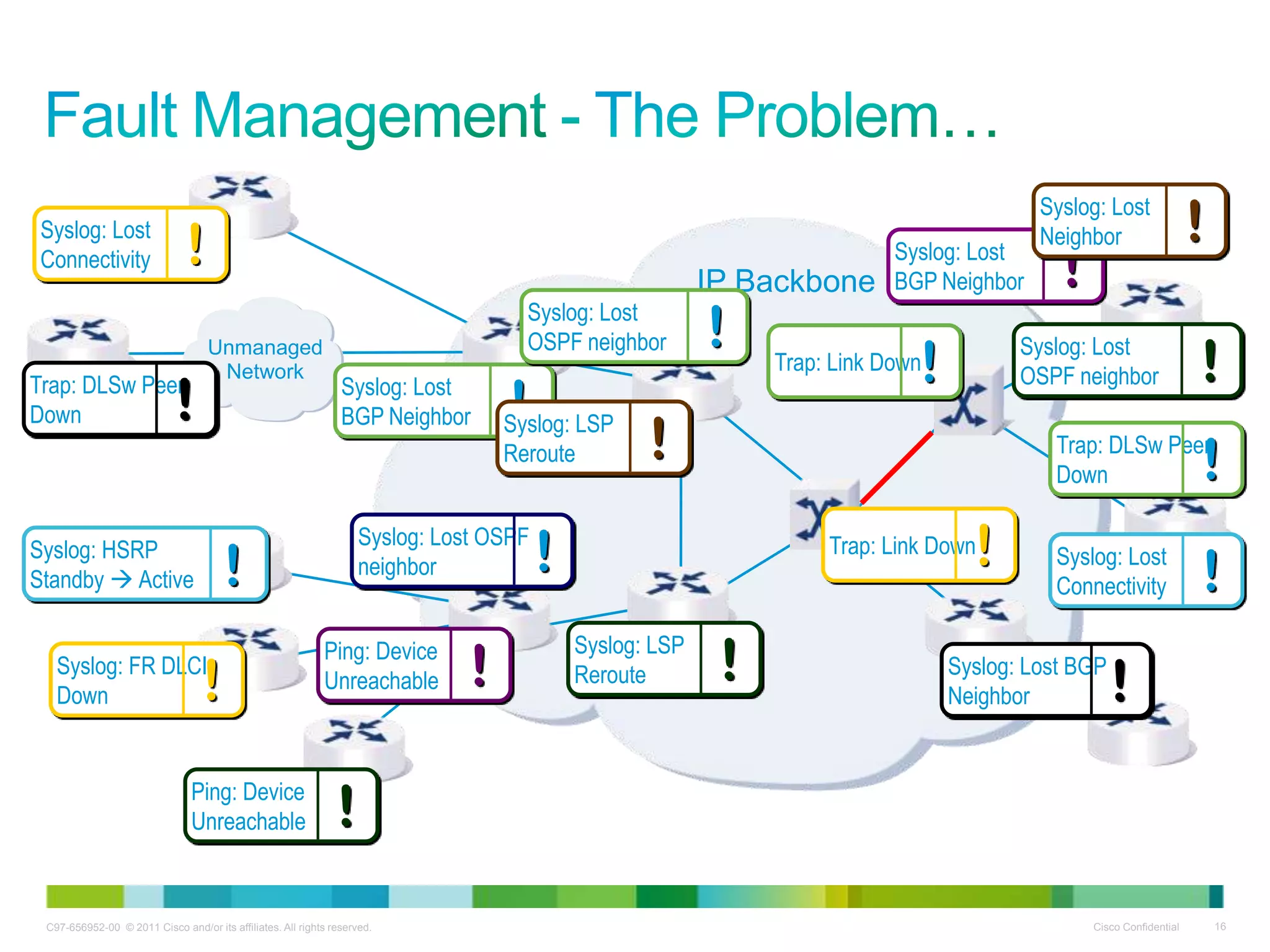

Unmanaged
Network
IP Backbone
Syslog: FR DLCI
Down !
Ping: Device
Unreachable !
Syslog: HSRP
Standby  Active !
Ping: Device
Unreachable !
Syslog: LSP
Reroute ! Syslog: Lost BGP
Neighbor !
Syslog: Lost
Connectivity !
Trap: DLSw Peer
Down !
Syslog: Lost
Connectivity !
Syslog: Lost
BGP Neighbor !
Syslog: Lost OSPF
neighbor !
Syslog: LSP
Reroute ! Trap: DLSw Peer
Down !
Syslog: Lost
OSPF neighbor ! Trap: Link Down! Syslog: Lost
OSPF neighbor !
Syslog: Lost
BGP Neighbor !
Syslog: Lost
Neighbor !
Trap: Link Down!

17. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 17

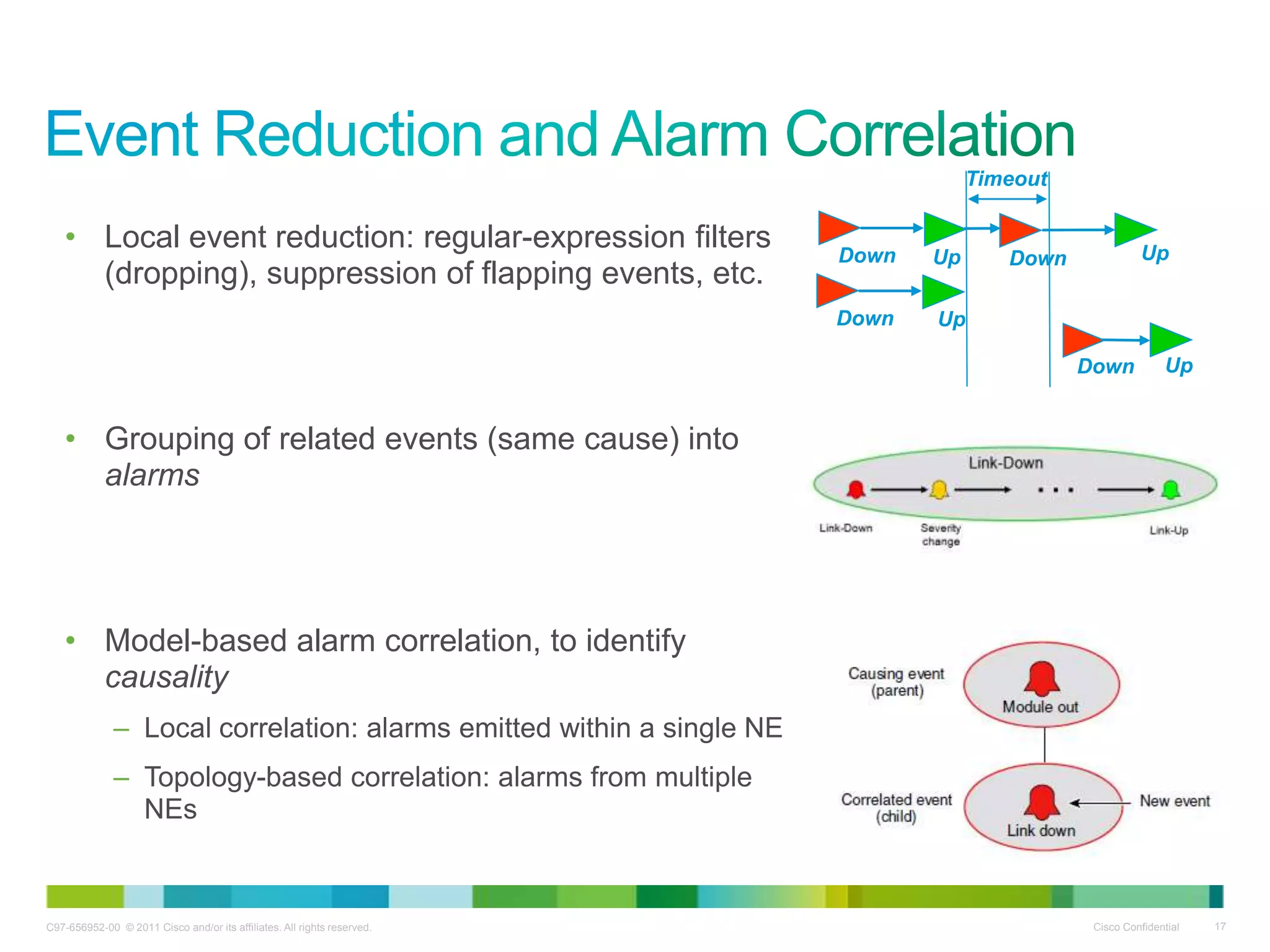

• Local event reduction: regular-expression filters
(dropping), suppression of flapping events, etc.
• Grouping of related events (same cause) into
alarms
• Model-based alarm correlation, to identify
causality
– Local correlation: alarms emitted within a single NE
– Topology-based correlation: alarms from multiple
NEs
Down Up
Timeout
Down Up
Down Up
Down Up

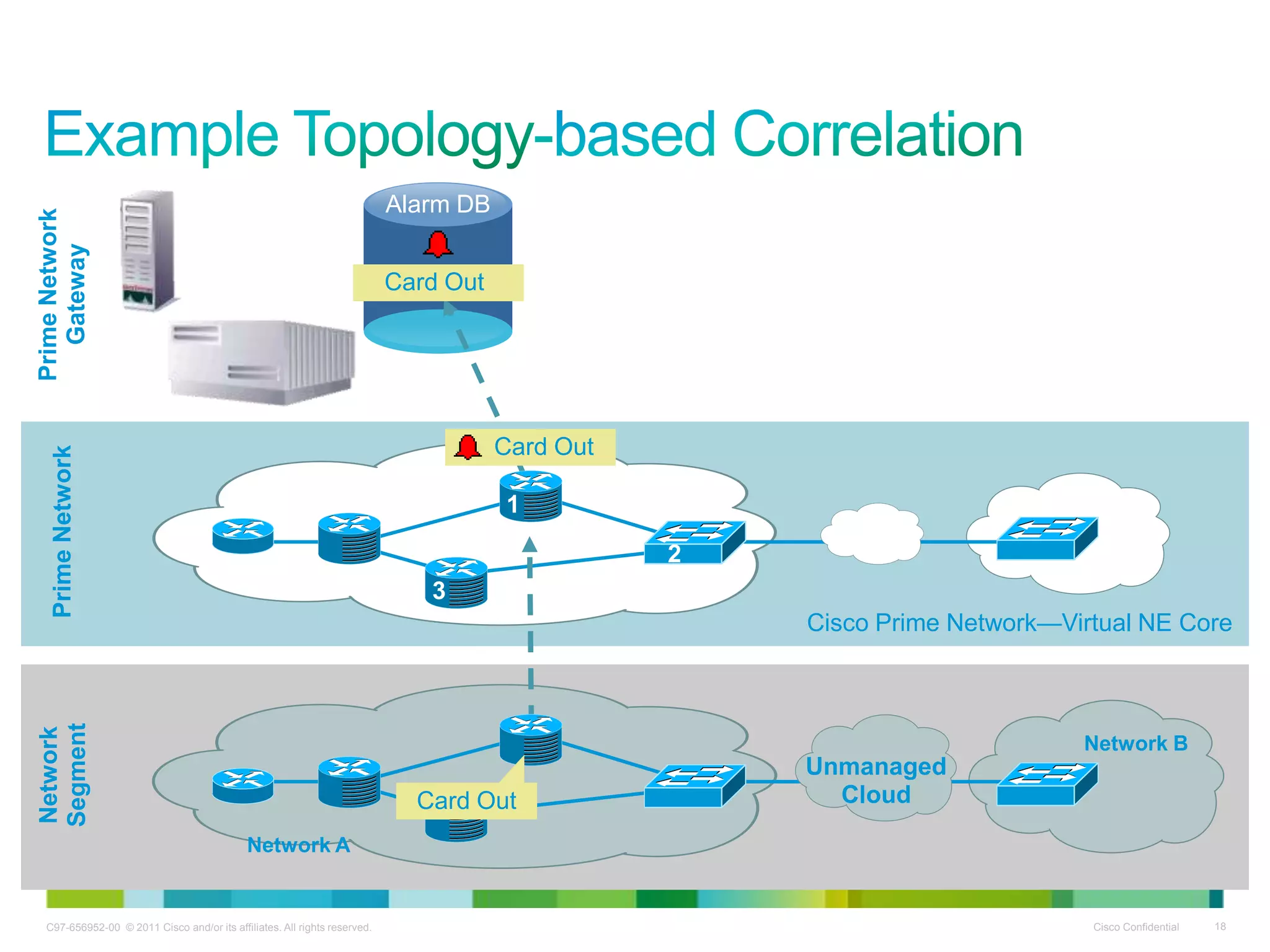

18. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 18
PrimeNetwork
Network
Segment
Network B
PrimeNetwork
Gateway
Alarm DB
Unmanaged
CloudCard Out
Card Out
Card Out
Network A
Cisco Prime Network—Virtual NE Core
3
2
1

19. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 19
Network
Segment
Network B
Unmanaged
Cloud
Alarm DB
Card Out
Card Out
Cisco Prime Network—Virtual NE Core
3
Port Down Port Down
Port Down
Port Down

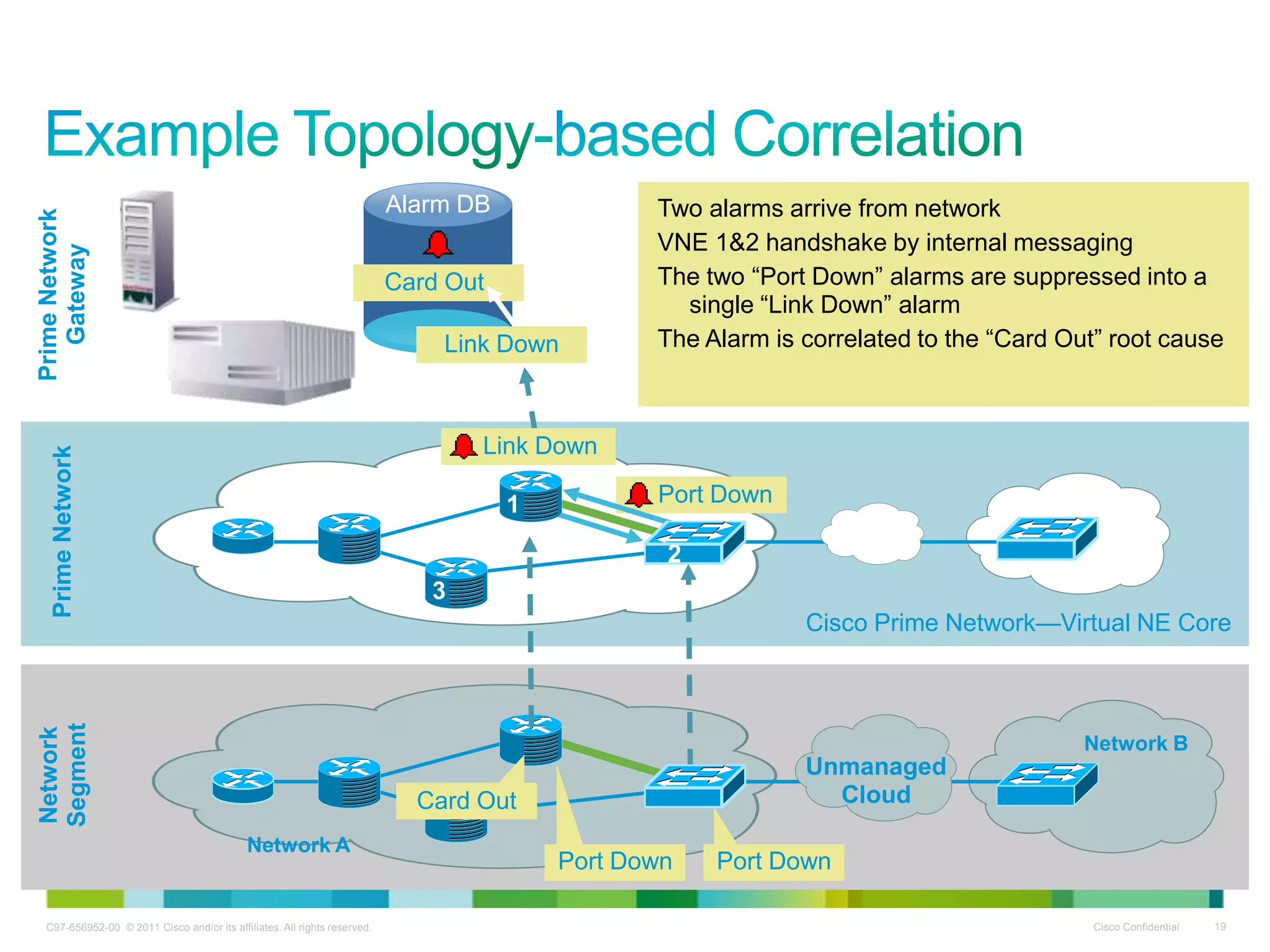

Two alarms arrive from network
VNE 1&2 handshake by internal messaging
The two ―Port Down‖ alarms are suppressed into a
single ―Link Down‖ alarm
The Alarm is correlated to the ―Card Out‖ root cause
1
Link Down
Link Down
2
Network A
PrimeNetwork
PrimeNetwork
Gateway

20. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 20

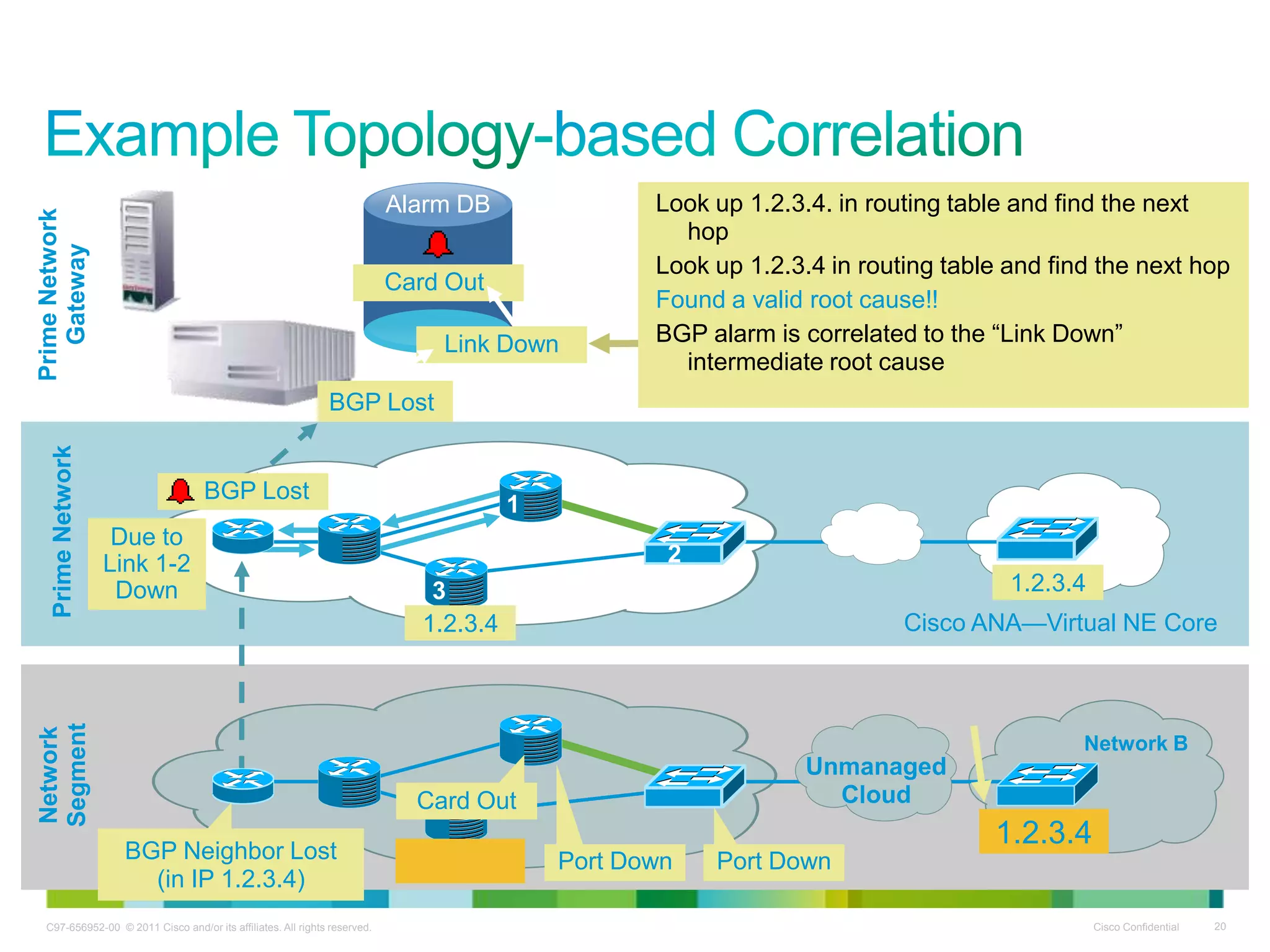

Network
Segment
Network B
Unmanaged
Cloud
Alarm DB
Card Out
Cisco ANA—Virtual NE Core
3
Port Down Port Down
1
Card Out
1.2.3.4
1.2.3.4
1.2.3.4
Which NE does IP 1.2.3.4 refer to?
Does the BGP route pass through the failed link?
Let’s Trace Virtual NW Model to Find Out
BGP Lost
Look up 1.2.3.4. in routing table and find the next
hop
Look up 1.2.3.4 in routing table and find the next hop
Found a valid root cause!!
BGP alarm is correlated to the ―Link Down‖
intermediate root cause
Due to
Link 1-2
Down
2
Network ABGP Neighbor Lost
(in IP 1.2.3.4)
Link Down
BGP Lost
PrimeNetwork
PrimeNetwork
Gateway

22. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 22

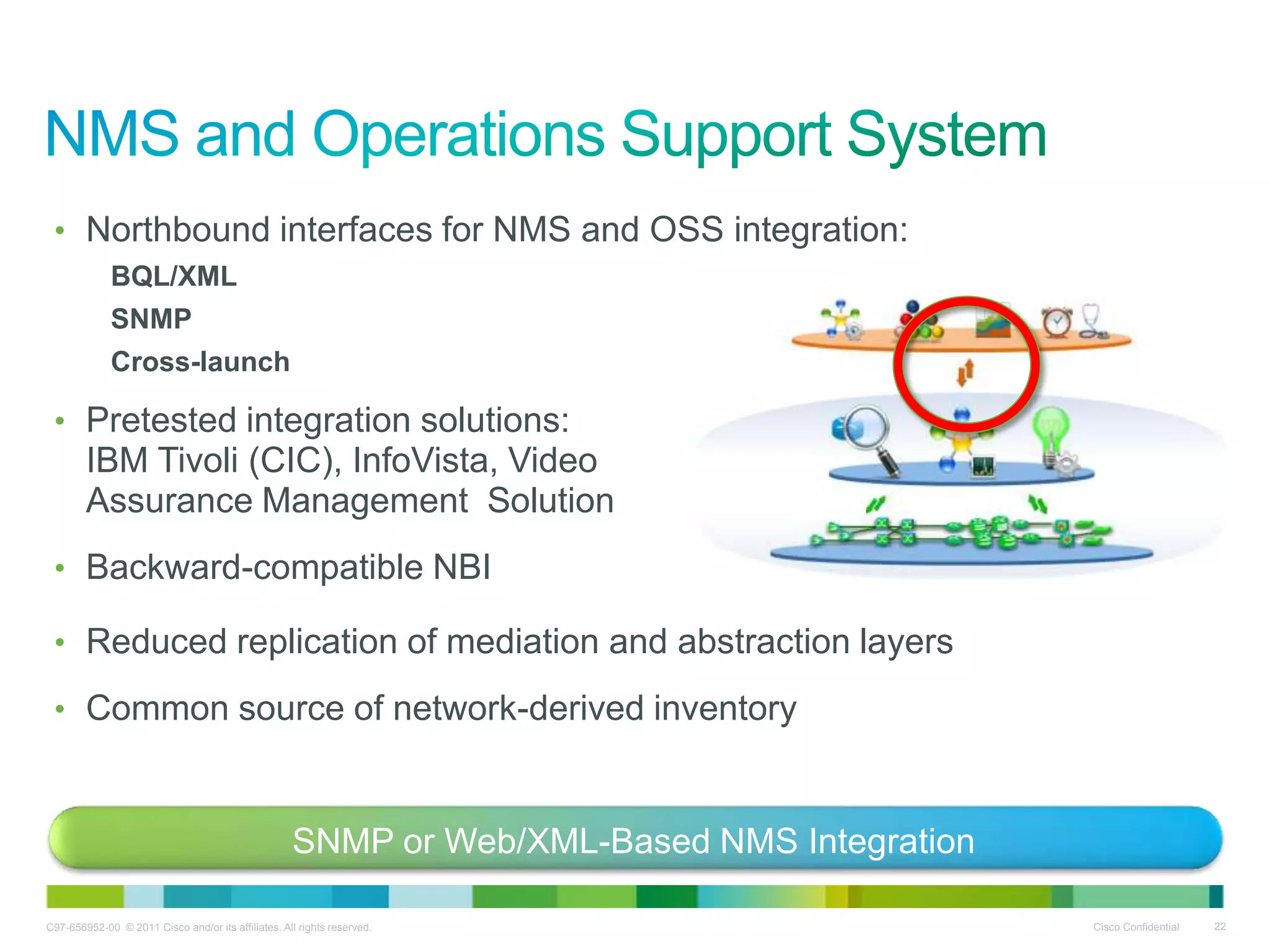

• Northbound interfaces for NMS and OSS integration:
BQL/XML
SNMP
Cross-launch
SNMP or Web/XML-Based NMS Integration
• Pretested integration solutions:
IBM Tivoli (CIC), InfoVista, Video
Assurance Management Solution
• Backward-compatible NBI
• Reduced replication of mediation and abstraction layers
• Common source of network-derived inventory

23. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 23

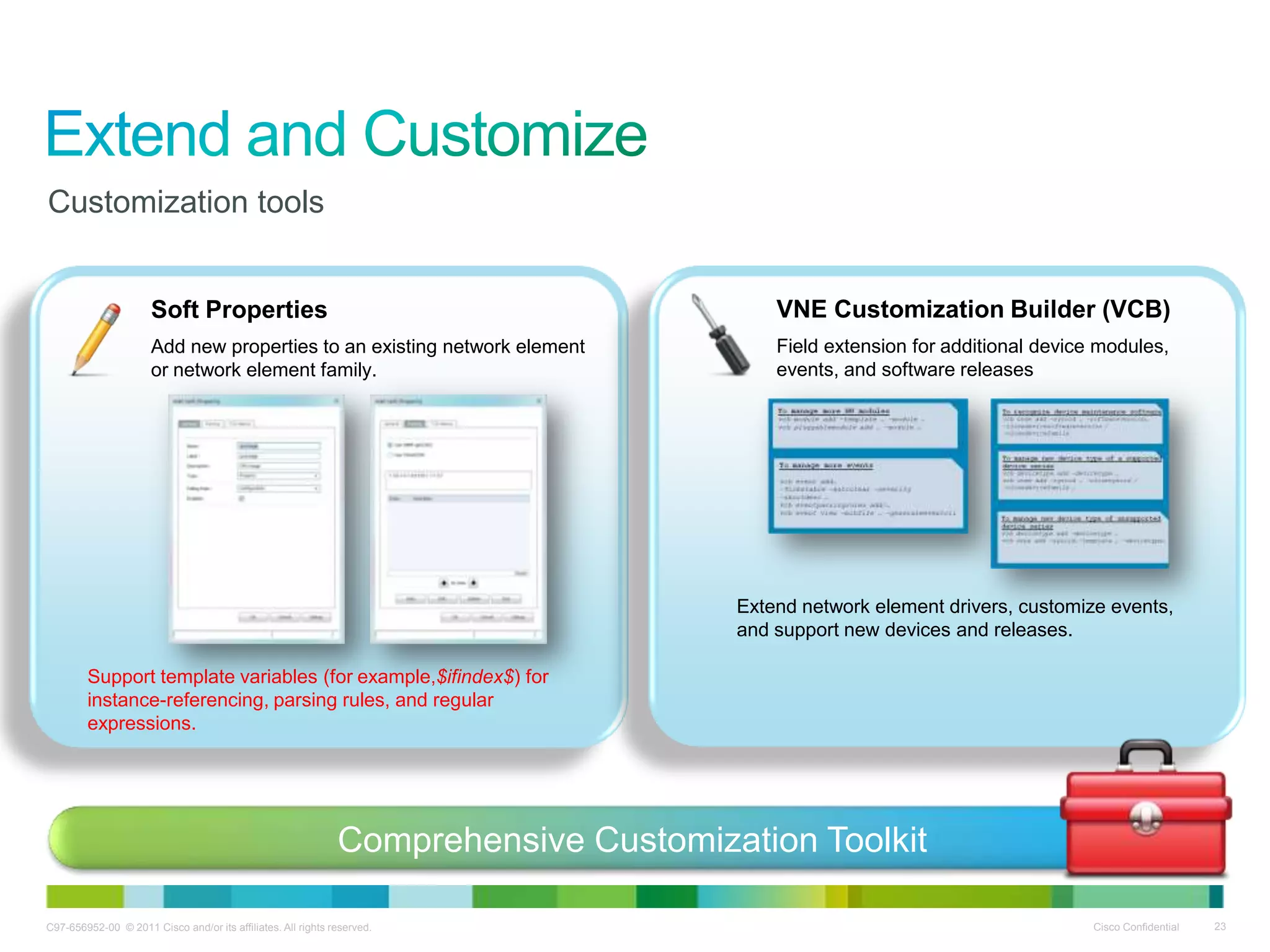

Customization tools
Soft Properties
Add new properties to an existing network element
or network element family.
Support template variables (for example,$ifindex$) for
instance-referencing, parsing rules, and regular
expressions.
VNE Customization Builder (VCB)
Field extension for additional device modules,
events, and software releases
Extend network element drivers, customize events,
and support new devices and releases.
Comprehensive Customization Toolkit

24. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 24

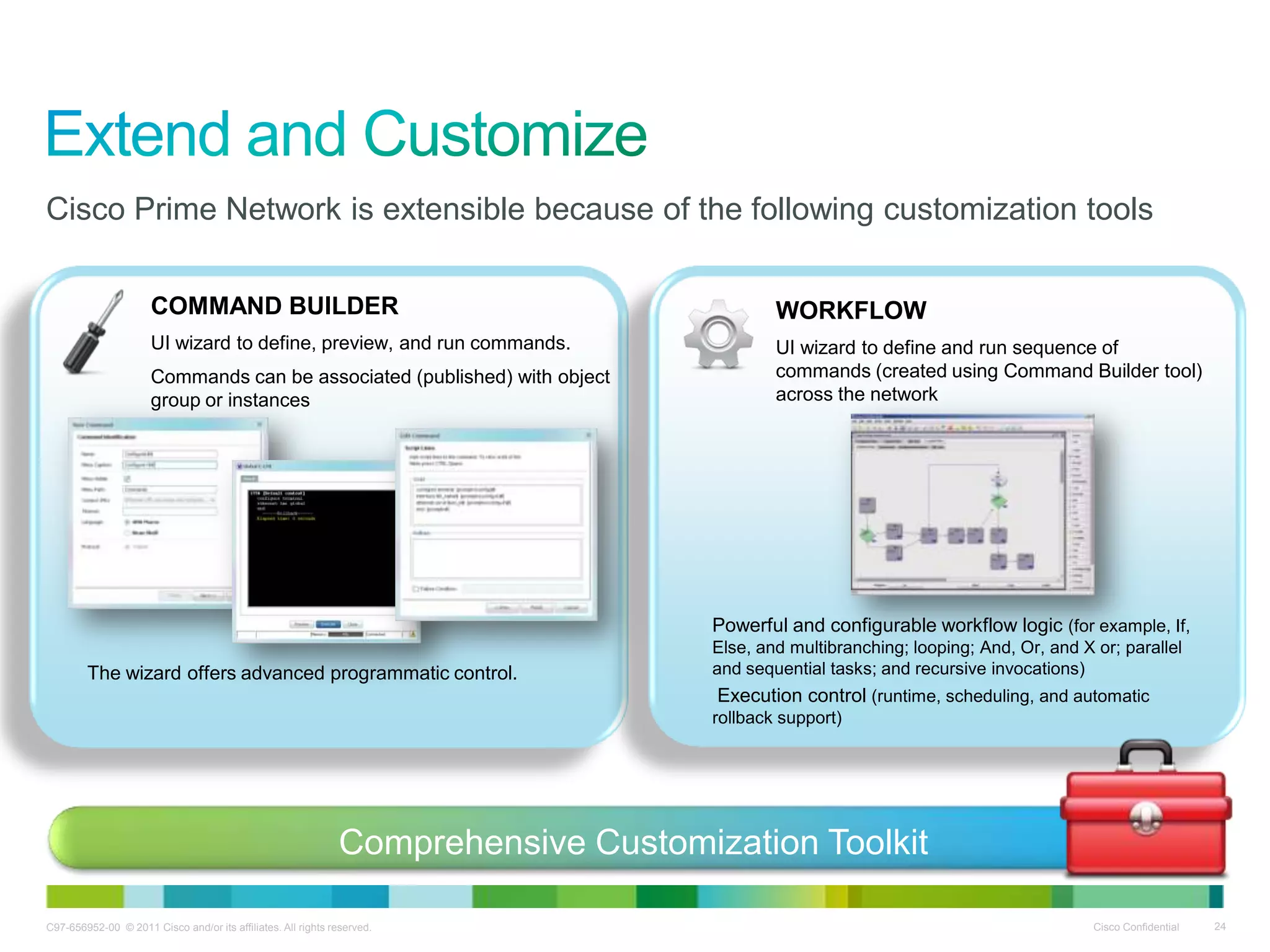

Cisco Prime Network is extensible because of the following customization tools
WORKFLOW
UI wizard to define and run sequence of
commands (created using Command Builder tool)
across the network
Powerful and configurable workflow logic (for example, If,
Else, and multibranching; looping; And, Or, and X or; parallel
and sequential tasks; and recursive invocations)
Execution control (runtime, scheduling, and automatic
rollback support)
COMMAND BUILDER
UI wizard to define, preview, and run commands.
Commands can be associated (published) with object
group or instances
The wizard offers advanced programmatic control.
Comprehensive Customization Toolkit

25. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 25

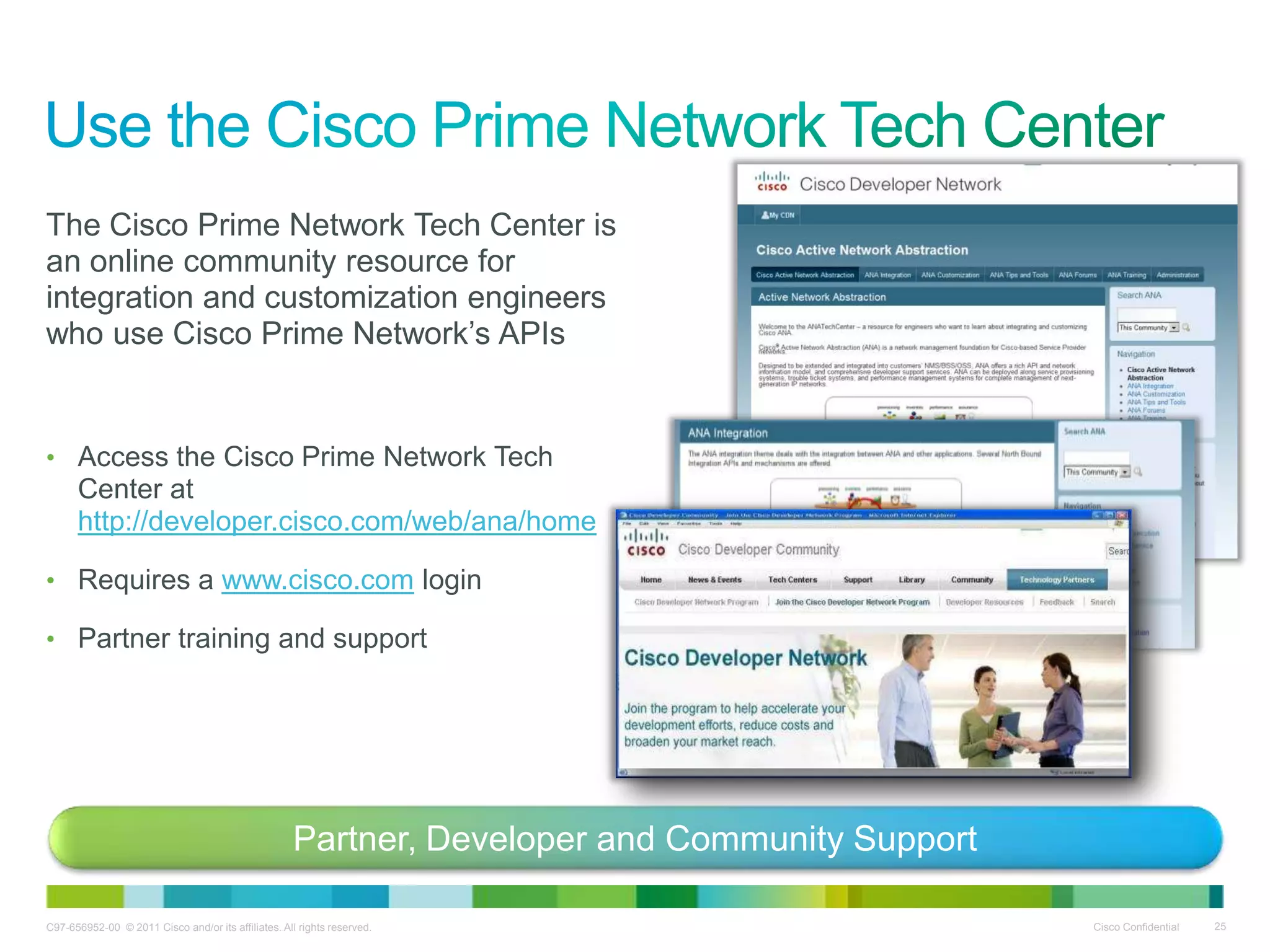

The Cisco Prime Network Tech Center is
an online community resource for
integration and customization engineers
who use Cisco Prime Network’s APIs
• Access the Cisco Prime Network Tech
Center at
http://developer.cisco.com/web/ana/home
• Requires a www.cisco.com login
• Partner training and support
Partner, Developer and Community Support

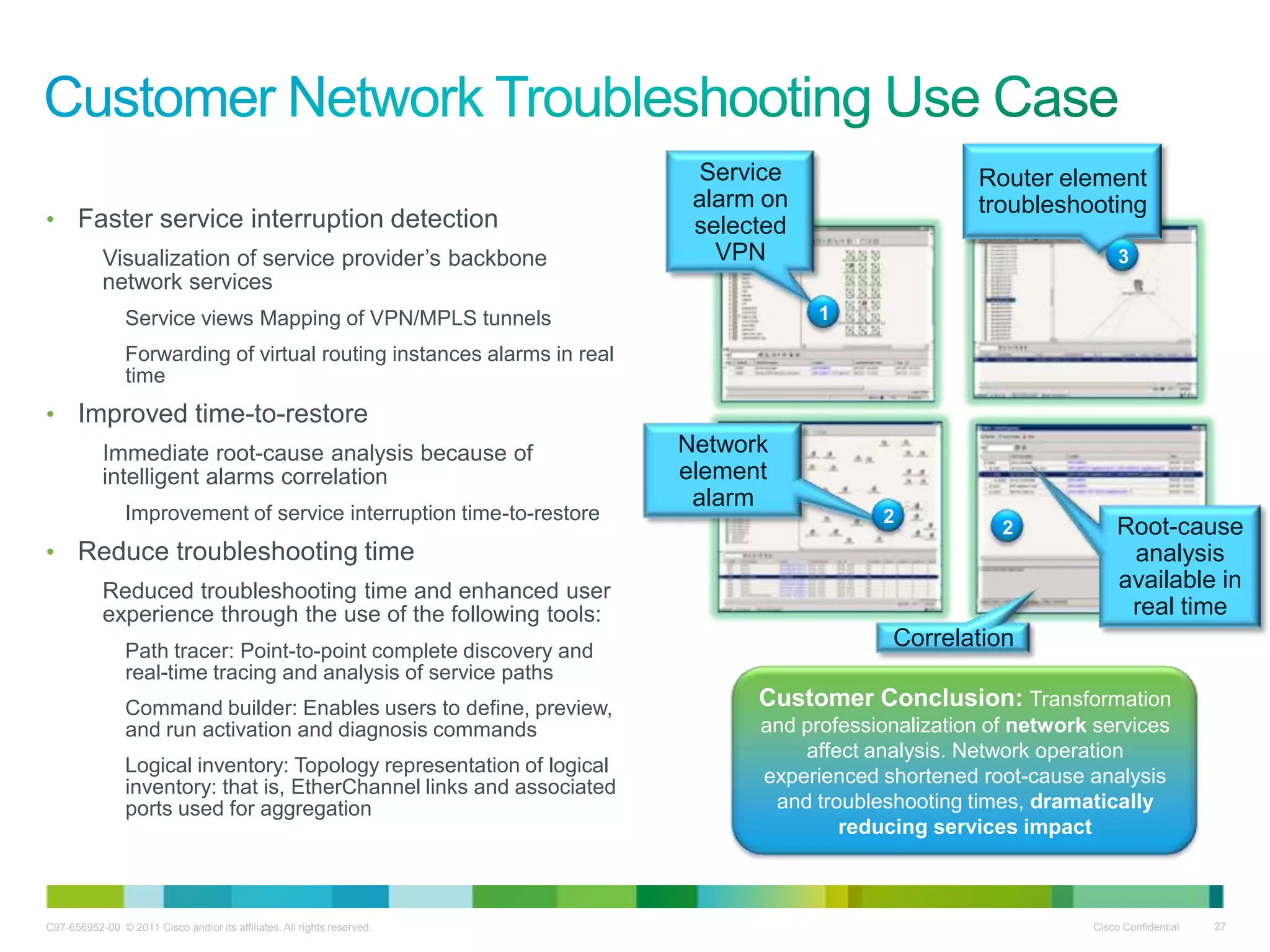

27. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 27
• Faster service interruption detection
Visualization of service provider’s backbone
network services
Service views Mapping of VPN/MPLS tunnels
Forwarding of virtual routing instances alarms in real
time
• Improved time-to-restore
Immediate root-cause analysis because of
intelligent alarms correlation
Improvement of service interruption time-to-restore
• Reduce troubleshooting time
Reduced troubleshooting time and enhanced user
experience through the use of the following tools:
Path tracer: Point-to-point complete discovery and
real-time tracing and analysis of service paths
Command builder: Enables users to define, preview,
and run activation and diagnosis commands
Logical inventory: Topology representation of logical
inventory: that is, EtherChannel links and associated
ports used for aggregation
Service
alarm on
selected
VPN
Network
element
alarm
Correlation
Root-cause
analysis
available in
real time
Customer Conclusion: Transformation
and professionalization of network services
affect analysis. Network operation
experienced shortened root-cause analysis
and troubleshooting times, dramatically
reducing services impact
Router element
troubleshooting
1
2
2
3

28. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 28
―ANA** is a unique
model-based virtual
network abstraction
that supports CSPs’
three critical
management
challenges… It is
years ahead of
competitors.‖
—Patrick Kelly, Research
Director, Analysis Mason
** Former name of Cisco Prime Network

29. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 29

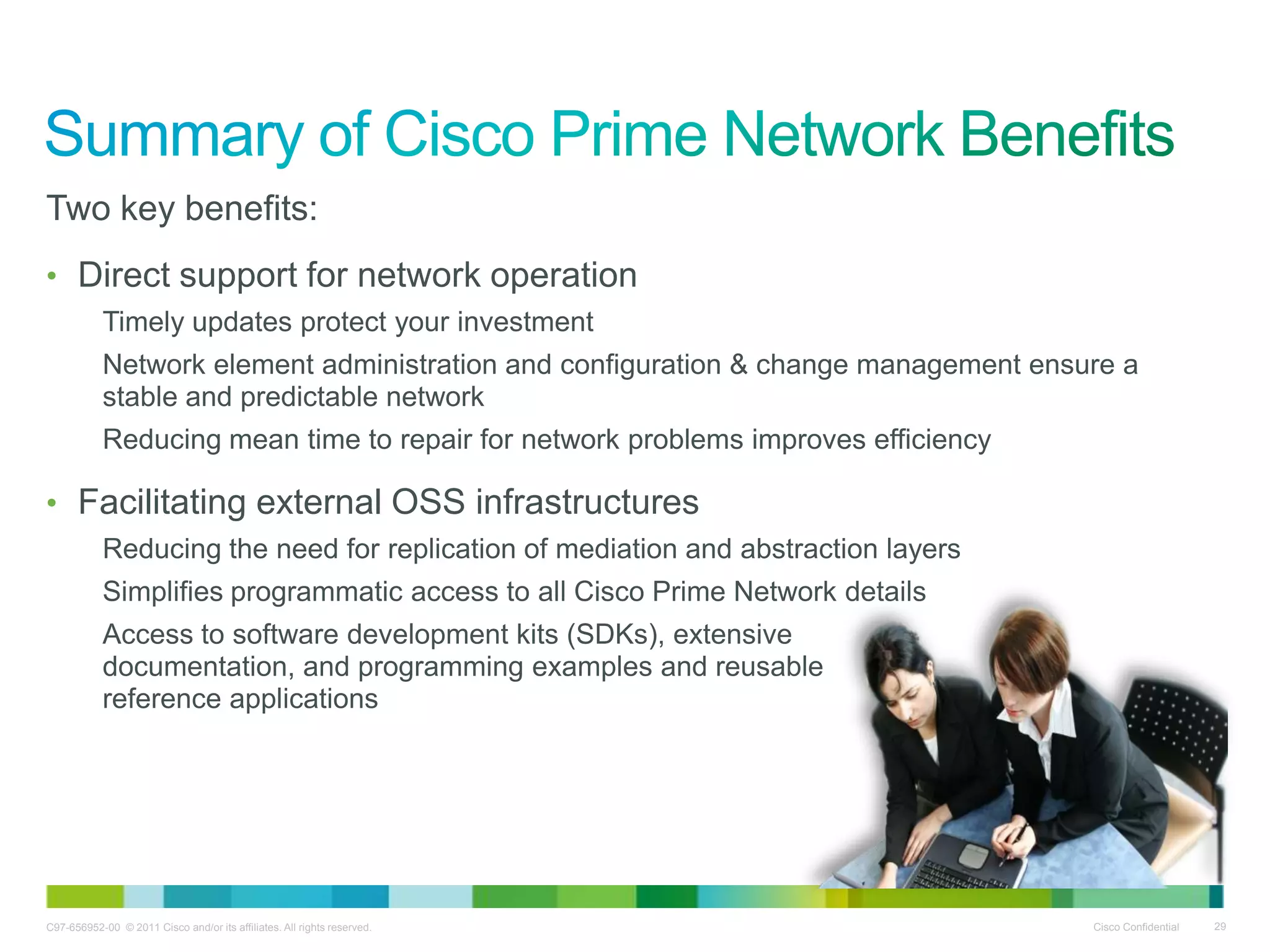

Two key benefits:
• Direct support for network operation
Timely updates protect your investment
Network element administration and configuration & change management ensure a
stable and predictable network
Reducing mean time to repair for network problems improves efficiency
• Facilitating external OSS infrastructures
Reducing the need for replication of mediation and abstraction layers
Simplifies programmatic access to all Cisco Prime Network details
Access to software development kits (SDKs), extensive
documentation, and programming examples and reusable
reference applications

30. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 30

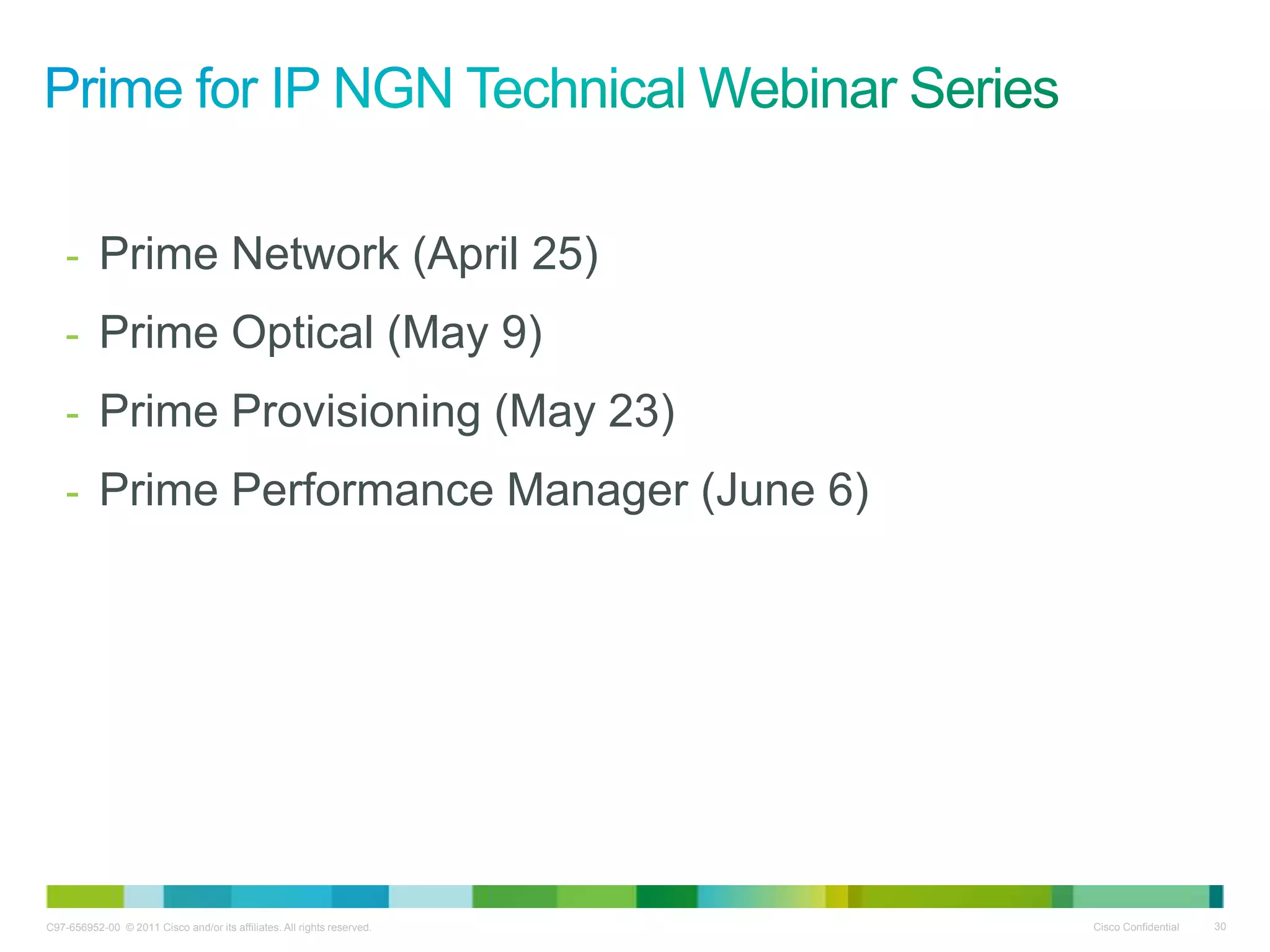

- Prime Network (April 25)
- Prime Optical (May 9)
- Prime Provisioning (May 23)
- Prime Performance Manager (June 6)

31. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 31
• Cisco.com/go/prime-sp
• Cisco.com/go/prime-ipngn
• Email: ask-prime-sp@cisco.com

32. C97-656952-00 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 32

33. Thank you.
