1. Early Lessons from Building Sensor.Network:
An Open Data Exchange for the Web of Things
Vipul Gupta, Poorna Udupi, Arshan Poursohi
{vipul.x.gupta, poorna.udupi, arshan.poursohi}@oracle.com
First International Workshop on the Web of Things (WoT 2010), PerCom 2010
1

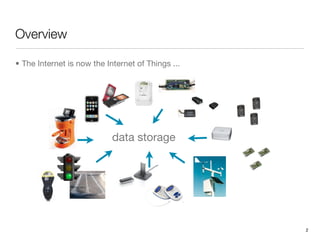

2. Overview
• The Internet is now the Internet of Things ...
data storage
2

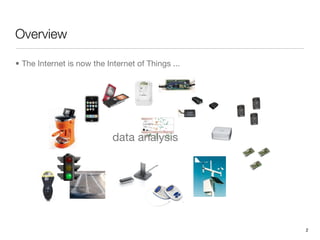

3. Overview
• The Internet is now the Internet of Things ...
data analysis
2

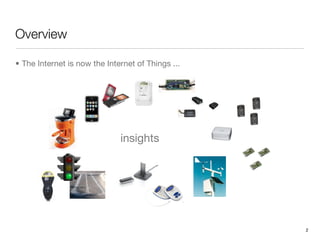

4. Overview
• The Internet is now the Internet of Things ...
insights
2

5. Overview
• The Internet is now the Internet of Things ...
actions
2

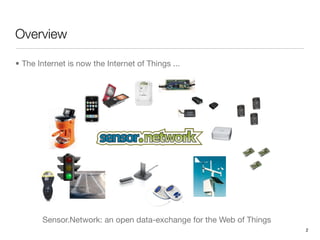

6. Overview
• The Internet is now the Internet of Things ...
Sensor.Network: an open data-exchange for the Web of Things
2

7. Motivation
• Interactions with many SPOTs customers - Sun Modular Data Center, MIT,
Warren Wilson College, USGS, Vodafone
• Common set of issues:
- Data collection
- Sharing
- Privacy
- Search
- Collaborative analysis
- Notifications
• Bring social networking technologies (e.g. tags, annotations, fine-grained
access control, web-hooks) to this problem space
3

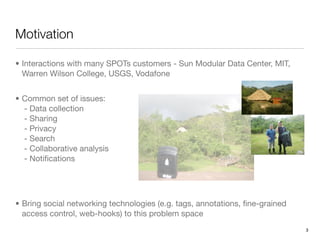

8. Motivation
• Interactions with many SPOTs customers - Sun Modular Data Center, MIT,
Warren Wilson College, USGS, Vodafone
• Common set of issues:
- Data collection
- Sharing
- Privacy
- Search
- Collaborative analysis
- Notifications
• Bring social networking technologies (e.g. tags, annotations, fine-grained
access control, web-hooks) to this problem space
3

9. Motivation
• Interactions with many SPOTs customers - Sun Modular Data Center, MIT,
Warren Wilson College, USGS, Vodafone
• Common set of issues:
- Data collection
- Sharing
- Privacy
- Search
- Collaborative analysis
- Notifications
• Bring social networking technologies (e.g. tags, annotations, fine-grained
access control, web-hooks) to this problem space
3

10. Motivation
• Interactions with many SPOTs customers - Sun Modular Data Center, MIT,
Warren Wilson College, USGS, Vodafone
• Common set of issues:
- Data collection
- Sharing
- Privacy
- Search
- Collaborative analysis
- Notifications
• Bring social networking technologies (e.g. tags, annotations, fine-grained
access control, web-hooks) to this problem space
3

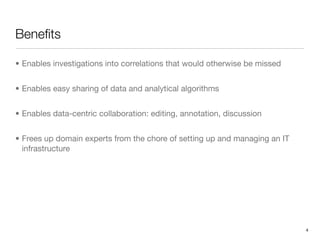

11. Benefits
• Enables investigations into correlations that would otherwise be missed
• Enables easy sharing of data and analytical algorithms
• Enables data-centric collaboration: editing, annotation, discussion
• Frees up domain experts from the chore of setting up and managing an IT
infrastructure
4

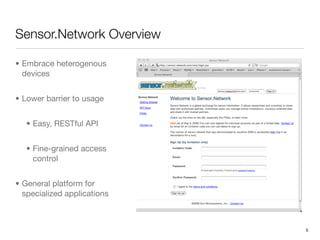

12. Sensor.Network Overview
• Embrace heterogenous
devices
• Lower barrier to usage
• Easy, RESTful API
• Fine-grained access
control
• General platform for
specialized applications
5

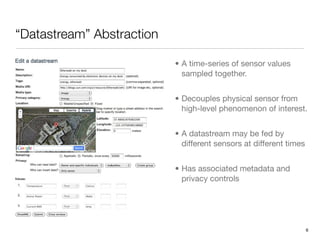

13. “Datastream” Abstraction
• A time-series of sensor values
sampled together.
• Decouples physical sensor from
high-level phenomenon of interest.
• A datastream may be fed by
different sensors at different times
• Has associated metadata and
privacy controls
6

14. REST-based API
• Sensor.Network operations may be accessed via a browser or
programmatically using HTTP operations
• Most operations require authentication--either password or API Key
Datastream creation example:
% curl –dump-header hdrs.txt –header “X-SensorNetworkAPIKey: apiKey” –request POST –header “Content-
type: application/xml” –data-binary “@Datastream.xml” “http://sensor.network.com/rest/resources/datastreams/”
<?xml version=”1.0”?>
<datastream>
<name>My Pothos Plant</name>
<description>Light and temperature readings from my office plant. </description>
<tag>light</tag>
<tag>temperature</tag>
<value><name>light</name> <type>int</type> <units>lumen</units></value>
<value><name>temperature</name> <type>float</type> <units>celsius</units> <min>-50.0</min>
<max>50.0</max></value>
</datastream> 7

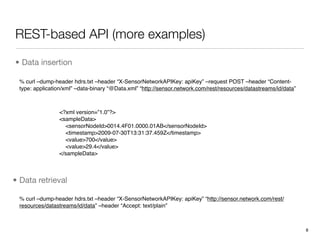

15. REST-based API (more examples)
• Data insertion
% curl –dump-header hdrs.txt –header “X-SensorNetworkAPIKey: apiKey” –request POST –header “Content-
type: application/xml” –data-binary “@Data.xml” “http://sensor.network.com/rest/resources/datastreams/id/data”
<?xml version=”1.0”?>
<sampleData>
<sensorNodeId>0014.4F01.0000.01AB</sensorNodeId>
<timestamp>2009-07-30T13:31:37.459Z</timestamp>
<value>700</value>
<value>29.4</value>
</sampleData>
• Data retrieval
% curl –dump-header hdrs.txt –header “X-SensorNetworkAPIKey: apiKey” “http://sensor.network.com/rest/
resources/datastreams/id/data” –header “Accept: text/plain”
8

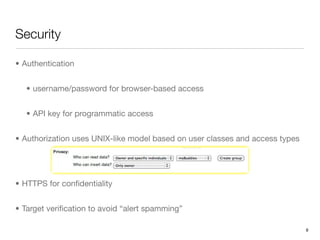

16. Security
• Authentication
• username/password for browser-based access
• API key for programmatic access
• Authorization uses UNIX-like model based on user classes and access types
• HTTPS for confidentiality
• Target verification to avoid “alert spamming”
9

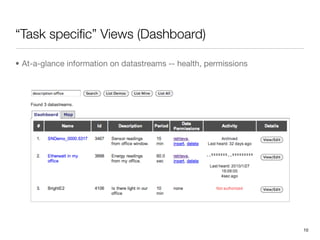

17. “Task specific” Views (Dashboard)
• At-a-glance information on datastreams -- health, permissions
10

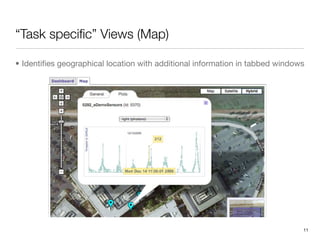

18. “Task specific” Views (Map)
• Identifies geographical location with additional information in tabbed windows
11

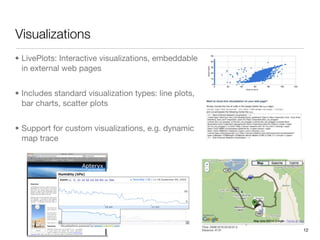

19. Visualizations
• LivePlots: Interactive visualizations, embeddable
in external web pages
• Includes standard visualization types: line plots,
bar charts, scatter plots
• Support for custom visualizations, e.g. dynamic
map trace
12

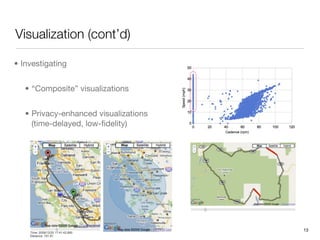

20. Visualization (cont’d)
• Investigating
• “Composite” visualizations
• Privacy-enhanced visualizations
(time-delayed, low-fidelity)
13

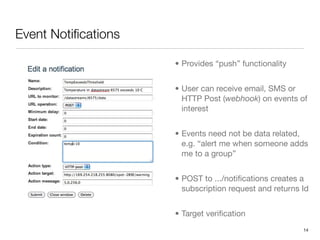

21. Event Notifications
• Provides “push” functionality
• User can receive email, SMS or
HTTP Post (webhook) on events of
interest
• Events need not be data related,
e.g. “alert me when someone adds
me to a group”
• POST to .../notifications creates a
subscription request and returns Id
• Target verification
14

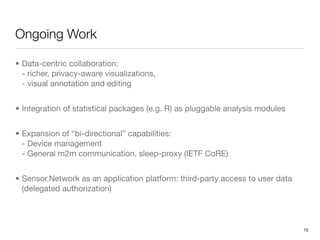

22. Ongoing Work
• Data-centric collaboration:
- richer, privacy-aware visualizations,
- visual annotation and editing
• Integration of statistical packages (e.g. R) as pluggable analysis modules
• Expansion of “bi-directional” capabilities:
- Device management
- General m2m communication, sleep-proxy (IETF CoRE)
• Sensor.Network as an application platform: third-party access to user data
(delegated authorization)
15

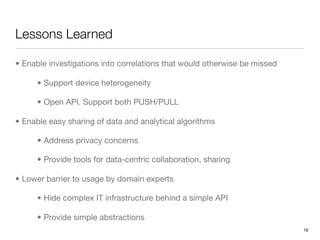

23. Lessons Learned
• Enable investigations into correlations that would otherwise be missed
• Support device heterogeneity
• Open API. Support both PUSH/PULL
• Enable easy sharing of data and analytical algorithms
• Address privacy concerns
• Provide tools for data-centric collaboration, sharing
• Lower barrier to usage by domain experts
• Hide complex IT infrastructure behind a simple API
• Provide simple abstractions
16

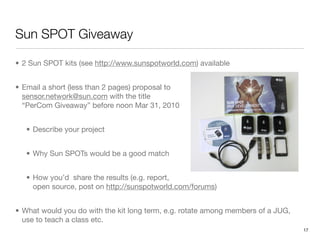

24. Sun SPOT Giveaway
• 2 Sun SPOT kits (see http://www.sunspotworld.com) available
• Email a short (less than 2 pages) proposal to
sensor.network@sun.com with the title
“PerCom Giveaway” before noon Mar 31, 2010
• Describe your project
• Why Sun SPOTs would be a good match
• How you’d share the results (e.g. report,
open source, post on http://sunspotworld.com/forums)
• What would you do with the kit long term, e.g. rotate among members of a JUG,
use to teach a class etc.
17

25. Q&A
18
