- 1. Preparing your appfor the next billion internet users Assaf Gelber Droidcon Tel-Aviv 2017
- 2.
- 3.
- 4.
- 5. You are alla very special group of people
- 6. Kotlin VS APIlevel 9
- 7.
- 8. • Convince youthat you should care • Explain why this is a hard problem • Discuss high-level tips and directions • Answer your questions
- 9.
- 10. • Why youshould care • Why it's hard • What you can do about it
- 11. • Why youshould care • Why it's hard • What you can do about it
- 12. Let's play agame!
- 13. • 1080x1920 pixeldisplay • 128 GB internal storage • 4 GB RAM • 8 core 2.35 GHz/1.9 GHz CPU • $749
- 14.
- 15. • 540x960 pixeldisplay • 16 GB internal storage • 1 GB RAM • 4 core 1.2 GHz CPU • Around $250

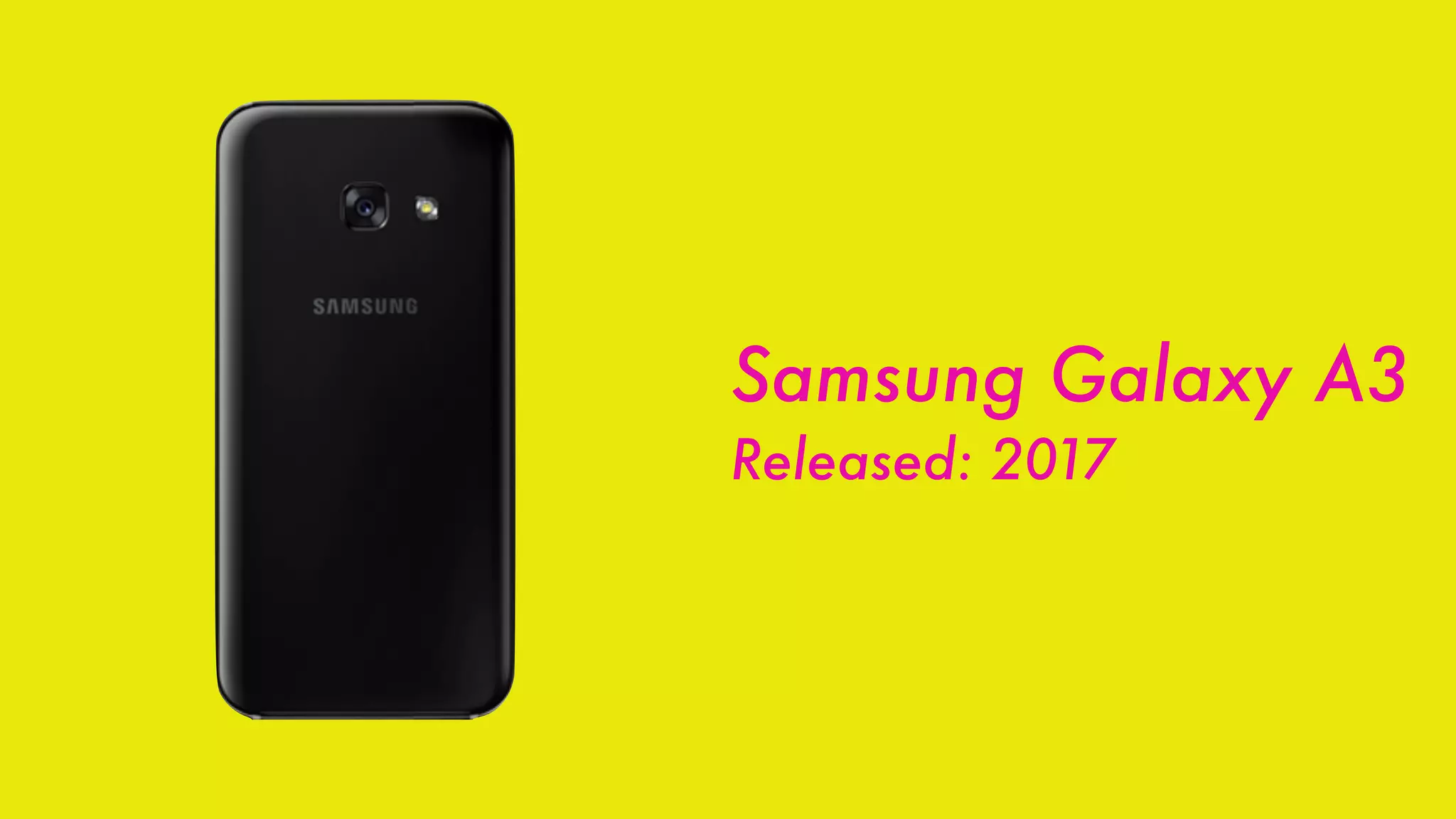

- 16.
- 17. • 720x1280 pixeldisplay • 16 GB internal storage • 2 GB RAM • 4 core 1.3 GHz CPU • Around $100
- 18.
- 19. • 480x854 pixeldisplay • 4 GB internal storage • 512 MB RAM • 4 core 1.3 GHz CPU • Around $42
- 20.
- 21. And they arehere to stay
- 22. So how canwe reason about them?
- 23.
- 24. In what yearwould this have been a high-end device?

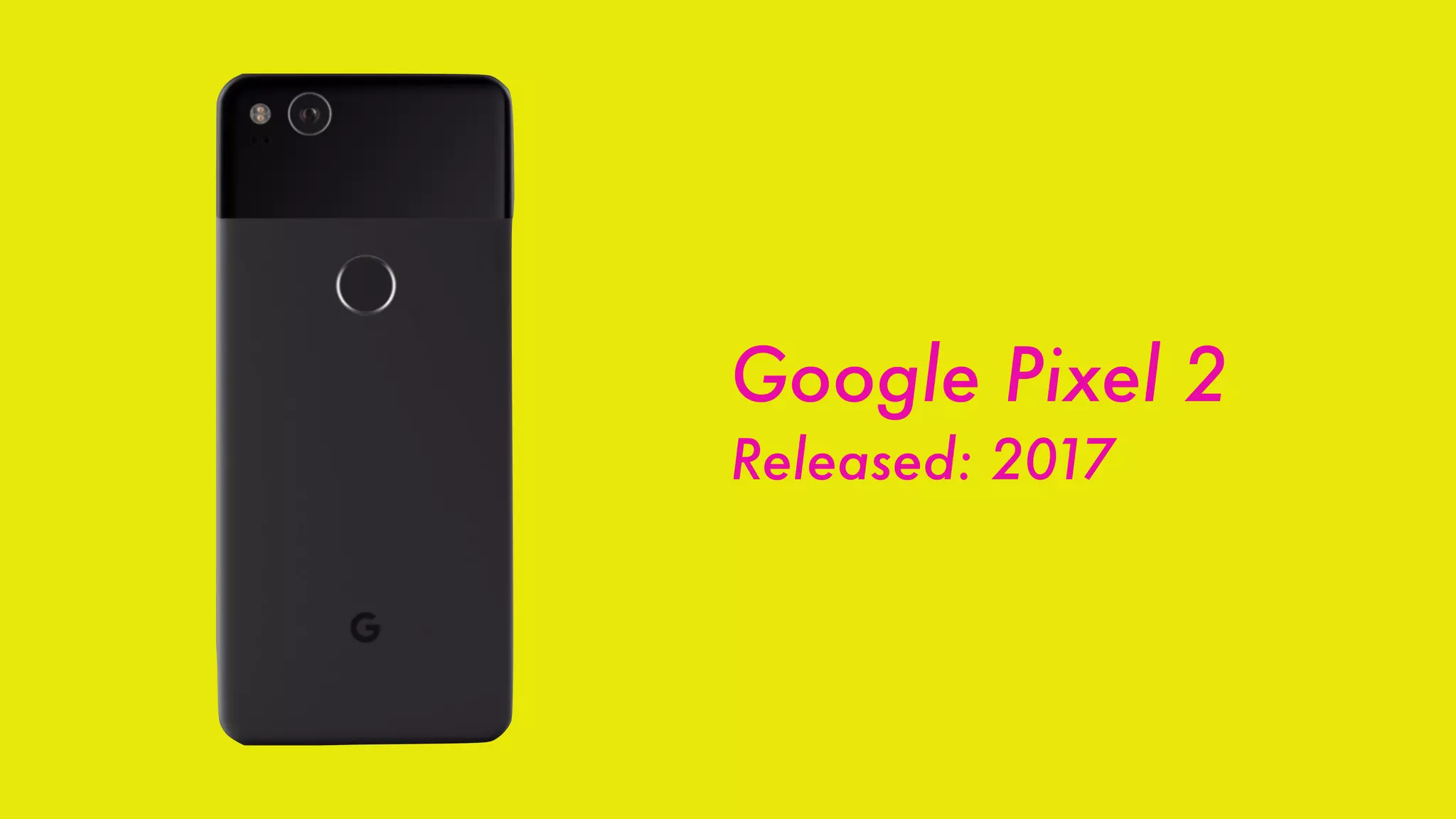

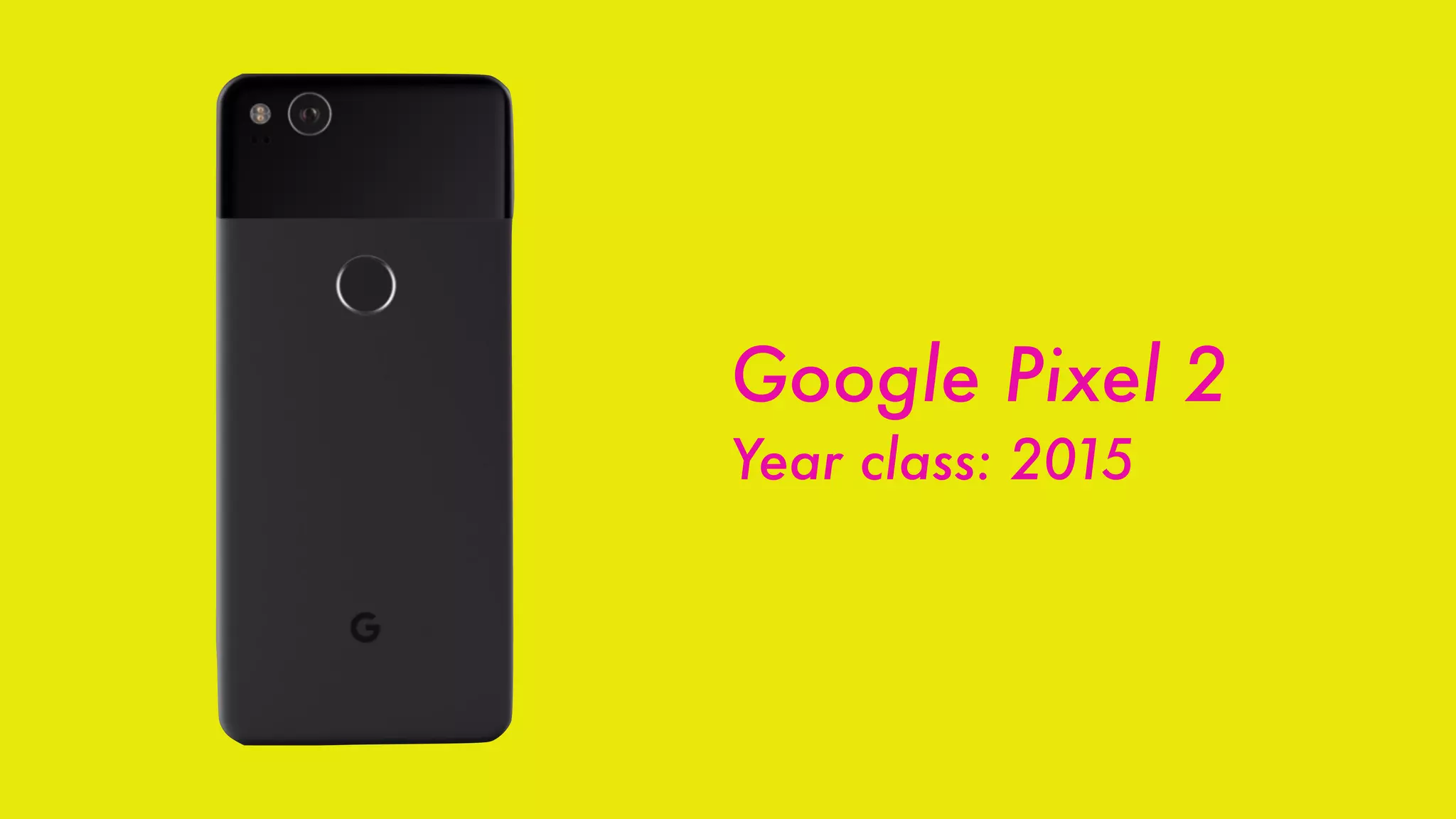

- 25. Google Pixel 2 Yearclass: 2015
- 26. Samsung Galaxy A3 Yearclass: 2011

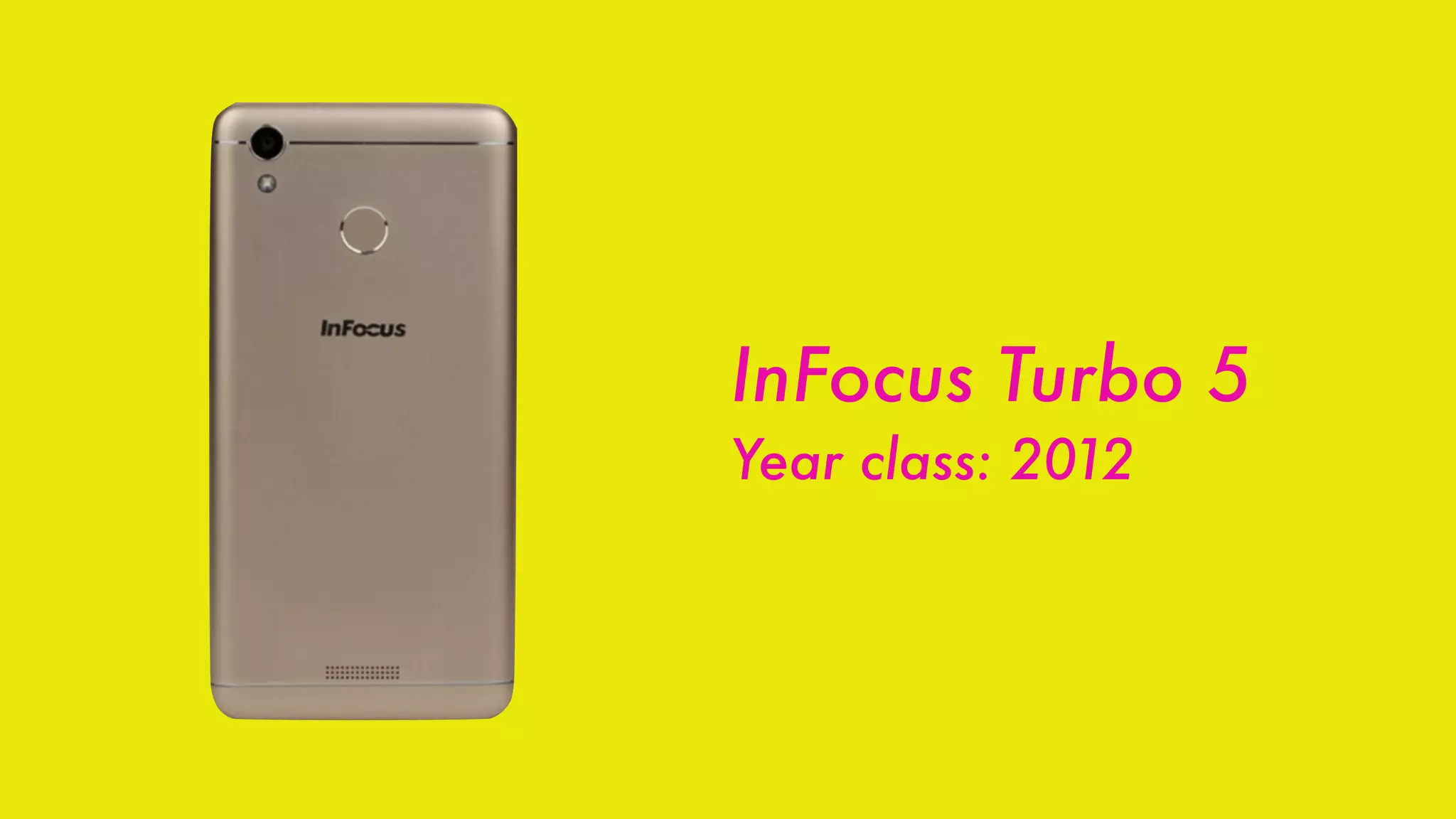

- 27. InFocus Turbo 5 Yearclass: 2012

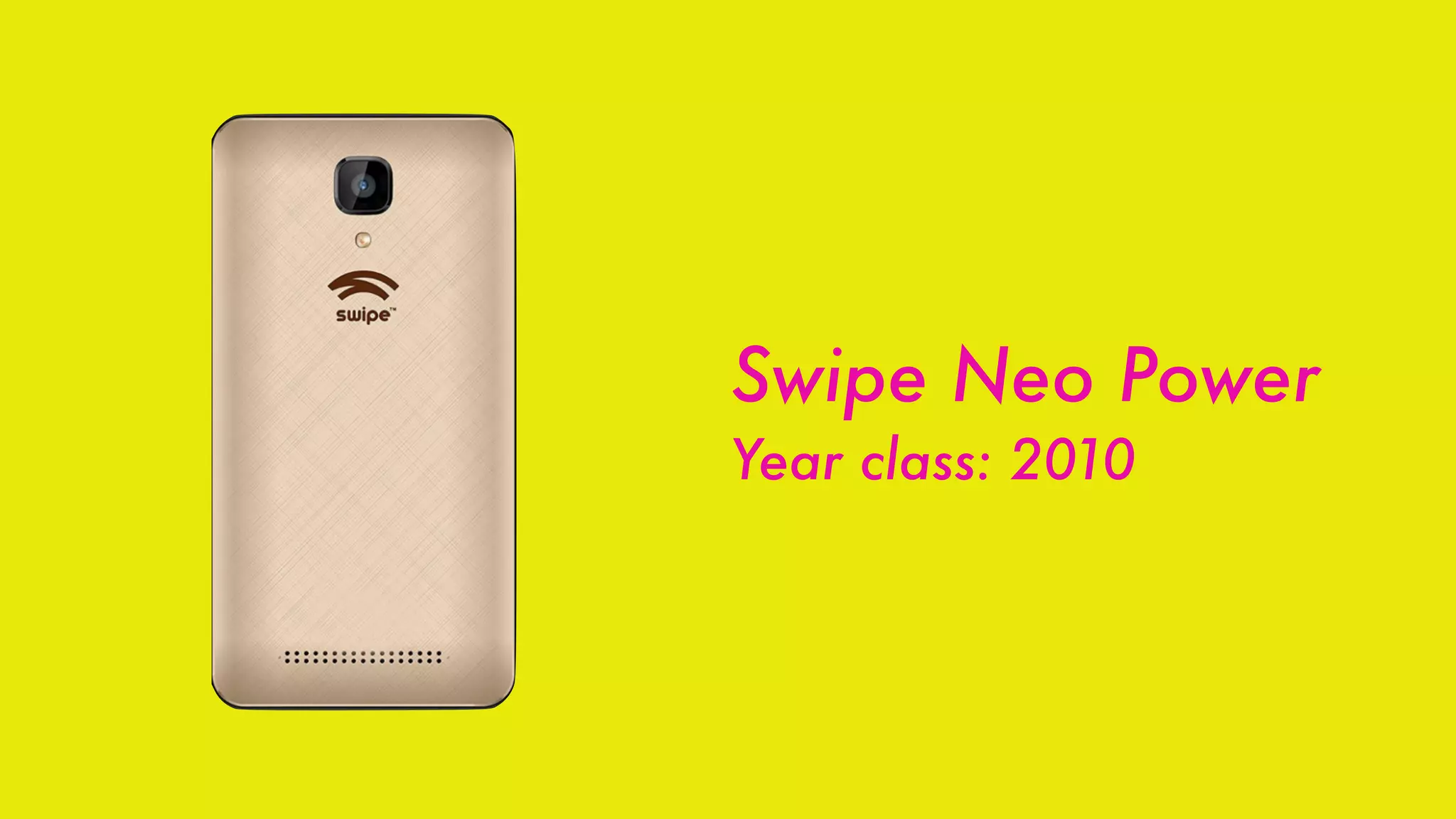

- 28. Swipe Neo Power Yearclass: 2010
- 29. Let's look atdata

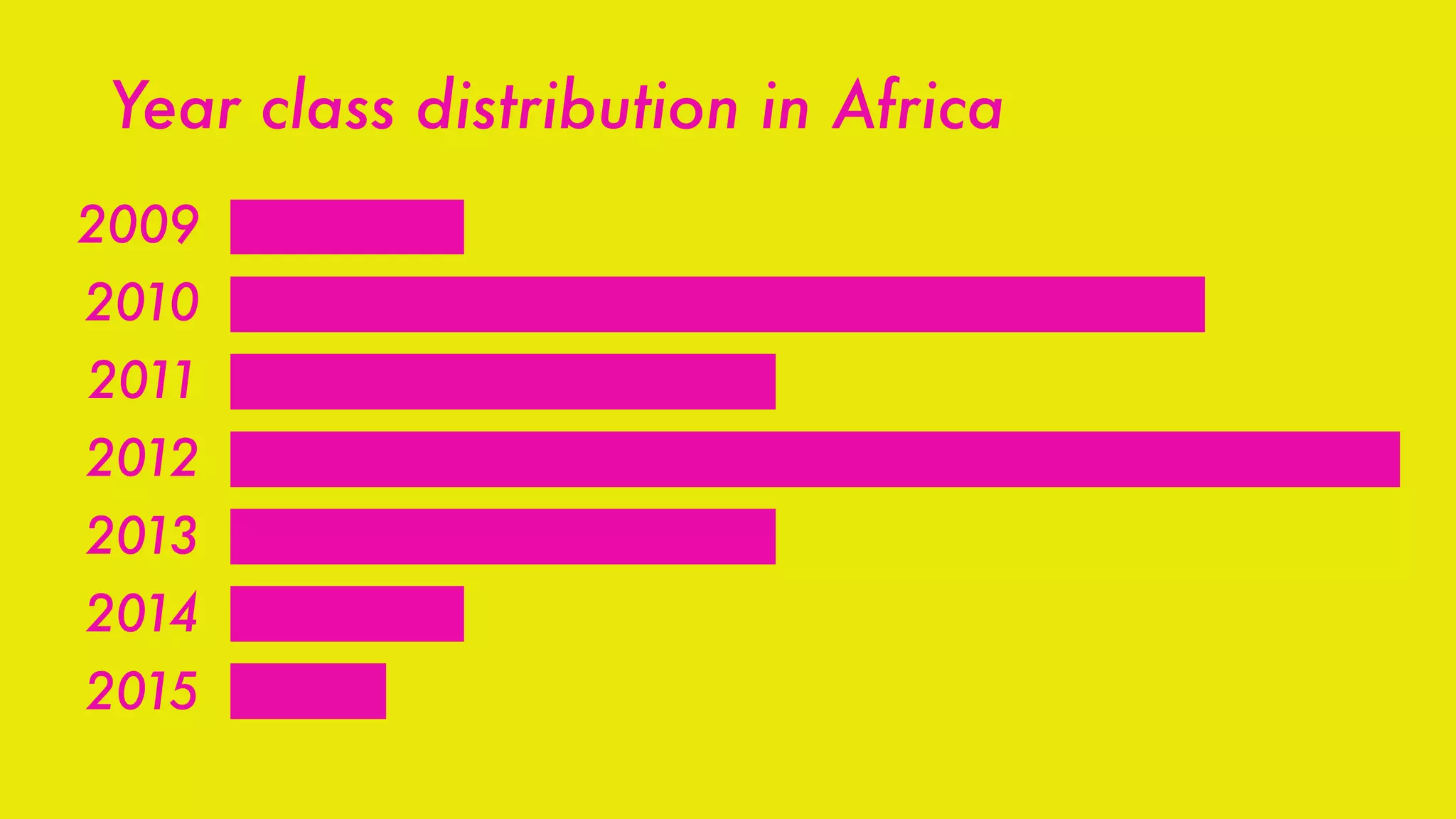

- 30. Year class distributionin Africa 2009 2010 2011 2012 2013 2014 2015

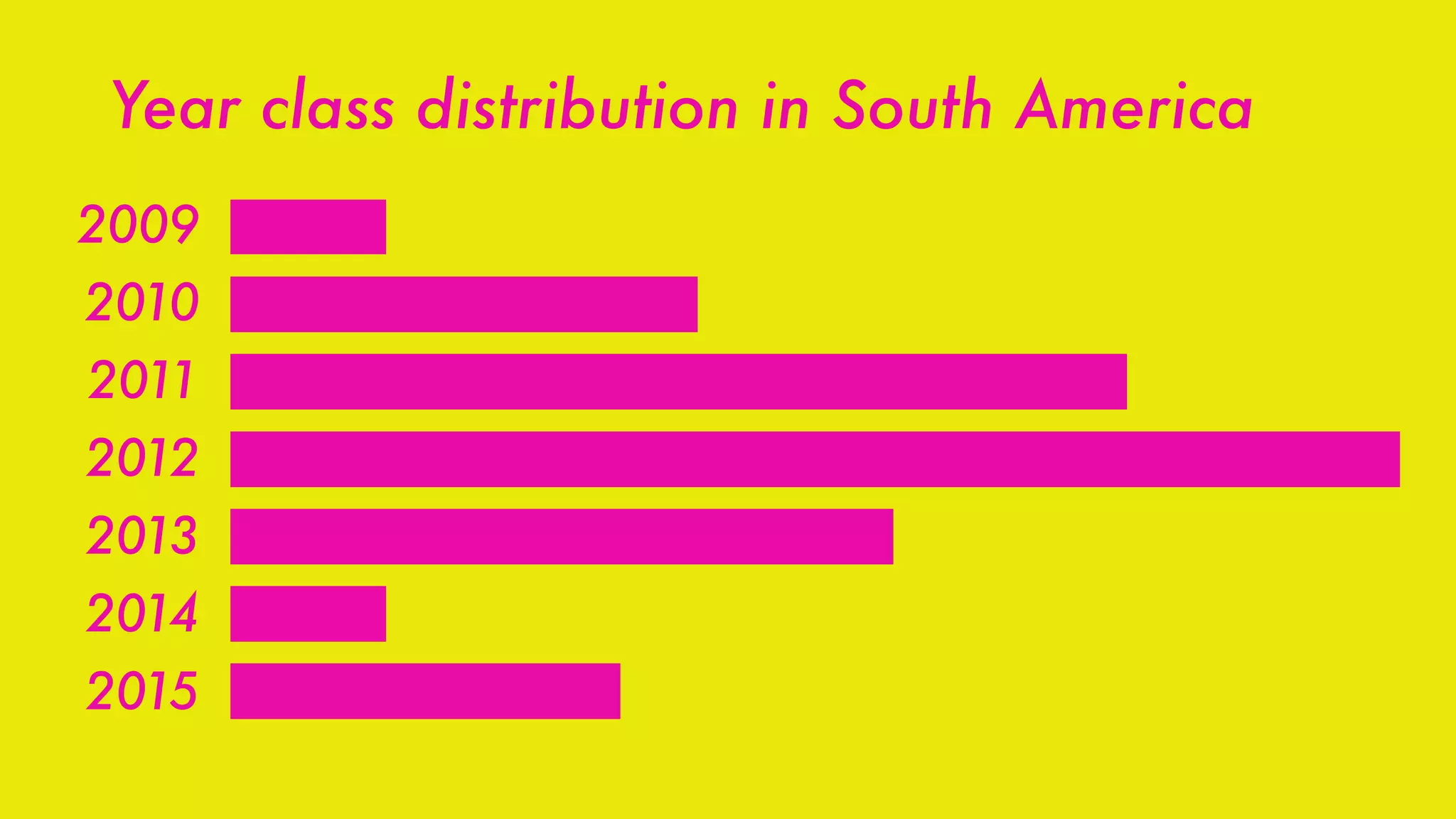

- 31. Year class distributionin South America 2009 2010 2011 2012 2013 2014 2015

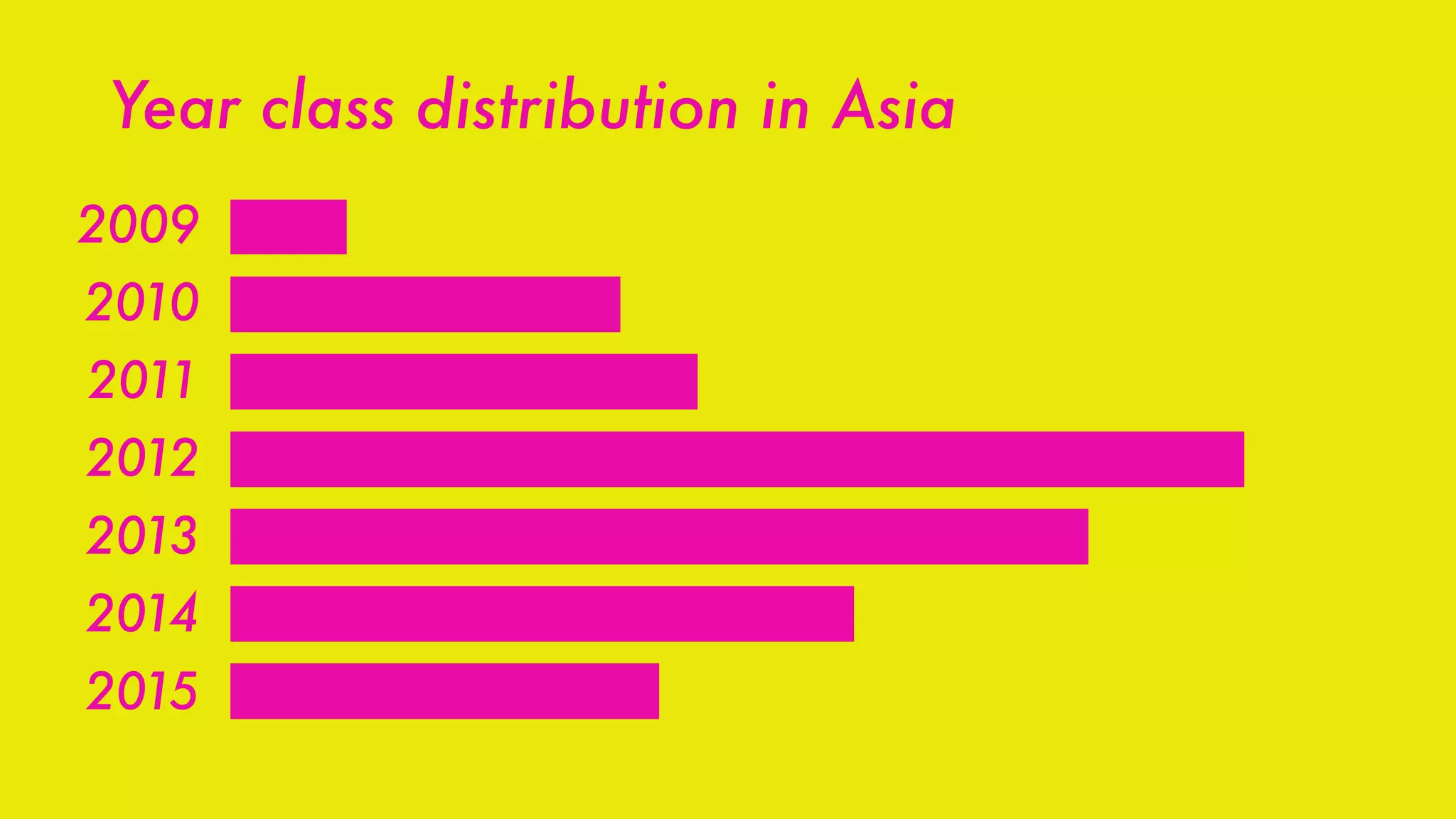

- 32. Year class distributionin Asia 2009 2010 2011 2012 2013 2014 2015

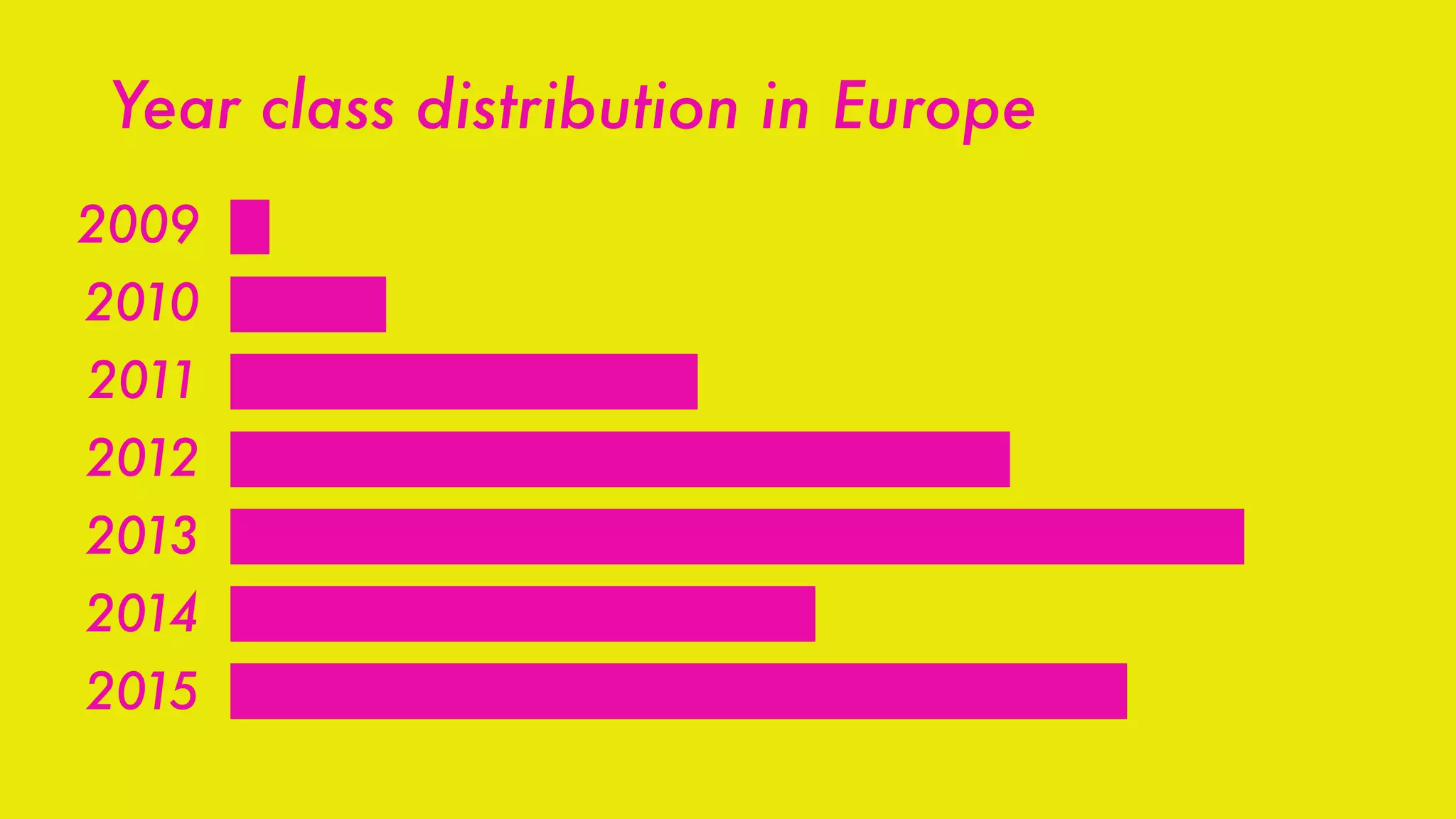

- 33. Year class distributionin Europe 2009 2010 2011 2012 2013 2014 2015

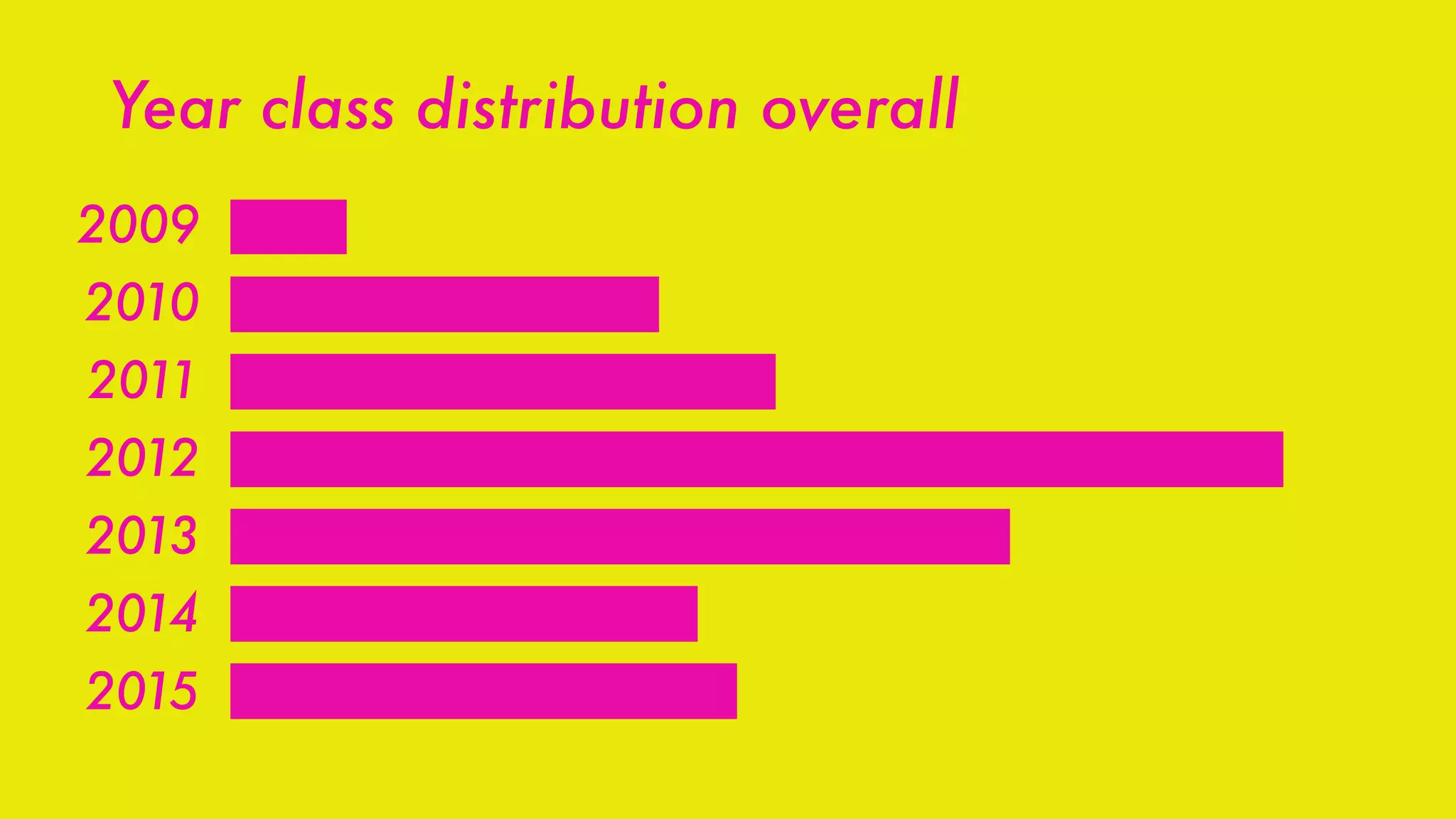

- 34. Year class distributionoverall 2009 2010 2011 2012 2013 2014 2015
- 35. Over 50% ofpeople worldwide are on 2012 and under!
- 36. Let's look atnetworks

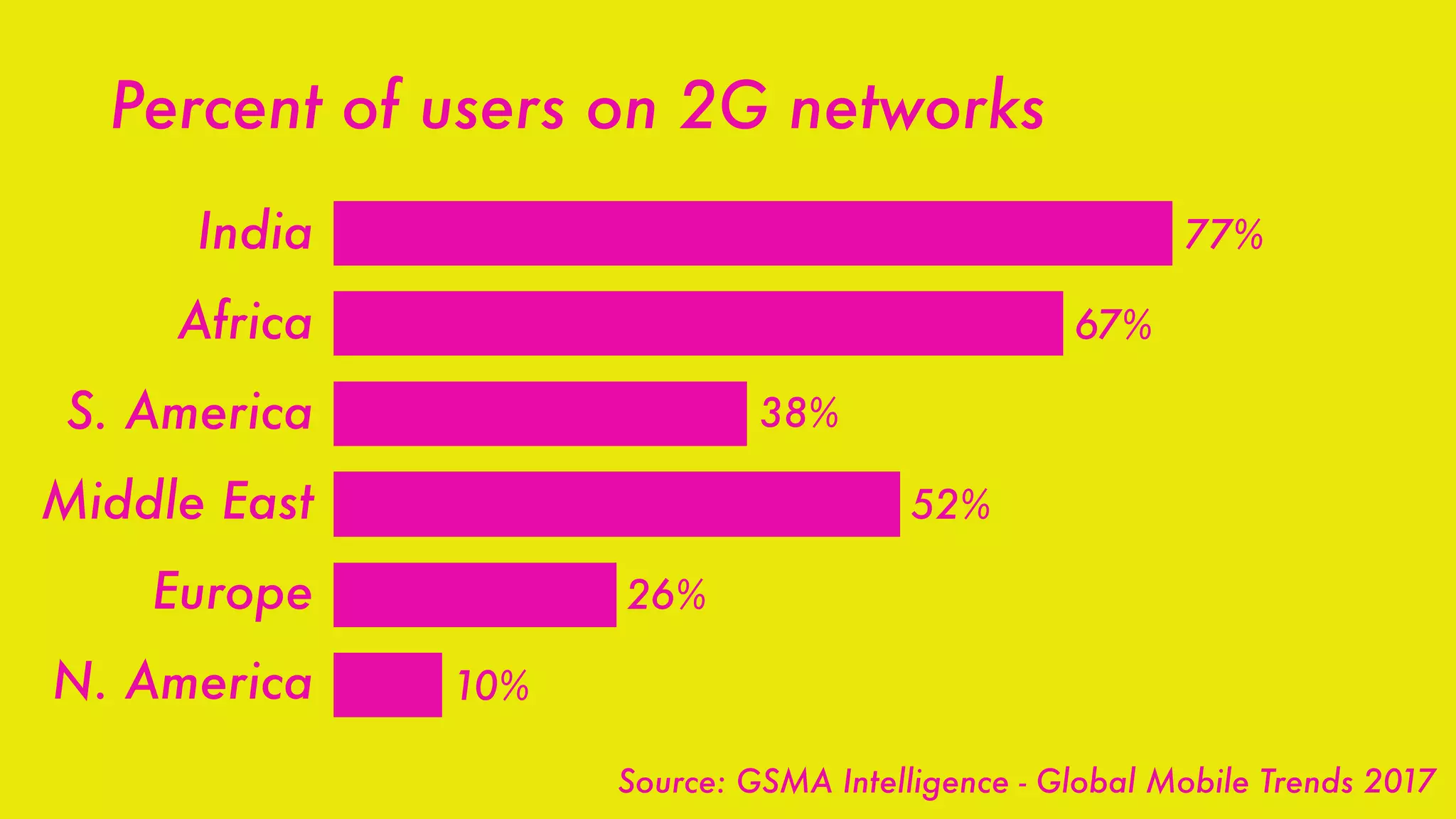

- 37. Percent of userson 2G networks India Africa S. America Middle East Europe N. America 77% 67% 38% 52% 26% 10% Source: GSMA Intelligence - Global Mobile Trends 2017
- 38. 36% are on2G overall Source: GSMA Intelligence - Global Mobile Trends 2017
- 39. But not allnetworks are created equal
- 40. And not alldata packages are priced equal
- 41. Let's look atnew users
- 42. Emerging markets willaccount for over 90% of new mobile subscribers globally by 2020 Source: GSMA Intelligence - Global Mobile Trends 2017
- 43. But do Ireaaalllly need to build for them?
- 44.
- 45.
- 46. • Why youshould care • Why it's hard • What you can do about it
- 47. • Old devicesare old • New devices are also old
- 48. Usage is completelydifferent
- 49. • Turn offdata when not in use • Save content when on WiFi for later • Install apps by sharing APKs over bluetooth
- 50. Design for newusers
- 51. Let's play anothergame!
- 54.
- 57. Designing for newinternet users is hard
- 58. Designing for flakynetworks and devices is also hard
- 59. • Why youshould care • Why it's hard • What you can do about it
- 60.
- 61.
- 62.
- 63. Allow me toexpand
- 64. • APK size •Storage and caches • Runtime perf • Network
- 65. Let's talk aboutFacebook Lite

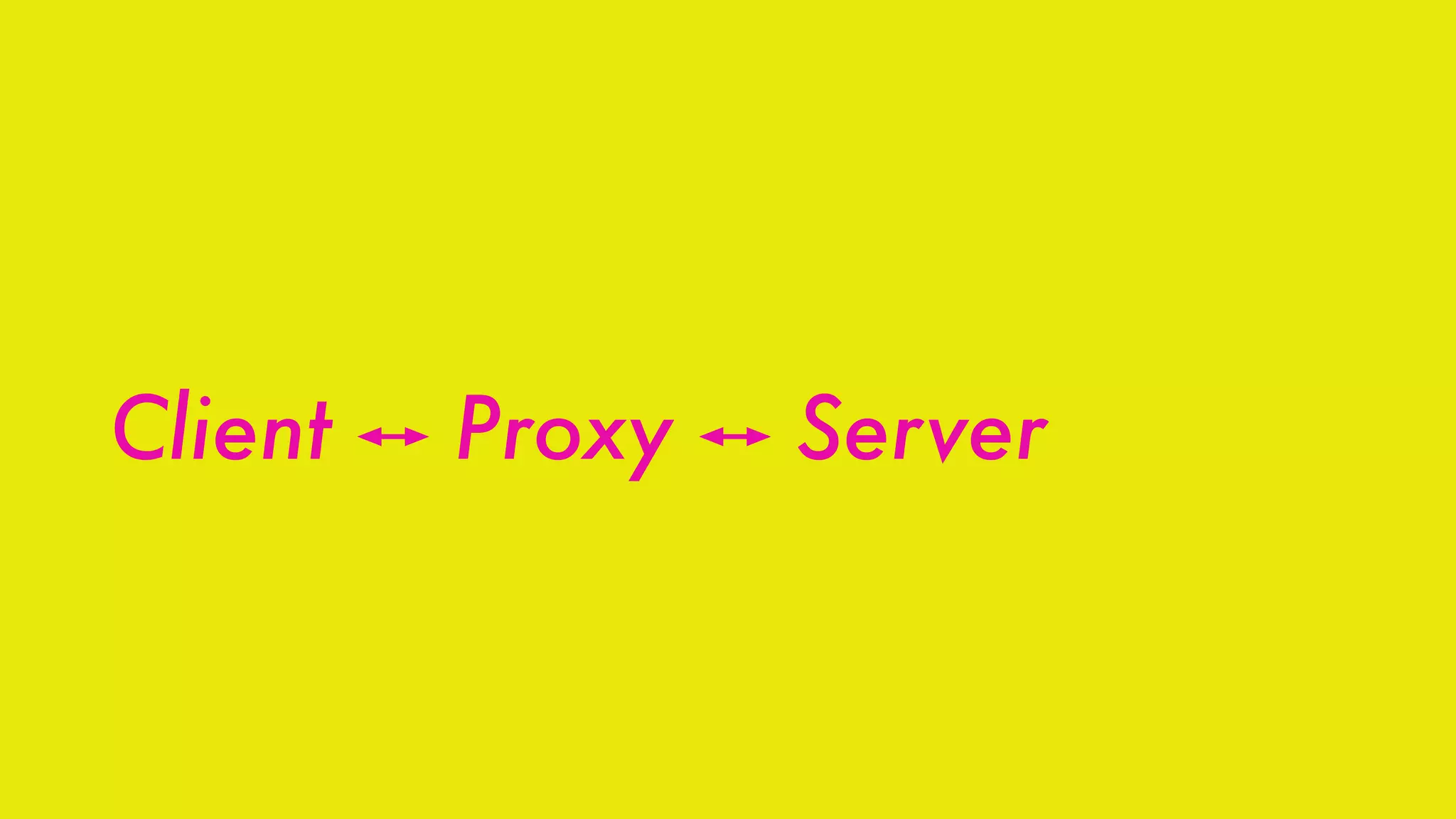

- 66. Client ͍ Proxy͍ Server
- 67. • Client connectsto a proxy • Proxy knows everything • Proxy does everything
- 68. Client is verythin
- 69. • APK size •Storage and caches • Runtime perf • Network
- 70. Quite easy tomeasure and monitor
- 71. Important for anumber of reasons
- 72. • Mobile dataavailability • Network failures • Size on disk
- 73.
- 74. • ProGuard minification& dead code • ReDex dex optimizing • Resource shrinking • Multiple APKs
- 75.
- 76. • Vector drawables •Downloadable fonts • Alternative build systems
- 77.
- 78. Almost no resourcesin APK

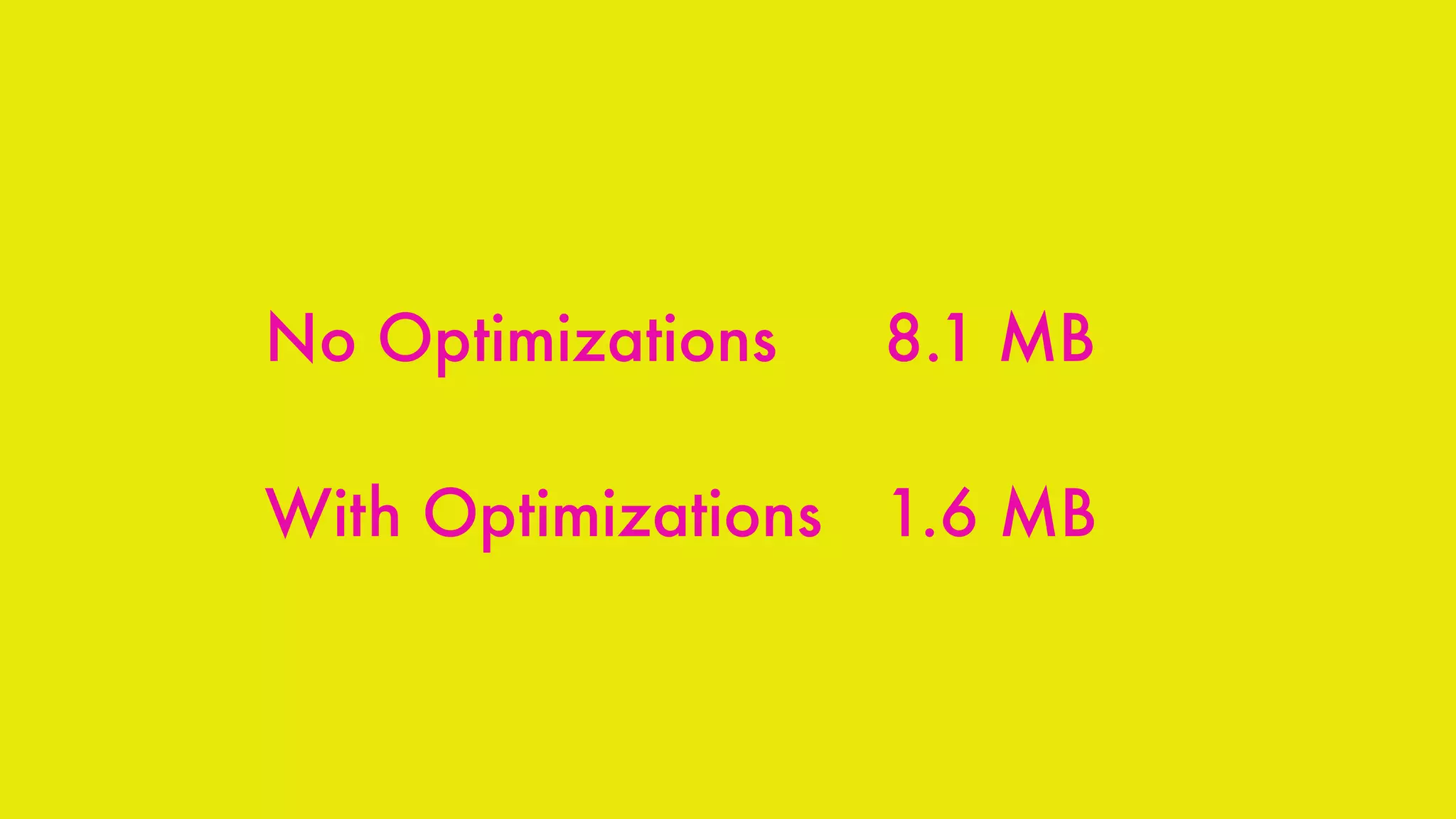

- 79. No Optimizations 8.1MB With Optimizations 1.6 MB
- 80. • APK size •Storage and caches • Runtime perf • Network
- 81. Measuring used torequire ugly hacks
- 82. StorageStatsManager solves that inAPI 26 ¯_( )_/¯
- 83. Users are veryaware of what is on their device
- 84. • Make downloadedcontent easily clearable • Be prepared for data to be cleared • Sometimes server-side state makes sense
- 85.
- 86. • Proxy isaware of what the client saves • Sends diffs when necessary • Clears things that aren't necessary anymore
- 87. • APK size •Storage and caches • Runtime perf • Network
- 88.
- 89. Android Profiler isawesome
- 90.
- 91. Find the correcttime to run your code
- 92. Lazy loading isyour friend
- 93. But not asilver bullet
- 94.
- 95. A lot ofwins came from finding the correct times to execute
- 96. • APK size •Storage and caches • Runtime perf • Network
- 97. Measuring requires abit of effort
- 98.
- 99. Usually easier fromserver
- 100. In most cases,images dominate network traffic.
- 101. • Scale imagesto the required size • Pick the correct image format • Find the right time to send images

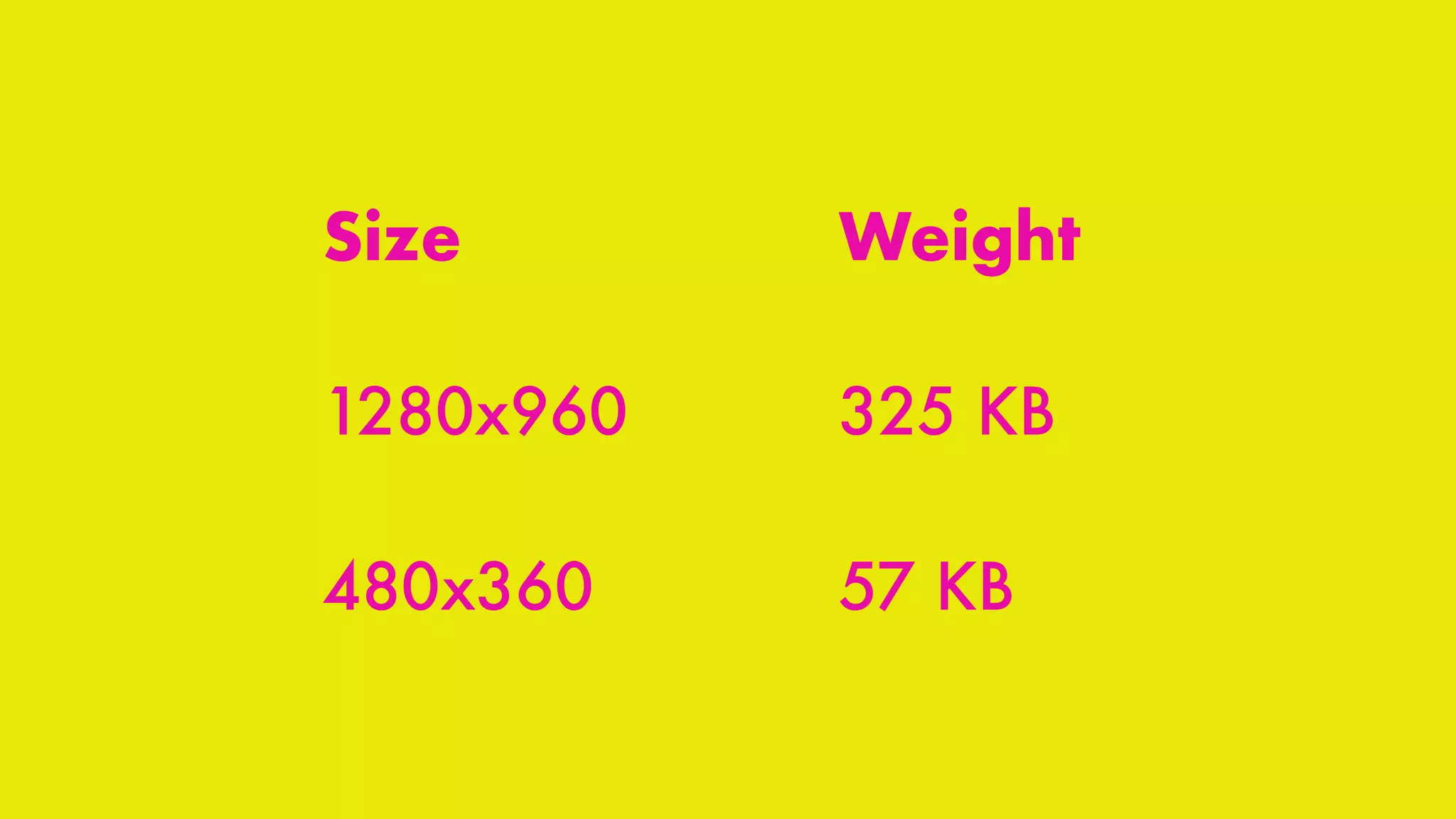

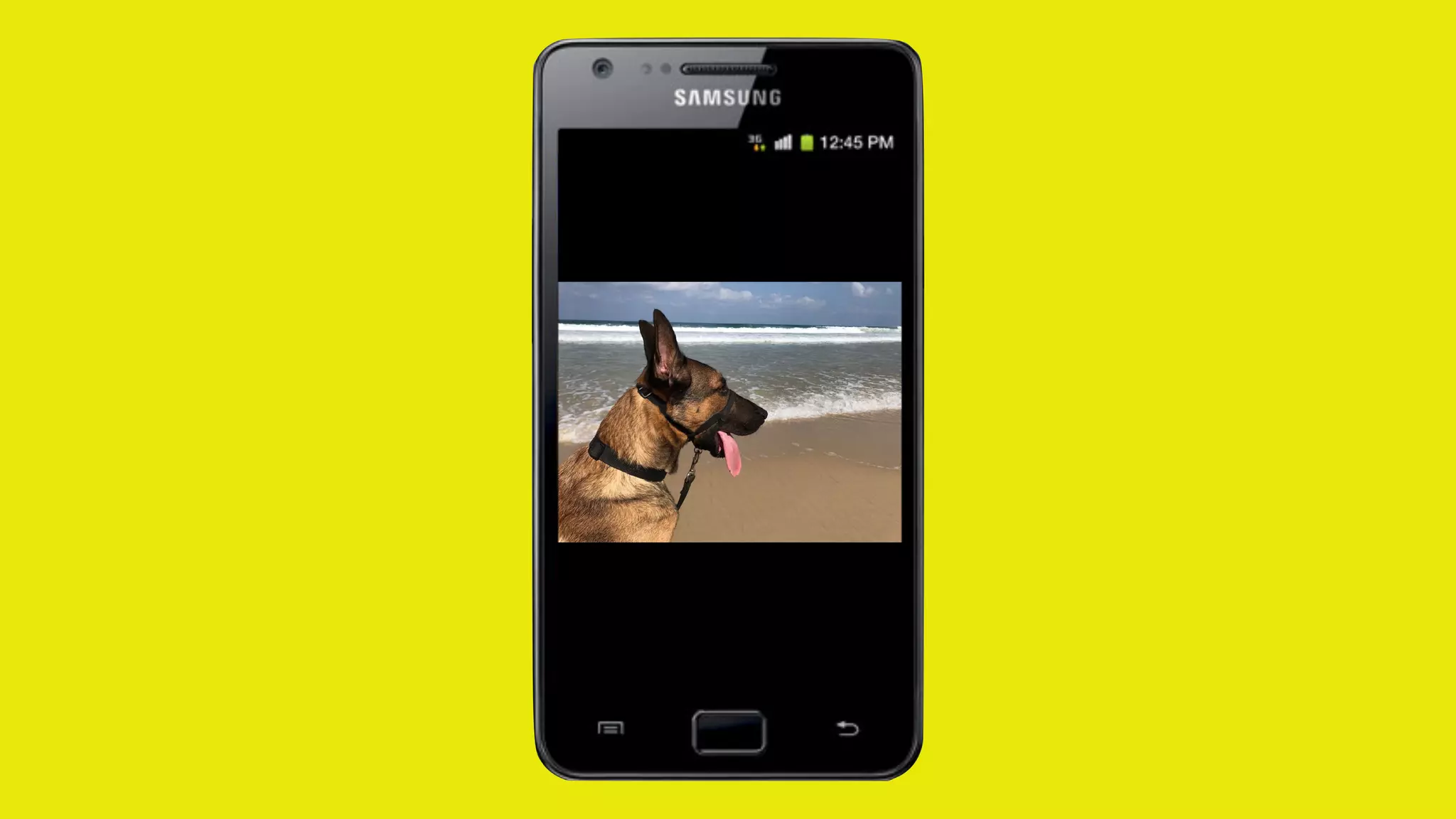

- 104. Size Weight 1280x960 325KB 480x360 57 KB
- 105. 82 percent lessdata!
- 106. Down to 36KBwhen converting to high-quality WebP
- 107.
- 108. • Don't useJSON • Don't use JSON • Don't use XML
- 109. Play around withnetwork situation emulators
- 110. Try Augmented TrafficControl if you want more control
- 111.
- 112. • Very diligentabout what we send • Very diligent about when we send it • Use custom protocol and compress it
- 113. Your mileage mayvary, of course
- 114.
- 115.
- 116. Be part ofthis growth and help new internet users
- 117. Thank you! Assaf Gelber DroidconTel-Aviv 2017
