The document discusses a study of defect prediction for the Eclipse software project. Researchers analyzed Eclipse source code, bug reports, and change history from multiple releases to identify factors that correlate with higher defect counts. These factors include developer experience, test coverage, code complexity metrics, syntactic tokens, and dependencies on certain Eclipse packages. The researchers also collected and made available defect data and metrics for various Eclipse components.

1. Predicting Defects for Eclipse for Eclipse Thomas Zimmermann • Rahul Premraj • Andreas Zeller Saarland University

2. Summary Project Eclipse (eclipse.org) Content Defect counts Complexity metrics Releases 2.0, 2.1, and 3.0 Level Packages and files URL www.st.cs.uni-sb.de/softevo/ More data Eclipse source code

3. Data Source Bugs Changes

4. Identifying Fixes Change history contains ordinary changes as well as bug fixes Use log messages to discriminate Search for keywords – e.g. “bug” “fix” Look out for bug IDs – e.g. “#33547” Bugs Changes

5. Mapping Bugs Each bug report has a unique bug ID Bug reports contain releases (and sometimes components) Associate bugs with changes via bug ID Bugs Changes

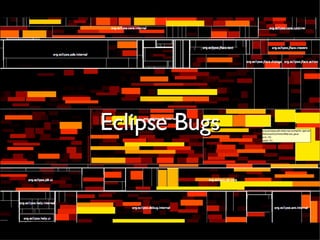

6. Eclipse Bugs

7. Obtaining Data

9. Program is open source Plenty of data available – automatically Program data – all sorts of code analyses Process data – changes, bugs, e-mail, etc. Data set provides bugs, metrics, tokens

10. Predictions at Work

11. Eclipse Bug Data <?xml version=&quot;1.0&quot; encoding=&quot;UTF-8&quot;?> <!-- comments --> <defects project=&quot;eclipse&quot; release=&quot;2.0&quot; dataversion=&quot;1.0&quot;> <plug-in name=&quot;platform-launcher&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> </counts> <package name=&quot;org.eclipse&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> </counts> <package name=&quot;org.eclipse.core&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> </counts> <package name=&quot;org.eclipse.core.launcher&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> </counts> <compilationunit dir=&quot;/platform-launcher/library/&quot; base=&quot;Main.java&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot;/> </counts> </compilationunit> </package> </package> </package> </plug-in>

12. Eclipse Bug Data For three Eclipse releases: For all Eclipse components: Defect counts before and after release Complexity metrics Syntactic tokens Download at http://www.st.cs.uni-sb.de/softevo/ <?xml version=&quot;1.0&quot; encoding=&quot;UTF-8&quot;?> <!-- comments --> <defects project=&quot;eclipse&quot; release=&quot;2.0&quot; dataversion=&quot;1.0&quot;> <plug-in name=&quot;platform-launcher&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> </counts> <package name=&quot;org.eclipse&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> </counts> <package name=&quot;org.eclipse.core&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> </counts> <package name=&quot;org.eclipse.core.launcher&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> </counts> <compilationunit dir=&quot;/platform-launcher/library/&quot; base=&quot;Main.java&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot;/> </counts> </compilationunit> </package> </package> </package> </plug-in>

13. Eclipse Bugs

14. Where do bugs come from?

15. Is it the Developers? Does experience matter? Bug density correlates with experience!

16. How about Testing? Does code coverage predict bug density? Yes – the more tests, the more bugs!

17. History? I found lots of bugs here. Will there be more? Yes!

18. How about Metrics? Do code metrics predict bug density? Yes! (but only with history)

19. Syntactic Tokens? Which tokens predict bug density? imports • extends • implements

20. Eclipse Imports import org.eclipse.jdt.internal.compiler.lookup.*; import org.eclipse.jdt.internal.compiler.*; import org.eclipse.jdt.internal.compiler.ast.*; import org.eclipse.jdt.internal.compiler.util.*; ... import org.eclipse.pde.core.*; import org.eclipse.jface.wizard.*; import org.eclipse.ui.*; 14% of all components importing ui show a post-release defect 71% of all components importing compiler show a post-release defect Joint work with Adrian Schröter • Tom Zimmermann

21. Eclipse Imports Correlation with failure Correlation with success import org.eclipse.jdt.internal.compiler.lookup.*; import org.eclipse.jdt.internal.compiler.*; import org.eclipse.jdt.internal.compiler.ast.*; import org.eclipse.jdt.internal.compiler.util.*; ... import org.eclipse.pde.core.*; import org.eclipse.jface.wizard.*; import org.eclipse.ui.*;

22. What makes code buggy in the first place?

23. Eclipse Bug Data For three Eclipse releases: For all Eclipse components: Defect counts before and after release Complexity metrics Syntactic tokens Download at http://www.st.cs.uni-sb.de/softevo/ <?xml version=&quot;1.0&quot; encoding=&quot;UTF-8&quot;?> <!-- comments --> <defects project=&quot;eclipse&quot; release=&quot;2.0&quot; dataversion=&quot;1.0&quot;> <plug-in name=&quot;platform-launcher&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> </counts> <package name=&quot;org.eclipse&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> </counts> <package name=&quot;org.eclipse.core&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> </counts> <package name=&quot;org.eclipse.core.launcher&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot; avg=&quot;0.0&quot; compilationunits=&quot;1&quot; max=&quot;0&quot;/> </counts> <compilationunit dir=&quot;/platform-launcher/library/&quot; base=&quot;Main.java&quot;> <counts> <count id=&quot;pre&quot; value=&quot;0&quot;/> <count id=&quot;post&quot; value=&quot;0&quot;/> </counts> </compilationunit> </package> </package> </package> </plug-in>
