1. 04-10-2016 13:53:46 1Power System Protection
A Seminar presentation
on
Power system protection
presented by
B.Mani kumar
16705A0223
under the esteemed guidance of
Mr. P. RAVNIDRA PRASAD M.Tech.,
Assistant Professor.
DEPARTMENT OF ELECTRICAL AND ELECTRONICS ENGINEERING
ANNAMACHARYA INSTITUTE OF TECHNOLOGY AND SCIENCE
(atonomous)
NEW BOYANA PALLI, RAJAMPET – 516 126
2016-2019

2. 04-10-2016 13:53:46 2Power System Protection

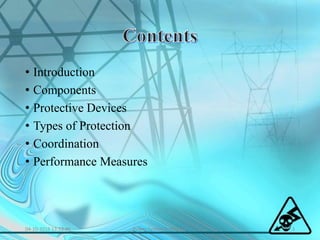

3. • Introduction
• Components
• Protective Devices
• Types of Protection
• Coordination
• Performance Measures
04-10-2016 13:53:46 3Power System Protection

4. • Power-system protection is a branch of electrical
power engineering that deals with the protection of
electrical power systems from faults through the
isolation of faulted parts from the rest of the
electrical network.
04-10-2016 13:53:46 4Power System Protection

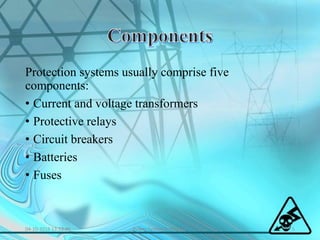

5. Protection systems usually comprise five
components:
• Current and voltage transformers
• Protective relays
• Circuit breakers
• Batteries
• Fuses
04-10-2016 13:53:46 5Power System Protection

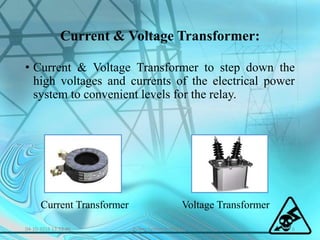

6. Current & Voltage Transformer:
• Current & Voltage Transformer to step down the
high voltages and currents of the electrical power
system to convenient levels for the relay.
Current Transformer Voltage Transformer
04-10-2016 13:53:46 6Power System Protection

7. Protective Relays& Circuit Breakers
• Protective Relays to sense the fault and initiate a
trip, or disconnection.
• Circuit Breakers to open/close the system based on
relay and auto reclose commands.
Digital Relay Circuit Breakers
04-10-2016 13:53:46 7Power System Protection

8. Batteries& Fuses
• Batteries to provide power in case of power
disconnection in the system.
• Fuses for parts of a distribution system, fuses are
capable of both sensing and disconnecting faults
Batteries Fuses
04-10-2016 13:53:46 8Power System Protection

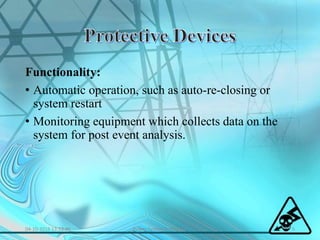

9. Functionality:
• Automatic operation, such as auto-re-closing or
system restart
• Monitoring equipment which collects data on the
system for post event analysis.
04-10-2016 13:53:46 9Power System Protection

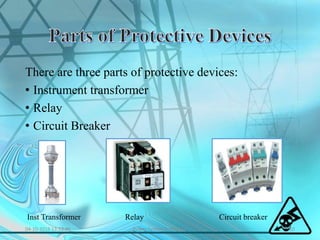

10. There are three parts of protective devices:
• Instrument transformer
• Relay
• Circuit Breaker
Inst Transformer Relay Circuit breaker
04-10-2016 13:53:46 10Power System Protection

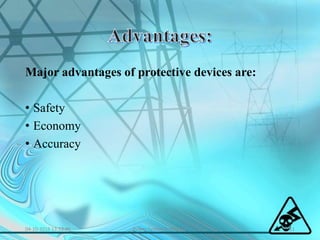

11. Major advantages of protective devices are:
• Safety
• Economy
• Accuracy
04-10-2016 13:53:46 11Power System Protection

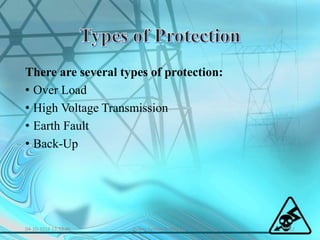

12. There are several types of protection:
• Over Load
• High Voltage Transmission
• Earth Fault
• Back-Up
04-10-2016 13:53:46 12Power System Protection

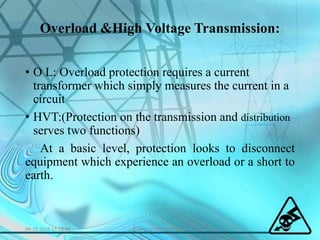

13. Overload &High Voltage Transmission:
• O L: Overload protection requires a current
transformer which simply measures the current in a
circuit
• HVT:(Protection on the transmission and distribution
serves two functions)
At a basic level, protection looks to disconnect
equipment which experience an overload or a short to
earth.
04-10-2016 13:53:46 Power System Protection

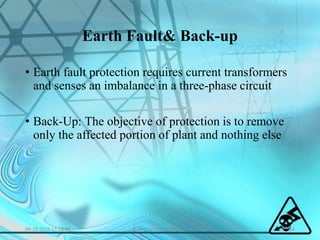

14. Earth Fault& Back-up
• Earth fault protection requires current transformers
and senses an imbalance in a three-phase circuit
• Back-Up: The objective of protection is to remove
only the affected portion of plant and nothing else
04-10-2016 13:53:46 14Power System Protection

15. • Protective device coordination is the process of
determining the "best fit" timing of current
interruption when abnormal electrical conditions
occur. The goal is to minimize an outage to the
greatest extent possible.
04-10-2016 13:53:46 15Power System Protection

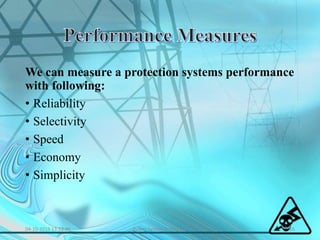

16. We can measure a protection systems performance
with following:
• Reliability
• Selectivity
• Speed
• Economy
• Simplicity
04-10-2016 13:53:46 16Power System Protection
