Electromagnetic waves are formed by the interaction of electric and magnetic fields and travel through a vacuum at the speed of light (300,000 km/sec). They encompass a spectrum of wave types including radio waves, microwaves, infrared, visible light, ultraviolet, x-rays, and gamma rays, each interacting with matter differently and having unique medical applications. Various medical uses of electromagnetic waves include imaging technologies such as MRI and x-rays, therapies like radiofrequency ablation and microwave treatments, and sterilization processes.

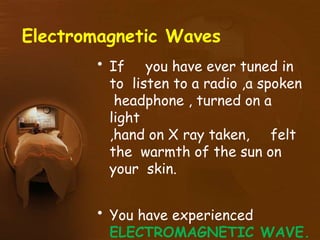

1. Electromagnetic Waves
• If you have ever tuned in
to listen to a radio ,a spoken
headphone , turned on a
light
,hand on X ray taken, felt
the warmth of the sun on
your skin.
• You have experienced
ELECTROMAGNETIC WAVE.

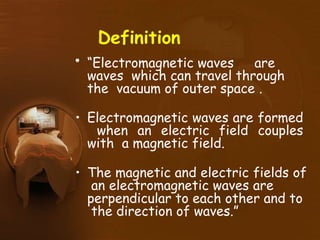

2. Definition
• “Electromagnetic waves are
waves which can travel through
the vacuum of outer space .
• Electromagnetic waves are formed
when an electric field couples
with a magnetic field.
• The magnetic and electric fields of
an electromagnetic waves are
perpendicular to each other and to
the direction of waves.”

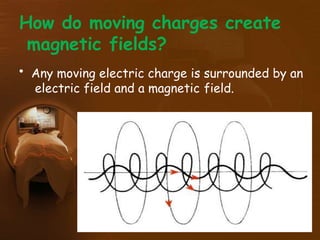

3. How do moving charges create
magnetic fields?
• Any moving electric charge is surrounded by an
electric field and a magnetic field.

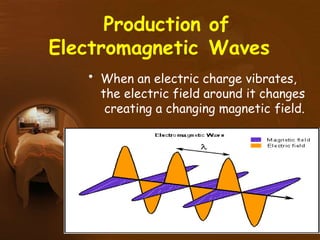

4. Production of
Electromagnetic Waves
• When an electric charge vibrates,
the electric field around it changes
creating a changing magnetic field.

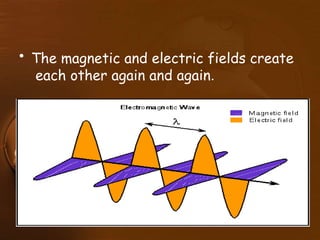

5. • The magnetic and electric fields create
each other again and again.

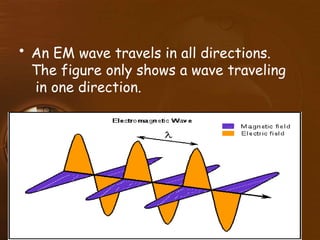

6. • An EM wave travels in all directions.
The figure only shows a wave traveling
in one direction.

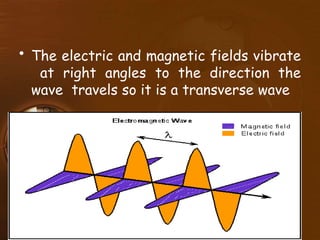

7. • The electric and magnetic fields vibrate
at right angles to the direction the
wave travels so it is a transverse wave

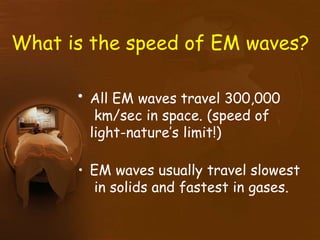

8. What is the speed of EM waves?
• All EM waves travel 300,000
km/sec in space. (speed of
light-nature’s limit!)
• EM waves usually travel slowest
in solids and fastest in gases.

9. Properties of electromagnetic
wave
1. All electromagnetic waves are
transverse.
2. They do not require any medium to
travel though .
3. They travel at speed of 3 multiple by
10 -8 in vacuum.
4. They can all be reflected and
refracted.
5. They can all be emitted and

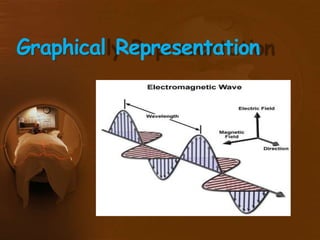

10. Graphical Representation

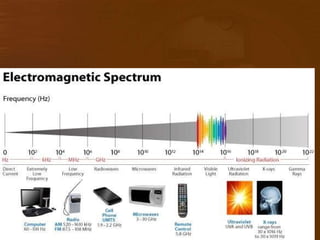

11. Electro
Spectrum
“Frequencies are called the
electromagnetic spectrum.”
• Different parts interacts with matter
in different way
• As wavelength decreases, frequency
increases…
• The ones humans can see are called visible
light, a small part of the whole spectrum.

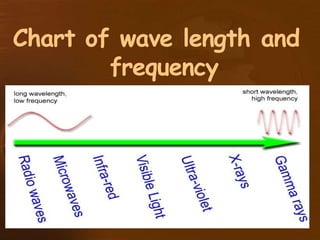

12. Chart of wave length and
frequency

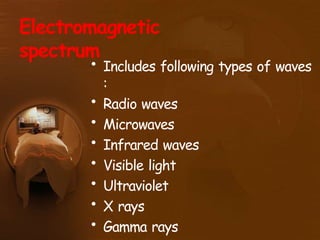

13. Electromagnetic
spectrum
• Includes following types of waves
:
• Radio waves
• Microwaves
• Infrared waves
• Visible light
• Ultraviolet
• X rays
• Gamma rays

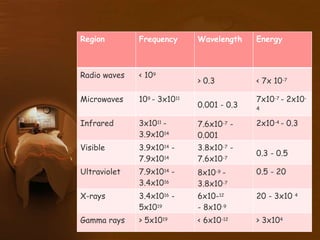

15. Region Frequency Wavelength Energy
Radio waves < 109
> 0.3 < 7x 10-7
Microwaves 109 - 3x1011
0.001 - 0.3
7x10-7 - 2x10-
4
Infrared 3x1011 -
3.9x1014
7.6x10-7 -
0.001
2x10-4 - 0.3
Visible 3.9x1014 -
7.9x1014
3.8x10-7 -
7.6x10-7
0.3 - 0.5
Ultraviolet 7.9x1014 -
3.4x1016
8x10-9 -
3.8x10-7
0.5 - 20
X-rays 3.4x1016 -
5x1019
6x10-12
- 8x10-9
20 - 3x10 4
Gamma rays > 5x1019 < 6x10-12 > 3x104

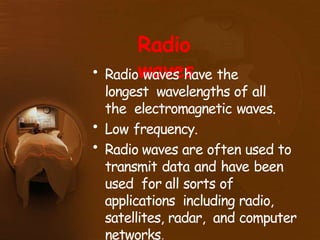

16. Radio
waves
• Radio waves have the
longest wavelengths of all
the electromagnetic waves.
• Low frequency.
• Radio waves are often used to
transmit data and have been
used for all sorts of
applications including radio,
satellites, radar, and computer
networks.

17. Radio waves are used
in medicine
• Is used to produce images of soft
tissues, fluid, fat and bone.
Example : MRI and RFA.
• DIAGNOSE MANY PROBLEMS.
Example : helps identify tumors.
• Radiofrequency Ablation (RFA)
uses heat to destroy cancer
cells.

18. • Microwaves are radio waves
with wavelengths less than 30
cm and higher frequency &
shorter wavelength
• Cell phones and satellites use
microwaves between 1 cm & 20
cm for communication

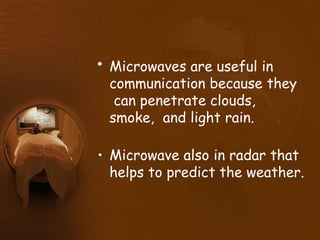

19. • Microwaves are useful in
communication because they
can penetrate clouds,
smoke, and light rain.
• Microwave also in radar that
helps to predict the weather.

20. Microwave waves are used
in medicine
• Hyperthermia therapy is a type of
medical treatment.
• Microwave ablation: used in
treatment of liver tumor
• Microwave diathermy: used in pain
management
• Transurethral microwave :
thermotherapy used in treatment of
lower urinary tract syndrome

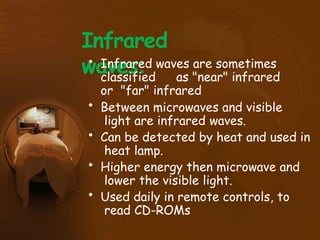

21. Infrared
waves:
• Infrared waves are sometimes
classified as "near" infrared
or "far" infrared
• Between microwaves and visible
light are infrared waves.
• Can be detected by heat and used in
heat lamp.
• Higher energy then microwave and
lower the visible light.
• Used daily in remote controls, to
read CD-ROMs

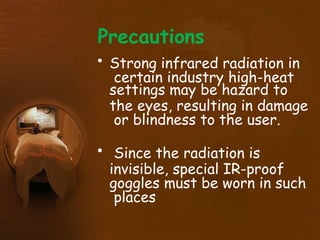

22. Precautions
• Strong infrared radiation in
certain industry high-heat
settings may be hazard to
the eyes, resulting in damage
or blindness to the user.
• Since the radiation is
invisible, special IR-proof
goggles must be worn in such
places

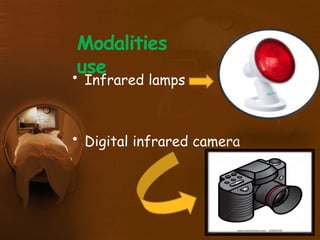

23. Modalities
use
• Infrared lamps
• Digital infrared camera

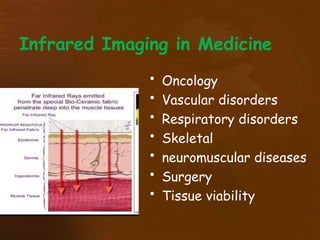

24. Infrared Imaging in Medicine
• Oncology
• Vascular disorders
• Respiratory disorders
• Skeletal
• neuromuscular diseases
• Surgery
• Tissue viability

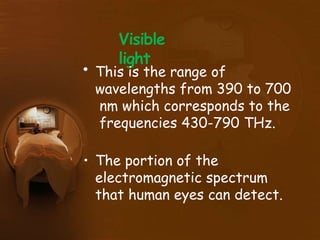

25. Visible
light
• This is the range of
wavelengths from 390 to 700
nm which corresponds to the
frequencies 430-790 THz.
• The portion of the
electromagnetic spectrum
that human eyes can detect.

26. You see different wavelengths
as colors.
Blue has shortest
Red is the longest
Light looks white if all
colors are present

27. Visible light use in
medicines
• Visible light is also used
in Scanning laser
ophthalmoscope.
• In Endoscopy/ Keyhole
Surgery

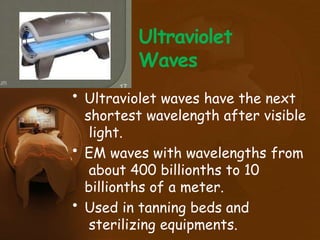

28. Ultraviolet
Waves
• Ultraviolet waves have the next
shortest wavelength after visible
light.
• EM waves with wavelengths from
about 400 billionths to 10
billionths of a meter.
• Used in tanning beds and
sterilizing equipments.

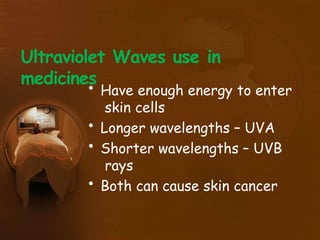

29. Ultraviolet Waves use in
medicines
• Have enough energy to enter
skin cells
• Longer wavelengths – UVA
• Shorter wavelengths – UVB
rays
• Both can cause skin cancer

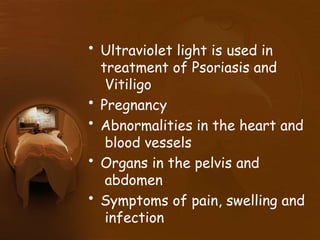

30. • Ultraviolet light is used in
treatment of Psoriasis and
Vitiligo
• Pregnancy
• Abnormalities in the heart and
blood vessels
• Organs in the pelvis and
abdomen
• Symptoms of pain, swelling and
infection

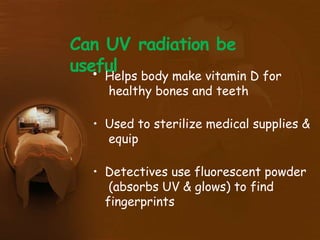

31. Can UV radiation be
useful
• Helps body make vitamin D for
healthy bones and teeth
• Used to sterilize medical supplies &
equip
• Detectives use fluorescent powder
(absorbs UV & glows) to find
fingerprints

32. X
Rays
• High wave energy
• Used in :
Medicines
Industry
Transportation
• To much exposure can
damage the living tissue or
even cause cancer

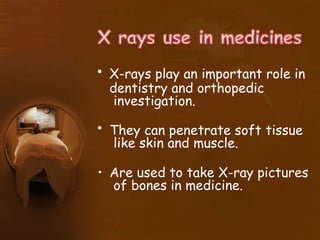

33. • X-rays play an important role in
dentistry and orthopedic
investigation.
• They can penetrate soft tissue
like skin and muscle.
• Are used to take X-ray pictures
of bones in medicine.

34. • Gamma rays the highest
energy electromagnetic
waves
• The actually come from
radioactive elements
or stars
• Inspection tools in
industry

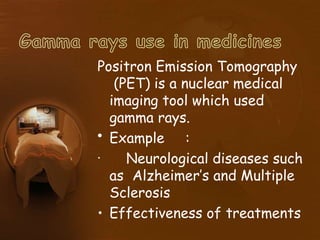

35. Positron Emission Tomography
(PET) is a nuclear medical
imaging tool which used
gamma rays.
• Example :
• Neurological diseases such
as Alzheimer’s and Multiple
Sclerosis
• Effectiveness of treatments

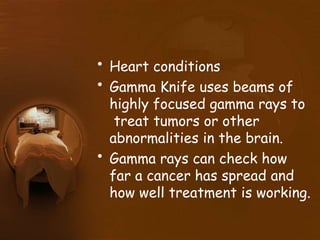

36. • Heart conditions
• Gamma Knife uses beams of
highly focused gamma rays to
treat tumors or other
abnormalities in the brain.
• Gamma rays can check how
far a cancer has spread and
how well treatment is working.
