The MTDPOLYSTOPTM system is designed to stop the flow of polyethylene pipe up to 125 psi by entering the pipe section via a universal electrofusion fitting. It is typically used for permanent relocations or repairs of squeezed sections. The stopping operation involves setting a completion plug and installing a cap, and the fitting can be re-entered for future stop operations. The system features aluminum stopper housings, valves, and adapters for strength and weight reduction, and comes in sizes for 3x4, 4x6, 6x8, and 8x12 inch pipe.

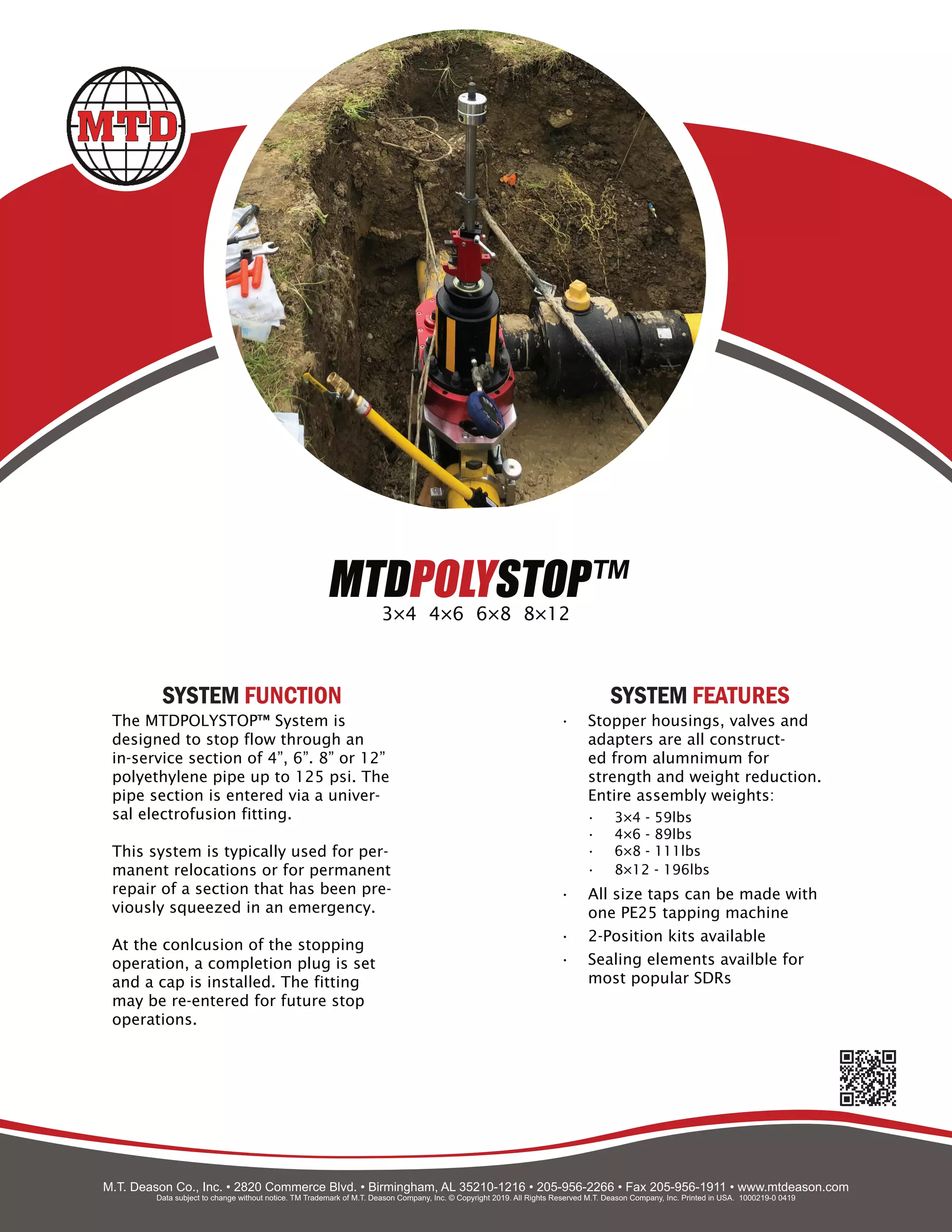

1. MTDPOLYSTOP™
3×4 4×6 6×8 8×12
The MTDPOLYSTOP™ System is
designed to stop flow through an
in-service section of 4”, 6”. 8” or 12”
polyethylene pipe up to 125 psi. The
pipe section is entered via a univer-
sal electrofusion fitting.
This system is typically used for per-
manent relocations or for permanent
repair of a section that has been pre-
viously squeezed in an emergency.
At the conlcusion of the stopping
operation, a completion plug is set
and a cap is installed. The fitting
may be re-entered for future stop
operations.
• Stopper housings, valves and
adapters are all construct-
ed from alumnimum for
strength and weight reduction.
Entire assembly weights:
• 3×4 - 59lbs
• 4×6 - 89lbs
• 6×8 - 111lbs
• 8×12 - 196lbs
• All size taps can be made with
one PE25 tapping machine
• 2-Position kits available
• Sealing elements availble for
most popular SDRs
SYSTEM FUNCTION SYSTEM FEATURES
M.T. Deason Co., Inc. • 2820 Commerce Blvd. • Birmingham, AL 35210-1216 • 205-956-2266 • Fax 205-956-1911 • www.mtdeason.com
Data subject to change without notice. TM Trademark of M.T. Deason Company, Inc. © Copyright 2019. All Rights Reserved M.T. Deason Company, Inc. Printed in USA. 1000219-0 0419
