Process Discovery and Process Mining has always been
the “1st Chess coin move” by most of the high-end IT
Automation Consulting and System Integrators like us.
Management Information System (MIS) unit-1Manoj Kumar
This PPT is prepared for students and other professionals regarding Management Information System (MIS) subject as lecture notes.This PPT aims to help students to recognize, specify and communicate effectively to data processing personnel to about information system. It also helps students to interpret new developments in information technology and fit into an overall framework. OTHER TOPICS ARE DISCUSSED IN THE CONSECUTIVE PPTs
Glossary of tools available for the field of Analytics. Research done on Google, hence no claims on accuracy. Please use this as a directional insights into the tools available for Analytics. Also the research is about a year old, and there have been many wonderful new tools in the market today, so please do your own research to get updated info.
An information system is a collection of hardware, software, data, people and procedures that are designed to generate information that supports the day-to-day, short-range, and long-range activities of users in an organization. Information systems generally are classified into five categories: office information systems, transaction processing systems, management information systems, decision support systems, and expert systems.

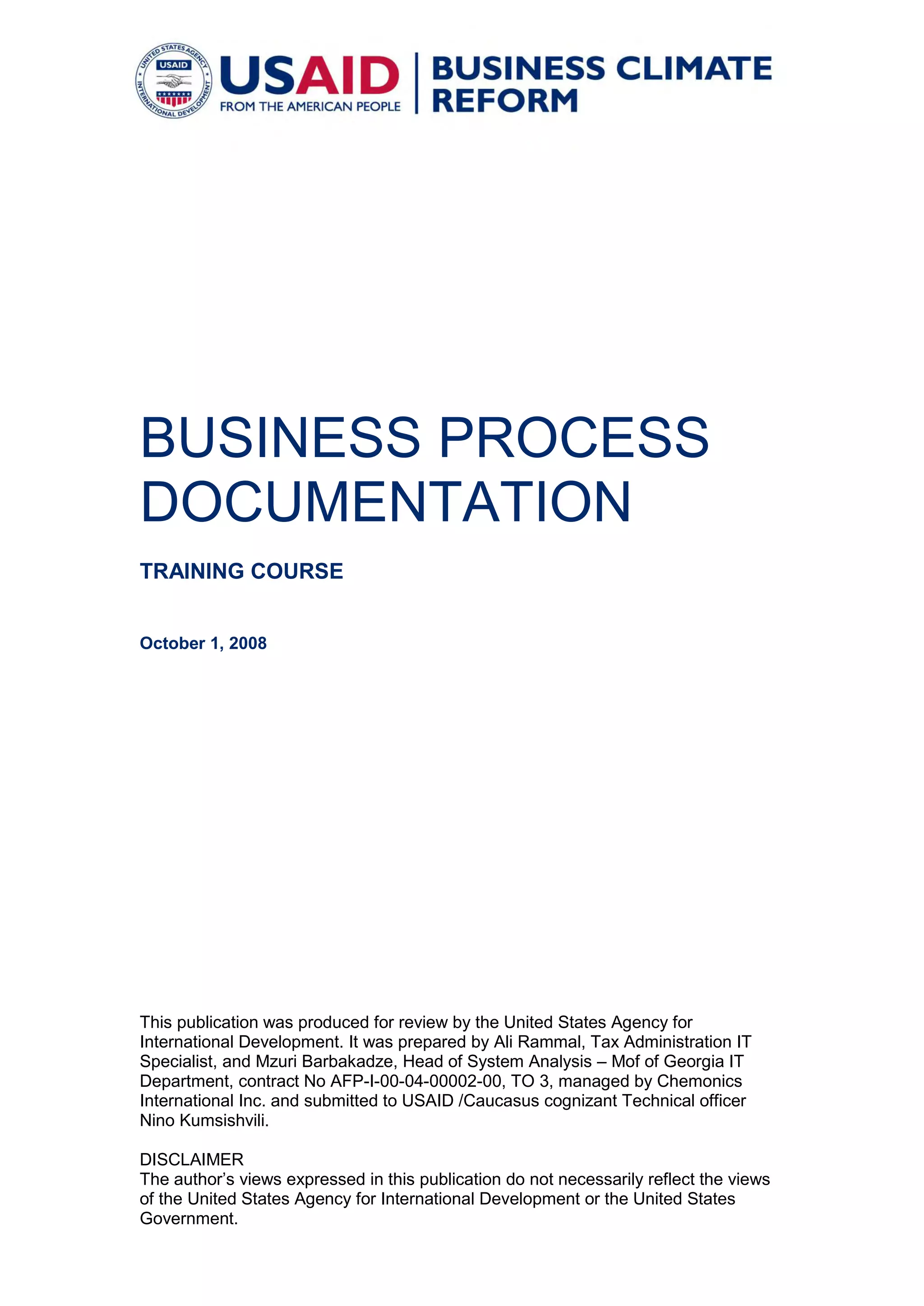

1. BUSINESS PROCESS
DOCUMENTATION
TRAINING COURSE
October 1, 2008
This publication was produced for review by the United States Agency for
International Development. It was prepared by Ali Rammal, Tax Administration IT
Specialist, and Mzuri Barbakadze, Head of System Analysis – Mof of Georgia IT
Department, contract No AFP-I-00-04-00002-00, TO 3, managed by Chemonics
International Inc. and submitted to USAID /Caucasus cognizant Technical officer
Nino Kumsishvili.
DISCLAIMER
The author’s views expressed in this publication do not necessarily reflect the views
of the United States Agency for International Development or the United States
Government.
2. CONTENTS
Course Objective ............................................................................................................ 2
Basic Definitions ........................................................ Error! Bookmark not defined.5
Basic Concepts in Structured Analysis ...................... Error! Bookmark not defined.8
Context Diagram ...................................................... Error! Bookmark not defined.11
Management Overview Diagrams ........................... Error! Bookmark not defined.13
Conclusion ............................................................... Error! Bookmark not defined.17
TRAINING COURSE 2
3. COURSE OBJECTIVE
The objective of this training course is to introduce a methodology for business
process analysis and documentation, for use by the Ministry of Finance (MoF), to:
Document three automated MoF business processes: Taxpayer
registration, Taxpayer card, and Tax Declaration.
Provide MoF senior leadership with a management overview of each
business process and a template for future ones.
Provide tools and techniques to MoF trainees to properly document MoF
business processes, so requirements can be easily understood by
functional and technical staff alike.
Furnish sufficient details to MoF programmers, to develop required
software applications and easily maintain them in the future.
TRAINING COURSE 3
4. Questions to be answered during this course manual include:
What is the objective of the business process we want to document?
What inputs and outputs are involved in this business process?
What are the sources of such inputs and the recipients of such
outputs?
What primary sub-processes, activities, and steps exist and in what
order they perform?
Which staff roles are involved in each function/process?
What processing functions exist and how they perform?
Where and when each process begins and ends?
What internal and external data flows are involved?
What data entities are used to store data?
What policy, procedures, rules, workflow assumptions are made
during execution?
What is automated and what is not automated in this business
process?
What inputs and outputs are included in each business process (e.g.
documents, reports, file transfers, etc)?
What opportunities exist for business process improvement or further
automation?
Examples of what this course will not cover
Software development methodology life-cycle
Quality control and quality assurance procedures and standards
Business improvement and change management tasks
Project management methodology
Database design and structure beyond basic data structures and entities
Information on data and process volumes, frequencies, etc
Throughout this course manual, the focus is on:
The use of structured analysis tools and techniques to maximize graphic
representation, enhance requirements understandability, and reduce
documentation to the minimum required level.
The distinction between WHAT is done (logical model) and HOW it is done
(physical model).
TRAINING COURSE 4
5. BASIC DEFINITIONS
Processing Function
Data Flow
Data Store
External Entity
TRAINING COURSE 5
6. What is a Processing Function?
A processing function is a specific ordering of work activities that transform
incoming data or information (e.g. document, file, report information, etc) into
outgoing data or information.
Examples of Processing Functions:
Taxpayer Registration
Taxpayer Declaration
Tax Withholding
Tax Audit
Etc.
INPUT OUTPUT
?
Processing Function
A processing function is a series of steps designed to produce a product or
service. A Processing Function is a set of activities that converts input
(something needed in order to carry out activities) into output (the end result
of activities). Every MoF staff is involved in one Processing Function or
another.
What is a Data Flow?
A data flow is a flow of data from source or process to another location. A
data flow is always assigned a name (e.g. taxpayer payment, taxpayer
details, etc) that best describes its set of data elements (e.g. taxpayer ID, tax
amount, data of tax payment, means of payment, payment location, etc). If
difficult to describe a data flow, it simply means that our analysis is
incomplete and more is required.
TRAINING COURSE 6
7. Tax payer details
Tax payer payment
What is a Data Store?
Is a data repository which represents a single data entity (e.g. taxpayers, tax
declarations, appeals, refunds, purchase orders, invoices, etc), or a set of
entities such as a database.
Sometimes, we have a small number of entities (e.g. orders and receipts, etc)
grouped at high level, then exploded to a larger grouping of entities on the
lower levels (e.g. orders, receipts, etc).
Data stores should always have in and out data flows, otherwise it indicates
an error in our analysis, such as an incomplete analysis.
A data store with only in or out data flows is not useful for any system.
Manual
Data Automat
Store ed Data
What is an External Entity?
It is an individual (e.g. taxpayer), an organization (e.g. Ministry,
Parliament, corporation, International Organization, etc), department
(e.g. HR Department, Audit Department, Accounting Department, etc),
or an external information system, etc . An external entity receives and
provides information to the business process. For clarity, we will use
some symbols with names under them to indicate the type of the
respective entity in question. Examples are below:
BUSINESS
Taxpayer taxpayers
TRAINING COURSE 7
8. BASIC CONCEPTS IN STRUCTURED ANALYSIS
Four primary tools/techniques used in business process structured analysis:
Data Flow Diagram (DFD):
Provides a method to focus on representing a set of activities or steps of what
needs to be processed rather than how it is done. In other words, it focuses
on the business (using the logical definition of WHAT needs to be done),
rather than on the used technology (using the physical definition of HOW it is
done). The highest level DFD should describe the entire system, sub-system,
or business process, without much details, before a partitioning (e.g. into 2 to
maximum of 7 processes in one level) and leveling is carried out (e.g. Level 1,
level 2, and Level 3, etc). Usually 2 to 3 levels are more than sufficient for
most systems, giving a possibility to document 343 processing functions (7X
7 X 7 = 343 total), followed by one level describing additional details (e.g.
validation rules, algorithm, exception handling, clauses in the Law, or action
diagrams for programmers).
It is important:
Not to include varying levels of details, in one level of DFD, since it
indicates incorrect analysis of some part of the business process.
Not to attempt to draw data flows between external entities, since it is
outside the scope of the business process in question which are trying
to document.
2. Data Dictionary:
Provides a complete repository of the definition of data entities and attributes,
data flows, external entities, and a description of each processing function.
3. Action Diagram:
A narrative description of the logic of a processing function. They may include
an algorithm, using SQL language, to describe the overall logic of the
application or precisely describe a part of the logic to programmers, such as
formulas, validation and verification rules, exception rules, etc.
4. System Modeling:
Structured analysis often produces the four following process models below:
Current Physical DFD (AS IS or existing physical model, HOW it is
done at present). This is our starting point to best document and
understand how is the MoF system is currently performing its tasks.
Current Logical DFD (AS IS or the resent logical Model, WHAT does it
presently perform). This logical model will be driven from the Current
Physical Model by adding the manual processing functions, the
manual data stores (such manual records of data, such as contracts,
vendors, etc.).
TRAINING COURSE 8
9. NEW Logical (TO BE or future logical Model, WHAT is required to do).
Although, this is outside the scope of this course, it will be
automatically done by completing the Current Logical DFD. The
reason for that is, based on MoF IT Department staff, the existing
automated MoF system and sub-systems (Tax, treasury, customs,
etc), mirror correctly the requirements of MoF for the present and
future system. Therefore, there is no difference between the Current
Logical Model and the New Logical Model of the MoF System. Any
new best practices to be introduced for various modules, such as for
Treasury operations, need to be reflected in this New Logical Model
before deriving the New Physical Model from it.
NEW Physical (TO BE or future physical model, HOW is required to
perform in the new system). This is outside the scope of this course,
however MoF intends, as result of its business process definition
exercise and system documentation, to either seek the procurement of
an enterprise-wide information systems (e.g. an off-the-shelf
enterprise solution from SAP, Oracle, Free Balance, etc) or to improve
its current applications and migrate them into new web-based
technologies.
CURRENT
REQUIRED
Logical
Physical
TRAINING COURSE 9
10. Step by Step Approach for Documenting Existing MoF Business Processes
1. Prepare the Current Logical DFD Model of the business process in
question.
2. Create the current physical model from the above current logical model by
identifying the boundaries through a dotted line. We separate, by a dotted
line, the processing functions, that are currently automated, from those
that remain manual in the existing MoF IT system.
3. Analyze each existing application program, for that particular business
process, to determine what correspondence exist between:
3.1. The application program we are reviewing and a particular
processing function in the current physical model, we have created
under Step 2 above.
3.2. How data stores, used in the existing application program we are
reviewing, relate to the data stores in the current physical model, we
have created under Step 2 above.
3.3. How data flows, in the application program we are reviewing, relate
to particular data flows in the current logical model, WE HAVE
CREATED UNDER Step 2 above.
NOTE: Application programs that do not have internal data flows usually
correspond to the lowest processing functions in the current physical
model. On the other hand, application programs that have external and
internal data flows, usually correspond to a higher level (level 1 or 2) in
the current physical model.
4. Repeat Step 3 till we have all applications programs clearly documented
in the current physical model. Clarifications can be further enhanced
through some action diagrams, indicating some internal temporary files
and some internal validation rules, some specific formulas, etc., for some
or all application programs to specify some validation rules, some internal
temporary files, some security procedures, etc.
5. Make any changes to the current logical diagram, created under Step 1,
to ensure its completeness and full correspondence to the final current
physical model we have completed under Step 4.
TRAINING COURSE 10
11. CONTEXT DIAGRAM
Examples of a Context Diagram to model MoF information
systems, sub-systems, or a single business process, etc.
INPUT PROCESS OUTPUT
INPUT PROCESS OUTPUT
TRAINING COURSE 11
12. Context Diagram (option 1)
Taxpayer
Fees details Registration Rejected forms
INSPECT
Maintain Physical Taxpayer
Forms 1,2,3,4,5 Certificates
Maintain Legal Taxpayer
Issue CERTIFICATE
Generate EXTRACT
Extract Request Extracts
Context Diagram (option 2)
Fees details Rejected forms
Taxpayer
Forms 1,2,3,4,5
Registration Certificates
Extract Request Extracts
TRAINING COURSE 12
13. MANAGEMENT OVERVIEW DIAGRAMS
Illustrative samples of Management Overview Diagrams that can
be used by MoF to demonstrate the scope and the overall
requirements of its information systems, sub-systems, and
business processes.
Management Overview Diagram (Option 1)
INPUT OUTPUT
REGISTRATION
1 2
3 4
WEB
INPUT Management Overview Diagram (Option 2) OUTPUT
REGISTRATION EXTRACT,
FORM1 SERTIFICAT
E
1 2
Taxpayer
FORM2
Shareholder
3 4
WEB
FORM3
BUSINESS
Home Page
www.mof.ge
TRAINING COURSE 13
14. Management Overview Diagram (Options 3)
Input
Output
fees
Bank
REGISTRATION Certificates Taxpayer
Taxpayer Forms 1,2,3 1 1 1
s 4,5
Form 1 Extract
Extract Request 1 1
BUSINESS BUSINESS
Management Overview Diagram (Options 4)
Input Output
REGISTRATION
Forms 1,2,3
1 1 1
Forms 4,5
Certificates
1
Extract Request
1 1 Extract
Management Overview Diagram (Options 5)
Input Output
REGISTRATION
–Form1
–Form 2 Inspect
–Form 3 Register Natural Entity
Certificate,
–Form 4 Register Legal En ity
Extract
–Form 5 Process Extract Request
–Extract Certificate
Request
TRAINING COURSE 14
15. Example of a Physical Data flow diagram
showing manual processes versus automation
boundaries
Input Business Process Output
REGISTRATION
manual automation
2 1 Individual
Accounting Legal Entity
Nat. Issue
P. Cert.
1
Individual Inspec Internet
t 1
3
Gen.
Leg. Ext.
1
Ent.
Issue
Legal Entity Extract
Ext
(Leg. Ent)
1
Proc.
Ext.
Data Entity Relationship Model (ERM example)
Physical Taxpayer
Has
Physical TP
History Record
Legal Taxpayer
Has
Legal TP History
Record
TRAINING COURSE 15
16. CONCLUSION
We have seen how to:
Reverse engineer an existing system and create documentation that is fully
documented graphically and with some textual narratives.
Provide management overview of IT system or a business process in
question, at any desired hierarchy level.
Provide a clear statement of requirements for technical designers for a new
custom software development initiative.
Define a common understanding of business requirements
Define what is expected from MoF IT Department to provide in automated
processes, output, and services for the user and MoF management to
approve.
Define an opportunity for further analysis, should enhancements to existing or
new IT systems/sub-systems be necessary.
INPUT TAXPAYER REGISTRATION OUTPUT
Current
2
TP record
Physical TP
History Maintain
Physical
Taxpayer
Fee
Accounting Dept s Deta ,2
ils m s1
1 For
Physical ate
er tific Individual
TP info P C
Forms 1,2 5
sic al T
Rejected
Tax id Phy
Verification
forms INSPECT Physical TP details Issue
Individual Physical
CERTIFIC
Taxpayer
ATE Leg
For a l TP
ms Cer
3,4 tific
,5 3 a te
Forms
3,4,5
Current
l s
Rejected TP record Maintain tai
forms Legal Taxpayer de
Legal TP
l TP Legal Entity
History ga
Le
Legal TP
ct
info t ra
Ex
Tax id
Verification Taxpay 4
LEGAL er Extrac
Taxpayer (forms3 t info
,4)
Generate
EXTRACT Extract
Extract Request
Legal Entity
Home Page
www.mof.ge
TRAINING COURSE 16
