[PME] Power Monitoring Expert & AHF.pdf
- 1. Internal Ch’ng Eng Yong,CEng MEI, CEM, CMVP, PEM Power Solutions EcoStruxure Power Monitoring Expert Power and Energy Management for Large and Critical Facilities

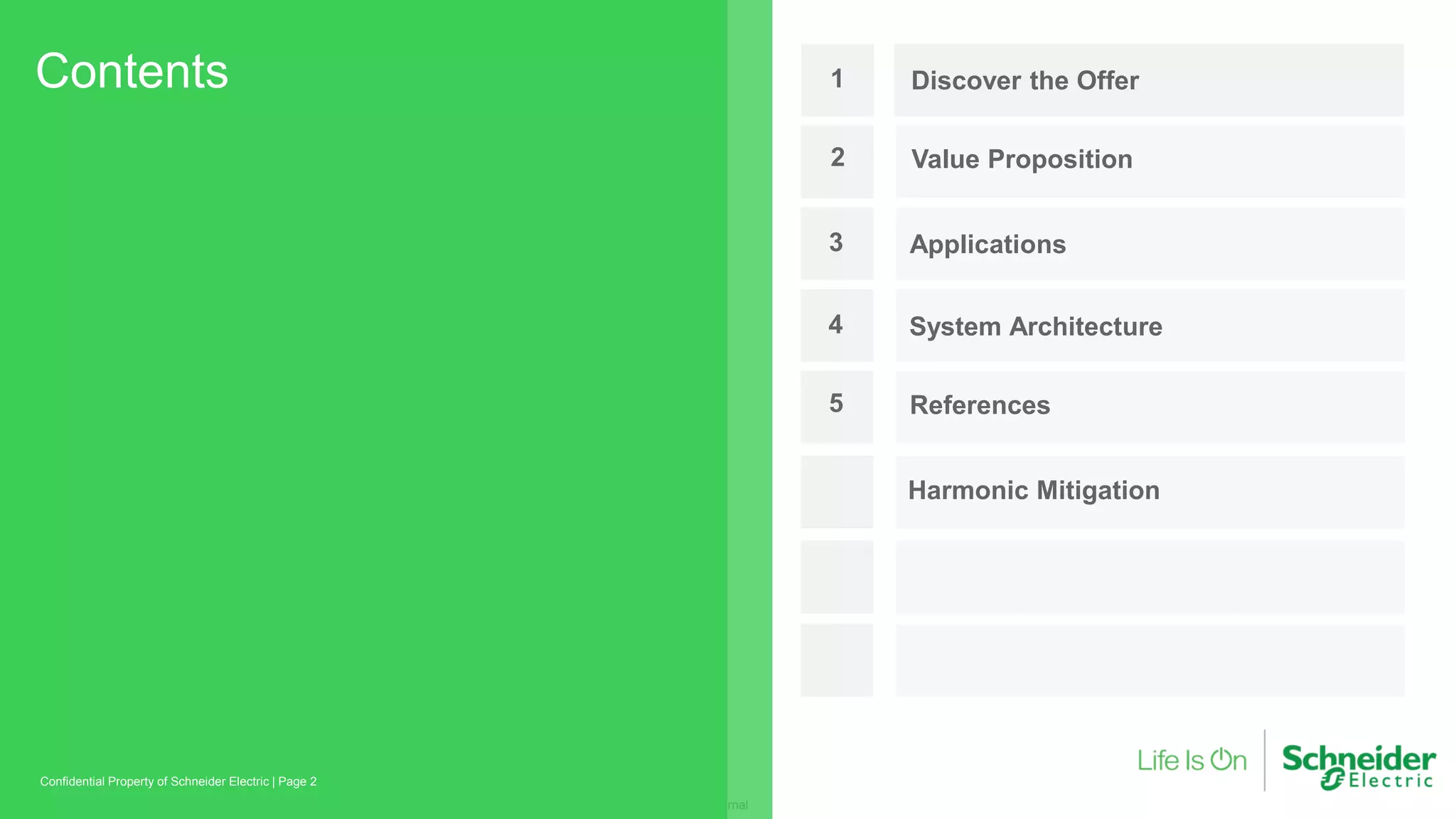

- 2. Internal Contents Page 2 Confidential Propertyof Schneider Electric | 1 Discover the Offer 2 Value Proposition 3 Applications 4 System Architecture 5 References Harmonic Mitigation
- 3. Internal Page 3 Confidential Propertyof Schneider Electric | Discover PME Offer Overview

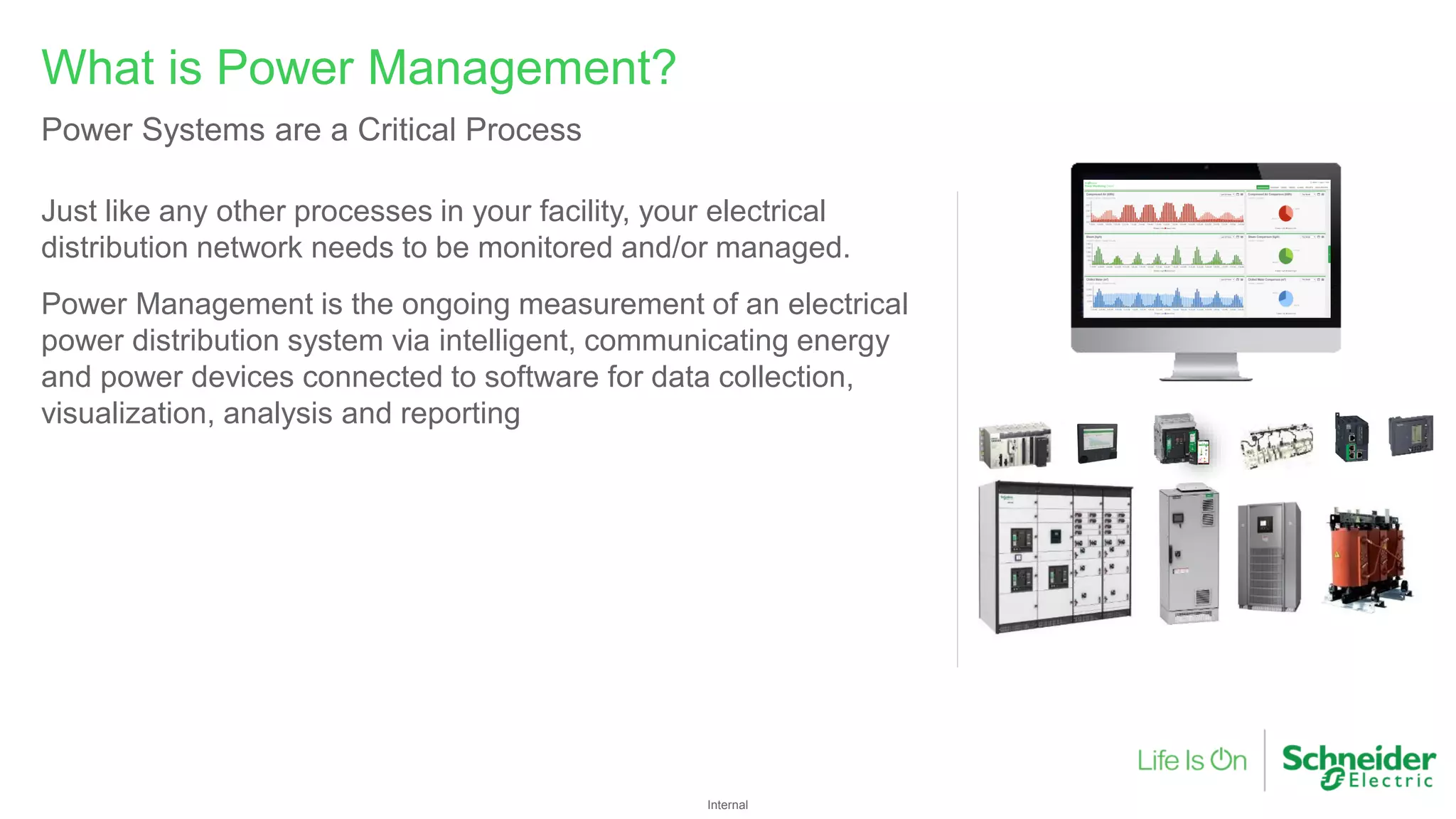

- 4. Internal Just like anyother processes in your facility, your electrical distribution network needs to be monitored and/or managed. Power Management is the ongoing measurement of an electrical power distribution system via intelligent, communicating energy and power devices connected to software for data collection, visualization, analysis and reporting What is Power Management? Power Systems are a Critical Process
- 5. Internal Gain and Edgeon your Competition Apps, Analytics & Services Edge Control Connected Products IP Communications Backbone PME Power Meters Variable Speed Drives FD Breakers, Sensors, Gateways Protective Relays Breakers, Trip Units, Gateways Water, Air, Gas, Steam RTUs, PLCs UPSs PQ Correction Power Advisor Maximize Lifecycle Efficiency Efficient Simplify Regulatory Compliance Compliant Optimize Business continuity Reliable Protect People and Assets Safe Power Monitoring Expert brings edge control to power distribution

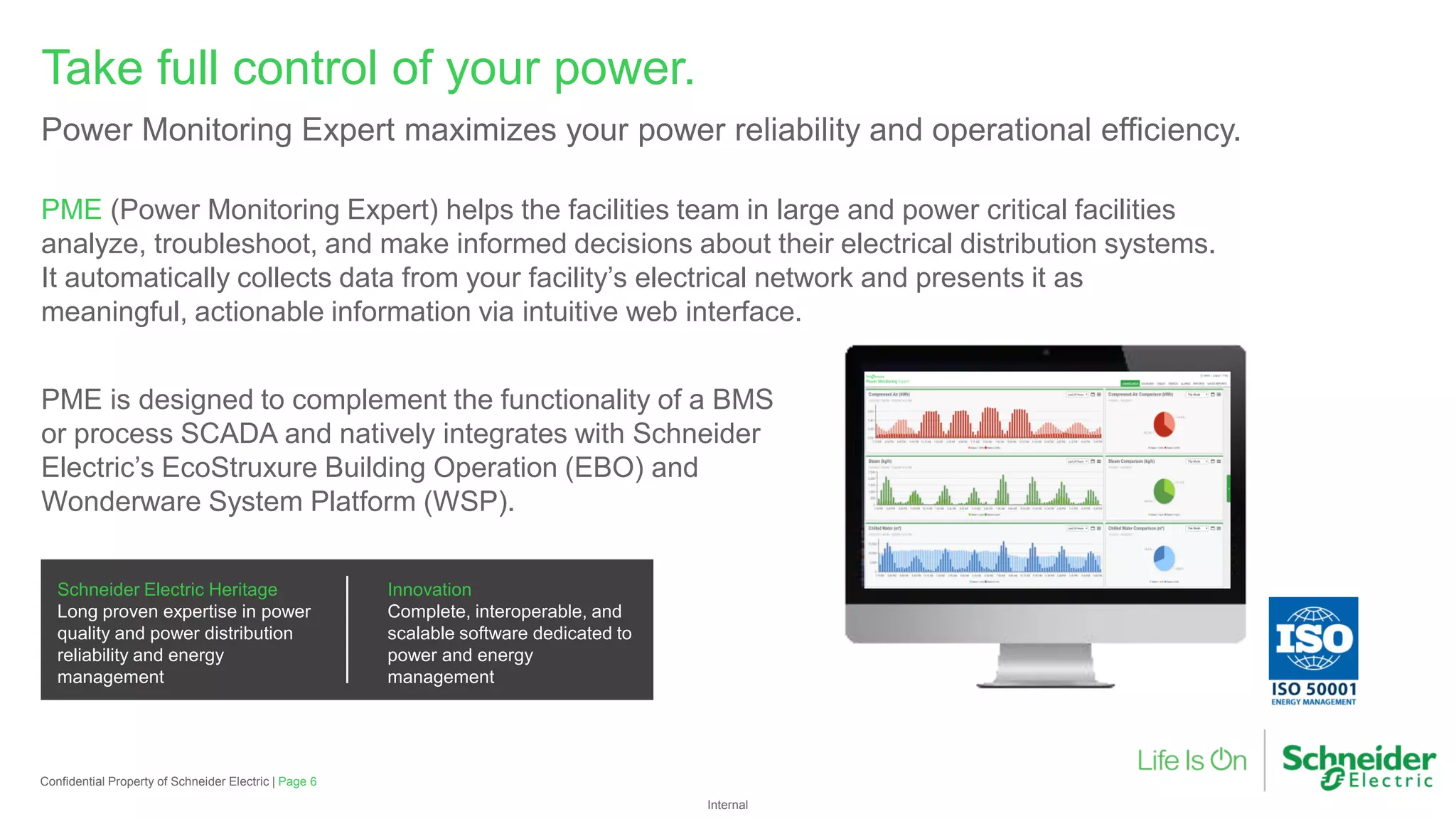

- 6. Internal PME (Power MonitoringExpert) helps the facilities team in large and power critical facilities analyze, troubleshoot, and make informed decisions about their electrical distribution systems. It automatically collects data from your facility’s electrical network and presents it as meaningful, actionable information via intuitive web interface. Take full control of your power. Power Monitoring Expert maximizes your power reliability and operational efficiency. PME is designed to complement the functionality of a BMS or process SCADA and natively integrates with Schneider Electric’s EcoStruxure Building Operation (EBO) and Wonderware System Platform (WSP). Schneider Electric Heritage Long proven expertise in power quality and power distribution reliability and energy management Innovation Complete, interoperable, and scalable software dedicated to power and energy management Confidential Property of Schneider Electric | Page 6
- 7. Internal Run and efficientand compliant facility Analyze energy performance with the ISO50001 program support, energy modeling, energy intensity KPIs, plus usage by equipment type and state. Make informed decisions to maintain power reliability and a safe installation Run power events analysis thanks to default/rich data integration for connected devices (e.g. Masterpact MTZ circuit breaker, ION9000, PM8000, AccuSine), events time- sequence, location, and power quality waveform analysis. Track your facility’s power quality performance and compliance against standards Because critical decisions matter. Let Power Monitoring Expert help you make all the right moves. Confidential Property of Schneider Electric | Page 7
- 8. Internal Page 8 Confidential Propertyof Schneider Electric | Value Propositions End User Value

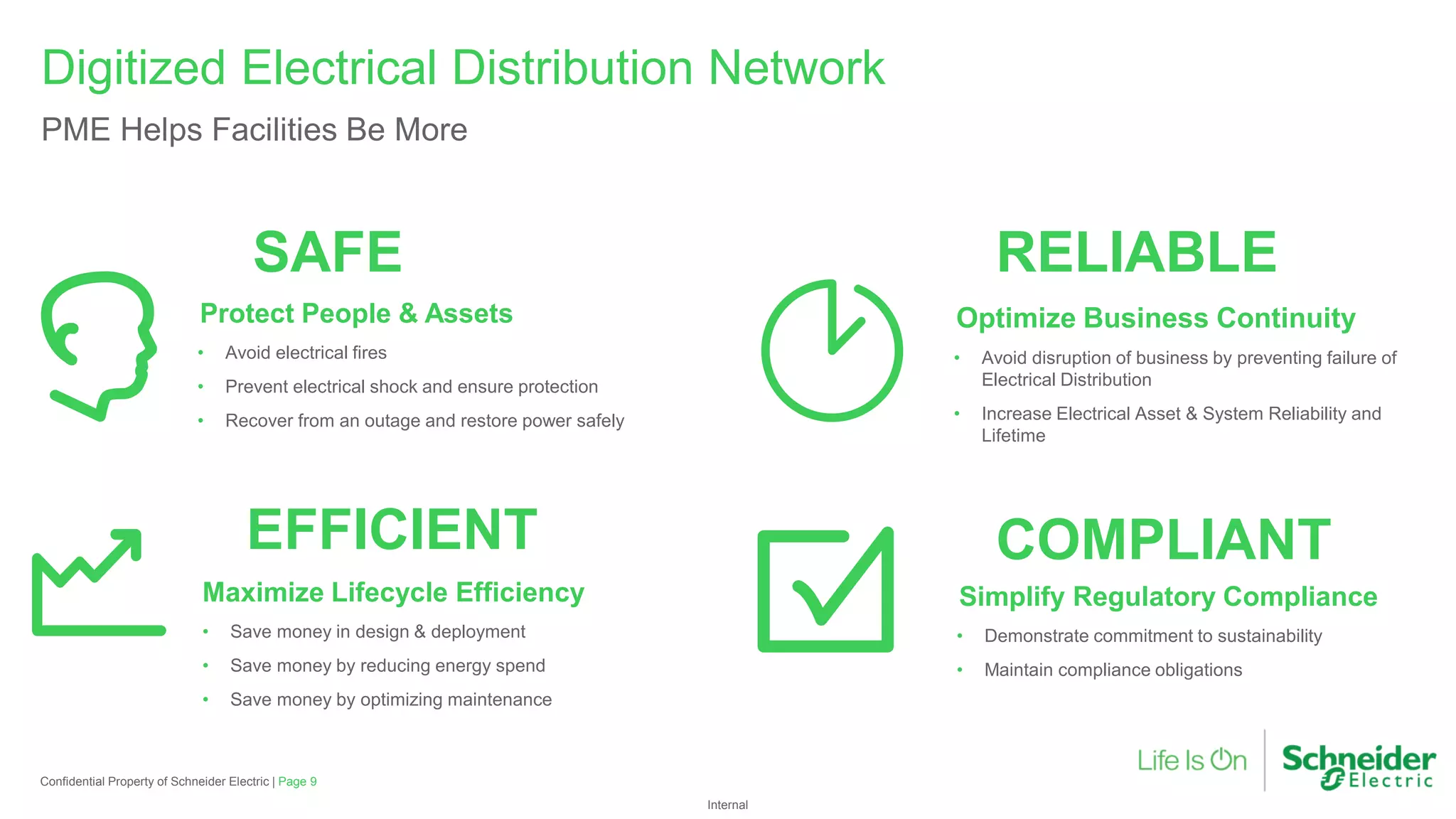

- 9. Internal Page 9 Confidential Propertyof Schneider Electric | Protect People & Assets • Avoid electrical fires • Prevent electrical shock and ensure protection • Recover from an outage and restore power safely Maximize Operational & Deployment Maximize Lifecycle Efficiency • Save money in design & deployment • Save money by reducing energy spend • Save money by optimizing maintenance Simplify Regulatory Compliance • Demonstrate commitment to sustainability • Maintain compliance obligations Optimize Business Continuity • Avoid disruption of business by preventing failure of Electrical Distribution • Increase Electrical Asset & System Reliability and Lifetime SAFE EFFICIENT RELIABLE COMPLIANT Digitized Electrical Distribution Network PME Helps Facilities Be More

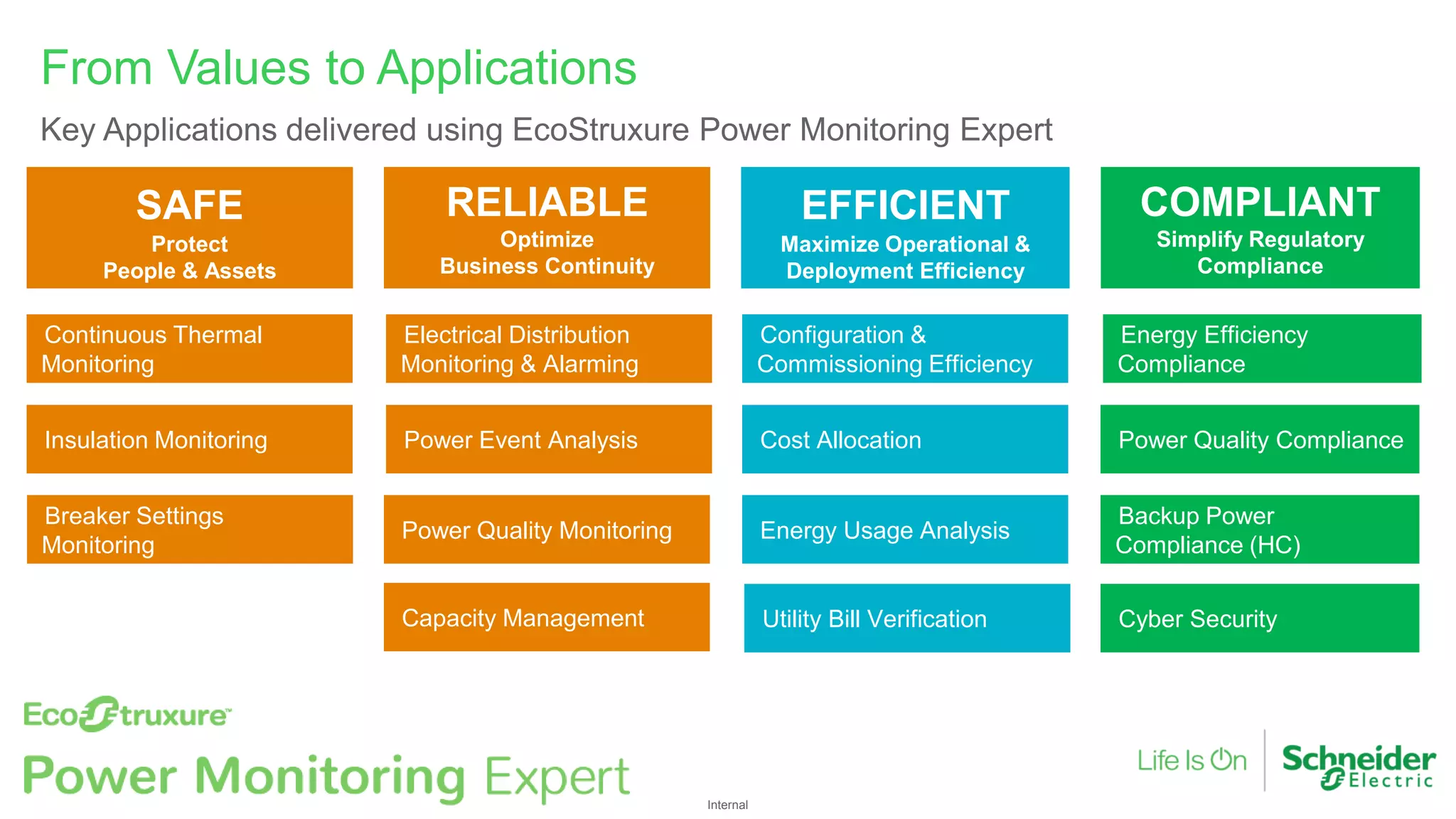

- 10. Internal SAFE Protect People & Assets COMPLIANT SimplifyRegulatory Compliance RELIABLE Optimize Business Continuity EFFICIENT Maximize Operational & Deployment Efficiency Electrical Distribution Monitoring & Alarming Power Event Analysis Continuous Thermal Monitoring Configuration & Commissioning Efficiency Cost Allocation Energy Usage Analysis Utility Bill Verification Energy Efficiency Compliance Power Quality Compliance Backup Power Compliance (HC) Cyber Security From Values to Applications Key Applications delivered using EcoStruxure Power Monitoring Expert Insulation Monitoring Breaker Settings Monitoring Power Quality Monitoring Capacity Management

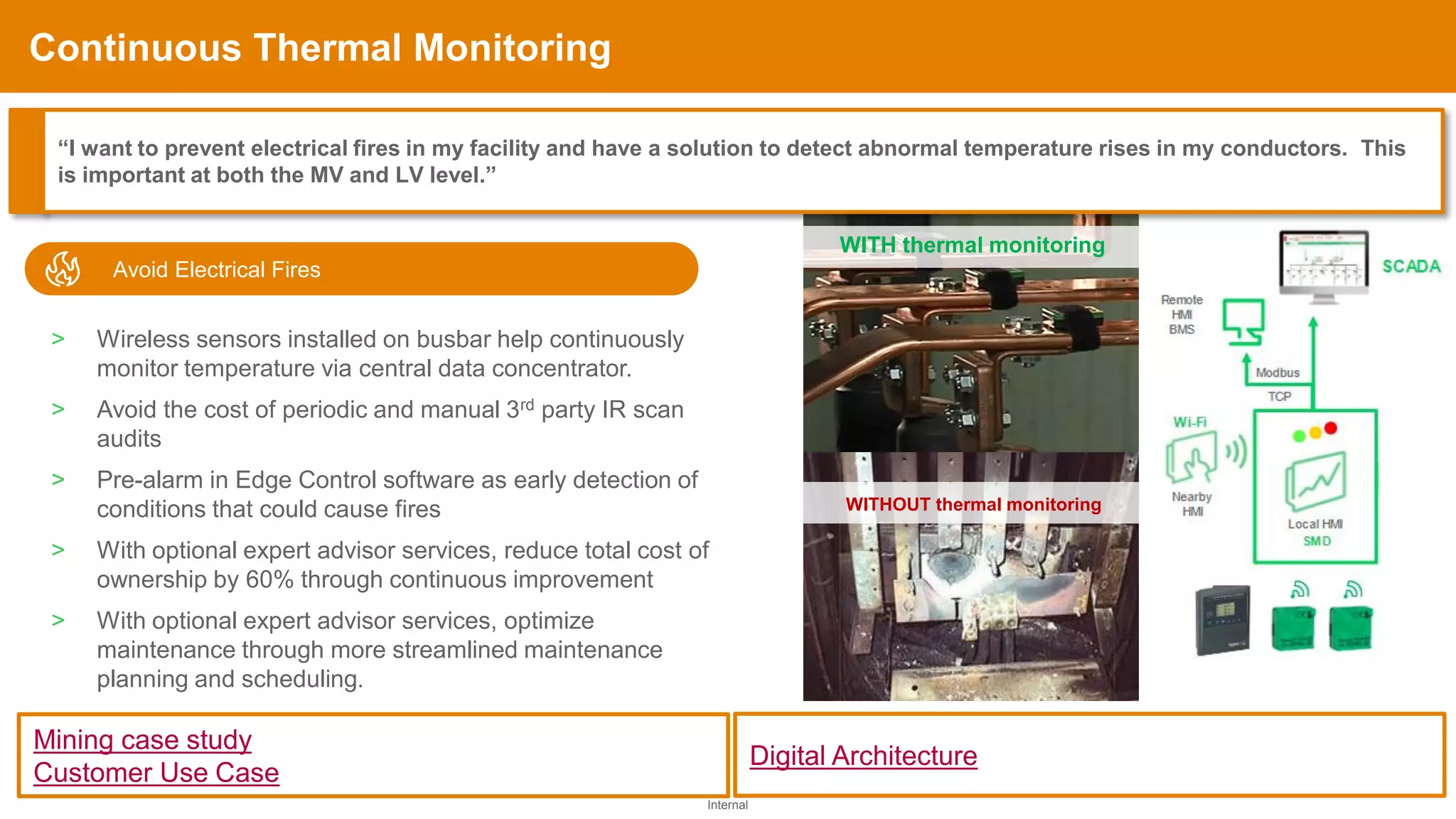

- 11. Internal Confidential Property ofSchneider Electric Continuous Thermal Monitoring Mining case study Customer Use Case WITHOUT thermal monitoring WITH thermal monitoring Avoid Electrical Fires ˃ Wireless sensors installed on busbar help continuously monitor temperature via central data concentrator. ˃ Avoid the cost of periodic and manual 3rd party IR scan audits ˃ Pre-alarm in Edge Control software as early detection of conditions that could cause fires ˃ With optional expert advisor services, reduce total cost of ownership by 60% through continuous improvement ˃ With optional expert advisor services, optimize maintenance through more streamlined maintenance planning and scheduling. “I want to prevent electrical fires in my facility and have a solution to detect abnormal temperature rises in my conductors. This is important at both the MV and LV level.” Digital Architecture

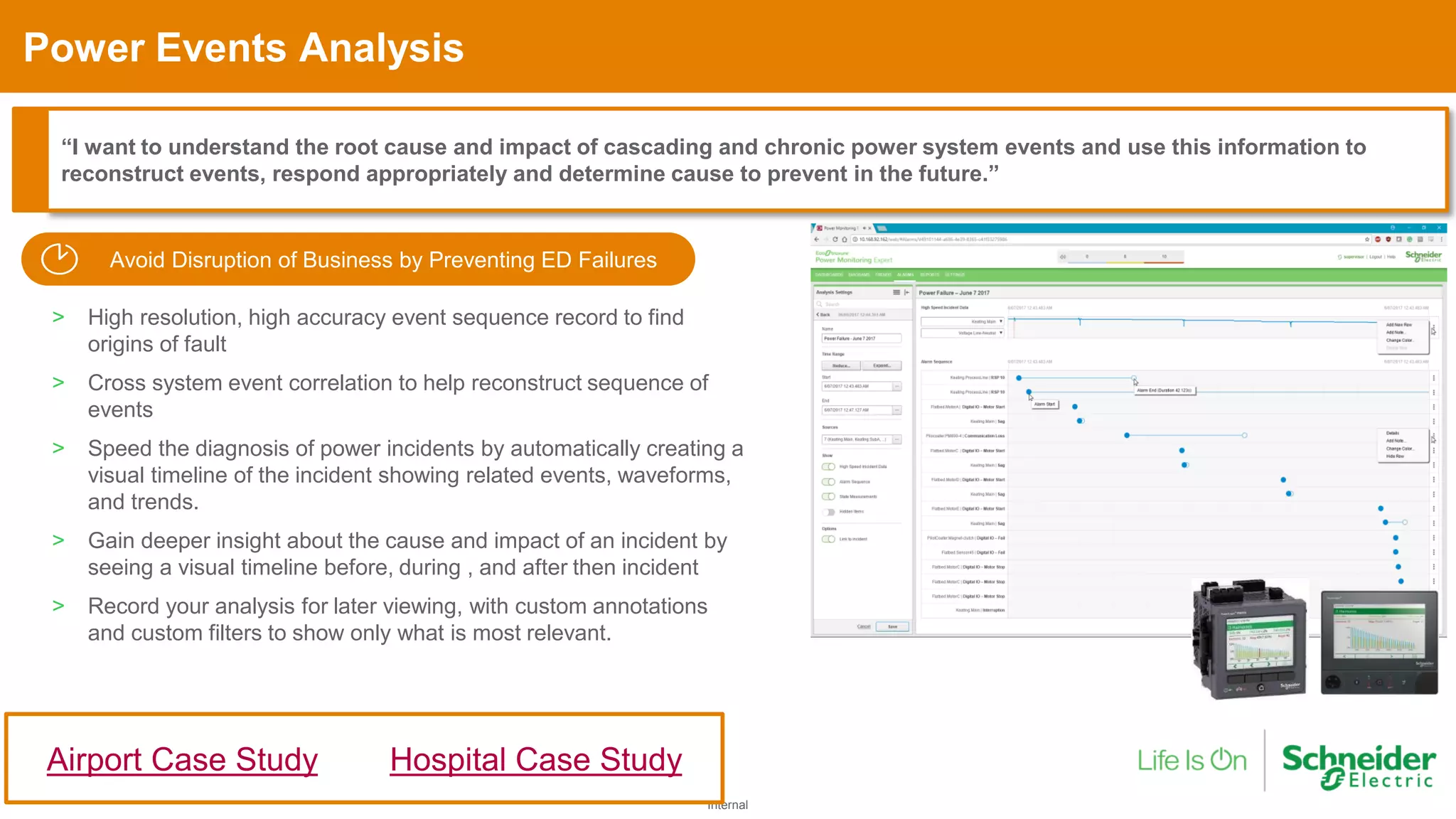

- 12. Internal Confidential Property ofSchneider Electric Power Events Analysis > High resolution, high accuracy event sequence record to find origins of fault > Cross system event correlation to help reconstruct sequence of events > Speed the diagnosis of power incidents by automatically creating a visual timeline of the incident showing related events, waveforms, and trends. > Gain deeper insight about the cause and impact of an incident by seeing a visual timeline before, during , and after then incident > Record your analysis for later viewing, with custom annotations and custom filters to show only what is most relevant. “I want to understand the root cause and impact of cascading and chronic power system events and use this information to reconstruct events, respond appropriately and determine cause to prevent in the future.” Airport Case Study Hospital Case Study Avoid Disruption of Business by Preventing ED Failures
- 13. Internal ION9000 and PM8240 with DisturbanceDirection detection

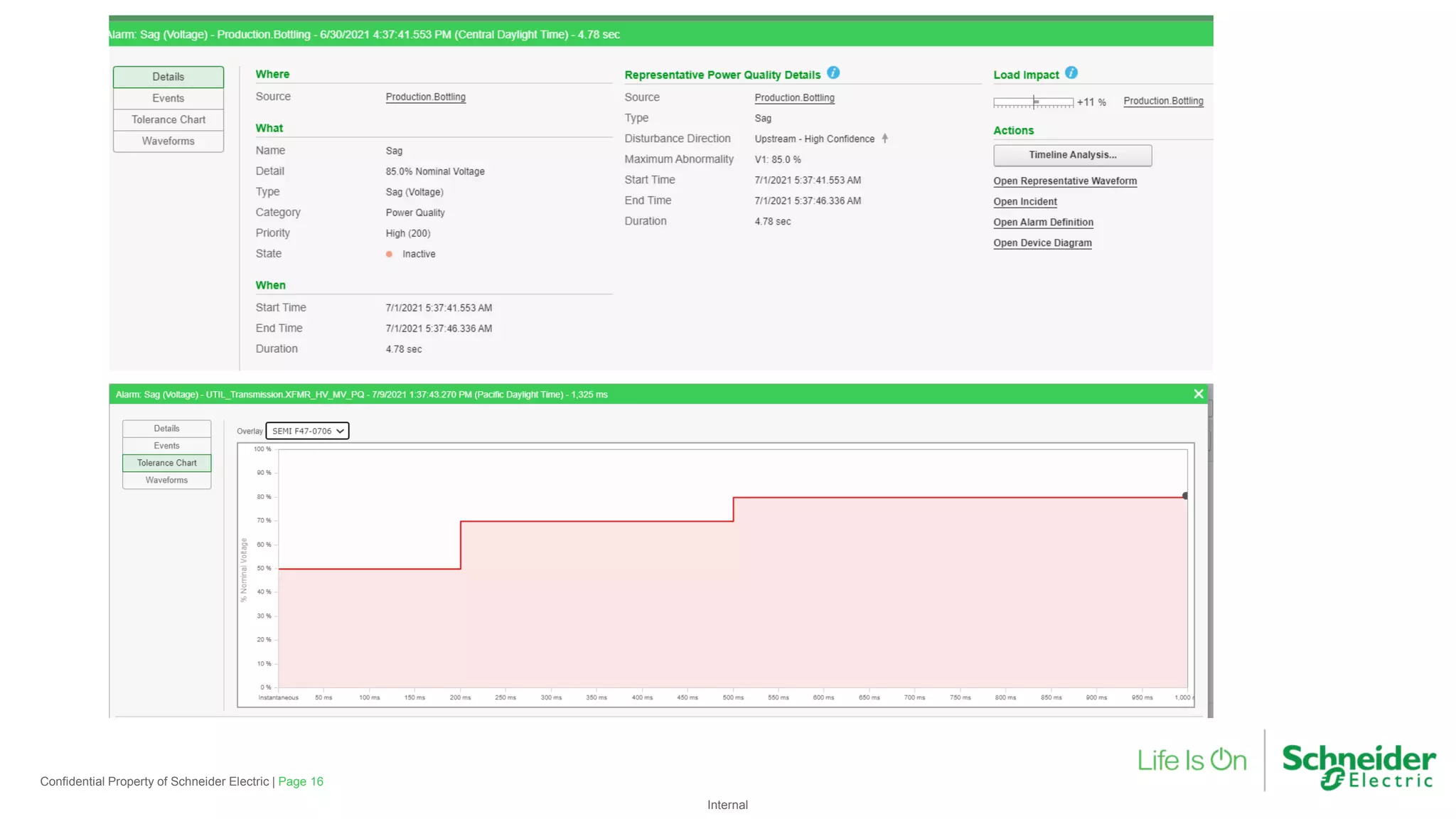

- 14. Internal Page 16 Confidential Propertyof Schneider Electric |

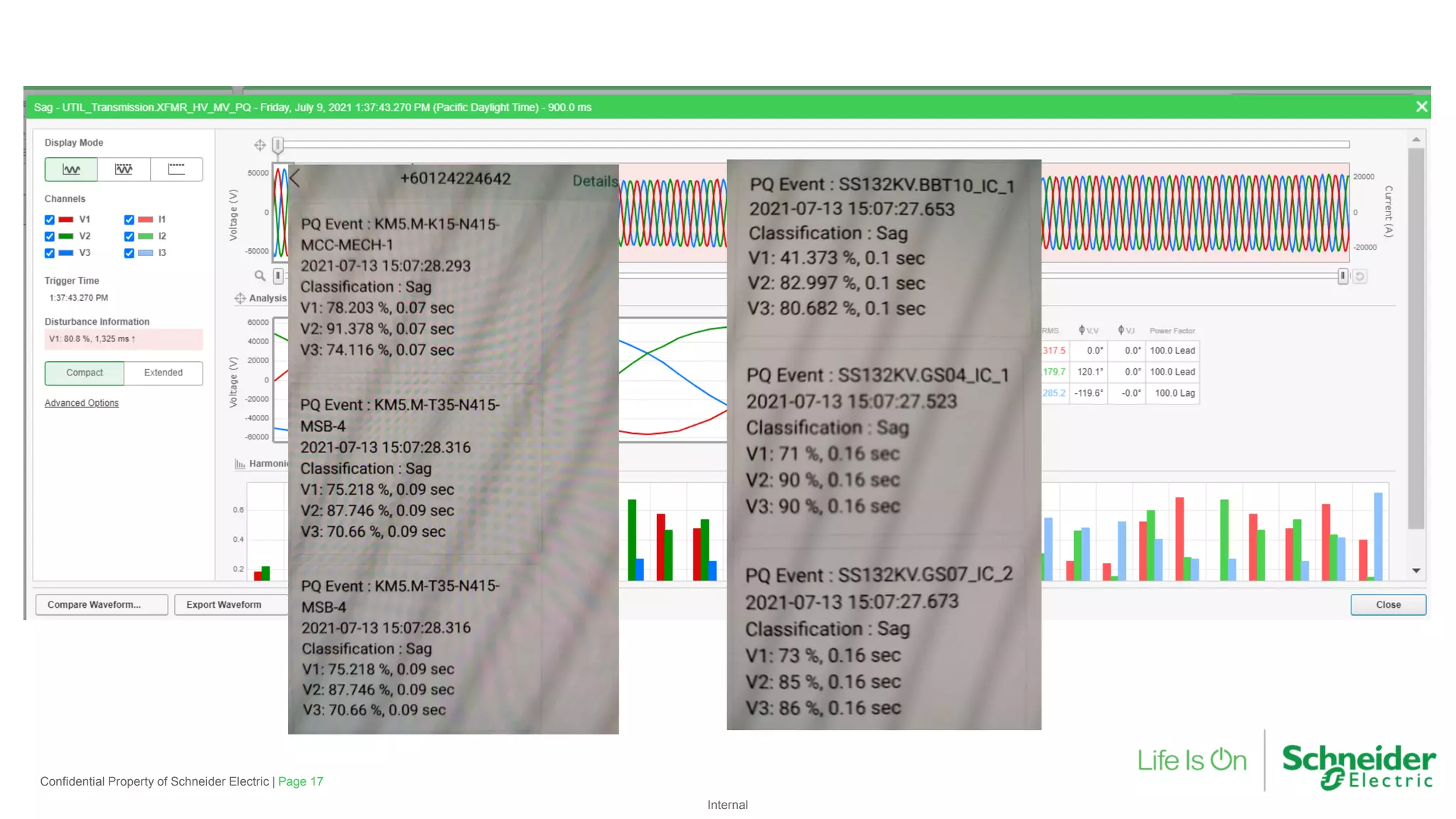

- 15. Internal Page 17 Confidential Propertyof Schneider Electric |

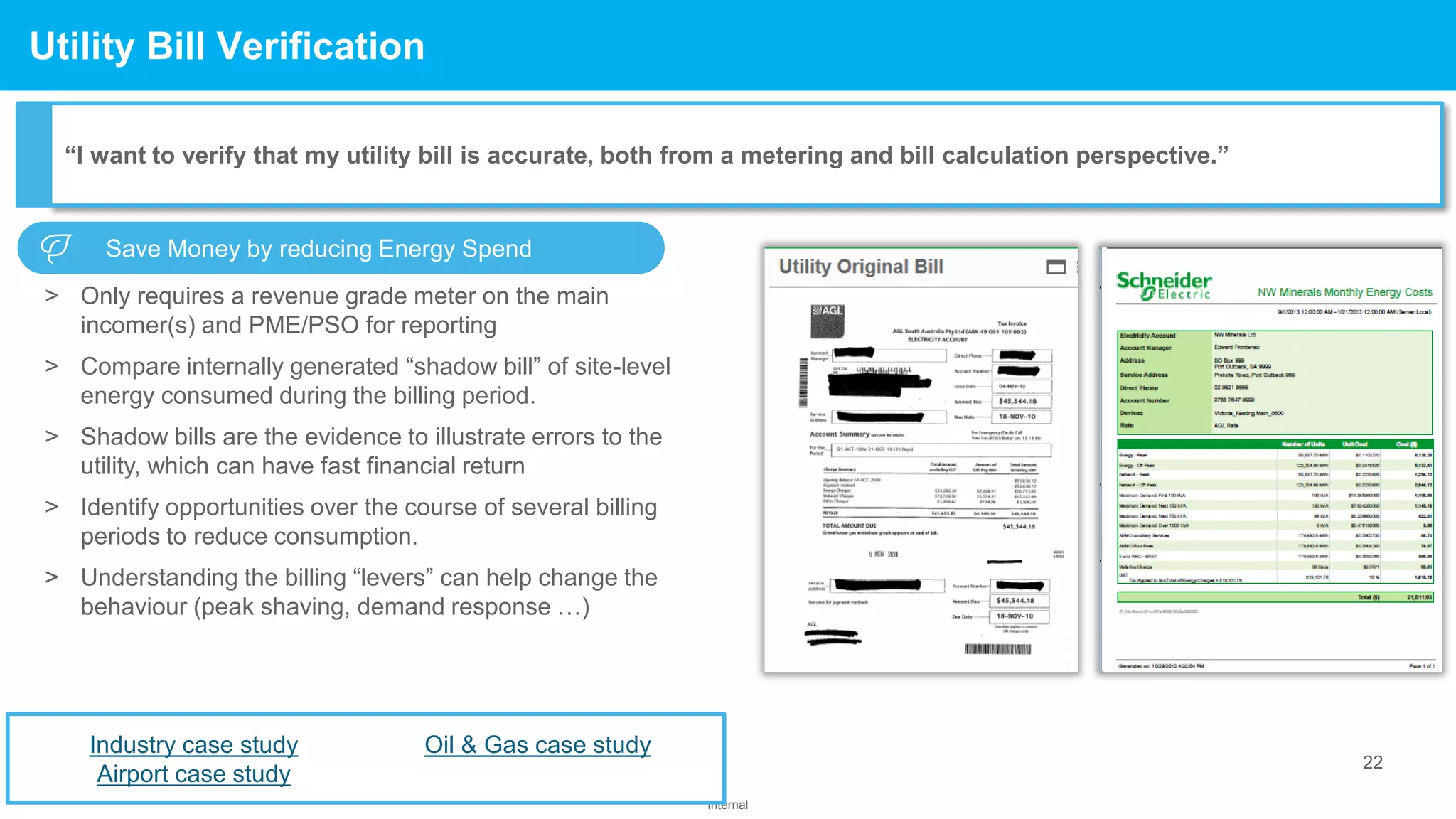

- 16. 22 Internal Confidential Property ofSchneider Electric > Only requires a revenue grade meter on the main incomer(s) and PME/PSO for reporting > Compare internally generated “shadow bill” of site-level energy consumed during the billing period. > Shadow bills are the evidence to illustrate errors to the utility, which can have fast financial return > Identify opportunities over the course of several billing periods to reduce consumption. > Understanding the billing “levers” can help change the behaviour (peak shaving, demand response …) Utility Bill Verification “I want to verify that my utility bill is accurate, both from a metering and bill calculation perspective.” Industry case study Airport case study Oil & Gas case study Save Money by reducing Energy Spend

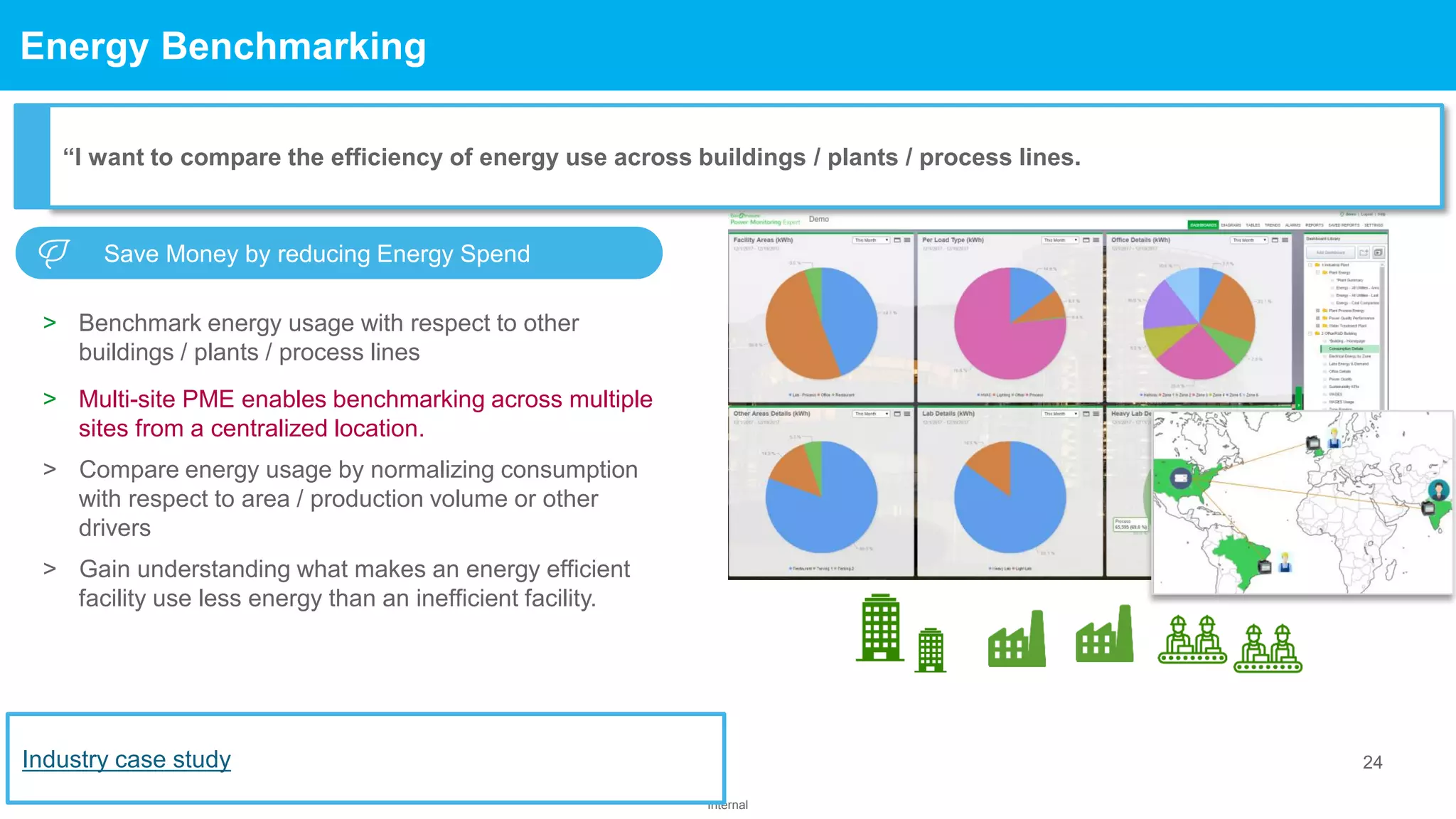

- 17. 24 Internal Confidential Property ofSchneider Electric > Benchmark energy usage with respect to other buildings / plants / process lines > Multi-site PME enables benchmarking across multiple sites from a centralized location. > Compare energy usage by normalizing consumption with respect to area / production volume or other drivers > Gain understanding what makes an energy efficient facility use less energy than an inefficient facility. Energy Benchmarking “I want to compare the efficiency of energy use across buildings / plants / process lines. Save Money by reducing Energy Spend Industry case study

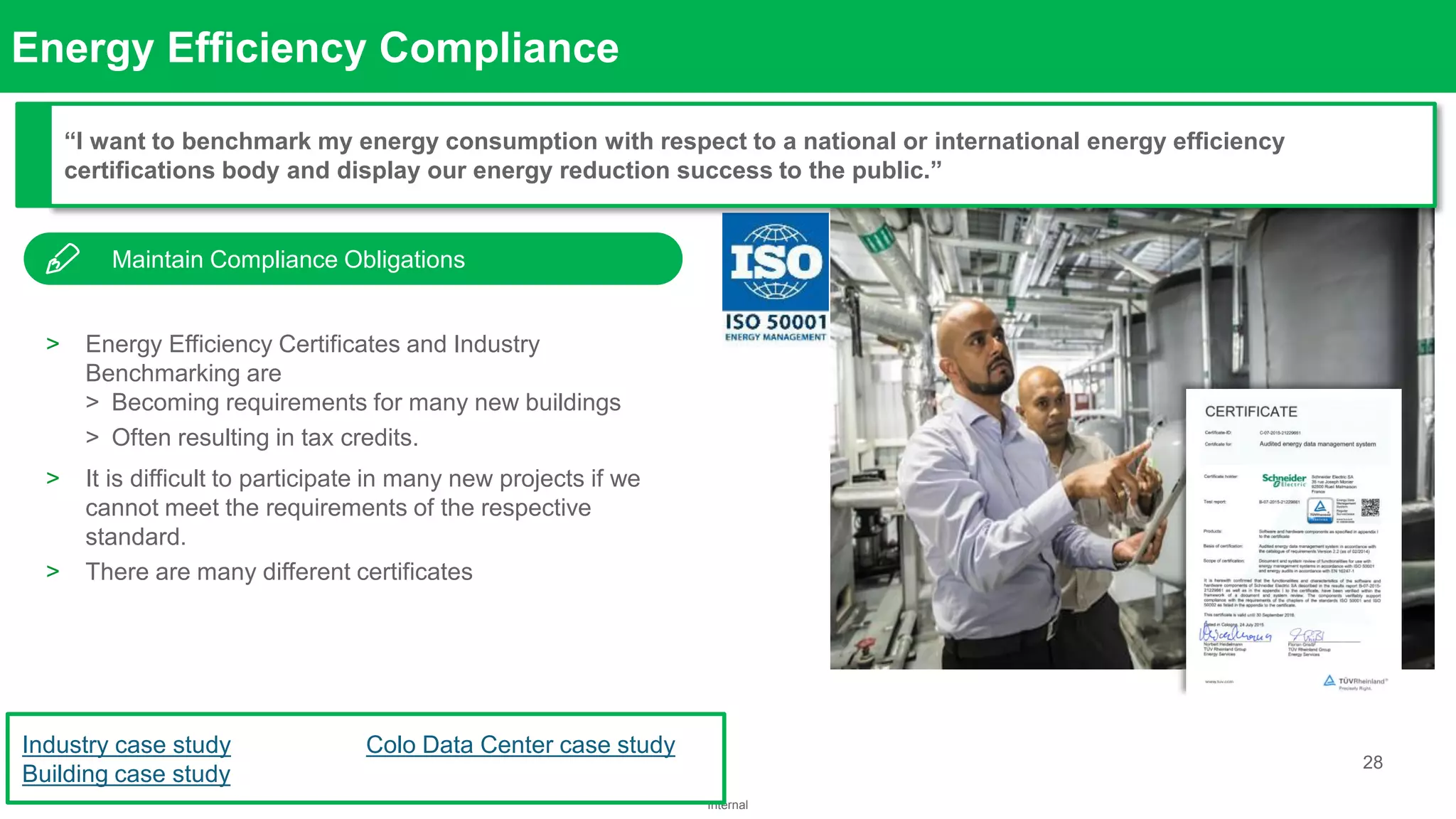

- 18. 28 Internal Confidential Property ofSchneider Electric Energy Efficiency Compliance Ensure Energy Availability > Energy Efficiency Certificates and Industry Benchmarking are > Becoming requirements for many new buildings > Often resulting in tax credits. > It is difficult to participate in many new projects if we cannot meet the requirements of the respective standard. > There are many different certificates “I want to benchmark my energy consumption with respect to a national or international energy efficiency certifications body and display our energy reduction success to the public.” Industry case study Building case study Colo Data Center case study Maintain Compliance Obligations

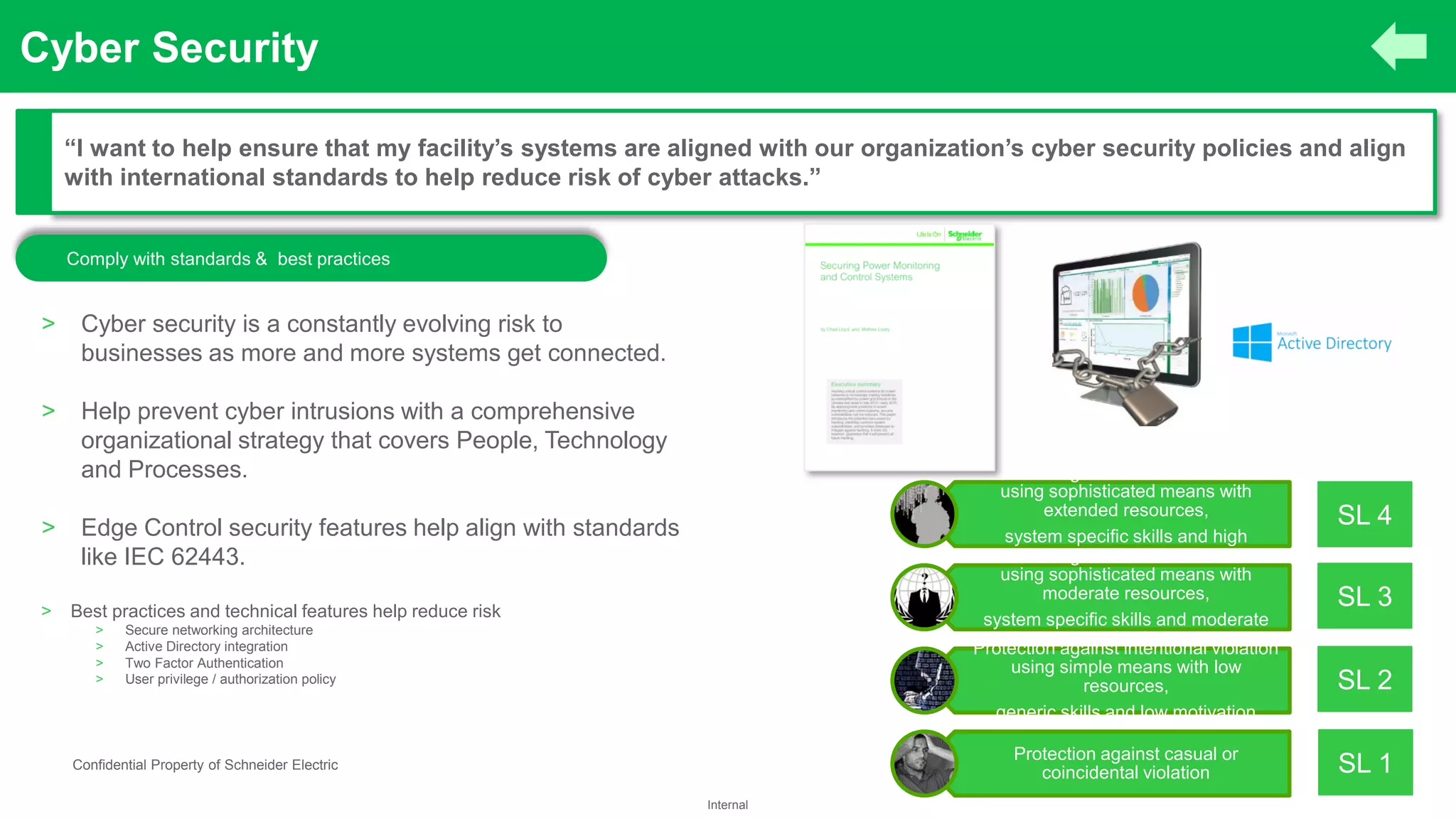

- 19. 30 Internal Confidential Property ofSchneider Electric Cyber Security “I want to help ensure that my facility’s systems are aligned with our organization’s cyber security policies and align with international standards to help reduce risk of cyber attacks.” Protection against intentional violation using sophisticated means with extended resources, system specific skills and high motivation Protection against intentional violation using sophisticated means with moderate resources, system specific skills and moderate motivation Protection against intentional violation using simple means with low resources, generic skills and low motivation Protection against casual or coincidental violation SL 1 SL 2 SL 3 SL 4 ˃ Cyber security is a constantly evolving risk to businesses as more and more systems get connected. ˃ Help prevent cyber intrusions with a comprehensive organizational strategy that covers People, Technology and Processes. ˃ Edge Control security features help align with standards like IEC 62443. ˃ Best practices and technical features help reduce risk ˃ Secure networking architecture ˃ Active Directory integration ˃ Two Factor Authentication ˃ User privilege / authorization policy Comply with standards & best practices
- 20. Internal Page 31 Confidential Propertyof Schneider Electric | System Architecture Digital Architectures and System Components
- 21. Internal Petrol station Parking lighting Electricalvehical Low Voltage Low Voltage Or Genset MV Secondary board Low Voltage MV Secondary board Genset LV Grid power Sales areas Support zones: offices, warehouse, ... Technical areas Low Voltage Exteriors Low Voltage MV Secondary board MV Secondary board UPS Lighting Office Others HVAC Lobby Etc Low Voltage Low Voltage Refrigeration Cash register IT Where to install PQ Meters? Electrical distribution network & power monitoring system Advanced: ION9000 • IEC61000-4-30 Class A Ed3, IEC62586-1/2 (International 3rd party type tested) • Class 0.1s accuracy • 8DI, 4DO, 2RO + optional module Intermediate: PM8000 • IEC61000-4-30 Class S Ed3, IEC 62586-2 (International 3rd party type tested) • Class 0.2s accuracy • 3DI, 1RO + optional module Basic: PM5350 • Class 0.5s accuracy • 4DI 2DO

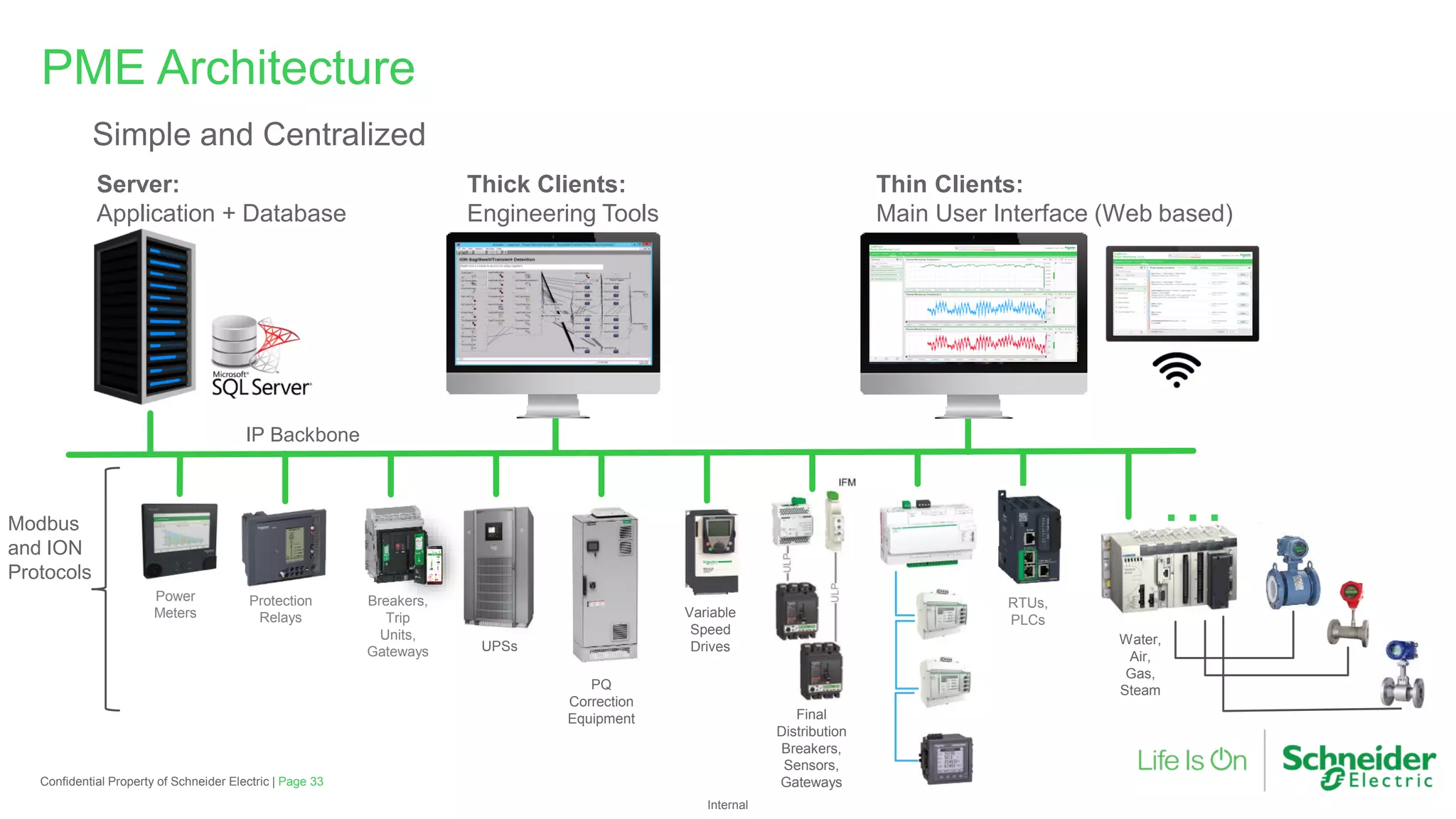

- 22. Internal PME Architecture Simple andCentralized Page 33 Confidential Property of Schneider Electric | Power Meters Variable Speed Drives Final Distribution Breakers, Sensors, Gateways Protection Relays Breakers, Trip Units, Gateways Water, Air, Gas, Steam RTUs, PLCs UPSs PQ Correction Equipment … Server: Application + Database Thick Clients: Engineering Tools Thin Clients: Main User Interface (Web based) IP Backbone Modbus and ION Protocols

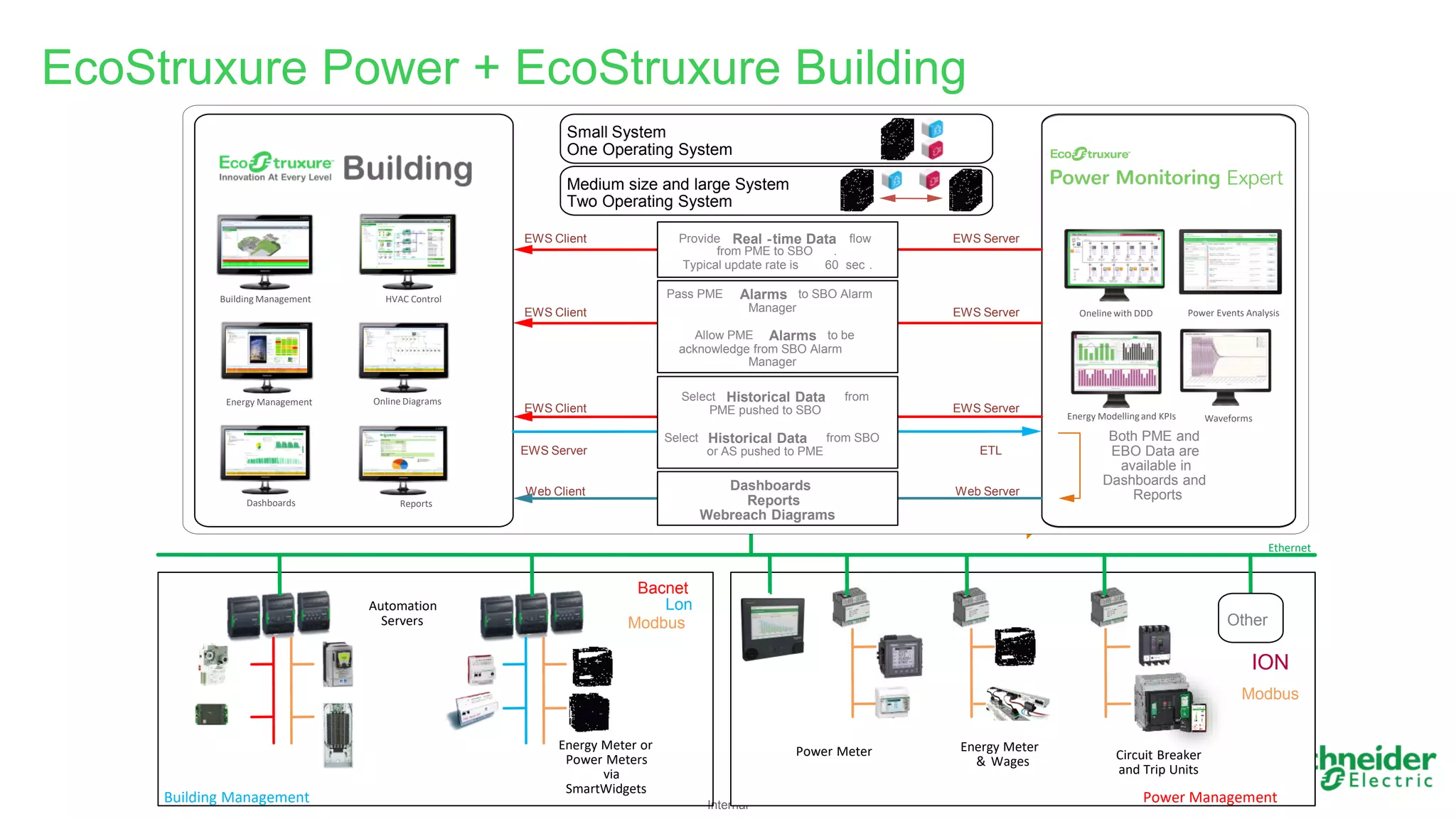

- 23. Internal EcoStruxure Power +EcoStruxure Building Architecture 1 (Trend and extended trend logs) Architecture 2 (Dashboards, reports, diagrams) Ethernet Power Meter Power Management Energy Meter & Wages Automation Servers Building Management Energy Meter or Power Meters via SmartWidgets Circuit Breaker and Trip Units Bacnet Lon Modbus Other Provide Real -time Data flow from PME to SBO . Typical update rate is 60 sec . EWS Server EWS Client Select Historical Data from PME pushed to SBO Select Historical Data from SBO or AS pushed to PME EWS Server EWS Server EWS Client Dashboards Reports Webreach Diagrams Web Server Web Client ETL Pass PME Alarms to SBO Alarm Manager Allow PME Alarms to be acknowledge from SBO Alarm Manager EWS Server EWS Client Both PME and EBO Data are available in Dashboards and Reports Energy Management Online Diagrams Dashboards Reports Building Management HVAC Control Small System One Operating System Medium size and large System Two Operating System ION Modbus Waveforms Oneline with DDD Power Events Analysis Energy Modellingand KPIs

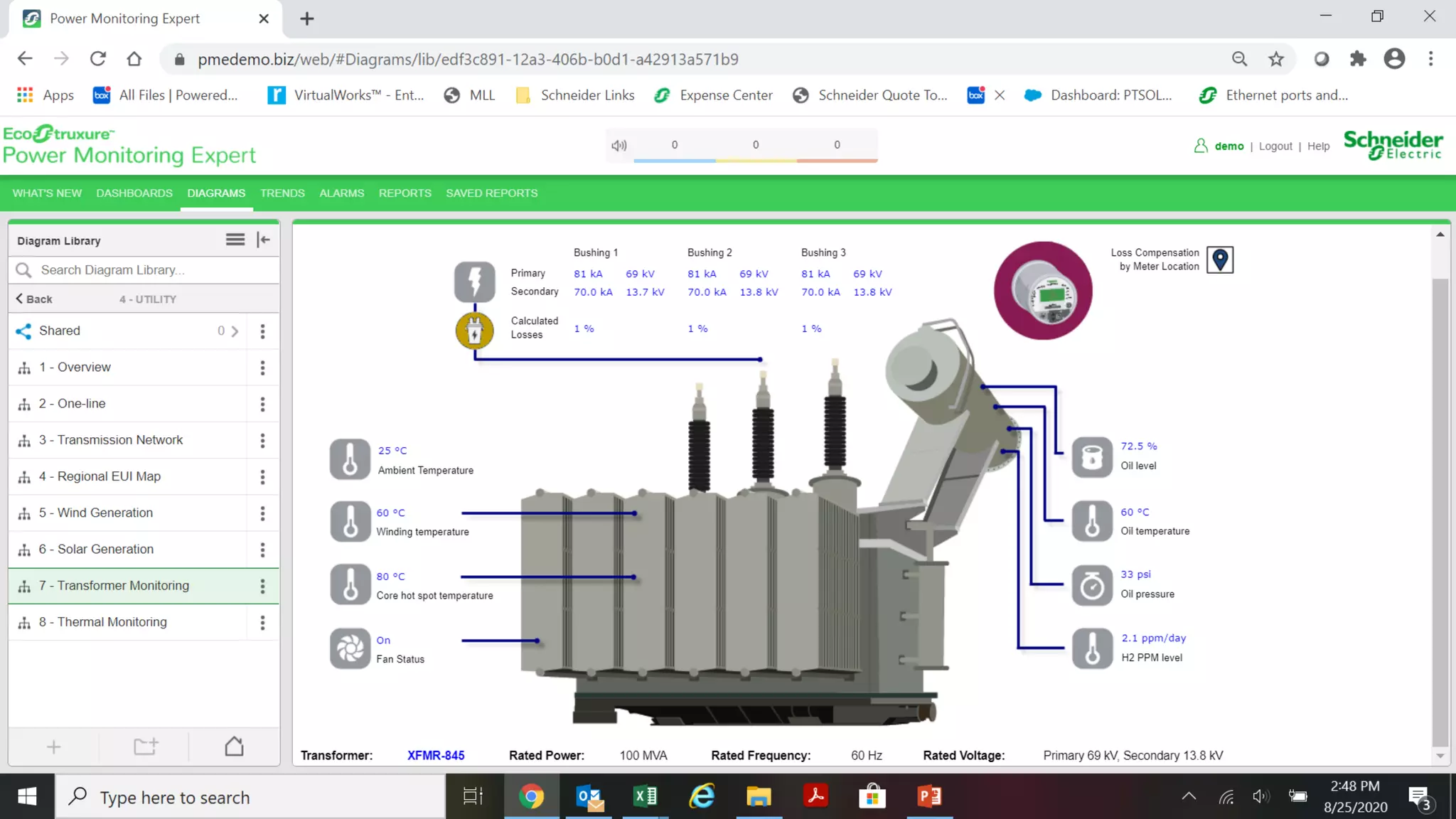

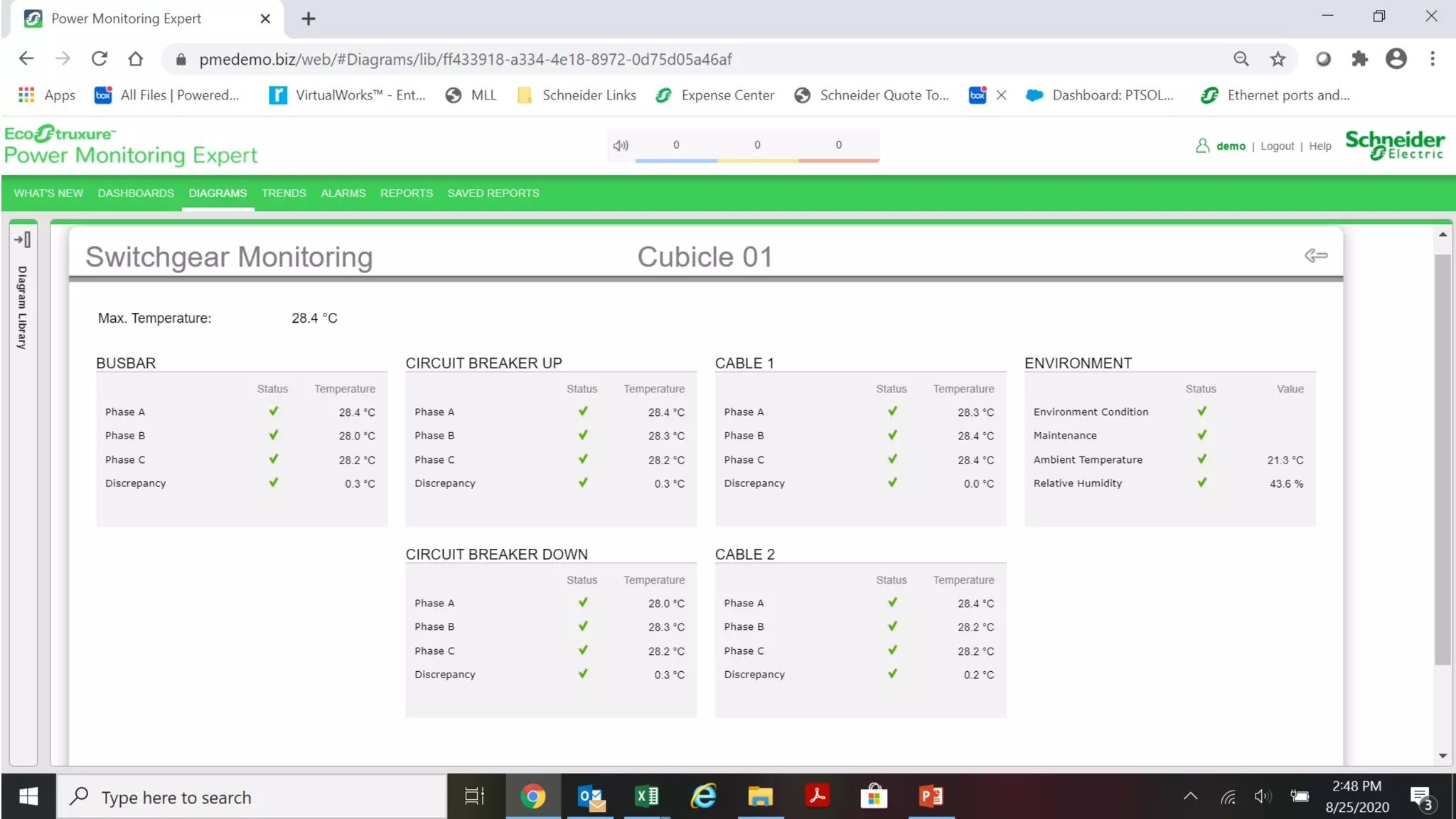

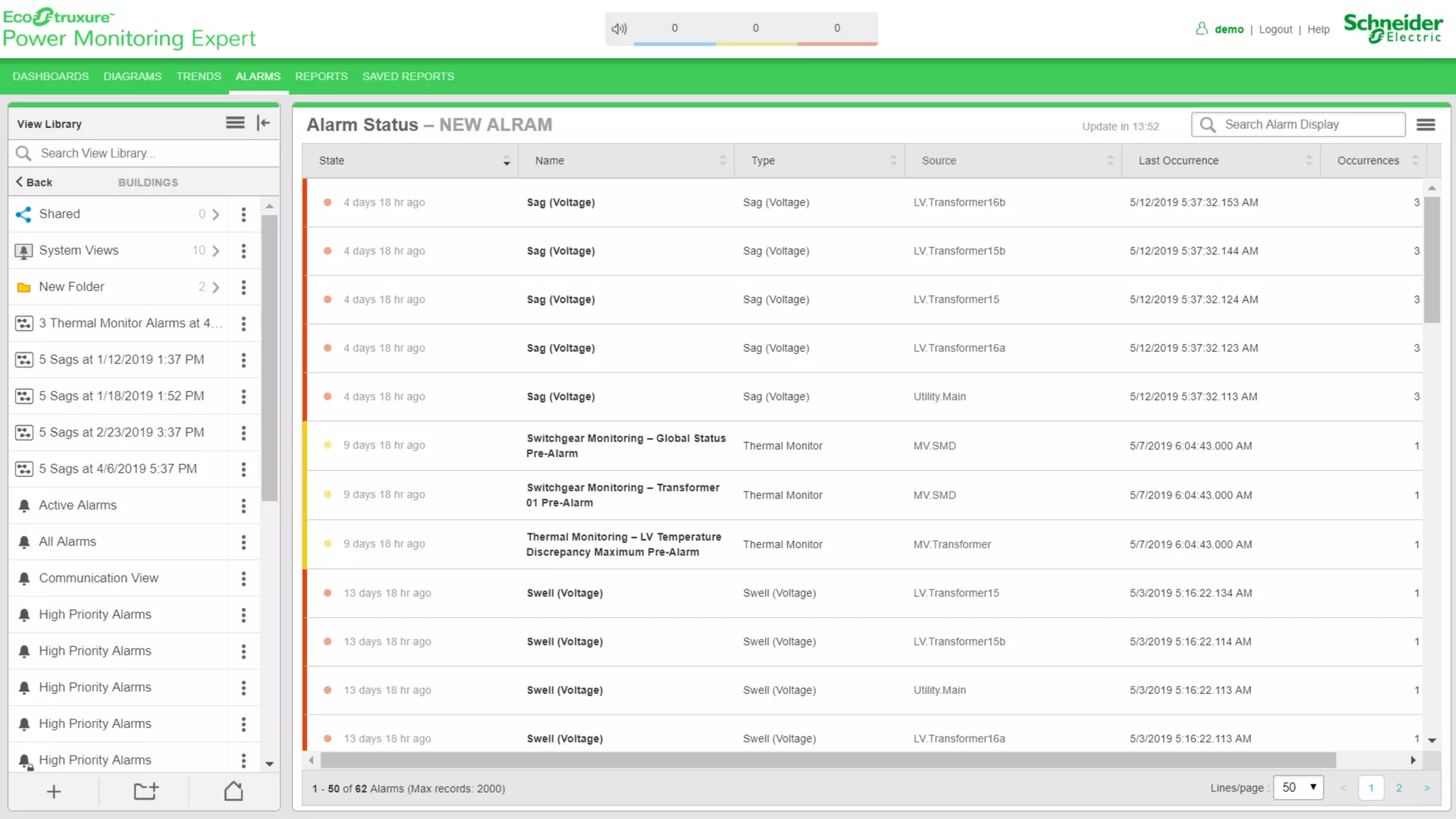

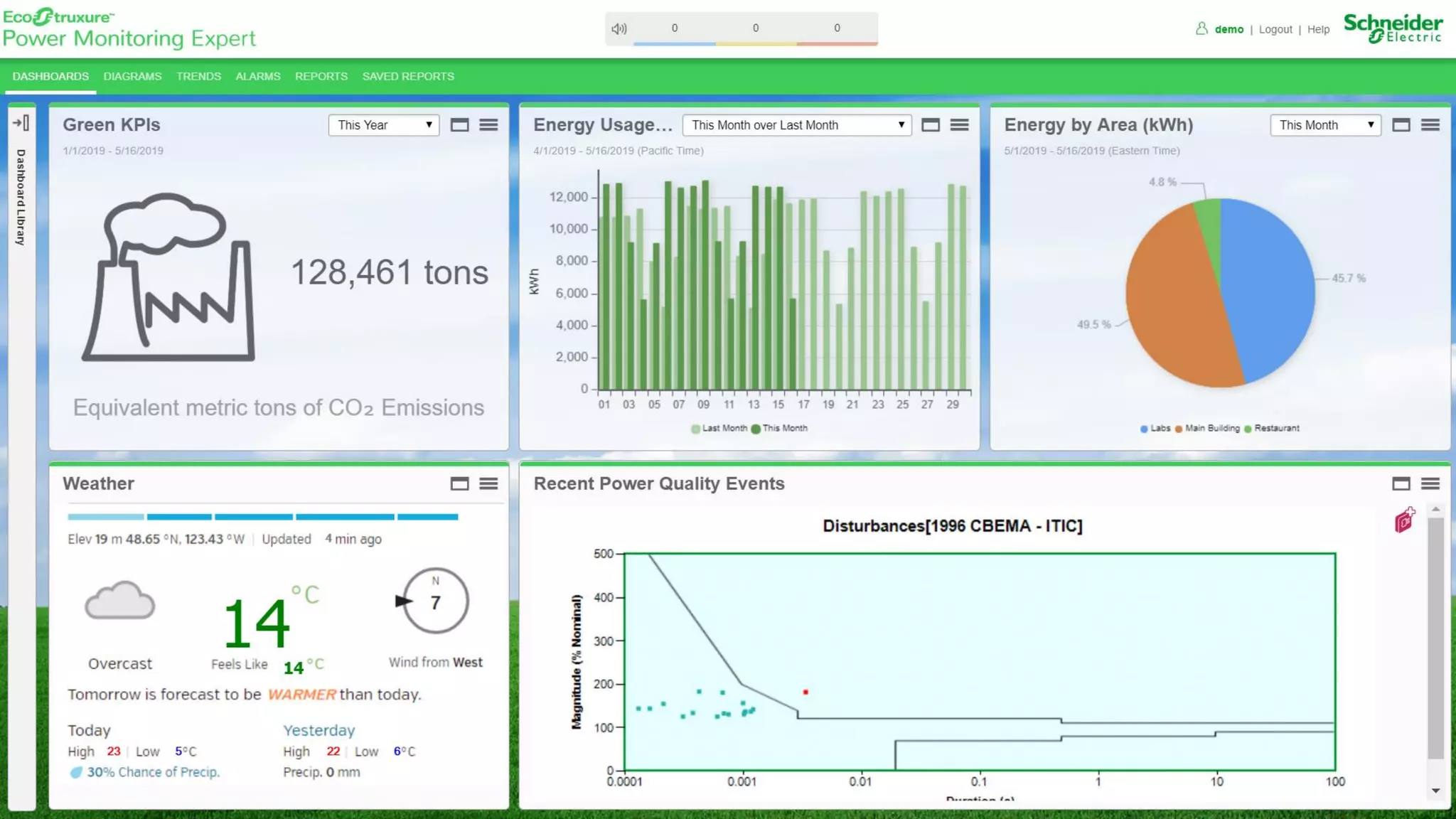

- 24. Internal Page 37 Confidential Propertyof Schneider Electric | Sample HMI Screenshots
- 25.

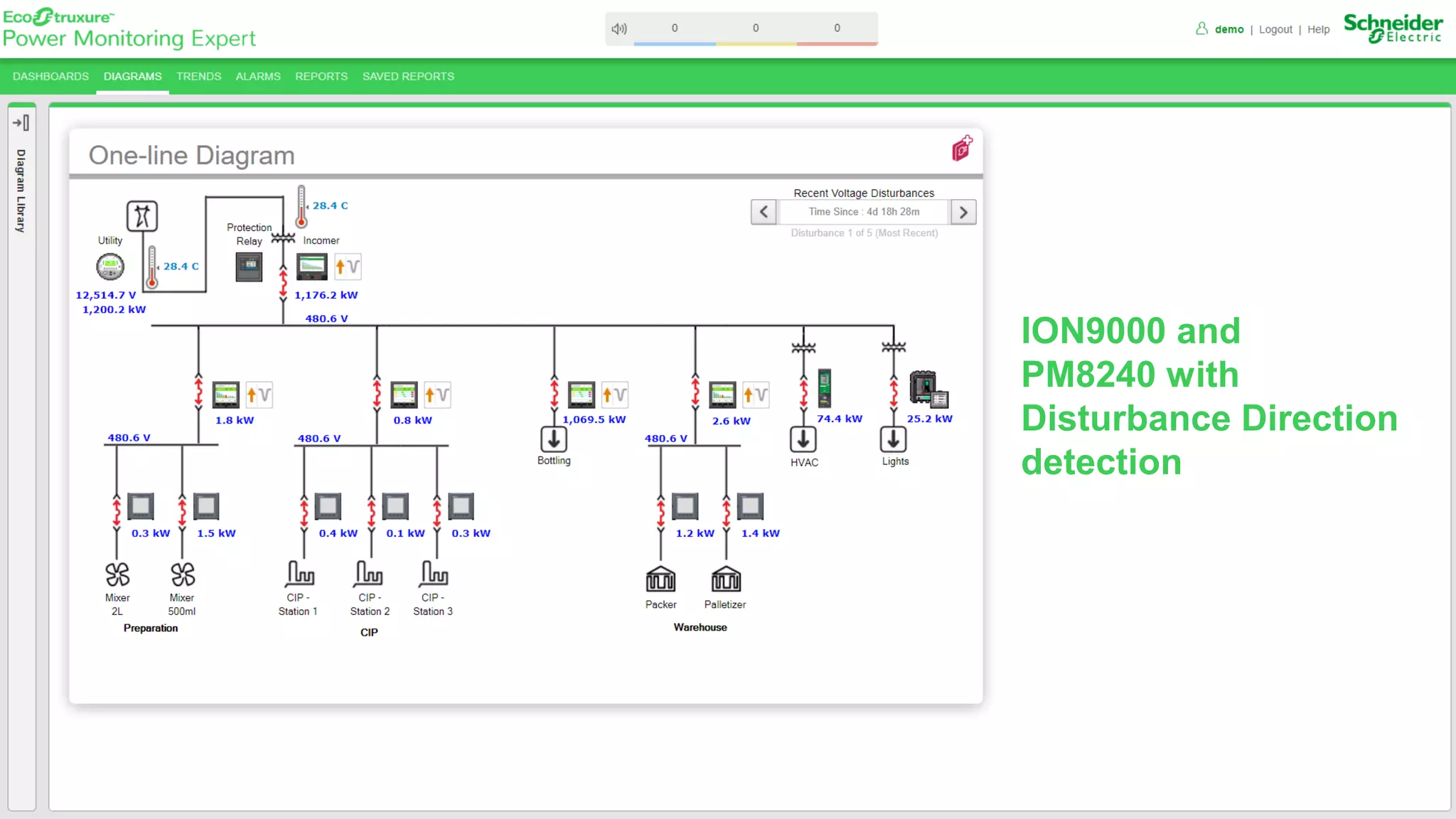

- 26. Internal ION9000 and PM8240 with DisturbanceDirection detection
- 27.
- 28.

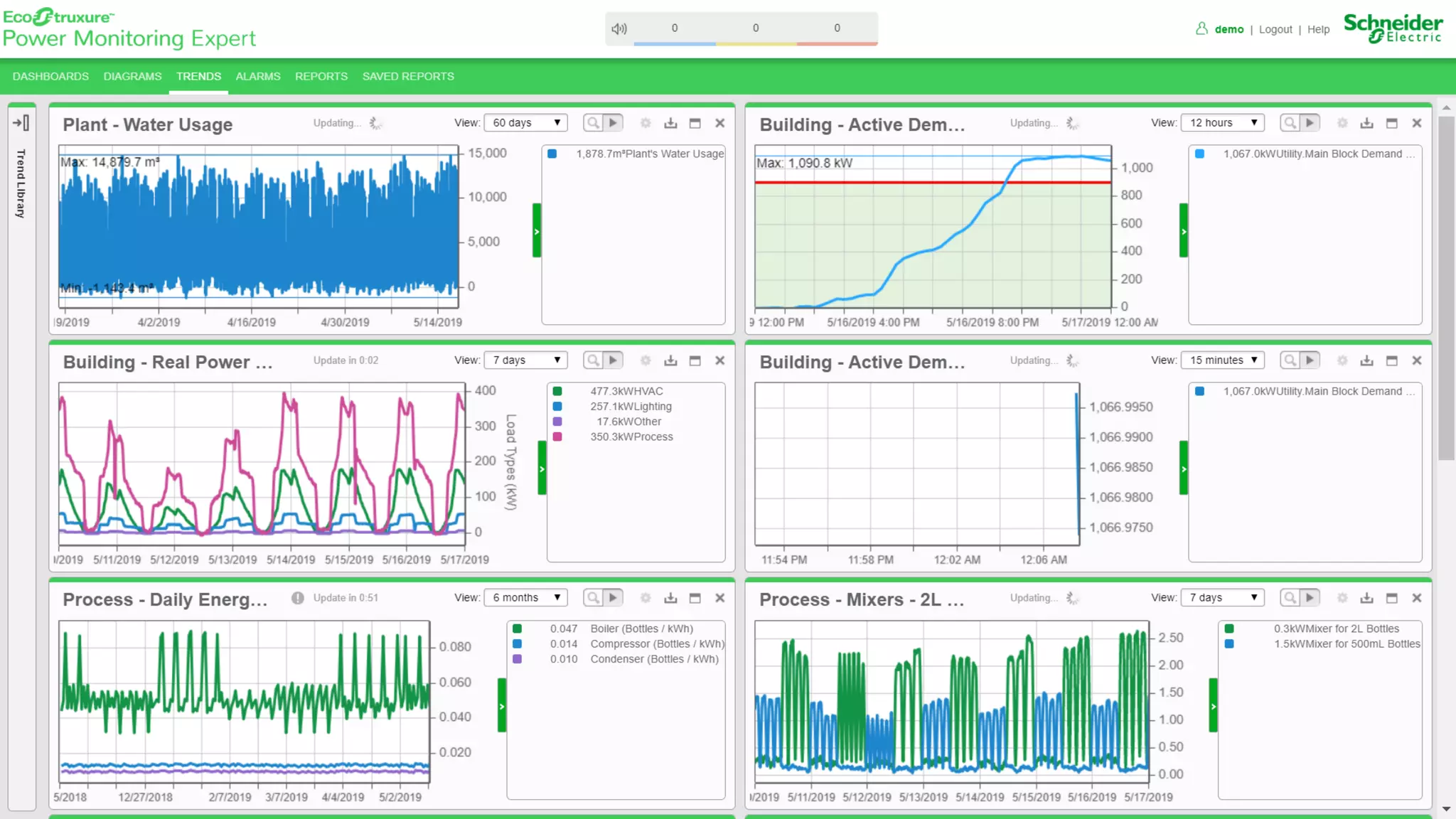

- 29.
- 30.
- 31.

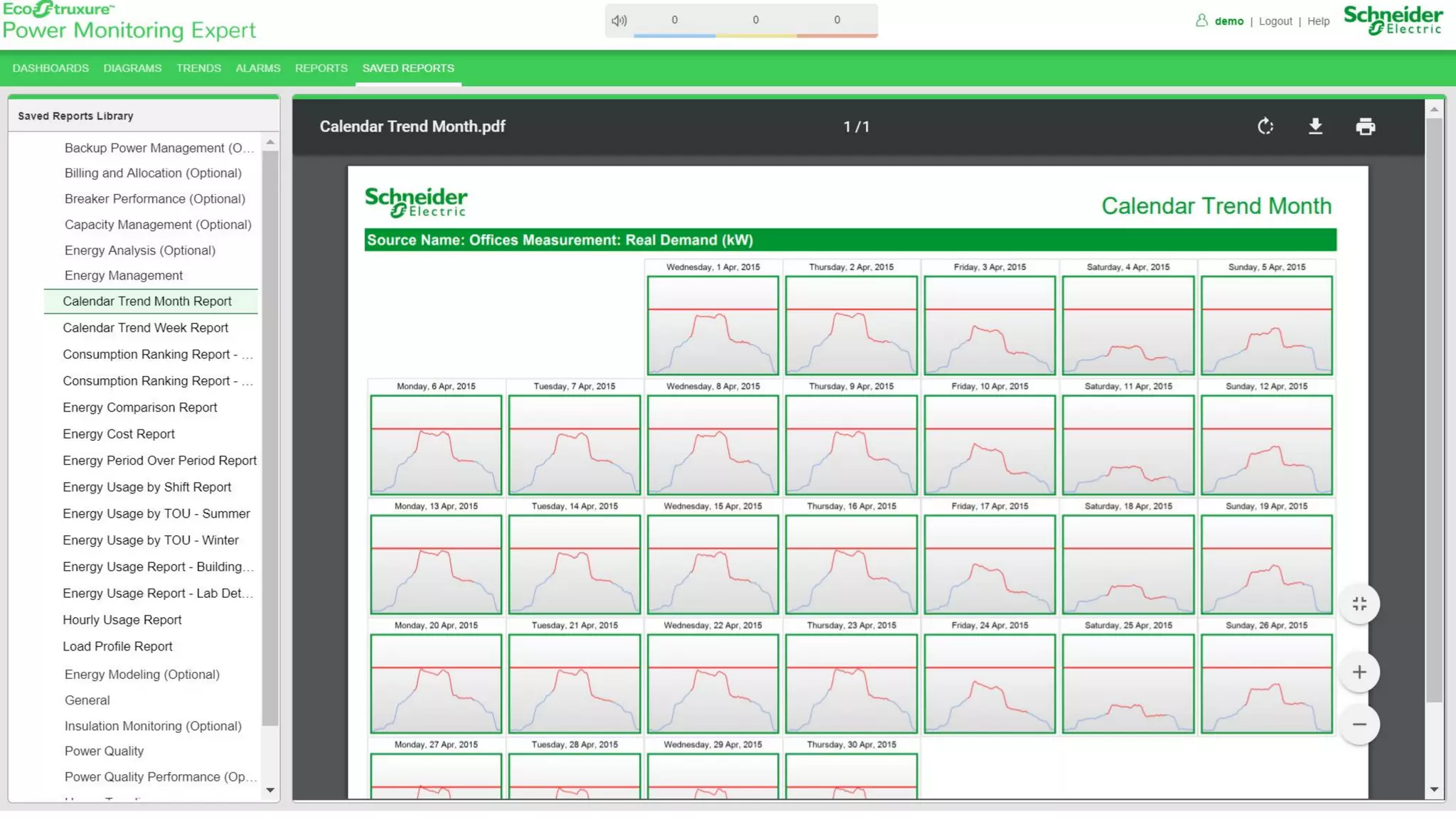

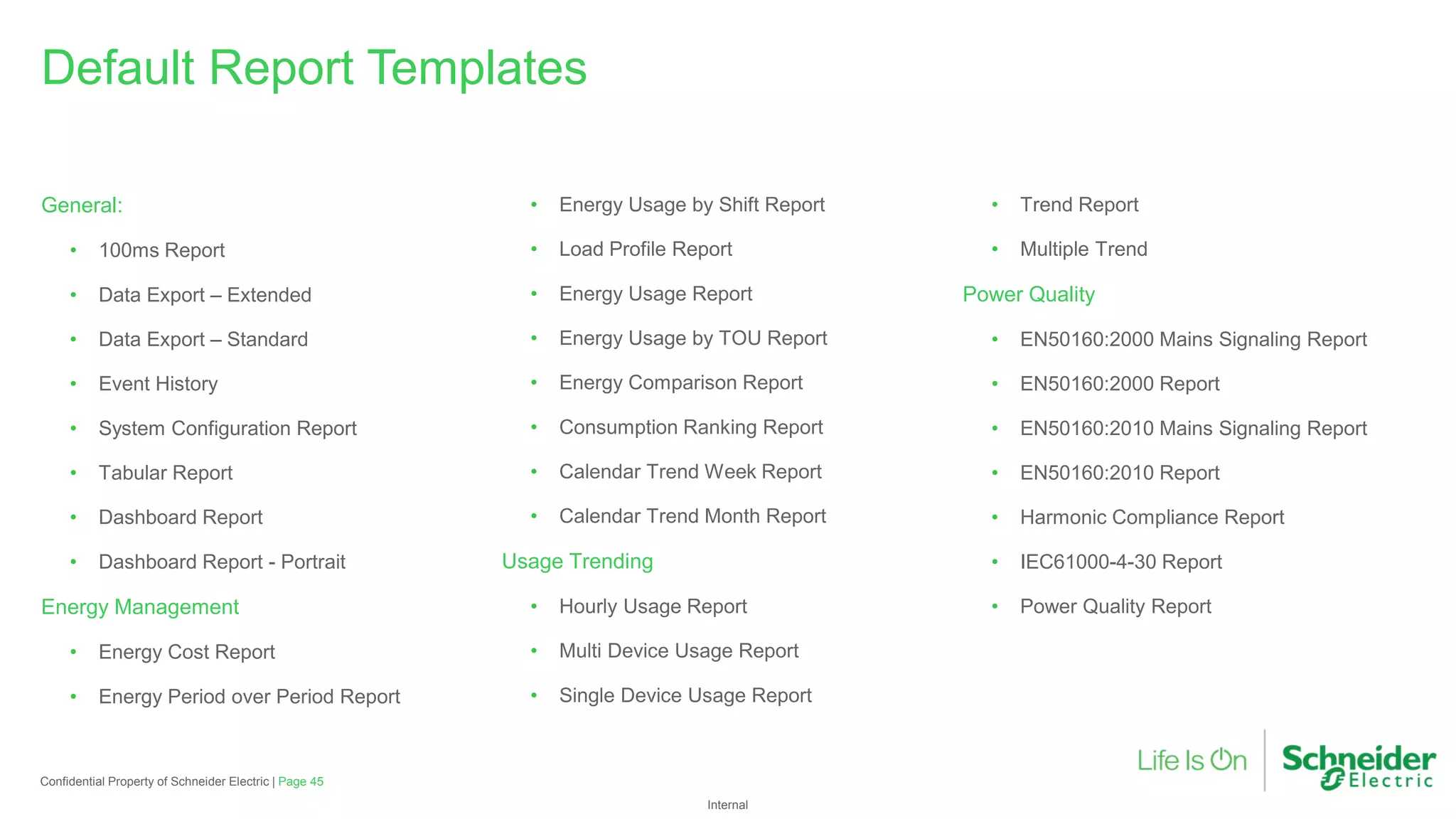

- 32. Internal Page 45 Confidential Propertyof Schneider Electric | General: • 100ms Report • Data Export – Extended • Data Export – Standard • Event History • System Configuration Report • Tabular Report • Dashboard Report • Dashboard Report - Portrait Energy Management • Energy Cost Report • Energy Period over Period Report • Energy Usage by Shift Report • Load Profile Report • Energy Usage Report • Energy Usage by TOU Report • Energy Comparison Report • Consumption Ranking Report • Calendar Trend Week Report • Calendar Trend Month Report Usage Trending • Hourly Usage Report • Multi Device Usage Report • Single Device Usage Report • Trend Report • Multiple Trend Power Quality • EN50160:2000 Mains Signaling Report • EN50160:2000 Report • EN50160:2010 Mains Signaling Report • EN50160:2010 Report • Harmonic Compliance Report • IEC61000-4-30 Report • Power Quality Report Default Report Templates
- 33. Internal Optimizing Power Qualitywith Active Harmonic Filter and Power Monitoring Platform AccuSine PCS+ and Power Monitoring Expert Confidential Property of Schneider Electric

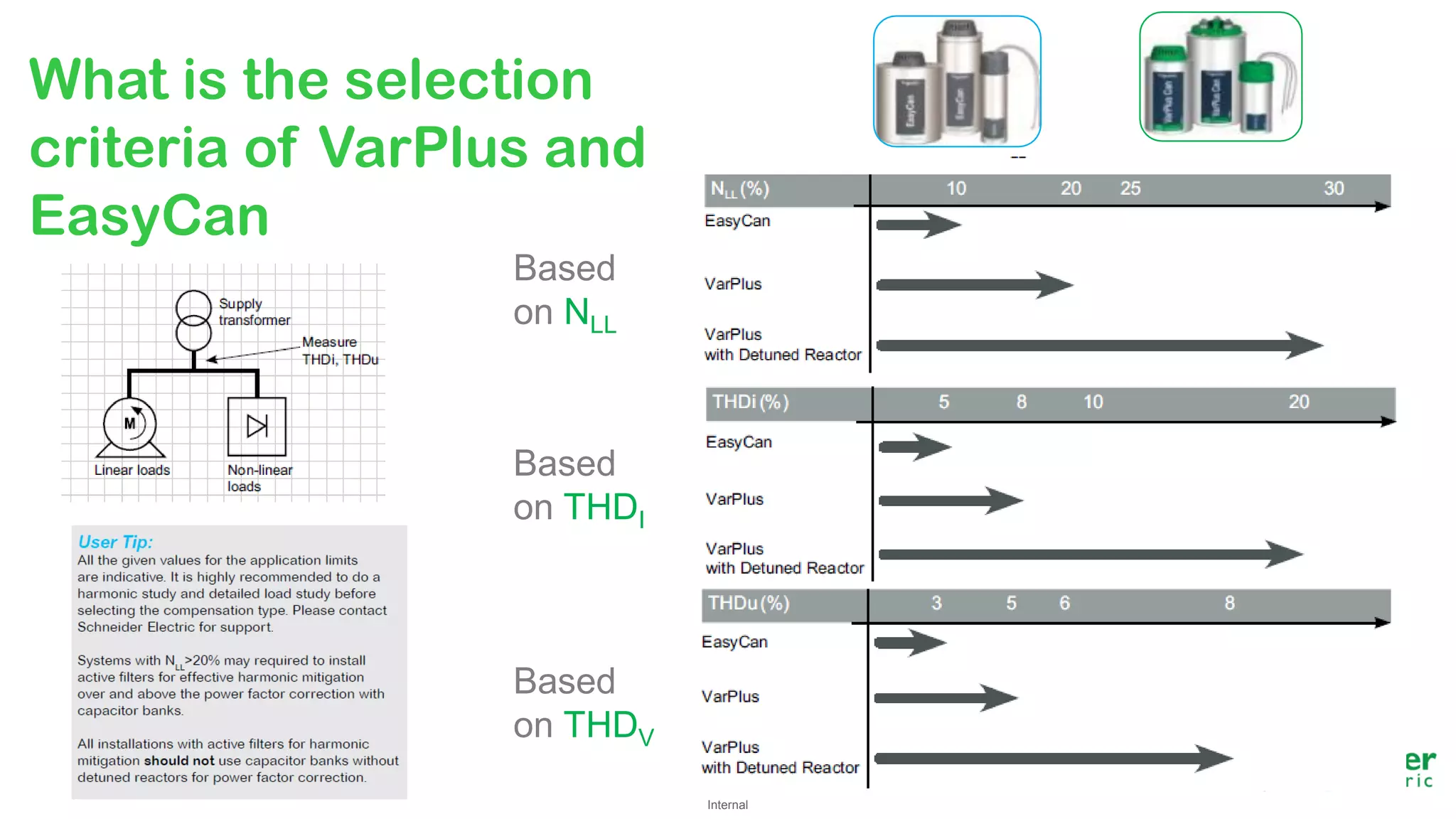

- 34. Internal Confidential Property ofSchneider Electric What is the selection criteria of VarPlus and EasyCan Based on NLL Based on THDI Based on THDV

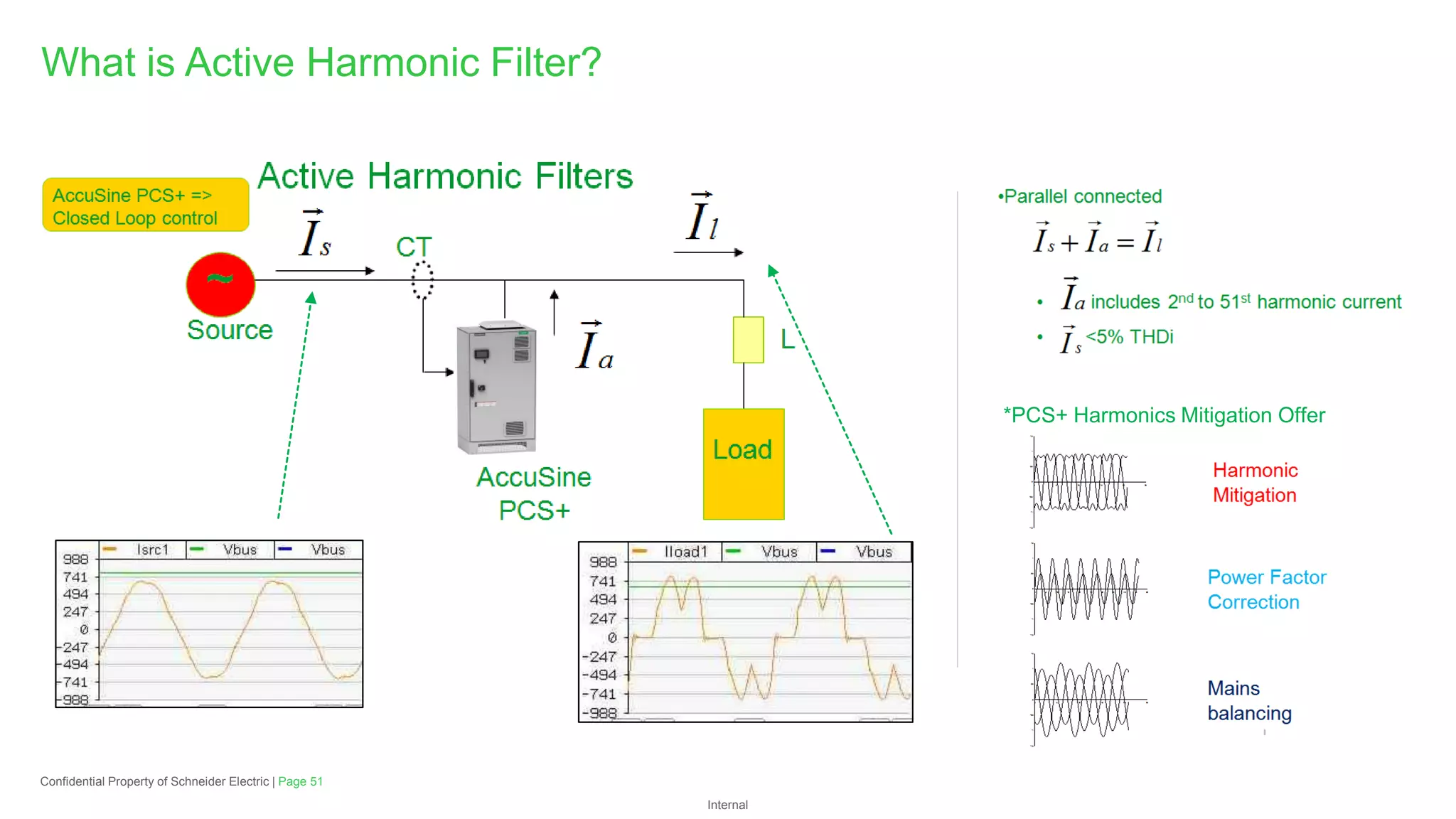

- 35. Internal What is ActiveHarmonic Filter? Page 51 Confidential Property of Schneider Electric | *PCS+ Harmonics Mitigation Offer

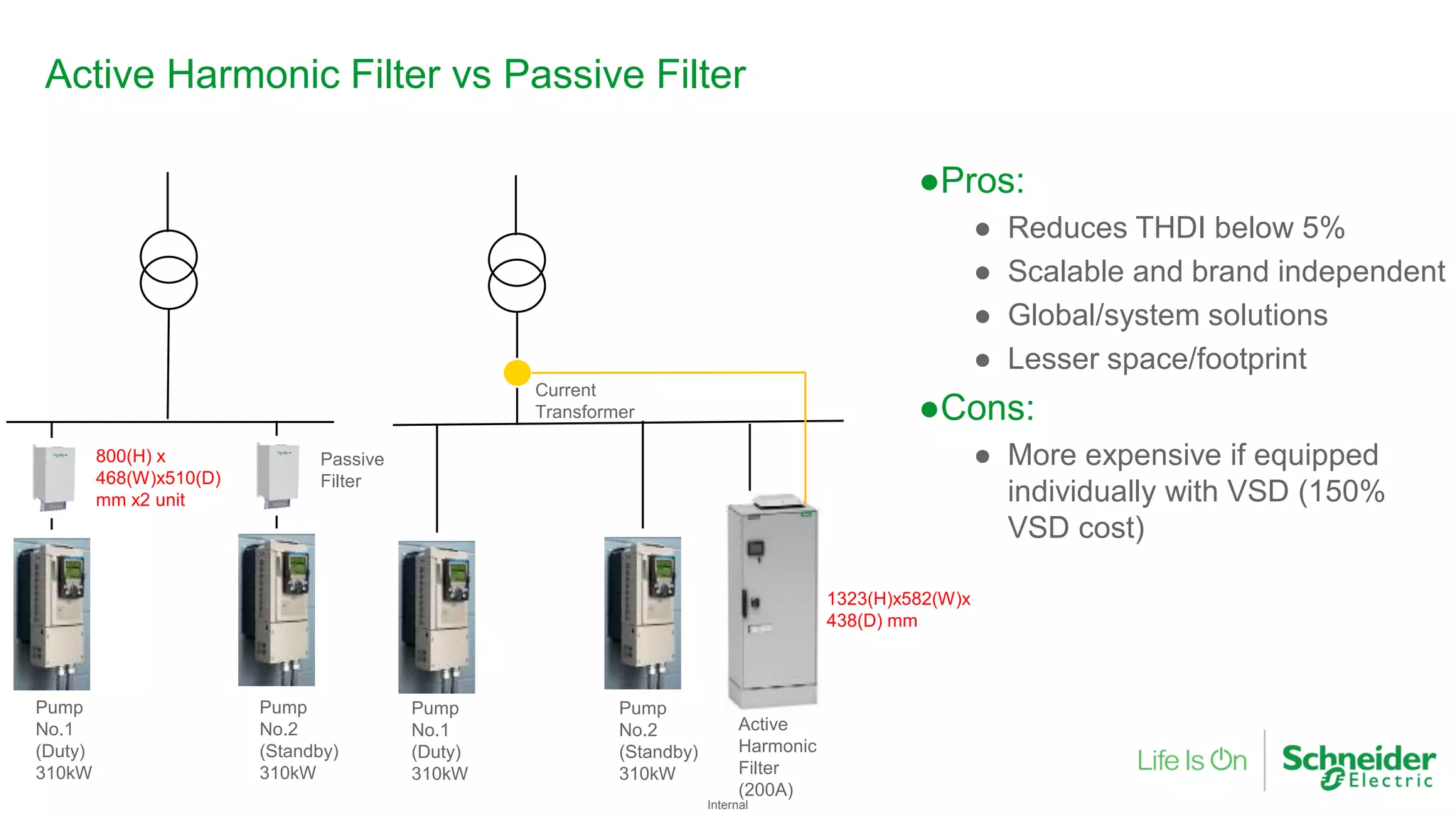

- 36. Internal Pump No.1 (Duty) 310kW Pump No.2 (Standby) 310kW Pump No.1 (Duty) 310kW Pump No.2 (Standby) 310kW Current Transformer Active Harmonic Filter (200A) Active Harmonic Filtervs Passive Filter Passive Filter 800(H) x 468(W)x510(D) mm x2 unit 1323(H)x582(W)x 438(D) mm ●Pros: ● Reduces THDI below 5% ● Scalable and brand independent ● Global/system solutions 1 ● Lesser space/footprint ●Cons: ● More expensive if equipped individually with VSD (150% VSD cost)

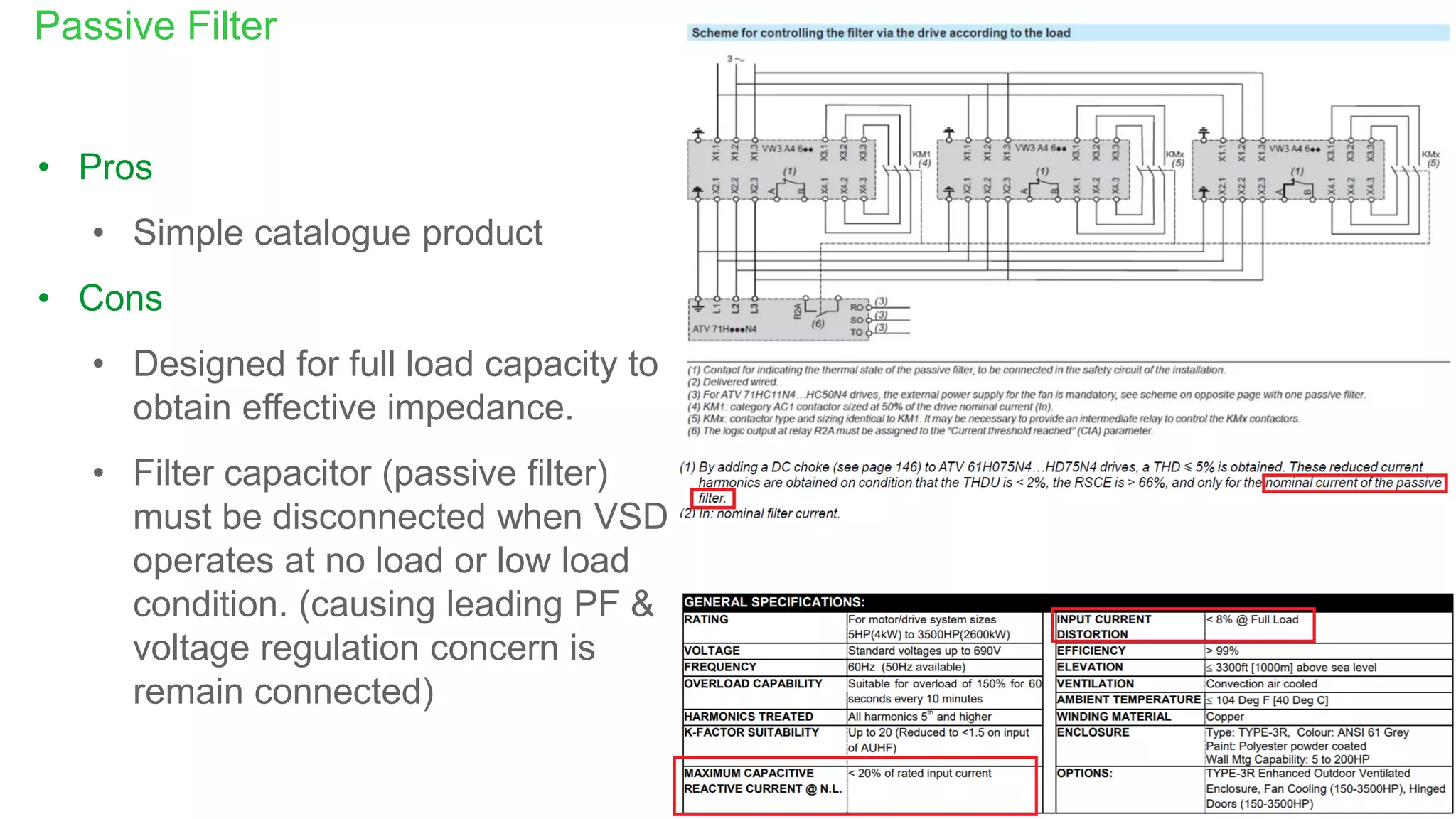

- 37. Internal Passive Filter • Pros •Simple catalogue product • Cons • Designed for full load capacity to obtain effective impedance. • Filter capacitor (passive filter) must be disconnected when VSD operates at no load or low load condition. (causing leading PF & voltage regulation concern is remain connected)

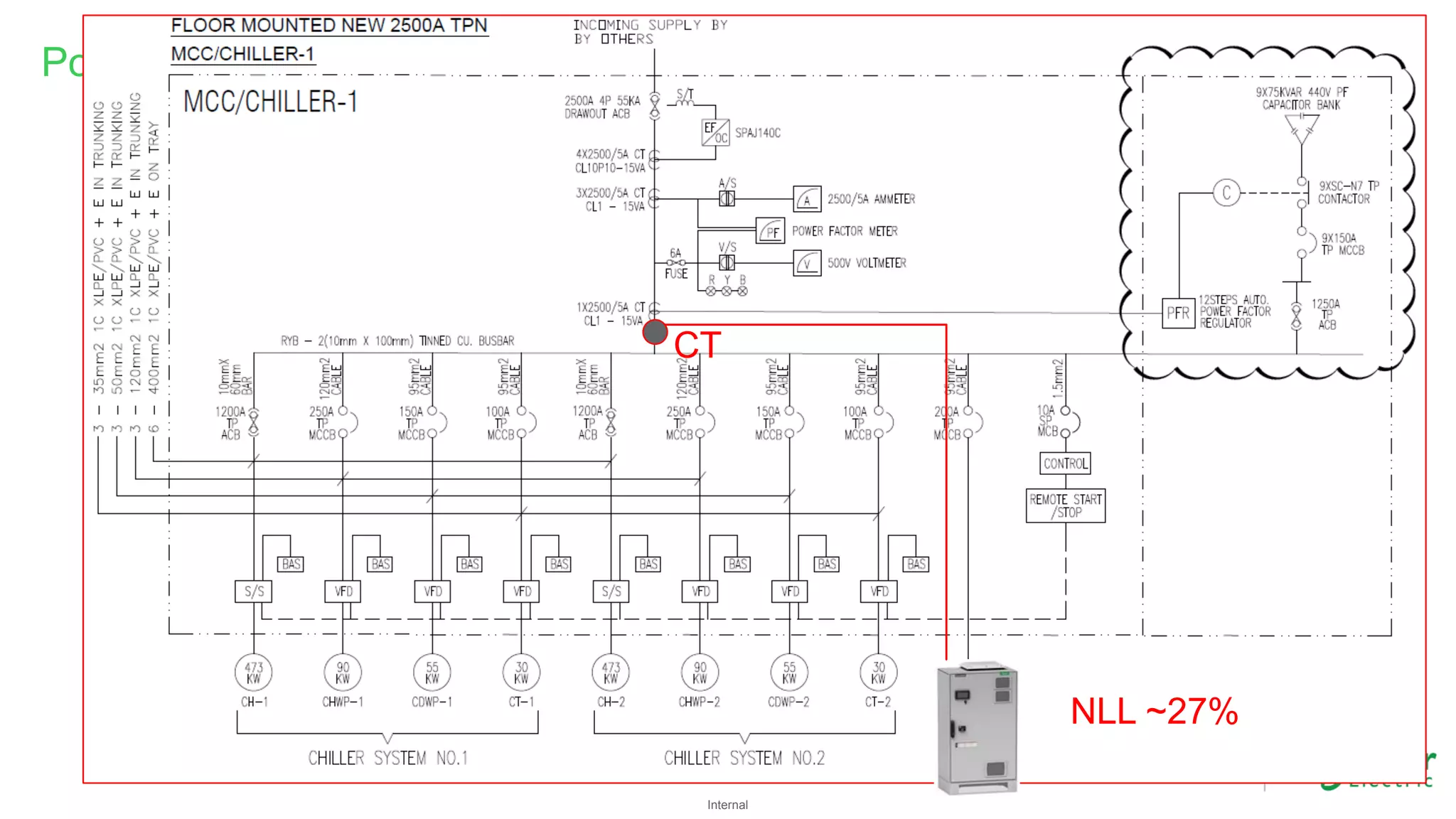

- 38.
- 39.
