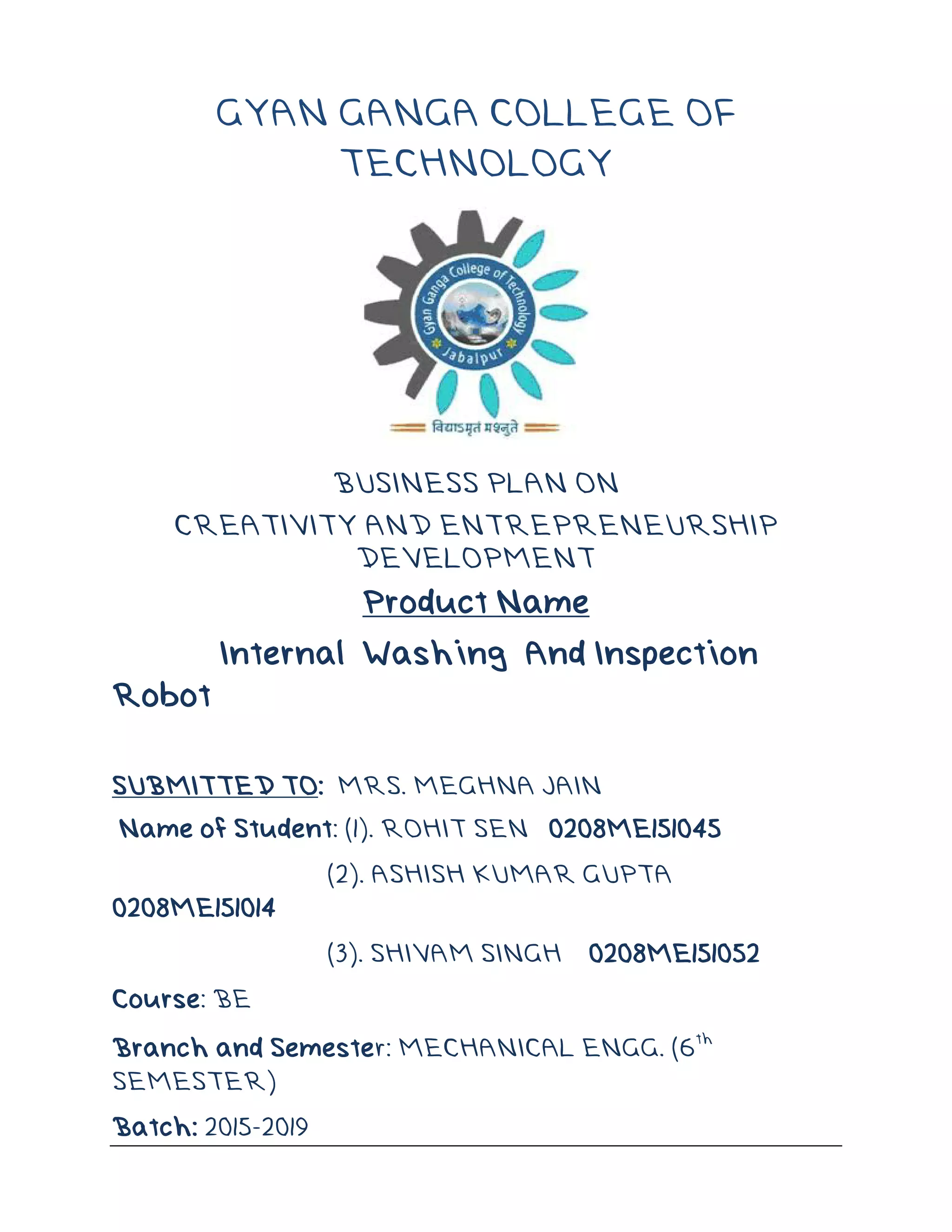

1. GYAN GANGA COLLEGE OF
TECHNOLOGY
BUSINESS PLAN ON
CREATIVITY AND ENTREPRENEURSHIP
DEVELOPMENT
Product Name
Internal Washing And Inspection
Robot
SUBMITTED TO: MRS. MEGHNA JAIN
Name of Student: (1). ROHIT SEN 0208ME151045
(2). ASHISH KUMAR GUPTA
0208ME151014
(3). SHIVAM SINGH 0208ME151052
Course: BE
Branch and Semester: MECHANICAL ENGG. (6
th
SEMESTER)
Batch: 2015-2019

2. RAJIV GANDHI PROUDYOGIKI VISHWAVIDHYALAYA,
BHOPAL, MADHYA PRADESH

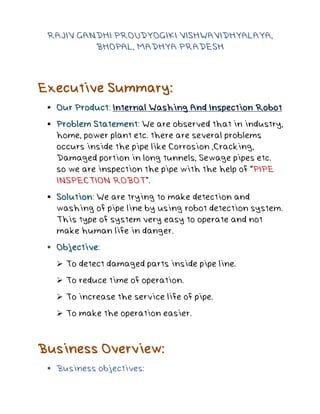

Executive Summary:
 Our Product: Internal Washing And Inspection Robot
 Problem Statement: We are observed that in industry,
home, power plant etc. there are several problems
occurs inside the pipe like Corrosion ,Cracking,
Damaged portion in long tunnels, Sewage pipes etc.
so we are inspection the pipe with the help of “PIPE
INSPECTION ROBOT”.
 Solution: We are trying to make detection and
washing of pipe line by using robot detection system.
This type of system very easy to operate and not
make human life in danger.
 Objective:
 To detect damaged parts inside pipe line.
 To reduce time of operation.
 To increase the service life of pipe.
 To make the operation easier.
Business Overview:
 Business objectives:

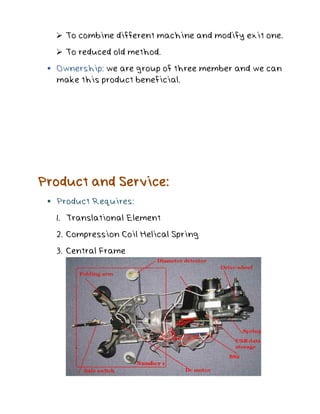

3.  To combine different machine and modify exit one.
 To reduced old method.
 Ownership: we are group of three member and we can
make this product beneficial.
Product and Service:
 Product Requires:
1. Translational Element
2. Compression Coil Helical Spring
3. Central Frame

4.  Material Used:
1. Material should be ductile, less brittleness,
malleable, and high magnetic susceptibility.
2. Aluminum alloys with a wide range of properties.
 Working:

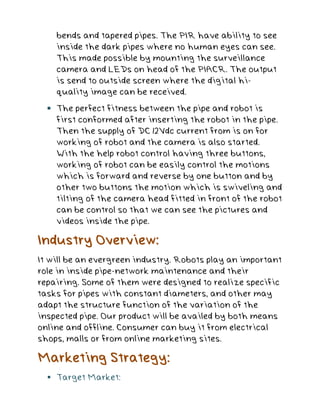

 As Pipe Inspection Robot is designed mainly for
circular bore pipes, it have ability to move inside
any bore diameter pipes ranging from 8 inch to 10
inch( 203mm to 254mm ). Suitable mechanisms are
provided so that it gains ability to move inside the

5. bends and tapered pipes. The PIR have ability to see
inside the dark pipes where no human eyes can see.
This made possible by mounting the surveillance
camera and LEDs on head of the PIACR. The output
is send to outside screen where the digital hi-
quality image can be received.
 The perfect fitness between the pipe and robot is
first conformed after inserting the robot in the pipe.
Then the supply of DC 12Vdc current from is on for
working of robot and the camera is also started.
With the help robot control having three buttons,
working of robot can be easily control the motions
which is forward and reverse by one button and by
other two buttons the motion which is swiveling and
tilting of the camera head fitted in front of the robot
can be control so that we can see the pictures and
videos inside the pipe.
Industry Overview:
It will be an evergreen industry. Robots play an important
role in inside pipe-network maintenance and their
repairing. Some of them were designed to realize specific
tasks for pipes with constant diameters, and other may
adapt the structure function of the variation of the
inspected pipe. Our product will be availed by both means
online and offline. Consumer can buy it from electrical
shops, malls or from online marketing sites.
Marketing Strategy:
 Target Market:

6.  Age group: Industry (pipe inspection) can be of
all age groups considerably more than 5-6years.
 Geographic Location: mainly pipe
manufacturing industry, construction of tunnel
and all places having pipe inspection are
suitable for our product.
 Competitors:
 Inspection-Pipeline Facilities Construction,
Ewing NJ
 Pipeline-Welder-Kenai , ALASKA
 Meter Reader 1, Carrollton TX
Our competitors are selling Internal Washing And
Inspection Robot and we have a new idea.
 Market Plan:
Initially we will sell our product at budget range cost to
gain market attention, we will provide free maintenance
for three months with six months warranty. Interaction of
peoples are normal. So our product will come into their
eyesight.
 SWOT Analysis:-
Strength:-

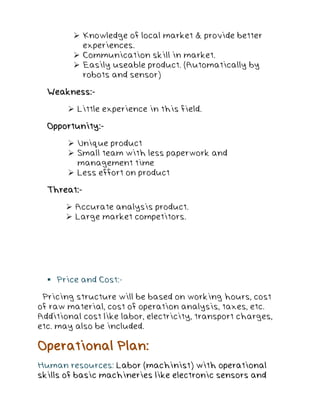

 Suitable for all types of pipe inspection by
robotic technology.

7.  Knowledge of local market & provide better
experiences.
 Communication skill in market.
 Easily useable product. (Automatically by
robots and sensor)
Weakness:-
 Little experience in this field.
Opportunity:-
 Unique product
 Small team with less paperwork and
management time
 Less effort on product
Threat:-
 Accurate analysis product.
 Large market competitors.
 Price and Cost:-
Pricing structure will be based on working hours, cost
of raw material, cost of operation analysis, taxes, etc.
Additional cost like labor, electricity, transport charges,
etc. may also be included.
Operational Plan:
Human resources: Labor (machinist) with operational
skills of basic machineries like electronic sensors and

8. robotic knowledge.
Educational qualification is mandatory.
Equipments and other requirement:
Workshop with all machineries used in Mechanism of PIR,
Static Analysis manufacturing.
Financial Plan:
S
R.
N
O.
NAME OF MATERIAL QUANTITY AMOUNT
1. M. S. round bar 12.7mm dia.
×3mm thick
2 60
2. Acrylic sheet 3mm thick 2 160
3. Screw 12.7mm 40 20
4. Nut 40 20
5. M.S. plate 1 20
6 Sheet metal (pipe) 8 feet×9” 1 1500
7. D.C. Motor 12v/10 rpm 12 2220
8. Bo Motor 3v/60 rpm 2 325
9. CCD Camera 12 mega pixel 1 650
10. Extension cable of camera 1 150

9. 10m
11. Remote 3 switch 1 90
12. Robot wheel 12 480
13. 10 core wire 15 feet 1 150
14. Spring 2 60
15. Adapter ( 12V) 1 450
16. Supply wire 10 feet 1 30
17. Washer 40 20
TOTAL Rs.6435
