The document outlines the development of a custom Content Management System (CMS) tailored to client requirements, featuring RESTful architecture, versioning, multilingual support, and a content management framework (CMF). It describes the integration of Symfony CMF and PHPCR for content management, including the use of various bundles and the architecture involving Apache Jackrabbit for content storage. Additionally, it details API interactions for performing operations on content, including backend and front-end implementations with Angular.

1. www.innoteam.it
PHPCR & API Platform
What it really means to build a CMF

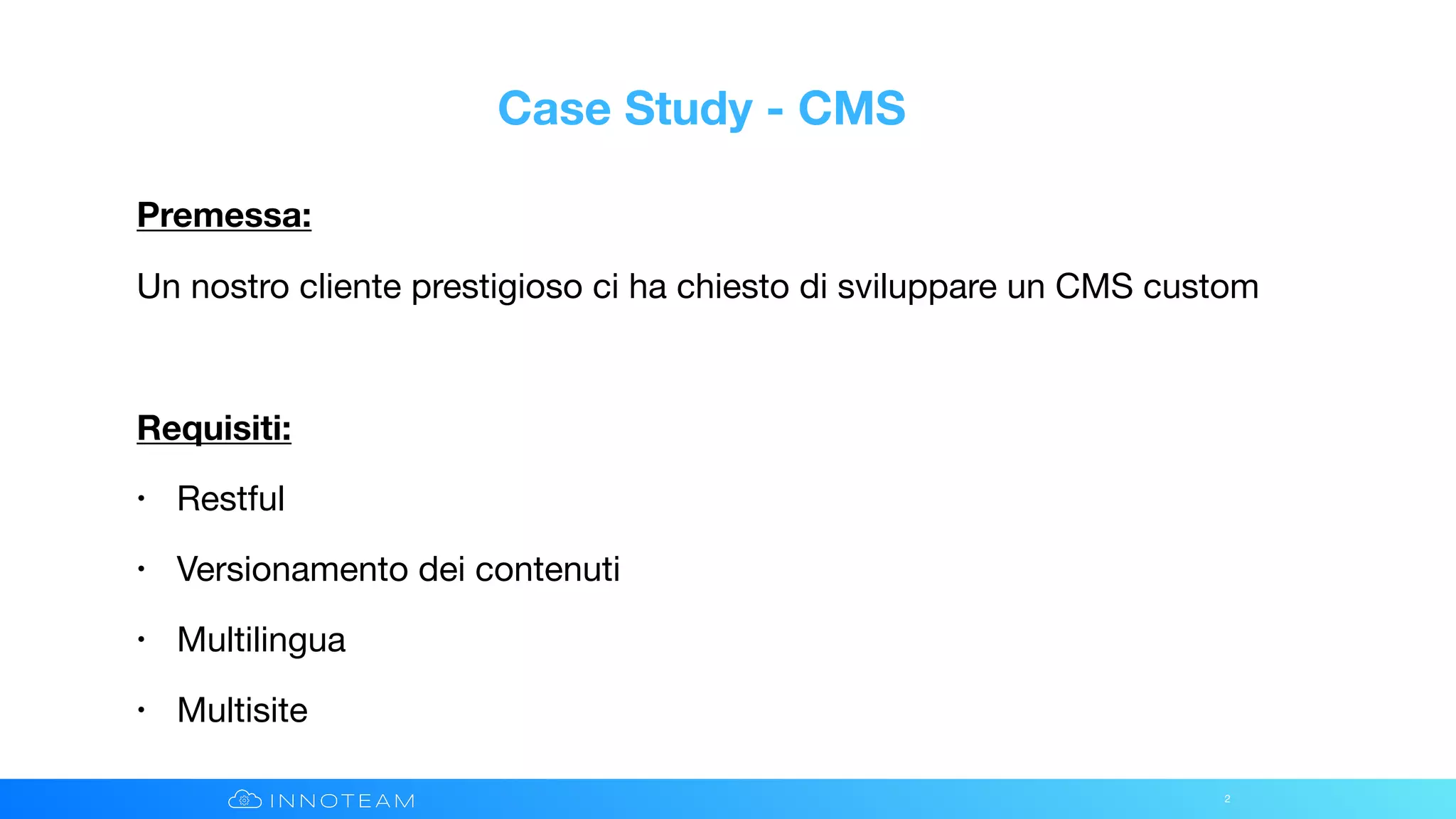

2. Case Study - CMS
Premessa:
Un nostro cliente prestigioso ci ha chiesto di sviluppare un CMS custom
Requisiti:
• Restful
• Versionamento dei contenuti
• Multilingua
• Multisite
2

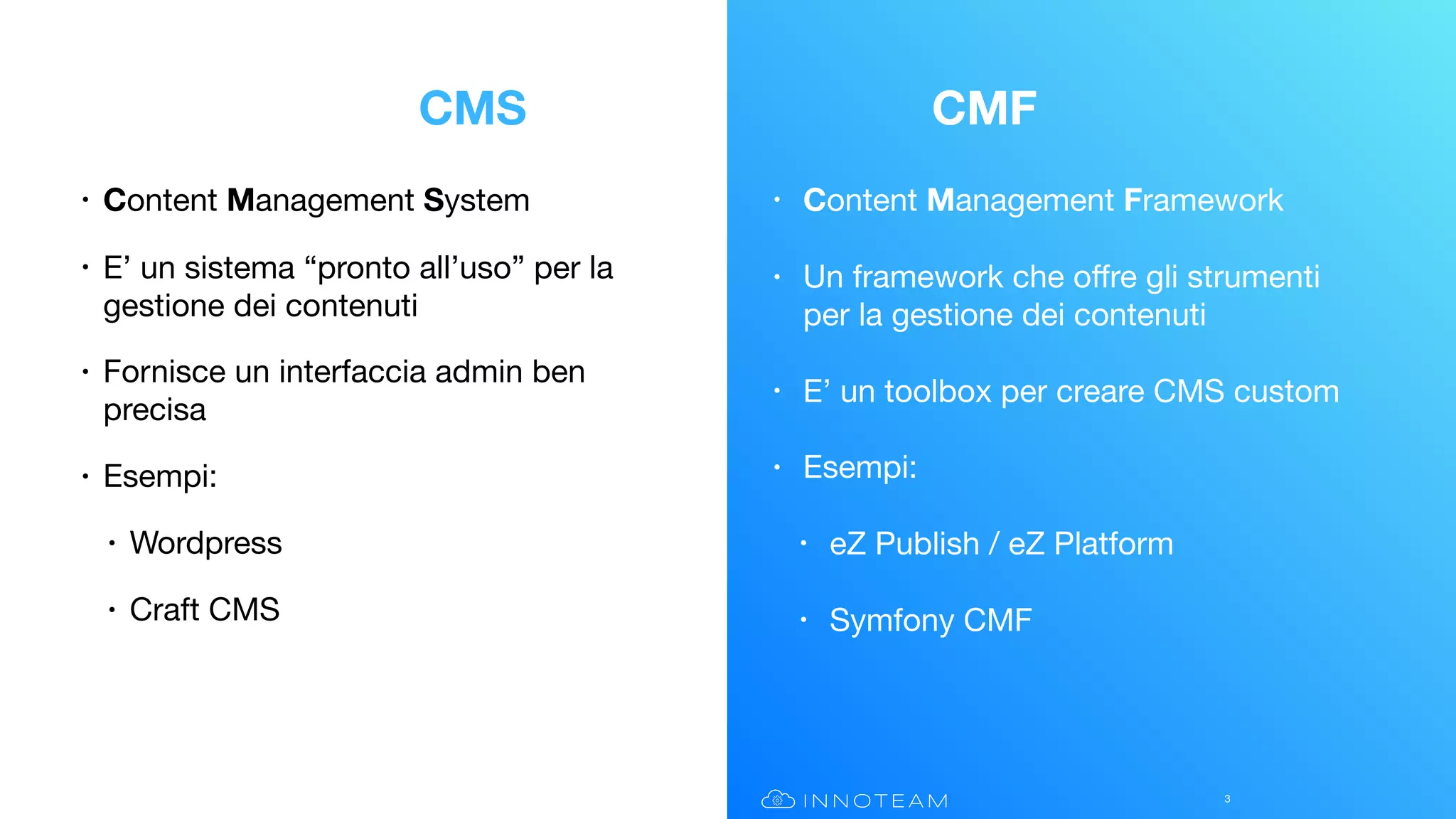

3. • Content Management Framework
• Un framework che offre gli strumenti
per la gestione dei contenuti
• E’ un toolbox per creare CMS custom
• Esempi:
• eZ Publish / eZ Platform
• Symfony CMF
• Content Management System
• E’ un sistema “pronto all’uso” per la
gestione dei contenuti
• Fornisce un interfaccia admin ben
precisa
• Esempi:
• Wordpress
• Craft CMS
3
CMS CMF

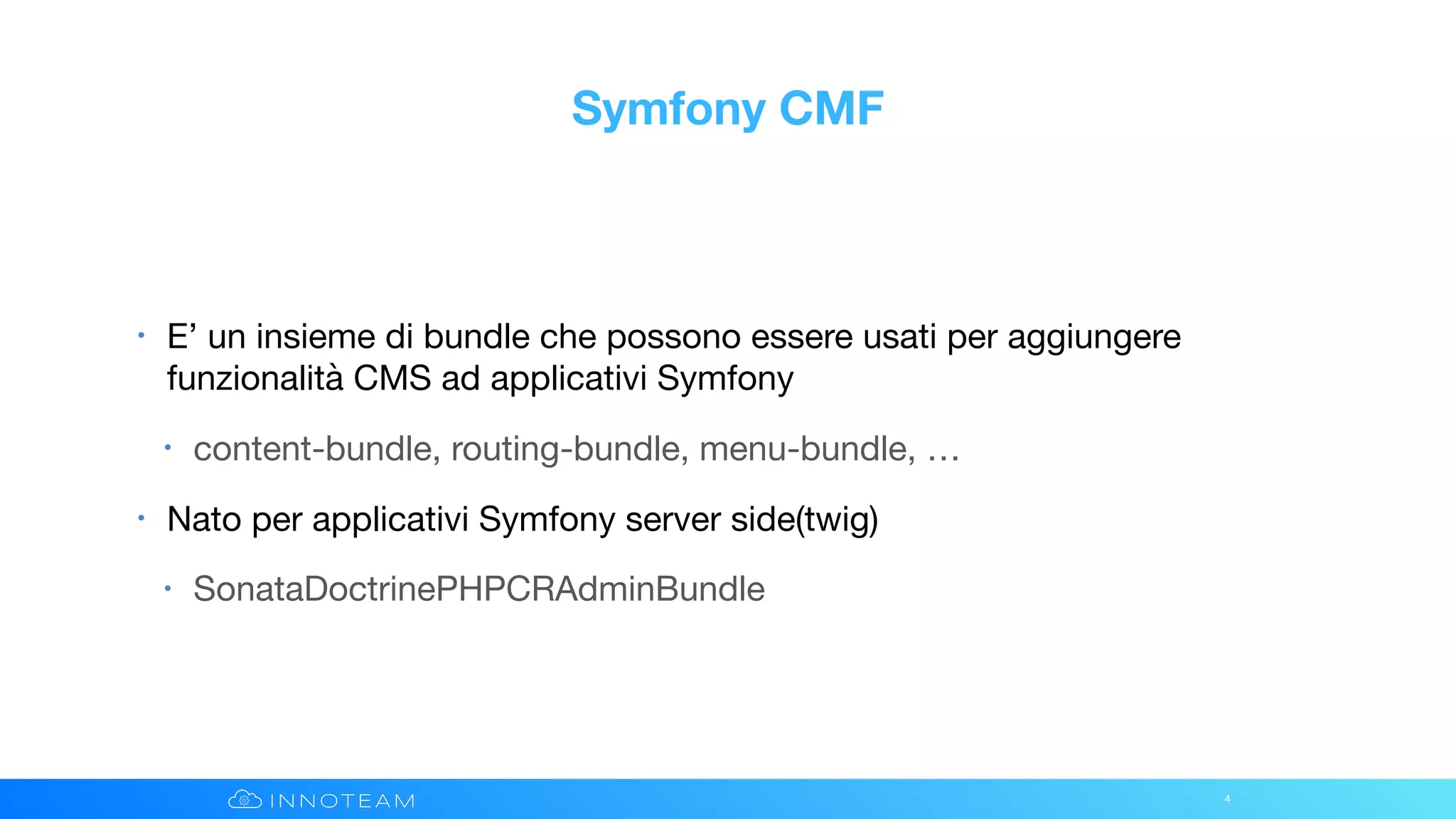

4. Symfony CMF
• E’ un insieme di bundle che possono essere usati per aggiungere
funzionalità CMS ad applicativi Symfony
• content-bundle, routing-bundle, menu-bundle, …
• Nato per applicativi Symfony server side(twig)
• SonataDoctrinePHPCRAdminBundle
4

5. La nostra proposta
5

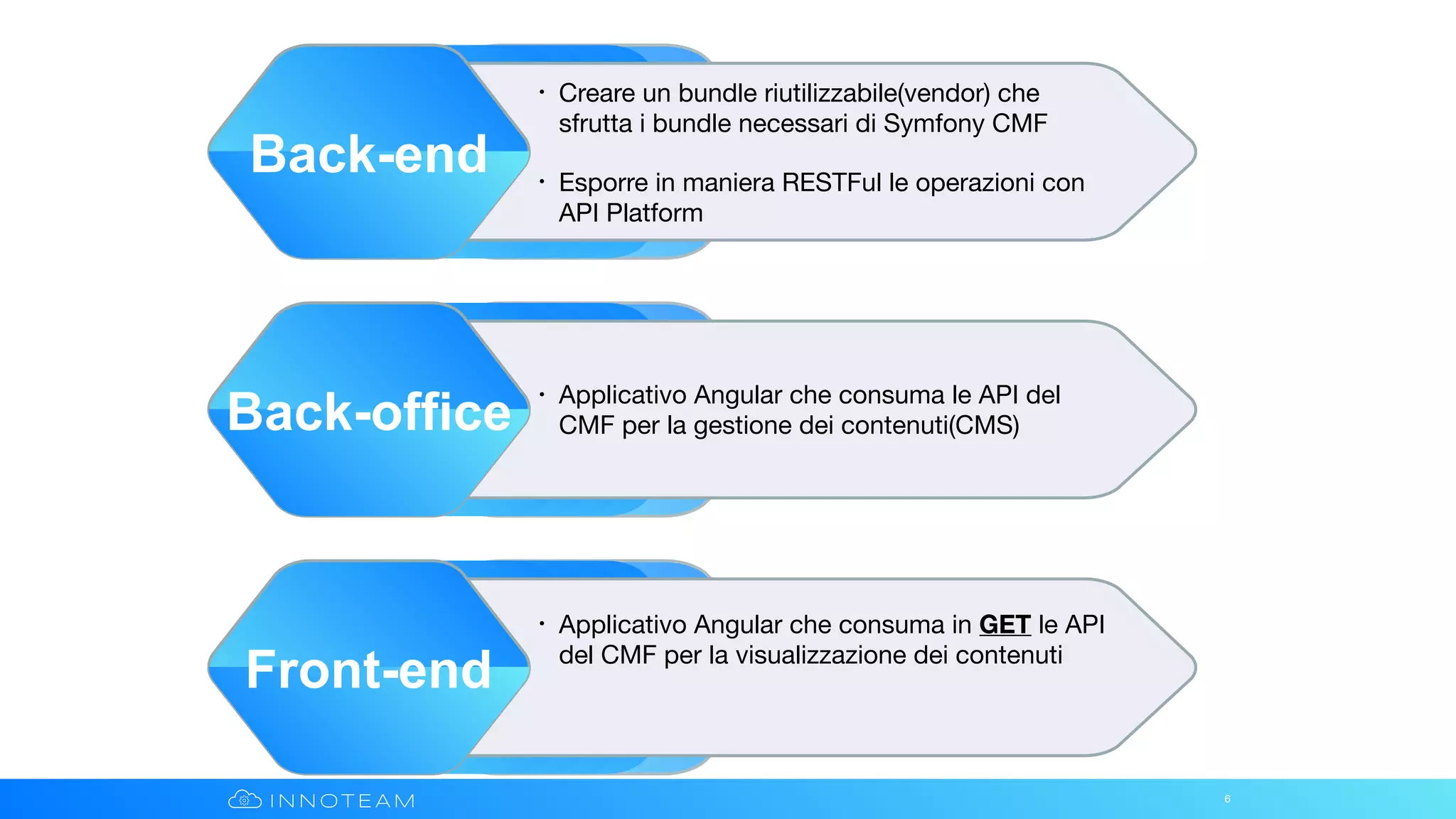

6. 6
• Creare un bundle riutilizzabile(vendor) che
sfrutta i bundle necessari di Symfony CMF
• Esporre in maniera RESTFul le operazioni con
API Platform
Back-end
• Applicativo Angular che consuma le API del
CMF per la gestione dei contenuti(CMS)
Back-office
• Applicativo Angular che consuma in GET le API
del CMF per la visualizzazione dei contenuti
Front-end

7. Symfony CMF e PHPCR
7

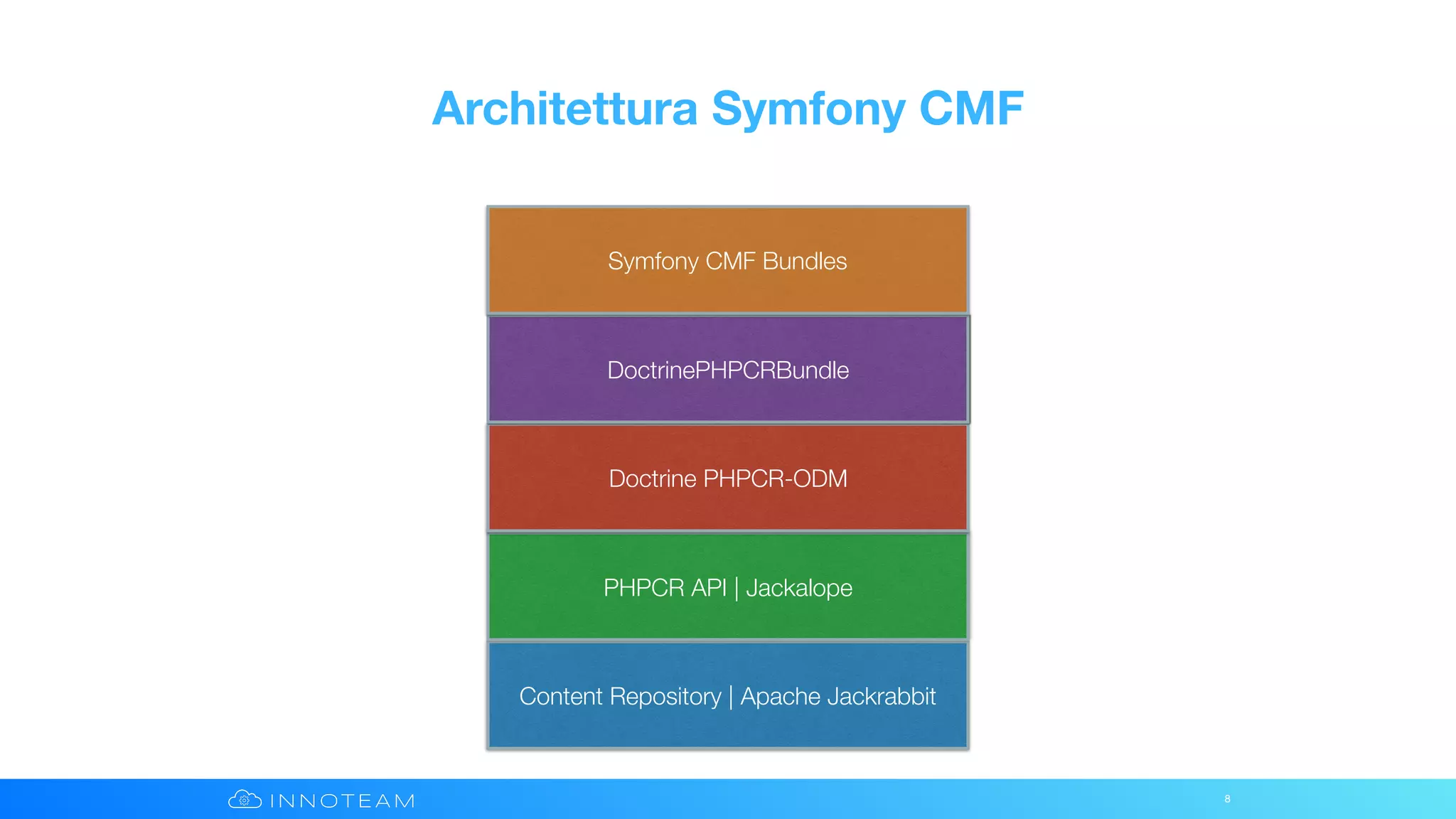

8. Architettura Symfony CMF
8
Content Repository | Apache Jackrabbit
PHPCR API | Jackalope
Doctrine PHPCR-ODM
DoctrinePHPCRBundle
Symfony CMF Bundles

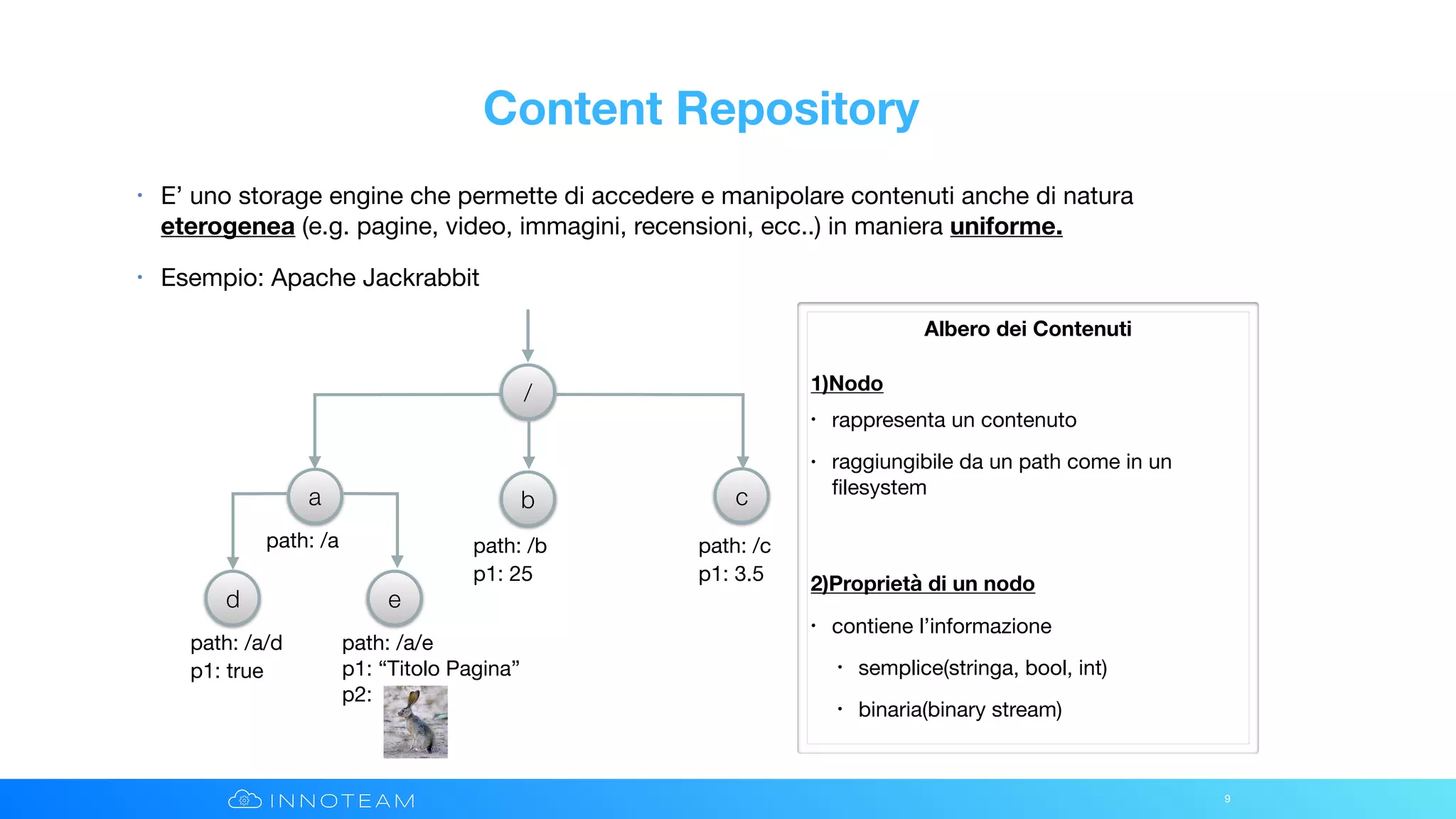

9. Content Repository
• E’ uno storage engine che permette di accedere e manipolare contenuti anche di natura
eterogenea (e.g. pagine, video, immagini, recensioni, ecc..) in maniera uniforme.
• Esempio: Apache Jackrabbit
9
Albero dei Contenuti
1)Nodo
• rappresenta un contenuto
• raggiungibile da un path come in un
filesystem
2)Proprietà di un nodo
• contiene l’informazione
• semplice(stringa, bool, int)
• binaria(binary stream)
/
a b c
d e
path: /a/d
p1: true
path: /a/e
p1: “Titolo Pagina”
p2:
path: /a path: /b
p1: 25
path: /c
p1: 3.5

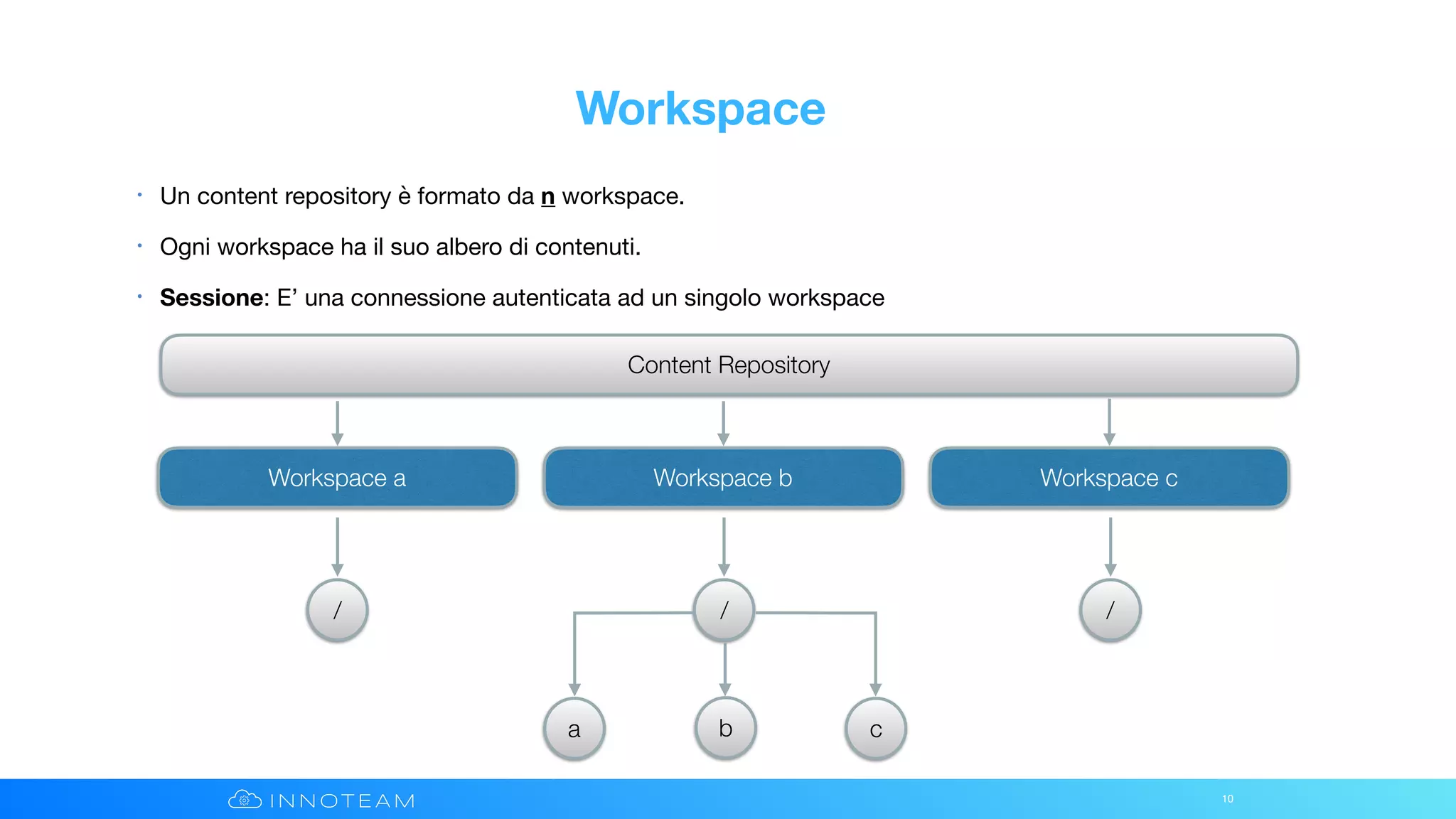

10. Workspace
• Un content repository è formato da n workspace.
• Ogni workspace ha il suo albero di contenuti.
• Sessione: E’ una connessione autenticata ad un singolo workspace
10
Content Repository
Workspace a Workspace b Workspace c
/
a b c
/ /

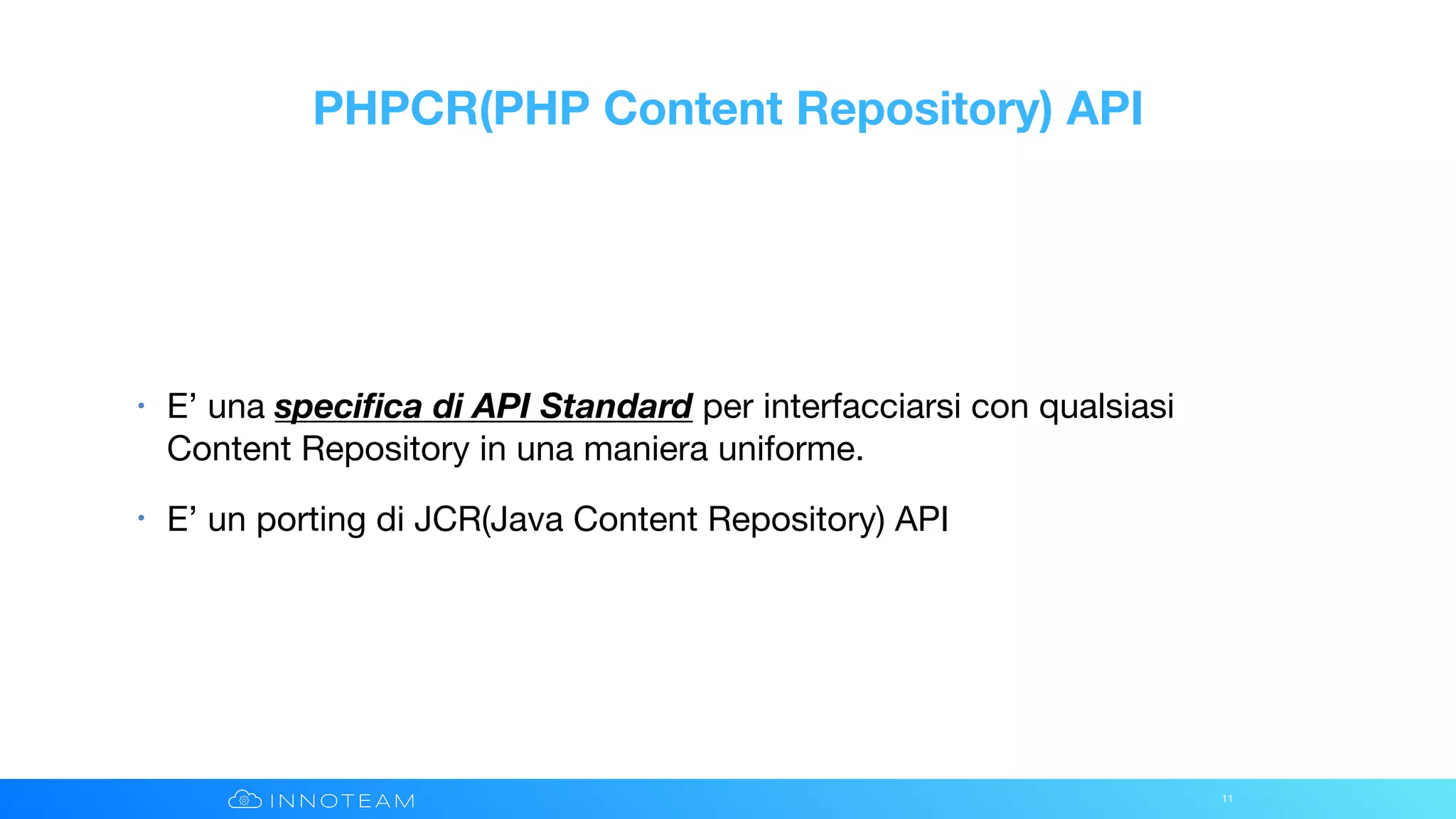

11. PHPCR(PHP Content Repository) API
• E’ una specifica di API Standard per interfacciarsi con qualsiasi
Content Repository in una maniera uniforme.
• E’ un porting di JCR(Java Content Repository) API
11

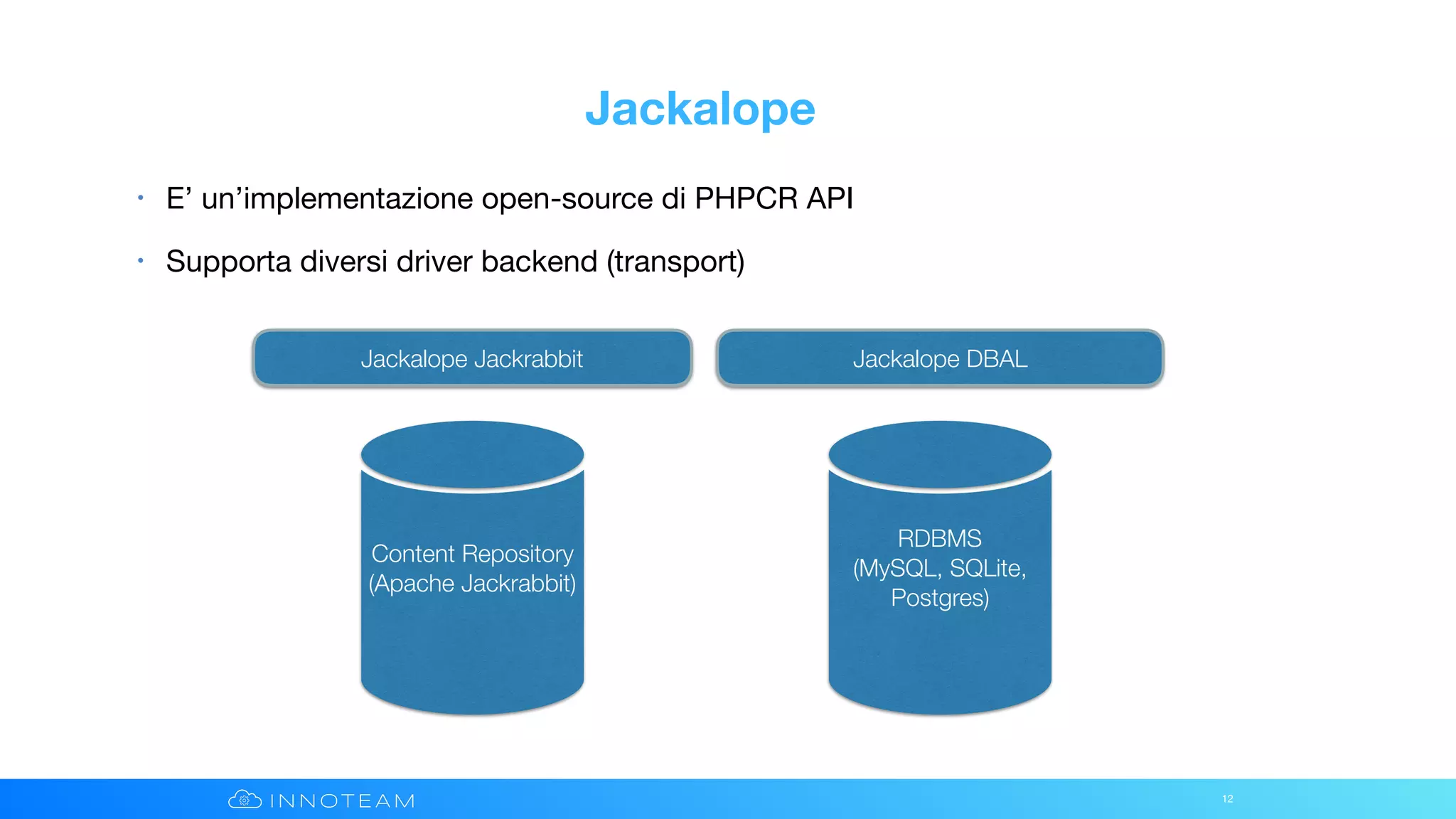

12. Jackalope
• E’ un’implementazione open-source di PHPCR API
• Supporta diversi driver backend (transport)
12
Jackalope Jackrabbit Jackalope DBAL
Content Repository
(Apache Jackrabbit)
RDBMS
(MySQL, SQLite,
Postgres)

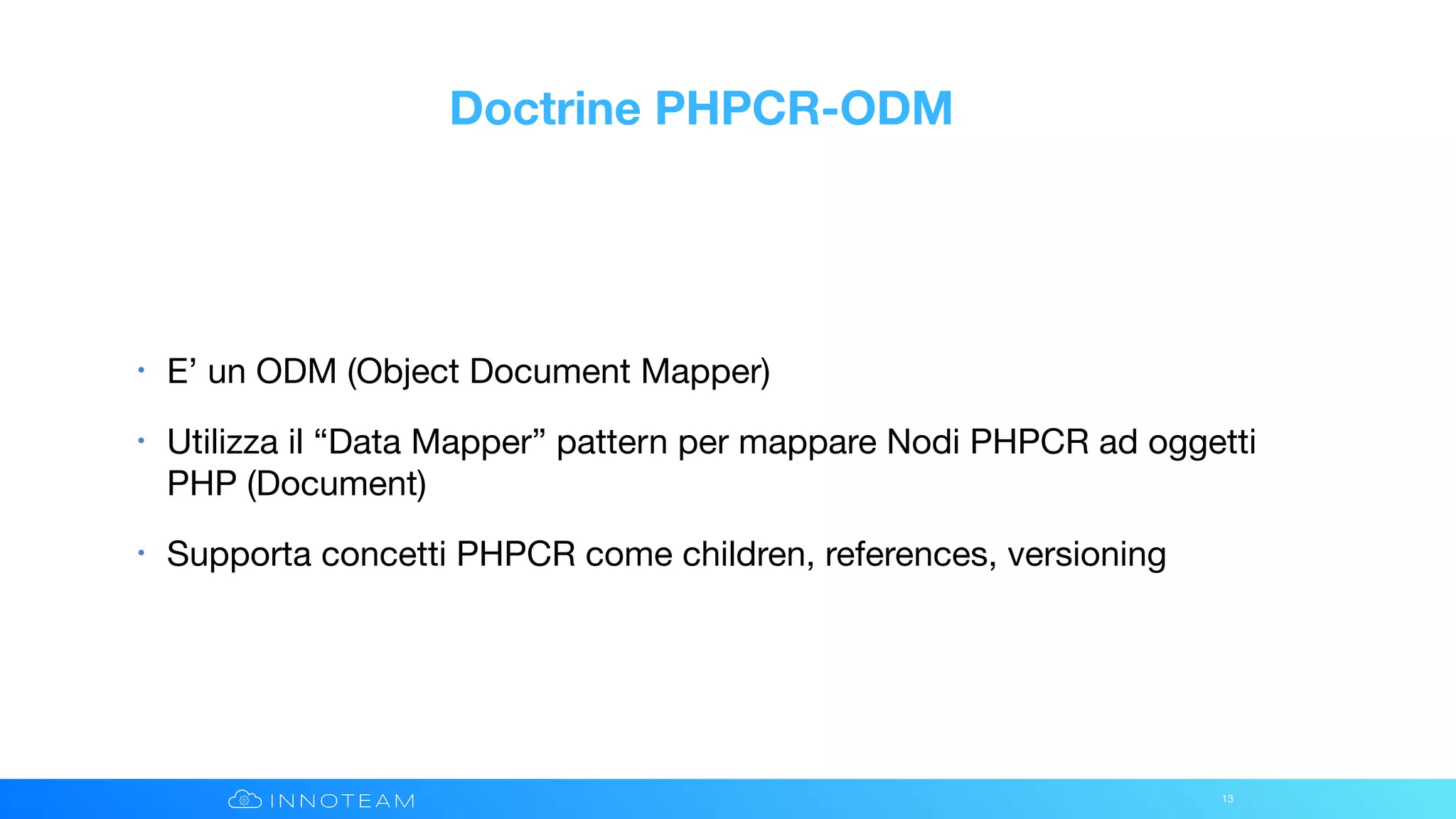

13. Doctrine PHPCR-ODM
• E’ un ODM (Object Document Mapper)
• Utilizza il “Data Mapper” pattern per mappare Nodi PHPCR ad oggetti
PHP (Document)
• Supporta concetti PHPCR come children, references, versioning
13

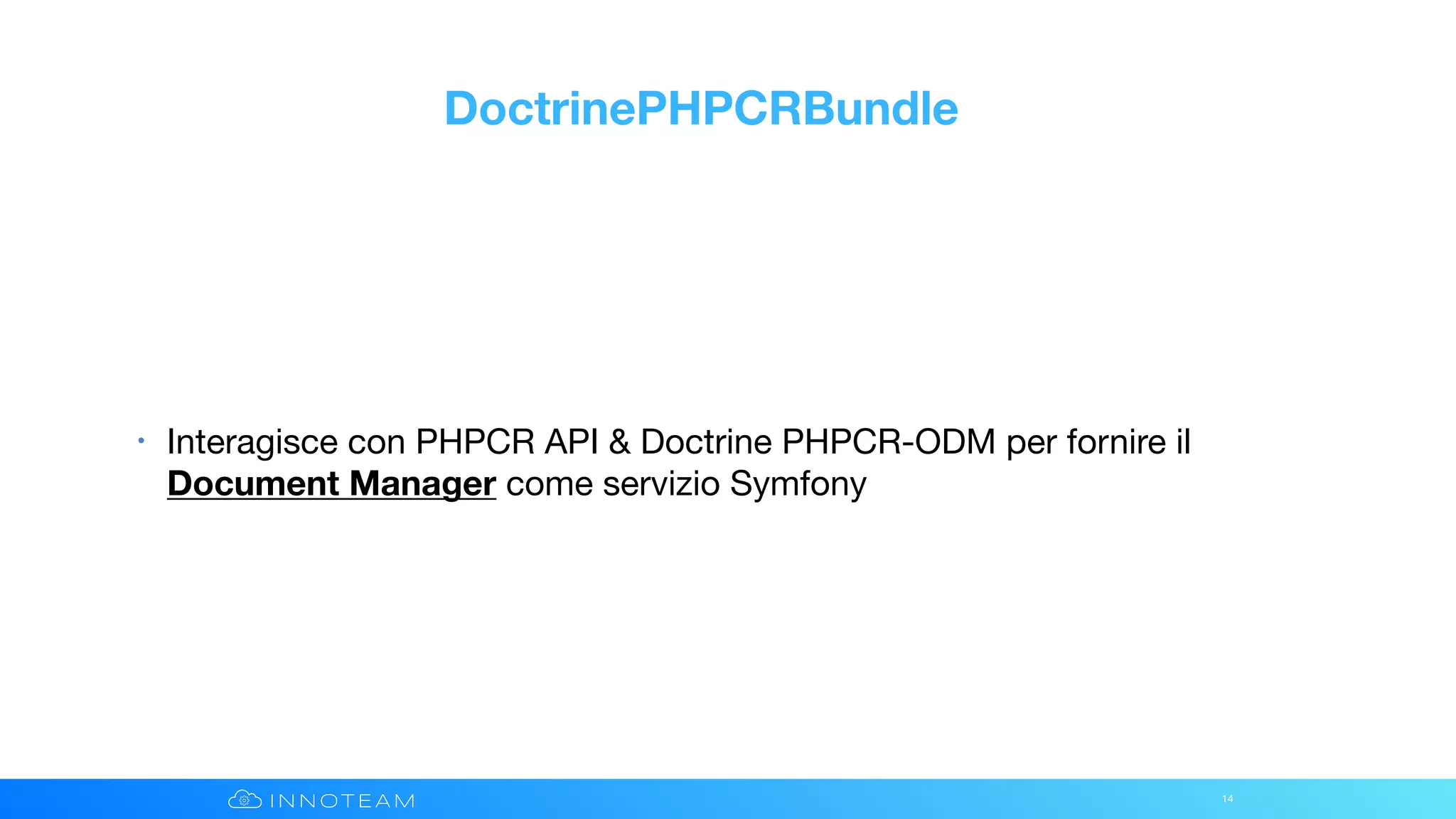

14. DoctrinePHPCRBundle
• Interagisce con PHPCR API & Doctrine PHPCR-ODM per fornire il
Document Manager come servizio Symfony
14

15. Il nostro setup
15

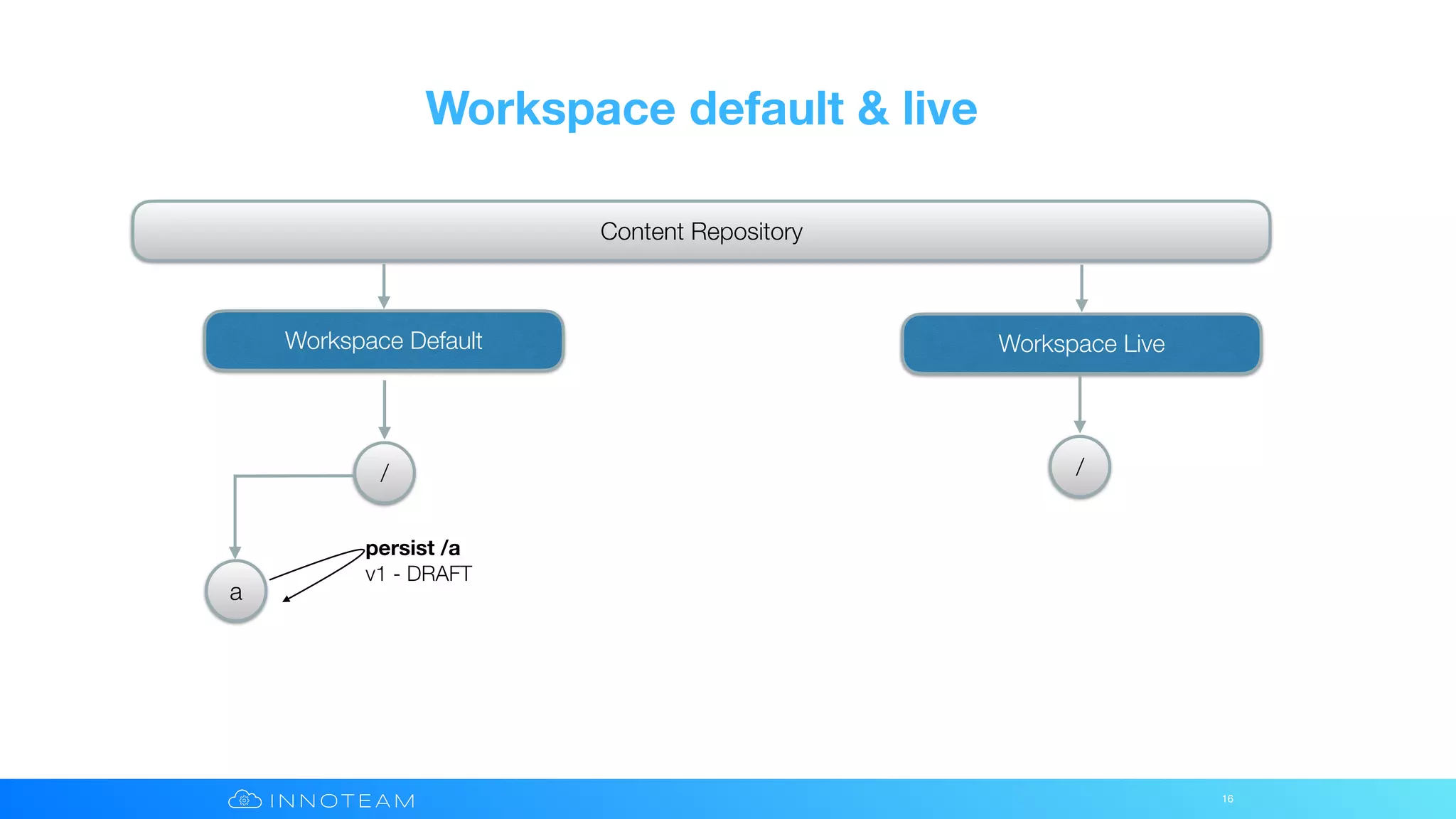

16. Workspace default & live
16
Content Repository
Workspace Default Workspace Live
/
a
/
persist /a
v1 - DRAFT

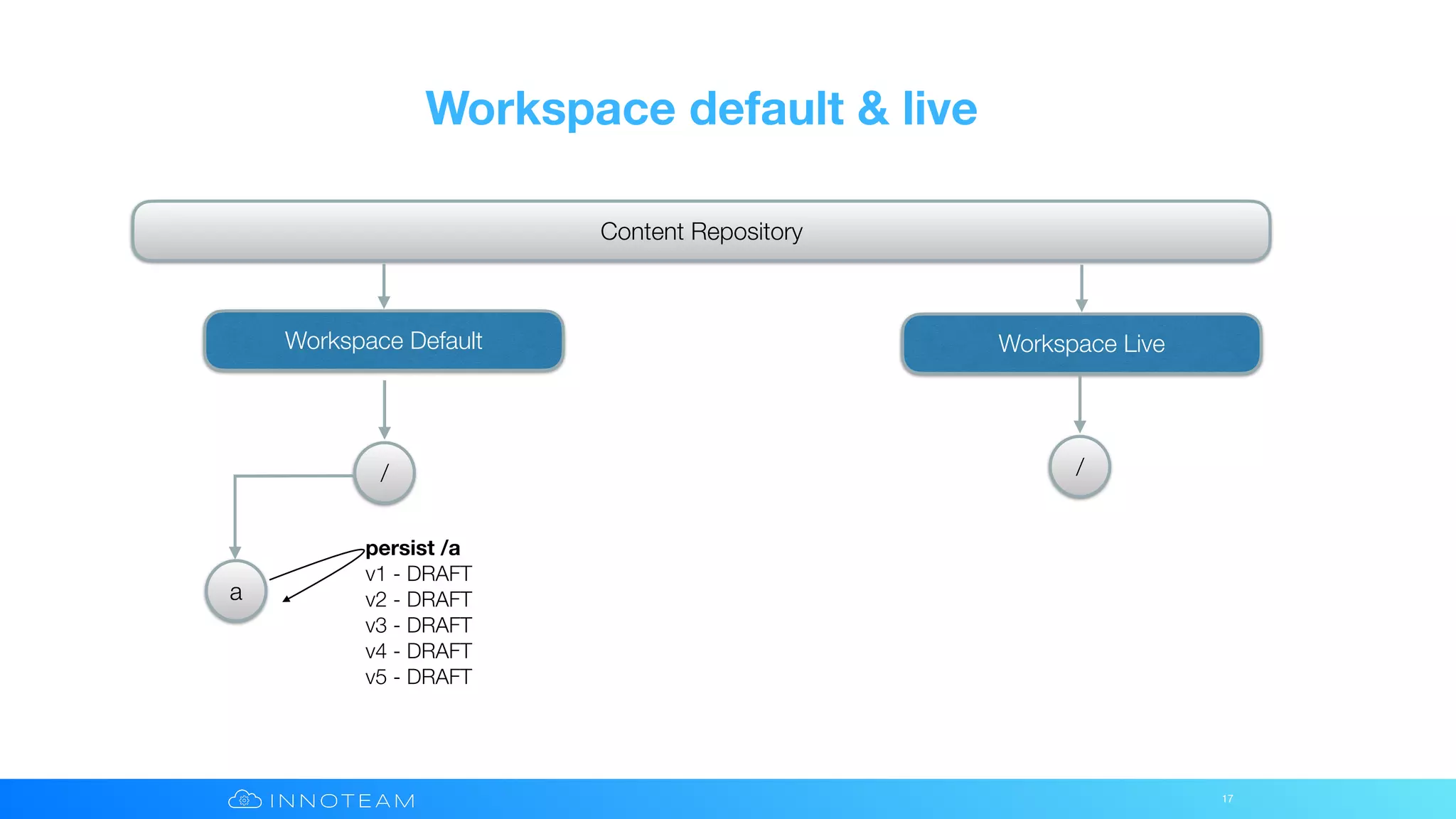

17. Workspace default & live
17
Content Repository
Workspace Default Workspace Live
/
a
/
persist /a
v1 - DRAFT
v2 - DRAFT
v3 - DRAFT
v4 - DRAFT
v5 - DRAFT

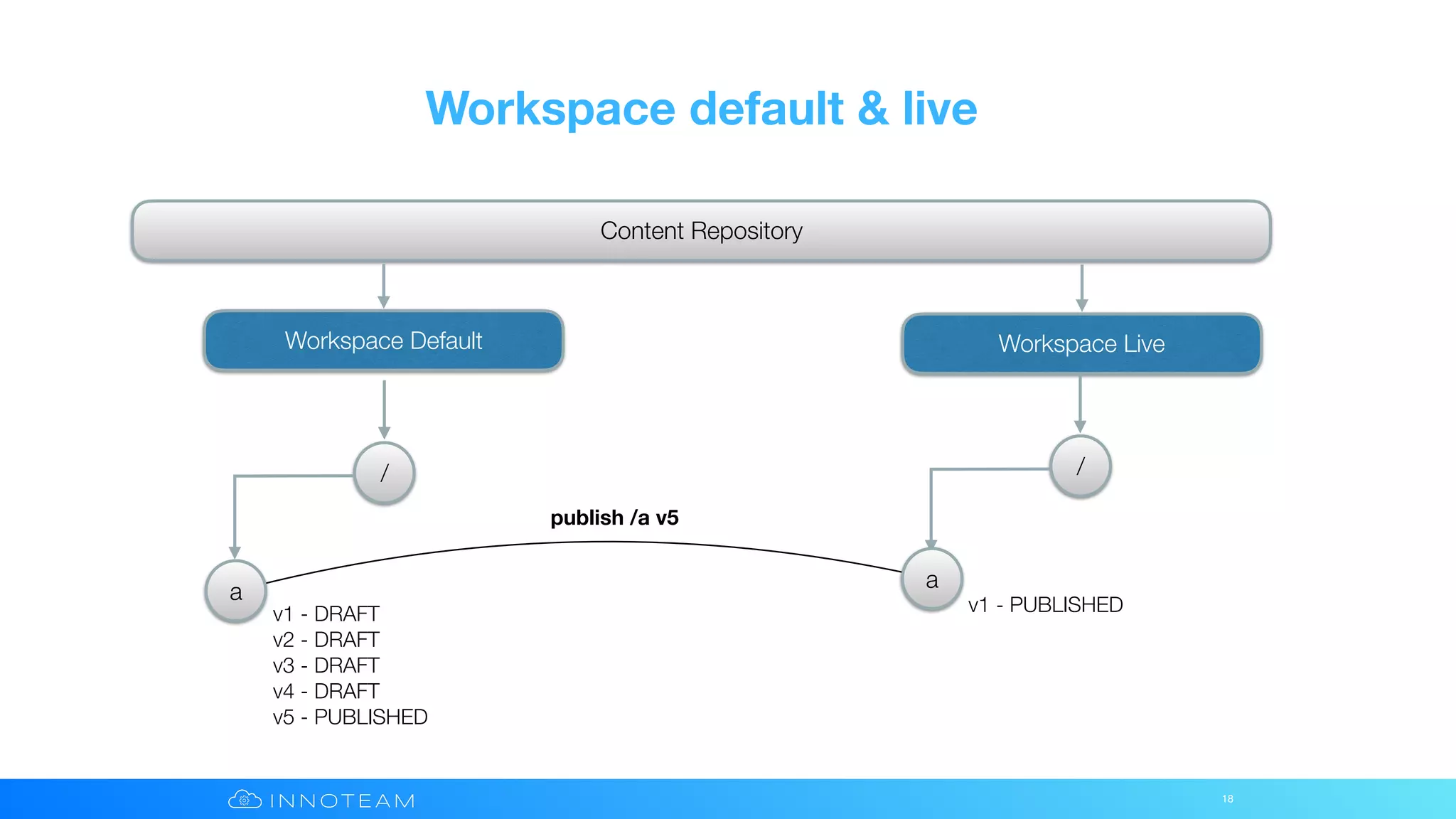

18. Workspace default & live
18
Content Repository
Workspace Default Workspace Live
/
a
/
a
publish /a v5
v1 - DRAFT
v2 - DRAFT
v3 - DRAFT
v4 - DRAFT
v5 - PUBLISHED
v1 - PUBLISHED

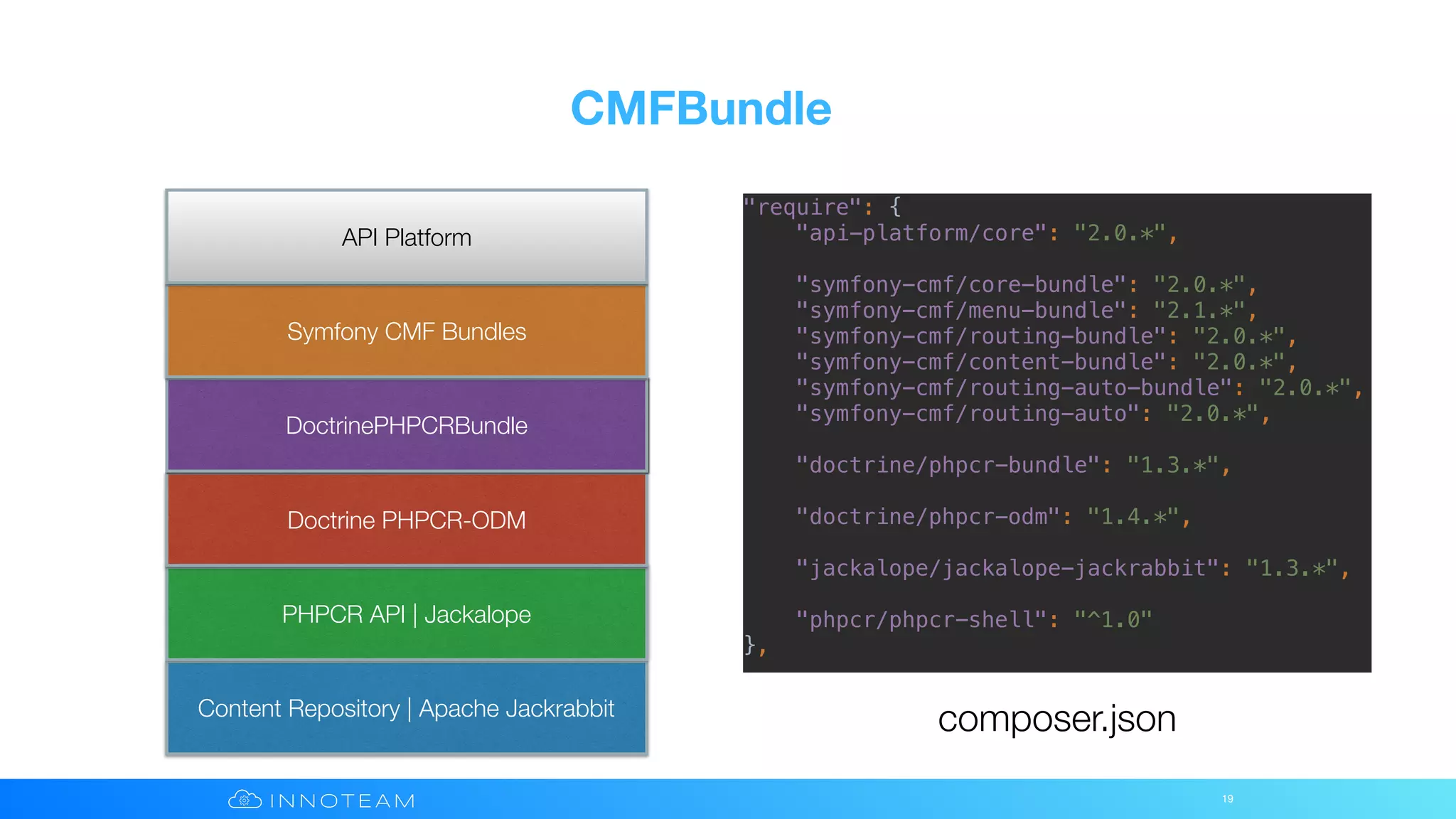

19. CMFBundle
19
Content Repository | Apache Jackrabbit
PHPCR API | Jackalope
Doctrine PHPCR-ODM
DoctrinePHPCRBundle
Symfony CMF Bundles
API Platform
"require": {
"api-platform/core": "2.0.*",
"symfony-cmf/core-bundle": "2.0.*",
"symfony-cmf/menu-bundle": "2.1.*",
"symfony-cmf/routing-bundle": "2.0.*",
"symfony-cmf/content-bundle": "2.0.*",
"symfony-cmf/routing-auto-bundle": "2.0.*",
"symfony-cmf/routing-auto": "2.0.*",
"doctrine/phpcr-bundle": "1.3.*",
"doctrine/phpcr-odm": "1.4.*",
"jackalope/jackalope-jackrabbit": "1.3.*",
"phpcr/phpcr-shell": "^1.0"
},
composer.json

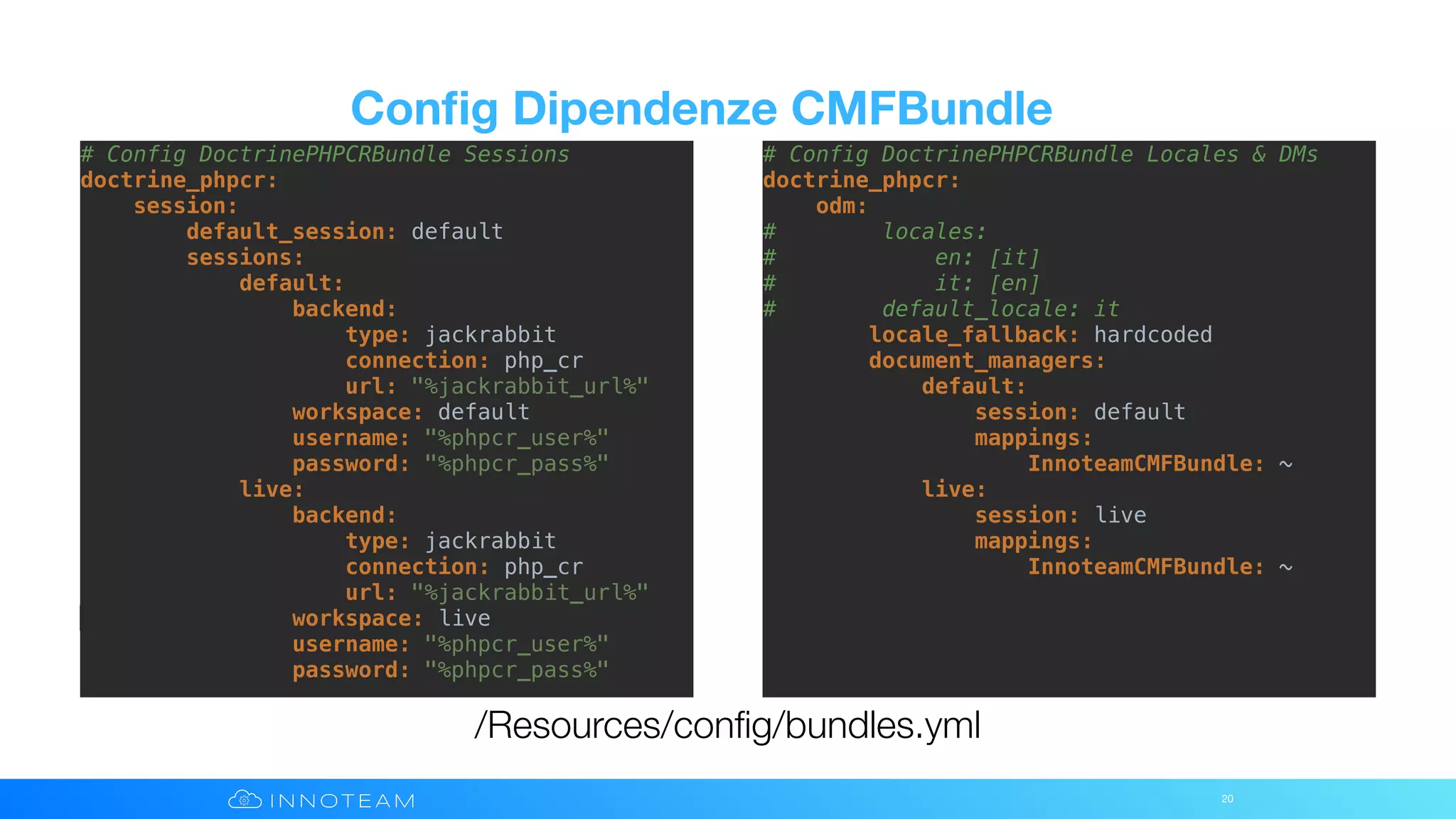

20. Config Dipendenze CMFBundle
20
/Resources/config/bundles.yml
# Config DoctrinePHPCRBundle Sessions
doctrine_phpcr:
session:
default_session: default
sessions:
default:
backend:
type: jackrabbit
connection: php_cr
url: "%jackrabbit_url%"
workspace: default
username: "%phpcr_user%"
password: "%phpcr_pass%"
live:
backend:
type: jackrabbit
connection: php_cr
url: "%jackrabbit_url%"
workspace: live
username: "%phpcr_user%"
password: "%phpcr_pass%"
# Config DoctrinePHPCRBundle Locales & DMs
doctrine_phpcr:
odm:
# locales:
# en: [it]
# it: [en]
# default_locale: it
locale_fallback: hardcoded
document_managers:
default:
session: default
mappings:
InnoteamCMFBundle: ~
live:
session: live
mappings:
InnoteamCMFBundle: ~

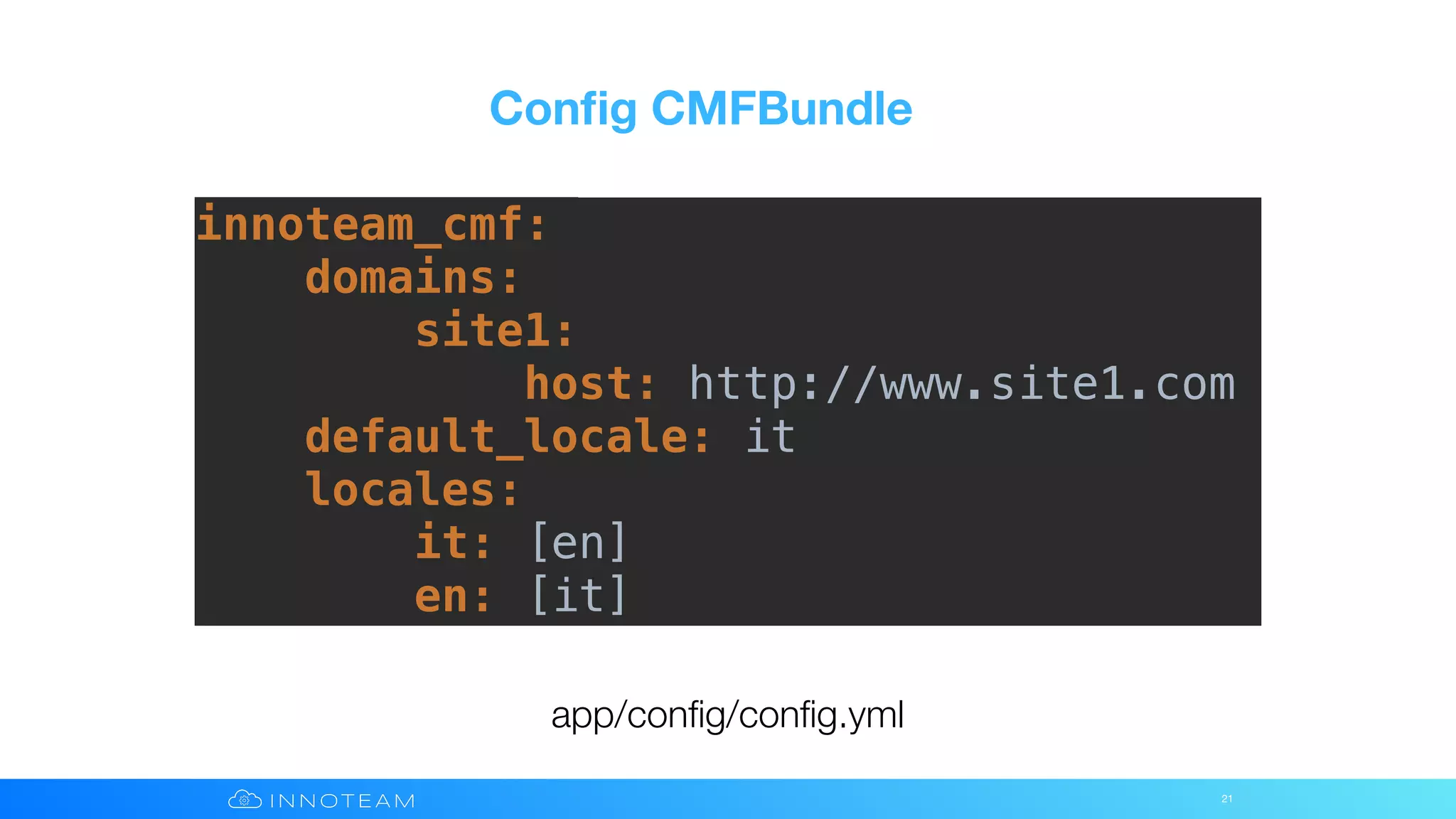

21. Config CMFBundle
21
app/config/config.yml
innoteam_cmf:
domains:
site1:
host: http://www.site1.com
default_locale: it
locales:
it: [en]
en: [it]

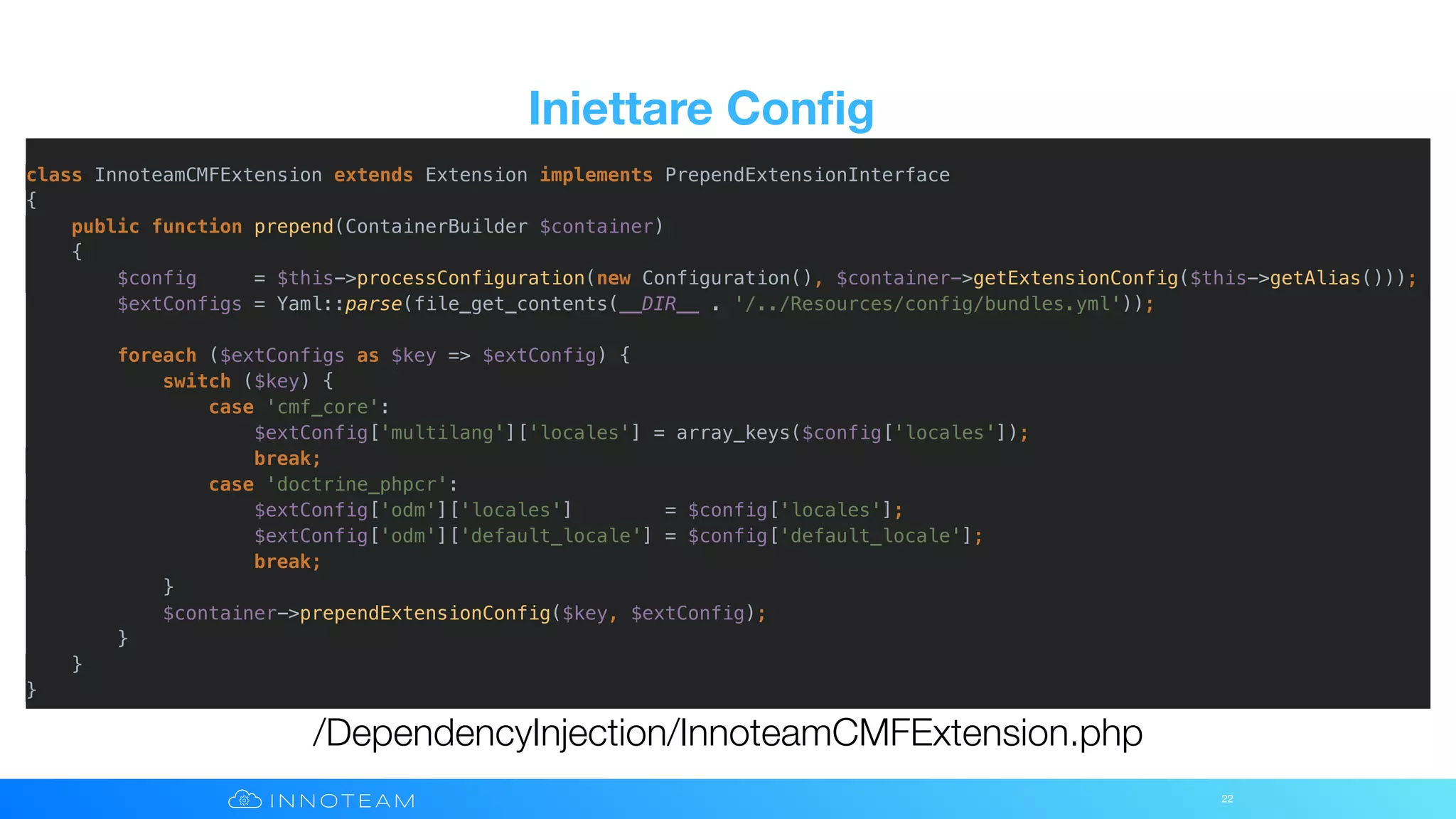

22. Iniettare Config
22
/DependencyInjection/InnoteamCMFExtension.php
class InnoteamCMFExtension extends Extension implements PrependExtensionInterface
{
public function prepend(ContainerBuilder $container)
{
$config = $this->processConfiguration(new Configuration(), $container->getExtensionConfig($this->getAlias()));
$extConfigs = Yaml::parse(file_get_contents(__DIR__ . '/../Resources/config/bundles.yml'));
foreach ($extConfigs as $key => $extConfig) {
switch ($key) {
case 'cmf_core':
$extConfig['multilang']['locales'] = array_keys($config['locales']);
break;
case 'doctrine_phpcr':
$extConfig['odm']['locales'] = $config['locales'];
$extConfig['odm']['default_locale'] = $config['default_locale'];
break;
}
$container->prependExtensionConfig($key, $extConfig);
}
}
}

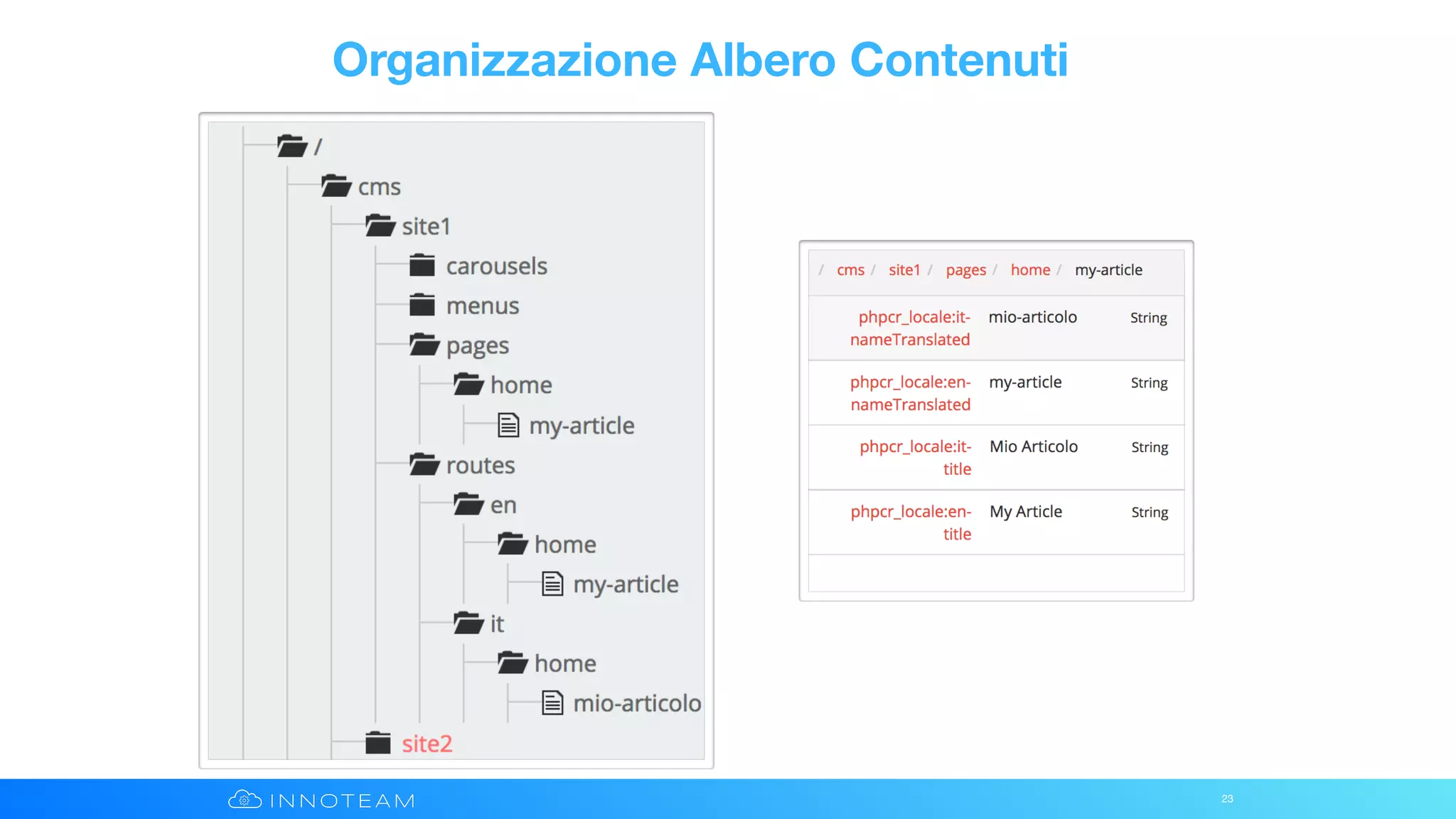

23. Organizzazione Albero Contenuti
23

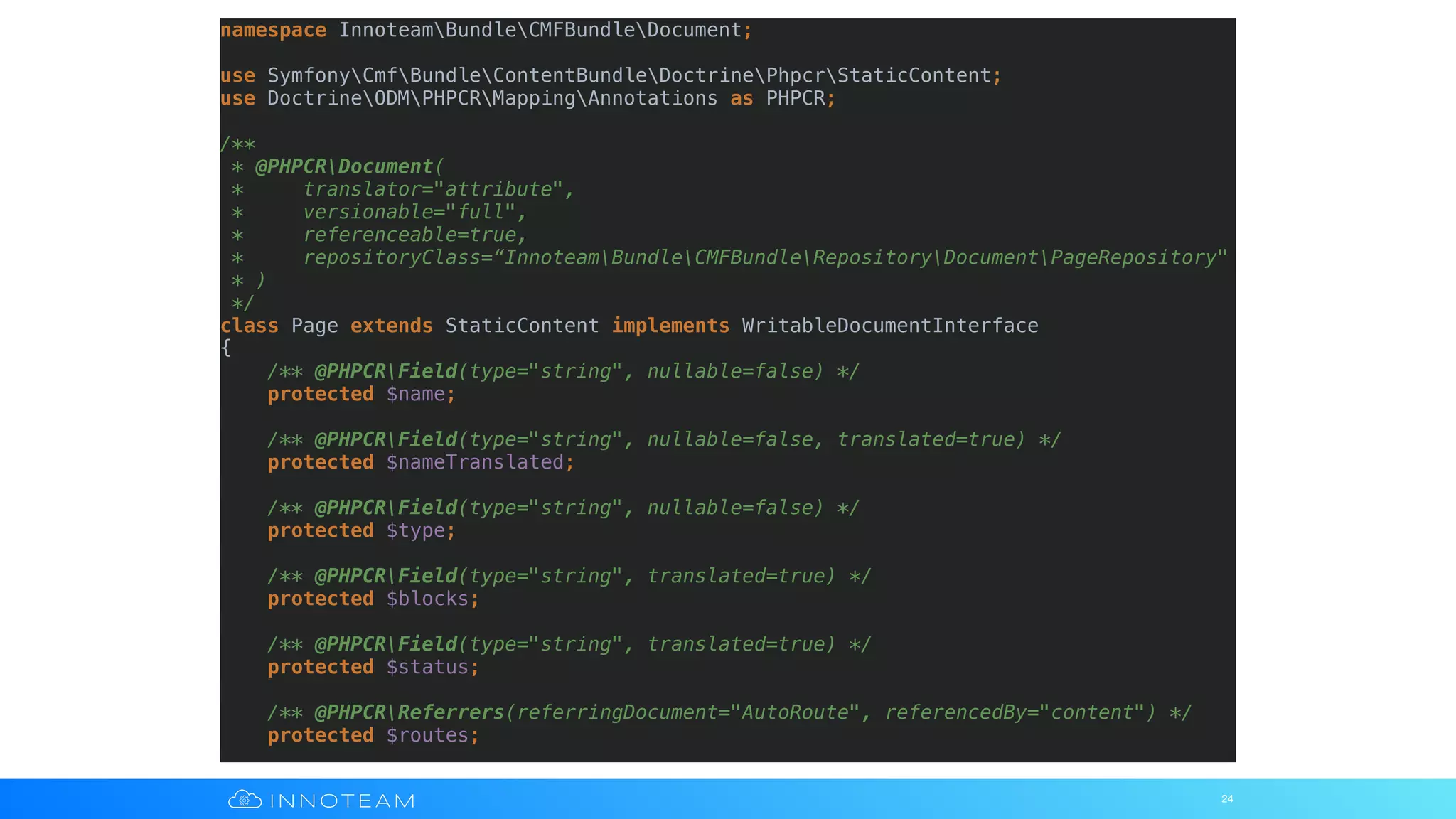

24. 24
namespace InnoteamBundleCMFBundleDocument;
use SymfonyCmfBundleContentBundleDoctrinePhpcrStaticContent;
use DoctrineODMPHPCRMappingAnnotations as PHPCR;
/**
* @PHPCRDocument(
* translator="attribute",
* versionable="full",
* referenceable=true,
* repositoryClass=“InnoteamBundleCMFBundleRepositoryDocumentPageRepository"
* )
*/
class Page extends StaticContent implements WritableDocumentInterface
{
/** @PHPCRField(type="string", nullable=false) */
protected $name;
/** @PHPCRField(type="string", nullable=false, translated=true) */
protected $nameTranslated;
/** @PHPCRField(type="string", nullable=false) */
protected $type;
/** @PHPCRField(type="string", translated=true) */
protected $blocks;
/** @PHPCRField(type="string", translated=true) */
protected $status;
/** @PHPCRReferrers(referringDocument="AutoRoute", referencedBy="content") */
protected $routes;

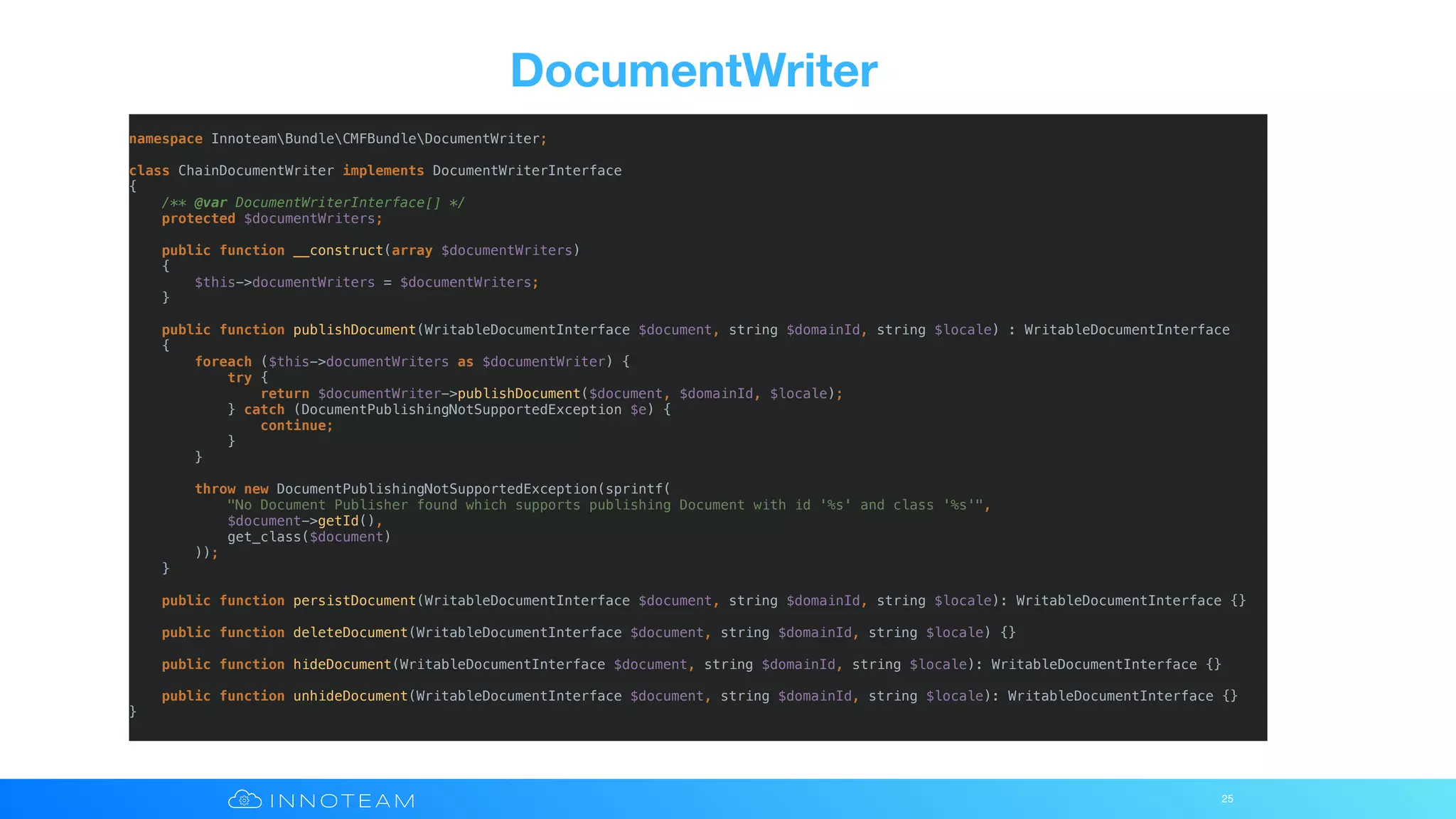

25. DocumentWriter
25
namespace InnoteamBundleCMFBundleDocumentWriter;
class ChainDocumentWriter implements DocumentWriterInterface
{
/** @var DocumentWriterInterface[] */
protected $documentWriters;
public function __construct(array $documentWriters)
{
$this->documentWriters = $documentWriters;
}
public function publishDocument(WritableDocumentInterface $document, string $domainId, string $locale) : WritableDocumentInterface
{
foreach ($this->documentWriters as $documentWriter) {
try {
return $documentWriter->publishDocument($document, $domainId, $locale);
} catch (DocumentPublishingNotSupportedException $e) {
continue;
}
}
throw new DocumentPublishingNotSupportedException(sprintf(
"No Document Publisher found which supports publishing Document with id '%s' and class '%s'",
$document->getId(),
get_class($document)
));
}
public function persistDocument(WritableDocumentInterface $document, string $domainId, string $locale): WritableDocumentInterface {}
public function deleteDocument(WritableDocumentInterface $document, string $domainId, string $locale) {}
public function hideDocument(WritableDocumentInterface $document, string $domainId, string $locale): WritableDocumentInterface {}
public function unhideDocument(WritableDocumentInterface $document, string $domainId, string $locale): WritableDocumentInterface {}
}

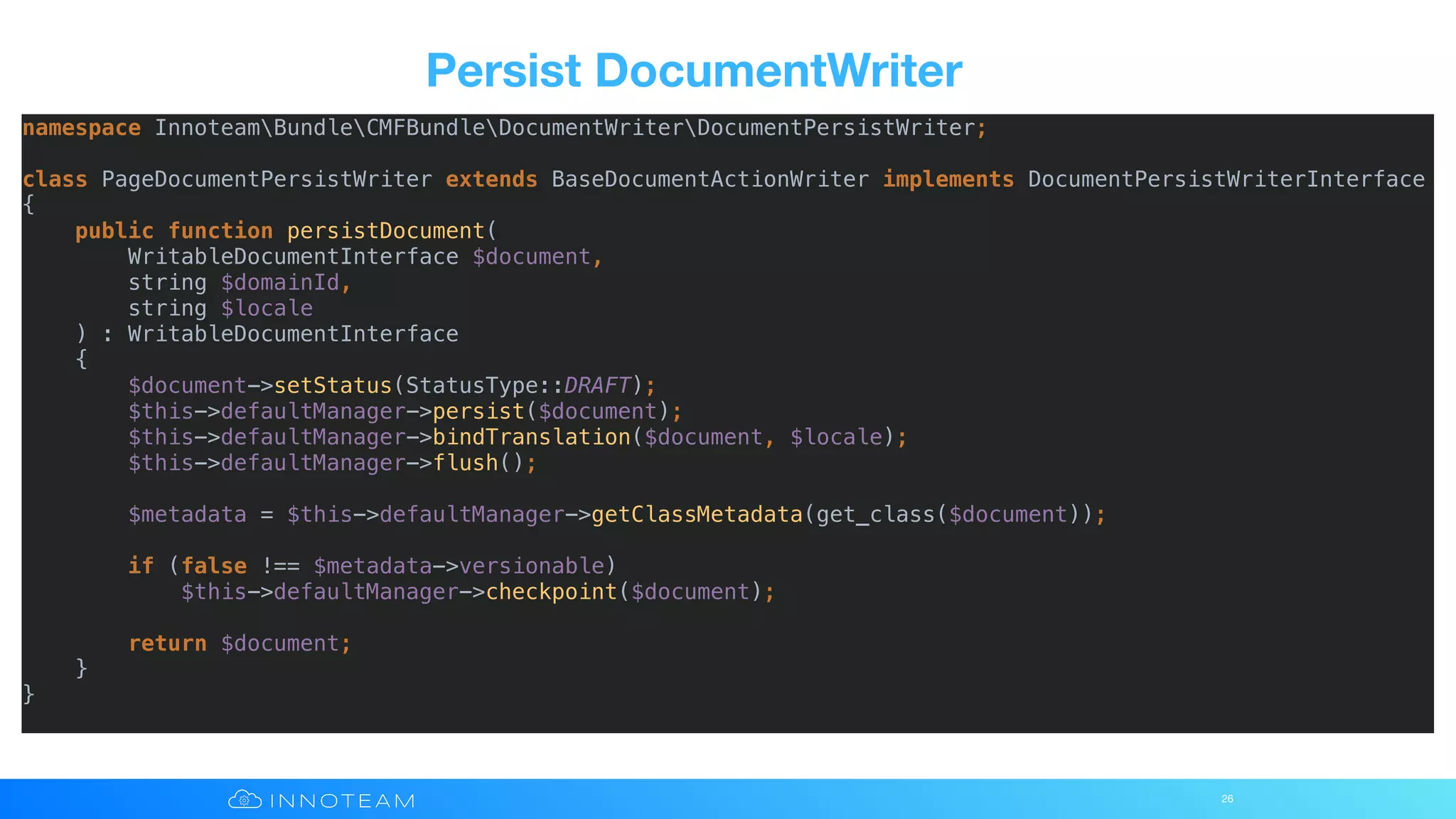

26. Persist DocumentWriter
26
namespace InnoteamBundleCMFBundleDocumentWriterDocumentPersistWriter;
class PageDocumentPersistWriter extends BaseDocumentActionWriter implements DocumentPersistWriterInterface
{
public function persistDocument(
WritableDocumentInterface $document,
string $domainId,
string $locale
) : WritableDocumentInterface
{
$document->setStatus(StatusType::DRAFT);
$this->defaultManager->persist($document);
$this->defaultManager->bindTranslation($document, $locale);
$this->defaultManager->flush();
$metadata = $this->defaultManager->getClassMetadata(get_class($document));
if (false !== $metadata->versionable)
$this->defaultManager->checkpoint($document);
return $document;
}
}

27. API Platform
27

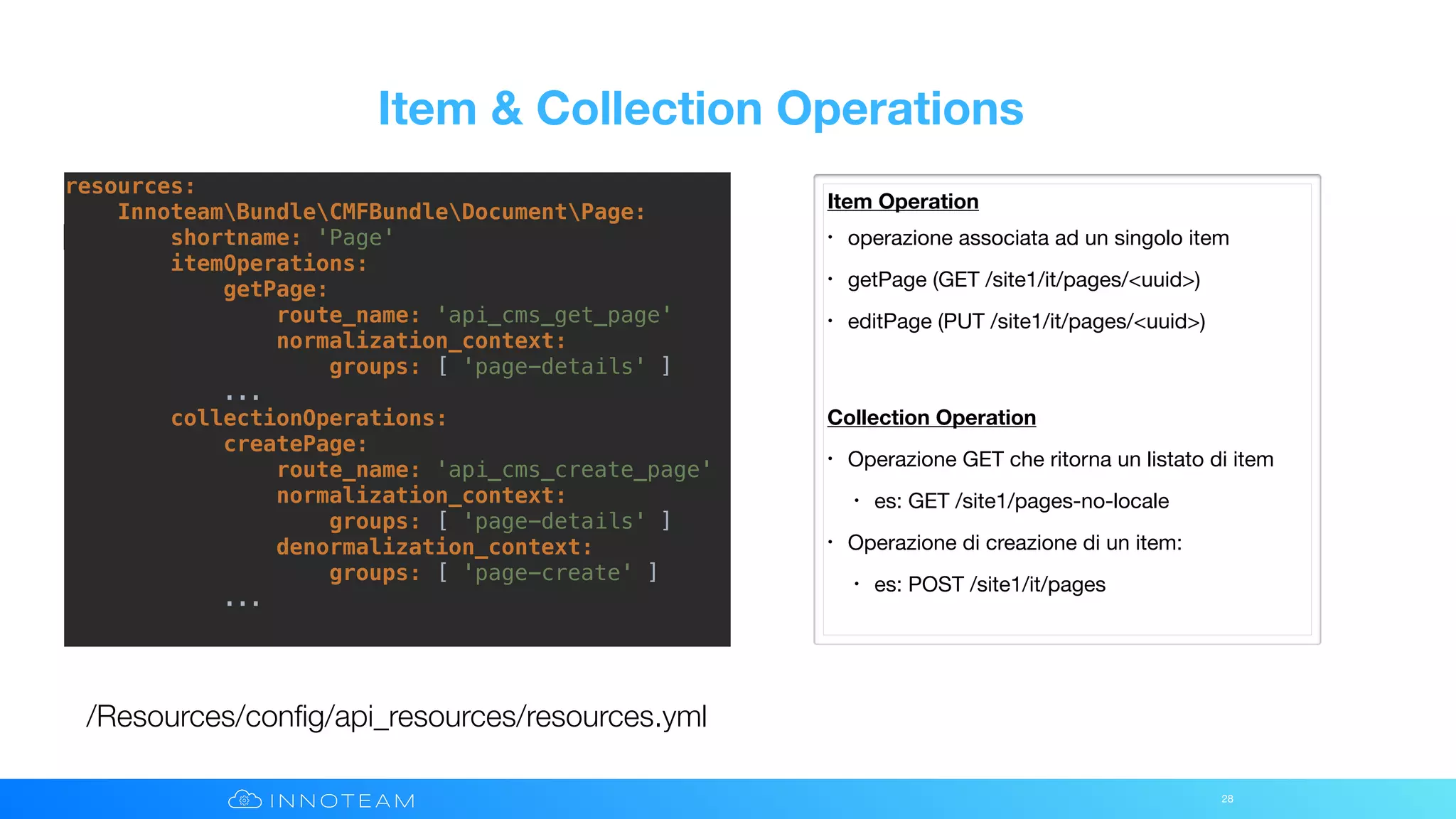

28. Item & Collection Operations
28
/Resources/config/api_resources/resources.yml
Item Operation
• operazione associata ad un singolo item
• getPage (GET /site1/it/pages/<uuid>)
• editPage (PUT /site1/it/pages/<uuid>)
Collection Operation
• Operazione GET che ritorna un listato di item
• es: GET /site1/pages-no-locale
• Operazione di creazione di un item:
• es: POST /site1/it/pages
resources:
InnoteamBundleCMFBundleDocumentPage:
shortname: 'Page'
itemOperations:
getPage:
route_name: 'api_cms_get_page'
normalization_context:
groups: [ 'page-details' ]
...
collectionOperations:
createPage:
route_name: 'api_cms_create_page'
normalization_context:
groups: [ 'page-details' ]
denormalization_context:
groups: [ 'page-create' ]
...

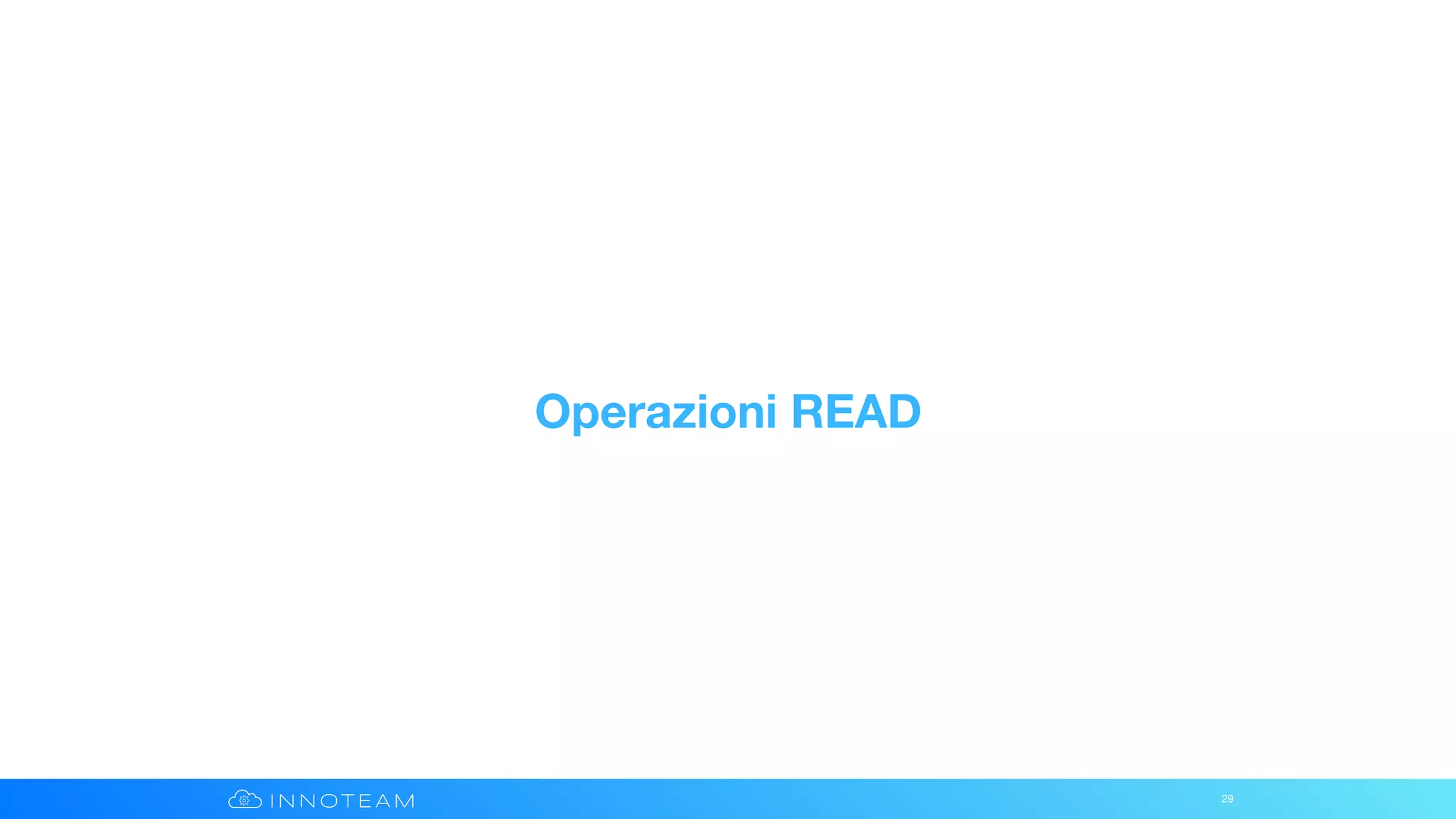

29. Operazioni READ
29

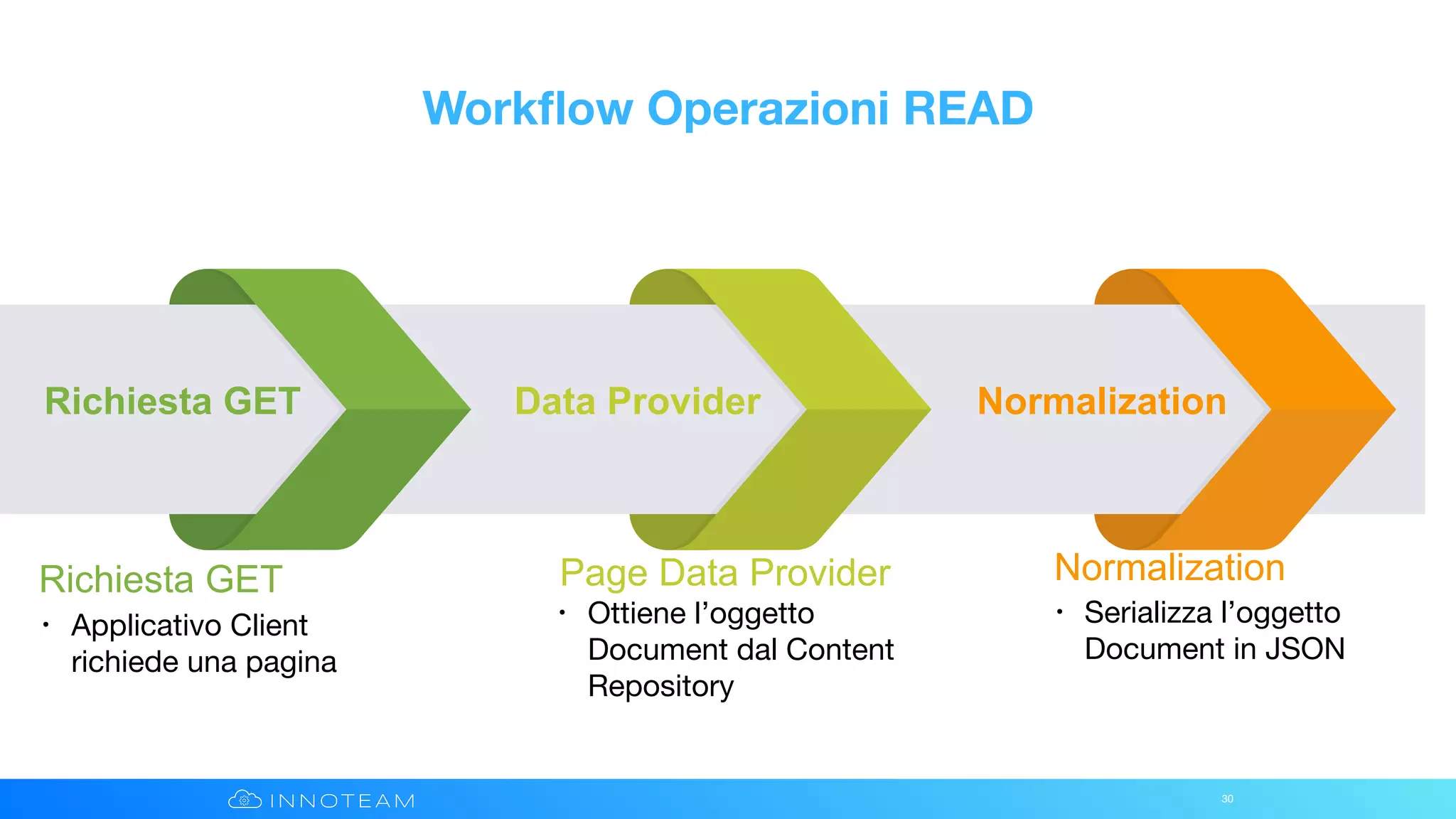

30. 30
Richiesta GET Data Provider Normalization
Richiesta GET Page Data Provider Normalization
• Applicativo Client
richiede una pagina
• Ottiene l’oggetto
Document dal Content
Repository
• Serializza l’oggetto
Document in JSON
Workflow Operazioni READ

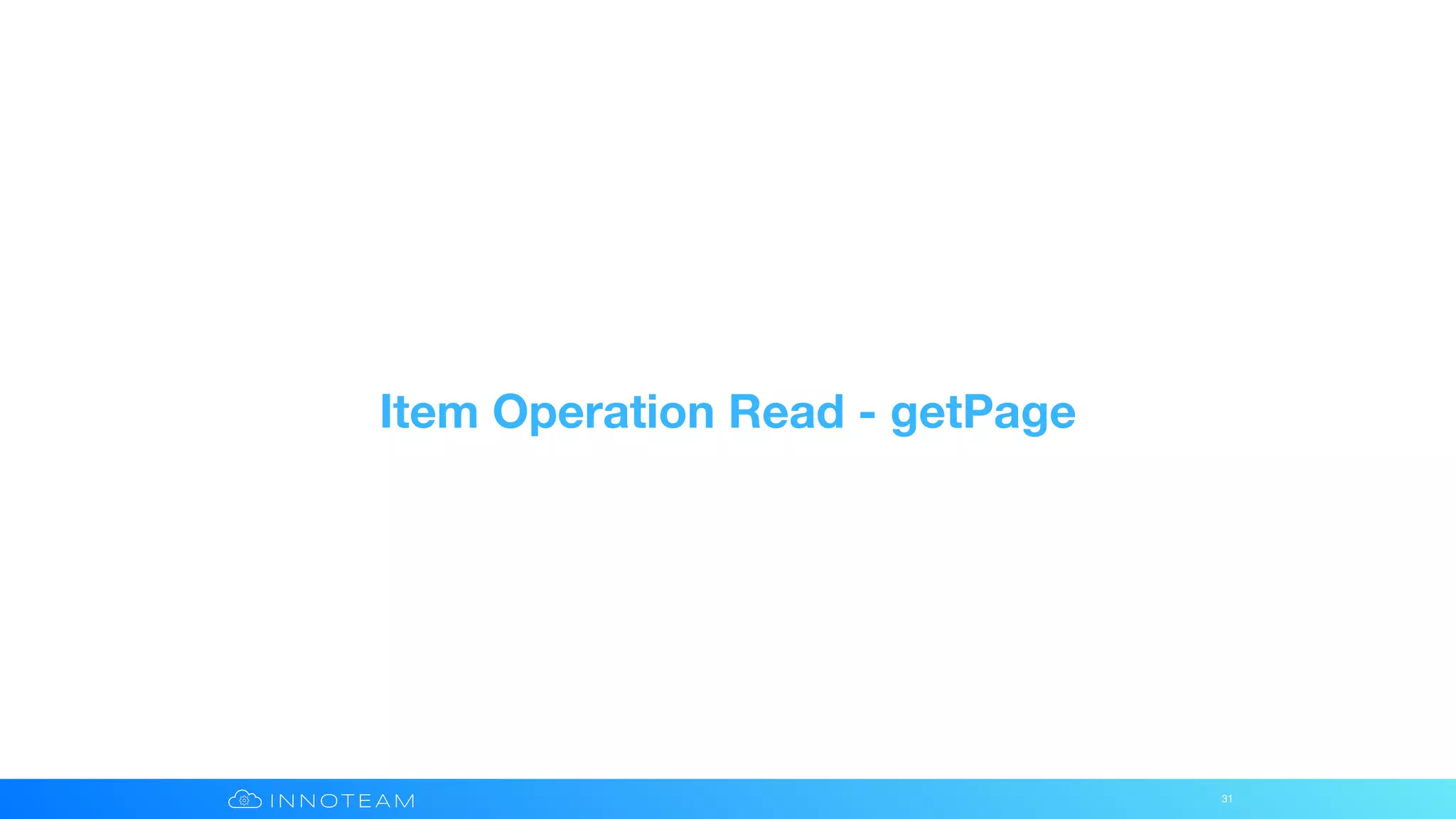

31. Item Operation Read - getPage
31

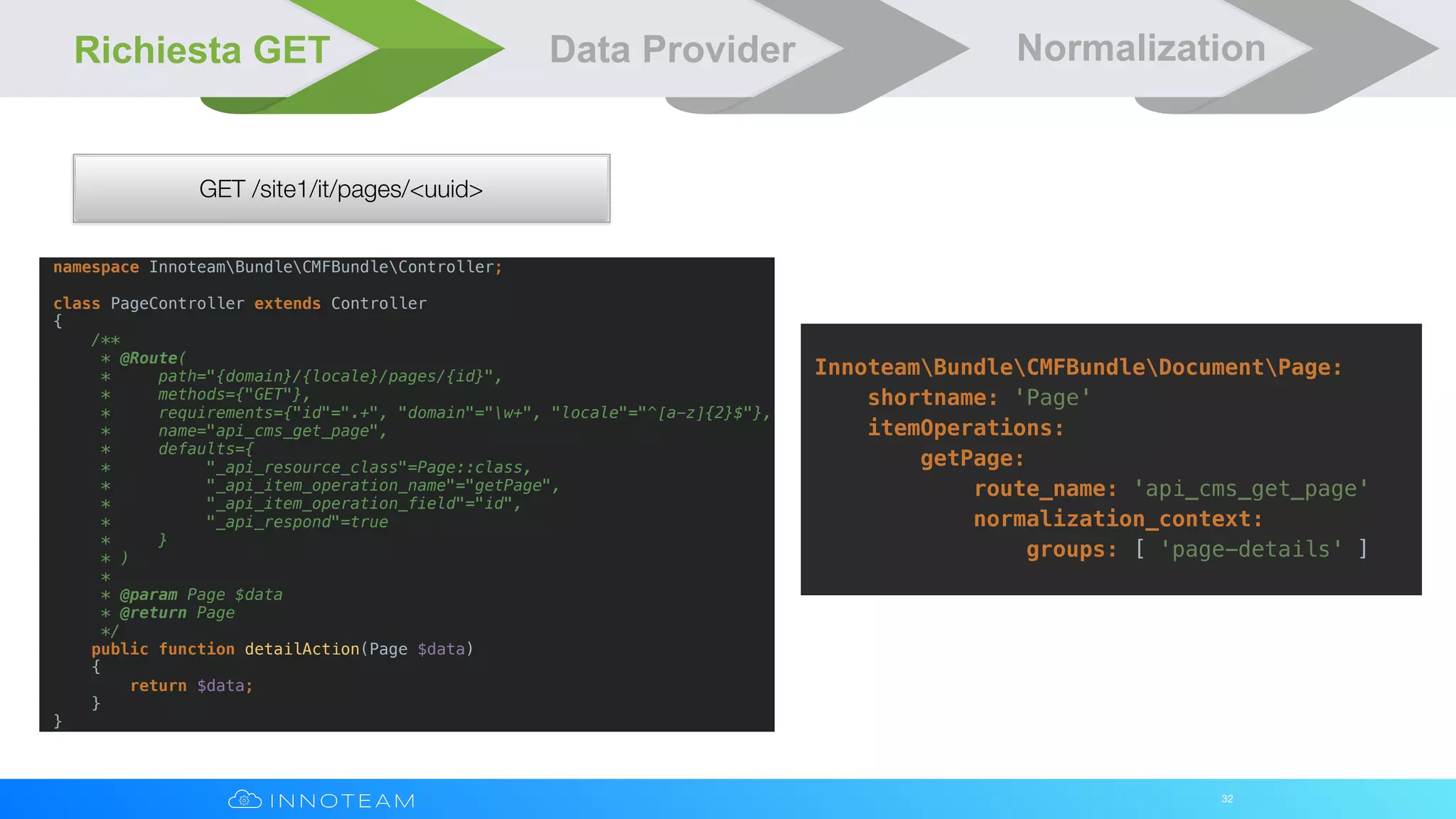

32. 32
GET /site1/it/pages/<uuid>
Richiesta GET Data Provider Normalization

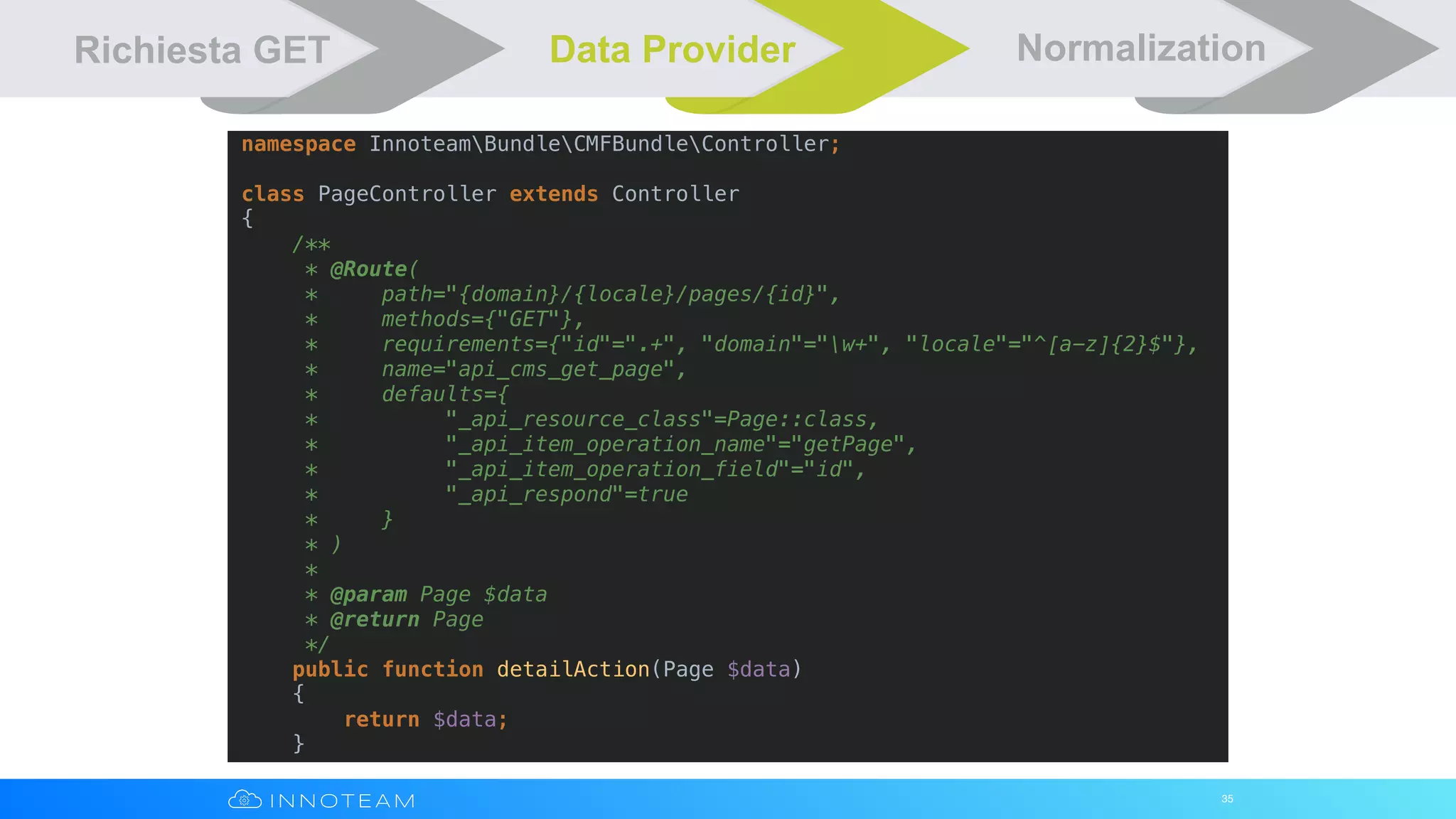

namespace InnoteamBundleCMFBundleController;
class PageController extends Controller
{
/**
* @Route(
* path="{domain}/{locale}/pages/{id}",
* methods={"GET"},
* requirements={"id"=".+", "domain"="w+", "locale"="^[a-z]{2}$"},
* name="api_cms_get_page",
* defaults={
* "_api_resource_class"=Page::class,
* "_api_item_operation_name"="getPage",
* "_api_item_operation_field"="id",
* "_api_respond"=true
* }
* )
*
* @param Page $data
* @return Page
*/
public function detailAction(Page $data)
{
return $data;
}
}
InnoteamBundleCMFBundleDocumentPage:
shortname: 'Page'
itemOperations:
getPage:
route_name: 'api_cms_get_page'
normalization_context:
groups: [ 'page-details' ]

33. 33

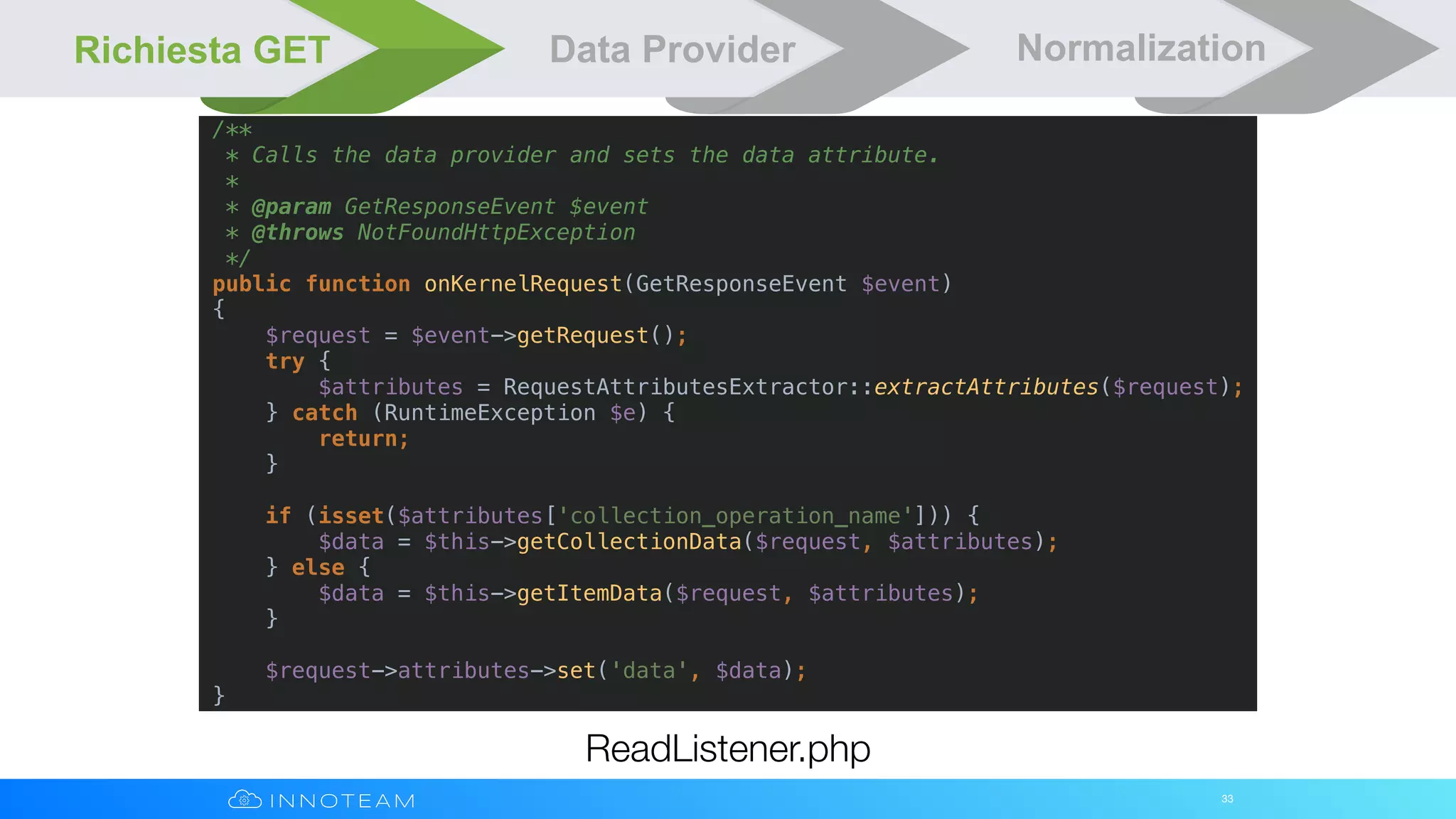

ReadListener.php
Richiesta GET Data Provider Normalization
/**
* Calls the data provider and sets the data attribute.
*
* @param GetResponseEvent $event
* @throws NotFoundHttpException
*/
public function onKernelRequest(GetResponseEvent $event)
{
$request = $event->getRequest();
try {
$attributes = RequestAttributesExtractor::extractAttributes($request);
} catch (RuntimeException $e) {
return;
}
if (isset($attributes['collection_operation_name'])) {
$data = $this->getCollectionData($request, $attributes);
} else {
$data = $this->getItemData($request, $attributes);
}
$request->attributes->set('data', $data);
}

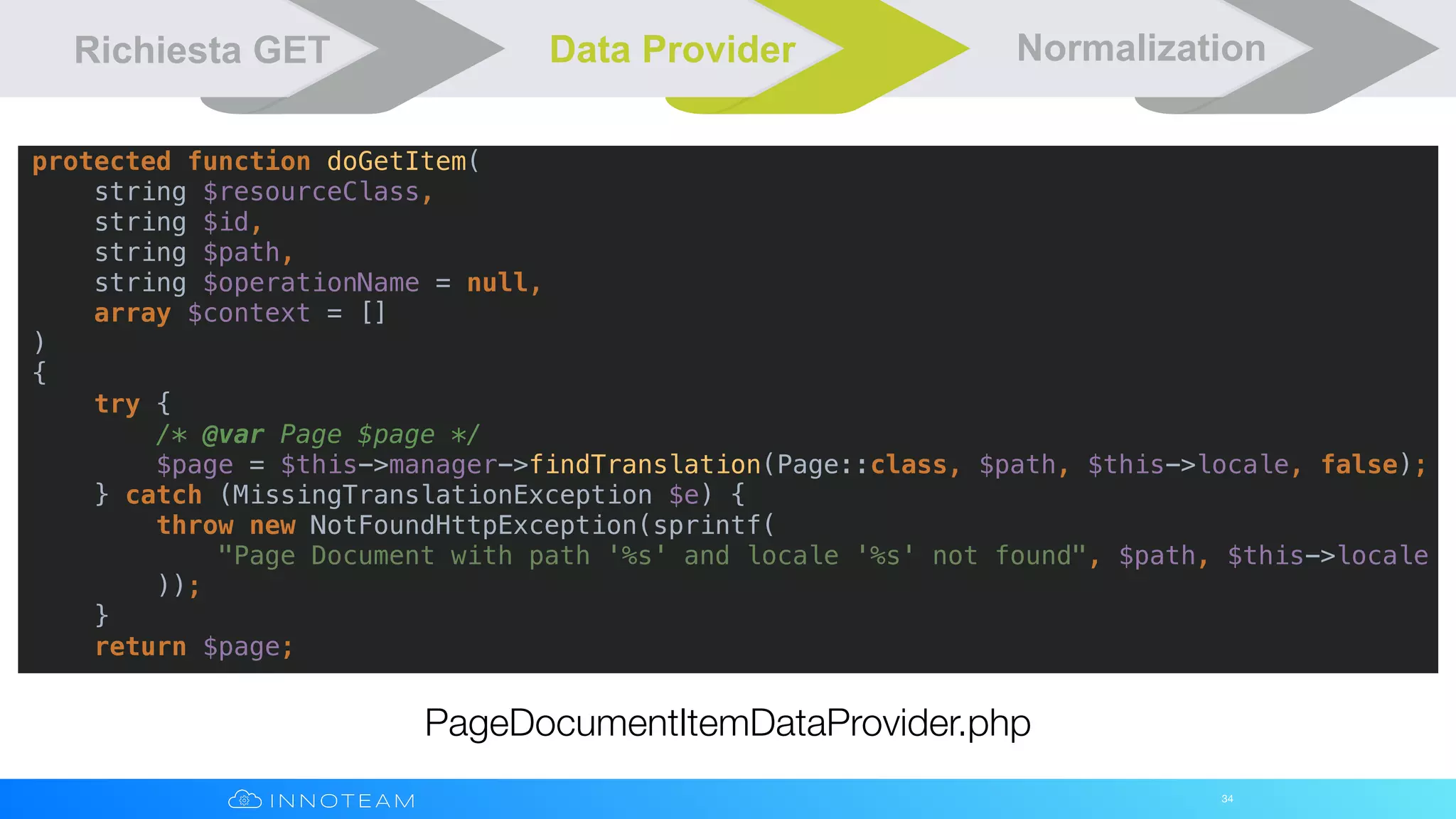

34. 34
Richiesta GET Data Provider Normalization
PageDocumentItemDataProvider.php
protected function doGetItem(
string $resourceClass,
string $id,
string $path,
string $operationName = null,
array $context = []
)
{
try {
/* @var Page $page */
$page = $this->manager->findTranslation(Page::class, $path, $this->locale, false);
} catch (MissingTranslationException $e) {
throw new NotFoundHttpException(sprintf(
"Page Document with path '%s' and locale '%s' not found", $path, $this->locale
));
}
return $page;

35. 35
Richiesta GET Data Provider Normalization
namespace InnoteamBundleCMFBundleController;
class PageController extends Controller
{
/**
* @Route(
* path="{domain}/{locale}/pages/{id}",
* methods={"GET"},
* requirements={"id"=".+", "domain"="w+", "locale"="^[a-z]{2}$"},
* name="api_cms_get_page",
* defaults={
* "_api_resource_class"=Page::class,
* "_api_item_operation_name"="getPage",
* "_api_item_operation_field"="id",
* "_api_respond"=true
* }
* )
*
* @param Page $data
* @return Page
*/
public function detailAction(Page $data)
{
return $data;
}

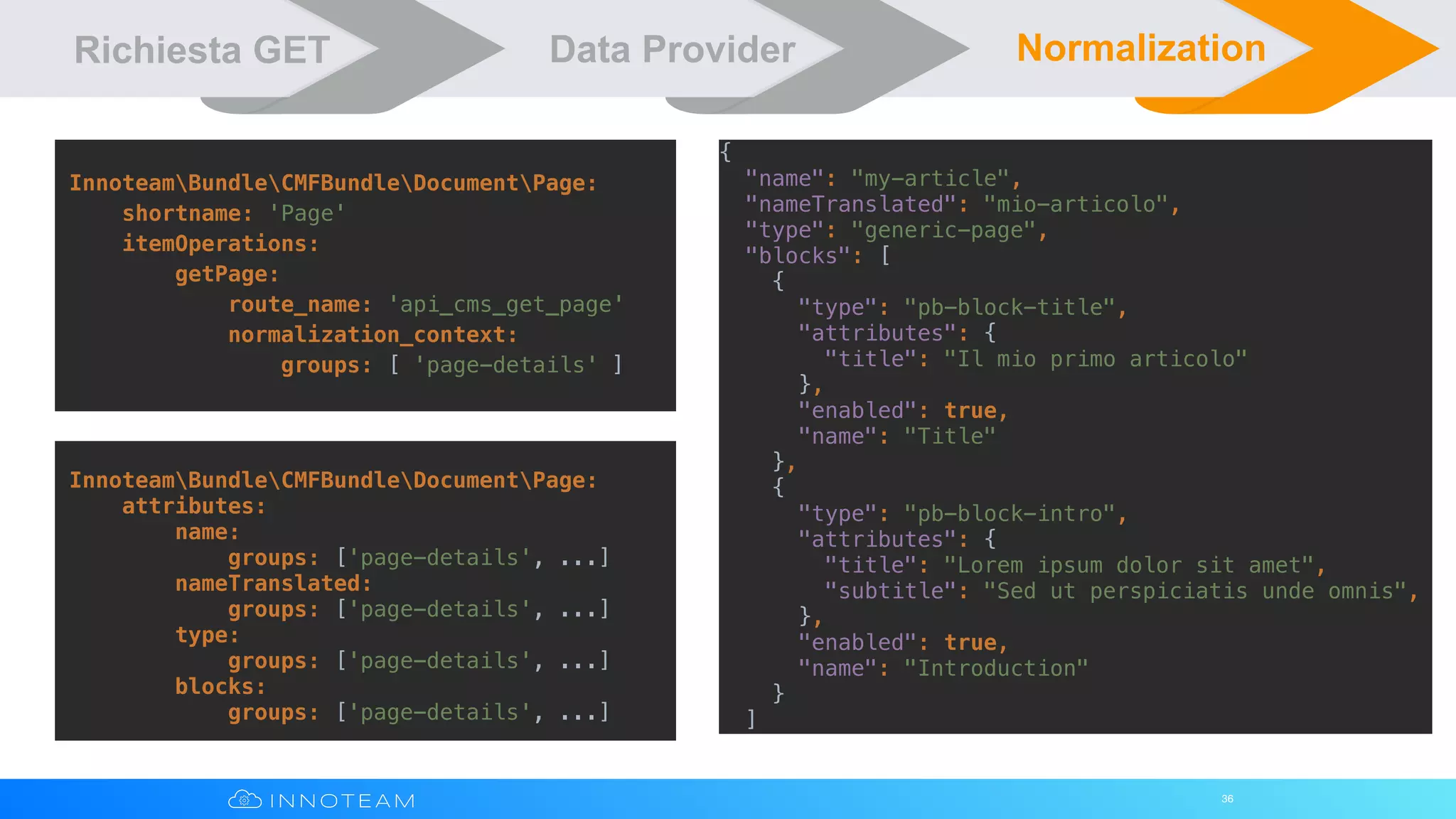

36. 36
Richiesta GET Data Provider Normalization
InnoteamBundleCMFBundleDocumentPage:
shortname: 'Page'
itemOperations:
getPage:
route_name: 'api_cms_get_page'
normalization_context:
groups: [ 'page-details' ]
InnoteamBundleCMFBundleDocumentPage:
attributes:
name:
groups: ['page-details', ...]
nameTranslated:
groups: ['page-details', ...]
type:
groups: ['page-details', ...]
blocks:
groups: ['page-details', ...]
{
"name": "my-article",
"nameTranslated": "mio-articolo",
"type": "generic-page",
"blocks": [
{
"type": "pb-block-title",
"attributes": {
"title": "Il mio primo articolo"
},
"enabled": true,
"name": "Title"
},
{
"type": "pb-block-intro",
"attributes": {
"title": "Lorem ipsum dolor sit amet",
"subtitle": "Sed ut perspiciatis unde omnis",
},
"enabled": true,
"name": "Introduction"
}
]

37. OPERAZIONI WRITE
37

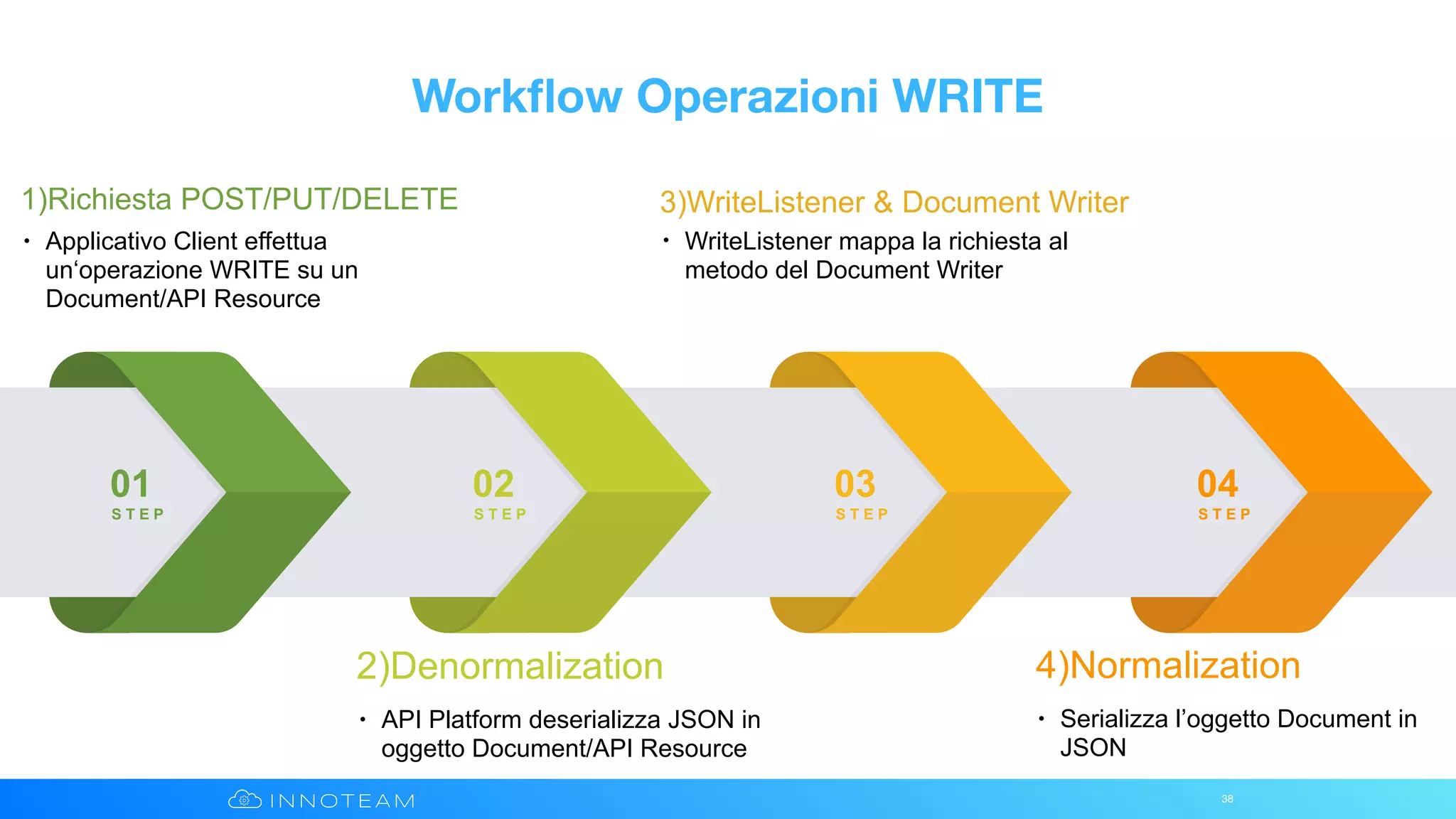

38. 38
01
S T E P
02
S T E P
03
S T E P
04
S T E P
Workflow Operazioni WRITE
1)Richiesta POST/PUT/DELETE
• Applicativo Client effettua
un‘operazione WRITE su un
Document/API Resource
2)Denormalization
• API Platform deserializza JSON in
oggetto Document/API Resource
3)WriteListener & Document Writer
• WriteListener mappa la richiesta al
metodo del Document Writer
4)Normalization
• Serializza l’oggetto Document in
JSON

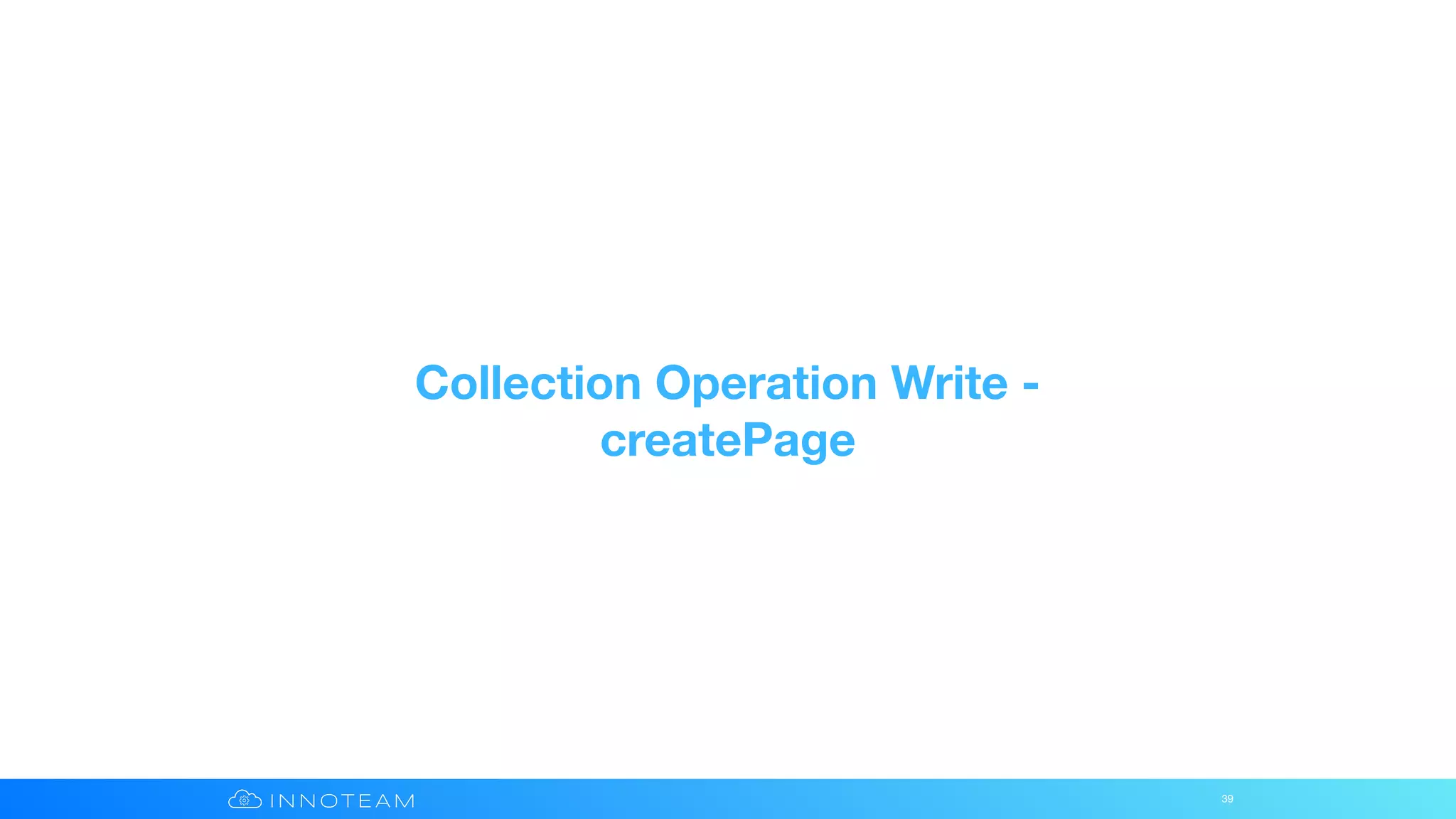

39. Collection Operation Write -
createPage
39

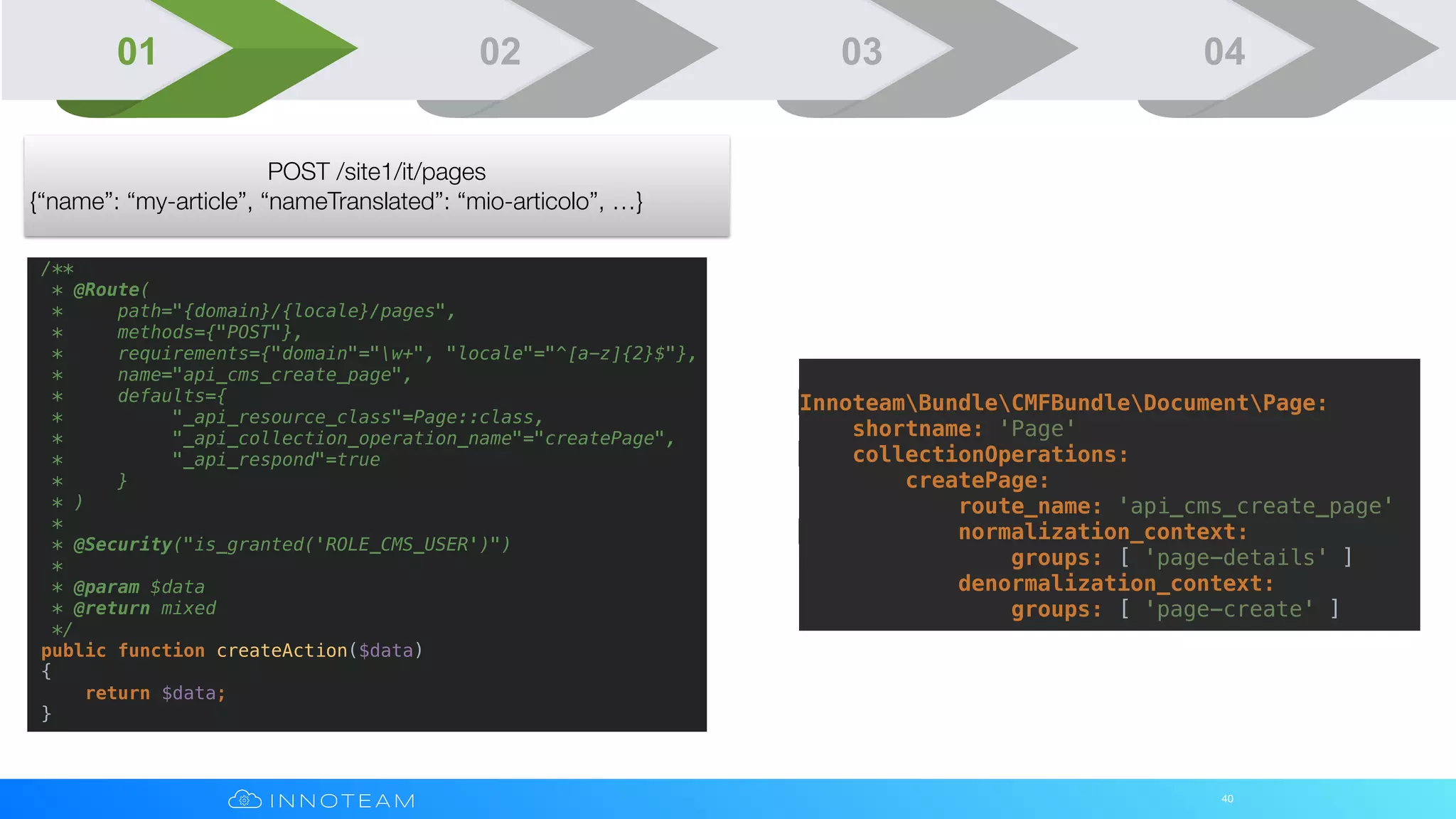

40. 40
POST /site1/it/pages
{“name”: “my-article”, “nameTranslated”: “mio-articolo”, …}
/**
* @Route(
* path="{domain}/{locale}/pages",
* methods={"POST"},
* requirements={"domain"="w+", "locale"="^[a-z]{2}$"},
* name="api_cms_create_page",
* defaults={
* "_api_resource_class"=Page::class,
* "_api_collection_operation_name"="createPage",
* "_api_respond"=true
* }
* )
*
* @Security("is_granted('ROLE_CMS_USER')")
*
* @param $data
* @return mixed
*/
public function createAction($data)
{
return $data;
}
InnoteamBundleCMFBundleDocumentPage:
shortname: 'Page'
collectionOperations:
createPage:
route_name: 'api_cms_create_page'
normalization_context:
groups: [ 'page-details' ]
denormalization_context:
groups: [ 'page-create' ]
01 02 03 04

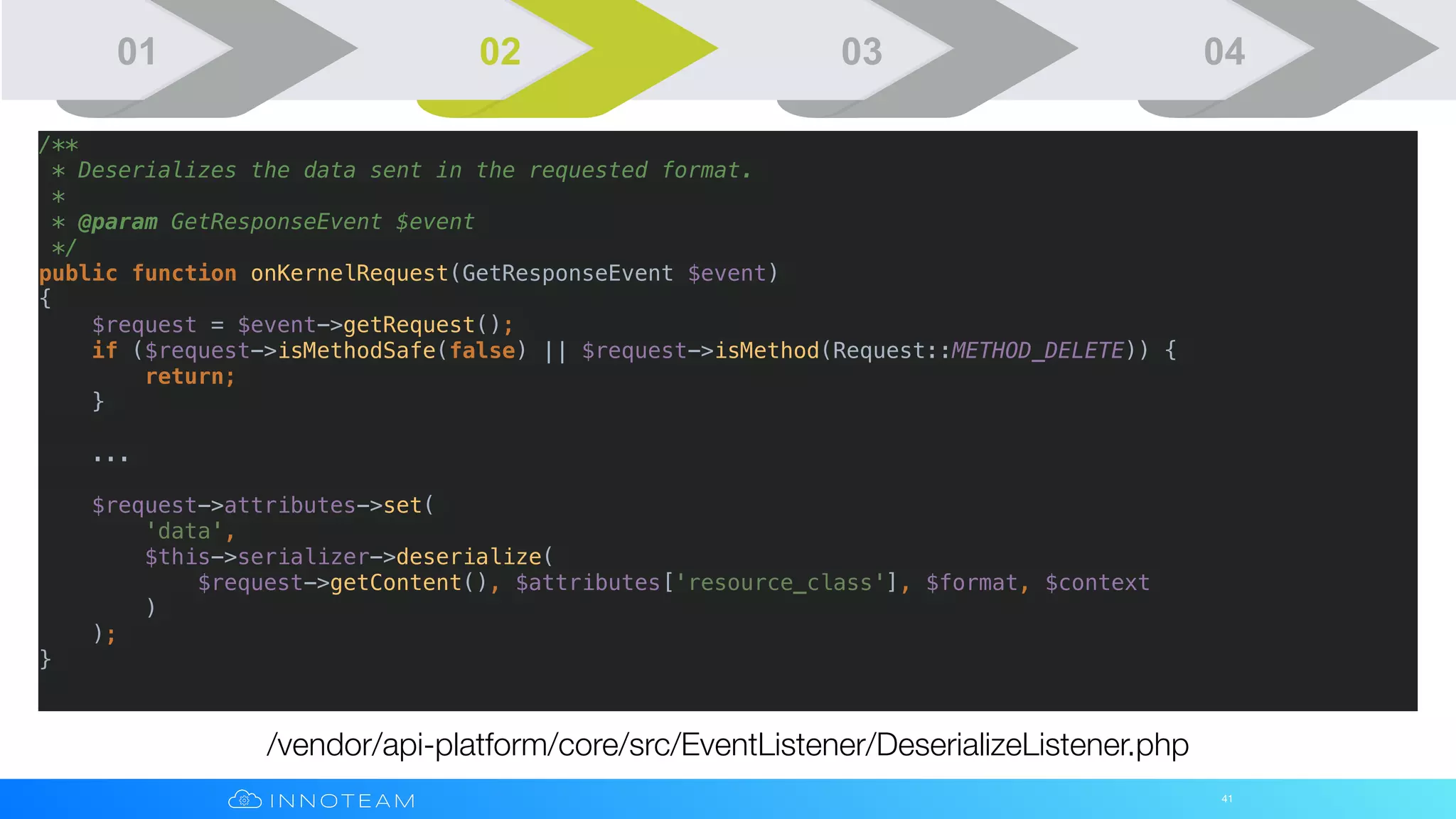

41. 41
/vendor/api-platform/core/src/EventListener/DeserializeListener.php
/**
* Deserializes the data sent in the requested format.
*
* @param GetResponseEvent $event
*/
public function onKernelRequest(GetResponseEvent $event)
{
$request = $event->getRequest();
if ($request->isMethodSafe(false) || $request->isMethod(Request::METHOD_DELETE)) {
return;
}
...
$request->attributes->set(
'data',
$this->serializer->deserialize(
$request->getContent(), $attributes['resource_class'], $format, $context
)
);
}
01 02 03 04

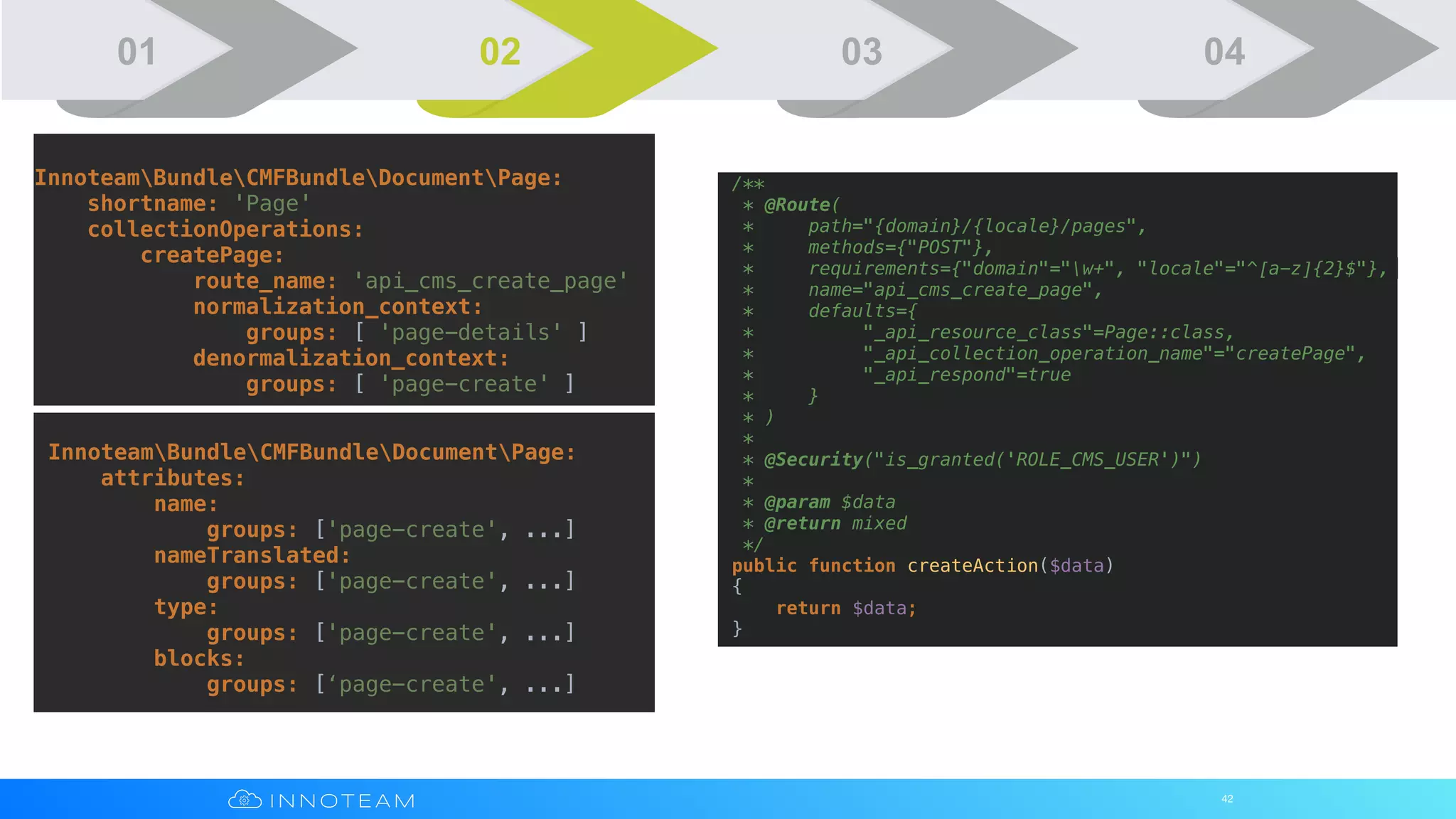

42. 42
InnoteamBundleCMFBundleDocumentPage:
shortname: 'Page'
collectionOperations:
createPage:
route_name: 'api_cms_create_page'
normalization_context:
groups: [ 'page-details' ]
denormalization_context:
groups: [ 'page-create' ]
InnoteamBundleCMFBundleDocumentPage:
attributes:
name:
groups: ['page-create', ...]
nameTranslated:
groups: ['page-create', ...]
type:
groups: ['page-create', ...]
blocks:
groups: [‘page-create', ...]
/**
* @Route(
* path="{domain}/{locale}/pages",
* methods={"POST"},
* requirements={"domain"="w+", "locale"="^[a-z]{2}$"},
* name="api_cms_create_page",
* defaults={
* "_api_resource_class"=Page::class,
* "_api_collection_operation_name"="createPage",
* "_api_respond"=true
* }
* )
*
* @Security("is_granted('ROLE_CMS_USER')")
*
* @param $data
* @return mixed
*/
public function createAction($data)
{
return $data;
}
01 02 03 04

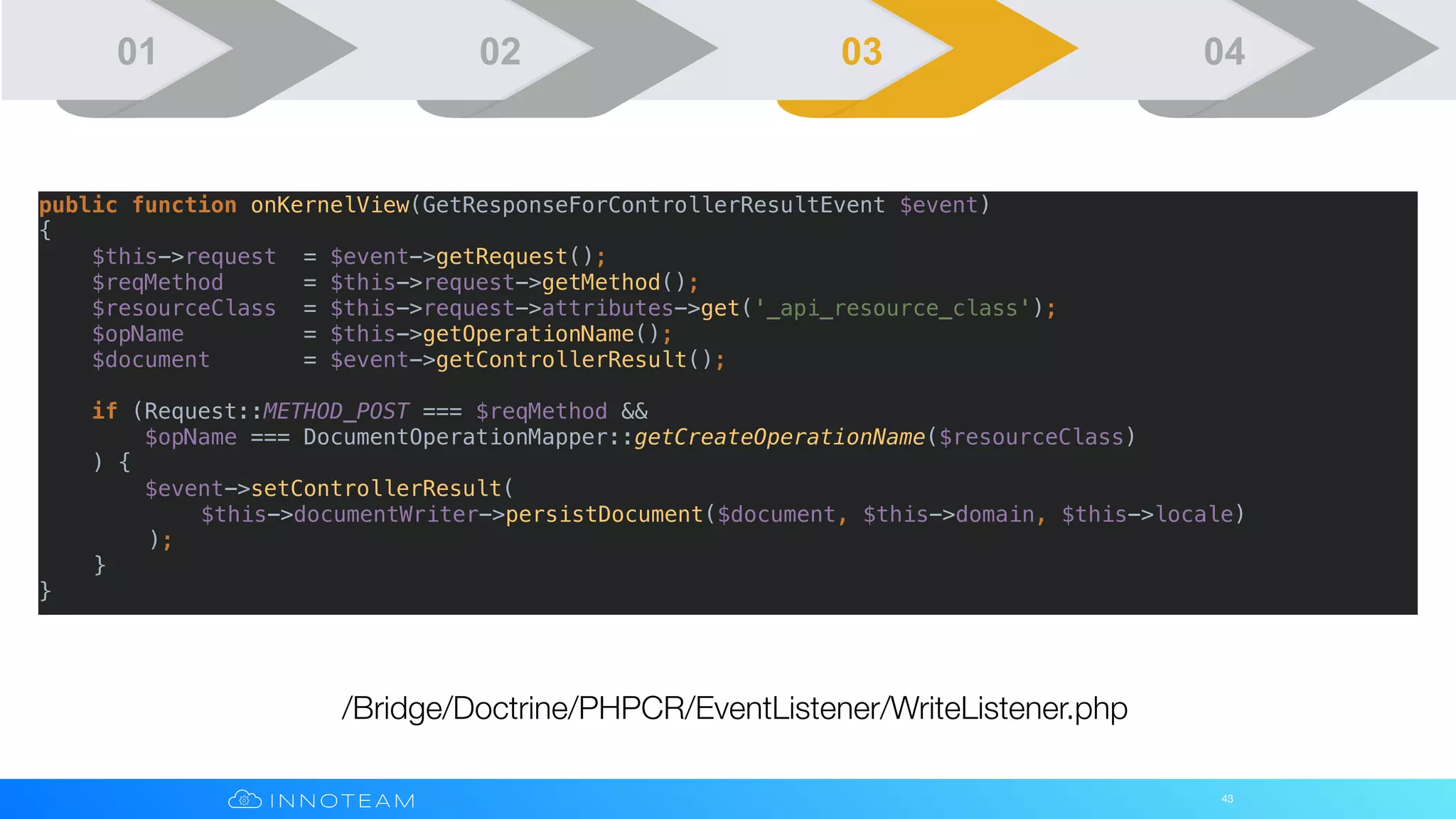

43. 43
public function onKernelView(GetResponseForControllerResultEvent $event)
{
$this->request = $event->getRequest();
$reqMethod = $this->request->getMethod();
$resourceClass = $this->request->attributes->get('_api_resource_class');
$opName = $this->getOperationName();
$document = $event->getControllerResult();
if (Request::METHOD_POST === $reqMethod &&
$opName === DocumentOperationMapper::getCreateOperationName($resourceClass)
) {
$event->setControllerResult(
$this->documentWriter->persistDocument($document, $this->domain, $this->locale)
);
}
}
/Bridge/Doctrine/PHPCR/EventListener/WriteListener.php
01 02 03 04

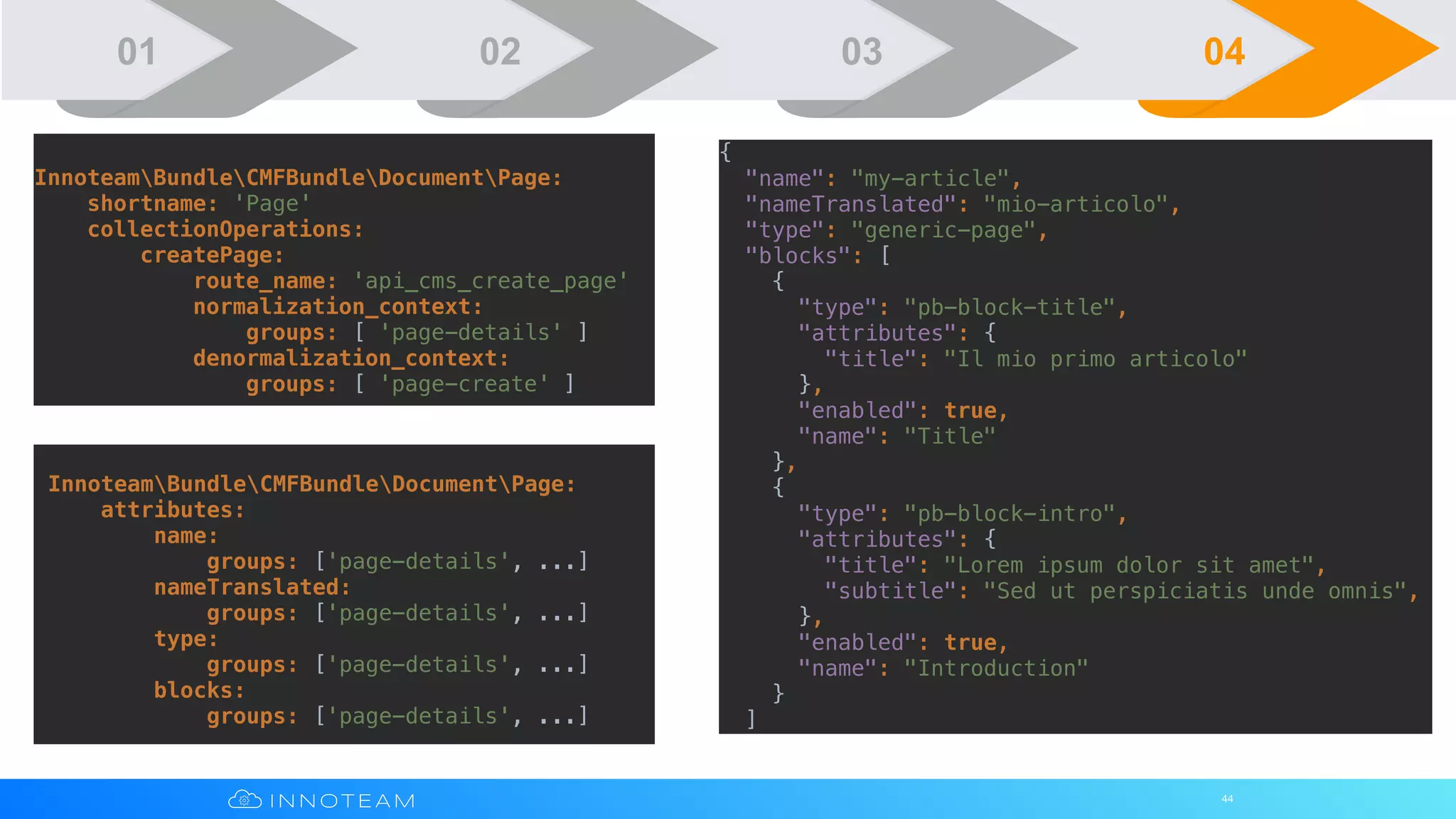

44. 44
InnoteamBundleCMFBundleDocumentPage:
shortname: 'Page'
collectionOperations:
createPage:
route_name: 'api_cms_create_page'
normalization_context:
groups: [ 'page-details' ]
denormalization_context:
groups: [ 'page-create' ]
InnoteamBundleCMFBundleDocumentPage:
attributes:
name:
groups: ['page-details', ...]
nameTranslated:
groups: ['page-details', ...]
type:
groups: ['page-details', ...]
blocks:
groups: ['page-details', ...]
{
"name": "my-article",
"nameTranslated": "mio-articolo",
"type": "generic-page",
"blocks": [
{
"type": "pb-block-title",
"attributes": {
"title": "Il mio primo articolo"
},
"enabled": true,
"name": "Title"
},
{
"type": "pb-block-intro",
"attributes": {
"title": "Lorem ipsum dolor sit amet",
"subtitle": "Sed ut perspiciatis unde omnis",
},
"enabled": true,
"name": "Introduction"
}
]
01 02 03 04

45. Grazie!
45
