1. The Naked Bundle
Matthias Noback
@matthiasnoback

2. What's it all about?

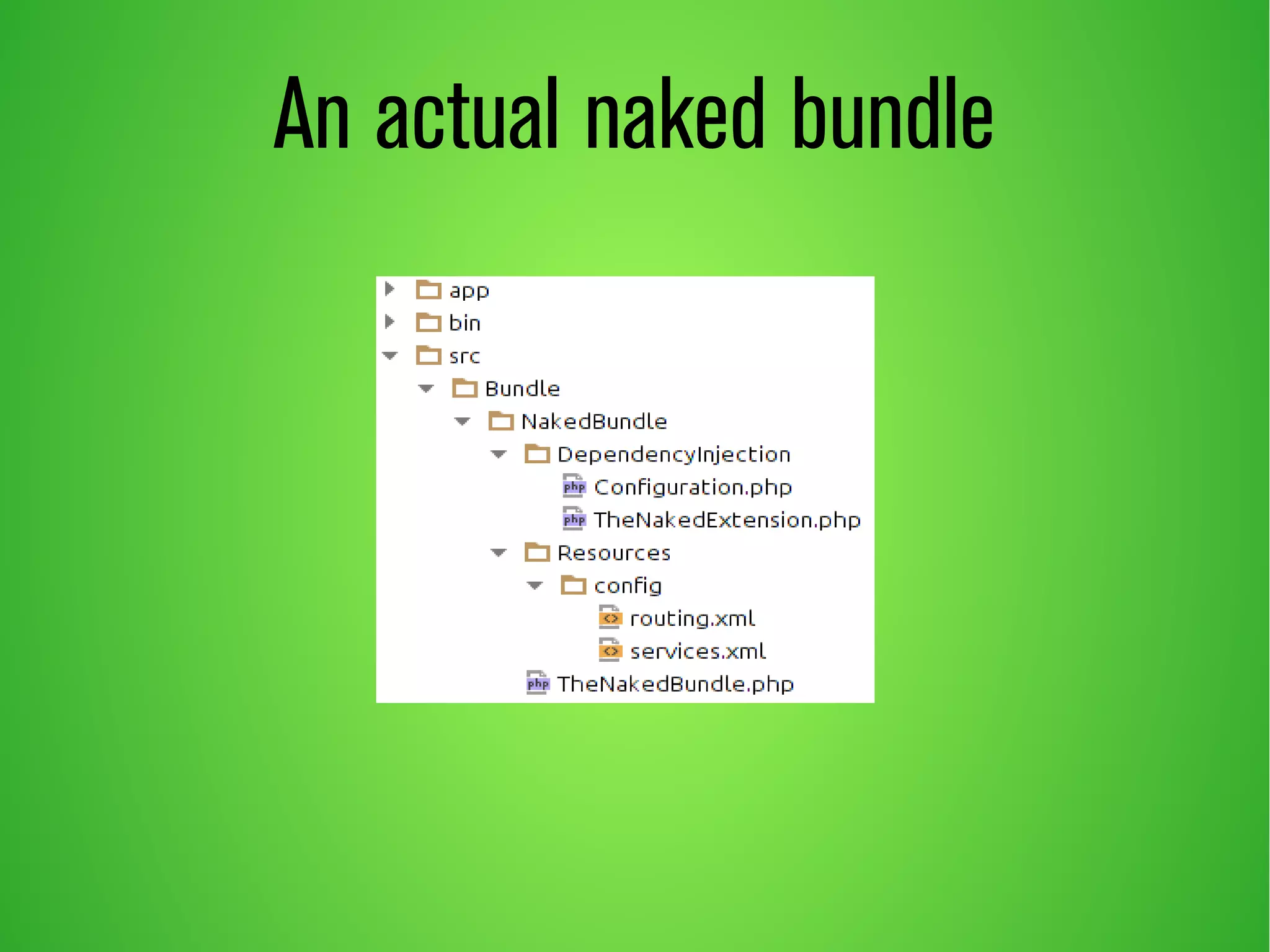

3. An actual naked bundle

4. I could've called it
BundleLitetm
The No Code Bundle
The Clean Bundle

5. But “naked” is catchy and controversial

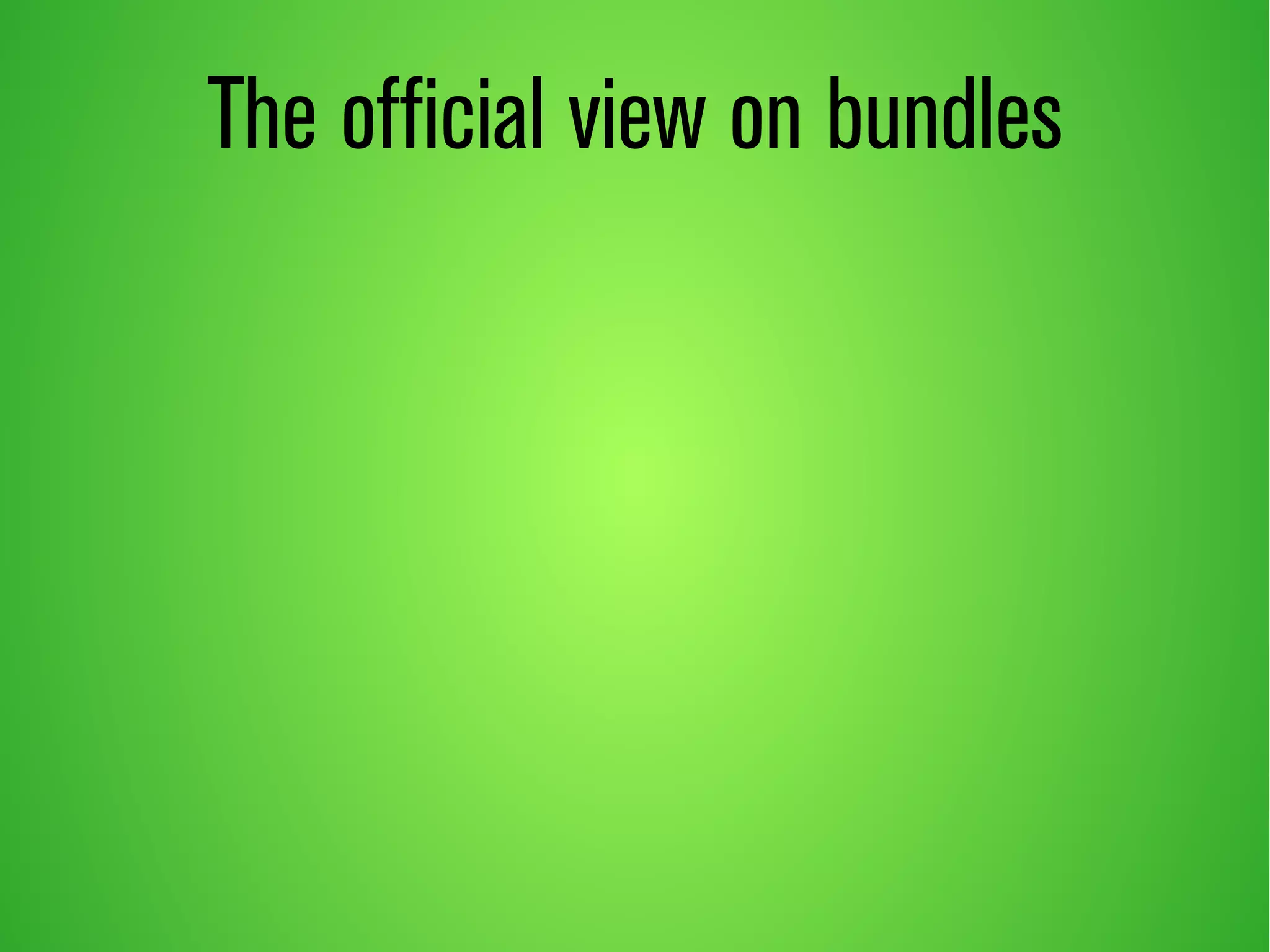

6. The official view on bundles

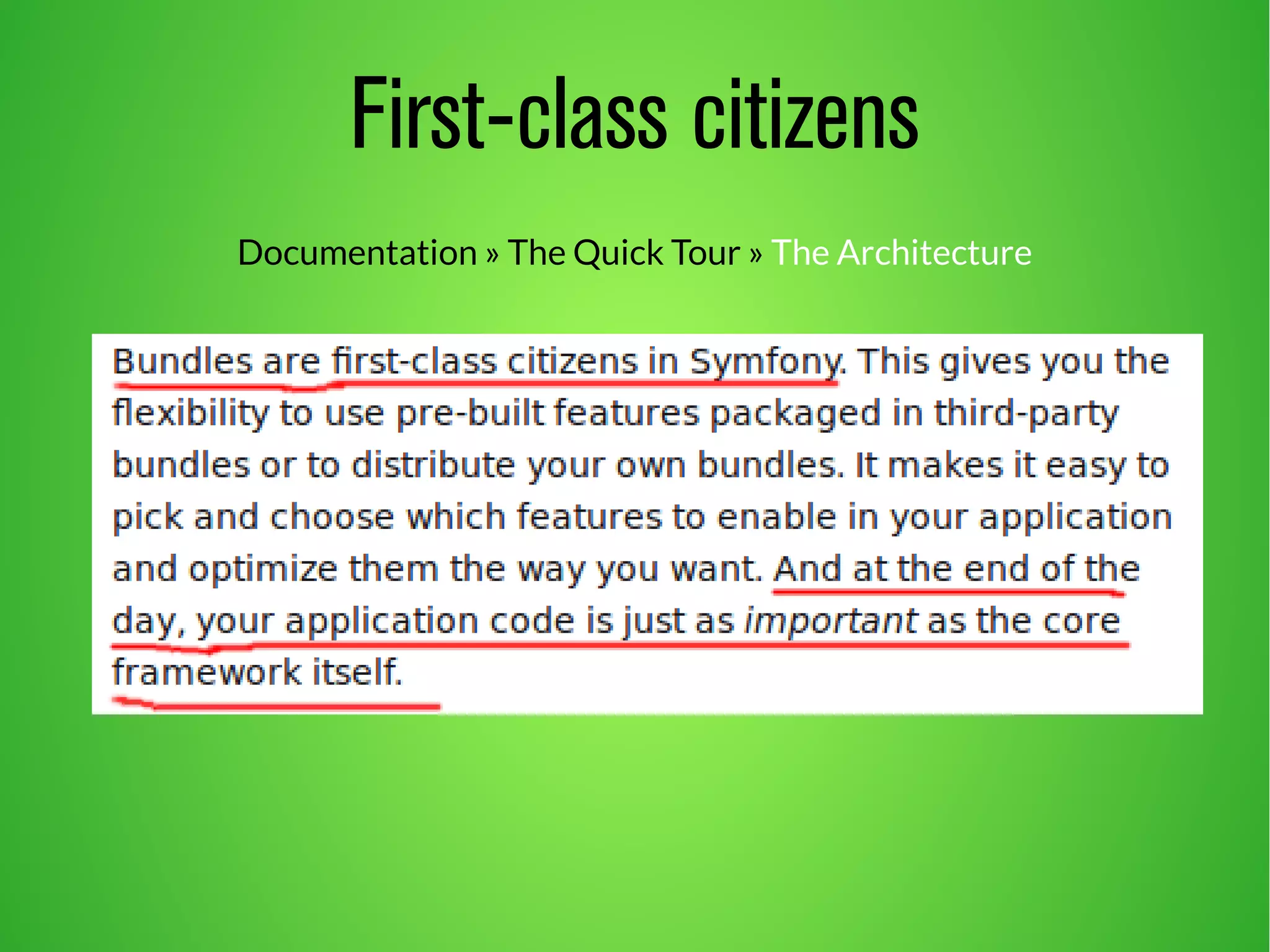

7. First-class citizens
Documentation » The Quick Tour » The Architecture

8. Importance
Your code is more important than
the framework,
which is an implementation detail

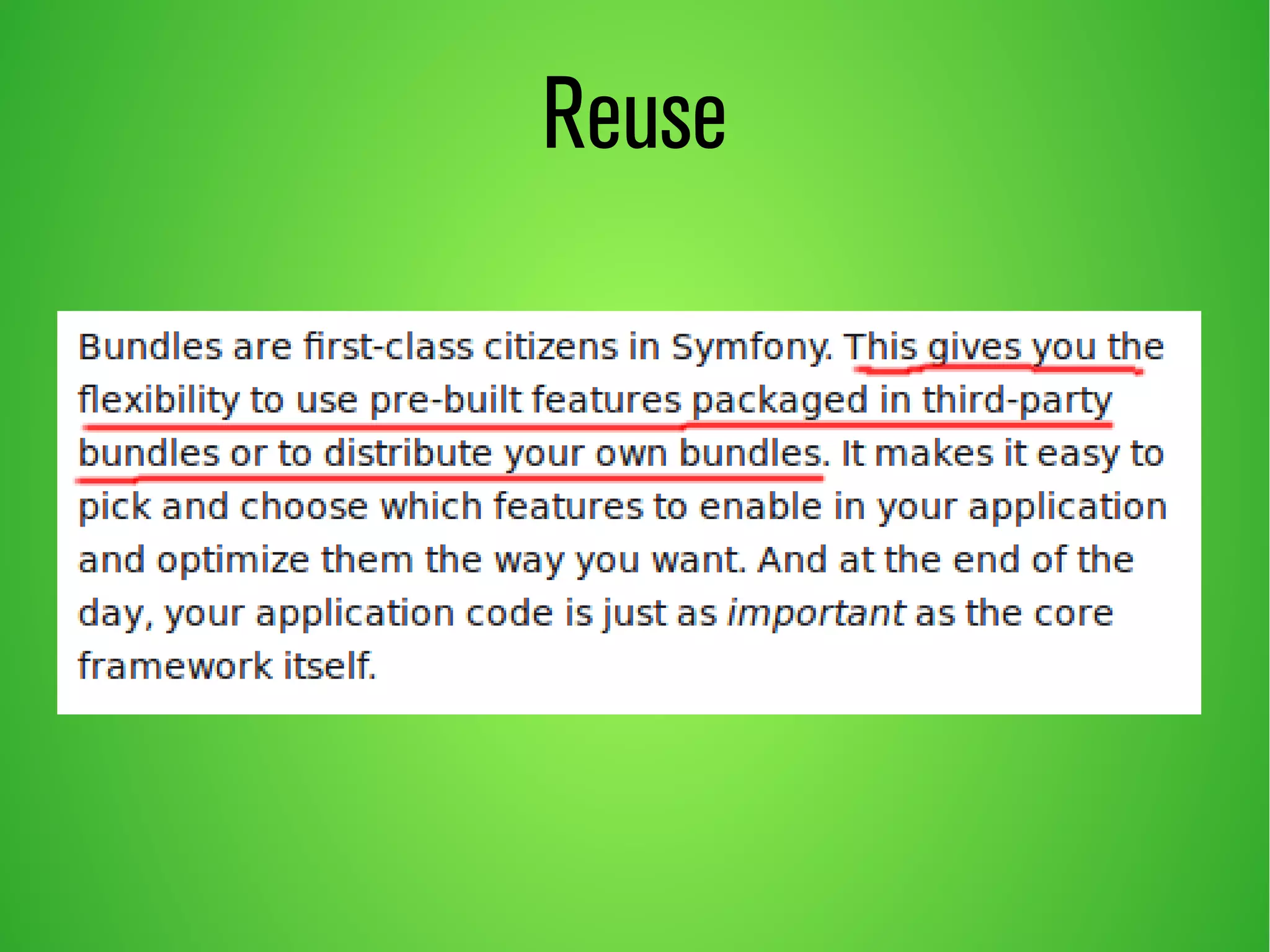

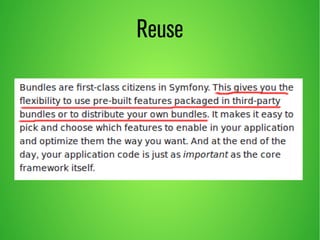

9. Reuse

10. Nice!

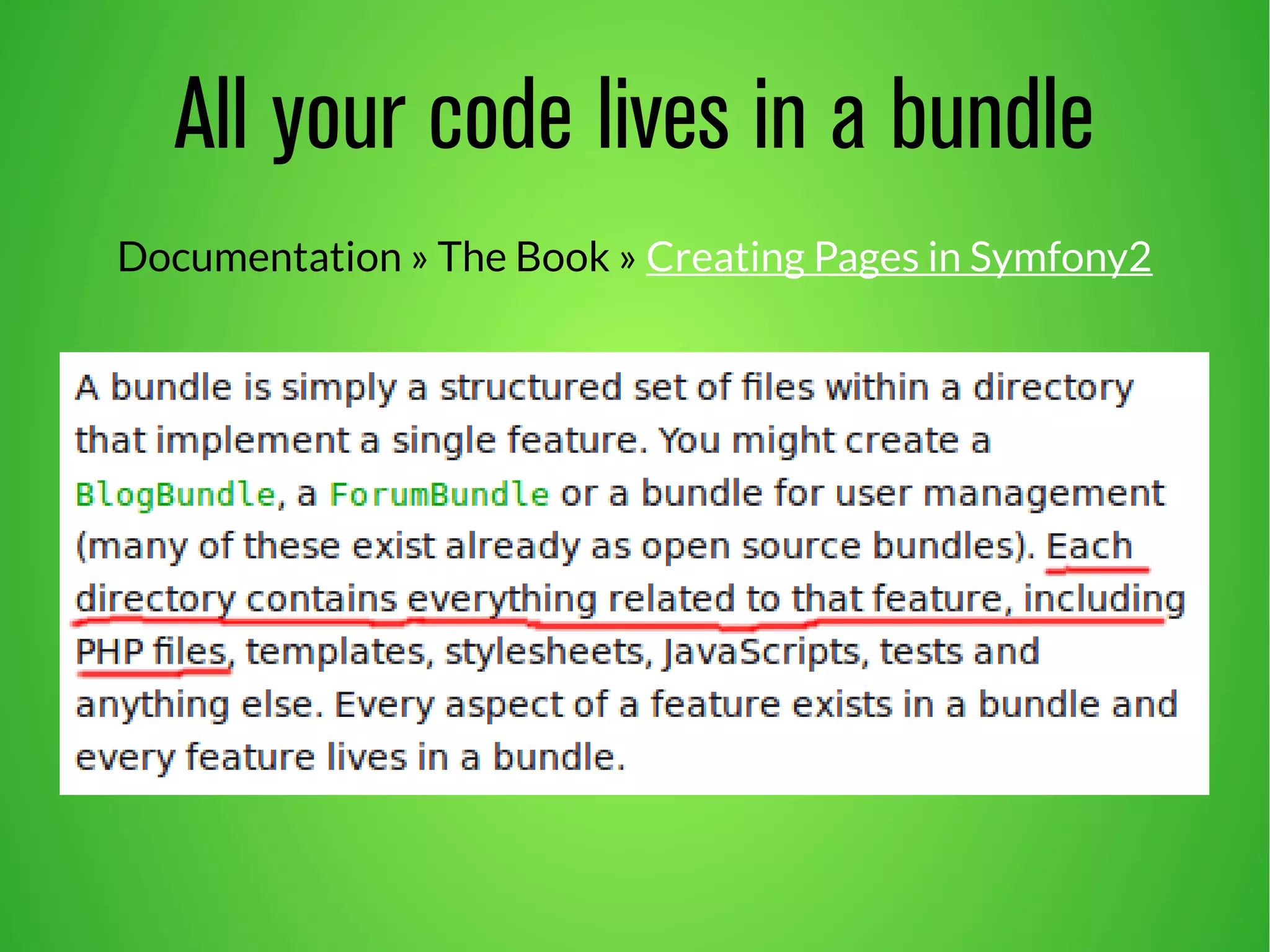

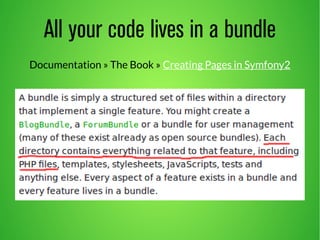

11. All your code lives in a bundle
Documentation » The Book » Creating Pages in Symfony2

12. Reuse
“All your code in a bundle”
contradicts the promise of reuse

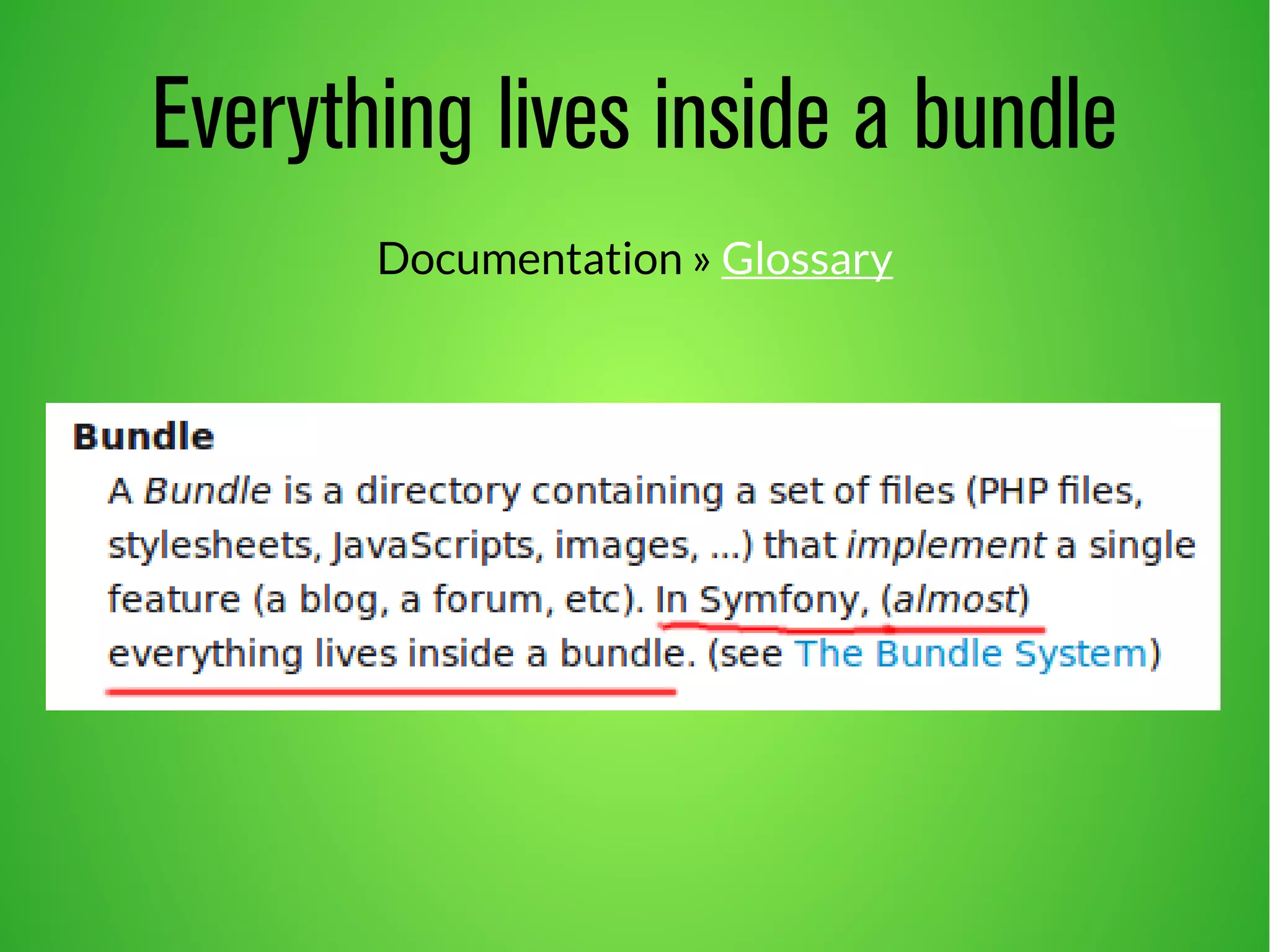

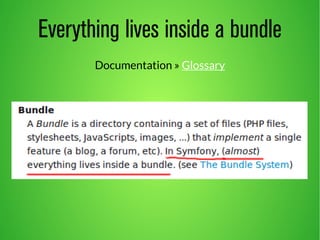

13. Everything lives inside a bundle
Documentation » Glossary

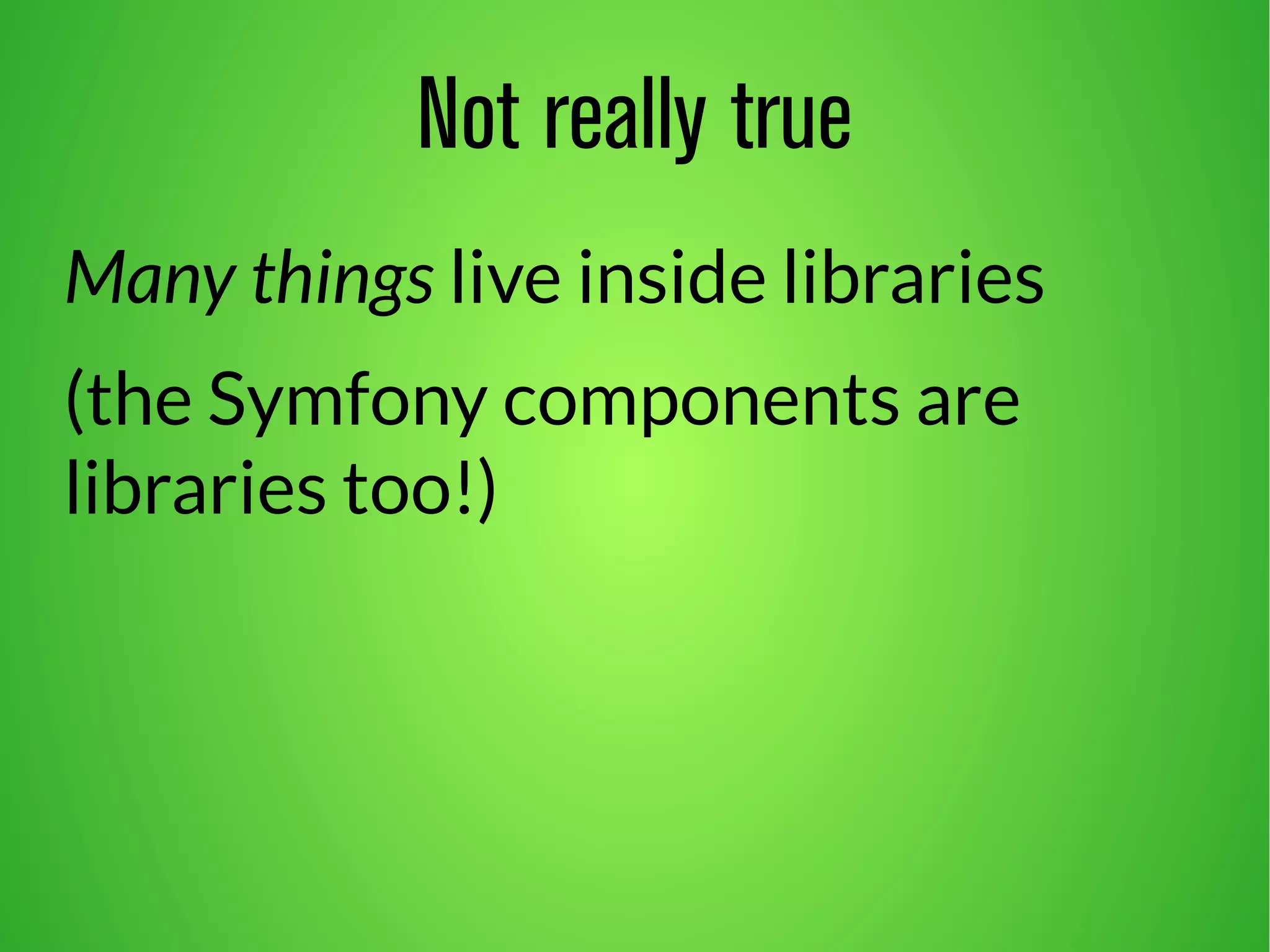

14. Not really true
Many things live inside libraries
(the Symfony components are
libraries too!)

15. Which is good!

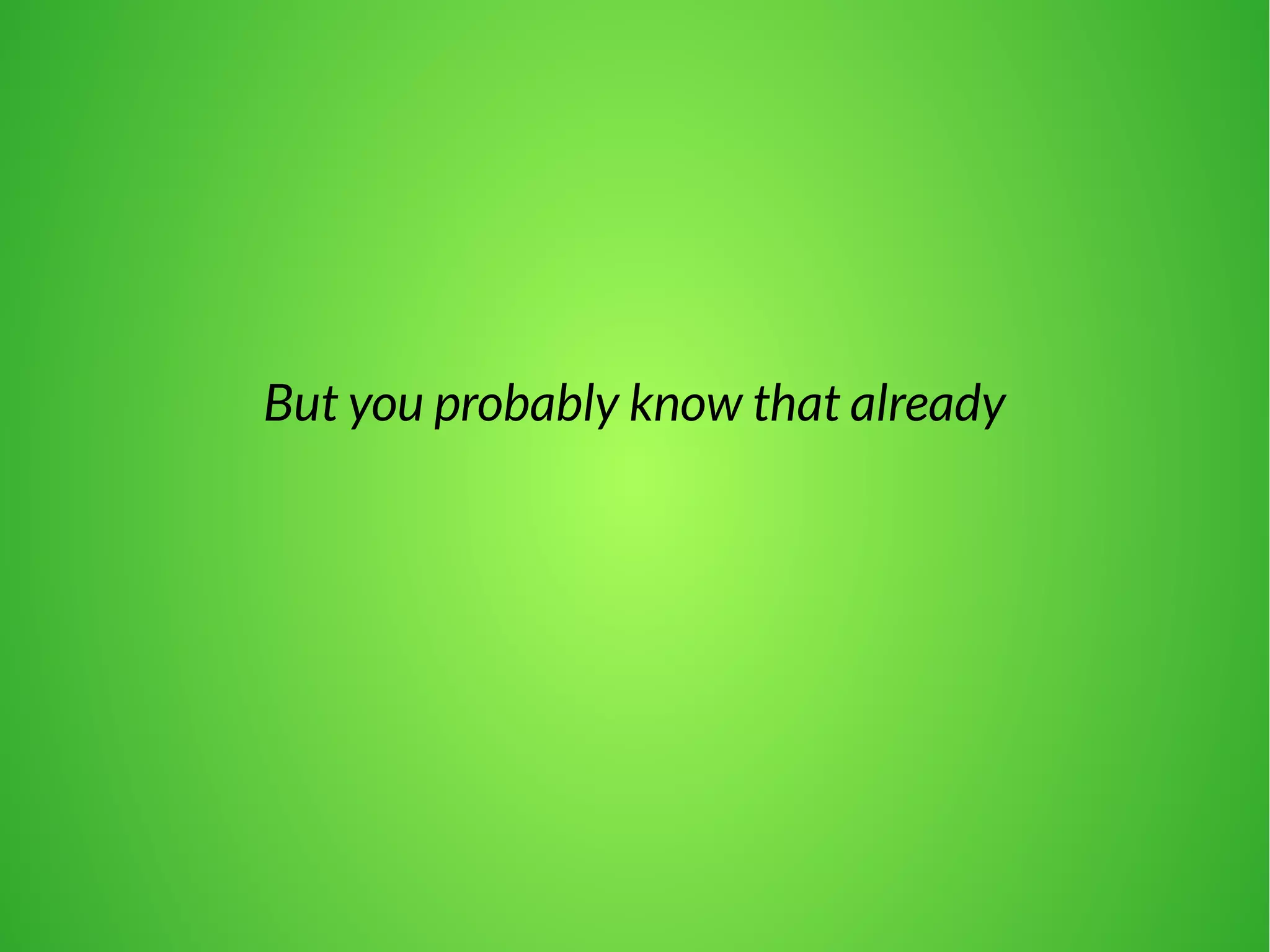

16. But you probably know that already

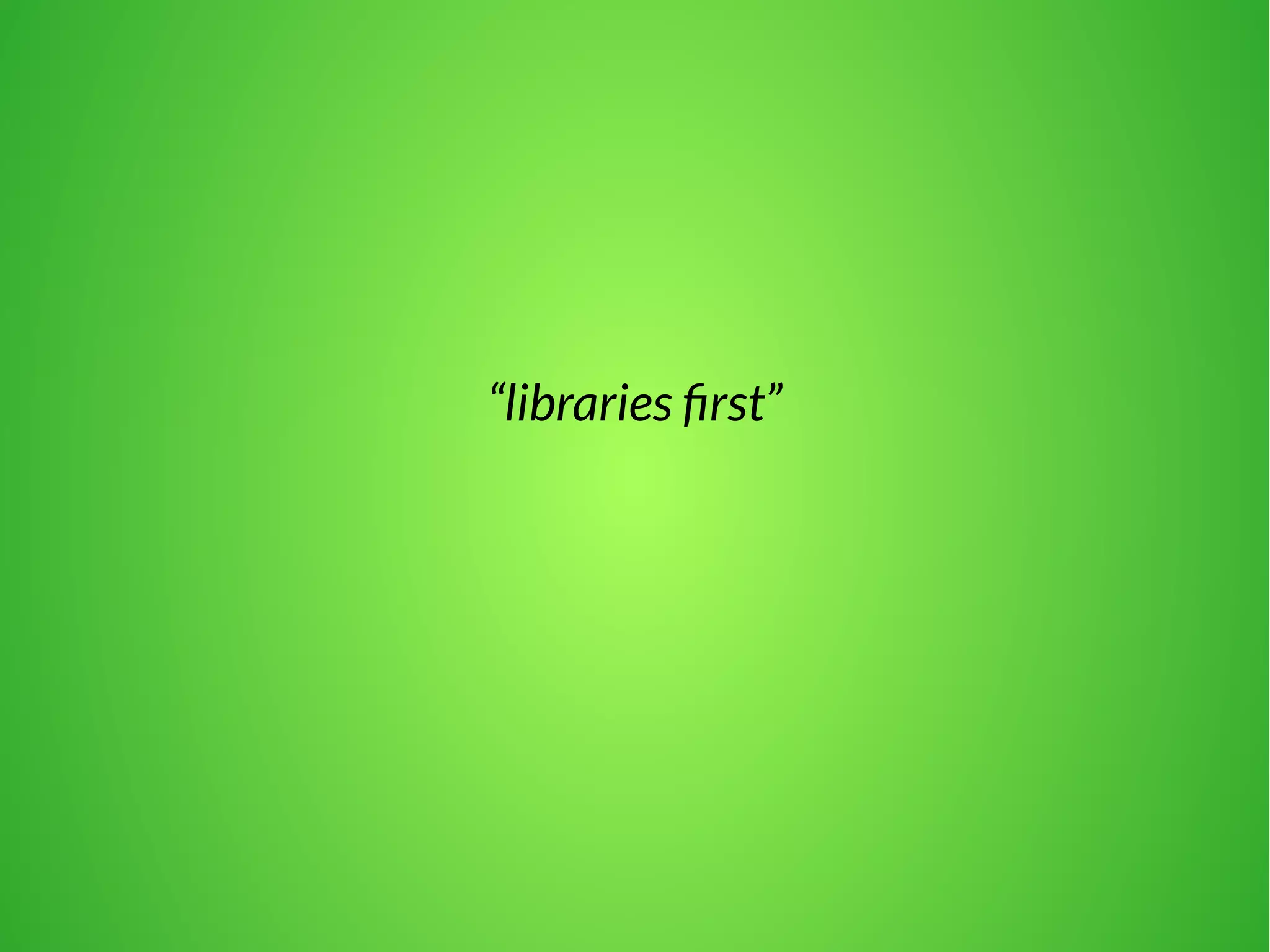

17. “libraries first”

18. What about...
● Controllers
● Entities
● Templates
● ...

19. They just need to be in a bundle
Or do they?

20. Don't get me wrong
I love Symfony!

21. But a framework is just a framework
● Quickstarter for your projects
● Prevents and solves big security
issues for you
● Has a community you can rely on

22. A framework is there for you

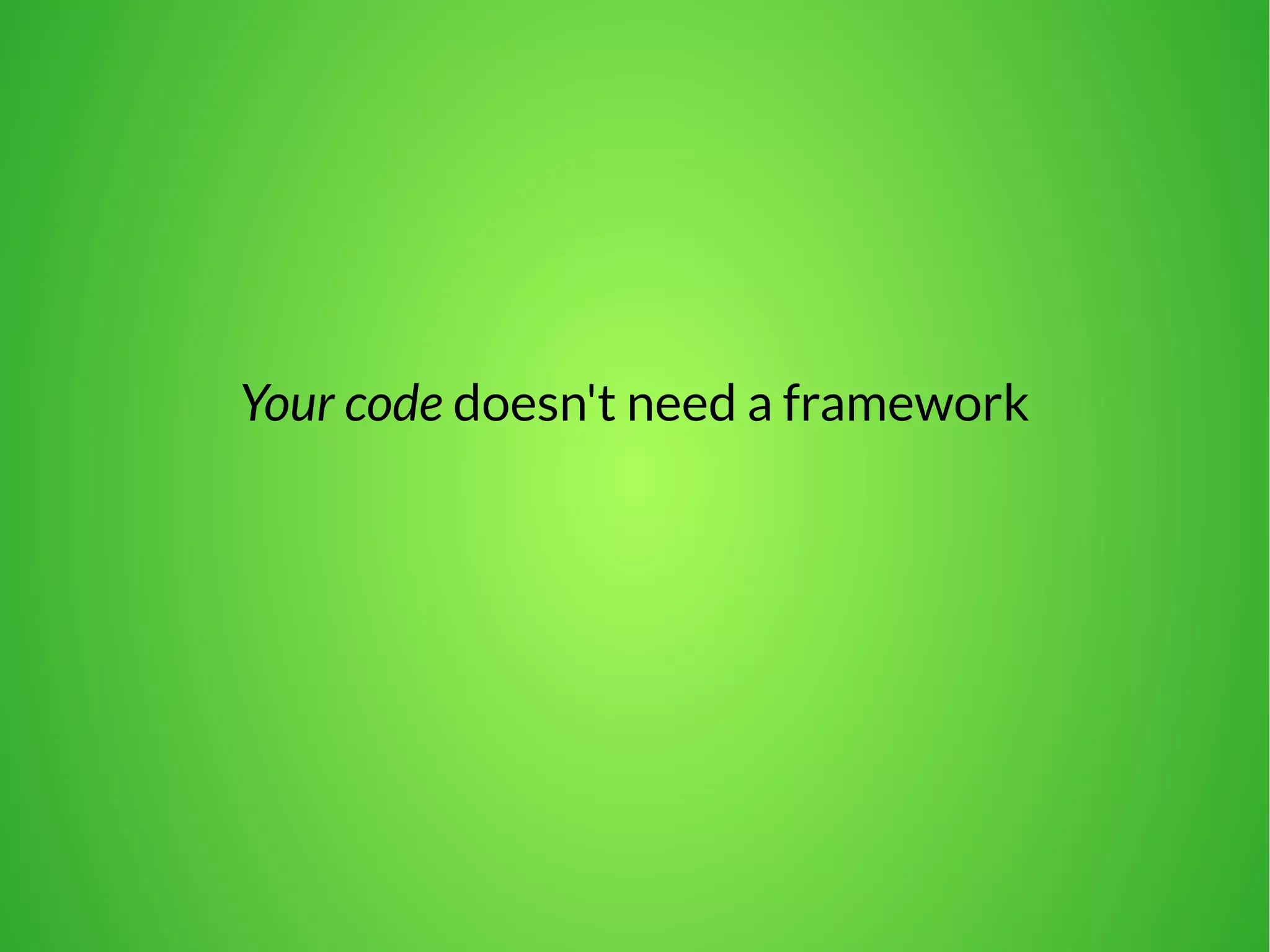

23. Your code doesn't need a framework

24. Noback's Principle
Code shouldn't rely on something
it doesn't truly need

25. Bundle conventions
Things in a bundle often rely on
conventions to work

26. Conventions aren't necessary at all

27. So according to Noback's Principle,
code shouldn't rely on bundle conventions too

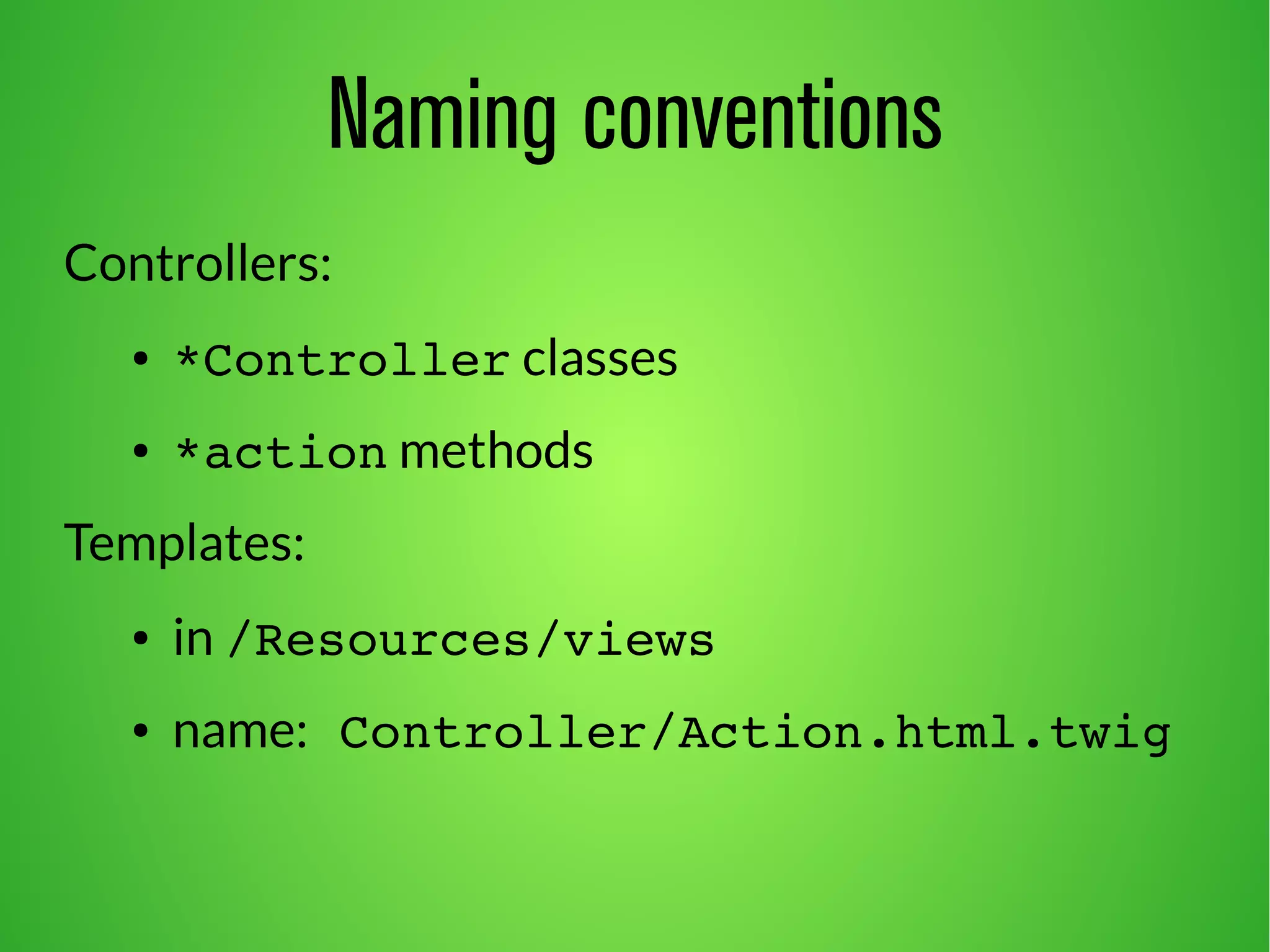

28. Naming conventions
Controllers:
● *Controller classes
● *action methods
Templates:
● in /Resources/views
● name: Controller/Action.html.twig

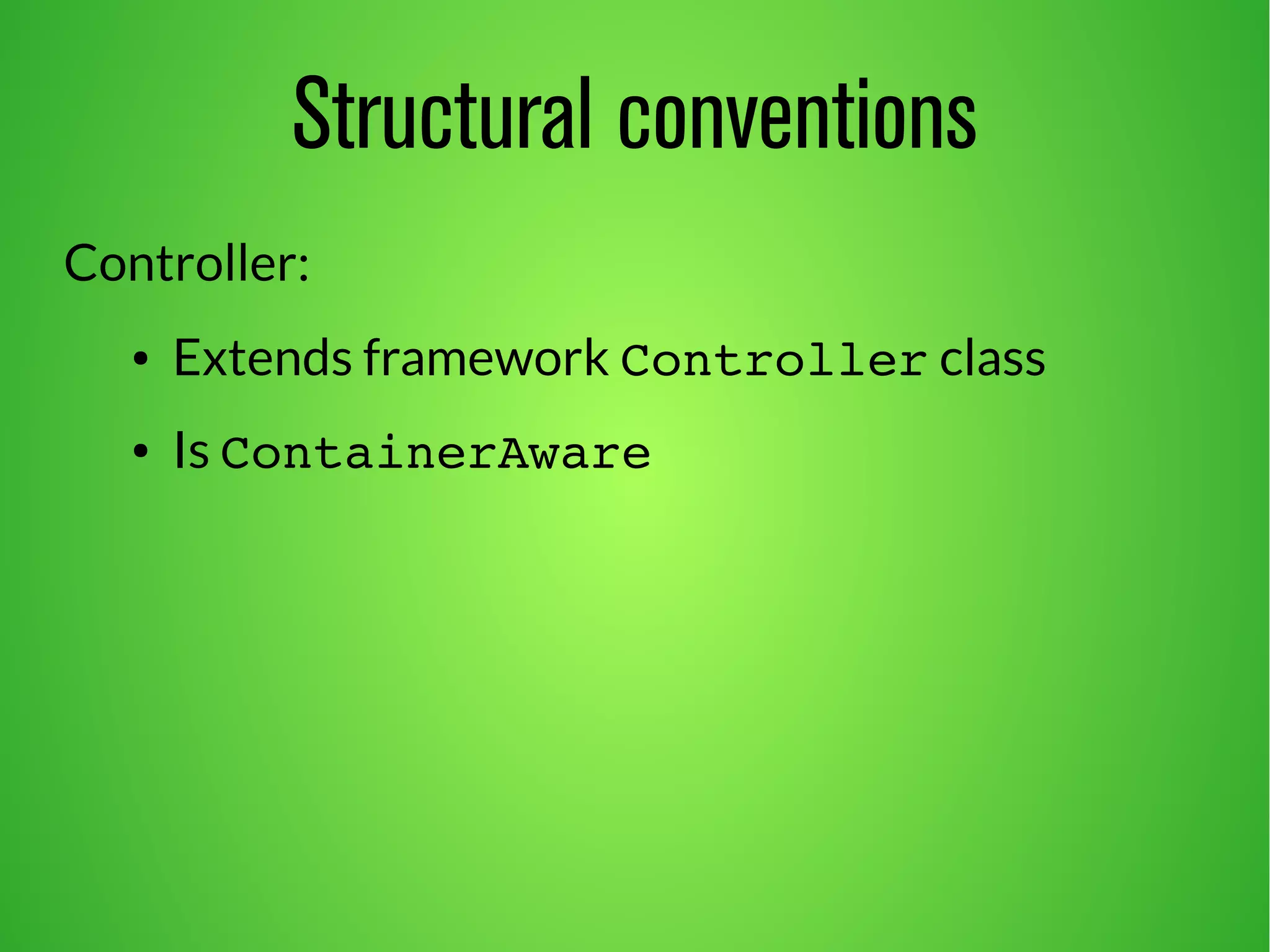

29. Structural conventions
Controller:
● Extends framework Controller class
● Is ContainerAware

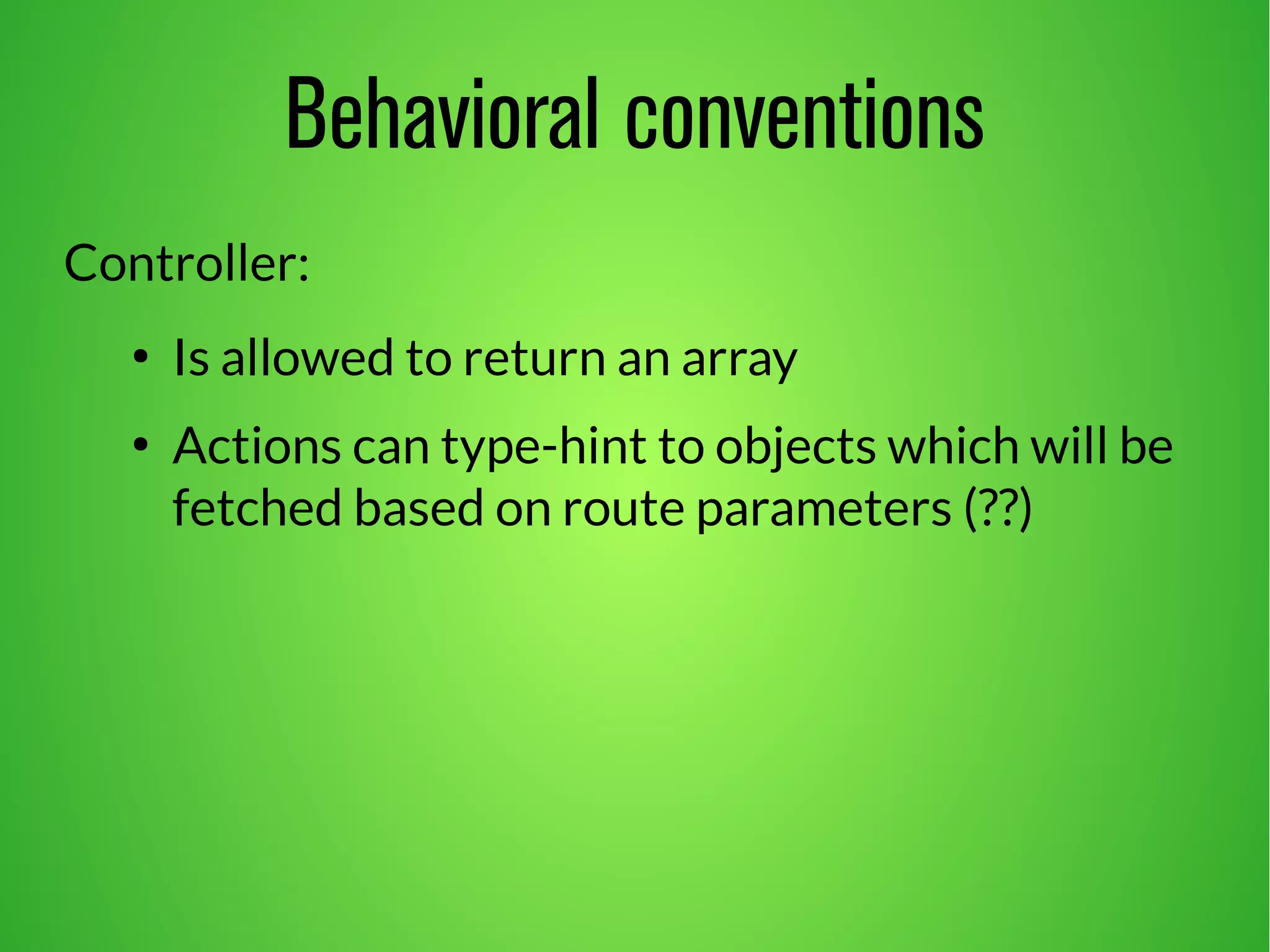

30. Behavioral conventions
Controller:
● Is allowed to return an array
● Actions can type-hint to objects which will be
fetched based on route parameters (??)

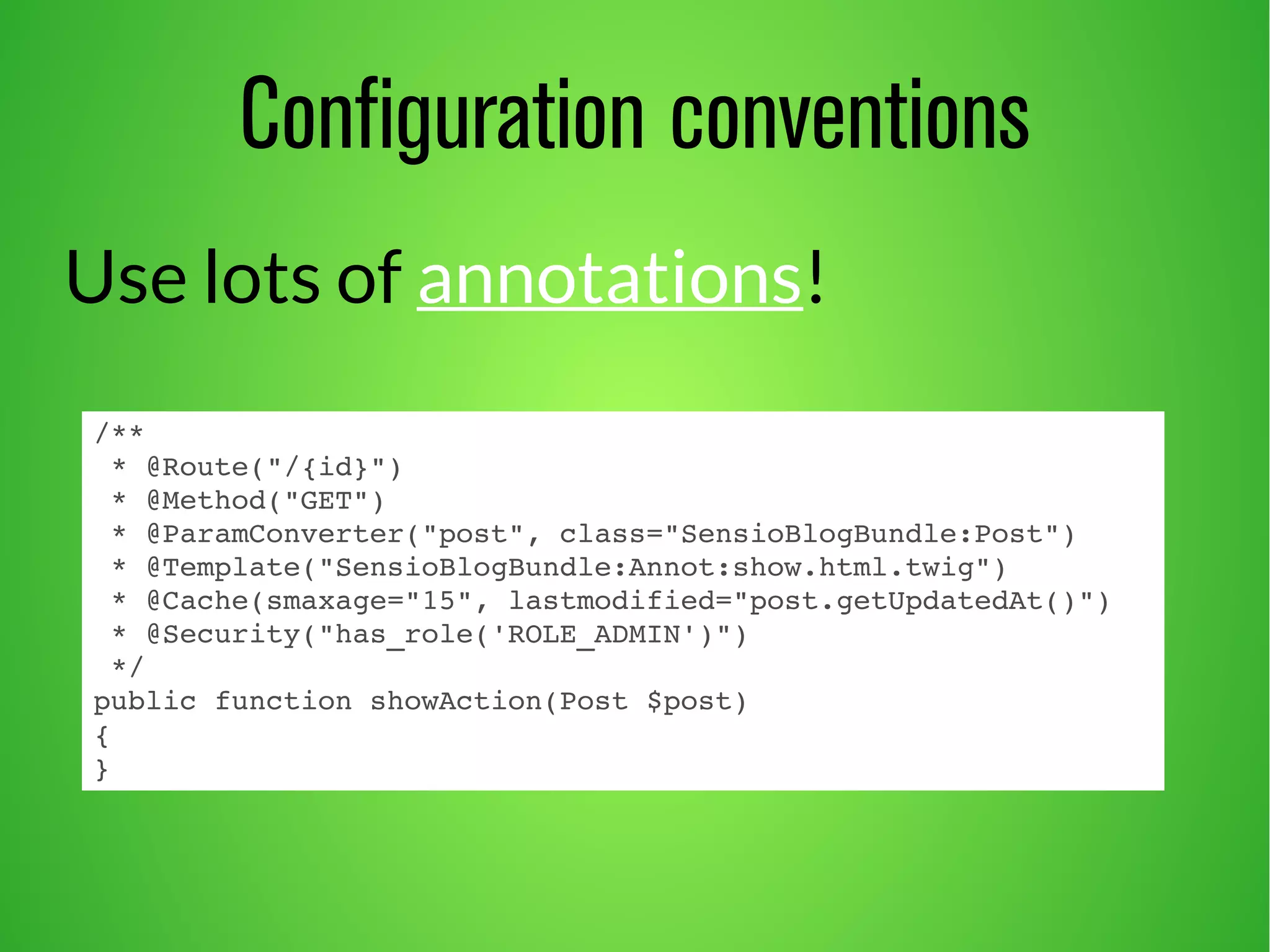

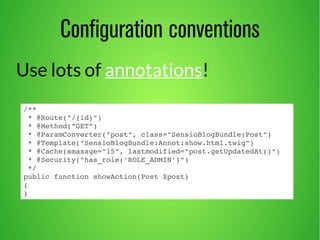

31. Configuration conventions
Use lots of annotations!
/**
* @Route("/{id}")
* @Method("GET")
* @ParamConverter("post", class="SensioBlogBundle:Post")
* @Template("SensioBlogBundle:Annot:show.html.twig")
* @Cache(smaxage="15", lastmodified="post.getUpdatedAt()")
* @Security("has_role('ROLE_ADMIN')")
*/
public function showAction(Post $post)
{
}

32. These conventions are what makes an application
a Symfony2 application

33. A Year With Symfony

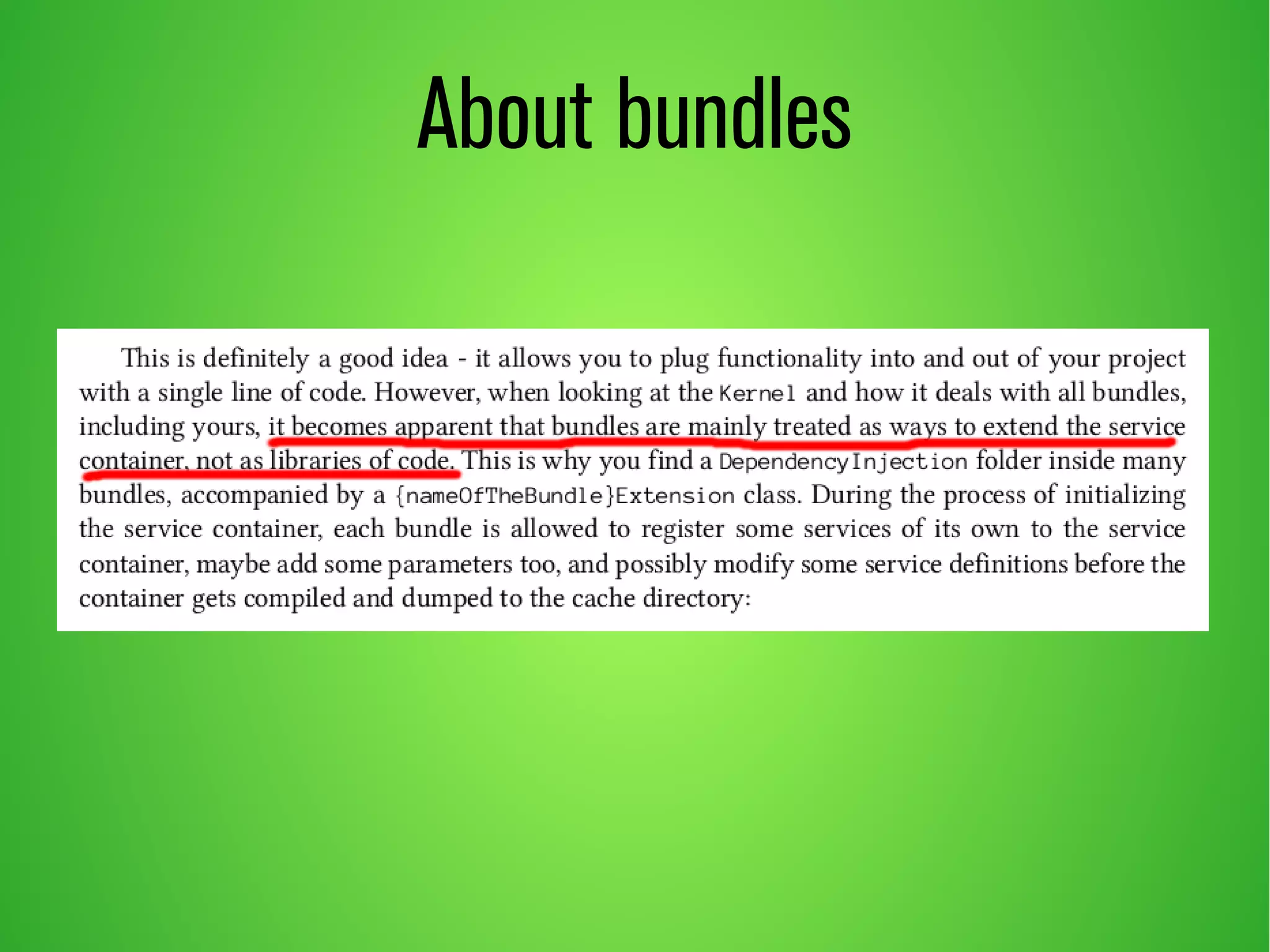

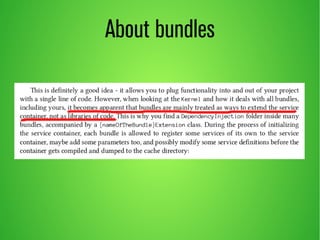

34. About bundles

35. A bundle exposes resources

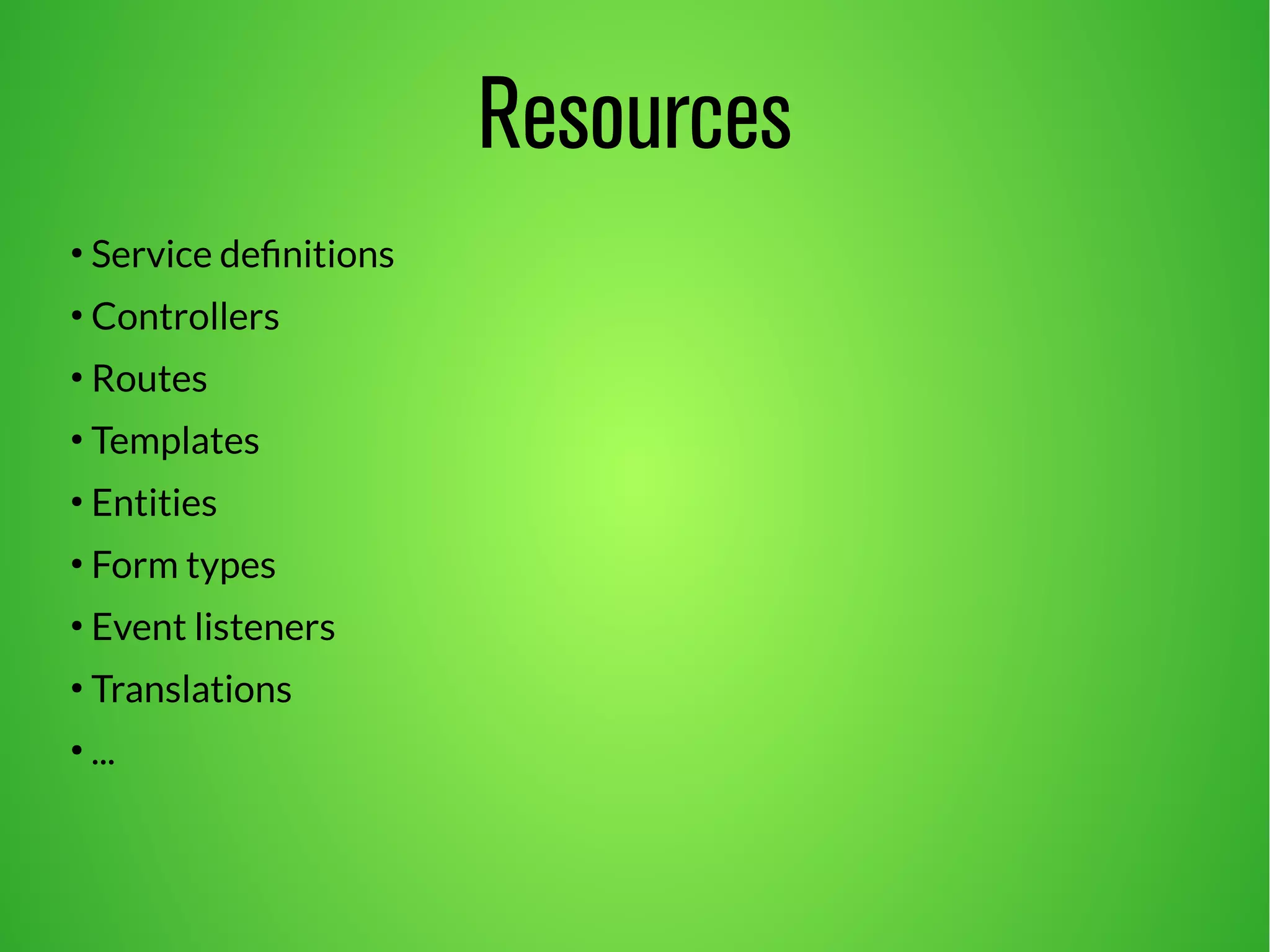

36. Resources
● Service definitions
● Controllers
● Routes
● Templates
● Entities
● Form types
● Event listeners
● Translations
● ...

37. No need for them to be inside a bundle

38. When placed outside the bundle
the resources could be reused separately

39. The bundle would be really small

40. And could just as well be a:
Laravel package,
Zend or Drupal module,
CakePHP plugin,
...

41. So the challenge is to
Make the bundle as clean as possible

42. Move the “misplaced” things to
● a library
● with dependencies
● but not symfony/framework­bundle
;)

43. Being realistic
Practical reusability

44. Reuse within the Symfony family
Think: Silex, Laravel, etc.

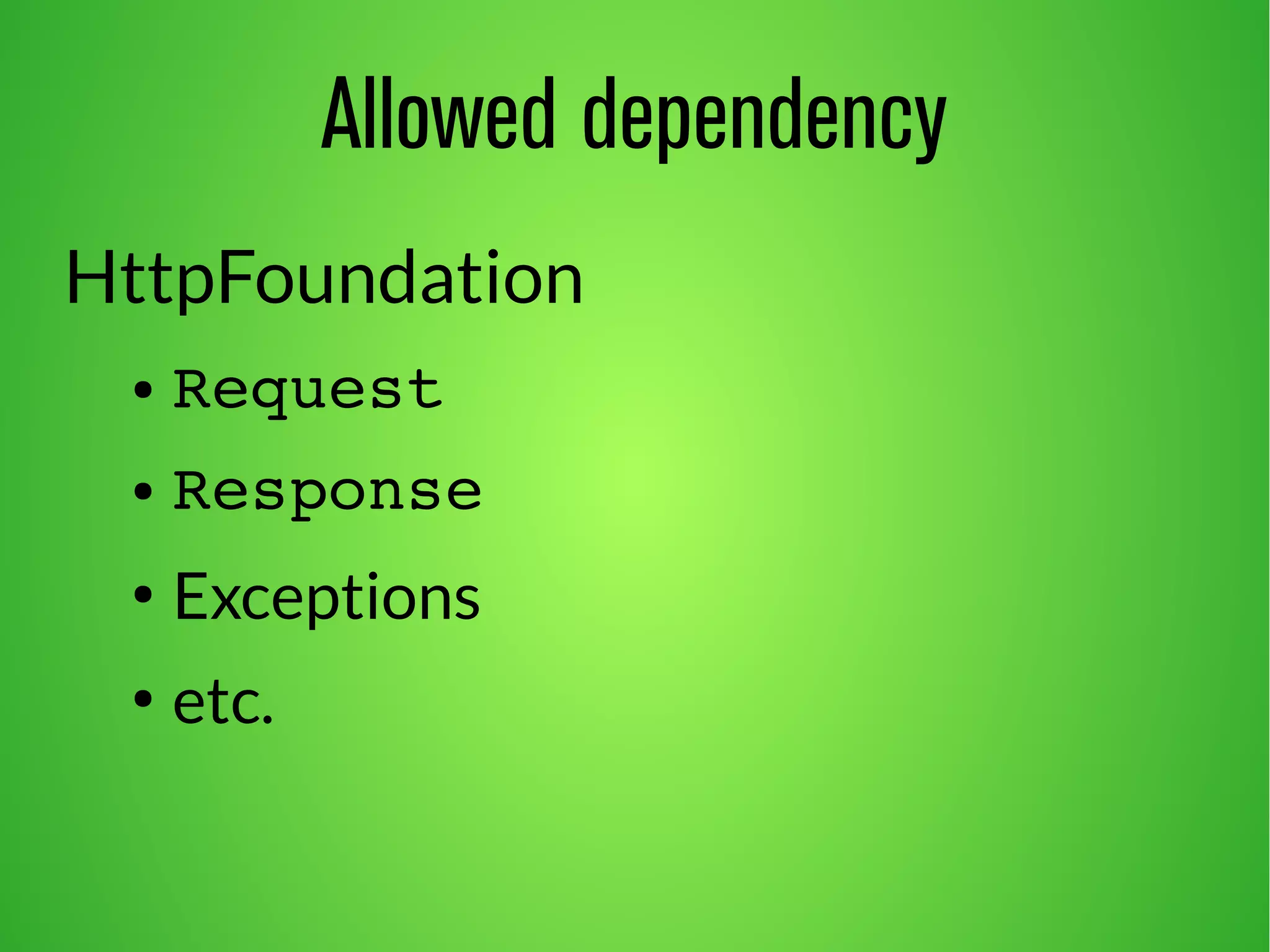

45. Allowed dependency
HttpFoundation
● Request
● Response
● Exceptions
● etc.

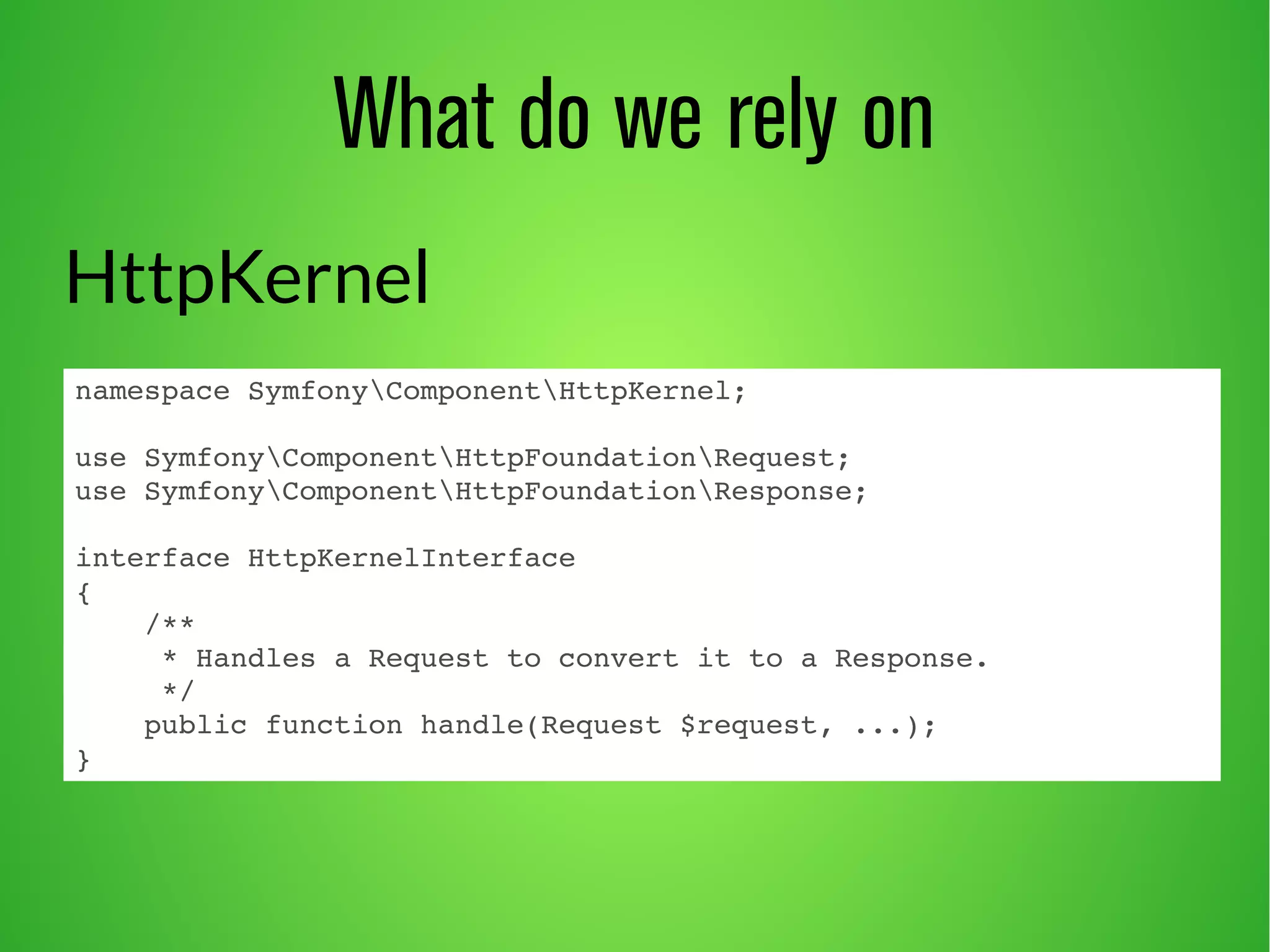

46. What do we rely on
HttpKernel
namespace SymfonyComponentHttpKernel;
use SymfonyComponentHttpFoundationRequest;
use SymfonyComponentHttpFoundationResponse;
interface HttpKernelInterface
{
/**
* Handles a Request to convert it to a Response.
*/
public function handle(Request $request, ...);
}

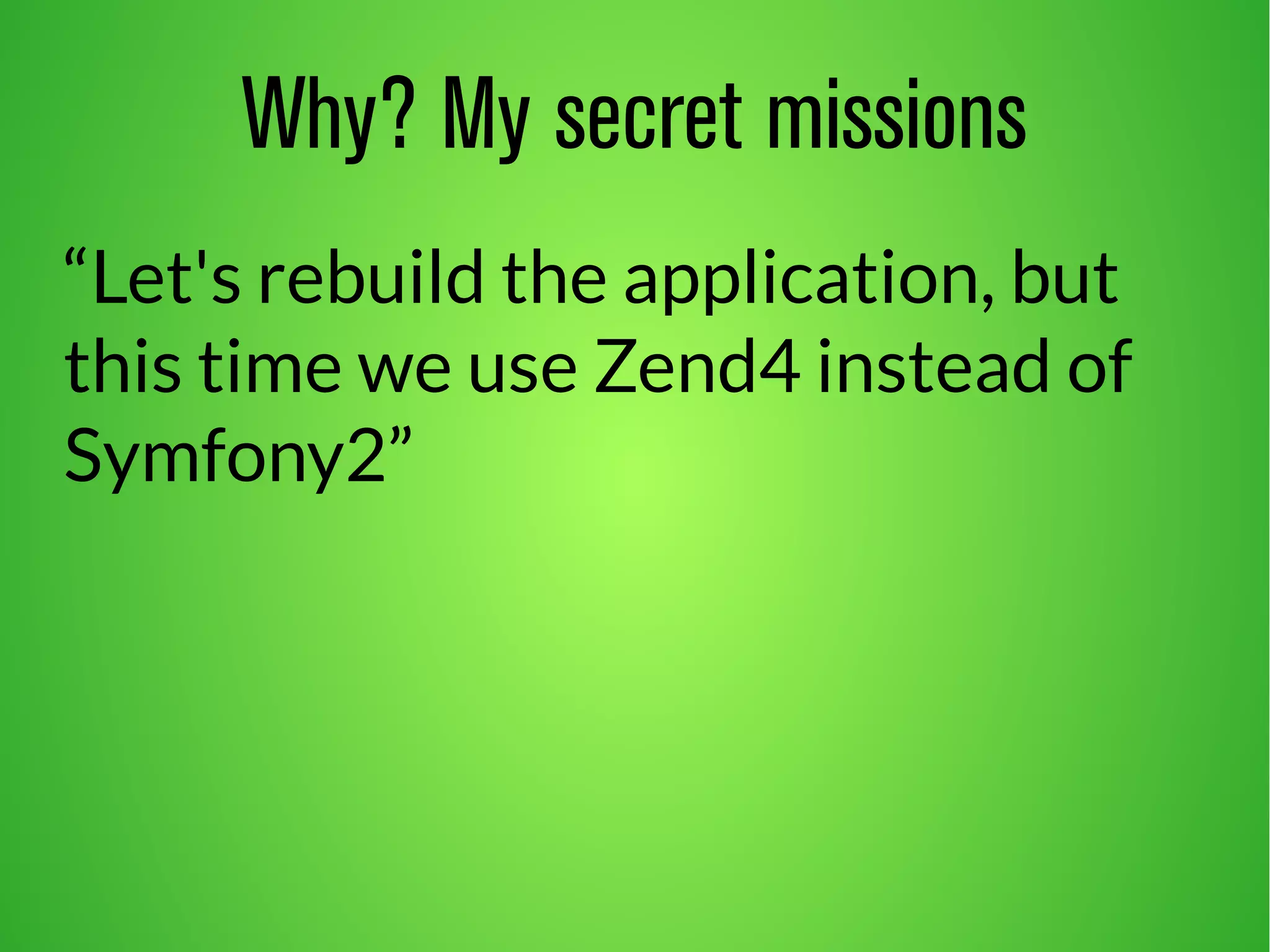

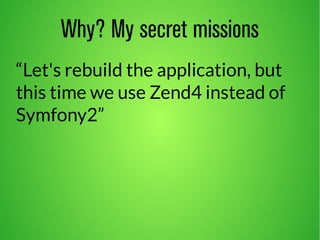

47. Why? My secret missions
“Let's rebuild the application, but
this time we use Zend4 instead of
Symfony2”

48. And of course
Education

49. You need a strong coupling radar

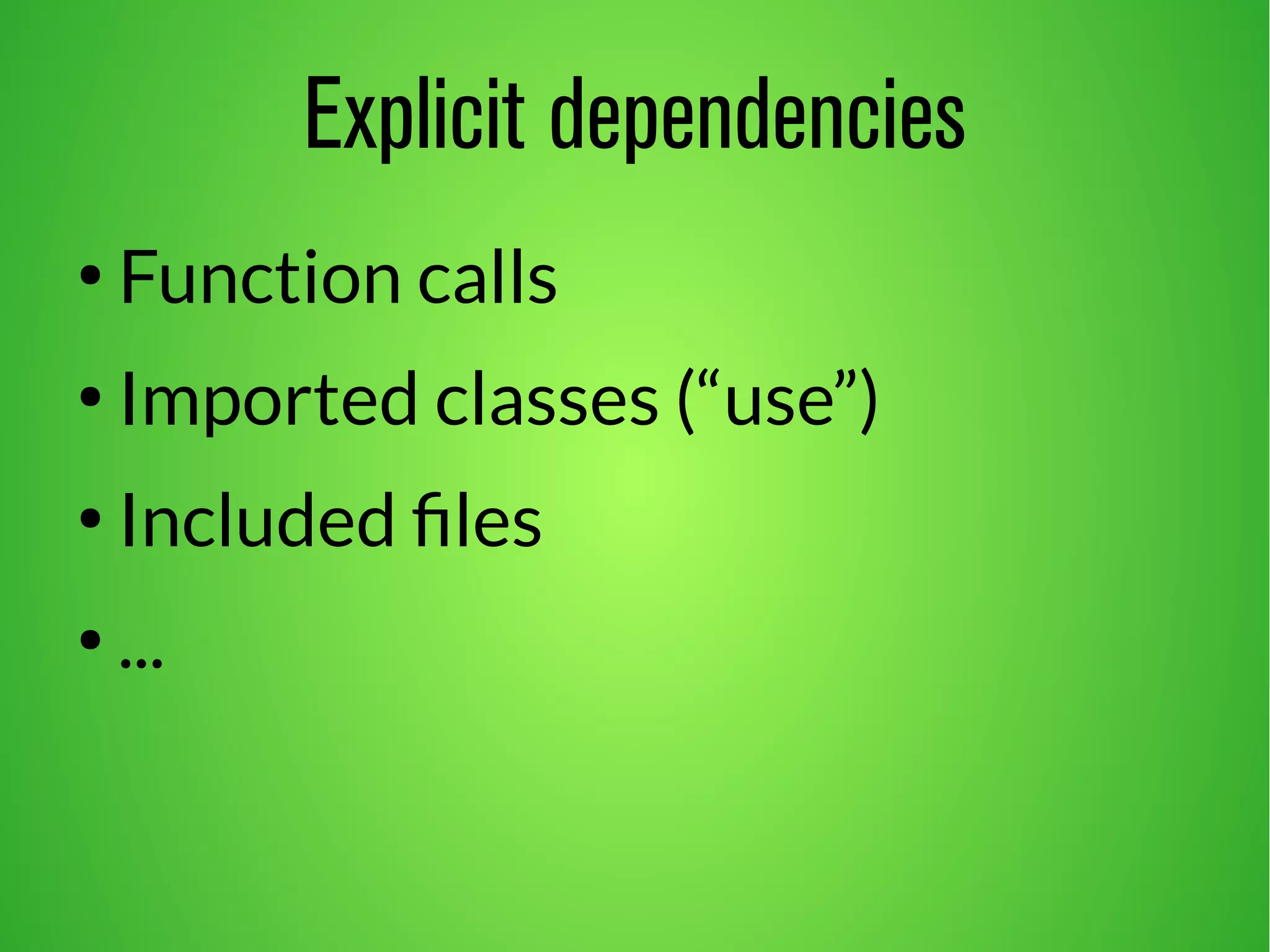

50. Explicit dependencies
● Function calls
● Imported classes (“use”)
● Included files
● ...

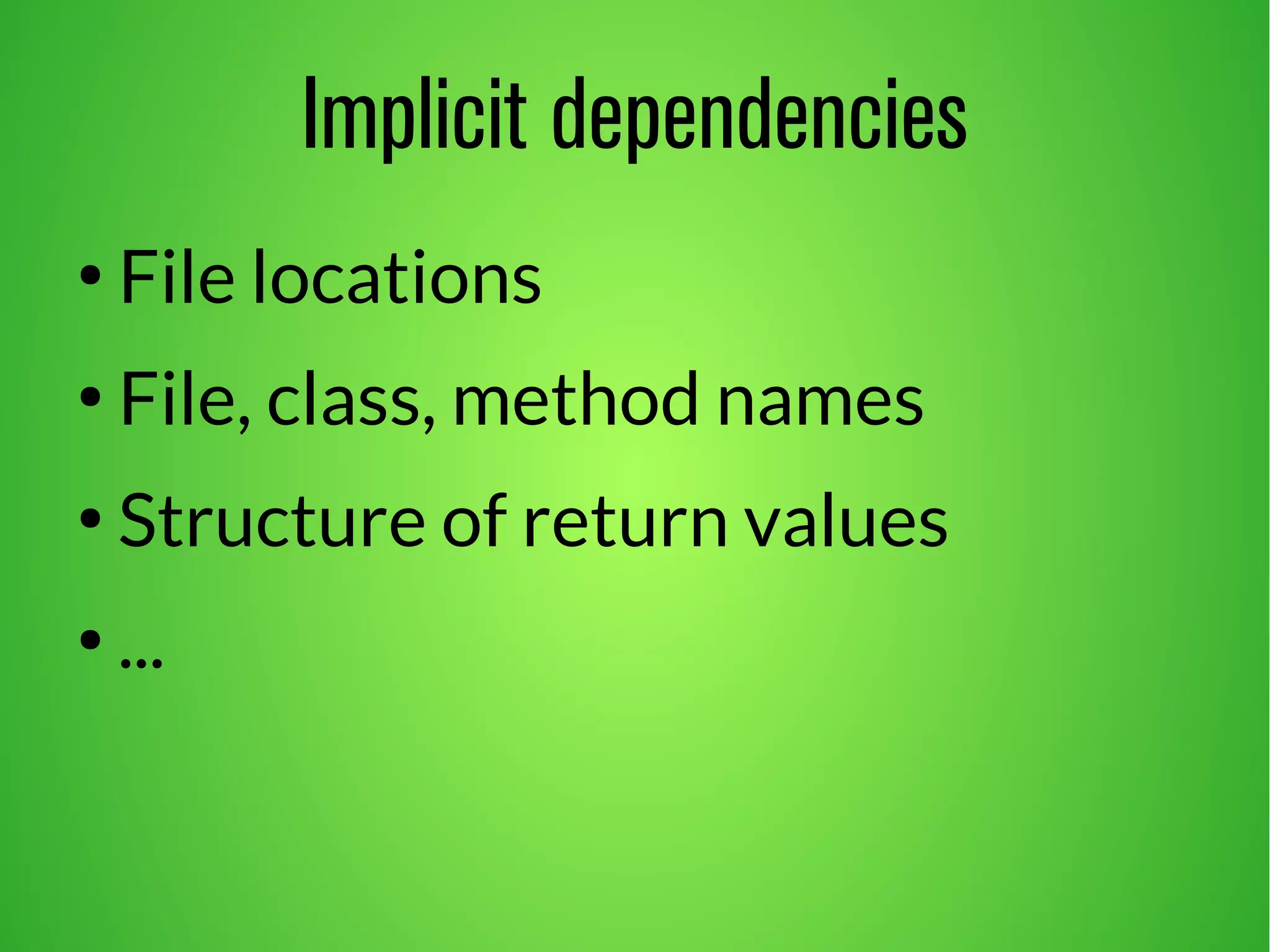

51. Implicit dependencies
● File locations
● File, class, method names
● Structure of return values
● ...

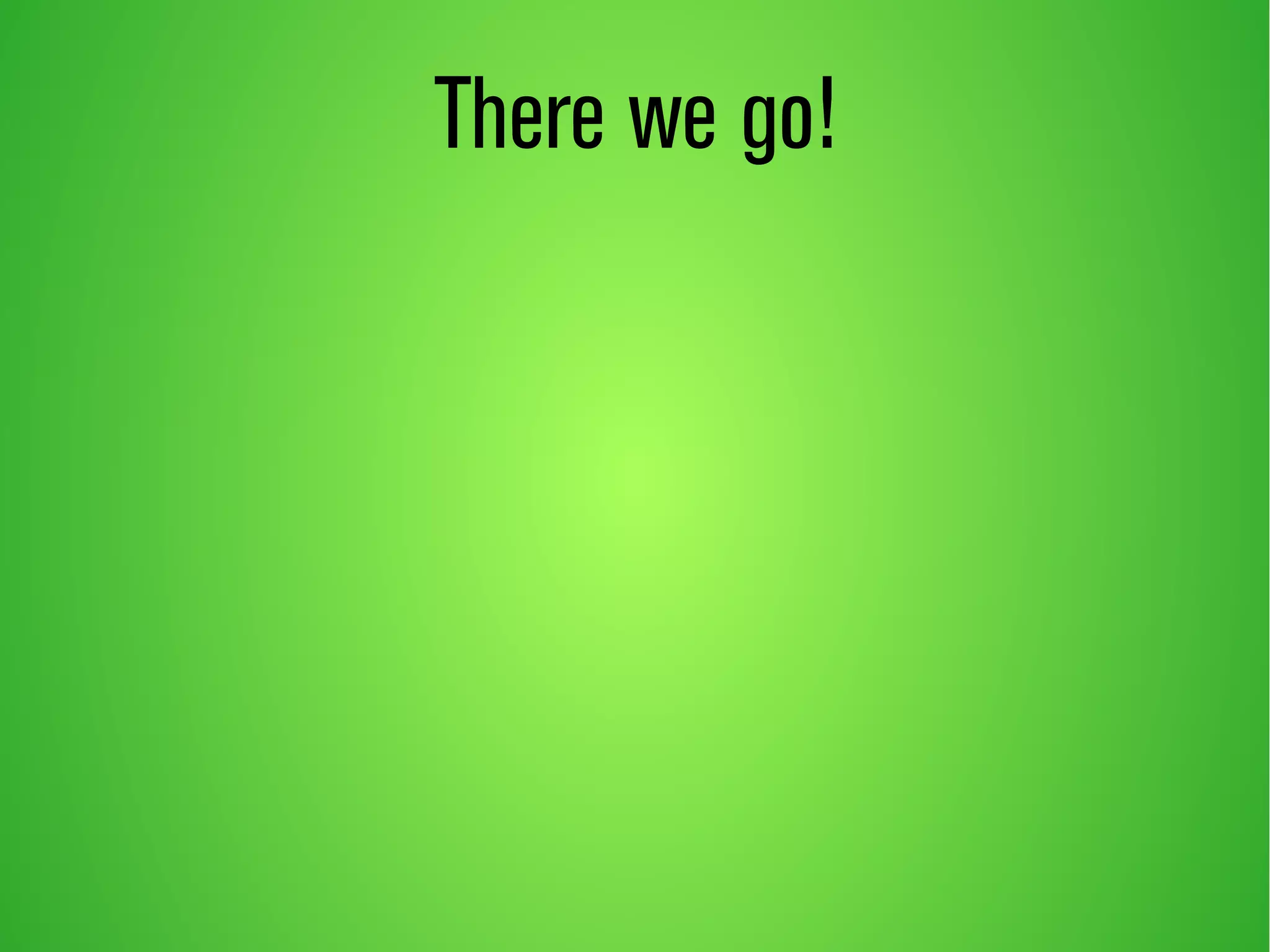

52. There we go!

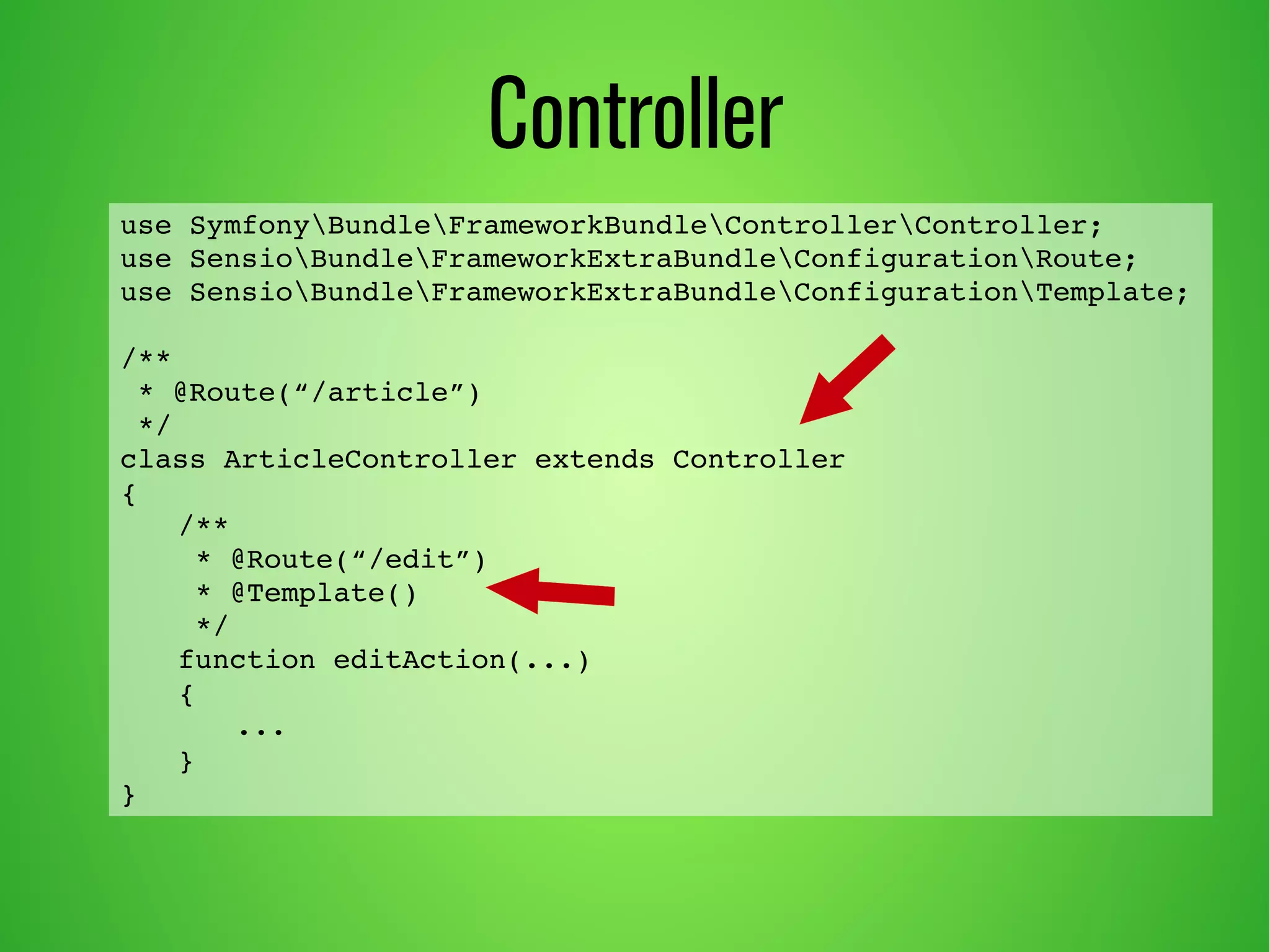

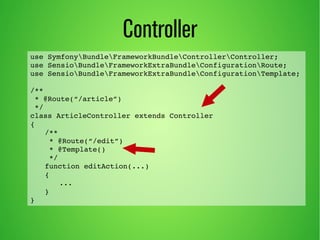

53. use SymfonyBundleFrameworkBundleControllerController;
use SensioBundleFrameworkExtraBundleConfigurationRoute;
use SensioBundleFrameworkExtraBundleConfigurationTemplate;
/**
* @Route(“/article”)
*/
class ArticleController extends Controller
{
/**
* @Route(“/edit”)
* @Template()
*/
function editAction(...)
{
...
}
}
Controller

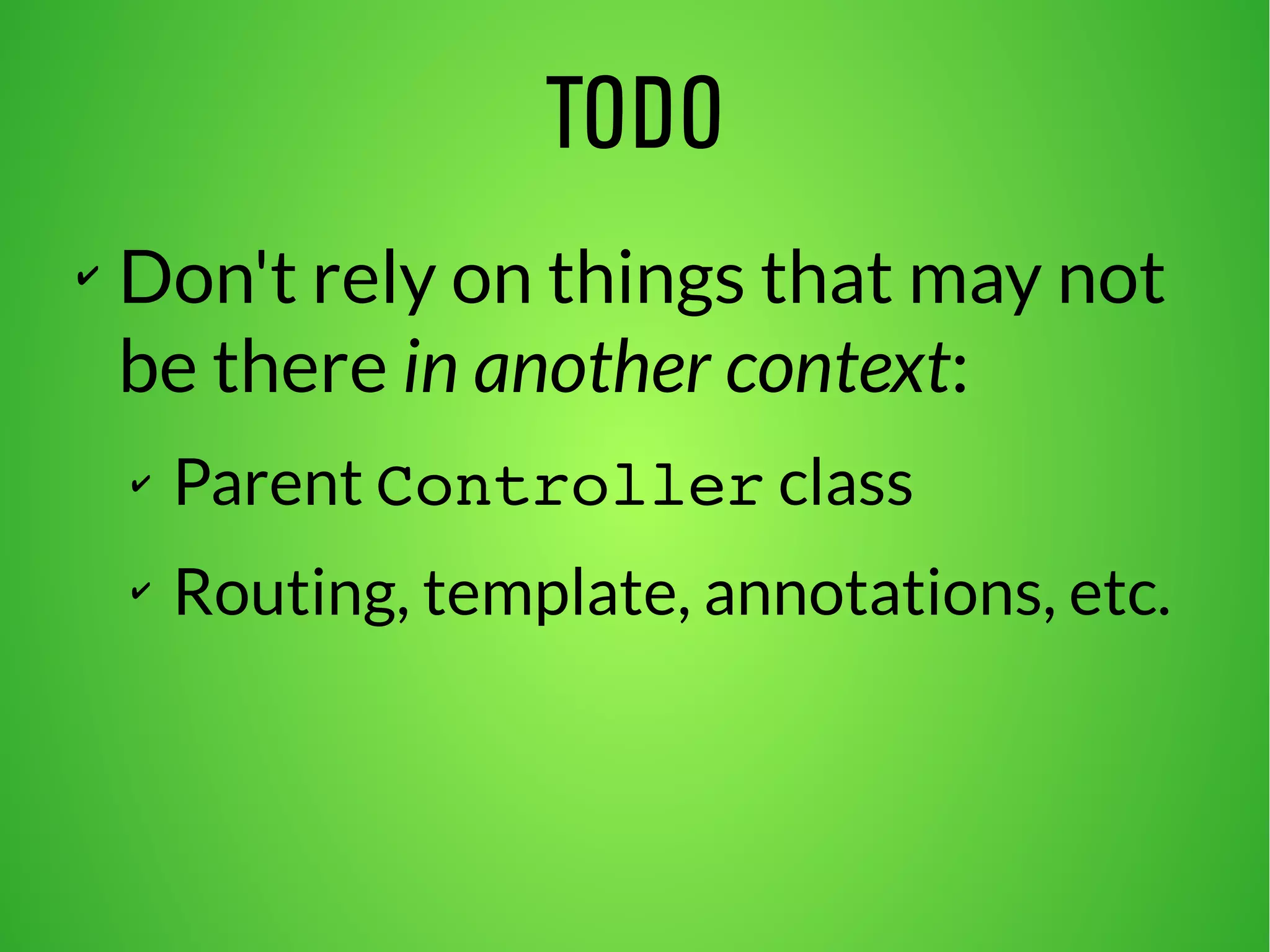

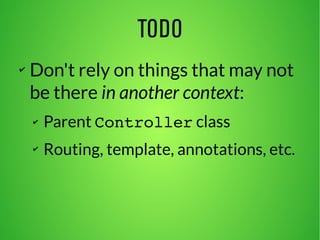

54. TODO
✔ Don't rely on things that may not
be there in another context:
✔ Parent Controller class
✔ Routing, template, annotations, etc.

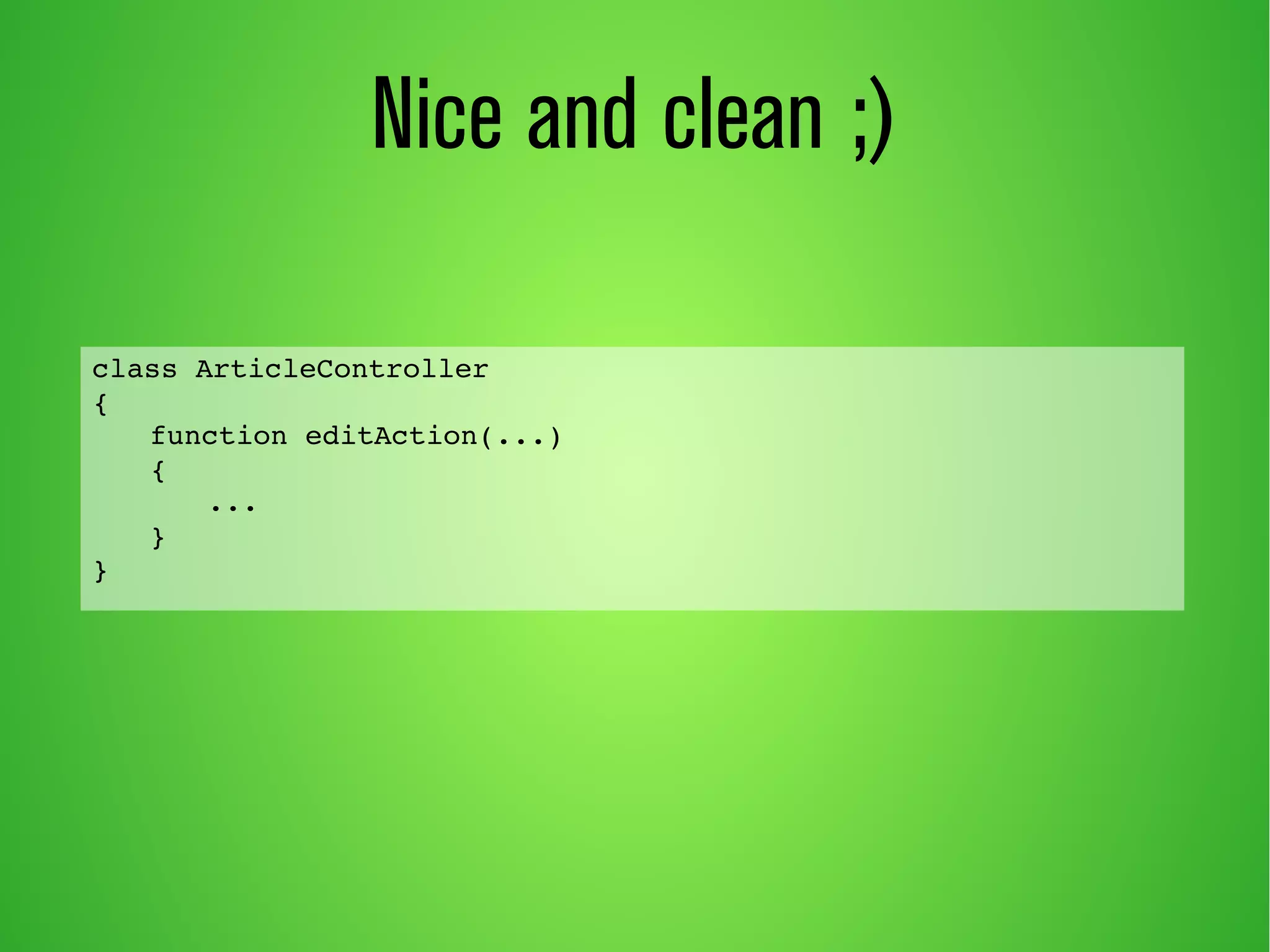

55. class ArticleController
{
function editAction(...)
{
...
}
}
Nice and clean ;)

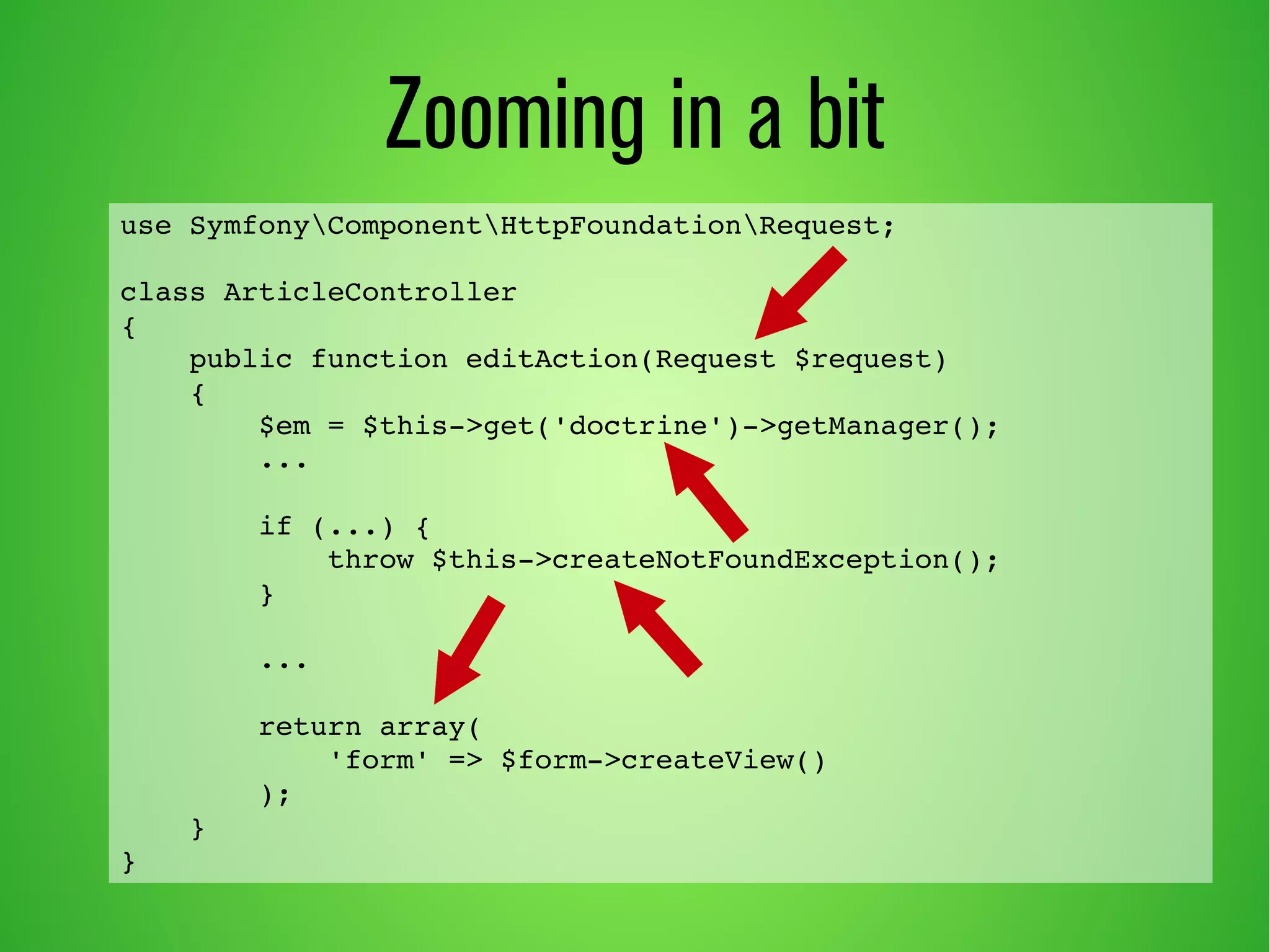

56. use SymfonyComponentHttpFoundationRequest;
class ArticleController
{
public function editAction(Request $request)
{
$em = $this­>
get('doctrine')­>
getManager();
...
if (...) {
throw $this­>
createNotFoundException();
}
...
return array(
'form' => $form­>
createView()
);
}
}
Zooming in a bit

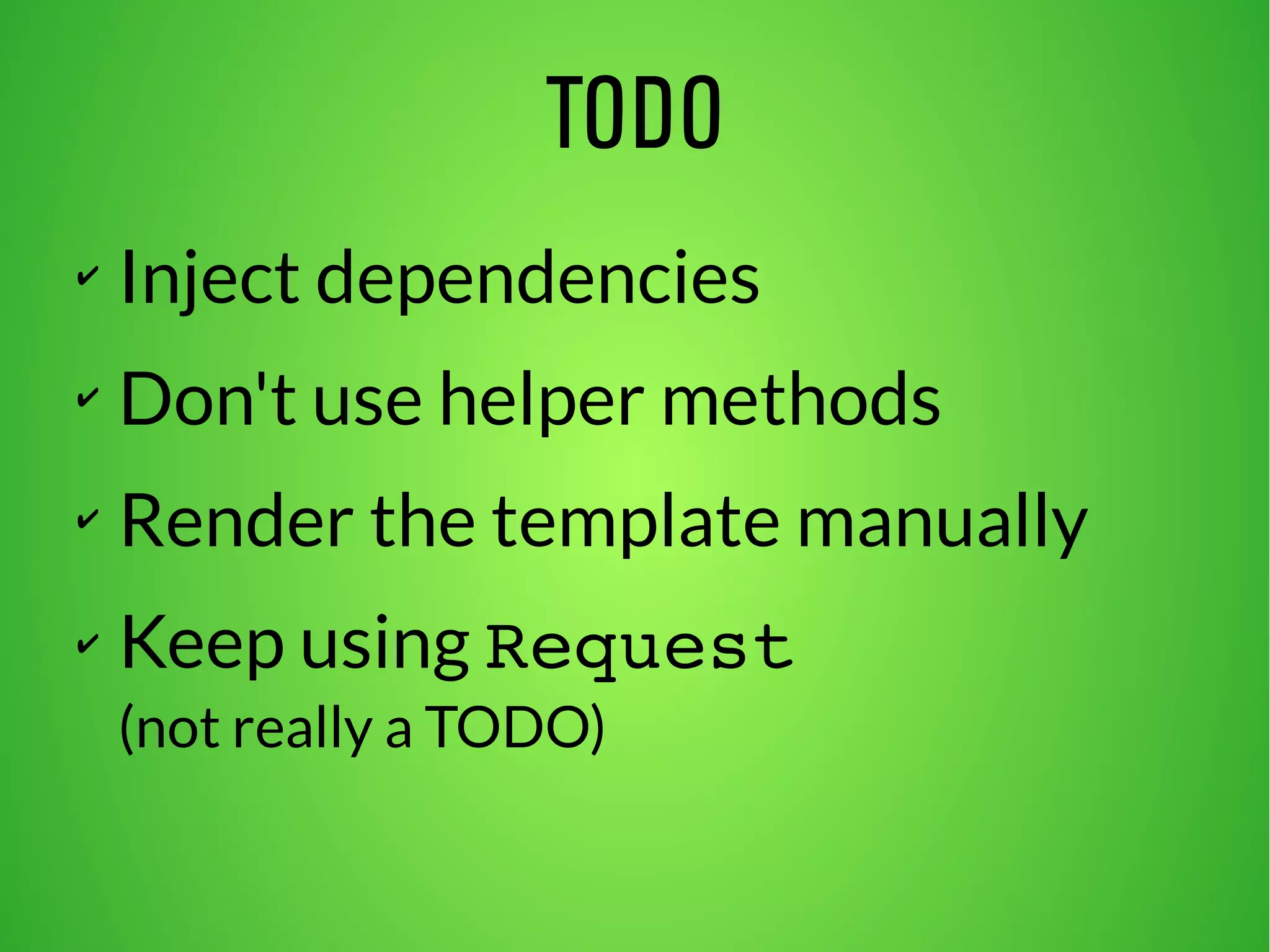

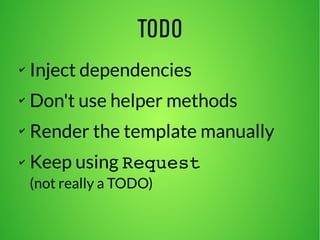

57. TODO
✔ Inject dependencies
✔ Don't use helper methods
✔ Render the template manually
✔ Keep using Request
(not really a TODO)

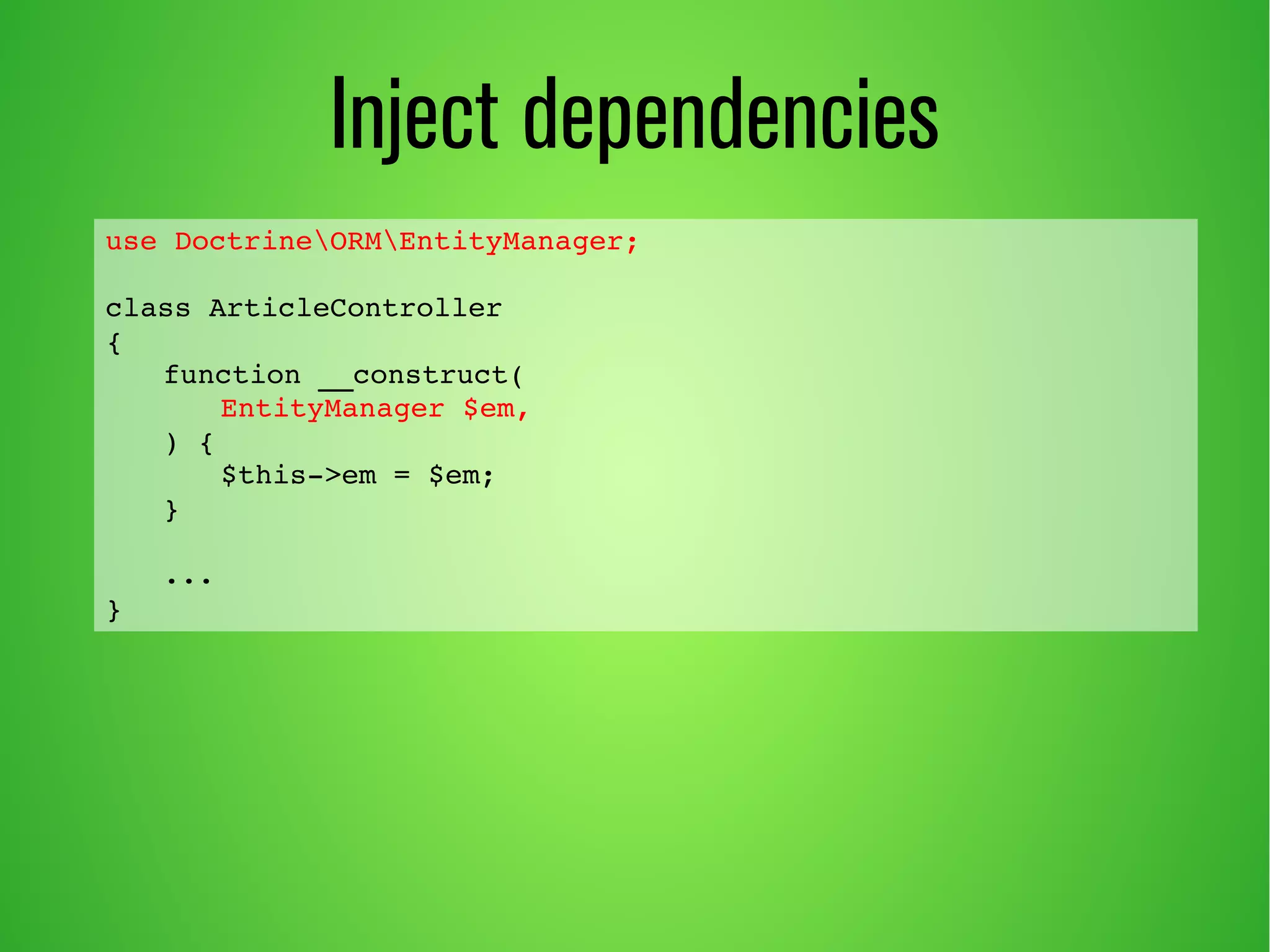

58. use DoctrineORMEntityManager;
class ArticleController
{
function __construct(
EntityManager $em,
) {
$this­>
em = $em;
}
...
}
Inject dependencies

59. Inline helper methods
use SymfonyComponentHttpKernelExceptionNotFoundHttpException
class ArticleController
{
...
public function newAction(...)
{
...
throw new NotFoundHttpException();
...
}
}

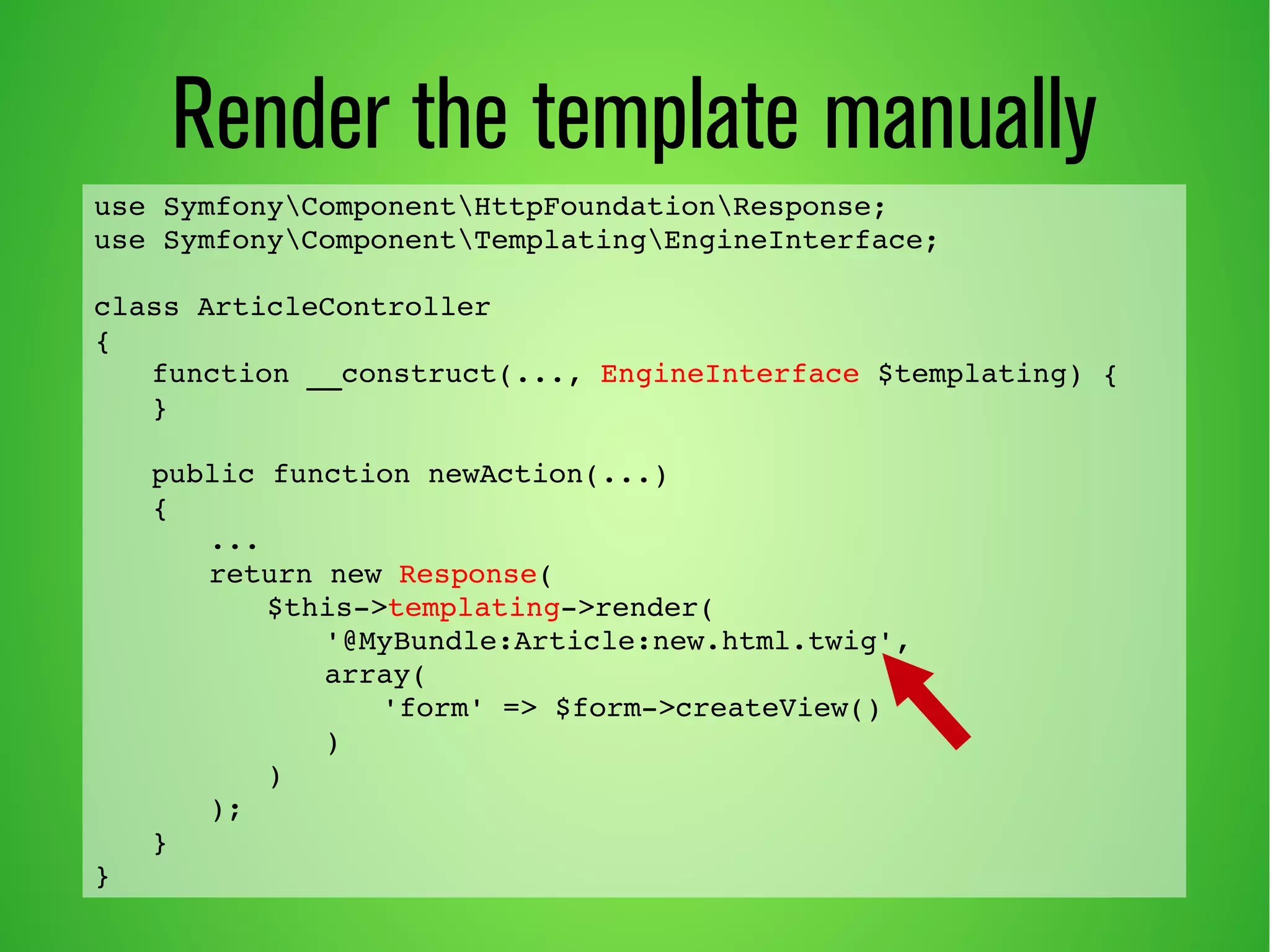

60. use SymfonyComponentHttpFoundationResponse;
use SymfonyComponentTemplatingEngineInterface;
class ArticleController
{
function __construct(..., EngineInterface $templating) {
}
public function newAction(...)
{
...
return new Response(
$this­>
templating­>
render(
'@MyBundle:Article:new.html.twig',
array(
'form' => $form­>
createView()
)
)
);
}
}
Render the template manually

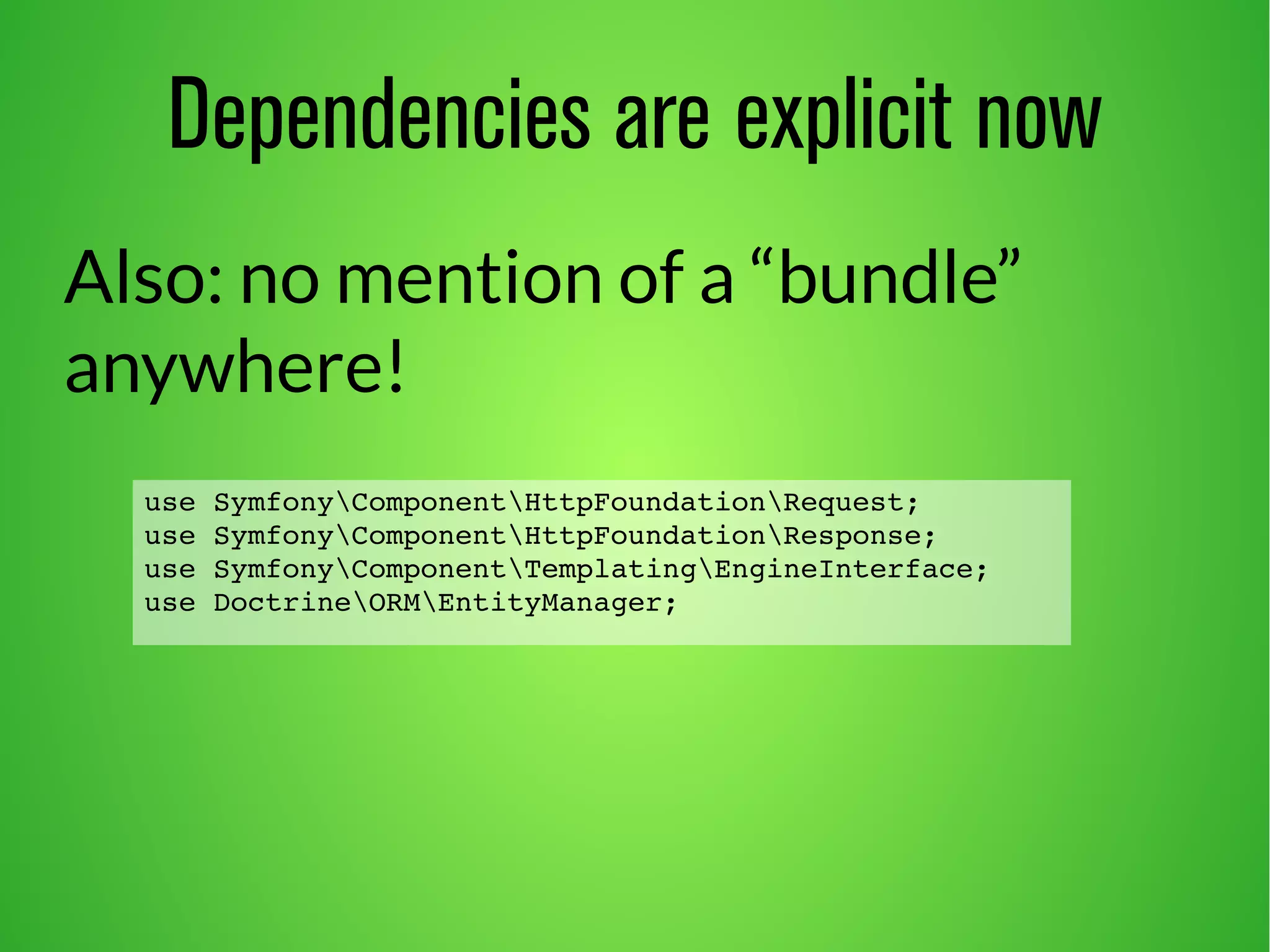

61. Dependencies are explicit now
Also: no mention of a “bundle”
anywhere!
use SymfonyComponentHttpFoundationRequest;
use SymfonyComponentHttpFoundationResponse;
use SymfonyComponentTemplatingEngineInterface;
use DoctrineORMEntityManager;

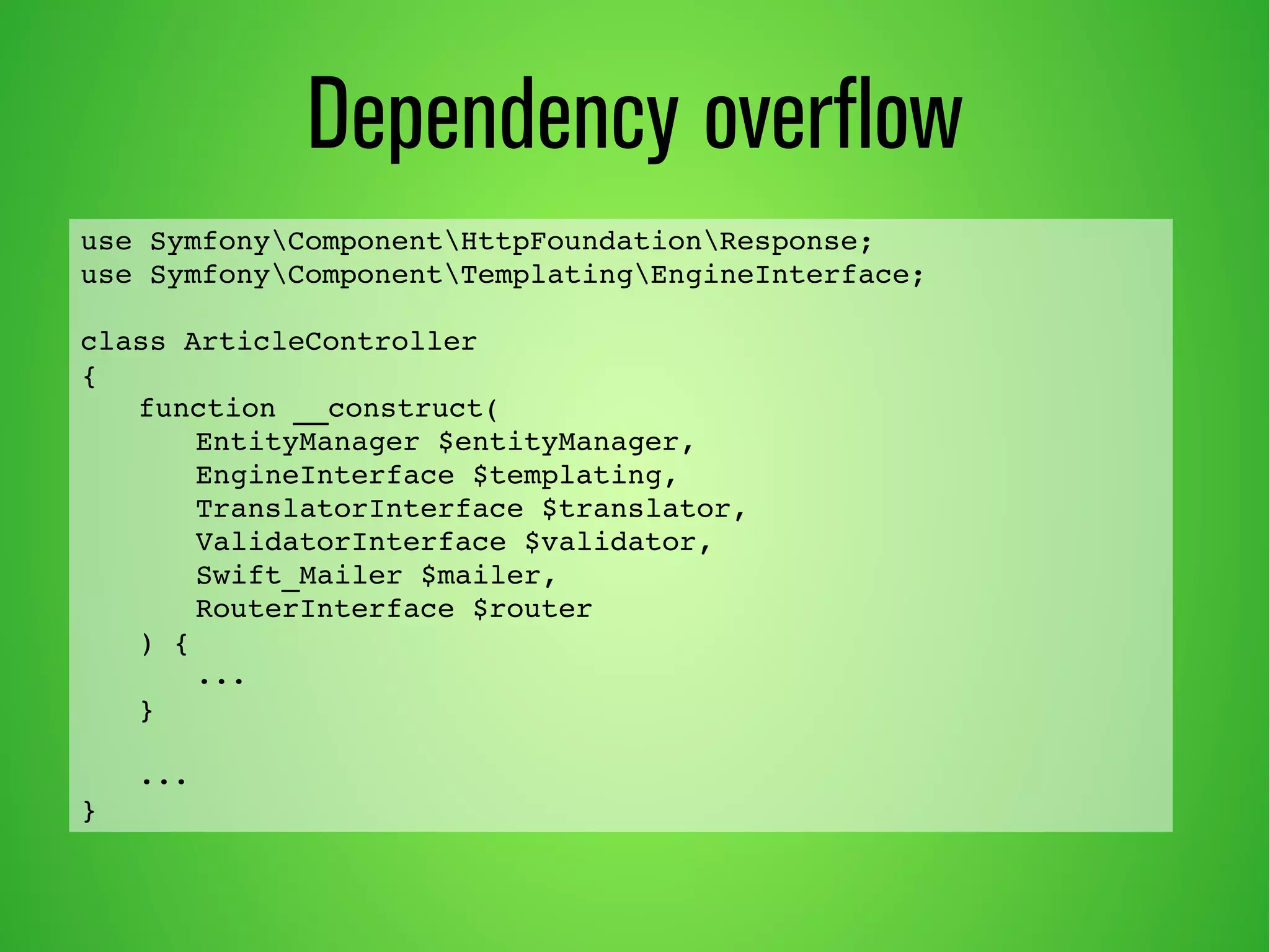

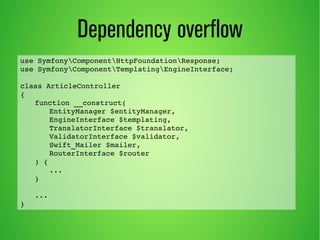

62. Dependency overflow
use SymfonyComponentHttpFoundationResponse;
use SymfonyComponentTemplatingEngineInterface;
class ArticleController
{
function __construct(
EntityManager $entityManager,
EngineInterface $templating,
TranslatorInterface $translator,
ValidatorInterface $validator,
Swift_Mailer $mailer,
RouterInterface $router
) {
...
}
...
}

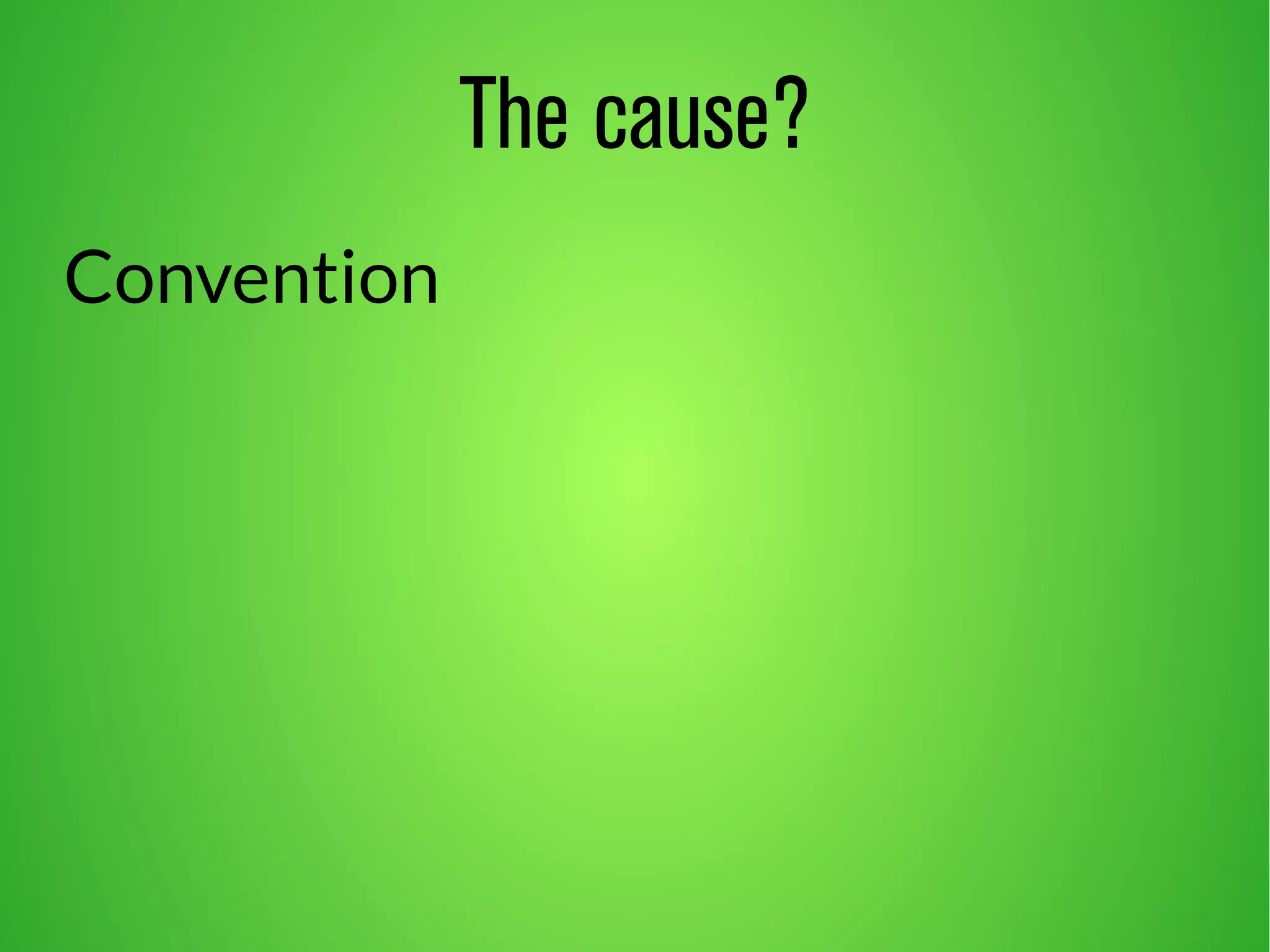

63. The cause?
Convention

64. One controller, many actions
one action!

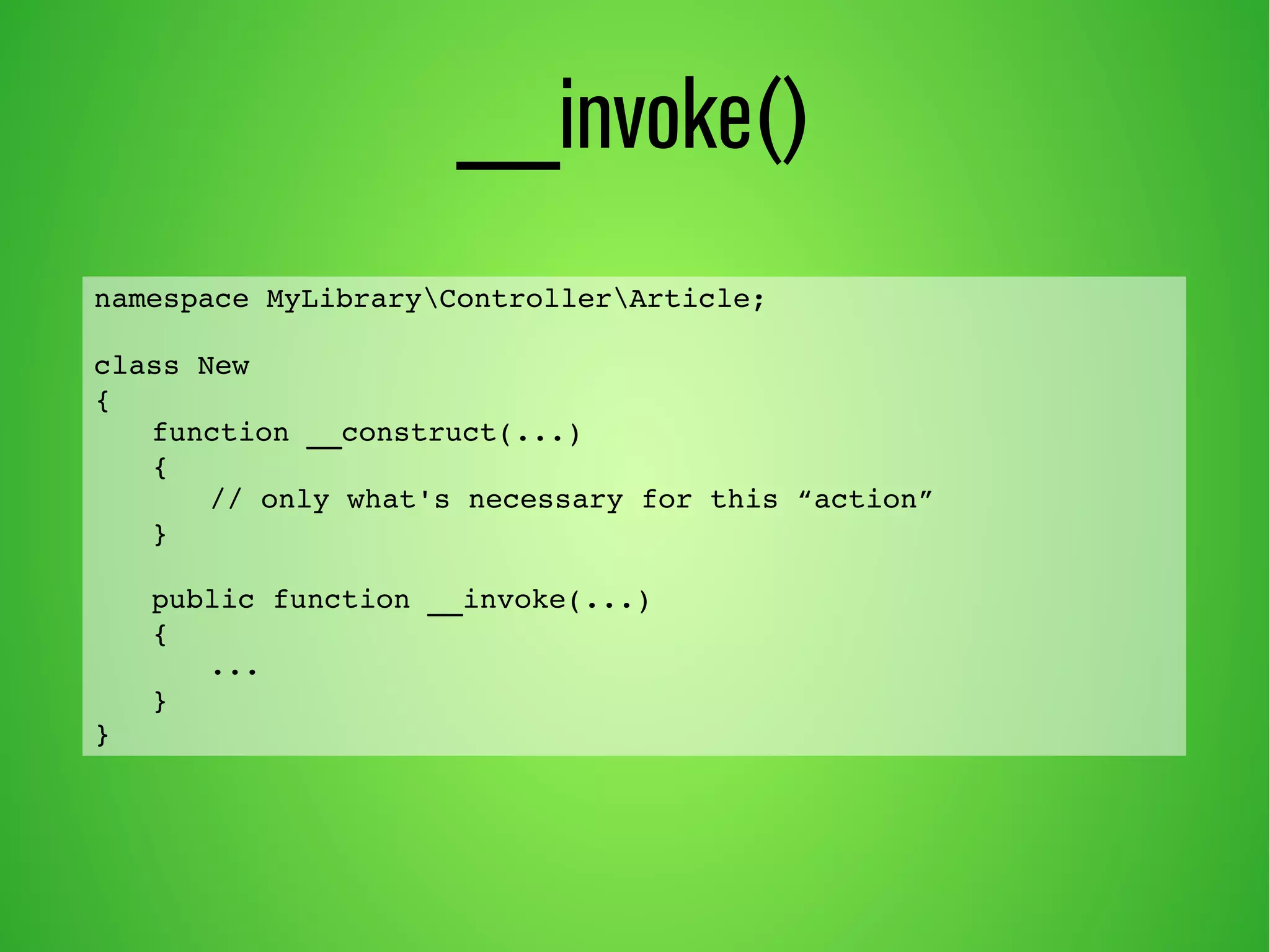

65. __invoke()
namespace MyLibraryControllerArticle;
class New
{
function __construct(...)
{
// only what's necessary for this “action”
}
public function __invoke(...)
{
...
}
}

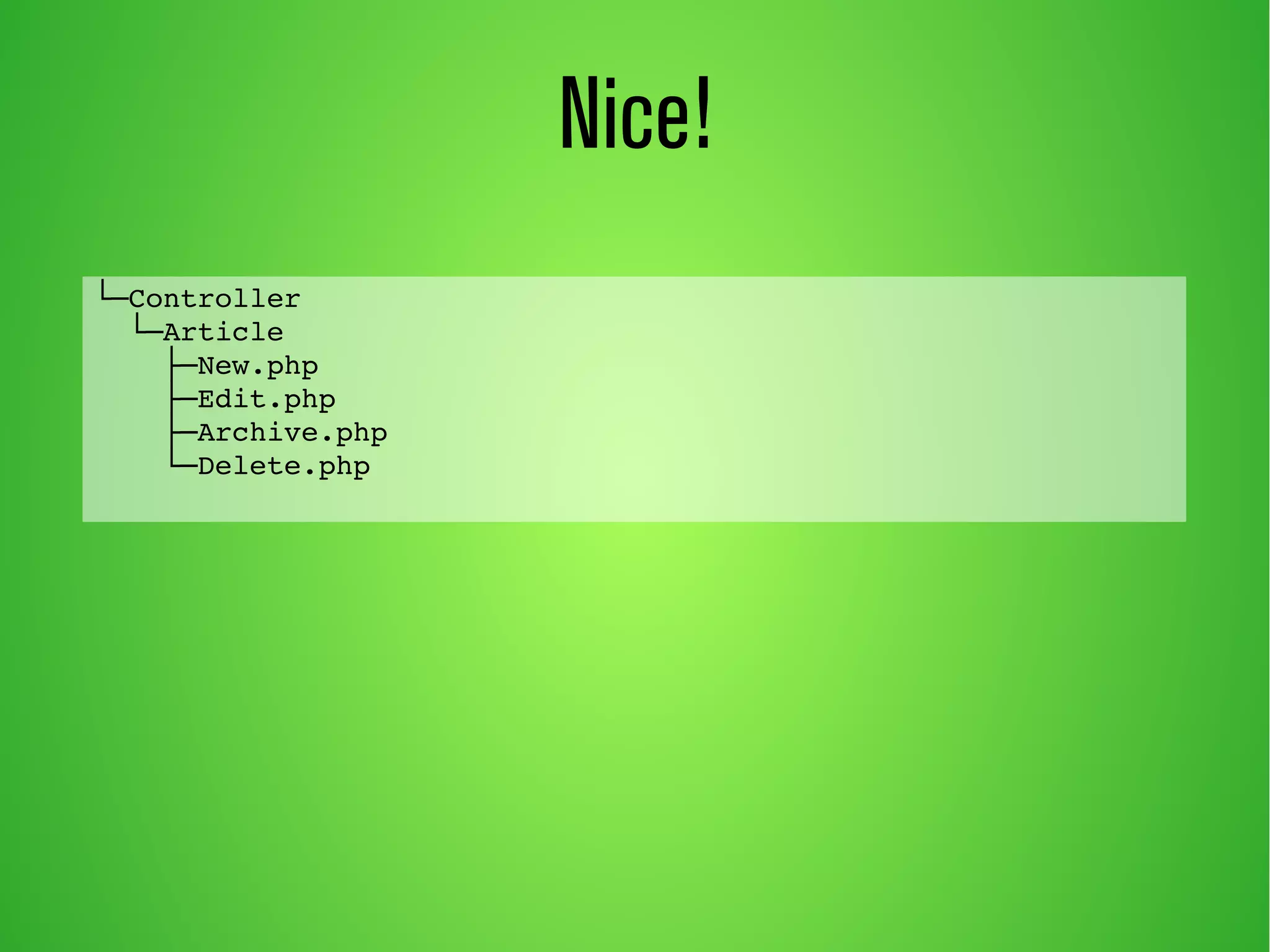

66. Nice!
└─Controller
└─Article
├─New.php
├─Edit.php
├─Archive.php
└─Delete.php

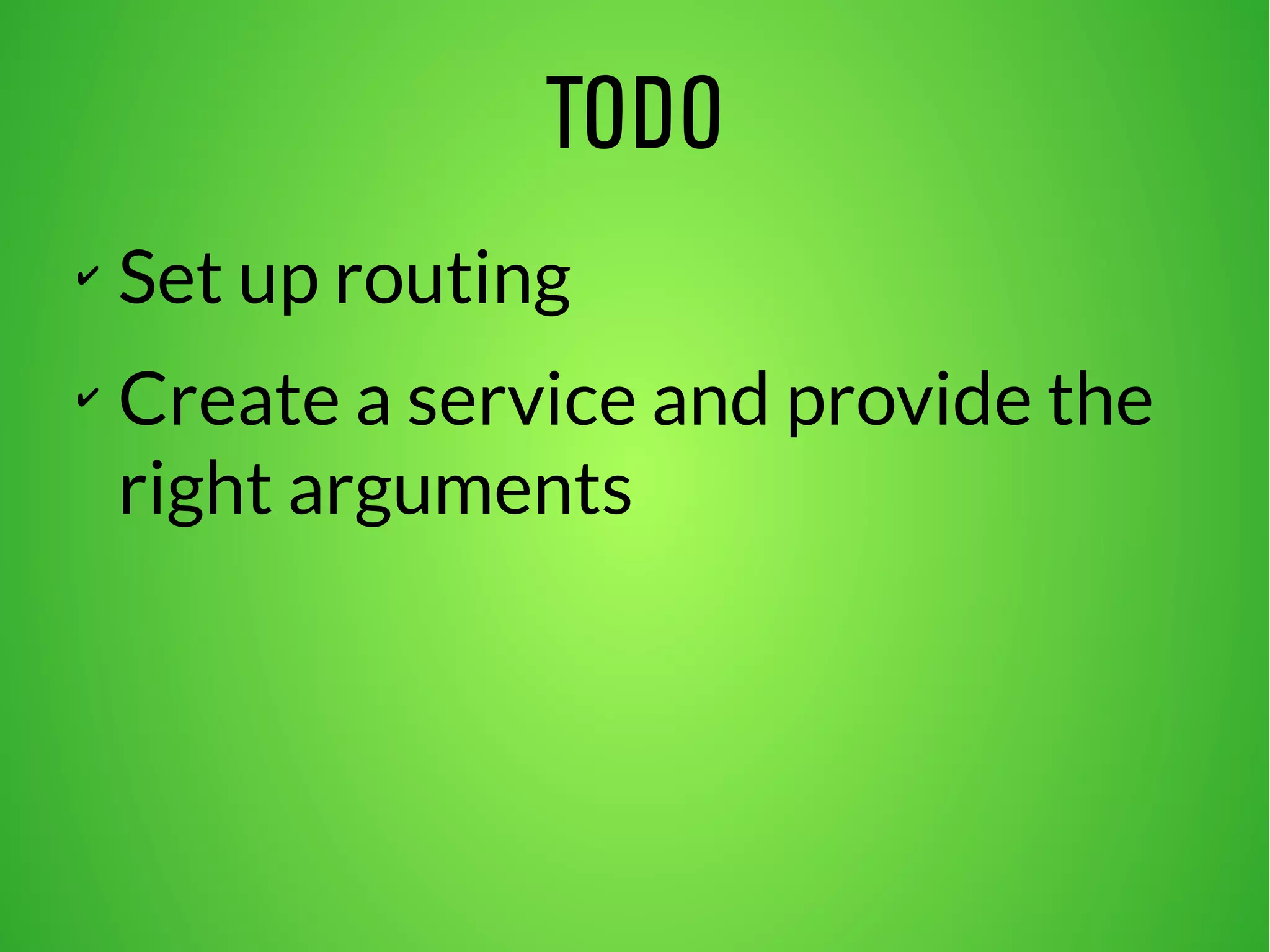

67. TODO
✔ Set up routing
✔ Create a service and provide the
right arguments

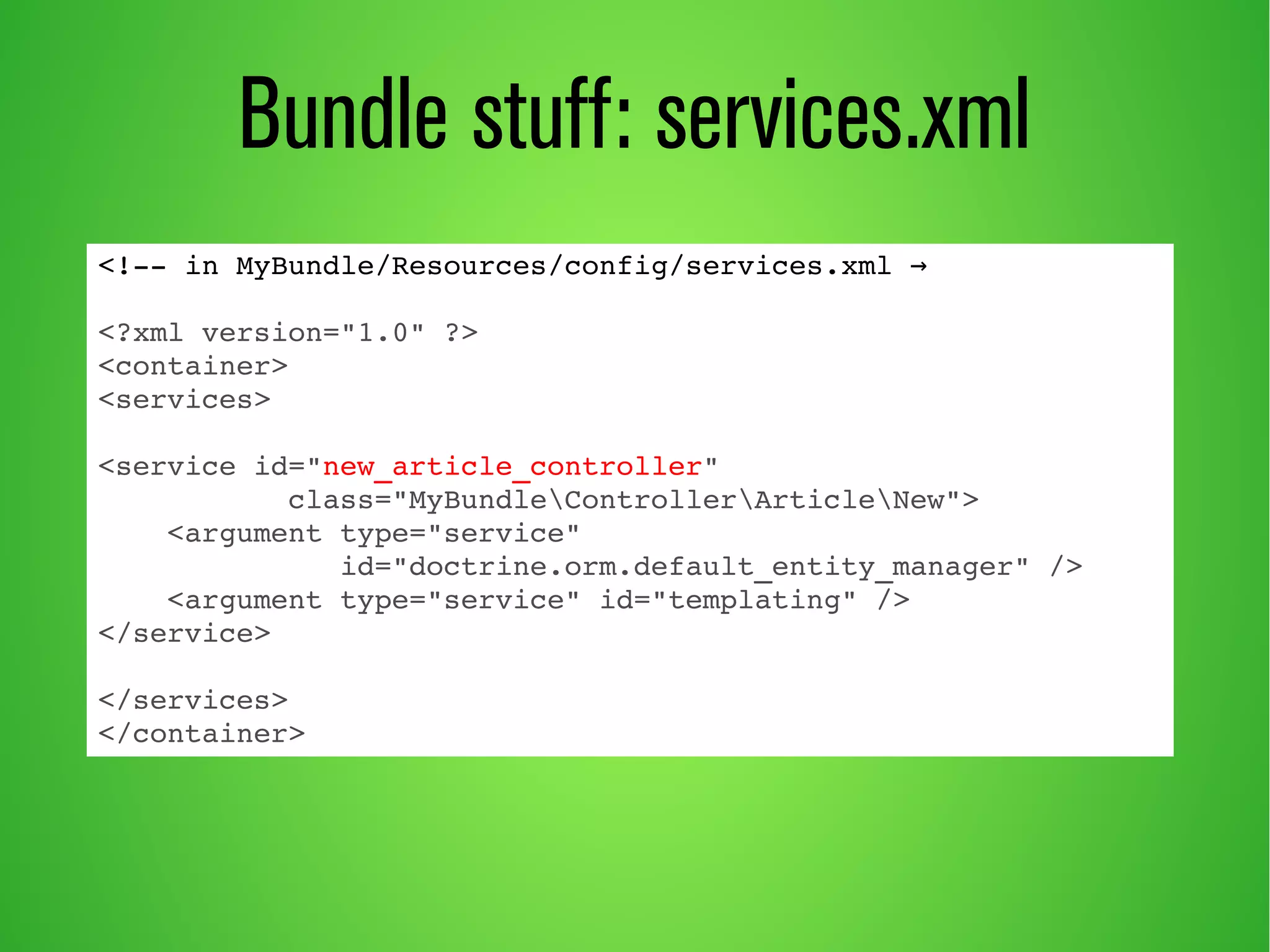

68. Bundle stuff: services.xml
<!­­in
MyBundle/Resources/config/services.xml →
<?xml version="1.0" ?>
<container>
<services>
<service id="new_article_controller"
class="MyBundleControllerArticleNew">
<argument type="service"
id="doctrine.orm.default_entity_manager" />
<argument type="service" id="templating" />
</service>
</services>
</container>

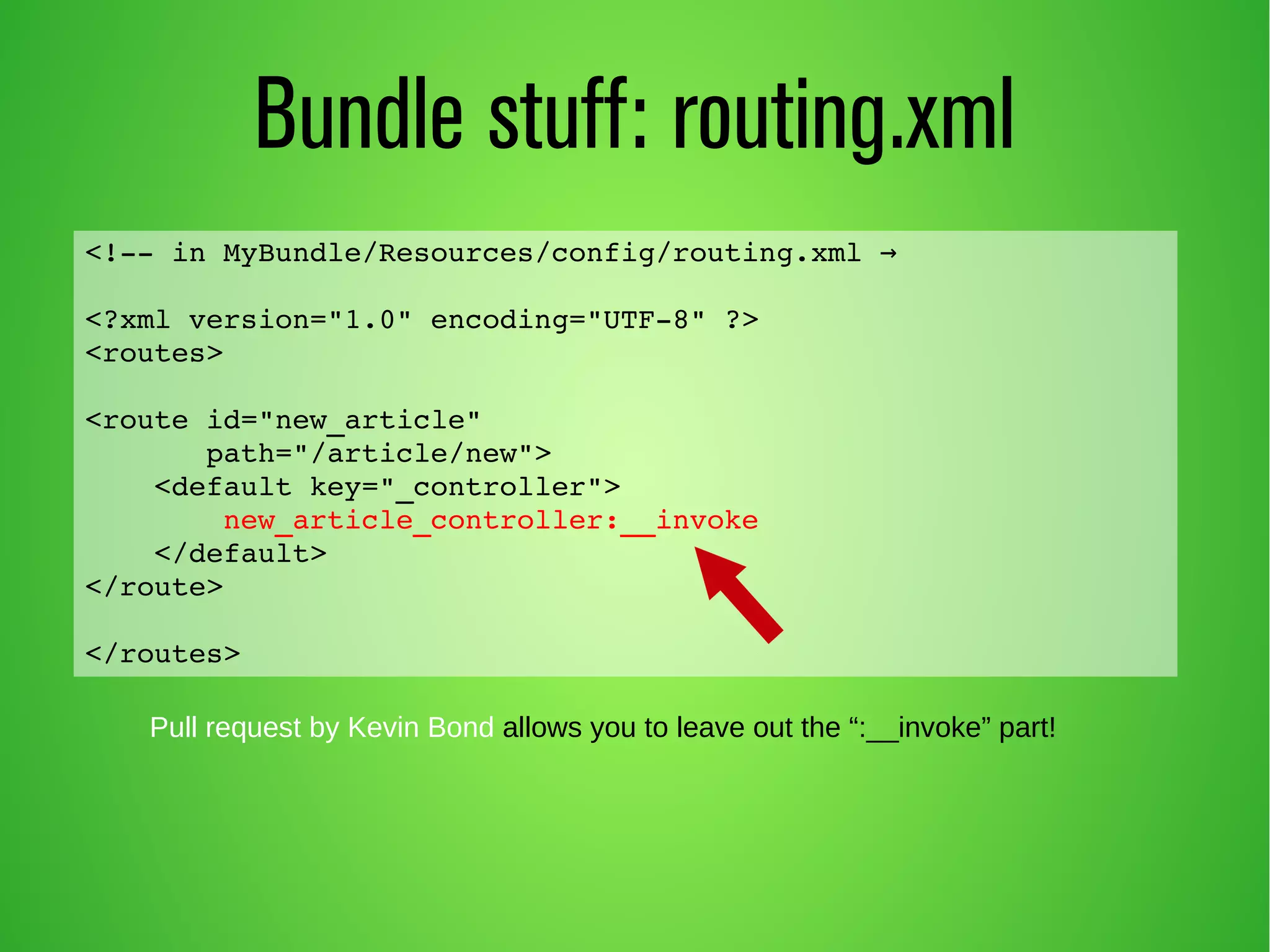

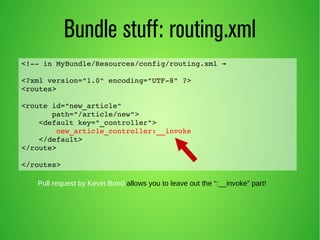

69. Bundle stuff: routing.xml
<!­­in
MyBundle/Resources/config/routing.xml →
<?xml version="1.0" encoding="UTF­8"
?>
<routes>
<route id="new_article"
path="/article/new">
<default key="_controller">
new_article_controller:__invoke
</default>
</route>
</routes>
Pull request by Kevin Bond allows you to leave out the “:__invoke” part!

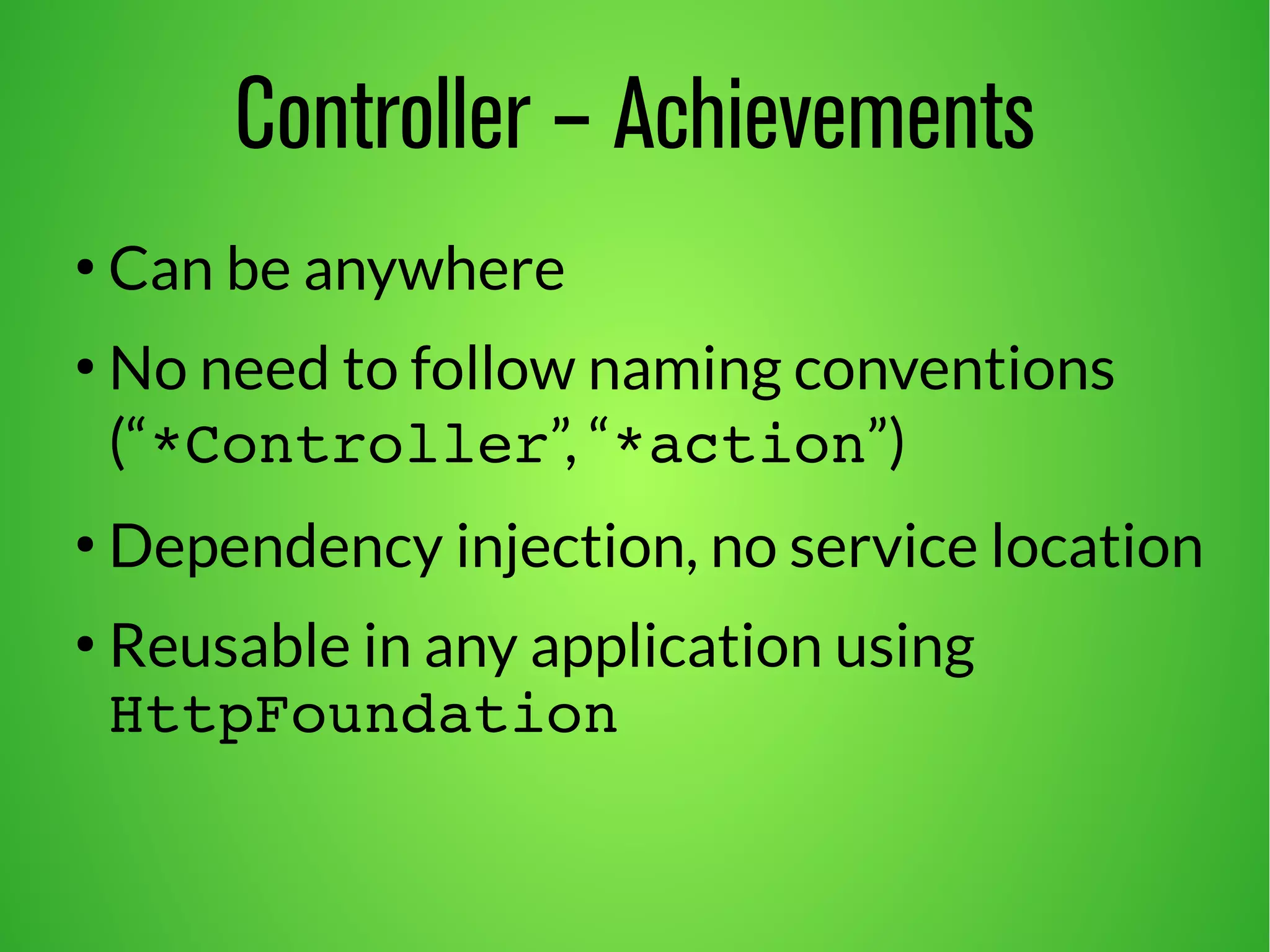

70. Controller – Achievements
● Can be anywhere
● No need to follow naming conventions
(“*Controller”, “*action”)
● Dependency injection, no service location
● Reusable in any application using
HttpFoundation

71. Next up: Entities

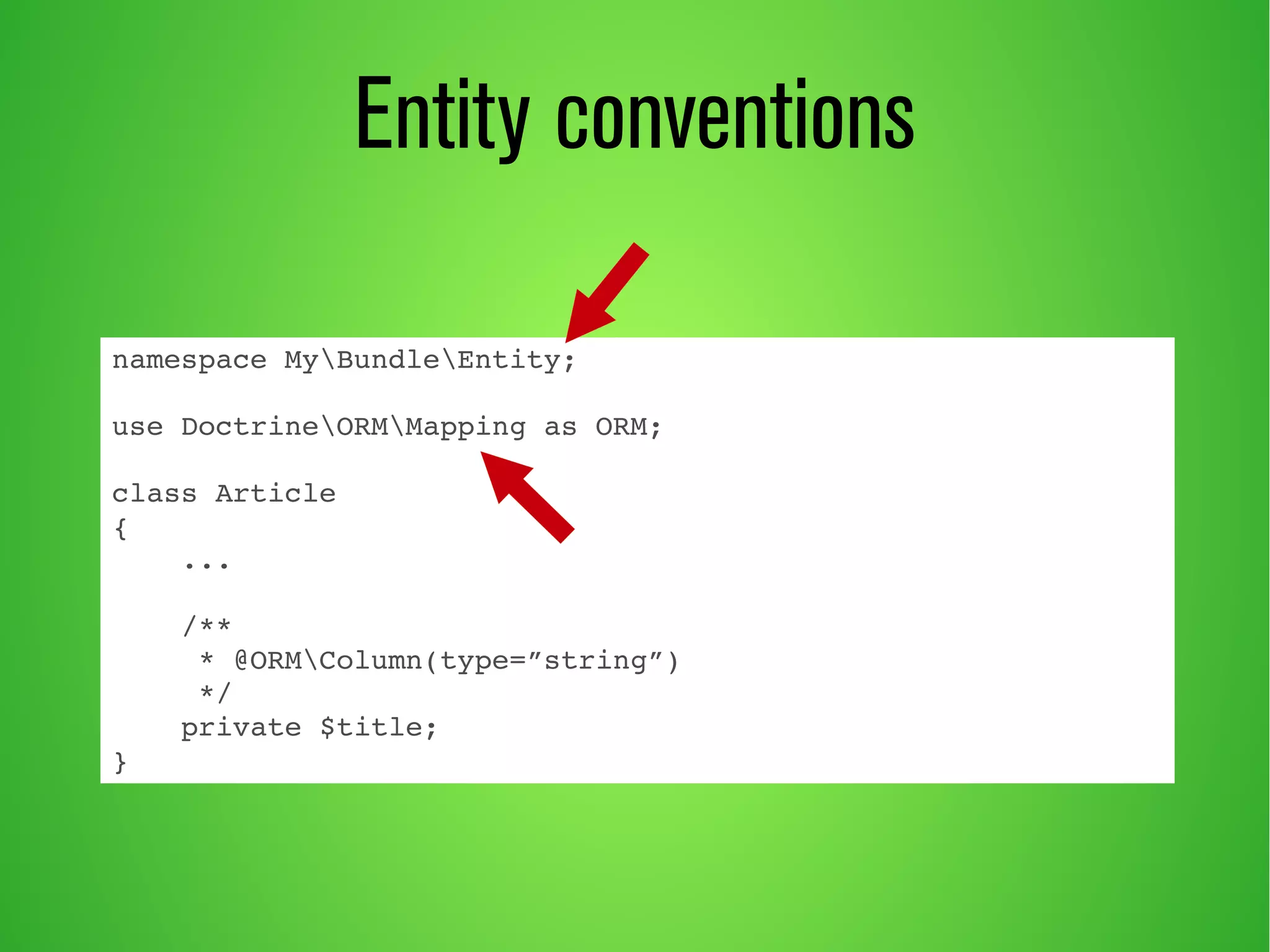

72. namespace MyBundleEntity;
use DoctrineORMMapping as ORM;
class Article
{
...
/**
* @ORMColumn(type=”string”)
*/
private $title;
}
Entity conventions

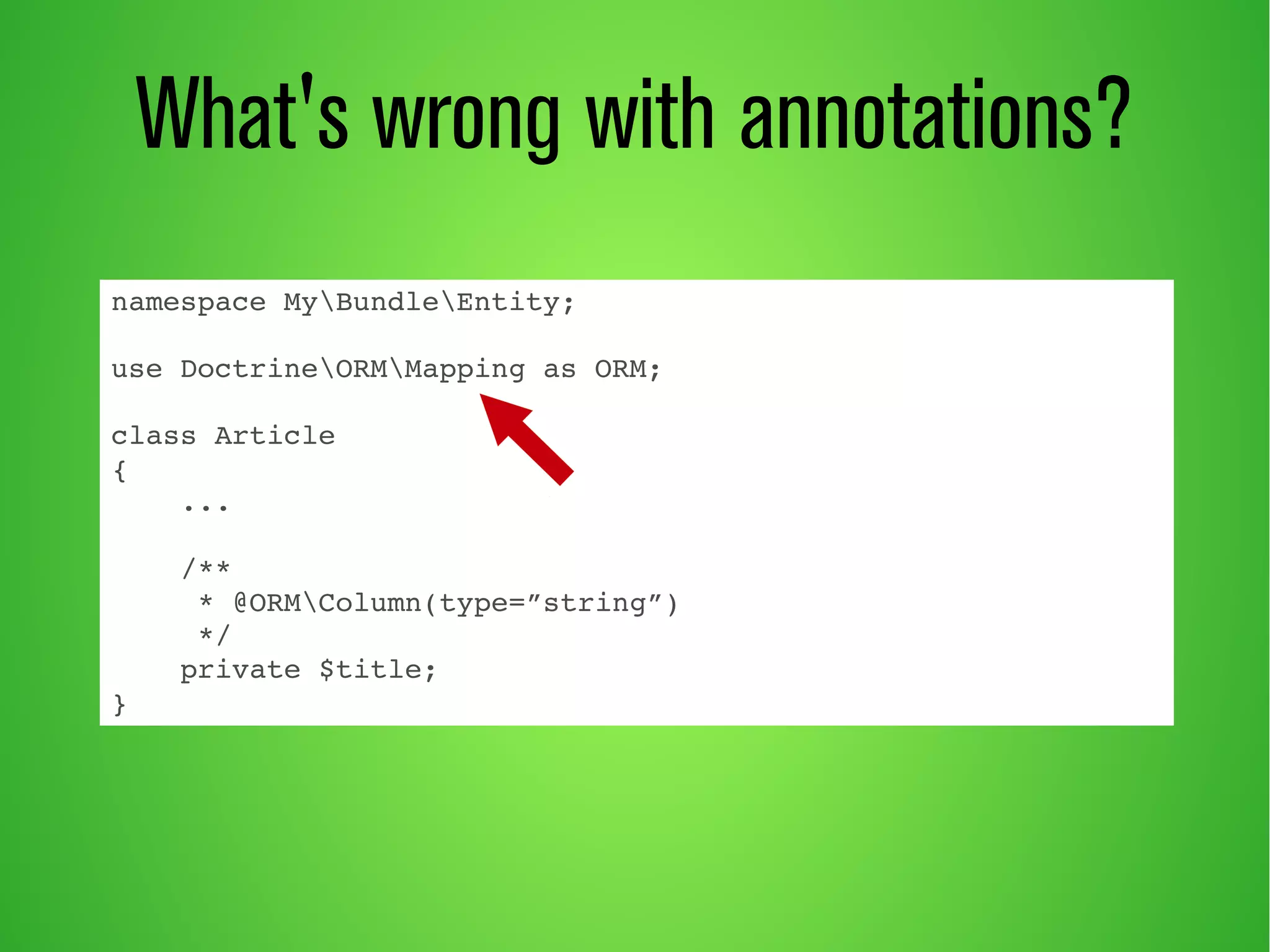

73. What's wrong with annotations?
namespace MyBundleEntity;
use DoctrineORMMapping as ORM;
class Article
{
...
/**
* @ORMColumn(type=”string”)
*/
private $title;
}

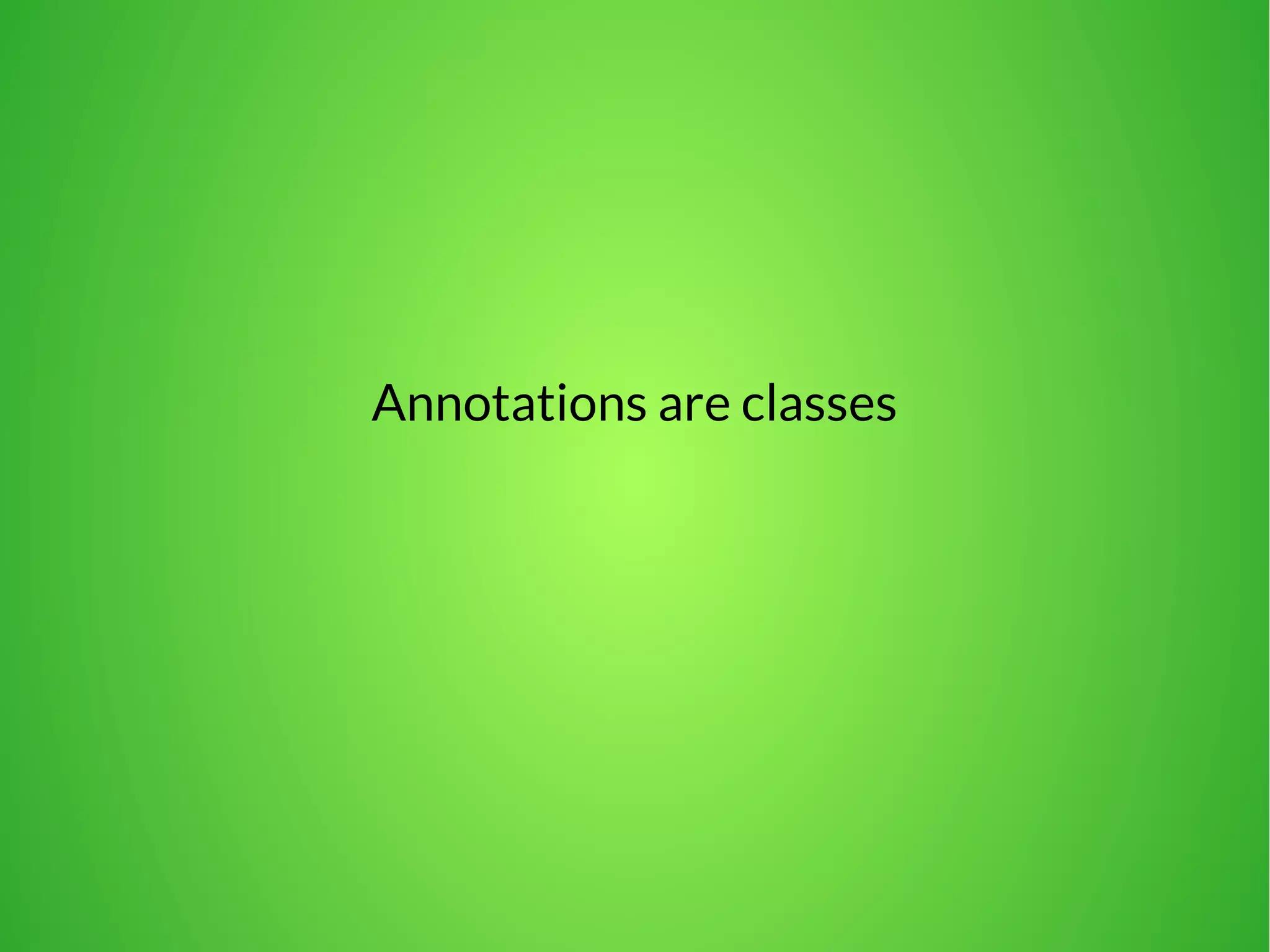

74. Annotations are classes

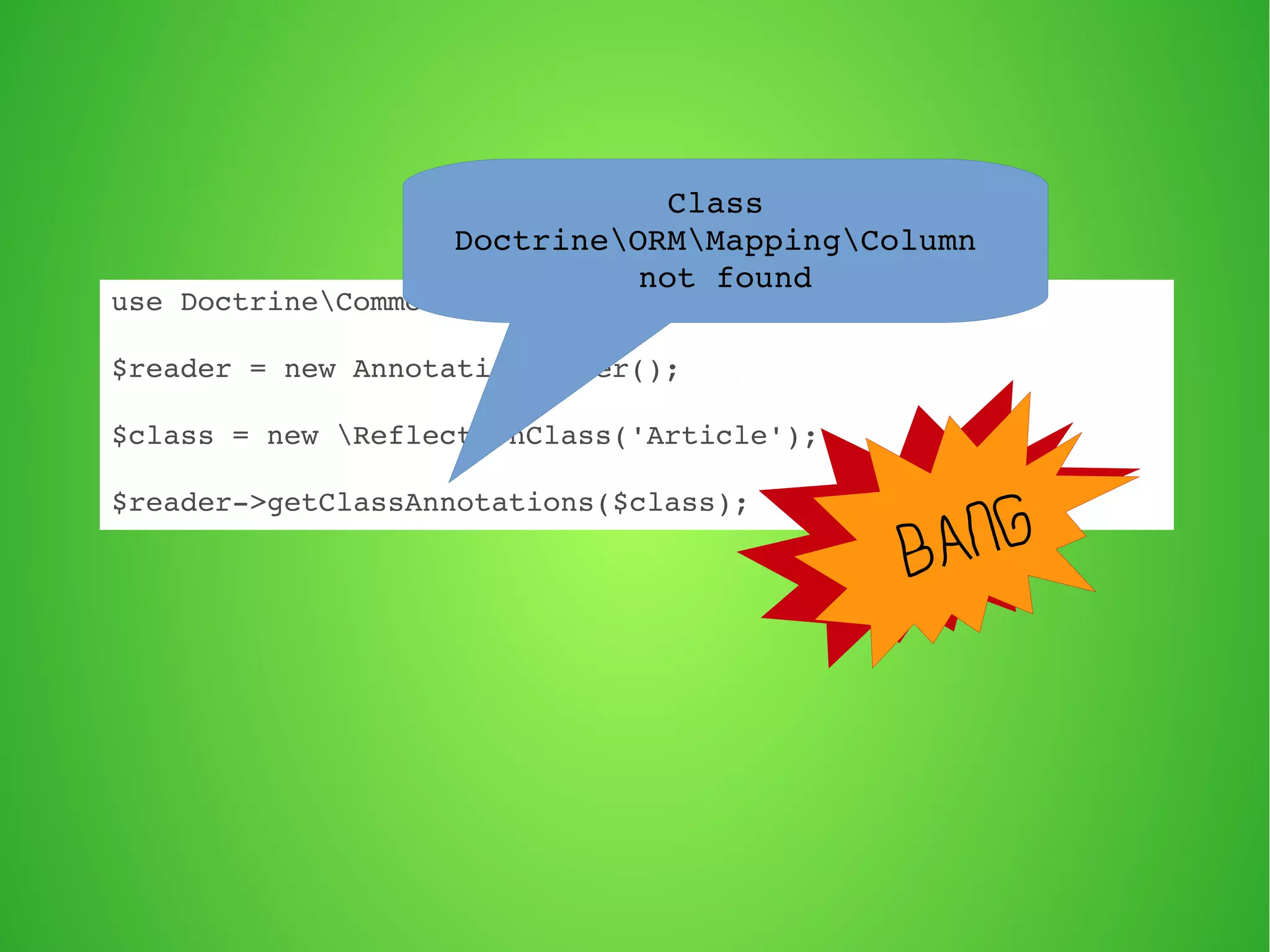

75. use DoctrineCommonAnnotationsAnnotationReader;
$reader = new AnnotationReader();
$class = new ReflectionClass('Article');
$reader­>
getClassAnnotations($class);
BANG
Class
DoctrineORMMappingColumn
not found

76. Well, uhm, yes, but...

77. Are you ever going to use
anything else than Doctrine ORM?

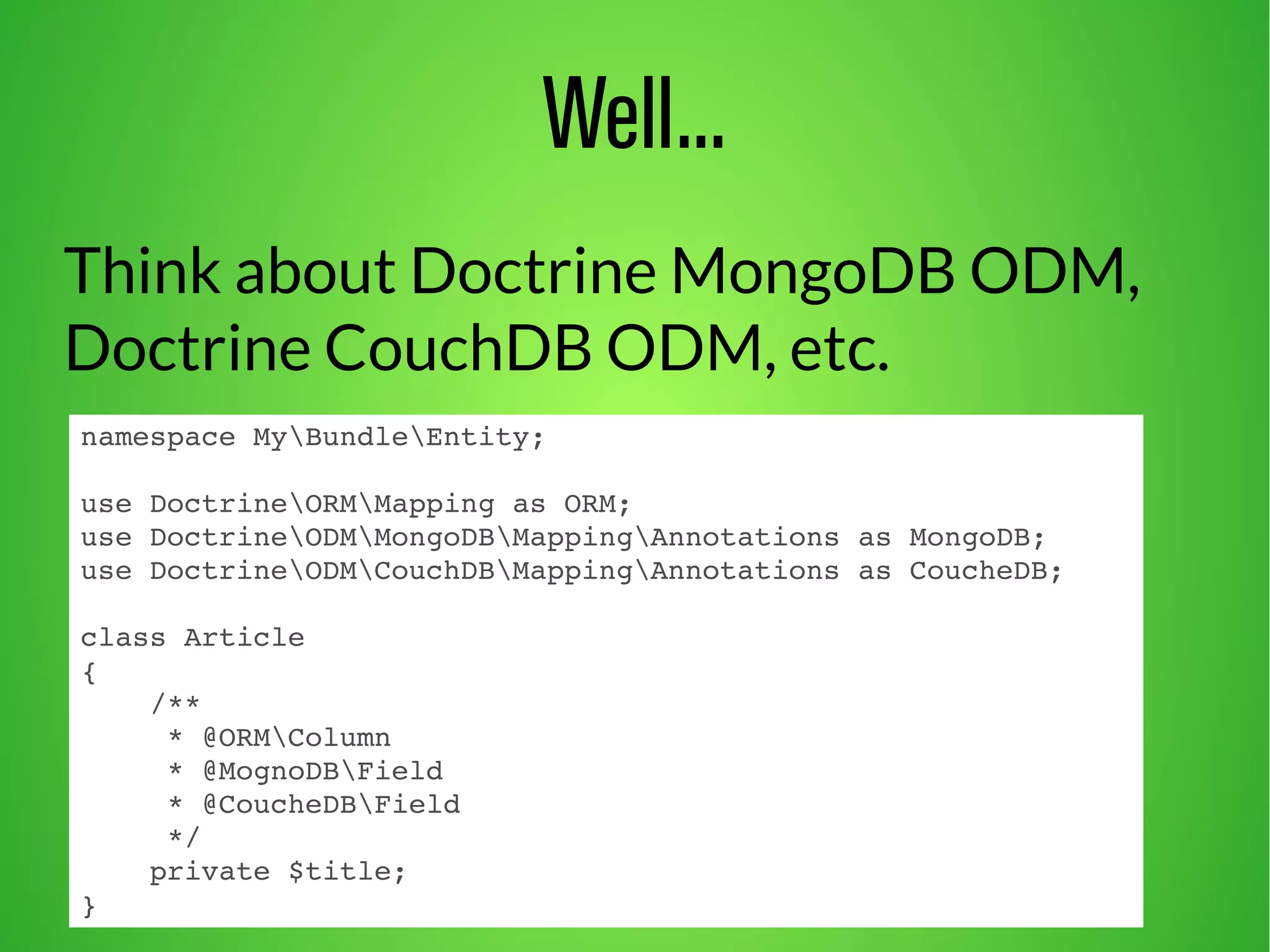

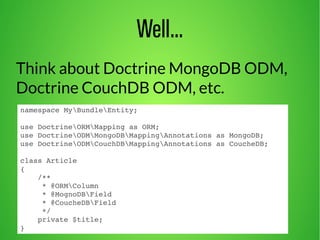

78. Well...
Think about Doctrine MongoDB ODM,
Doctrine CouchDB ODM, etc.
namespace MyBundleEntity;
use DoctrineORMMapping as ORM;
use DoctrineODMMongoDBMappingAnnotations as MongoDB;
use DoctrineODMCouchDBMappingAnnotations as CoucheDB;
class Article
{
/**
* @ORMColumn
* @MognoDBField
* @CoucheDBField
*/
private $title;
}

79. TODO
✔ Remove annotations
✔ Find another way to map the data

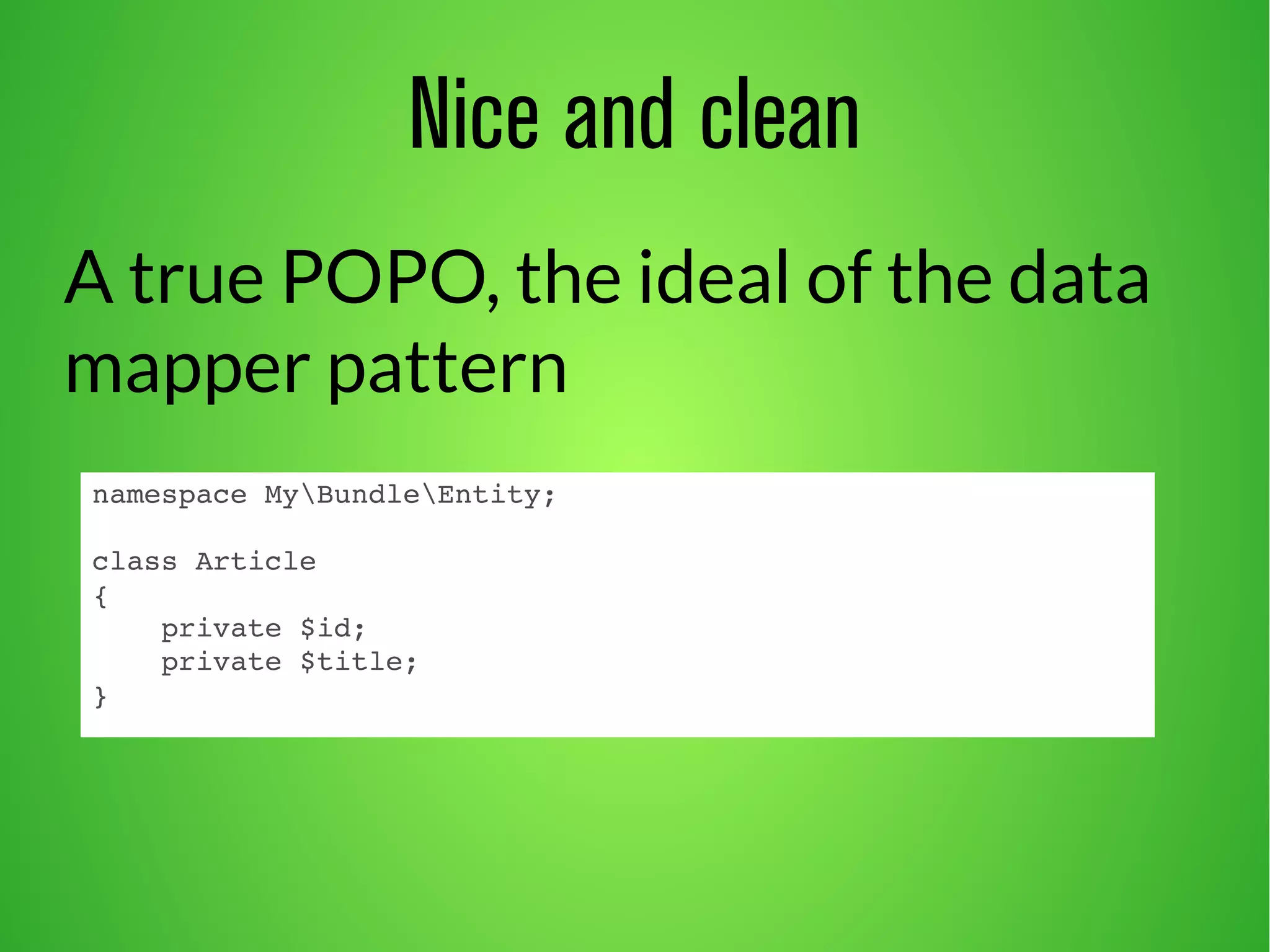

80. namespace MyBundleEntity;
class Article
{
private $id;
private $title;
}
Nice and clean
A true POPO, the ideal of the data
mapper pattern

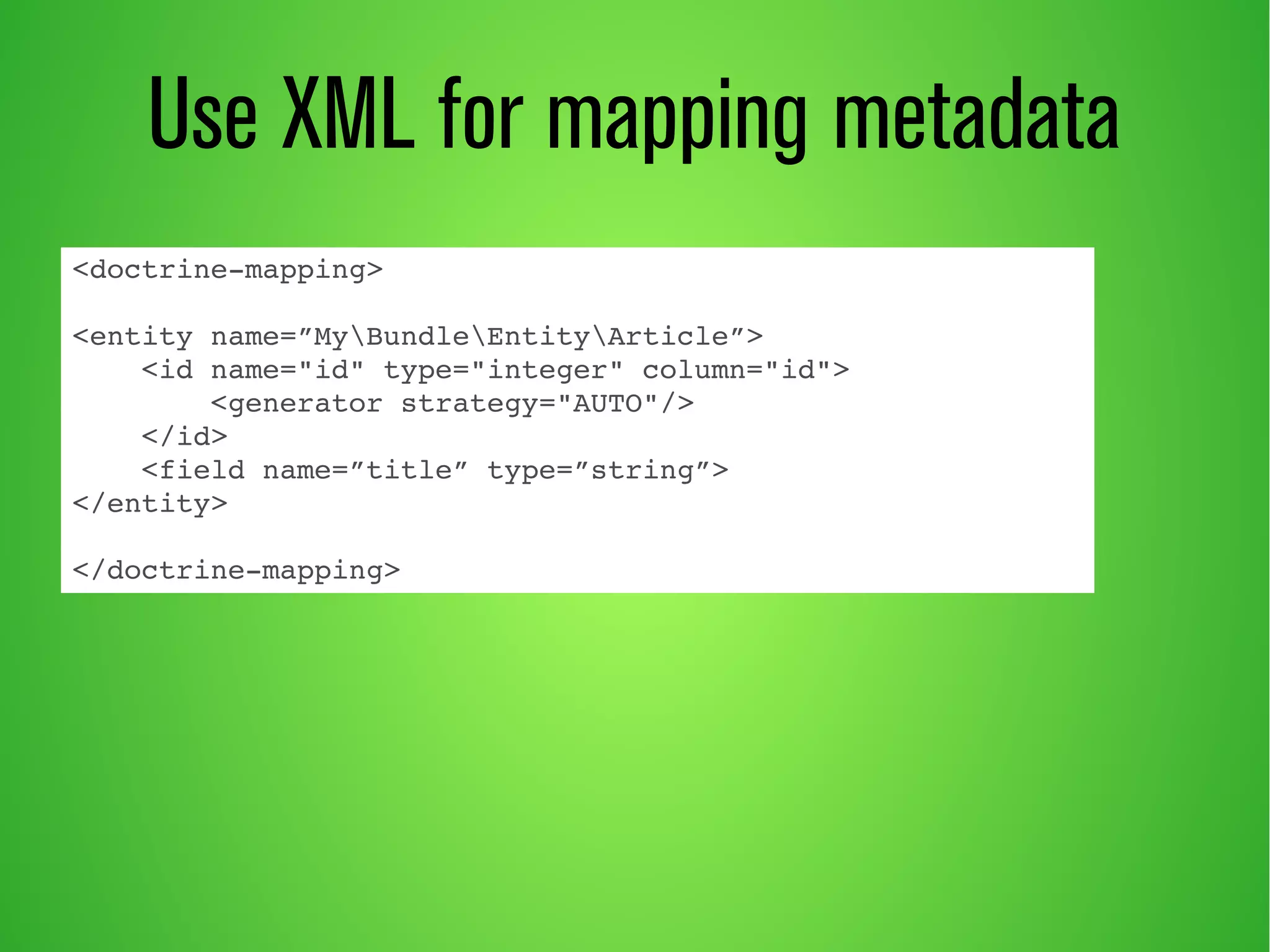

81. Use XML for mapping metadata
<doctrine­mapping>
<entity name=”MyBundleEntityArticle”>
<id name="id" type="integer" column="id">
<generator strategy="AUTO"/>
</id>
<field name=”title” type=”string”>
</entity>
</doctrine­mapping>

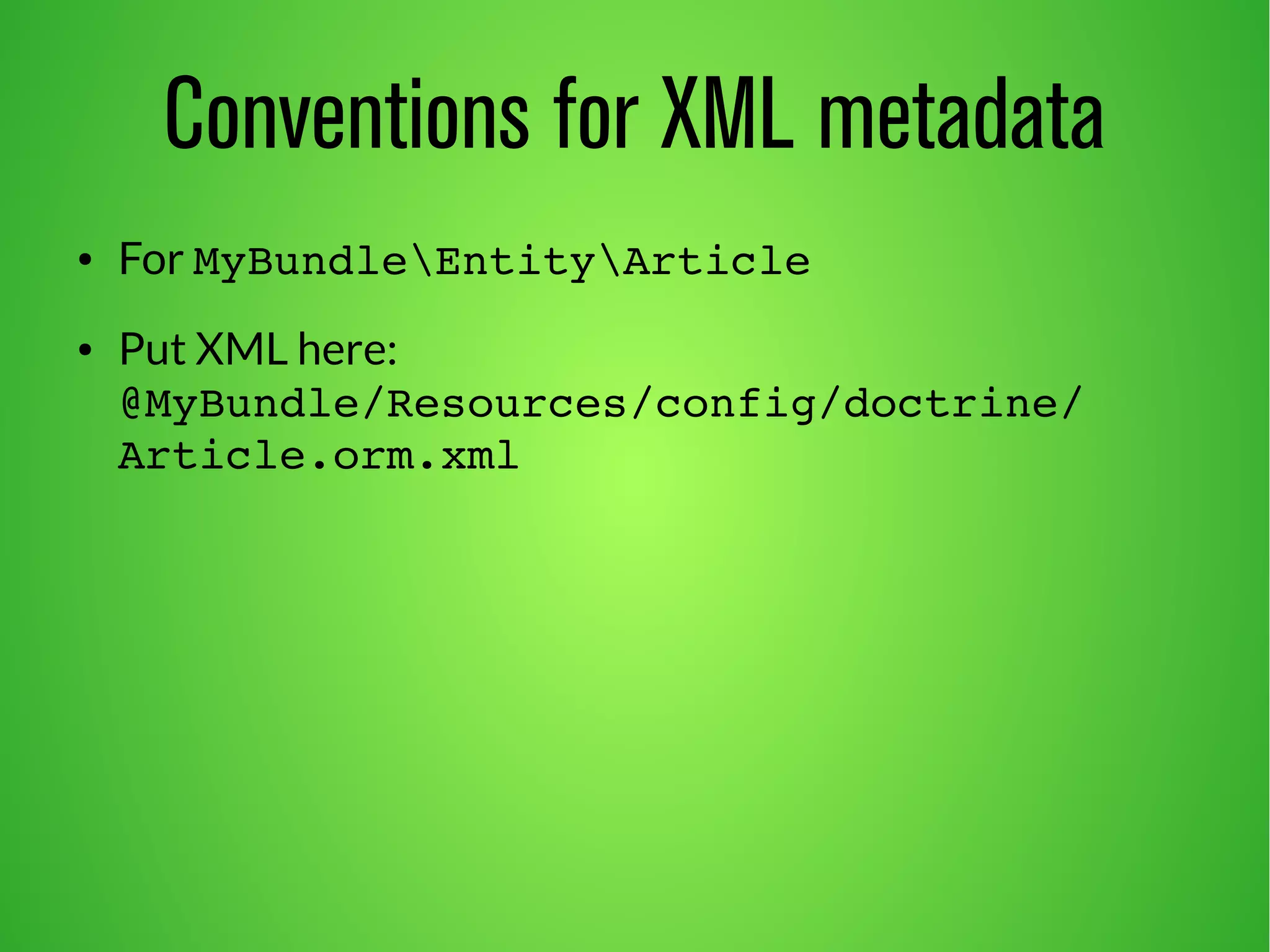

82. Conventions for XML metadata
● For MyBundleEntityArticle
● Put XML here:
@MyBundle/Resources/config/doctrine/
Article.orm.xml

83. We don't want it in the bundle!
There's a nice little trick

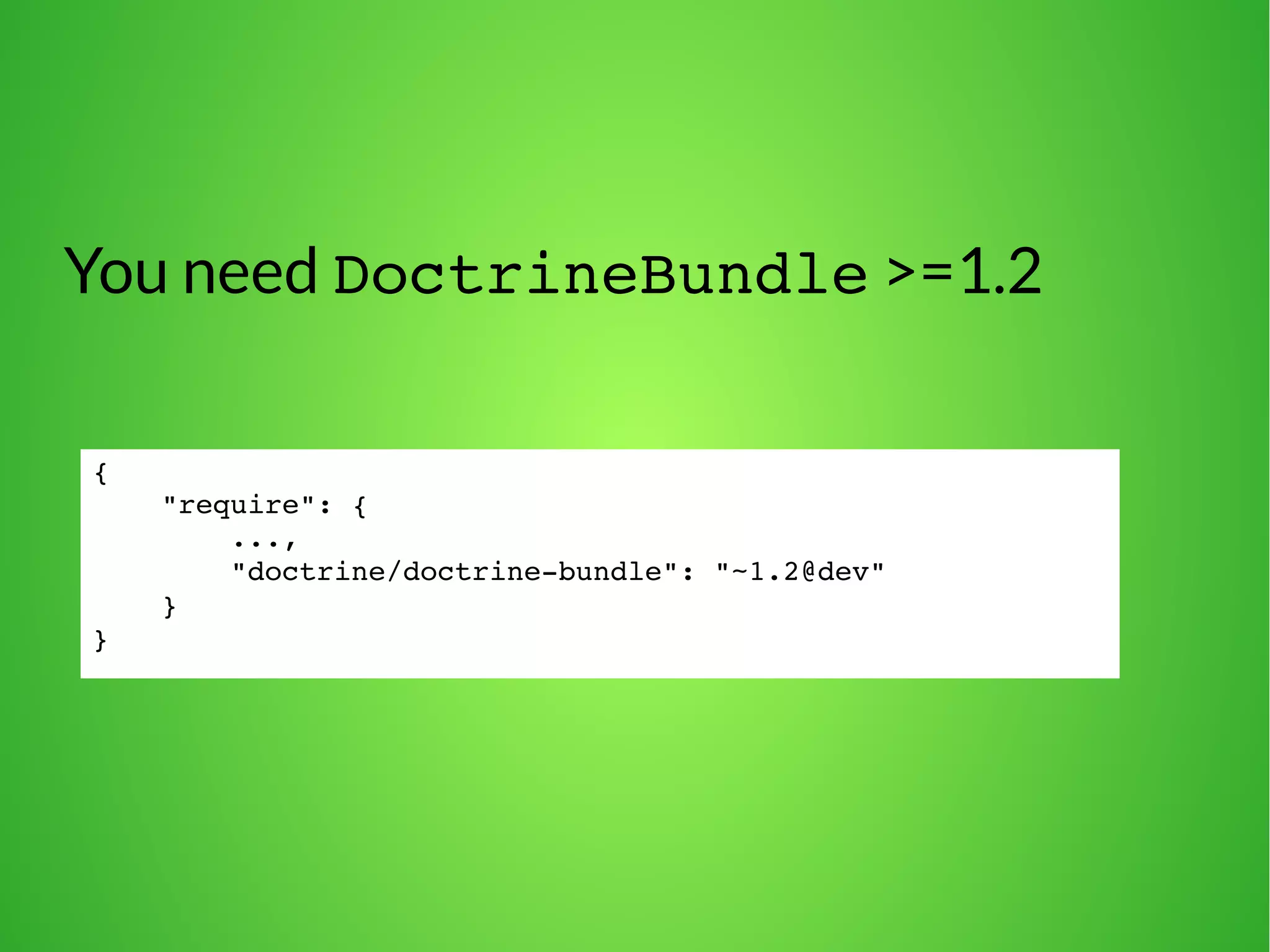

84. You need DoctrineBundle >=1.2
{
"require": {
...,
"doctrine/doctrine­bundle":
"~1.2@dev"
}
}

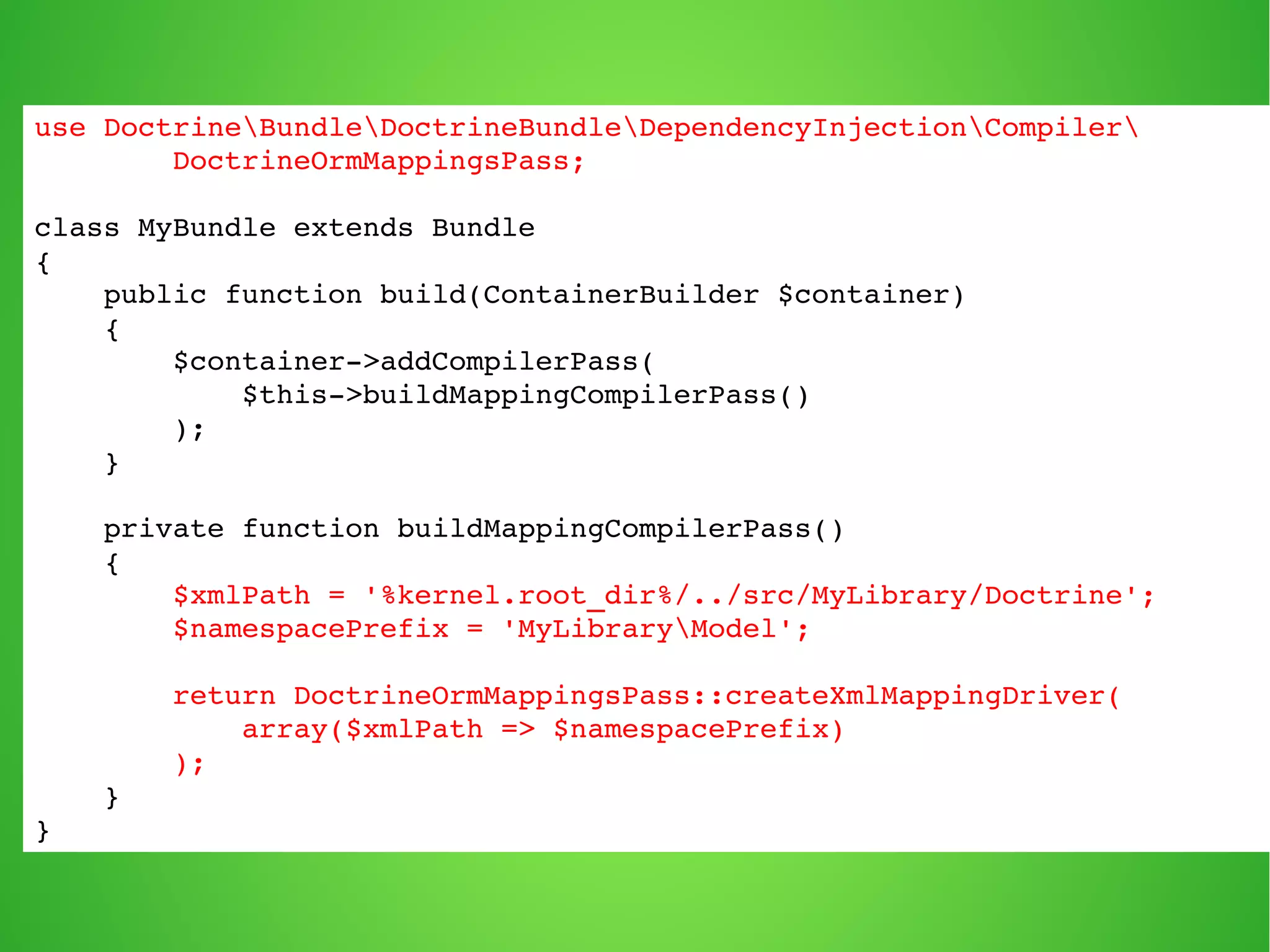

85. use DoctrineBundleDoctrineBundleDependencyInjectionCompiler
DoctrineOrmMappingsPass;
class MyBundle extends Bundle
{
public function build(ContainerBuilder $container)
{
$container­>
addCompilerPass(
$this­>
buildMappingCompilerPass()
);
}
private function buildMappingCompilerPass()
{
$xmlPath = '%kernel.root_dir%/../src/MyLibrary/Doctrine';
$namespacePrefix = 'MyLibraryModel';
return DoctrineOrmMappingsPass::createXmlMappingDriver(
array($xmlPath => $namespacePrefix)
);
}
}

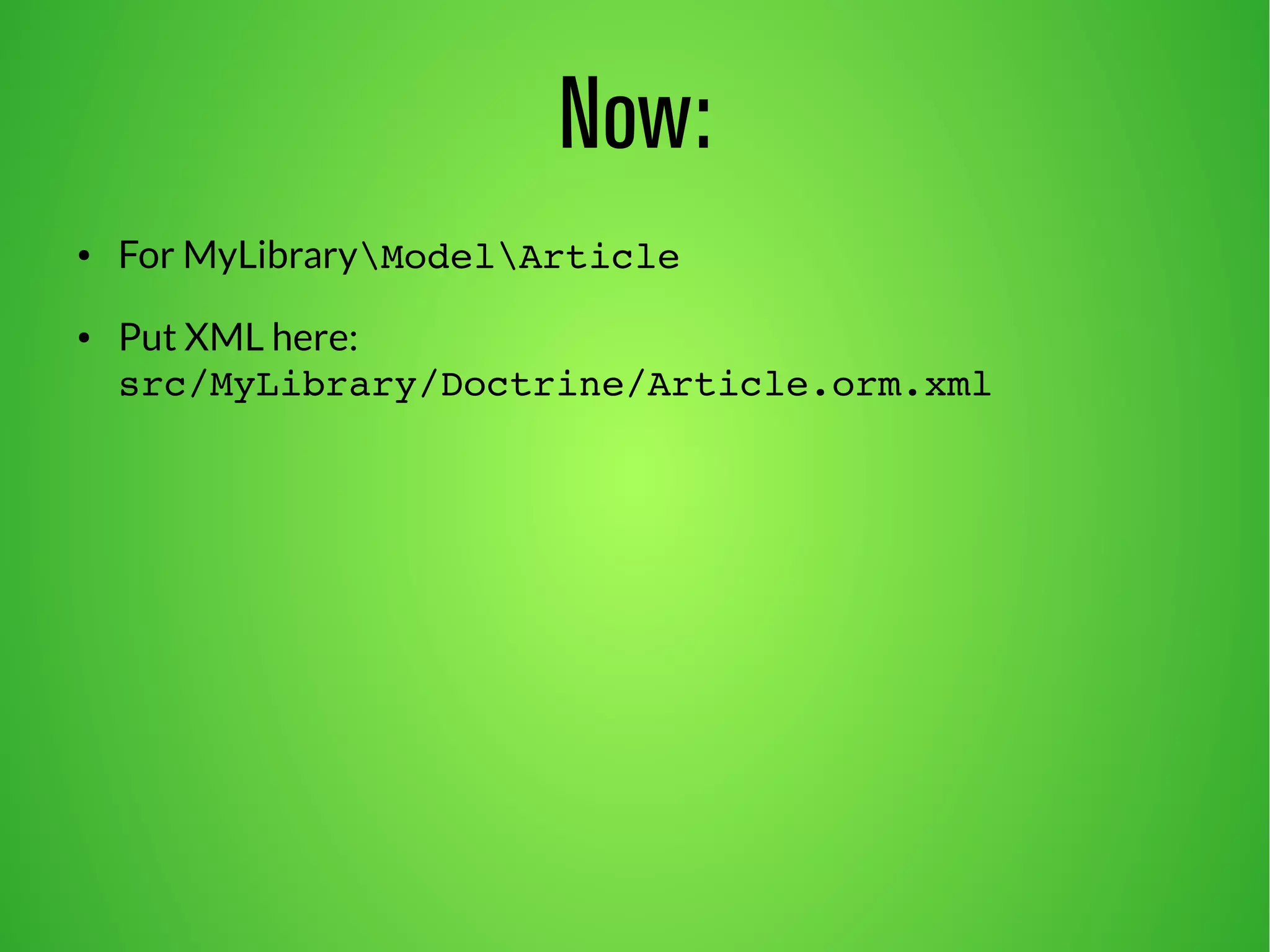

86. Now:
● For MyLibraryModelArticle
● Put XML here:
src/MyLibrary/Doctrine/Article.orm.xml

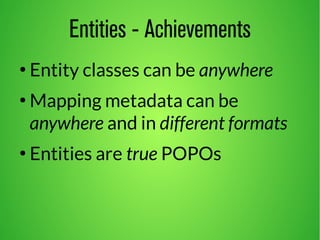

87. Entities - Achievements
● Entity classes can be anywhere
● Mapping metadata can be
anywhere and in different formats
● Entities are true POPOs

88. Finally: Templates

89. Conventions
● In /Resources/views/[Controller]
● Filename: [Action].[format].[engine]

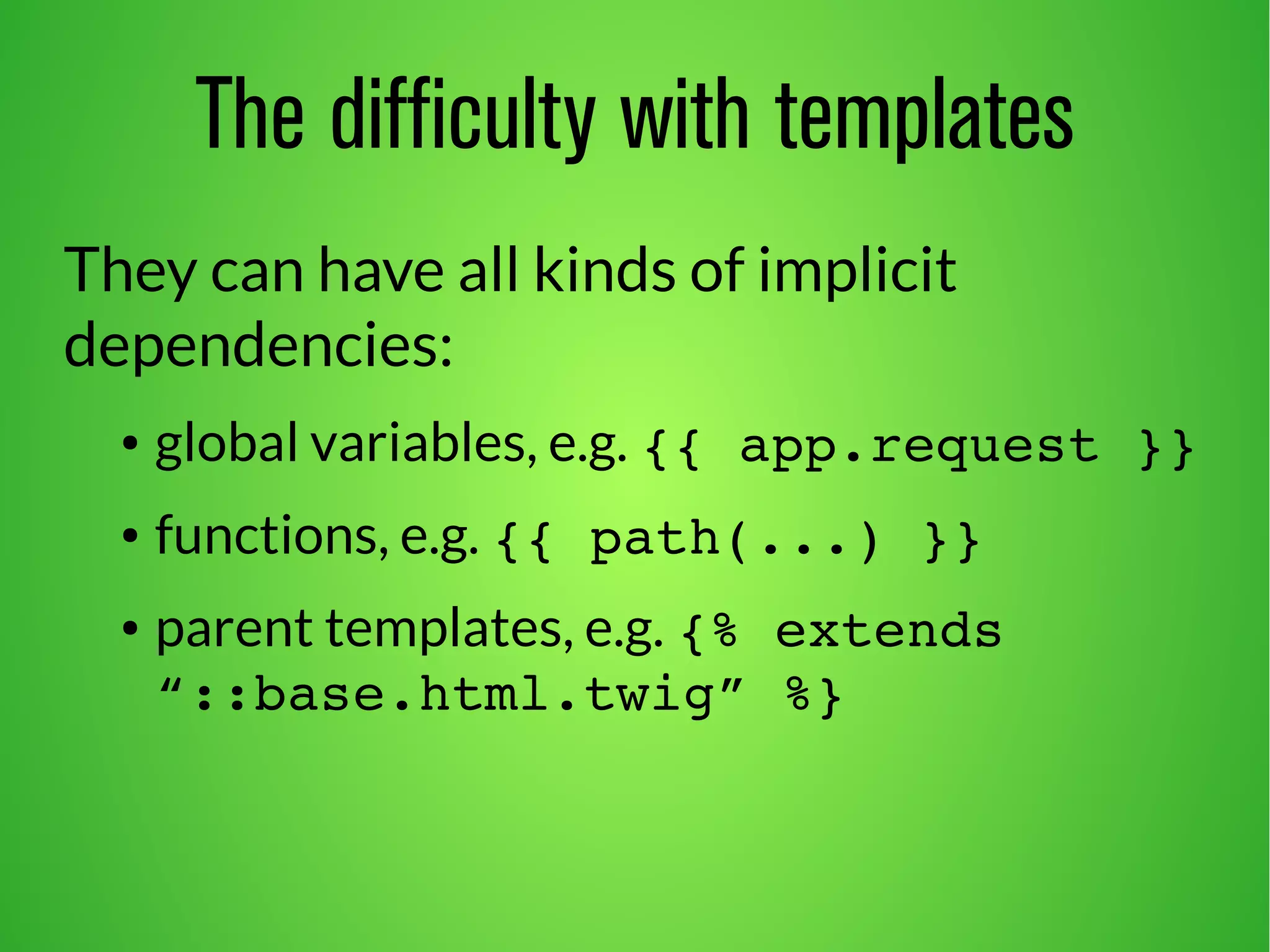

90. The difficulty with templates
They can have all kinds of implicit
dependencies:
● global variables, e.g. {{ app.request }}
● functions, e.g. {{ path(...) }}
● parent templates, e.g. {% extends
“::base.html.twig” %}

91. Still, we want them out!
And it's possible

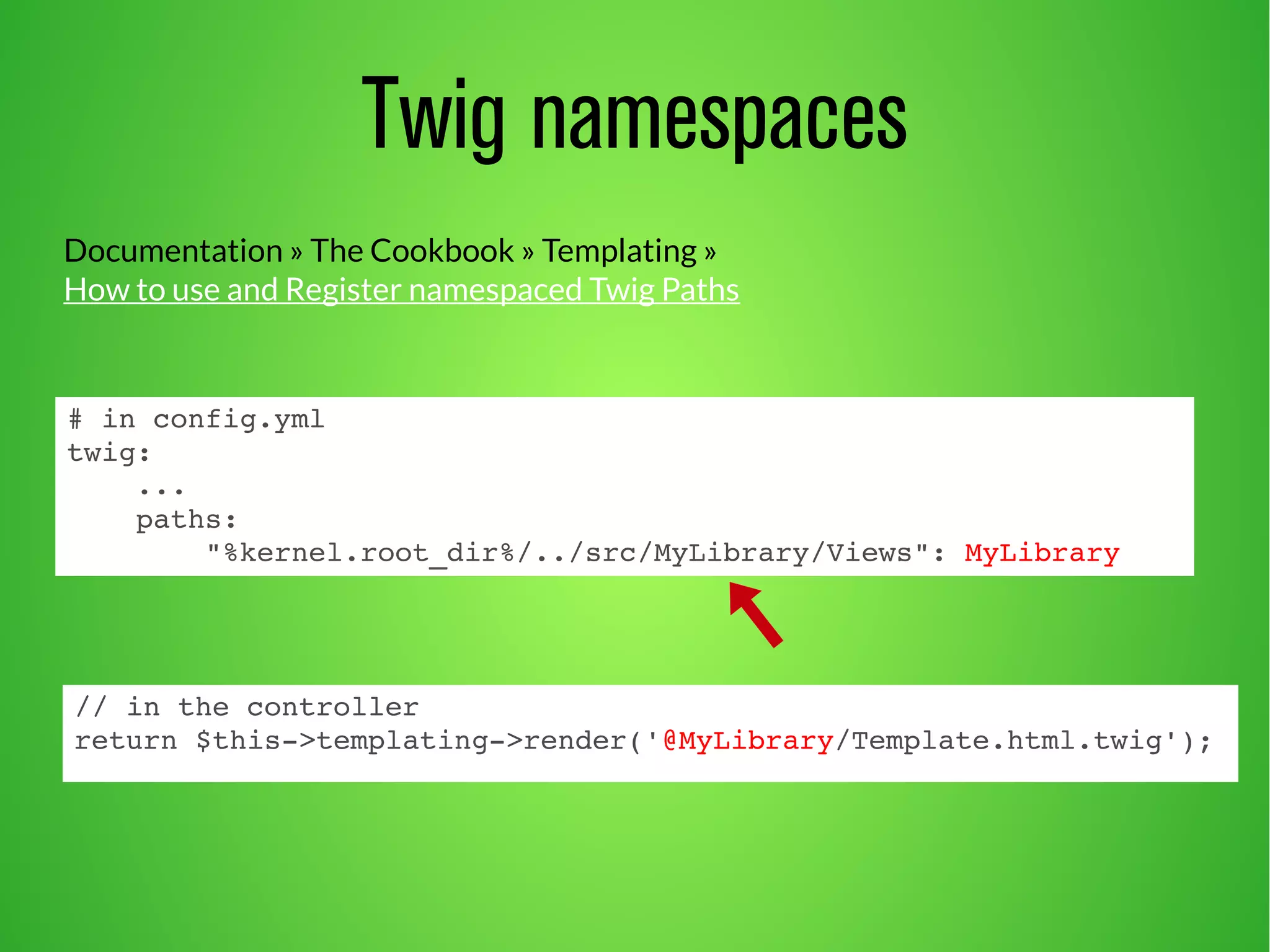

92. Documentation » The Cookbook » Templating »
How to use and Register namespaced Twig Paths
# in config.yml
twig:
...
paths:
Twig namespaces
"%kernel.root_dir%/../src/MyLibrary/Views": MyLibrary
// in the controller
return $this­>
templating­>
render('@MyLibrary/Template.html.twig');

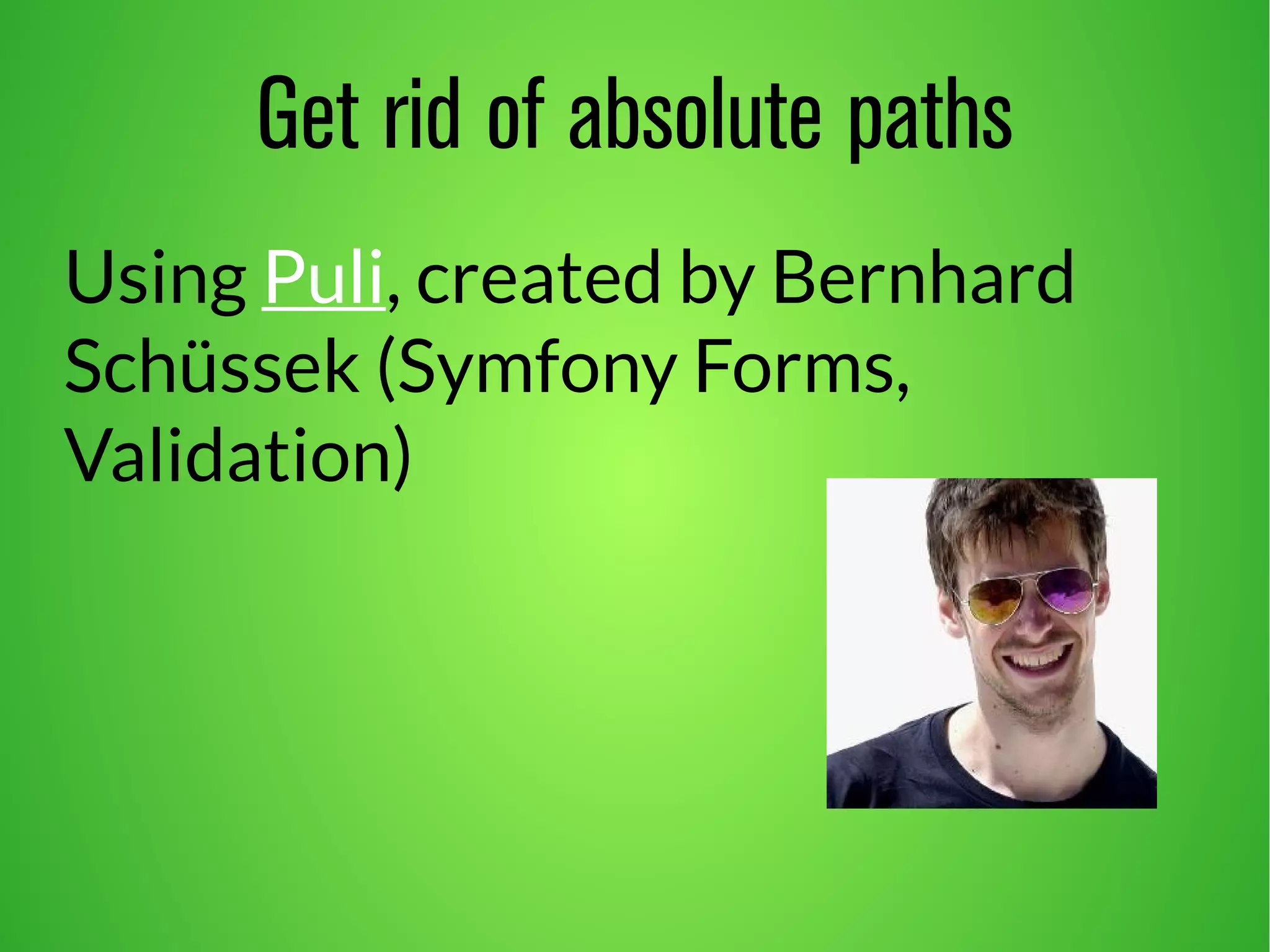

93. Get rid of absolute paths
Using Puli, created by Bernhard
Schüssek (Symfony Forms,
Validation)

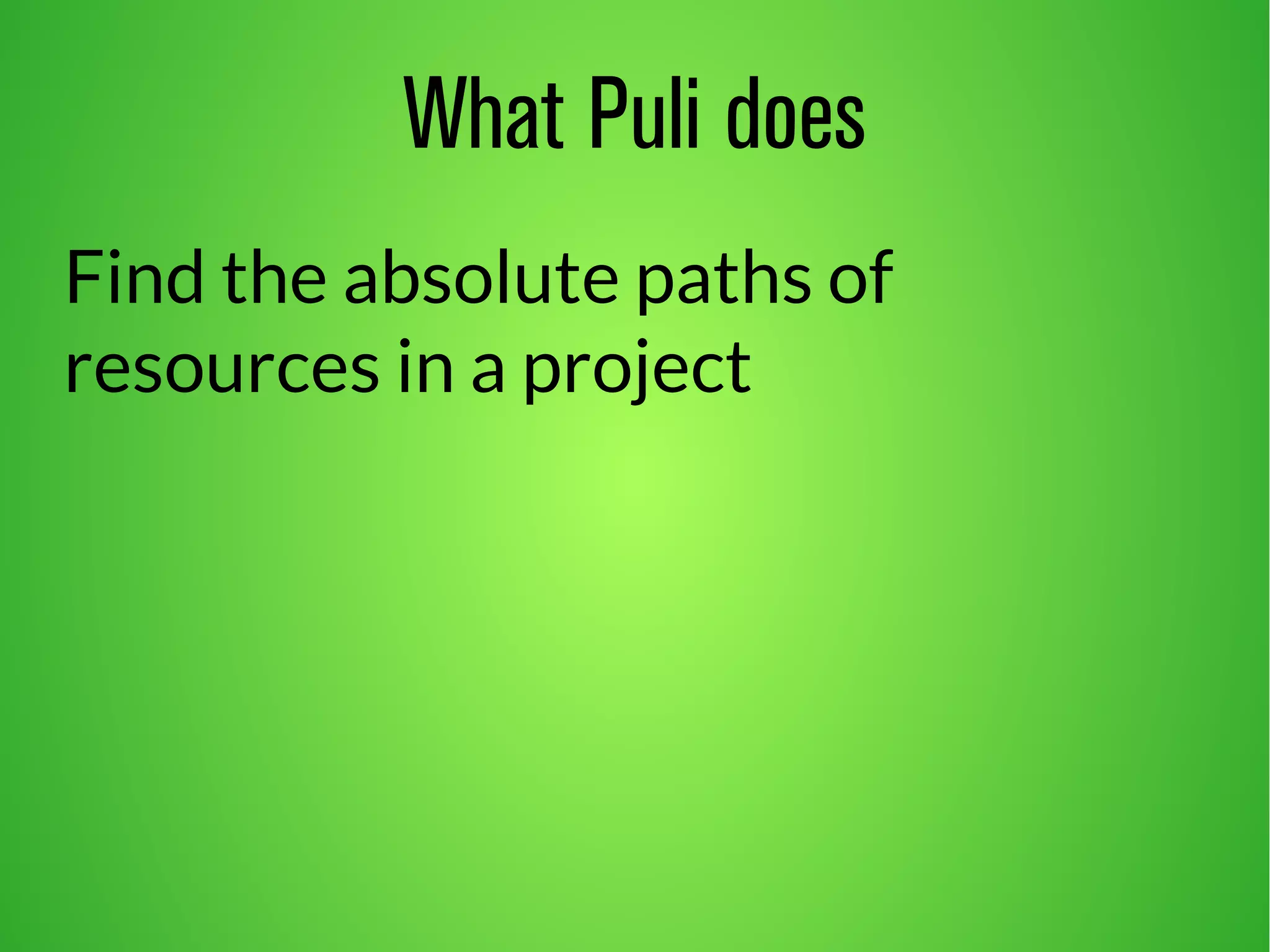

94. What Puli does
Find the absolute paths of
resources in a project

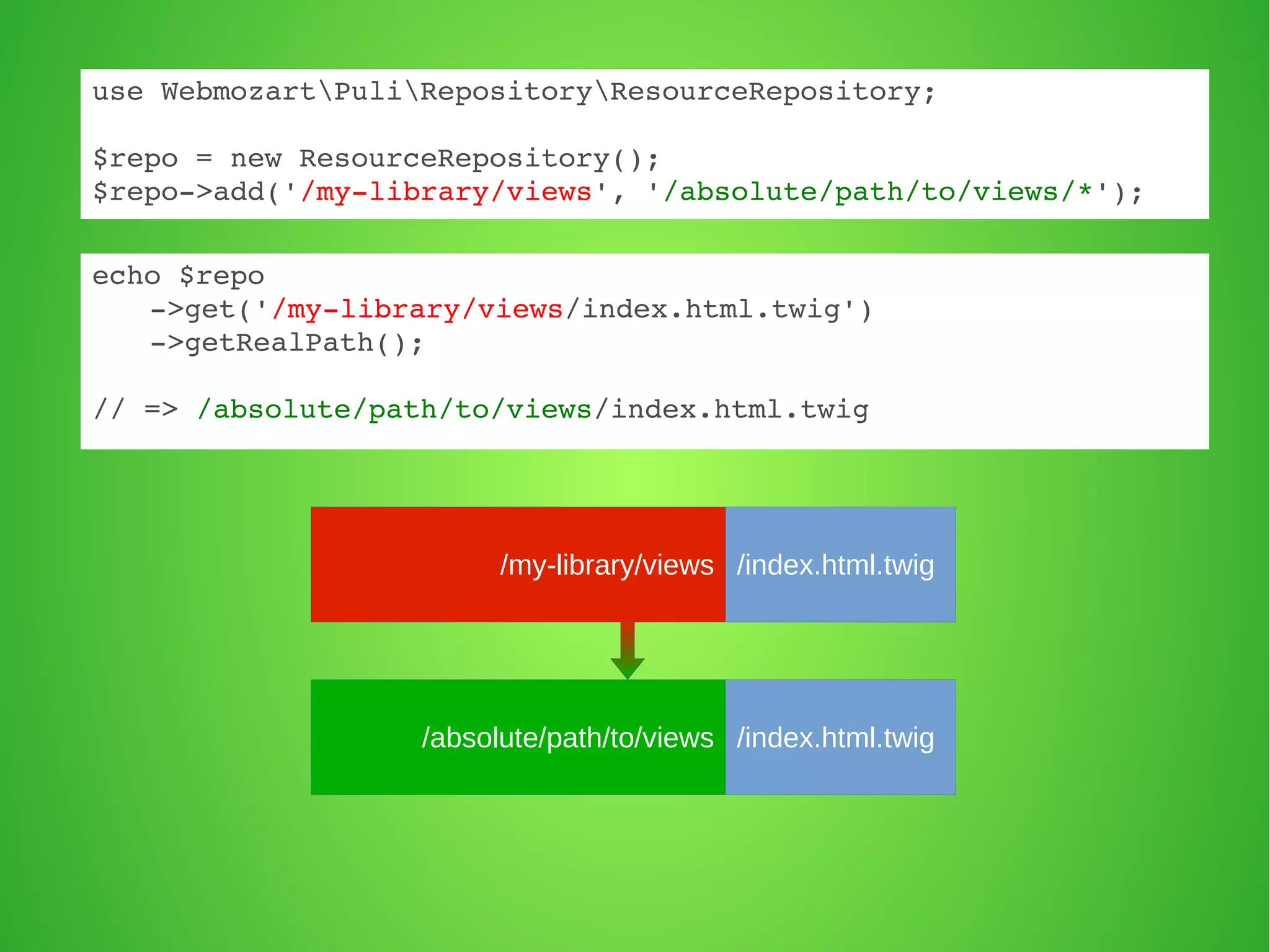

95. use WebmozartPuliRepositoryResourceRepository;
$repo = new ResourceRepository();
$repo­>
add('/my­library/
views', '/absolute/path/to/views/*');
/my-library/views /index.html.twig
/absolute/path/to/views /index.html.twig
echo $repo
­>
get('/my­library/
views/index.html.twig')
­>
getRealPath();
// => /absolute/path/to/views/index.html.twig

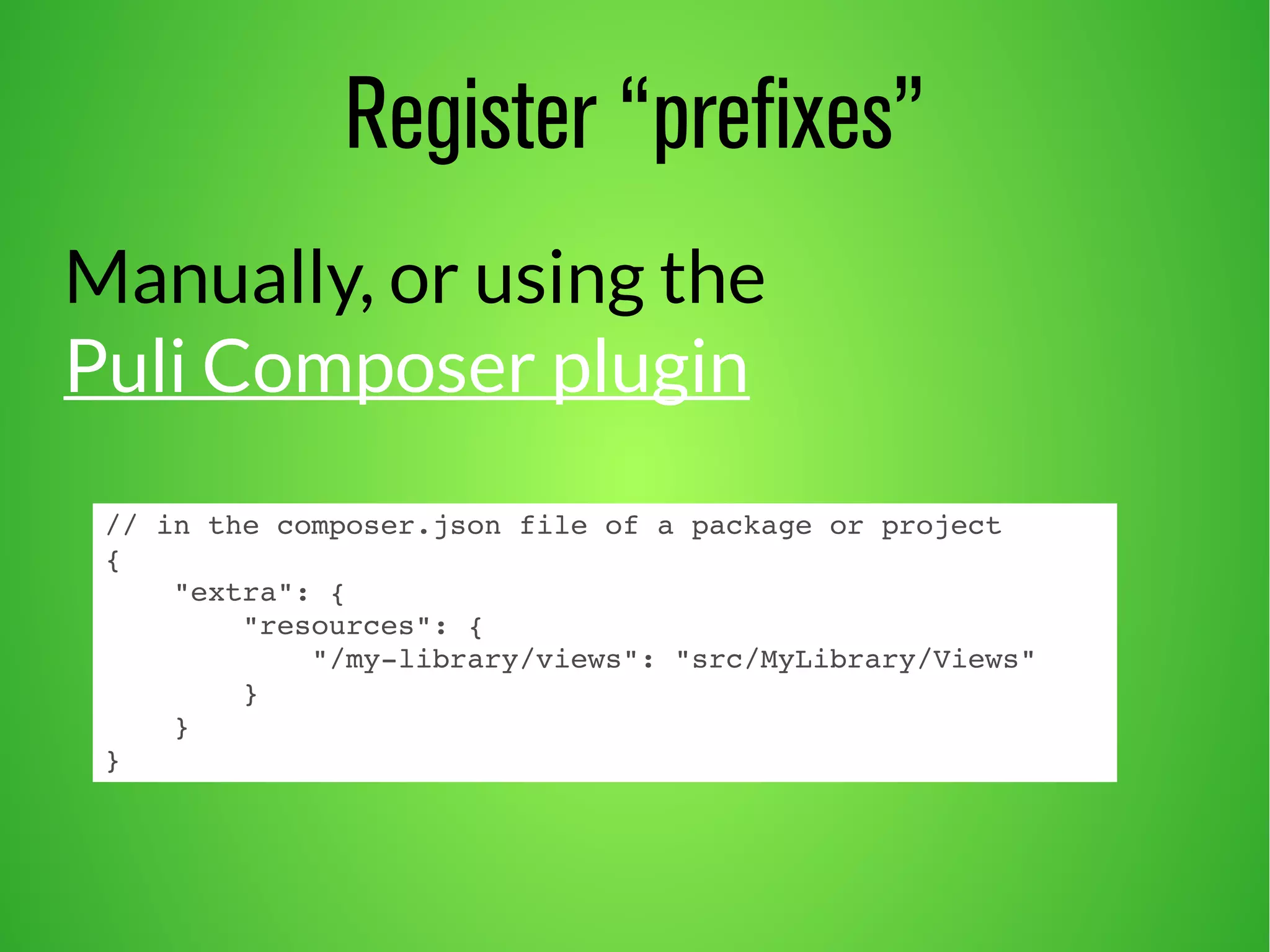

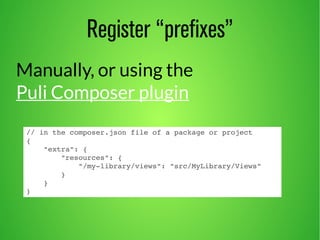

96. Register “prefixes”
Manually, or using the
Puli Composer plugin
// in the composer.json file of a package or project
{
"extra": {
"resources": {
"/my­library/
views": "src/MyLibrary/Views"
}
}
}

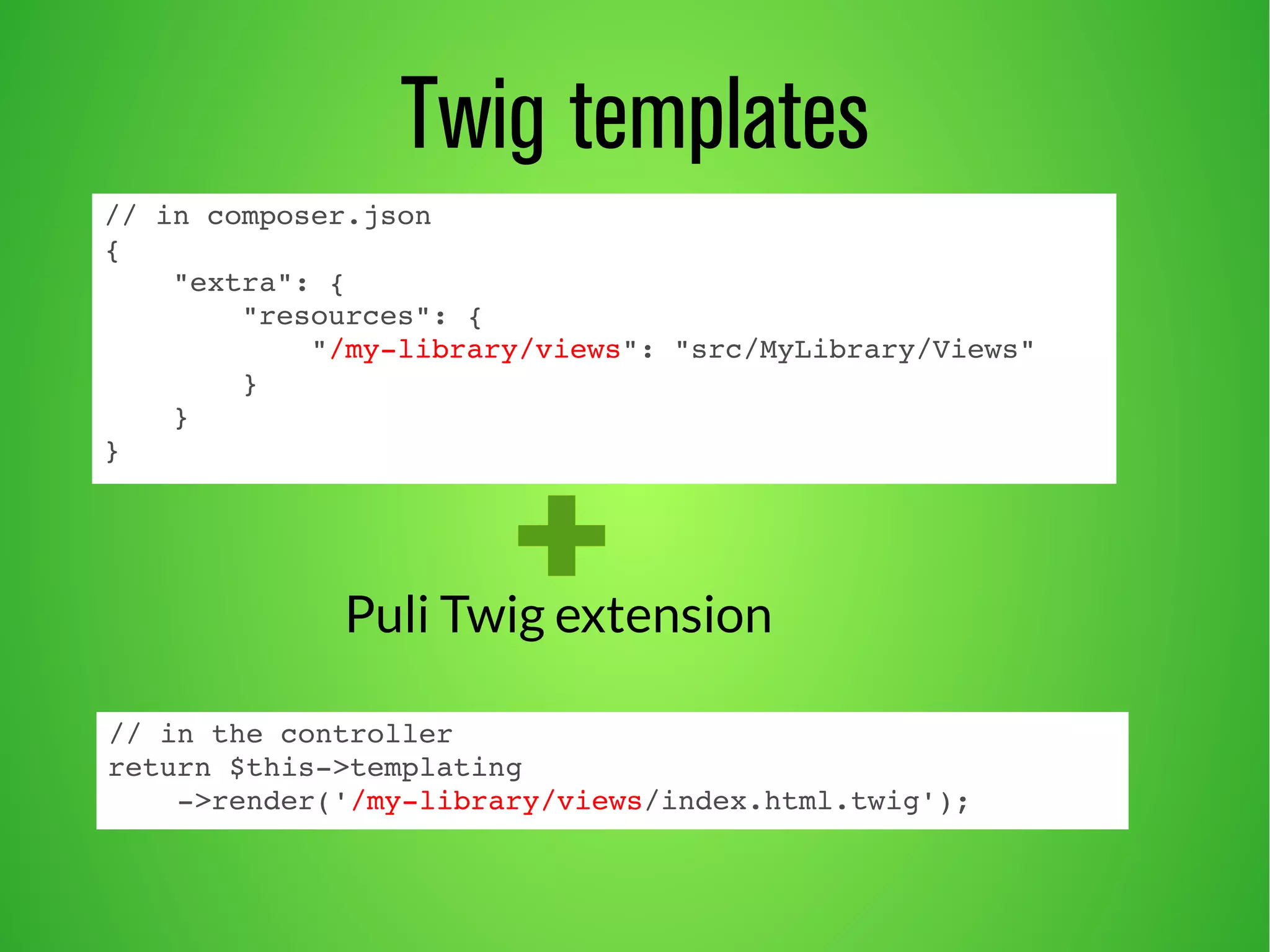

97. Twig templates
// in composer.json
{
"extra": {
"resources": {
"/my­library/
views": "src/MyLibrary/Views"
}
}
}
Puli Twig extension
// in the controller
return $this­>
templating
­>
render('/my­library/
views/index.html.twig');

98. Many possibilities
● Templates
● Translation files
●Mapping metadata
● Service definitions
● And so on!

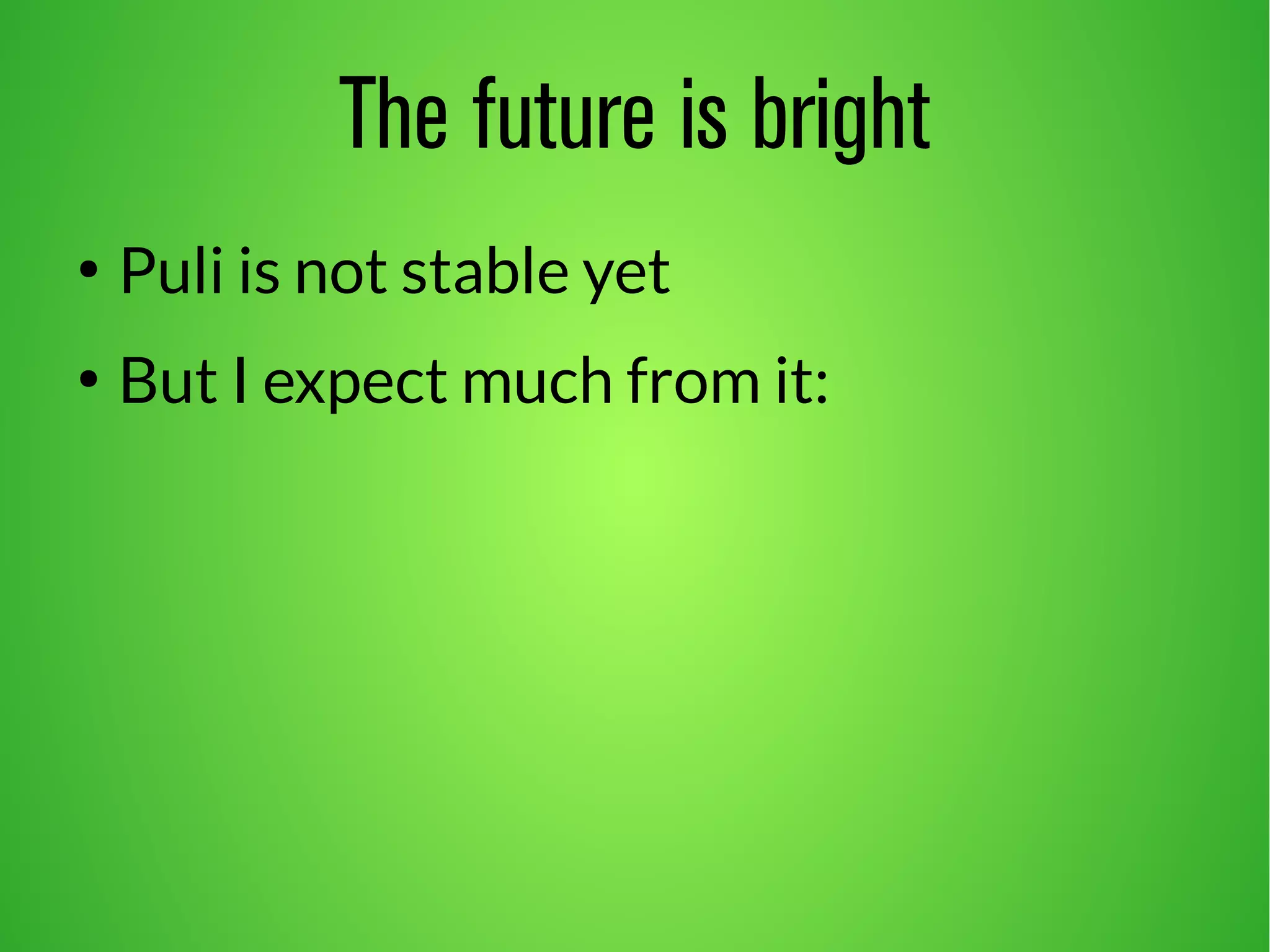

99. The future is bright
● Puli is not stable yet
● But I expect much from it:

100. Puli will be the ultimate tool

101. to create NAKED BUNDLES

102. and to enable reuse of
many kinds of resources

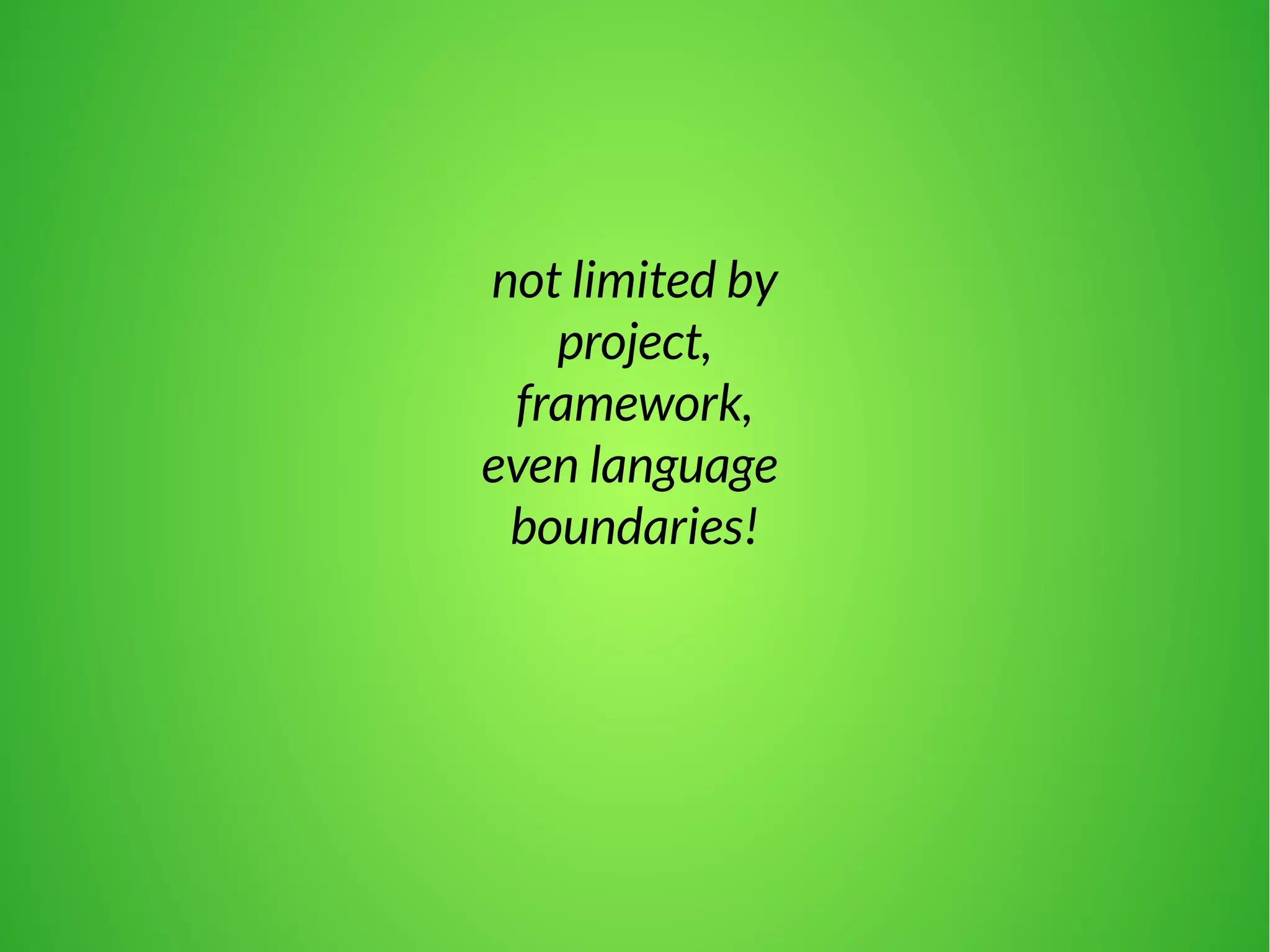

103. not limited by
project,
framework,
even language
boundaries!

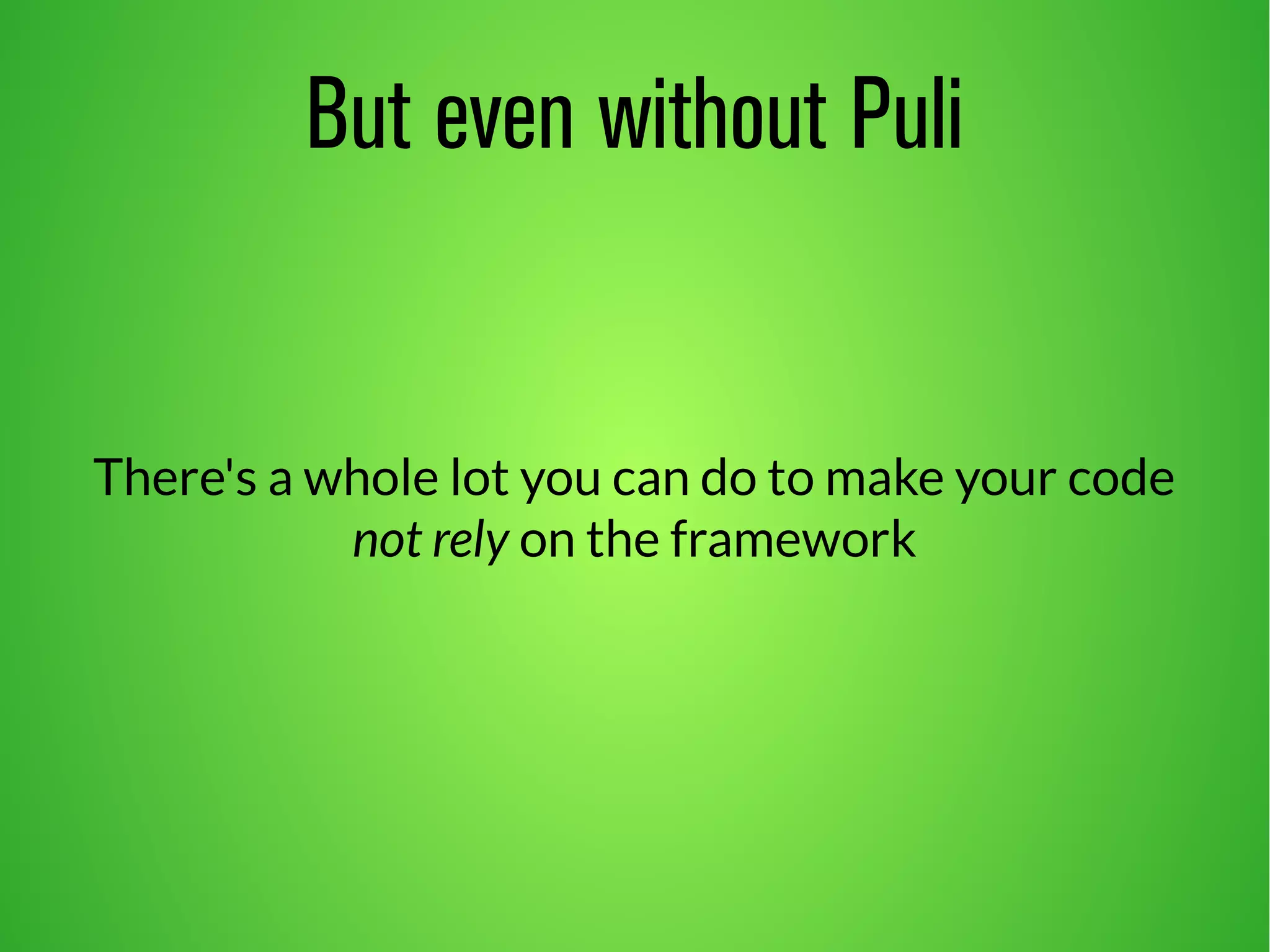

104. But even without Puli
There's a whole lot you can do to make your code
not rely on the framework

105. Remember
The framework is for you
Your code doesn't need it

106. Questions?

107. Get a $7,50 discount:
http://leanpub.com/a-year-with-symfony/c/SymfonyLiveLondon2014

108. Get a $10,00 introduction discount:
http://leanpub.com/principles-of-php-package-design/c/SymfonyLive
London2014

109. Thank you
Feedback: joind.in/11553
Talk to me: @matthiasnoback

110. Images
Sally MacKenzie:
www.amazon.com
