Tree-like structures are omnipresent throughout the web. Whether in the plain URL of a website, as navigation-menu or for board- or chatlogs. Even XML represents a tree-like structure. So why not store data in such a construct? In the Java-World there is the JCR named ContentRepository which stores data in a tree-like structure. The JCR has been ported to PHP as PHPCR. Using the Doctrine-Wrapper PHPCR-ODM it can be integrated into applications without hassle. This talk will show how to effectively persist semi-structured content, dynamic routing or other hierarchically structured data.
Recommended
Recommended
More Related Content
Similar to The content manager loves the tree
Similar to The content manager loves the tree (20)
More from Maximilian Berghoff
More from Maximilian Berghoff (20)
Recently uploaded
Recently uploaded (20)
The content manager loves the tree
- 1. THE CONTENT MANAGER LOVES THE TREE MAXIMILIAN BERGHOFF - 13.06.2017 - PHP USERGROUP JUTLAND
- 2. Maximilian Berghoff @ElectricMaxxx github.com/electricmaxxx Maximilian.Berghoff@may ower.de May ower GmbH - Würzburg

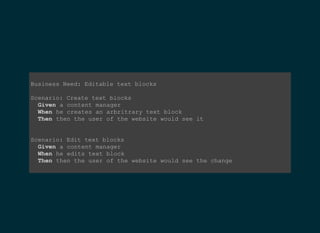

- 4. Business Need: Editable text blocks Scenario: Create text blocks Given a content manager When he creates an arbritrary text block Then then the user of the website would see it Scenario: Edit text blocks Given a content manager When he edits text block Then then the user of the website would see the change
- 5. Business Need: Editable text blocks Scenario: Create text blocks Given a content manager When he creates a specific text block And defines a position Then then the user would see it at this position Scenario: Edit text blocks Given a content manager When he edits text block or its position Then then the user would see the in position and content

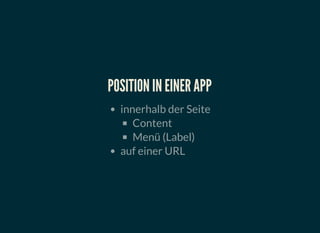

- 6. POSITION IN EINER APP on a Page Content Menü (Label) on a Page of a speci c URL

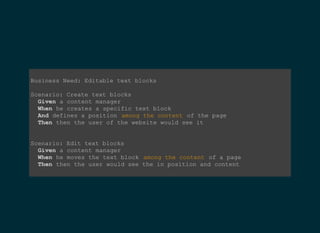

- 7. Business Need: Editable text blocks Scenario: Create text blocks Given a content manager When he creates a specific text block And defines a position among the content of the page Then then the user of the website would see it Scenario: Edit text blocks Given a content manager When he moves the text block among the content of a page Then then the user would see the in position and content
- 8. Business Need: Editable text blocks Scenario: Create text blocks Given a content manager When he creates a specific text block And defines a position among the content of the page Then then the user of the website would see it Scenario: Edit text blocks Given a content manager When he moves the text block among the content of a page Then then the user would see the in position and content

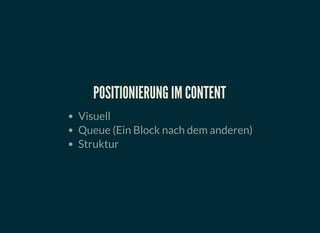

- 9. POSITIONING IN THE CONTENT Visual Queue (Ein Block nach dem anderen) Structure

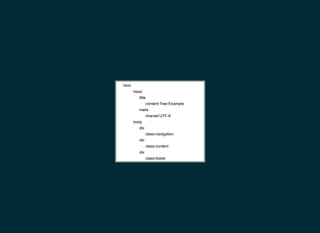

- 10. <!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF8"> <title>Tree Example</title> </head> <body> <div class="navigation"> </div> <div class="content"> </div> <div class="footer"></div> </body> </html>

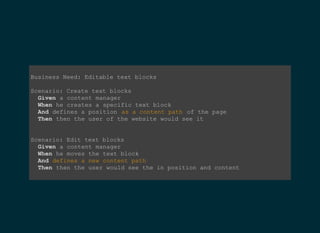

- 14. Business Need: Editable text blocks Scenario: Create text blocks Given a content manager When he creates a specific text block And defines a position as a content path of the page Then then the user of the website would see it Scenario: Edit text blocks Given a content manager When he moves the text block And defines a new content path Then then the user would see the in position and content

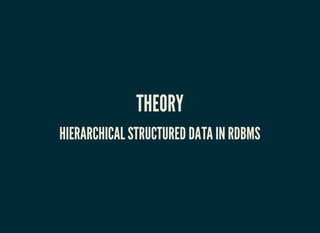

- 15. THEORY HIERARCHICAL STRUCTURED DATA IN RDBMS

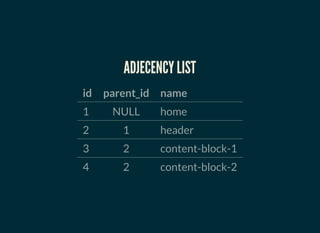

- 16. ADJACENCY LIST id parent_id name 1 NULL home 2 1 header 3 2 content-block-1 4 2 content-block-2

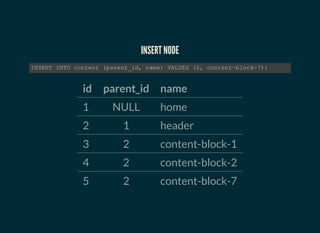

- 17. INSERT NODE INSERT INTO content (parent_id, name) VALUES (2, contentblock7); id parent_id name 1 NULL home 2 1 header 3 2 content-block-1 4 2 content-block-2 5 2 content-block-7

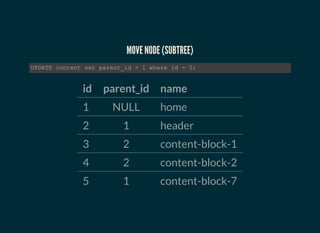

- 18. MOVE NODE (SUBTREE) UPDATE content set parent_id = 1 where id = 5; id parent_id name 1 NULL home 2 1 header 3 2 content-block-1 4 2 content-block-2 5 1 content-block-7

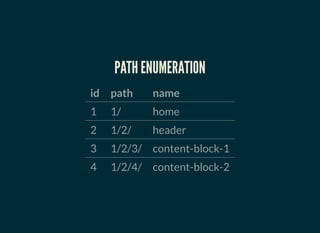

- 19. PATH ENUMERATION id path name 1 1/ home 2 1/2/ header 3 1/2/3/ content-block-1 4 1/2/4/ content-block-2

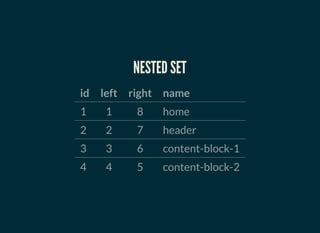

- 20. NESTED SET id left right name 1 1 8 home 2 2 7 header 3 3 6 content-block-1 4 4 5 content-block-2

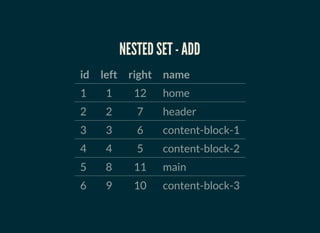

- 21. NESTED SET - ADD id left right name 1 1 12 home 2 2 7 header 3 3 6 content-block-1 4 4 5 content-block-2 5 8 11 main 6 9 10 content-block-3
- 22. NESTED SET - MOVE (DELETE + ADD) id left right name 1 1 12 home 2 2 5 header 3 3 4 content-block-1 4 8 9 content-block-2 5 6 11 main 6 7 10 content-block-3

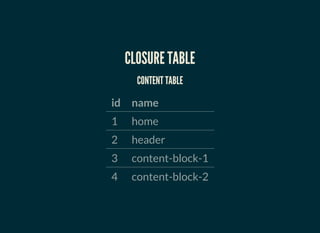

- 23. CLOSURE TABLE CONTENT TABLE id name 1 home 2 header 3 content-block-1 4 content-block-2

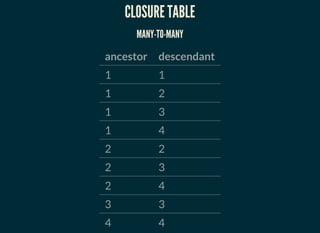

- 24. CLOSURE TABLE MANY-TO-MANY ancestor descendant 1 1 1 2 1 3 1 4 2 2 2 3 2 4 3 3 4 4

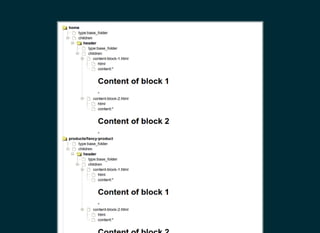

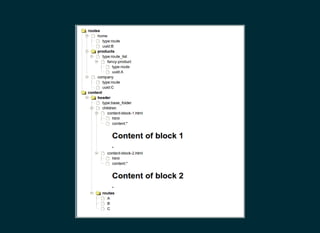

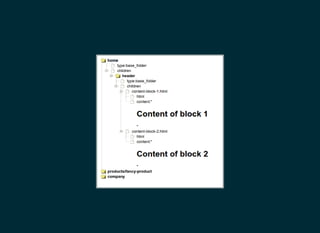

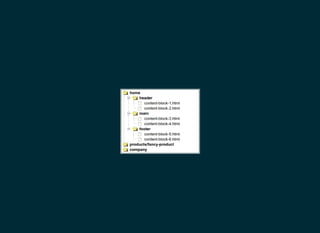

- 25. EXPERIMENT LETS TRY TO USE DIRECTORIES

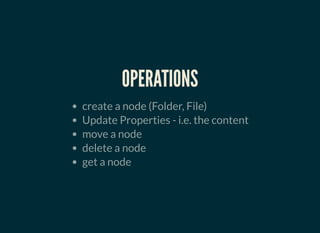

- 32. OPERATIONS create a node (Folder, File) Update Properties - i.e. the content move a node delete a node get a node
- 33. CONSTRAINTS a node has a name a node has a path a node has properties - i.e. content a node can have children

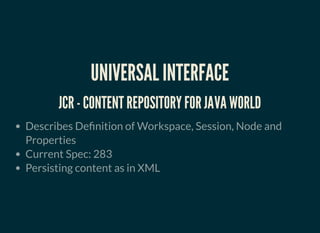

- 34. UNIVERSAL INTERFACE JCR - CONTENT REPOSITORY FOR JAVA WORLD Describes De nition of Workspace, Session, Node and Properties Current Spec: 283 Persisting content as in XML

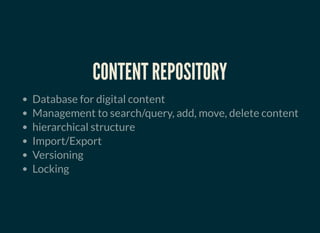

- 35. CONTENT REPOSITORY Database for digital content Management to search/query, add, move, delete content hierarchical structure Import/Export Versioning Locking

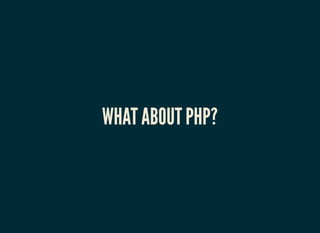

- 36. WHAT ABOUT PHP?

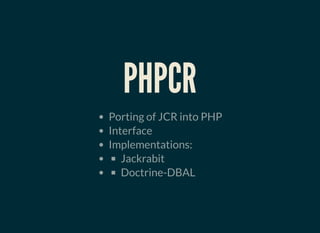

- 37. PHPCR Porting of JCR into PHP Interface Implementations: Jackrabit Doctrine-DBAL

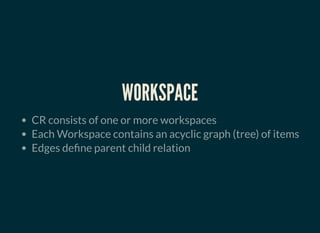

- 38. WORKSPACE CR consists of one or more workspaces Each Workspace contains an acyclic graph (tree) of items Edges de ne parent child relation
- 39. SESSION Connection by a user through credentials to a speci c workspace Possibility for Access Control for that user Contains a complete Representation of the workspace

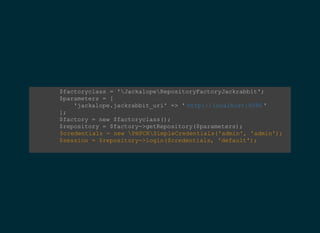

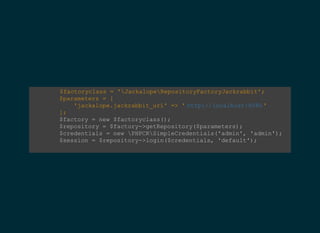

- 40. $factoryclass = 'JackalopeRepositoryFactoryJackrabbit'; $parameters = [ 'jackalope.jackrabbit_uri' => ' ' ]; $factory = new $factoryclass(); $repository = $factory>getRepository($parameters); $credentials = new PHPCRSimpleCredentials('admin', 'admin'); $session = $repository>login($credentials, 'default'); http://localhost:8080
- 41. $factoryclass = 'JackalopeRepositoryFactoryJackrabbit'; $parameters = [ 'jackalope.jackrabbit_uri' => ' ' ]; $factory = new $factoryclass(); $repository = $factory>getRepository($parameters); $credentials = new PHPCRSimpleCredentials('admin', 'admin'); $session = $repository>login($credentials, 'default'); http://localhost:8080
- 42. $factoryclass = 'JackalopeRepositoryFactoryJackrabbit'; $parameters = [ 'jackalope.jackrabbit_uri' => ' ' ]; $factory = new $factoryclass(); $repository = $factory>getRepository($parameters); $credentials = new PHPCRSimpleCredentials('admin', 'admin'); $session = $repository>login($credentials, 'default'); http://localhost:8080
- 43. $factoryclass = 'JackalopeRepositoryFactoryJackrabbit'; $parameters = [ 'jackalope.jackrabbit_uri' => ' ' ]; $factory = new $factoryclass(); $repository = $factory>getRepository($parameters); $credentials = new PHPCRSimpleCredentials('admin', 'admin'); $session = $repository>login($credentials, 'default'); http://localhost:8080

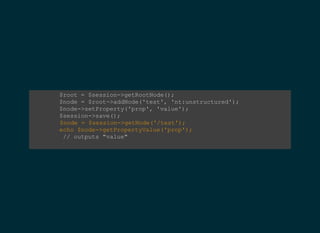

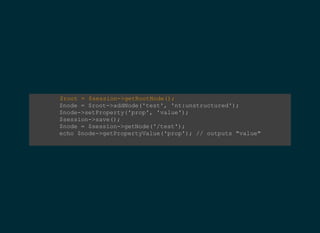

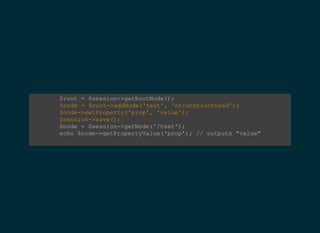

- 44. $root = $session>getRootNode(); $node = $root>addNode('test', 'nt:unstructured'); $node>setProperty('prop', 'value'); $session>save(); $node = $session>getNode('/test'); echo $node>getPropertyValue('prop'); // outputs "value"
- 45. $root = $session>getRootNode(); $node = $root>addNode('test', 'nt:unstructured'); $node>setProperty('prop', 'value'); $session>save(); $node = $session>getNode('/test'); echo $node>getPropertyValue('prop'); // outputs "value"
- 46. $root = $session>getRootNode(); $node = $root>addNode('test', 'nt:unstructured'); $node>setProperty('prop', 'value'); $session>save(); $node = $session>getNode('/test'); echo $node>getPropertyValue('prop'); // outputs "value"
- 47. $workspace = $session>getWorkspace(); $queryManager = $workspace>getQueryManager(); $sql = "SELECT * FROM [nt:unstructured] WHERE [nt:unstructured].[title] = 'Test' ORDER BY [nt:unstructured].content"; $query = $queryManager>createQuery($sql, 'JCRSQL2'); $query>setLimit(10); // limit number of results to be returned $query>setOffset(1); // set an offset to skip first n results $queryResult = $query>execute(); foreach ($queryResult>getNodes() as $path => $node) { echo $node>getName(); }

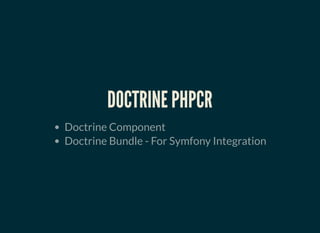

- 49. DOCTRINE PHPCR Doctrine Component Doctrine Bundle - For Symfony Integration

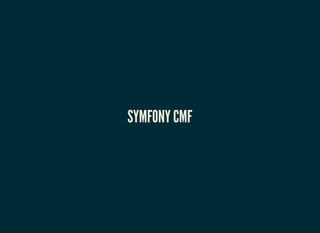

- 50. SYMFONY CMF
- 51. WHEN? hierarchical structured data CMS features (content, menu, route) Products and variants
- 52. WHEN NOT? Relational data Lots of references
- 53. CONCLUSION
- 54. QUESTIONS? Ask Now! Twitter: @ElectricMaxxx Mail: Maximilian.Berghoff@may ower.de
- 55. LINKS Website - PHPCR Website - CMF Documentation - PHPCR JCR SPEC 283
- 56. THANK YOU!
