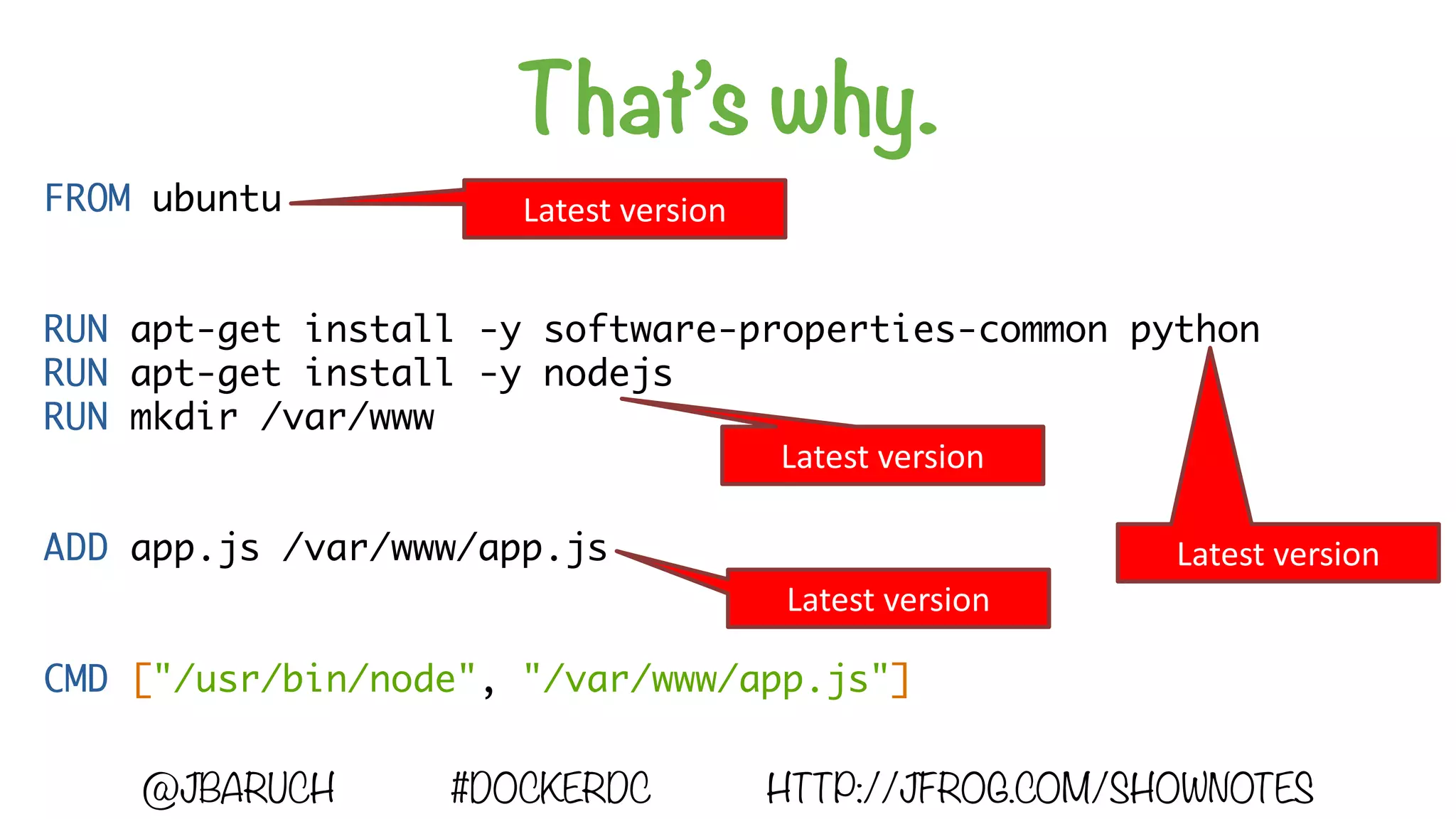

![That’s why.
@JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES
FROM ubuntu
RUN apt-get install -y software-properties-common python
RUN apt-get install -y nodejs
RUN mkdir /var/www
ADD app.js /var/www/app.js
CMD ["/usr/bin/node", "/var/www/app.js"]
Latest version
Latest version
Latest version
Latest version](https://image.slidesharecdn.com/dockerpatternsandantipatterns-170817193854/75/Patterns-and-antipatterns-in-Docker-image-lifecycle-as-was-presented-at-DC-Docker-Meetup-August-2017-20-2048.jpg)

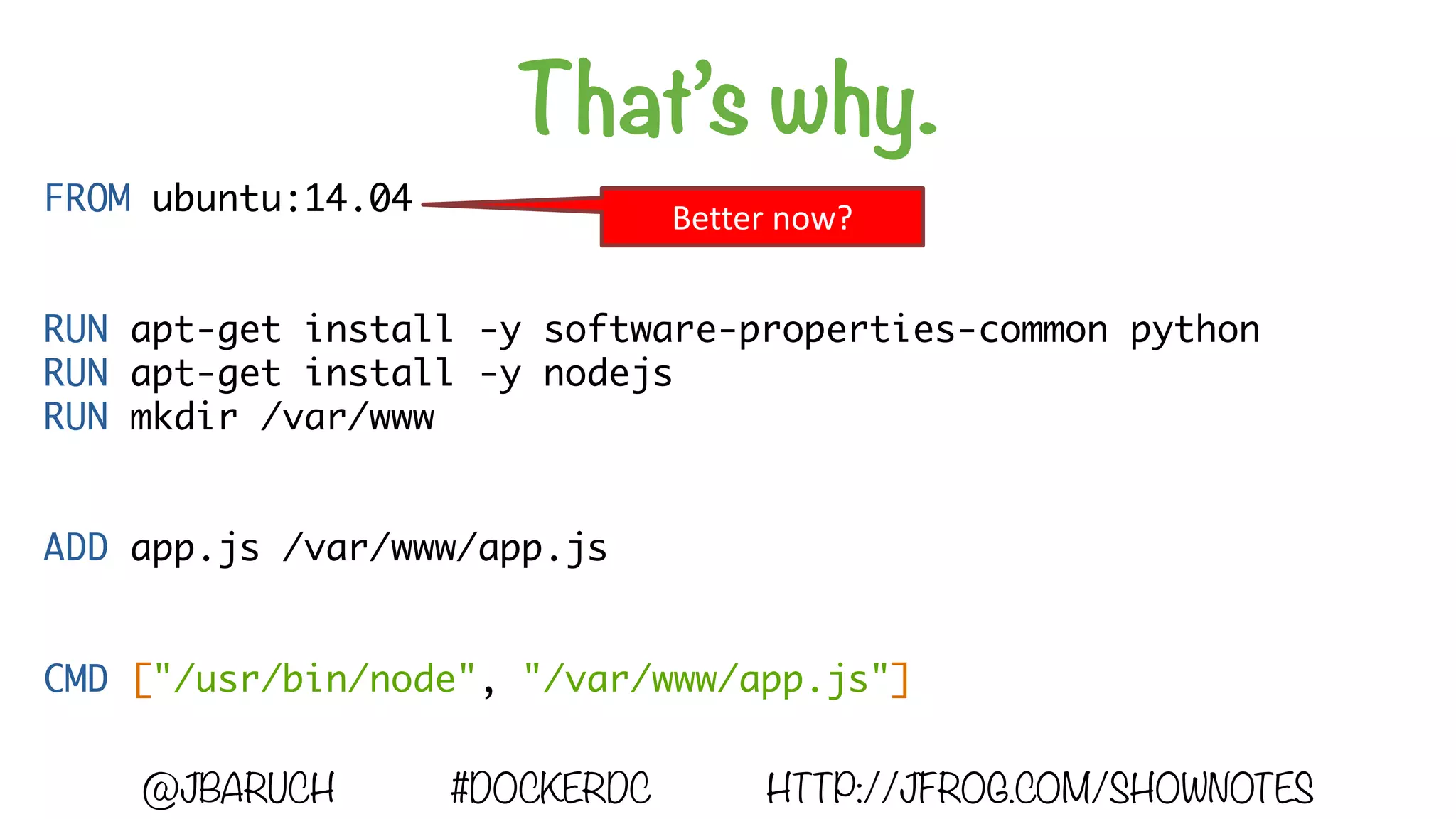

![That’s why.
@JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES
FROM ubuntu:14.04
RUN apt-get install -y software-properties-common python
RUN apt-get install -y nodejs
RUN mkdir /var/www
ADD app.js /var/www/app.js
CMD ["/usr/bin/node", "/var/www/app.js"]
Better now?](https://image.slidesharecdn.com/dockerpatternsandantipatterns-170817193854/75/Patterns-and-antipatterns-in-Docker-image-lifecycle-as-was-presented-at-DC-Docker-Meetup-August-2017-21-2048.jpg)
![That’s why.
@JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES
FROM ubuntu:4033353383af19ec179c01dda7f355a246c6adcafaf93c8f98
RUN apt-get install -y software-properties-common python
RUN apt-get install -y nodejs
RUN mkdir /var/www
ADD app.js /var/www/app.js
CMD ["/usr/bin/node", "/var/www/app.js"]
And now?](https://image.slidesharecdn.com/dockerpatternsandantipatterns-170817193854/75/Patterns-and-antipatterns-in-Docker-image-lifecycle-as-was-presented-at-DC-Docker-Meetup-August-2017-22-2048.jpg)
![That’s why.
@JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES
FROM ubuntu:4033353383af19ec179c01dda7f355a246c6adcafaf93c8f98
RUN apt-get install -y software-properties-common python
RUN apt-get install -y nodejs
RUN mkdir /var/www
ADD app.js /var/www/app.js
CMD ["/usr/bin/node", "/var/www/app.js"]
And now?What about those?](https://image.slidesharecdn.com/dockerpatternsandantipatterns-170817193854/75/Patterns-and-antipatterns-in-Docker-image-lifecycle-as-was-presented-at-DC-Docker-Meetup-August-2017-23-2048.jpg)
![That’s why.
@JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES
FROM ubuntu:4033353383af19ec179c01dda7f355a246c6adcafaf93c8f98
RUN download_random_sh*t_from_the_internet.sh
CMD ["/usr/bin/node", "/var/www/app.js"]
And how about this?](https://image.slidesharecdn.com/dockerpatternsandantipatterns-170817193854/75/Patterns-and-antipatterns-in-Docker-image-lifecycle-as-was-presented-at-DC-Docker-Meetup-August-2017-25-2048.jpg)
![Application build Dockerfile
FROM yourorg-docker.jfrog.io/yourorg/framework:latest
MAINTAINER you@yourorg.com
ADD https://yourorg.jfrog.io/yourorg/java-release-local/…/app-[RELEASE].war
/opt/jboss/wildfly/standalone/deployments/app.war
@JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES](https://image.slidesharecdn.com/dockerpatternsandantipatterns-170817193854/75/Patterns-and-antipatterns-in-Docker-image-lifecycle-as-was-presented-at-DC-Docker-Meetup-August-2017-56-2048.jpg)
![Application build Dockerfile
FROM yourorg-docker.jfrog.io/yourorg/framework:latest
MAINTAINER you@yourorg.com
ADD https://yourorg.jfrog.io/yourorg/java-release-local/…/app-[RELEASE].war
/opt/jboss/wildfly/standalone/deployments/app.war
@JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES](https://image.slidesharecdn.com/dockerpatternsandantipatterns-170817193854/75/Patterns-and-antipatterns-in-Docker-image-lifecycle-as-was-presented-at-DC-Docker-Meetup-August-2017-57-2048.jpg)
![Application build Dockerfile
FROM yourorg-docker.jfrog.io/yourorg/framework:latest
MAINTAINER you@yourorg.com
ADD https://yourorg.jfrog.io/yourorg/java-release-local/…/app-[RELEASE].war
/opt/jboss/wildfly/standalone/deployments/app.war
@JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES](https://image.slidesharecdn.com/dockerpatternsandantipatterns-170817193854/75/Patterns-and-antipatterns-in-Docker-image-lifecycle-as-was-presented-at-DC-Docker-Meetup-August-2017-58-2048.jpg)
![Application build Dockerfile
FROM yourorg-docker.jfrog.io/yourorg/framework:latest
MAINTAINER you@yourorg.com
ADD https://yourorg.jfrog.io/yourorg/java-release-local/…/app-[RELEASE].war
/opt/jboss/wildfly/standalone/deployments/app.war
@JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES](https://image.slidesharecdn.com/dockerpatternsandantipatterns-170817193854/75/Patterns-and-antipatterns-in-Docker-image-lifecycle-as-was-presented-at-DC-Docker-Meetup-August-2017-59-2048.jpg)
Uploaded byBaruch Sadogursky
Patterns and antipatterns in Docker image lifecycle as was presented at DC Docker Meetup August 2017
The document is a set of show notes from a presentation by Baruch Sadogursky, a JFrog Developer Advocate, focusing on Docker and its integration within CI/CD pipelines. It discusses concepts like build environments, testing practices, and the use of Docker images across different stages of development while highlighting the importance of automation and quality in software delivery. The notes also mention various technical details about Docker usage and tools, along with links for further resources.
More Related Content
![[Webinar] The Frog And The Butler: CI Pipelines For Modern DevOps](https://cdn.slidesharecdn.com/ss_thumbnails/jenkinsartifactory-170830053058-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Patterns and antipatterns in Docker image lifecycle as was presented at DC Docker Meetup August 2017
Patterns and antipatterns in Docker image lifecycle as was presented at DC Docker Meetup August 2017
- 2. whoami Baruch Sadogursky, JFrogDeveloper Advocate, @jbaruch

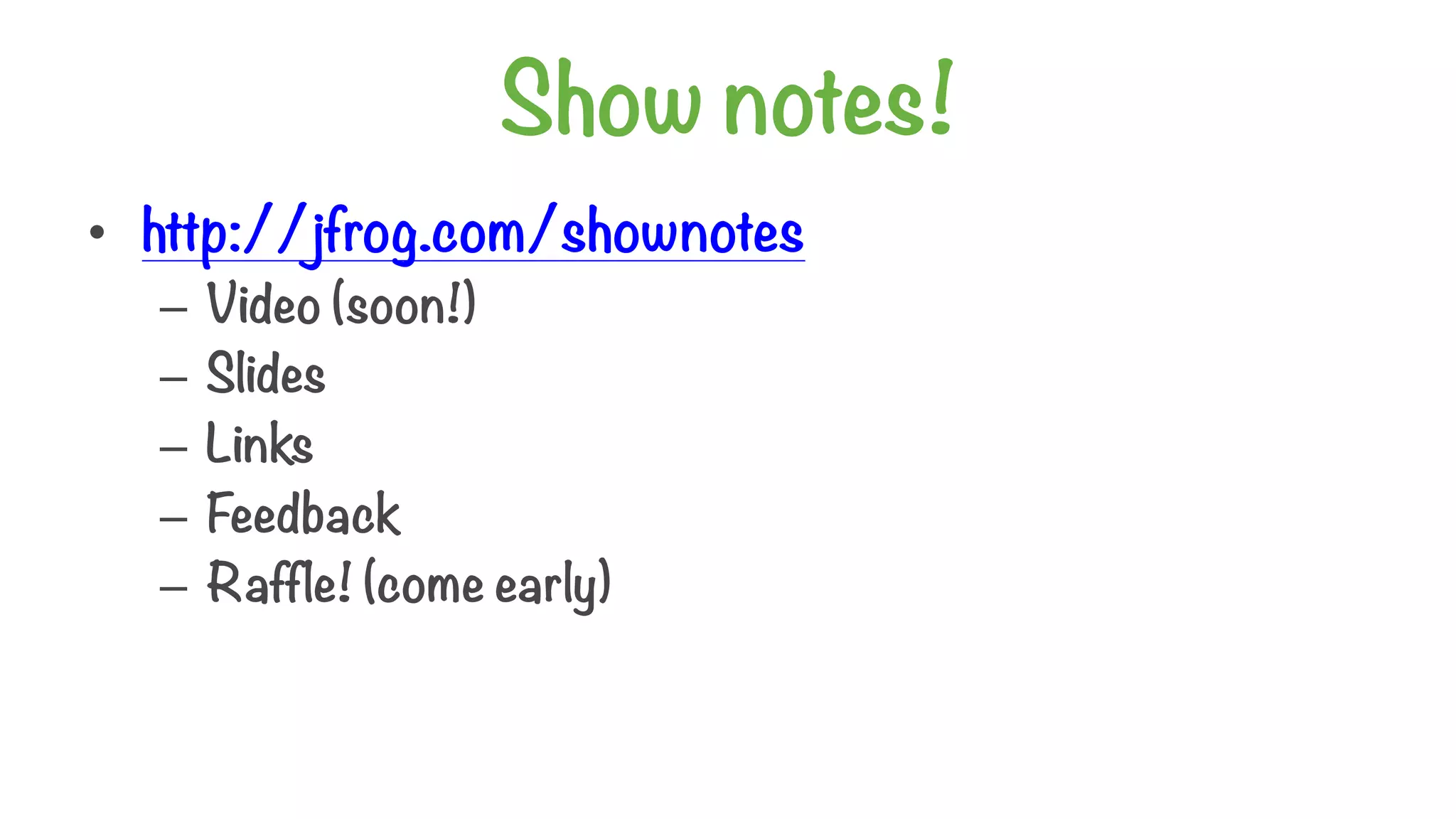

- 3. Show notes! • http://jfrog.com/shownotes –Video (soon!) – Slides – Links – Feedback – Raffle! (come early)
- 4.
- 5.
- 6. Poll Time! üHeard aboutDocker üCan do the tutorial üPoCing, playing etc. üProduction, baby! @JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES
- 9.
- 10. JFrog Artifactory +Docker @JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES
- 11. Who’s using Dockerand nothing else?

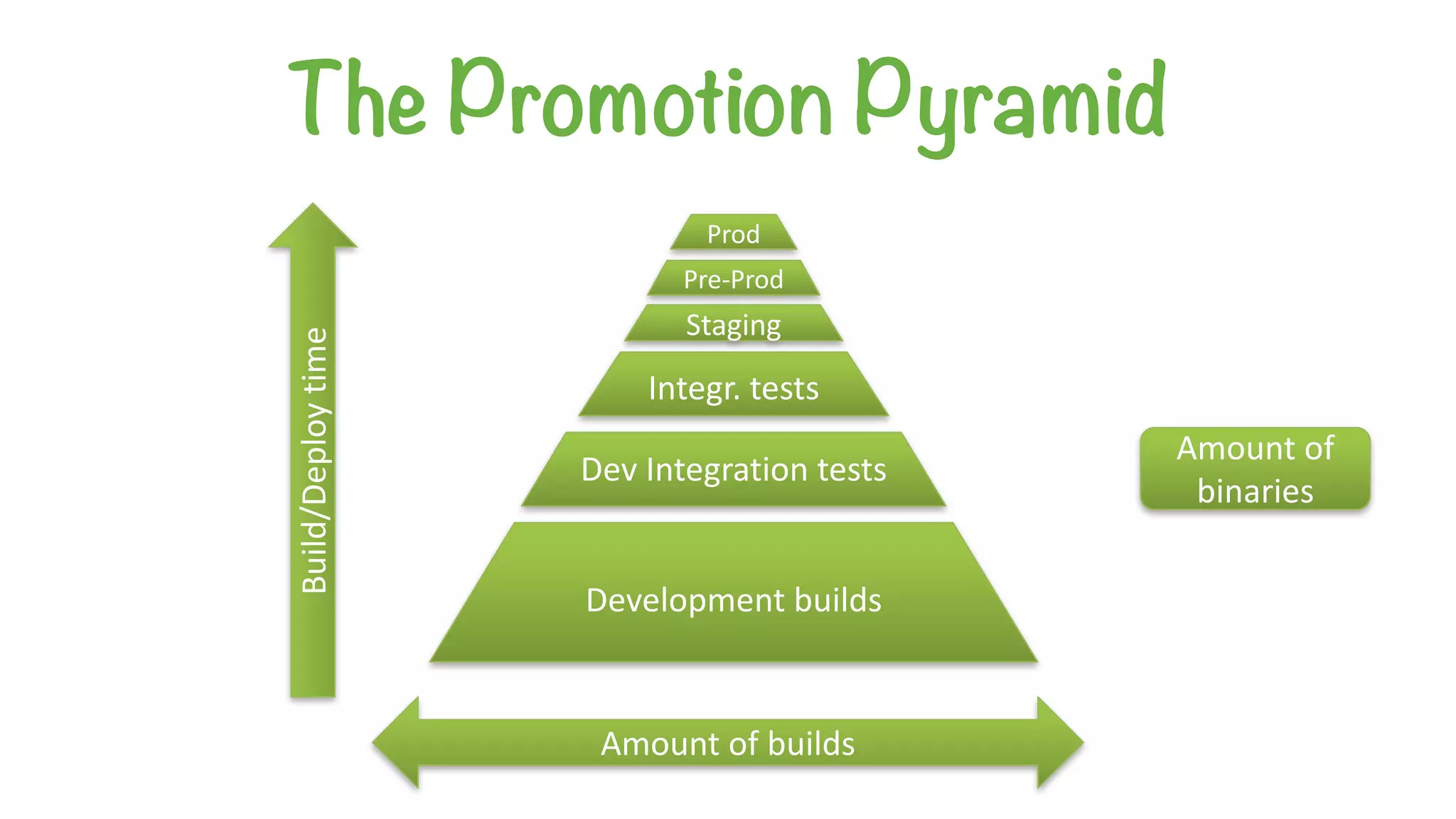

- 14. The Promotion Pyramid Development builds DevIntegration tests Integr. tests Staging Pre-Prod Prod Amount of builds Build/Deploy time Amount of binaries

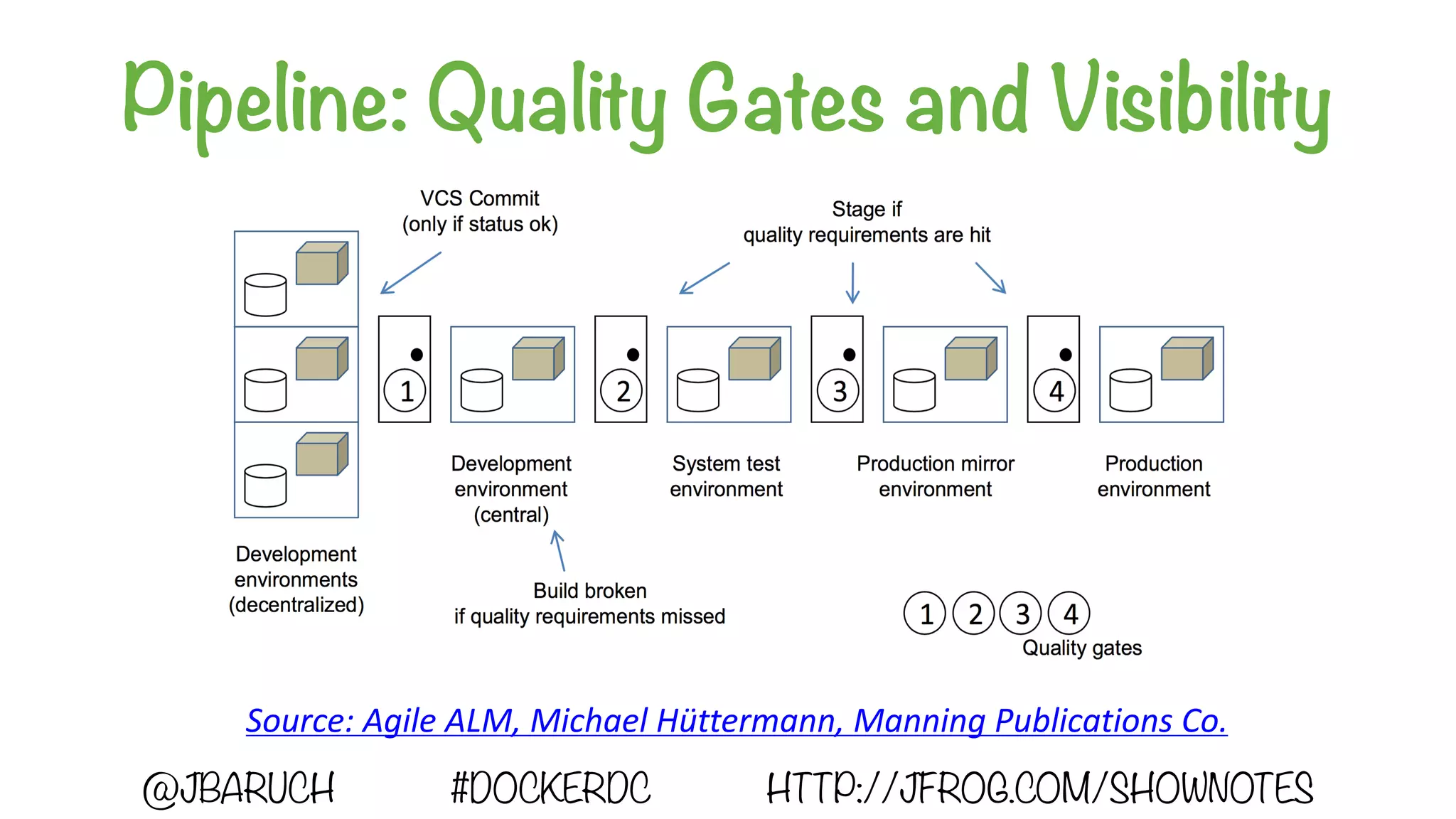

- 15. Pipeline: Quality Gatesand Visibility Source: Agile ALM, Michael Hüttermann, Manning Publications Co. @JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES
- 16. $docker build @JBARUCH #DOCKERDCHTTP://JFROG.COM/SHOWNOTES

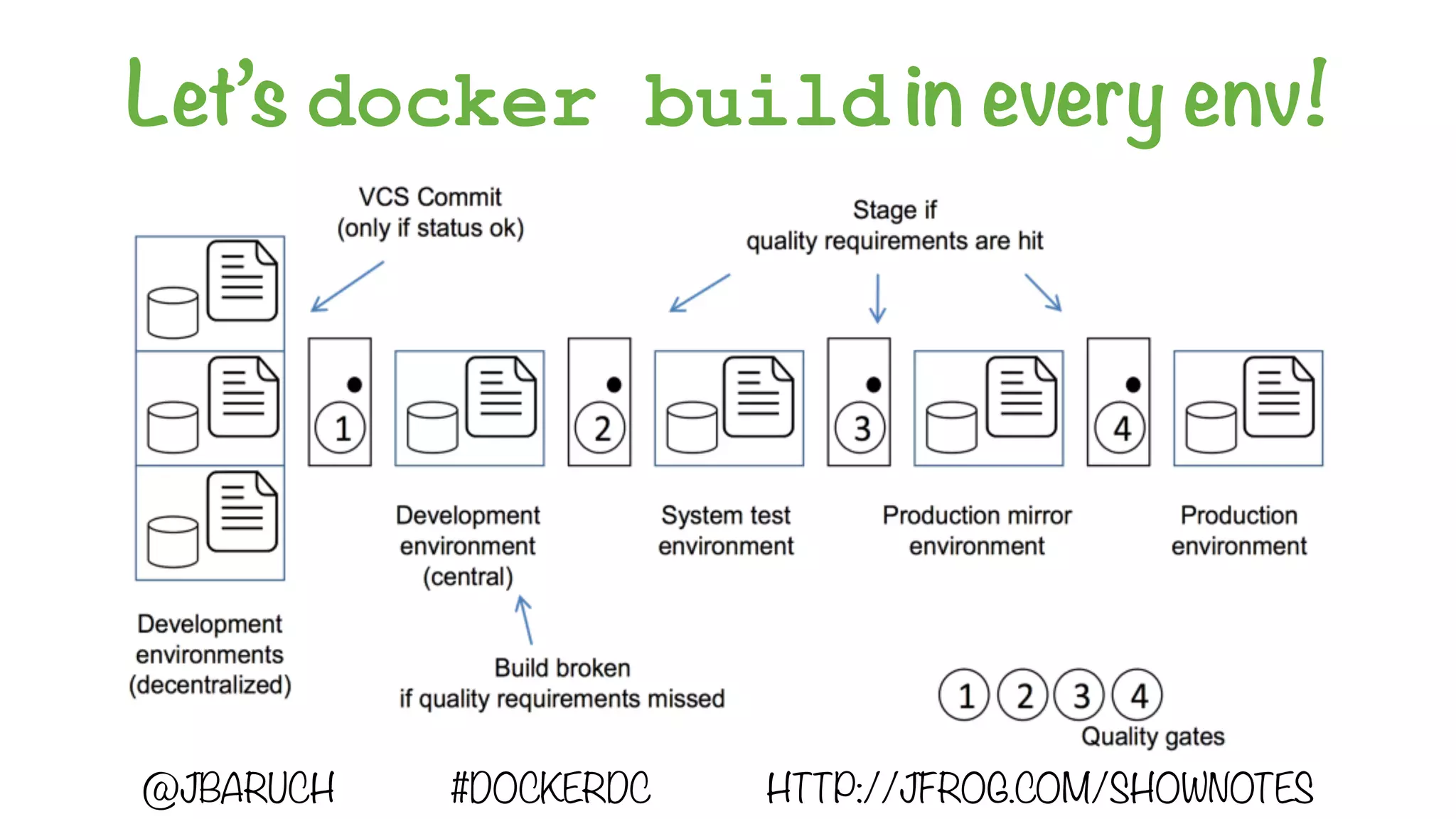

- 18. Let’s docker buildin every env! @JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES
- 20. That’s why. @JBARUCH #DOCKERDCHTTP://JFROG.COM/SHOWNOTES FROM ubuntu RUN apt-get install -y software-properties-common python RUN apt-get install -y nodejs RUN mkdir /var/www ADD app.js /var/www/app.js CMD ["/usr/bin/node", "/var/www/app.js"] Latest version Latest version Latest version Latest version
- 21. That’s why. @JBARUCH #DOCKERDCHTTP://JFROG.COM/SHOWNOTES FROM ubuntu:14.04 RUN apt-get install -y software-properties-common python RUN apt-get install -y nodejs RUN mkdir /var/www ADD app.js /var/www/app.js CMD ["/usr/bin/node", "/var/www/app.js"] Better now?

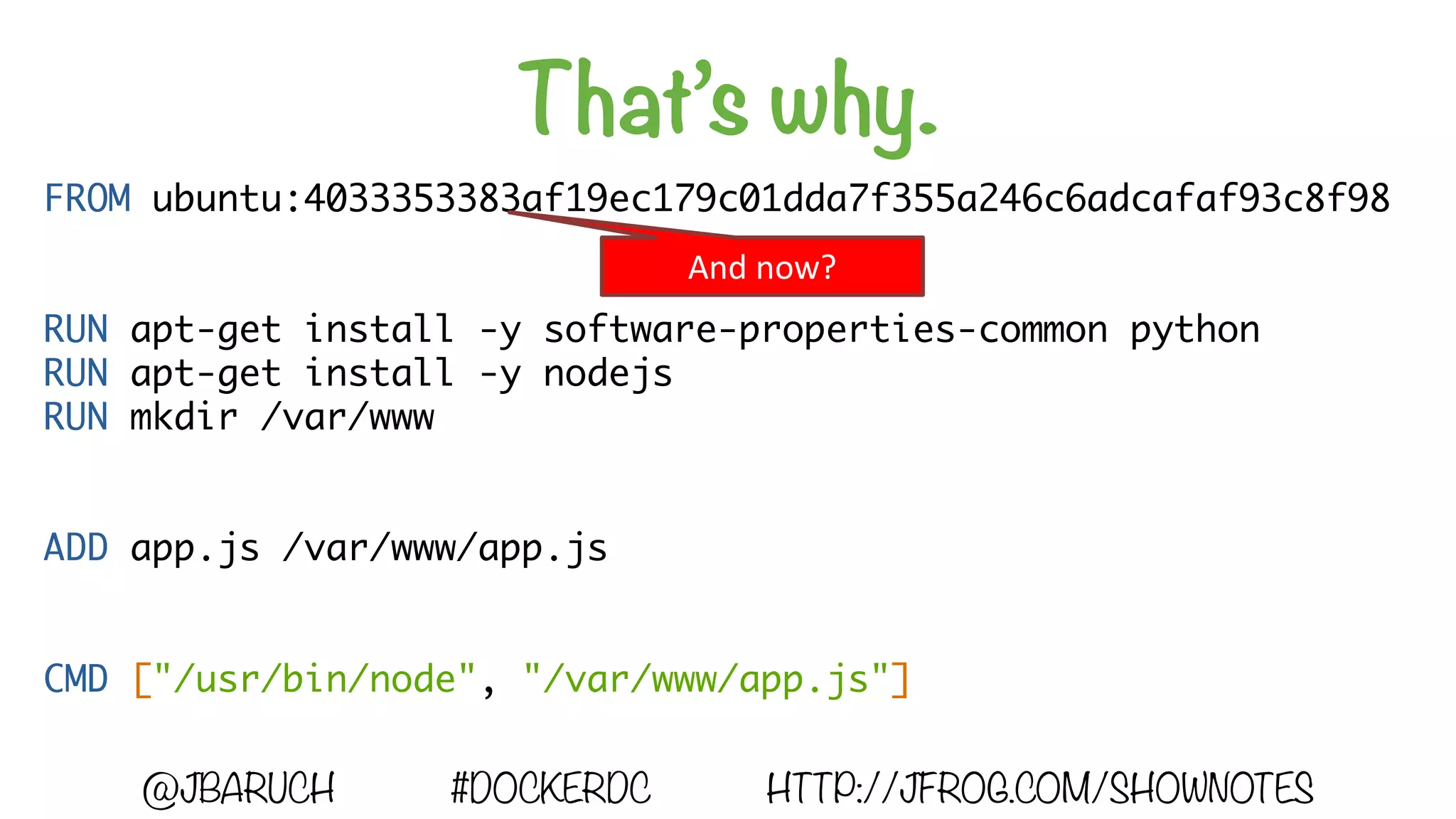

- 22. That’s why. @JBARUCH #DOCKERDCHTTP://JFROG.COM/SHOWNOTES FROM ubuntu:4033353383af19ec179c01dda7f355a246c6adcafaf93c8f98 RUN apt-get install -y software-properties-common python RUN apt-get install -y nodejs RUN mkdir /var/www ADD app.js /var/www/app.js CMD ["/usr/bin/node", "/var/www/app.js"] And now?

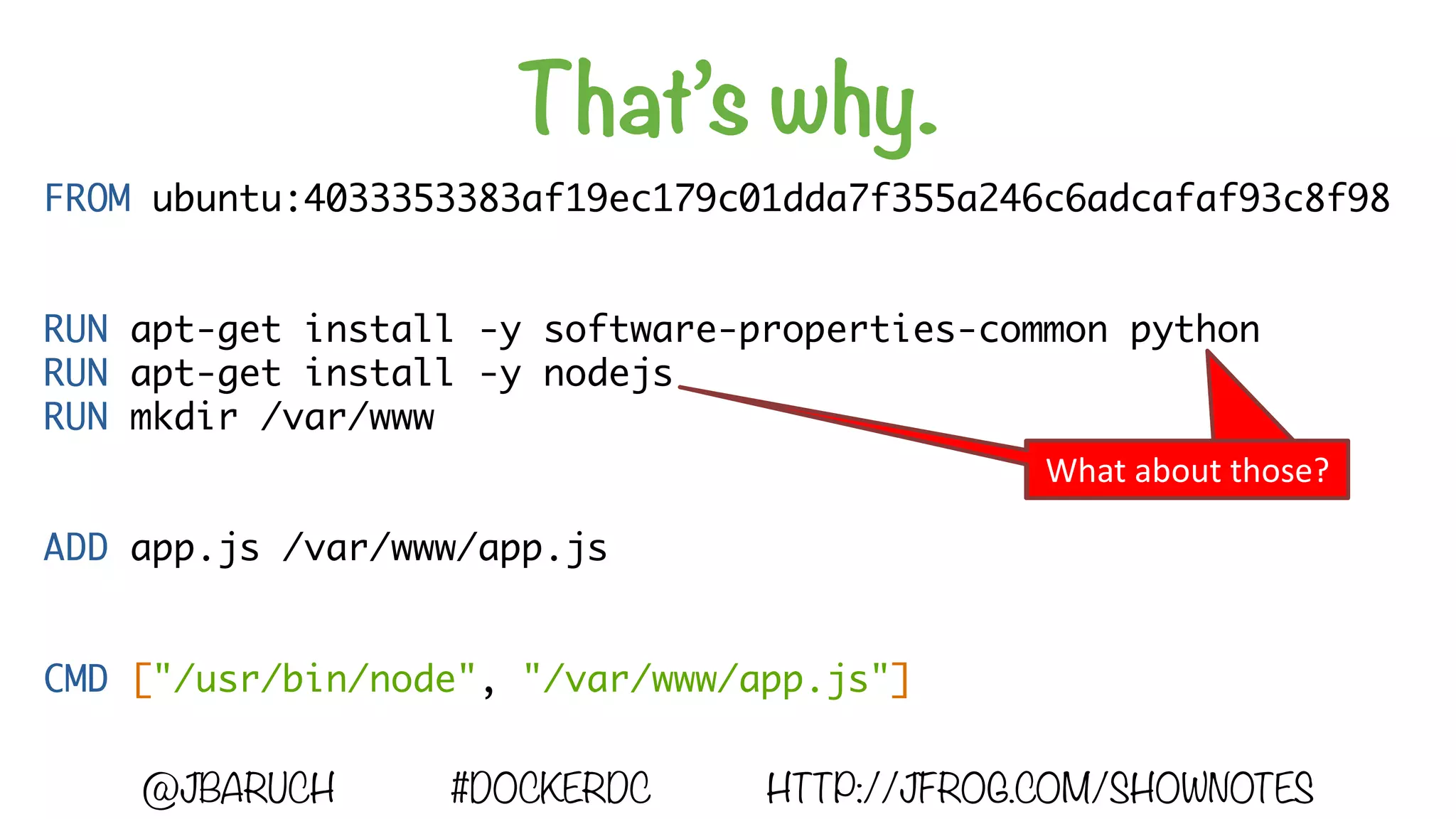

- 23. That’s why. @JBARUCH #DOCKERDCHTTP://JFROG.COM/SHOWNOTES FROM ubuntu:4033353383af19ec179c01dda7f355a246c6adcafaf93c8f98 RUN apt-get install -y software-properties-common python RUN apt-get install -y nodejs RUN mkdir /var/www ADD app.js /var/www/app.js CMD ["/usr/bin/node", "/var/www/app.js"] And now?What about those?

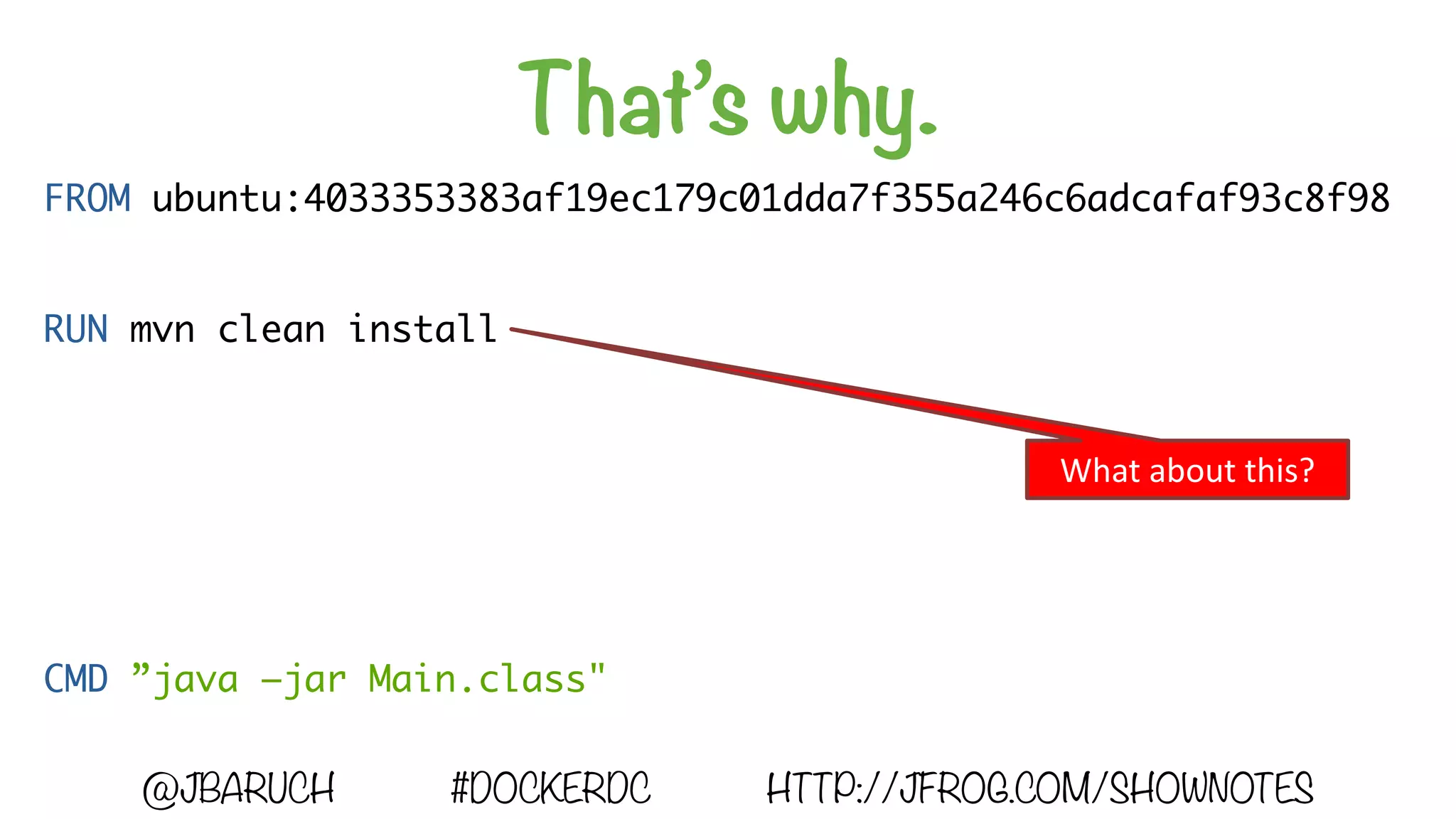

- 24. That’s why. @JBARUCH #DOCKERDCHTTP://JFROG.COM/SHOWNOTES FROM ubuntu:4033353383af19ec179c01dda7f355a246c6adcafaf93c8f98 RUN mvn clean install CMD ”java –jar Main.class" What about this?

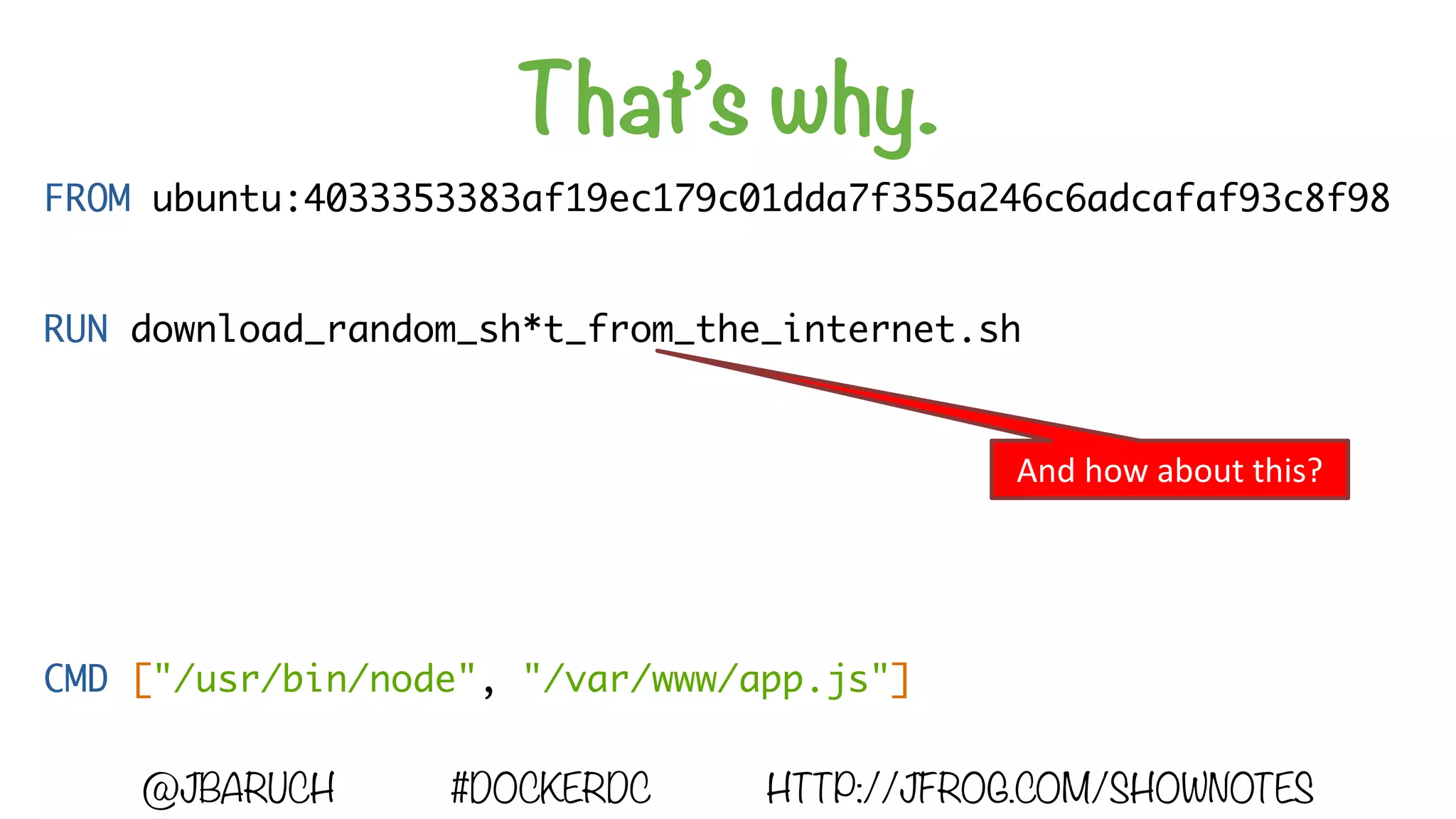

- 25. That’s why. @JBARUCH #DOCKERDCHTTP://JFROG.COM/SHOWNOTES FROM ubuntu:4033353383af19ec179c01dda7f355a246c6adcafaf93c8f98 RUN download_random_sh*t_from_the_internet.sh CMD ["/usr/bin/node", "/var/www/app.js"] And how about this?

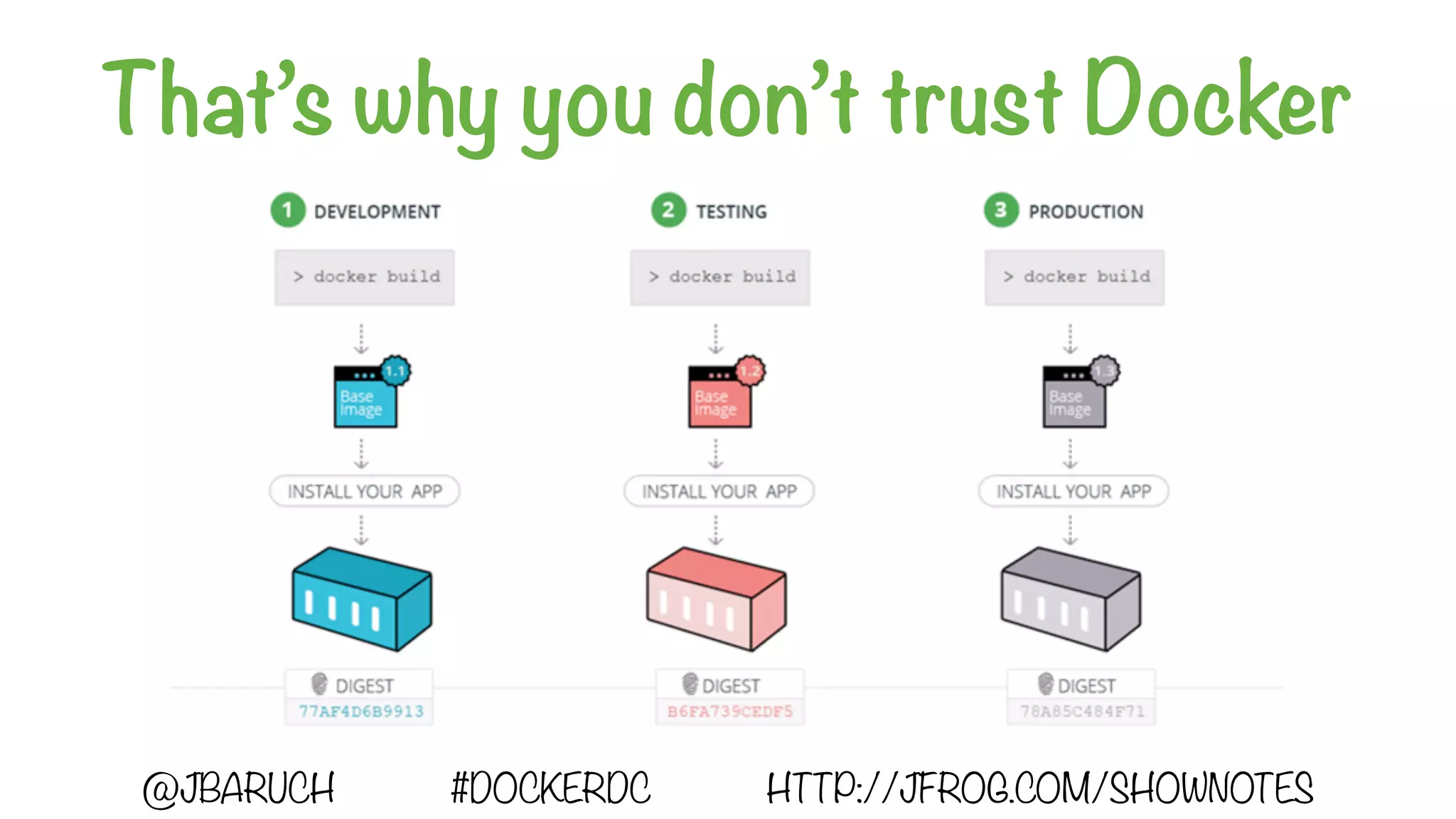

- 26. That’s why youdon’t trust Docker @JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES

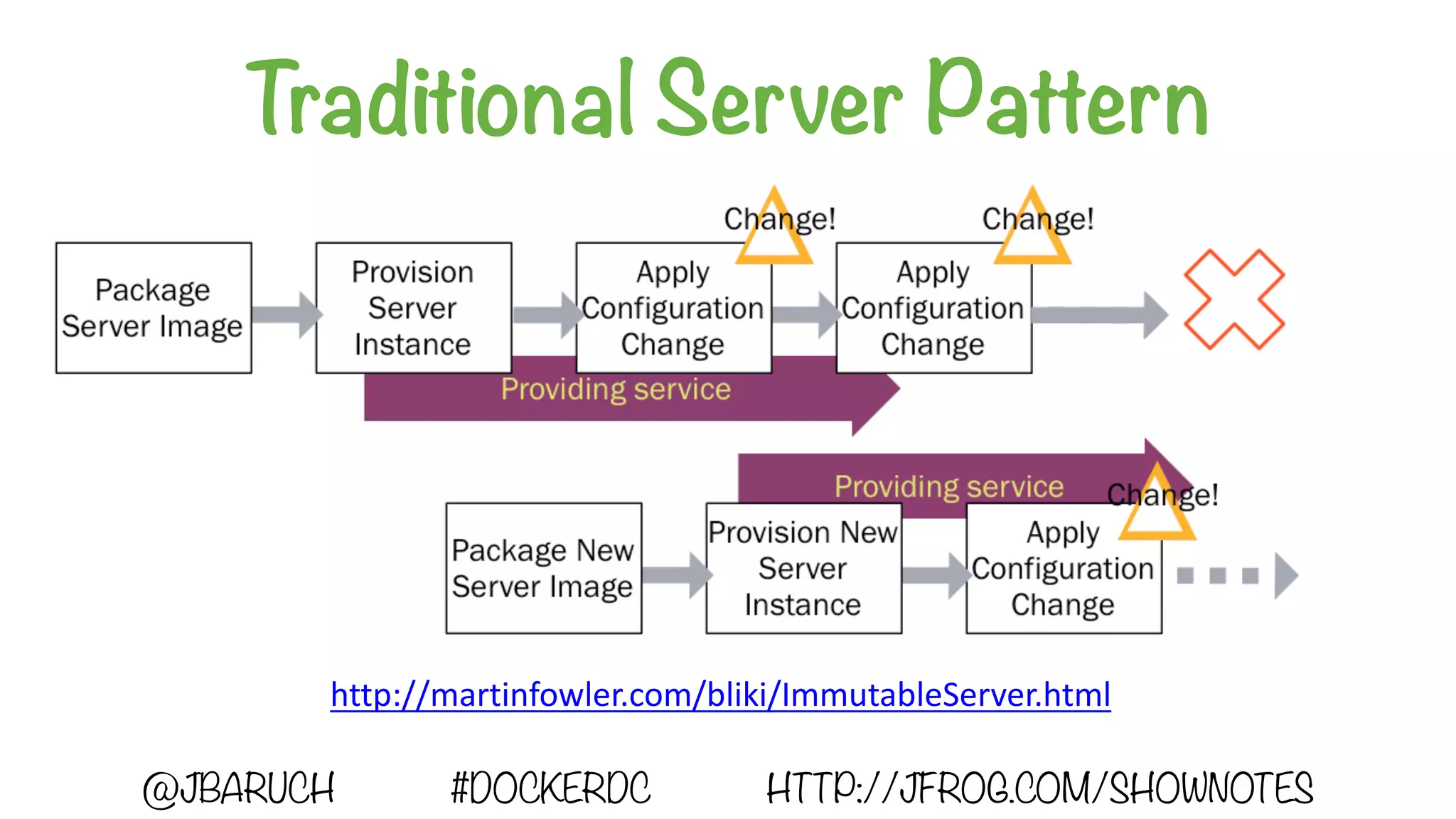

- 27. Traditional Server Pattern http://martinfowler.com/bliki/ImmutableServer.html @JBARUCH#DOCKERDC HTTP://JFROG.COM/SHOWNOTES

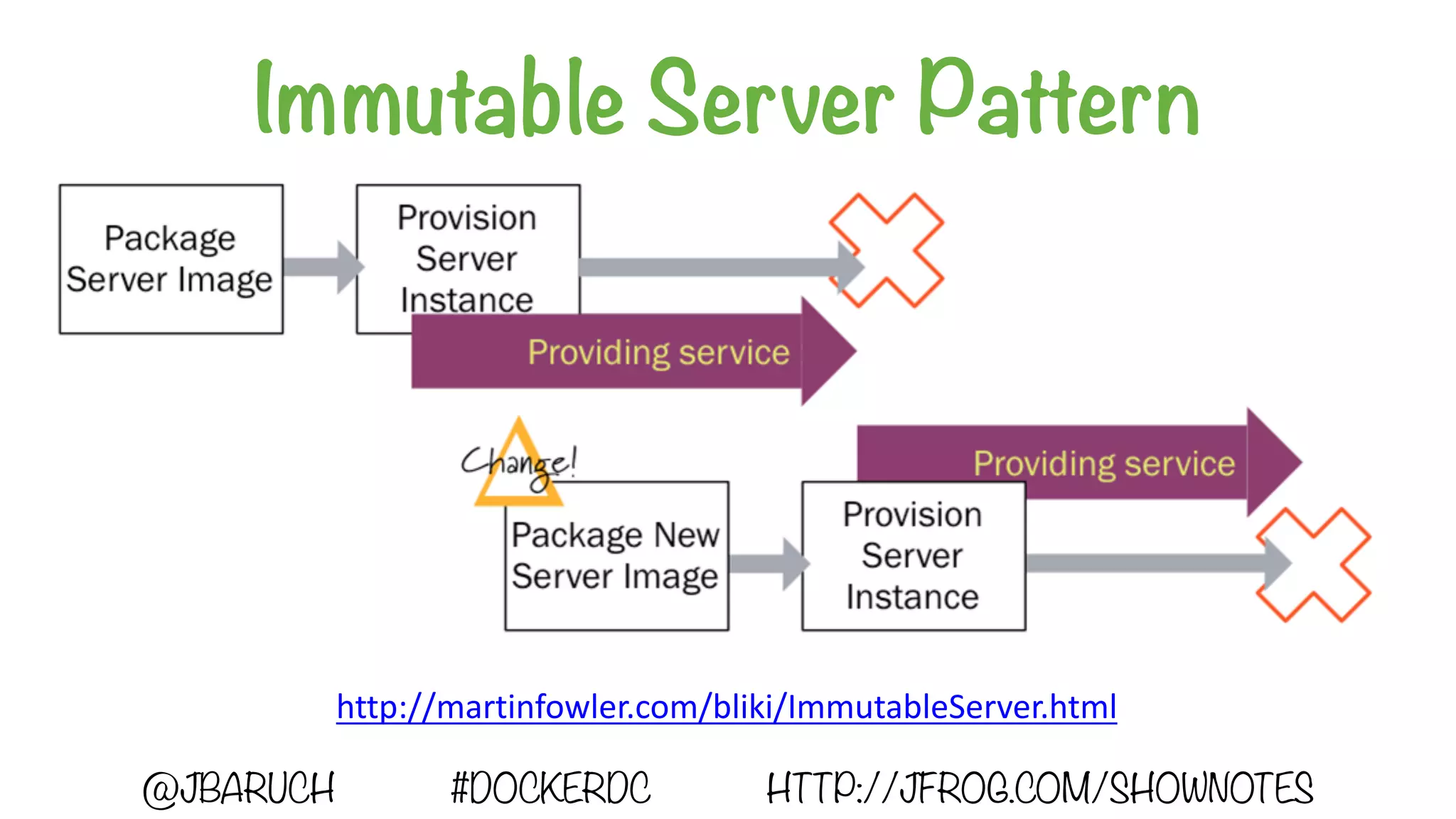

- 28. Immutable Server Pattern http://martinfowler.com/bliki/ImmutableServer.html @JBARUCH#DOCKERDC HTTP://JFROG.COM/SHOWNOTES
- 31. What’s up withthe gates?!
- 32.
- 33. What’s up withthe gates?!

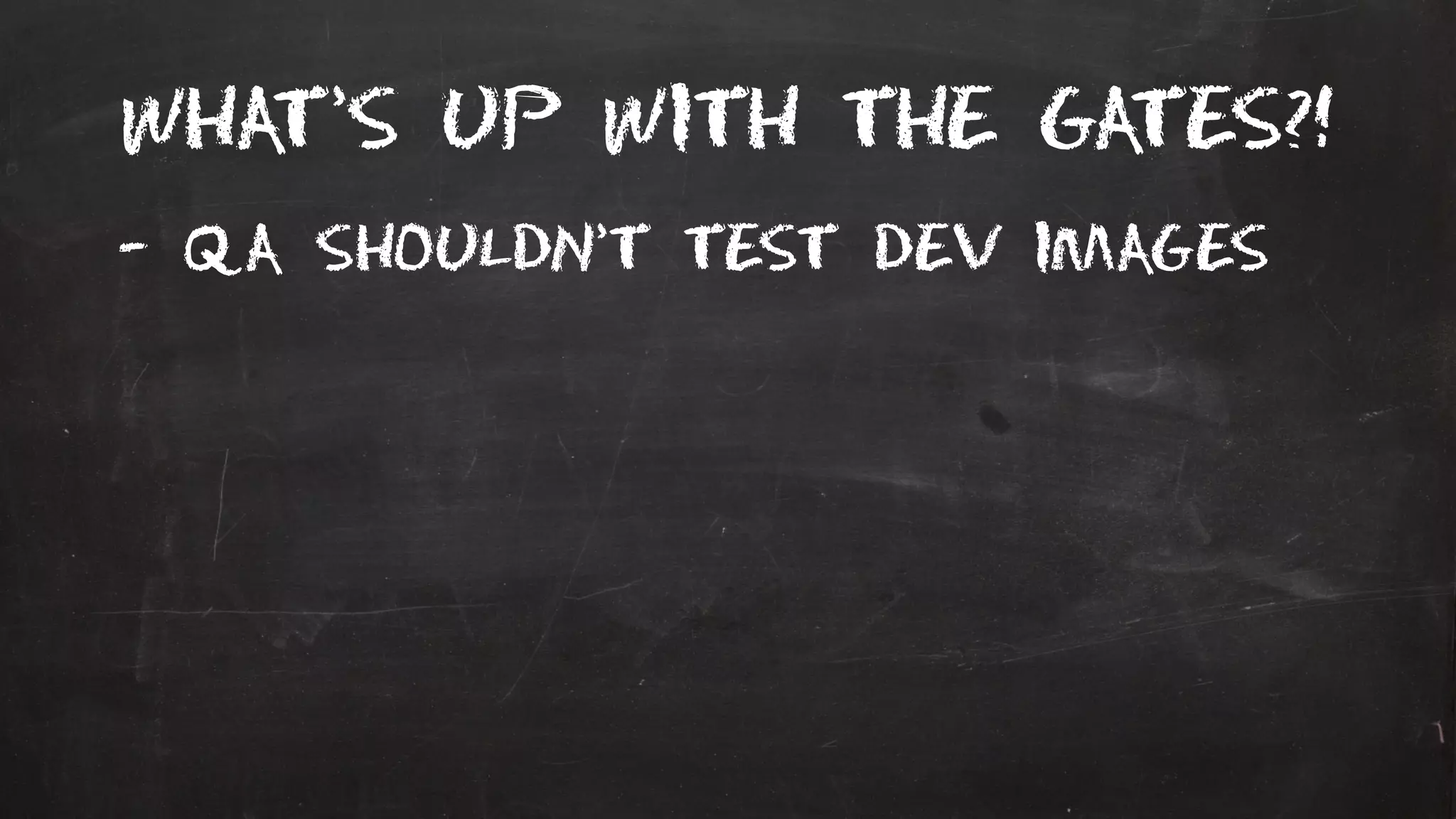

- 34. What’s up withthe gates?! - QA shouldn’t test dev images

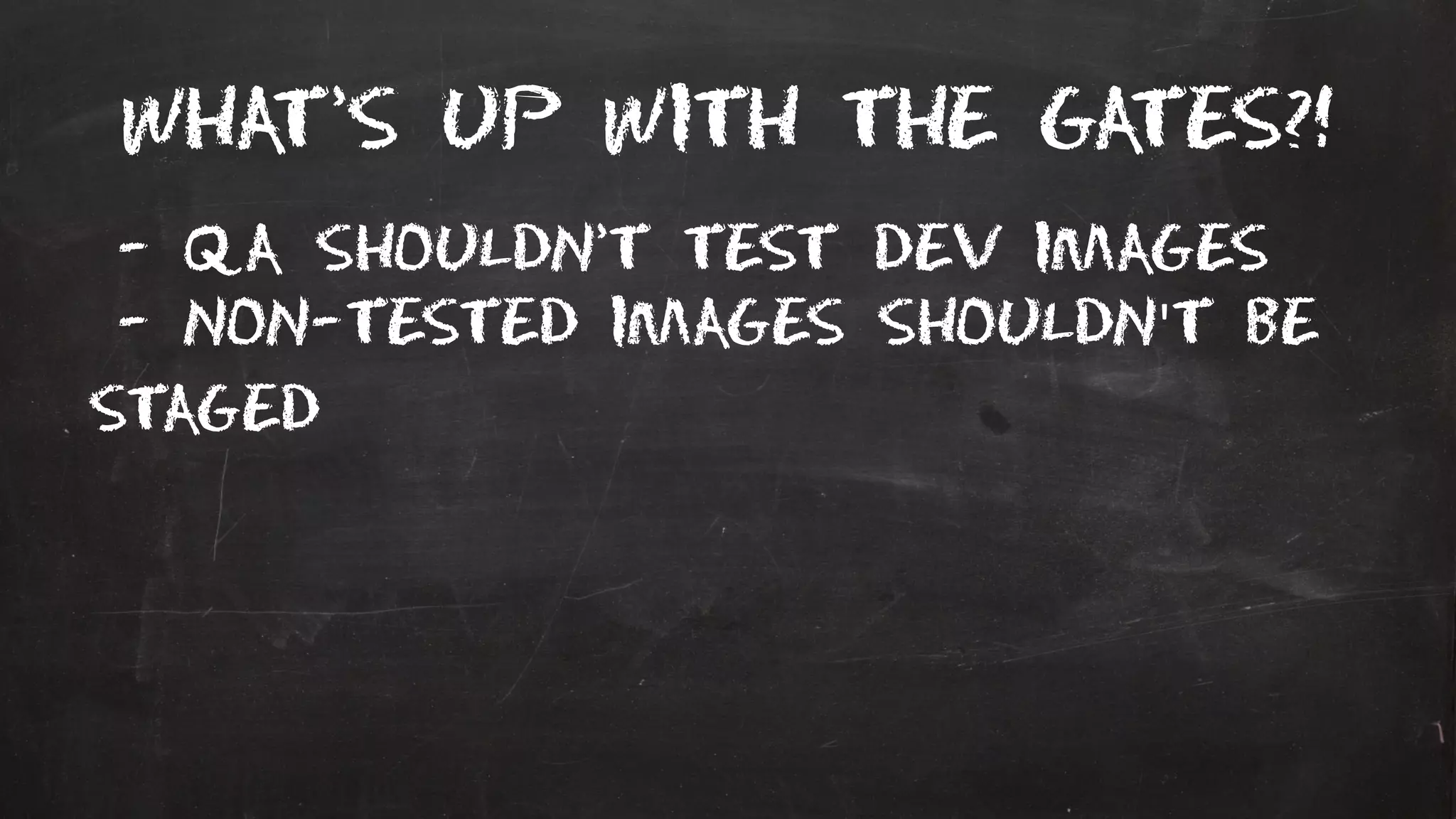

- 35. What’s up withthe gates?! - QA shouldn’t test dev images - non-tested images shouldn't be staged

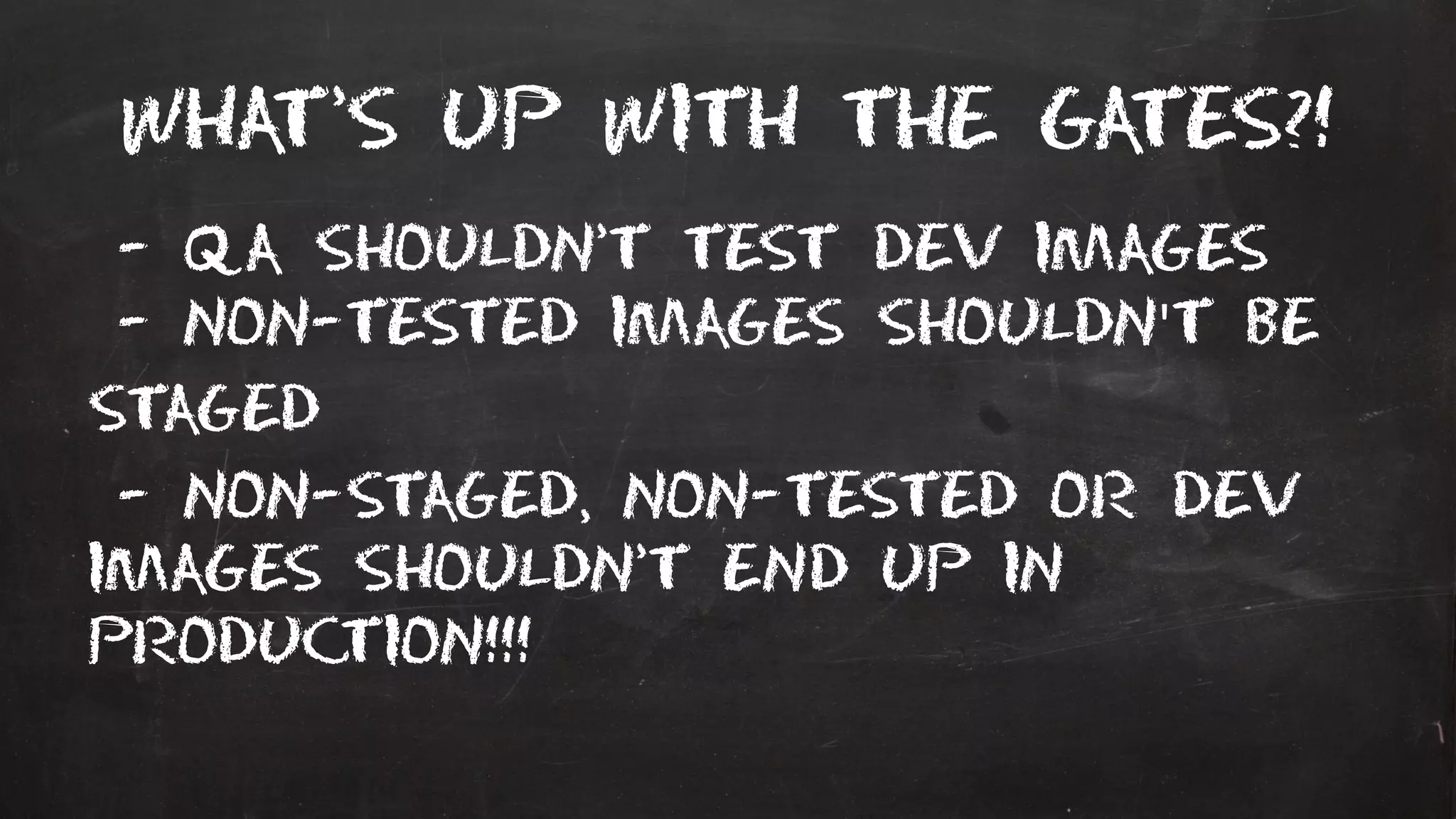

- 36. What’s up withthe gates?! - QA shouldn’t test dev images - non-tested images shouldn't be staged - non-staged, non-tested or dev images shouldn’t end up in production!!!
- 37. Not so fast… @JBARUCH#DOCKERDC HTTP://JFROG.COM/SHOWNOTES
- 38. Trumped-up limitations @JBARUCH #DOCKERDCHTTP://JFROG.COM/SHOWNOTES

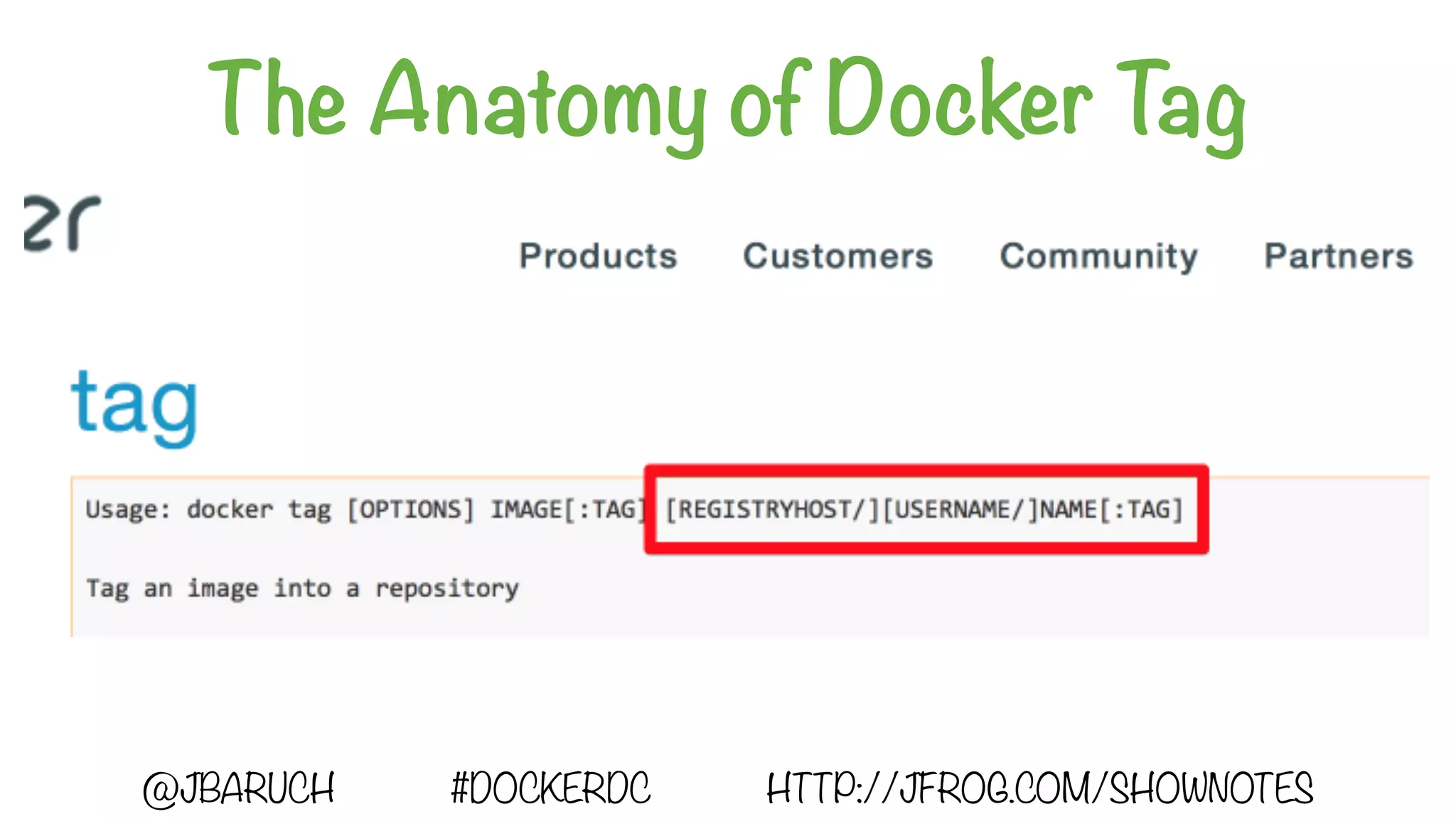

- 39. The Anatomy ofDocker Tag @JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES
- 40.

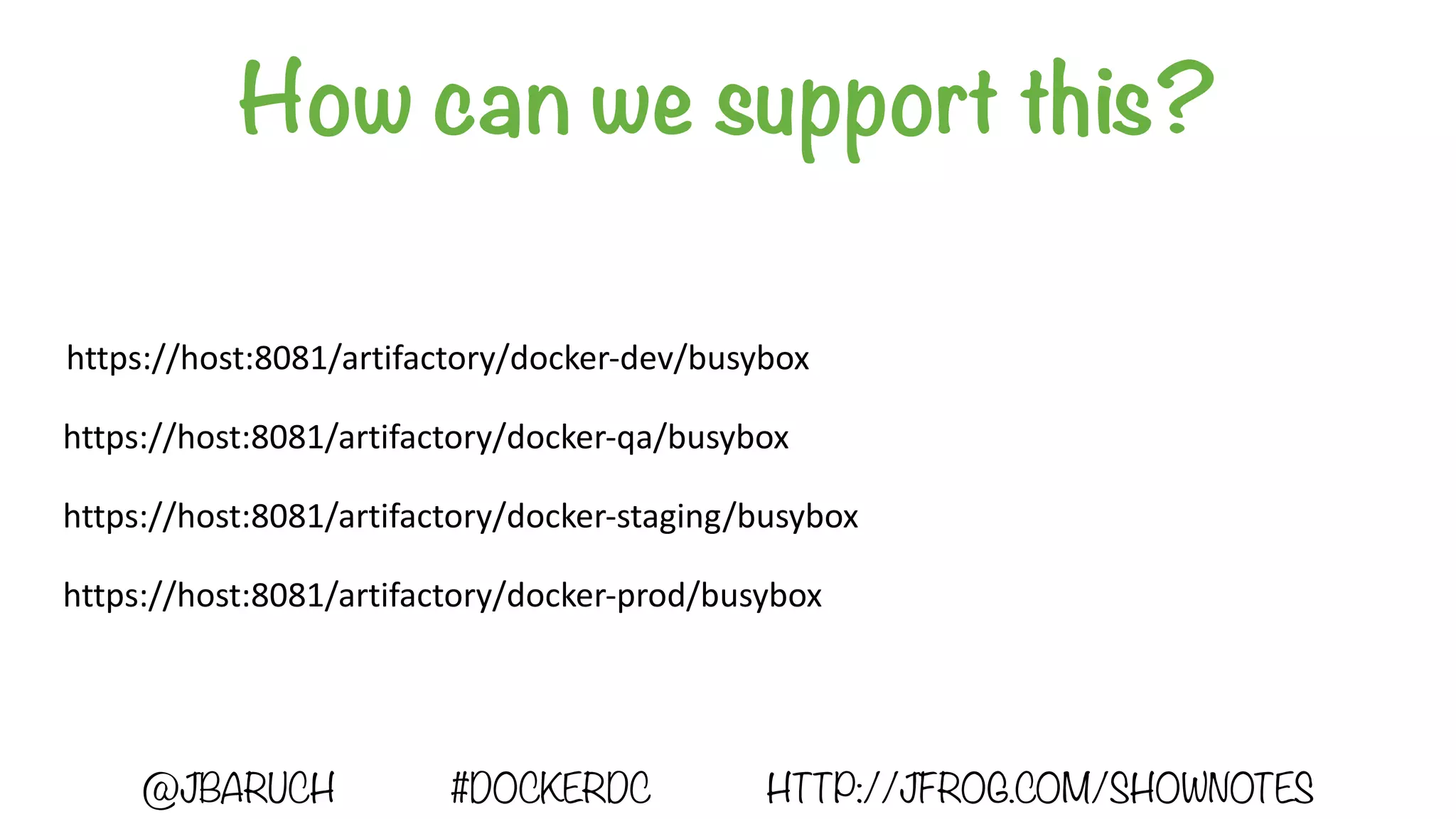

- 41. How can wesupport this? https://host:8081/artifactory/docker-dev/busybox https://host:8081/artifactory/docker-staging/busybox https://host:8081/artifactory/docker-qa/busybox https://host:8081/artifactory/docker-prod/busybox @JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES
- 42. “ONE REGISTRY PERHOST OUGHT TO BE ENOUGH FOR ANYBODY.”
- 43.

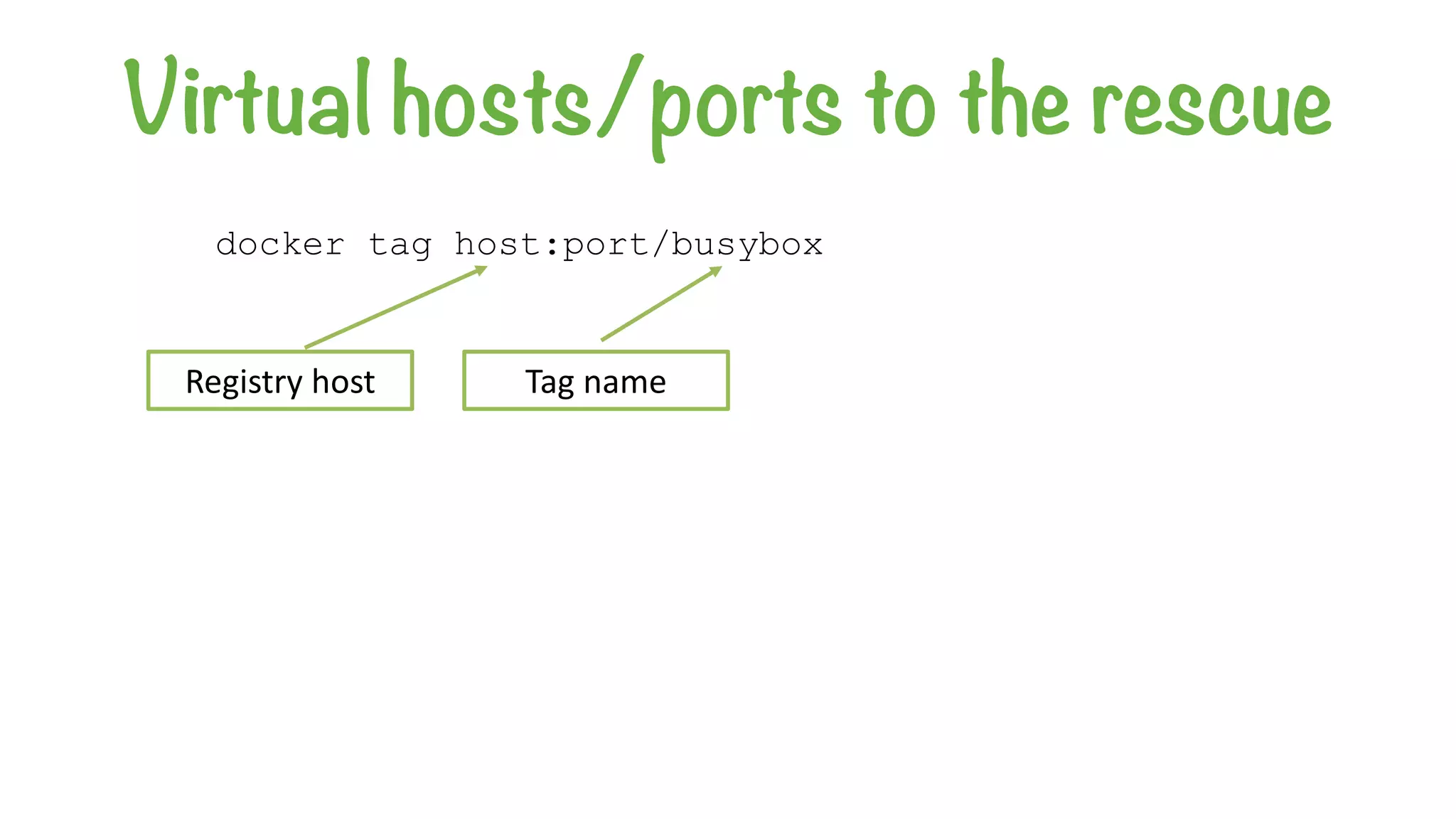

- 44. Virtual hosts/ports tothe rescue Registry host Tag name docker tag host:port/busybox

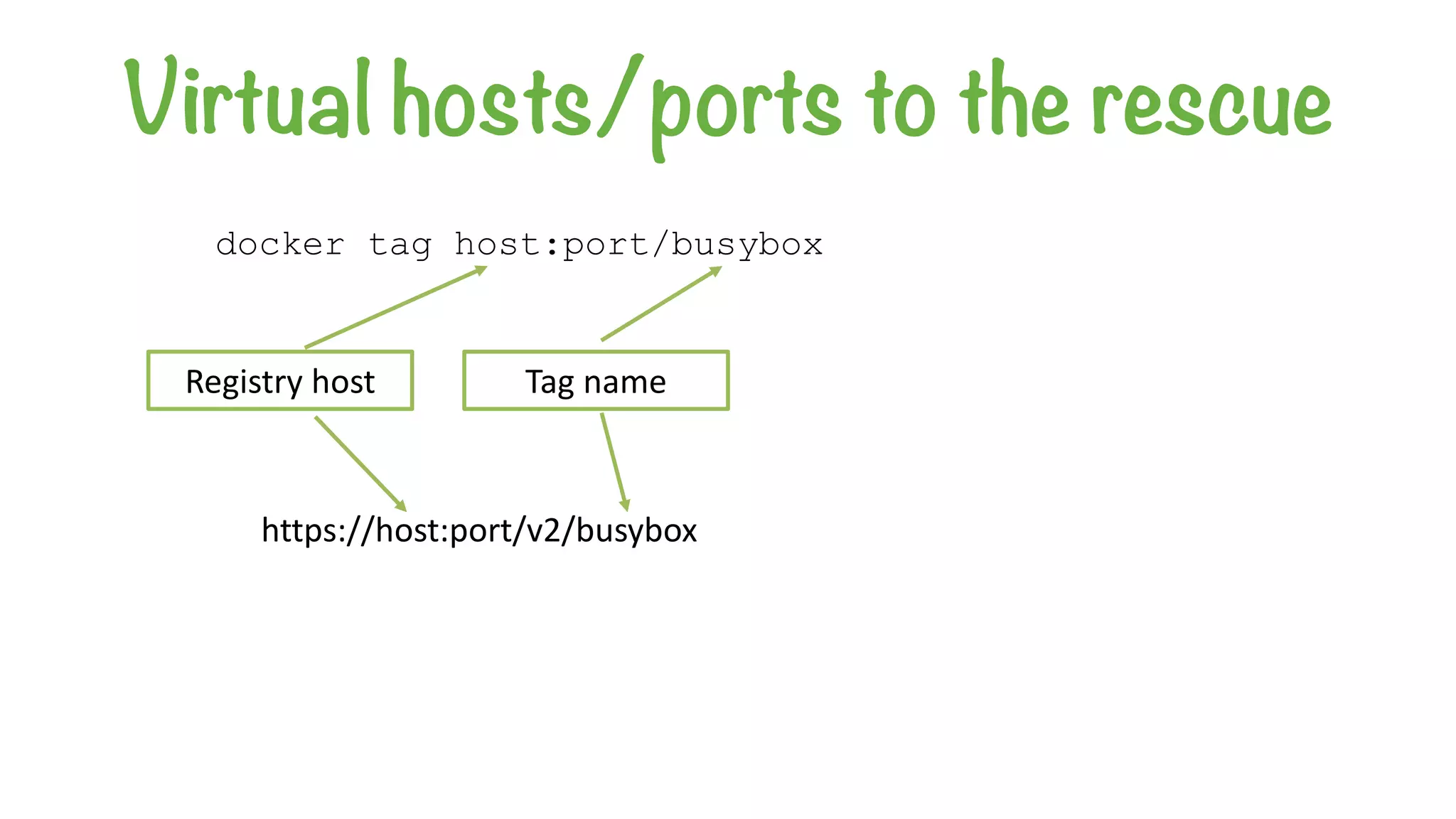

- 45. Virtual hosts/ports tothe rescue https://host:port/v2/busybox Registry host Tag name docker tag host:port/busybox

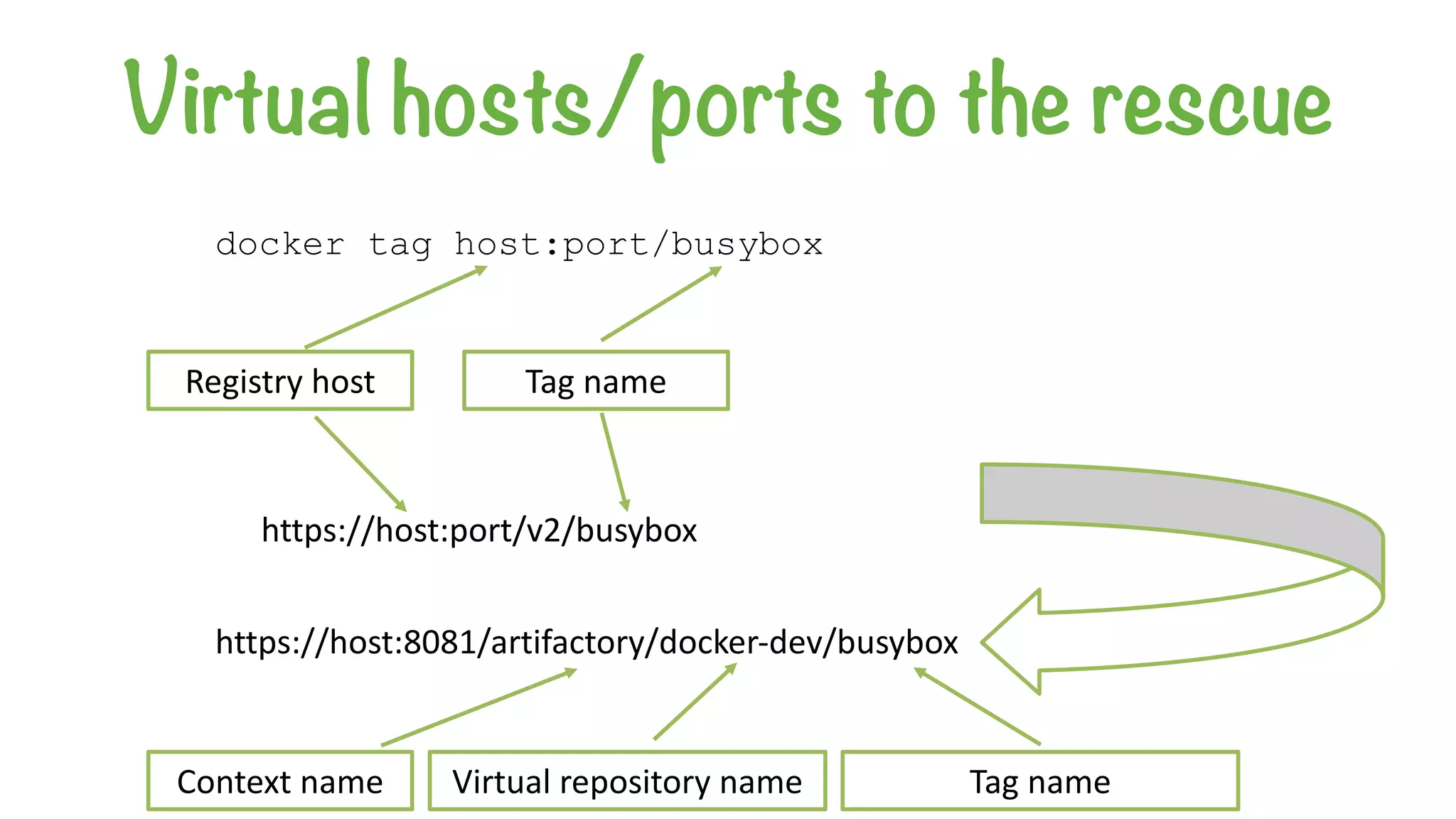

- 46. Virtual hosts/ports tothe rescue https://host:8081/artifactory/docker-dev/busybox Virtual repository name Tag name https://host:port/v2/busybox Context name Registry host Tag name docker tag host:port/busybox

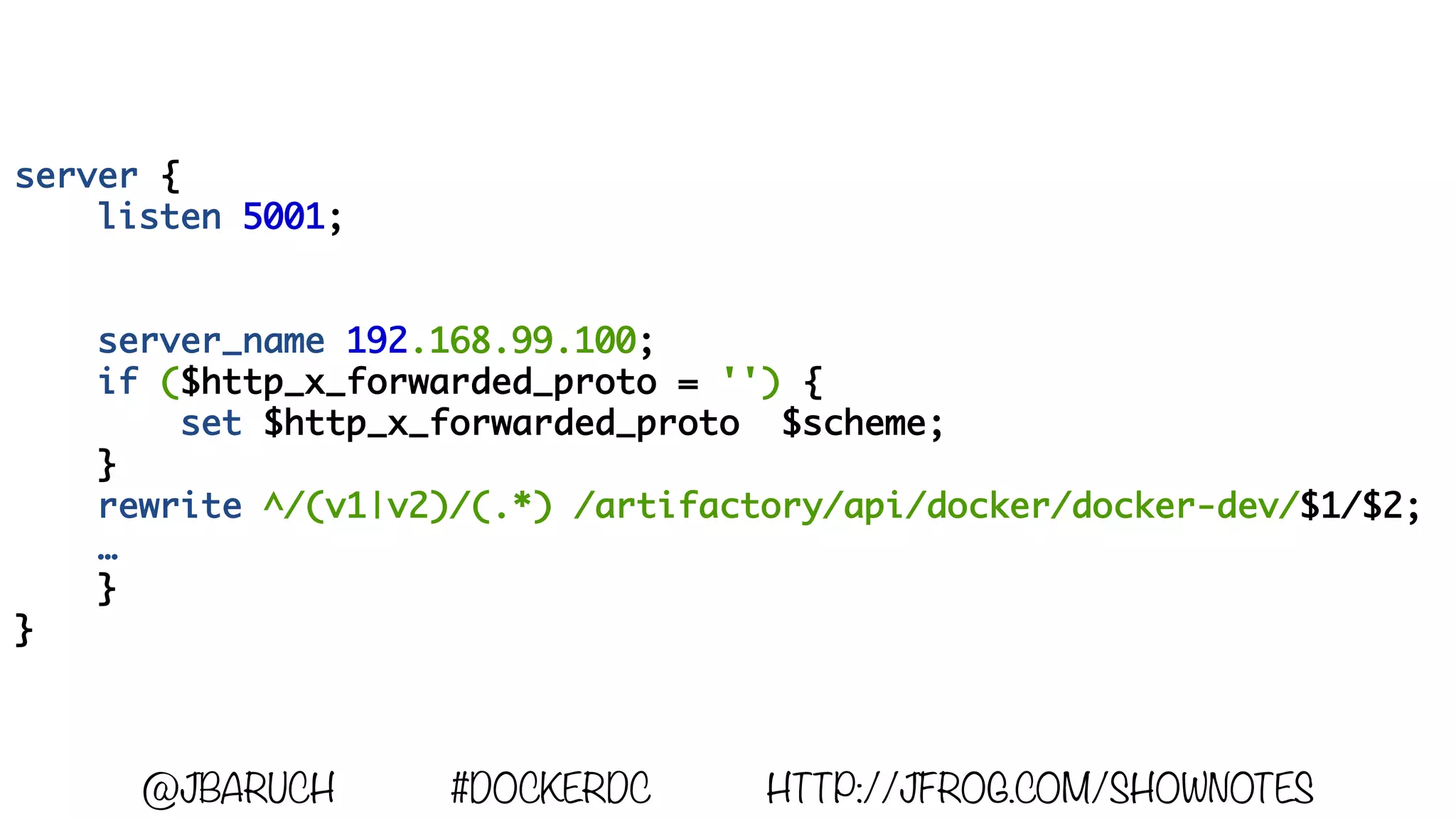

- 47. server { listen 5001; server_name192.168.99.100; if ($http_x_forwarded_proto = '') { set $http_x_forwarded_proto $scheme; } rewrite ^/(v1|v2)/(.*) /artifactory/api/docker/docker-dev/$1/$2; … } } @JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES
- 48. But then yourealize… Wait a second, now I need to pull, retag and push for every step?!

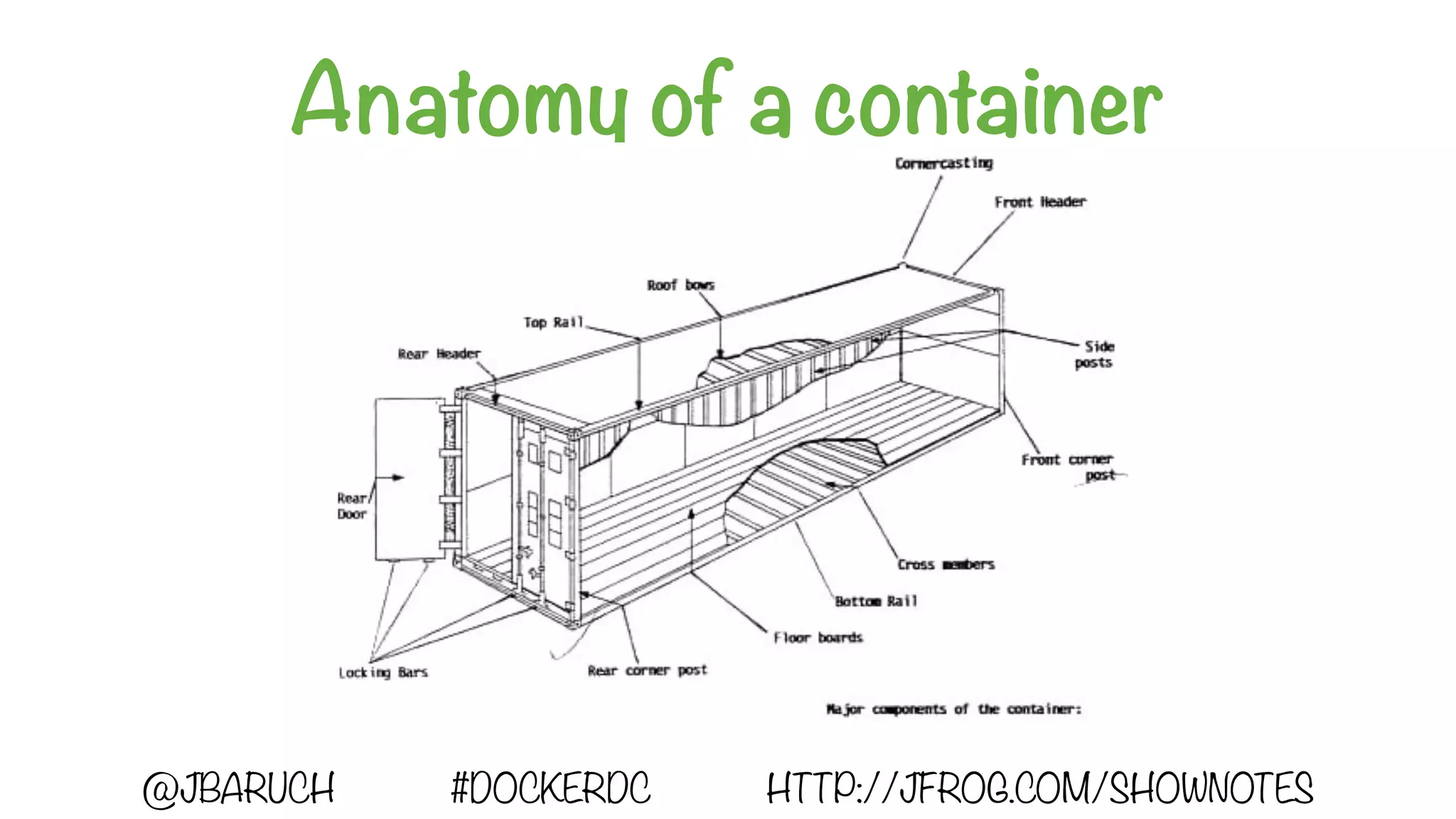

- 51. Anatomy of acontainer @JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES
- 52.

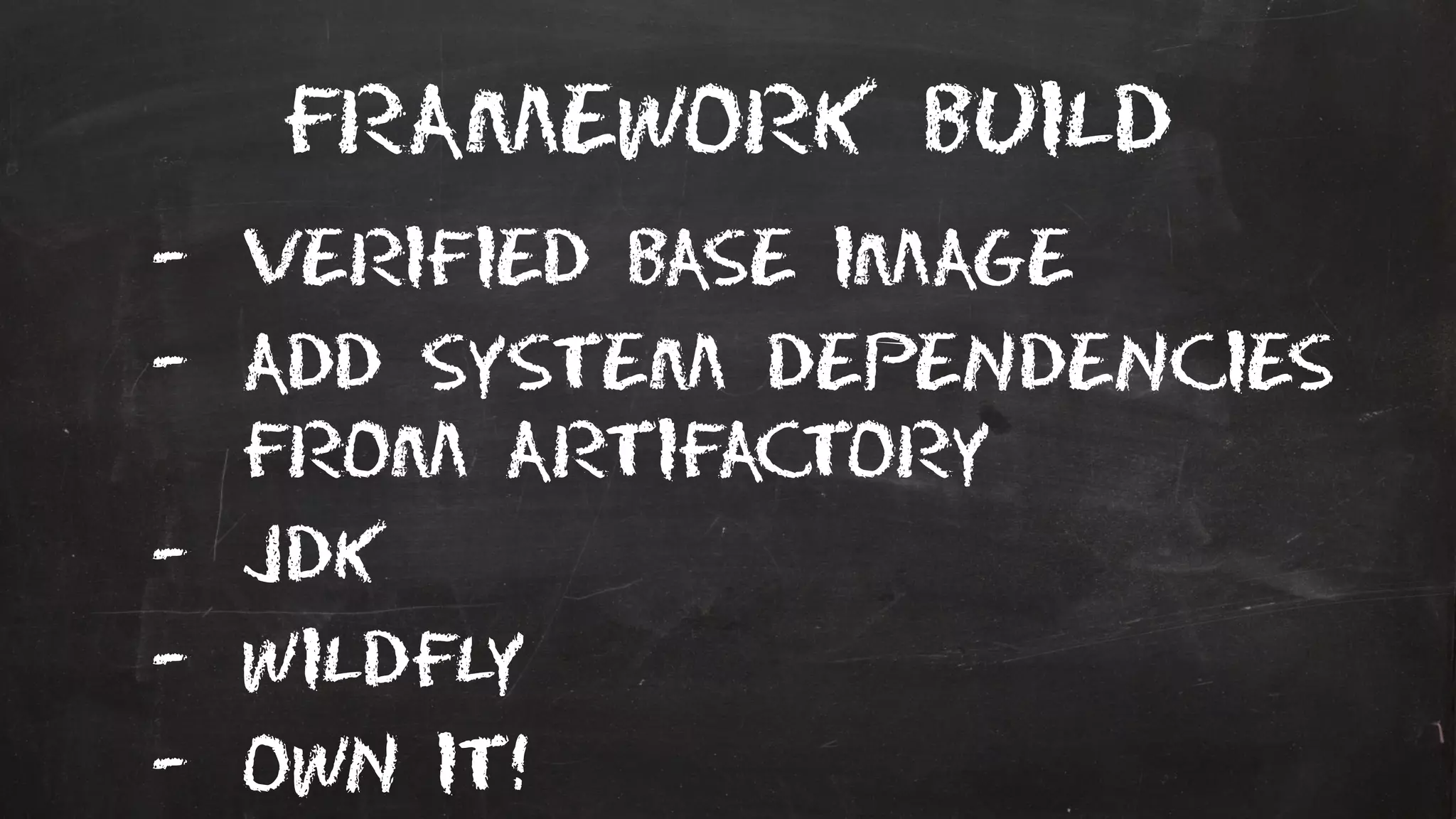

- 53. Framework build - Verifiedbase image - Add system dependencies from artifactory - JDK - wildfly - Own it!

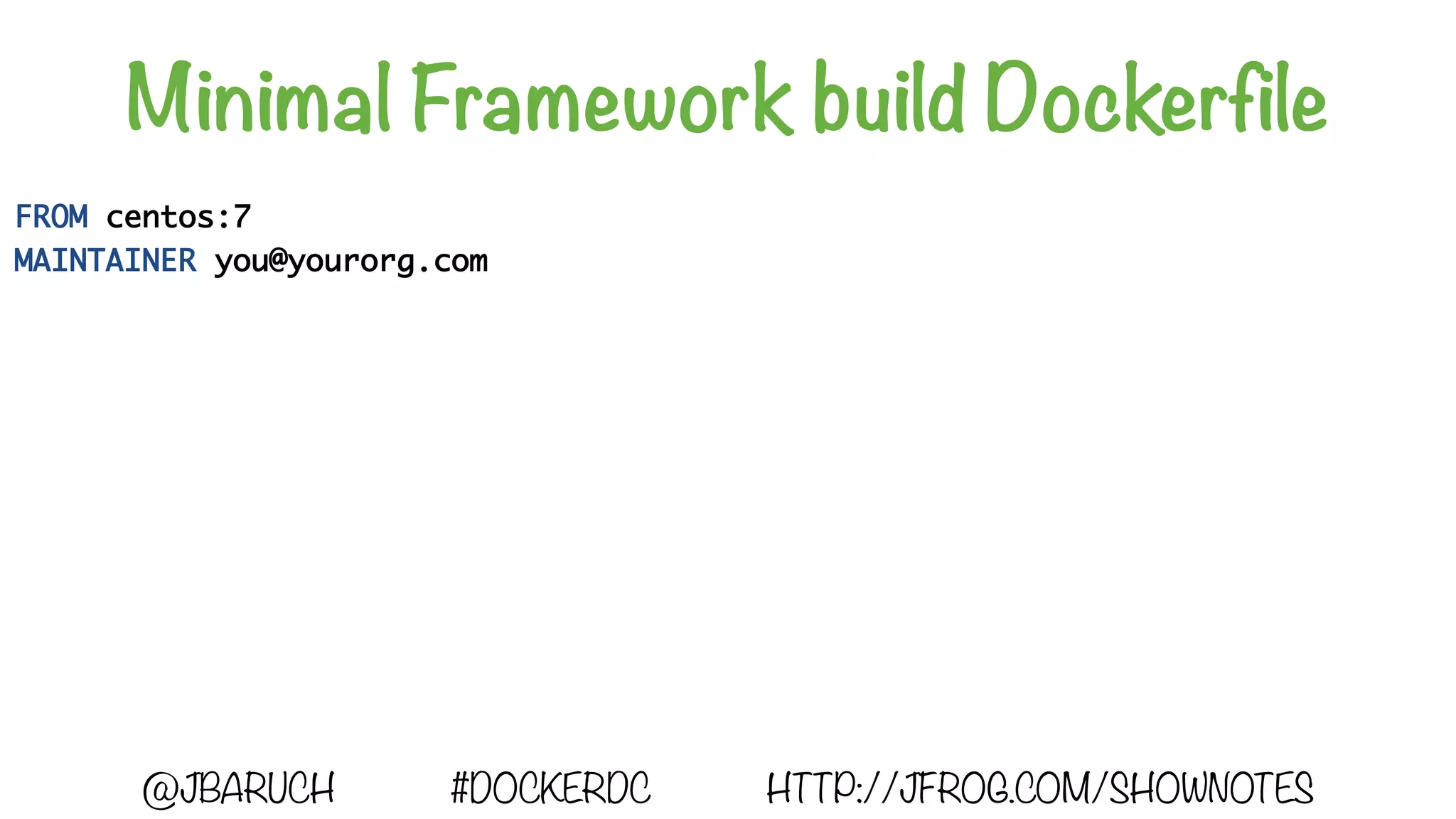

- 54. Minimal Framework buildDockerfile FROM centos:7 MAINTAINER you@yourorg.com @JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES

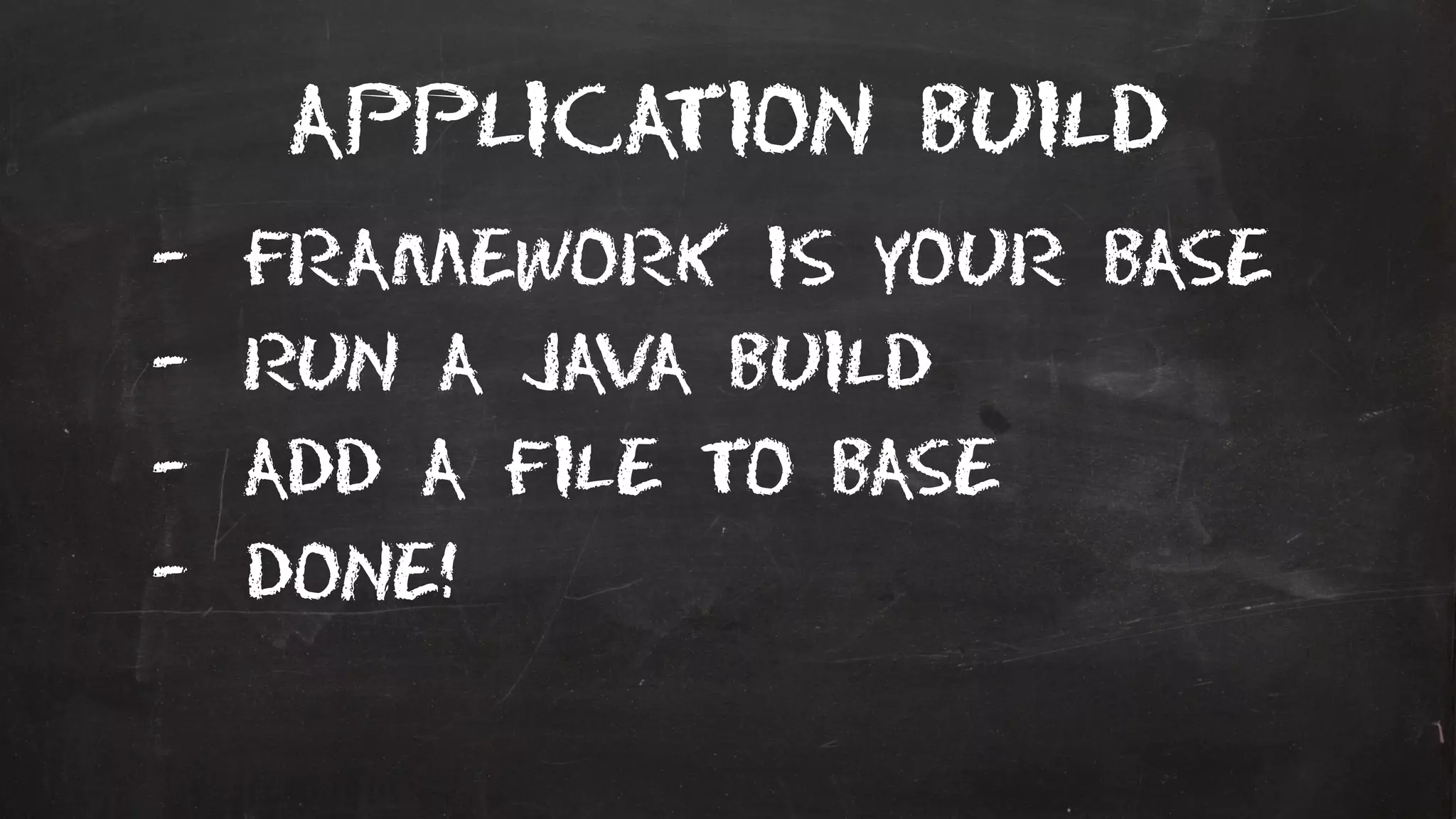

- 55. Application build - Frameworkis your base - Run a java build - Add a file to base - Done!

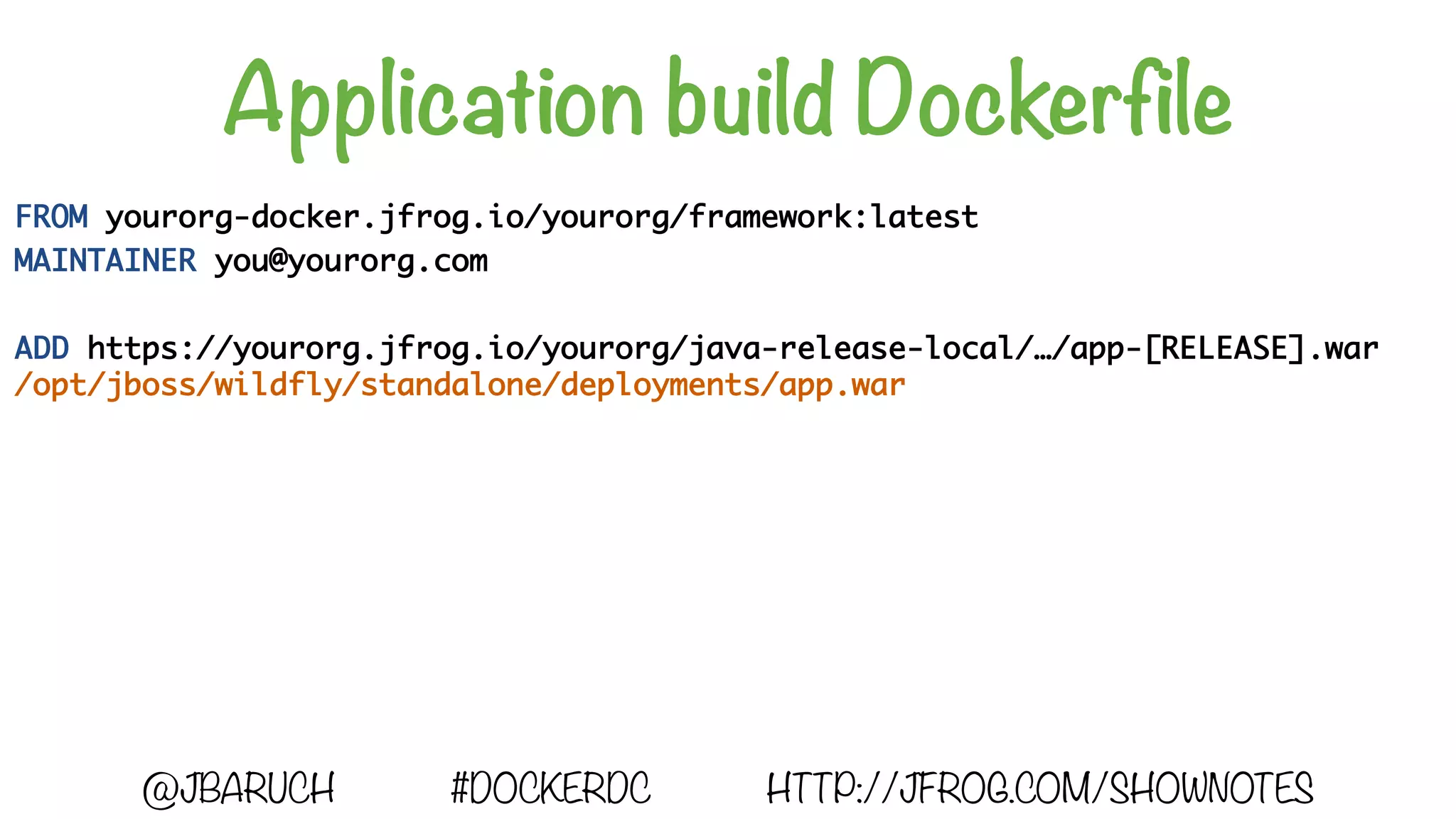

- 56. Application build Dockerfile FROMyourorg-docker.jfrog.io/yourorg/framework:latest MAINTAINER you@yourorg.com ADD https://yourorg.jfrog.io/yourorg/java-release-local/…/app-[RELEASE].war /opt/jboss/wildfly/standalone/deployments/app.war @JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES

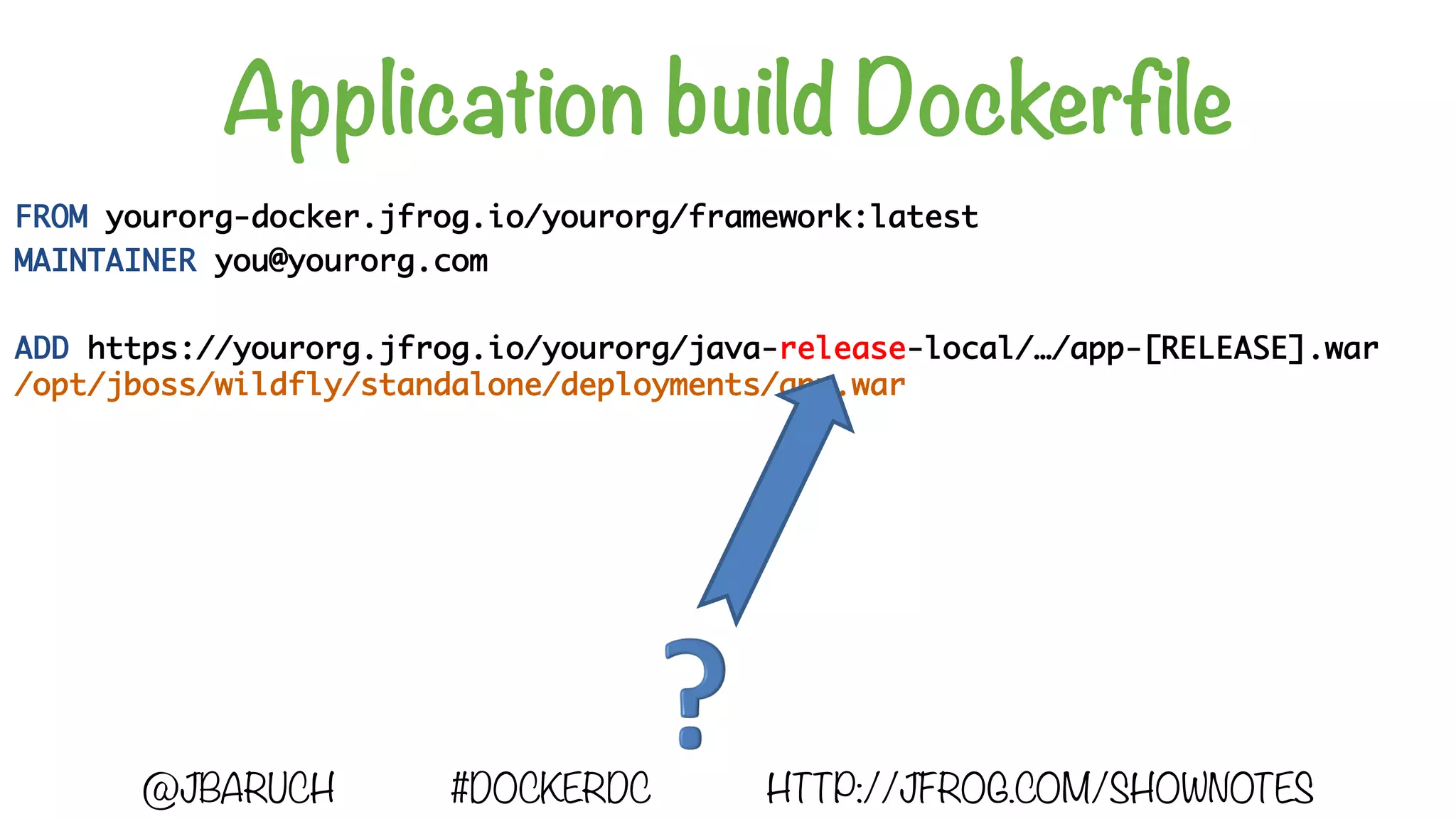

- 57. Application build Dockerfile FROMyourorg-docker.jfrog.io/yourorg/framework:latest MAINTAINER you@yourorg.com ADD https://yourorg.jfrog.io/yourorg/java-release-local/…/app-[RELEASE].war /opt/jboss/wildfly/standalone/deployments/app.war @JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES

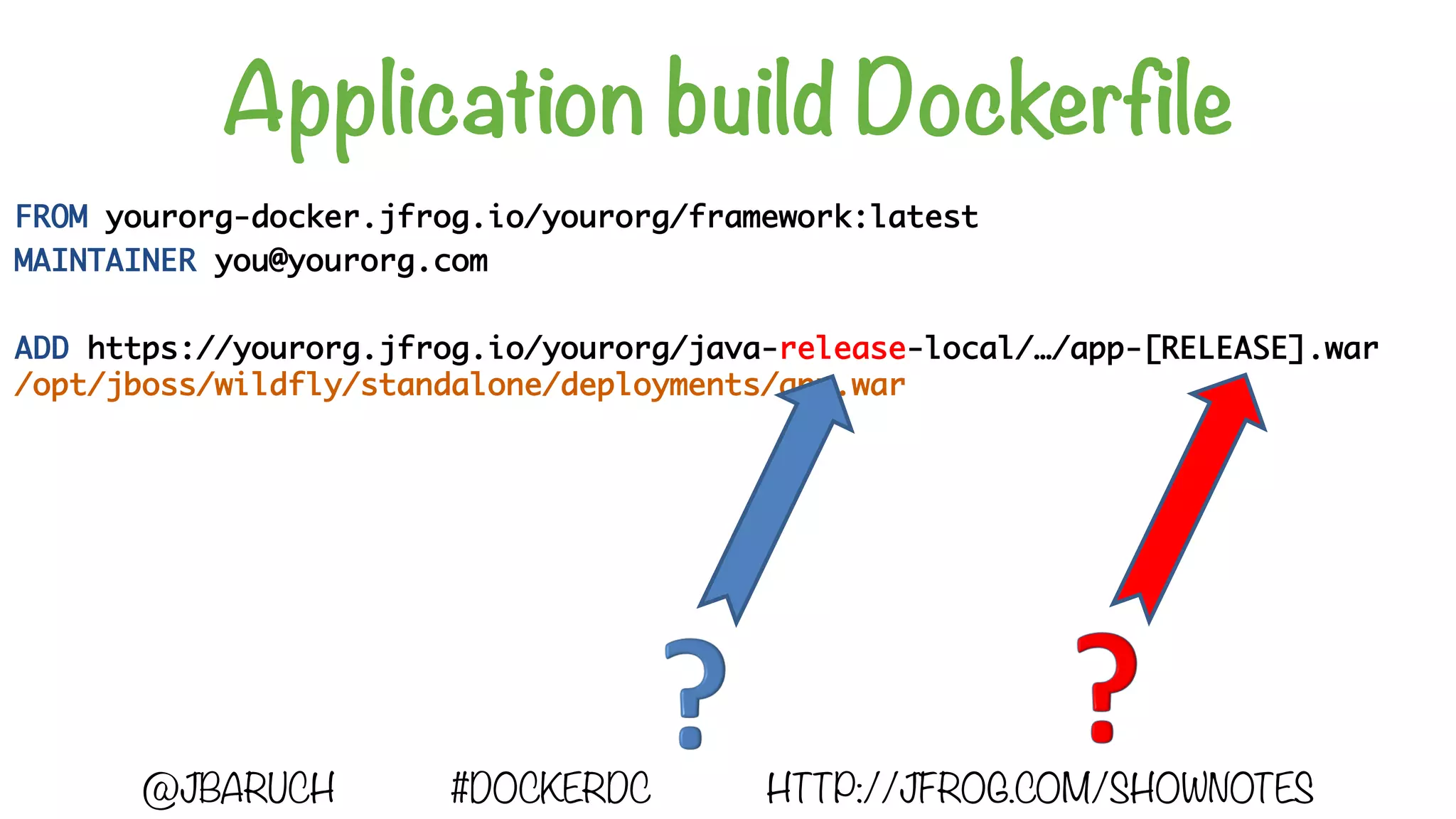

- 58. Application build Dockerfile FROMyourorg-docker.jfrog.io/yourorg/framework:latest MAINTAINER you@yourorg.com ADD https://yourorg.jfrog.io/yourorg/java-release-local/…/app-[RELEASE].war /opt/jboss/wildfly/standalone/deployments/app.war @JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES

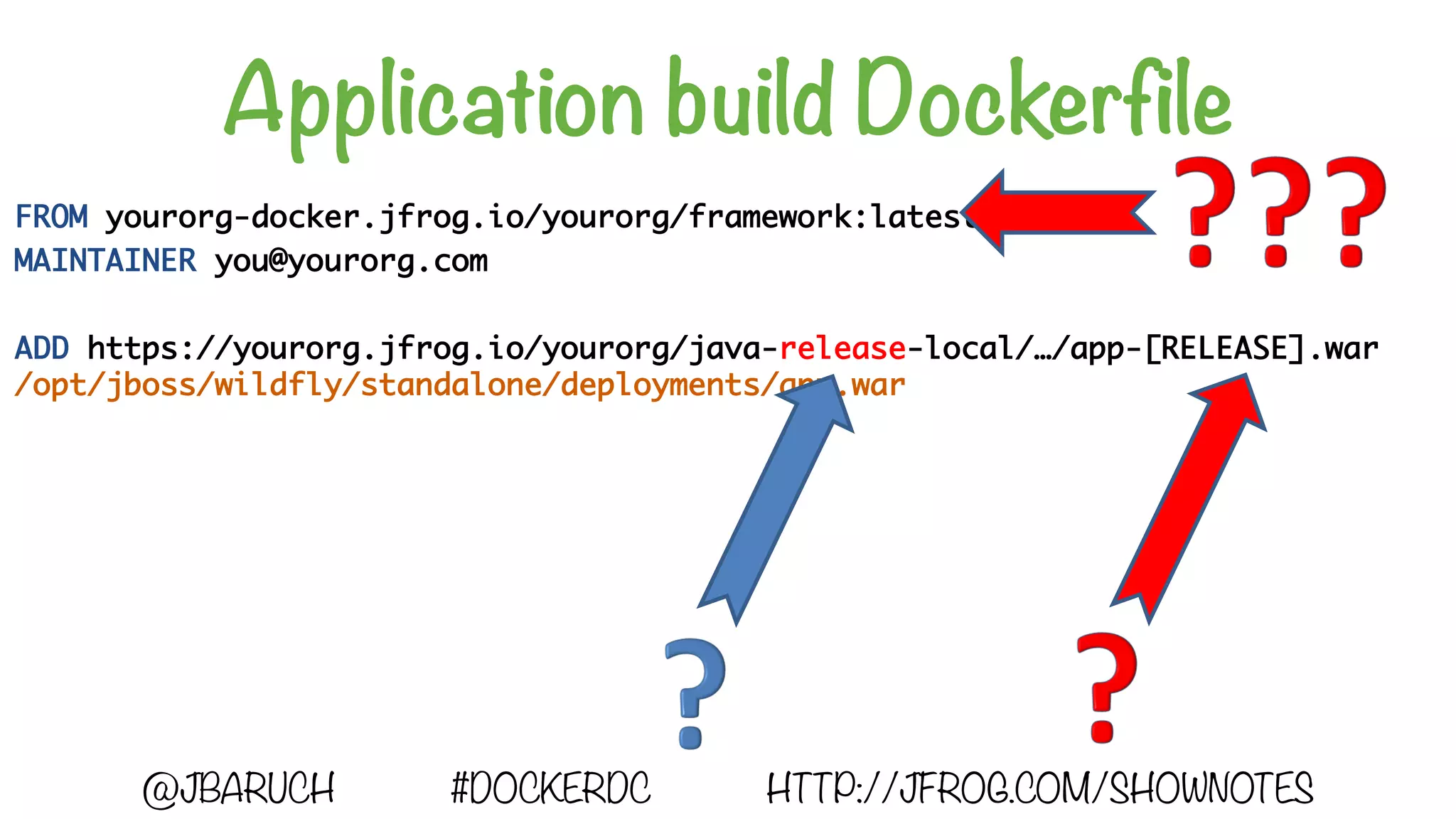

- 59. Application build Dockerfile FROMyourorg-docker.jfrog.io/yourorg/framework:latest MAINTAINER you@yourorg.com ADD https://yourorg.jfrog.io/yourorg/java-release-local/…/app-[RELEASE].war /opt/jboss/wildfly/standalone/deployments/app.war @JBARUCH #DOCKERDC HTTP://JFROG.COM/SHOWNOTES
- 61.
- 62.
- 63.
- 64.
- 65.

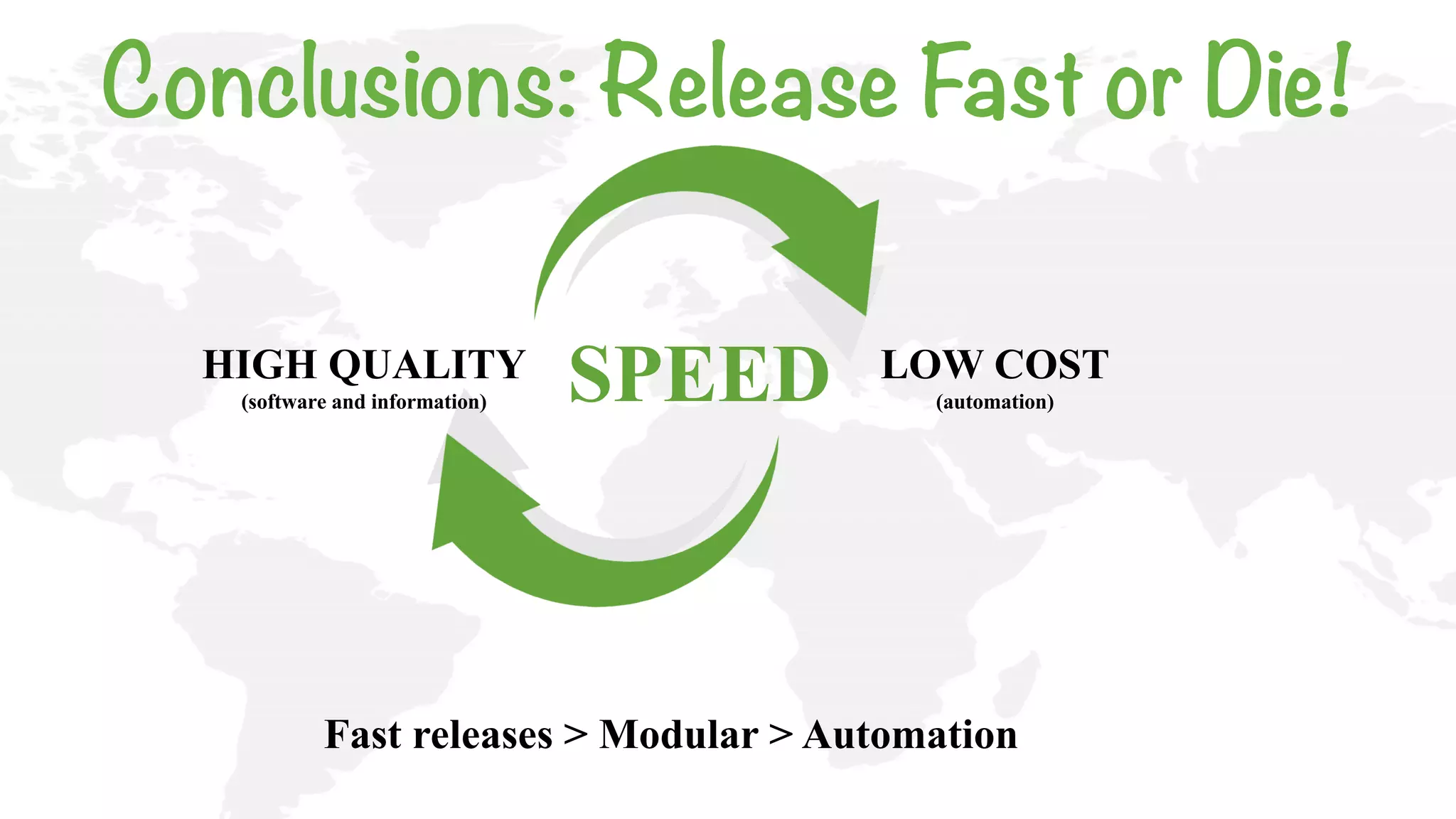

- 67. HIGH QUALITY (software andinformation) SPEED LOW COST (automation) Fast releases > Modular > Automation Conclusions: Release Fast or Die!

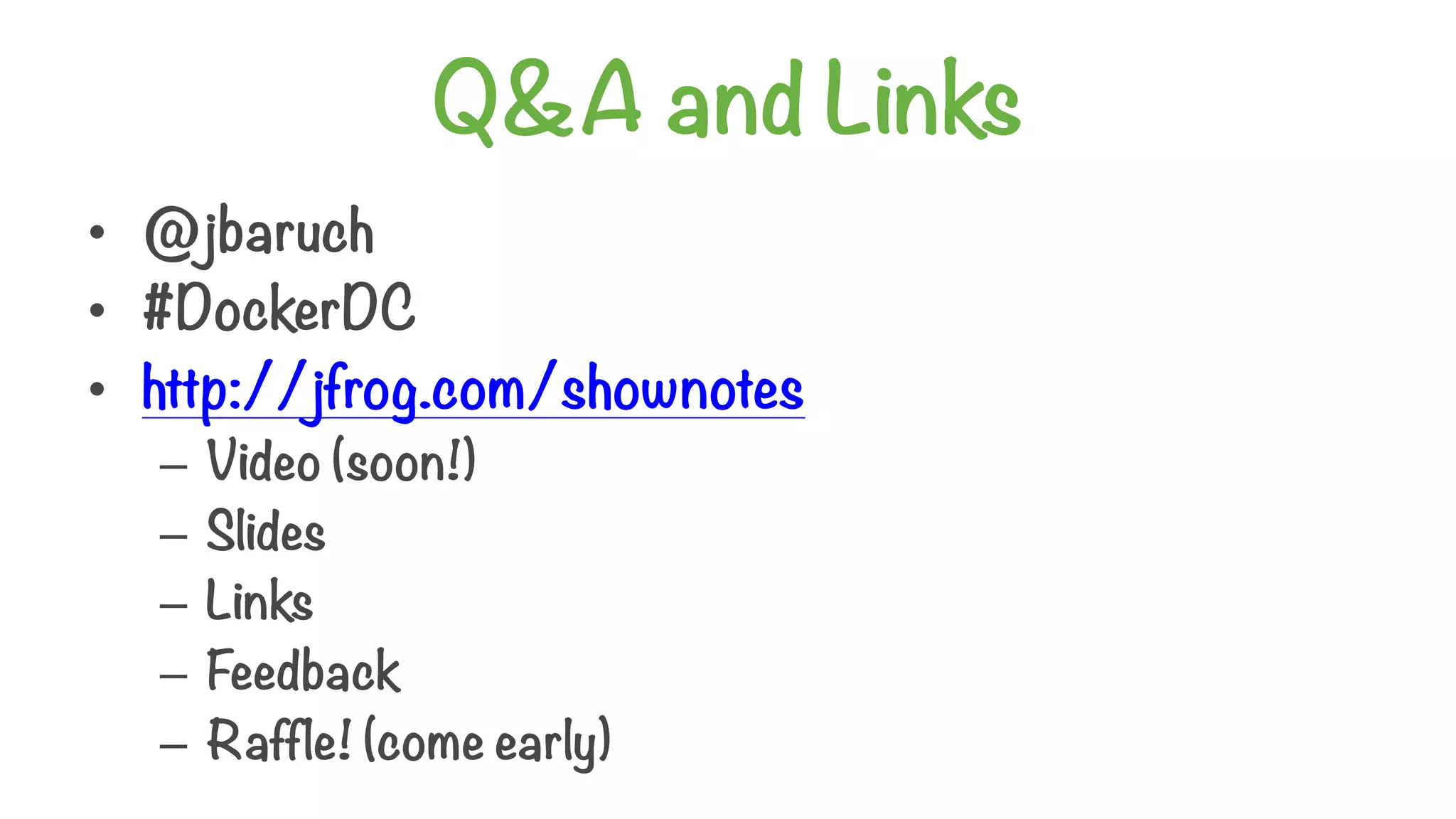

- 68. Q&A and Links •@jbaruch • #DockerDC • http://jfrog.com/shownotes – Video (soon!) – Slides – Links – Feedback – Raffle! (come early)
