This document discusses the principles of patent infringement law, specifically focusing on 35 U.S.C. §271 and the concepts of literal infringement and the doctrine of equivalence (DOE). It reviews key court cases, such as Autogiro Co. of America v. United States and Hilton Davis Chemical Co. v. Warner-Jenkinson Co., outlining how claims are interpreted, the all-elements rule, and the standards for determining infringement. The text emphasizes the importance of understanding the claims and specifications in evaluating whether an invention has been infringed.

1. Patent Infringement Hasit Seth This communication is not legal advice and is not intended to form or solicit an attorney-client relationship. Spec PHOSITA Judge Obviousness Jury Damages Claims Experts

2. About me Hasit Seth, Pune, India .edu = B.Sc, LL.M. (Mumbai Uni., Gold Medal), LL.M. (IP, Franklin Pierce) Asia Patent Manager with a Fortune 200 US MNC in Industrial sector Hasits at gmail dot com

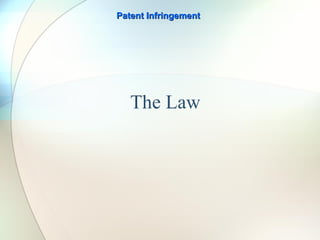

3. The Law Patent Infringement

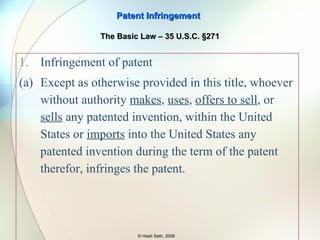

4. Infringement of patent (a) Except as otherwise provided in this title, whoever without authority makes , uses , offers to sell , or sells any patented invention, within the United States or imports into the United States any patented invention during the term of the patent therefor, infringes the patent. Patent Infringement The Basic Law – 35 U.S.C. §271 © Hasit Seth, 2006

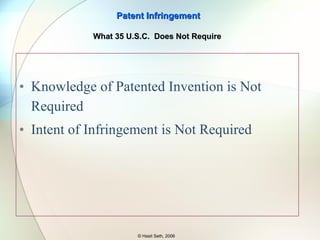

5. Knowledge of Patented Invention is Not Required Intent of Infringement is Not Required Patent Infringement © Hasit Seth, 2006 What 35 U.S.C. Does Not Require

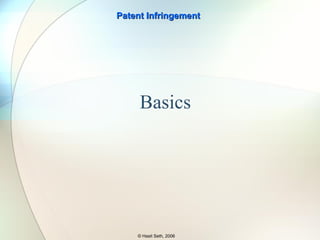

6. Basics Patent Infringement © Hasit Seth, 2006

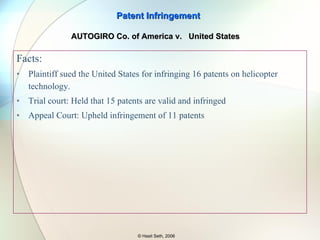

7. Facts: Plaintiff sued the United States for infringing 16 patents on helicopter technology. Trial court: Held that 15 patents are valid and infringed Appeal Court: Upheld infringement of 11 patents Patent Infringement © Hasit Seth, 2006 AUTOGIRO Co. of America v. United States

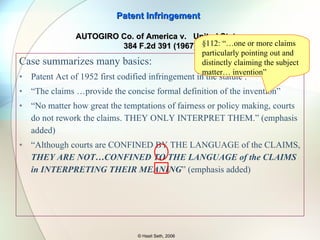

8. Case summarizes many basics: Patent Act of 1952 first codified infringement in the statute . “ The claims …provide the concise formal definition of the invention” “ No matter how great the temptations of fairness or policy making, courts do not rework the claims. THEY ONLY INTERPRET THEM.” (emphasis added) “ Although courts are CONFINED BY THE LANGUAGE of the CLAIMS, THEY ARE NOT…CONFINED TO THE LANGUAGE of the CLAIMS in INTERPRETING THEIR MEANING ” (emphasis added) Patent Infringement © Hasit Seth, 2006 AUTOGIRO Co. of America v. United States 384 F.2d 391 (1967) §112: “…one or more claims particularly pointing out and distinctly claiming the subject matter… invention”

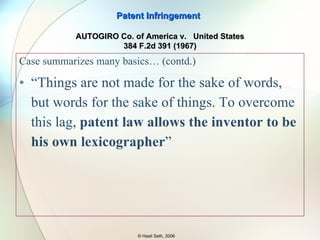

9. Case summarizes many basics… (contd.) “ Things are not made for the sake of words, but words for the sake of things. To overcome this lag, patent law allows the inventor to be his own lexicographer ” Patent Infringement © Hasit Seth, 2006 AUTOGIRO Co. of America v. United States 384 F.2d 391 (1967)

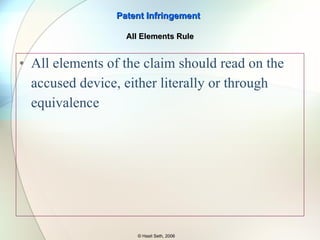

10. All elements of the claim should read on the accused device, either literally or through equivalence Patent Infringement © Hasit Seth, 2006 All Elements Rule

11. Two Step Process Determine the meaning of the Claim Read the claims on the accused structure Patent Infringement © Hasit Seth, 2006 Source: AUTOGIRO Co. of America v. United States 384 F.2d 391 (1967)

12. Two Step Process Determine the meaning of the Claim To derive the meaning of the claim and to reach the “ felt meaning ” of the claim three documents are used: Specification (includes claims) Drawings File Wrapper (a.k.a. Prosecution History) Patent Infringement © Hasit Seth, 2006 Source: AUTOGIRO Co. of America v. United States 384 F.2d 391 (1967)

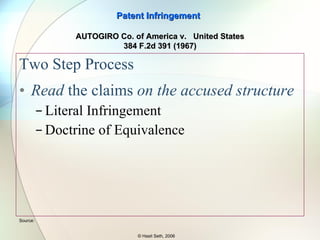

13. Two Step Process Read the claims on the accused structure Literal Infringement Doctrine of Equivalence Patent Infringement © Hasit Seth, 2006 Source: AUTOGIRO Co. of America v. United States 384 F.2d 391 (1967)

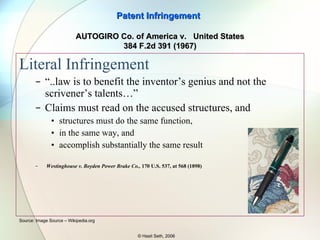

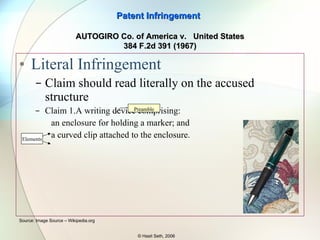

14. Literal Infringement Claim should read literally on the accused structure Claim 1.A writing device comprising: an enclosure for holding a marker; and a curved clip attached to the enclosure. Patent Infringement © Hasit Seth, 2006 Source: Image Source – Wikipedia.org AUTOGIRO Co. of America v. United States 384 F.2d 391 (1967) Elements Preamble

15. Literal Infringement “ ..law is to benefit the inventor’s genius and not the scrivener’s talents…” Claims must read on the accused structures, and structures must do the same function, in the same way, and accomplish substantially the same result Westinghouse v. Boyden Power Brake Co., 170 U.S. 537, at 568 (1898) Patent Infringement © Hasit Seth, 2006 Source: Image Source – Wikipedia.org AUTOGIRO Co. of America v. United States 384 F.2d 391 (1967)

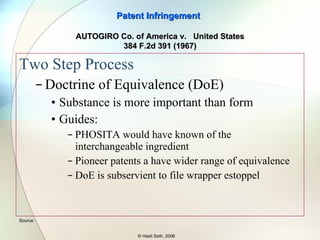

16. Two Step Process Doctrine of Equivalence (DoE) Substance is more important than form Guides: PHOSITA would have known of the interchangeable ingredient Pioneer patents a have wider range of equivalence DoE is subservient to file wrapper estoppel Patent Infringement © Hasit Seth, 2006 Source: AUTOGIRO Co. of America v. United States 384 F.2d 391 (1967)

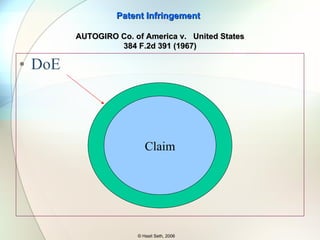

17. DoE Even without a literal overlap, a structure infringes if it performs the substantially – same function, same way, and in the same way. Test: F-W-R (Function-Way-Result) Penwalt Corp. v. Durand-Wayland, Inc. 833 F.2d 931,934 (Fed. Cir. 1987) Patent Infringement © Hasit Seth, 2006 Source: Image Source – Wikipedia.org AUTOGIRO Co. of America v. United States 384 F.2d 391 (1967)

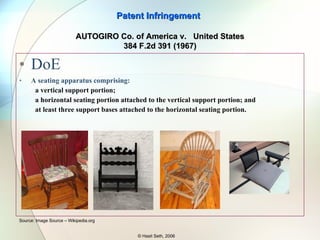

18. DoE Patent Infringement © Hasit Seth, 2006 AUTOGIRO Co. of America v. United States 384 F.2d 391 (1967) Claim

19. DoE A seating apparatus comprising: a vertical support portion; a horizontal seating portion attached to the vertical support portion; and at least three support bases attached to the horizontal seating portion. Patent Infringement © Hasit Seth, 2006 Source: Image Source – Wikipedia.org AUTOGIRO Co. of America v. United States 384 F.2d 391 (1967)

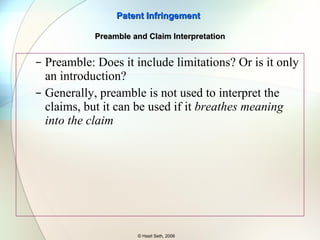

21. Preamble: Does it include limitations? Or is it only an introduction? Generally, preamble is not used to interpret the claims, but it can be used if it breathes meaning into the claim Patent Infringement © Hasit Seth, 2006 Preamble and Claim Interpretation

22. General rule: Limitations may not be read into claims from specifications Yet, specification is used to interpret the claims Is there a dichotomy to be resolved here? Patent Infringement © Hasit Seth, 2006 Specification and Claim Interpretation

23. Facts: District Court (S.D.N.Y.) held that Brown’s certain products do not infringe Unique’s patent US 4,018,260 (Baslow, April 19, 1977). Federal Circuit affirms. Apparatus: Assembly pieces to attach a fabric to the wall Applicant states during prosecution that “…an amateur can practice the present invention ” Patent Infringement © Hasit Seth, 2006 Source: Image Source – Wikipedia.org Unique Concepts, Inc v. Brown 939 F.2d 1558 (Fed. Cir. 1991)

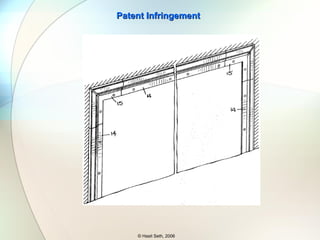

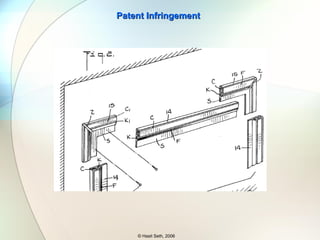

24. Patent Infringement © Hasit Seth, 2006

25. Patent Infringement © Hasit Seth, 2006

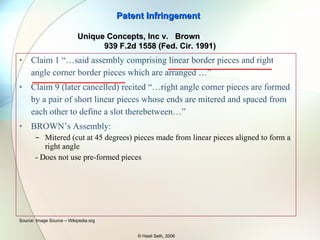

26. Claim 1 “…said assembly comprising linear border pieces and right angle corner border pieces which are arranged …” Claim 9 (later cancelled) recited “…right angle corner pieces are formed by a pair of short linear pieces whose ends are mitered and spaced from each other to define a slot therebetween…” BROWN’s Assembly: Mitered (cut at 45 degrees) pieces made from linear pieces aligned to form a right angle - Does not use pre-formed pieces Patent Infringement © Hasit Seth, 2006 Source: Image Source – Wikipedia.org Unique Concepts, Inc v. Brown 939 F.2d 1558 (Fed. Cir. 1991)

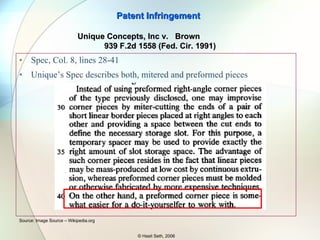

27. Spec, Col. 8, lines 28-41 Unique’s Spec describes both, mitered and preformed pieces Patent Infringement © Hasit Seth, 2006 Source: Image Source – Wikipedia.org Unique Concepts, Inc v. Brown 939 F.2d 1558 (Fed. Cir. 1991)

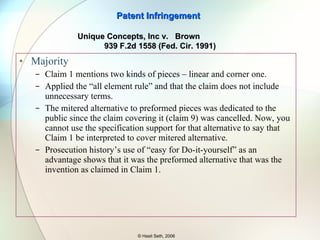

28. Majority Claim 1 mentions two kinds of pieces – linear and corner one. Applied the “all element rule” and that the claim does not include unnecessary terms. The mitered alternative to preformed pieces was dedicated to the public since the claim covering it (claim 9) was cancelled. Now, you cannot use the specification support for that alternative to say that Claim 1 be interpreted to cover mitered alternative. Prosecution history’s use of “easy for Do-it-yourself” as an advantage shows that it was the preformed alternative that was the invention as claimed in Claim 1. Patent Infringement © Hasit Seth, 2006 Unique Concepts, Inc v. Brown 939 F.2d 1558 (Fed. Cir. 1991)

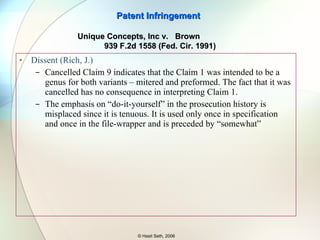

29. Dissent (Rich, J.) Cancelled Claim 9 indicates that the Claim 1 was intended to be a genus for both variants – mitered and preformed. The fact that it was cancelled has no consequence in interpreting Claim 1. The emphasis on “do-it-yourself” in the prosecution history is misplaced since it is tenuous. It is used only once in specification and once in the file-wrapper and is preceded by “somewhat” Patent Infringement © Hasit Seth, 2006 Unique Concepts, Inc v. Brown 939 F.2d 1558 (Fed. Cir. 1991)

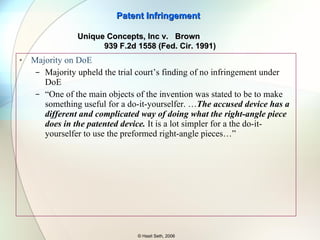

30. Majority on DoE Majority upheld the trial court’s finding of no infringement under DoE “ One of the main objects of the invention was stated to be to make something useful for a do-it-yourselfer. … The accused device has a different and complicated way of doing what the right-angle piece does in the patented device. It is a lot simpler for a the do-it-yourselfer to use the preformed right-angle pieces…” Patent Infringement © Hasit Seth, 2006 Unique Concepts, Inc v. Brown 939 F.2d 1558 (Fed. Cir. 1991)

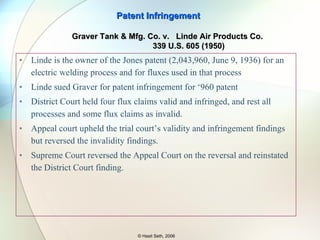

31. Linde is the owner of the Jones patent (2,043,960, June 9, 1936) for an electric welding process and for fluxes used in that process Linde sued Graver for patent infringement for ‘960 patent District Court held four flux claims valid and infringed, and rest all processes and some flux claims as invalid. Appeal court upheld the trial court’s validity and infringement findings but reversed the invalidity findings. Supreme Court reversed the Appeal Court on the reversal and reinstated the District Court finding. Patent Infringement © Hasit Seth, 2006 Graver Tank & Mfg. Co. v. Linde Air Products Co. 339 U.S. 605 (1950)

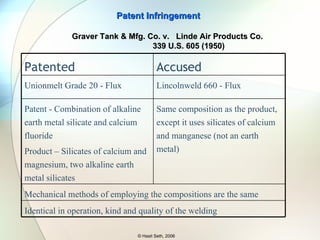

32. Patent Infringement © Hasit Seth, 2006 Graver Tank & Mfg. Co. v. Linde Air Products Co. 339 U.S. 605 (1950) Identical in operation, kind and quality of the welding Mechanical methods of employing the compositions are the same Lincolnweld 660 - Flux Unionmelt Grade 20 - Flux Same composition as the product, except it uses silicates of calcium and manganese (not an earth metal) Patent - Combination of alkaline earth metal silicate and calcium fluoride Product – Silicates of calcium and magnesium, two alkaline earth metal silicates Accused Patented

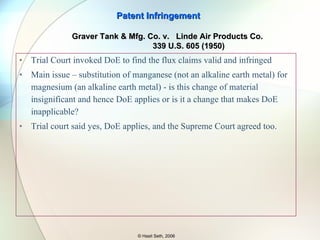

33. Trial Court invoked DoE to find the flux claims valid and infringed Main issue – substitution of manganese (not an alkaline earth metal) for magnesium (an alkaline earth metal) - is this change of material insignificant and hence DoE applies or is it a change that makes DoE inapplicable? Trial court said yes, DoE applies, and the Supreme Court agreed too. Patent Infringement © Hasit Seth, 2006 Graver Tank & Mfg. Co. v. Linde Air Products Co. 339 U.S. 605 (1950)

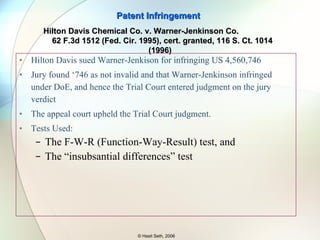

34. Hilton Davis sued Warner-Jenkison for infringing US 4,560,746 Jury found ‘746 as not invalid and that Warner-Jenkinson infringed under DoE, and hence the Trial Court entered judgment on the jury verdict The appeal court upheld the Trial Court judgment. Tests Used: The F-W-R (Function-Way-Result) test, and The “insubsantial differences” test Patent Infringement © Hasit Seth, 2006 Hilton Davis Chemical Co. v. Warner-Jenkinson Co. 62 F.3d 1512 (Fed. Cir. 1995), cert. granted, 116 S. Ct. 1014 (1996)

35. Hilton Davis (HD) sued Warner-Jenkison(WJ) – business of Food, Drug and Cosmetic dyes Dye making process yield impurities that must be removed using a purification process HD & WJ used a “salting out” purification process that was expensive ‘ 746 patent brought by HD used “ultrafiltration” (osmosis) to remove impurities Patent Infringement © Hasit Seth, 2006 Hilton Davis Chemical Co. v. Warner-Jenkinson Co. 62 F.3d 1512 (Fed. Cir. 1995), cert. granted, 116 S. Ct. 1014 (1996)

36. Inventors added the phrase “at a pH from approximately 6.0 to 9.0” during prosecution to distinguish U.S. 4,189,380 to Booth that used ultrafiltration and operates at a pH above 9 and preferably between 11 and 13 Patent Infringement © Hasit Seth, 2006 Hilton Davis Chemical Co. v. Warner-Jenkinson Co. 62 F.3d 1512 (Fed. Cir. 1995), cert. granted, 116 S. Ct. 1014 (1996)

37. WJ also tried to develop an ultrafiltration technique. They used an “already salted out” solution for their test which was carried out one week before HD’s test (both tests were done by Osmonics under a secrecy agreement). WJ did not get the desired results. At trial HD showed that WJ’s ultrafiltration process at pressures in a range of 200 to nearly 500 p.s.i.g. and a pH of 5. Patent Infringement © Hasit Seth, 2006 Hilton Davis Chemical Co. v. Warner-Jenkinson Co. 62 F.3d 1512 (Fed. Cir. 1995), cert. granted, 116 S. Ct. 1014 (1996) P,S.I.G. – Pound per Square Inch Gauge

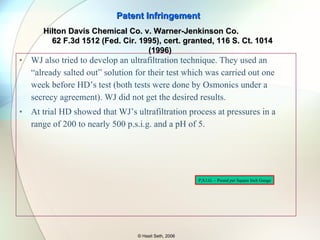

38. WJ also tried to develop an ultrafiltration technique. They used an “already salted out” solution for their test which was carried out one week before HD’s test (both tests were done by Osmonics under a secrecy agreement). WJ did not get the desired results. At trial HD showed that WJ’s ultrafiltration process at pressures in a range of 200 to nearly 500 p.s.i.g. and a pH of 5. Patent Infringement © Hasit Seth, 2006 Hilton Davis Chemical Co. v. Warner-Jenkinson Co. 62 F.3d 1512 (Fed. Cir. 1995), cert. granted, 116 S. Ct. 1014 (1996) P,S.I.G. – Pound per Square Inch Gauge

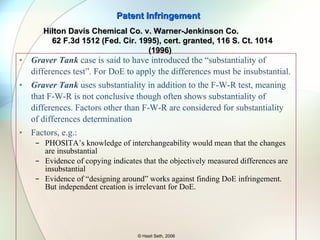

39. Graver Tank case is said to have introduced the “substantiality of differences test”. For DoE to apply the differences must be insubstantial. Graver Tank uses substantiality in addition to the F-W-R test, meaning that F-W-R is not conclusive though often shows substantiality of differences. Factors other than F-W-R are considered for substantiality of differences determination Factors, e.g.: PHOSITA’s knowledge of interchangeability would mean that the changes are insubstantial Evidence of copying indicates that the objectively measured differences are insubstantial Evidence of “designing around” works against finding DoE infringement. But independent creation is irrelevant for DoE. Patent Infringement © Hasit Seth, 2006 Hilton Davis Chemical Co. v. Warner-Jenkinson Co. 62 F.3d 1512 (Fed. Cir. 1995), cert. granted, 116 S. Ct. 1014 (1996)

40. Infringement under DoE is a question of fact to be tried by a jury in a jury trial Trial judge has no discretion to apply DoE when literal infringement is not possible. Which means the Trial judge must apply DoE is there is not literal infringement. Patent Infringement © Hasit Seth, 2006 Hilton Davis Chemical Co. v. Warner-Jenkinson Co. 62 F.3d 1512 (Fed. Cir. 1995), cert. granted, 116 S. Ct. 1014 (1996)

41. Prior Art Prosecution History Estoppel Patent Infringement © Hasit Seth, 2006 What Limits the Application Scope of DoE’s?

42. To determine whether a claim limitation is met literally, where expressed as a means for performing a stated function, the court must compare the accused structure with the disclosed structure, and must find equivalent structure as well as identity of claimed function for that structure. Penwalt Cited in LaitramCorp v. Rexnord, Inc, 939 F.2d 1533 (Fed. Cir. 1991) Patent Infringement © Hasit Seth, 2006 Equivalents for Means Plus Function Claims 35 U.S.C. 112 para 6 - An element in a claim for a combination may be expressed as a means or step for performing a specified function without the recital of structure, material, or acts in support thereof, and such claim shall be construed to cover the corresponding structure, material, or acts described in the specification and equivalents thereof.

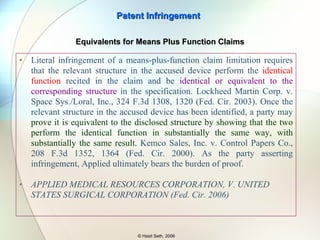

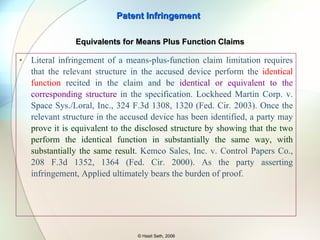

43. Literal infringement of a means-plus-function claim limitation requires that the relevant structure in the accused device perform the identical function recited in the claim and be identical or equivalent to the corresponding structure in the specification. Lockheed Martin Corp. v. Space Sys./Loral, Inc., 324 F.3d 1308, 1320 (Fed. Cir. 2003). Once the relevant structure in the accused device has been identified, a party may prove it is equivalent to the disclosed structure by showing that the two perform the identical function in substantially the same way, with substantially the same result. Kemco Sales, Inc. v. Control Papers Co., 208 F.3d 1352, 1364 (Fed. Cir. 2000). As the party asserting infringement, Applied ultimately bears the burden of proof. Patent Infringement © Hasit Seth, 2006 Equivalents for Means Plus Function Claims

44. Literal infringement of a means-plus-function claim limitation requires that the relevant structure in the accused device perform the identical function recited in the claim and be identical or equivalent to the corresponding structure in the specification. Lockheed Martin Corp. v. Space Sys./Loral, Inc., 324 F.3d 1308, 1320 (Fed. Cir. 2003). Once the relevant structure in the accused device has been identified, a party may prove it is equivalent to the disclosed structure by showing that the two perform the identical function in substantially the same way, with substantially the same result. Kemco Sales, Inc. v. Control Papers Co., 208 F.3d 1352, 1364 (Fed. Cir. 2000). As the party asserting infringement, Applied ultimately bears the burden of proof. APPLIED MEDICAL RESOURCES CORPORATION, V. UNITED STATES SURGICAL CORPORATION (Fed. Cir. 2006) Patent Infringement © Hasit Seth, 2006 Equivalents for Means Plus Function Claims

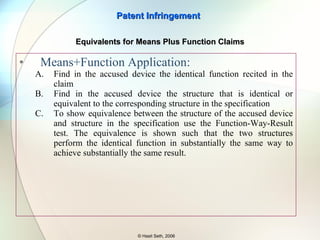

45. Means+Function Application: Find in the accused device the identical function recited in the claim Find in the accused device the structure that is identical or equivalent to the corresponding structure in the specification To show equivalence between the structure of the accused device and structure in the specification use the Function-Way-Result test. The equivalence is shown such that the two structures perform the identical function in substantially the same way to achieve substantially the same result. Patent Infringement © Hasit Seth, 2006 Equivalents for Means Plus Function Claims

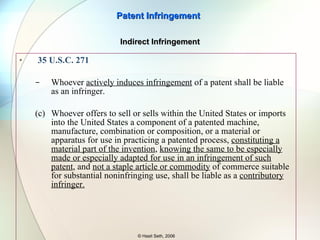

46. 35 U.S.C. 271 Whoever actively induces infringement of a patent shall be liable as an infringer. (c) Whoever offers to sell or sells within the United States or imports into the United States a component of a patented machine, manufacture, combination or composition, or a material or apparatus for use in practicing a patented process, constituting a material part of the invention , knowing the same to be especially made or especially adapted for use in an infringement of such patent , and not a staple article or commodity of commerce suitable for substantial noninfringing use, shall be liable as a contributory infringer. Patent Infringement © Hasit Seth, 2006 Indirect Infringement

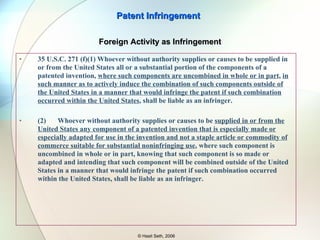

47. 35 U.S.C. 271 (f)(1) Whoever without authority supplies or causes to be supplied in or from the United States all or a substantial portion of the components of a patented invention, where such components are uncombined in whole or in part , in such manner as to actively induce the combination of such components outside of the United States in a manner that would infringe the patent if such combination occurred within the United States , shall be liable as an infringer. (2) Whoever without authority supplies or causes to be supplied in or from the United States any component of a patented invention that is especially made or especially adapted for use in the invention and not a staple article or commodity of commerce suitable for substantial noninfringing use , where such component is uncombined in whole or in part, knowing that such component is so made or adapted and intending that such component will be combined outside of the United States in a manner that would infringe the patent if such combination occurred within the United States, shall be liable as an infringer. Patent Infringement © Hasit Seth, 2006 Foreign Activity as Infringement

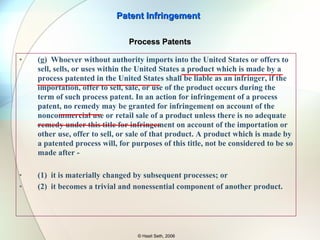

48. (g) Whoever without authority imports into the United States or offers to sell, sells, or uses within the United States a product which is made by a process patented in the United States shall be liable as an infringer, if the importation, offer to sell, sale, or use of the product occurs during the term of such process patent. In an action for infringement of a process patent, no remedy may be granted for infringement on account of the noncommercial use or retail sale of a product unless there is no adequate remedy under this title for infringement on account of the importation or other use, offer to sell, or sale of that product. A product which is made by a patented process will, for purposes of this title, not be considered to be so made after - (1) it is materially changed by subsequent processes; or (2) it becomes a trivial and nonessential component of another product. Patent Infringement © Hasit Seth, 2006 Process Patents

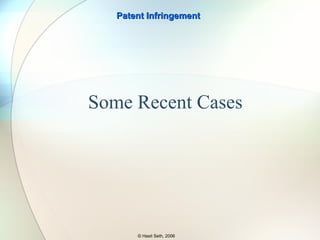

49. Some Recent Cases Patent Infringement © Hasit Seth, 2006

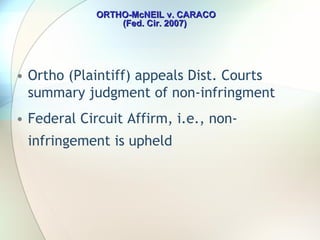

50. ORTHO-McNEIL v. CARACO (Fed. Cir. 2007) Ortho (Plaintiff) appeals Dist. Courts summary judgment of non-infringment Federal Circuit Affirm, i.e., non-infringement is upheld

51. ORTHO-McNEIL v. CARACO (Fed. Cir. 2007) The ’691 patent has fifteen claims directed to a pharmaceutical composition comprising certain weight ratios of two known drugs, tramadol and acetaminophen – both are analgesics Certain ratios of both analgesics have super additive or synergistic effect

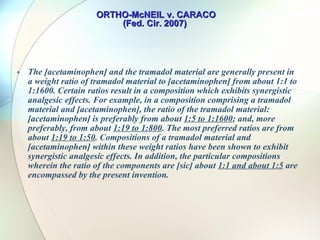

52. ORTHO-McNEIL v. CARACO (Fed. Cir. 2007) The [acetaminophen] and the tramadol material are generally present in a weight ratio of tramadol material to [acetaminophen] from about 1:1 to 1:1600. Certain ratios result in a composition which exhibits synergistic analgesic effects. For example, in a composition comprising a tramadol material and [acetaminophen], the ratio of the tramadol material: [acetaminophen] is preferably from about 1:5 to 1:1600 ; and, more preferably, from about 1:19 to 1:800 . The most preferred ratios are from about 1:19 to 1:50 . Compositions of a tramadol material and [acetaminophen] within these weight ratios have been shown to exhibit synergistic analgesic effects. In addition, the particular compositions wherein the ratio of the components are [sic] about 1:1 and about 1:5 are encompassed by the present invention.

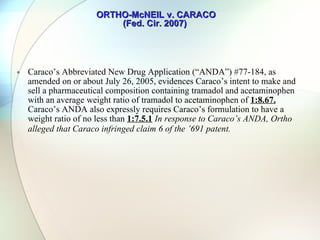

53. ORTHO-McNEIL v. CARACO (Fed. Cir. 2007) Caraco’s Abbreviated New Drug Application (“ANDA”) #77-184, as amended on or about July 26, 2005, evidences Caraco’s intent to make and sell a pharmaceutical composition containing tramadol and acetaminophen with an average weight ratio of tramadol to acetaminophen of 1:8.67. Caraco’s ANDA also expressly requires Caraco’s formulation to have a weight ratio of no less than 1:7.5.1 In response to Caraco’s ANDA, Ortho alleged that Caraco infringed claim 6 of the ’691 patent.

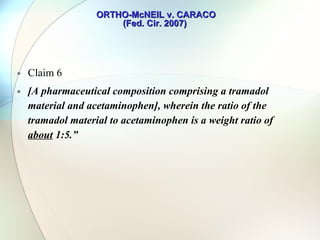

54. ORTHO-McNEIL v. CARACO (Fed. Cir. 2007) Claim 6 [A pharmaceutical composition comprising a tramadol material and acetaminophen], wherein the ratio of the tramadol material to acetaminophen is a weight ratio of about 1:5.”

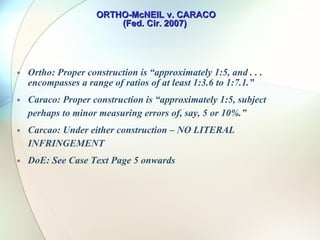

55. ORTHO-McNEIL v. CARACO (Fed. Cir. 2007) Ortho: Proper construction is “approximately 1:5, and . . . encompasses a range of ratios of at least 1:3.6 to 1:7.1.” Caraco: Proper construction is “approximately 1:5, subject perhaps to minor measuring errors of, say, 5 or 10%.” Carcao: Under either construction – NO LITERAL INFRINGEMENT DoE: See Case Text Page 5 onwards

56. The End Patent Infringement © Hasit Seth, 2006

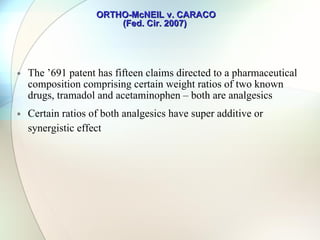

57. ORTHO-McNEIL v. CARACO (Fed. Cir. 2007) The ’691 patent has fifteen claims directed to a pharmaceutical composition comprising certain weight ratios of two known drugs, tramadol and acetaminophen – both are analgesics Certain ratios of both analgesics have super additive or synergistic effect
