This document provides an overview of the basic law and process for analyzing patent infringement. It discusses determining infringement through a two-step process of claim construction and comparing the claims to the accused device. Key topics covered include literal infringement analysis, infringement under the doctrine of equivalents, and how prior art and prosecution history can limit the scope of equivalents. The presentation was given by patent attorneys from the law firm Schwegman, Lundberg, Woessner & Kluth and focuses on providing a competent opinion on infringement for both offensive and defensive purposes.

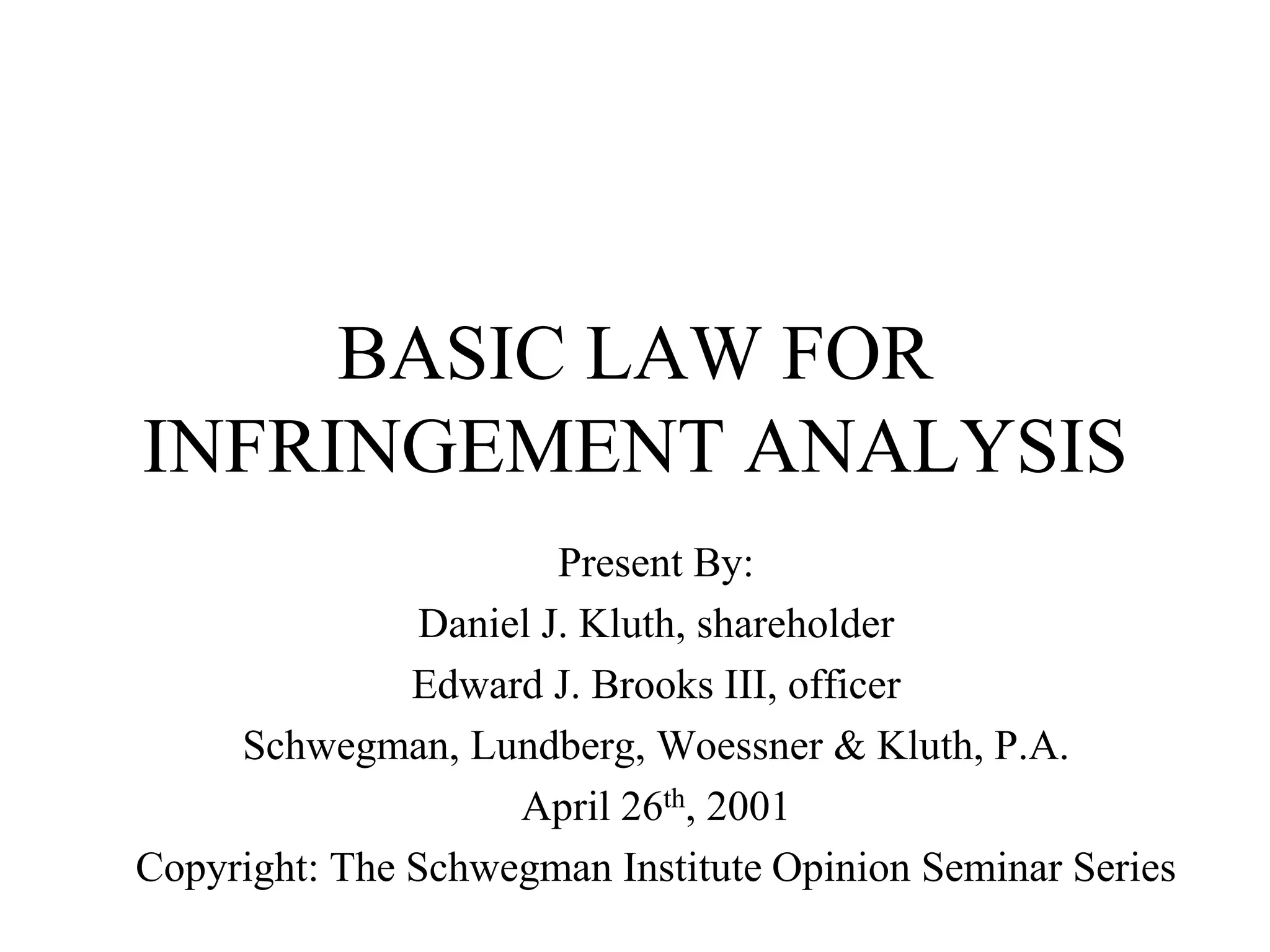

1. BASIC LAW FOR
INFRINGEMENT ANALYSIS
Present By:
Daniel J. Kluth, shareholder
Edward J. Brooks III, officer
Schwegman, Lundberg, Woessner & Kluth, P.A.
April 26th, 2001
Copyright: The Schwegman Institute Opinion Seminar Series

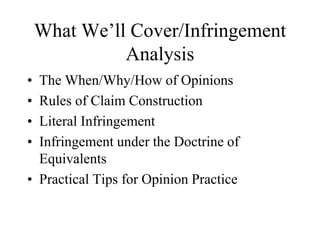

2. What We’ll Cover/Infringement
Analysis
• The When/Why/How of Opinions
• Rules of Claim Construction
• Literal Infringement
• Infringement under the Doctrine of
Equivalents
• Practical Tips for Opinion Practice

3. What We Won’t Cover Today
• Validity Analysis
• Enforceability Analysis

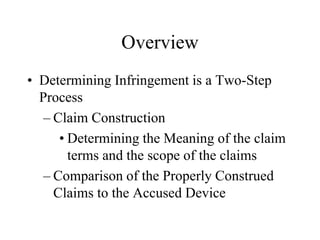

4. Overview
• Determining Infringement is a Two-Step
Process
– Claim Construction
• Determining the Meaning of the claim
terms and the scope of the claims
– Comparison of the Properly Construed
Claims to the Accused Device

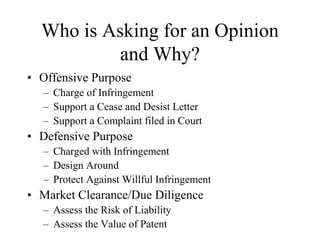

5. Who is Asking for an Opinion
and Why?
• Offensive Purpose
– Charge of Infringement
– Support a Cease and Desist Letter
– Support a Complaint filed in Court
• Defensive Purpose
– Charged with Infringement
– Design Around
– Protect Against Willful Infringement
• Market Clearance/Due Diligence
– Assess the Risk of Liability
– Assess the Value of Patent

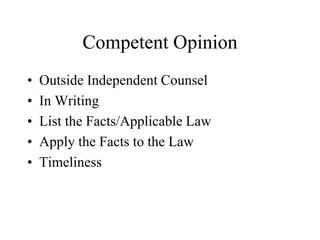

6. Competent Opinion
• Outside Independent Counsel
• In Writing
• List the Facts/Applicable Law
• Apply the Facts to the Law
• Timeliness

7. What is the Basis of the Opinion
• Alleged Infringed Patent
• File History of the Patent
• All Prior Art Cited during Prosecution
• A reliable description of the Accused
Device
• Other Possible Evidence
• Reliance on Legal Authority/Scientific
Principals

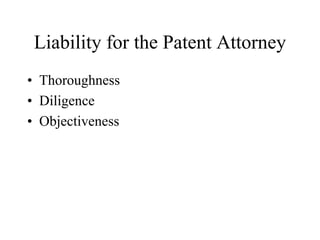

8. Liability for the Patent Attorney
• Thoroughness
• Diligence
• Objectiveness

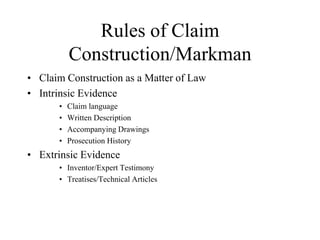

9. Rules of Claim
Construction/Markman
• Claim Construction as a Matter of Law
• Intrinsic Evidence
• Claim language
• Written Description
• Accompanying Drawings
• Prosecution History
• Extrinsic Evidence
• Inventor/Expert Testimony
• Treatises/Technical Articles

10. Vitronics/Donaldson/SRI Int’l
• Claim terms are to be given their ordinary and customary
meaning in the field of invention
• When the specification explains and defines a term used in
the claims, without ambiguity or incompleteness, stop there
• Means Plus Function Claims
• Prosecution History Estoppel

11. Mechanics of Claim Construction
• Claims Chart
– Claims
– Specification
– File History
• Claim Paragraphs
• Support in The Specification

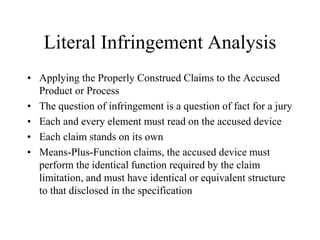

12. Literal Infringement Analysis
• Applying the Properly Construed Claims to the Accused
Product or Process
• The question of infringement is a question of fact for a jury
• Each and every element must read on the accused device
• Each claim stands on its own
• Means-Plus-Function claims, the accused device must
perform the identical function required by the claim
limitation, and must have identical or equivalent structure
to that disclosed in the specification

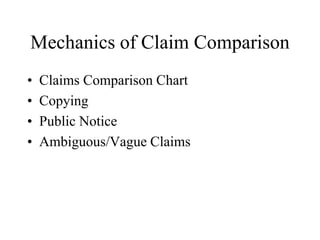

13. Mechanics of Claim Comparison
• Claims Comparison Chart
• Copying
• Public Notice
• Ambiguous/Vague Claims

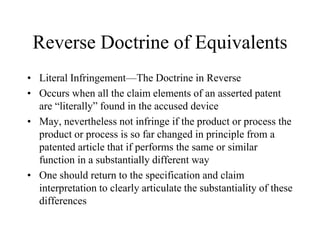

14. Reverse Doctrine of Equivalents
• Literal Infringement—The Doctrine in Reverse
• Occurs when all the claim elements of an asserted patent
are “literally” found in the accused device
• May, nevertheless not infringe if the product or process the
product or process is so far changed in principle from a
patented article that if performs the same or similar
function in a substantially different way
• One should return to the specification and claim
interpretation to clearly articulate the substantiality of these
differences

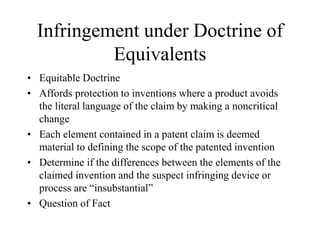

15. Infringement under Doctrine of
Equivalents
• Equitable Doctrine
• Affords protection to inventions where a product avoids
the literal language of the claim by making a noncritical
change
• Each element contained in a patent claim is deemed
material to defining the scope of the patented invention
• Determine if the differences between the elements of the
claimed invention and the suspect infringing device or
process are “insubstantial”
• Question of Fact

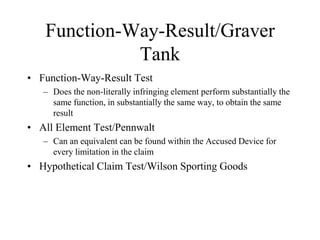

16. Function-Way-Result/Graver
Tank
• Function-Way-Result Test
– Does the non-literally infringing element perform substantially the
same function, in substantially the same way, to obtain the same
result
• All Element Test/Pennwalt
– Can an equivalent can be found within the Accused Device for
every limitation in the claim
• Hypothetical Claim Test/Wilson Sporting Goods

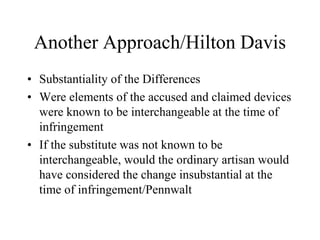

17. Another Approach/Hilton Davis
• Substantiality of the Differences
• Were elements of the accused and claimed devices
were known to be interchangeable at the time of
infringement
• If the substitute was not known to be
interchangeable, would the ordinary artisan would
have considered the change insubstantial at the
time of infringement/Pennwalt

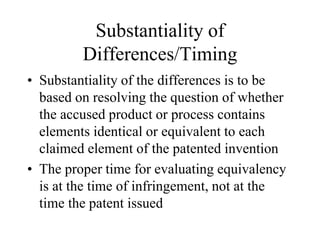

18. Substantiality of
Differences/Timing
• Substantiality of the differences is to be
based on resolving the question of whether
the accused product or process contains
elements identical or equivalent to each
claimed element of the patented invention
• The proper time for evaluating equivalency
is at the time of infringement, not at the
time the patent issued

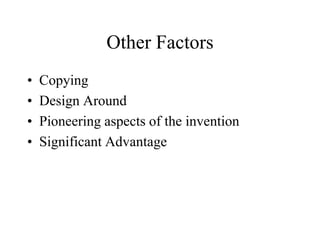

19. Other Factors
• Copying
• Design Around
• Pioneering aspects of the invention
• Significant Advantage

20. Prior Art/File History Estoppel
• Warner Jenkinson/Wilson Sporting Goods/Festo
• Limits the range of permissible equivalents is
limited by the prior art and the file history
• Statements made by the USPTO examiner or the
patent applicant which shed some light on the
scope of the claims

21. Effect
• Prosecution history estoppel precludes a patentee
from obtaining coverage of subject matter that has
been relinquished during the prosecution
• Complete bar to the application of the doctrine of
equivalents to any claim elements narrowed
during patent prosecution in order to achieve
patentability
• Presumption that the limitation was added for
reasons related to patentability

22. Unsettled Legal Issues
• Means-Plus-Function language is interpreted to
cover the corresponding structure, material, or acts
described in the specification, and the equivalents
thereof ???
• Only those equivalents expressly set for in the
specification

23. Festo?
• Certiorari Granted
• Amendments Related to Patentability
– changes needed not only to overcome the prior art
– Changes needed to overcome indefiniteness rejections
• All amendments potentially raise the specter of restricting
the applicant’s available protection under the doctrine of
equivalents

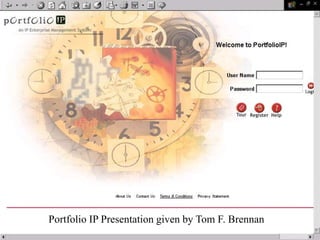

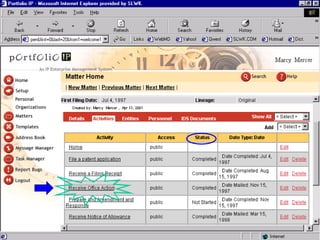

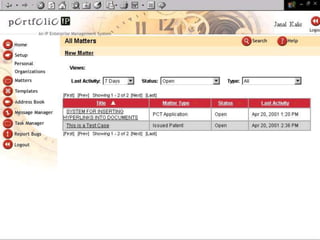

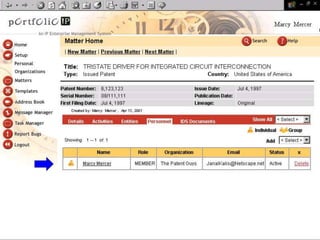

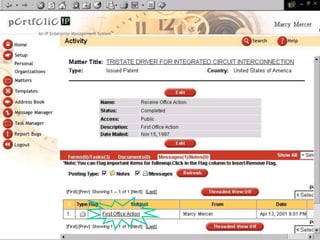

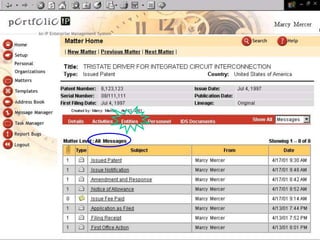

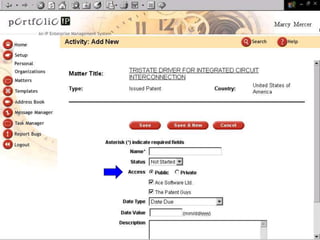

24. Portfolio IP Presentation given by Tom F. Brennan

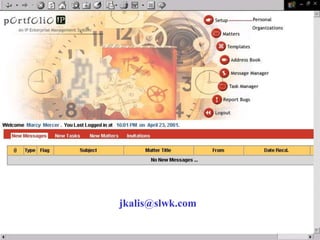

38. jkalis@slwk.com
