A glimpse of various password stealing attacks & description of Opass user authentication protocol.

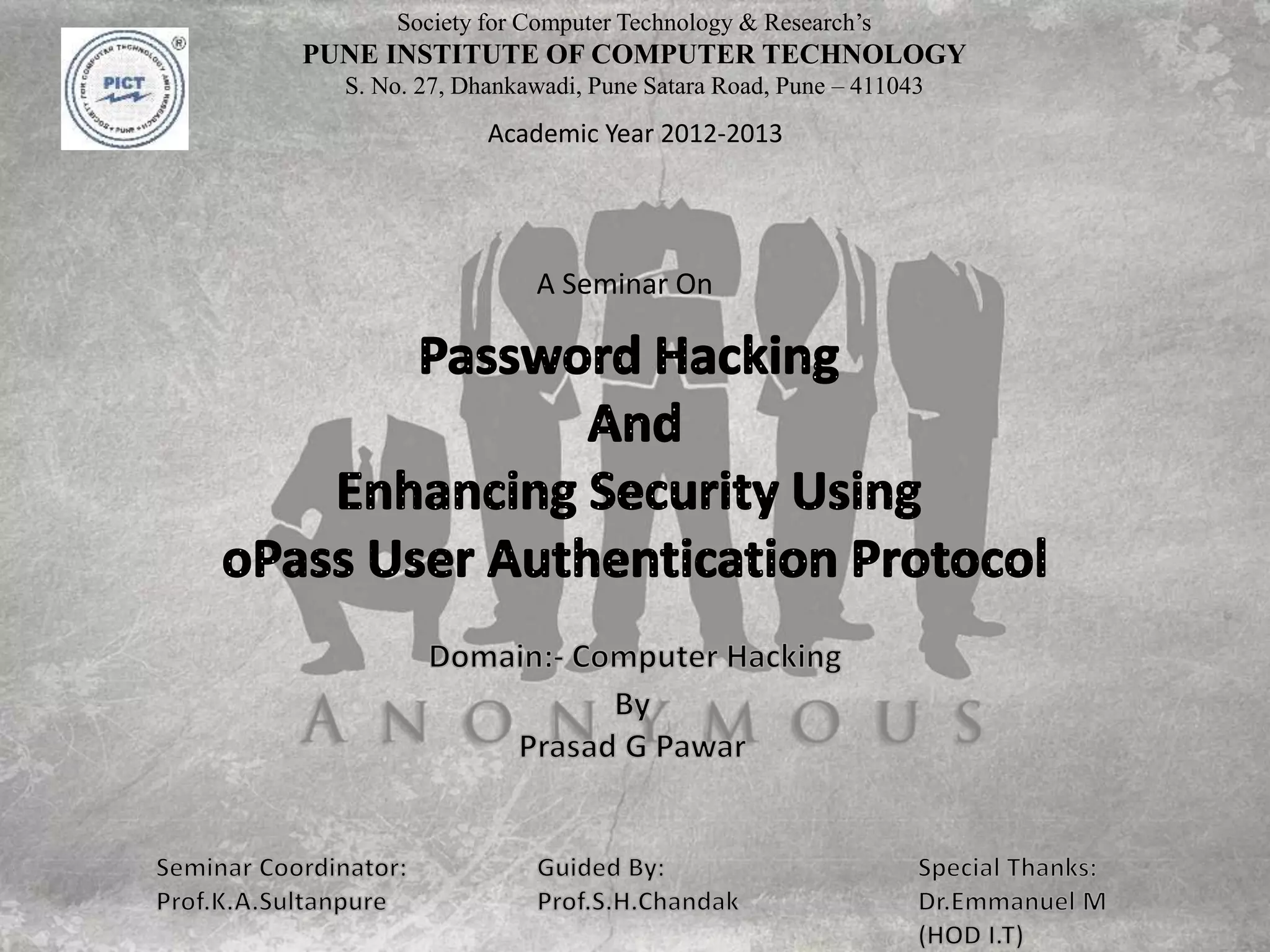

1. Society for Computer Technology & Research’s
PUNE INSTITUTE OF COMPUTER TECHNOLOGY
S. No. 27, Dhankawadi, Pune Satara Road, Pune – 411043
A Seminar On
Academic Year 2012-2013

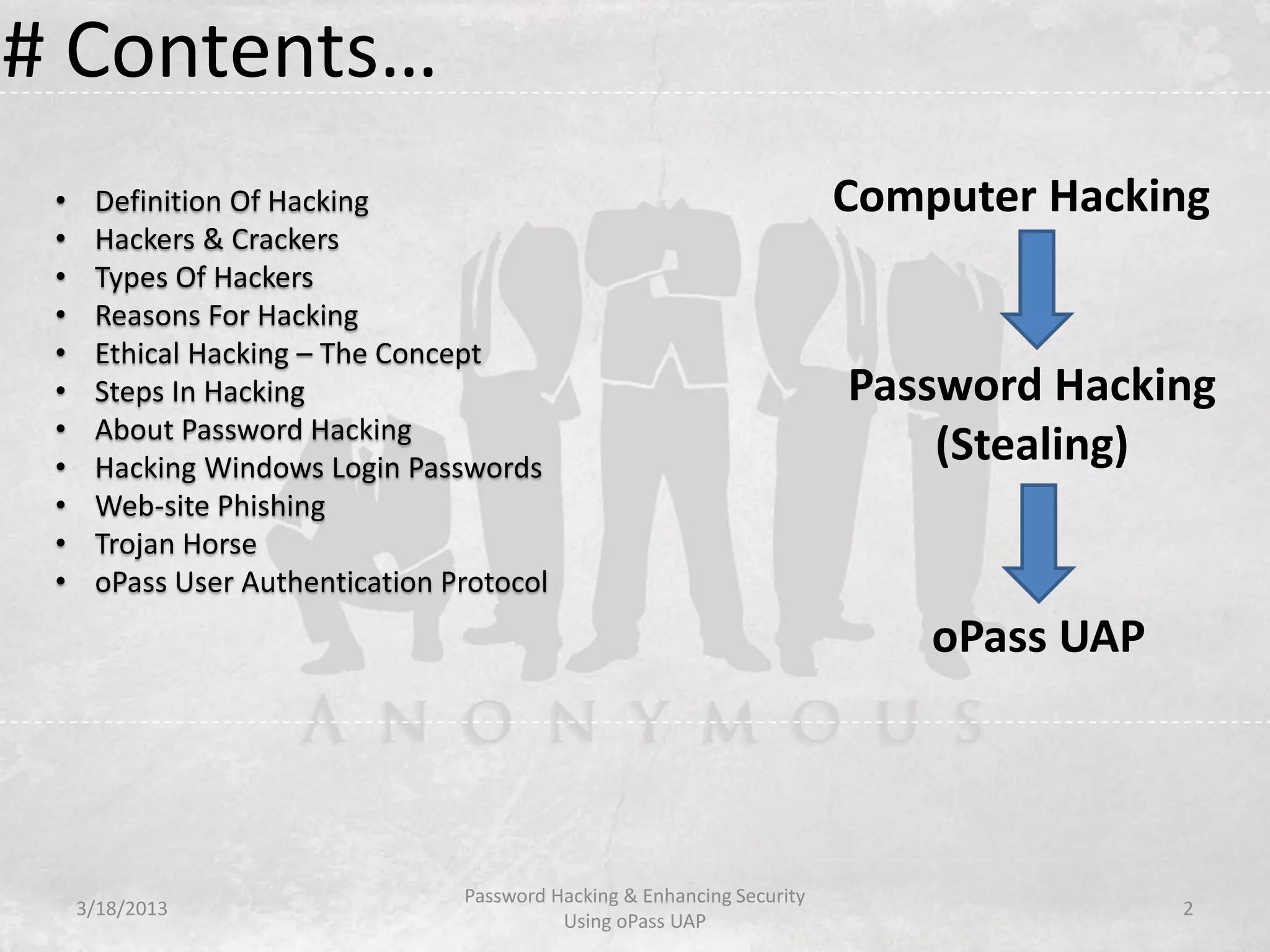

2. # Contents…
• Definition Of Hacking
• Hackers & Crackers
• Types Of Hackers
• Reasons For Hacking
• Ethical Hacking – The Concept
• Steps In Hacking
• About Password Hacking
• Hacking Windows Login Passwords
• Web-site Phishing
• Trojan Horse
• oPass User Authentication Protocol
Computer Hacking
Password Hacking
(Stealing)
oPass UAP
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
2

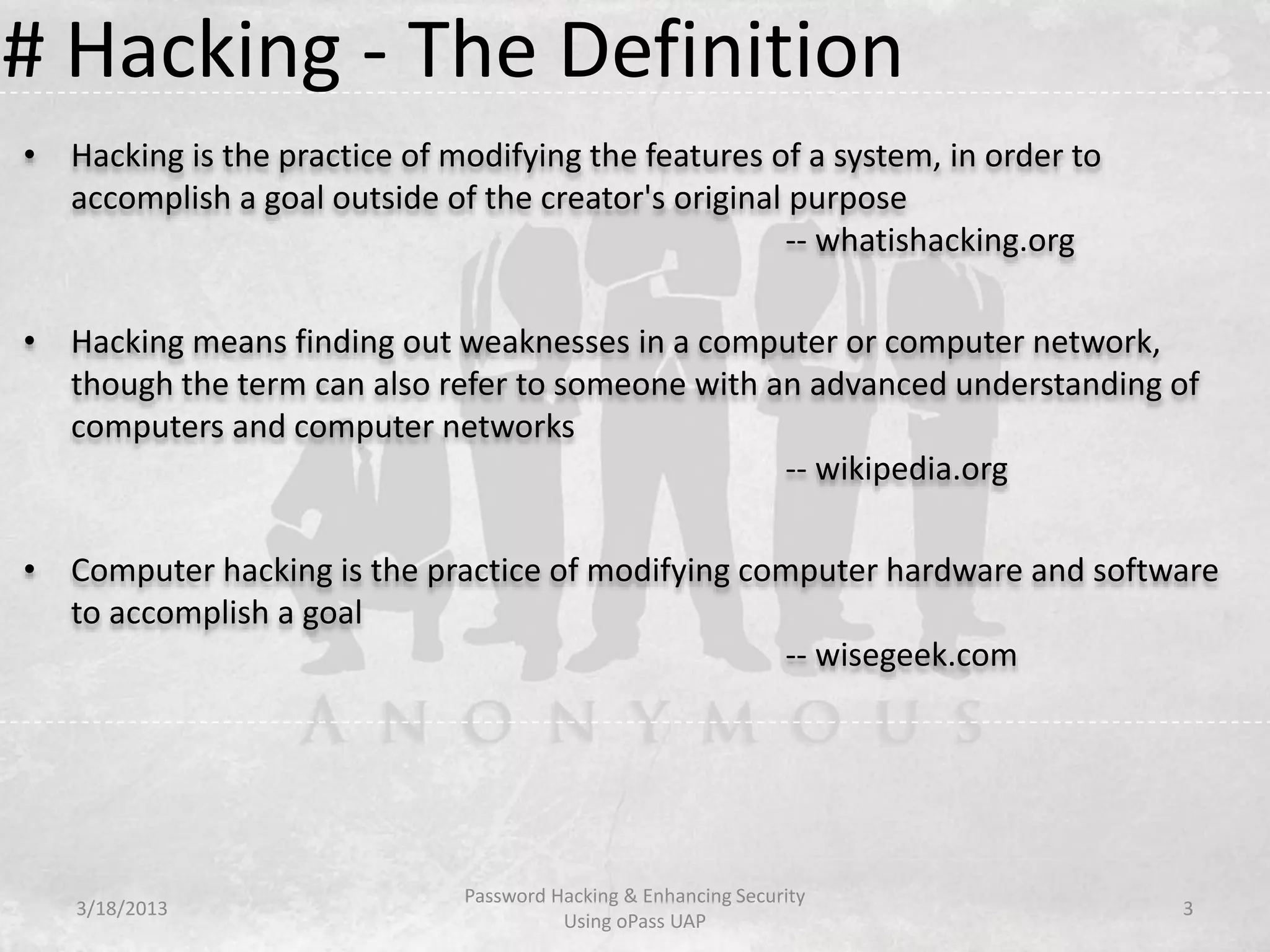

3. # Hacking - The Definition
• Hacking is the practice of modifying the features of a system, in order to
accomplish a goal outside of the creator's original purpose
-- whatishacking.org
• Hacking means finding out weaknesses in a computer or computer network,
though the term can also refer to someone with an advanced understanding of
computers and computer networks
-- wikipedia.org
• Computer hacking is the practice of modifying computer hardware and software
to accomplish a goal
-- wisegeek.com
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
3

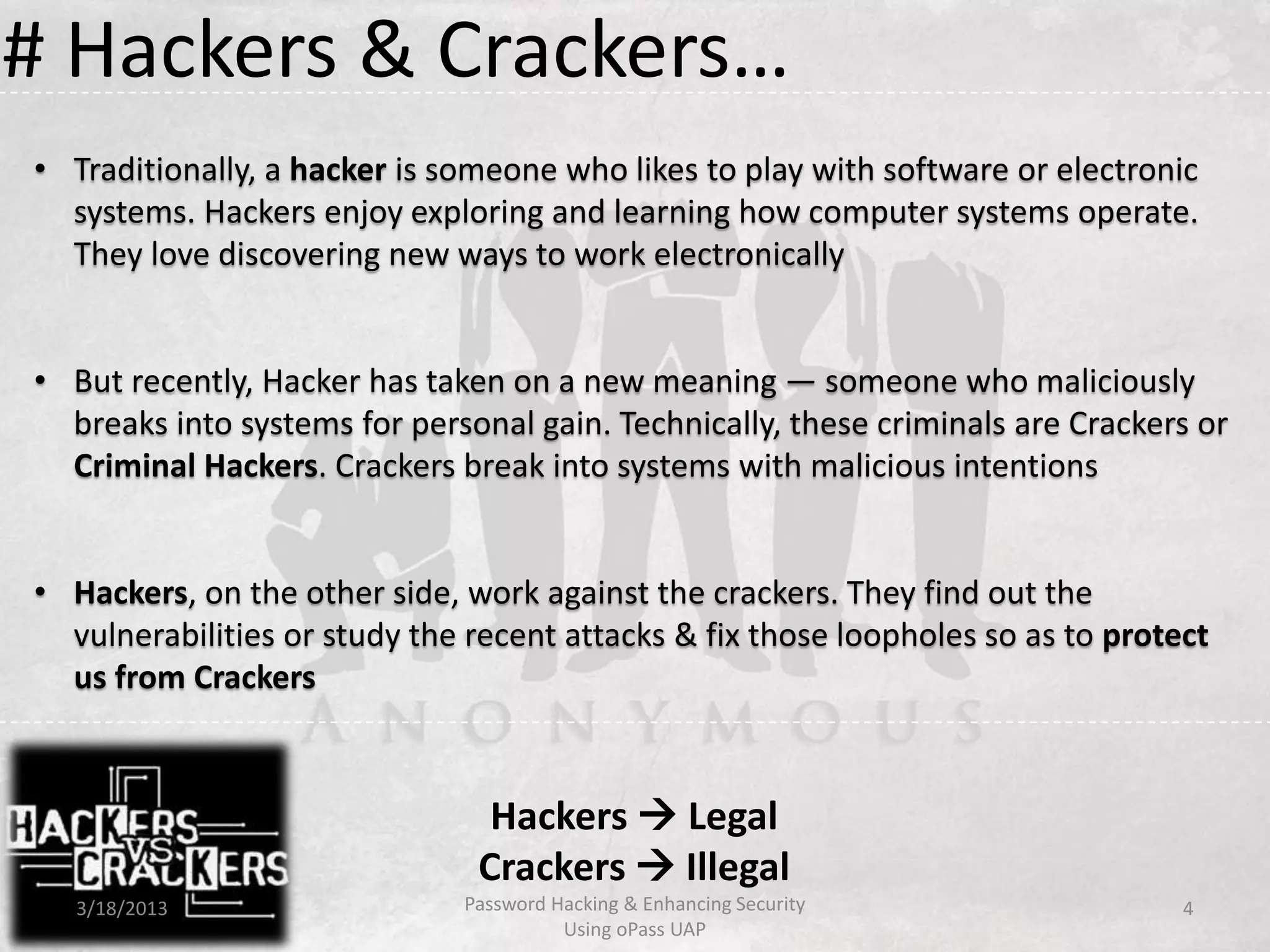

4. # Hackers & Crackers…
• Traditionally, a hacker is someone who likes to play with software or electronic
systems. Hackers enjoy exploring and learning how computer systems operate.
They love discovering new ways to work electronically
• But recently, Hacker has taken on a new meaning — someone who maliciously
breaks into systems for personal gain. Technically, these criminals are Crackers or
Criminal Hackers. Crackers break into systems with malicious intentions
• Hackers, on the other side, work against the crackers. They find out the
vulnerabilities or study the recent attacks & fix those loopholes so as to protect
us from Crackers
Hackers  Legal
Crackers  Illegal
3/18/2013 Password Hacking & Enhancing Security
Using oPass UAP
4

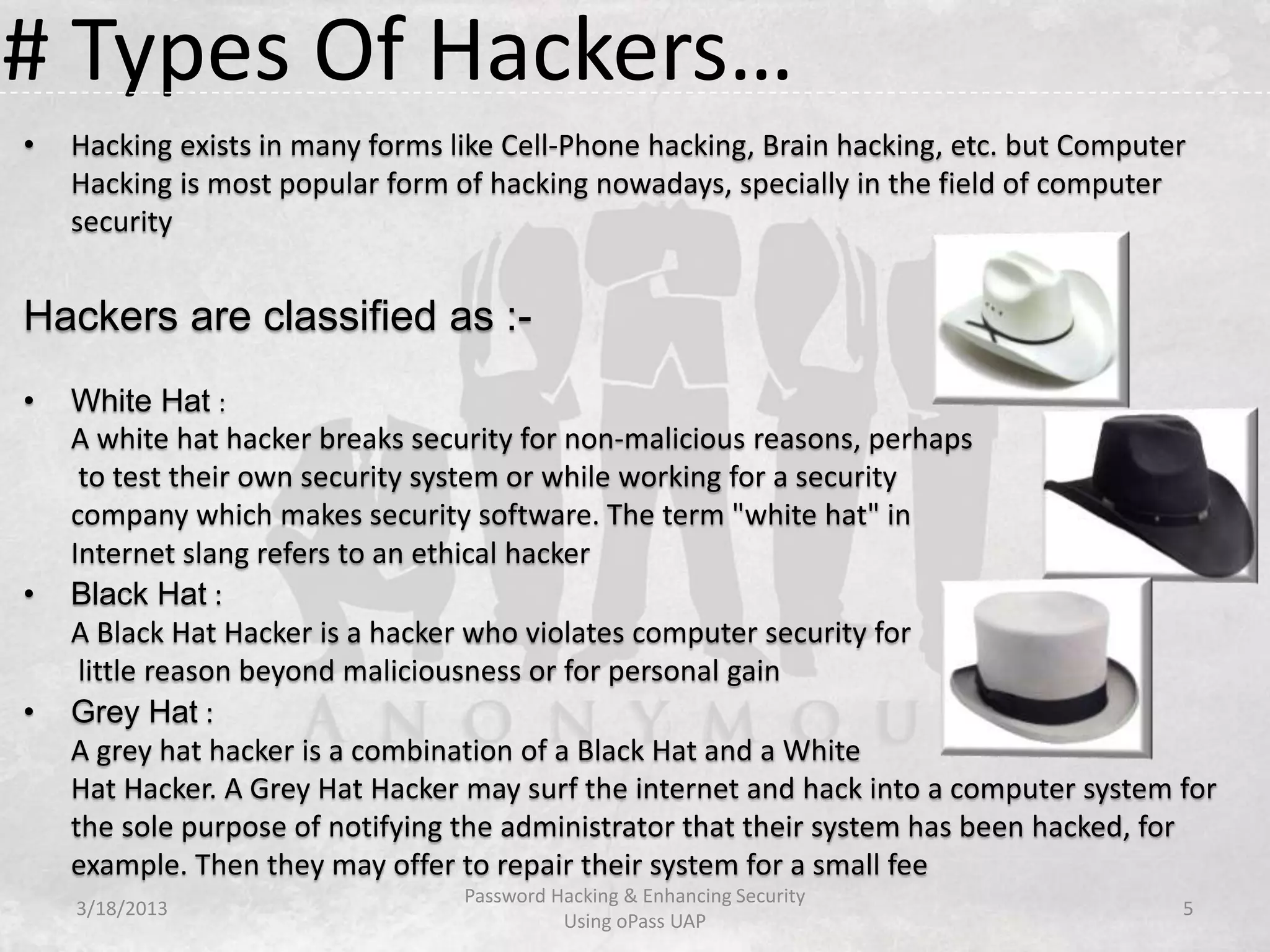

5. • Hacking exists in many forms like Cell-Phone hacking, Brain hacking, etc. but Computer
Hacking is most popular form of hacking nowadays, specially in the field of computer
security
Hackers are classified as :-
• White Hat :
A white hat hacker breaks security for non-malicious reasons, perhaps
to test their own security system or while working for a security
company which makes security software. The term "white hat" in
Internet slang refers to an ethical hacker
• Black Hat :
A Black Hat Hacker is a hacker who violates computer security for
little reason beyond maliciousness or for personal gain
• Grey Hat :
A grey hat hacker is a combination of a Black Hat and a White
Hat Hacker. A Grey Hat Hacker may surf the internet and hack into a computer system for
the sole purpose of notifying the administrator that their system has been hacked, for
example. Then they may offer to repair their system for a small fee
# Types Of Hackers…
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
5

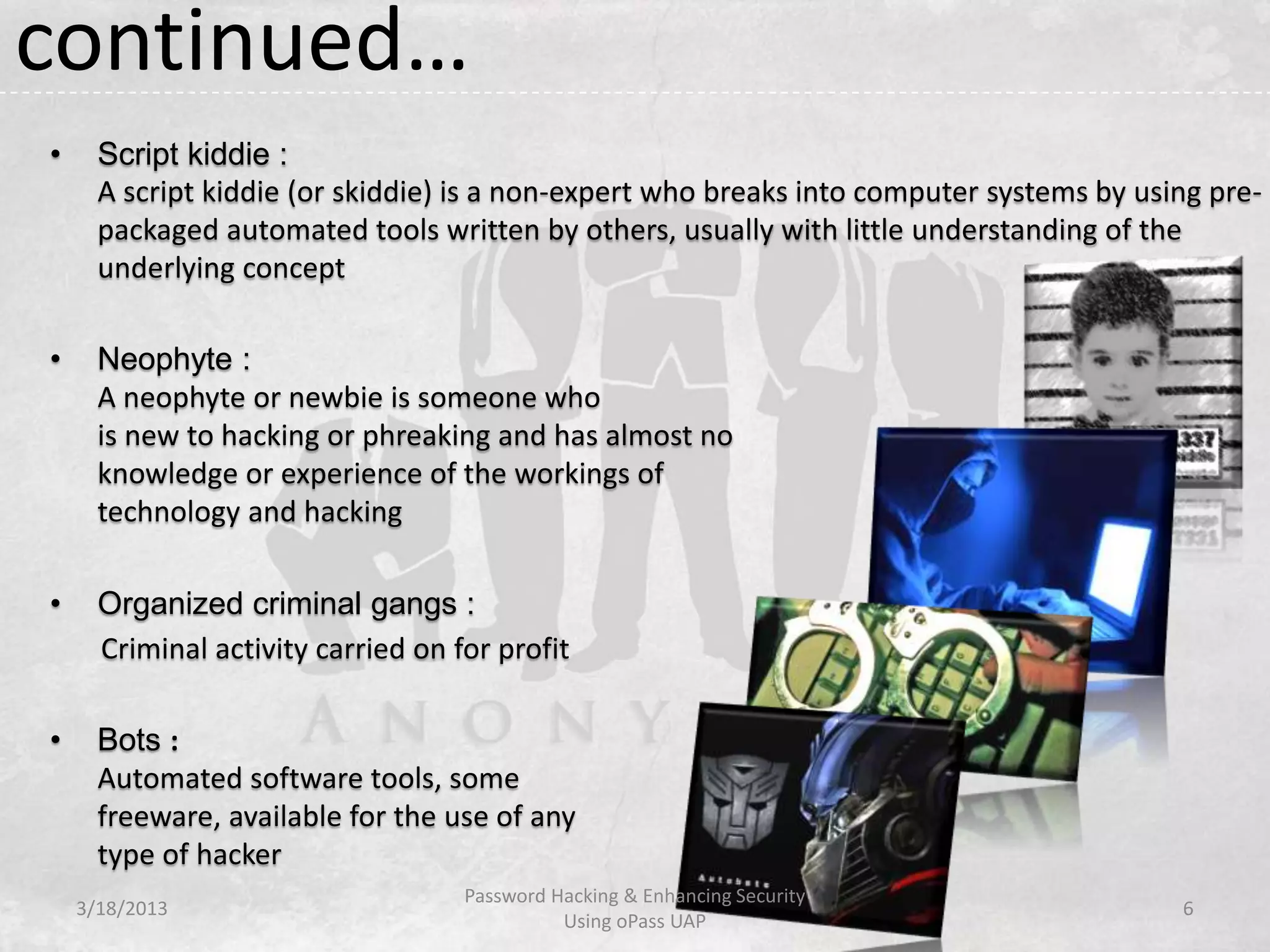

6. • Script kiddie :
A script kiddie (or skiddie) is a non-expert who breaks into computer systems by using pre-
packaged automated tools written by others, usually with little understanding of the
underlying concept
• Neophyte :
A neophyte or newbie is someone who
is new to hacking or phreaking and has almost no
knowledge or experience of the workings of
technology and hacking
• Organized criminal gangs :
Criminal activity carried on for profit
• Bots :
Automated software tools, some
freeware, available for the use of any
type of hacker
continued…
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
6

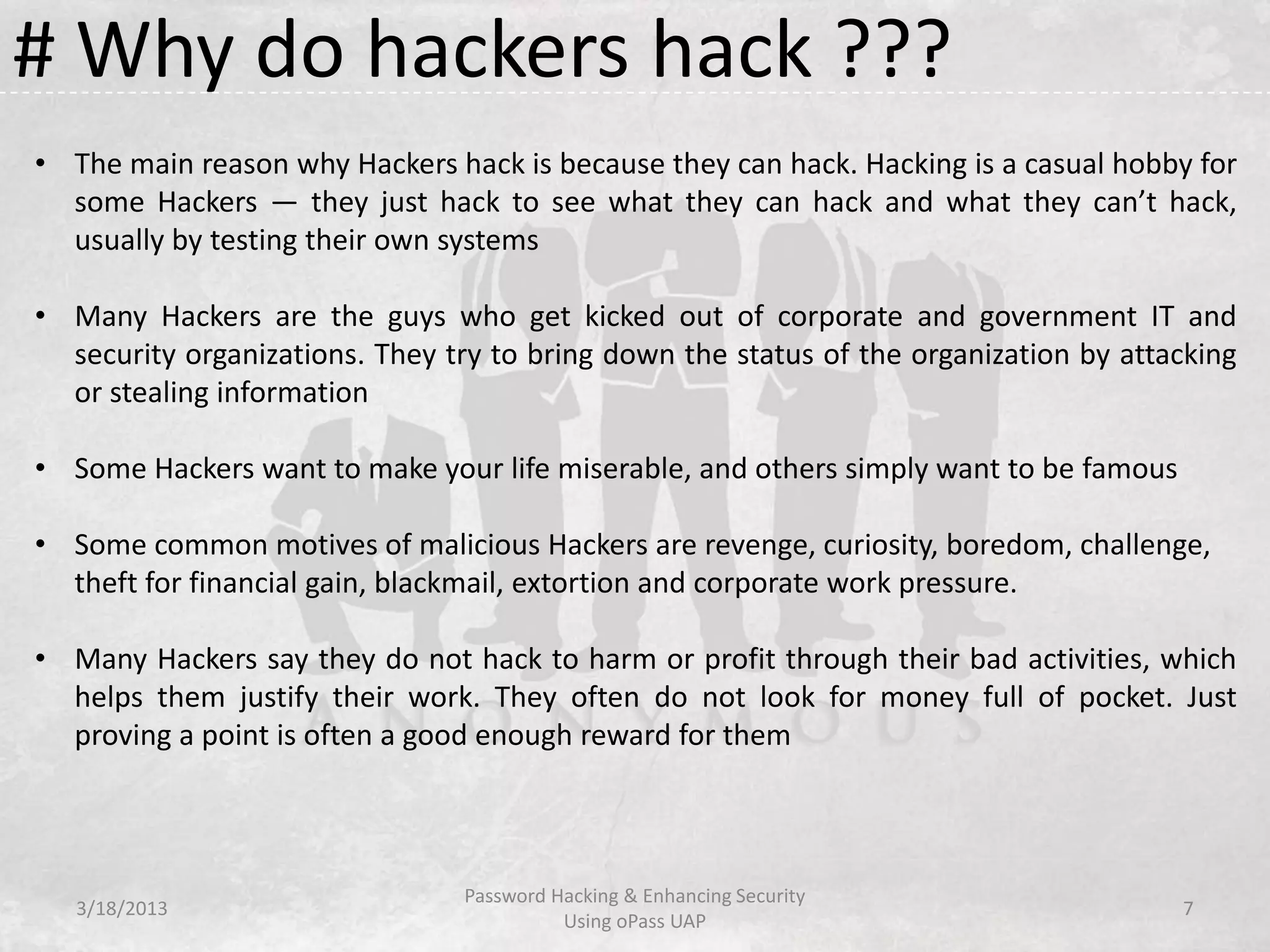

7. # Why do hackers hack ???
• The main reason why Hackers hack is because they can hack. Hacking is a casual hobby for
some Hackers — they just hack to see what they can hack and what they can’t hack,
usually by testing their own systems
• Many Hackers are the guys who get kicked out of corporate and government IT and
security organizations. They try to bring down the status of the organization by attacking
or stealing information
• Some Hackers want to make your life miserable, and others simply want to be famous
• Some common motives of malicious Hackers are revenge, curiosity, boredom, challenge,
theft for financial gain, blackmail, extortion and corporate work pressure.
• Many Hackers say they do not hack to harm or profit through their bad activities, which
helps them justify their work. They often do not look for money full of pocket. Just
proving a point is often a good enough reward for them
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
7

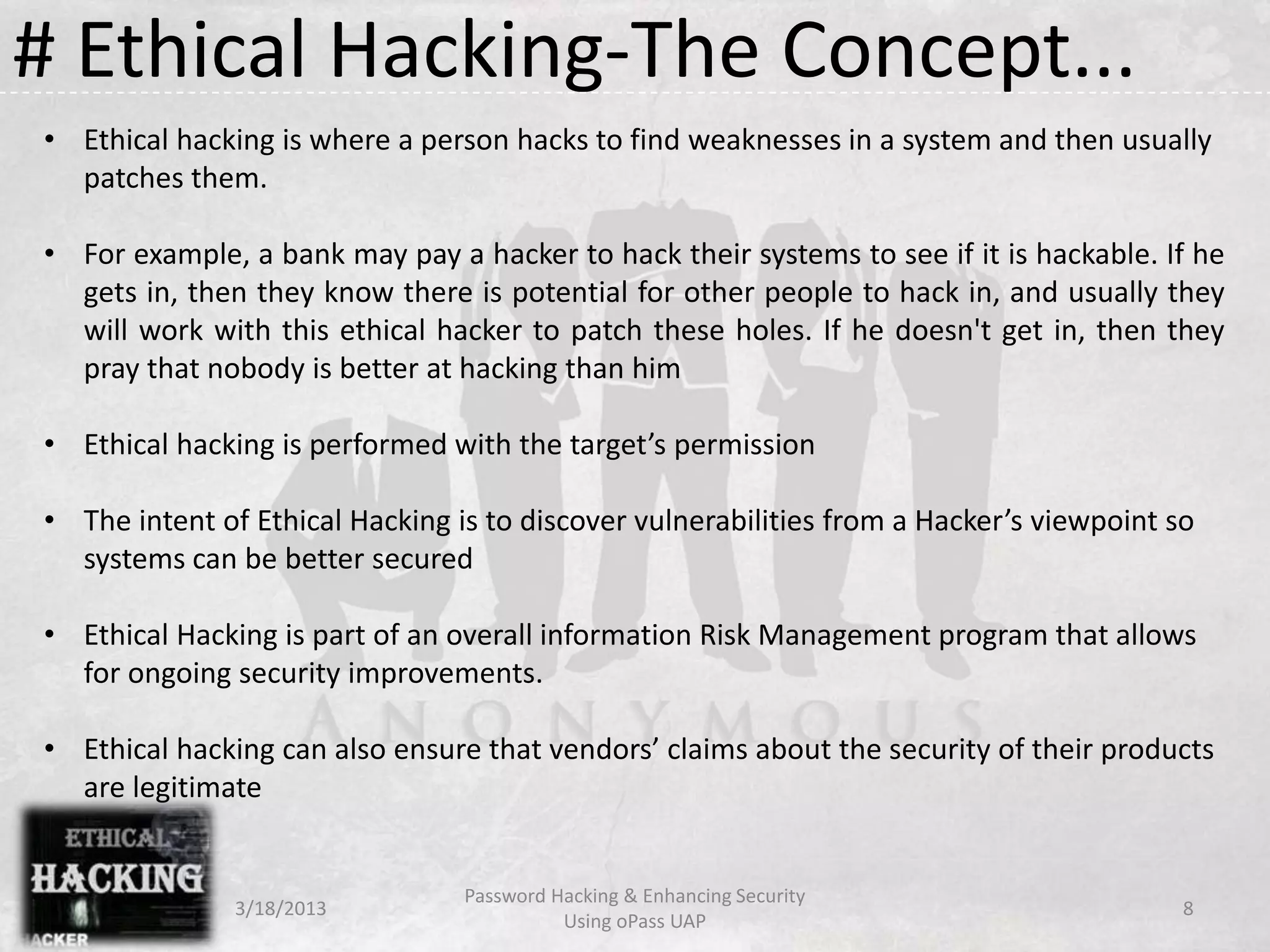

8. # Ethical Hacking-The Concept...
• Ethical hacking is where a person hacks to find weaknesses in a system and then usually
patches them.
• For example, a bank may pay a hacker to hack their systems to see if it is hackable. If he
gets in, then they know there is potential for other people to hack in, and usually they
will work with this ethical hacker to patch these holes. If he doesn't get in, then they
pray that nobody is better at hacking than him
• Ethical hacking is performed with the target’s permission
• The intent of Ethical Hacking is to discover vulnerabilities from a Hacker’s viewpoint so
systems can be better secured
• Ethical Hacking is part of an overall information Risk Management program that allows
for ongoing security improvements.
• Ethical hacking can also ensure that vendors’ claims about the security of their products
are legitimate
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
8

9. # Steps In Hacking…
• Reconnaissance :
The first stage of any attack is "reconnaissance“ - scanning the victims & looking
for ways into their systems. The purpose of this stage is to map out the target network
and systems. The hacker will try to list all the systems on the network, and then try to
list all the holes available on the target systems. Once the hacker has a list of systems,
he/she will scan the system looking for possible entry points into the system.
• Scanning :
The second step of ethical hacking and penetration testing involve two terms
that is scanning or port scanning and enumeration. During this process you have to
find out the alive host, operating systems involved, firewalls, intrusion detection
systems, servers/services, perimeter devices, routing and general network topology
(physical layout of network), that are part of the target organisation. Enumeration is
the first attack on target network, enumeration is the process to gather the
information about a target machine by actively connecting to it.
• Gaining Access :
In this step, the attacker exploits the discovered vulnerabilities to actually
connect to the target system i.e., gaining complete control of the target system.
• Maintaining Access :
The attacker after getting access to the system once, creates some backdoors
so that he/she can get access to the system at any time in the future. For e.g. creating
a hidden user account in windows.
• Clearing Tracks :
As in the case of crime scenes, forensic analysis in computer can help to trace
the attacker. So, in order to avoid getting caught by the authorities the attacker can
use many ways so as to clear his tracks of intrusion into the target system. For e.g.
deleting the user account after hacking into a windows operating system.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
9

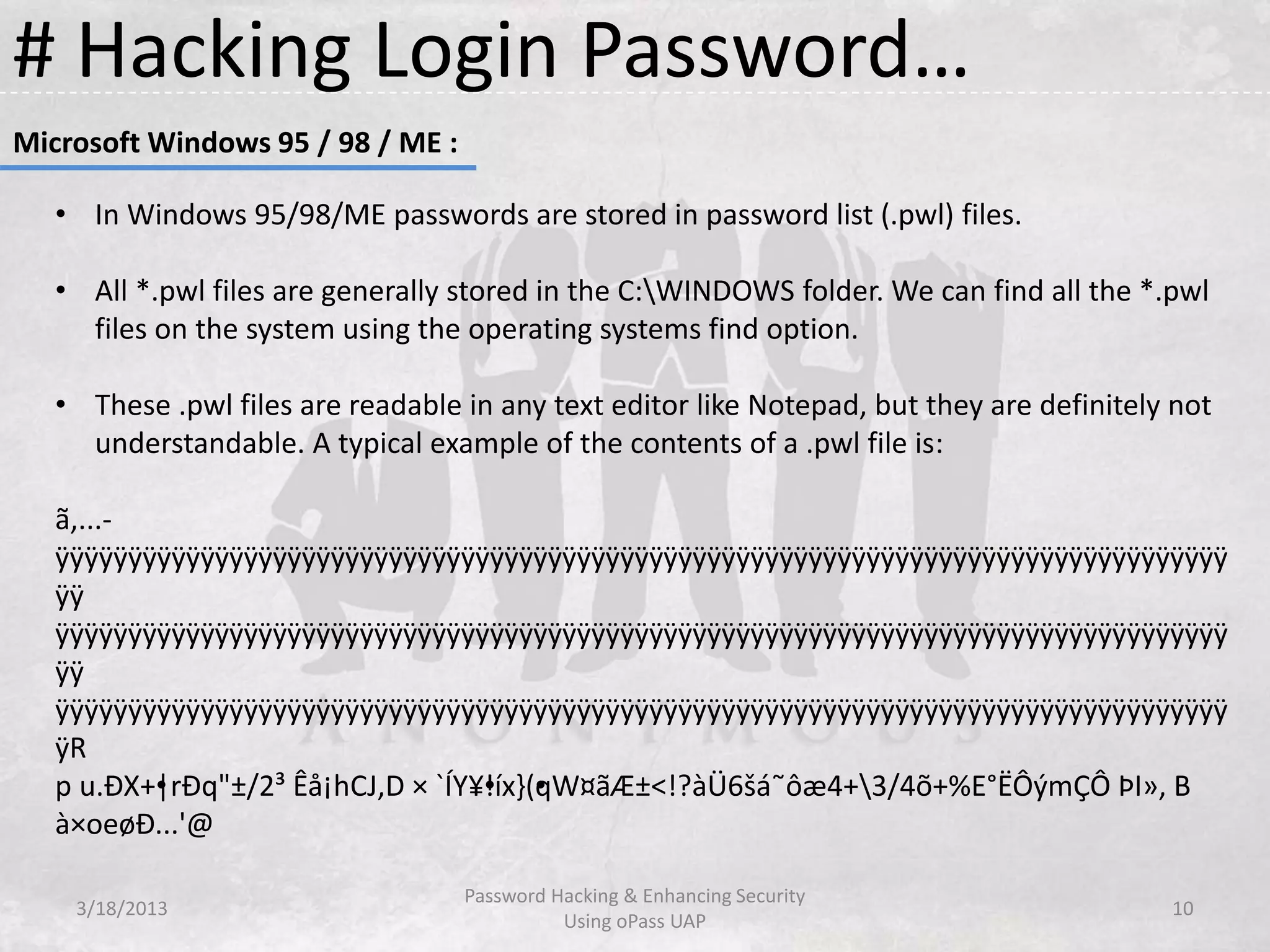

10. # Hacking Login Password…
Microsoft Windows 95 / 98 / ME :
• In Windows 95/98/ME passwords are stored in password list (.pwl) files.
• All *.pwl files are generally stored in the C:WINDOWS folder. We can find all the *.pwl
files on the system using the operating systems find option.
• These .pwl files are readable in any text editor like Notepad, but they are definitely not
understandable. A typical example of the contents of a .pwl file is:
ã‚...-
ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ
ÿÿ
ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ
ÿÿ
ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ
ÿR
p u.ÐX+•|rÐq"±/2³ Êå¡hCJ‚D × `ÍY¥•!íx}(•qW¤ãƱ<!?àÜ6šá˜ôæ4+3/4õ+%E°ËÔýmÇÔ ÞI»‚ B
à×oeøÐ...'@
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
10

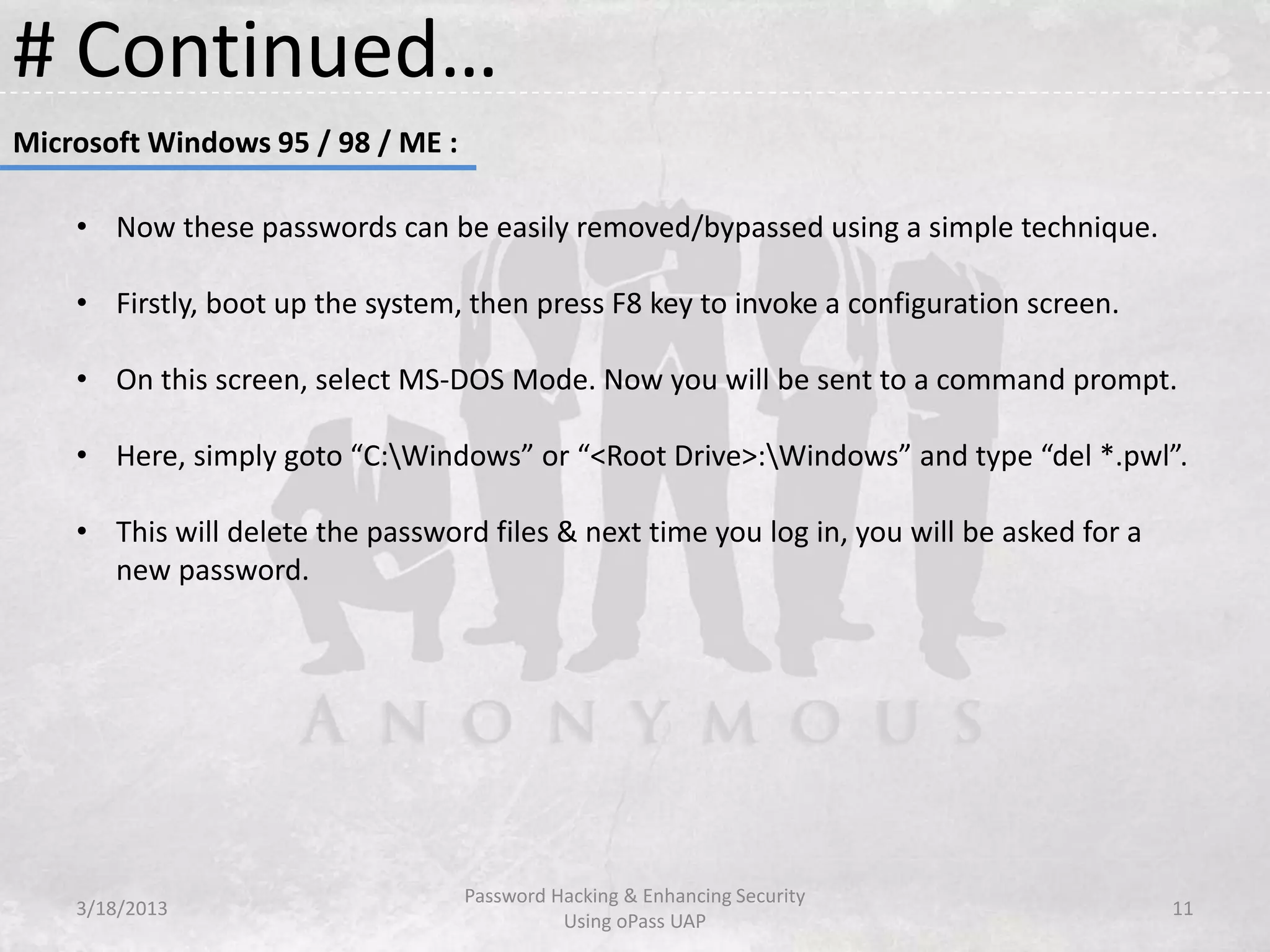

11. # Continued…
Microsoft Windows 95 / 98 / ME :
• Now these passwords can be easily removed/bypassed using a simple technique.
• Firstly, boot up the system, then press F8 key to invoke a configuration screen.
• On this screen, select MS-DOS Mode. Now you will be sent to a command prompt.
• Here, simply goto “C:Windows” or “<Root Drive>:Windows” and type “del *.pwl”.
• This will delete the password files & next time you log in, you will be asked for a
new password.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
11

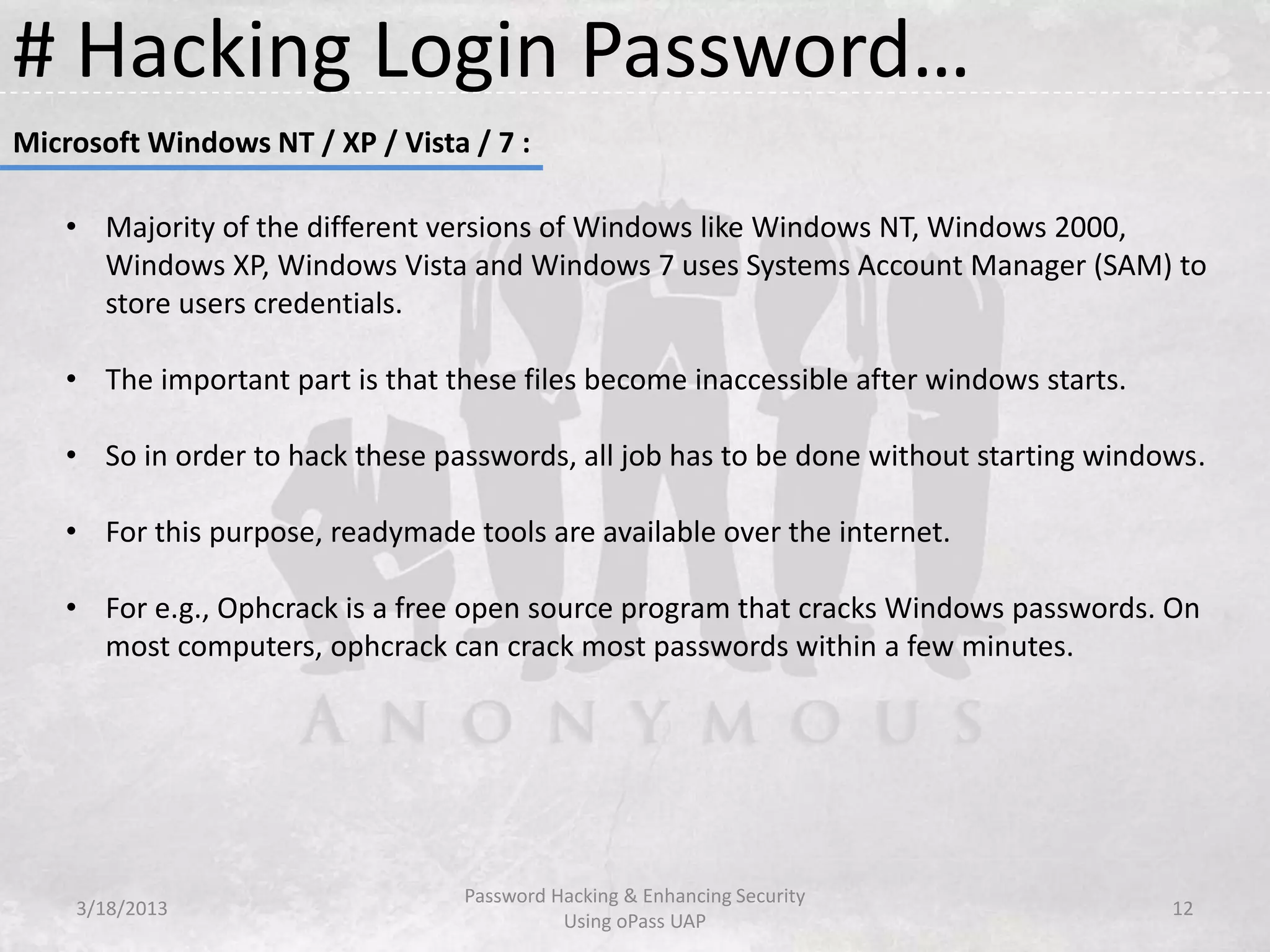

12. # Hacking Login Password…
Microsoft Windows NT / XP / Vista / 7 :
• Majority of the different versions of Windows like Windows NT, Windows 2000,
Windows XP, Windows Vista and Windows 7 uses Systems Account Manager (SAM) to
store users credentials.
• The important part is that these files become inaccessible after windows starts.
• So in order to hack these passwords, all job has to be done without starting windows.
• For this purpose, readymade tools are available over the internet.
• For e.g., Ophcrack is a free open source program that cracks Windows passwords. On
most computers, ophcrack can crack most passwords within a few minutes.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
12

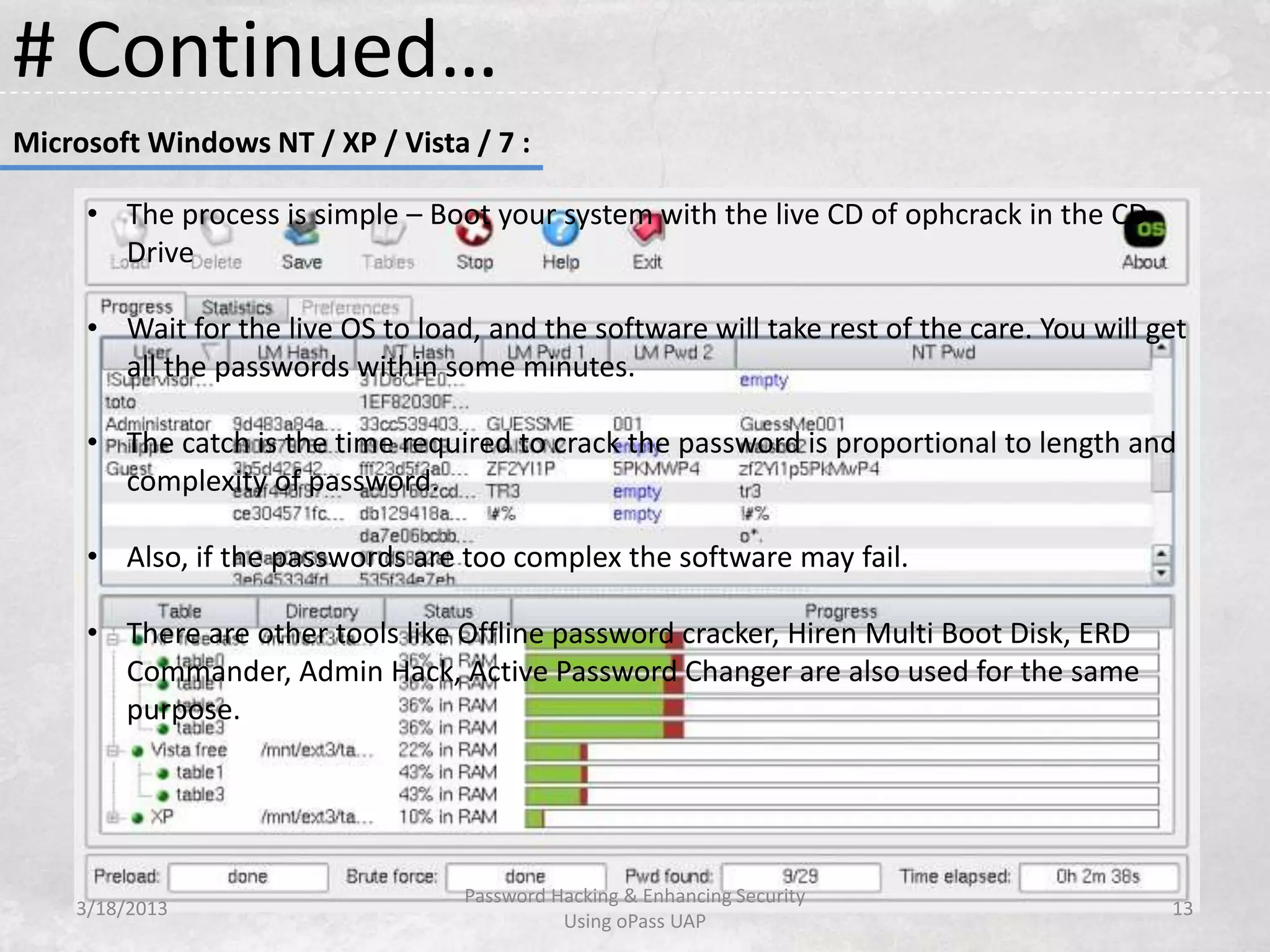

13. # Continued…
Microsoft Windows NT / XP / Vista / 7 :
• The process is simple – Boot your system with the live CD of ophcrack in the CD-
Drive
• Wait for the live OS to load, and the software will take rest of the care. You will get
all the passwords within some minutes.
• The catch is the time required to crack the password is proportional to length and
complexity of password.
• Also, if the passwords are too complex the software may fail.
• There are other tools like Offline password cracker, Hiren Multi Boot Disk, ERD
Commander, Admin Hack, Active Password Changer are also used for the same
purpose.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
13

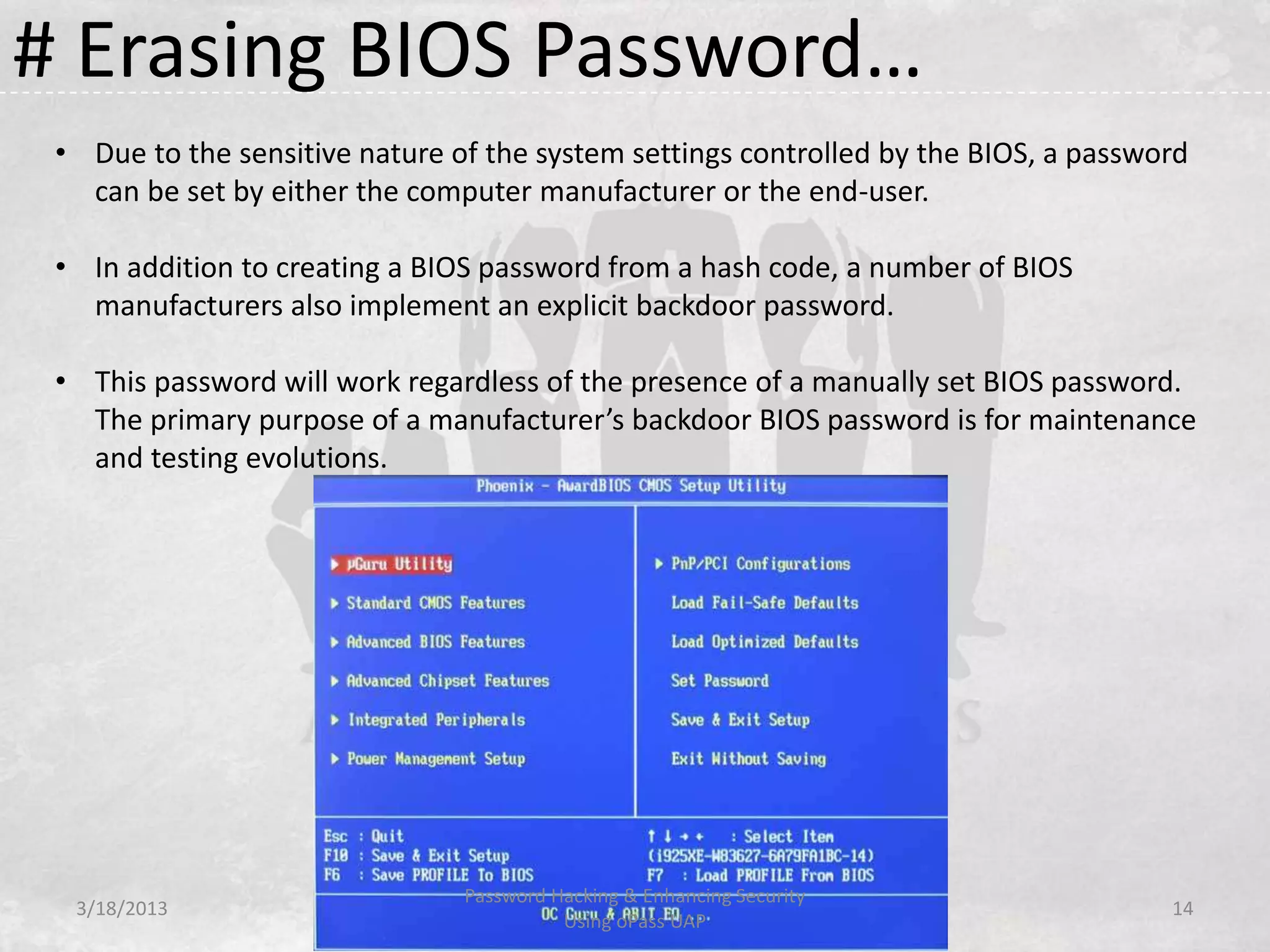

14. # Erasing BIOS Password…
• Due to the sensitive nature of the system settings controlled by the BIOS, a password
can be set by either the computer manufacturer or the end-user.
• In addition to creating a BIOS password from a hash code, a number of BIOS
manufacturers also implement an explicit backdoor password.
• This password will work regardless of the presence of a manually set BIOS password.
The primary purpose of a manufacturer’s backdoor BIOS password is for maintenance
and testing evolutions.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
14

15. # Erasing BIOS Password…
One of the most common methods to reset the BIOS password is to remove or discharge
the battery on the computer’s motherboard. If the power to the battery is lost or drained,
the BIOS configuration will be reset to the factory state with no password. System settings
made to the BIOS will also be lost.
• Step 1 – Turn off the computer and ensure it has no external power (i.e. unplug the
power cable. If it has a battery, remove it).
• Step 2 – Open the computer’s case or box.
• Step 3 – Locate the computer’s motherboard and look for the white silver button
battery on the motherboard.
• Step 4 – Remove the battery carefully and wait for approximately 30 seconds.
• Step 5 – Put the computer case back together and boot the computer.
• Step 6 – If the “CMOS Checksum Error-Defaults Loaded” error message is displayed,
the BIOS password has been reset.
If the CMOS battery is soldered to the computer’s motherboard, some brands will have a
jumper located on the board that can be used to reset or clear the BIOS password.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
15

16. # Website Phishing…
Phishing is the act of attempting to acquire information such as usernames, passwords, and
credit card details (and sometimes, indirectly, money) by misleading as a trustworthy entity
in an electronic communication.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
16

17. # Website Phishing…The Process…
• The attacker calls you or send you an email. The email or call will give you some exciting
offers or will in some way try to lure you so as to open the link provided or disclose
some confidential information
• For e.g., there was a scam recently over Facebook where they claimed to give you Free
Facebook Tshirt or Free Facebook Shoes.
• Users were required to fill in a form which required to give your user id & passwords for
facebook account.
• Then users had to like a page in order to avail the offer.
• After that, users were asked to share that link in 10 different groups so as to spread the
scam.
• Also the process never completed because the page always said You havent shared the
link yet.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
17

18. # Website Phishing…
• Phishing is the most common & efficient password stealing attack.
• According to APWG (Anti-phishing Working Group)’s report, the number of unique
phishing websites detected in the second half of 2010 was 97,388.
• RSA, formerly RSA Security, Inc., is an American computer and network security
company. Phishing attacks increased 24% in November 2012 with 41,834 attacks
identified by RSA. To date, the RSA Anti-Fraud Command Center has shut down
7,67,442 cyber attacks.
• The U.S. and UK were targeted by the most volume of phishing attacks in November,
but India emerged as the third most targeted, enduring 7% of phishing attack volume
last month.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
18

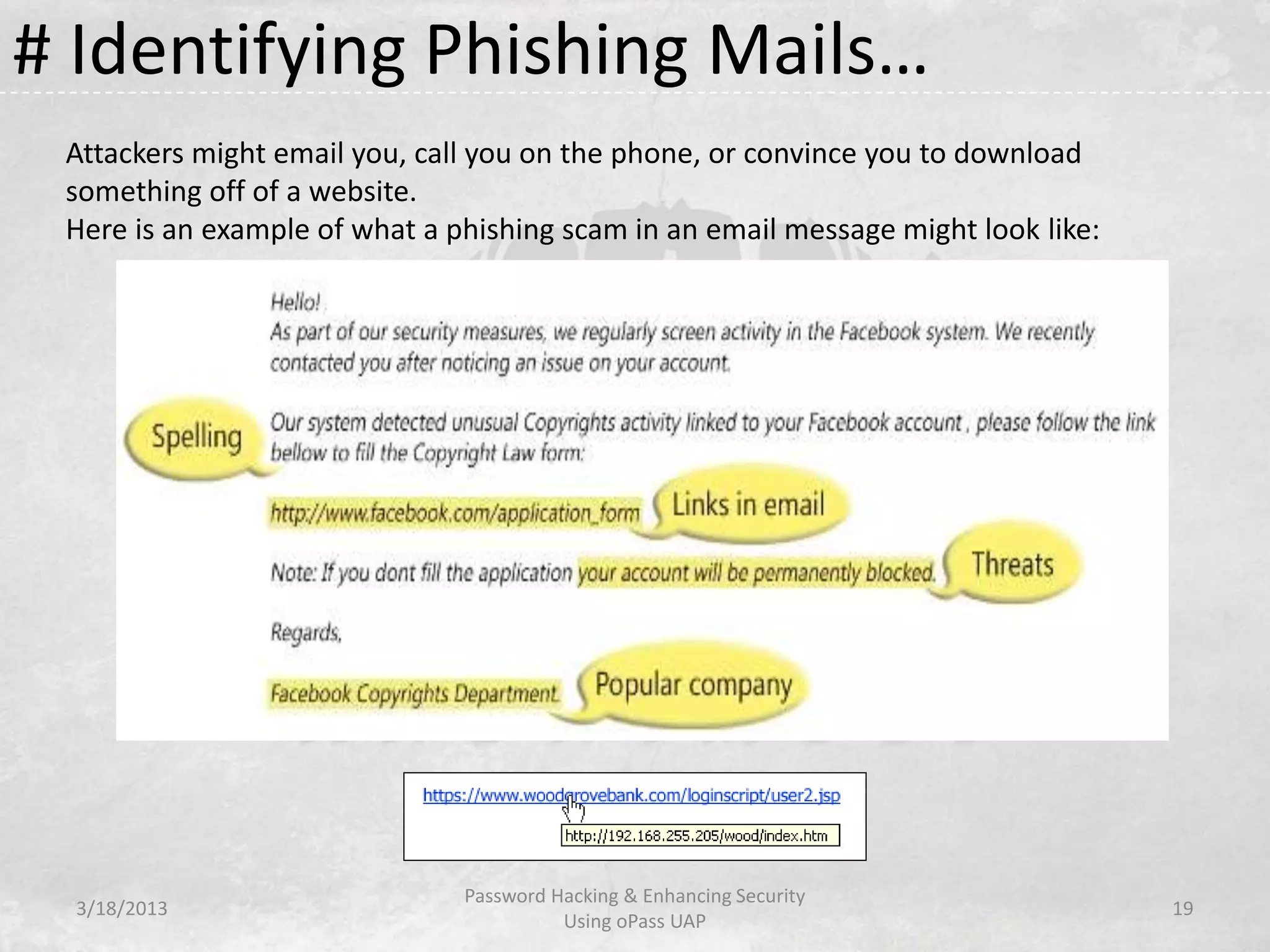

19. # Identifying Phishing Mails…
Attackers might email you, call you on the phone, or convince you to download
something off of a website.
Here is an example of what a phishing scam in an email message might look like:
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
19

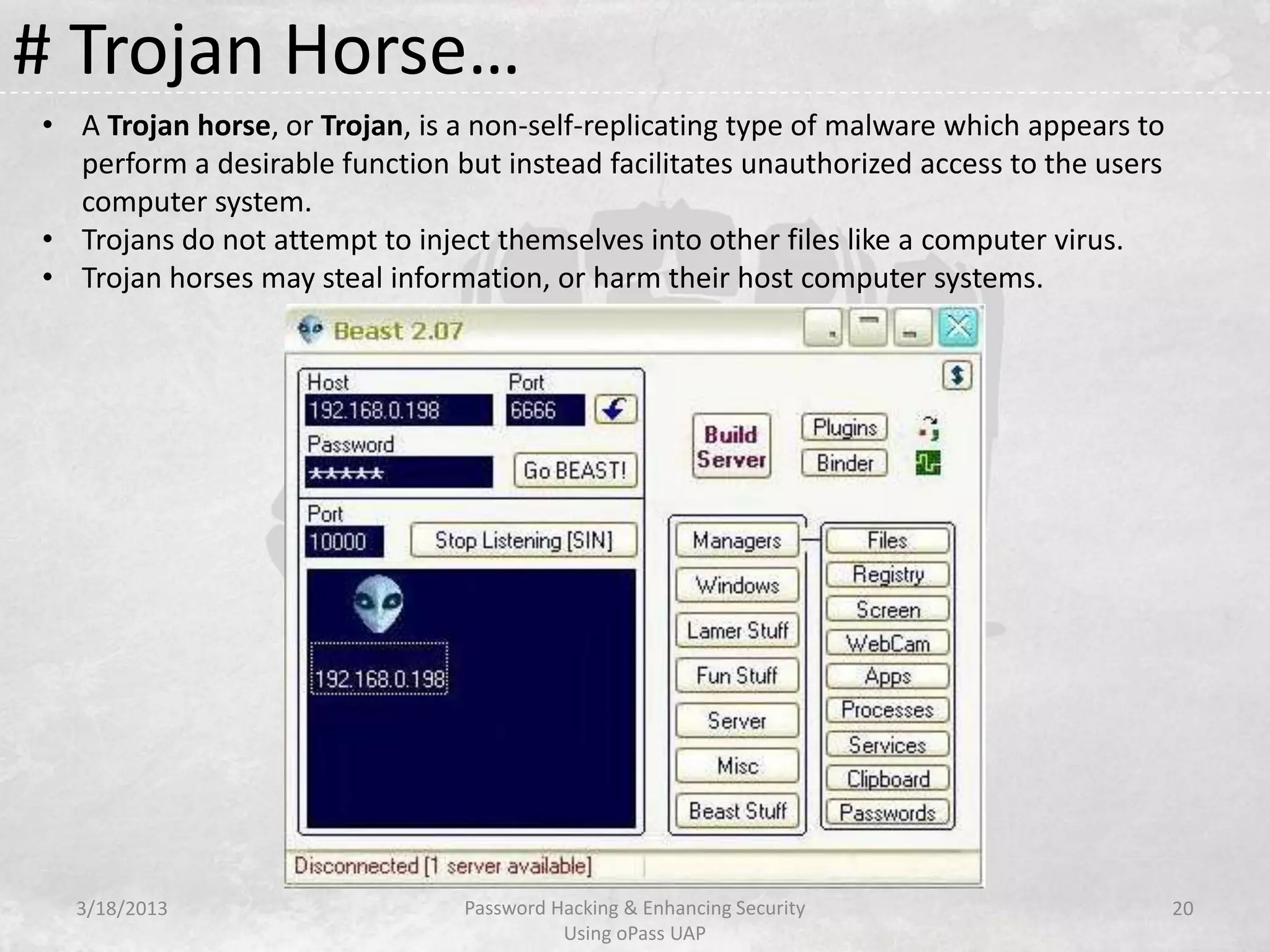

20. # Trojan Horse…
• A Trojan horse, or Trojan, is a non-self-replicating type of malware which appears to
perform a desirable function but instead facilitates unauthorized access to the users
computer system.
• Trojans do not attempt to inject themselves into other files like a computer virus.
• Trojan horses may steal information, or harm their host computer systems.
3/18/2013 Password Hacking & Enhancing Security
Using oPass UAP
20

21. # Trojan Horse…Purpose & Uses…
A Trojan may give a hacker remote access to a targeted computer system. Operations that
could be performed by a hacker on a targeted computer system may include:
• Crashing the computer
• Blue screen of death
• Electronic money theft
• Data theft (e.g. retrieving passwords or credit card information)
• Installation of software, including third-party malware and ransomware
• Downloading or uploading of files on the user's computer
• Modification or deletion of files
• Keystroke logging
• Watching the user's screen
• Viewing the user's webcam
• Controlling the computer system remotely
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
21

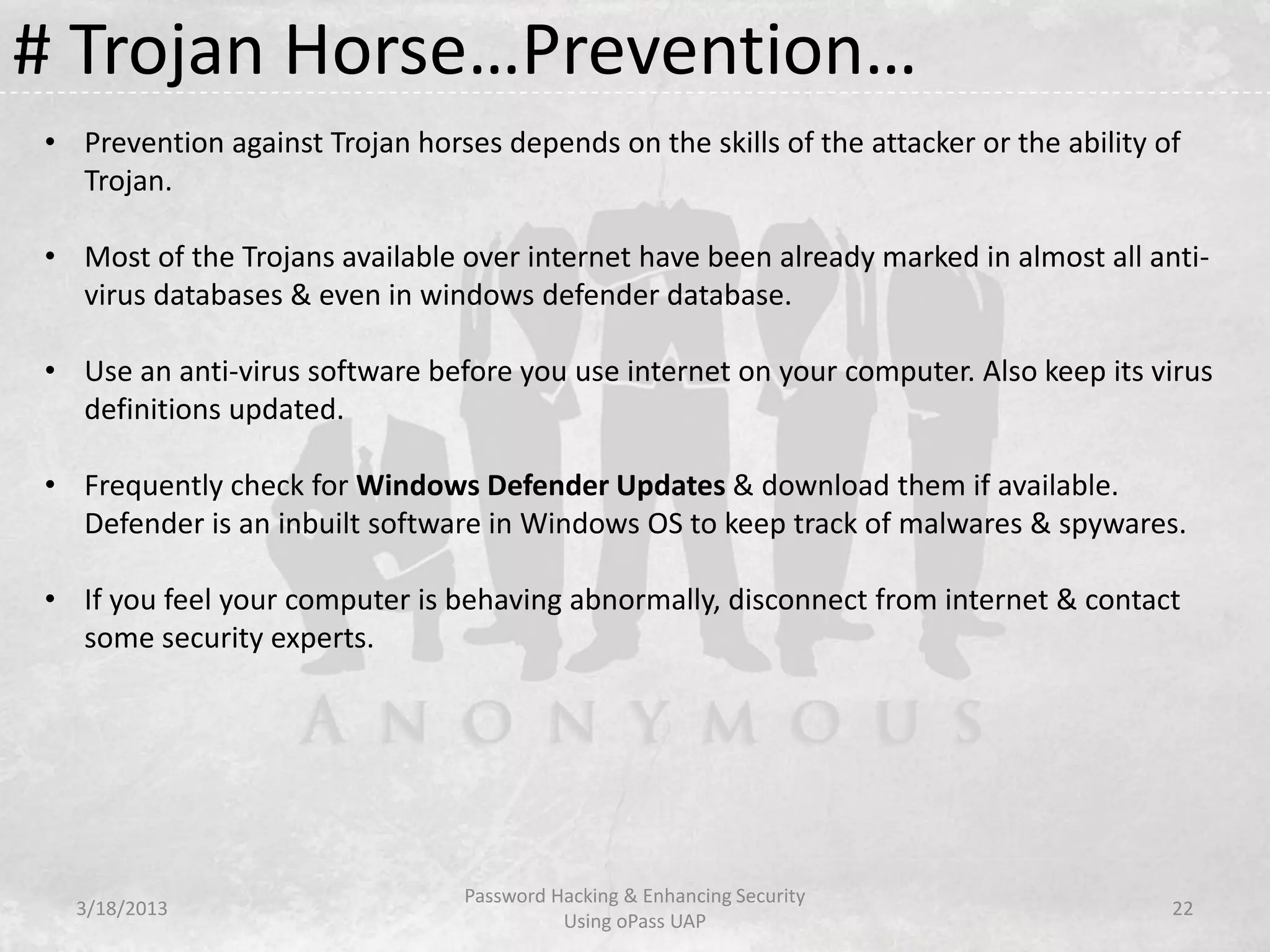

22. # Trojan Horse…Prevention…
• Prevention against Trojan horses depends on the skills of the attacker or the ability of
Trojan.
• Most of the Trojans available over internet have been already marked in almost all anti-
virus databases & even in windows defender database.
• Use an anti-virus software before you use internet on your computer. Also keep its virus
definitions updated.
• Frequently check for Windows Defender Updates & download them if available.
Defender is an inbuilt software in Windows OS to keep track of malwares & spywares.
• If you feel your computer is behaving abnormally, disconnect from internet & contact
some security experts.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
22

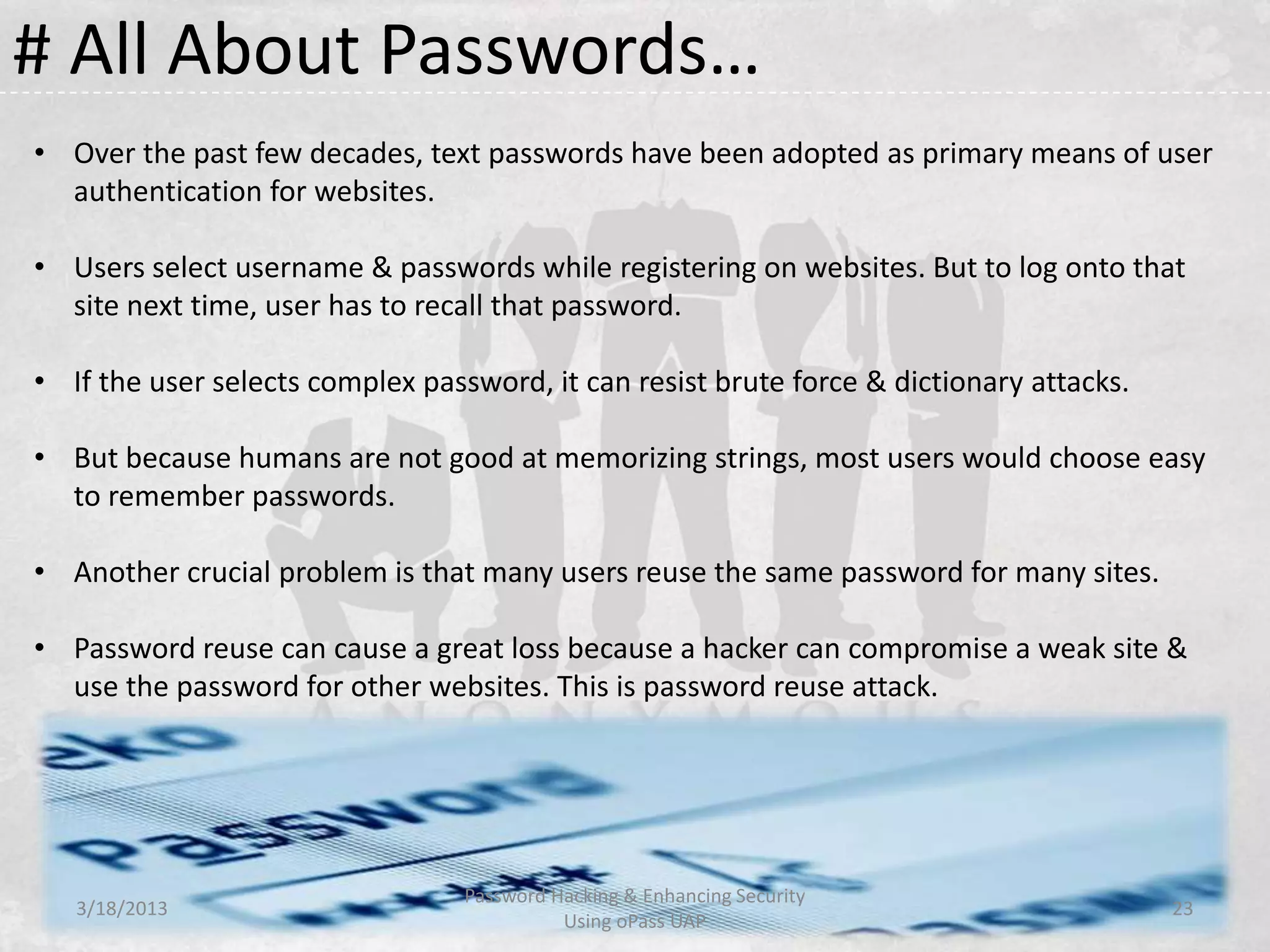

23. # All About Passwords…
• Over the past few decades, text passwords have been adopted as primary means of user
authentication for websites.
• Users select username & passwords while registering on websites. But to log onto that
site next time, user has to recall that password.
• If the user selects complex password, it can resist brute force & dictionary attacks.
• But because humans are not good at memorizing strings, most users would choose easy
to remember passwords.
• Another crucial problem is that many users reuse the same password for many sites.
• Password reuse can cause a great loss because a hacker can compromise a weak site &
use the password for other websites. This is password reuse attack.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
23

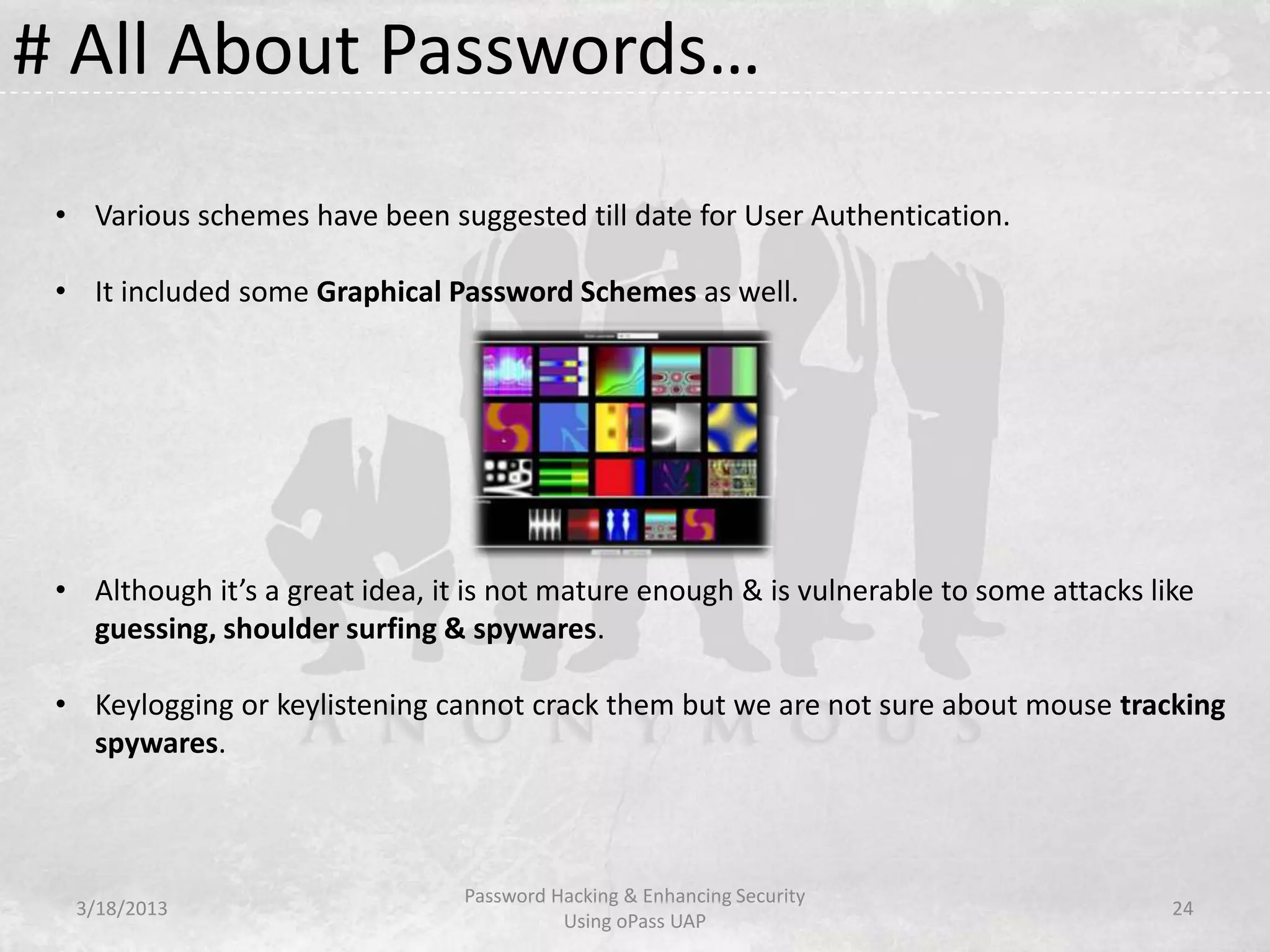

24. # All About Passwords…
• Various schemes have been suggested till date for User Authentication.
• It included some Graphical Password Schemes as well.
• Although it’s a great idea, it is not mature enough & is vulnerable to some attacks like
guessing, shoulder surfing & spywares.
• Keylogging or keylistening cannot crack them but we are not sure about mouse tracking
spywares.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
24

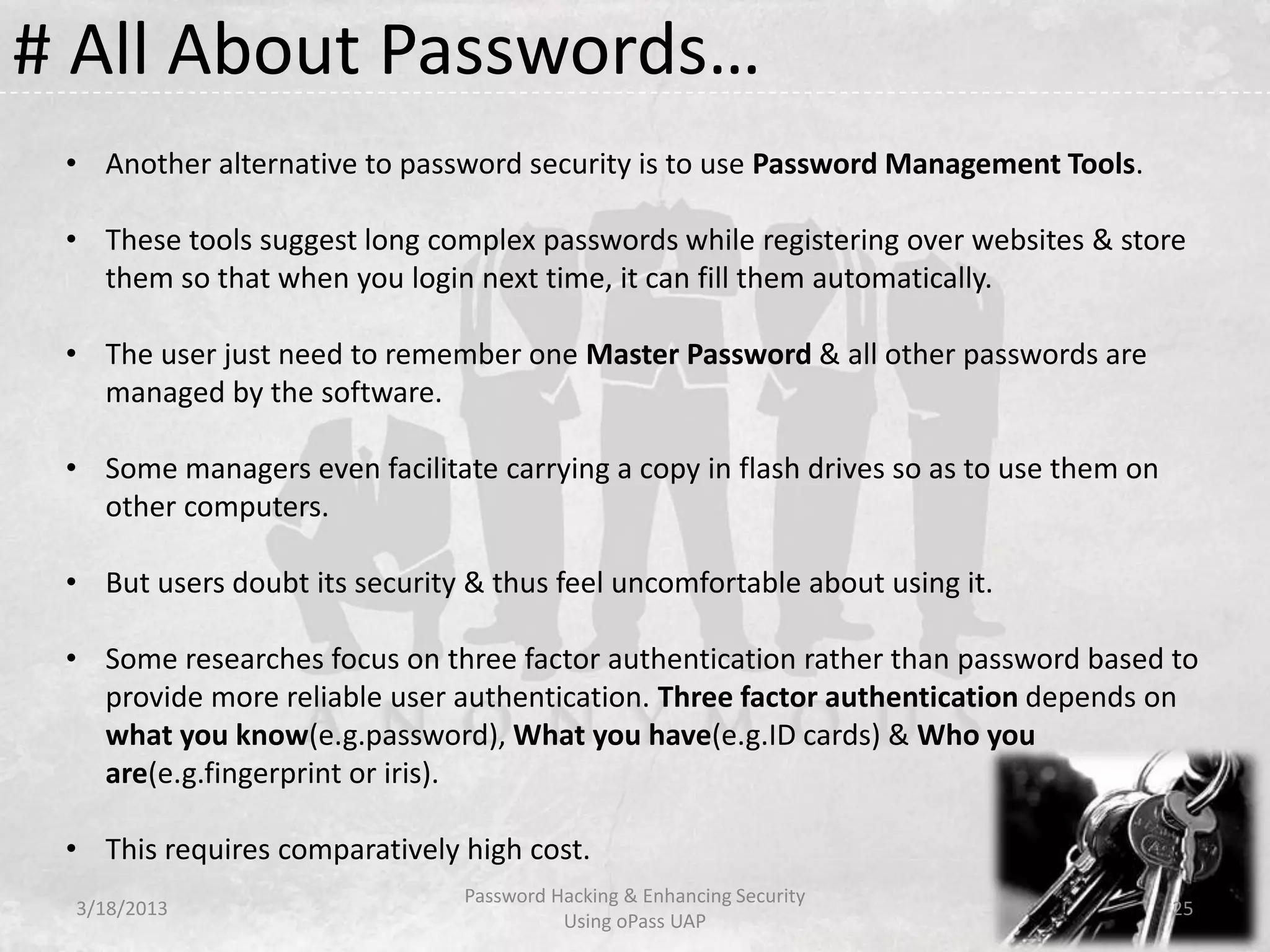

25. # All About Passwords…
• Another alternative to password security is to use Password Management Tools.
• These tools suggest long complex passwords while registering over websites & store
them so that when you login next time, it can fill them automatically.
• The user just need to remember one Master Password & all other passwords are
managed by the software.
• Some managers even facilitate carrying a copy in flash drives so as to use them on
other computers.
• But users doubt its security & thus feel uncomfortable about using it.
• Some researches focus on three factor authentication rather than password based to
provide more reliable user authentication. Three factor authentication depends on
what you know(e.g.password), What you have(e.g.ID cards) & Who you
are(e.g.fingerprint or iris).
• This requires comparatively high cost.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
25

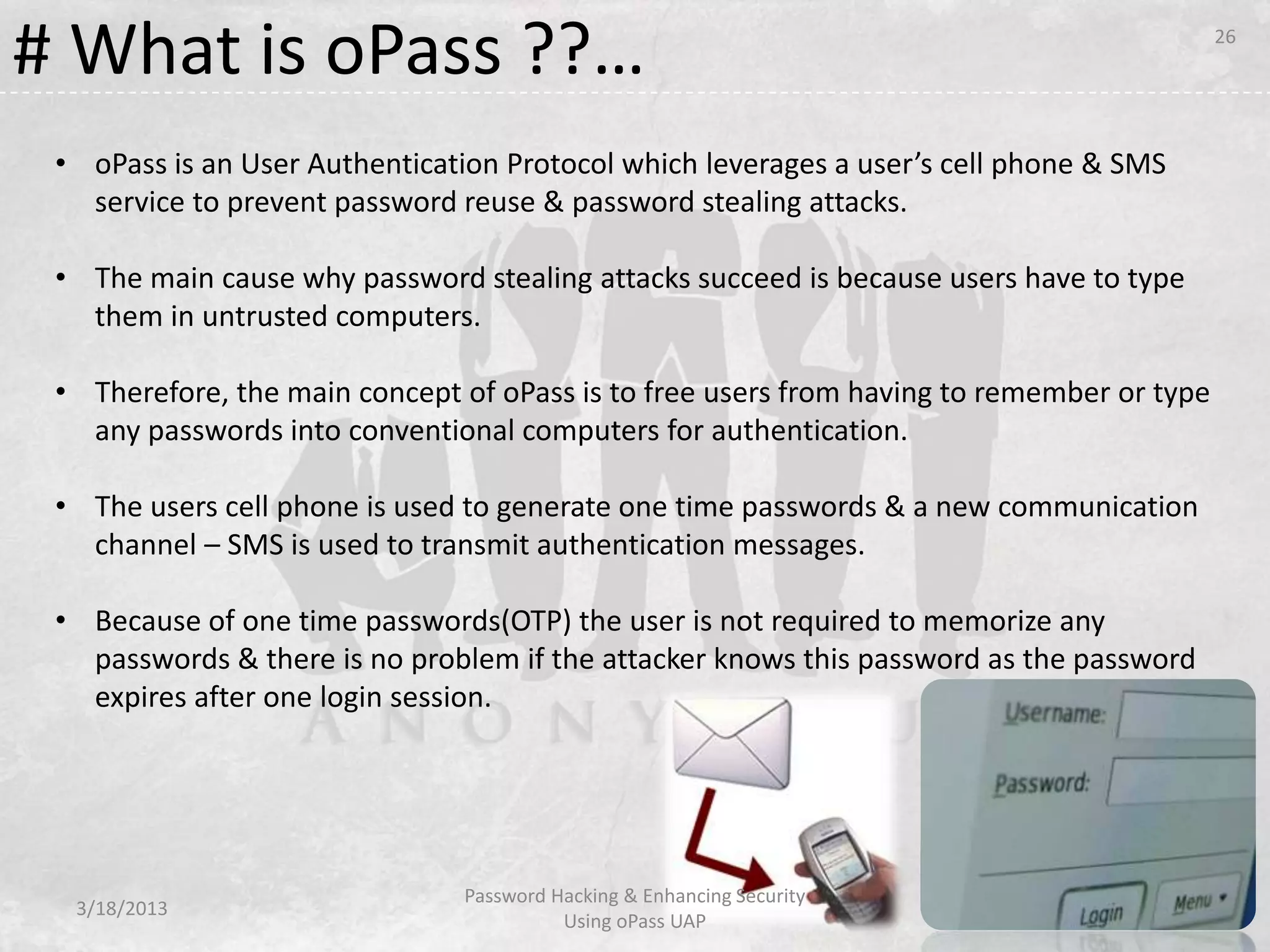

26. # What is oPass ??…
• oPass is an User Authentication Protocol which leverages a user’s cell phone & SMS
service to prevent password reuse & password stealing attacks.
• The main cause why password stealing attacks succeed is because users have to type
them in untrusted computers.
• Therefore, the main concept of oPass is to free users from having to remember or type
any passwords into conventional computers for authentication.
• The users cell phone is used to generate one time passwords & a new communication
channel – SMS is used to transmit authentication messages.
• Because of one time passwords(OTP) the user is not required to memorize any
passwords & there is no problem if the attacker knows this password as the password
expires after one login session.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
26

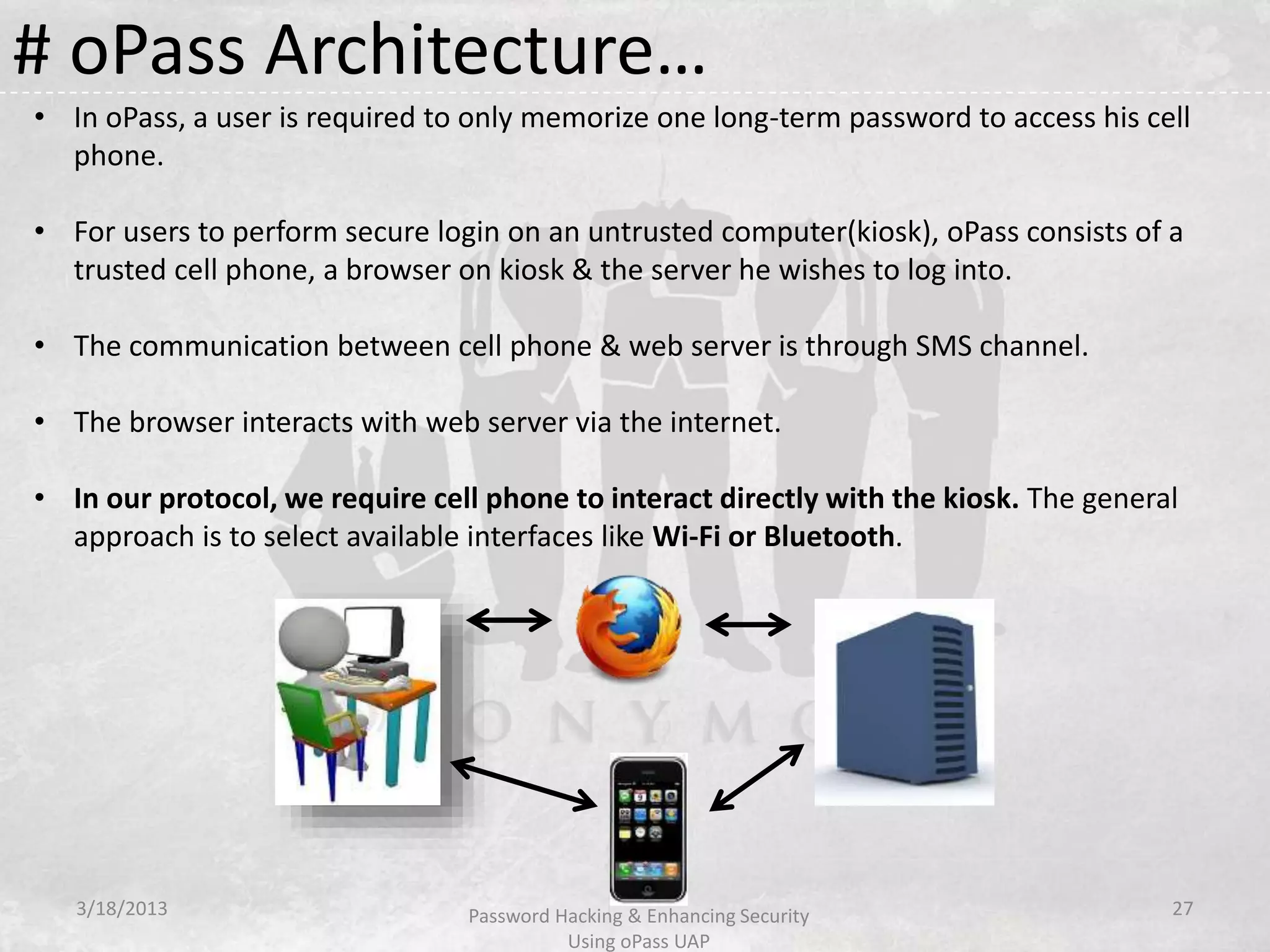

27. # oPass Architecture…
• In oPass, a user is required to only memorize one long-term password to access his cell
phone.
• For users to perform secure login on an untrusted computer(kiosk), oPass consists of a
trusted cell phone, a browser on kiosk & the server he wishes to log into.
• The communication between cell phone & web server is through SMS channel.
• The browser interacts with web server via the internet.
• In our protocol, we require cell phone to interact directly with the kiosk. The general
approach is to select available interfaces like Wi-Fi or Bluetooth.
3/18/2013 Password Hacking & Enhancing Security
Using oPass UAP
27

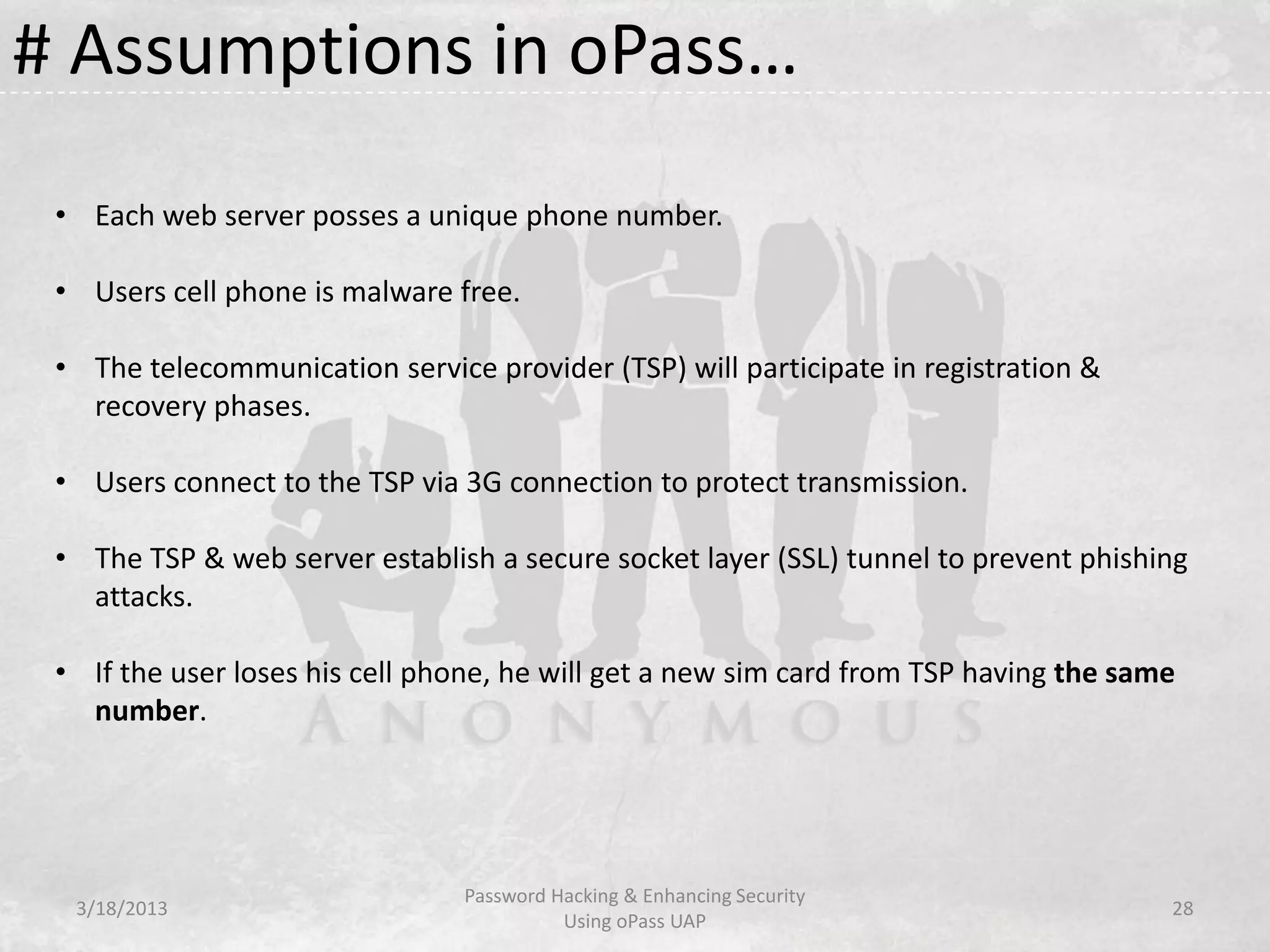

28. # Assumptions in oPass…
• Each web server posses a unique phone number.
• Users cell phone is malware free.
• The telecommunication service provider (TSP) will participate in registration &
recovery phases.
• Users connect to the TSP via 3G connection to protect transmission.
• The TSP & web server establish a secure socket layer (SSL) tunnel to prevent phishing
attacks.
• If the user loses his cell phone, he will get a new sim card from TSP having the same
number.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
28

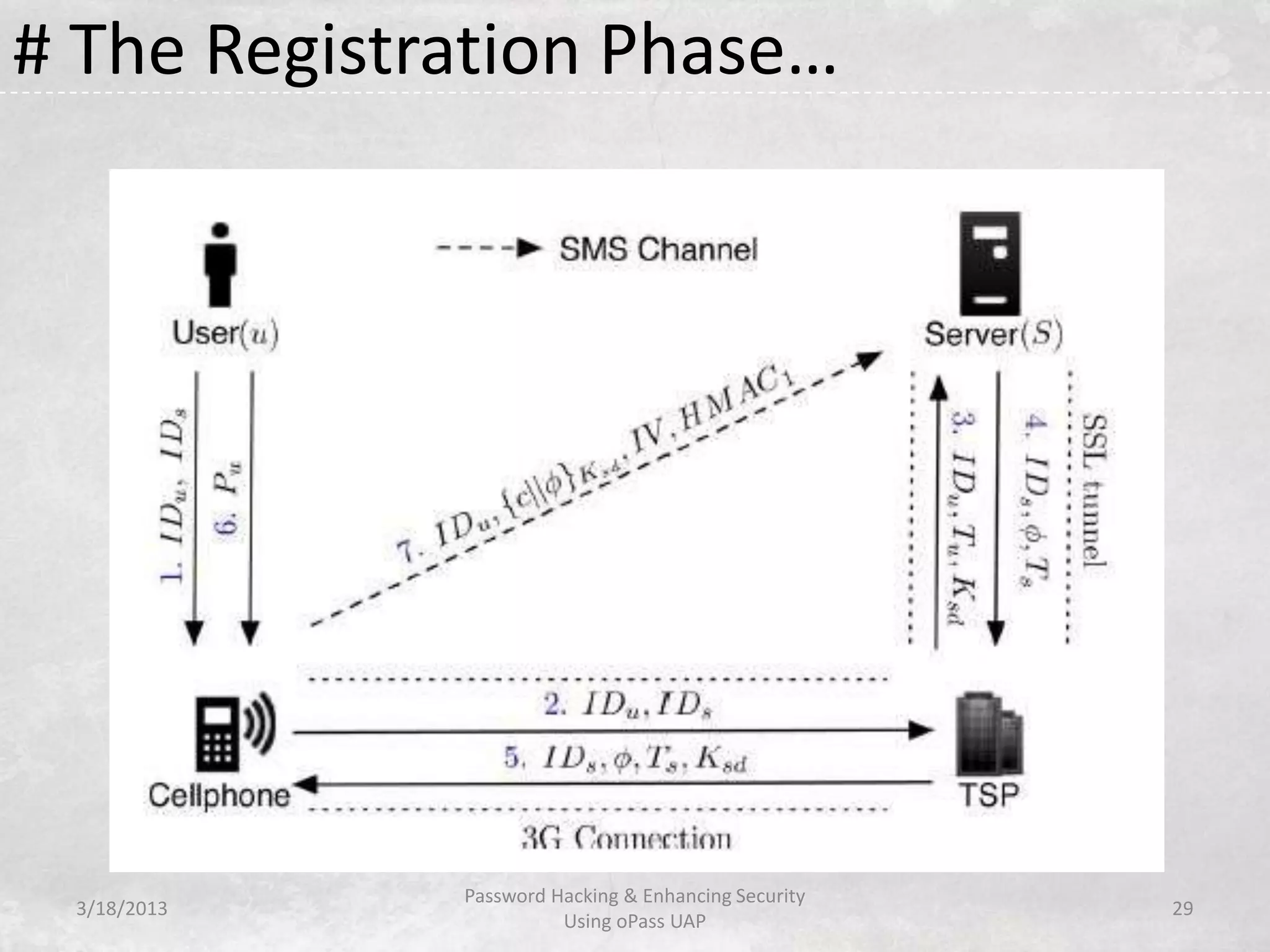

29. # The Registration Phase…
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
29

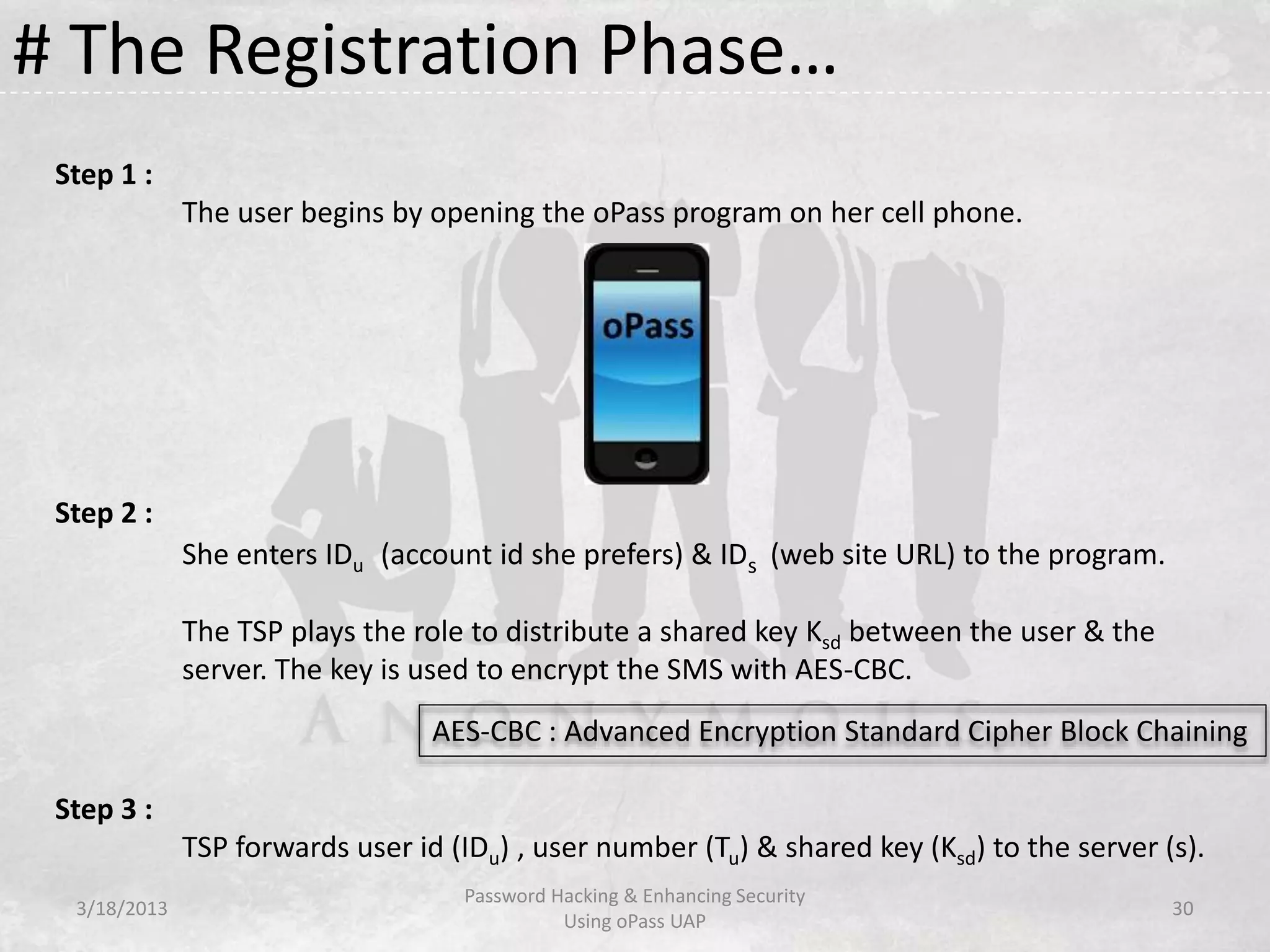

30. # The Registration Phase…
Step 1 :
The user begins by opening the oPass program on her cell phone.
Step 2 :
She enters IDu (account id she prefers) & IDs (web site URL) to the program.
The TSP plays the role to distribute a shared key Ksd between the user & the
server. The key is used to encrypt the SMS with AES-CBC.
AES-CBC : Advanced Encryption Standard Cipher Block Chaining
Step 3 :
TSP forwards user id (IDu) , user number (Tu) & shared key (Ksd) to the server (s).
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
30

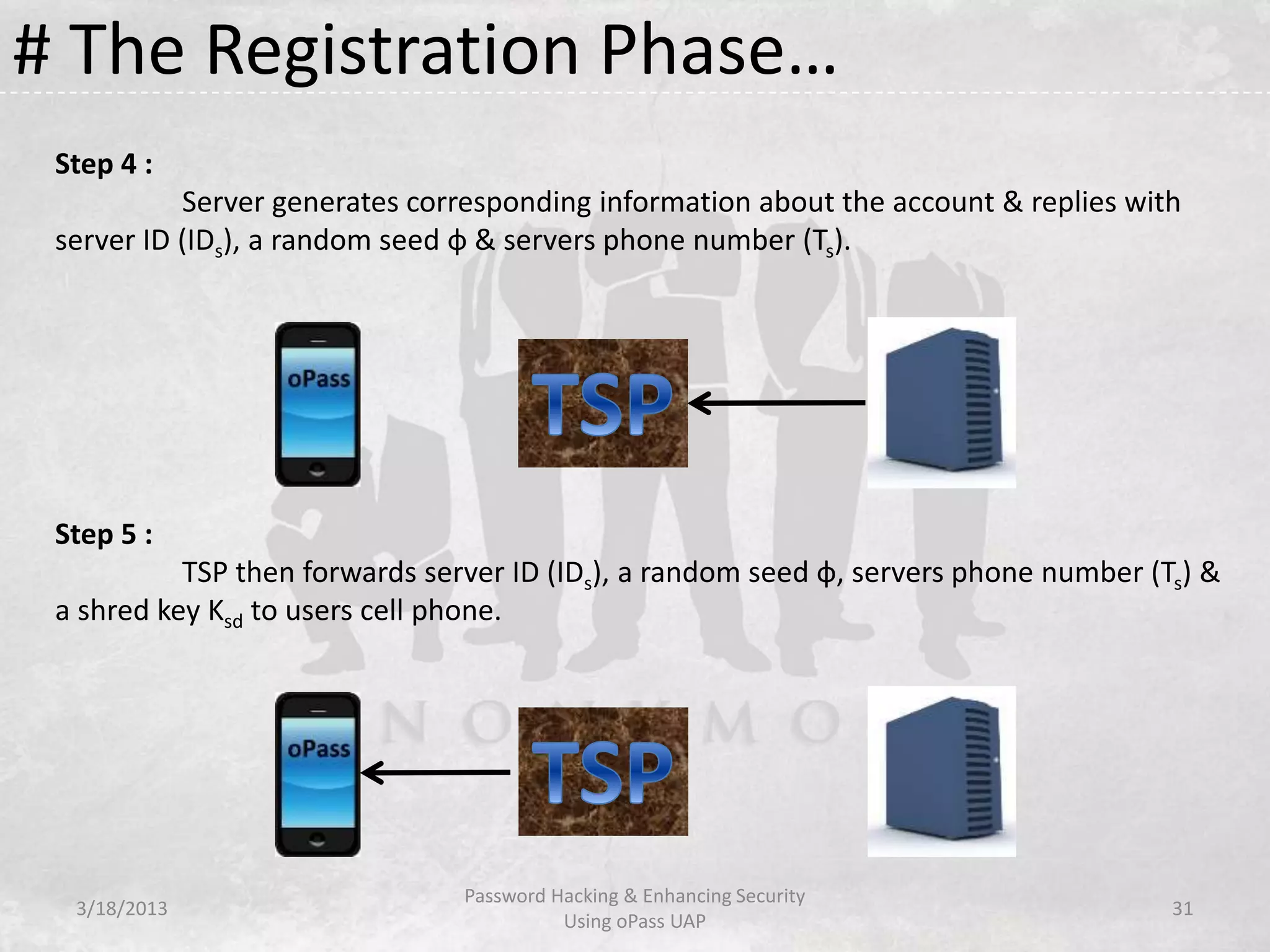

31. # The Registration Phase…
Step 4 :
Server generates corresponding information about the account & replies with
server ID (IDs), a random seed ф & servers phone number (Ts).
Step 5 :
TSP then forwards server ID (IDs), a random seed ф, servers phone number (Ts) &
a shred key Ksd to users cell phone.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
31

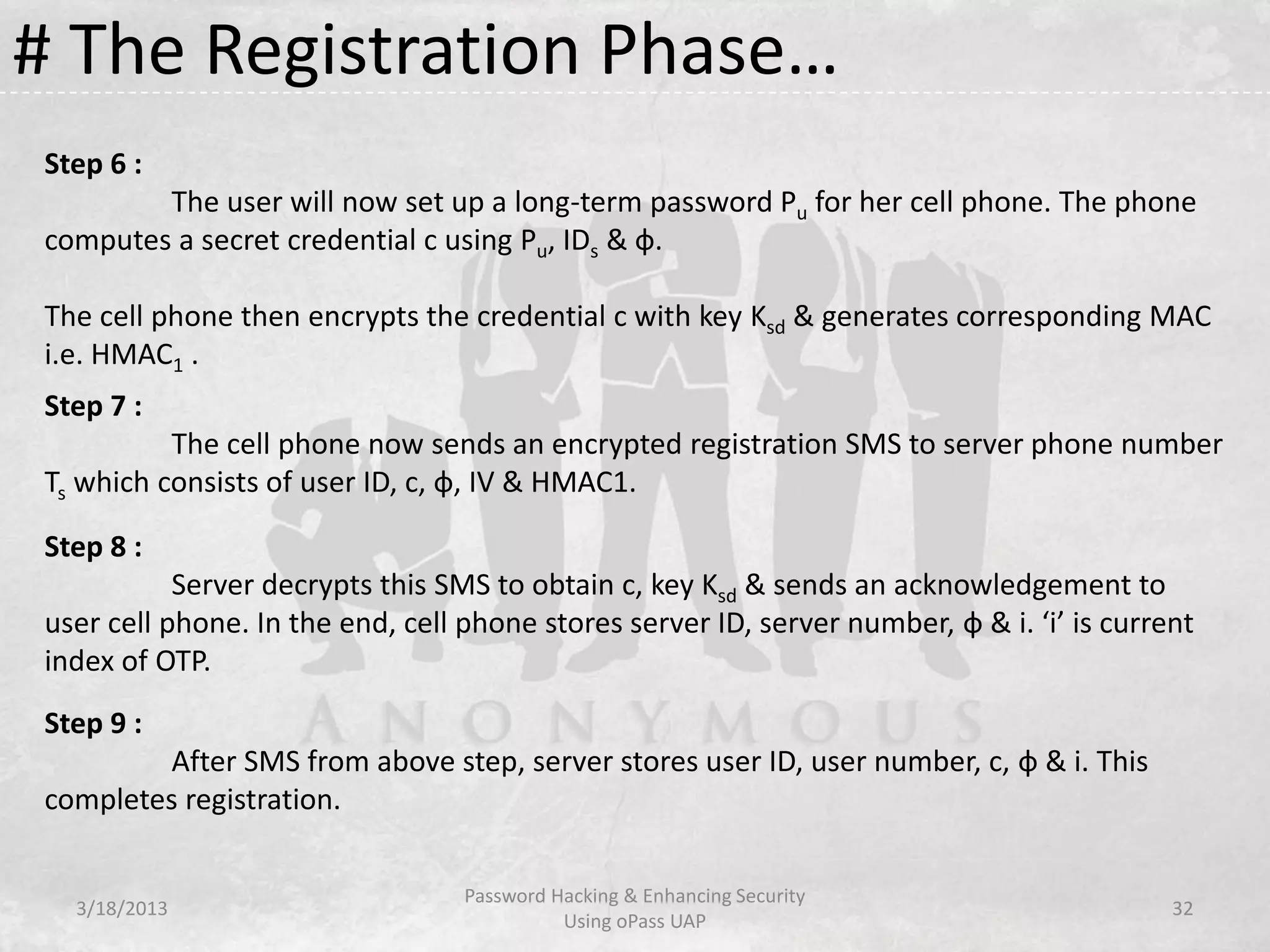

32. Step 6 :
The user will now set up a long-term password Pu for her cell phone. The phone
computes a secret credential c using Pu, IDs & ф.
The cell phone then encrypts the credential c with key Ksd & generates corresponding MAC
i.e. HMAC1 .
# The Registration Phase…
Step 7 :
The cell phone now sends an encrypted registration SMS to server phone number
Ts which consists of user ID, c, ф, IV & HMAC1.
Step 8 :
Server decrypts this SMS to obtain c, key Ksd & sends an acknowledgement to
user cell phone. In the end, cell phone stores server ID, server number, ф & i. ‘i’ is current
index of OTP.
Step 9 :
After SMS from above step, server stores user ID, user number, c, ф & i. This
completes registration.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
32

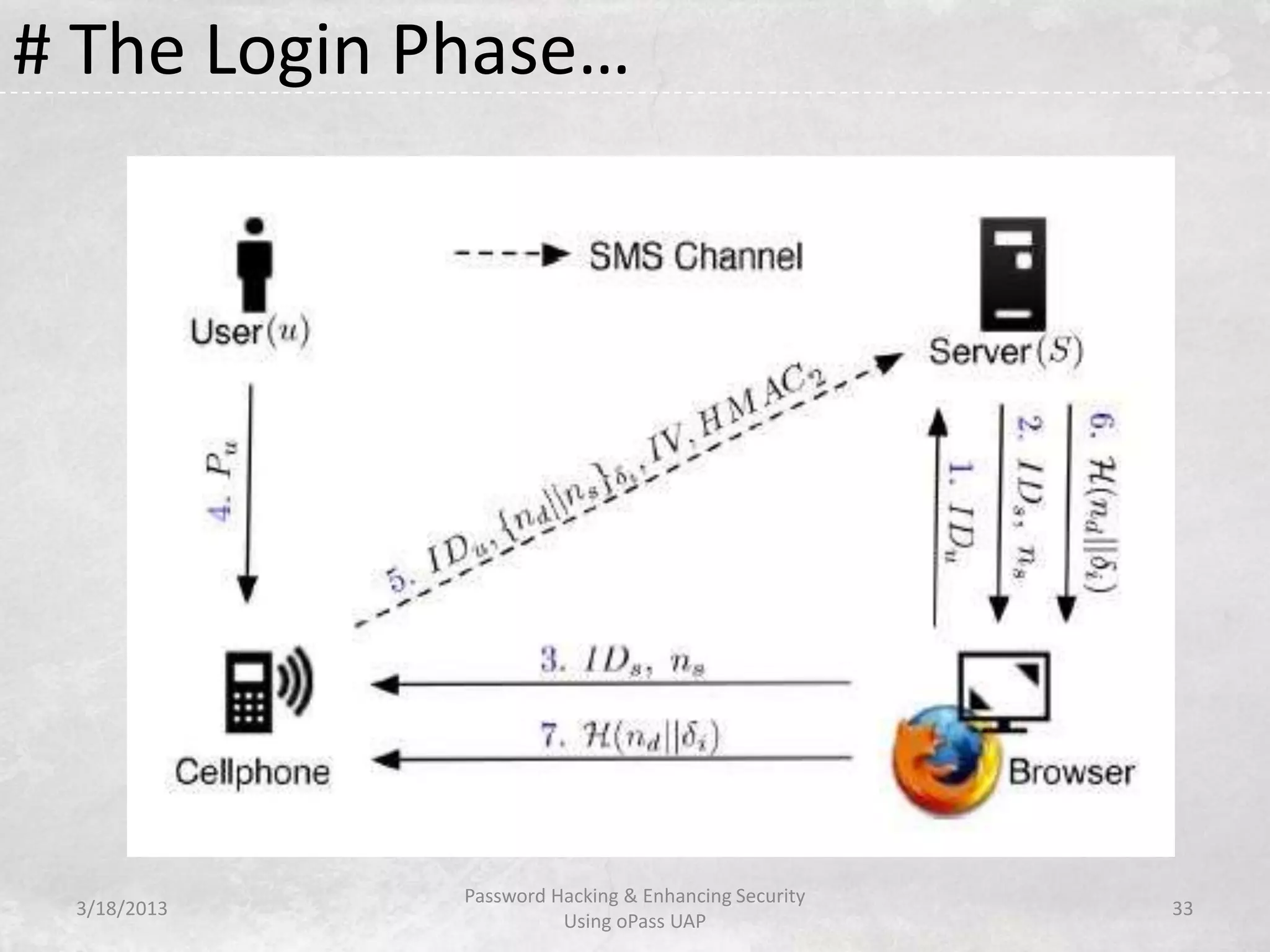

33. # The Login Phase…
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
33

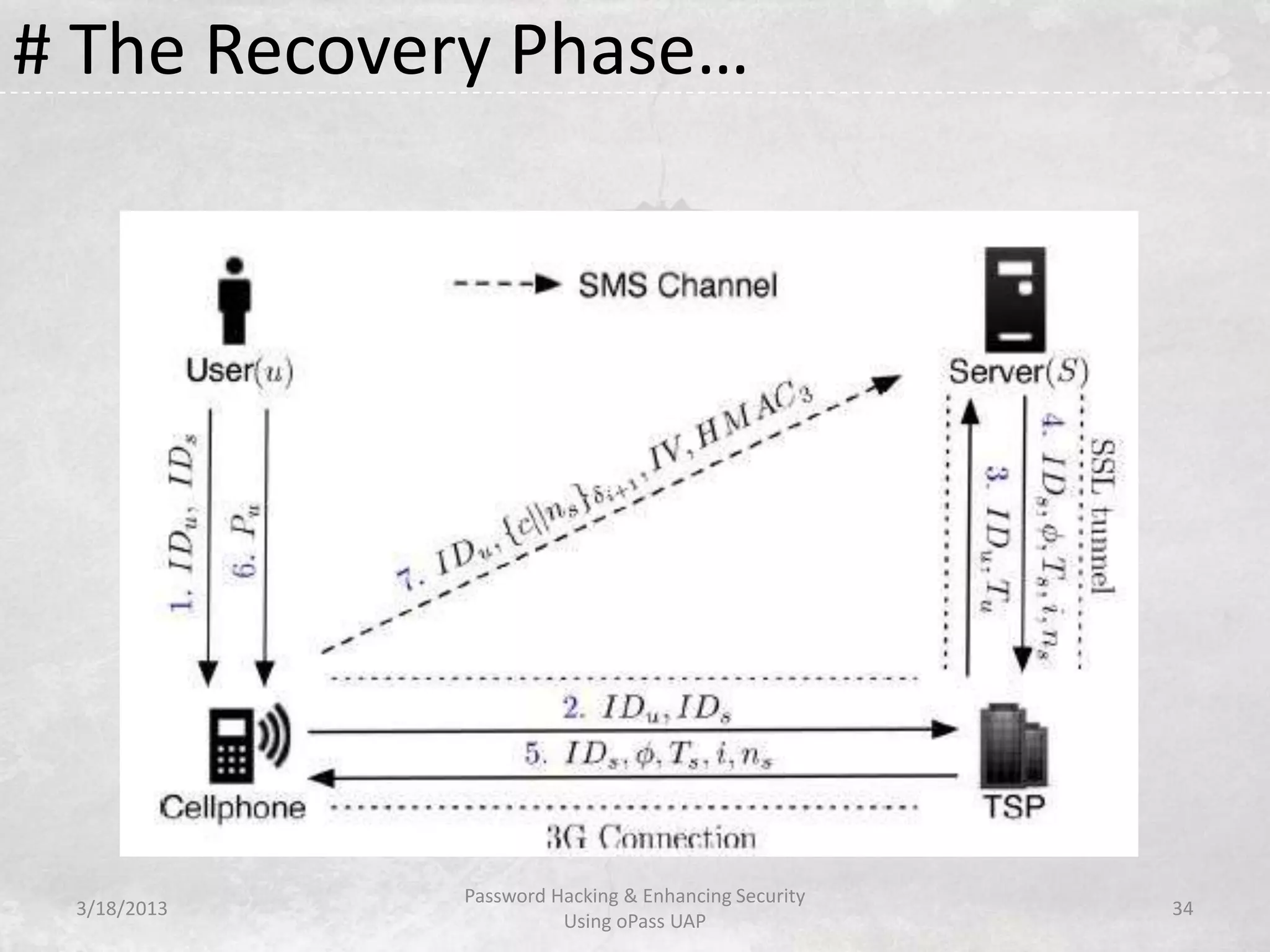

34. # The Recovery Phase…
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
34

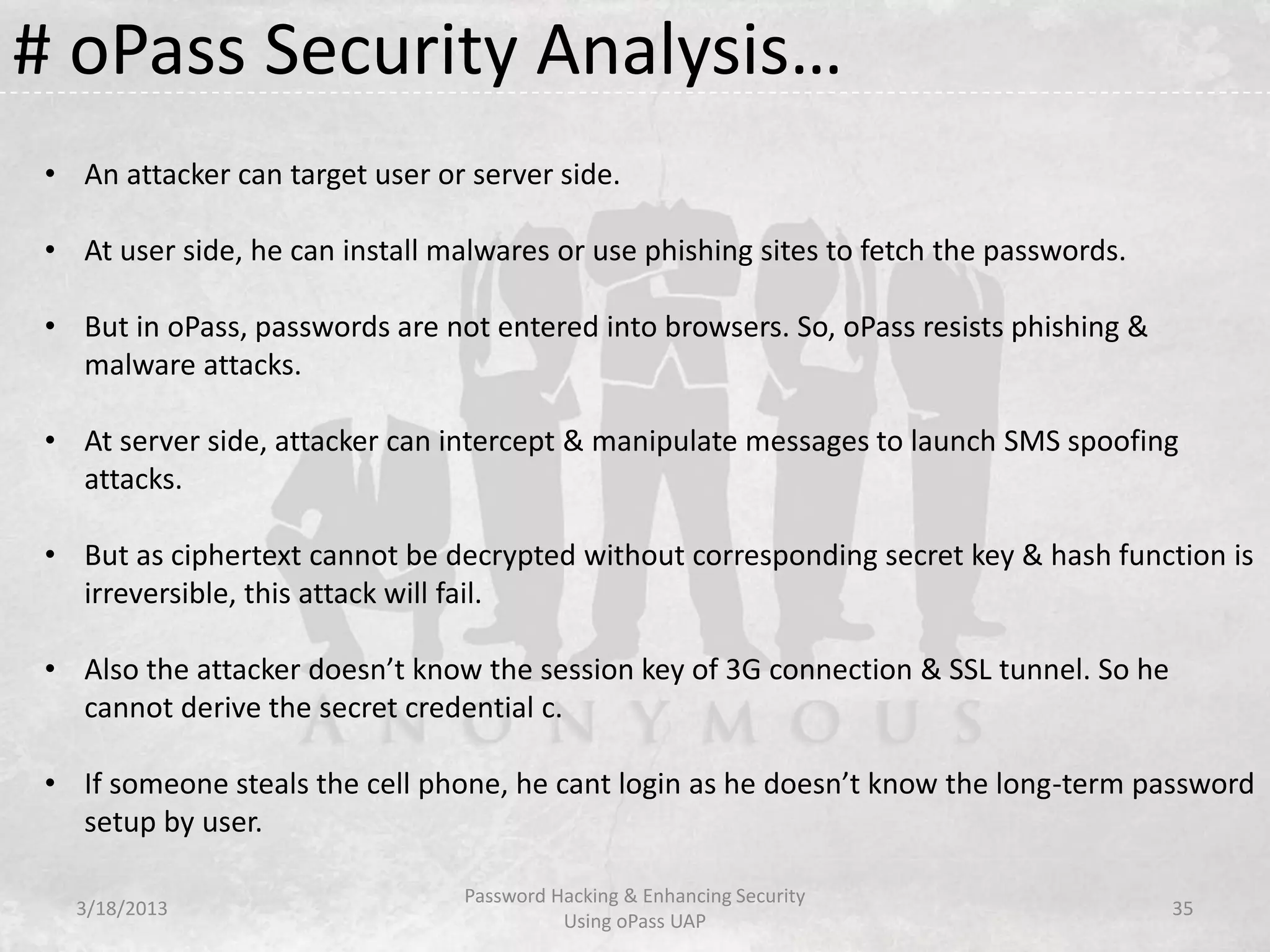

35. # oPass Security Analysis…
• An attacker can target user or server side.
• At user side, he can install malwares or use phishing sites to fetch the passwords.
• But in oPass, passwords are not entered into browsers. So, oPass resists phishing &
malware attacks.
• At server side, attacker can intercept & manipulate messages to launch SMS spoofing
attacks.
• But as ciphertext cannot be decrypted without corresponding secret key & hash function is
irreversible, this attack will fail.
• Also the attacker doesn’t know the session key of 3G connection & SSL tunnel. So he
cannot derive the secret credential c.
• If someone steals the cell phone, he cant login as he doesn’t know the long-term password
setup by user.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
35

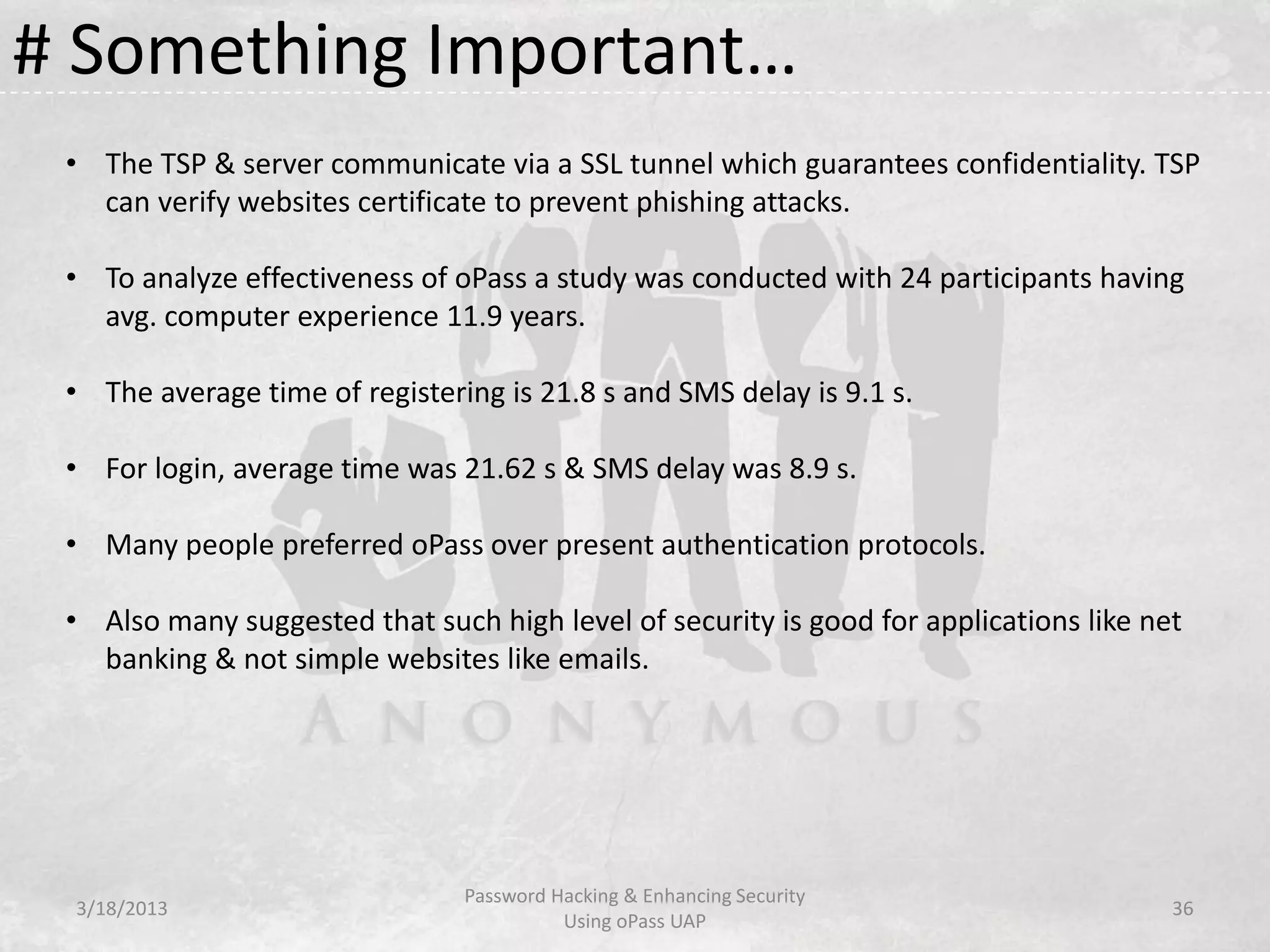

36. # Something Important…
• The TSP & server communicate via a SSL tunnel which guarantees confidentiality. TSP
can verify websites certificate to prevent phishing attacks.
• To analyze effectiveness of oPass a study was conducted with 24 participants having
avg. computer experience 11.9 years.
• The average time of registering is 21.8 s and SMS delay is 9.1 s.
• For login, average time was 21.62 s & SMS delay was 8.9 s.
• Many people preferred oPass over present authentication protocols.
• Also many suggested that such high level of security is good for applications like net
banking & not simple websites like emails.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
36

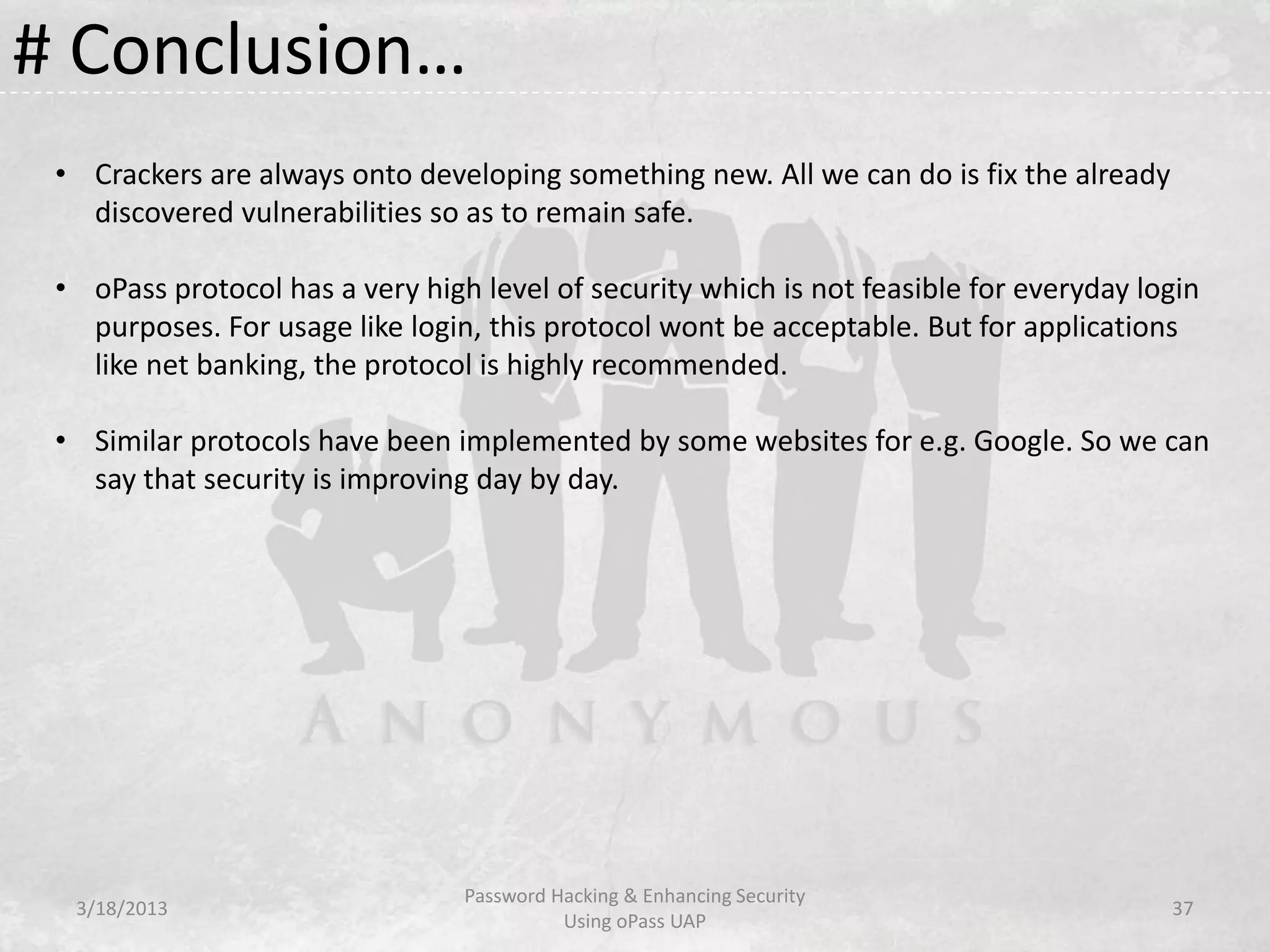

37. # Conclusion…
• Crackers are always onto developing something new. All we can do is fix the already
discovered vulnerabilities so as to remain safe.
• oPass protocol has a very high level of security which is not feasible for everyday login
purposes. For usage like login, this protocol wont be acceptable. But for applications
like net banking, the protocol is highly recommended.
• Similar protocols have been implemented by some websites for e.g. Google. So we can
say that security is improving day by day.
3/18/2013
Password Hacking & Enhancing Security
Using oPass UAP
37

38. 38
