PASS Summit - SQL Server 2017 Deep Dive
The document provides an overview of Microsoft SQL Server 2017, highlighting its performance, security features, and cross-platform compatibility, including support for Linux and Docker. It discusses various features such as in-database machine learning capabilities, graph database extensions, and improvements to in-memory processing, as well as adaptive query processing enhancements. Additionally, it includes demonstrations and applications, such as sentiment analysis and fraud detection, leveraging the integrated machine learning services.
More Related Content
Similar to PASS Summit - SQL Server 2017 Deep Dive
PASS Summit - SQL Server 2017 Deep Dive
- 1. Travis Wright ShreyaVerma Nellie Gustafsson Tobias Ternstrom Program Managers Database Systems, Microsoft SQL Server 2017 Deep Dive

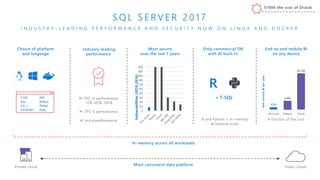

- 2. End-to-end mobile BI onany device Choice of platform and language Most secure over the last 7 years 0 20 40 60 80 100 120 140 160 180 200 Vulnerabilities(2010-2016) A fraction of the cost Self-serviceBIperuser Only commercial DB with AI built-in Microsoft Tableau Oracle $120 $480 $2,230 Industry-leading performance 1/10 Most consistent data platform #1 TPC-H performance 1TB, 10TB, 30TB #1 TPC-E performance #1 price/performance T-SQL Java C/C++ C#/VB.NET PHP Node.js Python Ruby R R and Python + in-memory at massive scale S Q L S E R V E R 2 0 1 7 I N D U S T R Y - L E A D I N G P E R F O R M A N C E A N D S E C U R I T Y N O W O N L I N U X A N D D O C K E R Private cloud Public cloud + T-SQL In-memory across all workloads 1/10th the cost of Oracle

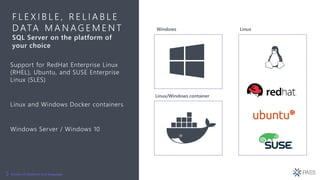

- 3. F L EX I B L E , R E L I A B L E D ATA M A N A G E M E N T SQL Server on the platform of your choice Support for RedHat Enterprise Linux (RHEL), Ubuntu, and SUSE Enterprise Linux (SLES) Linux and Windows Docker containers Windows Server / Windows 10 Choice of platform and language

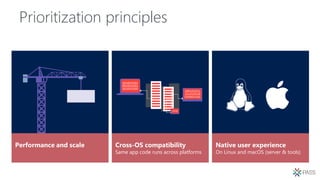

- 4. Prioritization principles Performance andscale Cross-OS compatibility Same app code runs across platforms Native user experience On Linux and macOS (server & tools)
- 5. System Architecture SQL PlatformAbstraction Layer (SQLPAL) DB Engine IS AS RS Windows Linux Windows Host Ext. Linux Host Extension SQL Platform Abstraction Layer (SQLPAL) Win32-like APIs Host Extension mapping to OS system calls (IO, Memory, CPU scheduling) SQL OS API SQL OS v2 Everything else System Resource & Latency Sensitive Code Paths

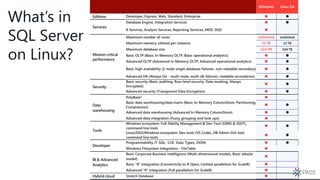

- 7. Windows Linux GA Developer,Express, Web, Standard, Enterprise Database Engine, Integration Services R Services, Analysis Services, Reporting Services, MDS, DQS Maximum number of cores Unlimited Unlimited Maximum memory utilized per instance 12 TB 12 TB Maximum database size 524 PB 524 TB Basic OLTP (Basic In-Memory OLTP, Basic operational analytics) Advanced OLTP (Advanced In-Memory OLTP, Advanced operational analytics) Basic high availability (2-node single database failover, non-readable secondary) Advanced HA (Always On - multi-node, multi-db failover, readable secondaries) Security Basic security (Basic auditing, Row-level security, Data masking, Always Encrypted) Advanced security (Transparent Data Encryption) Data warehousing PolyBase2 Basic data warehousing/data marts (Basic In-Memory ColumnStore, Partitioning, Compression) Advanced data warehousing (Advanced In-Memory ColumnStore) Advanced data integration (Fuzzy grouping and look ups) Tools Windows ecosystem: Full-fidelity Management & Dev Tool (SSMS & SSDT), command line tools Linux/OSX/Windows ecosystem: Dev tools (VS Code), DB Admin GUI tool, command line tools Developer Programmability (T-SQL, CLR, Data Types, JSON) Windows Filesystem Integration - FileTable BI & Advanced Analytics Basic Corporate Business Intelligence (Multi-dimensional models, Basic tabular model) Basic “R” integration (Connectivity to R Open, Limited parallelism for ScaleR) Advanced “R” integration (Full parallelism for ScaleR) Hybrid cloud Stretch Database What’s in SQL Server on Linux?
- 8. Programming Features • Supportfor RHEL, Ubuntu, Docker • Package based installs, Docker image • Support for Open Shift, Docker Swarm • Failover Clustering through Pacemaker • Backup/Restore • SSMS on Windows connected to Linux • Command line tools: sqlcmd, bcp • SQL Server Agent • Log Shipping • Transparent Data Encryption • SCOM Management Pack • DMVs • Full Text Search Operations Features • All major language driver compatibility • In memory OLTP and ColumnStore • Compression • Always Encrypted, Row Level Security, and Data Masking • Service Broker • Change Data Capture • Partitioning • Auditing • CLR • JSON, XML • Third party tools Features working in 2017 GA …and more!

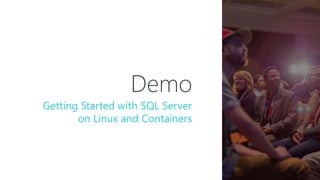

- 9. Demo Getting Started withSQL Server on Linux and Containers
- 10. M I SS I O N C R I T I C A L AVA I L A B I L I T Y O N A N Y P L AT F O R M Always On cross-platform capabilities HA and DR for Linux and Windows Clusterless Availability Groups Ultimate HA with OS-level redundancy and low-downtime migration Load balancing of readable secondaries

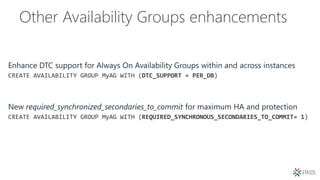

- 11. Other Availability Groupsenhancements
- 13. Demo Hybrid Always OnAvailability Groups
- 14. Machine Learning & Graph ShreyaVerma, Program Manager, Microsoft Nellie Gustafsson, Program Manager, Microsoft

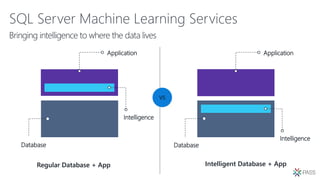

- 15. SQL Server MachineLearning Services VS Intelligence Database Application Database Application Intelligence Intelligent Database + AppRegular Database + App
- 16.

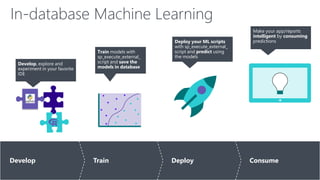

- 17. In-database Machine Learning DevelopTrain Deploy Consume Develop, explore and experiment in your favorite IDE Train models with sp_execute_external_ script and save the models in database Deploy your ML scripts with sp_execute_external_ script and predict using the models Make your app/reports intelligent by consuming predictions

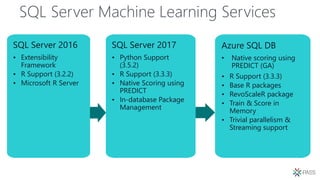

- 18. SQL Server MachineLearning Services SQL Server 2016 • Extensibility Framework • R Support (3.2.2) • Microsoft R Server SQL Server 2017 • Python Support (3.5.2) • R Support (3.3.3) • Native Scoring using PREDICT • In-database Package Management Azure SQL DB • Native scoring using PREDICT (GA) • R Support (3.3.3) • Base R packages • RevoScaleR package • Train & Score in Memory • Trivial parallelism & Streaming support

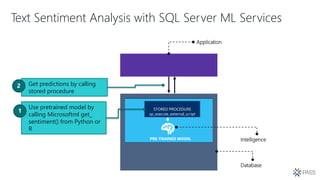

- 19. Text Sentiment Analysiswith SQL Server ML Services Use pretrained model by calling Microsoftml get_ sentiment() from Python or R Database Application Intelligence STORED PROCEDURE sp_execute_external_script PRE-TRAINED MODEL Get predictions by calling stored procedure
- 20.
- 21. Graph Extensions in SQLServer 2017
- 22. What is aGraph Database? • Edges or relationships are first class entities in a Graph Database and can have attributes or properties associated with them. • A single edge can flexibly connect multiple nodes in a Graph Database. • You can express pattern matching and multi-hop navigation queries easily. • Supports OLTP and OLAP (analytics) just like SQL databases.

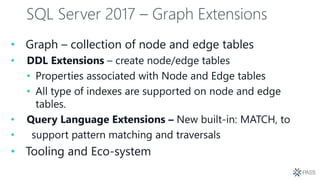

- 23. SQL Server 2017– Graph Extensions • Graph – collection of node and edge tables • DDL Extensions – create node/edge tables • Properties associated with Node and Edge tables • All type of indexes are supported on node and edge tables. • Query Language Extensions – New built-in: MATCH, to • support pattern matching and traversals • Tooling and Eco-system

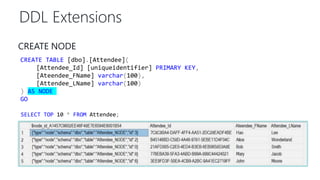

- 24. DDL Extensions CREATE NODE CREATETABLE [dbo].[Attendee]( [Attendee_Id] [uniqueidentifier] PRIMARY KEY, [Ateendee_FName] varchar(100), [Attendee_LName] varchar(100) ) AS NODE GO SELECT TOP 10 * FROM Attendee;

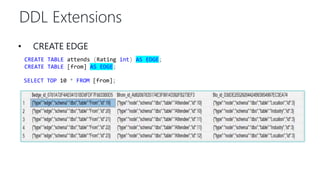

- 25. DDL Extensions CREATE TABLEattends (Rating int) AS EDGE; CREATE TABLE [from] AS EDGE; • CREATE EDGE SELECT TOP 10 * FROM [from];

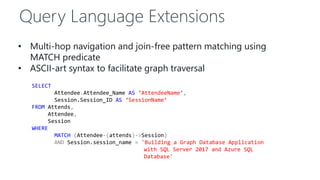

- 26. Query Language Extensions •Multi-hop navigation and join-free pattern matching using MATCH predicate • ASCII-art syntax to facilitate graph traversal SELECT Attendee.Attendee_Name AS ‘AttendeeName’, Session.Session_ID AS ‘SessionName’ FROM Attends, Attendee, Session WHERE MATCH (Attendee-(attends)->Session) AND Session.session_name = 'Building a Graph Database Application with SQL Server 2017 and Azure SQL Database'

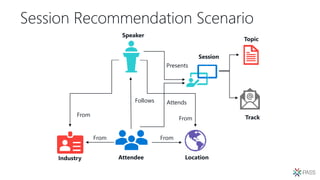

- 27. Session Recommendation Scenario Speaker AttendeeLocation Follows From Industry From Session Presents Attends Track Topic From From

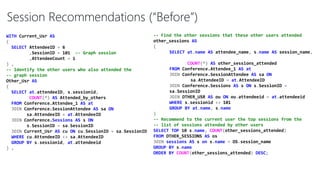

- 28. -- Find theother sessions that these other users attended other_sessions AS ( SELECT at.name AS attendee_name, s.name AS session_name, COUNT(*) AS other_sessions_attended FROM Conference.Attendee_1 AS at JOIN Conference.SessionAttendee AS sa ON sa.AttendeeID = at.AttendeeID JOIN Conference.Sessions AS s ON s.SessionID = sa.SessionID JOIN OTHER_USR AS ou ON ou.attendeeid = at.attendeeid WHERE s.sessionid <> 101 GROUP BY at.name, s.name ) -- Recommend to the current user the top sessions from the -- list of sessions attended by other users SELECT TOP 10 s.name, COUNT(other_sessions_attended) FROM OTHER_SESSIONS AS os JOIN sessions AS s on s.name = OS.session_name GROUP BY s.name ORDER BY COUNT(other_sessions_attended) DESC; WITH Current_Usr AS ( SELECT AttendeeID = 6 ,SessionID = 101 -- Graph session ,AttendeeCount = 1 ) , -- Identify the other users who also attended the -- graph session Other_Usr AS ( SELECT at.attendeeID, s.sessionid, COUNT(*) AS Attended_by_others FROM Conference.Attendee_1 AS at JOIN Conference.SessionAttendee AS sa ON sa.AttendeeID = at.AttendeeID JOIN Conference.Sessions AS s ON s.SessionID = sa.SessionID JOIN Current_Usr AS cu ON cu.SessionID = sa.SessionID WHERE cu.AttendeeID <> sa.AttendeeID GROUP BY s.sessionid, at.attendeeid ) , Session Recommendations (“Before”)

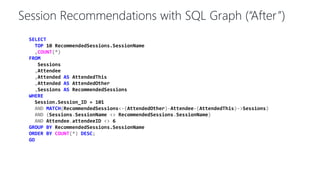

- 29. SELECT TOP 10 RecommendedSessions.SessionName ,COUNT(*) FROM Sessions ,Attendee ,AttendedAS AttendedThis ,Attended AS AttendedOther ,Sessions AS RecommendedSessions WHERE Session.Session_ID = 101 AND MATCH(RecommendedSessions<-(AttendedOther)-Attendee-(AttendedThis)->Sessions) AND (Sessions.SessionName <> RecommendedSessions.SessionName) AND Attendee.attendeeID <> 6 GROUP BY RecommendedSessions.SessionName ORDER BY COUNT(*) DESC; GO Session Recommendations with SQL Graph (“After”)
- 30. Fraud detection using SQLGraph and Machine Learning Services with Python

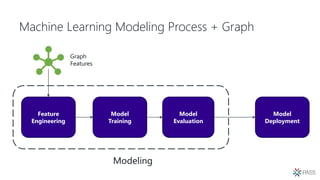

- 31. Machine Learning ModelingProcess + Graph Feature Engineering Model Training Model Evaluation Modeling Model Deployment Graph Features
- 32.
- 33.

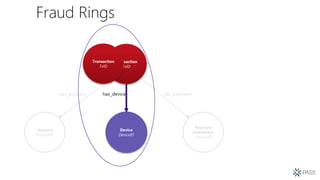

- 34.

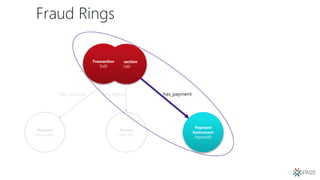

- 35.

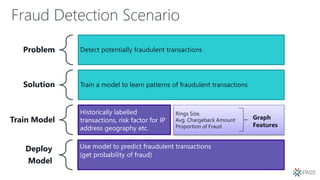

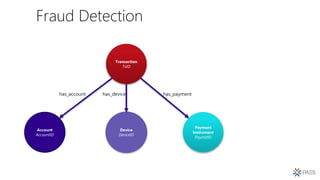

- 36. Fraud Detection Scenario ProblemDetect potentially fraudulent transactions Solution Train a model to learn patterns of fraudulent transactions Train Model Historically labelled transactions, risk factor for IP address geography etc. Deploy Model Use model to predict fraudulent transactions (get probability of fraud) Rings Size, Avg. Chargeback Amount Proportion of Fraud Graph Features
- 37.

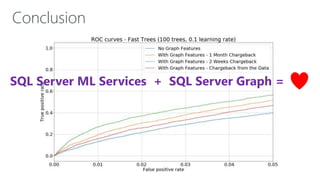

- 38. Conclusion SQL Server MLServices + SQL Server Graph =

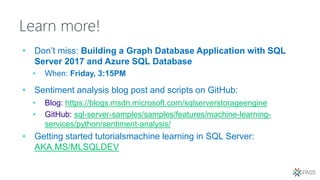

- 39. Learn more! • Don’tmiss: Building a Graph Database Application with SQL Server 2017 and Azure SQL Database • When: Friday, 3:15PM • Sentiment analysis blog post and scripts on GitHub: • Blog: https://blogs.msdn.microsoft.com/sqlserverstorageengine • GitHub: sql-server-samples/samples/features/machine-learning- services/python/sentiment-analysis/ • Getting started tutorialsmachine learning in SQL Server: AKA.MS/MLSQLDEV

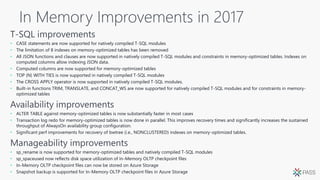

- 40. In Memory Improvementsin 2017 • CASE statements are now supported for natively compiled T-SQL modules • The limitation of 8 indexes on memory-optimized tables has been removed • All JSON functions and clauses are now supported in natively compiled T-SQL modules and constraints in memory-optimized tables. Indexes on computed columns allow indexing JSON data. • Computed columns are now supported for memory-optimized tables • TOP (N) WITH TIES is now supported in natively compiled T-SQL modules • The CROSS APPLY operator is now supported in natively compiled T-SQL modules. • Built-in functions TRIM, TRANSLATE, and CONCAT_WS are now supported for natively compiled T-SQL modules and for constraints in memory- optimized tables • ALTER TABLE against memory-optimized tables is now substantially faster in most cases • Transaction log redo for memory-optimized tables is now done in parallel. This improves recovery times and significantly increases the sustained throughput of AlwaysOn availability group configuration. • Significant perf improvements for recovery of bwtree (i.e., NONCLUSTERED) indexes on memory-optimized tables. • sp_rename is now supported for memory-optimized tables and natively compiled T-SQL modules • sp_spaceused now reflects disk space utilization of In-Memory OLTP checkpoint files • In-Memory OLTP checkpoint files can now be stored on Azure Storage • Snapshot backup is supported for In-Memory OLTP checkpoint files in Azure Storage
- 41.
- 42. Tiger Team Improvements •SELECT INTO … ON FileGroup Loading data into staging tables in non-default file groups • tempdb setup improvements - 1 GB -> 256 GB • Support MAXDOP option for statistics create/update • Improved backup performance –> • + 10s of other improvements

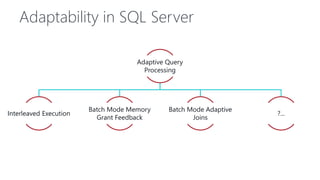

- 43. Adaptability in SQLServer Adaptive Query Processing Interleaved Execution Batch Mode Memory Grant Feedback Batch Mode Adaptive Joins ?...

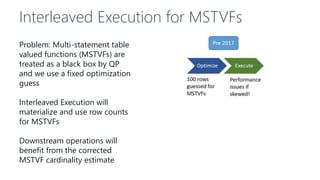

- 44. Interleaved Execution forMSTVFs Problem: Multi-statement table valued functions (MSTVFs) are treated as a black box by QP and we use a fixed optimization guess Interleaved Execution will materialize and use row counts for MSTVFs Downstream operations will benefit from the corrected MSTVF cardinality estimate

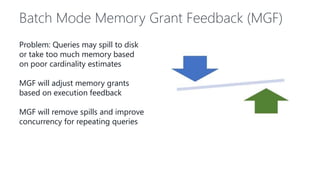

- 45. Batch Mode MemoryGrant Feedback (MGF) Problem: Queries may spill to disk or take too much memory based on poor cardinality estimates MGF will adjust memory grants based on execution feedback MGF will remove spills and improve concurrency for repeating queries

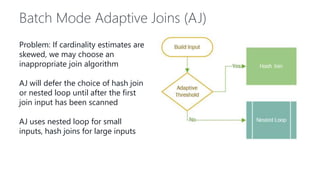

- 46. Batch Mode AdaptiveJoins (AJ) Problem: If cardinality estimates are skewed, we may choose an inappropriate join algorithm AJ will defer the choice of hash join or nested loop until after the first join input has been scanned AJ uses nested loop for small inputs, hash joins for large inputs

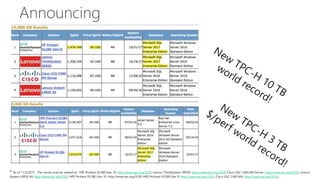

- 47. Announcing * As of11/2/2017. The results may be viewed at: HPE Proliant DL580 Gen 10: http://www.tpc.org/3329; Lenovo ThinkSystem SR950: http://www.tpc.org/3328; Cisco USC C460 M4 Server: http://www.tpc.org/3326; Lenovo System x3850 X6: http://www.tpc.org/3325; HPE Proliant DL380 Gen 10: http://www.tpc.org/3330; HPE ProLiant DL580 Gen 9: http://www.tpc.org/3323; Cisco USC C460 M4: http://www.tpc.org/3323;
- 48. Thank You Hit usup! tobiast@microsoft.com@tobiassql twright@microsoft.com@radtravis
- 49. Session evaluations Download theGuideBook App and search: PASS Summit 2017 Follow the QR code link displayed on session signage throughout the conference venue and in the program guide Your feedback is important and valuable. Go to passSummit.com Submit by 5pm Friday, November 10th to win prizes. 3 Ways to Access:
