The document discusses using the Paco parsing library in Elixir. It shows how to define parsers for literals, sequences, repetitions, alternatives and more. It also demonstrates parsing expressions, references to elements with quantities, and converting terms to parsers via a Parsable protocol.

1. elixir

2. !
"
#

10. Interactive Elixir (1.1.0)
iex(1)> import Paco
nil
iex(2)> import Paco.Parser
nil
iex(3)> parse("a", lit("a"))
{:ok, "a"}
iex(4)> parse("a", lit("a"), format: :raw)
%Paco.Success{
from: {0, 1, 1},
to: {0, 1, 1},
at: {1, 1, 2},
result: "a",
tail: "",
...}

11. iex(5)> parse("aaa", lit("aaa"))
{:ok, "aaa"}
iex(6)> "aaa" |> parse(lit("aaa"))
{:ok, "aaa"}
iex(7)> "aaa" |> parse(lit("a"))
{:ok, "a"}
iex(8)> "aaa" |> parse(lit("a"), format: :raw)
%Paco.Success{
from: {0, 1, 1},
to: {0, 1, 1},
at: {1, 1, 2},
result: "a",
tail: "aa",
...}

12. iex(9)> "b" |> parse(lit("a"))
{:error, "expected "a" at 1:1 but got "b""}
iex(10)> "b" |> parse(lit("a"), format: :raw)
%Paco.Failure{
at: {0, 1, 1},
expected: "a",
tail: "b",
...}

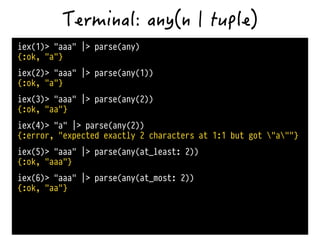

13. iex(1)> "aaa" |> parse(any)
{:ok, "a"}
iex(2)> "aaa" |> parse(any(1))
{:ok, "a"}
iex(3)> "aaa" |> parse(any(2))
{:ok, "aa"}
iex(4)> "a" |> parse(any(2))
{:error, "expected exactly 2 characters at 1:1 but got "a""}
iex(5)> "aaa" |> parse(any(at_least: 2))
{:ok, "aaa"}
iex(6)> "aaa" |> parse(any(at_most: 2))
{:ok, "aa"}

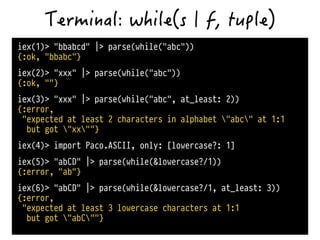

14. iex(1)> "bbabcd" |> parse(while("abc"))
{:ok, "bbabc"}
iex(2)> "xxx" |> parse(while("abc"))
{:ok, ""}
iex(3)> "xxx" |> parse(while("abc", at_least: 2))
{:error,
"expected at least 2 characters in alphabet "abc" at 1:1
but got "xx""}
iex(4)> import Paco.ASCII, only: [lowercase?: 1]
iex(5)> "abCD" |> parse(while(&lowercase?/1))
{:error, "ab"}
iex(6)> "abCD" |> parse(while(&lowercase?/1, at_least: 3))
{:error,
"expected at least 3 lowercase characters at 1:1
but got "abC""}

15. iex(1)> "abc" |> parse(until("c"))
{:ok, "ab"}
iex(2)> "abcdc" |> parse(until("c", escaped_with: ""))
{:ok, "abcd"}
iex(3)> "abcdc" |> parse(until("c", escaped_with: "",
keep_escape: true))
{:ok, "abcd"}
iex(4)> "abc" |> parse(until("d"))
{:error, "expected something ended by "d" at 1:1
but got "abc""}
iex(5)> "abc" |> parse(until("d"), eof: true)
{:error, "abc"}

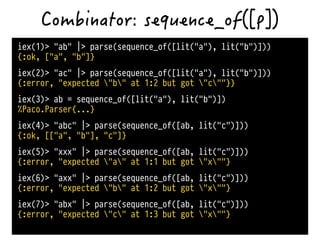

16. iex(1)> "ab" |> parse(sequence_of([lit("a"), lit("b")]))
{:ok, ["a", "b"]}
iex(2)> "ac" |> parse(sequence_of([lit("a"), lit("b")]))
{:error, "expected "b" at 1:2 but got "c""}}
iex(3)> ab = sequence_of([lit("a"), lit("b")])
%Paco.Parser{...}
iex(4)> "abc" |> parse(sequence_of([ab, lit("c")]))
{:ok, [["a", "b"], "c"]}
iex(5)> "xxx" |> parse(sequence_of([ab, lit("c")]))
{:error, "expected "a" at 1:1 but got "x""}
iex(6)> "axx" |> parse(sequence_of([ab, lit("c")]))
{:error, "expected "b" at 1:2 but got "x""}
iex(7)> "abx" |> parse(sequence_of([ab, lit("c")]))
{:error, "expected "c" at 1:3 but got "x""}

17. iex(1)> "a" |> parse(one_of([lit("a"), lit("b")]))
{:ok, "a"}
iex(2)> "b" |> parse(one_of([lit("a"), lit("b")]))
{:ok, "b"}
iex(4)> # farthest failure (higher rank) wins
nil
iex(3)> "ab" |> parse(one_of([lit("ac"), lit("bc")]))
{:error, "expected "ac" at 1:1 but got "ab""}
iex(6)> # failures with same rank are composed
nil
iex(5)> "ab" |> parse(one_of([lit("ac"), lit("ad")]))
{:error, "expected one of ["ac", "ad"] at 1:1
but got "ab""}

18. iex(1)> "aaa" |> parse(repeat(lit("a")))
{:ok, ["a", "a", "a"]}
iex(2)> "aaa" |> parse(repeat(lit("a"), 2))
{:ok, ["a", "a"]}
iex(4)> "aaa" |> parse(repeat(lit("a"), at_most: 2))
{:ok, ["a", "a"]}
iex(3)> "aaa" |> parse(repeat(lit("a"), at_least: 4))
{:error, ""expected "a" at 1:2 but got the end of input"}
iex(6)> "abba" |> parse(repeat(one_of([lit("a"), lit("b")])))
{:ok, ["a", "b", "b", "a"]}

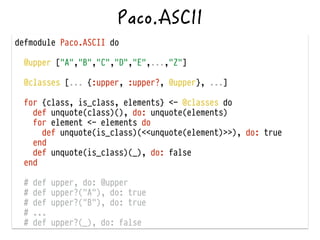

19. defmodule Paco.ASCII do
!
@upper ["A","B","C","D","E",...,"Z"]
!
@classes [... {:upper, :upper?, @upper}, ...]
for {class, is_class, elements} <- @classes do
def unquote(class)(), do: unquote(elements)
for element <- elements do
def unquote(is_class)(<<unquote(element)>>), do: true
end
def unquote(is_class)(_), do: false
end
!
# def upper, do: @upper
# def upper?("A"), do: true
# def upper?("B"), do: true
# ...
# def upper?(_), do: false

20. ws = while(ASCII.ws)
!
hello = lit("Hello")
separator = sequence_of([ws, lit(","), ws])
what = while(ASCII.letter, at_least: 1)
terminator = sequence_of([ws, lit("!")])
!
greetings = sequence_of([hello, separator, what, terminator])
!
parse("Hello,World!", greetings) |> IO.inspect
# {:ok, ["Hello", ["", ",", ""], "World", ["", "!"]]}
!
parse("Hello, BEAM!", greetings) |> IO.inspect
# {:ok, ["Hello", ["", ",", " "], "BEAM", ["", "!"]]}

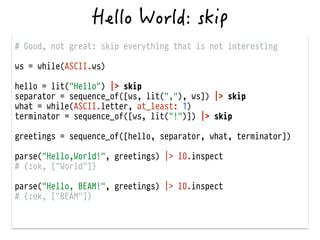

21. # Good, not great: skip everything that is not interesting
!
ws = while(ASCII.ws)
!
hello = lit("Hello") |> skip
separator = sequence_of([ws, lit(","), ws]) |> skip
what = while(ASCII.letter, at_least: 1)
terminator = sequence_of([ws, lit("!")]) |> skip
!
greetings = sequence_of([hello, separator, what, terminator])
!
parse("Hello,World!", greetings) |> IO.inspect
# {:ok, ["World"]}
!
parse("Hello, BEAM!", greetings) |> IO.inspect
# {:ok, ["BEAM"]}

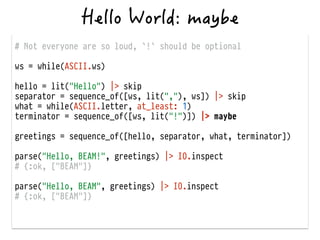

22. # Not everyone are so loud, `!` should be optional
!
ws = while(ASCII.ws)
!
hello = lit("Hello") |> skip
separator = sequence_of([ws, lit(","), ws]) |> skip
what = while(ASCII.letter, at_least: 1)
terminator = sequence_of([ws, lit("!")]) |> maybe
!
greetings = sequence_of([hello, separator, what, terminator])
!
parse("Hello, BEAM!", greetings) |> IO.inspect
# {:ok, ["BEAM"]}
!
parse("Hello, BEAM", greetings) |> IO.inspect
# {:ok, ["BEAM"]}

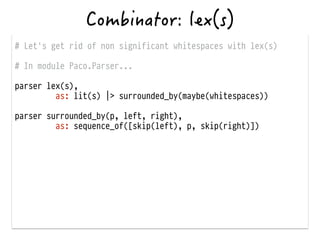

23. # Let's get rid of non significant whitespaces with lex(s)
!
# In module Paco.Parser...
!
parser lex(s),
as: lit(s) |> surrounded_by(maybe(whitespaces))
!
parser surrounded_by(p, left, right),
as: sequence_of([skip(left), p, skip(right)])

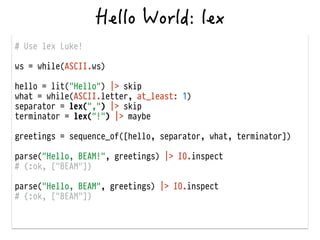

24. # Use lex Luke!
!
ws = while(ASCII.ws)
!
hello = lit("Hello") |> skip
what = while(ASCII.letter, at_least: 1)
separator = lex(",") |> skip
terminator = lex("!") |> maybe
!
greetings = sequence_of([hello, separator, what, terminator])
!
parse("Hello, BEAM!", greetings) |> IO.inspect
# {:ok, ["BEAM"]}
!
parse("Hello, BEAM", greetings) |> IO.inspect
# {:ok, ["BEAM"]}

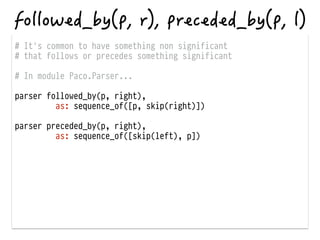

25. # It's common to have something non significant
# that follows or precedes something significant
!
# In module Paco.Parser...
!
parser followed_by(p, right),
as: sequence_of([p, skip(right)])
!
parser preceded_by(p, right),
as: sequence_of([skip(left), p])

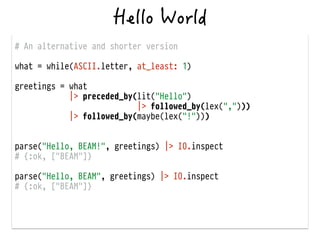

26. # An alternative and shorter version
!
what = while(ASCII.letter, at_least: 1)
!
greetings = what
|> preceded_by(lit("Hello")
|> followed_by(lex(",")))
|> followed_by(maybe(lex("!")))
!
!
parse("Hello, BEAM!", greetings) |> IO.inspect
# {:ok, ["BEAM"]}
!
parse("Hello, BEAM", greetings) |> IO.inspect
# {:ok, ["BEAM"]}

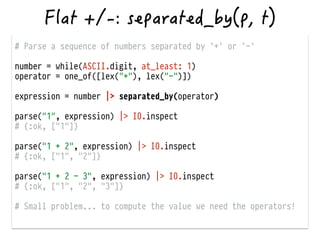

27. # Parse a sequence of numbers separated by `+` or `-`
!
number = while(ASCII.digit, at_least: 1)
operator = one_of([lex("+"), lex("-")])
!
expression = number |> separated_by(operator)
!
parse("1", expression) |> IO.inspect
# {:ok, ["1"]}
!
parse("1 + 2", expression) |> IO.inspect
# {:ok, ["1", "2"]}
!
parse("1 + 2 - 3", expression) |> IO.inspect
# {:ok, ["1", "2", "3"]}
!
# Small problem... to compute the value we need the operators!

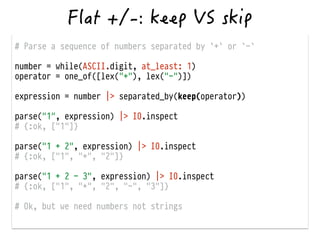

28. # Parse a sequence of numbers separated by `+` or `-`
!
number = while(ASCII.digit, at_least: 1)
operator = one_of([lex("+"), lex("-")])
!
expression = number |> separated_by(keep(operator))
!
parse("1", expression) |> IO.inspect
# {:ok, ["1"]}
!
parse("1 + 2", expression) |> IO.inspect
# {:ok, ["1", "+", "2"]}
!
parse("1 + 2 - 3", expression) |> IO.inspect
# {:ok, ["1", "+", "2", "-", "3"]}
!
# Ok, but we need numbers not strings

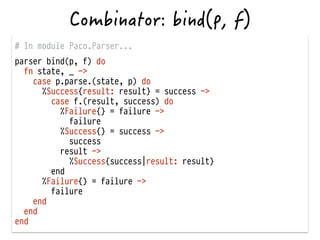

29. # In module Paco.Parser...
parser bind(p, f) do
fn state, _ ->
case p.parse.(state, p) do
%Success{result: result} = success ->
case f.(result, success) do
%Failure{} = failure ->
failure
%Success{} = success ->
success
result ->
%Success{success|result: result}
end
%Failure{} = failure ->
failure
end
end
end

30. # Parse a sequence of numbers separated by `+` or `-`
!
number = while(ASCII.digit, at_least: 1)
|> bind(&String.to_integer/1)
!
operator = one_of([lex("+"), lex("-")])
!
expression = number |> separated_by(keep(operator))
!
parse("1 + 2 - 3", expression) |> IO.inspect
# {:ok, [1, "+", 2, "-", 3]}
!
# Missing only the last step... compute the result :-)

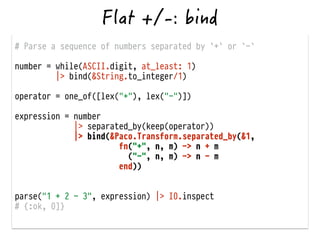

31. # Parse a sequence of numbers separated by `+` or `-`
!
number = while(ASCII.digit, at_least: 1)
|> bind(&String.to_integer/1)
!
operator = one_of([lex("+"), lex("-")])
!
expression = number
|> separated_by(keep(operator))
|> bind(&Paco.Transform.separated_by(&1,
fn("+", n, m) -> n + m
("-", n, m) -> n - m
end))
!
!
parse("1 + 2 - 3", expression) |> IO.inspect
# {:ok, 0]}

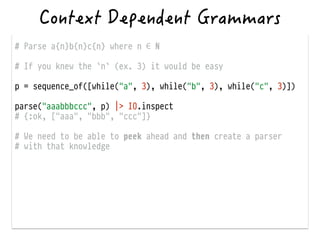

32. # Parse a{n}b{n}c{n} where n ∈ ℕ
!
# If you knew the `n` (ex. 3) it would be easy
!
p = sequence_of([while("a", 3), while("b", 3), while("c", 3)])
!
parse("aaabbbccc", p) |> IO.inspect
# {:ok, ["aaa", "bbb", "ccc"]}
!
# We need to be able to peek ahead and then create a parser
# with that knowledge

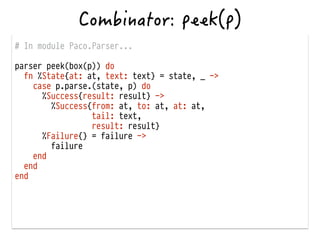

33. # In module Paco.Parser...
!
parser peek(box(p)) do
fn %State{at: at, text: text} = state, _ ->
case p.parse.(state, p) do
%Success{result: result} ->
%Success{from: at, to: at, at: at,
tail: text,
result: result}
%Failure{} = failure ->
failure
end
end
end

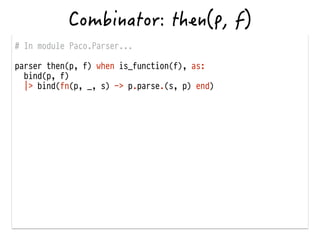

34. # In module Paco.Parser...
!
parser then(p, f) when is_function(f), as:
bind(p, f)
|> bind(fn(p, _, s) -> p.parse.(s, p) end)

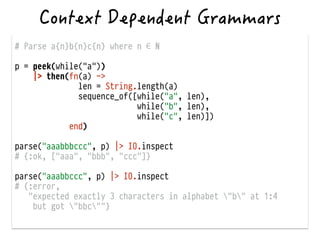

35. # Parse a{n}b{n}c{n} where n ∈ ℕ
!
p = peek(while("a"))
|> then(fn(a) ->
len = String.length(a)
sequence_of([while("a", len),
while("b", len),
while("c", len)])
end)
!
parse("aaabbbccc", p) |> IO.inspect
# {:ok, ["aaa", "bbb", "ccc"]}
!
parse("aaabbccc", p) |> IO.inspect
# {:error,
"expected exactly 3 characters in alphabet "b" at 1:4
but got "bbc""}

36. # An `element` is a word beginning with one uppercase letter
# followed by zero or more lowercase letters
element = sequence_of([while(ASCII.upper, 1),
while(ASCII.lower)])
!
# A `quantity` is a number greater than zero
# If the quantity is omitted assume the value of 1 as default
quantity = while(ASCII.digit, at_least: 1)
|> bind(&String.to_integer/1)
|> maybe(default: 1)
!
# A `reference` is an element optionally followed by a quantity
reference = sequence_of([element, quantity])
!
formula = repeat(reference, at_least: 1)

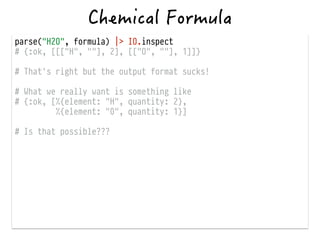

37. parse("H2O", formula) |> IO.inspect
# {:ok, [[["H", ""], 2], [["O", ""], 1]]}
!
# That's right but the output format sucks!
!
# What we really want is something like
# {:ok, [%{element: "H", quantity: 2},
%{element: "0", quantity: 1}]
!
# Is that possible???

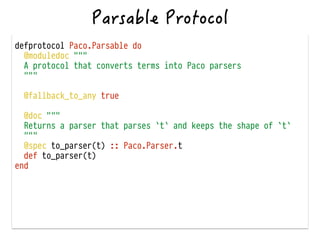

38. defprotocol Paco.Parsable do
@moduledoc """
A protocol that converts terms into Paco parsers
"""
@fallback_to_any true
@doc """
Returns a parser that parses `t` and keeps the shape of `t`
"""
@spec to_parser(t) :: Paco.Parser.t
def to_parser(t)
end

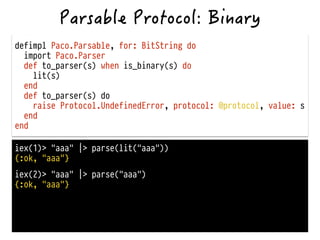

39. defimpl Paco.Parsable, for: BitString do
import Paco.Parser
def to_parser(s) when is_binary(s) do
lit(s)
end
def to_parser(s) do
raise Protocol.UndefinedError, protocol: @protocol, value: s
end
end
iex(1)> "aaa" |> parse(lit("aaa"))
{:ok, "aaa"}
iex(2)> "aaa" |> parse("aaa")
{:ok, "aaa"}

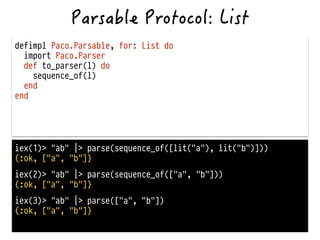

40. defimpl Paco.Parsable, for: List do
import Paco.Parser
def to_parser(l) do
sequence_of(l)
end
end
iex(1)> "ab" |> parse(sequence_of([lit("a"), lit("b")]))
{:ok, ["a", "b"]}
iex(2)> "ab" |> parse(sequence_of(["a", "b"]))
{:ok, ["a", "b"]}
iex(3)> "ab" |> parse(["a", "b"])
{:ok, ["a", "b"]}

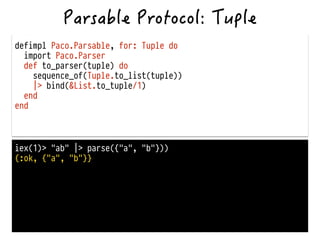

41. defimpl Paco.Parsable, for: Tuple do
import Paco.Parser
def to_parser(tuple) do
sequence_of(Tuple.to_list(tuple))
|> bind(&List.to_tuple/1)
end
end
iex(1)> "ab" |> parse({"a", "b"}))
{:ok, {"a", "b"}}

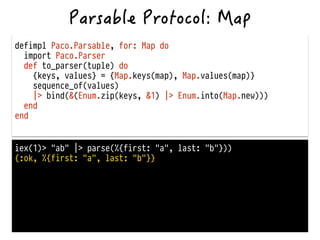

42. defimpl Paco.Parsable, for: Map do
import Paco.Parser
def to_parser(tuple) do
{keys, values} = {Map.keys(map), Map.values(map)}
sequence_of(values)
|> bind(&(Enum.zip(keys, &1) |> Enum.into(Map.new)))
end
end
iex(1)> "ab" |> parse(%{first: "a", last: "b"}))
{:ok, %{first: "a", last: "b"}}

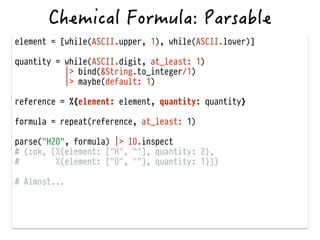

43. element = [while(ASCII.upper, 1), while(ASCII.lower)]
!
quantity = while(ASCII.digit, at_least: 1)
|> bind(&String.to_integer/1)
|> maybe(default: 1)
!
reference = %{element: element, quantity: quantity}
!
formula = repeat(reference, at_least: 1)
!
parse("H2O", formula) |> IO.inspect
# {:ok, [%{element: ["H", ""], quantity: 2},
# %{element: ["O", ""], quantity: 1}]}
!
# Almost...

44. # parser join(p, joiner ""),
# as: bind(p, &Enum.join(&1, joiner))
!
element = [while(ASCII.upper, 1), while(ASCII.lower)]
|> join
!
quantity = while(ASCII.digit, at_least: 1)
|> bind(&String.to_integer/1)
|> maybe(default: 1)
!
reference = %{element: element, quantity: quantity}
!
formula = repeat(reference, at_least: 1)
!
parse("H2O", formula) |> IO.inspect
# {:ok, [%{element: "H", quantity: 2},
# %{element: "O", quantity: 1}]}
!
# Yahoooo!!!

45. element = [while(ASCII.upper, 1), while(ASCII.lower)]
|> join
!
# Bub a `quantity` is a number greater than zero!
quantity = while(ASCII.digit, at_least: 1)
|> bind(&String.to_integer/1)
|> maybe(default: 1)
!
reference = %{element: element, quantity: quantity}
!
formula = repeat(reference, at_least: 1)
!
parse("Na0", formula) |> IO.inspect
# {:ok, [%{element: "Na", quantity: 0}]}
!
# Ouch...

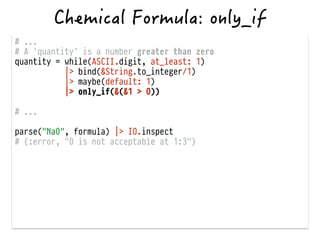

46. # ...
# A `quantity` is a number greater than zero
quantity = while(ASCII.digit, at_least: 1)
|> bind(&String.to_integer/1)
|> maybe(default: 1)
|> only_if(&(&1 > 0))
!
# ...
!
parse("Na0", formula) |> IO.inspect
# {:error, "0 is not acceptable at 1:3"}

47. # ...
# A `quantity` is a number greater than zero
!
error_message = "quantity must be greather than 0 %AT%"
!
greater_than_zero = &{&1 > 0, error_message}
!
quantity = while(ASCII.digit, at_least: 1)
|> bind(&String.to_integer/1)
|> maybe(default: 1)
|> only_if(greater_than_zero))
!
# ...
!
parse("Na0", formula) |> IO.inspect
# {:error, "quantity must be greather than 0 at 1:3"}

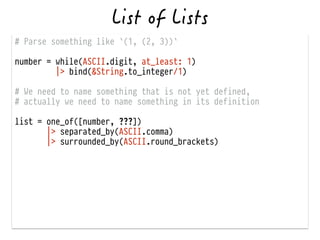

48. # Parse something like `(1, (2, 3))`
!
number = while(ASCII.digit, at_least: 1)
|> bind(&String.to_integer/1)
!
# We need to name something that is not yet defined,
# actually we need to name something in its definition
!
list = one_of([number, ???])
|> separated_by(ASCII.comma)
|> surrounded_by(ASCII.round_brackets)

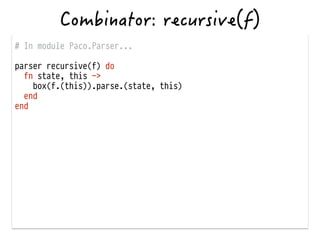

49. # In module Paco.Parser...
!
parser recursive(f) do
fn state, this ->
box(f.(this)).parse.(state, this)
end
end

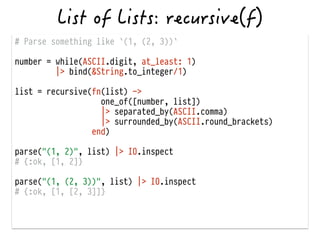

50. # Parse something like `(1, (2, 3))`
!
number = while(ASCII.digit, at_least: 1)
|> bind(&String.to_integer/1)
!
list = recursive(fn(list) ->
one_of([number, list])
|> separated_by(ASCII.comma)
|> surrounded_by(ASCII.round_brackets)
end)
!
parse("(1, 2)", list) |> IO.inspect
# {:ok, [1, 2]}
!
parse("(1, (2, 3))", list) |> IO.inspect
# {:ok, [1, [2, 3]]}

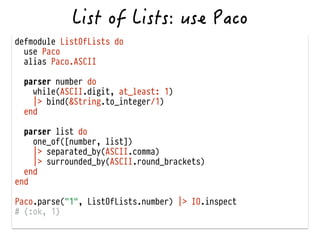

51. defmodule ListOfLists do
use Paco
alias Paco.ASCII
!
parser number do
while(ASCII.digit, at_least: 1)
|> bind(&String.to_integer/1)
end
!
parser list do
one_of([number, list])
|> separated_by(ASCII.comma)
|> surrounded_by(ASCII.round_brackets)
end
end
!
Paco.parse("1", ListOfLists.number) |> IO.inspect
# {:ok, 1}

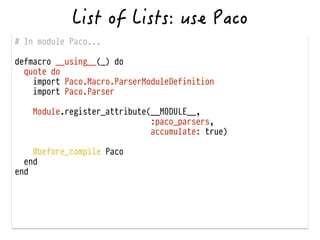

52. # In module Paco...
!
defmacro __using__(_) do
quote do
import Paco.Macro.ParserModuleDefinition
import Paco.Parser
!
Module.register_attribute(__MODULE__,
:paco_parsers,
accumulate: true)
!
@before_compile Paco
end
end

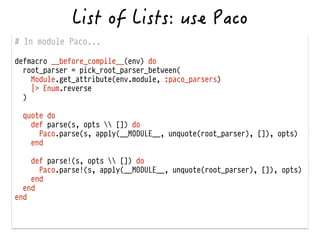

53. # In module Paco...
!
defmacro __before_compile__(env) do
root_parser = pick_root_parser_between(
Module.get_attribute(env.module, :paco_parsers)
|> Enum.reverse
)
!
quote do
def parse(s, opts []) do
Paco.parse(s, apply(__MODULE__, unquote(root_parser), []), opts)
end
!
def parse!(s, opts []) do
Paco.parse!(s, apply(__MODULE__, unquote(root_parser), []), opts)
end
end
end

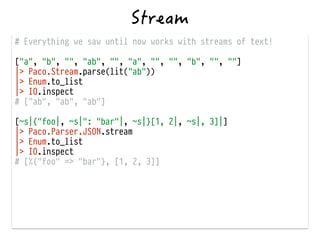

54. # Everything we saw until now works with streams of text!
!
["a", "b", "", "ab", "", "a", "", "", "b", "", ""]
|> Paco.Stream.parse(lit("ab"))
|> Enum.to_list
|> IO.inspect
# ["ab", "ab", "ab"]
!
[~s|{"foo|, ~s|": "bar"|, ~s|}[1, 2|, ~s|, 3]|]
|> Paco.Parser.JSON.stream
|> Enum.to_list
|> IO.inspect
# [%{"foo" => "bar"}, [1, 2, 3]]

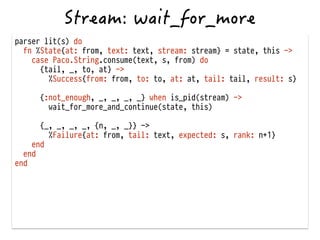

55. parser lit(s) do
fn %State{at: from, text: text, stream: stream} = state, this ->
case Paco.String.consume(text, s, from) do
{tail, _, to, at} ->
%Success{from: from, to: to, at: at, tail: tail, result: s}
!
{:not_enough, _, _, _, _} when is_pid(stream) ->
wait_for_more_and_continue(state, this)
{_, _, _, _, {n, _, _}} ->
%Failure{at: from, tail: text, expected: s, rank: n+1}
end
end
end
!

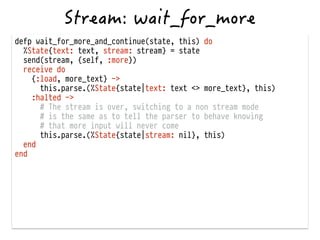

56. defp wait_for_more_and_continue(state, this) do
%State{text: text, stream: stream} = state
send(stream, {self, :more})
receive do
{:load, more_text} ->
this.parse.(%State{state|text: text <> more_text}, this)
:halted ->
# The stream is over, switching to a non stream mode
# is the same as to tell the parser to behave knowing
# that more input will never come
this.parse.(%State{state|stream: nil}, this)
end
end

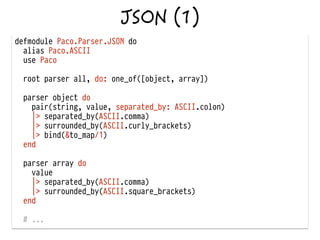

58. defmodule Paco.Parser.JSON do
alias Paco.ASCII
use Paco
!
root parser all, do: one_of([object, array])
!
parser object do
pair(string, value, separated_by: ASCII.colon)
|> separated_by(ASCII.comma)
|> surrounded_by(ASCII.curly_brackets)
|> bind(&to_map/1)
end
!
parser array do
value
|> separated_by(ASCII.comma)
|> surrounded_by(ASCII.square_brackets)
end
# ...

59. defmodule Paco.Parser.JSON do
# ...
!
parser value do
one_of([
string,
number,
object,
array,
literal_true,
literal_false,
literal_null])
end
!
parser string do
between(ASCII.double_quotes, escaped_with: "", strip: false)
|> bind(&replace_escapes_in_string/1)
end
# ...

60. defmodule Paco.Parser.JSON do
# ...
!
parser literal_true, do: lit("true") |> replace_with(true)
parser literal_false, do: lit("false") |> replace_with(false)
parser literal_null, do: lit("null") |> replace_with(nil)
!
# ...
end

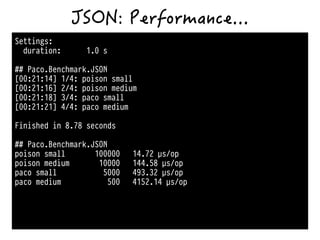

61. Settings:
duration: 1.0 s
!
## Paco.Benchmark.JSON
[00:21:14] 1/4: poison small
[00:21:16] 2/4: poison medium
[00:21:18] 3/4: paco small
[00:21:21] 4/4: paco medium
!
Finished in 8.78 seconds
!
## Paco.Benchmark.JSON
poison small 100000 14.72 µs/op
poison medium 10000 144.58 µs/op
paco small 5000 493.32 µs/op
paco medium 500 4152.14 µs/op

62. ✓
✓
☕
☕
👎
$
