Grid-EYE is an 8x8 pixel infrared sensor that can detect temperature distribution and motion. It has applications in air conditioners, microwaves, lighting, and more. The document outlines Grid-EYE's specifications, including its small size, temperature detection range, interface, and frame rates. It also describes a demo module that uses Grid-EYE with a microcontroller and optional stepper motor to expand the detection angle and additional sensors. The demo module is designed to output human detection data and temperature readings to help customers test and develop applications for Grid-EYE.

1. Grid-eye seminar
By Allchips

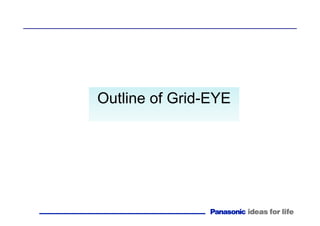

2. Outline of Grid-EYE

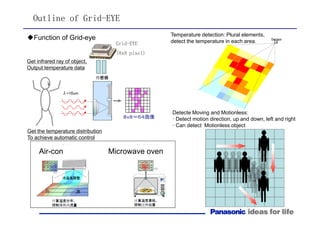

3. Outline of Grid-EYE
Grid-EYE
(8x8 pixel)
Get infrared ray of object,
Output temperature data
◆Function of Grid-eye
Get the temperature distribution
To achieve automatic control
Temperature detection: Plural elements,
detect the temperature in each area.
Detecte Moving and Motionless:
Detect motion direction, up and down, left and right
Can detect Motionless object
Air-con Microwave oven

4. Grid-EYE Specification
11.6(L) x 8.0(W) x 4.3(H) mm
Silicon lens
Can package
Ceramic base
MEMS sensor
chip and ASIC
8x8 (64) pixel
SMD package *Reflow available
Power voltage: 3.3V ±10%, 5.0V ±10%
Current consumption: 4.5mA
View angle: 60 degrees (XY)
Absolute temperature accuracy: ± 2.5oC
Frame rate (selectable):
1 frame/sec or 10 frames/sec
Ambient temperature range:
-40 ~ +85oC
Detection temperature range:
-20 ~ +80oC
External interface: I2C
(Inter-Integrated Circuit)
Operating mode (selectable):
Normal / Sleep / Stand-by
FeatureFeature
SpecificationSpecificationAppearanceAppearance
Sensing image
＊The content of this data sheet is subjected to change or revision without notice.

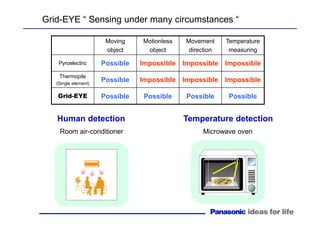

5. Moving
object
Motionless
object
Movement
direction
Temperature
measuring
Pyroelectric Possible Impossible Impossible Impossible
Thermopile
(Single element)
Possible Impossible Impossible Impossible
Grid-EYE Possible Possible Possible Possible
Human detection
Room air-conditioner
Temperature detection
Microwave oven
Grid-EYE “ Sensing under many circumstances “

6. 熱画像による人の動作検知
Position and movement (direction of movement, stationary state)
of people accurately detect possible
Grid-EYE
Camera image
Grid-EYE output image

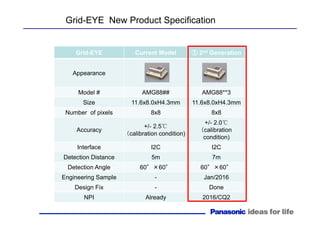

7. Grid-EYE Current Model ①①①① 2nd Generation
Appearance
Model # AMG88## AMG88**3
Size 11.6x8.0xH4.3mm 11.6x8.0xH4.3mm
Number of pixels 8x8 8x8
Accuracy
+/- 2.5℃
（calibration condition)
+/- 2.0℃
（calibration
condition)
Interface I2C I2C
Detection Distance 5m 7m
Detection Angle 60°×60° 60°×60°
Engineering Sample - Jan/2016
Design Fix - Done
NPI Already 2016/CQ2
Grid-EYE New Product Specification

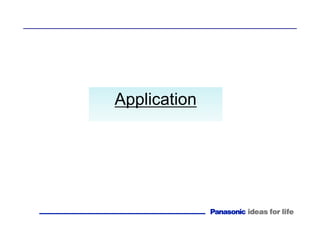

8. Application

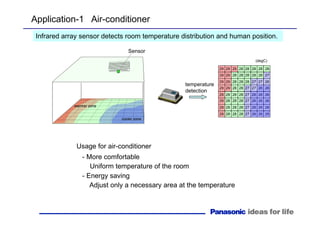

9. Infrared array sensor detects room temperature distribution and human position.
cooler zone
warmer zone
29
(degC)
temperature
detection
29 29 28 28 28 28 28
29 29 28 28 28 28 28 27
29 29 28 28 28 27 27 26
29 29 28 28 27 27 26 26
29 28 28 28 27 26 26 26
29 28 28 28 27 26 26 26
29 28 28 28 27 26 26 26
29 28 28 28 27 26 26 25
Usage for air-conditioner
- More comfortable
Uniform temperature of the room
- Energy saving
Adjust only a necessary area at the temperature
Application-1 Air-conditioner
Sensor

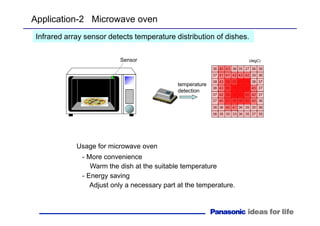

10. Infrared array sensor detects temperature distribution of dishes.
36
(degC)
temperature
detection
40 43 36 35 37 36 36
37 41 41 42 43 42 39 36
38 43 58 65 67 68 38 37
36 43 60 75 75 68 45 37
37 42 59 72 73 60 42 37
37 40 51 58 58 50 40 36
36 36 40 41 36 35 35 36
36 35 35 33 36 35 37 35
Usage for microwave oven
- More convenience
Warm the dish at the suitable temperature
- Energy saving
Adjust only a necessary part at the temperature.
Application-2 Microwave oven
Sensor

11. Infrared array sensor detects human position.
Usage for lighting
- Energy saving
Detect non-movable objects.
Turning on the light automatically for only a necessary area
flow of time
human
Application-3 Lighting for house and office

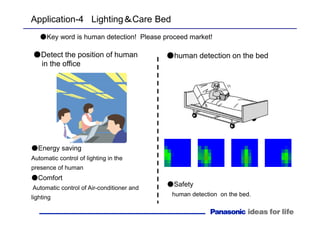

12. Application-4 Lighting＆Care Bed
●Detect the position of human
in the office
●Energy saving
Automatic control of lighting in the
presence of human
●Comfort
Automatic control of Air-conditioner and
lighting
●human detection on the bed
●Safety
human detection on the bed.
●Key word is human detection! Please proceed market!

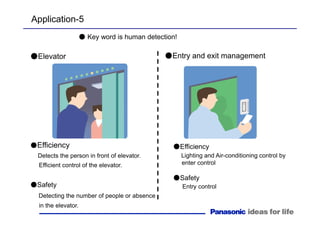

13. Application-5
●Elevator
●Efficiency
Detects the person in front of elevator.
Efficient control of the elevator.
●Safety
Detecting the number of people or absence
in the elevator.
●Entry and exit management
●Efficiency
Lighting and Air-conditioning control by
enter control
●Safety
Entry control
● Key word is human detection!

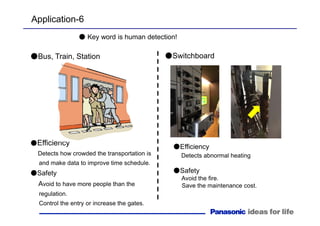

14. Application-6
●Bus, Train, Station
●Efficiency
Detects how crowded the transportation is
and make data to improve time schedule.
●Safety
Avoid to have more people than the
regulation.
Control the entry or increase the gates.
●Switchboard
●Efficiency
Detects abnormal heating
●Safety
Avoid the fire.
Save the maintenance cost.
● Key word is human detection!

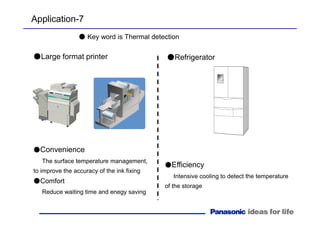

15. Application-7
●Large format printer
●Convenience
The surface temperature management,
to improve the accuracy of the ink fixing
●Comfort
Reduce waiting time and enegy saving
●Refrigerator
●Efficiency
Intensive cooling to detect the temperature
of the storage
● Key word is Thermal detection

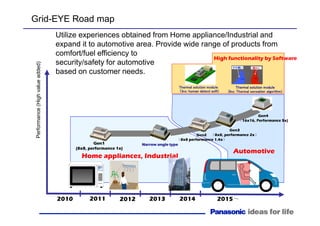

16. 2010 2011 2012 2013 2014
Gen4
（16x16, Performance 5x)
Gen1
(8x8, performance 1x)
Home appliances, Industrial
2015～
Gen2
（8x8 performance 1.4x）
Narrow angle typeNarrow angle typeNarrow angle typeNarrow angle type
Automotive
Performance(Highvalueadded)
Gen3
（8x8, performance 2x）
Grid-EYE Road map
Utilize experiences obtained from Home appliance/Industrial and
expand it to automotive area. Provide wide range of products from
comfort/fuel efficiency to
security/safety for automotive
based on customer needs.
Thermal solution moduleThermal solution moduleThermal solution moduleThermal solution module
（Inc: human detect soft)Inc: human detect soft)Inc: human detect soft)Inc: human detect soft)
Thermal solution moduleThermal solution moduleThermal solution moduleThermal solution module
(Inc: Thermal sensation algorithm)(Inc: Thermal sensation algorithm)(Inc: Thermal sensation algorithm)(Inc: Thermal sensation algorithm)
High functionality by Software

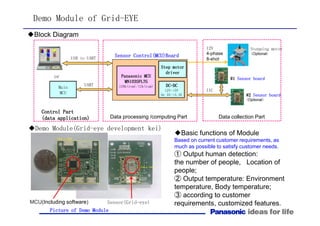

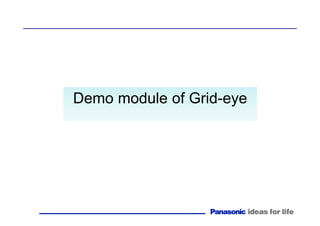

17. Demo module of Grid-eye

18. Panasonic MCUPanasonic MCUPanasonic MCUPanasonic MCU
MN103SFL7GMN103SFL7GMN103SFL7GMN103SFL7G
128k(rom)/12k(ram)
USB to UART
Main
MCU
SensorSensorSensorSensor Control(MCU)BoardControl(MCU)BoardControl(MCU)BoardControl(MCU)Board
◆Block Diagram
or
UART DCDCDCDC----DCDCDCDC
12V->5V
Or 5V->3.3V
Step motorStep motorStep motorStep motor
driverdriverdriverdriver
IIC
#1#1#1#1 SensorSensorSensorSensor boardboardboardboard
#2#2#2#2 Sensor boardSensor boardSensor boardSensor board
(Optional)
12V
4-phase
8-shot
Stepping motor
(Optional)
Data collection PartData processing /computing Part
Control PartControl PartControl PartControl Part
(data application)(data application)(data application)(data application)
◆Basic functions of Module
Based on current customer requirements, as
much as possible to satisfy customer needs.
① Output human detection:
the number of people, Location of
people;
② Output temperature: Environment
temperature, Body temperature;
③ according to customer
requirements, customized features.
Demo Module of Grid-EYE
Picture of Demo ModulePicture of Demo ModulePicture of Demo ModulePicture of Demo Module
◆Demo Module(Grid-eye development kei)
MCU(Including software) Sensor(Grid-eye)

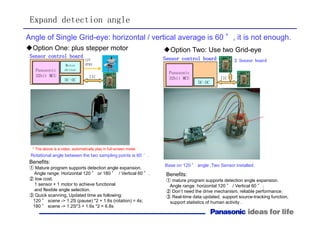

19. ◆Option One: plus stepper motor
Expand detection angle
◆Option Two: Use two Grid-eye
Panasonic
32bit MCU
SensorSensorSensorSensor control boardcontrol boardcontrol boardcontrol board
DC-DC
Motor
driver
IIC
12V
4P8S
IIC
2 Sensor board2 Sensor board2 Sensor board2 Sensor board
Panasonic
32bit MCU
SensorSensorSensorSensor control boardcontrol boardcontrol boardcontrol board
DC-DC
* The above is a video, automatically play in full-screen mode.
120120120120°°°°
Rotational angle between the two sampling points is 60 °.
Benefits:
① Mature program supports detection angle expansion.
Angle range: Horizontal 120 ° or 180 ° / Vertical 60 °.
② low cost.
1 sensor + 1 motor to achieve functional
and flexible angle selection.
③ Quick scanning, Updated time as following:
120 ° scene -> 1.2S (pause) *2 + 1.6s (rotation) = 4s;
180 ° scene -> 1.2S*3 + 1.6s *2 = 6.8s
Benefits:
① mature program supports detection angle expansion.
Angle range: horizontal 120 ° / Vertical 60 °；
② Don’t need the drive mechanism, reliable performance；
③ Real-time data updated，support source-tracking function,
support statistics of human activity .
Base on 120 ° angle ,Two Sensor installed.
Angle of Single Grid-eye: horizontal / vertical average is 60 °, it is not enough.

20. Innovate Together
Thank you for your attention!!
