Panasonic cataloge

MiddleEastGeneralCatalogue2014-2016
E l e c t r i c a l
M a t e r i a l s
Construction
G e n e r a l C a t a l o g u e
2 0 1 4 - 2 0 1 6
MEECM2 02/2014-1YD
Please contact…
All Rights Reserved © 2014 COPYRIGHT Panasonic Marketing Middle East & Africa FZE Eco Solutions Division
Panasonic Marketing Middle East & Africa FZE Eco Solutions Division
PO Box 17985, Jebel Ali, Dubai, UAE
Telephone. +971-4-886-2142 Facsimile. +971-4-880-2142
Energy System Business Division, Power Components Business Unit
Manufactured by
Panasonic Manufacturing Ayuthaya Co., Ltd.
Panasonic Eco Solutions Steel (Thailand) Co., Ltd.
Panasonic Manufacturing (Beijing) Co., Ltd.
Anchor Electricals Private Limited.
PT. Panasonic Gobel Eco Solutions Manufacturing Indonesia
Panasonic Corporation Eco Solutions Company
Web Site. http://panasonic.ae/ecm/ E-mail. customercare@ae.panasonic.com
2014.2
LATIF
056
4848805

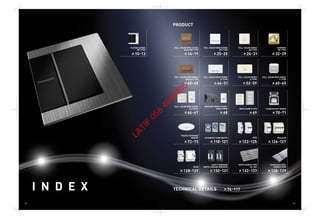

I N D E X
02 03
P.10-13
FLATIMA SERIES
BS-TYPE
P.32-39
P.60-65
FULL-COLOR WIDE SERIES
C-TYPE
P.70-71

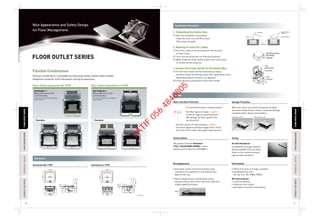

FLOOR OUTLET SERIES
P.126-127
ISOLATOR
P.14-19
Refina BS-TYPE
P.40-45
Refina A-TYPE
P.66-67

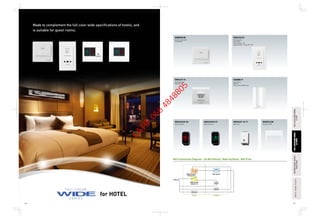

for HOTEL
P.72-73
P.128-129
RCCB
P.20-25
BS-TYPE
P.46-51
A-TYPE
P.68

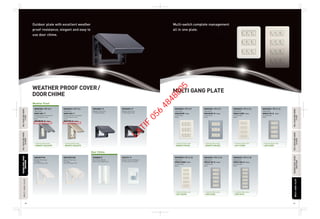

WEATHER PROOF COVER /
DOOR CHIME
P.118-121

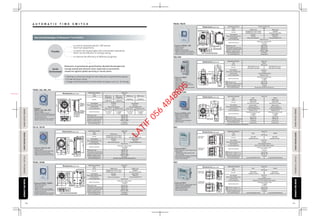

AUTOMATIC TIME SWITCH

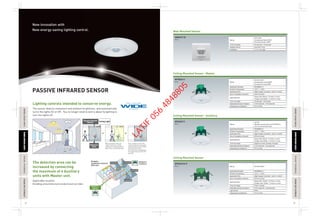

PASSIVE INFRARED
SENSOR
P.130-131
SAFETY BREAKER
EARTH LEAKAGE BREAKER
P.26-31

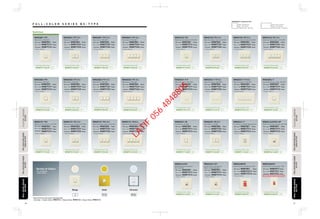

FULL-COLOR SERIES
BS-TYPE

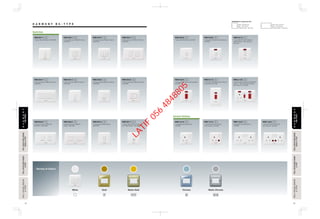

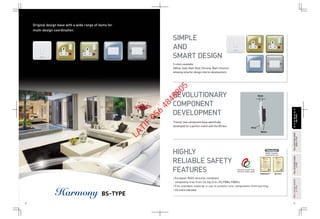

HARMONY
BS-TYPE
P.52-59

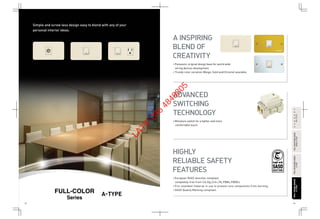

FULL-COLOR SERIES
A-TYPE
P.69
MULTI GANG PLATE
P.122-125
MCB

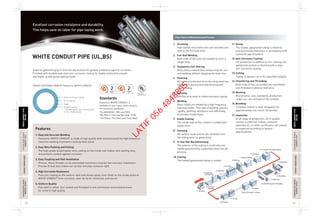

WHITE CONDUIT PIPE
(UL,BS)
P.132-137

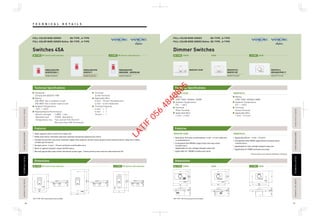

TECHNICAL DETAILS P.74-117
PRODUCT

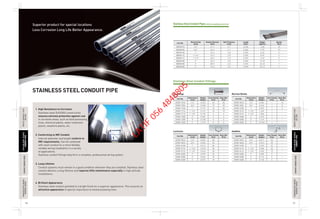

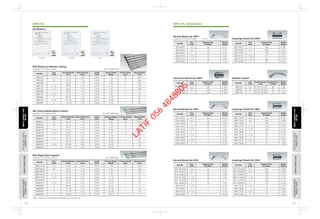

WHITE CONDUIT PIPE
P.138-139
STAINLESS STEEL
CONDUIT PIPE
LATIF
056
4848805

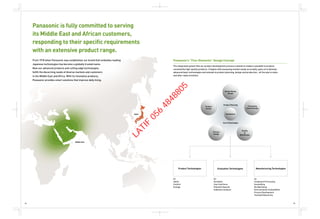

Panasonic is fully committed to serving
its Middle East and African customers,
responding to their specific requirements
with an extensive product range.
From 1918 when Panasonic was established, our brand that embodies leading
Japanese technologies has become a globally trusted name.
Now our advanced products and cutting edge technologies
fulfill the discerning needs of diverse markets and customers
in the Middle East and Africa. With its innovative products,
Panasonic provides smart solutions that improve daily living.
Japan
Product Planning
Core Technologies
Market Needs
Design
Processing
Control Design
Facility
&
Mold Design
Process
Design
Product
Design
Customers
Middle East
Panasonic’s “Five-Elements” Design Concept
The integrated system that our product development process is based on makes it possible to produce
consistently high-quality products. It begins with assessing market needs accurately, goes on to develop
advanced basic technologies and extends to product planning, design and production, all the way to sales
and after-sales activities.
for
Safety
Comfort
Ecology
Product Technologies
for
Durability
User Interfaces
Potential Hazards
Substance Analysis
Evaluation Technologies
for
Component Processing
Assembling
Die Machining
Environmental Compatibility
Process Development
Testing & Measuring
Manufacturing Technologies
04 05
LATIF
056
4848805

06 07

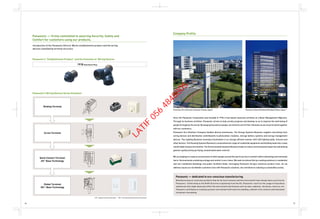

Company Profile
Panasonic’s Wiring Devices Series Evolution
Binding Terminal
Screw Terminal
Quick Connect Terminal
JIS※ Base Technology
Global Terminal
IEC※ Base Technology
Panasonic — firmly committed to assuring Security, Safety and
Comfort for customers using our products.
Manufacturing eco-conscious products that do not harm humans and the environment have always been a priority for
Panasonic. Conforming to the RoHS directive originating from the EU, Panasonic restricts the usage of hazardous
substances that might adversely affect the environment and humans such as lead, cadmium, chromium, mercury, etc.
Panasonic contributes to creating a greener environment with lead-free welding, cadmium-free contacts and hexavalent
chromium-free plating.
Panasonic — dedicated to eco-conscious manufacturing.
Since the Panasonic Corporation was founded in 1918, it has based corporate activities on a Basic Management Objective.
Through its business activities, Panasonic strives to help society progress and develop so as to improve the well-being of
people throughout the world. By keeping focused on people, we intend to enrich their lifestyles as we move forward together
with our customers.
Panasonic Eco Solutions Company handles diverse businesses. The Energy Systems Business supplies everything from
wiring devices and distribution switchboards to photovoltaic modules, storage battery systems and energy management
devices. The Lighting Business innovates illumination in an energy-efficient manner with LED lighting bulbs, fixtures and
other devices. The Housing Systems Business’s comprehensive range of residential equipment and building materials create
comfortable living environments. The Environmental Systems Business helps to reduce environmental impact by maintaining
good air quality and by purifying contaminated water and soil.
We are helping to create an environment in which people around the world can live in comfort while minimizing environmental
harm. Harmoniously combining ecology and comfort is our vision. We seek to achieve this by creating solutions in residential
and non-residential (buildings and public facilities) fields, leveraging Panasonic Group’s extensive product lines. As we
address issues our worldwide customers face with Panasonic solutions, we contribute to realizing a sustainable society.
Panasonic Eco Solutions Company (Osaka,Japan) Panasonic Tokyo Shiodome Building (Tokyo,Japan)
Introduction of the Panasonic Electric Works establishment product and the wiring
devices classified by terminal structure.
Panasonic’s “Establishment Product” and the Evolution of Wiring Devices
1918 Attachment Plug
※JIS = Japanese Industrial Standards ※IEC = International Electrotechnical Commission
LATIF
056
4848805

08 09

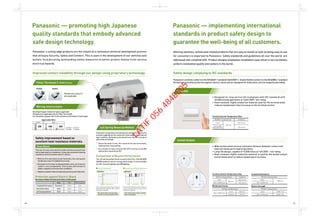

Terminal Section Temperature Rise
Withdrawal Forces
BS1363-2 Standard Value
Conditions
Initial
After 15,000 times
20A current
After 15,000 times 13A current
52K max.
Insulation Resistance
Initial
After 15,000 times
5MΩ min.
Electric Strength
Initial
After 15,000 times
2,000V 1 min.
2,000V 1 min.
3 pins
Single pin
36N max.
2.2N min.
Switches
Socket Outlets
Panasonic's switches conform to the IEC60669-1 standard (16AX250V~) . Socket Outlets conform to the IEC60884-1 standard.
All devices guarantee protection against electric shock and are designed for endurance, service longevity and safety.
• Designed for long service life (compliant with IEC standard) with
40,000 testing operations at 16AX 250V~ full rating.
• Heat-resistant, highly conductive material used for the terminal plate
reduces temperature that increases in the terminal section.
• Wide socket outlet secures insulation distance between contact and
external metal parts improving safety.
• Long-life design, capable of 15,000 times at 13A 250V ~ full rating.
• Heat-resistant, highly conductive material is used for the socket contact
and terminal point to reduce temperature increase.
Safety design complying to IEC standards
Safety improvement based on
excellent heat resistance materials.
Improved contact reliability through our design using proprietary technology.
With its fire and shock proof materials, the casing will
hardly fuse even if installed incorrectly.
Resistant to fire that could potentially come out from the
socket’s core components. Urea is also well known to
safely respond to extreme heat conditions.
Highly insulated material improving shock proof reduction.

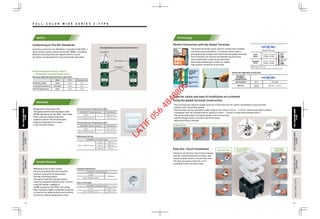

Wiring Instructions
Pillar Terminal (WIDE Series)
Protection against Electric Shock
Enclosure Material Characteristics (reference)
Tracking Performance Excellent Good Poor
Urea PBT Polycarbonate
Heat Deformation Good Good Fair
Self-Extinguishment Good Good Good
The use of urea resin which is safer and more secure has
led to improved fire resistance. It also has excellent tracking
resistance which prevents electric shocks.
Flexible wire (class 5)
also applicable
Only Rigid Copper Conductor type is applicable.
(Flexible wire applicable only for Pillar Terminal )
For the details, please refer to the remarks at the bottom of each page.
Switch
Appricable Wire
Flexible Rigid
OK OK OK
StrandedSolid
Panasonic — promoting high Japanese
quality standards that embody advanced
safe design technology.

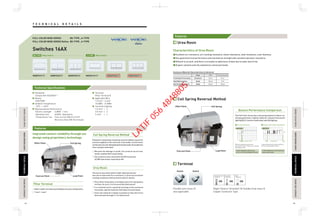

Comparison of Bounce Performance
Since the bound time of the contact is
short when it is switched “ON”, low arc
energy is produced.
Since the bound time of the contact is
long, a considerable amount of arc
energy is produced.
The contact does not fuse easily,
therefore its consumption is low.
The contact fuses easily, creating
high consumption.
Short Time Long Time
Coil Spring System Seesaw Type of Switching System
OnOn OnOnOn On
Operation Operation
Coil Spring Reversal Method
Panasonic’s proprietary coil spring reversal method causes the
pressure applied on the connector to be stable, ensuring low
heat stability. By keeping the bound low, the arc energy is
efficiently minimized.
The coil spring system which is used in the FULL-COLOR WIDE
SERIES produces low arc energy which makes it most suitable
for CFL, inverter lighting, and LED lighting.
Since the wear is low, the contacts do not fuse easily,
making them long lasting.
Our products have cleared ON-OFF testing of 40,000
operations required by IEC.
Panasonic’s cutting edge products are the results of a continuous technical development process
that stresses Security, Safety and Comfort. This is seen in the development of our switches and
outlets incorporating outstanding safety measures to better protect homes from various
electrical hazards.
1.5 mm2
- 4.0 mm2
(15 AWG - 12 AWG)
Urea Resin
Socket
Panasonic — implementing international
standards in product safety design to
guarantee the well-being of all customers.
Offering switches, outlets and related products that are easy to install as well as being easy to use
for consumers is important to Panasonic. Safety standards and guidelines all over the world are
addressed and complied with. Product designs emphasize installation ease which in turn promotes
uniform installation quality everywhere in the world.
IEC60669-1 standard value Conditions
Initial
Use as 40,000
testing operations
20A current
16A current
45K max.
LATIF
056
4848805

10 11
FULL-COLORWIDESERIESFULL-COLORWIDESERIES
BS-TYPEBS-TYPE
RefinaBS-TYPERefinaBS-TYPE
FULL-COLORSERIESFULL-COLORSERIES
BS-TYPEBS-TYPE
Panasonic top level series with super panel and vigorous
outlines bringing elegance to your everyday life.
Perfect asymmetric design along with high
quality aluminum on a 2mm thickness plate.
Push On/Off mechanism structure bringing
a unique and softer touch when lighting your
interior.
• European RoHS directive compliant,
completely free from Cd,Hg,Cr6+,Pb,PBBs,PBDEs.
• Fire retardant material in use to prevent core
components from burning.
SURFACE ART
AND SUPER-SLIM
DESIGN
ADVANCED
SWITCHING
TECHNOLOGY
HIGHLY
RELIABLE SAFETY
FEATURES
FLATIMASERIESLATIMASERIES
BS-TYPEBS-TYPE
BS-TYPE
LATIF
056
4848805

12 13

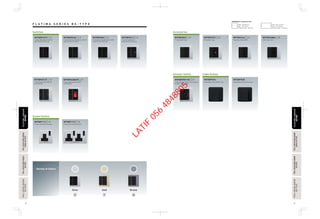

Accessories
F L A T I M A S E R I E S B S - T Y P E
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
1-Gang 2Way Switch 16AX SP
Switches
Socket Outlets
1-Gang 2-Devices 2Way Switch 16AX SP
1-Gang Intermediate Switch 10AX
1-Gang Push Button
1-Gang 1Way Switch 20A DP
with Indicator
1-Gang 1Way Switch 45A DP
with Indicator
2-Gang 13A Switched Socket1-Gang 13A Switched Socket
Cable Outlet with 45A Terminal
WTFBP7020
Cable Outlet with 20A Terminal
WTFBP7010
LAN Socket Cat 6TV Socket DIN Type TV Socket F Type Telephone Socket 6P4C
WTFBP55137 -1
WTFBP51512 -1
WTFBP5408699 -1
WTFBP1112 -1
WTFBP52522 -1 WTFBP5004 -1 WTFBP5411 -1 WTFBP2501 -1 WTFBP2731 -1 WTFBP2164 -1 WTFBP24886 -1
WTFBP1111 -1
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
Dimmer Switch Cable Outlets
Variety of Colors
Silver Gold Bronze
1-Gang Dimmer Switch ( Low Voltage
Halogen Lump 800VA )
WTFBP5781103 -1
Plate : 86×86mm
Box : 72×72mm
Fixting Center : 60.3mm
Plate : 86×146mm
Box : 72×132mm
DIMENSIONS of Applicable Box
S Y Q
LATIF
056
4848805

14 15
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPE

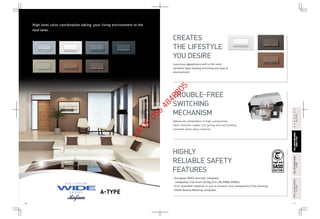

High level color coordination taking your living environment to the
next level.
Luxurious appearance with a full color
variation base helping enriching any type of
environment.
• Fire retardant material in use to prevent core components from burning.
• SASO Quality Marking and EQM compliant.
Advanced combination of high-conductivity
heat-resistant copper,coil spring and outstanding
resistant silver alloy contacts.
CREATES
THE LIFESTYLE
YOU DESIRE
TROUBLE-FREE
SWITCHING
MECHANISM
HIGHLY
RELIABLE SAFETY
FEATURES
LATIF
056
4848805

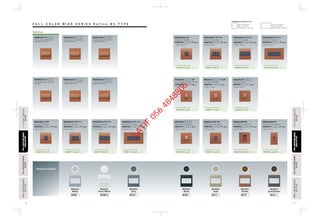

16 17
1-Gang,1-Device 1Way Switch,
16AX 250V with Plate
WEBP515117
1-Gang,2-Devices 1Way Switch,
WEBP525217
WEBP535317
1-Gang 2Way Switch, 16AX 250V
with Plate
WEBP515127
WEBP525227
WEBP535327
1Way Switch,15AX 250V
1-Gang1-Device
WNG5001H-791
Combination Model number
WNBP5110630
WZB7831 （Plate）-P
1-Gang 2-Device
WNG5001H-791 X 2
WNBP5120630
1-Gang 3-Device
WNG5001H-791 X 3
WNBP5130630
1-Gang 2-Device
WNG5002H-791 X 2
WNBP5220630
1-Gang 3-Device
WNG5002H-791 X 3
WNBP5230630
Intermediate Switch, 4Way, 10A 250V
1-Gang 1-Device
WEG5004 -SP
WEBP5513630
WEB7811 （Plate）
1Way Switch, 15AX 250V
2-Gang 4-Device
WNG5001H-791 X 4
WNBP5140630
2-Gang 4-Device
WNG5002H-791 X 4
WNBP5240630
WZB7834 -P
Push Button,10AX 250V
1-Gang 1-Device
WEG5401 -7-SP
WEBP5113650
WEB7811 （Plate）
20A 2Way SP Switch
1-Gang 1-Device
WEG553272
WEB7811 （Plate）
WEBP5214730
20A DP Switch with Indicator
1-Gang 1-Device
WEG55337
WEBP5414600
WEB7811 （Plate）
1-Gang 1-Device
WBG5414699-SP
WNBP5414600
1-Gang 2-Device
WBG5408699H
WNBP5428690D
2-Gang 1-Device
WBG5408699H
WZB7817 （Plate）
WNBP5448690D
-P
Switches
1-Gang 1-Device
WNG5002H-791
WNBP5210630
WZB7831 （Plate）-P ）（Plate
Plate : 86×86mm
Box : 72×72mm
Plate : 86×146mm
Box : 72×132mm
F U L L - C O L O R W I D E S E R I E S R e f i n a B S - T Y P E
Variety of Colors
Metallic
White
Metallic
Pearl White
Metallic
Gray
M W Z
Metallic
Dark Brown
M AM H
Metallic
Black
Metallic
Gold
Metallic
Brown
M B M Y M FM W
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
LATIF
056
4848805

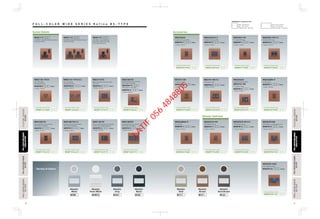

18 19
Variety of Colors
13A 250V 1-Gang DP Switched Socket
Outlet with Plate
WEB1111
13A 250V 2-Gang DP Switched Socket
Outlet with Plate
WEB1112
15A 250V 1-Gang Switched
Round Pin Outlet with Plate
(Non SASO Standard)
WEB1131
15A 127V 3Wire
Grounding Socket
1-Gang 1-Device
1-Gang 1-Device
1-Gang 1-Device
1-Gang 1-Device 1-Gang 1-Device 1-Gang 2-Device
1-Gang 1-Device
1-Gang 1-Device 1-Gang 2-Device
WNG1101-791H
WNBP1619600
WZB7831 （Plate） WZB78322 （Plate）
15A 127V 3Wire
Grounding Socket
1-Gang 2-Device
WNG1101-791H X 2
WNBP1629603
Telephone Socket 6P4C
WEG2364H
WEBP4519940
WEB7811 （Plate）
TV Socket DIN Type
WEG2501-PH
WEBP4719830
WEB7811 （Plate）
TV Socket DIN Type
WEG2501-PH X 2
WEBP4729830
WEB7812 （Plate）
TV Socket F Type
WE2731-8H
WEBP47194501
WEB7811 （Plate）
TV Socket F Type
WE2731-8H X 2
WEBP47294501
TV Socket F Type
WEG2364H
WEG2731-8H
WEBP45299471
WEG2488H-P
WEBP4519980
Cat 5E Outlet
WEB7811 （Plate）
Cat 6 Outlet
WEG24886H-P
WEBP4519680
WEB7811 （Plate）
220V 500W Dimmer
WEG57515-PH
WEBP5716350
WEB7811 （Plate）
220V 500W Dimmer
WEG57515-PH X 2
WEBP5726350
WEB7812 （Plate）
220V 1000W Dimmer
WEG5781103H
WEBP5781103
WEB78134 （Plate）
3Wire Grounding Socket Outlet
15A 127V
1-Gang 2-Device
1-Gang 1-Device
WEG11517H
WEBP1619610
WEB7812 （Plate）
Universal Socket with Shutter
(Non SASO Standard)
WEG10817H
WEB7811 （Plate）
WEBP1914610
1-Gang 2-Device
220V 500W Low Voltage Dimmer
WEG578153H
WEBP5781530
WEB7812 （Plate）
Plate : 86×86mm
Box : 72×72mm
Plate : 86×146mm
Box : 72×132mm
Socket Outlets
Dimmer Switches
Accessories
F U L L - C O L O R W I D E S E R I E S R e f i n a B S - T Y P E
Metallic
White
M W
Metallic
Pearl White
M W Z
Metallic
Gray
M H
Metallic
Dark Brown
M A
Metallic
Black
M B
Metallic
Gold
M Y
Metallic
Brown
M F
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
1-Gang 2-Device
WEB7812 （Plate）
1-Gang 2-Device
WEB7812 （Plate）
1-Gang 2-Device
WEG2364H X 2
WEBP4529940
WEB7812 （Plate）
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
(Non SASO Standard)
WEG10817H
WEBP5120632
WEB7812 （Plate）
1Way Switch 16AX 250V
1-Gang 2-Device
WEG55317
(Non SASO Standard)
1-Gang 2-Device
WEG10817H X 2
WEBP1924610
WEB7812 （Plate）
Universal Multi Socket with Safety
Shutter (Non SASO Standard)
WEG11817H
WEB7812 （Plate）
Grounding Universal Socket
(Non SASO Standard)
WEG15827H
WEB7813 （Plate）
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
WEBP1814710
WEBP1824710
LATIF
056
4848805

20 21
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPE

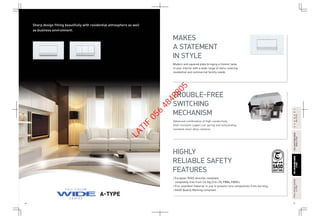

Sharp design fitting beautifully with residential atmosphere as
well as business environment.
Modern and square plate bringing a fresher taste
to your interior with a wide range of items covering
residential and commercial facility needs.
MAKES
A STATEMENT
IN STYLE
TROUBLE-FREE
SWITCHING
MECHANISM
HIGHLY
RELIABLE SAFETY
FEATURES
LATIF
056
4848805

22 23
with Plate
WEBP515117
1-Gang 2-Devices 1Way Switch,
WEBP525217
WEBP535317
2-Gang 4-Device
2-Gang 4-Device
1-Gang 1-Device
2-Gang 4-Device
1-Gang1-Device
1-Gang 1-Device
1-Gang 2-Device
1-Gang 3-Device
WNG5001W-791 X 4
（Plate）WZB7834WK
with Plate
WEBP515127
WEBP525227
WEBP535327
WNG5002W-791 X 4
WNBP5240630F
WNG5001W-791
WNBP5110630F
WNG5001W-791 X 2
WNBP5120630F
WNG5001W-791 X 3
WNBP5130630F
WNG5002W-791
WNBP5210630F
WNG5002W-791 X 2
WNBP5220630F
WNG5002W-791 X 3
WNBP5230630F
1Way Twin Switch, 10AX 250V
WNG5021W-7
WNBP5101610F
WNG5021W-7 X 2
WNBP5141610F
WNG5021W-7 X 4
WNBP5181610F
WNBP5140630F
WEG5534
（Plate）WEB7811W
WEBP5513630F
F U L L - C O L O R W I D E S E R I E S B S - T Y P E
Switches
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
1-Gang 1-Device
Appelation Push Button "B"
SP 10A 250V
WNG5461W-7
WNBP5113660F
2-Gang 1-Device
WBG5408699W
（Plate）WZB7817W
WNBP5448690F
Plate : 86×86mm
Box : 72×72mm
Plate : 86×146mm
Box : 72×132mm
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
1-Gang 1-Device
Push Button, 10AX 250V
WEG5401-7-P
WEB7811W（Plate）
WEBP5113650F
1-Gang 2-Device
2-Gang Appelation Push Button "B"
SP 10A 250V
WNG5461W-7 X 2
WNBP5123660F
20A 2Way SP Switch
WEG553272
（Plate）WEB7811W
WEBP5214730F
WEG55337
（Plate）WEB7811W
WEBP5414600F
1-Gang 1-Device
WBG5414699W-SP
WNBP5414600F
1-Gang 2-Device
(A/C)
WBG5414699W
WNBP5414690F
(Water Heater)
WNG5343W-761
WNBP5414630F
WBG5408699W
WNBP5428690F
LATIF
056
4848805

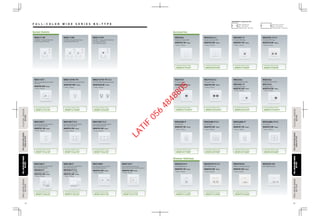

24 25
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE Plate : 86×86mm
Box : 72×72mm
Plate : 86×146mm
Box : 72×132mm
Accessories
F U L L - C O L O R W I D E S E R I E S B S - T Y P E
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
13A 250V 1-Gang DP Switched
Socket Outlet with Plate
WEB1111W
Socket Outlets
13A 250V 2-Gang DP Switched
Socket Outlet with Plate
WEB1112W
15A 250V 1-Gang Switched Round
Pin Outlet with Plate
(Non SASO Standard)
WEB1131W
15A 127V 3Wire Grounding Socket
1-Gang 1-Device
1-Gang 2-Device
1-Gang 1-Device 1-Gang 2-Device 1-Gang 1-Device 1-Gang 2-Device
WNG1101W-791
WNBP1619600F
15A 127V 3Wire Grounding Socket
WNG1101W-791 X 2
（Plate）WZB78322W
WNBP1629630F
Cat 5E Outlet
WEG2488-P X 2
（Plate）WEB7812W
WEBP4529980F
Cat 6 Outlet
WEG24886-P X 2
（Plate）WEB7812W
WEBP4529680F
1-Gang 1-Device
Cat 5E Outlet
WEG2488-P
（Plate）WEB7811W
WEBP4519980F
1-Gang 1-Device
Cat 6 Outlet
WEG24886-P
（Plate）WEB7811W
1-Gang 2-Device1-Gang 2-Device
WEBP4519680F
TV Socket DIN Type
WEG2501-P
（Plate）WEB7811W
WEBP4719830F
TV Socket DIN Type
WEG2501-P X 2
（Plate）WEB7812W
WEBP4729830F
WEG2364
（Plate）WEB7811W
WEBP4519940F
WEG2364 X 2
（Plate）WEB7812W
WEBP4529940F
TV Socket DIN Type
WEG2364
WEG2501-P
WEBP4529942F
Dimmer Switches
TV Socket F Type
WE27318 X 2
（Plate）WEB7812W
WEBP47294501F
220V 500W Dimmer
WEG57515-P
（Plate）WEB7811W
WEBP5716350F
220V 500W Dimmer
WEG57515-P X 2
（Plate）WEB7812W
WEBP5716350F
500W Low Voltage Dimmer
WEG578153
（Plate）WEB7812W
WEBP5726350F
220V 1000W Dimmer
WEG5781103
1-Gang 1-Device
TV Socket F Type
WE27318
（Plate）WEB7811W
WEBP47194501F
TV Socket F Type
WEG2364
WE27318
WEBP47194501F
1-Gang 2-Device
(Non SASO Standard)
WEG10817 X 2
（Plate）WEB7812W
WEBP1924610F
1-Gang 2-Device
(Non SASO Standard)
WEG10817
WEG55317
（Plate）WEB7812W
WEBP5120632F
(Non SASO Standard)
WEG10817 X 3
（Plate）WEB7813W
WEBP1934610F
1-Gang 3-Device
Universal Multi Socket with
Safety Shutter (Non SASO Standard)
WEG11817
（Plate）WEB7812W
WEBP1814710F
Grounding Universal Socket
(Non SASO Standard)
WEG15827
（Plate）WEB7813W
WEBP1824710F
1-Gang 2-Device
(Non SASO Standard)
WEG10817
WEG55317 X 2
（Plate）WEB7813W
WEBP5130632F
1-Gang 3-Device
1-Gang 2-Device
15A 127V
WEG11517
（Plate）WEB7812W
WEBP1619610F
(Non SASO Standard)
WEG10817
（Plate）WEB7811W
WEBP1914610F
1-Gang 2-Device
1-Gang 1-Device
（Plate）WEB7812W
1-Gang 2-Device
（Plate）WEB7812W
1-Gang 2-Device
1-Gang 3-Device
LATIF
056
4848805

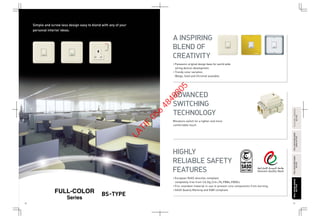

26 27
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
Simple and screw less design easy to blend with any of your
personal interior ideas.
BS-TYPE
Series
Miniature switch for a lighter and more
comfortable touch.
• Panasonic original design base for world wide
wiring devices development.
• Trendy color variation
(Beige, Gold and Chrome) available.
BS-TYPEBS-TYPE
A INSPIRING
BLEND OF
CREATIVITY
ADVANCED
SWITCHING
TECHNOLOGY
HIGHLY
RELIABLE SAFETY
FEATURES
LATIF
056
4848805

28
F U L L - C O L O R S E R I E S B S - T Y P E
Switches
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
29
Plate : 86×86mm
Box : 72×72mm
Plate : 86×146mm
Box : 72×132mm
WNG5001-791
1-Gang 1-Device
WNBP5110630
WNG5001-791 X 2
WNBP5120630
WNG5001-791 X 3
WNBP5130630
WNG5001-791 X 4
WNBP5140630
2Way Illuminated Switch,16AX 250V
WNG5152-751
WNG5151-751 X 2
WNBP5129630
WNG5151-751X 4
WNBP5149630
WNBP5219630
WNG5151-751 X 3
WNBP5139630
WNG5004-7
WNG5152-751 X 2
WNBP5229630
WNBP5513630
WNG5152-751 X 4
WNBP5249630
WNG5461-7
Push Button, 10A 300V (Apppellation)
WNBP5113660
WNG5152-751 X 3
WNBP5239630
WNG5002-791 X 3
WNBP5230630
WNG5002-791
WNBP5210630
WNG5021-7-P
WNBP5101610
WNG5021-7-P X 2
WNBP5141610
WNG5021-7-P X 4
WNBP5181610
WNG5151-751
1WayIlluminated Switch, 16AX 250V
WNBP5119630
WNBP5220630
WNBP5220630
WNG5002-791 X 4
WNBP5240630
WNG5401-7K
Push Button, 10A 300V
WNBP5113650
WNG5401-7K X 2
WNBP5123650
2-Gang 4-Device
1-Gang 1-Device
2-Gang 4-Device
1-Gang 1-Device
WNG5002-791 X 2
1-Gang 2-Device
B e i g e<
<Chrome>
G o l d
>
><
WNB7802
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
1-Gang 3-Device
B e i g e<
<Chrome>
G o l d
>
><
WNB7803
WNB7733Y
WNB7733S
（Plate）
（Plate）
（Plate）

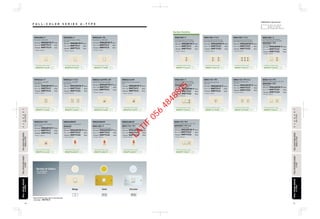

Variety of Colors
Beige Gold Chrome
T Y P C
*Gold and Chrome type require mounting strap
< Item Code > 1-Gang 1-Device WNB3141, 1-Gang 2-Device WNB3142, 1-Gang 3-Device WNB3143
*For combination
model number
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
>
G o l d
>
><
1-Gang 2-Device
WNB7802
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
1-Gang 3-Device
WNB7803
WNB7733Y
WNB7733S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
>
G o l d
>
><
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
WNB7802
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
WNB7804
WNB7734Y
WNB7734S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate） <Chrome>
B e i g e< >
G o l d><
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
WNB7802
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
WNB7804
WNB7734Y
WNB7734S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
WNB7804
WNB7734Y
WNB7734S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
WNB7802
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
WNB7802
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
1-Gang 1-Device
WBG5414699
(A/C) 20A 250V
WNBP5414690
WBG5414699FC-SP
20A DP Switch with Indicator, 20A 250V
WNBP5414600
WNG5343-761
(Water Heater) 20A 250V
WNBP5414630
WBG5408699
45A DP Switch with Indicator, 250V
WNBP5428690
B e i g e<
<Chrome>
G o l d
>
><
WNB7804
WNB7734Y
WNB7734S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
WNB7804
WNB7734Y
WNB7734S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
WBG5408699
45A DP Switch with Indicator, 250V
WNBP5448690
1-Gang 1-Device
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
<Chrome>
B e i g e< >
G o l d><
WNB7802
WNB77321Y
WNB77321S
（Plate）
（Plate）
（Plate）
<Chrome>
B e i g e< >
G o l d><
WNB7817
WN7737Y
WN7737S
（Plate）
（Plate）
（Plate）<Chrome>
B e i g e< >
G o l d><
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
<Chrome>
B e i g e< >
G o l d><
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
<Chrome>
B e i g e< >
G o l d><
1-Gang 1-Device
1-Gang 2-Device
1-Gang 3-Device
WNB7803
WNB7733Y
WNB7733S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
1-Gang 3-Device
WNB7803
WNB7733Y
WNB7733S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
LATIF
056
4848805

30
F U L L - C O L O R S E R I E S B S - T Y P E
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
BS-TYPEBS-TYPE
31
Plate : 86×86mm
Box : 72×72mm
Plate : 86×146mm
Box : 72×132mm
Socket Outlets
WNB1111K
Socket Outlet
WNB1112K
Socket Outlet
WNB1131
15A 250V 1-Gang Switched Round
Pin Outlet
(Non SASO Standard)
Accessories
WNTG15649
1-Gang 1-Device
WNBP4519940
B e i g e<
<Chrome>
G o l d
>
><
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
WEG5781103-FC
220V 1000W Dimmer
WNBP5781103
WEG578153-FC
220V 500W Dimmer (Low Voltage)
WNBP5781530
Dimmer Switches
WNG57515
220V 500W Dimmer
WNBP5716350
WEG57518-FC
220V 800W Dimmer
WNGP5716380
WEJ9111W
13A Plug BS 1363
WNG1101-791
3Wire Grounding Socket 15A 127V
1-Gang 1-Device
WNBP1619600
WNBP1130610
WNBP1120610
WNBP1110610
B e i g e<
<Chrome>
G o l d
>
><
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
WNG1101-791 X 2
1-Gang 2-Device
WNBP1629600
B e i g e<
<Chrome>
G o l d
>
><
WNB78022
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
G o l d<
<Chrome>
> WNB71517Y
WNB71517S
（Plate）
（Plate）
G o l d<
<Chrome>
> WNB715177Y
WNB715177S
（Plate）
（Plate）
G o l d<
<Chrome>
> WNB715177Y
WNB715177S
（Plate）
（Plate）
WNG1081-7
1G Universal Socket with Shutter
(Non SASO Standard)
WNBP1914610
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
WNG1101-791
WNG5001-791
3Wire Grounding Socket
WNBP5120631
WNB78022
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
>
G o l d
>
><
TV Socket DIN Type
WZ1201-P
WNTG15649
WNBP4529942
WNB7802
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
TV Socket F Type
WCS3063K-8
WNBP4719450
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
TV Socket F Type
WCS3063K-8 X 2
WNBP4729450
WNB7802
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
TV Socket F Type
WCS3063K-8
WNTG15649
WNBP4529947
WNB7802
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
NR3170-8
Cat 6 Outlet
WNBP4519680
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
NR3170-8
WCS3063K-8
Cat 6 Outlet
TV Socket F Type
WNGP4529949
1-Gang 2-Device
WNB7802
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
NR3160-8
Cat 5E Outlet
WNBP4519980
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
WNH5800K
Air Conditioner
Speed Control 6A 250V AC
WNBP5839330
WNB7803（Plate）Beige><
Others
WNG1081-7 X 2
2G Universal Socket with Shutter
(Non SASO Standard)
WNBP1924610
WNB78022
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
1-Gang 2-Device
WNG1081-7
WNG5001-791
(Non SASO Standard)
WNBP5120632
WNB78022
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
< >B e i g e
<Chrome>
G o l d><
1-Gang 2-Device
WNTG15649 X 2
WNBP4529940
WZ1201-P
TV Socket DIN Type
WNBP4719830
WNB7802
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
WNB7801
WNB7731Y
WNB7731S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
TV Socket DIN Type
WZ1201-P X 2
WNBP4729830
WNB7802
WNB7732Y
WNB7732S
（Plate）
（Plate）
（Plate）
B e i g e<
<Chrome>
G o l d
>
><
1-Gang 2-Device
1-Gang 2-Device
1-Gang 3-Device
1-Gang 2-Device
1-Gang 1-Device
Beige Gold Chrome
T Y P C
< Item Code > 1-Gang 1-Device WNB3141, 1-Gang 2-Device WNB3142, 1-Gang 3-Device WNB3143
WNB7871B e i g e< > （Plate）
1-Gang 1-Device
1-Gang 2-Device
1-Gang 2-Device
1-Gang 3-Device
Variety of Colors
*For combination
model number
LATIF
056
4848805

Original design base with a wide range of items for
multi-design coordination.
BS-TYPE
Thinner new component base specifically
developed for a perfect match with the BS box.
5 colors available
(White, Gold, Matt-Gold, Chrome, Matt-Chrome)
allowing smarter design interior development.
• CE mark indicated.
SIMPLE
AND
SMART DESIGN
REVOLUTIONARY
COMPONENT
DEVELOPMENT
HIGHLY
RELIABLE SAFETY
FEATURES
8mm
Nylon
Urea
BSEN60669-1 BS1363-2
Standard
32 33
A-TYPEA-TYPE
A-TYPEA-TYPE
RefinaA-TYPERefinaA-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
LATIF
056
4848805

34
1-Gang 1Way SP Switch, 10AX 250V
WBC5011 WBC5021 WBC5031 WBC5041
1-Gang 2-Devices 1Way SP Switch,
10AX 250V
10AX 250V
10AX 250V
10AX 250V
WBC5061 WBC5012 WBC5022 WBC5032
1-Gang 1-Device 2Way SP Switch,
10AX 250V
10AX 250V
10AX 250V
1-Gang 20A DP Switch, 20A 250V
WBC5203 WBC5303 WBC5313
WBC5403
1-Gang 20A DP Switch with Indicator,
20A 250V
2-Gang 45A DP Switch with Indicator
Large plate, 45A 250V
WBC5413 WBC6120
2-Gang Cooker Control Unit (45A DP
Switch, + 13A Socket DP Switched
with Indicator) 13A 250V
1-Gang 20A DP Switch Marked
"Water Heater" with Indicator,
20A 250V
1-Gang 45A DP Switch with Indicator,
45A 250V
1-Gang DP Switched Socket
13A 250V
WBC1212 WBC1214 WBC1222 WBC1224
with Indicator 13A 250V
13A 250V
2-Gang 4-Devices 2Way 10A
SP Switch, 10AX 250V
WBC5042 WBC5062 WBC5014 WBC5511
2-Gang 6-Devices 2Way SP
Switch, 10AX 250V
1-Gang Intermediate Switch,
10AX 250V
1-Gang 1Way SP Push Switch,
with "Bell Symbol" 10A 250V

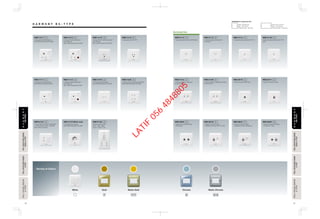

H A R M O N Y B S - T Y P E
Switches
Socket Outlets
Variety of Colors
Chrome
S
Matte-Chrome
S S
White Gold
Y
Matte-Gold
Y Y
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
35
Plate : 86×86mm
Box : 72×72mm
Plate : 86×146mm
Box : 72×132mm
LATIF
056
4848805

36
Accessories
Variety of Colors
Chrome
S
Matte-Chrome
S S
White Gold
Y
Matte-Gold
Y Y
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
37
Plate : 86×86mm
Box : 72×72mm
Plate : 86×146mm
Box : 72×132mm
WBC1313
2-Gang SP Switched Socket
with Indicator
(Non SASO Standard) 15A 250V
1-Gang Telephone Socket UK Master
WBC3112 WBC3113
1-Gang Telephone Socket UK
Secondary
WBC3114
1-Gang Telephone Socket RJ11/12 1-Gang Telephone Socket RJ11/12
6P4C
WBC3118
1-Gang 2-Devices Telephone
Socket RJ11/12
WBC3124 WBC3128
1-Gang 2-Devices Telephone Socket
RJ11/12 6P4C
WBC3010
1-Gang TV Socket DIN Type 1-Gang TV Socket F Type
WBC3011
1-Gang TV Socket DIN Type
+ FM Socket
WBC3020 WBC3818
1-Gang TV Socket F Type
+ Telephone Socket RJ11/12 6P4C
WBC3822
1-Gang TV Socket F Type
+ Telephone Socket UK Master
+ TV Socket F Type
WBC3820
WBC1311
WBC1113 WBC1510 WBC1520
with Indicator
1-Gang Universal Socket
1-Gang 2-Devices Universal Socket
1-Gang 1Way SP Switch 10AX 250V
+ 16A Universal Socket 16A 250V
(Non SASO Standard)
WBC6122 WBC9120
Shaver Socket Outlet
Input : 220V , 250V
Output : 240V / 115V
WBC1610 White only
1 Gang German Socket 16A 250V-
(Not KSA standard)
WBC1610 White only
1-Gang German Socket
1-Gang SP Swiched Socket
WBC1111
WBC1419
1-Gang 15A SP Switched Socket
with Shutter
WBC1410
1-Gang Socket 15A 127V
LATIF
056
4848805

38

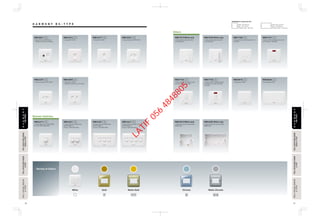

WBC3227 WBC3878
1-Gang 2-Devices CAT 6 RJ45 1-Gang CAT 6 RJ45
+ Telephone Socket RJ11/12 6P4C
+ Telephone Socket UK Master
WBC3821 WBC3216
1-Gang CAT 5 RJ45
WBC3217
1-Gang CAT 6 RJ45 1-Gang 2-Devices CAT 5 RJ45
WBC3226 WBC7010 White only
1-Gang Cable Outlet with 20A
Terminal Block
WBC7020 White only
1-Gang Cable Outlet with 45A
Terminal Block
1-Gang 13A Fused Connection Unit
13A 250V
WBC7100
1-Gang 13A Fused Connection Unit
WBC7101
WBC7102
1-Gang 13A DP Switched Fused
Connection Unit 13A 250V
WBC7103
1-Gang 13A DP Switched Fused
Connection Unit with Indicator
13A 250V
1-Gang Blank Plate
WBC8010
2-Gang Blank Plate
WBC8020
WBC6010 White only
1-Gang with Earth Terminal Box
35MM deep
2-Gang with Earth Terminal Box
35MM deep
WBC6020 White only
1-Gang 2Way Push On/Off 500W
Dimmer 230V 50Hz/60Hz
WBC4211 WBC4221
1-Gang 2-Devices 2Way Push
On/Off 400W x 2
WBC4231
On/Off 350W x 3
On/Off 350W x 4
WBC4241
Others
Dimmer Switches
Variety of Colors
Chrome
S
Matte-Chrome
S S
White Gold
Y
Matte-Gold
Y Y
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
39
Plate : 86× 86mm
Box : 72 × 72mm
Plate : 86×146mm
Box : 72×132mm
LATIF
056
4848805

40 41
A-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
High level color coordination taking your living environment to the
next level.
• SASO Quality Marking compliant.
CREATES
THE LIFESTYLE
YOU DESIRE
TROUBLE-FREE
SWITCHING
MECHANISM
HIGHLY
RELIABLE SAFETY
FEATURES
Luxurious appearance with a full color
variation base helping enriching any type of
environment.
LATIF
056
4848805

42

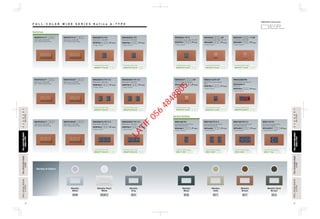

F U L L - C O L O R W I D E S E R I E S R e f i n a A - T Y P E
Switches
Socket Outlets
Intermediate Switch, 4Way 10A 250V
1-Gang 1-Device
WNG5004-7H-P
(Non SASO Standard)
WEG10817H
WNGP5513630
WEG11081
-P（Plate）
（Plate）
WEGP5113650
-7-SP
1-Gang 1-Device
WEG5004 -SP
WEGP5513630
Intermediate Switch 4Way, 10A 250V
WZB7841 -P（Plate）
with 1-Gang 3-Device Plate
WEGP515117
WEGP525217
WEGP535317
WEGP515127
WEGP525227
WEGP535327
WNG5001H-791
WNGP5110630
1-Gang 1-Device
1-Gang 2-Device
WZB7841
WNG5001H-791 X 2
WNGP5120630
WZB7842 -P
(Non SASO Standard)
WEG10817H X 2
WEG12081
(Non SASO Standard)
WEG10817H X 3
WEG13081
Universal Grounding Socket
(Non SASO Standard)
WEG11817H
WEG11362
1-Gang 3-Device
1-Gang 1-Device
1-Gang 2-Device
1-Gang 3-Device
WNG5001H-791 X 3
WNGP5130630
WZB7843
WNG5002H-791
WNGP5210630
WZB7841
WNG5002H-791 X 2
WNGP5220630
WZB7842
WNG5002H-791 X 3
WNGP5230630
WZB7843-P（Plate）
-P（Plate）
-P（Plate）
-P（Plate）
WEG6801 （Plate）-P WEG6802 （Plate）-P WEG6803 （Plate）-P WEG68029 （Plate）-P
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
1-Gang 1-Device
250V
WBG5414699-SP
WNGP5414600
WZB7841 -P（Plate）
Blank Chip
WBG5408699H
WN3020H-P
WNGP5438693
WZB7843 -P
1-Gang 3-Device
1-Gang 1-Device 1-Gang 2-Device 1-Gang 3-Device 1-Gang Center 2-Device
（Plate）
WBG55337 -SP
WEGP5414600
WEG6801 -P
1-Gang 1-Device
（Plate）
WEG6801 -P（Plate） WEG6801 -P（Plate）
-7-SP
1-Gang 1-Device
WEG5401
43
Plate : 70×120mm
Box : 51×102mm
Fixing Center : 83.5mm
Metallic
White
Metallic Pearl
White
M W M W Z
Variety of Colors
Metallic
Gray
M H
Metallic
Black
M B
Metallic Dark
Brown
M A
Metallic
Gold
M Y
Metallic
Brown
M F
LATIF
056
4848805

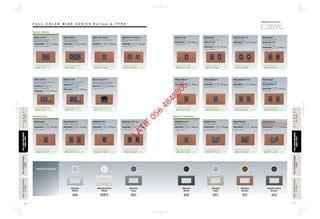

44 45
Plate : 70×120mm
Box : 51×102mm
Dimmer Switches
Socket Outlets
Accessories
WE2731-8H X 2
TV Socket F Type
WEGP4729830
Universal Grounding Socket with
Shutter 16AX 250V
WEG11817H
WEG55317
WEG12703
WEG11517H
WNG55317
WEG12092
15A 127V
WNG1101-791H
WNGP1619600
WNGP1629600
WZB7841 WZB7842
TV Socket F Type
WE2731-8H
WEGP4719450
220V 500W Dimmer
WEG57515-PH
WEGP5716350
with Shutter 15A 127V
WEG11517H
WEG15527H
15A 127V
WNG1101-791H X 2
WZG1121H-7-P
WZP1121-7
3Wire Grounding German Socket
WEG11091
WEG12082
WEG2364H
WEGP4519940
WEG6801
WEG2364H X 2
WEGP4529940
WEG6802
TV Socket DIN Type
WEG2501-PH
WEGP4719830
WEG6801
TV Socket DIN Type
WEG2501-PH X 2
WEGP4729830
WEG6802
WEG68029 WEG6803-P（Plate） -P（Plate）
WZ1817 -P（Plate）
WEG6803 -P（Plate）
-P（Plate） -P（Plate） -P（Plate） -P（Plate） WEG6801 -P（Plate）
1-Gang Center 2-Device 1-Gang 3-Device 1-Gang 1-Device 1-Gang 2-Device
1-Gang 3-Device
1-Gang 3-Device
F U L L - C O L O R W I D E S E R I E S R e f i n a A - T Y P E
-P（Plate） -P（Plate）
TV Socket F Type 1-Gang 2-Device
1-Gang 2-Device
1-Gang 1-Device
WEG2364H
WEGP4729450
WE2731-8H
WEG2364H
WEGP4529649
WEG24886H-P
Cat 6 Outlet
1-Gang 2-Device
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
Metallic
White
Metallic Pearl
White
M W M W Z
Variety of Colors
Metallic
Gray
M H
Metallic
Black
M B
Metallic Dark
Brown
M A
Metallic
Gold
M Y
Metallic
Brown
M F
1-Gang 1-Device
1-Gang 1-Device 1-Gang 1-Device1-Gang 2-Device 1-Gang 2-Device
HARMONYHARMONY
BS-TYPEBS-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
WEG2364H
TV Socket DIN Type
WEGP4529942
127V 400W Dimmer
WEG57514H
WEGP5719140
1-Gang 1-Device1-Gang 1-Device 1-Gang Center 2-Device
WEG578153H
WEGP5726350
220V 800W Dimmer
1-Gang 1-Device
WEG575181H
WEGP5716380
WEG2501-PH
Cat 6 Outlet
1-Gang 2-Device
WEG24886H-P X 2
WEGP4529680
Cat 6 Outlet
1-Gang 1-Device
WEG24886H-P
WEGP4519680
1-Gang 2-Device
Cat 5E Outlet
WEG2488H-P
WEG6801
WEGP4519980
-P（Plate）
1-Gang 1-Device
LATIF
056
4848805

46 47
A-TYPEA-TYPE
A-TYPEA-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
Sharp design fitting beautifully with residential atmosphere as well
as business environment.
A-TYPE
Modern and squared plate bringing a fresher taste
to your interior with a wide range of items covering
residential and commercial facility needs.
MAKES
A STATEMENT
IN STYLE
TROUBLE-FREE
SWITCHING
MECHANISM
HIGHLY
RELIABLE SAFETY
FEATURES
LATIF
056
4848805

48
WEGP515117
WEGP525217
WEGP535317
WEGP515127
WEGP525227
WEGP535327
WNG5001W-791
WZB7841W
WZB7842WK
WNGP5110630F
1-Gang 2-Device
1-Gang 1-Device
WNG5001W-791 X 2
WNGP5120630F
1-Gang 3-Device
WNG5001W-791 X 3
WZB7843WK
WNGP5130630F
WNG5002W-791
1-Gang 1-Device
1-Gang 2-Device
1-Gang 3-Device
1-Gang Center 2-Device
WZB7841W
WNGP5210630F
WNG5002W-791 X 2
WZB7842WK
WNGP5220630F
WNG5002W-791 X 3
WZB7843WK
WNGP5230630F
1-Gang 1-Device
1-Gang 1-Device
WEG5401-7-P
WEG6801WK-P
WEGP5113650F
WBG5414699W-SP
WZB7841W
WNGP5414600F
(Non SASO Standard)
WEG10817
WEG6801WK-P
WEG11081F
(Non SASO Standard)
WEG10817 X 2
WEG6802WK-P
WEG12081F
(Non SASO Standard)
WEG10817 X 3
WEG6803WK-P
WEG13081F
WEG11817
WEG68029WK-P
WEG11362F
F U L L - C O L O R W I D E S E R I E S A - T Y P E
Switches
Socket Outlets
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
49
Plate : 70×120mm
Box : 51×102mm
1-Gang 1-Device
WNG5004-7
WZB7841W
WNGP5513630F
1-Gang 1-Device
WEG5534
WEG6801WK-P
WEGP5513630F
（Plate）
（Plate）
（Plate）（Plate）（Plate）
（Plate）
1-Gang 1-Device
WEG55337
WEG6801WK-P
WEGP5414600F
（Plate）
（Plate）
（Plate）
（Plate）
（Plate）
1-Gang 1-Device
(A/C)
WBG5414699W
WZB7841W
WNGP5414690F
（Plate）
(Water Heater)
WNG5343W-761
WZB7841W
WNGP5414630F
1-Gang 1-Device
Blank Plate
1-Gang 3-Device
WBG5408699
WN3020W-P
WZB7843W
WNGP5438693F
（Plate）
（Plate）
（Plate）
LATIF
056
4848805

50
with Shutter 16AX 250V
WEG11817
WEG12703F
WEG11517
WEG55317
WEG6803WK-P
WEG12092F
WZG1121W-7-P
3Wire Grounding German Socket
WEG6803WK-P
WEG55317
WZB1121-7F
WEG2364
WEG6801WK-P
WEGP4519940F
WEG2364 X 2
WEG6802WK-P
WEGP4529940F
TV Socket DIN Type
WEG2501-P
WEG6801WK-P
WEGP4719830F
WEG2501-P X 2
TV Socket DIN Type
WEG6802WK-P
WEGP4729830F
220V 500W Dimmer
WEG57515W
WEG6801WK-P
WEGP5716350F
1-Gang 1-Device
1-Gang Center 2-Device 1-Gang 3-Device 1-Gang 1-Device 1-Gang 2-Device
WEG11517
WEG68029WK-P
WEG11091F
WEG15527 X 2
WEG6803WK-P
WEG12082F
15A 127V
WNG1101W-791
WZB7841W
WNGP1619600F
15A 127V
WNG1101W-791 X 2
WZB7842W
WNGP1629600F
1-Gang 3-Device
1-Gang 3-Device
（Plate）
（Plate）
（Plate）（Plate）（Plate）（Plate）
（Plate） 1-Gang 1-Device
WZ1817W-P（Plate）
（Plate）
F U L L - C O L O R W I D E S E R I E S A - T Y P E
Accessories Dimmer Switches
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
RefinaA-TYPERefinaA-TYPEBS-TYPEBS-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
51
Plate : 70 ×120mm
Box : 51×102mm
TV Socket F Type
1-Gang 1-Device
WE27318
WEG6801WK-P
WEGP4719450F
（Plate）
1-Gang 2-Device
WEG2364
WEGP45299471F
WEG6802WK-P（Plate）
TV Socket F Type
WE27318
Cat 6 Outlet
1-Gang 1-Device
WEG24886-P
WEG6801WK-P
WEGP4519680F
（Plate）
WEG68029W-P（Plate）
127V 400W Dimmer
1-Gang Center 2-Device
WEG57514
WEGP5719140F
（Plate）WEG68029W-P
1-Gang 1-Device
WEG578153
WEGP5726350F
WEG68029WK-P
220V 800W Dimmer
1-Gang 1-Device
WEG575181
WEGP5716380F
TV Socket DIN Type
1-Gang 2-Device
WEG2364
WEG2501-P
WEGP4529942F
1-Gang 2-Device
TV Socket F Type
WE27318 X 2
WEG6802WK-P
WEGP4729450F
（Plate）
1-Gang 2-Device
Cat 6 Outlet
WEG24886-P X 2
WEG6802WK-P
WEGP4529680F
（Plate）
Cat 6 Outlet
WEG2364
WEG24886-P
WEGP4529649F
1-Gang 2-Device
Cat 5E Outlet
1-Gang 1-Device
WEG2488-P
WEG6801WK-P
WEGP4519980F
（Plate）
（Plate）
LATIF
056
4848805

52 53
A-TYPEA-TYPE
A-TYPEA-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
Simple and screw less design easy to blend with any of your
personal interior ideas.
A-TYPE
Series
• Miniature switch for a lighter and more
comfortable touch.
• Panasonic original design base for world wide
wiring devices development.
• Trendy color variation (Beige, Gold andChrome) available.
A INSPIRING
BLEND OF
CREATIVITY
ADVANCED
SWITCHING
TECHNOLOGY
HIGHLY
RELIABLE SAFETY
FEATURES
LATIF
056
4848805

54
WNG5001-791
1-Gang 1-Device
1-Gang 2-Device
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
WNG5001-791 X 2
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
WNGP5110630
WNGP5120630
1-Gang 3-Device
B e i g e><
<Chrome>
G o l d><
WNG5002-791
1-Gang 1-Device
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
WNGP5210630
WNG5002-791 X 6
WNG6806W-P（Plate）
WNGP5260630
WNG5002-791 X 4
2-Gang 4-Device
2-Gang 6-Device
WNGP5240630
WNG5002-791 X 2
1-Gang 2-Device
1-Gang 3-Device
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
WNGP5220630
1-Gang 1-Device
WNG5002-791 X 3
WNG6803W-P
WNF7743Y
WNF7743S
（Plate）
（Plate）
（Plate）
WNGP5230630
WNG5021-7-P
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
WNGP5101610
WNG5001-791 X 3
WNG6803W-P
WNF7743Y
WNF7743S
（Plate）
（Plate）
（Plate）
WNGP5130630
WNG5021-7-P X 2
1-Gang 2-Device
1-Gang 3-Device
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
<Chrome>
G o l d><
WNGP5141610
WNG5151-751
1Way Illuminated Switch,
16AX 250V
1-Gang 2-Device
1-Gang 1-Device
WNG5401-7K-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
WNGP5119630
WNG5021-7-P X 3
WNG6803W-P
WNF7743Y
WNF7743S
（Plate）
（Plate）
（Plate）
WNGP5161610
WNG5151-751 X 2
16AX 250V
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
WNGP5129630
WNG5152-751
16AX 250V
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
WNGP5219630
WNG5151-751 X 4
16AX 250V
WNG5021-7-P X 6
WNG5021-7-P X 4
WNG5001-791 X 4
2-Gang 4-Device
WNGP5140630
B e i g e><
<Chrome>
G o l d><
<Chrome>
G o l d><
<Chrome>
G o l d><
<Chrome>
G o l d><
<Chrome>
G o l d><
<Chrome>
G o l d><
<Chrome>
G o l d><
2-Gang 4-Device
2-Gang 6-Device
WNG5152-751 X 4
16AX 250V
2-Gang 4-Device
2-Gang 6-Device
WNG5152-751 X 6
16AX 250V
B e i g e><
WNGP5269630
WNGP5249630
WNGP5149630 WNGP5181610
F U L L - C O L O R S E R I E S A - T Y P E
Switches
1-Gang 3-Device
2-Gang 4-Device
B e i g e><
<Chrome>
G o l d><
<Chrome>
G o l d><
WNG5151-751 X 3
16AX 250V
WNG6803W-P
WNF7743Y
WNF7743S
（Plate）
（Plate）
（Plate）
WNGP5139630
WNG5152-751 X 2
16AX 250V
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
WNGP5229630
WNG5152-751 X 3
16AX 250V
WNG6803W-P
WNF7743Y
WNF7743S
（Plate）
（Plate）
（Plate）
WNGP5239630
WNG5151-751 X 6
16AX 250V
2-Gang 6-Device
1-Gang 1-Device
1-Gang 2-Device
1-Gang 3-Device
B e i g e><
<Chrome>
G o l d><
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
55
Plate : 70 ×120mm
Box : 51×102mm
T Y P C
Beige Gold Chrome
WNG5001-791 X 6
2-Gang 6-Device
WNGP5160630
B e i g e><
< Item Code > WN3700-8
WNGP5169630 WNGP5162610
Variety of Colors
*For combination
model number
LATIF
056
4848805

56
F U L L - C O L O R S E R I E S A - T Y P E
T Y P C
Beige Gold Chrome
Variety of Colors
*For combination
model number
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
57
WNG5004-7
Intermediate Switch, 4Way,
10A 250V
1-Gang 1-Device
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
WNGP5513630
WNG5401-7K
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
WNGP5113650
B e i g e><
<Chrome>
G o l d><
<Chrome>
G o l d><
1-Gang 1-Device
Plate : 70 ×120mm
Box : 51×102mm
WNG1101-791
15A 127V
1-Gang 1-Device
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
WNGP1619600
B e i g e><
<Chrome>
G o l d><
WNG1081-7
WNG5001-791 X 2
WNGP5130632
WNG5461-7
(Appellation)
1-Gang 1-Device
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
WNGP5113660
WBG5414699FC-SP
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
WNGP5414600
WNG5461-7 X 2
(Appellation)
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
WNGP5123660
B e i g e><
<Chrome>
G o l d><
<Chrome>
G o l d><
<Chrome>
G o l d><
WBG5414699
(A/C)
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
WNGP5414690
B e i g e><
<Chrome>
G o l d><
WBG5408699
WN3020
Blank Plate
1-Gang 3-Device
WNGP5438693
WBG5408699
WNGP5438692
WNG5343-761
(Water Heater)
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
WNGP5414630
B e i g e><
<Chrome>
G o l d>< WNG6803W-P
WNF7743Y
WNF7743S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
WNG6803W-P
WNF7743Y
WNF7743S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
WNG1081-7
WBG5408699
WNG1101-791
WNG6803W-P
WNF7743Y
WNF7743S
（Plate）
（Plate）
（Plate）
WNGP5438691
B e i g e><
<Chrome>
G o l d><
Socket Outlets
1Way Switch
1-Gang 2-Device
WNG1081-7
WNG5001-791
WNG1081-7
1-Gang 1-Device
WNGP1914610
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
WNGP5120632
B e i g e><
<Chrome>
G o l d><
WNG1081-7 X 2
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
WNGP1924610
WNG1081-7 X 3
B e i g e><
<Chrome>
G o l d><
WNG6803W-P
WNF7743Y
WNF7743S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
WNGP1934610
WNGP5130631
1-Gang 3-Device
WNG1101-791
WNG5001-791 X 2
WNG6803W-P
WNF7743Y
WNF7743S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
WNG1101-791 X 2
15A 127V
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
WNGP1629600
B e i g e><
<Chrome>
G o l d><
WNGP5120631
1Way Switch
WNG1101-791
WNG5001-791
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
1-Gang 1-Device
1-Gang 1-Device
WNG6803W-P
WNF7743Y
WNF7743S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
1-Gang 3-Device
1-Gang 2-Device
1-Gang 2-Device
WNG5003-7
DP Switch, 10AX 250V
1-Gang 1-Device
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
WNGP5413630
B e i g e><
<Chrome>
G o l d><
LATIF
056
4848805

58

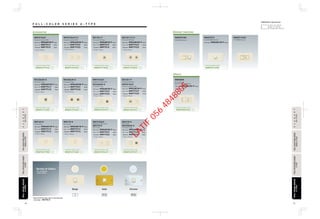

F U L L - C O L O R S E R I E S A - T Y P EFULL-COLORWIDESERIESFULL-COLORWIDESERIES
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
A-TYPEA-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
HARMONYHARMONY
BS-TYPEBS-TYPE
59
T Y P C
Beige Gold Chrome
Plate : 70 ×120mm
Box : 51×102mm
Variety of Colors
*For combination
model number
TV Socket F Type
1-Gang 1-Device
WCS3063K-8
WNGP4719450
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
WNGP4529940
1-Gang 2-Device
WNTG15649 X 2
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
<Chrome>
G o l d><
TV Socket DIN Type
WZ1201-P X 2
WNGP4729830
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
1-Gang 2-Device
Accessories
WNTG15649
1-Gang 1-Device
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
WNGP4519940
B e i g e><
<Chrome>
G o l d><
Others
WNH5800
Air Conditioner
Speed Control 6A 250V AC
WNGP5839330
B e i g e><
Dimmer Switches
220V 800W Dimmer
WNGP57283
B e i g e><
1G 220V 500W Dimmer
WNG57515
WNGP5716350
127V 500W Dimmer
WNG5719353WZ1201-P
WNGP4719830
TV Socket DIN Type
1-Gang 1-Device
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
Cat 6 Outlet
1-Gang 1-Device
NR3170-8
WNGP4519680
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
WNTG15649
WNGP4529649
NR3170-8
Cat 6 Outlet
1-Gang 2-Device
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
WNTG15649
WNGP45299471
WCS3063K-8
TV Socket F Type
1-Gang 2-Device
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
NR3170-8
WNGP4529949
Cat 6 Outlet
WCS3063K-8
TV Socket F Type
1-Gang 2-Device
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
WZ1201-P
WNTG15649
TV Socket DIN Type
WNGP4529942
1-Gang 3-Device
1-Gang 2-Device
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
TV Socket F Type
1-Gang 2-Device
WCS3063K-8
WNGP4729450
WNG6802W-P
WNF7742Y
WNF7742S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
Cat 5E Outlet
1-Gang 1-Device
NR3160-8
WNGP4519980
WNG6801W-P
WNF7741Y
WNF7741S
（Plate）
（Plate）
（Plate）
B e i g e><
<Chrome>
G o l d><
LATIF
056
4848805

60 61
FFULLULL-COLORWIDESERIESCOLORWIDESERIES
forHOTELforHOTEL
FULLULL-COLORWIDESERIESCOLORWIDESERIES
C-TYPETYPE
MULTIGANGULTIGANGPLATEATE
WEATHERERPROOFCOVECOVER/
DOORCHCHIME
Super slim and stylish design with multi combination
for a better match with the latest environment trends.
C-TYPE
Round plate design and various color base
( Standard, metallic and pastel tone )
creating new interior design ideas.
• Fire retardant material in use to prevent core
components from burning.
TROUBLE-FREE
SWITCHING
MECHANISM
LATIF
056
4848805

62 6362 63
Tighten
Screw
Insert
Wire
10~20 sec.
1 second
connection
Conforming to The IEC Standards
Protection Against Electric Shock
Completely Insulated Construction
Switches conform to the IEC60669-1 standard (16A 250V~),
while socket outlets conform to the IEC 60884-1 standard.
Besides assuring protection against electric shock,
all devices are designed for long service life and safety.
Perfect Connection with the Global Terminal
The global terminal’s quick connect construction enables
extremely easy installation. To connect either solid or
stranded wires, simply insert them into the global terminal.
Once inserted, the internal mechanism secures them
more firmly than screws to prevent them
becoming unfastened or loose, for stable,
high-quality connection at all times.
Superior safety and ease of installation are achieved
using the global terminal construction.
･Since wiring only requires simple insertion of the wire into the switch, installation is assured with
uniform wire connection quality.
･This terminal can be used with a wide range of wire sizes (1.5mm2
– 4.0mm2
, switch and socket outlets ).
(Compliant with IEC standard which requires1.5mm2
– 4.0mm2
of solid and stranded wires )
･The construction does not expose power source terminals,
and this design works to prevent electrical shock
while electricity is flowing.
Easy One-Touch Installation
Thanks to the All One-Touch Action design
concept, attaching devices to frame, and
frames to plate covers is easier than ever.
This lets you enjoy a dramatic cut in
installation time and labor costs.
･Designed for long service life
(Compliant with the IEC Standard) with
40,000 operations at 16A 250V ~ full rating.
･Heat-resistant, highly conductive
material used for the terminal plate
reduces temperature increases
in the terminal section.
･Widening of the socket outlets
secures insulation distance between
contacts and external metal parts,
thereby improving safety.
(Compliant with IEC standard which
requires insulation distance over 4.5 mm)
･Long-life design, capable of
10,000 strokes at 16A 250V~full rating.
･Heat-resistant, highly conductive material
is used for the blade sockets and terminal
sections to reduce temperature rises.
[Completely Insulated Construction]
Urea Resin
Urea Resin
PBT Resin
Terminal Spring
with Double
Contacting
Points
Wire Releasing
Button
Wire Releasing
Hole
Electrical Wire
One-Touch Plate
Construction
Initial 20A current
IEC60669-1 Standard Value Conditions
After 40,000 operations
45K max.
16A current
Initial 22A current
IEC60884-1 Standard Value Conditions
After 10,000 strokes
45K max.
16A current
Withdrawal Forces
54N max.
IEC60884-1 Standard Value
3 pins
50N max.2 pins
2N min.Single pin
Insulation Resistance
Initial
5M Ω min.
Electric Strength
Initial 2,000V 1 min.
1,500V 1 min.
Safety Technology
Switches
Socket Outlets
Tensile Strength after Connection
*Rigid cooper wire only.
*1mm2
solid wire can be used at only less than 6A.
IEC60669-1
IEC60884-1
Standard Value
IEC Standard Wire Strength
30N min. 1.5mm2
4.0mm2 30N min. or more
Solid
Wires
1.5mm2~4.0mm2
15AWG-12AWG
Cable & Device
Device & Frame
Plate Body
& Plate Cover
(Global Terminal)
OK
Stranded
Wire
OK
Solid
Wire
Stranded
Wires
1.5mm2~4.0mm2
15AWG-12AWG
Terminal Spring
with Double
Contacting
Points
Wire Releasing
Button
Wire Releasing
Hole
Electrical Wire
One-Touch Plate
Construction
Initial
5M Ω min.
Tensile Strength after Connection
*Rigid cooper wire only.
*1mm2
solid wire can be used at only less than 6A.
IEC60669-1
IEC60884-1
Standard Value
IEC Standard Wire Strength
30N min. 1.5mm2
4.0mm2 30N min. or more
Solid
Wires
1.5mm2~4.0mm2
15AWG-12AWG
Device & Frame
Plate Body
& Plate Cover
(Global Terminal)
OK
Stranded
Wire
OK
Solid
Wire
Stranded
Wires
1.5mm2~4.0mm2
15AWG-12AWG
F U L L - C O L O R W I D E S E R I E S C - T Y P E
forHOTELforHOTEL
C-TYPETYPE
forHOTELforHOTEL
C-TYPETYPE
DOORCHCHIME
DOORCHCHIME
LATIF
056
4848805

64 65
forHOTELforHOTEL
C-TYPETYPE
forHOTELforHOTEL
C-TYPETYPE
DOORCHCHIME
DOORCHCHIME

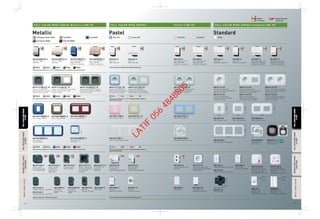

Champagne Silver (MYX) Blue (TL) Green (TG) Pink (TN) Cream (F) White
Dark Brown (MAE)
Gold (MYZ) Blue (MDZ)
Wine Red (MRE)
F U L L - C O L O R W I D E S E R I E S M e t a l l i c L I N E U P F U L L - C O L O R W I D E S E R I E S S t a n d a r d L I N E U PF U L L - C O L O R W I D E S E R I E S P a s t e l L I N E U P
Switch "C" 3Way
16AX 250V
WEJ5532 -8M Y X
Switch "C"
3Way 16AX 250V
WEJ5532-8
Switch "C"
3Way 16AX 250V
WEJ5542-8
Illuminated Switch "C"
3Way 16AX 250V
(Indicator Lamp:220V)
WEJ5572-8
Switch "B"
Single Pole 16AX 250V
WEJ5441-8
Switch "B"
WEJ5531-8
Illuminated Switch "B"
WEJ5581-8
Illuminated Switch "B"
WEJ5571-8
3Way 16AX 250V
WEJ5582-8
Tamper-Proof Round Pin
Socket Outlet with Grounding
(CP) with Plate 16A 250V
WEJP1121 -78M Y X
Tamper-Proof Round Pin Socket Outlet
with Grounding (CP) with Plate
2-Gang 16A 250V
WEJP11212 -78M Y Z
Tamper-Proof Round Pin Duplex
Socket Outlet with Grounding (CP)
with Plate 16A 250V
WEJP11222 -78M Y Z
WEJP1121 -78T L
Plate 1-Gang 1-Device
WEJ78019 -8T N
WEJ78029 -8F
WEJ78049 -8T L
WEJ78019W
WEJ78029W-8
WEJ78049W-8
(CP) with Plate 2-Gang 16A 250V
WEJP11212 -78T G
WEJP11222 -78T G
with Plate 16A 250V
WEJP1121-78
with Plate 16A 250V
WEJP1131-78
with Plate 2-Gang 16A 250V
WEJP11212-78
with Plate 2-Gang 16A 250V
WEJP11312-78
with Plate 16A 250V
WEJP11222-78
with Plate 16A 250V
WEJP11322-78
Switch "C" 3Way
16AX 250V
WEJ5542 -8M Y Z
3Way 16AX 250V
WEJ5582 -8M A E
3Way 16AX 250V
WEJ5572 -8M D Z
WEJ78019 -8M D Z
WEJ78029 -8M A E
WEJ78049 -8M R E
Plate 3-Gang
for Socket Outlet
WEJ7823 -8M D Z
Dimmer Switch
(Incandescent Light
Control) 800W 220V
WEJ57518H-8
Dimmer Switch
(Incandescent
Light Control) 800W 220V
WEJ57518-8
Universal Socket Outlet
16A 250V
WEJ10919-8
(CP) 16A 250V
WEJ1121-78
Telephone Modular Jack (6P4C)
WEJ2164-8
WEJ2166-8
CAT 5E Data
Modular Jack (8P8C)
WEJ2488-8
Socket Outlet 1-Gang
DP Switch with Indicator
with Plug 13A 250V
Applicable Box : BS-TYPE
WBJ1214W-38
Socket Outlet 1-Gang
DP Switch with Indicator
13A 250V
Applicable Box : BS-TYPE
WBJ1214W-8
Weather Proof
Push Button
for Door Chime 1A 220V
EGG331-8
Door Chime 220V
Two-Tone
Easy-To-Hear 82dB Chime
EBG888-8
Dimmer Switch
(Incandescent
Light Control) 500W 220V
WEJ57515-8
Dimmer Switch
(Incandescent
Light Control)
500W 220V
WEJ57515H-8
Universal Socket
Outlet 16A 250V
WEJ10919H-8
Tamper-Proof Round
Pin Socket Outlet with
Grounding (CP)
16A 250V
WEJ1121H-7-8
Push Button "B"
Single Pole
10AX 250V
WEJ5401H-7-8
WEJ2164H-8
WEJ2166H-8
CAT 5E Data
Modular Jack
(8P8C)
WEJ2488H-8
CAT 6 Data
Modular Jack (8P8C)
WEJ24886-8
DIN Type
Television Terminal
WEJ2501-8
Blank Chip
WEJ3020-8
Push Button “B”
WEJ5401-78
Flash Wall Box
WEJ5911-8CAT 6 Data
Modular Jack
(8P8C)
WEJ24886H-8
DIN Type
Television Terminal
WEJ2501H-8
Blank Chip
WEJ3020H-8
Decorative Cover
with Frame
WEJ30029 -8M D Z
(MYX) (MYZ) (MDZ) (MAE) (MRE)
(MYX) (TL) (TG) (TN) (F)(MYZ) (MDZ) (MAE) (MRE)
The last three character in of Metallic product numbers show the item color.
These products for Pastel and Standard type plate.
The last two character in of Pastel product numbers
show the item color.
Plate 3-Gang for Socket Outlet
WEJ7823 -8T G
Decorative Cover with Frame
WEJ30029 -8T G
Plate 3-Gang for Socket Outlet
WEJ7823W-8
Decorative Cover
with Frame
WEJ30029W-8
Weather Proof
Cover Plate IP54
WEJ89911-8
(TL) (TG) (TN) (F)
The last two character in of Pastel product numbers
show the item color.
(MYX) (MYZ) (MDZ) (MAE) (MRE)
These products for metallic type plate. These products for Pastel and Standard type plate.
Quick Connect
Terminal
Global
Terminal
82mm
224mm
82mm
82mm
82mm82mm
153mm
82mm
45mm
66mm
121mm
75mm
30.5mm
164mm
99mm
43.5mm
Internal depth 43.5mm
60mm
Metallic Pastel Standard
LATIF
056
4848805

66 67
forHOTELforHOTEL
C-TYPEC-TYPE
DOORCHCHIME
Made to complement the full color wide specifications of hotels, and
is suitable for guest rooms.
for HOTEL
WEB5781W
WMSU711K
WEB5781W WEB1051W
Do Not Disturb
WEG3032R-02
Make Up Room
WEG3032G-03
Bell Push
WEG5401-01-P
Plate BS-TYPE
WEB7813W
EGB888-P
Electric Card Switch
16A 220V AC
Shaver Socket
Input 220V
Output 240V / 110V
Applicable Box:2-Gang BS-TYPE
Door Chime
220V AC
Easy to Hear 82dB Chime
Sensor Switch
220~240V
Indoor Outdoor
Wire Connection Diagram – Do Not Disturb, Make Up Room, Bell Push
Bell Switch
DND
MUR
MUR Switch
(Switch B)
220V AC
DND Switch
(Switch C)
Buzzer
LATIF
056
4848805

WEATHER PROOF COVER/
DOORCHIME
Outdoor plate with excellent weather
proof resistance, elegant and easy to
use door chime.
MULTI GANG PLATE
Multi-switch complete management
all in one plate.
forHOTELforHOTEL
C-TYPETYPE
forHOTELforHOTEL
C-TYPETYPE
68 69
DOORCHCHIME
DOORCHCHIME
1Way Switch
A-TYPE Weather Proof
Metal
WNG5001-791 X 2
WNG1081-7 WNG1081-7
A-TYPE Weather Proof
Plastic
1Way Switch
WNG5001-791 X 2
Weather Proof Cover
A-TYPE Metal IP55
WEG8881-P
Weather Proof Cover
A-TYPE Plastic IP55
WEG8981-P
WNGP5130632MS
WNGP5130632PS
Weather Proof Cover
for Switch
BS-TYPE Plastic IPX3
WBC8991W
Weather Proof cover
for Socket
BS-TYPE Plastic IPX3
WBC8981SW
Door Chime 220V AC
Easy to Hear 82dB Chime
EGB888-P
Weather Proof Push Button
For Door Chime 1A, 220V
EGG331-P
WNG5001-791 X 9
WNGP5190630
WNGP5190630S
LW1153BW
LW5153BS
LW1154EW
LW5154BS
LW5154FS
9-Gang Plate
Beige
WN6009W
1Way Switch
（Plate）
WNG5001-791 X 9
9-Gang Plate
Metal
1Way Switch
WN6509K-8（Plate）
WN7803K-8（Plate） WN7903-8（Plate）
WNG5001-791 X 12
12-Gang Plate
Beige
WN6012W8
1Way Switch
（Plate）
WNG5001-791 X 12
12-Gang Plate
Metal
WN6512K-8
1Way Switch
（Plate）
WNG5001-791 X 15
15-Gang Plate
Beige
WN6015W8
1Way Switch
（Plate）
WNG5001-791 X 15
15-Gang Plate
Metal
WN6515K-8
1Way Switch
（Plate）
WNG5001-791 X 18
18-Gang Plate
Metal
WN6518K-8
1Way Switch
（Plate）
Weather Proof
Door Chime
LATIF
056
4848805

FLOOR OUTLET SERIES
Nice Appearance and Safety Design
for Floor Management.
TTECHNICALDETAILECHNICALDETAILPASSIVEINFRAREDSENSORASSIVEINFRAREDSENSORAUTOMATICTIMESWITCHAUTOMATICTIMESWITCH
TECHNICALDETAILECHNICALDETAILPASSIVEINFRAREDSENSORASSIVEINFRAREDSENSORAUTOMATICTIMESWITCHAUTOMATICTIMESWITCHFLOOROUTLETSERIESLOOROUTLETSERIES
FLOOROUTLETSERIESLOOROUTLETSERIES
70 71
Flexible Combination
Various combination is possible by choosing socket outlets,data outlets,
telephone modular from Panasonic wiring accessories.
Dimention
AIuminium BS-TYPE AIuminium A-TYPE
Safety
Installation Procedure
140.0
24.2
4.3
94.022.351.6
140.0
110.6
153.2
130.0
130.0
100.0
87.4
15.054.0
4.0
27.8
(Unit: mm)
4mm
1. Embeding the Outlet Box
(1) After the completion of plumbing,
install the cover unit with M4 screws.
*M4 screws included.
2. Making an Inlet for Cable
(1) Hit at the center of the box protector with hammer
to make a hole.
(2) Trim concrete along the rim of the box protector.
(3) When install the Floor Outlet,loosen cover unit screws
to remove the box protector.
3.Install the Floor Outlet to the Outlet Box
(1) Put the Floor Outlet into the Outlet Box by sliding
the lever.Fasten the setting screws after opening the cover.
(Adjustable degree of product is 6 degrees)
(2) Check direction and position of the Floor Outlet.
Damage Protection
Strong
Environment
IP44 protection level in closed position.
Harmful ingress of water ; Level 4
Protection against splashing water.
(No damage by water splash from
any direction)
Harmful ingress of solid obstacles ; Level 4
Protection against substance bigger than 1.0mm.
(No entry of fine cable,cloth,paper,board pieces)
When the covers are closed,receptacles & plugs
are stored inside of floor outlets.It prevents damage
caused by fallen objects and treading.
This product mounts Panasonic-
"FULL-COLOR WIDE SERIES" socket
outlets which comform to IEC60884-1.
Scratch Resistance
Combination of tough material,
Aluminum(ADC12) & shot blast
finish on the surface achieves
high scratch resistance.
• Shot blast surface treatment achieves long
resistance,nice appearance and matches any
types of flooring.
• Natural appearance is achieved by surface
evenness due to law 4.0mm high floor plate and
mildly angled floor plate.
• RoHS instruction in Europe complaint.
• Completely free from
Cd, Hg, Cr6+, Pb, PBBs, PBDEs.
We have achieved
• Lead free welding
• Cadmium-free contact
• Hexavalent chromium-free plating
I P 4 4
Water and Dust Protection
Socket Outlets
Nice Appearance
This Floor Outlet Box can be supplied
without socket.
DUF5200LT-1
Blank with Cover Unit
and Outlet Box
Examples
This Floor Outlet Box can be supplied
without socket.
DUF1200LTK-1
Blank with Cover Unit
and Outlet Box
Examples
Hammer
Chip
Concrete
Box Protector
Outlet Box
Box Protector
Box Protector
Screws
Box Protector Screws
Outlet Box
Cover
Setting Screws
Floor Outlet
Lever
AIuminium A-TYPE AIuminium BS-TYPE
Floor Outlet Aluminium BS-TYPE Floor Outlet Aluminium A-TYPE
LATIF
056
4848805

PASSIVE INFRARED SENSOR
New innovation with
New energy-saving lighting control.
72 73
Wall Mounted Sensor
Ceiling Mounted Sensor - Master
Ceiling Mounted Sensor - Auxiliary
Ceiling Mounted Sensor
-10℃ - +40℃
Applicable Standard
Ambient Temperature
Applicable Wire
Size of Installation Hole(cm)
Applicable Box
Time-Out Delay
Detectable Movement Speed
Temperature of Detection
Rating
IEC60669-2-1
Rigid Copper Conductor 1.5mm² - 2.5mm²
Ø7cm(+0.5cm)
Square Box (Depth : 2 inches or more)
Octagon Box (Depth : 2 inches or more)
10 seconds - 30 minutes
0.3m/seconds -1.0m/seconds
4℃ or more
3A 220-240V~,
Incandescent Lamp 660W
Fluorescent Lamp 330W
Time-Out Delay
Daylight Sensor
Installation
Rating
45 seconds - 75 seconds
Less than 15 lux
1.2 m-1.6 m high
220V-240V
Incandescent lamp 300W
Flourescent lamp 100W
Applicable Standard
Ambient Temperature
Applicable Wire
Applicable Box
Time-Out Delay
Light Sensor
Rating
IEC60669-2-1
Ø7cm(+0.5cm)
-10℃ - +40℃
Fixed 1 miniute
None
4℃ or more
3A 220V-240V~
The detection area can be
increased by connecting
the maximum of 4 Auxiliary
units with Master unit.
Applicable location
Dividing area (restroom,locker)and corridor.
Example :
Installation Layout of
Restroom
Once a person is out of the
range of detection, the light is
automatically turned off after
a fixed period of time.
This timing can be adjusted in
the range of around 10 to 30
seconds.
When a person enters the
range of detection, his/her
movement is detected and the
light comes on automatically.
Ceiling LightPassive Infared
Sensor
-10℃ - +40℃
Applicable Standard
Ambient Temperature
Applicable Wire
Applicable Box
Time-Out Delay
Rating
IEC60669-2-1
Ø7cm(+0.5cm)
Depend on time out delay of master
4℃ or more
12V DC
(Must be connect with only WTKG2411)
can not connect with lamp
Lighting controls intended to conserve energy.
The sensor detects movement and ambient brightness, and automatically
turns the lights On or Off. You no longer need to worry about forgetting to
turn the lights off.
Detective
Area
White
WMSU711K
White
WTKG2411
White
WTKG2911
White
WTKG2310-P
WTKG2911
(Auxiliary)
WTKG2411
(Master)
Auxiliary#1 Auxiliary#2
Auxiliary#3
Auxiliary#4
LATIF
056
4848805

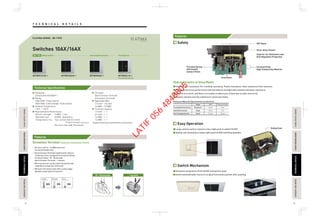

Features
T E C H N I C A L D E T A I L STTECHNICALDETAILECHNICALDETAILPASSIVEINFRAREDSENSORASSIVEINFRAREDSENSORAUTOMATICTIMESWITCHAUTOMATICTIMESWITCH
74 75
Technical Specifications
Features
Flexible
Conductor
Stranded
Conductor
Solid
Conductor
WTFBP51512S-1 WTFBP52522S-1 WTFBP5004S-1 WTFBP5411S-1
*Push On/Off Switches.
Switches 10AX/16AX
*Supply terminal (2way, Push Button) has 2 terminal holes.
Standards
Comply with IEC60669-1
Rating
16AX 250V~ (2way switch)
10AX 250V~ (intermediate, Push button)
Ambient Temperature
-10°C - +40°C
Representative Performance
·Electric strength : 2,000V 1 min
·Operation test : 40,000 Operations
·Temperature rise : Test current 22A (2.5 mm2
)
17.5A (1.5 mm2
) *10AX switch
Not more than 45K (Terminals)
Terminal
(Screwless Terminal)
Applicable Wire
1.5 mm2 - 2.5 mm2
14 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 1
2.5 mm2
× 1
14 AWG × 1
12 AWG × 1
Safety
Easy Operation
Switch Mechanism
Screwless Terminal (reduces installation work)
Excellent Arc resistance, Arc tracking resistance, Flame retardance, Heat resistance Color fastness.
Has good electrical performance and mechanical strength with excellent abrasion resistance.
Difficult to scratch, and there is virtually no adherence of dust due to static electricity.
Organic solvents and oily substances cannot permeate.
Characteristics of Urea Resin
Large control surface requires only a light push to switch On/Off.
Sliding cam mechanism makes light-push On/Off switching possible.
Panasonic proprietary Push On/Off mechanism used.
Switch automatically returns to original horizontal position after pushing.
All wire, and 14 - 12 AWG wires can
be connected directly.
Quick Connect Terminal significantly reduces
connection time, compared to screw terminals.
Screw terminal : 10 - 20 seconds
Quick Connect Terminal : 1 second
Wire connection can be uniformly performed
regardless of operator skill level.
Wires do not loosen even after a long usage.
(double contact point structure)
FLATIMA SERIES BS-TYPE
Sliding Cam
10 - 20 seconds 1 second
2Way SwitchBS-TYPE Intermediate Switch Push Button
PBT Resin
Silver Alloy Contact
Superior Arc Resistance and
Anti-Deposition Properties
Terminal Spring
with Double
Contact Points
Urea Resin
Terminal Plate
High-Conductivity Material
LATIF
056
4848805

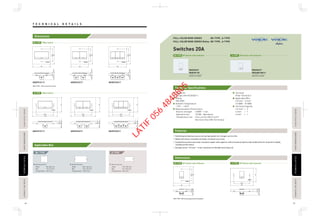

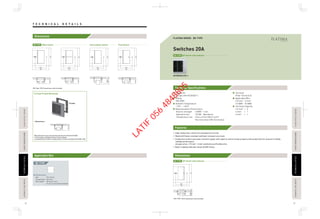

Dimensions
Applicable Box
Features
Dimensions
T E C H N I C A L D E T A I L STECHNICALDETAILECHNICALDETAILPASSIVEINFRAREDSENSORASSIVEINFRAREDSENSORAUTOMATICTIMESWITCHAUTOMATICTIMESWITCH
76 77
WTFBP55137S-1
31.49
23.4
60.3
95
86
923.4
60.3
95
86
23.49
60.3
95
86
23.49
95
60.3
86
Standards
Rating
20A 250V~
Ambient Temperature
-10°C - +40°C
·Temperature rise : Test current 25A (4 mm2
)
Terminal
Pillar Terminal
Applicable Wire
2.5 mm2 - 6 mm2
13 AWG - 10 AWG
Terminal Capacity
2.5 mm2
× 2
4 mm2
× 1
6 mm2
× 1
*BS-TYPE : M3.5 mounting screws included.
High rating silver contact for extended service life.
Made with flame-retardant and heat-resistant urea resin.
Conductive section uses heat-resistant copper with superior anticorrosion property and conductivity for long-term stable,
reliable performance.
Accepts wires : 2.5 mm2 - 6 mm2 solid wire and flexible wire.
Built-in lighted indicator shows On/Off status.
14.320.9
18.39
60.3
95
86
Switches 20A
BS-TYPE
Box : 72 x 72 mm
Fixing Center : 60.3 mm
Box's depth : 35 mm or more
41 mm or more (Intermediate)
Dimensions
2Way SwitchBS-TYPE
DP Switch with IndicatorBS-TYPE
Intermediate Switch Push Button
*BS-Type : M3.5 mounting screws included.
When the frames are removed, they will become flash plate height
to 7mm higher and depth of device to 2mm deeper
excepting Socket Outlet(1,2-Gang), Dimmer Switch and Cable Outlet(20A, 45A).
25.47
In Case Frame Removed
Frame
Dimensions
LATIF
056
4848805

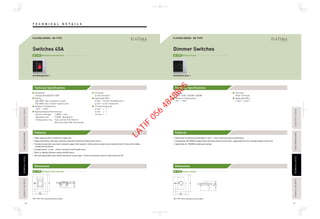

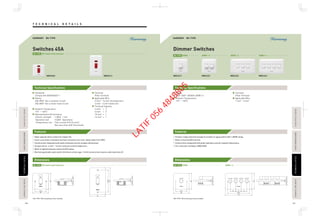

Features
DimensionsDimensions
Features
78 79
WTFBP5781103S-1
Dimmer SwitchesSwitches 45A
WTFBP5408699S-1
23.714.2
9
60.3
95
86
3320.7
9
60.3
95
86
DP Switch with IndicatorBS-TYPE Dimmer SwitchBS-TYPE
Rating
220V-240V~ 50/60Hz 1000W
Ambient Temperature
0°C - +35°C
Terminal
Pillar Terminal
Applicable Wire
1 mm2 - 4 mm2
Standards
Comply with BS3676:1989
Rating
45A 250V~ (for a resistive circuit)
25A 250V~ (for a motor-load circuit)
Ambient Temperature
-10°C - +40°C
·Temperature rise : Test current 51A (10mm2
)
Terminal
Screw Terminal
Applicable Wire
4 mm2 - 10 mm2
Stranded wire
4 mm2 - 6 mm2
Solid wire
Terminal Capacity
4 mm2
× 1
6 mm2
× 1
10 mm2
× 1
*BS-TYPE : M3.5 mounting screws included. *BS-TYPE : M3.5 mounting screws included.
New pillar terminal accommodates 1 mm2 - 4 mm2 solid wire and stranded wire.
Compatible with 800VA copper/steel and step-down transformers. (applicable for low-voltage halogen lamp use)
Applicable for 1000W incandescent lamps.
High-capacity silver contact for longer life.
Made with flame-retardant and heat-resistant melamine phenol/urea resins.
Accepts wires : 4 mm2 - 10 mm2 solid wire and flexible wire.
Normal gap double-pole switch (minimum contact gap : 3 mm) construction ensures safe load shut-off.
Dimmer SwitchBS-TYPEDP Switch with IndicatorBS-TYPE
LATIF
056
4848805

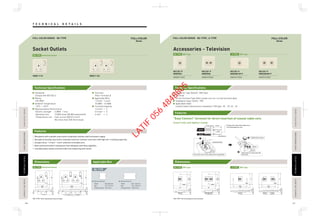

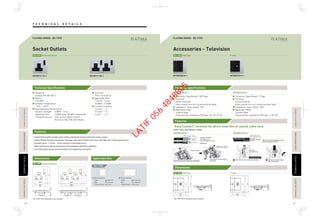

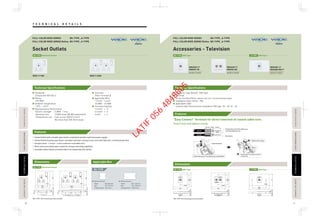

Technical specifications
Features
Dimensions
Features
Dimensions Applicable Box
80 81
WTFBP2731S-1WTFBP2501S-1WTFBP1111S-1 WTFBP1112S-1
20.713.7
9
95
120.6
146.3
13.7
995
86
60.3
20.7
9
1015.8
60.3
86
95
95
86
60.3
16.710
9
Accessories - TelevisionSocket Outlets
Standards
Comply with BS1363-2
Rating
13A 250V~
Ambient Temperature
-10°C - +40°C
·Operation test : 15,000 times (30,000 movements)
)
Terminal
Pillar Terminal
Applicable Wire
1.5 mm2
- 4 mm2
15 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 3
2.5 mm2
× 3
4 mm2
× 2
Connector Type (Outlet) : DIN Type
Terminal
Screw Terminal
(Only coaxial core isn't screw terminal type)
Impedance Input, Outlet : 75Ω
Applicable Cable
Coaxial Cable
Characteristic Impedance 75Ω type : 5C-2V, 3C-2V
Connector Type (Outlet) : F Type
Terminal
Screw Terminal
Applicable Cable
Coaxial Cable
Characteristic Impedance 75Ω type : S-5C-FB
Insertion hole.
Insert fully and tighten clamp.
"Easy Connect" terminal for direct insertion of coaxial cable core.
Socket Outlet with a double-pole switch completely isolates load from power supply.
Socket Outlet housing uses flame-retardant and heat-resistant urea resin with high anti-tracking properties.
Accepts wires : 1.5 mm2 - 4 mm2 solid wire and flexible wire.
Both socket and switch components have adequate switching capability.
Included safety shutter prevents kids from tampering with switch.
WTFBP2501S-1 WTFBP2731S-1
WTFBP2501S-1 WTFBP2731S-1
Be careful. Not to damage core wire.
While stripping insulation.
Switched SocketBS-TYPE
DIN TypeBS-TYPE F Type
DIN TypeBS-TYPE F Type
Plate : 86 x 146 mm
Box : 72 x 132 mm
Dimensions
BS-TYPE
Plate : 86 x 86 mm
Box : 72 x 72 mm
Dimensions
Insertthecoreof thecableasfaraspossible.
Bend.
Check that it is fully inserted
to the end.
Prepare the end of
the cable so as
not to damage the core.
Bend back.
core
Tighten the clamp.
insert the core wire up to the insulation. Tighten the screw of clamp
with a screwdriver.
10mm 3mm 9mm
S-5C-FB
Applicable cable
Core wire
insertion hole
Toward top of unit.
LATIF
056
4848805

Features
Dimensions
Features
Dimensions
82 83
WTFBP24886S-1
Accessories - LANAccessories - Telephone
WTFBP2164S-1
95
86
60.3
27.510
9
A B
5
4
7
8
BA6
3
2
1
95
86
60.3
15.910
9
Connector Type
Miniature Modular Jack, 6 position with 4-contacts, specified in TIA-1096-A (Previously in FCC part 68)
Terminal
Quick Connect Terminal (Screwless Connection)
Applicable Wire
Paired quad-type PVC indoor cable : Core wire to be 0.4 mm, 0.5 mm, 0.65 mm, in diameter
(solid copper only)
2-pair Business-phone indoor cable : Core wire to be 0.4 mm, 0.5 mm, 0.65 mm, in diameter
(solid copper only)
Connector Type
"8-way unshielded fixed connector (miniature 8-position modular jack)" specified in IEC 60603-7
Terminal
IDC connection
Applicable Wire
4-pair UTP cable, Category 6
Conductor : Solid copper wire, 22 AWG - 24 AWG (diameter : 0.5 mm-0.65 mm)
Quick Connect Terminal increases connection reliability.
Quick Connect Terminal for easy connection.
Simple Connection
Just insert cable into the terminal hole.
Easy Cable Disconnection
Push removal button while pulling out cable.
Pull out
6P4CBS-TYPE Category 6BS-TYPE
6P4CBS-TYPE Category 6BS-TYPE
2-way connection
It’s not necessary to use special wiring tool.1 No need to untwist the wires.2
Cut the excess wires with
nippers after connection
Wiring tool
(D.Impact tool)
Excess wires can be cut with
the blade edge of the tool
Using wiring toolToolless
Projection between the slots
No need to untwist the wires to setting on the slots.
Minimum untwisting retains uniform installation
quality and transmission performance.
1
Pair3 Pair1 Pair4
Pair2
T568A T568B(Optionnal)
2 3 4 5 6 7 8 1
Pair2 Pair1 Pair4
Pair
1
2
3
4
Color
W/BL
T568A
5
4
3
6
1
2
7
8
5
4
1
2
3
6
7
8
T568B
W/O
O
G
W/G
W/BR
BR
BL
Pin No.
Pair3
2 3 4 5 6 7 8
Pin/Pair assignment
LATIF
056
4848805

T E C H N I C A L D E T A I L STTECHNICALDETAILECHNICALDETAILPASSIVEINFRAREDSENSORASSIVEINFRAREDSENSORAUTOMATICTIMESWITCHAUTOMATICTIMESWITCH
84 85
WEBP515117 WEBP525217 WEBP535317 WEGP515117 WEGP525217 WEGP535317
Features
Features
Switches 16AX
Standards
Rating
16AX 250V~
Ambient Temperature
-10°C - +40°C
)
Terminal
Pillar Terminal
Applicable Wire
1.5 mm2 - 4 mm2
15 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 3
2.5 mm2
× 2
4 mm2
× 1
Urea Resin
Terminal
Flexible (class 5)
Conductor
Stranded
Conductor
Solid
Conductor
Rigid ( Solid or Stranded ) & Flexible (only class 5)
Copper Conductor Type
Excellent arc resistance, arc tracking resistance, flame retardance, heat resistance, color fastness.
Has good electrical performance and mechanical strength with excellent abrasion resistance.
Difficult to scratch, and there is virtually no adherence of dust due to static electricity.
Organic solvents and oily substances cannot permeate.
Improved contact reliability through our
design using proprietary technology.
Minimal contact bounce time
with switch “ON” reduces arc energy
being generated.
Long contact bounce time results in
more arc energy generation.
Contact deposition almost never
occurs, so contact damage is minimal.
Contact deposition occurs easil and
causes faster wear.
Short Time Long Time
OnOn OnOnOn On
Operation Operation
The Full-Color Series has a coil spring system to reduce arc
energy generation, making it ideal for compact fluorescent
lighting (CFL), inverter illumination and LED lighting.
Bounce Performance Comparison
Characteristics of Urea Resin
Built-in pillar terminal accommodates any wire configuration.
1 mm2 - 4 mm2
Pillar Terminal
Panasonic's proprietaty coil spring reversal method, causes the
pressure applied on the connector to be stable, so that it does
not become very hot. By keeping the bound small, the production
of arc energy is minimised.
Because the damage is small, the contacts do not fuse
easily, making them long lasting.
Our products have cleared the On/Off testing for
40,000 operations required by IEC.
Urea Resin
Even when the product is wrongly used, the casing does
not fuse. As such, it is fire proof and shock proof.
It is resistant to fire caused by tracking on the surfaceof
the socket, and the material itself does not melt easily.
Since the material is highly insulated so that electricity
does not pass through it, it is shock proof.
The use of urea resin which is safer and more secure
has led to improved fire resistance. It also has excellent
tracking resistance which prevents electric shocks.
FULL-COLOR WIDE SERIES BS-TYPE , A-TYPE
FULL-COLOR WIDE SERIES Refina BS-TYPE , A-TYPE
Flexible wire (class 5)
also applicable
SwitchSocket
Seesaw Type of Switching SystemCoil Spring System
1Way SwitchBS-TYPE 1Way SwitchA-TYPE
Effort Point
Load PointFulcrum Point
Coil Spring
Effort Point
Load PointFulcrum Point
Coil Spring
LATIF
056
4848805

Dimensions
Applicable Box
Features
Dimensions
86 87
Switches 20A
WEBP515117 WEBP525217 WEBP535317
WEGP515117 WEGP525217 WEGP535317
WEG55337
WEB7811W
WEBP5410600F
WEG55337
WEG6801WK-P
WEGP5414600F
Standards
Rating
20A 250V~
Ambient Temperature
-10°C - +40°C
)
Terminal
Pillar Terminal
Applicable Wire
2.5 mm2 - 6 mm2
13 AWG - 10 AWG
Terminal Capacity
2.5 mm2
× 2
4 mm2
× 1
6 mm2
× 1
Switching mechanism uses a coil spring system for a longer service life.
Made with flame-retardant and heat-resistant urea resin.
Accepts wires : 2.5 mm2 - 6 mm2 solid wire to flexible wire (class 5).
86
60.3
86
14.620.7
9
86
14.6
9
20.786
60.3
86
14.6
9
20.786
60.3
83.5
20.7
9
14.670
120
20.714.6
9
83.5
120
70
8614.620.7
9
86
60.3
*BS-TYPE : with screws for insert.
Plate : 86 x 146 mm
Box : 72 x 132 mm
Dimensions
BS-TYPE
Plate : 86 x 86 mm
Box : 72 x 72 mm
Dimensions
A-TYPE
Plate : 70 x 120 mm
Box : 51 x 102 mm
Dimensions
1Way SwitchBS-TYPE
1Way SwitchA-TYPE
20.714.6
9
83.5
70
120
7020.7
9
14.6
120
83.5
DP Switch with IndicatorBS-TYPE DP Switch with IndicatorA-TYPE
LATIF
056
4848805

Features
Dimensions
Features
Dimensions
88 89
WBG5408699W
WZB7832WK-1
WNBP5428690F
WEG5781103W WEG578153
WEB7812W
WEBP5726350F
WEG57514
WEG68029WK-P
WEGP5719140F
WBG5408699W
WZB7817
WNBP5448690F
WBG5408699W
WN3020W , WZB7843W
WNGP5438693F
Rating
220V-240V~ 50/60Hz 1000W
Ambient Temperature
0°C - +35°C
Terminal
Pillar Terminal
Applicable Wire
1 mm2 - 4 mm2
Rating
220V-240V~ 50/60Hz 500W
Ambient Temperature
0°C - +35°C
Terminal
Screw Terminal
Applicable Wire
1 mm2 - 2.5 mm2
Standards
Comply with BS3676:1989
Rating
Ambient Temperature
-10°C - +40°C
)
Terminal
Screw Terminal
Applicable Wire
4 mm2 - 10 mm2
Stranded wire
4 mm2 - 6 mm2
Solid wire
Terminal Capacity
4 mm2
× 1
6 mm2
× 1
10 mm2
× 1
WEG5781103W WEB578153
WEG5781103W WEB578153
New pillar terminal accommodates 1 mm2 - 4 mm2 solid wire
to stranded wire.
Compatible with 800VA copper/steel and step-down
transformers.
(applicable for low-voltage halogen lamp use)
Applicable for 1000W incandescent lamp.
Applicable Wires : 1 mm2 - 2.5 mm2
transformers.
Applicable for low-voltage halogen lamp use.
Accepts wires : 4 mm2 - 10 mm2 solid wire and flexible wire.
*BS-TYPE : M3.5 mounting screws included.*BS-TYPE : M3.5 mounting screws included.
DP Switch with IndicatorBS-TYPE DP Switch with IndicatorA-TYPE 1000WBS-TYPE 500W 400WA-TYPE
1000WBS-TYPE 500W 400WA-TYPE
*Those products can’t operate ventilating / ceiling fan.
20.433
960.3
86
86
30.1
9
20.270
120
83.5
14.623.7
9
86
86
60.3
86
120.6
146
14.623.7
9
70
83.5
120
9
14.623.7
9
3020.3
86
86
60.3
LATIF
056
4848805

Features
Features
Dimensions
Plate : 86 x 146 mm
Box : 72 x 132 mm
Dimensions
BS-TYPE
Plate : 86 x 86 mm
Box : 72 x 72 mm
Dimensions
90 91
Socket Outlets
WEB1112WKWEB1111WK
WEG2501-P
WEB7811W
WEBP4719830F
WEG2501-P
WEB7812W
WEBP4729830F
WEG2501-P
WEG6801WK-P
WEGP4719830F
Prepare the end of the cable so as
Bend back.
core
60.3
16.310.2
986
86
60.3
8620.7
10.3
9
86
13.7
86
10.3
20.7
9
146
120.6
13.7
9
120
70
83.5
10.216.3
8616.310.2
9
86
60.3
Standards
Rating
13A 250V~
Ambient Temperature
-10°C - +40°C
)
Terminal
Pillar Terminal
Applicable Wire
1.5 mm2 - 4 mm2
15 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 3
2.5 mm2
× 3
4 mm2
× 2
Terminal
Screw Terminal (Only coaxial core isn’t screw terminal type)
Applicable Cable
Coaxial cable Characteristic Impedance 75Ω type : 5C - 2V, 3C - 2V
Accessories - Television
“Easy Connect” terminal for direct insertion of coaxial cable core.
Socket Outlet housing uses flame-retardant and heat-resistant urea resin with high anti- tracking properties.
Accepts wires : 1.5 mm2 - 4 mm2 solid wire to flexible wire.
Both socket and switch parts made for enough switching capability.
DIN TypeBS-TYPE DIN TypeA-TYPE
Insertion hole.
Insert the core of the cable as far as possible.
Bend.
to the end.
Tighten the clamp.
LATIF
056
4848805

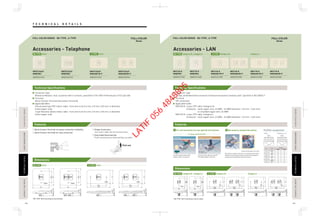

Features
Dimensions
Features
Dimensions
92 93
WEG2488-P
WEB7811W
WEBP4519980F
WEG2488-P
WEG6801WK-P
WEGP4519980F
WEG2488-P
WEG6802WK-P
WEGP4529980F
WEG24886-P
WEB7811W
WEBP4519680F
WEG24886-P
WEG6801WK-P
WEGP4519680
WEG24886-P
WEG6802WK-P
WEGP4529680
WEG2364
WEB7811W
WEBP4519940F
WEG2364
WEB7812W
WEBP4529940F
WEG2364
WEG6801WK-P
WEGP4519940F
WEG2364
WEG6802WK-P
WEGP4529940F
9
120
70
83.5
10.226.5
10.226.5
960.3
86
86
10.226.5
960.3
86
86
10.2
83.5
70
120
9
26.5
26.510.2
83.5
70
120
9
10.2
83.5
70
120
9
26.5
Connector Type
“8-way unshielded fixed connector (miniature 8-position modular jack)” specified in IEC 60603-7
Terminal
IDC connection
Applicable Cable
WEG2488 : 4-pair UTP cable, Category 5e
Conductor : solid copper wire, 22 AWG - 24 AWG (diameter : 0.5 mm-0.65 mm)
: or stranded copper wire, 24 AWG
WEG24886 : 4-pair UTP cable, Category 6
Conductor : solid copper wire, 22 AWG - 24 AWG (diameter : 0.5 mm-0.65 mm)
Connector Type
Terminal
Quick Connect Terminal (Screwless Connection)
Applicable Wire
(solid copper only)
(solid copper only)
Simple Connection
Pull out
6P4CBS-TYPE 6P4CA-TYPE
Category 5e , Category 6BS-TYPE Category 6Category 5eA-TYPE
2-way connection
Wiring tool
(D.Impact tool)
1
Pair3 Pair1 Pair4
Pair2
2 3 4 5 6 7 8 1
Pair2 Pair1 Pair4
Pair
1
2
3
4
Color
W/BL
T568A
5
4
3
6
1
2
7
8
5
4
1
2
3
6
7
8
T568B
W/O
O
G
W/G
W/BR
BR
BL
Pin No.
Pair3
2 3 4 5 6 7 8
Pin/Pair assignment
10.219.3
960.3
86
86
60.3
86
86
19.310.2
9
9
120
70
83.5
10.219.3
70
9
83.5
120
10.219.3
LATIF
056
4848805

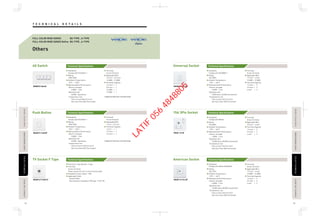

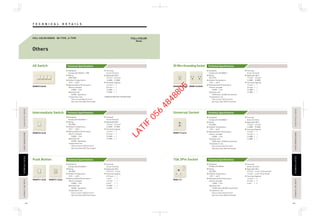

94 95
Technical Specifications Technical Specifications
Others
4G Switch Universal Socket
Standards
Rating
15AX 250V~
Ambient Temperature
-10°C - +40°C
·Electric strength
: 2,000V 1 min
·Operation test
: 40,000 Operations
·Temperature rise
: Test current 20A (2.5 mm2
)
Terminal
Screw Terminal
Applicable Wire
1.5 mm2 - 3.5 mm2
14 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 1
3.5 mm2
× 1
14 AWG × 1
12 AWG × 1
*Supply terminal has 2 terminal holes.
Standards
Rating
10AX 250V~
Ambient Temperature
-10°C - +40°C
·Electric strength
: 2,000V 1 min
·Operation test
: 40,000 Operations
·Temperature rise
: Test current 13.5A (2.5 mm2
)
Terminal
Screw Terminal
Applicable Wire
1 mm2 - 2.5 mm2
Terminal Capacity
1 mm2
× 1
1.5 mm2
× 1
2.5 mm2
× 1
Standards
Rating
16A 250V~
Ambient Temperature
-10°C - +40°C
·Electric strength
: 2,000V 1 min
·Operation test
: 5,000 times (10,000 movements)
·Temperature rise
)
Terminal
Screw Terminal
Applicable Wire
1.5 mm2 - 4 mm2
15 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 3
2.5 mm2
× 3
4 mm2
× 2
Push Button
TV Socket F Type
WNBP5140630 WEBP1914610F
WEBP47194501F
WEBP5113650F
American Socket
WEBP1619610F
15A 3Pin Socket
WEB1131W
Connector Type (Outlet) : F type
Terminal
Screw Terminal
Applicable Cable
Coaxial Cable
Characteristic Impedance 75Ω type : S-5C-FB
Standards
Comply with SASO 2204(2003)
Rating
15A 127V~
Ambient Temperature
-10°C - +40°C
·Electric strength
: 2,000V 1 min
·Operation test
·Temperature rise
)
Terminal
Screw Terminal
Applicable Wire
1.5 mm2 - 4 mm2
15 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 3
2.5 mm2
× 3
4 mm2
× 2
Standards
Comply with BS546
Rating
15A 250V~
Ambient Temperature
-10°C - +40°C
·Electric strength
: 1,500V 1 min
·Operation test
·Temperature rise
)
Terminal
Screw Terminal
Applicable Wire
2.5 mm2 - 4 mm2
Terminal Capacity
1.5 mm2
× 3
2.5 mm2
× 3
4 mm2
× 2
LATIF
056
4848805

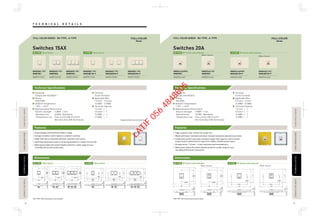

Features
Dimensions
Features
Dimensions
96 97
FULL-COLOR SERIES BS-TYPE , A-TYPE
WNG5001-791
WNB7801
WNBP5110630
WNG5001-791
WNB7802
WNBP5120630
WNG5001-791
WNB7803
WNBP5130630
WNG5001-791
WNG6801W-P
WNGP5110630
WNG5001-791
WNG6802W-P
WNGP5120630
WNG5001-791
WNG6803W-P
WNGP5130630
WNG5343-761
WNB7801
WNBP5414630
WBG5414699FC
WNB7801
WNBP5414600
WNG5343-761
WNG6801W-P
WNGP5414630
WBG5414699FC
WNG6801W-P
WNGP5414600
Series Series
Switches 20ASwitches 15AX
Standards
Rating
15AX 250V~
Ambient Temperature
-10°C - +40°C
)
Terminal
Screw Terminal
Applicable Wire
1.5 mm2 - 3.5 mm2
14 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 1
3.5 mm2
× 1
14 AWG × 1
12 AWG × 1
Standards
Comply with BS3676
Rating
20A 250V~
Ambient Temperature
-10°C - +40°C
)
Terminal
Screw Terminal
Applicable Wire
2.5 mm2 - 4 mm2
14 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 1
3.5 mm2
× 1
14 AWG × 1
12 AWG × 1
Clean designs and extensive product range.
Compact tumbler switch delivers a distinct click feel.
Made with flame-retardant and heat-resistant urea resins.
Switching mechanism uses a coil spring system for a longer service life.
Metal plate makes the switch ideally suited for a wide range of uses,
including offices and restaurants.
Conductive section uses heat-resistant copper with superior anticorrosion
property and conductivity for long-term stable, reliable performance.
Accepts wires : 1.5 mm2 - 4 mm2 solid wire and stranded wire.
Metal plate makes the switch ideally suited for a wide range of uses,
including offices and restaurants.
1Way Switch1Way SwitchBS-TYPE A-TYPE DP Switch with IndicatorBS-TYPE
1Way Switch1Way SwitchBS-TYPE A-TYPE
(Water Heater)
(Water Heater)
DP Switch with IndicatorA-TYPE
(Water Heater) (Water Heater)
DP Switch with IndicatorA-TYPE
86
60.3
86
9
13.818.7
18.7
13.8
9
86
60.3
86
83.5
70
120
18.7
9
14.1
14.1
9
18.7
120
70
83.5
86
86
18.713.8
60.39
86
8618.713.8
60.39
86
86
960.3
13.818.7
83.5
70
120
18.713.8
9
83.5
9
13.818.7
120
70
83.5
70
120
18.713.8
9
LATIF
056
4848805

Features
Dimensions
Features
Dimensions
98 99
Series Series
WBG5408699
WNB7802
WNBP5428690
WBG5408699
WNB7817
WNBP54489690
WBG5408699
WN3020 , WNG6803W-P
WNGP5438693
WEG578153-FC
WNB7872
WNBP5781530
WEG5781103-FC
WNB7873
WNBP5781103
Standards
Rating
Ambient Temperature
-10°C - +40°C
)
Terminal
Screw Terminal
Applicable Wire
4 mm2 - 10 mm2
Stranded wire
4 mm2 - 6 mm2
Solid wire
Terminal Capacity
4 mm2
× 1
6 mm2
× 1
10 mm2
× 1
Accepts wires : 4 mm2 - 10 mm2 solid wire and stranded wire.
Rating
220V-240V~ 50/60Hz 1000W
Ambient Temperature
0°C - +35°C
Terminal
Pillar Terminal
Applicable Wire
1 mm2 - 4 mm2
Rating
220V-240V~ 500W
Ambient Temperature
0°C - +35°C
Terminal
Screw Terminal
Applicable Wire
1 mm2 - 2.5 mm2
WEG5781103-FC WEG578153-FC
WEG5781103-FC WEG578153-FC
New pillar terminal accommodates 1 mm2 - 4 mm2 solid wire
to stranded wire.
transformers.
(applicable for low-voltage halogen lamp use)
Applicable Wires : 1 mm2 - 2.5 mm2
transformers.
Applicable for low-voltage halogen lamp use.
DP Switch with IndicatorBS-TYPE DP Switch with IndicatorA-TYPE 1000WBS-TYPE 500W (Low Voltage)
1000WBS-TYPE 500W (Low Voltage)
86
86
60.3
23.714.6
9
86
120.6
146
14.623.7
9
14.6
9
23.7
83.5
70
120
86 60.3
86
20.333
9
9
3020.3
86
86
60.3
LATIF
056
4848805

Dimensions
Features
Features
Plate : 86 x 146 mm
Box : 72 x 132 mm
Dimensions
BS-TYPE
Plate : 86 x 86 mm
Box : 72 x 72 mm
Dimensions
100 101
WNB1112KWNB1111K
Series Series
WZ1201-P
WNB7801
WNBP4719830
WZ1201-P
WNB7802
WNBP4729830
WZ1201-P
WNG6801W-P
WNGP4719830
WZ1201-P
WNG6802W-P
WNGP4729830
Standards
Rating
13A 250V~
Ambient Temperature
-10°C - +40°C
)
Terminal
Pillar Terminal
Applicable Wire
1.5 mm2 - 4 mm2
15 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 3
2.5 mm2
× 3
4 mm2
× 2
Bend back.
core
Insertion hole.
Insert the core of the cable as far as possible.
Bend.
to the end.
Tighten the clamp.
Terminal
Screw Terminal Type (Only coaxial core isn’t screw terminal type)
Applicable Cable
Coaxial Cable Characteristic Impedance 75Ω type : 5C - 2V, 3C - 2V
“Easy Connect” terminal for direct insertion of coaxial cable core.
Receptacle with a double-pole switch completely isolates load from power supply.
Receptacle housing uses flame-retardant and heat-resistant urea resin with high anti- tracking properties.
Accepts wires : 1.5 mm2 - 4 mm2 solid wire to flexible wire.
Both socket and switch components have adequate switching capability.
FULL-COLOR SERIES BS-TYPE
13.7
10.3
20.7
9
86
60.3
86
13.7
10.3
9
20.7
146
120.6
86
86
60.39
1610.3
86
86
960.3
1610.3
86
70
83.5
120
9
1610.3
9
120
70
83.5
1610.3
LATIF
056
4848805

Features
Dimensions
Features
Dimensions
102 103
NR3160-8
WNB7801
WNBP4519980
NR3160-8
WNG6801W-P
WNGP4519980
NR3160-8
WNG6802W-P
WNGP4529980
NR3170-8
WNB7802
WNBP4519680
NR3170-8
WNG6801W-P
WNGP4519680
NR3170-8
WNG6802W-P
WNGP4529680
WNTG15649
WNB7801
WNBP4519940
WNTG15649
WNB7802
WNBP4529940
WNTG15649
WNG6801W-P
WNGP4519940
WNTG15649
WNG6802W-P
WNGP4529940
Series Series
FULL-COLOR SERIES BS-TYPE , A-TYPEFULL-COLOR SERIES BS-TYPE , A-TYPE
Connector Type
“8-way unshielded fixed connector (miniature 8-position modular jack)” specified in IEC 60603-7
Terminal
IDC connection
Applicable Cable
NR3160-8 : 4-pair UTP cable, Category 5e
Conductor : solid copper wire, 22 AWG - 24 AWG (diameter : 0.5 mm - 0.65 mm)
NR3170-8 : 4-pair UTP cable, Category 6
Connector Type
Terminal
Quick Connect Terminal (Screwless Terminal)
Applicable Wire
(solid copper only)
(solid copper only)
Simple Connection
Pull out 10.515.5
83.5
70
120
9
10.515.5
9
120
83.5
70
86
15.510.5
60.39
86
86
10.515.5
960.3
86
27.3
9
10.3
70
83.5
120
27.3
9
10.3
120
70
83.5
10.327.3
83.5
70
120
9
10.327.3
9
120
83.5
70
86
27.310.3
960.3
86
86
27.3
9
10.386
60.3
2-way connection
Wiring tool
(D.Impact tool)
1
Pair3 Pair1 Pair4
Pair2
2 3 4 5 6 7 8 1
Pair2 Pair1 Pair4
Pair
1
2
3
4
Color
W/BL
T568A
5
4
3
6
1
2
7
8
5
4
1
2
3
6
7
8
T568B
W/O
O
G
W/G
W/BR
BR
BL
Pin No.
Pair3
2 3 4 5 6 7 8
Pin/Pair assignment
LATIF
056
4848805

104 105
Others
4G Switch
Standards
Comply with BS3676 ; 1989
Rating
15AX 250V~
Ambient Temperature
-10°C - +40°C
·Electric strength
: 2,000V 1 min
·Operation test
: 40,000 Operations
·Temperature rise
)
Terminal
Screw Terminal
Applicable Wire
1.5 mm2 - 3.5 mm2
14 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 1
3.5 mm2
× 1
14 AWG × 1
12 AWG × 1
Standards
Rating
10A 250V~
Ambient Temperature
-10°C - +40°C
·Electric strength
: 2,000V 1 min
·Operation test
: 40,000 Operations
·Temperature rise
)
Terminal
Screw Terminal
Applicable Wire
1.5 mm2 - 3.5 mm2
14 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 1
3.5 mm2
× 1
14 AWG × 1
12 AWG × 1
Standards
Rating
10A 300V
Ambient Temperature
-10°C - +40°C
·Electric strength
: 2,000V 1 min
·Operation test
: 40,000 Operations
·Temperature rise
)
Terminal
Screw Terminal
Applicable Wire
0.75 mm2 - 2 mm2
Terminal Capacity
0.75 mm2
× 1
1 mm2
× 1
1.5 mm2
× 1
2 mm2
× 1
16 AWG × 1
14 AWG × 1
Standards
Rating
15A 127V~
Ambient Temperature
-10°C - +40°C
·Electric strength
: 2,000V 1 min
·Operation test
·Temperature rise
)
Terminal
Screw Terminal
Applicable Wire
1.5 mm2 - 3.5 mm2
14 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 1
3.5 mm2
× 1
14 AWG × 1
12 AWG × 1
Intermediate Switch
Push Button
WNBP5140630
WNBP5113650 WNBP5113660
WNBP5513630
15A 3Pin Socket
WNB1131
Universal Socket
WNBP1914610
Standards
Comply with BS546
Rating
15A 250V~
Ambient Temperature
-10°C - +40°C
·Electric strength
: 1,500V 1 min
·Operation test
·Temperature rise
)
Terminal
Screw Terminal
Applicable Wire
2.5 mm2 - 4 mm2
(L,N terminal)
1.5 mm2 - 4 mm2
(E terminal)
Terminal Capacity
1.5 mm2
× 3
2.5 mm2
× 3
4 mm2
× 2
Standards
Rating
16A 250V~
Ambient Temperature
-10°C - +40°C
·Electric strength
: 2,000V 1 min
·Operation test
·Temperature rise
)
Terminal
Screw Terminal
Applicable Wire
1.5 mm2 - 3.5 mm2
14 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 1
2.5 mm2
× 1
14 AWG × 1
12 AWG × 1
Series
3G Wire Grounding Socket
WNBP1619600 WNBP1629600
LATIF
056
4848805

Features
Dimensions
Features
Dimensions
106 107

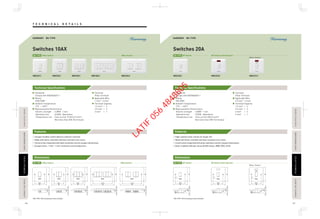

HARMONY BS-TYPE
HARMONY BS-TYPE
Standards
Comply with BSEN60669-1
Rating
10AX 250V~
Ambient Temperature
-5°C - +40°C
·Temperature rise : Test current 13.5A (2.5 mm2
)
Terminal
Pillar Terminal
Applicable Wire
1 mm2 - 4 mm2
Terminal Capacity
1.5 mm2
× 3
2.5 mm2
× 2
4 mm2
× 1
Standards
Rating
20A 250V~
Ambient Temperature
-5°C - +40°C
)
Terminal
Pillar Terminal
Applicable Wire
2.5 mm2 - 6 mm2
Terminal Capacity
1.5 mm2
× 3
2.5 mm2
× 3
4 mm2
× 2
6 mm2
× 1
Compact tumbler switch delivers a distinct click feel.
Construction integrated with plate maintains overall compact dimensions.
Built-in lighted indicator shows On/Off status. (WBC 5303, 5313)
WBC5042WBC5061WBC5011 WBC5021 WBC5031 WBC5203 WBC5303 WBC5313
Switches 20ASwitches 10AX
1Way Switch 2Way SwitchBS-TYPE
1Way Switch 2Way SwitchBS-TYPE
DP SwitchBS-TYPE DP Switch with Indicator
DP SwitchBS-TYPE DP Switch with Indicator
(Water Heater)
(Water Heater)
12.4
8
12.186
86
60.3 60.3
86
12.412.1
8
86
60.3
86
12.412.1
8
86
8
12.412.186
146
120.6
8
12.412.1
120.6
86
146
13.2
8
15.786
60.3
86
86
86
60.3
8
13.215.7
86
86
60.3
HEATER
WATER
8
13.215.7
LATIF
056
4848805

Features
Dimensions
Features
Dimensions
108 109
HARMONY BS-TYPEHARMONY BS-TYPE
Standards
Rating
Ambient Temperature
-5°C - +40°C
)
Terminal
Pillar Terminal
Applicable Wire
4 mm2 - 16 mm2
Stranded wire
4 mm2 - 6 mm2
Solid wire
Terminal Capacity
4 mm2
× 3
6 mm2
× 2
10 mm2
× 1
16 mm2
× 1
Rating
220V-240V~ 50/60Hz 300W x 4
Ambient Temperature
-5°C - +40°C
Terminal
Pillar Terminal
Applicable Wire
1 mm2 - 4 mm2
Cover uses flame-retardant and heat-resistant urea resin. (body made from PBT)
Product range extensive enough to include a 4-gang switch with 1,200W rating.
Built-in Push On/Off function.
Fan controller available. (WBC4530)
WBC5413WBC5403 WBC4211 WBC4221 WBC4241WBC4231
22.314.1
8
86
120.6
146
14.1
8
22.3
86
60.3
86
8
25.321.5
86
MAX.500W
60.3
86
86
MAX.300W MAX.300W MAX.300W MAX.300W
30 30 30
120.6
146
8
25.321.5
500WBS-TYPE 400W × 2 300W × 3 350W × 4
500WBS-TYPE 350W × 4
LATIF
056
4848805

Features
Dimensions
Dimensions
Features
110 111
8
18.612.5
86
146
120.6
8060.3
86
86
12.319
8
12.3
8
19
86
86
60.3
18.612.5
8
86
146
120.6
80
WBC3010 WBC3011 WBC3020 WBC3820WBC1214WBC1212 WBC1224WBC1222
*BS-TYPE : M3.5 mounting screws included.*BS-TYPE : M3.5 mounting screws included.
Standards
Rating
13A 250V~
Ambient Temperature
-5°C - +40°C
)
Terminal
Pillar Terminal
Applicable Wire
1.5 mm2 - 4 mm2
15 AWG - 12 AWG
Terminal Capacity
1.5 mm2
× 3
2.5 mm2
× 3
4 mm2
× 2
WBC3010, WBC3020 (TV, FM), WBC3820 (TV)
Connector Type (Outlet) : F Type
WBC3011 (SAT), WBC3820 (SAT)
Terminal Screw Terminal
Applicable Cable Coaxial cable
Characteristic Impedance
75Ω type : CT-100 (or equivalent)
“Easy Connection” Connection just needs a coaxial cable to be inserted,
then both core and braid sections are tightened with screws.
Socket Outlet housing uses flame-retardant and heat-resistant Nylon with high anti-tracking properties.
Accepts wires : 1.5 mm2 - 4 mm2 solid wire and stranded wire.
Both socket and switch components have adequate operation capability.
Included safety shutter prevents kids from tampering with socket.
Models equipped with pilot lamps are also available. (single switch - 1 lamp, double switch - 2 lamps)
86
86
60.3
2013.3
8
TV SAT.
86
86
60.3
13.28.5
8
TV FM
86
86
60.3
13.320
8
SAT.
86
86
60.3
13.28.5
8
DP Switched SocketBS-TYPE DP Switched Socket with Indicator
DP Switched SocketBS-TYPE DP Switched Socket with Indicator
8mm
3mm
8mm
core
Coaxial cable CT 100
(or equivalent.)
Loosen the screws.1 Insert the cable and tighten the screws.
(Appropriate tightening torque 0.33N.m - 0.40 N.m)
2
Screws Screws
DIN TypeBS-TYPE F Type DIN Type DIN Type + F Type
DIN TypeBS-TYPE F Type DIN Type DIN Type + F Type
LATIF
056
4848805

Features
Dimensions
Features
Dimensions
112 113
WBC3112 WBC3113 WBC3114 WBC3118 WBC3124 WBC3128
86
86
60.3
248
TEL2TEL1
86
86
60.3
824
TEL1 TEL2
86
86
60.3
248
TEL
86
86
60.3
824
TEL
86
86
60.3
12.58
SECONDARY
86
86
60.3
12.58
MASTER
60.3
86
86
31.48
CAT6
60.3
86
86
31.48
CAT5E
60.3
86
86
31.48
CAT6
8631.4
CAT5E
8
60.3
86
Connector Type
"8-way unshielded fixed connector (miniature 8-position modular jack)" specified in IEC 60603-7
Terminal
IDC connection
Applicable Cable
WBC3216/3226 : 4-pair UTP cable, Category 5e
WBC3217/3227 : 4-pair UTP cable, Category 6
Connector Type
Miniature Modular Jack, 6P6C
(Mechanically complies with BS 6312 : 1994,
miniature 6 position jack with 6 contacts)
Terminal
Screw Terminal
Applicable Wire
Core wire to be 0.5 mm in diameter (solid copper only)
2 Pairs Cable (CW1308)
Connector Type
Miniature Modular Jack,
(6P2C) 6 position with 2-contacts,
(6P4C) 6 position with 4-contacts,
specified in TIA-1096-A (Previously in FCC part 68)
Terminal
Screw Terminal
Applicable Wire
Core wire to be 0.5 mm in diameter (solid copper only)
Using terminal blocks enhance wiring ease.
Two types available-the RJ type and the UL type.
WBC3216 WBC3226 WBC3217 WBC3227
UK Type RJ11/12 Type
Accessories - LANAccessories- Telephone
2-way connection
Wiring tool
(D.Impact tool)
1
Pair3 Pair1 Pair4
Pair2
2 3 4 5 6 7 8 1
Pair2 Pair1 Pair4
Pair
1
2
3
4
Color
W/BL
T568A
5
4
3
6
1
2
7
8
5
4
1
2
3
6
7
8
T568B
W/O
O
G
W/G
W/BR
BR
BL
Pin No.
Pair3
2 3 4 5 6 7 8
Pin/Pair assignment
UK-Master UK-Secondary RJ11/12 6P2C RJ11/12 6P4C RJ11/12 6P2C RJ11/12 6P4C
UK-Master UK-Secondary RJ11/12 6P2C RJ11/12 6P4C RJ11/12 6P2C RJ11/12 6P4C
RJ45 Category 5eBS-TYPE RJ45 Category 6
RJ45 Category 5eBS-TYPE RJ45 Category 6
BS-TYPE
BS-TYPE
LATIF
056
4848805

114 115

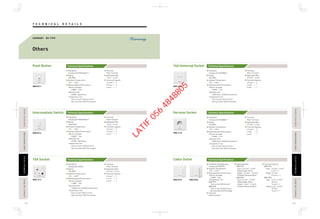

Others
Push Button
Standards
Rating
10A 250V~
Ambient Temperature
-5°C - +40°C
·Electric strength
: 2,000V 1 min
·Operation test
: 40,000 Operations
·Temperature rise
)
Terminal
Pillar Terminal
Applicable Wire
1 mm2 - 4 mm2
Terminal Capacity
1.5 mm2
× 3
2.5 mm2
× 2
4 mm2
× 1
Standards
Rating
10AX 250V~
Ambient Temperature
-5°C - +40°C
·Electric strength
: 2,000V 1 min
·Operation test
: 40,000 Operations
·Temperature rise
)
Terminal
Pillar Terminal
Applicable Wire
1 mm2 - 4 mm2
Terminal Capacity
1.5 mm2
× 3
2.5 mm2
× 2
4 mm2
× 1
Standards
Comply with BS546
Rating
15A 250V~
Ambient Temperature
-5°C - +40°C
·Electric strength
: 1,500V 1 min
·Operation test
·Temperature rise
)
Terminal
Pillar Terminal
Applicable Wire
2.5 mm2 - 6 mm2
Terminal Capacity
2.5 mm2
× 3
4 mm2
× 2
6 mm2
× 1
Intermediate Switch
15A Socket
WBC5511
WBC1313
WBC5014
German Socket
WBC1610
Standards
Rating
16A 250V~
Ambient Temperature
-5°C - +40°C
·Electric strength
: 2,000V 1 min
·Operation test
·Temperature rise
)
Terminal
Pillar Terminal
Applicable Wire
2.5 mm2 - 6 mm2
Terminal Capacity
2.5 mm2
× 3
4 mm2
× 2
6 mm2
× 1
Standards
Rating
16A 250V~
Ambient Temperature
-5°C - +40°C
·Electric strength
: 2,000V 1 min
·Operation test
·Temperature rise
)
Terminal
Pillar Terminal
Applicable Wire
2.5 mm2 - 6 mm2
Terminal Capacity
2.5 mm2
× 2
4 mm2
× 1
6 mm2
× 1
16A Universal Socket
WBC1510
HARMONY BS-TYPE
Cable Outlet
WBC7010 WBC7020
Applicable Wire
WBC7010
Input : 2.5 mm2 - 6 mm2
(Rigid Copper Wire)
Output : 1.5 mm2 - 2.5 mm2
(Flexible Electrical Wire)
WBC7020 :
Input : 4 mm2 - 16 mm2
(Rigid Copper Wire)
Output : 4 mm2 - 16 mm2
(Flexible Electrical Wire)
Terminal Capacity
WBC7010
: Input 2.5 mm2
, 4 mm2
,
6 mm2
× 1
Output 1.5 mm2
,
2.5 mm2
, × 1
WBC7020
: Input 4 mm2
, 6 mm2
,
10 mm2
,
16 mm2
× 1
Output 4 mm2
, 6 mm2
,
10 mm2
,
16 mm2
× 1
Standards and Approvals
Comply with BS5733
Ambient Temperature
-5°C - +40°C
·Electric strength
: 2,000V 1min
·Temperature rise :
WBC7010
: Test current 22A (4 mm2
)
WBC7020
: Test current 49.5A (6 mm2
)
Terminal
Pillar Terminal
LATIF
056
4848805

116 117

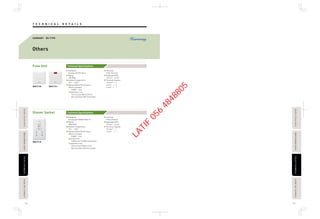

Others
Standards
Rating
13A 250V~
Ambient Temperature
-5°C - +40°C
·Electric strength
: 2,000V 1 min
·Temperature rise
)
Terminal
Pillar Terminal
Applicable Wire
2.5 mm2 - 6 mm2
Terminal Capacity
2.5 mm2
× 3
4 mm2
× 2
6 mm2
× 1
Standards
Comply with BSEN61558-2-5
Rating
20VA 250V~
Ambient Temperature
-5°C - +40°C
·Electric strength
: 2,000V 1 min
·Operation test
·Temperature rise
: Test current 20VA (4 mm2
)
Terminal
Pillar Terminal
Applicable Wire
2.5 mm2 - 4 mm2
Terminal Capacity
2.5 mm2
× 1
4 mm2
× 1
Fuse Unit
Shaver Socket
WBC9120
WBC7100 WBC7101
HARMONY BS-TYPE
LATIF
056
4848805

AUTOMATIC TIME SWITCH
Available in a wide variety of models
to suit a multitude of environmental
and weather conditions.
Activation of Plant Facility Panasonic Time Switch can be used to
effectively activate machinery before operation
running.
Application Example
System Layout
Power
Source
Magnetic
Contactor
Electrical
Facilities
Time
Switch
Outdoor Lighting Your outdoor lighting system can be easily set
from sunset to sunrise with the help of our
advanced product line-up. Highly efficient when
multiple outdoor lights need to be switched on
simultaneously.
Application Example
Ex.) Street lights are set off to be On from
5p.m. to 11p.m.
System Layout
Power
Source
Light
Time
Switch
5p.m. 11p.m.
Weekday
Weekend
7a.m. 8a.m. 5p.m.
Operation Start End
Office Lighting Allowing smoother control of the entire
buildings lighting system based on office
hours.
Application Example
Ex.) According to the office hours,
the lights are turned On and Off.
System Layout
Power
Source
Magnetic
Contactor Light
Time
Switch
5p.m. 5a.m.
8a.m. 12p.m. 1p.m. 5p.m.
Switch Board / Control Panel Panasonic Time Switch can be also used inside
control panels as load controller.
*DIN72 module and DIN rail mounting models.
Application Example
Various time set up possible based on
requirements.
System Layout
Power
Source
Mercury
Lampetc.
Time
Switch
Sprinklers Panasonic latest product line-up provides
efficient support for water supply systems
such as crops and land maintenance.
Application Example
Ex.) Water supply done twice a day.
System Layout
Oxygen Supply Panasonic Time Switch’s advanced technology
can also be used for oxygen supply devices.
Especially inside fish farms, where regular
interval set ups are highly required.
Application Example
System Layout
Power
Source
Oxygen
Feeder
Time
Switch
Feeders Time Switch automatically schedules food and
water supply at the designated time.
Application Example
Ex.) Feeding process done twice a day.
System Layout
Pool Pump (Water Purificator) Panasonic highly advanced devices can control
water purification systems for residential as
well as public water infrastructure.
Application Example
Ex.) Purification process done
three times a day.
System Layout
Sign Lighting You can Efficiently control the advertising
signs On / Off with the use of Panasonic Time
Switch latest technology.
Application Example
Ex.) Lighting is on at 5p.m. and off at 5a.m.
System Layout
Sign
Lamp
Power
Source
Time
Switch
Power
Source
Time
Switch
Pump
8a.m. 8a.m. 12p.m. 12:30p.m. 3p.m. 3:30p.m.
Power
Source
Time
Switch
Feeder
8a.m. 3p.m.9a.m. 4p.m.
15 min.
15 min.15 min.
15 min.
15 min. 15 min.
8a.m. 4p.m.8:30a.m. 4:30p.m.
Power
Source
Time
Switch
Pump
Magnetic
Contactor
Magnetic
Contactor
Magnetic
Contactor
Magnetic
Contactor
Magnetic
Contactor
118 119
A full range of products, from economical types to outdoor weatherproof types with
power failure back-up. Find out which use of our products can suit your needs best.
LATIF
056
4848805

120 121
Use and Advantages of Panasonic Time Switch
TB35K, 36K, 38K, 39K
TB35K, TB38K
Features(TB35K, TB38K)
• With robust steel box
• 24hour program
• Surface mount
• 500 hours reserve battery(TB38K)
*Battery exchange from the front side.
• 96 operations per day
• Minimum setting interval is 15 minutes
• Easy to read and set, clock display.
TB40K, TB43K
Features (TB40K, 43K)
• 24hour program
• Surface mount
• Weatherproof type (IP53)
• 500 hours reserve battery (TB43K)
TB62 DIN
TB556, 563 DIN
TB27
Features (TB62)
• Digital type
• Weekly type
• 6 years reserve battery
• With a manual On / Off button
• Possible to lock the manual button
• Holiday setting function
• Manual ±1 hour changeover function
• DIN 2P module
Features(TB556, 563)
• Weekly program (TB563)
• 24hour program (TB556)
• 300 hours reserve battery
(TB556,563)
• With robust metal setting pins
• DIN 3P module
Features(TB27)
• Easy setting with a mode change switch
• 24hours program(TB271018) /
Weekly program(TB272018)
• DIN 72 panel mounting
Features (TB11K,17K)
• 24hour program
• On/Off operations are set with separated pins
• With a manual On/Off switch
• 300 hours reserve battery(TB11K)
TB21
Features(TB21)
• Easy setting with a mode change switch
• High capacity
Resistive load : 30A, Inductive load
(cos =0.6):12A
• 24hours program(TB2118) / Weekly program(TB2128)
• Surface and reserve battery
250V AC 15A
250V AC 15A
250V AC 12A
220V AC 1500W
Single pole, single through
(1a Contact)
TB17K series
TB178KE5(220-240V AC 50Hz)
TB178KE6(220-240V AC 60Hz)
TB11K series
TB118KE7
(220-240V AC 50-60Hz)
250V AC 20A
250V AC 10A
250V AC 12A
220V AC 1500W
(1a Contact)
(1a Contact)
Outdoor & Indoor Use
Switch Constraction
Inductive Load(cos 0.6)
Resistive Load
TB40K series
TB408KE5(220-240V AC 50Hz)
TB408KE6(220-240V AC 60Hz)
TB43K series
TB438KE7
(220-240V AC 50-60Hz)
250V AC 16A
250V AC 8A
Single pole,double through
(1c Contact)
Separate circuit
Electronic
TB62 series
TB621018A7(1circuit)
(220-240V AC 50-60Hz)
TB622018A7(2circuits)
(220-240V AC 50-60Hz)
250V AC 20A
250V AC 10A
250V AC 12A
220V AC 1500W
(1a Contact)
Item No.
Switch Constraction
TB35K series
TB358KE5(220-240V AC 50Hz)
TB358KE6(220-240V AC 60Hz)
TB38K series
TB388KE7
(220-240V AC 50-60Hz)
1 minute
50 operations (On/Off 25 sets)/circuit
Item No.
Switch Constraction
Resistive Load(cos =1)
Inductive Load(cos =0.6)
Minimum Setting Interval
No.of On/Off Operation
Item No.
Switch Constraction
240V AC 16A
240V AC 9A
240V AC 30A
240V AC 12A
(1c Contact)
Separate circuit (no voltage contact output)
Same circuit (voltage contact output)
Indoor Use
Daily Weekly
Indoor Use
TB21 series
Daily Weekly
TB27 series
TB271018E7
(220VAC 50-60Hz)
TB272018E7
(220VAC 50-60Hz)
TB2118E7
(220VAC 50-60Hz)
TB2128E7
(220VAC 50-60Hz)
1 minute
4 operations(On/Off 2sets) 16 operations(On/Off 8sets)
1 minute
4 operations(On/Off 2sets) 16 operations(On/Off 8sets)
Switch Constraction
250V AC 16A
250V AC 3A
250V AC 16A
250V AC 3A
(1c Contact)
Separate circuit Separate circuit
(1c Contact)
Indoor Use
TB556 series
Daily
TB563 series
Weekly
TB5560187N
(220-240V AC 50-60Hz)
TB5630187N
(220-240V AC 50-60Hz)
Features
(TB35K, 36K, 38K, 39K)
• 24hour program
• Surface and DIN rail mount
• 500 hours reserve battery (TB38K,39K)
• 96 operations per day
• Minimum setting interval is 15 minutes
250V AC 20A
250V AC 10A
250V AC 12A
220V AC 1500W
AC Motor
AC Motor
Same as AC frequency
AC Motor
Quartz Motor
500 hours
±15 sec/month(at 25˚C)
Quartz Motor
300 hours
300 hours(at 25˚C)
Quartz Motor
500 hours
Switch Constraction
Switch Constraction
LoadCapacityLoadCapacityLoadCapacity
TB35K series
Same circuit
Same circuit
Same circuit
Separate circuit Same circuit Separate circuit
(1a Contact)
(1c Contact)
(1a Contact)
(1c Contact)
TB36K series TB38K series TB39K series
TB35809KE5
(220-240V AC 50Hz)
TB35809KE6
(220-240V AC 60Hz)
TB36809KE5
(220-240V AC 50Hz)
TB36809KE6
(220-240V AC 60Hz)
TB38809KE7
(220-240V AC 50-60Hz)
TB39809KE7
(220-240V AC 50-60Hz)
76
112
31.5
44
5.5
76
112
100
31.5
44
5.5
TB2118E7
TB2128E7
100
Indoor Use
Indoor Use
Applicable Installation
Indoor UseApplicable Installation
96 operations
96 operations
Item No.
Item No.
Drive Method
Drive Method
Drive Method
Power Failure Backup Time
Circuit Configuration
Time Precision
Time Precision
Time Precision
Daily
Daily
Series
Series
Series
Type
Type
Resistive Load
Switch Constraction
LoadCapacity
Load
Capacity
Load
Capacity
Load
Capacity
Load
Capacity
Item No.
Item No.
Item No.
Drive Method
Time Precision
Drive Method
Time Precision
Drive Method
Time Precision
Drive Method
Time Precision
Drive Method
Time Precision
Series
Type
Series
Type
Series
Type
Series
Type
Series
Type
DailyType
15 minutes
Standard 6 operations (Max 48 operations)
30 minutes
15 minutes
AC Motor
Quartz Motor
500 hours
Separate circuit
96 operations
Daily
Indoor Use
Weekly
15 minutes
96 operations
1. Operating Time Accuracy is ±30 minutes.
15 minutes
84 operations
2 hours ( 1)
6 years
±15 sec/month(at 25°C)
Electronic
5 years
±15 sec/month (at 25˚C)
Electronic
5 years
±15 sec/month (at 25˚C)
Quartz motor
300 hours(at 25˚C)
Quartz motor
107.6
85
10.5
9
98.5
72
30.4
37.5
44.5
44.5
36
40.6
4.5
72
101
123
120
2.5 31.5
16.5
8
4.5
50
(FixingPitch)
Front
Cover
4.5
12116.6
60
4.22-
2140
946
72.5145
145
44
29.2
18.3
2- Wire inlet busing
(Fixing hole)
(Fixing hole)
Ground
terminal
(Fixingpitch)
(Fixing pitch)
4.5 7.5
104
40
52
33.5
19
12 7
2010.5160
153.5
212-
22
4.5
6
2-
(Mounting hole)
(Fixingpitch)
Wire inlet busing
Knockout
(for rear wiring)
(Lower mounting hole)
(Key hole)
55
1.8
61
5.5
34.5
33
45
44
65.2
35
40
45
90
130
65
Mounting plate
(option parts)
Terminal cover
(option parts)
Front cover
66.5
61
44
33
34.5
54
110
45
90
Terminal cover
(option parts)
DIN
rail-
mounting
grove
76
112
4.2
31.5
44
5.5
76
112
100
4.2
31.5
44
5.5
TB2118E7
TB2128E7
100
(Installation hole)
(Installation hole)
<Daily type>
<Weekly type>
(Installationpitch)(Installationpitch)
TB271018E7
TB272018E7
34
46.5
5.5
72
72
72
34
46.5
5.5
72
<Daily type>
<Weekly type>
to control automatically On / Off various
electrical equipments.
to switch off unused lights and unnecessary operations,
which can be effective for energy saving.
to improve the efficiency of different programs.
Possible
Reduction of greenhouse gases(Carbon dioxide) discharged and
energy saving have become more important as preventive
measures against global warming in recent years.
Social
Environment
• Setting a numerical target for the reduction of greenhouse gases.
• Crude oil price rising.
• Usage and development of alternative energies such as oil energy.
(mounting hole)
DIN rail
installation
groove
DIN rail
installation
bracket
Front cover
(Distancebetweentheholecenters)
TB11K, TB17K
Resistive Load
Incandescent Lamp Load
Motor Load(cos 0.7)
Resistive Load
Motor Load(cos 0.7)
Resistive Load
Motor Load(cos 0.7)
Resistive Load
Motor Load(cos 0.7)
Resistive Load(cos =1)
Inductive Load(cos =0.6)
A U T O M A T I C T I M E S W I T C HTECHNICALDETAILECHNICALDETAILPASSIVEINFRAREDSENSORASSIVEINFRAREDSENSORAUTOMATICTIMESWITCHAUTOMATICTIMESWITCH
LATIF
056
4848805

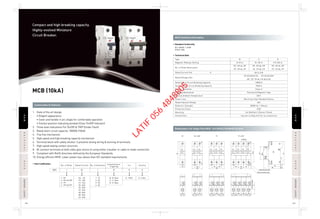

MCB (10kA)
RRCCBCCBISOLATORSOLATORMCBCB
RCCBCCBISOLATORSOLATORMCBCB
SAFETYBREAKERAFETYBREAKER
122 123
1. State of the art design
• Elegant appearance
• Cover and handle in arc shape for comfortable operation
• Contact position indicating window (Clear On/Off Indicator)
2. Three level indications For On/Off & TRIP (Under Fault)
3. Rated short circuit capacity: 10000A (10kA)
4. Trip free mechanism
5. High speed and high breaking capacity mechanism
6. Terminal block with safety shutter. It prevents wrong wiring & burning of terminals
7. High speed wiping contact structure
8. Bi-connect terminals at both sides give choice of using either a busbar or cable to make connection
9. Compliant with RoHS directives defined by the European Standards.
10. Energy efficient MCB. Lower power loss values than IEC standard requirements.
Construction & Features
Dimensions: For Single Pole MCB - 81×18×65.5 (H×W×D) (In mm)
MCB Technical Information
Compact and high breaking capacity.
Highly-evolved Miniature
Circuit Breaker.
• Standard Conformity
• Technical Data
IEC 60898-1:2008
DIN43-880
• Item Codification
SP SP + N/DP TP TP + N/FP
18
81
54
18 18
17
36
18
Terminal screw M5
DIN rail mounter claw
Indicator
18 18
72
65.6
18
60
81
44
5.5
45
Terminalheight
BBD
06: 6A
10: 10A
16: 16A
20: 20A
25: 25A
32: 32A
40: 40A
50: 50A
63: 63A
1: 1E
2: 2E
3: 3E
4: 4E
1: SP
2: SP+N / DP
3: TP
4: TP+N / FP
No. of Poles
1
Rated Current
06
No. of Elements
1
H: 10kA H: IndiaB: B Type
C: C Type
D: D Type
Instantaneous
Trippring
B
Country
H
Icn
H
Type
Magnetic Release Setting
No. of Poles (Execution)
Rated Current (In) A
Rated Voltage (Ue)
Rated Short Circuit Breaking Capacity
Service Short Circuit Breaking Capacity
Energy Limitation
Tripping Mechanism
Normal Ambient Temperature
Power Loss
Rated Impulse Voltage
Dielectric Strength
Protection Class
Mounting
Connections
6A to 63A
SP:AC240/415V, SP+N:AC240V
DP, TP, TP+N, FP:AC415V
10000 A
7500 A
Class 3
Thermal & Magnetic Type
30°C
Much less than Standard Values
4kV
2000V for 1 Minute
IP20
On DIN Rail ( 35mm×7.5mm)
1sq.mm to 25sq.mm For Cu conductors
B
(3-5) In
SP, SP+N, DP
TP, TP+N, FP
C
(5-10) In
SP, SP+N, DP
TP, TP+N, FP
D
(10-20) In
SP, SP+N, DP
TP, TP+N, FP
LATIF
056
4848805

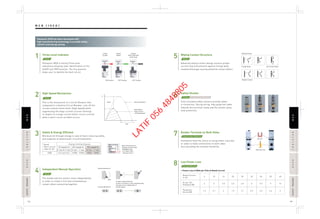

124 125
Best performance of
Energy Limiting Class
(EN60898:1991
A11(Sept.1994)
Indicate class 3
Panasonic MCB is having Three level
indications allowing clear identification of the
On/Off and TRIP position. The Trip position
helps user to identify the fault circuit.
contact
CLOSE
contact
OPEN
contact
TRIP POSITION
Under Fault
REDRED
ON Position
GREENGREEN
OFF Position
WHITEWHITE
OFF Position
1 Safety
Three Level Indicator
Advanced wiping contact design ensures proper
current flow and prevents against foreign body
residual blockage causing potential contact defect.
5 Safety
Wiping Contact Structure
This is the mechanism of a Circuit Breaker that,
compared to a General Circuit Breaker, cuts off the
current several times faster (High Speed) while
suppressing the large current (current limiting)
in respect to a large current (short circuit current)
when a short circuit accident occurs.
2 Safety
High Speed Mechanism
3 Safety & Energy Efficient
Minimum let through energy in case of fault; ensuring safety
and longevity of downstream circuit/installation.
The handle and the contact move independently
in order to create a firm and instantaneous
contact when connecting together.
4 Safety
Independent Manual Operation Handle Movement
Contact Movement
Contact Instantaneously
A point of contact is met Instantaneously,
strongly and is independent of
handle speed.
OFF
ON
limit specified
B-Type & C-Type
1 2 t max(A 2s)
B-Type C-Type
2 2 t max(A 2s)
B-Type C-Type
3 2 t max(A 2s)
310000 370000 90000 110000
Rated
Short-circuit
capacity (A)
Energy limiting Classes
10000
General BreakerSmall
Fast
A
T
High Speed
High Current
Limiting Breaker
Wiping Contact
No Contact DefectForeign Body
Straight Contact
Fully insulated safety shutters provide safety
in connection. During wiring, they guide the cable
towards the terminal clamp and the shutter gives
total protection.
6 Safety
Safety Shutter
Construction Effective
Customers have the choice of using either a bus bar
or cable to make connections on both sides
thus providing the ultimate flexibility.
7 Construction Effective
Double Terminal on Both Sides
8 Energy Efficient
Low Power Loss
Electrical wire
Bus bar
Panasonic MCB has been developed with
high manufacturing technology to provide safety,
comfort and energy saving.
• Power Loss in Watt per Pole at Rated Current
Rated Current
In (A)
As per IEC
Standard (W)
Panasonic
Series (W)
6 10 16 20 25 32 40 50 63
3 3 3.5 4.5 4.5 6 7.5 9 13
1.2 2.1 2 1.9 2.1 2.5 3.3 4.4 5
M C B ( 1 0 k A )RCCBCCBISOLATORSOLATORMCBCB
LATIF
056
4848805

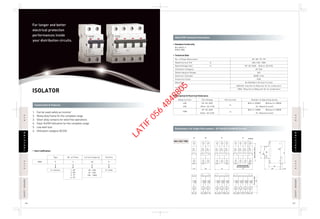

ISOLATOR
126 127
1. Can be used safely as incomer
2. Heavy duty frame for the complete range
3. Silver alloy contacts for weld free operations
4. Clear On/Off Indication for the complete range
5. Low watt loss
6. Utilization category AC22A
Dimensions: For Single Pole Isolator - 81×18×65.5 (H×W×D) (In mm)
ISOLATOR Technical Information
For longer and better
electrical protection
performances inside
your distribution circuits.
• Standard Conformity
• Technical Data
IEC 60947-3
DIN43-880
• Mechanical & Electrical Endurance
BBD
S: Isolator 40 : 40A
63 : 63A
100 : 100A
H: India
Type
S
1: SP
2: DP
3: TP
4: FP
No. of Poles
2
Current Capacity
40 H
Country
40A / 63A / 100A
TP
54
SP
18
81
44
60 5.5
45
FP
Terminal screw M6
Indicator
DIN rail mounter claw
72
65.6(100A:62.6)
DP
36
20
Terminalheight
Rated Current (In) A
Rated Voltage (Ue) V~
Utilization Category
Dielectric Strength
Protection Class
Mounting
Connections
SP, DP, TP, FP
40A, 63A, 100A
SP: AC 240V, Others: AC415V
AC 22A
6kV
2000V 1min
IP20
On DIN Rail ( 35 mm×7.5 mm)
40A/63A: 4sq.mm to 25sq.mm for Cu conductors
100A: 10sq.mm to 50sq.mm for Cu conductors
Number of Operating Cycles
With In 20000 Without In 30000
(In: Rated Current)
With In 10000 Without In 30000
(In: Rated Current)
Test Current
In
In
Test Voltage
SP: AC 240V
Other: AC 415V
SP: AC 240V
Other: AC 415V
Rated Current
40A
63A
100A
LATIF
056
4848805

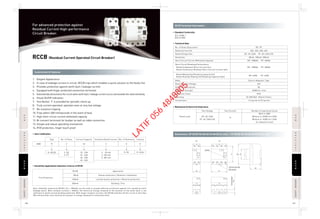

RCCB (Residual Current Operated Circuit Breaker)
128 129
1. Elegant Appearance
2. In case of leakage current in circuit, RCCB trips which enables a quick solution to the faulty line
3. Provides protection against earth fault / leakage current
4. Equipped with finger protected connection terminals
5. Automatically disconnects the circuit when earth fault / leakage current occurs and exceeds the rated sensitivity.
6. Visual On/Off indication
7. Test Button ‘T’ is provided for periodic check up
8. Truly current operated, operates even at very low voltage
9. No nuisance tripping
10. Trips within 300 milliseconds in the event of fault
11. High short circuit current withstand capacity
12. Bi-connect terminals for busbar as well as cable connection
13. Simple and robust operating mechanism
14. IP20 protection, finger touch proof
Dimensions: DP RCCB 90×35×50 (H×W×D) (In mm) / FP RCCB 90×70×50 (H×W×D) (In mm)
RCCB Technical InformationFor advanced protection against
Residual Current High-performance
Circuit Breaker. • Standard Conformity
• Technical Data
IEC 61008-1
DIN 43-880
• Sensitivity Applications Selection Criteron of RCCB
• Mechanical & Electrical Endurance
BBD R
2: DPR: RCCB
4: FP
No. of PolesType
2 0
3: 30 mA
4: 100 mA
5: 300 mA
0: 0E
H
H: India
Sensitive Rated Current No. of Elements Country
3
25 : 25A
32 : 32A
40 : 40A
63 : 63A
Current Capacity
25
DP FP
71
50
13.5
Terminal screw M6
DIN rail claw
TerminalHeight
35
Indicator
70
45
90
RCCB
30mA
100mA
300mA
Application
Human protection / Domestic Installation
Limited human protection / Machine protection
Building / Fire
Fire Protection
Even relatively insensitive RCCB’s (In = 300mA) can be used to provide effective protection against fire caused by earth
leakage faults. With residual currents = 300mA, the electrical energy released at the location of the earth fault is not
sufficient to ignite normal building materials. With larger residual currents, the RCCB switches off the circuit in less than
200 milliseconds, thus limiting the amount of energy released to a harmless level.
Rated Current (In)
Rated Voltage (Ue)
Sensitivity
Short Circuit Current Withstand Capacity
Short Circuit Breaking Performance
Rated Conditional Short-Curcuit (Inc)
Rated Conditional Residual Short-Curcuit Current (IΔc)
Rated Making And Breaking Capacity (Im)
Rated Residual Making And Breaking Capacity (IΔm)
Mode
Vibration Resistances
Dielectric Strength
Protection Class
Mounting
Connections
DP, FP
25A, 32A, 40A, 63A
DP: AC 240V, FP: AC 240/415V
30mA, 100mA, 300mA
DP: 10000A, FP: 6000A
DP: 10000A FP: 6000A
DP: 630A FP: 630A
Electro-Magnetic Type
4kV
5G
2000V for 1min
IP20
On DIN Rail 35mm×7.5mm
1.5 sq.mm to 25 sq.mm
Test Current
In
Test Voltage
DP: AC 240V
FP: AC 240/415V
Rated Load
Number of operating Cycles
With In 2000
Without In 20000 (In 25A)
Without In 10000 (In 25A)
(In: Rated Current)
LATIF
056
4848805

SAFETY BREAKER
EARTH LEAKAGE BREAKER
Complete range of products
with a compact design.
RRCCBCCBISOLATORSOLATORMCBCBSAFETYBREAKERAFETYBREAKER
RCCBCCBISOLATORSOLATORMCBCBSAFETYBREAKERAFETYBREAKER
130 131
Ambient Temperature (℃)
RatedCurrent
Compensationrate(%)
2P1E
80
90
100
110
120
130
0 20 25 40
Ambient Temperature (℃)
RatedCurrent
CompensationRate(%) 20 60400
130
110
80
90
100
120
125100 200 400 600 1000 2000 4000
1 h
30min
20min
14min
10min
8min
6min
4min
2min
1min
30sec
20sec
10sec
5sec
2sec
1sec
0.5sec
0.2sec
0.1sec
0.05sec
0.02sec
0.01sec
2 h
4 h
Maximum
Minimum
OperatingTime
Current (% of rated current)
125100 200 400 600 1000 2000 4000
1 h
30min
20min
14min
10min
8min
6min
4min
2min
1min
30sec
20sec
10sec
5sec
2sec
1sec
0.5sec
0.2sec
0.1sec
0.05sec
0.02sec
0.01sec
2 h
4 h
OperatingTime
Current (% of rated current)
Maximum
Minimum
HB Type
Temperature
Compensation Curves
Small Type
Temperature
Compensation Curves
Operating Characteristics
Curves (with O.C.)
Operating Characteristics
Curves (with O.C.)
Safety Breaker HB Type
Earth Leakage Breaker Small Type
32 36
55
62
M4
(max)
70
Dimension (mm)
Appearance
Mounting Pitch (unit:mm)
Number of Poles & Elements 2P1E
Type
BS11106TV
BS1110TV
BS1111TV
BS1112TV
BS1113TV
BS1114TV
6A
10A
15A
20A
30A
40A
Rated Voltage (AC)
AC 240V 1.0kA (6A)
AC 240V 1.5kA (10·15·20·30·40A)
Terminal Specifications
Solderless Terminals (with strap)
5.5 mm ~ 8 mm2 Ø1.6 ~ Ø2.6
When using electrical appliance wire or
other stranded wire (1.25 - 3.5 mm2)
use bar lug terminals.
Weight 0.07 kg
Air
Conditioner
Water
Pump
Water
Heater
Structure
Terminal Method Operation
Natural Quenching
Tipping Mechanism
Arc Quenching Method
Capacity
Application Examples
10 ms (100%)
23 X 103
A2
sec (100%)
Wire Protection (Over Current & Short Circuit Protection)
Interrupting Time
Passage of Short
Unit : mm
Dimension (mm)
Appearance
Mounting Pitch (unit:mm)
Type
Rated Current (A)
Number of Poles & Elements
Rated Voltage (AC)
Residual Operating
Current (mA)
Residual Non-Operating
Current (mA)
Rated Short-Time Current
Phase and
Wiring Configuration
Operating Time
Handle Type
BJS30208A2 BJS30308A2 BJS1512S BJS1522S BJS1532S BJS2012S BJS2022S BJS2032S BJS3012S BJS3022S
15A 20A
2P2E
AC 100 - 240V
1.5 kA
1Ø2W, 1Ø3W
Within 0.1 sec
-
For direct installation of electrical wiring
0.09 kg
Thermal Operation
30A
BJS3032S
10 mA 15 mA 30 mA 10 mA 15 mA 30 mA 10 mA 15 mA 30 mA
6 mA 7.5 mA 15 mA 6 mA 7.5 mA 15 mA 6 mA 7.5 mA 15 mA
15 mA 30 mA
7.5 mA 15 mA
30A
2P0E
AC 120 - 240V
1Ø2W
standard
Solderless Terminals
(with strap)
Ø1.6 - Ø2.6
5.5 - 8 mm2
Standard
Terminal
Specifications
0.1 kg
Connecting Method
Weight
None
Overload Current
Tripping Mechanism
Application Examples
Note : When using electrical
appliance wire or other
stranded wire (1.25 - 3.5 mm2),
use bar lug terminals.
WV2500 1.25 - 2.0 mm2
(WV2501 2.0 - 3.5 mm2)
Tightening Torque :
1.6 - 2.0 N·m
16.3 - 20.4 kgf·cm
Note: 1."Rated short-time current" means that although short-circuit protection
is not possible, the internal circuitry and conductors can withstand
1.5kA for 0.02 seconds.
2. Ambient Temperature Range For Usage : -10°C - +50°C
3. Disconnect electrical wiring before measuring insulation
resistance between wires.
Note:1. Ambient Temperature Range for Usage : -10°C - +50°C
2. Disconnect electrical wiring before measuring insulation resistance between wires.
Unit : mm
Note:1.Use 20A for normal branch circuits, and 30A for high capacity dedicated circuits.
2.Use 15A or less for machine protection, after consideration of its characteristic:inrush current and usual current.
3.The data in capacity mentioned above are just for your reference, which are Panasonic’s experimental ones.
Water
Heater
Refrigerator,
Fleezer
32 36
55
62
M4
(max)
70 70
32 36
48
62
M4
(max)
LATIF
056
4848805

132 133
WHITE CONDUIT PIPE (UL,BS)
Excellent corrosion resistance and durability.
This helps save on labor for pipe laying work.
CCOMBINATIONMODELOMBINATIONMODEL
NUMBERINDEXNUMBERINDEX
PRODUCTNUMBERINDEXRODUCTNUMBERINDEX
WHITECONDUITPIPEWHITECONDUITPIPE
(UL,BS)(UL,BS)
COMBINATIONMODELOMBINATIONMODEL
(UL,BS)(UL,BS)
STAINLESSSTEELTAINLESSSTEEL
CONDUITPIPECONDUITPIPE
Superior galvanizing by in-line hot-dip process for greater protection against corrosion.
Finished with durable and clear anti-corrosion coating for higher protection outside
and higher grade epoxy coating inside.
Features
1. Easy and Accurate Bending
Panasonic WHITE CONDUIT is made of high quality steel and processed by high frequency
induction welding to prevent cracking when bend.
Standards
Panasonic WHITE CONDUIT is
available in four types conforming to
the following standards:
*UL/ANSI(EMT, IMC and RSC)
*BS (BS31-1940 and BS 4568-1970)
*JIS (Plain, Thin Wall and Thick Wall)
2. Easy Wire Pushing and Pulling
The high-grade stoved epoxy resin coating on the inside wall makes wire-pulling easy,
and protects conduit against corrosion.
3. Easy Coupling and Fast Installation
Precise, sharp threads cut by automated machinery ensures fast and easy installation.
Precise thread also makes our conduit virtually moisture-tight.
4. High Corrosion Resistance
Pure zinc coating on the exterior wall and stoved epoxy resin finish on the inside protects
WHITE CONDUIT from corrosion, even by harsh chemicals and sea air.
5. Uniform Quality
Flat steel is rolled, zinc-coated and threaded in one continuous automated process
for uniform high quality.
Flow Chart of Manufacturing Process
1. Uncoiling
High quality strip steel coils are uncoiled and
sent to the forming mills.
2. Coil-End Welding
Both ends of the coils are welded to form a
single strip.
3. Temporary Coil-Storing
Strip steel is stored here temporarily for coil
end welding without stopping the main line.
4. Cleaning
All surface scale and oil on the strip steel are
removed to assure accurate forming and
rigid welding.
5. Forming
The flat strip steel is rolled into basic tubing.
6. Welding
Basic tubes are welded by a high frequency
induction wider. This type of welding assures
rigidity, splitting-resistance and effectively
eliminates inside flash.
7. Inside Coating
The inside wall of the conduit is coated with
epoxy resin.
8. Cleaning
All surface scale and oil are removed from
the tubing prior to galvanizing.
9. In-line Hot-Dip Galvanizing
The exterior of the tubing is uniformly and
rigidly galvanized by a patented inline hot dip
process.
10.Cooling
The heated galvanized tubing is cooled.
11.Sizing
The cooled, galvanized tubing is rolled to
precise outside diameters in accordance with
customer specifications.
12.Anti-Corrosion Coating
For protection in addition to zinc coating, the
galvanized surface is finished with a clear
anti-corrosion coating.
13.Cutting
Tubing is square-cut to the specified lengths.
14.Chamfering and Threading
Both ends of the cut conduit are chamfered
and threaded to precise tolerance.
15.Marking
Brand name, size, standards, production
codes, etc. are marked on the conduit.
16.Bundling
Finished conduit is steel strapped into
approximately one metric ton bundle.
17.Inspection
At all steps of production, strict quality
control is enforced. Unless customer
specifies UL, or other certificates, all conduit
is inspected according to factory
specifications.
CROSS-SECTIONAL VIEW OF Panasonic WHITE CONDUIT
Anti-corrosion coating
Zinc coating
Steel
Inside Coating
1.Stoved epoxy resin coating type
2.Zinc coating type
1.Uncoiling
2.Coil-End
Welding
3.Temporary
Coil-Storing
4.Cleaning
5.Forming
6.Welding
7.Inside Coating
8.Cleaning
9.In-line Hot-Dip Galvanizing
10.Cooling
11.Sizing
12.Anti-Corrosion Coating
13.Cutting
14.Chamfering and Threading
15.Marking
16.Bundling
17.Inspection
LATIF
056
4848805

134 135
Certification
Item No.
Size
(inch)
Weight
(Kg/pc)
Standard Pack
(Pcs/Box)
Normal Bends (for EMT)
Listed by "UL"File No.E-44051 UL797
DSE 04012Y
DSE 04034Y
DSE 04100Y
DSE 04114Y
DSE 04112Y
DSE 04200Y
1/2
3/4
1
1-1/4
1-1/2
2
0.10
0.20
0.40
0.60
0.80
1.10
80
35
36
20
28
15
Item No.
Size
(inch)
Weight
(Kg/pc)
Standard Pack
(Pcs/Box)
Connector (Steel) (for EMT)
DFM 020122Y
DFM 020342Y
DFM 021002Y
1/2
3/4
1
0.040
0.066
0.086
300
200
100
Item No.
Size
(inch)
Weight
(Kg/pc)
Standard Pack
(Pcs/Box)
Normal Bends (for IMC)
DFM 13012Y
DFM 13034Y
DFM 13100Y
DFM 13114Y
DFM 13112Y
DFM 13200Y
DFM 13212Y
DFM 13300Y
DFM 13312Y
DFM 13400Y
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
3-1/2
4
0.30
0.40
0.80
1.00
1.40
2.50
4.80
6.60
8.90
12.30
54
50
30
36
21
10
1
1
1
1
Item No.
Size
(inch)
Weight
(Kg/pc)
Standard Pack
(Pcs/Box)
Normal Bends (for RSC)
DFR 13012Y/ZY
DFR 13034Y/ZY
DFR 13100Y/ZY
DFR 13114Y/ZY
DFR 13112Y/ZY
DFR 13200Y/ZY
DFR 13212Z
DFR 13300Z
DFR 13312Z
DFR 13400Z
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
3-1/2
4
0.32
0.46
0.88
1.60
2.11
3.20
5.70
9.12
17.02
18.48
54
50
30
36
21
10
1
1
1
1
Item No.
Size
(inch)
Weight
(Kg/pc)
Standard Pack
(Pcs/Box)
Couplings (Steel) (for EMT)
DSE 01012Y
DSE 01034Y
DSE 01100Y
DSE 01114Y
DSE 01112Y
DSE 01200Y
1/2
3/4
1
1-1/4
1-1/2
2
0.038
0.071
0.095
0.147
0.178
0.261
300
200
100
60
60
30
Item No.
Size
(inch)
Weight
(Kg/pc)
Outside Diameter
(mm)
Standard Pack
(m/Roll)
Flexible Conduit
DME 012
DME 034
DME 100
1/2
3/4
1
7.80
9.70
5.80
21.84~23.37
26.54~28.07
33.02~35.05
30
30
15
Item No.
Size
(inch)
Weight
(Kg/pc)
Standard Pack
(Pcs/Box)
Couplings (Steel) (for IMC)
DFM 11012Y
DFM 11034Y
DFM 11100Y
DFM 11114Y
DFM 11112Y
DFM 11200Y
DFM 11212Y
DFM 11300Y
DFM 11312Y
DFM 11400Y
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
3-1/2
4
0.059
0.090
0.125
0.187
0.219
0.330
0.770
0.837
1.182
1.336
250
200
150
100
100
40
18
18
12
12
Item No.
Size
(inch)
Weight
(Kg/pc)
Standard Pack
(Pcs/Box)
Couplings (Steel) (for RSC)
DFR 11012Y/ZY
DFR 11034Y/ZY
DFR 11100Y/ZY
DFR 11114Y/ZY
DFR 11112Y/ZY
DFR 11200Y/ZY
DFR 11212Z
DFR 11300Z
DFR 11312Z
DFR 11400Z
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
3-1/2
4
0.059
0.090
0.125
0.187
0.219
0.330
0.770
0.837
1.182
1.336
250
200
150
100
100
40
18
18
12
12
Item No.
Size
(inch)
Outside Diameter
(mm)
NominalWallThickness
(mm)
Length
(mm)
Nominal Weight
(Kg/pc)
Primary Bundle
(pcs)
Master Bundle
(Pcs)
RSC (Rigid Steel Conduit)
Listed by "UL"File No.E-157617
*Note: Z Items are hot-dip galvanized both inside and outside.
UL 6 / ANSI C80.1
DWR012Y/ZY
DWR034Y/ZY
DWR100Y/ZY
DWR114Y/ZY
DWR112Y/ZY
DWR200Y/ZY
DWR212ZY
DWR300ZY
DWR400ZY
DWR500ZY
DWR600ZY
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
4
5
6
21.34
26.67
33.40
42.16
48.26
60.33
73.03
88.90
114.30
141.30
168.28
2.64
2.72
3.20
3.38
3.51
3.71
4.90
5.21
5.72
6.22
6.76
3,030
3,030
3,025
3,025
3,025
3,025
3,010
3,010
3,005
2,995
2,995
3.75
4.96
7.33
9.97
11.94
16.00
25.62
33.43
47.38
64.38
84.05
10
10
5
3
3
-
-
-
-
-
-
300
250
125
75
75
50
40
30
15
10
5
UL 6UL 797 UL 1242
Item No.
Size
(inch)
Outside Diameter
(mm)
MinimumWallThickness
(mm)
Length
(mm)
Nominal Weight
(Kg/pc)
Primary Bundle
(pcs)
Master Bundle
(Pcs)
IMC (Intermediate Metal Conduit)
Listed by "UL"File No.E-62193 UL 1242 / ANSI C80.6
DWM012Y
DWM034Y
DWM100Y
DWM114Y
DWM112Y
DWM200Y
DWM212Y
DWM300Y
DWM312Y
DWM400Y
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
3-1/2
4
20.70
26.14
32.77
41.59
47.81
59.93
72.56
88.29
100.86
113.40
1.79
1.90
2.16
2.16
2.29
2.41
3.56
3.56
3.56
3.56
3,030
3,030
3,025
3,025
3,025
3,025
3,010
3,010
3,005
3,005
2.85
3.94
5.23
7.48
8.67
11.65
18.71
22.87
26.43
29.84
10
10
5
3
3
-
-
-
-
-
300
250
125
75
75
50
40
30
20
15
Item No.
Size
(inch)
Outside Diameter
(mm)
MinimumWallThickness
(mm)
Length
(mm)
Nominal Weight
(Kg/pc)
Primary Bundle
(pcs)
Master Bundle
(Pcs)
EMT (Electrical Metallic Tubing)
Listed by "UL"File No.E-44051 UL 797 / ANSI C80.3
DWE012Y
DWE034Y
DWE100Y
DWE114Y
DWE112Y
DWE200Y
DWE212Y
DWE300Y
DWE312Y
DWE400Y
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2”
3”
3’1/2”
4”
17.93
23.42
29.54
38.35
44.20
55.80
73.03
88.90
101.60
114.30
1.02
1.18
1.37
1.57
1.57
1.57
1.74
1.74
1.97
1.99
3,048
3,048
3,048
3,048
3,048
3,048
3,048
3,048
3,048
3,048
1.46
2.21
3.08
4.74
5.49
6.99
9.80
11.99
15.80
17.81
10
10
5
5
5
3
500
300
200
125
100
75
40
30
20
20
ANSI /UL ANSI /UL AccessoriesCCOMBINATIONMODELOMBINATIONMODEL
(UL,BS)(UL,BS)
(UL,BS)(UL,BS)
LATIF
056
4848805

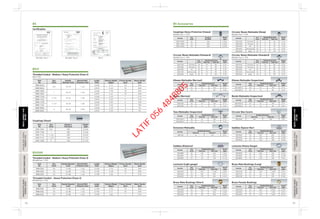

136 137
Item
No.
Size
(inch)
Outside Diameter
(mm)
Nominal Wall
Thickness (mm)
Length
(mm)
Nominal Weight
(kg/pc)
Primary Bundle
(pcs)
Master Bundle
(pcs)
Threaded Conduit - Heavy Protection (Class 4)
BS4568:Part 1:1970
DWB 0204
DWB 0254
DWB 0324
20
25
32
19.85
24.80
31.80
1.60
1.60
1.60
3,750
3,750
3,750
2.92
3.71
4.84
10
10
7
350
250
210
Tees Malleable (Inspection)
Item No.
Size
(mm)
Standard Pack (pcs) Weight
kg/pcInner box Outer box
DSG 0920-C
DSG 0925-C
20
25
0.19
0.25
100
80
10
10
Bends (Normal)
Item No.
Size
(mm)
DSG 0720
DSG 0725
20
25
0.15
0.26
120
72
10
6
Bends Malleable (Inspeciton)
Item No.
Size
(mm)
DSG 0720-C
DSG 0725-C
20
25
0.19
0.25
100
80
10
10
Elbows Malleable (Inspection)
Item No.
Size
(mm)
DSG 0520-C
DSG 0525-C
20
25
0.15
0.30
150
80
15
10
Elbows Malleable (Normal)
Item No.
Size
(mm)
DSG 0520
DSG 0525
25
25
0.14
0.28
150
80
15
10
Item No.
Size
(mm)
Standard
(pcs/Box)
Weight
kg/pc
Couplings-Heavy Protection (Class4)
BS4568: Part 1: 1970
DFB 110204
DFB 110254
DFB 110324
20
25
32
0.036
0.052
0.078
500
300
250
Item No.
Size
(mm)
Circular Boxes Malleable (Standard)
BS4568: Part 2: 1970
DSG 2120
DSG 2220
DSG 2320
DSG 2420
DSG 2520
Terminal
Through
Tee
Intersection
Angle
20
20
20
20
20
0.24
0.26
0.26
0.28
0.30
80
80
80
80
80
10
10
10
10
10
Item No.
Size
(mm)
Circular Boxes Malleable (Deep)
BS4568: Part 2: 1970
DSG 3120
DSG 3220
DSG 3320
DSG 3420
DSG 3520
Terminal
Through
Tee
Intersection
Angle
20
20
20
20
20
0.46
0.48
0.48
0.50
0.52
40
40
40
40
40
5
5
5
5
5
Item No.
Size
(mm)
Circular Boxes Malleable (Standard)
BS4568: Part 2: 1970
DSG 2125
DSG 2225
DSG 2325
DSG 2425
DSG 2525
Terminal
Through
Tee
Intersection
Angle
25
25
25
25
25
0.26
0.28
0.28
0.30
0.32
80
80
80
80
80
10
10
10
10
10
Item
No.
Size
(inch)
Weight
kg/pc
Standard
Pack (pcs)
Couplings (Steel)
DFB 11034
DFB 11100
DFB 11114
DFB 11112
DFB 11200
3/4
1
1-1/4
1-1/2
2
0.028
0.048
0.076
0.110
0.176
500
300
250
100
100
Certification
Saddles (Spacer Bar)
Item No.
Size
(mm)
DSG 0620
DSG 0625
DSG 0632
20
25
32
0.025
0.028
0.038
800
800
400
200
200
100
Locknuts (Heavy Gauge)
Item No.
Size
(mm)
DSG 0020
DSG 0025
DSG 0032
20
25
32
0.018
0.038
0.047
800
400
400
200
100
100
Brass Male Bushings (Long)
Item No. Size
(mm)
DSG 0120
DSG 0125
DSG 0132
20
25
32
0.016
0.028
0.044
1,000
500
250
100
50
25
Brass Female Bushings
Item No.
Size
(mm)
DSG 0320
DSG 0325
DSG 0332
20
25
32
0.007
0.010
0.011
2,000
1,500
1,000
200
150
100
Saddles (Distance)
Item No.
Size
(mm)
DSG 0820
DSG 0825
DSG 0832
20
25
32
0.066
0.078
0.124
400
240
160
100
60
40
Extension Malleable
Item No.
DSG 138 0.2112012
Circular Box Covers
Item No.
DSG 2620 0.04600150
Locknuts (Light gauge)
Item No.
Size
(mm)
DSG 0420
DSG 0425
DSG 0432
20
25
32
0.009
0.014
0.023
1,200
800
600
300
200
150
Brass Male Bushings (Short)
Item No.
Size
(mm)
DSG 0220
DSG 0225
DSG 0232
20
25
32
0.014
0.020
0.024
1,000
500
500
100
50
50
Item
No.
Size
(inch)
Outside
Diameter (mm)
Nominal Wall
Thickness (mm)
Length
(mm)
Nominal Weight
(kg/pc)
Primary Bundle
(pcs)
Master Bundle
(pcs)
Threaded Conduit - Medium / Heavy Protection (Class 3)
BS31:1940
DWB 0343S
DWB 0343L
DWB 1003S
DWB 1003L
DWB 1143S
DWB 1143L
DWB 1123S
DWB 1123L
DWB 2003S
DWB 2003L
3/4
1
1-1/4
1-1/2
2
18.92
25.27
31.62
37.96
50.66
1.60
1.60
1.60
1.80
2.00
3,048
3,810
3,048
3,810
3,048
3,810
3,048
3,810
3,048
3,810
2.11
2.63
2.90
3.61
3.69
4.59
5.00
6.23
7.49
9.32
10
10
10
10
7
7
5
5
3
3
350
350
250
250
210
210
150
150
90
90
BS 4568 : Part 1 BS 4568 : Part 2 BS 31
Weigh
k /
0.0440
Weigh
kg/pbox
0.030
Weig
kg/pr box
0.1240
Weigh
kg/pr box
0.040
Weigh
k /b
0.02300
) Weight
kg/pcr box
Item
No.
Size
(inch)
Outside Diameter
(mm)
Nominal Wall
Thickness (mm)
Length
(mm)
Nominal Weight
(kg/pc)
Primary Bundle
(pcs)
Master Bundle
(pcs)
Threaded Conduit - Medium / Heavy Protection (Class 3)
BS4568:Part 1:1970
DWB 0203
DWB 0253
DWB 0323
20
25
32
19.85
24.80
31.80
1.60
1.60
1.60
3,750
3,750
3,750
2.72
3.48
4.54
10
10
7
350
250
210
BS
BS31
BS4568
BS AccessoriesCCOMBINATIONMODELOMBINATIONMODEL
(UL,BS)(UL,BS)
(UL,BS)(UL,BS)
LATIF
056
4848805

138 139
Item No.
Nominal Size
(inch)
Outside Diameter
(mm)
Wall Thickness
(mm)
Length
(mm)
Weight
(kg/Pce)
Bundle
(Pcs)
DWSM 012
DWSM 034
DWSM 100
DWSM 114
DWSM 112
DWSM 200
DWSM 300
DWSM 400
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
3"
4"
21.1
26.4
33.6
42.2
48.3
60.3
88.9
114.2
2.1
2.1
2.8
2.8
2.8
2.8
4.0
4.0
3,030
3,030
3,025
3,025
3,025
3,025
3,010
3,005
3.08
3.95
6.56
8.39
9.69
12.29
26.23
34.12
10
10
5
3
3
1
1
1
Item No.
Nominal Size
(inch)
Outer Box
(Pcs)
Inner Packing
(Pcs)
Weight
(Kg/pc)
Locknuts
DFSM 12012
DFSM 12034
DFSM 12100
DFSM 12114
DFSM 12112
DFSM 12200
DFSM 12300
DFSM 12400
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
3"
4"
0.004
0.006
0.013
0.018
0.022
0.029
0.063
0.076
50
50
50
50
30
30
10
10
-
-
-
-
-
-
-
-
Item No.
Nominal Size
(inch)
Outer Box
(Pcs)
Inner Packing
(Pcs)
Weight
(Kg/pc)
Saddles
DFSM 16012
DFSM 16034
DFSM 16100
DFSM 16114
DFSM 16112
DFSM 16200
DFSM 16300
DFSM 16400
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
3"
4"
0.011
0.013
0.025
0.028
0.045
0.055
0.113
0.140
25
25
25
25
15
5
5
5
-
-
-
-
-
-
-
-
Item No.
Nominal Size
(inch)
Outer Box
(Pcs)
Inner Packing
(Pcs)
Weight
(Kg/pc)
Couplings
DFSM 11012
DFSM 11034
DFSM 11100
DFSM 11114
DFSM 11112
DFSM 11200
DFSM 11300
DFSM 11400
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
3"
4"
0.053
0.068
0.119
0.151
0.190
0.281
0.728
1.019
25
10
10
10
5
3
5
5
50
20
20
10
5
6
5
5
Item No.
Nominal Size
(inch)
Outer Box
(Pcs)
Inner Packing
(Pcs)
Weight
(Kg/pc)
Normal Bends
DFSM 13012
DFSM 13034
DFSM 13100
DFSM 13114
DFSM 13112
DFSM 13200
DFSM 13300
DFSM 13400
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
3"
4"
0.284
0.434
0.872
1.409
1.860
2.572
7.419
13.945
1
1
1
1
1
1
1
1
10
8
6
-
-
-
-
-
Outer Box
(Pcs)
er Packing
(Pcs)
1 10
Outer
(
Packing
)
Outer
(Pcs
Packing
Pcs)
5 5
Outer Bo
(Pcs)
r Packing
Pcs)
1
1 -
Stainless Steel Conduit Pipes with one coupling on one end
Stainless Steel Conduit Fittings
CCOMBINATIONMODELOMBINATIONMODEL
(UL,BS)(UL,BS)
(UL,BS)(UL,BS)
STAINLESS STEELCONDUIT PIPE
Superior product for special locations
Less Corrosion Long Life Better Appearance.
1. High Resistance to Corrosion
Stainless steel (SUS304) construction
ensures extreme protection against rust
in corrosive areas, such as food processing
lines, chemical plants, water treatment
plants, seashore plants, etc.
2. Conforming to IMC Conduit
Internal diameter and length conform to
IMC requirements. Can be combined
with steel conduit for a more flexible,
reliable wiring installation in a variety
of applications.
Stainless conduit fittings help form a complete, professional wiring system.
3. Long Lifetime
Conduit systems must remain in a good condition wherever they are installed. Stainless steel
conduit delivers a long lifetime and requires little maintenance especially in high altitude
installations.
4. Brilliant Appearance
Stainless steel conduit polished to a bright finish for a superior appearance. This ensures an
attractive appearance of special importance to food processing lines.
LATIF
056
4848805

WNTG
WNGP
WTFBP
WTKG
WEJ
WEJP
WNBP
WNF
WNG
WMSU
WCS
WE
WEB
WEBP
WEG
WEGP
65EGG331-8
31·58·103
31·58·103
NR3160-8
NR3170-8
EGB
PRODUCT NUMBER INDEX
WBG
WBJ
38·109
38·109
38·109
34·106
34
34·114
34·106
34
34·106
34
34
34·106
34·106
34
35·107
35·107
35·107
35·108
35·108
34·114
39
39
35
36
39·115
39·115
39·116
39·116
39
39
39
39
68
68
36·116
29·49·56·98
17·43
23·88
29·56
17·43
97
29·56
23
23·49
43
65
65
WBC4221
WBC4231
WBC4241
WBC5011
WBC5012
WBC5014
WBC5021
WBC5022
WBC5031
WBC5032
WBC5041
WBC5042
WBC5061
WBC5062
WBC5203
WBC5303
WBC5313
WBC5403
WBC5413
WBC5511
WBC6010
WBC6020
WBC6120
WBC6122
WBC7010
WBC7020
WBC7100
WBC7101
WBC7102
WBC7103
WBC8010
WBC8020
WBC8981SW
WBC8991W
WBC9120
WBG5408699
WBG5408699H
WBG5408699W
WBG5414699
WBG5414699-SP
WBG5414699FC
WBG5414699FC-SP
WBG5414699W
WBG5414699W-SP
WBG55337-SP
WBJ1214W-38
WBJ1214W-8
Item No. Page
65EBG888-8
67EGB888-P
WBC
36
36
35·110
35·110
35·110
35·110
36
36·114
36
36
36·115
36
36·115
37·111
37·111
37·111
37·112
37·112
37·112
37·112
37·112
37·112
38·113
38·113
38·113
38·113
37
37·111
38
37
38
38·109
WBC1111
WBC1113
WBC1212
WBC1214
WBC1222
WBC1224
WBC1311
WBC1313
WBC1410
WBC1419
WBC1510
WBC1520
WBC1610
WBC3010
WBC3011
WBC3020
WBC3112
WBC3113
WBC3114
WBC3118
WBC3124
WBC3128
WBC3216
WBC3217
WBC3226
WBC3227
WBC3818
WBC3820
WBC3821
WBC3822
WBC3878
WBC4211
NR
EGG
EBG
WIRING
DEVICE
31·58
19·45
25·51
67
18
24
90
18
24
90
18
24·95
67
17·18·19
23·24·25·87·91·92·93
18·19
24·25·89·91·92
18
19
24·67
95
95
94
94
16·22·84·86
16·22
16·22·84·86
16·22
16·22·84·86
16·22
24·49
18·43
24·50
18·44
24·49·50
18·43·44
50
44
24
18
25·50·51·92
19·44·45
25·51·93
WCS3063K-8
WE2731-8H
WE27318
WEB1051W
WEB1111
WEB1111W
WEB1111WK
WEB1112
WEB1112W
WEB1112WK
WEB1131
WEB1131W
WEB5781W
WEB7811
WEB7811W
WEB7812
WEB7812W
WEB7813
WEB78134
WEB7813W
WEBP1619610F
WEBP1914610F
WEBP47194501F
WEBP5113650F
WEBP515117
WEBP515127
WEBP525217
WEBP525227
WEBP535317
WEBP535327
WEG10817
WEG10817H
WEG11517
WEG11517H
WEG11817
WEG11817H
WEG15527
WEG15527H
WEG15827
WEG15827H
WEG2364
WEG2364H
WEG2488-P
25·51·93
19·45
19·45
25·50·51·91
19·44·45
19
67
67
17·43
67
23·49
17·43
18·24·44·50
17·23
17·23·49·87
23·49
51·89
45
25
19·45
51
31
51
45
25
31·99
19
89
25·51·89
31·99
19·45
43·44·45
49·50·51·87
91·92·93
43·44·45
43·44·45
51
49·50·51·89
49·50·51·92·93
43·44
49·50
68
68
42·48·84·86
42·48
42·48·84·86
42·48
42·48·84·86
42·48
WEG24886-P
WEG24886H-P
WEG2488H-P
WEG2501-P
WEG2501-PH
WEG2731-8H
WEG3032G-03
WEG3032R-02
WEG5004-SP
WEG5401-01-P
WEG5401-7-P
WEG5401-7-SP
WEG55317
WEG553272
WEG55337
WEG5534
WEG57514
WEG57514H
WEG57515-P
WEG57515-PH
WEG57515W
WEG57518-FC
WEG575181
WEG57518H
WEG5781103
WEG5781103-FC
WEG5781103H
WEG5781103W
WEG578153
WEG578153-FC
WEG578153H
WEG6801-P
WEG6801WK-P
WEG6802-P
WEG68029-P
WEG68029W-P
WEG68029WK-P
WEG6802WK-P
WEG6803-P
WEG6803WK-P
WEG8881-P
WEG8981-P
WEGP515117
WEGP515127
WEGP525217
WEGP525227
WEGP535317
WEGP535327
65
64
65
64
65
64
65
64
65
64
64
64
64
64
64
65
65
65
64
65
64
65
65
64
64
64
64
65
65
64
65
65
64
64
64
64
64
65
64
64
65
64
64
65
64
65
65
64
64
65
WEJ10919-8
WEJ10919H-8
WEJ1121-78
WEJ1121H-7-8
WEJ2164-8
WEJ2164H-8
WEJ2166-8
WEJ2166H-8
WEJ2488-8
WEJ24886-8
WEJ24886H-8
WEJ2488H-8
WEJ2501-8
WEJ2501H-8
WEJ30029MDZ-8
WEJ30029TG-8
WEJ30029W-8
WEJ3020-8
WEJ3020H-8
WEJ5401-78
WEJ5401H-7-8
WEJ5441-8
WEJ5531-8
WEJ5532-8
WEJ5532MYX-8
WEJ5542-8
WEJ5542MYZ-8
WEJ5571-8
WEJ5572-8
WEJ5572MDZ-8
WEJ5581-8
WEJ5582-8
WEJ5582MAE-8
WEJ57515-8
WEJ57515H-8
WEJ57518-8
WEJ57518H-8
WEJ5911-8
WEJ78019MDZ-8
WEJ78019TN-8
WEJ78019W
WEJ78029F-8
WEJ78029MAE-8
WEJ78029W-8
WEJ78049MRE-8
WEJ78049TL-8
WEJ78049W-8
WEJ7823MDZ-8
WEJ7823TG-8
WEJ7823W-8
WNB
Item No. Page 65
31
65
65
64
64
64
64
65
64
65
65
65
65
67·73
56·98
43
88
49
54·56·58
69
69
69
69
69
69
69
29
29
68
68
30·100
30·100
30·105
28·30
28·30
28·30
30
30
30
30
28·29·30·31
28·29·30·31
29
29
WEJ89911-8
WEJ9111W
WEJP1121-78
WEJP11212-78
WEJP11212MYZ-78
WEJP11212TG-78
WEJP1121MYX-78
WEJP1121TL-78
WEJP11222-78
WEJP11222MYZ-78
WEJP11222TG-78
WEJP1131-78
WEJP11312-78
WEJP11322-78
WMSU711K
WN3020
WN3020H-P
WN3020W
WN3020W-P
WN3700-8
WN6009W
WN6012W8
WN6015W8
WN6509K-8
WN6512K-8
WN6515K-8
WN6518K-8
WN7737S
WN7737Y
WN7803K-8
WN7903-8
WNB1111K
WNB1112K
WNB1131
WNB3141
WNB3142
WNB3143
WNB71517Y
WNB71517S
WNB715177Y
WNB715177S
WNB7731S
WNB7731Y
WNB77321S
WNB77321Y
28·29·30·31
28·29·30·31
28·29
28·29
28·29
28·29
28·29·30·31·96·97
101·102·103
28·29·30·31·96
98·101·102·103
30
28·29·31·96
28·29
29·98
31
31·99
31·99
105
105
105
104
104
94·104
104
54·55·56·57·58
54·55·56·57·58
54·55·56·57·58
54·55·56·57·58
54·55·56·57
54·55·56·57
30·56·57·68
30·56·57
18·44
24·50
28·30·54·55
57·68·69·96
16·42
22·48
28·54·55
17·42
22·48
56
29·49·56
43
29·55
23
28·54·55
WNB7732S
WNB7732Y
WNB7733S
WNB7733Y
WNB7734S
WNB7734Y
WNB7801
WNB7802
WNB78022
WNB7803
WNB7804
WNB7817
WNB7871
WNB7872
WNB7873
WNBP1619600
WNBP1629600
WNBP1914610
WNBP5113650
WNBP5113660
WNBP5140630
WNBP5513630
WNF7741S
WNF7741Y
WNF7742S
WNF7742Y
WNF7743S
WNF7743Y
WNG1081-7
WNG1101-791
WNG1101-791H
WNG1101W-791
WNG5001-791
WNG5001H-791
WNG5001W-791
WNG5002-791
WNG5002H-791
WNG5002W-791
WNG5003-7
WNG5004-7
WNG5004-7H-P
WNG5021-7-P
WNG5021W-7
WNG5151-751
WNH
29·54·55
29·56·97
23·49
29·56
54
29·56
23
59
31·59
54·55·56·57·58·59
96·97·101·102·103
54·55·56·57·58
96·101·102·103
54·55·56·57
59·96·98
55
55
59
59
31
30·31·58·102
12·80
12·80
13·82
13·83
13·81
13·81
12·74
12·74
12·74
12·78
12·74
12·77
13·79
13
13
73
73
73
WNG5152-751
WNG5343-761
WNG5343W-761
WNG5401-7K
WNG5401-7K-P
WNG5461-7
WNG5461W-7
WNG5719353
WNG57515
WNG6801W-P
WNG6802W-P
WNG6803W-P
WNG6804W-P
WNG6806W-P
WNGP57283
WNH5800
WNH5800K
WNTG15649
WTFBP1111-1
WTFBP1112-1
WTFBP2164-1
WTFBP24886-1
WTFBP2501-1
WTFBP2731-1
WTFBP5004-1
WTFBP51512-1
WTFBP52522-1
WTFBP5408699-1
WTFBP5411-1
WTFBP55137-1
WTFBP5781103-1
WTFBP7010
WTFBP7020
WTKG2310-P
WTKG2411
WTKG2911
140 141
WN
(UL,BS)(UL,BS)
(UL,BS)(UL,BS)
LATIF
056
4848805

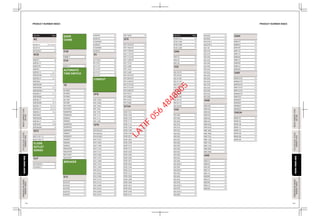

DME
DWM
DWR
DWSM
DSE
DSG
DWB
DWE
134
134
134
134
134
134
134
134
134
134
134
134
134
134
134
134
134
134
134
134
134
139
139
139
139
139
139
139
139
DWM012Y
DWM034Y
DWM100Y
DWM112Y
DWM114Y
DWM200Y
DWM212Y
DWM300Y
DWM312Y
DWM400Y
DWR012Y/ZY
DWR034Y/ZY
DWR100Y/ZY
DWR112Y/ZY
DWR114Y/ZY
DWR200Y/ZY
DWR212ZY
DWR300ZY
DWR400ZY
DWR500ZY
DWR600ZY
DWSM 012
DWSM 034
DWSM 100
DWSM 112
DWSM 114
DWSM 200
DWSM 300
DWSM 400
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
136
136
136
136
136
136
136
136
136
136
136
136
136
136
136
136
134
134
134
134
134
134
134
134
134
134
DSG 0825
DSG 0832
DSG 0920-C
DSG 0925-C
DSG 138
DSG 2120
DSG 2125
DSG 2220
DSG 2225
DSG 2320
DSG 2325
DSG 2420
DSG 2425
DSG 2520
DSG 2525
DSG 2620
DSG 3120
DSG 3220
DSG 3320
DSG 3420
DSG 3520
DWB 0203
DWB 0204
DWB 0253
DWB 0254
DWB 0323
DWB 0324
DWB 0343L
DWB 0343S
DWB 1003L
DWB 1003S
DWB 1123L
DWB 1123S
DWB 1143L
DWB 1143S
DWB 2003L
DWB 2003S
DWE012Y
DWE034Y
DWE100Y
DWE112Y
DWE114Y
DWE200Y
DWE212Y
DWE300Y
DWE312Y
DWE400Y
139
139
139
139
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
137
DFSM 16114
DFSM 16200
DFSM 16300
DFSM 16400
DME 012
DME 034
DME 100
DSE 01012Y
DSE 01034Y
DSE 01100Y
DSE 01112Y
DSE 01114Y
DSE 01200Y
DSE 04012Y
DSE 04034Y
DSE 04100Y
DSE 04112Y
DSE 04114Y
DSE 04200Y
DSG 0020
DSG 0025
DSG 0032
DSG 0120
DSG 0125
DSG 0132
DSG 0220
DSG 0225
DSG 0232
DSG 0320
DSG 0325
DSG 0332
DSG 0420
DSG 0425
DSG 0432
DSG 0520
DSG 0520-C
DSG 0525
DSG 0525-C
DSG 0620
DSG 0625
DSG 0632
DSG 0720
DSG 0720-C
DSG 0725
DSG 0725-C
DSG 0820
131
131
131
131
131
BJS1512S
BJS1522S
BJS1532S
BJS2012S
BJS2022S
DUF
FLOOR
OUTLET
SERIES
68EGB888-P
EGB
BS
DFR
DFSM
68EGG331-P
120
120
120
121
121
121
121
120
120
120
120
120
120
120
120
120
121
121
121
121
121
121
121
TB118KE7
TB178KE5
TB178KE6
TB2118E7
TB2128E7
TB271018E7
TB272018E7
TB35809KE5
TB35809KE6
TB358KE5
TB358KE6
TB36809KE5
TB36809KE6
TB38809KE7
TB388KE7
TB39809KE7
TB408KE5
TB408KE6
TB438KE7
TB5560187N
TB5630187N
TB621018A7
TB622018A7
EGG
DOOR
CHIME
TB
AUTOMATIC
TIME SWITCH
DFB
DFM
CONDUIT
BJS
BREAKER
131
131
131
131
131
131
130
130
130
130
130
130
BJS2032S
BJS3012S
BJS30208A2
BJS3022S
BJS30308A2
BJS3032S
BS11106TV
BS1110TV
BS1111TV
BS1112TV
BS1113TV
BS1114TV
137
137
137
136
136
136
136
136
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
DFB 110204
DFB 110254
DFB 110324
DFB 11034
DFB 11100
DFB 11112
DFB 11114
DFB 11200
DFM 020122Y
DFM 020342Y
DFM 021002Y
DFM 11012Y
DFM 11034Y
DFM 11100Y
DFM 11112Y
DFM 11114Y
DFM 11200Y
DFM 11212Y
DFM 11300Y
DFM 11312Y
DFM 11400Y
DFM 13012Y
DFM 13034Y
DFM 13100Y
DFM 13112Y
DFM 13114Y
DFM 13200Y
DFM 13212Y
DFM 13300Y
DFM 13312Y
WZ
WZB
WZG
Item No. Page
30·31·58·101
44
50
88
17
23
18
16·17
22·23·24
16·17
18
24
22·23
88
16·17
22
16·17
22·23
42·43·44
48·49·50
42·44
50
48
42·43
49·88
48
44
50
70
70
WZ1201-P
WZ1817-P
WZ1817W-P
WZB7817
WZB7817-P
WZB7817W
WZB7831
WZB7831-P
WZB7831WK
WZB7832-P
WZB78322
WZB78322W
WZB7832WK
WZB7832WK-1
WZB7833-P
WZB7833WK
WZB7834-P
WZB7834WK
WZB7841-P
WZB7841W
WZB7842-P
WZB7842W
WZB7842WK
WZB7843-P
WZB7843W
WZB7843WK
WZG1121H-7-P
WZG1121W-7-P
DUF1200LTK-1
DUF5200LT-1
142 143
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
DFM 13400Y
DFR 11012Y/ZY
DFR 11034Y/ZY
DFR 11100Y/ZY
DFR 11112Y/ZY
DFR 11114Y/ZY
DFR 11200Y/ZY
DFR 11212Z
DFR 11300Z
DFR 11312Z
DFR 11400Z
DFR 13012Y/ZY
DFR 13034Y/ZY
DFR 13100Y/ZY
DFR 13112Y/ZY
DFR 13114Y/ZY
DFR 13200Y/ZY
DFR 13212Z
DFR 13300Z
DFR 13312Z
DFR 13400Z
DFSM 11012
DFSM 11034
DFSM 11100
DFSM 11112
DFSM 11114
DFSM 11200
DFSM 11300
DFSM 11400
DFSM 12012
DFSM 12034
DFSM 12100
DFSM 12112
DFSM 12114
DFSM 12200
DFSM 12300
DFSM 12400
DFSM 13012
DFSM 13034
DFSM 13100
DFSM 13112
DFSM 13114
DFSM 13200
DFSM 13300
DFSM 13400
DFSM 16012
DFSM 16034
DFSM 16100
DFSM 16112
Item No. Page
(UL,BS)(UL,BS)
(UL,BS)(UL,BS)
LATIF
056
4848805

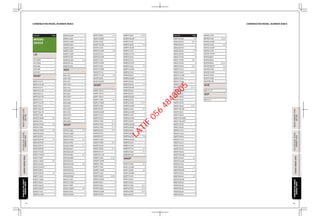

WZB
WZP
COMBINATION MODEL NUMBER INDEX
WEBP
WEG
WEGP
WNBP
WNGP
LW
WIRING
DEVICE
Item No. Page 16·28·96
22
28
16·28
22
29
23
28
29
23
17·28
22
29
17·28
22
29
17·28
22
29
17·28
22
29
17·29·97
23
29·97
23
29
23
29·98
17
23·88
29
17
23·88
98
29
31
31·99
31·99
31
44·57
50
44·57
50
57
57
57
58·103
58·102
58·103
58
WNBP5130630
WNBP5130630F
WNBP5139630
WNBP5140630
WNBP5140630F
WNBP5141610
WNBP5141610F
WNBP5149630
WNBP5181610
WNBP5181610F
WNBP5210630
WNBP5210630F
WNBP5219630
WNBP5220630
WNBP5220630F
WNBP5229630
WNBP5230630
WNBP5230630F
WNBP5239630
WNBP5240630
WNBP5240630F
WNBP5249630
WNBP5414600
WNBP5414600F
WNBP5414630
WNBP5414630F
WNBP5414690
WNBP5414690F
WNBP5428690
WNBP5428690D
WNBP5428690F
WNBP5448690
WNBP5448690D
WNBP5448690F
WNBP54489690
WNBP5513630
WNBP5716350
WNBP5781103
WNBP5781530
WNBP5839330
WNGP1619600
WNGP1619600F
WNGP1629600
WNGP1629600F
WNGP1914610
WNGP1924610
WNGP1934610
WNGP4519680
WNGP4519940
WNGP4519980
WNGP4529649
69
69
69
69
69
18
24
18
24
18
24
18
24
18
24
24
19
25·93
19
25·92
19
25·93
25
19
25·92
25
19
25
19
25
19
25·91
19
25
19
25·91
17
23
18
24
24
17
23
LW1153BW
LW1154EW
LW5153BS
LW5154BS
LW5154FS
WEBP1619610
WEBP1619610F
WEBP1814710
WEBP1814710F
WEBP1824710
WEBP1824710F
WEBP1914610
WEBP1914610F
WEBP1924610
WEBP1924610F
WEBP1934610F
WEBP4519680
WEBP4519680F
WEBP4519940
WEBP4519940F
WEBP4519980
WEBP4519980F
WEBP4529680F
WEBP4529940
WEBP4529940F
WEBP4529942F
WEBP45299471
WEBP4529980F
WEBP47194501
WEBP47194501F
WEBP4719830
WEBP4719830F
WEBP47294501
WEBP47294501F
WEBP4729830
WEBP4729830F
WEBP5113650
WEBP5113650F
WEBP5120632
WEBP5120632F
WEBP5130632F
WEBP5214730
WEBP5214730F
44·45
50
43
49
43
49·87
43
49
45
51
45
51
45
51·89
45
51
WEGP4729830
WEGP4729830F
WEGP5113650
WEGP5113650F
WEGP5414600
WEGP5414600F
WEGP5513630
WEGP5513630F
WEGP5716350
WEGP5716350F
WEGP5716380
WEGP5716380F
WEGP5719140
WEGP5719140F
WEGP5726350
WEGP5726350F
87
17
23
17
23
19
25
19
25·89
19
19
43
49
44
50
43
49
43
49
44
50
44
50
44
50
43
49
45·93
51
44
50·92
45
51·93
45
51
45·93
51
44
50·92
45
51
51
93
45
51
44
50·91
45
51
WEBP5410600F
WEBP5414600
WEBP5414600F
WEBP5513630
WEBP5513630F
WEBP5716350
WEBP5716350F
WEBP5726350
WEBP5726350F
WEBP5781103
WEBP5781530
WEG11081
WEG11081F
WEG11091
WEG11091F
WEG11362
WEG11362F
WEG12081
WEG12081F
WEG12082
WEG12082F
WEG12092
WEG12092F
WEG12703
WEG12703F
WEG13081
WEG13081F
WEGP4519680
WEGP4519680F
WEGP4519940
WEGP4519940F
WEGP4519980
WEGP4519980F
WEGP4529649
WEGP4529649F
WEGP4529680
WEGP4529680F
WEGP4529940
WEGP4529940F
WEGP4529942
WEGP4529942F
WEGP45299471F
WEGP4529980F
WEGP4719450
WEGP4719450F
WEGP4719830
WEGP4719830F
WEGP4729450
WEGP4729450F
COMBINATION MODEL NUMBER INDEX
WNBP1110610
WNBP1120610
WNBP1130610
WNBP1619600
WNBP1619600F
WNBP1629600
WNBP1629603
WNBP1629630F
WNBP1914610
WNBP1924610
WNBP4519680
WNBP4519940
WNBP4519980
WNBP4529940
WNBP4529942
WNBP4529947
WNBP4719450
WNBP4719830
WNBP4729450
WNBP4729830
WNBP5101610
WNBP5101610F
WNBP5110630
WNBP5110630F
WNBP5113650
WNBP5113660
WNBP5113660F
WNBP5119630
WNBP5120630
WNBP5120630F
WNBP5120631
WNBP5120632
WNBP5123650
WNBP5123660F
WNBP5129630
30
30
30
18·30
24
30
18
24
30
30
31·103
30·102
31·103
30·102
31
31
31
30·101
31
31·101
29
23
16·28·96
22
29
29
23
28
16·28·96
22
30
30
29
23
28
103
58·102
58
58
31·58
103
58
58·101
58
58·101
55
42·54·96
48
56
56
54
42·54·96
48
57
57
56
54
42·54·96
48
57
57
68
68
54
55
55
55
55
55
55
55
55
69
69
42·54
48
54
42·54
48
54
42·54
48
54
55
55
55
55
WNGP4529680
WNGP4529940
WNGP4529942
WNGP45299471
WNGP4529949
WNGP4529980
WNGP4719450
WNGP4719830
WNGP4729450
WNGP4729830
WNGP5101610
WNGP5110630
WNGP5110630F
WNGP5113650
WNGP5113660
WNGP5119630
WNGP5120630
WNGP5120630F
WNGP5120631
WNGP5120632
WNGP5123660
WNGP5129630
WNGP5130630
WNGP5130630F
WNGP5130631
WNGP5130632
WNGP5130632MS
WNGP5130632PS
WNGP5139630
WNGP5140630
WNGP5141610
WNGP5149630
WNGP5160630
WNGP5161610
WNGP5162610
WNGP5169630
WNGP5181610
WNGP5190630
WNGP5190630S
WNGP5210630
WNGP5210630F
WNGP5219630
WNGP5220630
WNGP5220630F
WNGP5229630
WNGP5230630
WNGP5230630F
WNGP5239630
WNGP5240630
WNGP5249630
WNGP5260630
WNGP5269630
Item No. Page 56
43·56·97
49
56·97
49
56
49
56
56
43·56·98
49·88
43·56
49
59
31
59
50
44
WNGP5413630
WNGP5414600
WNGP5414600F
WNGP5414630
WNGP5414630F
WNGP5414690
WNGP5414690F
WNGP5438691
WNGP5438692
WNGP5438693
WNGP5438693F
WNGP5513630
WNGP5513630F
WNGP5716350
WNGP5716380
WNGP5839330
WZB1121-7F
WZB1121-7
144 145
(UL,BS)(UL,BS)
(UL,BS)(UL,BS)
LATIF
056
4848805

Panasonic cataloge

More Related Content

What's hot

Similar to Panasonic cataloge

Recently uploaded

Panasonic cataloge
