Discovering the value of
IBM Host Access Transformation Services
Updated 3/29/06

WebSphere
HATS V6 Proof of Technology 2
First things first…
Emergency Exits
Coffee / Snacks
Restrooms
Glossary

WebSphere

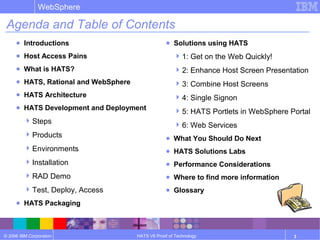

Agenda and Table of Contents
● Introductions
● Host Access Pains
● What is HATS?
● HATS, Rational and WebSphere
● HATS Architecture
● HATS Development and Deployment
Steps
Products
Environments
Installation
RAD Demo
Test, Deploy, Access
● HATS Packaging
● Solutions using HATS

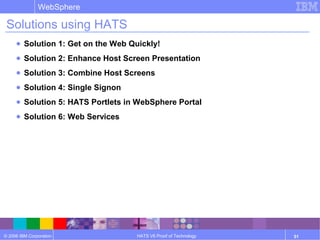

1: Get on the Web Quickly!
2: Enhance Host Screen Presentation

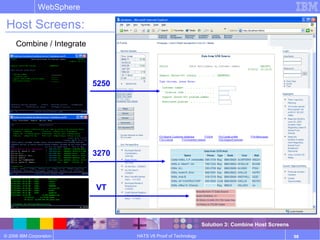

3: Combine Host Screens
4: Single Signon
5: HATS Portlets in WebSphere Portal
6: Web Services
● What You Should Do Next

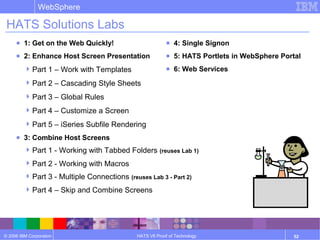

● HATS Solutions Labs
● Performance Considerations
● Where to find more information
● Glossary

WebSphere
Introductions
Name
Company
iSeries or zSeries
HATS Experience
HATS Plans

IBM Software Group

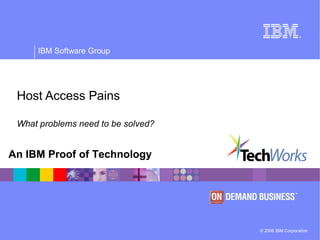

Host Access Pains
What problems need to be solved?

WebSphere

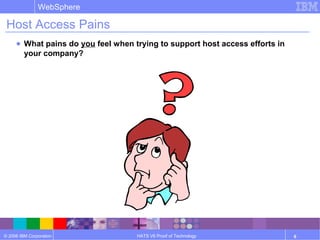

Host Access Pains
● What pains do you feel when trying to support host access efforts in
your company?

WebSphere
Host Access Pains continued
● Costly to deploy and maintain host access software
● Existing host applications are hard to learn and use
● Speed to the web is critical
● Employee dissatisfaction
● Outdated appearance
● High training costs
● Tedious workflow

WebSphere
Host Access Pains continued
● Information needs to be extended to new end users:
Inside and outside the enterprise
● Rewriting existing applications as web applications:
Time-consuming, costly and risky
Web programming skills are scarce
What can be done to ease the pain?

IBM Software Group
What is HATS?

WebSphere
HATS is a rules-based transformation engine…

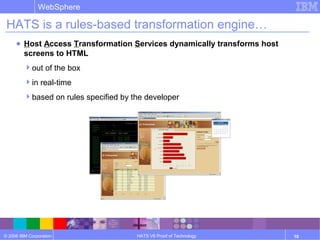

● Host Access Transformation Services dynamically transforms host
screens to HTML
out of the box
in real-time
based on rules specified by the developer

WebSphere

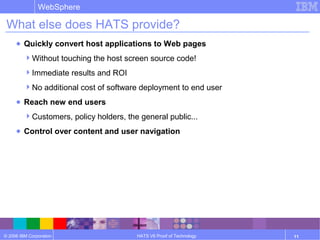

What else does HATS provide?
● Quickly convert host applications to Web pages
Without touching the host screen source code!
Immediate results and ROI
No additional cost of software deployment to end user
● Reach new end users
Customers, policy holders, the general public...
● Control over content and user navigation

WebSphere

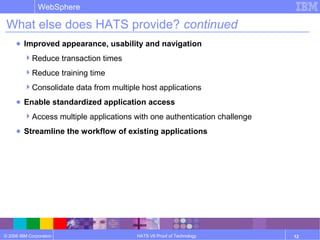

What else does HATS provide? continued
● Improved appearance, usability and navigation
Reduce transaction times
Reduce training time
Consolidate data from multiple host applications
● Enable standardized application access
Access multiple applications with one authentication challenge
● Streamline the workflow of existing applications

WebSphere

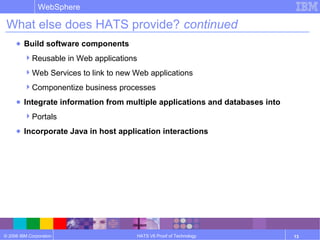

● Build software components
Reusable in Web applications
Web Services to link to new Web applications
Componentize business processes
● Integrate information from multiple applications and databases into
Portals
● Incorporate Java in host application interactions

WebSphere

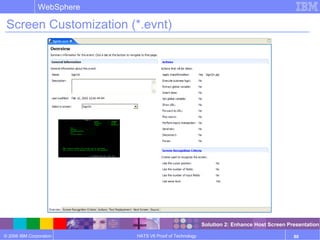

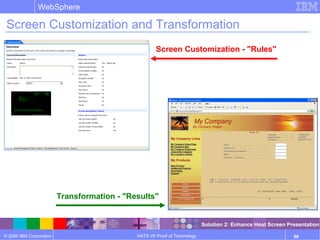

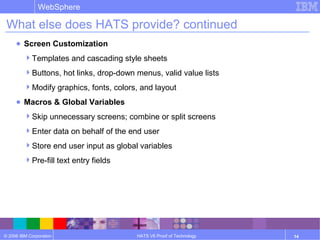

● Screen Customization
Templates and cascading style sheets
Buttons, hot links, drop-down menus, valid value lists
Modify graphics, fonts, colors, and layout
● Macros & Global Variables
Skip unnecessary screens; combine or split screens
Enter data on behalf of the end user
Store end user input as global variables
Pre-fill text entry fields

WebSphere

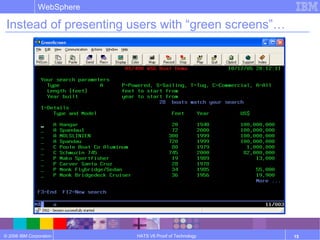

Instead of presenting users with “green screens”…

WebSphere

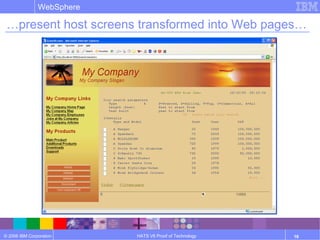

…present host screens transformed into Web pages…

WebSphere

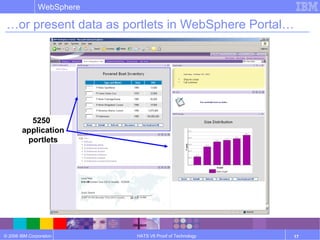

…or present data as portlets in WebSphere Portal…
5250
application
portlets

WebSphere

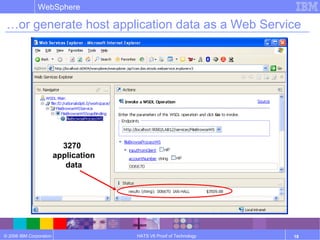

…or generate host application data as a Web Service
3270
application
data

WebSphere

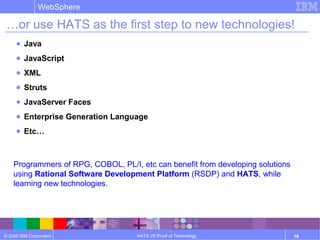

…or use HATS as the first step to new technologies!
● Java
● JavaScript
● XML
● Struts
● JavaServer Faces
● Enterprise Generation Language
● Etc…
Programmers of RPG, COBOL, PL/I, etc can benefit from developing solutions
using Rational Software Development Platform (RSDP) and HATS, while
learning new technologies.

WebSphere
Rational Software Development Platform and HATS
If it ain’t broke, reuse it
Improve the user interface
No change to host application
Quickly build new applications
Build modular components
Streamline workflow
Early return on investment

IBM Software Group
HATS, Rational, and WebSphere

WebSphere
How does HATS fit with Rational and WebSphere?
HATS
Development
Rational Software Development Platform
Host Access Transformation Services
Deployment
WebSphere Portal
Deployment
WebSphere Application Server

WebSphere

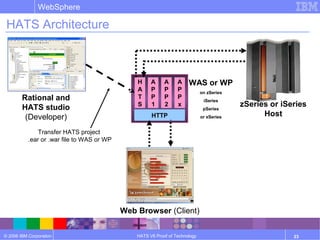

HATS Architecture
A
P
P
2
A
P
P
1
HTTP
WAS or WP
on zSeries
iSeries
pSeries
or xSeries
Rational and
HATS studio
(Developer)
Web Browser (Client)
zSeries or iSeries
Host
A
P
P
x
H
A
T
S
Transfer HATS project
.ear or .war file to WAS or WP

IBM Software Group
HATS Development and Deployment

WebSphere

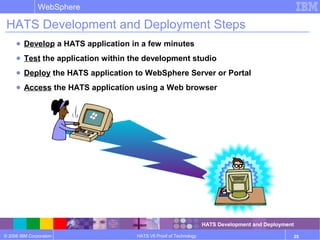

HATS Development and Deployment Steps
● Develop a HATS application in a few minutes
● Test the application within the development studio
● Deploy the HATS application to WebSphere Server or Portal
● Access the HATS application using a Web browser

WebSphere

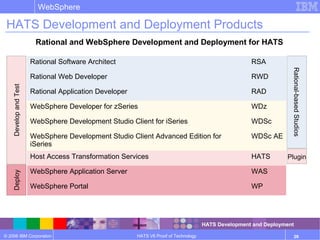

HATS Development and Deployment Products
Rational Software Architect RSA
Rational Web Developer RWD
Rational Application Developer RAD
WebSphere Developer for zSeries WDz
WebSphere Development Studio Client for iSeries WDSc
WebSphere Development Studio Client Advanced Edition for
iSeries
WDSc AE
Host Access Transformation Services HATS
WebSphere Application Server WAS
WebSphere Portal WP
Deploy
Rational and WebSphere Development and Deployment for HATS
Rational-basedStudios
Plugin
DevelopandTest

WebSphere
iSeries
zSeries
iSeries
and
zSeries

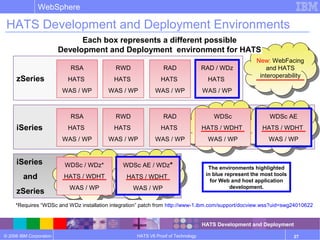

HATS Development and Deployment Environments
Each box represents a different possible
Development and Deployment environment for HATS
The environments highlighted
in blue represent the most tools
for Web and host application
development.
RSA
HATS
WAS / WP
RWD
HATS
WAS / WP
RAD / WDz
HATS
WAS / WP
RAD
HATS
WAS / WP
WDSc / WDz*
HATS / WDHT
WAS / WP
WDSc AE / WDz*
HATS / WDHT
WAS / WP
RSA
HATS
WAS / WP
RWD
HATS
WAS / WP
WDSc
HATS / WDHT
WAS / WP
WDSc AE
HATS / WDHT
WAS / WP
RAD
HATS
WAS / WP
*Requires “WDSc and WDz installation integration” patch from http://www-1.ibm.com/support/docview.wss?uid=swg24010622
New: WebFacing
and HATS
interoperability
Each box represents a different possible
Development and Deployment environment for HATS

WebSphere
Develop: HATS Installation

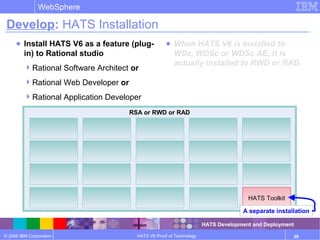

● Install HATS V6 as a feature (plug-
in) to Rational studio
Rational Software Architect or
Rational Web Developer or
Rational Application Developer
● When HATS V6 is installed to
WDz, WDSc or WDSc AE, it is
actually installed to RWD or RAD.
RSA or RWD or RAD
HATS Toolkit
A separate installation

WebSphere
RAD

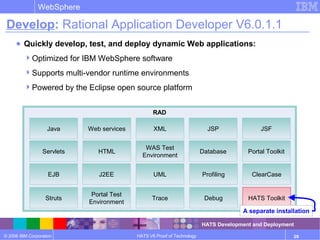

Develop: Rational Application Developer V6.0.1.1
● Quickly develop, test, and deploy dynamic Web applications:
Optimized for IBM WebSphere software
Supports multi-vendor runtime environments
Powered by the Eclipse open source platform
Portal Toolkit
EJB UML ProfilingJ2EE ClearCase
Database
Java JSFWeb services
Servlets HTML
XML JSP
WAS Test
Environment
HATS ToolkitStruts
Portal Test
Environment
Trace Debug

WebSphere
Develop: HATS Installation continued

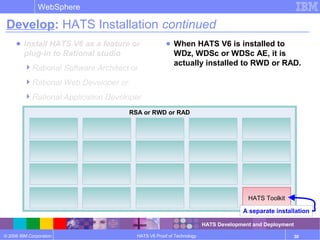

● Install HATS V6 as a feature or
plug-in to Rational studio
Rational Software Architect or
Rational Web Developer or
Rational Application Developer
● When HATS V6 is installed to
WDz, WDSc or WDSc AE, it is
actually installed to RWD or RAD.
RSA or RWD or RAD
HATS Toolkit

WebSphere
Demo - Rational Application Developer (RAD)
View
View
Editors
Perspective
View
View

WebSphere

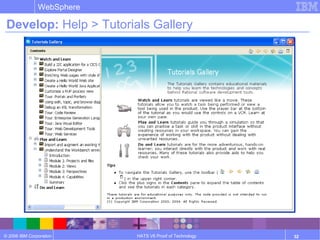

Develop: Help > Tutorials Gallery

WebSphere

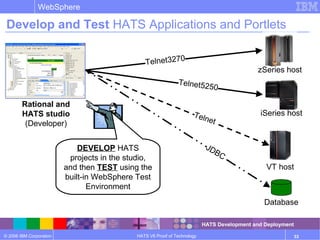

Develop and Test HATS Applications and Portlets
zSeries host
iSeries host
VT host
Telnet
Database
JDBC
Telnet5250
Telnet3270
DEVELOP HATS
projects in the studio,
and then TEST using the
built-in WebSphere Test
Environment
Rational and
HATS studio
(Developer)

WebSphere

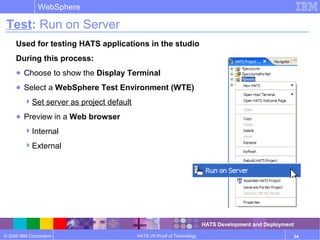

Test: Run on Server
Used for testing HATS applications in the studio
During this process:
● Choose to show the Display Terminal
● Select a WebSphere Test Environment (WTE)
Set server as project default
● Preview in a Web browser
Internal
External

WebSphere

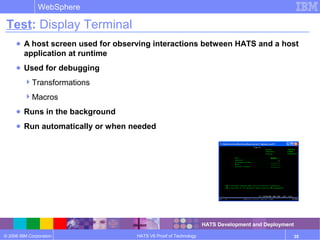

Test: Display Terminal
● A host screen used for observing interactions between HATS and a host
application at runtime
● Used for debugging
Transformations
Macros
● Runs in the background
● Run automatically or when needed

WebSphere

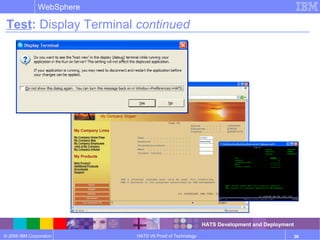

Test: Display Terminal continued

WebSphere

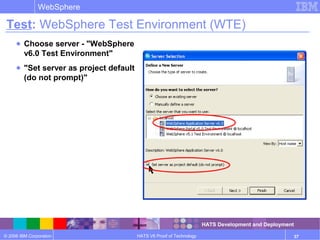

Test: WebSphere Test Environment (WTE)
● Choose server - "WebSphere
v6.0 Test Environment"
● "Set server as project default
(do not prompt)"

WebSphere

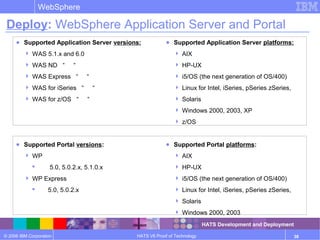

Deploy: WebSphere Application Server and Portal
● Supported Application Server versions:
 WAS 5.1.x and 6.0
 WAS ND “ “
 WAS Express “ “
 WAS for iSeries “ “
 WAS for z/OS “ “
● Supported Portal versions:
 WP
 5.0, 5.0.2.x, 5.1.0.x
 WP Express
 5.0, 5.0.2.x
● Supported Application Server platforms:
 AIX
 HP-UX
 i5/OS (the next generation of OS/400)
 Linux for Intel, iSeries, pSeries zSeries,
 Solaris
 Windows 2000, 2003, XP
 z/OS
● Supported Portal platforms:
 AIX
 HP-UX
 i5/OS (the next generation of OS/400)
 Linux for Intel, iSeries, pSeries zSeries,
 Solaris
 Windows 2000, 2003

WebSphere
Deploy to WebSphere Application Server or Portal (A)
Client Web
Browser
HTTP Session
Transfer to server
Deploy and Run HATS
Applications and Portlets
ASSEMBLE
HATS App or
Portlet in Studio
Telnet3270 zSeries host
Telnet5250
iSeries host
VT host
Telnet
Database
JDBC
DEPLOY
WAS or WPS

WebSphere
Deploy to WebSphere Application Server or Portal (B)

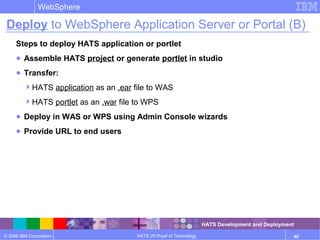

Steps to deploy HATS application or portlet
● Assemble HATS project or generate portlet in studio
● Transfer:
HATS application as an .ear file to WAS
HATS portlet as an .war file to WPS
● Deploy in WAS or WPS using Admin Console wizards
● Provide URL to end users

WebSphere

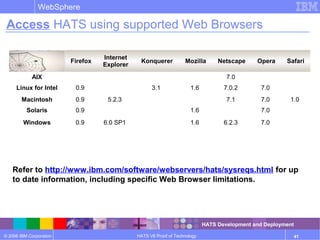

Access HATS using supported Web Browsers
Firefox
Internet
Explorer
Konquerer Mozilla Netscape Opera Safari
AIX 7.0
Linux for Intel 0.9 3.1 1.6 7.0.2 7.0
Macintosh 0.9 5.2.3 7.1 7.0 1.0
Solaris 0.9 1.6 7.0
Windows 0.9 6.0 SP1 1.6 6.2.3 7.0
Refer to http://www.ibm.com/software/webservers/hats/sysreqs.html for up
to date information, including specific Web Browser limitations.

WebSphere

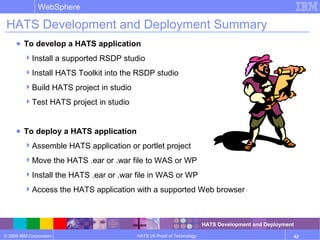

HATS Development and Deployment Summary
● To develop a HATS application
Install a supported RSDP studio
Install HATS Toolkit into the RSDP studio
Build HATS project in studio
Test HATS project in studio
● To deploy a HATS application
Assemble HATS application or portlet project
Move the HATS .ear or .war file to WAS or WP
Install the HATS .ear or .war file in WAS or WP
Access the HATS application with a supported Web browser

WebSphere
Questions?

IBM Software Group

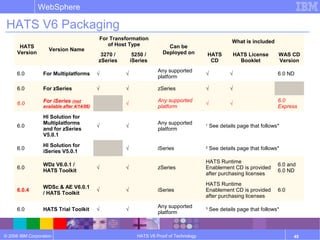

HATS V6 Packaging

WebSphere
HATS V6 Packaging
HATS
Version
Version Name
For Transformation
of Host Type Can be
Deployed on
What is included
3270 /
zSeries
5250 /
iSeries
HATS
CD
HATS License
Booklet
WAS CD
Version
6.0 For Multiplatforms √ √
Any supported
platform
√ √ 6.0 ND
6.0 For zSeries √ √ zSeries √ √
6.0 For iSeries (not
available after 4/14/06)
√
Any supported
platform
√ √
6.0
Express
6.0
HI Solution for
Multiplatforms
and for zSeries
V5.0.1
√ √
Any supported
platform
1
See details page that follows*
6.0
HI Solution for
iSeries V5.0.1
√ iSeries 2
6.0
WDz V6.0.1 /
HATS Toolkit
√ √ zSeries
HATS Runtime
Enablement CD is provided
after purchasing licenses
6.0 and
6.0 ND
6.0.4
WDSc & AE V6.0.1
/ HATS Toolkit
√ √ iSeries
HATS Runtime
Enablement CD is provided
after purchasing licenses
6.0
6.0 HATS Trial Toolkit √ √
Any supported
platform
3

WebSphere
2. Host Integration Solution for iSeries V5.0.11. Host Integration Solution for Multiplatforms and
for zSeries V5.0.1

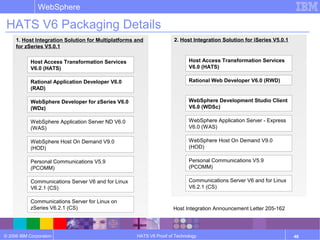

HATS V6 Packaging Details
V6.0 (HATS)
Rational Application Developer V6.0
(RAD)
WebSphere Developer for zSeries V6.0
(WDz)
WebSphere Application Server ND V6.0
(WAS)
WebSphere Host On Demand V9.0
(HOD)
Personal Communications V5.9
(PCOMM)
Communications Server V6 and for Linux
V6.2.1 (CS)
Communications Server for Linux on
zSeries V6.2.1 (CS)
V6.0 (HATS)
Rational Web Developer V6.0 (RWD)
WebSphere Development Studio Client
V6.0 (WDSc)
WebSphere Application Server - Express
V6.0 (WAS)
WebSphere Host On Demand V9.0
(HOD)
Personal Communications V5.9
(PCOMM)
Communications Server V6 and for Linux
V6.2.1 (CS)
Host Integration Announcement Letter 205-162

WebSphere
HATS V6 Packaging Details continued
3. HATS Trial Toolkit
 Hard coded to two (2) host sessions per EAR file
 Not for production
 Download from IBM "Trials and Betas" website
 http://www14.software.ibm.com/webapp/download/home.jsp
 Search for "host access transformation services"
Rational Studio trial version can also be downloaded. However, HATS V6 will not install
into Rational Studio trial version without an updated StudioVersions.properties file.
This file can be downloaded from the HATS Support Website.

WebSphere

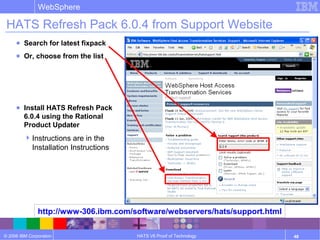

HATS Refresh Pack 6.0.4 from Support Website
http://www-306.ibm.com/software/webservers/hats/support.html
● Search for latest fixpack
● Or, choose from the list
● Install HATS Refresh Pack
6.0.4 using the Rational
Product Updater
Instructions are in the
Installation Instructions

IBM Software Group
Solutions using HATS

WebSphere
Solution
● The act of solving an intricate problem

WebSphere
Solutions using HATS
● Solution 1: Get on the Web Quickly!
● Solution 2: Enhance Host Screen Presentation

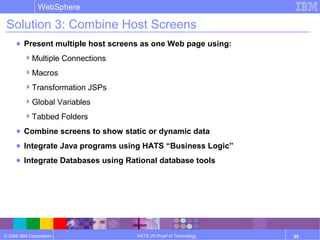

● Solution 3: Combine Host Screens

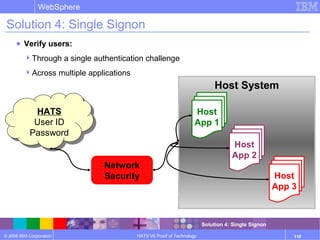

● Solution 4: Single Signon

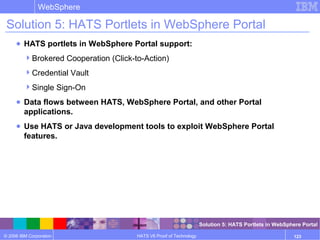

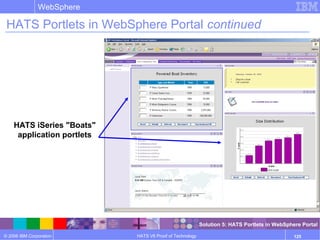

● Solution 5: HATS Portlets in WebSphere Portal

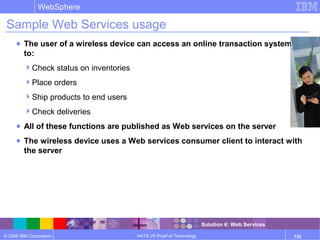

● Solution 6: Web Services

WebSphere
HATS Solutions Labs
● 1: Get on the Web Quickly!
● 2: Enhance Host Screen Presentation
Part 1 – Work with Templates
Part 2 – Cascading Style Sheets
Part 3 – Global Rules
Part 4 – Customize a Screen
Part 5 – iSeries Subfile Rendering
● 3: Combine Host Screens
Part 1 - Working with Tabbed Folders (reuses Lab 1)
Part 2 - Working with Macros
Part 3 - Multiple Connections (reuses Lab 3 - Part 2)
Part 4 – Skip and Combine Screens
● 4: Single Signon
● 5: HATS Portlets in WebSphere Portal
● 6: Web Services

IBM Software Group

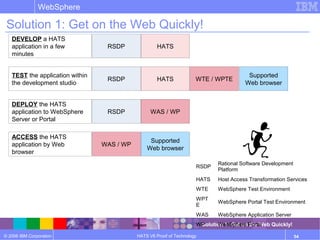

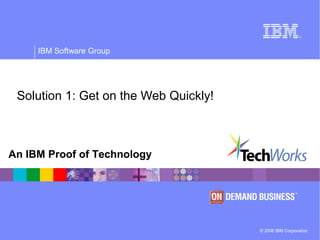

Solution 1: Get on the Web Quickly!

WebSphere
DEVELOP a HATS
application in a few
minutes
TEST the application within
the development studio
DEPLOY the HATS
application to WebSphere
Server or Portal
ACCESS the HATS
application by Web
browser
RSDP
RSDP
RSDP
WAS / WP
HATS
HATS
WAS / WP
Supported
Web browser
WTE / WPTE
Supported
Web browser
RSDP
Rational Software Development
Platform
HATS Host Access Transformation Services
WTE WebSphere Test Environment
WPT
E
WebSphere Portal Test Environment
WAS WebSphere Application Server
WP WebSphere Portal

WebSphere
Solution Lab 1: Get on the Web Quickly!
30 minutes

IBM Software Group

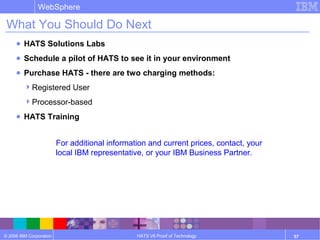

What You Should Do Next

WebSphere
What You Should Do Next
● HATS Solutions Labs
● Schedule a pilot of HATS to see it in your environment
● Purchase HATS - there are two charging methods:
Registered User
Processor-based
● HATS Training
For additional information and current prices, contact, your
local IBM representative, or your IBM Business Partner.

WebSphere
HATS Training
http://www.ibm.com/software/webservers/hats/education.html
IBM WebSphere Host Integration Education
● SW725: Introduction to Building Web-to-Host Solutions Using IBM WebSphere
HATS V6
● SW913: Advanced Web-to-Host Application Integration using IBM WebSphere
HATS V6
Classes offered by Business Partners
● ASTECH - Discovery Sessions
● eLearning Labs - iSeries WebSphere Development Studio and HATS
http://www.elearning-labs.com/

WebSphere

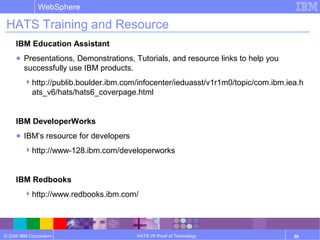

HATS Training and Resource
IBM Education Assistant
● Presentations, Demonstrations, Tutorials, and resource links to help you
successfully use IBM products.
http://publib.boulder.ibm.com/infocenter/ieduasst/v1r1m0/topic/com.ibm.iea.h
ats_v6/hats/hats6_coverpage.html
IBM DeveloperWorks
● IBM’s resource for developers
http://www-128.ibm.com/developerworks
IBM Redbooks
http://www.redbooks.ibm.com/

IBM Software Group
HATS V6 Solution 2: Enhance Host Screen
Presentation

WebSphere

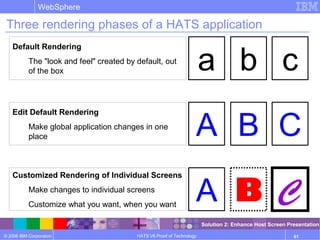

Three rendering phases of a HATS application
a b c
Solution 2: Enhance Host Screen Presentation
A B C
B CA
Default Rendering
The "look and feel" created by default, out
of the box
Edit Default Rendering
Make global application changes in one
place
Customized Rendering of Individual Screens
Make changes to individual screens
Customize what you want, when you want

WebSphere

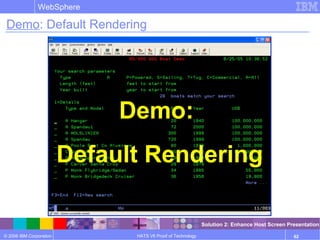

Demo: Default Rendering
Demo:
Default Rendering

WebSphere

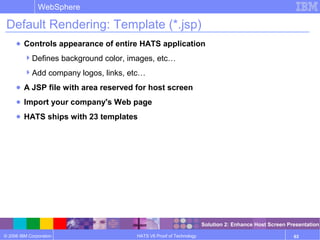

Default Rendering: Template (*.jsp)
● Controls appearance of entire HATS application
Defines background color, images, etc…
Add company logos, links, etc…
● A JSP file with area reserved for host screen
● Import your company's Web page
● HATS ships with 23 templates

WebSphere

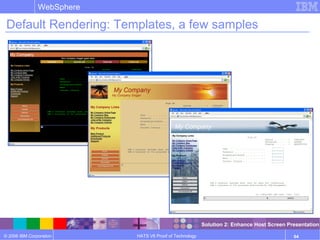

Default Rendering: Templates, a few samples

WebSphere

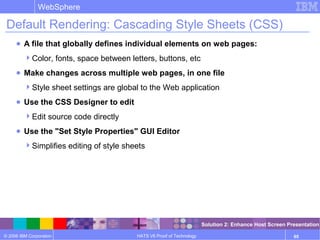

Default Rendering: Cascading Style Sheets (CSS)
● A file that globally defines individual elements on web pages:
Color, fonts, space between letters, buttons, etc
● Make changes across multiple web pages, in one file
Style sheet settings are global to the Web application
● Use the CSS Designer to edit
Edit source code directly
● Use the "Set Style Properties" GUI Editor
Simplifies editing of style sheets

WebSphere

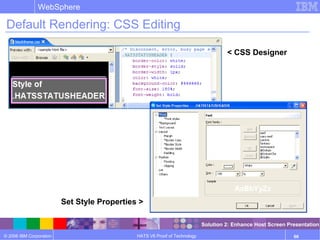

Default Rendering: CSS Editing
< CSS Designer
Set Style Properties >

WebSphere

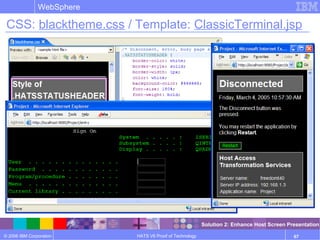

CSS: blacktheme.css / Template: ClassicTerminal.jsp

WebSphere

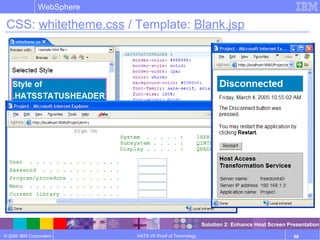

CSS: whitetheme.css / Template: Blank.jsp

WebSphere

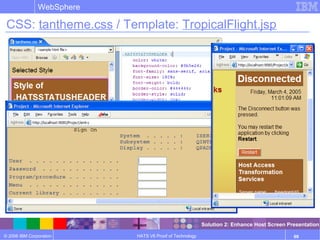

CSS: tantheme.css / Template: TropicalFlight.jsp

WebSphere

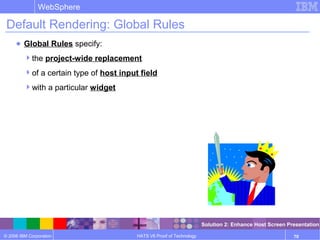

Default Rendering: Global Rules
● Global Rules specify:
the project-wide replacement
of a certain type of host input field
with a particular widget

WebSphere
Default Rendering: Global Rules Example
Search for all host input fields preceded by “===>”…
…and replace the input fields with a
drop-down menu containing
selections defined by the developer.

WebSphere

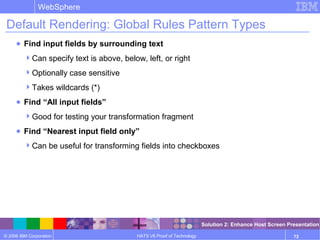

Default Rendering: Global Rules Pattern Types
● Find input fields by surrounding text
Can specify text is above, below, left, or right
Optionally case sensitive
Takes wildcards (*)
● Find “All input fields”
Good for testing your transformation fragment
● Find “Nearest input field only”
Can be useful for transforming fields into checkboxes

WebSphere
Customized Rendering of Individual Screens
● Host Terminal
● Screen Capture
● Screen Customization
● Transformation
● Host Components
● Widgets

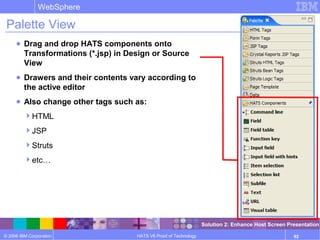

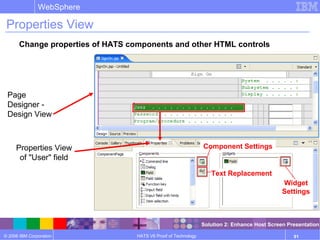

● Properties View
● Palette View

WebSphere

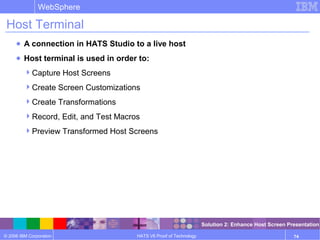

Host Terminal
● A connection in HATS Studio to a live host
● Host terminal is used in order to:
Capture Host Screens
Create Screen Customizations
Create Transformations
Record, Edit, and Test Macros
Preview Transformed Host Screens

WebSphere

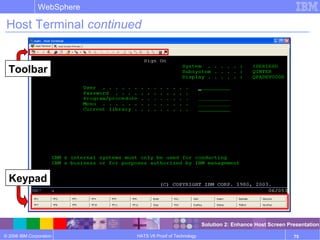

Toolbar
Keypad
Host Terminal continued

WebSphere

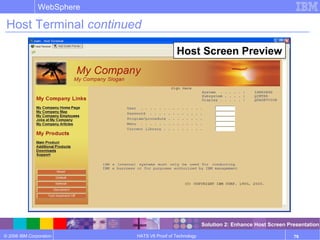

Host Screen Preview
Host Terminal continued

WebSphere

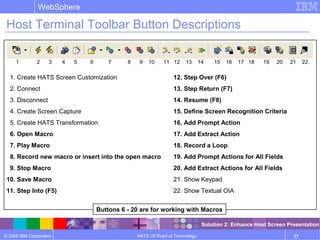

Host Terminal Toolbar Button Descriptions
1. Create HATS Screen Customization
2. Connect
3. Disconnect
4. Create Screen Capture
5. Create HATS Transformation
6. Open Macro
7. Play Macro
8. Record new macro or insert into the open macro
9. Stop Macro
10. Save Macro
11. Step Into (F5)
12. Step Over (F6)
13. Step Return (F7)
14. Resume (F8)
15. Define Screen Recognition Criteria
16. Add Prompt Action
17. Add Extract Action
18. Record a Loop
19. Add Prompt Actions for All Fields
20. Add Extract Actions for All Fields
21. Show Keypad
22. Show Textual OIA
Buttons 6 - 20 are for working with Macros
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

WebSphere

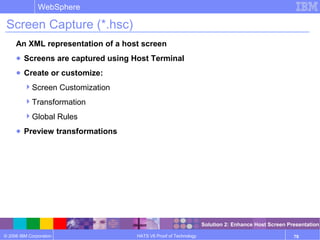

Screen Capture (*.hsc)
An XML representation of a host screen
● Screens are captured using Host Terminal
● Create or customize:
Screen Customization
Transformation
Global Rules
● Preview transformations

WebSphere

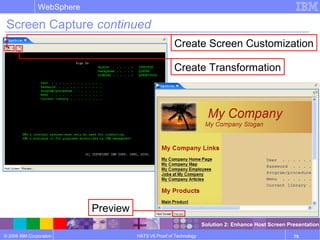

Screen Capture continued
Create Screen Customization
Create Transformation
Preview

WebSphere
Screen Customization (*.evnt)

WebSphere

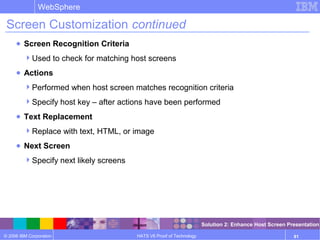

Screen Customization continued
● Screen Recognition Criteria
Used to check for matching host screens
● Actions
Performed when host screen matches recognition criteria
Specify host key – after actions have been performed
● Text Replacement
Replace with text, HTML, or image
● Next Screen
Specify next likely screens

WebSphere

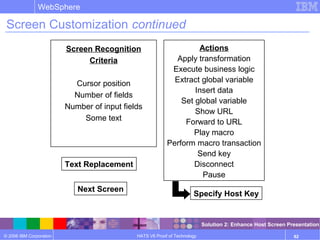

Screen Customization continued
Actions
Apply transformation
Execute business logic
Extract global variable
Insert data
Set global variable
Show URL
Forward to URL
Play macro
Perform macro transaction
Send key
Disconnect
Pause
Text Replacement
Next Screen
Screen Recognition
Criteria
Cursor position
Number of fields
Number of input fields
Some text
Specify Host Key

WebSphere

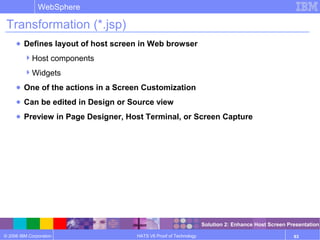

Transformation (*.jsp)
● Defines layout of host screen in Web browser
Host components
Widgets
● One of the actions in a Screen Customization
● Can be edited in Design or Source view
● Preview in Page Designer, Host Terminal, or Screen Capture

WebSphere

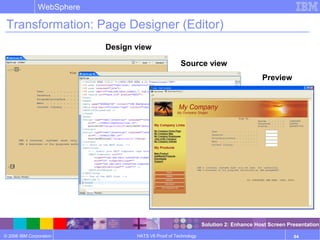

Transformation: Page Designer (Editor)
Design view
Source view
Preview

WebSphere

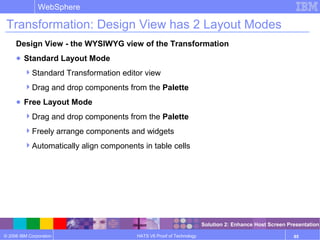

Transformation: Design View has 2 Layout Modes
Design View - the WYSIWYG view of the Transformation
● Standard Layout Mode
Standard Transformation editor view
Drag and drop components from the Palette
● Free Layout Mode
Drag and drop components from the Palette
Freely arrange components and widgets
Automatically align components in table cells

WebSphere
Screen Customization and Transformation
Screen Customization - "Rules"
Transformation - "Results"

WebSphere

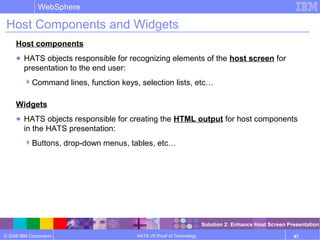

Host Components and Widgets
Host components
● HATS objects responsible for recognizing elements of the host screen for
presentation to the end user:
Command lines, function keys, selection lists, etc…
Widgets
● HATS objects responsible for creating the HTML output for host components
in the HATS presentation:
Buttons, drop-down menus, tables, etc…

WebSphere

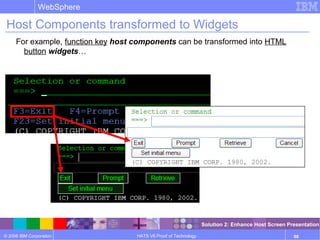

Host Components transformed to Widgets
For example, function key host components can be transformed into HTML
button widgets…

WebSphere

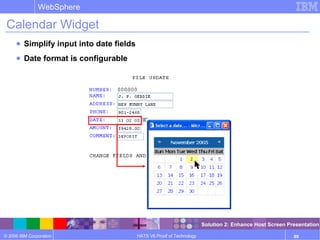

Calendar Widget
● Simplify input into date fields
● Date format is configurable

WebSphere

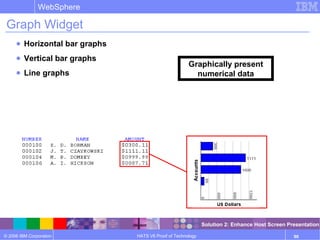

Graph Widget
● Horizontal bar graphs
● Vertical bar graphs
● Line graphs
Graphically present
numerical data

WebSphere
Properties View
Change properties of HATS components and other HTML controls
Page
Designer -
Design View
Properties View
of "User" field
Component Settings
Text Replacement
Widget
Settings

WebSphere
Palette View
● Drag and drop HATS components onto
Transformations (*.jsp) in Design or Source
View
● Drawers and their contents vary according to
the active editor
● Also change other tags such as:
HTML
JSP
Struts
etc…

WebSphere

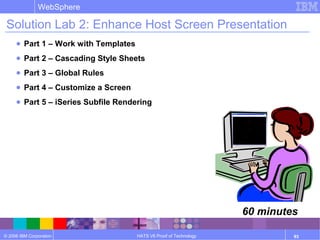

Solution Lab 2: Enhance Host Screen Presentation
● Part 1 – Work with Templates
● Part 2 – Cascading Style Sheets
● Part 3 – Global Rules
● Part 4 – Customize a Screen
● Part 5 – iSeries Subfile Rendering
60 minutes

IBM Software Group
HATS V6 Solution 3: Combine Host Screens

WebSphere
Solution 3: Combine Host Screens
● Present multiple host screens as one Web page using:
Multiple Connections
Macros
Transformation JSPs
Global Variables
Tabbed Folders
● Combine screens to show static or dynamic data
● Integrate Java programs using HATS “Business Logic”
● Integrate Databases using Rational database tools

WebSphere

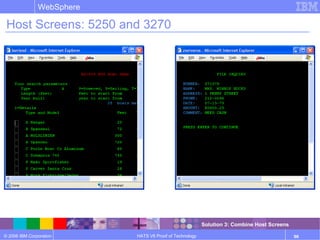

Host Screens: 5250 and 3270

WebSphere

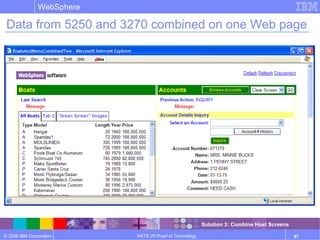

Data from 5250 and 3270 combined on one Web page

WebSphere
Host Screens:
Combine / Integrate
5250
3270
VT

WebSphere

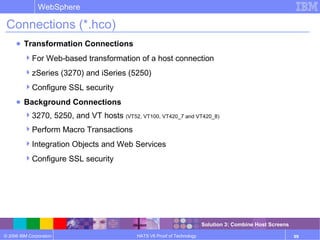

Connections (*.hco)
● Transformation Connections
For Web-based transformation of a host connection
zSeries (3270) and iSeries (5250)
Configure SSL security
● Background Connections
3270, 5250, and VT hosts (VT52, VT100, VT420_7 and VT420_8)
Perform Macro Transactions
Integration Objects and Web Services
Configure SSL security

WebSphere

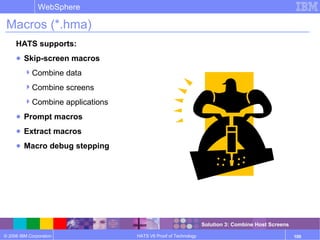

Macros (*.hma)
HATS supports:
● Skip-screen macros
Combine data
Combine screens
Combine applications
● Prompt macros
● Extract macros
● Macro debug stepping

WebSphere

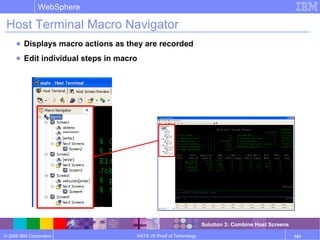

Host Terminal Macro Navigator
● Displays macro actions as they are recorded
● Edit individual steps in macro

WebSphere

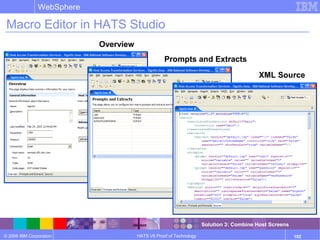

Macro Editor in HATS Studio
Overview
Prompts and Extracts
XML Source

WebSphere

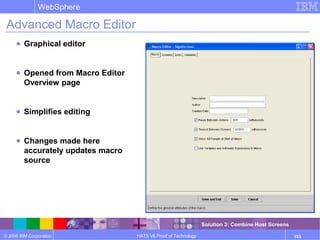

Advanced Macro Editor
● Graphical editor
● Opened from Macro Editor
Overview page
● Simplifies editing
● Changes made here
accurately updates macro
source

WebSphere

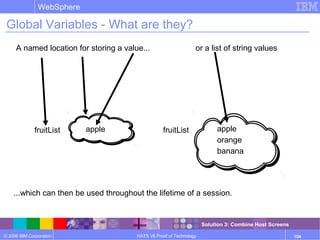

Global Variables - What are they?
A named location for storing a value...
fruitList appleapple
...which can then be used throughout the lifetime of a session.
or a list of string values
apple
orange
banana
fruitList apple
orange
banana

WebSphere

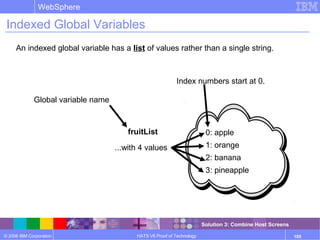

An indexed global variable has a list of values rather than a single string.
Global variable name
fruitList 0: apple
1: orange
2: banana
3: pineapple
...with 4 values
Indexed Global Variables
Index numbers start at 0.

WebSphere

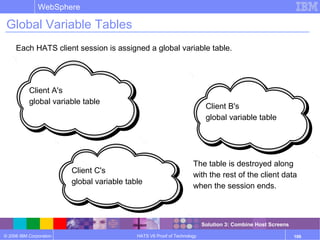

Each HATS client session is assigned a global variable table.
Client A's
global variable table
Client B's
Client C's
Global Variable Tables
The table is destroyed along
with the rest of the client data
when the session ends.

WebSphere

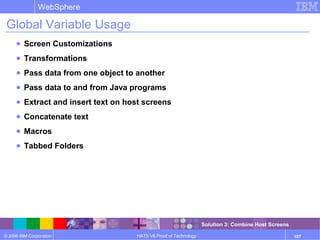

Global Variable Usage
● Screen Customizations
● Transformations
● Pass data from one object to another
● Pass data to and from Java programs
● Extract and insert text on host screens
● Concatenate text
● Macros
● Tabbed Folders

WebSphere
HATS Global Variables View in the Studio
● List of global variables in a project
● Rename global variables
● Open the resource where global variable is used

WebSphere

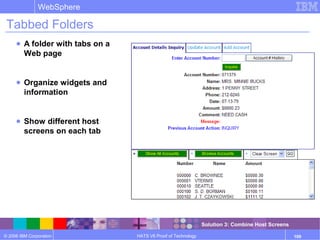

Tabbed Folders
● A folder with tabs on a
Web page
● Organize widgets and
information
● Show different host
screens on each tab

WebSphere

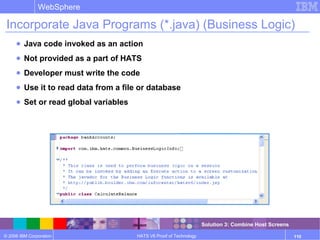

Incorporate Java Programs (*.java) (Business Logic)
● Java code invoked as an action
● Not provided as a part of HATS
● Developer must write the code
● Use it to read data from a file or database
● Set or read global variables

WebSphere

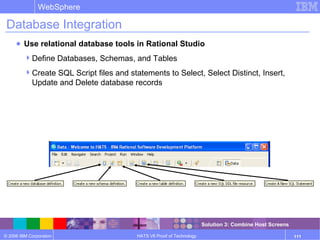

Database Integration
● Use relational database tools in Rational Studio
Define Databases, Schemas, and Tables
Create SQL Script files and statements to Select, Select Distinct, Insert,
Update and Delete database records

WebSphere

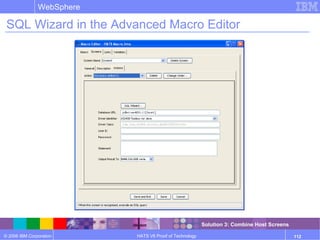

SQL Wizard in the Advanced Macro Editor

WebSphere

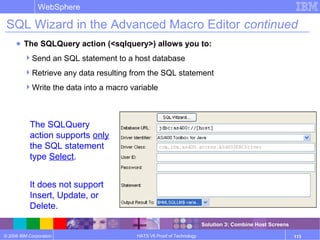

SQL Wizard in the Advanced Macro Editor continued
● The SQLQuery action (<sqlquery>) allows you to:
Send an SQL statement to a host database
Retrieve any data resulting from the SQL statement
Write the data into a macro variable
The SQLQuery
action supports only
the SQL statement
type Select.
It does not support
Insert, Update, or
Delete.

WebSphere
Solution Lab 3: Combine Host Screens
● Part 1 - Working with Tabbed Folders (reuses Lab 1)
● Part 2 - Working with Macros
● Part 3 - Multiple Connections (reuses Lab 3 - Part 2)
● Part 4 – Skip and Combine Screens
60 minutes

IBM Software Group
HATS V6 Solution 4: Single Signon

WebSphere
Solution 4: Single Signon
● Verify users:
Through a single authentication challenge
Across multiple applications
Host System
Host
App 1
Host
App 2
Host
App 3
HATS
User ID
Password
Network
Security

WebSphere

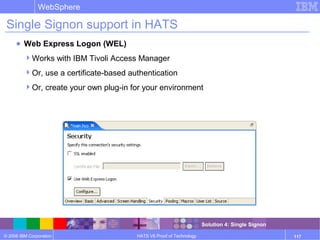

Single Signon support in HATS
● Web Express Logon (WEL)
Works with IBM Tivoli Access Manager
Or, use a certificate-based authentication
Or, create your own plug-in for your environment

WebSphere

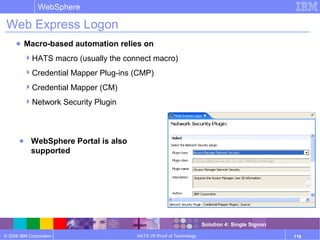

Web Express Logon
● Macro-based automation relies on
HATS macro (usually the connect macro)
Credential Mapper Plug-ins (CMP)
Credential Mapper (CM)
Network Security Plugin
● WebSphere Portal is also
supported

WebSphere

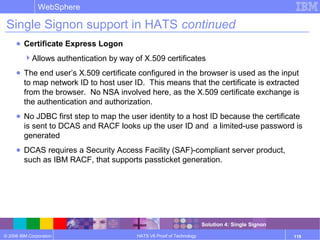

Single Signon support in HATS continued
● Certificate Express Logon
Allows authentication by way of X.509 certificates
● The end user’s X.509 certificate configured in the browser is used as the input
to map network ID to host user ID. This means that the certificate is extracted
from the browser. No NSA involved here, as the X.509 certificate exchange is
the authentication and authorization.
● No JDBC first step to map the user identity to a host ID because the certificate
is sent to DCAS and RACF looks up the user ID and a limited-use password is
generated
● DCAS requires a Security Access Facility (SAF)-compliant server product,
such as IBM RACF, that supports passticket generation.

WebSphere
Solution Lab 4: Single Signon
45 minutes

IBM Software Group
HATS V6 Solution 5: HATS Portlets in
WebSphere Portal

WebSphere

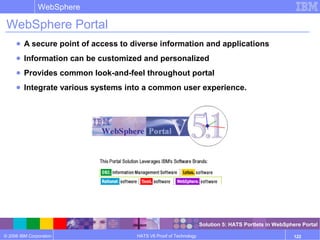

WebSphere Portal
● A secure point of access to diverse information and applications
● Information can be customized and personalized
● Provides common look-and-feel throughout portal
● Integrate various systems into a common user experience.
Solution 5: HATS Portlets in WebSphere Portal

WebSphere
● HATS portlets in WebSphere Portal support:
Brokered Cooperation (Click-to-Action)
Credential Vault
Single Sign-On
● Data flows between HATS, WebSphere Portal, and other Portal
applications.
● Use HATS or Java development tools to exploit WebSphere Portal
features.

WebSphere

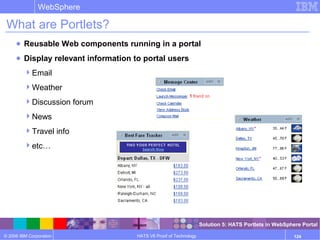

What are Portlets?
● Reusable Web components running in a portal
● Display relevant information to portal users
Email
Weather
Discussion forum
News
Travel info
etc…

WebSphere
HATS iSeries "Boats"
application portlets
HATS Portlets in WebSphere Portal continued

WebSphere
WebSphere Portal Demo 1
● http://websphere.dfw.ibm.com/wps/portal
● User ID:
whidemo
● Password:
guest1

WebSphere

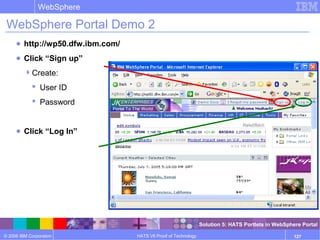

WebSphere Portal Demo 2
● http://wp50.dfw.ibm.com/
● Click “Sign up”
Create:
 User ID
 Password
● Click “Log In”

WebSphere

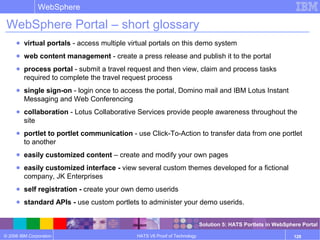

WebSphere Portal – short glossary
● virtual portals - access multiple virtual portals on this demo system
● web content management - create a press release and publish it to the portal
● process portal - submit a travel request and then view, claim and process tasks
required to complete the travel request process
● single sign-on - login once to access the portal, Domino mail and IBM Lotus Instant
Messaging and Web Conferencing
● collaboration - Lotus Collaborative Services provide people awareness throughout the
site
● portlet to portlet communication - use Click-To-Action to transfer data from one portlet
to another
● easily customized content – create and modify your own pages
● easily customized interface - view several custom themes developed for a fictional
company, JK Enterprises
● self registration - create your own demo userids
● standard APIs - use custom portlets to administer your demo userids.

WebSphere
Solution Lab 5: HATS Portlets in WebSphere Portal
● Section 1 - Create a HATS V6 Portlet Project
● Section 2 - Demo of WebSphere Portal Version 5.0.2
● Section 3 - Demo of WebSphere Portal Version 5.1
30 minutes

IBM Software Group
HATS V6 Solution 6: Web Services

WebSphere

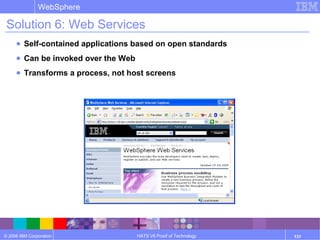

Solution 6: Web Services
● Self-contained applications based on open standards
● Can be invoked over the Web
● Transforms a process, not host screens

WebSphere
Sample Web Services usage
● The user of a wireless device can access an online transaction system
to:
Check status on inventories
Place orders
Ship products to end users
Check deliveries
● All of these functions are published as Web services on the server
● The wireless device uses a Web services consumer client to interact with
the server

WebSphere

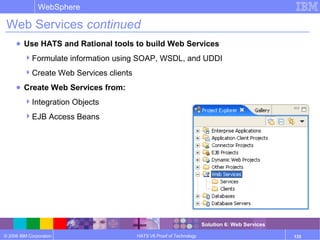

Web Services continued
● Use HATS and Rational tools to build Web Services
Formulate information using SOAP, WSDL, and UDDI
Create Web Services clients
● Create Web Services from:
Integration Objects
EJB Access Beans

WebSphere
Integration Objects (IO) (*.java)
● Java beans that encapsulate interactions with host applications
● Created from previously recorded macros
● Invoke from HATS Business Logic or other WebSphere apps
● Use Integration Objects if:
Your application connects to more than one host app
You want to encapsulate your host interactions into Enterprise JavaBeans
(EJBs) or Web services
You want to build Web pages based on the inputs and outputs of a macro

WebSphere

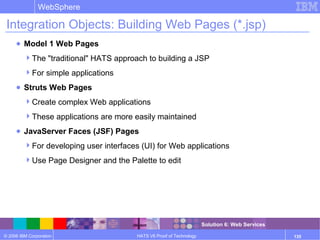

Integration Objects: Building Web Pages (*.jsp)
● Model 1 Web Pages
The "traditional" HATS approach to building a JSP
For simple applications
● Struts Web Pages
Create complex Web applications
These applications are more easily maintained
● JavaServer Faces (JSF) Pages
For developing user interfaces (UI) for Web applications
Use Page Designer and the Palette to edit

WebSphere
Solution Lab 6: Web Services
60 minutes

IBM Software Group
Performance Considerations

WebSphere

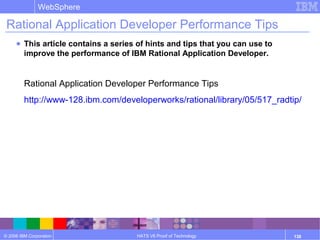

Rational Application Developer Performance Tips
● This article contains a series of hints and tips that you can use to
improve the performance of IBM Rational Application Developer.
Rational Application Developer Performance Tips
http://www-128.ibm.com/developerworks/rational/library/05/517_radtip/

WebSphere

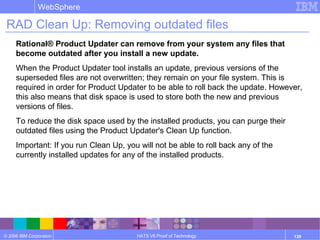

RAD Clean Up: Removing outdated files
Rational® Product Updater can remove from your system any files that
become outdated after you install a new update.
When the Product Updater tool installs an update, previous versions of the
superseded files are not overwritten; they remain on your file system. This is
required in order for Product Updater to be able to roll back the update. However,
this also means that disk space is used to store both the new and previous
versions of files.
To reduce the disk space used by the installed products, you can purge their
outdated files using the Product Updater's Clean Up function.
Important: If you run Clean Up, you will not be able to roll back any of the
currently installed updates for any of the installed products.

WebSphere

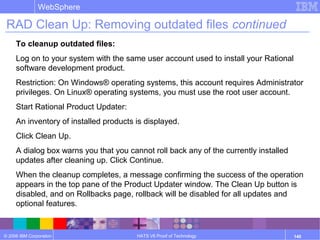

RAD Clean Up: Removing outdated files continued
To cleanup outdated files:
Log on to your system with the same user account used to install your Rational
software development product.
Restriction: On Windows® operating systems, this account requires Administrator
privileges. On Linux® operating systems, you must use the root user account.
Start Rational Product Updater:
An inventory of installed products is displayed.
Click Clean Up.
A dialog box warns you that you cannot roll back any of the currently installed
updates after cleaning up. Click Continue.
When the cleanup completes, a message confirming the success of the operation
appears in the top pane of the Product Updater window. The Clean Up button is
disabled, and on Rollbacks page, rollback will be disabled for all updates and
optional features.

WebSphere

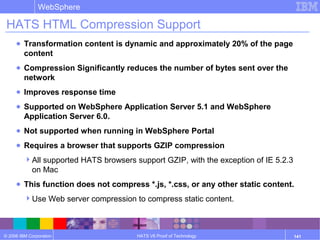

HATS HTML Compression Support
● Transformation content is dynamic and approximately 20% of the page
content
● Compression Significantly reduces the number of bytes sent over the
network
● Improves response time
● Supported on WebSphere Application Server 5.1 and WebSphere
Application Server 6.0.
● Not supported when running in WebSphere Portal
● Requires a browser that supports GZIP compression
All supported HATS browsers support GZIP, with the exception of IE 5.2.3
on Mac
● This function does not compress *.js, *.css, or any other static content.
Use Web server compression to compress static content.

WebSphere

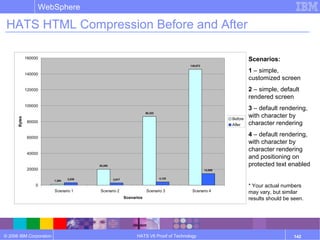

HATS HTML Compression Before and After
1,384
20,265
86,322
145,673
3,039 2,917 4,125
14,599
0
20000
40000
60000
80000
100000
120000
140000
160000
Scenario 1 Scenario 2 Scenario 3 Scenario 4
Scenarios
Bytes
Before
After
Scenarios:
1 – simple,
customized screen
2 – simple, default
rendered screen
3 – default rendering,
with character by
character rendering
4 – default rendering,
with character by
character rendering
and positioning on
protected text enabled
* Your actual numbers
may vary, but similar
results should be seen.

WebSphere

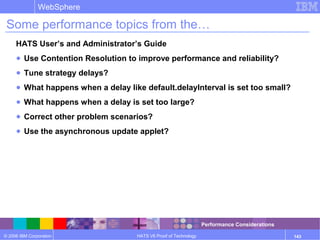

Some performance topics from the…
HATS User’s and Administrator’s Guide
● Use Contention Resolution to improve performance and reliability?
● Tune strategy delays?
● What happens when a delay like default.delayInterval is set too small?
● What happens when a delay is set too large?
● Correct other problem scenarios?
● Use the asynchronous update applet?

WebSphere

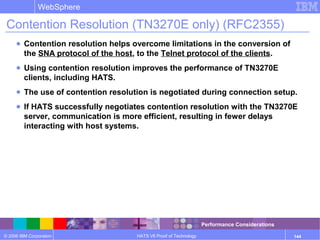

Contention Resolution (TN3270E only) (RFC2355)
● Contention resolution helps overcome limitations in the conversion of
the SNA protocol of the host, to the Telnet protocol of the clients.
● Using contention resolution improves the performance of TN3270E
clients, including HATS.
● The use of contention resolution is negotiated during connection setup.
● If HATS successfully negotiates contention resolution with the TN3270E
server, communication is more efficient, resulting in fewer delays
interacting with host systems.

WebSphere

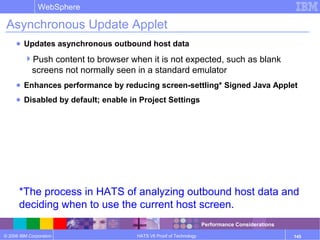

Asynchronous Update Applet
● Updates asynchronous outbound host data
Push content to browser when it is not expected, such as blank
screens not normally seen in a standard emulator
● Enhances performance by reducing screen-settling* Signed Java Applet
● Disabled by default; enable in Project Settings
*The process in HATS of analyzing outbound host data and
deciding when to use the current host screen.

WebSphere

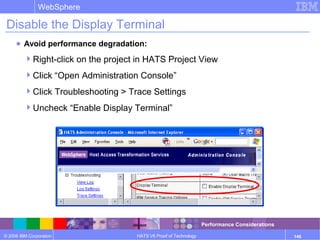

Disable the Display Terminal
● Avoid performance degradation:
Right-click on the project in HATS Project View
Click “Open Administration Console”
Click Troubleshooting > Trace Settings
Uncheck “Enable Display Terminal”

WebSphere

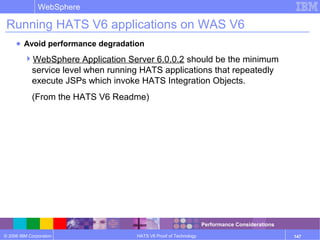

Running HATS V6 applications on WAS V6
● Avoid performance degradation
WebSphere Application Server 6.0.0.2 should be the minimum
service level when running HATS applications that repeatedly
execute JSPs which invoke HATS Integration Objects.
(From the HATS V6 Readme)

WebSphere

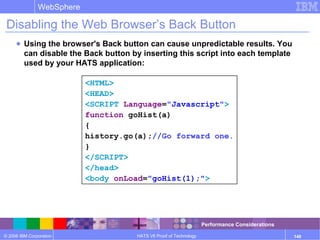

Disabling the Web Browser’s Back Button
● Using the browser's Back button can cause unpredictable results. You
can disable the Back button by inserting this script into each template
used by your HATS application:
<HTML>
<HEAD>
<SCRIPT Language="Javascript">
function goHist(a)
{
history.go(a);//Go forward one.
}
</SCRIPT>
</head>
<body onLoad="goHist(1);">

IBM Software Group
Where to find more information about HATS

WebSphere

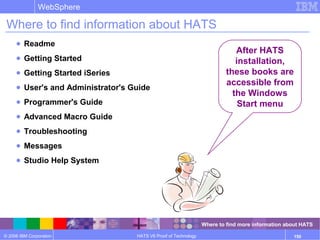

Where to find information about HATS
● Readme
● Getting Started
● Getting Started iSeries
● User's and Administrator's Guide
● Programmer's Guide
● Advanced Macro Guide
● Troubleshooting
● Messages
● Studio Help System
After HATS
installation,
these books are
accessible from
the Windows
Start menu

WebSphere

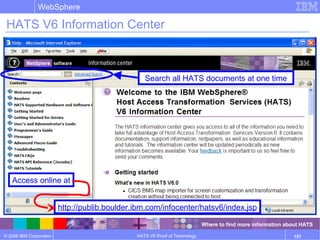

HATS V6 Information Center
Search all HATS documents at one time
http://publib.boulder.ibm.com/infocenter/hatsv6/index.jsp
Access online at

WebSphere

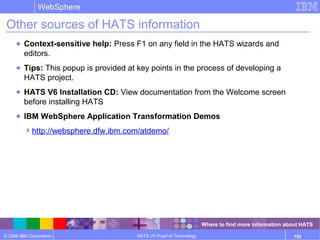

Other sources of HATS information
● Context-sensitive help: Press F1 on any field in the HATS wizards and
editors.
● Tips: This popup is provided at key points in the process of developing a
HATS project.
● HATS V6 Installation CD: View documentation from the Welcome screen
before installing HATS
● IBM WebSphere Application Transformation Demos
http://websphere.dfw.ibm.com/atdemo/

WebSphere

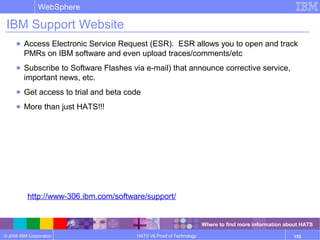

IBM Support Website
● Access Electronic Service Request (ESR). ESR allows you to open and track
PMRs on IBM software and even upload traces/comments/etc
● Subscribe to Software Flashes via e-mail) that announce corrective service,
important news, etc.
● Get access to trial and beta code
● More than just HATS!!!
http://www-306.ibm.com/software/support/

WebSphere

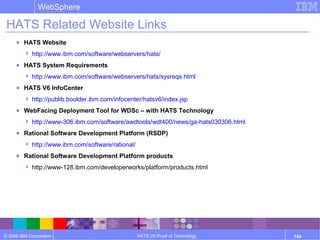

HATS Related Website Links
● HATS Website
 http://www.ibm.com/software/webservers/hats/
● HATS System Requirements
 http://www.ibm.com/software/webservers/hats/sysreqs.html
● HATS V6 InfoCenter
 http://publib.boulder.ibm.com/infocenter/hatsv6/index.jsp
● WebFacing Deployment Tool for WDSc – with HATS Technology
 http://www-306.ibm.com/software/awdtools/wdt400/news/ga-hats030306.html
● Rational Software Development Platform (RSDP)
 http://www.ibm.com/software/rational/
● Rational Software Development Platform products
 http://www-128.ibm.com/developerworks/platform/products.html

WebSphere

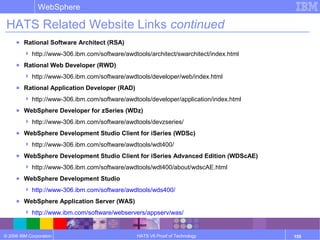

HATS Related Website Links continued
● Rational Software Architect (RSA)
 http://www-306.ibm.com/software/awdtools/architect/swarchitect/index.html
● Rational Web Developer (RWD)
 http://www-306.ibm.com/software/awdtools/developer/web/index.html
● Rational Application Developer (RAD)
 http://www-306.ibm.com/software/awdtools/developer/application/index.html
● WebSphere Developer for zSeries (WDz)
 http://www-306.ibm.com/software/awdtools/devzseries/
● WebSphere Development Studio Client for iSeries (WDSc)
 http://www-306.ibm.com/software/awdtools/wdt400/
● WebSphere Development Studio Client for iSeries Advanced Edition (WDScAE)
 http://www-306.ibm.com/software/awdtools/wdt400/about/wdscAE.html
● WebSphere Development Studio
 http://www-306.ibm.com/software/awdtools/wds400/
● WebSphere Application Server (WAS)
 http://www.ibm.com/software/webservers/appserv/was/

WebSphere

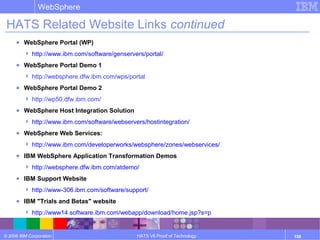

HATS Related Website Links continued
● WebSphere Portal (WP)
 http://www.ibm.com/software/genservers/portal/
● WebSphere Portal Demo 1
 http://websphere.dfw.ibm.com/wps/portal
● WebSphere Portal Demo 2
 http://wp50.dfw.ibm.com/
● WebSphere Host Integration Solution
 http://www.ibm.com/software/webservers/hostintegration/
● WebSphere Web Services:
 http://www.ibm.com/developerworks/websphere/zones/webservices/
● IBM WebSphere Application Transformation Demos
 http://websphere.dfw.ibm.com/atdemo/
● IBM Support Website
 http://www-306.ibm.com/software/support/
● IBM "Trials and Betas" website
 http://www14.software.ibm.com/webapp/download/home.jsp?s=p

WebSphere
Glossary
Term Definition
legacy … an antiquated computer system or application program which continues to
be used because the user (typically an organization) does not want to replace
or redesign it.
.ear enterprise archive. A specialized Java archive (JAR) file, defined by the J2EE
standard used to deploy J2EE applications to J2EE application servers. An
EAR file contains enterprise beans, a deployment descriptor, and Web archive
(WAR) files for individual Web applications.
.html HyperText Markup Language. A markup language designed for creating web
pages with hypertext and other information to be displayed in a web browser.
.jsf JavaServer Faces. A framework for building Web-based user interfaces in
Java. Web developers can build applications by placing reusable UI
components on a page, connecting the components to an application data
source, and wiring client events to server event handlers.
.jsp JavaServer Pages. A server-side scripting technology that enables Java code
to be dynamically embedded within Web pages (HTML files) and executed
when the page is served, returning dynamic content to a client.

WebSphere
Glossary continued
Term Definition

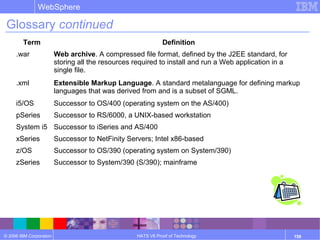

.war Web archive. A compressed file format, defined by the J2EE standard, for
storing all the resources required to install and run a Web application in a
single file.
.xml Extensible Markup Language. A standard metalanguage for defining markup
languages that was derived from and is a subset of SGML.
i5/OS Successor to OS/400 (operating system on the AS/400)
pSeries Successor to RS/6000, a UNIX-based workstation
System i5 Successor to iSeries and AS/400
xSeries Successor to NetFinity Servers; Intel x86-based
z/OS Successor to OS/390 (operating system on System/390)
zSeries Successor to System/390 (S/390); mainframe

P01 source-book1-hatsv6 pot-customer_solutions

More Related Content

What's hot

Viewers also liked

Similar to P01 source-book1-hatsv6 pot-customer_solutions

Recently uploaded

P01 source-book1-hatsv6 pot-customer_solutions

Editor's Notes
