Oxygen therapy and physiology
1. OXYGEN THERAPY
Dr Bhavya Naithani,
MD,PDCC
Assistant Professor critical
care
King George’s Medical
University
2. OVERVIEW
Introduction
Oxygen transport
Indications
Oxygen delivery systems

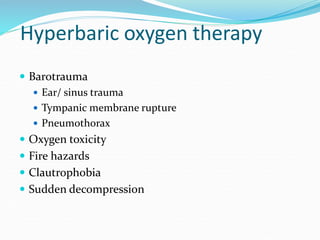

Hyperbaric oxygen therapy

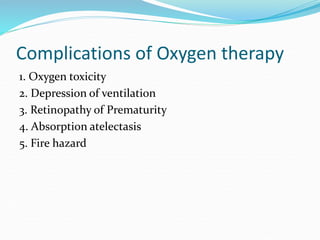

Complications of oxygen therapy
3. Stephen Hale – prepared oxygen along with other gases
Priestly –discovered it
Lavoisier- oxygen was absorbed by the lungs and
eliminated as carbon di oxide and water
Colourless, odourless tasteless gas
Boiling point at 1 atmosphere =-183 degree centigrade
Below this temperature it exists as a pale blue liquid
Critical temperature -118 degree centigrade
Cannot be ignited, aids combustion
Industrially prepared by liquefaction of air-fractional
distillation of liquefied air

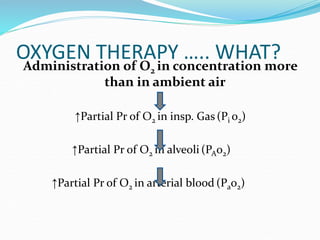

4. OXYGEN THERAPY ….. WHAT?
Administration of O2 in concentration more
than in ambient air
↑Partial Pr of O2 in insp. Gas(Pi o2)
↑Partial Pr of O2 in alveoli (PAo2)
↑Partial Pr of O2 in arterial blood (Pao2)

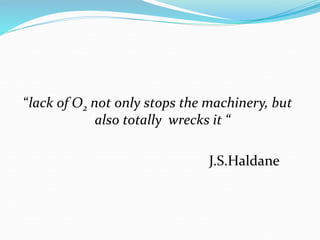

5. “lack of O2 not only stops the machinery, but
also totally wrecks it “
J.S.Haldane

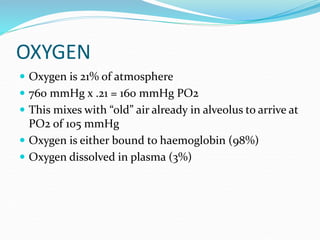

6. OXYGEN
Oxygen is 21% of atmosphere
760 mmHg x .21 = 160 mmHg PO2
This mixes with “old” air already in alveolus to arrive at
PO2 of 105 mmHg
Oxygen is either bound to haemoglobin (98%)
Oxygen dissolved in plasma (3%)

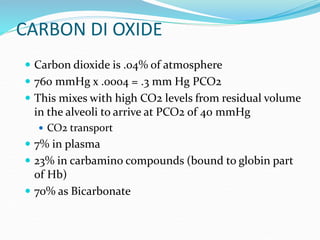

7. CARBON DI OXIDE
Carbon dioxide is .04% of atmosphere
760 mmHg x .0004 = .3 mm Hg PCO2
This mixes with high CO2 levels from residual volume
in the alveoli to arrive at PCO2 of 40 mmHg

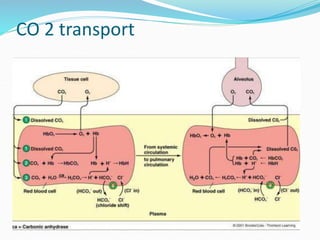

CO2 transport
7% in plasma
23% in carbamino compounds (bound to globin part
of Hb)
70% as Bicarbonate
8.

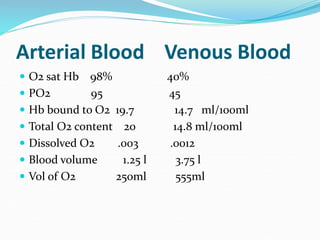

9. Arterial Blood Venous Blood
O2 sat Hb 98% 40%
PO2 95 45
Hb bound to O2 19.7 14.7 ml/100ml
Total O2 content 20 14.8 ml/100ml
Dissolved O2 .003 .0012
Blood volume 1.25 l 3.75 l
Vol of O2 250ml 555ml

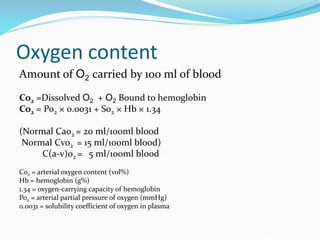

10. Oxygen content
Amount of O2 carried by 100 ml of blood
Co2 =Dissolved O2 + O2 Bound to hemoglobin
Co2 = Po2 × 0.0031 + So2 × Hb × 1.34
(Normal Cao2 = 20 ml/100ml blood
Normal Cvo2 = 15 ml/100ml blood)
C(a-v)o2 = 5 ml/100ml blood
Co2 = arterial oxygen content (vol%)
Hb = hemoglobin (g%)
1.34 = oxygen-carrying capacity of hemoglobin
Po2 = arterial partial pressure of oxygen (mmHg)
0.0031 = solubility coefficient of oxygen in plasma

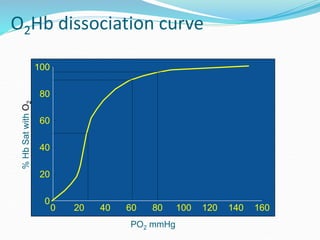

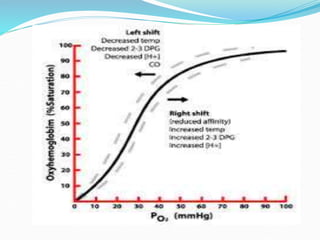

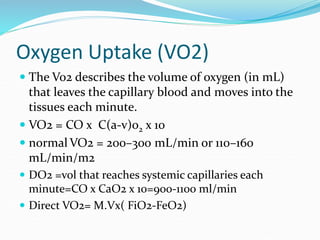

13. Oxygen Uptake (VO2)
The Vo2 describes the volume of oxygen (in mL)
that leaves the capillary blood and moves into the
tissues each minute.
VO2 = CO x C(a-v)o2 x 10
normal VO2 = 200–300 mL/min or 110–160
mL/min/m2
DO2 =vol that reaches systemic capillaries each
minute=CO x CaO2 x 10=900-1100 ml/min
Direct VO2= M.Vx( FiO2-FeO2)

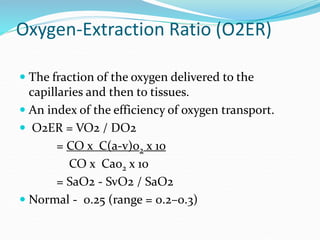

14. Oxygen-Extraction Ratio (O2ER)
The fraction of the oxygen delivered to the
capillaries and then to tissues.
An index of the efficiency of oxygen transport.
O2ER = VO2 / DO2
= CO x C(a-v)o2 x 10
CO x Cao2 x 10
= SaO2 - SvO2 / SaO2
Normal - 0.25 (range = 0.2–0.3)

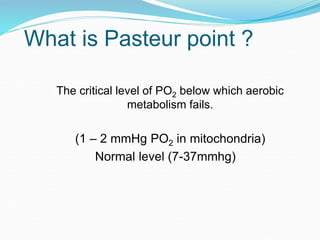

16. What is Pasteur point ?
The critical level of PO2 below which aerobic
metabolism fails.
(1 – 2 mmHg PO2 in mitochondria)
Normal level (7-37mmhg)

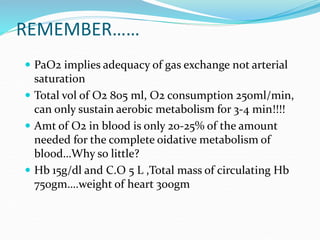

17. REMEMBER……
PaO2 implies adequacy of gas exchange not arterial
saturation
Total vol of O2 805 ml, O2 consumption 250ml/min,
can only sustain aerobic metabolism for 3-4 min!!!!
Amt of O2 in blood is only 20-25% of the amount
needed for the complete oidative metabolism of
blood…Why so little?
Hb 15g/dl and C.O 5 L ,Total mass of circulating Hb
750gm….weight of heart 300gm

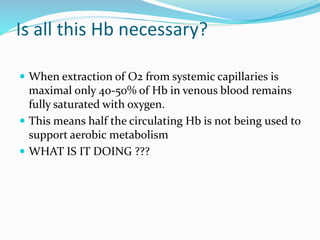

18. Is all this Hb necessary?
When extraction of O2 from systemic capillaries is
maximal only 40-50% of Hb in venous blood remains
fully saturated with oxygen.
This means half the circulating Hb is not being used to
support aerobic metabolism
WHAT IS IT DOING ???

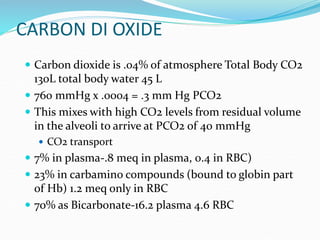

19. CARBON DI OXIDE
Carbon dioxide is .04% of atmosphere Total Body CO2
130L total body water 45 L
760 mmHg x .0004 = .3 mm Hg PCO2
This mixes with high CO2 levels from residual volume
in the alveoli to arrive at PCO2 of 40 mmHg

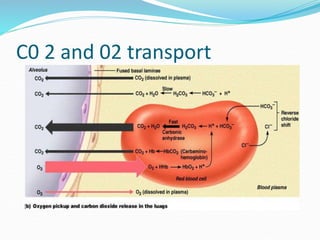

CO2 transport
7% in plasma-.8 meq in plasma, 0.4 in RBC)
23% in carbamino compounds (bound to globin part
of Hb) 1.2 meq only in RBC
70% as Bicarbonate-16.2 plasma 4.6 RBC
20. Total Vol of CO2 in solution is
more than the solution

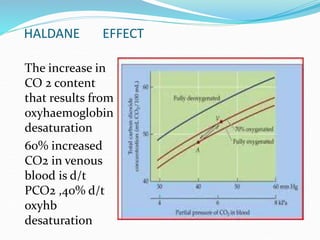

21. HALDANE EFFECT
The increase in
CO 2 content
that results from
oxyhaemoglobin
desaturation
60% increased
CO2 in venous
blood is d/t
PCO2 ,40% d/t
oxyhb
desaturation

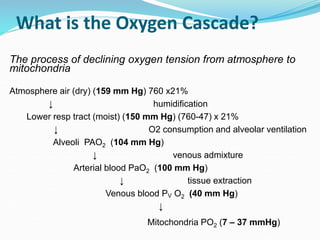

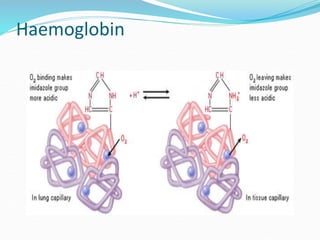

25. What is the Oxygen Cascade?
The process of declining oxygen tension from atmosphere to
mitochondria
Atmosphere air (dry) (159 mm Hg) 760 x21%
↓ humidification
Lower resp tract (moist) (150 mm Hg) (760-47) x 21%
↓ O2 consumption and alveolar ventilation
Alveoli PAO2 (104 mm Hg)
↓ venous admixture
Arterial blood PaO2 (100 mm Hg)
↓ tissue extraction
Venous blood PV O2 (40 mm Hg)
↓
Mitochondria PO2 (7 – 37 mmHg)

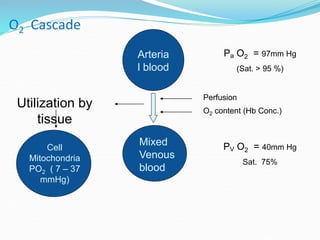

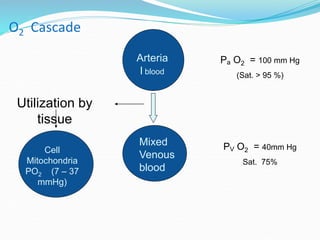

26. O2 Cascade
Venous admixture
PA O2 = 104 mm Hg
Alveolar
air
Arteria
l blood Pa O2 = 100 mm Hg
A – a = 4 – 25 mmHg
PI O2
PV O2

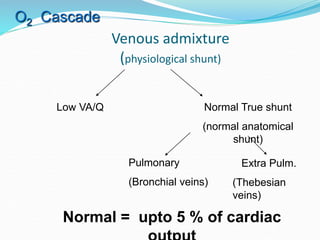

27. Venous admixture
(physiological shunt)
O2 Cascade
Low VA/Q Normal True shunt
(normal anatomical
shunt)
Pulmonary
(Bronchial veins)
Extra Pulm.
(Thebesian
veins)
Normal = upto 5 % of cardiac

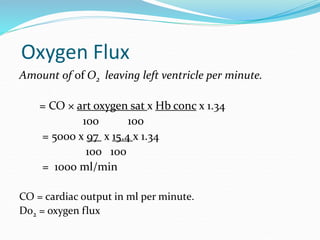

30. Oxygen Flux
Amount of of O2 leaving left ventricle per minute.
= CO × art oxygen sat x Hb conc x 1.34
100 100
= 5000 x 97 x 15.4 x 1.34
100 100
= 1000 ml/min
CO = cardiac output in ml per minute.
Do2 = oxygen flux
31. Goal of oxygen therapy
To maintain adequate tissue oxygenation while
minimizing cardiopulmonary work

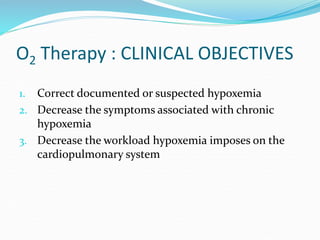

32. O2 Therapy : CLINICAL OBJECTIVES
1. Correct documented or suspected hypoxemia
2. Decrease the symptoms associated with chronic
hypoxemia
3. Decrease the workload hypoxemia imposes on the
cardiopulmonary system

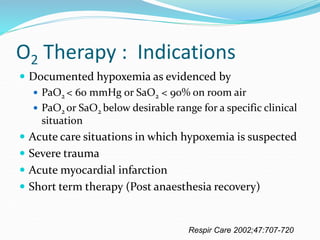

33. O2 Therapy : Indications
Documented hypoxemia as evidenced by
PaO2 < 60 mmHg or SaO2 < 90% on room air
PaO2 or SaO2 below desirable range for a specific clinical
situation
Acute care situations in which hypoxemia is suspected
Severe trauma
Acute myocardial infarction
Short term therapy (Post anaesthesia recovery)
Respir Care 2002;47:707-720

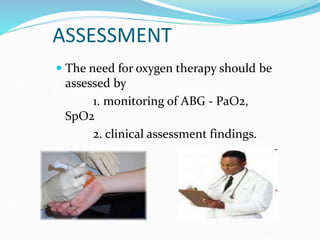

34. ASSESSMENT
The need for oxygen therapy should be
assessed by
1. monitoring of ABG - PaO2,
SpO2
2. clinical assessment findings.

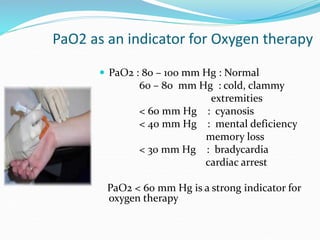

35. PaO2 as an indicator for Oxygen therapy
PaO2 : 80 – 100 mm Hg : Normal
60 – 80 mm Hg : cold, clammy
extremities
< 60 mm Hg : cyanosis
< 40 mm Hg : mental deficiency
memory loss
< 30 mm Hg : bradycardia
cardiac arrest
PaO2 < 60 mm Hg is a strong indicator for
oxygen therapy

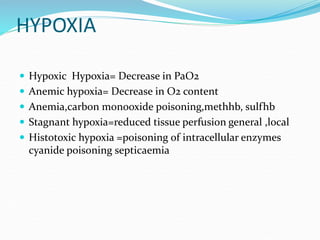

36. HYPOXIA
Hypoxic Hypoxia= Decrease in PaO2
Anemic hypoxia= Decrease in O2 content
Anemia,carbon monooxide poisoning,methhb, sulfhb
Stagnant hypoxia=reduced tissue perfusion general ,local
Histotoxic hypoxia =poisoning of intracellular enzymes
cyanide poisoning septicaemia

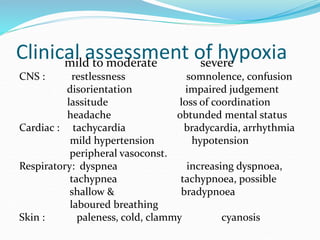

37. Clinical assessment of hypoxia
mild to moderate severe
CNS : restlessness somnolence, confusion
disorientation impaired judgement
lassitude loss of coordination
headache obtunded mental status
Cardiac : tachycardia bradycardia, arrhythmia
mild hypertension hypotension
peripheral vasoconst.
Respiratory: dyspnea increasing dyspnoea,
tachypnea tachypnoea, possible
shallow & bradypnoea
laboured breathing
Skin : paleness, cold, clammy cyanosis

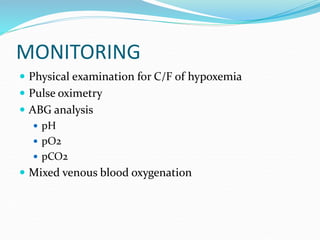

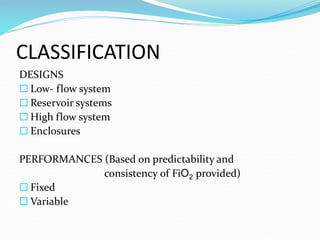

40. CLASSIFICATION
DESIGNS
Low- flow system
Reservoir systems
High flow system
Enclosures
PERFORMANCES (Based on predictability and
consistency of FiO2 provided)
Fixed
Variable
41. Low flow system
The gas flow is insufficient to meet patient’s peak
inspiratory and minute ventilatory requirement
O2 provided is always diluted with air
FiO2 varies with the patient’s ventilatory pattern
Deliver low and variable FiO2 → Variable
performance device

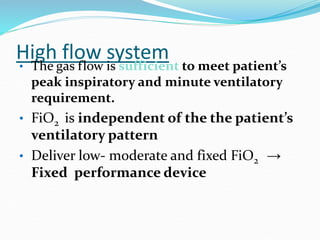

42. High flow system
• The gas flow is sufficient to meet patient’s
peak inspiratory and minute ventilatory
requirement.
• FiO2 is independent of the the patient’s
ventilatory pattern
• Deliver low- moderate and fixed FiO2 →
Fixed performance device

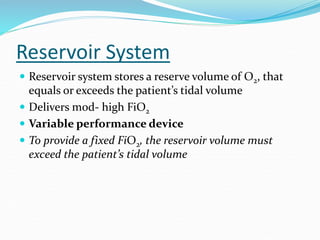

43. Reservoir System
Reservoir system stores a reserve volume of O2, that
equals or exceeds the patient’s tidal volume
Delivers mod- high FiO2
Variable performance device
To provide a fixed FiO2, the reservoir volume must
exceed the patient’s tidal volume

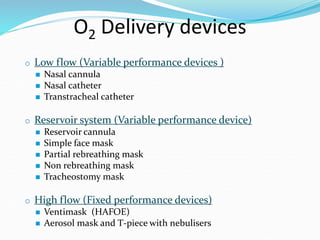

44. O2 Delivery devices
o Low flow (Variable performance devices )
Nasal cannula
Nasal catheter
Transtracheal catheter
o Reservoir system (Variable performance device)
Reservoir cannula
Simple face mask
Partial rebreathing mask
Non rebreathing mask

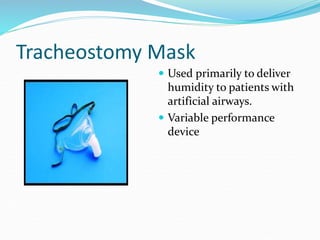

Tracheostomy mask
o High flow (Fixed performance devices)
Ventimask (HAFOE)
Aerosol mask and T-piece with nebulisers
45.

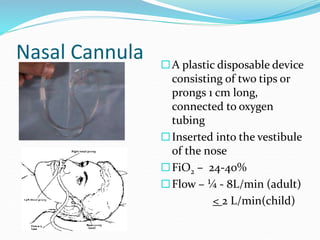

46. Nasal Cannula A plastic disposable device
consisting of two tips or
prongs 1 cm long,
connected to oxygen
tubing
Inserted into the vestibule
of the nose
FiO2 – 24-40%
Flow – ¼ - 8L/min (adult)
< 2 L/min(child)

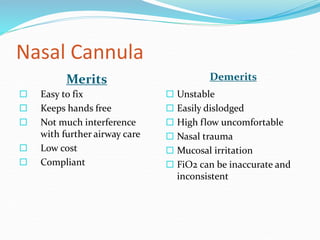

47. Nasal Cannula
Merits Demerits
Easy to fix
Keeps hands free
Not much interference
with further airway care
Low cost
Compliant
Unstable
Easily dislodged
High flow uncomfortable
Nasal trauma
Mucosal irritation
FiO2 can be inaccurate and
inconsistent

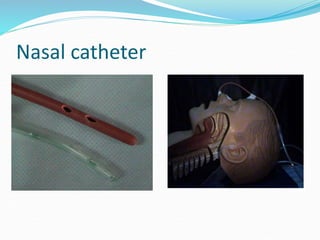

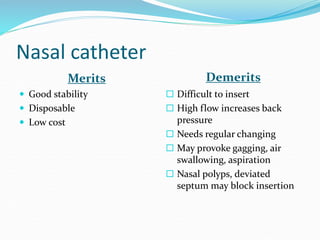

49. Nasal catheter
Merits Demerits
Good stability
Disposable
Low cost
Difficult to insert
High flow increases back
pressure
Needs regular changing
May provoke gagging, air
swallowing, aspiration
Nasal polyps, deviated
septum may block insertion
50.

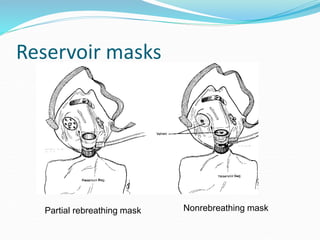

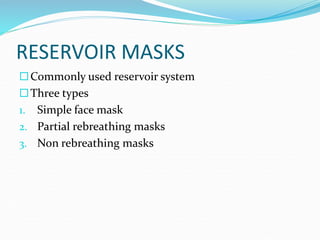

51. RESERVOIR MASKS
Commonly used reservoir system
Three types
1. Simple face mask
2. Partial rebreathing masks
3. Non rebreathing masks

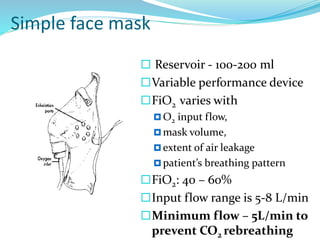

52. Simple face mask
Reservoir - 100-200 ml
Variable performance device
FiO2 varies with
O2 input flow,
mask volume,
extent of air leakage
patient’s breathing pattern
FiO2: 40 – 60%
Input flow range is 5-8 L/min
Minimum flow – 5L/min to
prevent CO2 rebreathing

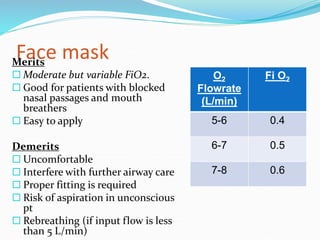

53. Face mask
Merits
Moderate but variable FiO2.
Good for patients with blocked
nasal passages and mouth
breathers
Easy to apply
Demerits
Uncomfortable
Interfere with further airway care
Proper fitting is required
Risk of aspiration in unconscious
pt
Rebreathing (if input flow is less
than 5 L/min)
O2
Flowrate
(L/min)
Fi O2
5-6 0.4
6-7 0.5
7-8 0.6

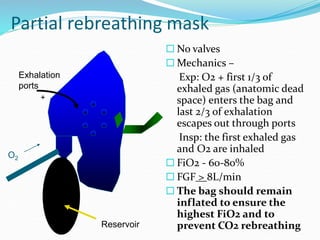

55. Partial rebreathing mask
No valves
Mechanics –
Exp: O2 + first 1/3 of
exhaled gas (anatomic dead
space) enters the bag and
last 2/3 of exhalation
escapes out through ports
Insp: the first exhaled gas
and O2 are inhaled
FiO2 - 60-80%
FGF > 8L/min
The bag should remain
inflated to ensure the
highest FiO2 and to
prevent CO2 rebreathing
Exhalation
ports
O2
Reservoir
+

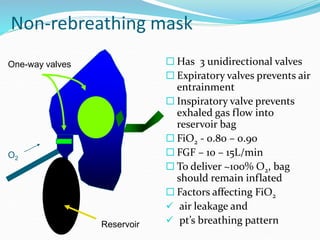

56. Non-rebreathing mask
Has 3 unidirectional valves
Expiratory valves prevents air
entrainment
Inspiratory valve prevents
exhaled gas flow into
reservoir bag
FiO2 - 0.80 – 0.90
FGF – 10 – 15L/min
To deliver ~100% O2, bag
should remain inflated
Factors affecting FiO2
air leakage and
pt’s breathing pattern
O2
Reservoir
One-way valves
57. Tracheostomy Mask
Used primarily to deliver
humidity to patients with
artificial airways.
Variable performance
device

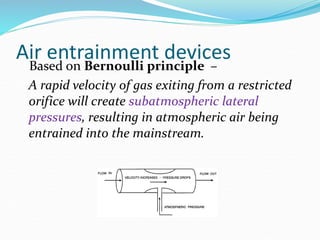

59. Air entrainment devices
Based on Bernoulli principle –
A rapid velocity of gas exiting from a restricted
orifice will create subatmospheric lateral
pressures, resulting in atmospheric air being
entrained into the mainstream.

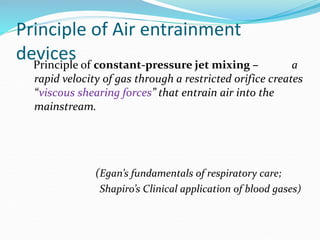

60. Principle of Air entrainment
devices
Principle of constant-pressure jet mixing – a
rapid velocity of gas through a restricted orifice creates
“viscous shearing forces” that entrain air into the
mainstream.
(Egan’s fundamentals of respiratory care;
Shapiro’s Clinical application of blood gases)

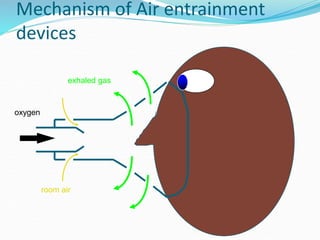

61. Mechanism of Air entrainment
devices
oxygen
room air
exhaled gas

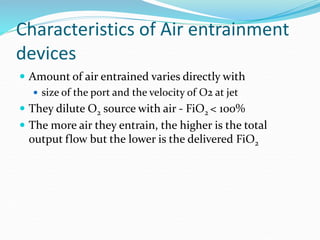

62. Characteristics of Air entrainment
devices
Amount of air entrained varies directly with
size of the port and the velocity of O2 at jet
They dilute O2 source with air - FiO2 < 100%
The more air they entrain, the higher is the total
output flow but the lower is the delivered FiO2

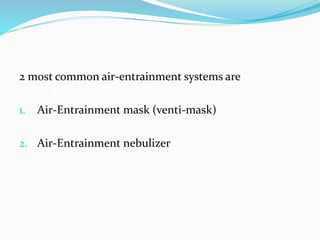

63. 2 most common air-entrainment systems are
1. Air-Entrainment mask (venti-mask)
2. Air-Entrainment nebulizer

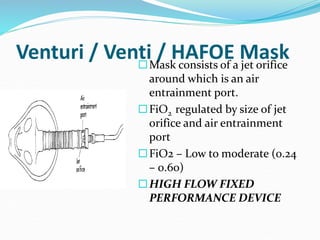

64. Venturi / Venti / HAFOE Mask
Mask consists of a jet orifice
around which is an air
entrainment port.
FiO2 regulated by size of jet
orifice and air entrainment
port
FiO2 – Low to moderate (0.24
– 0.60)
HIGH FLOW FIXED
PERFORMANCE DEVICE

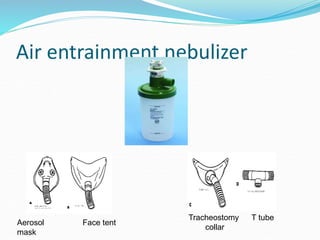

66. Air entrainment nebulizer
Have a fixed orifice, thus, air-to-O2 ratio can be altered
by varying entrainment port size.
Fixed performance device
Deliver FiO2 from 28-100%
Max. gas flows – 14-16L/min
Device of choice for delivering O2 to patients with
artificial tracheal airways.
Provides humidity and temperature control

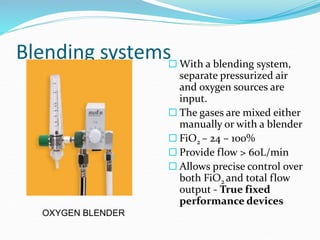

68. Blending systems With a blending system,
separate pressurized air
and oxygen sources are
input.
The gases are mixed either
manually or with a blender
FiO2 – 24 – 100%
Provide flow > 60L/min
Allows precise control over
both FiO2 and total flow
output - True fixed
performance devices
OXYGEN BLENDER
69. Blending systems With a blending system,
separate pressurized air
and oxygen sources are
input.
The gases are mixed either
manually or with a blender
FiO2 – 24 – 100%
Provide flow > 60L/min
Allows precise control over
both FiO2 and total flow
output - True fixed
performance devices
OXYGEN BLENDER

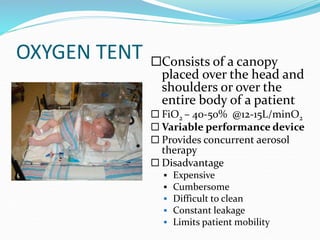

71. OXYGEN TENT Consists of a canopy
placed over the head and
shoulders or over the
entire body of a patient
FiO2 – 40-50% @12-15L/minO2
Variable performance device
Provides concurrent aerosol
therapy
Disadvantage
Expensive
Cumbersome
Difficult to clean
Constant leakage
Limits patient mobility

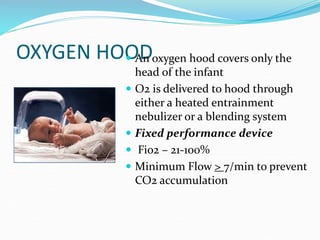

72. OXYGEN HOOD
An oxygen hood covers only the
head of the infant
O2 is delivered to hood through
either a heated entrainment
nebulizer or a blending system
Fixed performance device
Fio2 – 21-100%
Minimum Flow > 7/min to prevent
CO2 accumulation

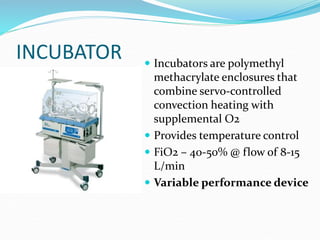

73. INCUBATOR Incubators are polymethyl
methacrylate enclosures that
combine servo-controlled
convection heating with
supplemental O2
Provides temperature control
FiO2 – 40-50% @ flow of 8-15
L/min
Variable performance device
74.

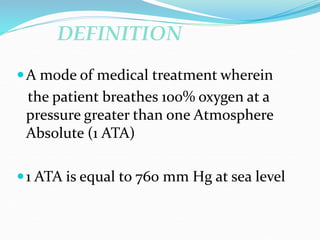

75. DEFINITION
A mode of medical treatment wherein
the patient breathes 100% oxygen at a
pressure greater than one Atmosphere
Absolute (1 ATA)
1 ATA is equal to 760 mm Hg at sea level

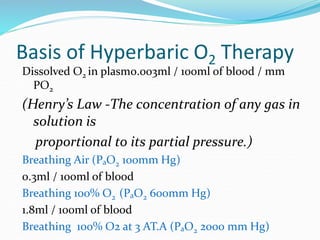

76. Basis of Hyperbaric O2 Therapy
Dissolved O2 in plasm0.003ml / 100ml of blood / mm
PO2
(Henry’s Law -The concentration of any gas in
solution is
proportional to its partial pressure.)
Breathing Air (PaO2 100mm Hg)
0.3ml / 100ml of blood
Breathing 100% O2 (PaO2 600mm Hg)
1.8ml / 100ml of blood
Breathing 100% O2 at 3 AT.A (PaO2 2000 mm Hg)

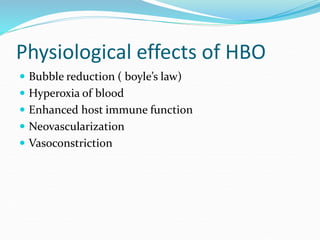

77. Physiological effects of HBO
Bubble reduction ( boyle’s law)
Hyperoxia of blood
Enhanced host immune function
Neovascularization
Vasoconstriction

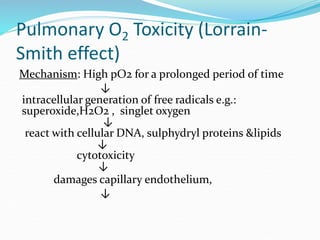

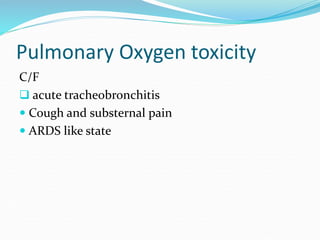

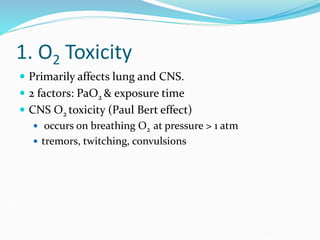

85. Pulmonary O2 Toxicity (Lorrain-
Smith effect)
Mechanism: High pO2 for a prolonged period of time
↓
intracellular generation of free radicals e.g.:
superoxide,H2O2 , singlet oxygen
↓
react with cellular DNA, sulphydryl proteins &lipids
↓
cytotoxicity
↓
damages capillary endothelium,
↓

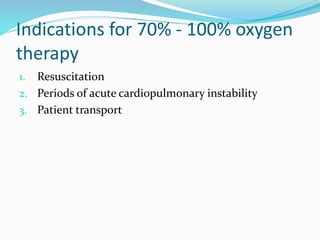

87. Indications for 70% - 100% oxygen
therapy
1. Resuscitation
2. Periods of acute cardiopulmonary instability
3. Patient transport

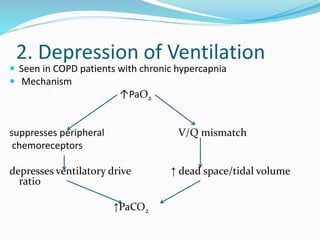

88. 2. Depression of Ventilation
Seen in COPD patients with chronic hypercapnia
Mechanism
↑PaO2
suppresses peripheral V/Q mismatch
chemoreceptors
depresses ventilatory drive ↑ dead space/tidal volume
ratio
↑PaCO2
89. 3. Retinopathy of prematurity
(ROP)
Premature or low-birth-weight infants who receive
supplemental O2
Mechanism
↑PaO2
↓
retinal vasoconstriction
↓
necrosis of blood vessels
↓
new vessels formation
↓
Hemorrhage → retinal detachment and blindness
To minimize the risk of ROP - PaO2 below 80 mmHg

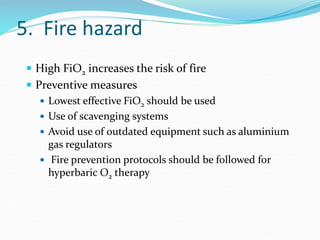

90. 5. Fire hazard
High FiO2 increases the risk of fire
Preventive measures
Lowest effective FiO2 should be used
Use of scavenging systems
Avoid use of outdated equipment such as aluminium
gas regulators
Fire prevention protocols should be followed for
hyperbaric O2 therapy

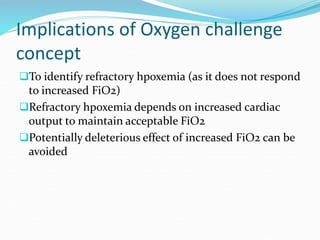

91. Implications of Oxygen challenge
concept
To identify refractory hpoxemia (as it does not respond
to increased FiO2)
Refractory hpoxemia depends on increased cardiac
output to maintain acceptable FiO2
Potentially deleterious effect of increased FiO2 can be
avoided

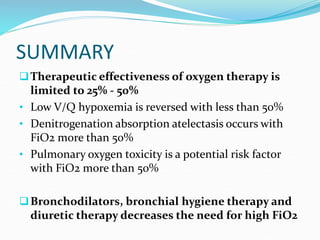

92. SUMMARY
Therapeutic effectiveness of oxygen therapy is
limited to 25% - 50%
• Low V/Q hypoxemia is reversed with less than 50%
• Denitrogenation absorption atelectasis occurs with
FiO2 more than 50%
• Pulmonary oxygen toxicity is a potential risk factor
with FiO2 more than 50%
Bronchodilators, bronchial hygiene therapy and
diuretic therapy decreases the need for high FiO2

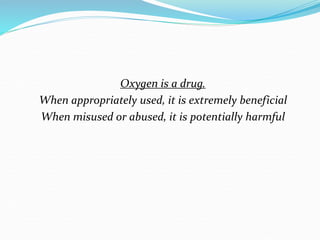

93. Oxygen is a drug.
When appropriately used, it is extremely beneficial
When misused or abused, it is potentially harmful

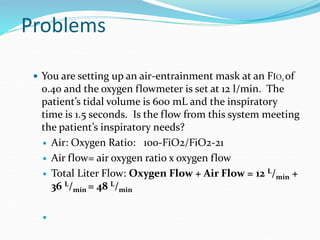

94. Problems
You are setting up an air-entrainment mask at an FIO2 of
0.40 and the oxygen flowmeter is set at 12 l/min. The
patient’s tidal volume is 600 mL and the inspiratory
time is 1.5 seconds. Is the flow from this system meeting
the patient’s inspiratory needs?
Air: Oxygen Ratio: 100-FiO2/FiO2-21
Air flow= air oxygen ratio x oxygen flow
Total Liter Flow: Oxygen Flow + Air Flow = 12 L/min +
36 L/min = 48 L/min
95. Peak Inspiratory Flowrate: ( Minute
ventilation/inspiratory time ) x 60 = .6/1.5 x 60= 24
L/min
Is the FDO2 > FIO2? YES NO
What FIO2 would the patient actually receive?
0.40
Less than 0.40
Greater than 0.40

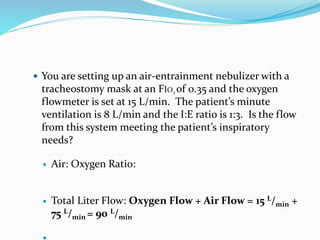

96. You are setting up an air-entrainment nebulizer with a
tracheostomy mask at an FIO2 of 0.35 and the oxygen
flowmeter is set at 15 L/min. The patient’s minute
ventilation is 8 L/min and the I:E ratio is 1:3. Is the flow
from this system meeting the patient’s inspiratory
needs?
Air: Oxygen Ratio:
Total Liter Flow: Oxygen Flow + Air Flow = 15 L/min +
75 L/min = 90 L/min

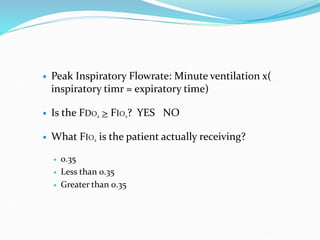

97. Peak Inspiratory Flowrate: Minute ventilation x(
inspiratory timr = expiratory time)
Is the FDO2 > FIO2? YES NO
What FIO2 is the patient actually receiving?
0.35
Less than 0.35
Greater than 0.35
Editor's Notes
Venous admixture blood
Performance is based on whether a device delivers a a fixed or variable FiO2
Provide supplemental o2 directly to airway at a flow < 8L/min. because insp. Flow of a healthy adult exceeds 8L/min o2 provided by a low flow device is always diluted with air, result is low and variable fio2
Flows - 30 - 40 L/min (or > 3 times patient’s minute ventilation) thus provides a fixed FiO2.
Incorporates a mechanism for gathering and storing O2 between patient breaths. Pt draws on this reserve supply whenever insp flow exceedsO2 flow into the device. Air dilution is reduced. Prov higher fio2. can decrease O2 use by prov comparable at a lower rate
Nasal canula is aplastic disposable device consisting of two tips or prongs 1 cm long and is connected to oxygen tubing, is inserted into the vestibule of the nose, Humidifier is needed when the input flow exceeds 4 L/min.
A soft plastic tube with several small holes at the tip. It is inserted along the floor of either nasal passage under visualiszation till the tip is just above and behind the uvula. Once in position it is taped to bridge of nose. It is blindly inserted to a depth equal to the distance from nose to tragus. Should be replaced every 8 hrs. avoided in pts with maxillofacial trauma, basal skull #, nasal obstruction and coag prob.
Open ports for exhaled gas .Air entrained through ports if O2 flow does not meet peak insp flow
Because air dilution easily occurs during inspiration through its ports and around its body, it provides a variable fiO2
Gas flow>8 doesn’t significantly inc. fio2 bcoz o2 reservoir is filled
Have a 600 ml-1l reservoir bag attached to o2 inlet, because bag inc the reservoir vol, prov higher fio2
If the total ventilatory demands are met without RA entrainment, it acts as fixed performance device
FiO2 delivered is inconsistent, unpredictable and dependent on ventilatory pattern
When a pressurized oxygen is forced through a constricted orifice, the increased gas velocity distal to the orifice creates a shearing effect that causes room air to be entrained through the entrainment ports at a spacific ratio so that variation in orifice or entrainment port will change fiO2 .
Have a restricted orifice or jet through which o2 flows at high velocity.
The smaller the orifice, the greater is the velocity of o2 and the more air is entrained.
These masks come in the following varieties: 1. A fixed Fio2 model, which requires specific inspiratory attachments that are color coded and have labeled jets that produce a known Fio2 with a given flow. 2. A variable Fio2 model, which has a graded adjustment of the air entrainment port that can be set to allow variation in delivered Fio2.
O2 is delivered with a T tube, tracheostomy mask, aerosol mask or a face tent.
Parts- container for water for humidification,o2 inlet connected to o2 flowmeter, air entrainment port, outlet for total outflow, attachment to pt- brigg’s apparatus,trach masketc
Cooled to provide a comfortable temp within a plastic sheet canopy

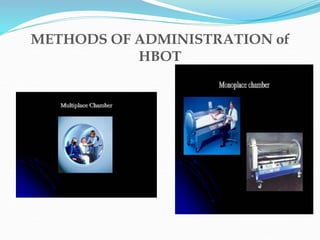

MULTIPLACE – a large tank with capacity to priovide HBO to 10-12 pts simultaneously , has an airlock to allow entry & exit of medical staff without drop in ambient pr . Pt breathe 1005% o2 via mask, made of steel
MONOPLACE – transparent plexiglass cylindrical chamber to accommodate 1 pt. pressurized with 100% o2. pt doesn’t req mask. Made of acrylic glass
Normally enzyme such as superoxide dismutase rapidly inactivates superoxide molecule.
In presence of high FiO2, free radicals overwhelm O2 free radicals and cause cell damage
When COPD patients with chronic hypercapnia breathe moderate to high O2 conc, they hypoventilate d/t suppression of the hypoxic drive.
