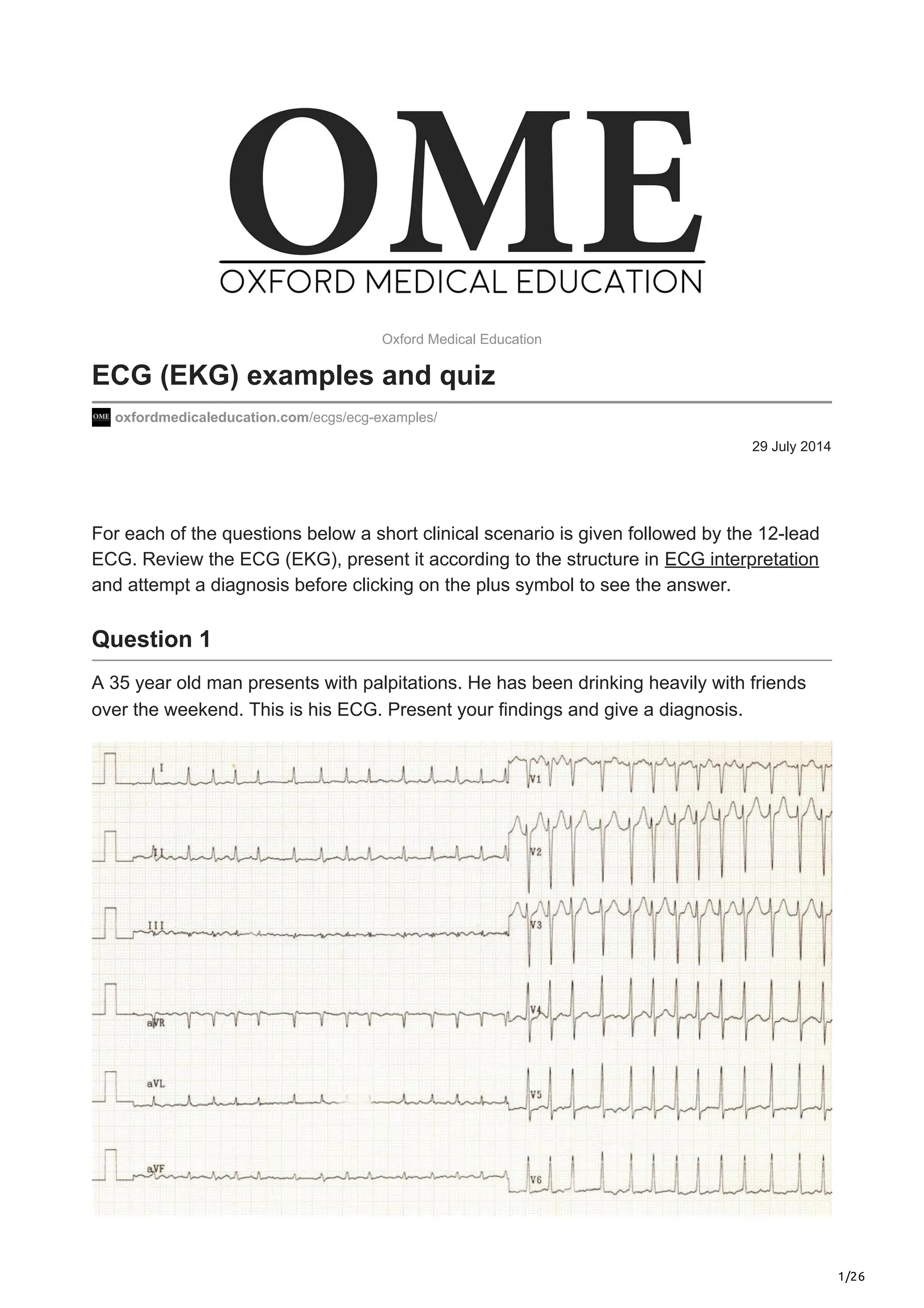

1. 1/26
29 July 2014
Oxford Medical Education
ECG (EKG) examples and quiz
oxfordmedicaleducation.com/ecgs/ecg-examples/
For each of the questions below a short clinical scenario is given followed by the 12-lead
ECG. Review the ECG (EKG), present it according to the structure in ECG interpretation
and attempt a diagnosis before clicking on the plus symbol to see the answer.
Question 1
A 35 year old man presents with palpitations. He has been drinking heavily with friends
over the weekend. This is his ECG. Present your findings and give a diagnosis.

2. 2/26
Answer
Presentation:
Rate 100 – 150
Rhythm Irregularly irregular
Axis Normal
PR/P-wave No p-wave seen. Fibrillating base line
QRS Narrow
ST/T-wave Normal
QTc/other Normal
Diagnosis:
This ECG shows atrial fibrillation (AF) with a fast ventricular response. With this history
the underlying diagnosis would fit with a ‘holiday heart’ syndrome.
Question 2
A 45 year old business man presents with a feeling that his heart is racing. He also has
some shortness of breath. This is his ECG. Present your findings and give a diagnosis.
Answer
Presentation:

3. 3/26
Rate 150
Rhythm Regular
Axis Normal
PR/P-wave No p-waves. Seesaw baseline
QRS Narrow
QTc/other Normal
Diagnosis:
This is atrial flutter. The atria contract at 300 beats per minute causing a ‘seesaw’
baseline. Beats are transmitted with a 2:1, 3:1 or 4:1 block, leading to ventricular rates of
150, 100 and 75 BPM respectively.
Question 3
A 75 year old man with a history of COPD presents with fever and increased sputum
production. An ECG is taken in the emergency department. What does it show?
Answer
Presentation:
Rate 100 – 150
Rhythm Irregularly irregular

4. 4/26
Axis Normal
PR/P wave Polymorphic p-waves (see arrows)
QRS Narrow
ST/T wave Normal
QTc/other Normal
Diagnosis:
This is polymorphic atrial tachycardia. It occurs in respiratory disease and reflects an
aberrant foci of atrial excitation. The morphology of the p-waves is therefore variable but
all p-waves are transmitted via the bundle of His and therefore the QRS complexes are all
the same.
Question 4
A 65 year old man is found unresponsive. He has no central pulse and is making no
respiratory effort. Surprisingly someone has done an ECG. What would you do?
Answer
We will not go through the ECG as the most important information is in the clinical history.
This is pulseless electrical activity (PEA). It is the most extreme example of why you
should look at the patient in conjunction with the ECG! There are no specific ECG
changes in PEA – the most important thing is to recognize that this patient is in cardiac

5. 5/26
arrest and to start chest compressions and Advanced Life Support (ALS) immediately.
However, the ECG may help you ascertain the underlying pathology. In this case there
are low voltage QRS complexes which may simply due to large body habitus or could
indicate pathology ‘interrupting’ the signal between the heart and the electrode. This can
include pericardial fluid or pneumothorax. This is worth thinking about as tamponade and
tension pneumothorax are both reversible causes of PEA.
Question 5
A fit and well 31 year old man presents for a routine insurance medical. This is his ECG.
Present your findings and give the diagnosis.
Answer
Presentation:
Rate 85
Rhythm Regular
Axis Normal
PR/P-wave Normal
QRS Narrow
ST/T-wave Normal
QTc/other Normal

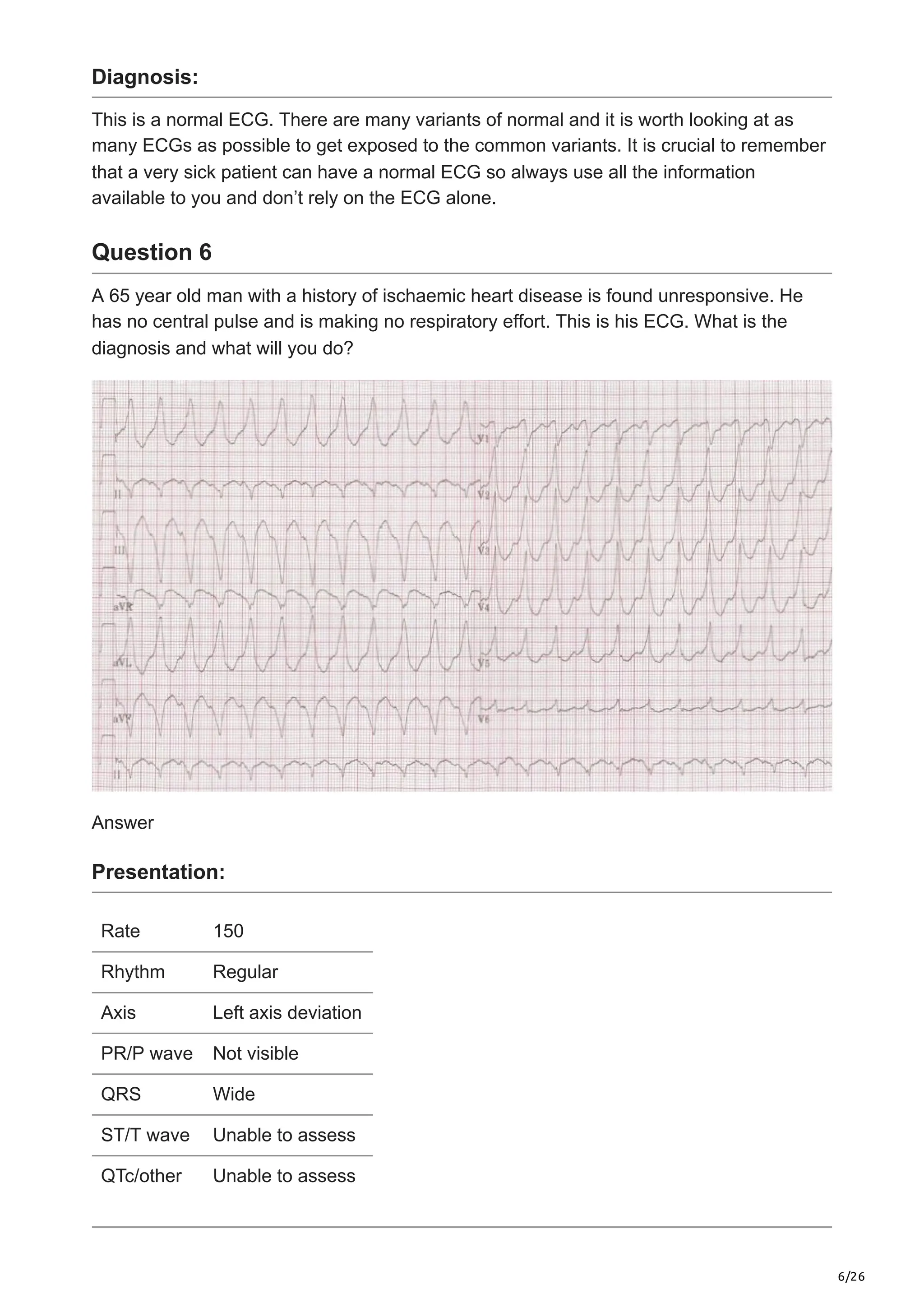

6. 6/26
Diagnosis:
This is a normal ECG. There are many variants of normal and it is worth looking at as
many ECGs as possible to get exposed to the common variants. It is crucial to remember
that a very sick patient can have a normal ECG so always use all the information
available to you and don’t rely on the ECG alone.
Question 6
A 65 year old man with a history of ischaemic heart disease is found unresponsive. He
has no central pulse and is making no respiratory effort. This is his ECG. What is the
diagnosis and what will you do?
Answer
Presentation:
Rate 150
Rhythm Regular
Axis Left axis deviation
PR/P wave Not visible
QRS Wide
ST/T wave Unable to assess
QTc/other Unable to assess

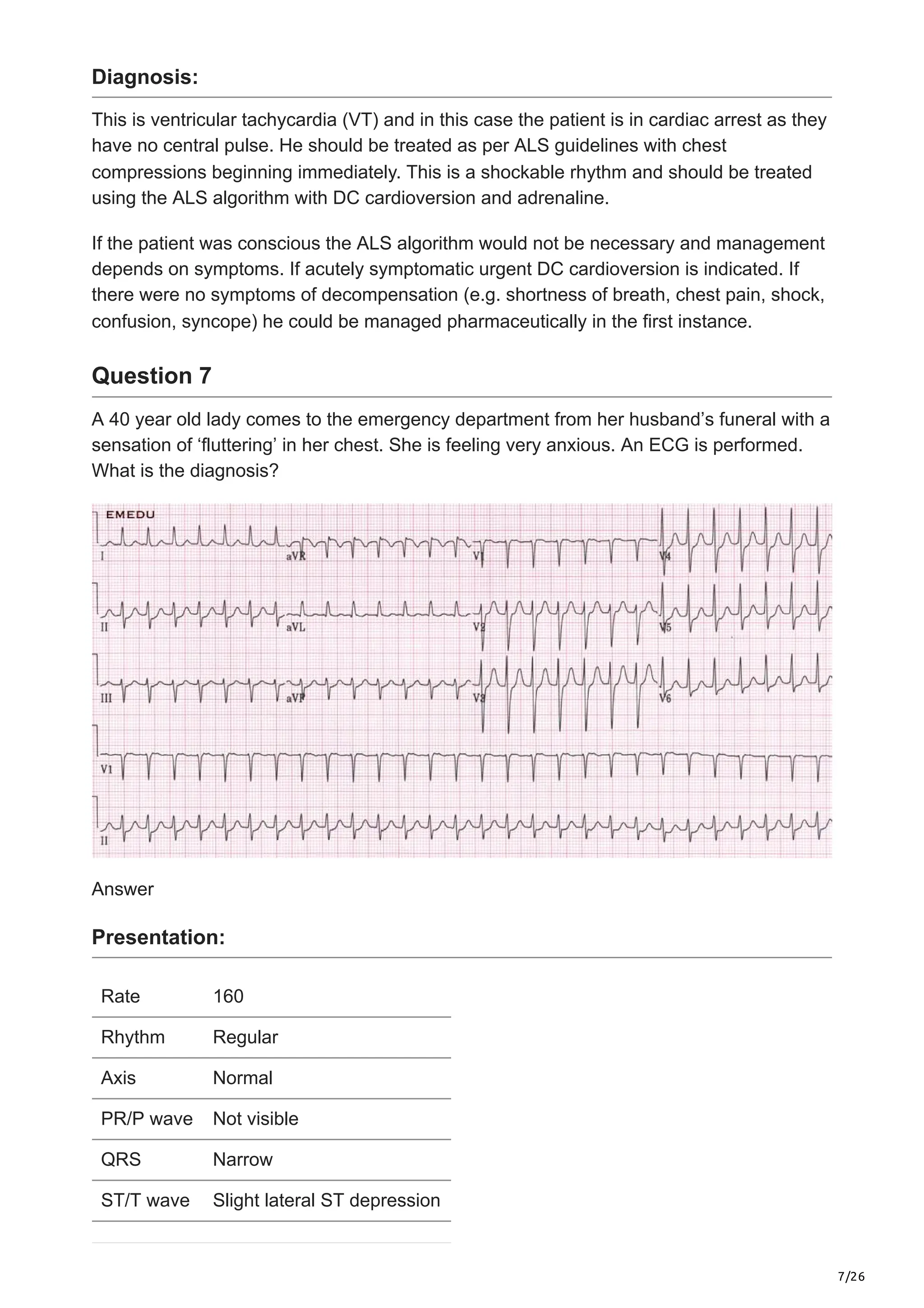

7. 7/26
Diagnosis:
This is ventricular tachycardia (VT) and in this case the patient is in cardiac arrest as they
have no central pulse. He should be treated as per ALS guidelines with chest
compressions beginning immediately. This is a shockable rhythm and should be treated
using the ALS algorithm with DC cardioversion and adrenaline.
If the patient was conscious the ALS algorithm would not be necessary and management
depends on symptoms. If acutely symptomatic urgent DC cardioversion is indicated. If
there were no symptoms of decompensation (e.g. shortness of breath, chest pain, shock,
confusion, syncope) he could be managed pharmaceutically in the first instance.
Question 7
A 40 year old lady comes to the emergency department from her husband’s funeral with a
sensation of ‘fluttering’ in her chest. She is feeling very anxious. An ECG is performed.
What is the diagnosis?
Answer
Presentation:
Rate 160
Rhythm Regular
Axis Normal
PR/P wave Not visible
QRS Narrow
ST/T wave Slight lateral ST depression

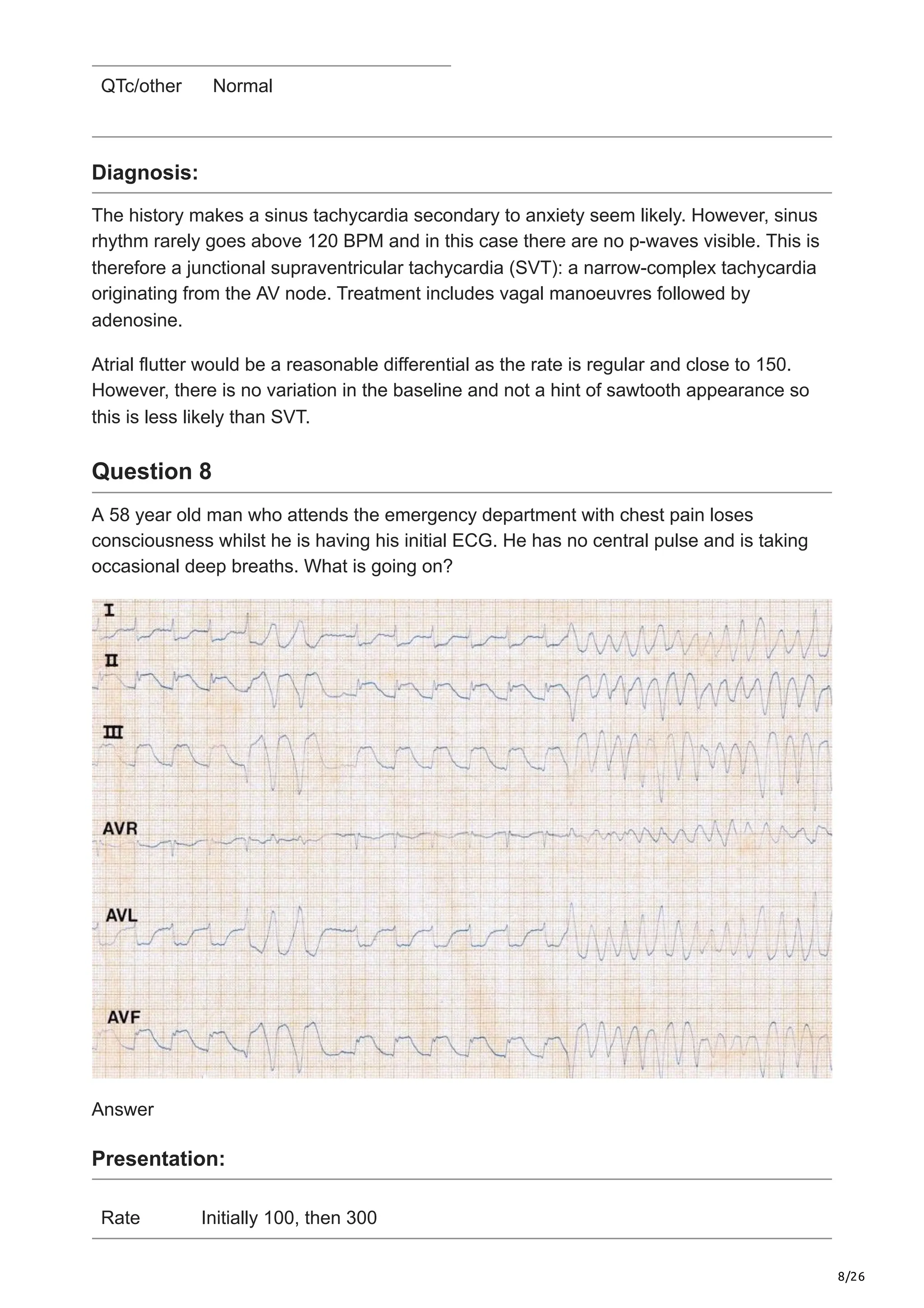

8. 8/26
QTc/other Normal
Diagnosis:
The history makes a sinus tachycardia secondary to anxiety seem likely. However, sinus
rhythm rarely goes above 120 BPM and in this case there are no p-waves visible. This is
therefore a junctional supraventricular tachycardia (SVT): a narrow-complex tachycardia
originating from the AV node. Treatment includes vagal manoeuvres followed by
adenosine.
Atrial flutter would be a reasonable differential as the rate is regular and close to 150.
However, there is no variation in the baseline and not a hint of sawtooth appearance so
this is less likely than SVT.
Question 8
A 58 year old man who attends the emergency department with chest pain loses
consciousness whilst he is having his initial ECG. He has no central pulse and is taking
occasional deep breaths. What is going on?
Answer
Presentation:
Rate Initially 100, then 300

9. 9/26
Rhythm Initially regular, then irregular
PR/P
wave
Initially present, then unable to visualise
QRS Initially narrow, then wide
ST/T
wave
Initially massive ST elevation in II III and aVF with reciprocal depression in
I and aVL. Then unable to visualise
QTc/other Unable to assess
Diagnosis:
This is ECG initially shows an inferior STEMI, which then deteriorates into ventricular
fibrillation (VF). The breaths described are agonal breaths – this does not represent
normal respiratory effort and resuscitation for cardiac arrest with CPR should be started
immediately.
Remember: in collapse with abnormal breathing and no central pulse always start CPR.
Question 9
A 72 year old lady presents with collapse. This is her ECG. Present your findings. How
would you proceed?
Answer
Presentation:
Rate 50 bpm

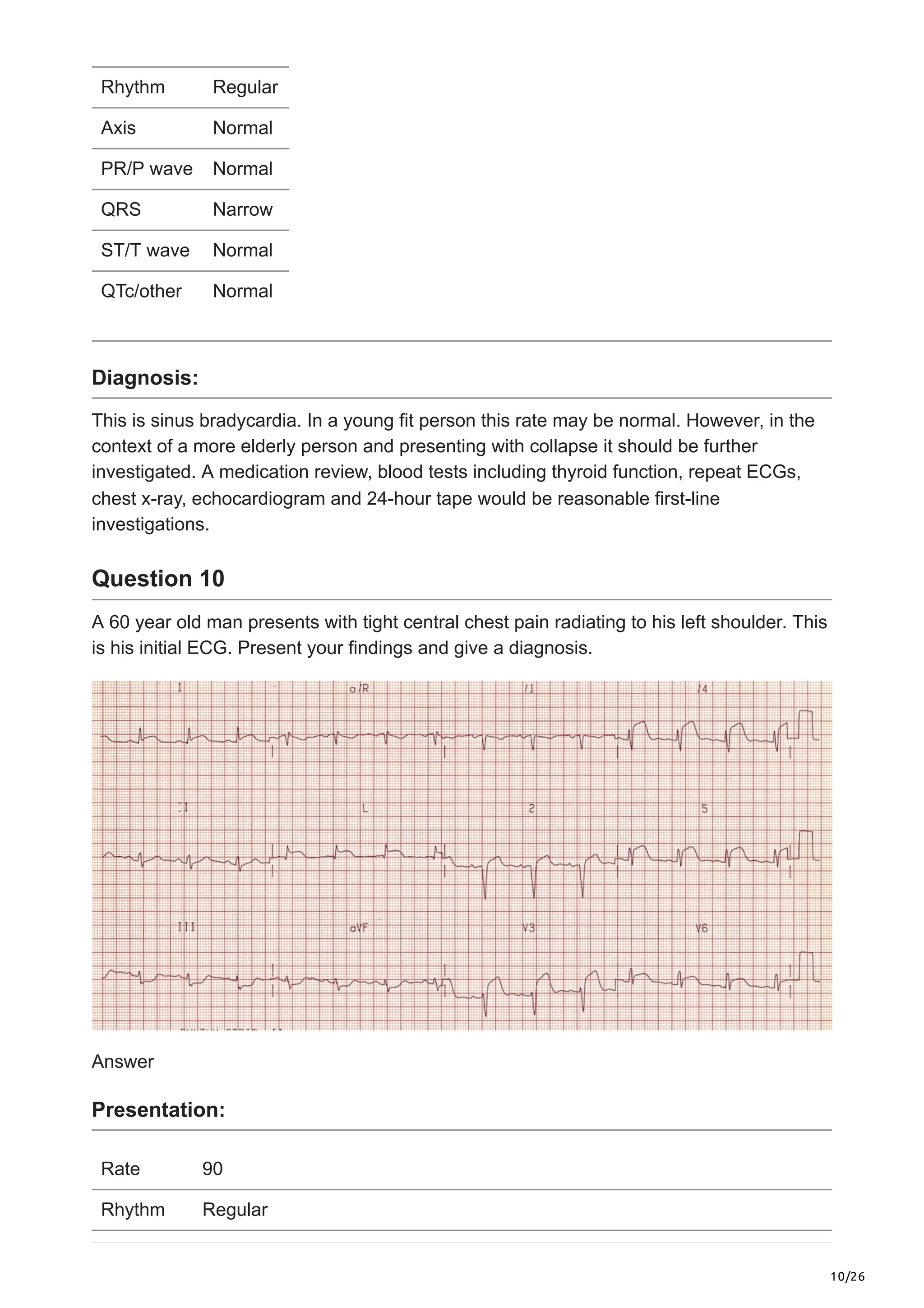

10. 10/26
Rhythm Regular
Axis Normal
PR/P wave Normal
QRS Narrow
ST/T wave Normal
QTc/other Normal
Diagnosis:
This is sinus bradycardia. In a young fit person this rate may be normal. However, in the
context of a more elderly person and presenting with collapse it should be further
investigated. A medication review, blood tests including thyroid function, repeat ECGs,
chest x-ray, echocardiogram and 24-hour tape would be reasonable first-line
investigations.
Question 10
A 60 year old man presents with tight central chest pain radiating to his left shoulder. This
is his initial ECG. Present your findings and give a diagnosis.
Answer
Presentation:
Rate 90
Rhythm Regular

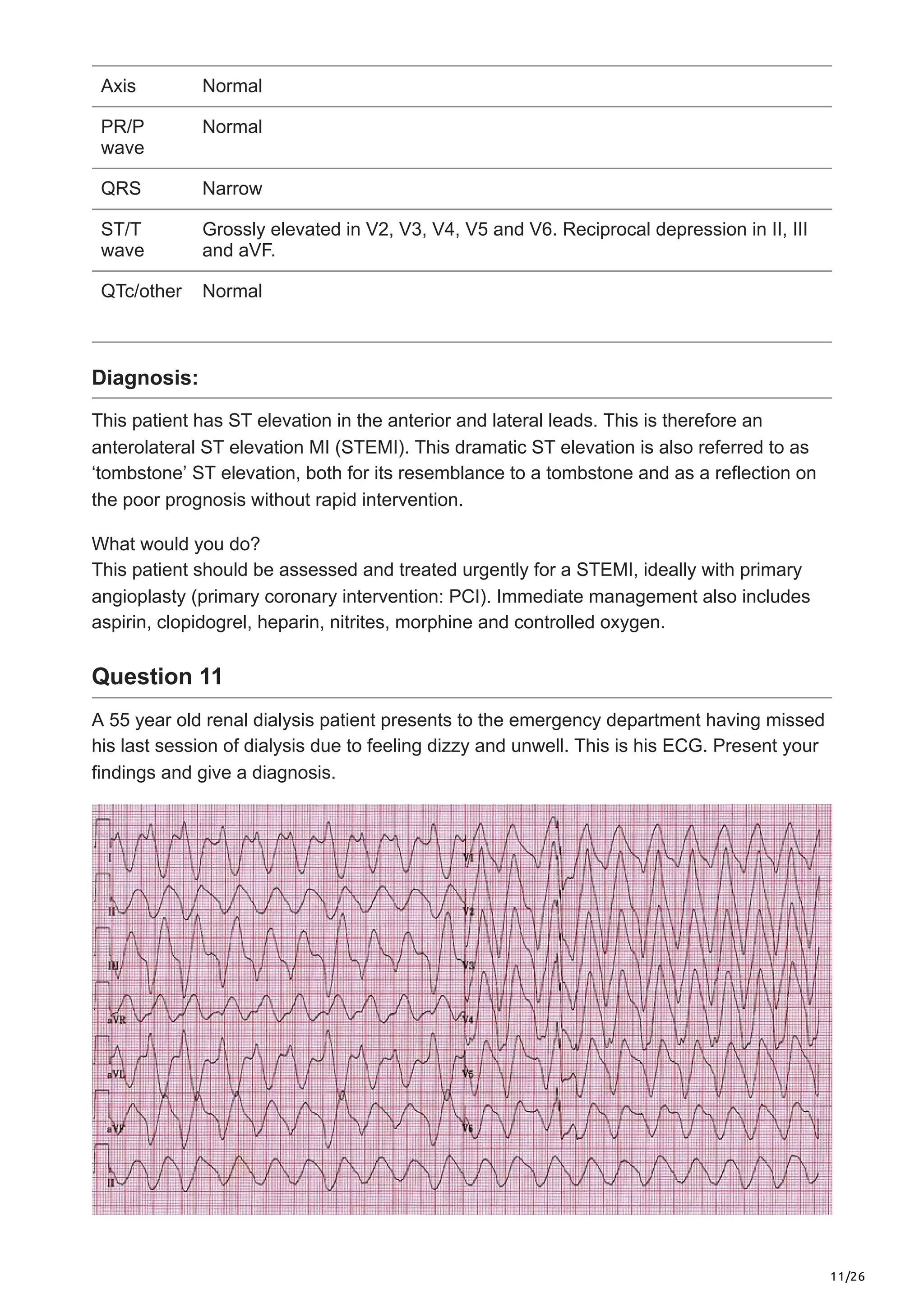

11. 11/26
Axis Normal
PR/P
wave
Normal
QRS Narrow
ST/T
wave
Grossly elevated in V2, V3, V4, V5 and V6. Reciprocal depression in II, III
and aVF.
QTc/other Normal
Diagnosis:
This patient has ST elevation in the anterior and lateral leads. This is therefore an
anterolateral ST elevation MI (STEMI). This dramatic ST elevation is also referred to as
‘tombstone’ ST elevation, both for its resemblance to a tombstone and as a reflection on
the poor prognosis without rapid intervention.
What would you do?
This patient should be assessed and treated urgently for a STEMI, ideally with primary
angioplasty (primary coronary intervention: PCI). Immediate management also includes
aspirin, clopidogrel, heparin, nitrites, morphine and controlled oxygen.
Question 11
A 55 year old renal dialysis patient presents to the emergency department having missed
his last session of dialysis due to feeling dizzy and unwell. This is his ECG. Present your
findings and give a diagnosis.

12. 12/26

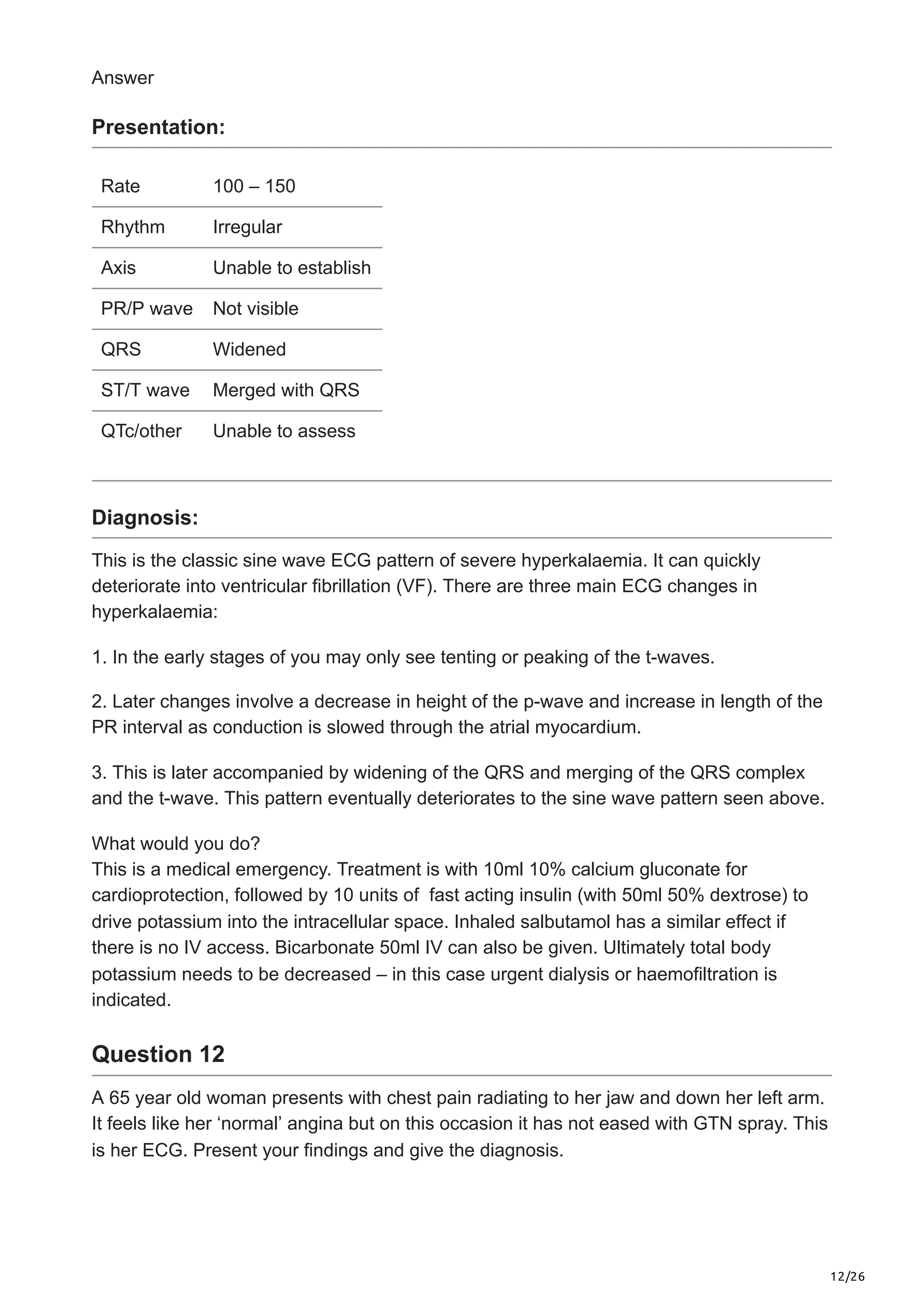

Answer
Presentation:
Rate 100 – 150
Rhythm Irregular
Axis Unable to establish
PR/P wave Not visible
QRS Widened
ST/T wave Merged with QRS
QTc/other Unable to assess
Diagnosis:
This is the classic sine wave ECG pattern of severe hyperkalaemia. It can quickly
deteriorate into ventricular fibrillation (VF). There are three main ECG changes in
hyperkalaemia:
1. In the early stages of you may only see tenting or peaking of the t-waves.
2. Later changes involve a decrease in height of the p-wave and increase in length of the
PR interval as conduction is slowed through the atrial myocardium.
3. This is later accompanied by widening of the QRS and merging of the QRS complex
and the t-wave. This pattern eventually deteriorates to the sine wave pattern seen above.
What would you do?
This is a medical emergency. Treatment is with 10ml 10% calcium gluconate for
cardioprotection, followed by 10 units of fast acting insulin (with 50ml 50% dextrose) to
drive potassium into the intracellular space. Inhaled salbutamol has a similar effect if
there is no IV access. Bicarbonate 50ml IV can also be given. Ultimately total body
potassium needs to be decreased – in this case urgent dialysis or haemofiltration is
indicated.
Question 12
A 65 year old woman presents with chest pain radiating to her jaw and down her left arm.
It feels like her ‘normal’ angina but on this occasion it has not eased with GTN spray. This
is her ECG. Present your findings and give the diagnosis.

13. 13/26
Answer
Presentation:
Rate 130
Rhythm Normal
Axis Normal
PR/P wave Normal
QRS Normal
ST/T wave T wave inverted in II III and aVF , V4 – V5. ST elevation in aVR>1mm
QTc/other Normal
Diagnosis:
On initial inspection this looks like an inferolateral NSTEMI. There is (we assume new) t-
wave inversion in consecutive leads which fit with an anatomical territory (inferolateral)
and most importantly there is ongoing ischaemic sounding chest pain not eased by GTN.
However, note the ST elevation in aVR. As such, this is more suggestive of critical left
main stem occlusion. This ECG should therefore be discussed with cardiology with a view
to urgent PCI.
Question 13
A 25 year old man presents with a collapse which occurred as he was playing in a football
match. He has suffered episodes of fainting in the past. This is his ECG. What is the
diagnosis?

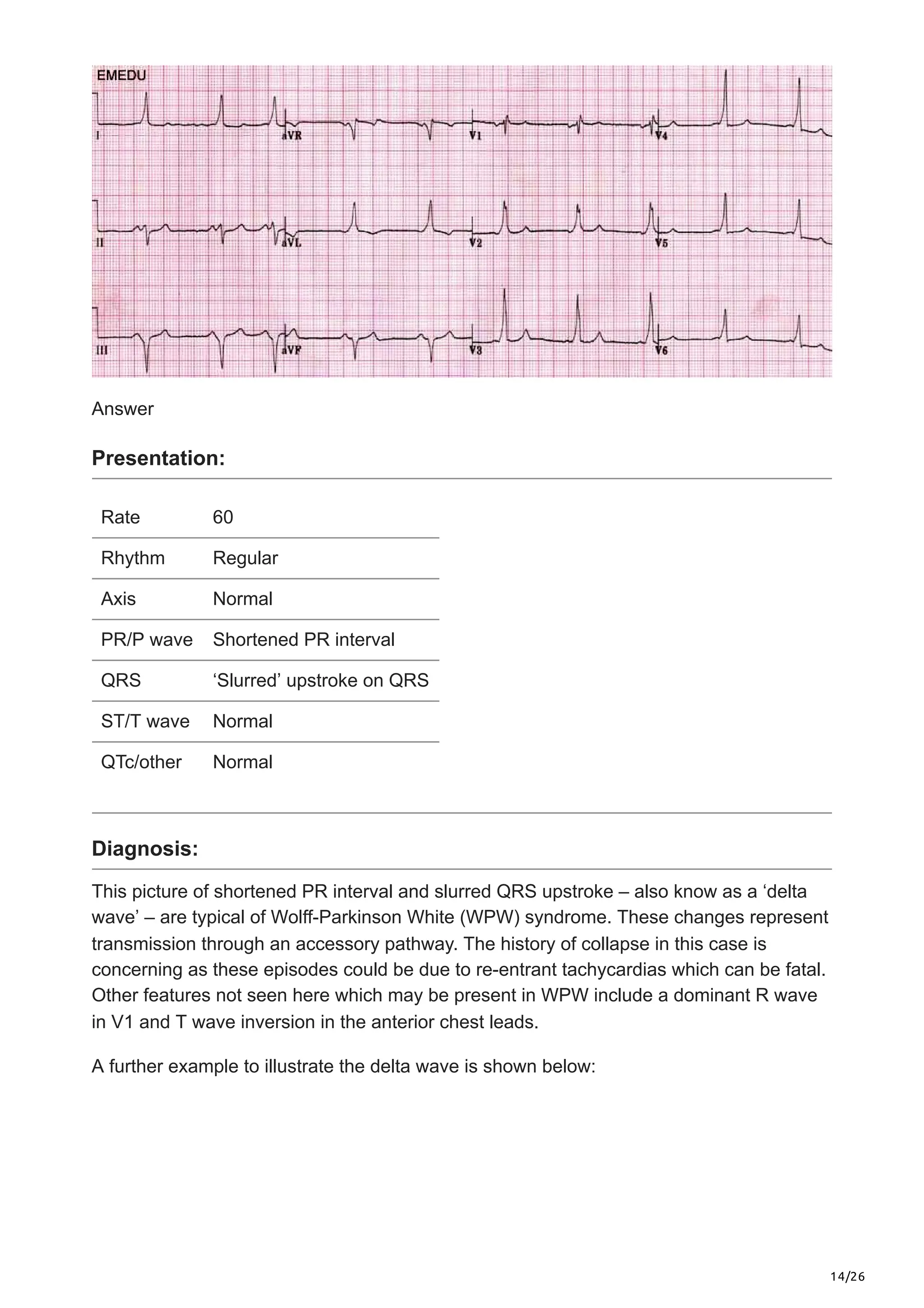

14. 14/26
Answer
Presentation:
Rate 60
Rhythm Regular
Axis Normal
PR/P wave Shortened PR interval
QRS ‘Slurred’ upstroke on QRS
ST/T wave Normal
QTc/other Normal
Diagnosis:
This picture of shortened PR interval and slurred QRS upstroke – also know as a ‘delta
wave’ – are typical of Wolff-Parkinson White (WPW) syndrome. These changes represent
transmission through an accessory pathway. The history of collapse in this case is
concerning as these episodes could be due to re-entrant tachycardias which can be fatal.
Other features not seen here which may be present in WPW include a dominant R wave
in V1 and T wave inversion in the anterior chest leads.
A further example to illustrate the delta wave is shown below:

15. 15/26
Question 14
An 18 year old man signs up to join the army. He is fit and well. This is his ECG taken at
his medical examination. Is it normal?
Answer
Presentation:
Rate 60
Rhythm Regular
Axis Normal
PR/P wave Prolonged PR interval
QRS Wide in the inferior lateral leads
ST/T wave Abnormal in V1, V2 and V3 with unusually-shaped ‘coved’ ST elevation
QTc/other Normal

16. 16/26
Diagnosis:
No it is certainly not normal. This ECG is characteristic of Brugada Syndrome (Type 1). In
leads V1 – V3 there is >2mm ST elevation, the T waves are inverted and the ST segment
has a characteristic ‘coved’ shape. This condition has a high risk of sudden death from
ventricular fibrillation (VF). Treatment is with an implantable cardioverter-defibillator (ICD).
Question 15
A 58 year old smoker presents with tight epigastric pain. He looks sweaty and unwell.
One of the nurses shows you his routine ECG. What is the diagnosis?
Answer
Presentation:
Rate 45
Rhythm Regular
Axis Normal
QRS Narrow
ST/T wave Dramatic ST depression in V1 – V3
Diagnosis:

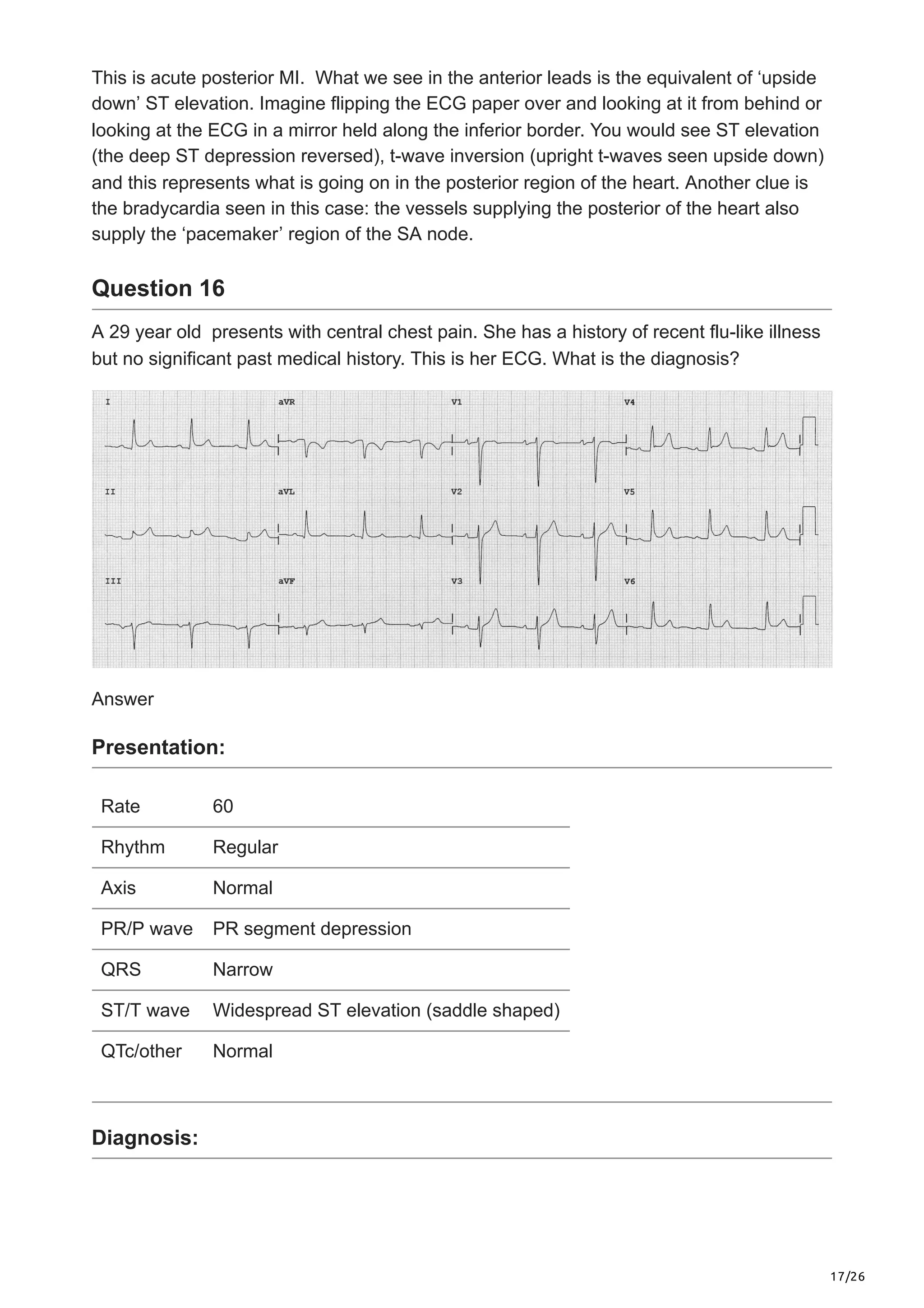

17. 17/26
This is acute posterior MI. What we see in the anterior leads is the equivalent of ‘upside
down’ ST elevation. Imagine flipping the ECG paper over and looking at it from behind or
looking at the ECG in a mirror held along the inferior border. You would see ST elevation
(the deep ST depression reversed), t-wave inversion (upright t-waves seen upside down)
and this represents what is going on in the posterior region of the heart. Another clue is
the bradycardia seen in this case: the vessels supplying the posterior of the heart also
supply the ‘pacemaker’ region of the SA node.
Question 16
A 29 year old presents with central chest pain. She has a history of recent flu-like illness
but no significant past medical history. This is her ECG. What is the diagnosis?
Answer
Presentation:
Rate 60
Rhythm Regular
Axis Normal
PR/P wave PR segment depression
QRS Narrow
ST/T wave Widespread ST elevation (saddle shaped)
QTc/other Normal
Diagnosis:

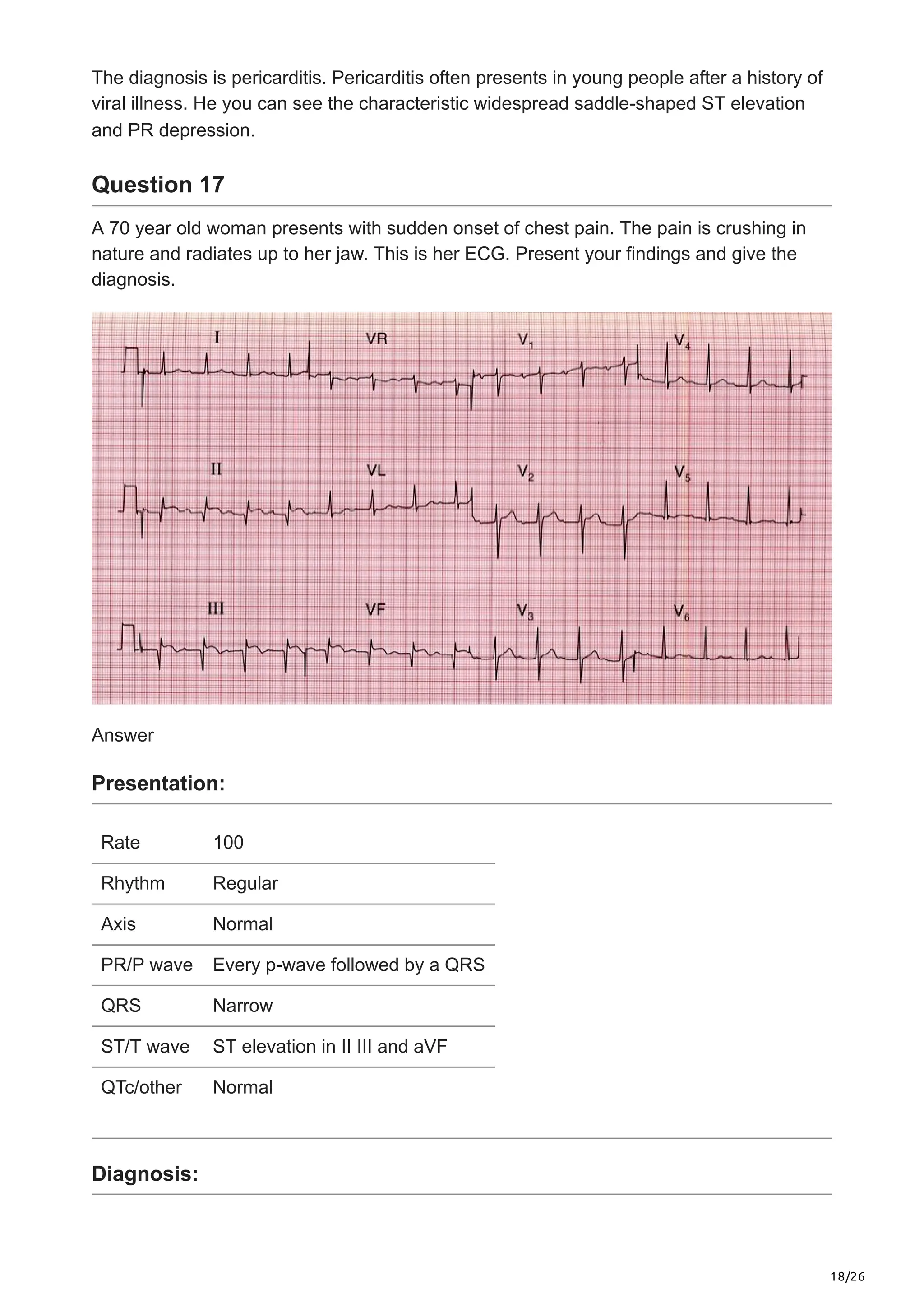

18. 18/26
The diagnosis is pericarditis. Pericarditis often presents in young people after a history of
viral illness. He you can see the characteristic widespread saddle-shaped ST elevation
and PR depression.
Question 17
A 70 year old woman presents with sudden onset of chest pain. The pain is crushing in
nature and radiates up to her jaw. This is her ECG. Present your findings and give the
diagnosis.
Answer
Presentation:
Rate 100
Rhythm Regular
Axis Normal
PR/P wave Every p-wave followed by a QRS
QRS Narrow
ST/T wave ST elevation in II III and aVF
QTc/other Normal
Diagnosis:

19. 19/26
This ECG shows ST elevation in the inferior region of the heart. This patient should be
assessed and treated urgently for a STEMI, ideally with primary angioplasty. Immediate
management also includes aspirin, clopidogrel, heparin, nitrites, morphine and controlled
oxygen.
Question 18
A 45 woman has just stepped off a flight from Japan when she develops severe pleuritic
chest pain and shortness of breath. On examination her chest is clear. Present your
findings. What is the most likely diagnosis?
Answer
Presentation:
Rate 100
Rhythm Regular
Axis Right axis deviation
PR/P wave Normal
QRS Wide – right bundle branch block (RBBB)
ST/T wave T wave inversion in lead III
QTc/other Normal
Diagnosis:

20. 20/26
Given the history, examination and ECG findings, pulmonary embolism (PE) is the most
likely diagnosis. In PE the constellation of ECG findings of ‘S1Q3T3’ is classically
described. It refers to a deep S wave in lead I, pathological Q wave in lead III and
inverted T in V3 (and other anterior leads). However, though it may be classical it is
extremely rare in clinical practice! The most commonly observed ECG abnormality in PE
is a sinus tachycardia. There may also be RBBB or a RV strain pattern with T wave
inversion in V1 to V4.
Question 19
It is early January and a middle-aged man is found lying in a park. He is surrounded by
bottles of Buckfast and has a GCS of 9. An ECG is performed in the ambulance. What is
going on?
Answer
Presentation:
Rate 50
Rhythm Regular
Axis Normal
PR/P wave Normal
QRS Narrow
ST/T wave Normal
QTc/other J wave visible after the QRS

21. 21/26
Diagnosis:
This patient is hypothermic. The positive deflection after the QRS but before the t-wave is
an Osborn J-wave; these can also be seen in subarachnoid haemorrhage (SAH) and
hypercalcaemia. Classically a hypothermic patient is bradycardic and their ECG will show
J-waves. Treatment in this case would be with gentle rewarming provided there was no
immediate risk to life from an arrhythmia.
Question 20
A 61 year old woman presents to the emergency department with diarrhoea and vomiting.
She has recently been started on furosemide by her GP for hypertension. What has
happened?
Answer
Presentation:
Rate 85
Rhythm Regular
Axis Left axis (may be normal)
PR/P wave Normal
QRS Narrow
ST/T wave Normal

22. 22/26
QTc/other Prolonged QTc
Diagnosis:
This ECG shows changes consistent with hypokalaemia. This has likely be precipitated
by the new loop diuretic. Note also that furosemide is not a first-line treatment for
hypertension.
Classically hypokalaemia causes t-wave flattening with ST depression. In severe cases
you may see a U-wave. This is a positive deflection following the t-wave but preceding
the p-wave. These are found in hypokalaemia but also in hypercalcaemia and
thyrotoxicosis.
Question 21
An 18 year old lady is found collapsed at home. When you see her she has a GCS of 10
and you notice that her pupils are dilated. This is her ECG. Present your findings and give
the diagnosis.
Answer
Presentation:
Rate 85
Rhythm Regular
PR/P wave Unable to assess

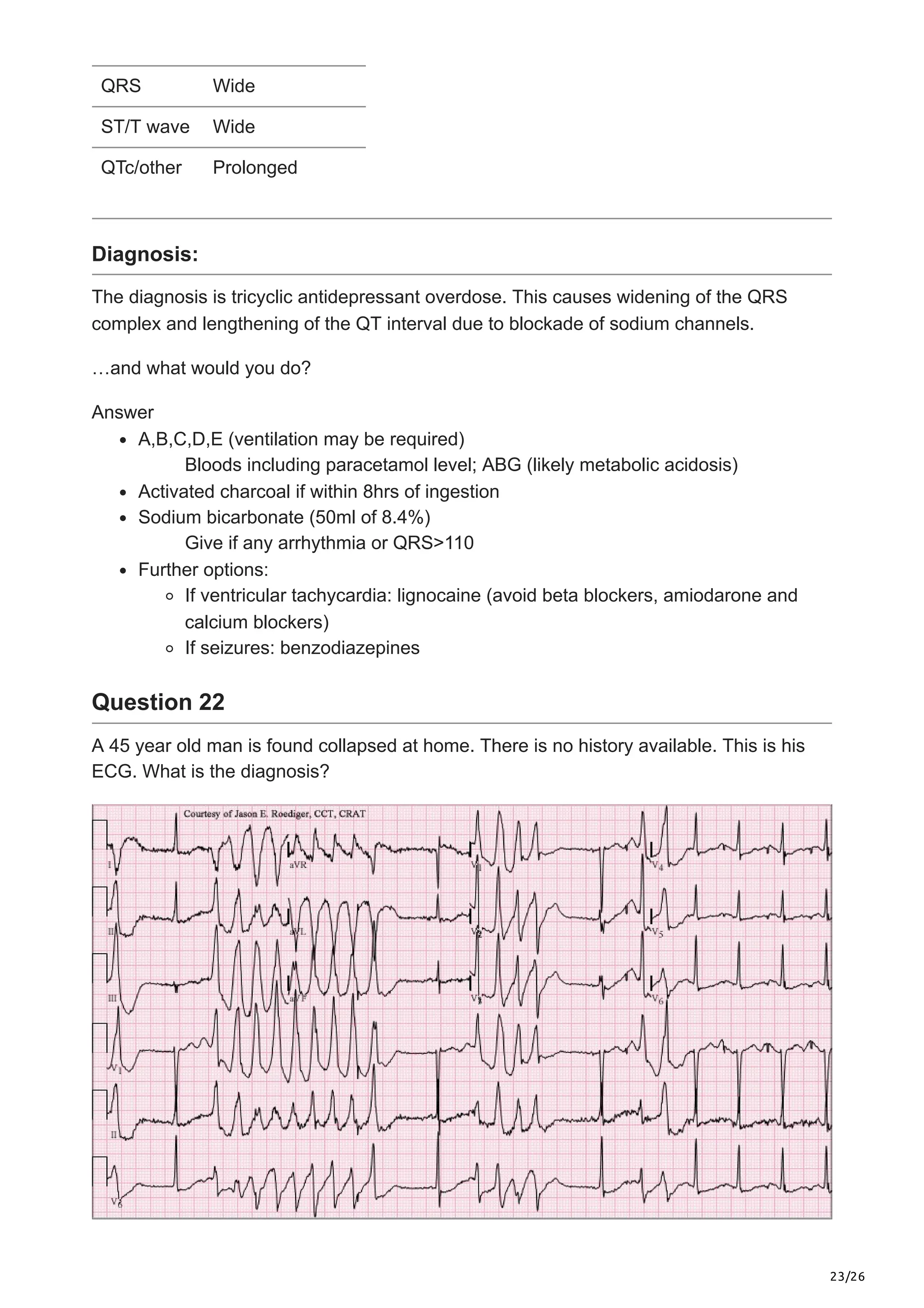

23. 23/26
QRS Wide
ST/T wave Wide
QTc/other Prolonged
Diagnosis:
The diagnosis is tricyclic antidepressant overdose. This causes widening of the QRS
complex and lengthening of the QT interval due to blockade of sodium channels.
…and what would you do?
Answer
A,B,C,D,E (ventilation may be required)
Bloods including paracetamol level; ABG (likely metabolic acidosis)
Activated charcoal if within 8hrs of ingestion
Sodium bicarbonate (50ml of 8.4%)
Give if any arrhythmia or QRS>110
Further options:
If ventricular tachycardia: lignocaine (avoid beta blockers, amiodarone and
calcium blockers)
If seizures: benzodiazepines
Question 22
A 45 year old man is found collapsed at home. There is no history available. This is his
ECG. What is the diagnosis?

24. 24/26
Answer
Presentation:
Rate Highly variable – up to 300 bpm
Rhythm Irregular
Axis Unable to assess
PR/P wave Absent during episodes of extreme tachycardia
QRS Wide
ST/T wave Unable to assess
QTc/other Unable to assess
Diagnosis:
This is a difficult case and shows runs of polymorphic VT or Torsades de pointes (literally
translated as twisting of the points). It has a number of causes including medications
(especially psychotropics) and electrolyte imbalance. Essentially any cause of long QT
can precipitate polymorphic VT.
Management in the first instance is magnesium 2g IV, independent of serum magnesium
concentration before treating any other cause of long QT.
Question 23
A 50 year old man presents with collapse. He has been unwell recently with a chest
infection for which he has been prescribed clarithromycin from his GP. He also takes
medication for his hayfever at this time of year. What is most concerning here?

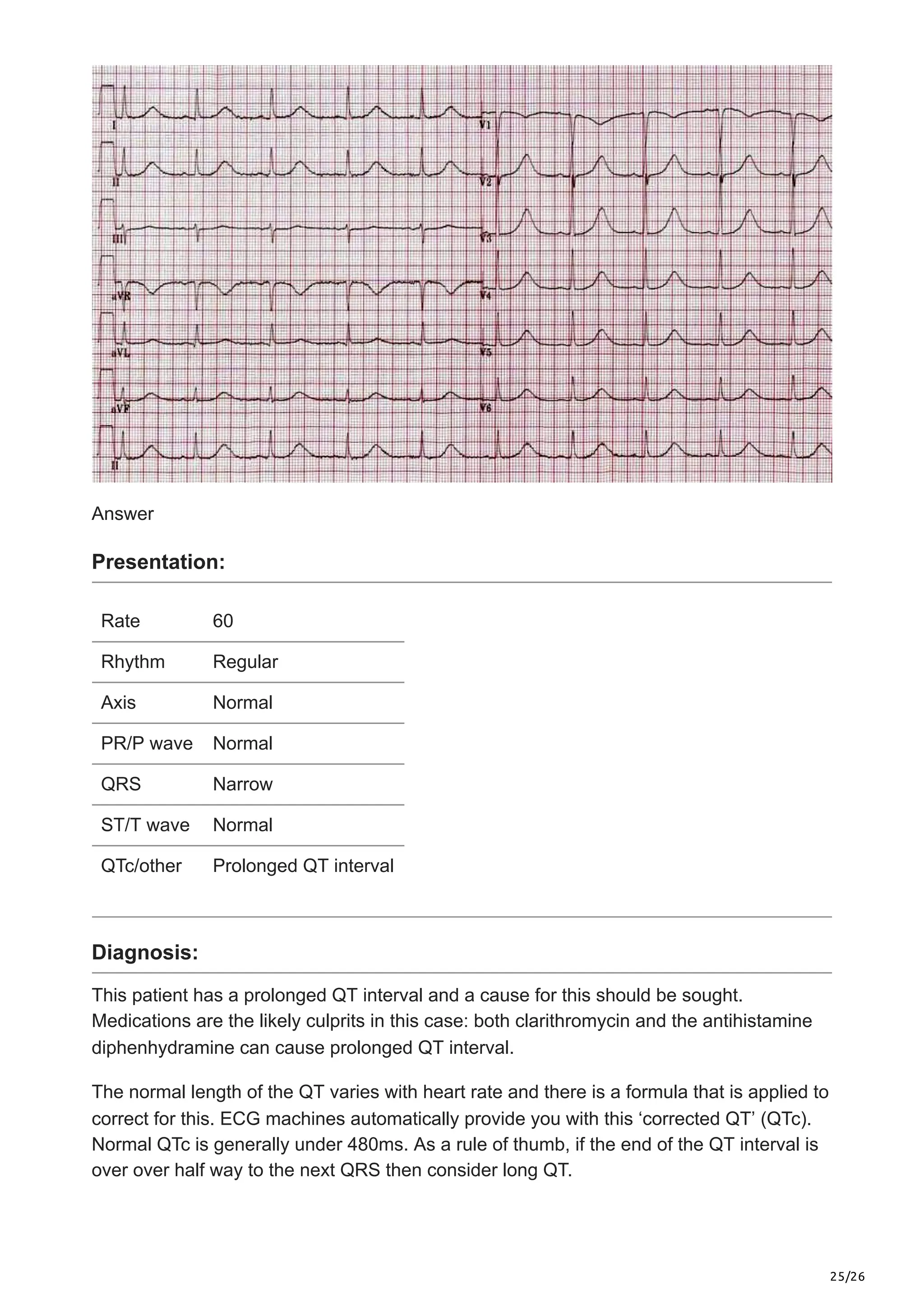

25. 25/26
Answer
Presentation:
Rate 60
Rhythm Regular
Axis Normal
PR/P wave Normal
QRS Narrow
ST/T wave Normal
QTc/other Prolonged QT interval
Diagnosis:
This patient has a prolonged QT interval and a cause for this should be sought.
Medications are the likely culprits in this case: both clarithromycin and the antihistamine
diphenhydramine can cause prolonged QT interval.
The normal length of the QT varies with heart rate and there is a formula that is applied to
correct for this. ECG machines automatically provide you with this ‘corrected QT’ (QTc).
Normal QTc is generally under 480ms. As a rule of thumb, if the end of the QT interval is
over over half way to the next QRS then consider long QT.

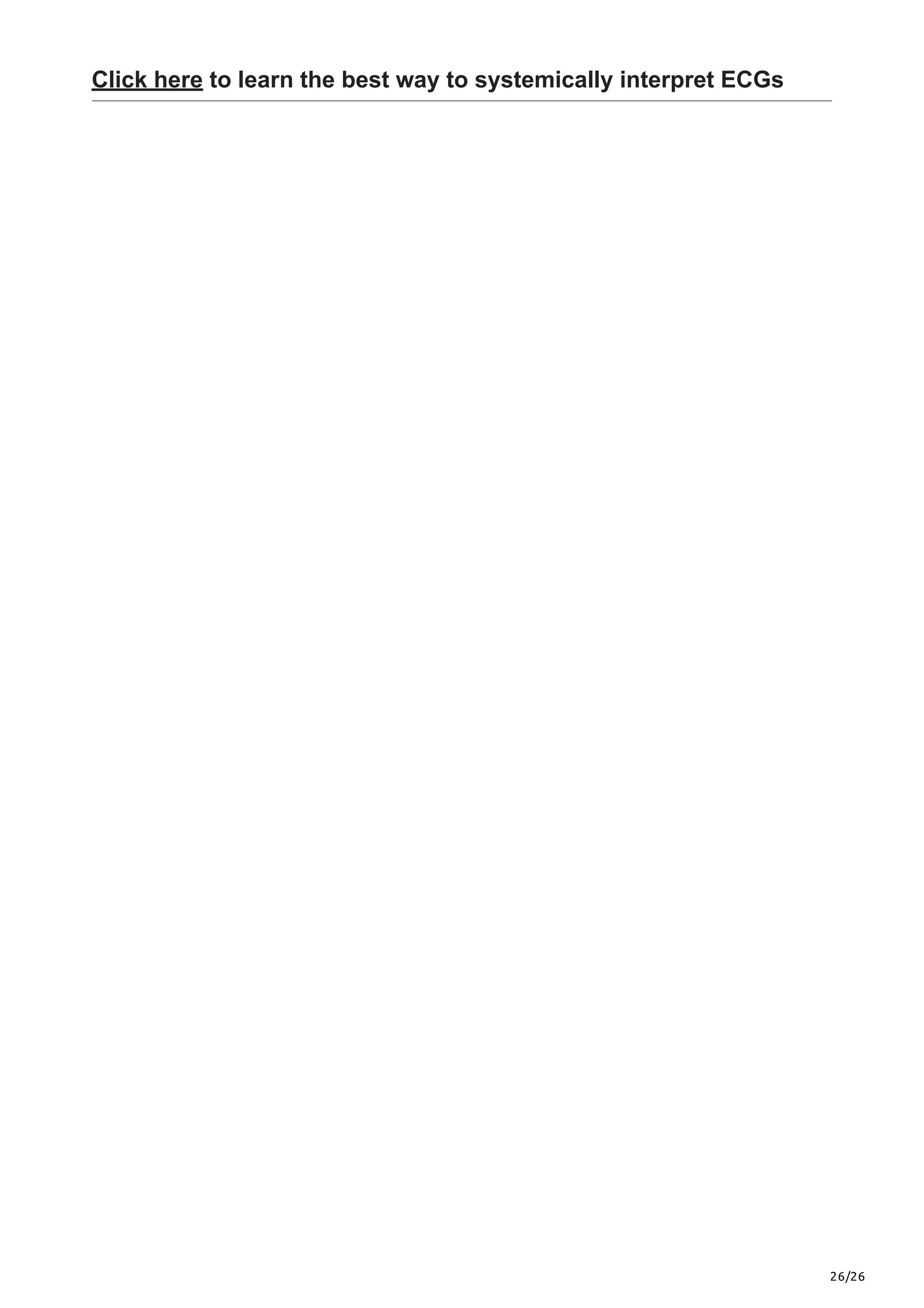

26. 26/26
Click here to learn the best way to systemically interpret ECGs
