- 1. Adnexal mass evaluation(IOTA Terminology, Simple Descriptors and Simple Rules) A.S.M. SUFIAN HMO , Cumilla Medical College Hospital (Radiology & Imaging )

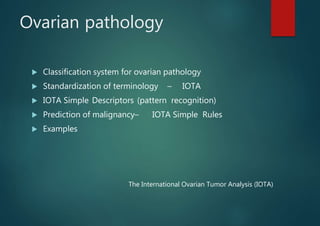

- 2. Ovarian pathology Classificationsystem for ovarian pathology Standardization of terminology – IOTA IOTA Simple Descriptors (pattern recognition) Prediction of malignancy– IOTA Simple Rules Examples The International Ovarian Tumor Analysis (IOTA)

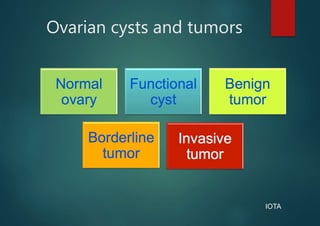

- 3. Ovarian cysts andtumors IOTA

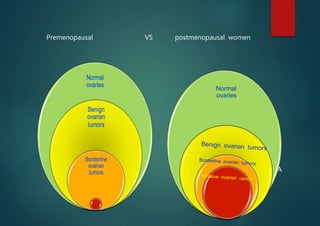

- 4.

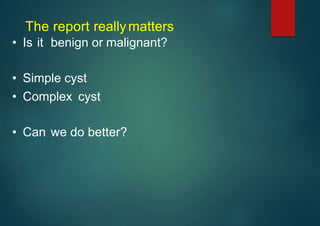

- 5. The report reallymatters •Is it benign or malignant? • Simple cyst • Complex cyst • Can we do better?

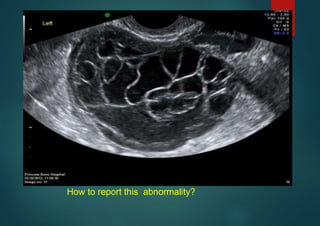

- 6. By the endof this presentation you will be able to report this! How to report this abnormality?

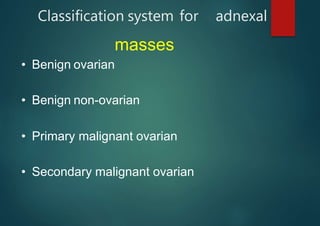

- 7. Classification system foradnexal masses • Benign ovarian • Benign non-ovarian • Primary malignant ovarian • Secondary malignant ovarian

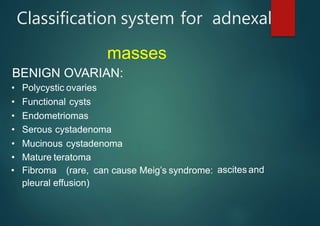

- 8. Classification system foradnexal masses BENIGN OVARIAN: ascites and • Polycystic ovaries • Functional cysts • Endometriomas • Serous cystadenoma • Mucinous cystadenoma • Mature teratoma • Fibroma (rare, can cause Meig’s syndrome: pleural effusion)
- 9. Classification system foradnexal masses BENIGN NON-OVARIAN: • Paratubal cyst • Hydrosalpinx • Tubo-ovarian abscess • Peritoneal pseudocysts • Appendicular abscess • Diverticular abscess • Pelvic kidney • Ectopic pregnancy

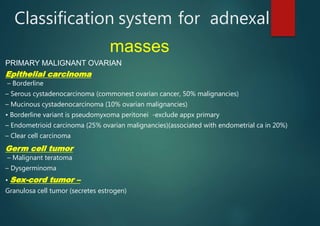

- 10. Classification system foradnexal masses PRIMARY MALIGNANT OVARIAN Epithelial carcinoma – Borderline – Serous cystadenocarcinoma (commonest ovarian cancer, 50% malignancies) – Mucinous cystadenocarcinoma (10% ovarian malignancies) • Borderline variant is pseudomyxoma peritonei -exclude appx primary – Endometrioid carcinoma (25% ovarian malignancies)(associated with endometrial ca in 20%) – Clear cell carcinoma Germ cell tumor – Malignant teratoma – Dysgerminoma • Sex-cord tumor – Granulosa cell tumor (secretes estrogen)

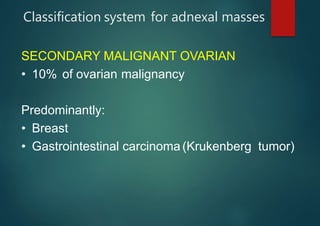

- 11. Classification system foradnexal masses SECONDARY MALIGNANT OVARIAN • 10% of ovarian malignancy Predominantly: • Breast • Gastrointestinal carcinoma (Krukenberg tumor)

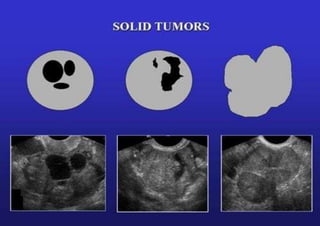

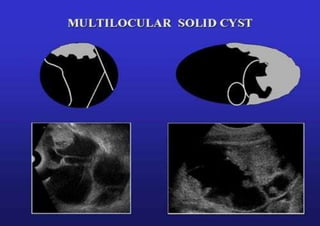

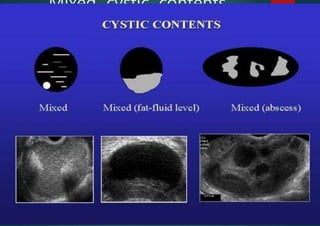

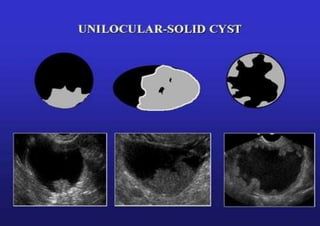

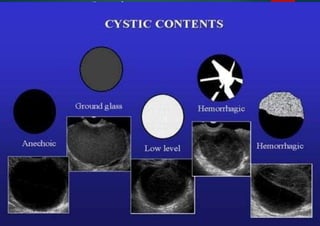

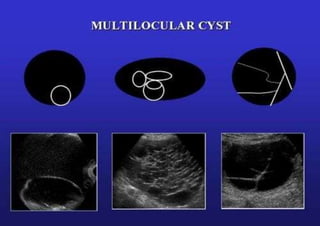

- 12. IOTA definitions – Unilocular,Unilocular-solid, Multilocular, Multilocular-solid or Solid – Cyst contents– or hemorrhagic. anechoic, low level, ground glass, mixed – Solid material or papillary structures or wall irregularity (presence and size) – Vascularity – Shadows – Ascites

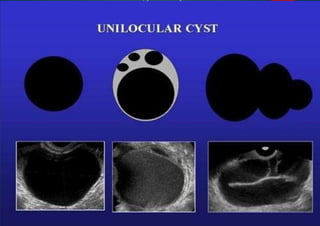

- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20. Internal wall ofthe cyst IOTA
- 21.

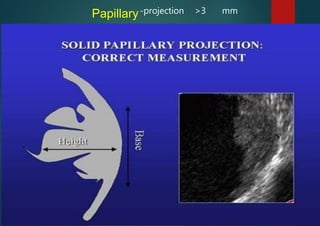

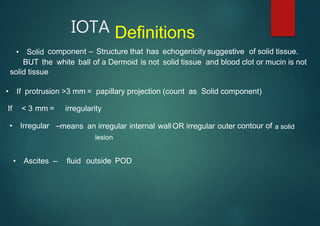

- 22. IOTA Definitions • Solidcomponent – Structure that has echogenicity suggestive of solid tissue. BUT the white ball of a Dermoid is not solid tissue and blood clot or mucin is not solid tissue • If protrusion >3 mm = papillary projection (count as Solid component) If < 3 mm = irregularity • Irregular – contour of means an irregular internal wallOR irregular outer • Ascites – fluid outside POD lesion a solid

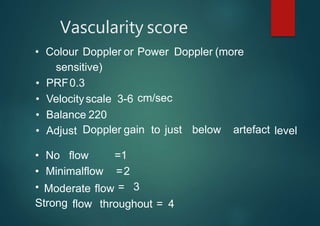

- 23. Vascularity score • ColourDoppler or Power Doppler (more cm/sec Doppler gain to just below artefact sensitive) • PRF0.3 • Velocityscale 3-6 • Balance 220 • Adjust level Moderate flow • No flow =1 • Minimalflow =2 • = Strong 3 flow throughout = 4

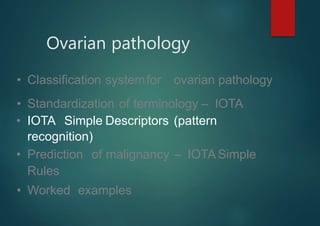

- 24. Ovarian pathology • Classificationsystemfor ovarian pathology • Standardization of terminology – IOTA • IOTA Simple Descriptors (pattern recognition) • Prediction of malignancy – IOTA Simple Rules • Worked examples
- 25. Simple Descriptors • Certainabnormalities are really obvious: RECOGNITION - • Endometrioma • Benign cystic teratoma / Dermoid Cyst • Simple cyst or serous cystadenoma • Functional • Malignant Cyst. Eg. Hemorrhagic cyst. tumour with ascites PATTERN

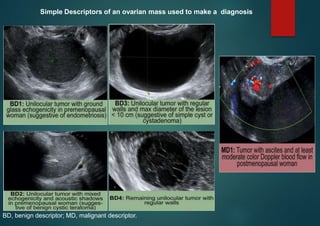

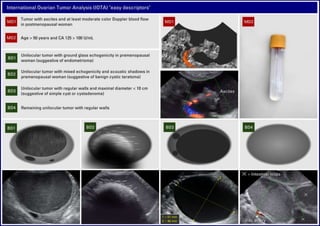

- 27. BD, benign descriptor;MD, malignant descriptor. Simple Descriptors of an ovarian mass used to make a diagnosis

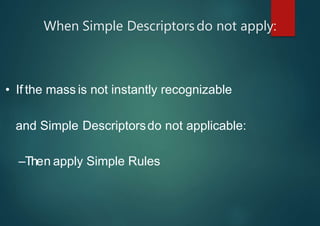

- 28. When Simple Descriptorsdonot apply: • If the mass is not instantly recognizable and Simple Descriptorsdo not applicable: –Then apply Simple Rules

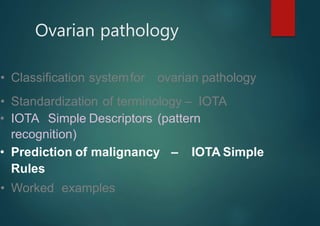

- 29. Ovarian pathology • Classificationsystemfor ovarian pathology • Standardization of terminology – IOTA • IOTA Simple Descriptors (pattern recognition) • Prediction of malignancy – IOTA Simple Rules • Worked examples

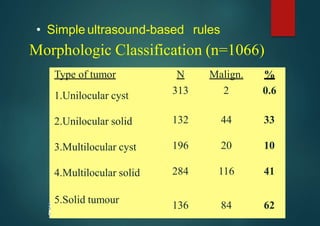

- 30. • Simple ultrasound-basedrules Morphologic Classification (n=1066) Type of tumor N Malign. % 1.Unilocular cyst 313 2 0.6 2.Unilocular solid 132 44 33 3.Multilocular cyst 196 20 10 4.Multilocular solid 284 116 41 5.Solid tumour 136 84 62

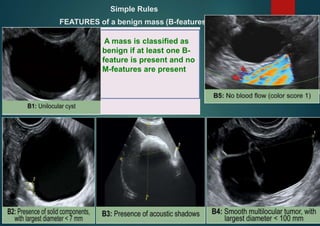

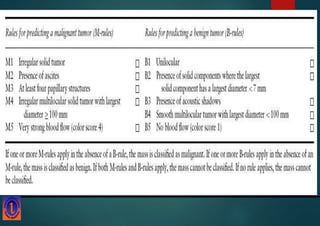

- 32. Simple Rules FEATURES ofa benign mass (B-features) A mass is classified as benign if at least one B- feature is present and no M-features are present

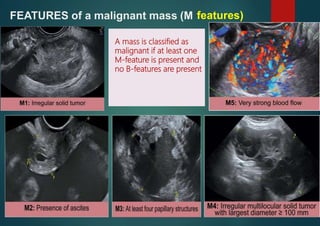

- 33. FEATURES of amalignant mass (M features) A mass is classified as malignant if at least one M-feature is present and no B-features are present

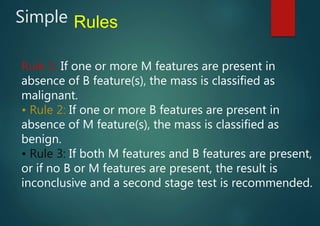

- 34. Simple Rules Rule 1:If one or more M features are present in absence of B feature(s), the mass is classified as malignant. • Rule 2: If one or more B features are present in absence of M feature(s), the mass is classified as benign. • Rule 3: If both M features and B features are present, or if no B or M features are present, the result is inconclusive and a second stage test is recommended.
- 35.
- 36.

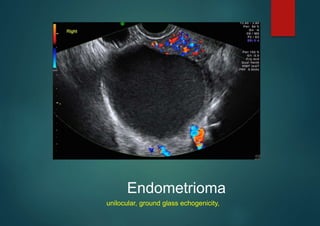

- 37. Endometrioma unilocular, ground glassechogenicity,

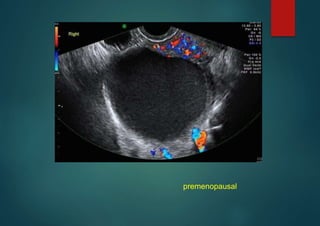

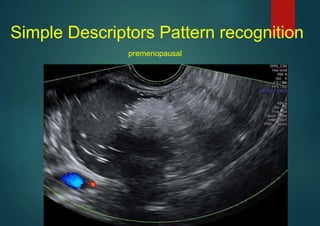

- 38. Simple Descriptors Patternrecognition premenopausal

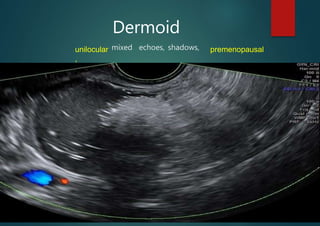

- 39. unilocular , Dermoid mixed echoes, shadows,premenopausal

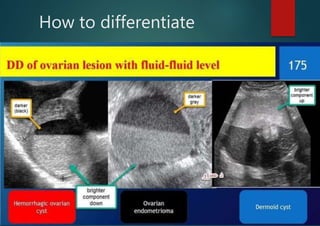

- 41.
- 42.

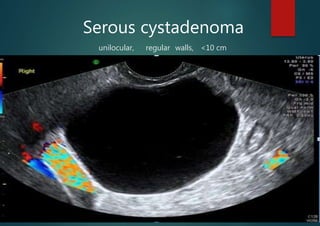

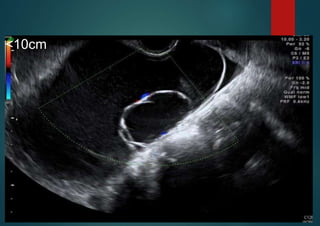

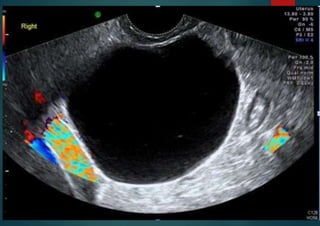

- 43. Serous cystadenoma unilocular, regularwalls, <10 cm

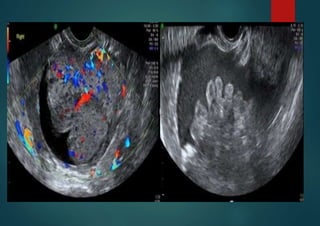

- 45. Stage 4 ovariancarcinoma with ascites Tumor with at least moderate blood flow, ascites, postmenopausal
- 46. Exampleswhere Simple descriptordon’t apply
- 47.

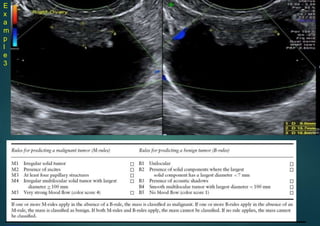

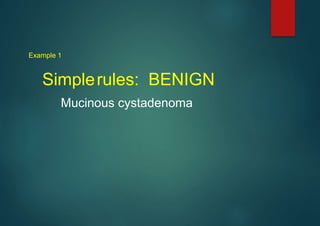

- 49. Example 1 Simplerules: BENIGN Mucinouscystadenoma
- 50.

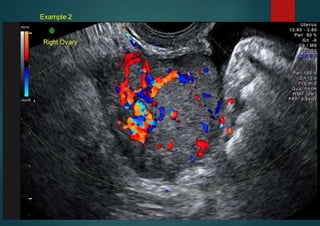

- 52. Example 2 Simple rules:MALIGNANT Metastasisfrom bowel primary
- 53.

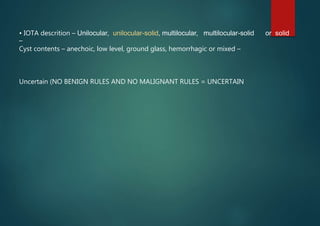

- 54. • IOTA descrition– Unilocular, unilocular-solid, multilocular, multilocular-solid or solid – Cyst contents – anechoic, low level, ground glass, hemorrhagic or mixed – Uncertain (NO BENIGN RULES AND NO MALIGNANT RULES = UNCERTAIN

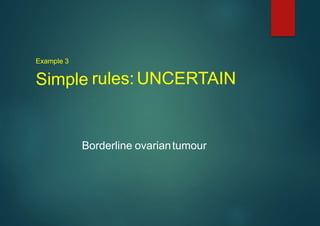

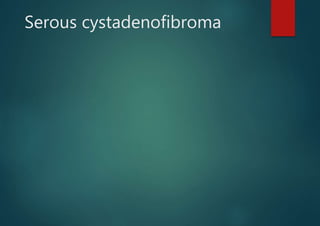

- 55. Example 3 Simple rules:UNCERTAIN Borderlineovariantumour

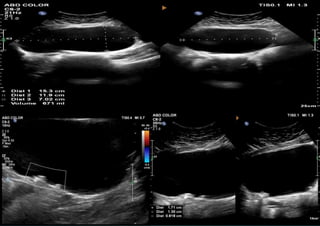

- 58.

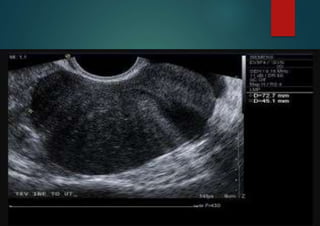

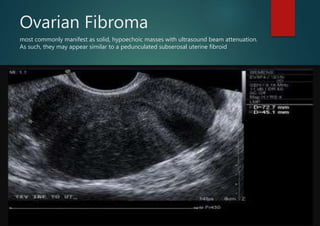

- 60. Ovarian Fibroma most commonlymanifest as solid, hypoechoic masses with ultrasound beam attenuation. As such, they may appear similar to a pedunculated subserosal uterine fibroid

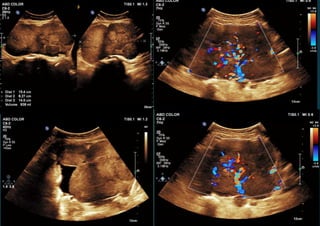

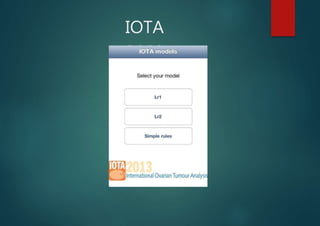

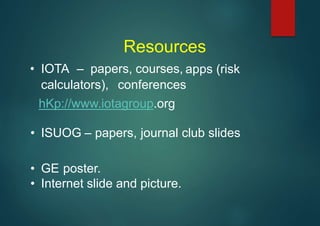

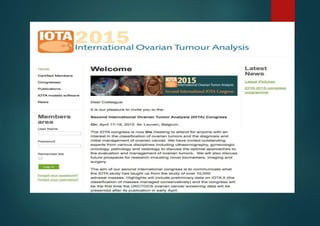

- 72. Resources apps (risk • IOTA– papers, courses, calculators), conferences hKp://www.iotagroup.org • ISUOG – papers, journal club slides • GE poster. • Internet slide and picture.
- 73.
- 74.
- 76.
Editor's Notes
- #43 Example
- #58 Video
- #60 Benign , fibroma
- #63 video

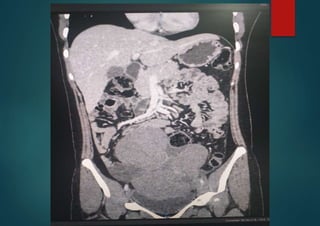

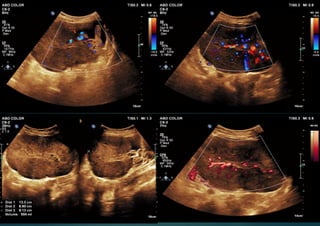

- #64 CT scan – Multilobulated solid masses with prominent fibrovascular septa. Post contrast imaging shows enhancement of the septae. Other- calcification may be present in a speckled pattern.

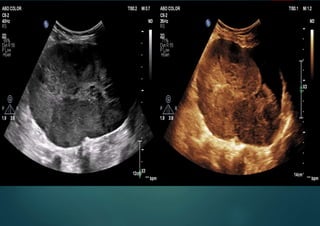

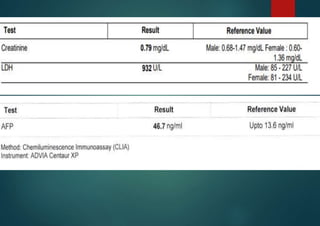

- #66 video
- #69 example

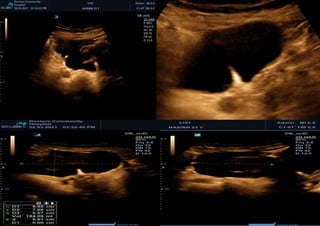

- #70 Papillary serous cystadenocarcinoma
