1. OSGi Training
Aruna Karunarathna
Senior Software Engineer

2. Modularity in Java

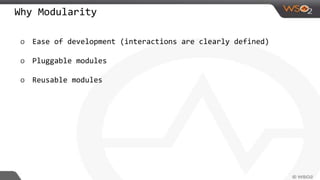

3. Why Modularity
o Ease of development (interactions are clearly defined)
o Pluggable modules
o Reusable modules

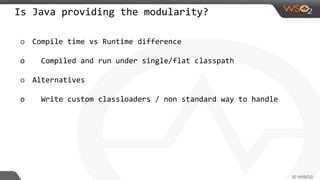

4. Is Java providing the modularity?
o Compile time vs Runtime difference
o Compiled and run under single/flat classpath
o Alternatives
o Write custom classloaders / non standard way to handle

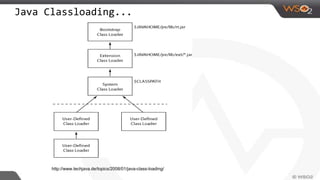

5. Java Classloading...
http://www.techjava.de/topics/2008/01/java-class-loading/

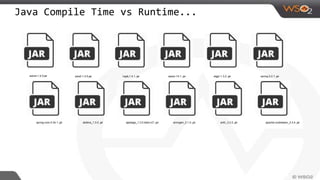

6. Java Compile Time vs Runtime...
axiom-1.2.0.jar axis2-1.4.5.jar log4j.1.4.1..jar saxon.14.1..jar algpr.1.3.2..jar spring.0.2.1..jar
spring-core.0.34.1..jar abdera_1.0.0..jar ajaxtags_1.3.0.beta-rc7-.jar annogen_0.1.0..jar antlr_3.2.0..jar apache-zookeeper_3.3.4..jar

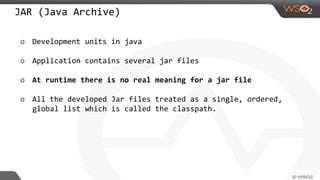

7. JAR (Java Archive)
o Development units in java
o Application contains several jar files
o At runtime there is no real meaning for a jar file
o All the developed Jar files treated as a single, ordered,
global list which is called the classpath.

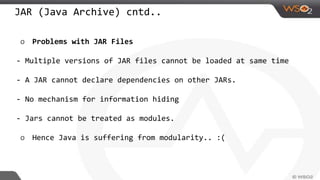

8. JAR (Java Archive) cntd..
o Problems with JAR Files
- Multiple versions of JAR files cannot be loaded at same time
- A JAR cannot declare dependencies on other JARs.
- No mechanism for information hiding
- Jars cannot be treated as modules.
o Hence Java is suffering from modularity.. :(

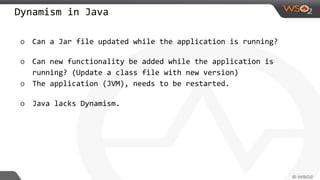

9. Dynamism in Java
o Can a Jar file updated while the application is running?
o Can new functionality be added while the application is
running? (Update a class file with new version)
o The application (JVM), needs to be restarted.
o Java lacks Dynamism.

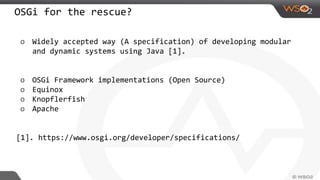

10. OSGi for the rescue?
o Widely accepted way (A specification) of developing modular
and dynamic systems using Java [1].
o OSGi Framework implementations (Open Source)
o Equinox
o Knopflerfish
o Apache
[1]. https://www.osgi.org/developer/specifications/

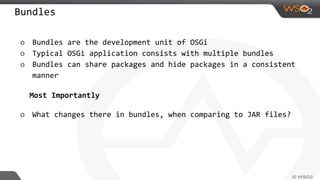

11. Bundles
o Bundles are the development unit of OSGi
o Typical OSGi application consists with multiple bundles
o Bundles can share packages and hide packages in a consistent
manner
Most Importantly
o What changes there in bundles, when comparing to JAR files?

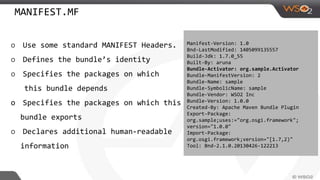

12. MANIFEST.MF
o Use some standard MANIFEST Headers.
o Defines the bundle’s identity
o Specifies the packages on which
this bundle depends
o Specifies the packages on which this
bundle exports
o Declares additional human-readable
information
Manifest-Version: 1.0
Bnd-LastModified: 1405099135557
Build-Jdk: 1.7.0_55
Built-By: aruna
Bundle-Activator: org.sample.Activator
Bundle-ManifestVersion: 2
Bundle-Name: sample
Bundle-SymbolicName: sample
Bundle-Vendor: WSO2 Inc
Bundle-Version: 1.0.0
Created-By: Apache Maven Bundle Plugin
Export-Package:
org.sample;uses:="org.osgi.framework";
version="1.0.0"
Import-Package:
org.osgi.framework;version="[1.7,2)"
Tool: Bnd-2.1.0.20130426-122213

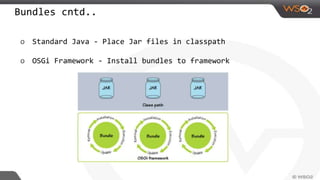

13. Bundles cntd..
o Standard Java - Place Jar files in classpath
o OSGi Framework - Install bundles to framework

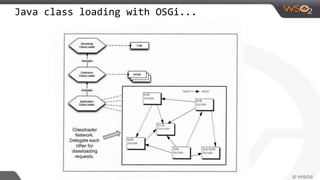

14. Java class loading with OSGi...

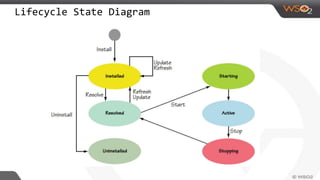

15. Lifecycle State Diagram

16. DEMO
o OSGi Framework
o First Look at a Sample Bundle
o Try out the lifecycle events
of a bundle
http://www.slideshare.net/rossmason/realtime-apis

17. Bundle Activator Manifest Entry
o Bundle Activator Manifest Entry is the hook to the Bundle execution entry
point.
o Similar to the Main Method of a Jar file?..
o Header value specifies the name of a reachable class
o Either a class in an Imported Package
o A class in the Bundle class path
o This class implements the org.osgi.framework.BundleActivator interface, and
implements the following two methods.
o Can use these two methods to customize the behaviours when the bundle is
started and stopped.
public interface BundleActivator {
void start(org.osgi.framework.BundleContext bundleContext) throws java.lang.Exception;
void stop(org.osgi.framework.BundleContext bundleContext) throws java.lang.Exception;
}

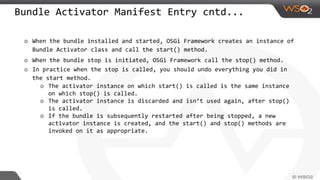

18. Bundle Activator Manifest Entry cntd...
o When the bundle installed and started, OSGi Framework creates an instance of
Bundle Activator class and call the start() method.
o When the bundle stop is initiated, OSGi Framework call the stop() method.
o In practice when the stop is called, you should undo everything you did in
the start method.
o The activator instance on which start() is called is the same instance
on which stop() is called.
o The activator instance is discarded and isn’t used again, after stop()
is called.
o If the bundle is subsequently restarted after being stopped, a new
activator instance is created, and the start() and stop() methods are
invoked on it as appropriate.

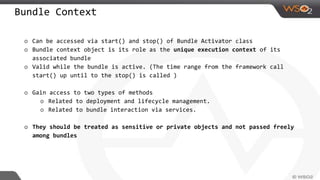

19. Bundle Context
o Can be accessed via start() and stop() of Bundle Activator class
o Bundle context object is its role as the unique execution context of its
associated bundle
o Valid while the bundle is active. (The time range from the framework call
start() up until to the stop() is called )
o Gain access to two types of methods
o Related to deployment and lifecycle management.
o Related to bundle interaction via services.
o They should be treated as sensitive or private objects and not passed freely
among bundles

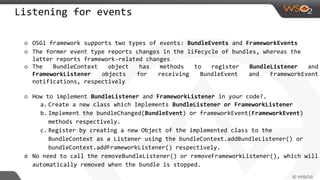

20. Listening for events
o OSGi framework supports two types of events: BundleEvents and FrameworkEvents
o The former event type reports changes in the lifecycle of bundles, whereas the
latter reports framework-related changes
o The BundleContext object has methods to register BundleListener and
FrameworkListener objects for receiving BundleEvent and FrameworkEvent
notifications, respectively
o How to implement BundleListener and FrameworkListener in your code?.
a. Create a new class which Implements BundleListener or FrameworkListener
b. Implement the bundleChanged(BundleEvent) or frameworkEvent(FrameworkEvent)
methods respectively.
c. Register by creating a new Object of the implemented class to the
BundleContext as a Listener using the bundleContext.addBundleListener() or
bundleContext.addFrameworkListener() respectively.
o No need to call the removeBundleListener() or removeFrameworkListener(), which will
automatically removed when the bundle is stopped.

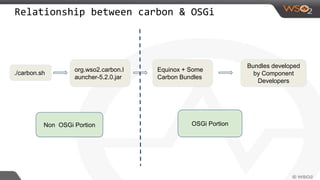

21. Relationship between carbon & OSGi
Non OSGi Portion OSGi Portion
./carbon.sh
org.wso2.carbon.l
auncher-5.2.0.jar
Equinox + Some
Carbon Bundles
Bundles developed
by Component
Developers

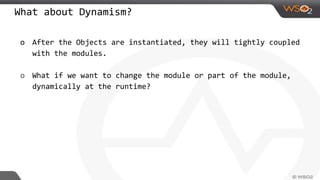

22. What about Dynamism?
o After the Objects are instantiated, they will tightly coupled
with the modules.
o What if we want to change the module or part of the module,
dynamically at the runtime?

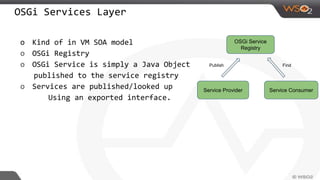

23. OSGi Services Layer
o Kind of in VM SOA model
o OSGi Registry
o OSGi Service is simply a Java Object
published to the service registry
o Services are published/looked up
Using an exported interface.
OSGi Service
Registry
Service Provider Service Consumer
Publish Find

24. Registering an OSGi Service
public class Activator implements BundleActivator {
ServiceRegistration serviceRegistration;
public void start(BundleContext bundleContext) throws Exception {
HelloWorld helloWorld = new HelloWorld();
serviceRegistration = bundleContext.registerService(Hello.class, helloWorld, null);
}
public void stop(BundleContext bundleContext) throws Exception {
serviceRegistration.unregister();
}
}

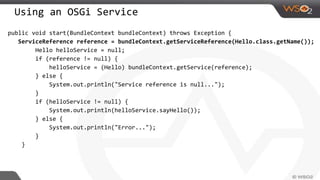

25. Using an OSGi Service
public void start(BundleContext bundleContext) throws Exception {
ServiceReference reference = bundleContext.getServiceReference(Hello.class.getName());
Hello helloService = null;
if (reference != null) {
helloService = (Hello) bundleContext.getService(reference);
} else {
System.out.println("Service reference is null...");
}
if (helloService != null) {
System.out.println(helloService.sayHello());
} else {
System.out.println("Error...");
}
}

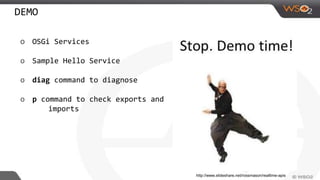

26. DEMO
o OSGi Services
o Sample Hello Service
o diag command to diagnose
o p command to check exports and
imports
http://www.slideshare.net/rossmason/realtime-apis

27. Handle Dynamism?
o Services can register/unregister at anytime.
o Service may not be available when tries to use the service
because of the startup order of bundles
o Somehow the service was acquired, but service get unregistered
and now we are having a stale service reference?
o Developer has to handle such scenarios?

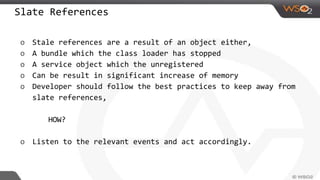

28. Slate References
o Stale references are a result of an object either,
o A bundle which the class loader has stopped
o A service object which the unregistered
o Can be result in significant increase of memory
o Developer should follow the best practices to keep away from
slate references,
HOW?
o Listen to the relevant events and act accordingly.

29. Monitoring OSGi Services
o ServiceListener
o Service Trackers
o Declarative Services

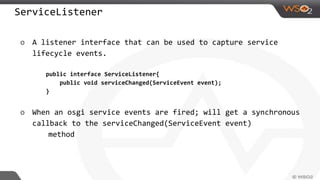

30. ServiceListener
o A listener interface that can be used to capture service
lifecycle events.
public interface ServiceListener{
public void serviceChanged(ServiceEvent event);
}
o When an osgi service events are fired; will get a synchronous
callback to the serviceChanged(ServiceEvent event)
method

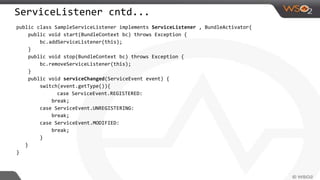

31. ServiceListener cntd...
public class SampleServiceListener implements ServiceListener , BundleActivator{
public void start(BundleContext bc) throws Exception {
bc.addServiceListener(this);
}
public void stop(BundleContext bc) throws Exception {
bc.removeServiceListener(this);
}
public void serviceChanged(ServiceEvent event) {
switch(event.getType()){
case ServiceEvent.REGISTERED:
break;
case ServiceEvent.UNREGISTERING:
break;
case ServiceEvent.MODIFIED:
break;
}
}
}

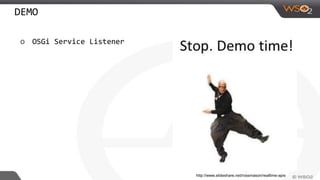

32. DEMO
o OSGi Service Listener
http://www.slideshare.net/rossmason/realtime-apis

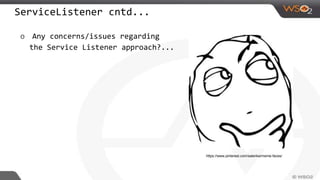

33. ServiceListener cntd...
o Any concerns/issues regarding
the Service Listener approach?...
https://www.pinterest.com/salenka/meme-faces/

34. ServiceListener cntd...
o What if the service has registered
Before the service listener?
o You probably missed the Service
Registration event
Now What?....
https://www.pinterest.com/zmeers/meme-faces/

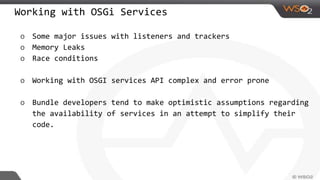

35. Working with OSGi Services
o Some major issues with listeners and trackers
o Memory Leaks
o Race conditions
o Working with OSGI services API complex and error prone
o Bundle developers tend to make optimistic assumptions regarding
the availability of services in an attempt to simplify their
code.

36. Declarative Services
o Alternative approach for OSGi Services API’s
o The bundle declare the services; it registers and acquires in an
xml file
o Less effort for developers
o Developers can focus more on the business logic, rather worrying
about the OSGi concerns.

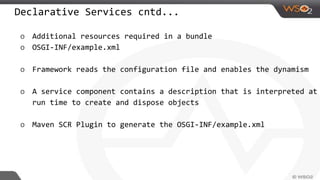

37. Declarative Services cntd...
o Additional resources required in a bundle
o OSGI-INF/example.xml
o Framework reads the configuration file and enables the dynamism
o A service component contains a description that is interpreted at
run time to create and dispose objects
o Maven SCR Plugin to generate the OSGI-INF/example.xml

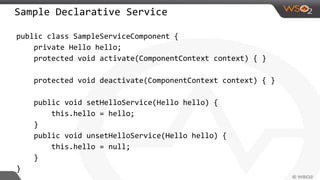

38. Sample Declarative Service
public class SampleServiceComponent {
private Hello hello;
protected void activate(ComponentContext context) { }
protected void deactivate(ComponentContext context) { }
public void setHelloService(Hello hello) {
this.hello = hello;
}
public void unsetHelloService(Hello hello) {
this.hello = null;
}
}

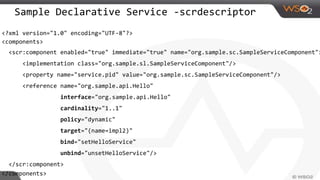

39. Sample Declarative Service -scrdescriptor
<?xml version="1.0" encoding="UTF-8"?>
<components>
<scr:component enabled="true" immediate="true" name="org.sample.sc.SampleServiceComponent">
<implementation class="org.sample.sl.SampleServiceComponent"/>
<property name="service.pid" value="org.sample.sc.SampleServiceComponent"/>
<reference name="org.sample.api.Hello"
interface="org.sample.api.Hello"
cardinality="1..1"
policy="dynamic"
target="(name=impl2)"
bind="setHelloService"
unbind="unsetHelloService"/>
</scr:component>
</components>

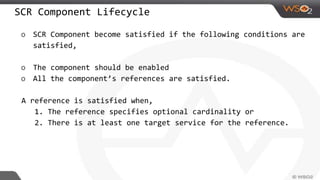

40. SCR Component Lifecycle
o SCR Component become satisfied if the following conditions are
satisfied,
o The component should be enabled
o All the component’s references are satisfied.
A reference is satisfied when,
1. The reference specifies optional cardinality or
2. There is at least one target service for the reference.

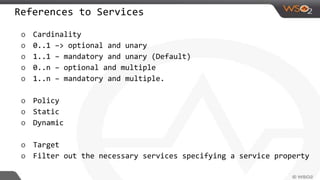

41. References to Services
o Cardinality
o 0..1 –> optional and unary
o 1..1 – mandatory and unary (Default)
o 0..n – optional and multiple
o 1..n – mandatory and multiple.
o Policy
o Static
o Dynamic
o Target
o Filter out the necessary services specifying a service property

42. DEMO
o Sample OSGi Service Component
o SCR JavaDoc Tags
o Maven SCR Plugin
o Troubleshoot issues with,
o ls command
o comp command
o Target property?
http://www.slideshare.net/rossmason/realtime-apis

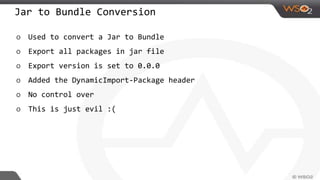

43. Jar to Bundle Conversion
o Used to convert a Jar to Bundle
o Export all packages in jar file
o Export version is set to 0.0.0
o Added the DynamicImport-Package header
o No control over
o This is just evil :(

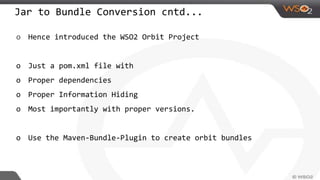

44. Jar to Bundle Conversion cntd...
o Hence introduced the WSO2 Orbit Project
o Just a pom.xml file with
o Proper dependencies
o Proper Information Hiding
o Most importantly with proper versions.
o Use the Maven-Bundle-Plugin to create orbit bundles

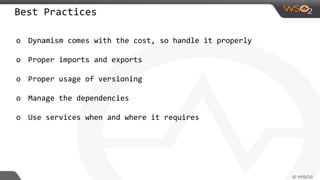

45. Best Practices
o Dynamism comes with the cost, so handle it properly
o Proper imports and exports
o Proper usage of versioning
o Manage the dependencies
o Use services when and where it requires

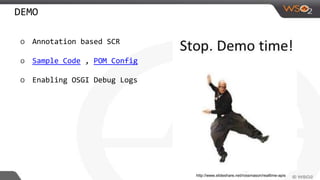

46. DEMO
o Annotation based SCR
o Sample Code , POM Config
o Enabling OSGI Debug Logs
http://www.slideshare.net/rossmason/realtime-apis

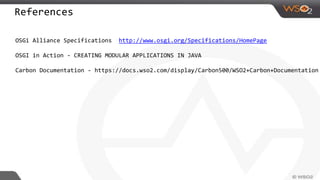

47. References
OSGi Alliance Specifications http://www.osgi.org/Specifications/HomePage
OSGI in Action - CREATING MODULAR APPLICATIONS IN JAVA
Carbon Documentation - https://docs.wso2.com/display/Carbon500/WSO2+Carbon+Documentation
