The document discusses the comparison between OSGi and Java 9's Jigsaw module system, highlighting OSGi's advantages like modularity, encapsulation, and hot redeploy capabilities, while pointing out its limitations such as issues with cyclic dependencies and loading constraints. It also emphasizes that Jigsaw is static compared to OSGi's dynamic nature and cites reasons why Jigsaw is not a comprehensive replacement for OSGi. The document presents technical details on versioning, bundle lifecycle, and encapsulation in the context of both module systems.

1. Java 9 Modules.
The Duke Yet Lives That OSGi Shall Depose
Nikita Lipsky
Excelsior LLC
1

2. 2

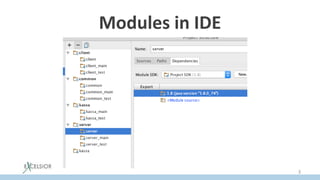

3. Modules in IDE
3

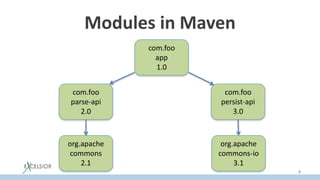

4. Modules in Maven
com.foo
app
1.0
com.foo
parse-api
2.0
com.foo
persist-api
3.0
org.apache
commons
2.1
org.apache
commons-io
3.1
4

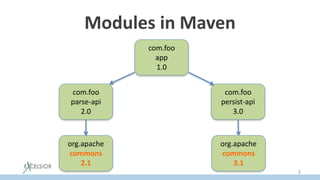

5. Modules in Maven
com.foo
app
1.0
com.foo
parse-api
2.0
com.foo
persist-api
3.0
org.apache
commons
2.1
org.apache
commons
3.1
5

6. OSGi
6

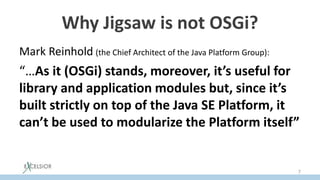

7. Why Jigsaw is not OSGi?
Mark Reinhold (the Chief Architect of the Java Platform Group):
“…As it (OSGi) stands, moreover, it’s useful for
library and application modules but, since it’s
built strictly on top of the Java SE Platform, it
can’t be used to modularize the Platform itself”
7

8. Why Jigsaw is not OSGi?
Question: why the presence of j.l.Object in Java
Language Specification, implemented in Java in
turn, does not lead to a bootstrap problem?
Факт: Существует реализация Java SE, где
OSGi поддерживается на уровне JVM (на
уровне платформы).
8

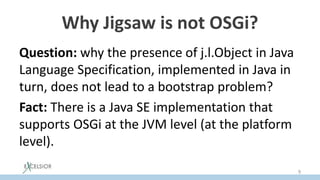

9. Why Jigsaw is not OSGi?
Question: why the presence of j.l.Object in Java
Language Specification, implemented in Java in
turn, does not lead to a bootstrap problem?
Fact: There is a Java SE implementation that
supports OSGi at the JVM level (at the platform
level).
9

10. Nikita Lipsky
• 20+ years in software development
• Excelsior JET project initiator
– 16+ years of contributions
– compiler engineer
– team lead
– product lead
– etc.
• Twitter: @pjBooms
10

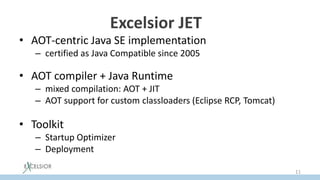

11. Excelsior JET?
• AOT-centric Java SE implementation
– certified as Java Compatible since 2005
• AOT compiler + Java Runtime
– mixed compilation: AOT + JIT
– AOT support for custom classloaders (Eclipse RCP, Tomcat)
• Toolkit
– Startup Optimizer
– Deployment
11

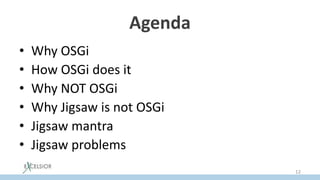

12. Agenda
• Why OSGi
• How OSGi does it
• Why NOT OSGi
• Why Jigsaw is not OSGi
• Jigsaw mantra
• Jigsaw problems
12

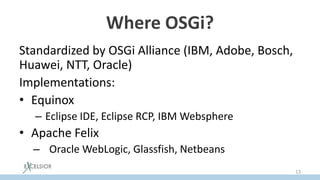

13. Where OSGi?
Standardized by OSGi Alliance (IBM, Adobe, Bosch,
Huawei, NTT, Oraсle)
Implementations:
• Equinox
– Eclipse IDE, Eclipse RCP, IBM Websphere
• Apache Felix
– Oracle WebLogic, Glassfish, Netbeans
13

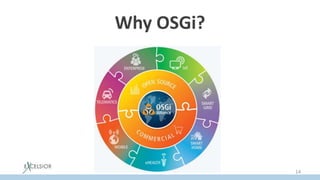

14. Why OSGi?
14

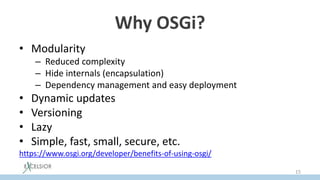

15. Why OSGi?
• Modularity
– Reduced complexity
– Hide internals (encapsulation)
– Dependency management and easy deployment
• Dynamic updates
• Versioning
• Lazy
• Simple, fast, small, secure, etc.
https://www.osgi.org/developer/benefits-of-using-osgi/
15

16. Модульная система OSGi
16

17. OSGi Module System
OSGi module – Bundle:
• Jar or directory
• Import/export is defined in META-INF/MANIFEST.MF:
Manifest-Version: 1.0 Bundle-ManifestVersion: 2
Bundle-SymbolicName: B
Bundle-Version: 1
Bundle-Name: B Bundle
Export-Package: org.bar
Import-Package: org.foo;version=“[1,2)”
17

18. OSGi Module System
• OSGi bundle imports/exports
– packages (Import-Package/Export-Package)
– services (Import-Service/Export-Service).
• May import other bundles directly
– Require-Bundle directive
– However it is not the best practice (less flexible)
18

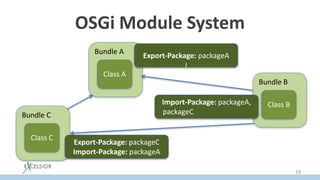

19. OSGi Module System
19
Bundle A
Class A
Bundle B
Class B
Bundle C
Class C
Export-Package: packageC
Import-Package: packageA
Export-Package: packageA
I
Import-Package: packageA,
packageC

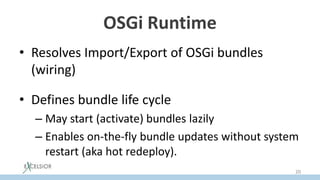

20. OSGi Runtime
• Resolves Import/Export of OSGi bundles
(wiring)
• Defines bundle life cycle
– May start (activate) bundles lazily
– Enables on-the-fly bundle updates without system
restart (aka hot redeploy).
20

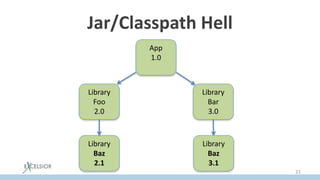

21. Jar/Classpath Hell
App
1.0
Library
Foo
2.0
Library
Bar
3.0
Library
Baz
2.1
Library
Baz
3.1
21

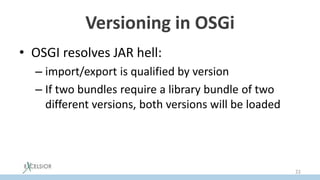

22. Versioning in OSGi
• OSGI resolves JAR hell:
– import/export is qualified by version
– If two bundles require a library bundle of two
different versions, both versions will be loaded
22

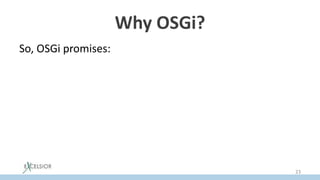

23. Why OSGi?
So, OSGi promises:
• Modularity
– explicit dependencies
– encapsulation
• JAR Hell problem resolution
– via versioning
• Hot ReDeploy
– via ability to update a separate bundle dynamically
23

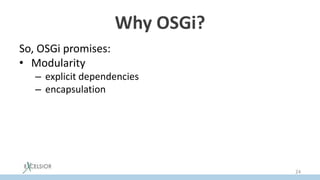

24. Why OSGi?
So, OSGi promises:
• Modularity
– explicit dependencies
– encapsulation
• JAR Hell problem resolution
– via versioning
• Hot ReDeploy
– via ability to update a separate bundle dynamically
24

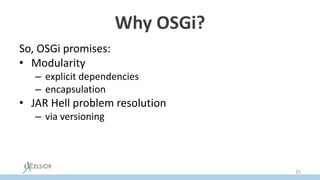

25. Why OSGi?
So, OSGi promises:
• Modularity
– explicit dependencies
– encapsulation
• JAR Hell problem resolution
– via versioning
• Hot ReDeploy
– via ability to update a separate bundle dynamically
25

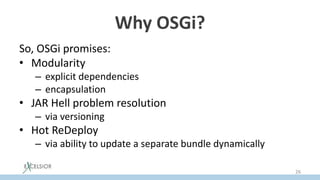

26. Why OSGi?
So, OSGi promises:
• Modularity
– explicit dependencies
– encapsulation
• JAR Hell problem resolution
– via versioning
• Hot ReDeploy
– via ability to update a separate bundle dynamically
26

27. 27

28. How OSGi?
28

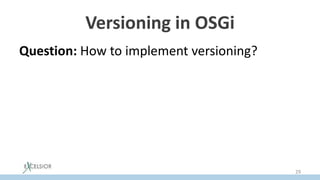

29. Versioning in OSGi
Question: How to implement versioning?
Task: For given A module importing Lib (v1)
library, and B module importing Lib (v2), it is
required that both versions of Lib working
without conflicts.
Solution: load the versions of the library by
different classloaders.
29

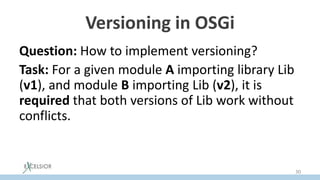

30. Versioning in OSGi
Question: How to implement versioning?
Task: For a given module A importing library Lib
(v1), and module B importing Lib (v2), it is
required that both versions of Lib work without
conflicts.
Solution: load the versions of the library by
different classloaders.
30

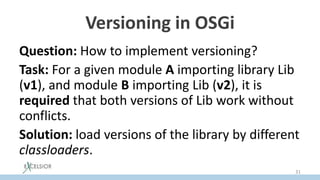

31. Versioning in OSGi
Question: How to implement versioning?
Task: For a given module A importing library Lib
(v1), and module B importing Lib (v2), it is
required that both versions of Lib work without
conflicts.
Solution: load versions of the library by different
classloaders.
31

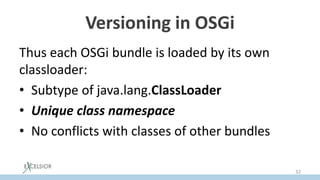

32. Versioning in OSGi
Thus each OSGi bundle is loaded by its own
classloader:
• Subtype of java.lang.ClassLoader
• Unique class namespace
• No conflicts with classes of other bundles
32

33. Versioning in OSGi
33
com.foo
App
1.0
com.foo
parse-api
2.0
com.foo
persist-api
3.0
org.apache
commons
2.1
org.apache
commons
3.1
CL
CL
CL
CL
CL
Different versions of apache
commons may simultaneously
present in the JVM
Each bundle has
its own classloader

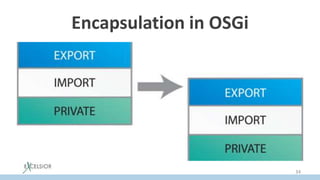

34. Encapsulation in OSGi
34

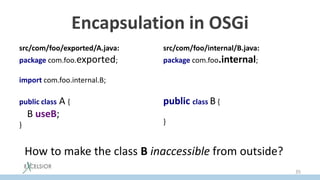

35. Encapsulation in OSGi
src/com/foo/exported/A.java:
package com.foo.exported;
import com.foo.internal.B;
public class A {
B useB;
}
src/com/foo/internal/B.java:
package com.foo.internal;
public class B {
}
How to make the class B inaccessible from outside?
35

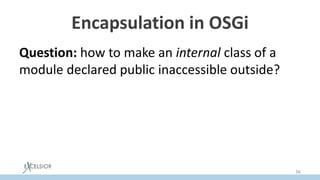

36. Encapsulation in OSGi
Question: how to make an internal class of a
module declared public inaccessible outside?
36

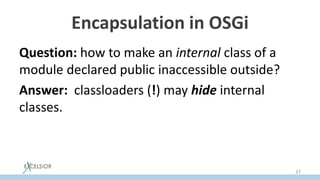

37. Encapsulation in OSGi
Question: how to make an internal class of a
module declared public inaccessible outside?
Answer: classloaders (!) may hide internal
classes.
37

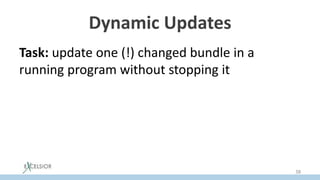

38. Dynamic Updates
Task: update one (!) changed bundle in a
running program without stopping it
38

39. Dynamic Updates
Task: update one (!) changed bundle in a
running program without stopping it
Solution: CLASSLOADERS!
(unload old bundle, load new bundle by a new
classloader)
39

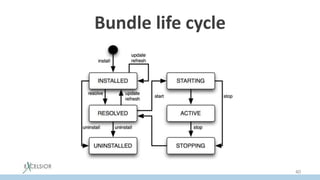

40. Bundle life cycle
40

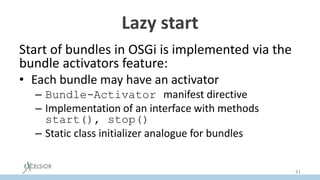

41. Lazy start
Start of bundles in OSGi is implemented via the
bundle activators feature:
• Each bundle may have an activator
– Bundle-Activator manifest directive
– Implementation of an interface with methods
start(), stop()
– Static class initializer analogue for bundles
41

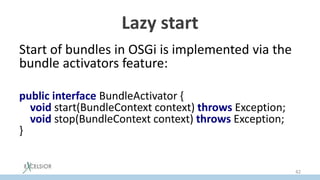

42. Lazy start
Start of bundles in OSGi is implemented via the
bundle activators feature:
public interface BundleActivator {
void start(BundleContext context) throws Exception;
void stop(BundleContext context) throws Exception;
}
42

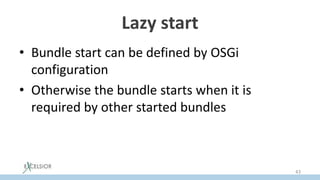

43. Lazy start
• Bundle start can be defined by OSGi
configuration
• Otherwise the bundle starts when it is
required by other started bundles
43

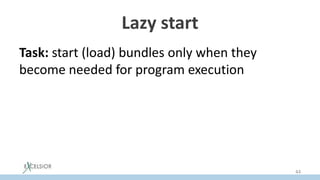

44. Lazy start
Task: start (load) bundles only when they
become needed for program execution
44

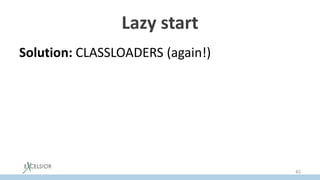

45. Lazy start
Solution: CLASSLOADERS (again!) in OSGi invoke
the start()method of the bundle activator
right before loading of the first class of a bundle
Since classloading in the JVM is lazy, bundle
activation becomes lazy AUTOMATICALLY
45

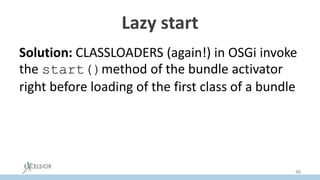

46. Lazy start
Solution: CLASSLOADERS (again!) in OSGi invoke
the start()method of the bundle activator
right before loading of the first class of a bundle
Since classloading in the JVM is lazy, bundle
activation becomes lazy AUTOMATICALLY
46

47. Lazy start
Solution: CLASSLOADERS (again!) in OSGi invoke
the start()method of the bundle activator
right before loading of the first class of a bundle
Since classloading in the JVM is lazy, bundle
activation becomes lazy AUTOMATICALLY
47

48. How OSGi?
All solved in one fell swoop!
48

49. 49

50. Why Not OSGi?
50

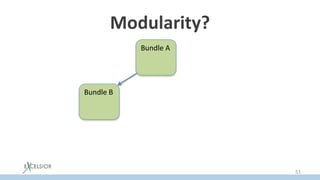

51. Modularity?
Bundle A
Bundle B
51

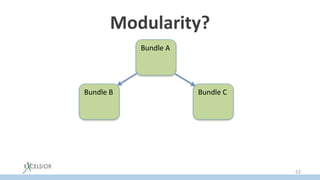

52. Modularity?
Bundle A
Bundle B Bundle C
52

53. Modularity?
Bundle A
Bundle B Bundle C
Bundle D
53

54. Modularity?
Bundle A
Bundle B Bundle C
Bundle D
54

55. Modularity?
Bundle A
Bundle B Bundle C
Bundle D
55

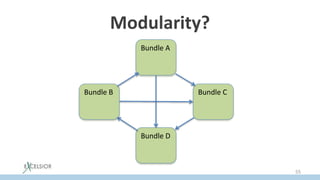

56. Modularity?
Bundle A
Bundle B Bundle C
Bundle D
56

57. Modularity?
OSGI allows cycles in
the dependency graph
Exercise: understand, why
that is bad
A
B C
D
57

58. On the fly updates?
58

59. On the fly updates?
Bundle ABundle B
59

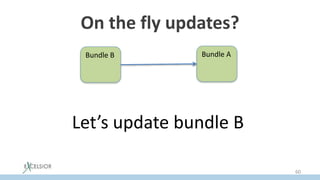

60. On the fly updates?
Bundle ABundle B
Let’s update bundle B
60

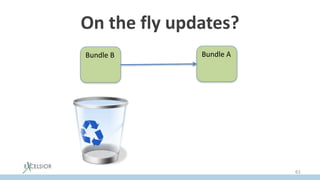

61. On the fly updates?
Bundle ABundle B
61

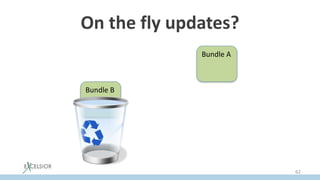

62. On the fly updates?
Bundle A
Bundle B
62

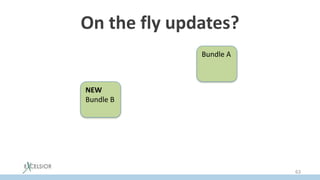

63. On the fly updates?
Bundle A
NEW
Bundle B
63

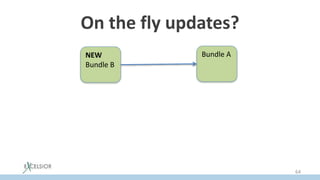

64. On the fly updates?
Bundle ANEW
Bundle B
64

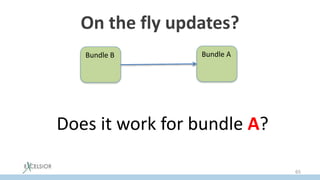

65. On the fly updates?
Bundle ABundle B
Does it work for bundle A?
65

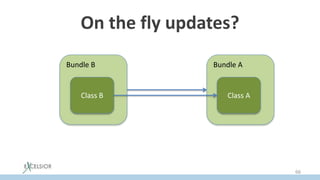

66. On the fly updates?
Bundle B
Class B
Bundle A
Class А
66

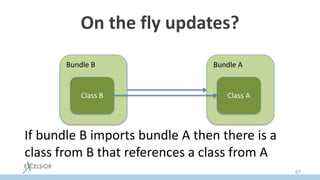

67. On the fly updates?
Bundle B
Class B
Bundle A
Class А
If bundle B imports bundle А then there is a
class from B that references a class from A
67

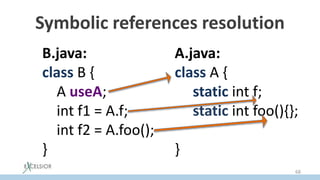

68. Symbolic references resolution
B.java:
class B {
A useA;
int f1 = A.f;
int f2 = A.foo();
}
A.java:
class A {
static int f;
static int foo(){};
}
68

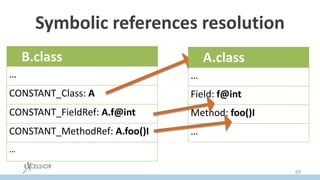

69. Symbolic references resolution
69
B.class
…
CONSTANT_Class: A
CONSTANT_FieldRef: A.f@int
CONSTANT_MethodRef: A.foo()I
…
A.class
…
Field: f@int
Method: foo()I
…

70. Symbolic references resolution
• A class references other classes and their
fields/methods symbolically
70

71. Symbolic references resolution
• A class references other classes and their
fields/methods symbolically
• JVM resolves those symbolic references with
real values at runtime

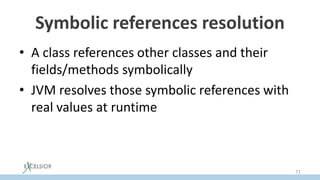

71

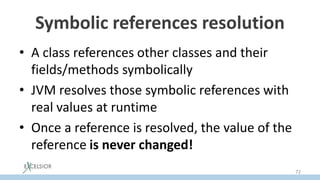

72. Symbolic references resolution
• A class references other classes and their
fields/methods symbolically
• JVM resolves those symbolic references with
real values at runtime
• Once a reference is resolved, the value of the
reference is never changed!
72

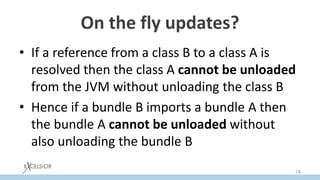

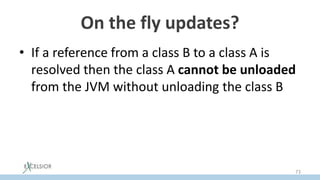

73. On the fly updates?
• If a reference from a class B to a class A is
resolved then the class А cannot be unloaded
from the JVM without unloading the class B
73

74. On the fly updates?
• If a reference from a class B to a class A is
resolved then the class А cannot be unloaded
from the JVM without unloading the class B
• Hence if a bundle В imports a bundle А then
the bundle А cannot be unloaded without
also unloading the bundle B
74

75. On the fly updates?
Bundle ABundle B
Let’s update bundle A
75

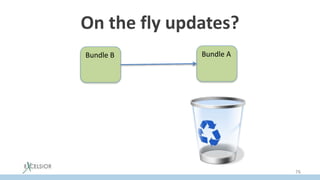

76. On the fly updates?
Bundle ABundle B
76

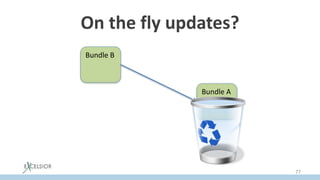

77. On the fly updates?
Bundle A
Bundle B
77

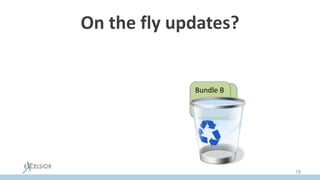

78. On the fly updates?
Бандл ABundle B
78

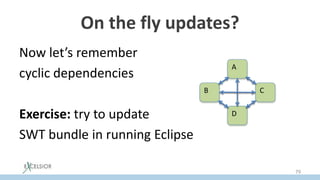

79. On the fly updates?
Now let’s remember
cyclic dependencies
Exercise: try to update
SWT bundle in running Eclipse
A
B C
D
79

80. 80

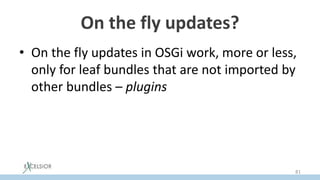

81. On the fly updates?
• On the fly updates in OSGi work, more or less,
only for leaf bundles that are not imported by
other bundles – plugins
81

82. On the fly updates?
• On the fly updates in OSGi work, more or less,
only for leaf bundles that are not imported by
other bundles – plugins
• There are much simpler ways than OSGi to
implement plugins
82

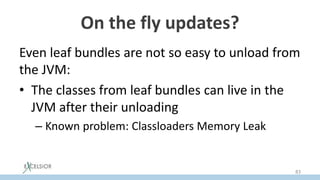

83. On the fly updates?
Even leaf bundles are not so easy to unload from
the JVM:
• The classes from leaf bundles can live in the
JVM after their unloading
– Known problem: Classloaders Memory Leak
83

84. One does not simply
unload a class from the JVM 84

85. Versioning?
85

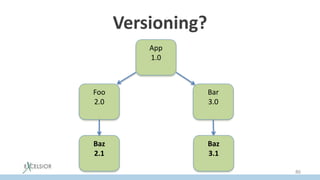

86. Versioning?
App
1.0
Foo
2.0
Bar
3.0
Baz
2.1
Baz
3.1
86

87. Versioning?
App
1.0
Foo
2.0
Bar
3.0
Baz
2.1
Baz
3.1
87

88. Versioning?
App
1.0
Foo
2.0
Bar
3.0
Baz
2.1
Baz
3.1
A
88

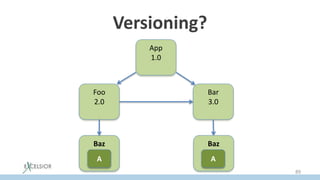

89. Versioning?
App
1.0
Foo
2.0
Bar
3.0
Baz
2.1
Baz
3.1
A A
89

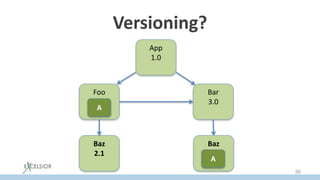

90. Versioning?
App
1.0
Foo
2.0
Bar
3.0
Baz
2.1
Baz
3.1
A
A
90

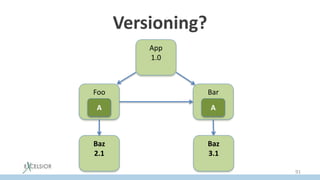

91. Versioning?
App
1.0
Foo
2.0
Bar
3.0
Baz
2.1
Baz
3.1
A A
91

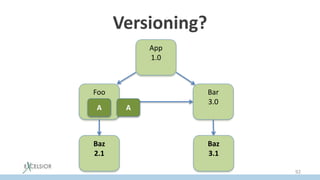

92. Versioning?
App
1.0
Foo
2.0
Bar
3.0
Baz
2.1
Baz
3.1
A A
92

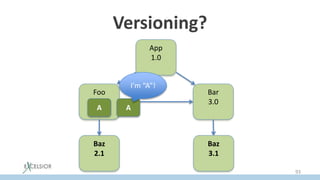

93. Versioning?
App
1.0
Foo
2.0
Bar
3.0
Baz
2.1
Baz
3.1
A A
I’m “A”!
93

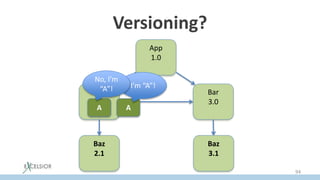

94. Versioning?
App
1.0
Foo
2.0
Bar
3.0
Baz
2.1
Baz
3.1
A A
I’m “A”!
No, I’m
“A”!
94

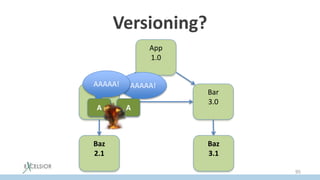

95. Versioning?
App
1.0
Foo
2.0
Bar
3.0
Baz
2.1
Baz
3.1
AAAAA!AAAAA!
AA
95

96. 96

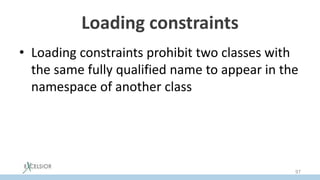

97. Loading constraints
• Loading constraints prohibit two classes with
the same fully qualified name to appear in the
namespace of another class
97

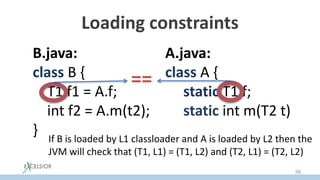

98. Loading constraints
B.java:
class B {
T1 f1 = A.f;
int f2 = A.m(t2);
}
A.java:
class A {
static T1 f;
static int m(T2 t)
If B is loaded by L1 classloader and A is loaded by L2 then the
JVM will check that (T1, L1) = (T1, L2) and (T2, L1) = (T2, L2)
==
98

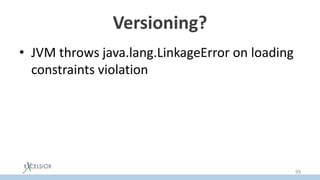

99. Versioning?
• JVM throws java.lang.LinkageError on loading
constraints violation
99

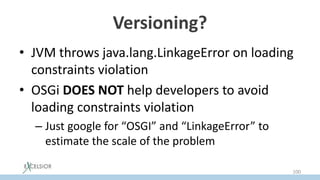

100. Versioning?
• JVM throws java.lang.LinkageError on loading
constraints violation
• OSGi DOES NOT help developers to avoid
loading constraints violation
– Just google for “OSGI” and “LinkageError” to
estimate the scale of the problem
100

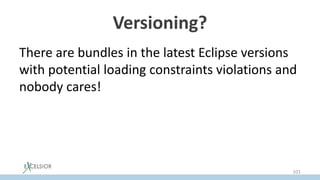

101. Versioning?
There are bundles in the latest Eclipse versions
with potential loading constraints violations and
nobody cares!
101

102. Versioning?
Conclusion: OSGi does not solve JAR Hell but
raises it to a new, more sophisticated level.
102

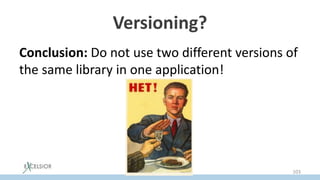

103. Versioning?
Conclusion: Do not use two different versions of
the same library in one application!
103

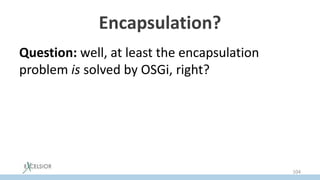

104. Encapsulation?
Question: well, at least the encapsulation
problem is solved by OSGi, right?
104

105. Reflection – universal countermeasure
against encapsulation in Java
Encapsulation?
setAccessible(true)
105

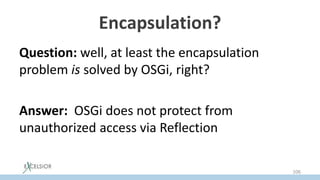

106. Encapsulation?
Question: well, at least the encapsulation
problem is solved by OSGi, right?
Answer: OSGi does not protect from
unauthorized access via Reflection
106

107. Lazy start?
107

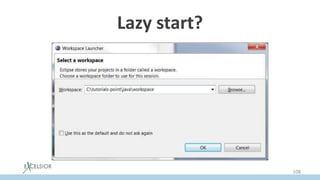

108. Lazy start?
108

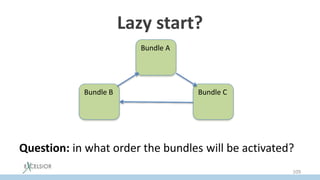

109. Lazy start?
Bundle A
Bundle B Bundle C
Question: in what order the bundles will be activated?
109

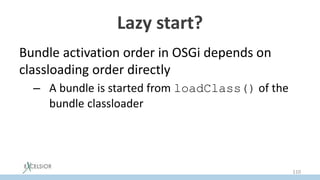

110. Lazy start?
Bundle activation order in OSGi depends on
classloading order directly
– A bundle is started from loadClass() of the
bundle classloader
110

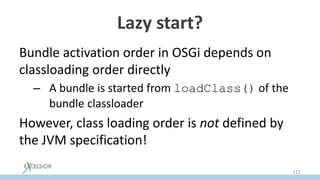

111. Lazy start?
Bundle activation order in OSGi depends on
classloading order directly
– A bundle is started from loadClass() of the
bundle classloader
However, class loading order is not defined by
the JVM specification!
111

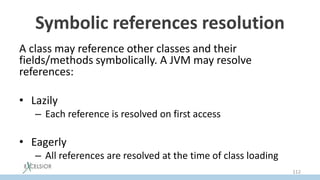

112. Symbolic references resolution
A class may reference other classes and their
fields/methods symbolically. A JVM may resolve
references:
• Lazily
– Each reference is resolved on first access
• Eagerly
– All references are resolved at the time of class loading
112

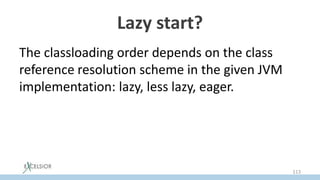

113. Lazy start?
The classloading order depends on the class
reference resolution scheme in the given JVM
implementation: lazy, less lazy, eager.
113

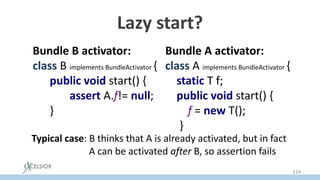

114. Lazy start?
Bundle B activator:
class B implements BundleActivator {
public void start() {
assert A.f!= null;
}
Bundle A activator:
class A implements BundleActivator {
static T f;
public void start() {
f = new T();
}
Typical case: В thinks that А is already activated, but in fact
А can be activated after B, so assertion fails
114

115. Lazy start?
• Bundle activation scheme in OSGi is a time
bomb:
– If the JVM starts to resolve class references less
lazily, practically all OSGi applications will stop
working
115

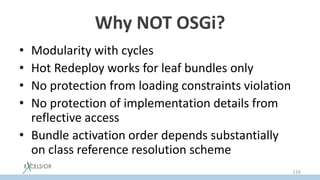

116. Why NOT OSGi?
• Modularity with cycles
• Hot Redeploy works for leaf bundles only
• No protection from loading constraints violation
• No protection of implementation details from
reflective access
• Bundle activation order depends substantially
on class reference resolution scheme
116

117. Jigsaw
117

118. Jigsaw
118

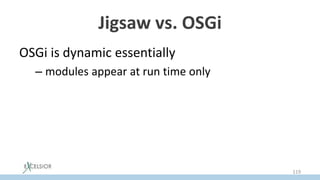

119. Jigsaw vs. OSGi
OSGi is dynamic essentially
– modules appear at run time only
119

120. Jigsaw vs. OSGi
Jigsaw was thought up as static from the beginning.
Practically all JDK tools know about modules:
– javac: respects modules visibility rules
– jdeps: analyses dependencies
– jar, jmod: pack modules
– jlink: prepares final image for deployment
– java: there are modules in runtime as well
120

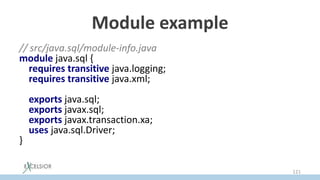

121. Module example
// src/java.sql/module-info.java
module java.sql {
requires transitive java.logging;
requires transitive java.xml;
exports java.sql;
exports javax.sql;
exports javax.transaction.xa;
uses java.sql.Driver;
}
121

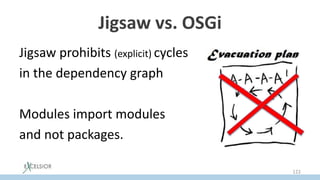

122. Jigsaw vs. OSGi
Jigsaw prohibits (explicit) cycles
in the dependency graph
Modules import modules
and not packages.
122

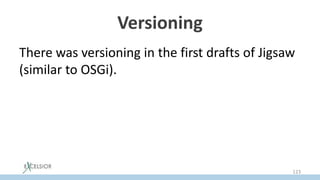

123. Versioning
There was versioning in the first drafts of Jigsaw
(similar to OSGi).
123

124. Versioning
There was versioning in the first drafts of Jigsaw
(similar to OSGi).
However versioning was removed later …
124

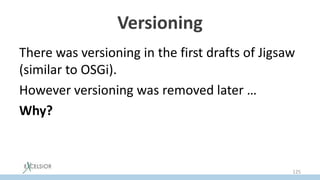

125. Versioning
There was versioning in the first drafts of Jigsaw
(similar to OSGi).
However versioning was removed later …
Why?
125

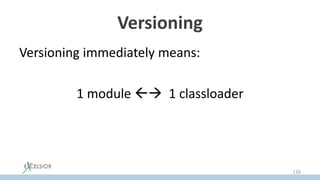

126. Versioning
Versioning immediately means:
1 module  1 classloader
126

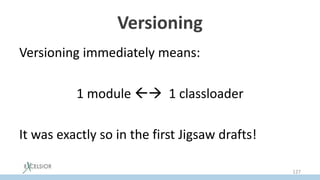

127. Versioning
Versioning immediately means:
1 module  1 classloader
It was exactly so in the first Jigsaw drafts!
127

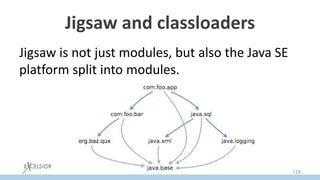

128. Jigsaw and classloaders
Jigsaw is not just modules, but also the Java SE
platform split into modules.
128

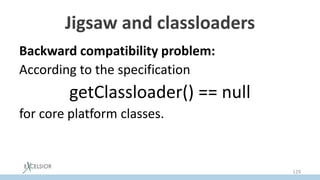

129. Jigsaw and classloaders
Backward compatibility problem:
According to the specification
getClassloader() == null
for core platform classes.то противоречит
That precludes splitting of the platform into
modules, with each module loaded by its loader
129

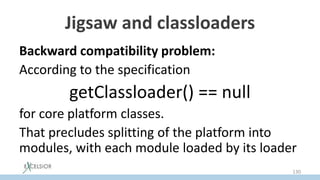

130. Jigsaw and classloaders
Backward compatibility problem:
According to the specification
getClassloader() == null
for core platform classes.то противоречит
That precludes splitting of the platform into
modules, with each module loaded by its loader
130

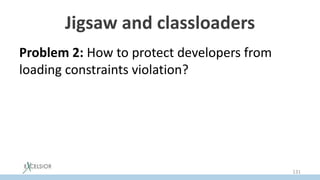

131. Jigsaw and classloaders
Problem 2: How to protect developers from
loading constraints violation?
131

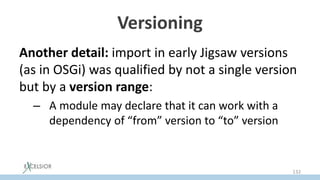

132. Versioning
Another detail: import in early Jigsaw versions
(as in OSGi) was qualified by not a single version
but by а version range:
– A module may declare that it can work with a
dependency of “from” version to “to” version
132

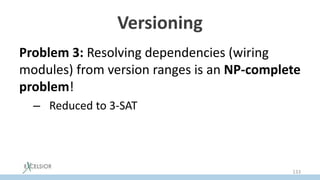

133. Versioning
Problem 3: Resolving dependencies (wiring
modules) from version ranges is an NP-complete
problem!
– Reduced to 3-SAT
133

134. Versioning
… after that versioning in JPMS breathed its last.
134

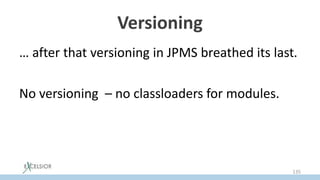

135. Versioning
… after that versioning in JPMS breathed its last.
No versioning – no classloaders for modules.
135

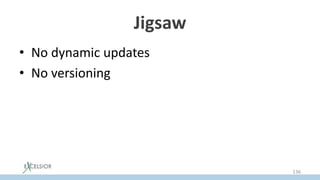

136. Jigsaw
• No dynamic updates
• No versioning
136

137. Jigsaw
• No dynamic updates
• No versioning
So what does it have?
137

138. Jigsaw Mantra
Reliable
Configuration
Strong
Encapsulation
138

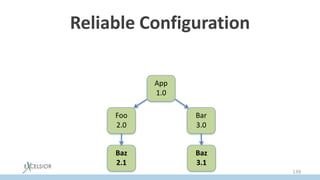

139. Reliable Configuration
Такая ситуация в Jigsaw просто запрещена!
App
1.0
Foo
2.0
Bar
3.0
Baz
2.1
Baz
3.1
139

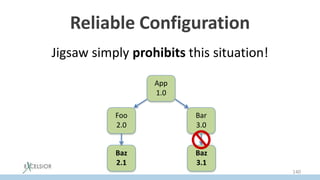

140. Reliable Configuration
Jigsaw simply prohibits this situation!
App
1.0
Foo
2.0
Bar
3.0
Baz
2.1
Baz
3.1
140

141. Reliable Configuration
Right (reliable) configuration:
App
1.0
Foo
2.5
Bar
3.0
Baz
3.1
141

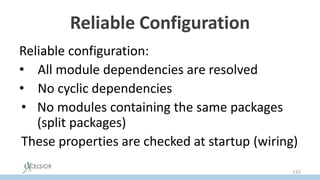

142. Reliable Configuration
Reliable configuration:
• All module dependencies are resolved
• No cyclic dependencies
• No modules containing the same packages
(split packages)
These properties are checked at startup (wiring)
142

143. Strong Encapsulation
setAccessible(true)
143

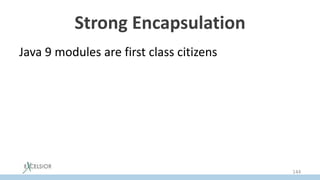

144. Strong Encapsulation
Java 9 modules are first class citizens
• Define visibility access rules
– via declared export
• There is no access to non-exported functionality
outside of the module even via reflection
– Even setAccessible(true) does not work
144

145. Strong Encapsulation
Java 9 modules are first class citizens
• Define visibility access rules
– via declared export
• There is no access to non-exported functionality
outside of the module even via reflection
– Even setAccessible(true) does not work
145

146. Strong Encapsulation
Java 9 modules are first class citizens
• Define visibility access rules
– via declared export
• There is no access to non-exported functionality
outside of the module even via reflection
– Even setAccessible(true) does not work
146

147. So Jigsaw does not have problems?
147

148. 148

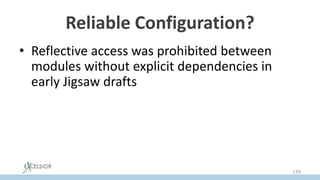

149. Reliable Configuration?
• Reflective access was prohibited between
modules without explicit dependencies in
early Jigsaw drafts
• However it had to be relaxed when
classloaders had gone from JPMS
– because Class.forName() has to work
backward compatible
149

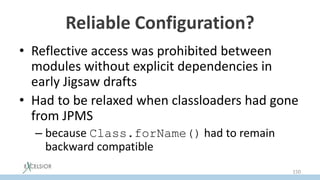

150. Reliable Configuration?
• Reflective access was prohibited between
modules without explicit dependencies in
early Jigsaw drafts
• Had to be relaxed when classloaders had gone
from JPMS
– because Class.forName() had to remain
backward compatible
150

151. Reliable Configuration?
However if you may have reflective
dependencies that are not explicitly declared,
where is the guarantee that the resulting
configuration is reliable?
151

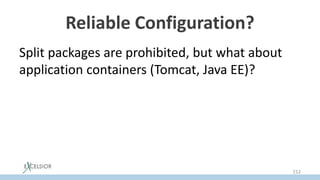

152. Reliable Configuration?
Split packages are prohibited, but what about
application containers (Tomcat, Java EE)?
152

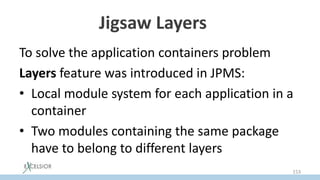

153. Jigsaw Layers *
To solve the application containers problem
Layers feature was introduced in JPMS:
• Local module system for each application in a
container
• Two modules containing the same package
have to belong to different layers
153

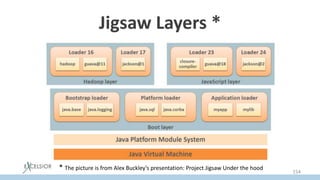

154. Jigsaw Layers *
* The picture is from Alex Buckley’s presentation: Project Jigsaw Under the hood
154

155. Strong Encapsulation?
155

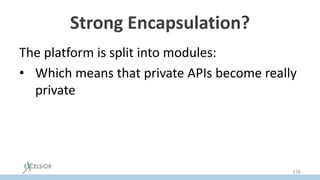

156. Strong Encapsulation?
The platform is split into modules:
• Which means that private APIs become really
private
156

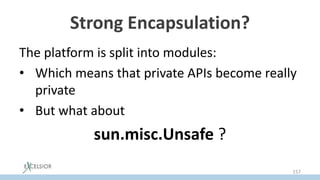

157. Strong Encapsulation?
The platform is split into modules:
• Which means that private APIs become really
private
• But what about
sun.misc.Unsafe ?
157

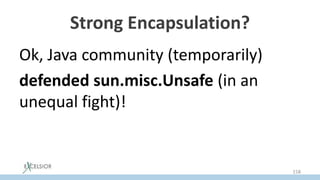

158. Strong Encapsulation?
Ok, Java community (temporarily)
defended sun.misc.Unsafe (in an
unequal fight)!
158

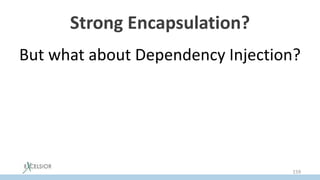

159. Strong Encapsulation?
But what about Dependency Injection?
159

160. Strong Encapsulation?
DI frameworks essentially depend on:
• reflective access to the code in
which they inject dependencies
• including non-exported code
160

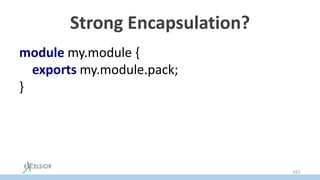

161. Strong Encapsulation?
module my.module {
exports my.module.pack;
}
161

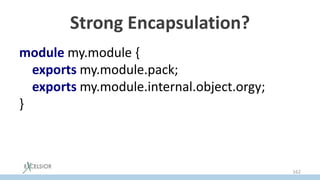

162. Strong Encapsulation?
module my.module {
exports my.module.pack;
exports my.module.internal.object.orgy;
}
162

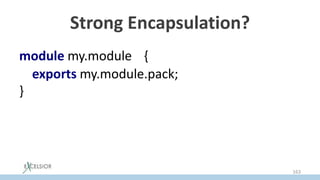

163. Strong Encapsulation?
module my.moduleO{
exports my.module.pack;
}
163

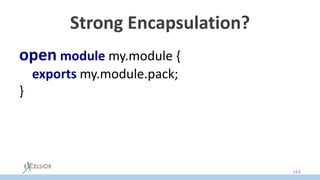

164. Strong Encapsulation?
open module my.module {
exports my.module.pack;
}
164

165. Strong Encapsulation?
Open modules were introduced to solve the DI
frameworks problem:
• An open module allows reflective access to its
non-exported functionality
165

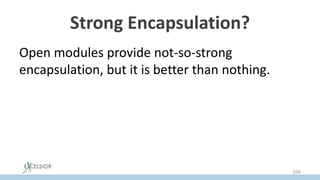

166. Strong Encapsulation?
Open modules provide not-so-strong
encapsulation, but it is better than nothing.
166

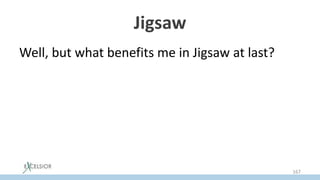

167. Jigsaw
Well, but what benefits me in Jigsaw at last?
167

168. Jigsaw benefits
If all your dependencies are on the classpath now,
migrating to the modulepath would improve the
architecture of your application by eliminating:
• cycles in the dependencies
• split packages (jar hell)
• unsound access into implementation details of
other modules
• dependencies to JDK private API
168

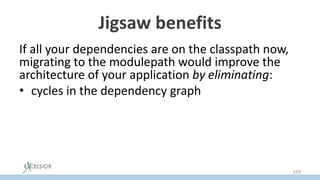

169. Jigsaw benefits
If all your dependencies are on the classpath now,
migrating to the modulepath would improve the
architecture of your application by eliminating:
• cycles in the dependency graph
• split packages (jar hell)
• unsound access into implementation details of
other modules
• dependencies to JDK private API
169

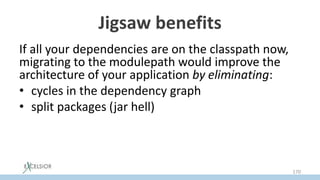

170. Jigsaw benefits
If all your dependencies are on the classpath now,
migrating to the modulepath would improve the
architecture of your application by eliminating:
• cycles in the dependency graph
• split packages (jar hell)
• unsound access into implementation details of
other modules
• dependencies to JDK private API
170

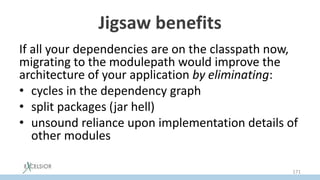

171. Jigsaw benefits
If all your dependencies are on the classpath now,
migrating to the modulepath would improve the
architecture of your application by eliminating:
• cycles in the dependency graph
• split packages (jar hell)
• unsound reliance upon implementation details of
other modules
• dependencies to JDK private API
171

172. Jigsaw benefits
If all your dependencies are on the classpath now,
migrating to the modulepath would improve the
architecture of your application by eliminating:
• cycles in the dependency graph
• split packages (jar hell)
• unsound reliance upon implementation details of
other modules
• dependencies on JDK private APIs
172

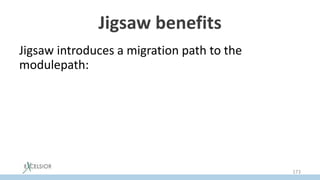

173. Jigsaw benefits
Jigsaw introduces a migration path to the
modulepath:
• Old classpath forms Unnamed Modulе
• Jars from classpath may be temporally moved as
is to modulepath as Auto Modules
• Module declaration can be added to auto
modules later
173

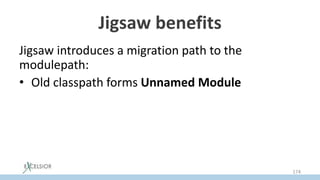

174. Jigsaw benefits
Jigsaw introduces a migration path to the
modulepath:
• Old classpath forms Unnamed Module
• Jars from classpath may be temporally moved as
is to modulepath as Auto Modules
• Module declaration can be added to auto
modules later
174

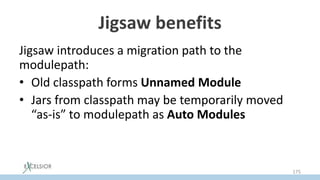

175. Jigsaw benefits
Jigsaw introduces a migration path to the
modulepath:
• Old classpath forms Unnamed Modulе
• Jars from classpath may be temporarily moved
“as-is” to modulepath as Auto Modules
• Module declaration can be added to auto
modules later
175

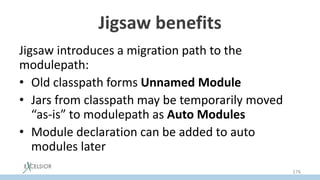

176. Jigsaw benefits
Jigsaw introduces a migration path to the
modulepath:
• Old classpath forms Unnamed Modulе
• Jars from classpath may be temporarily moved
“as-is” to modulepath as Auto Modules
• Module declaration can be added to auto
modules later
176

177. Jigsaw benefits
Unfortunately, most Java developers won’t benefit
from JPMS immediately:
• Java EE standards do not define how they will
interoperate with JPMS yet
• Even servlet containers standard knows nothing
about modules so far
– Dependencies in war файлах are essentially old plain
classpath!
177

178. Jigsaw benefits
Unfortunately, most Java developers won’t benefit
from JPMS immediately:
• Java EE standards do not define how they will
interoperate with JPMS yet
• Even the servlet container standard knows
nothing about modules so far
– Dependencies in war files are old plain classpath in
fact!
178

179. The birth is inevitable!
179

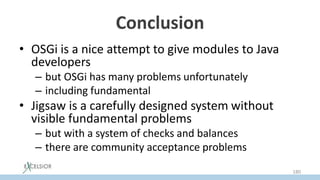

180. Conclusion
• OSGi is a nice attempt to give modules to Java
developers
– but OSGi has many problems unfortunately
– including fundamental
• Jigsaw is a carefully designed system without
visible fundamental problems
– but with a system of checks and balances
– there are community acceptance problems
180

181. Q & A
Nikita Lipsky,
Excelsior
nlipsky@excelsior-usa.com
twitter: @pjBooms 181
