A Hitchhiker's Tour to
Containerizing a (Java)
Application
Nicolas Fränkel

@nicolas_frankel
Me, myself and I
 Former developer, team lead, architect,
blah-blah
 Developer Advocate
 Curious about Containerization, Docker
& Kubernetes

@nicolas_frankel
Hazelcast
HAZELCAST IMDG is an operational,
in-memory, distributed computing
platform that manages data using
in-memory storage and performs
execution for breakthrough
and scale.
HAZELCAST JET is the ultra
fast, application embeddable,
3rd generation stream
processing engine for low
latency batch and stream
processing.

@nicolas_frankel

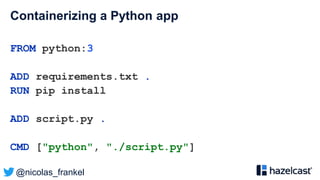

Containerizing a Python app
FROM python:3
ADD requirements.txt .
RUN pip install
ADD script.py .
CMD ["python", "./script.py"]

@nicolas_frankel

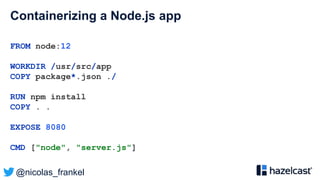

Containerizing a Node.js app
FROM node:12
WORKDIR /usr/src/app
COPY package*.json ./
RUN npm install
COPY . .
EXPOSE 8080
CMD ["node", "server.js"]

@nicolas_frankel

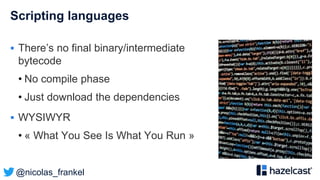

Scripting languages
 There’s no final binary/intermediate
bytecode
• No compile phase
• Just download the dependencies
 WYSIWYR
• « What You See Is What You Run »

@nicolas_frankel

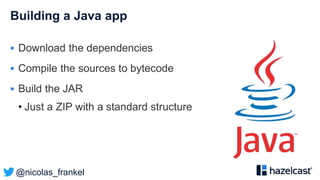

Building a Java app
 Download the dependencies
 Compile the sources to bytecode
 Build the JAR
• Just a ZIP with a standard structure

@nicolas_frankel

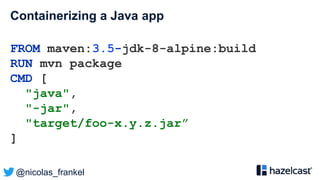

Containerizing a Java app
FROM maven:3.5-jdk-8-alpine:build
RUN mvn package
CMD [
"java",
"-jar",
"target/foo-x.y.z.jar”
]

@nicolas_frankel

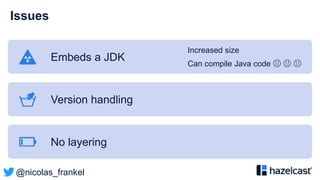

Issues
Embeds a JDK
Increased size
Can compile Java code 😱 😱 😱
Version handling
No layering

@nicolas_frankel

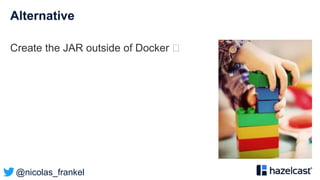

Alternative
Create the JAR outside of Docker 🤔

@nicolas_frankel
Sampleapplication

@nicolas_frankel

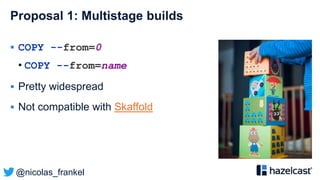

Proposal 1: Multistage builds
 COPY --from=0
• COPY --from=name
 Pretty widespread
 Not compatible with Skaffold

@nicolas_frankel

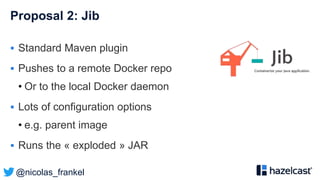

Proposal 2: Jib
 Standard Maven plugin
 Pushes to a remote Docker repo
• Or to the local Docker daemon
 Lots of configuration options
• e.g. parent image
 Runs the « exploded » JAR

@nicolas_frankel

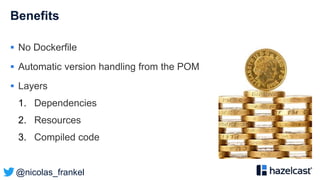

Benefits
 No Dockerfile
 Automatic version handling from the POM
 Layers
1. Dependencies
2. Resources
3. Compiled code

@nicolas_frankel
Are those layers enough?
 What about SNAPSHOT dependencies?

@nicolas_frankel
Solution 3: Layer-aware multi-stage build
 Spring Boot is able to create a Docker-
friendly layered output

@nicolas_frankel

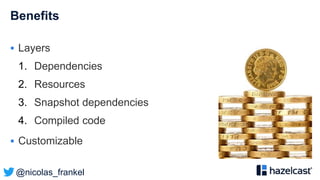

Benefits
 Layers
1. Dependencies
2. Resources
3. Snapshot dependencies
4. Compiled code
 Customizable

@nicolas_frankel

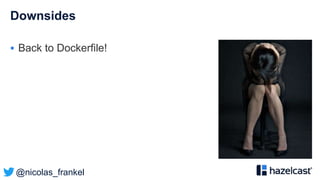

Downsides
 Back to Dockerfile!

@nicolas_frankel

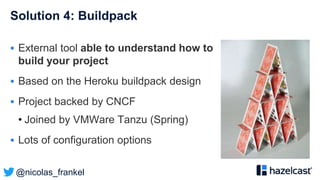

Solution 4: Buildpack
 External tool able to understand how to
build your project
 Based on the Heroku buildpack design
 Project backed by CNCF
• Joined by VMWare Tanzu (Spring)

@nicolas_frankel

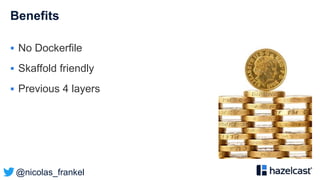

Benefits
 No Dockerfile
 Skaffold friendly
 Previous 4 layers

@nicolas_frankel

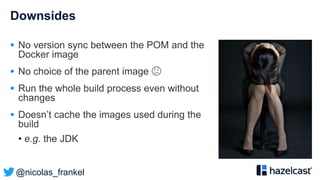

Downsides
 No version sync between the POM and the
Docker image
 No choice of the parent image 😕
 Run the whole build process even without
changes
 Doesn’t cache the images used during the
build
• e.g. the JDK

@nicolas_frankel

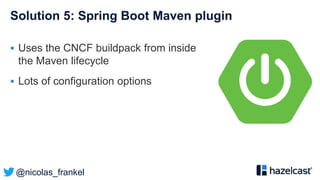

Solution 5: Spring Boot Maven plugin
 Uses the CNCF buildpack from inside
the Maven lifecycle

@nicolas_frankel

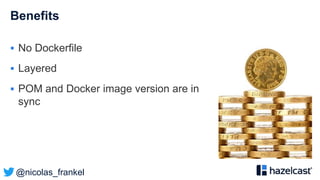

Benefits
 No Dockerfile
 Layered
 POM and Docker image version are in
sync

@nicolas_frankel

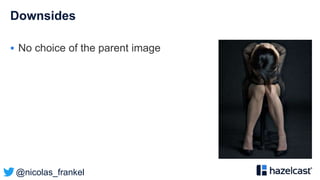

Downsides
 No choice of the parent image

@nicolas_frankel

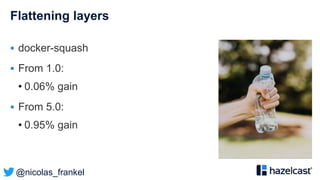

Flattening layers
 docker-squash
 From 1.0:
• 0.06% gain
 From 5.0:
• 0.95% gain

@nicolas_frankel
Recap
 Sync version between the POM and the
 Organize layers for faster development
 Squash might not be that useful

@nicolas_frankel
Thanks for your attention!
 https://blog.frankel.ch/
 @nicolas_frankel
 http://bit.ly/containerinzing-apps
