Continuous Delivery with Containers Guide

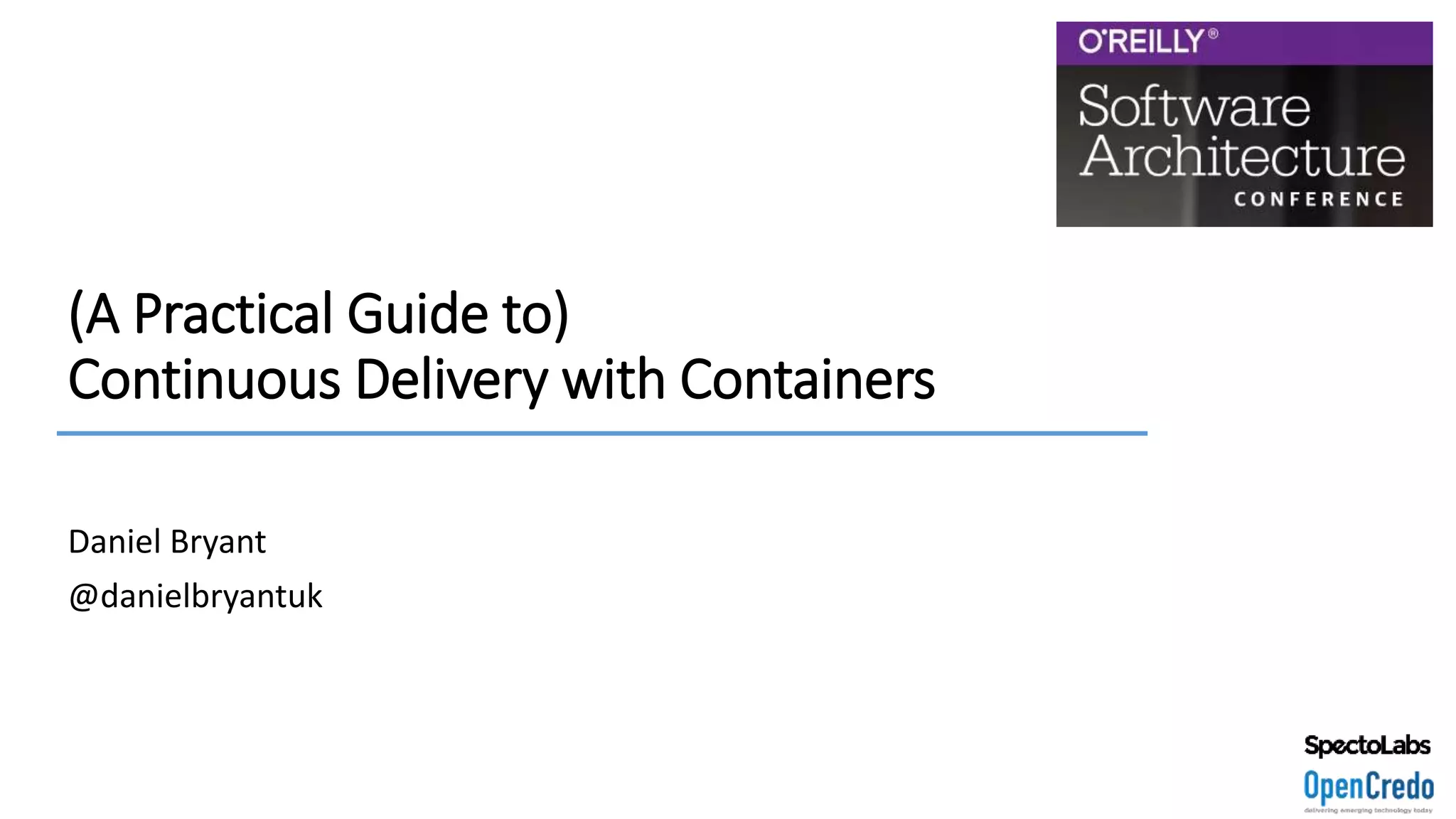

- 1. (A Practical Guide to) Continuous Delivery with Containers Daniel Bryant @danielbryantuk

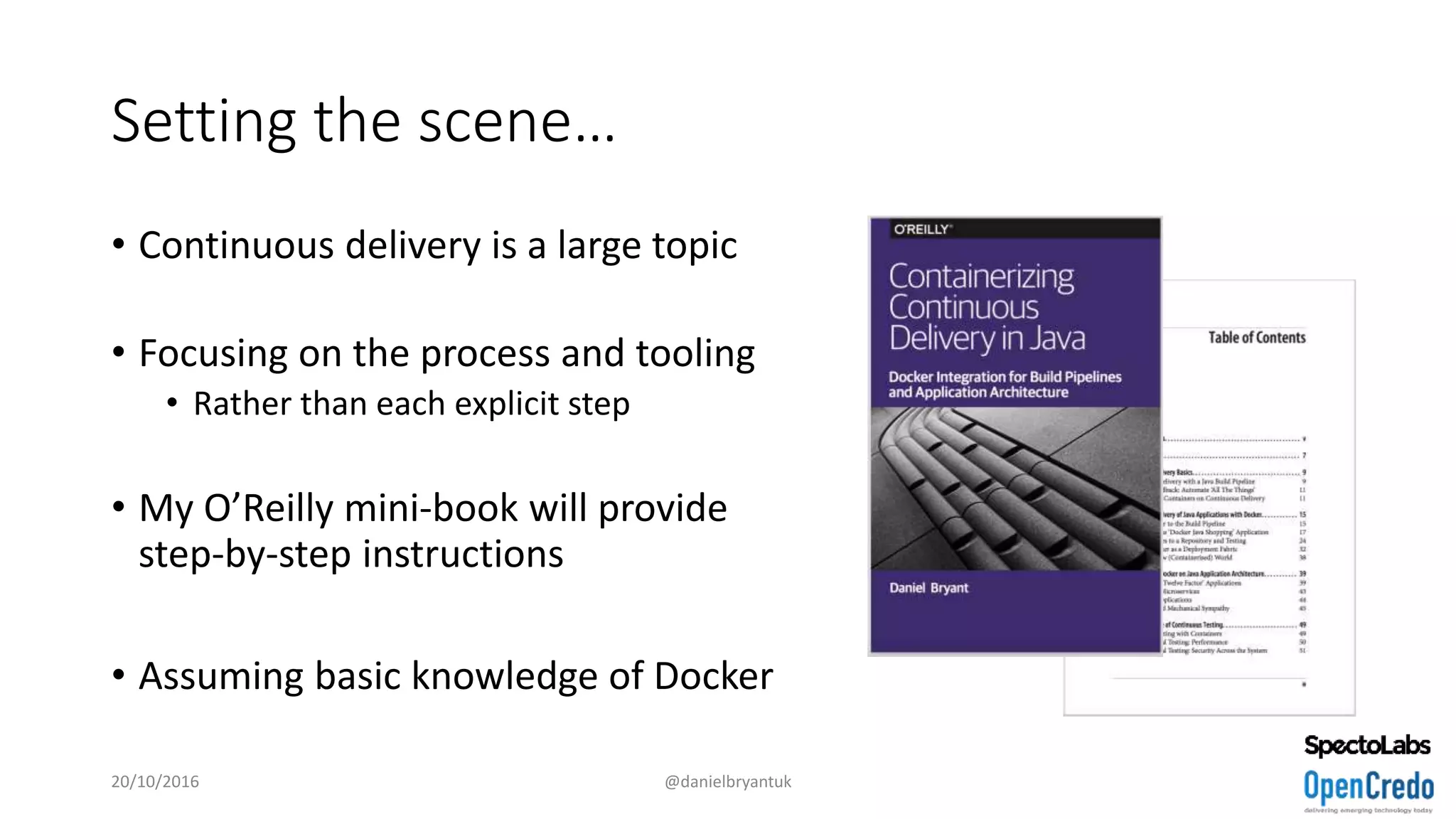

- 2. Setting the scene… • Continuous delivery is a large topic • Focusing on the process and tooling • Rather than each explicit step • My O’Reilly mini-book will provide step-by-step instructions • Assuming basic knowledge of Docker 20/10/2016 @danielbryantuk
- 3. Today… • Continuous Delivery (CD) • The impact of containers on CD • Creating a container pipeline • Migrations: Architectural guidance • Lessons learned the hard way 20/10/2016 @danielbryantuk
- 4. @danielbryantuk • Chief Scientist at OpenCredo, CTO at SpectoLabs • Agile, architecture, CI/CD, DevOps • Java, Go, JS, microservices, cloud, containers • Leading change through the application of technology and teams • London Java Community Associate • InfoQ Editor, DZone MVB, O’Reilly… • Conference regular: Devoxx, JavaOne, QCon… 20/10/2016 @danielbryantuk
- 6. Continuous Delivery • Produce valuable and robust software in short cycles • Optimising for feedback and learning • Not (necessarily) Continuous Deployment 20/10/2016 @danielbryantuk
- 7. Creation of a build pipeline is mandatory for continuous delivery 20/10/2016 @danielbryantuk
- 9. The Impact of Containers on CD 20/10/2016 @danielbryantuk
- 10. Containers: Expectations versus reality 20/10/2016 @danielbryantuk “DevOps”
- 11. Container technology • OS-level virtualisation • cgroups, namespaces, rootfs • Technology to package and execute software • The container image becomes the source of truth • Mechanical sympathy is vital 20/10/2016 @danielbryantuk
- 12. We’ll focus on Docker today • Docker images are built via a Dockerfile • docker build –t danielbryantuk/test:1.4 • Publish images • docker push danielbryantuk/test:1.4 • Download images • docker pull danielbryantuk/test:1.4 • Run an image as a container • docker run –p 80:80 danielbryantuk/test:1.4 20/10/2016 @danielbryantuk
- 15. Quick interuption: Microservices… • Containers and microservices are complementary • Not covering details for deploying microservices today • But if you are interested: • Consumer-based contracts • Service virtualisation • Synthetic transactions and semantic monitoring 20/10/2016 @danielbryantuk https://specto.io/blog/recipe-for-designing-building-testing-microservices.html
- 19. Creating a Pipeline for Containers 20/10/2016 @danielbryantuk
- 21. Make your dev environment like production • Develop locally or copy/code in container • Ensure language runtime/SDK is synced • Must build/test containers locally • Perform (at least) happy path tests before pushing code • All tests should be runnable locally 20/10/2016 @danielbryantuk
- 22. What to put in the Dockerfile • OS choice • Exposed to OS (often implictly?) • Choose lightweight OS if possible e.g. Alpine, Debian Jessie • Configuration • Build artifacts • Exposing ports • Java • JDK vs JRE • Oracle vs OpenJDK • Golang • Statically compiled binary • Python • Virtualenv 20/10/2016 @danielbryantuk
- 23. Please talk to the sysadmin people: Their operational knowledge is invaluable 20/10/2016 @danielbryantuk
- 24. Different dev and test containers? • Test container • Full OS (e.g. Ubuntu) • JDK • Test tools • Test data • Easy to see configuration drift • Interesting ONTEST proposal by Alexi Ledenev 20/10/2016 @danielbryantuk http://blog.terranillius.com/post/docker_testing/
- 26. Building images with Jenkins • Standard Jenkins Java • Gradle or Maven • SonarQube for code quality • (Optionally) push to artifact repo • Nexus and Artifactory support Java artifacts and Docker images • Build Docker Image • Cloudbees Docker Build and Publish Plugin 20/10/2016 @danielbryantuk
- 28. Storing in an image registry (DockerHub) 20/10/2016 @danielbryantuk
- 30. A little context… 20/10/2016 @danielbryantuk
- 31. Introducing Docker Compose 20/10/2016 @danielbryantuk
- 32. Testing: Jenkins Pipeline as Code 20/10/2016 @danielbryantuk
- 33. Testing: Jenkins Pipeline as Code 20/10/2016 @danielbryantuk
- 37. Docker Compose & Jenkins Pipelines 20/10/2016 @danielbryantuk
- 38. Testing: Functional • Automate all the things! • Deploy to realistic environments • API-driven functional • REST-assured • UI-driven functional • Selenium • Serenity BDD • Geb 20/10/2016 @danielbryantuk
- 39. Testing: NFRs • Execution (runtime) • Security • Observability • Evolvability (static) • Testabillity • Maintainability • Scalability • Extensibility 20/10/2016 @danielbryantuk
- 40. Testing: NFRs • Security testing • Findsecbugs • OWASP Dependency check • Bdd-security (OWASP ZAP) / Arachni • Gauntlt / Serverspec • Docker Bench for Security / AQUA • Performance and Load testing • Gatling / Jmeter • Flood.io 20/10/2016 @danielbryantuk
- 41. Special mention: Container security testing 20/10/2016 @danielbryantuk
- 43. Special mention: Fault tolerance testing 20/10/2016 @danielbryantuk
- 44. Fault tolerance 20/10/2016 @danielbryantuk techblog.netflix.com/2016/10/netflix-chaos-monkey-upgraded.html github.com/tomakehurst/saboteur
- 45. Hoverfly • Lightweight Service virtualisation • Open source (Apache 2.0) • Go-based / single binary • Written by @Spectolabs • Flexible API simulation • HTTP / HTTPS • Highly performant 20/10/2016 @danielbryantuk
- 46. 20/10/2016 @danielbryantuk • Middleware • Remove PII • Rate limit • Add headers • Middleware • Fault injection • Chaos monkey
- 48. Deploy • Test environments should represent production (as much as possible) • Fan-in infrastructure pipelines with applications as soon as possible • Ask yourself: Do you really want to create a container platform? 20/10/2016 @danielbryantuk
- 49. Don’t underestimate the value of PaaS… 20/10/2016 @danielbryantuk | @spoole167 49
- 51. When bad things happen, people are at the center 20/10/2016 @danielbryantuk | @oakinger
- 52. Monitoring is vital with continuous delivery • Host monitoring • Container monitoring • Application monitoring 20/10/2016 @danielbryantuk https://github.com /Kentik/docker-monitor
- 53. Migrations: Architectural Guidance 20/10/2016 @danielbryantuk
- 54. Containerise the monolith? • For • We know the monolith well • Allows homogenization of the pipeline and deployment platform • Can be a demonstrable win for tech and the business • Against • Can be difficult (100+ line scripts) • Often not designed for operation within containers, nor cloud native • Putting lipstick on a pig? 20/10/2016 @danielbryantuk
- 55. Key lessons learned • Conduct an architectural review • Architecture for Developers, by Simon Brown • Architecture Interview, by Susan Fowler • Look for data ingress/egress • File system access • Support resource constraints/transience • Optimise for quick startup and shutdown • Evaluate approach to concurrency • Store configuration (secrets) remotely 20/10/2016 @danielbryantuk
- 56. Containers and cloud: Design for failure • Distributed Computing Principles • Jeff Hodges ‘Distributed Systems’ (bit.ly/1FeaVtt) • Scalable Web Architecture (bit.ly/1tt703O) • ‘For young bloods’ (bit.ly/1pKVepz) • Design patterns • Timeouts / retries • Bulkheads / circuit-breakers 20/10/2016 @danielbryantuk
- 57. New design patterns 20/10/2016 @danielbryantuk bit.ly/2efe0TP
- 58. Using containers does not obviate the need for good architecture 20/10/2016 @danielbryantuk
- 60. Lessons Learned the Hard Way 20/10/2016 @danielbryantuk
- 61. Miscellaneous (but vital) • Beware of the ‘latest’ Docker tag • Properly version your containers • Metadata is vital • Labels can be valuable • h/t MicroBadger • www.notonthehighstreet.com case study and learnings • http://bit.ly/1PMlpIL 20/10/2016 @danielbryantuk
- 62. Mechanical sympathy: Docker and Java • Set container memory appropriately • JVM requirements = Heap size (Xmx) + Metaspace + JVM overhead • Account for native thread requirements e.g. thread stack size (Xss) • Default fork/join thread pool sizes (based from host CPU count) • Watch out for ulimits • Entropy • Host entropy can soon be exhausted by crypto operations • –Djava.security.egd=file:/dev/urandom • Be aware of security ramifications 20/10/2016 @danielbryantuk | @spoole167 62
- 64. In summary • Continuous delivery is vitally important in modern architectures/ops • Container images must be the (single) source of truth within pipeline • Mechanical sympathy is important (assert properties in the pipeline) • We’re now bundling more into our artifact (e.g. an OS) • Not all developers are operationally aware • The tooling is now becoming stable/mature • We need to re-apply old CD practices with new technologies/tooling 20/10/2016 @danielbryantuk
- 66. Thanks for listening • Any questions? • Feel free to contact me • @danielbryantuk • daniel.bryant@opencredo.com 20/10/2016 @danielbryantuk
