The document summarizes a RESTful API for interacting with git repositories. It describes using standard HTTP methods like GET, POST, PUT, and DELETE to retrieve commits, files, diffs, clone repositories, and more. It also discusses implementing the API as OSGi services using Jetty and testing it with JUnit and coverage of 84%.

1. Orion: RESTful git API
Tomasz Żarna
Eclipse PlatformWorkspace/Orion, IBM

2. Orion: RESTful git API | Copyright © IBM Corp., 2011. All rights reserved. Source code in this presentation is made available under
the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license.

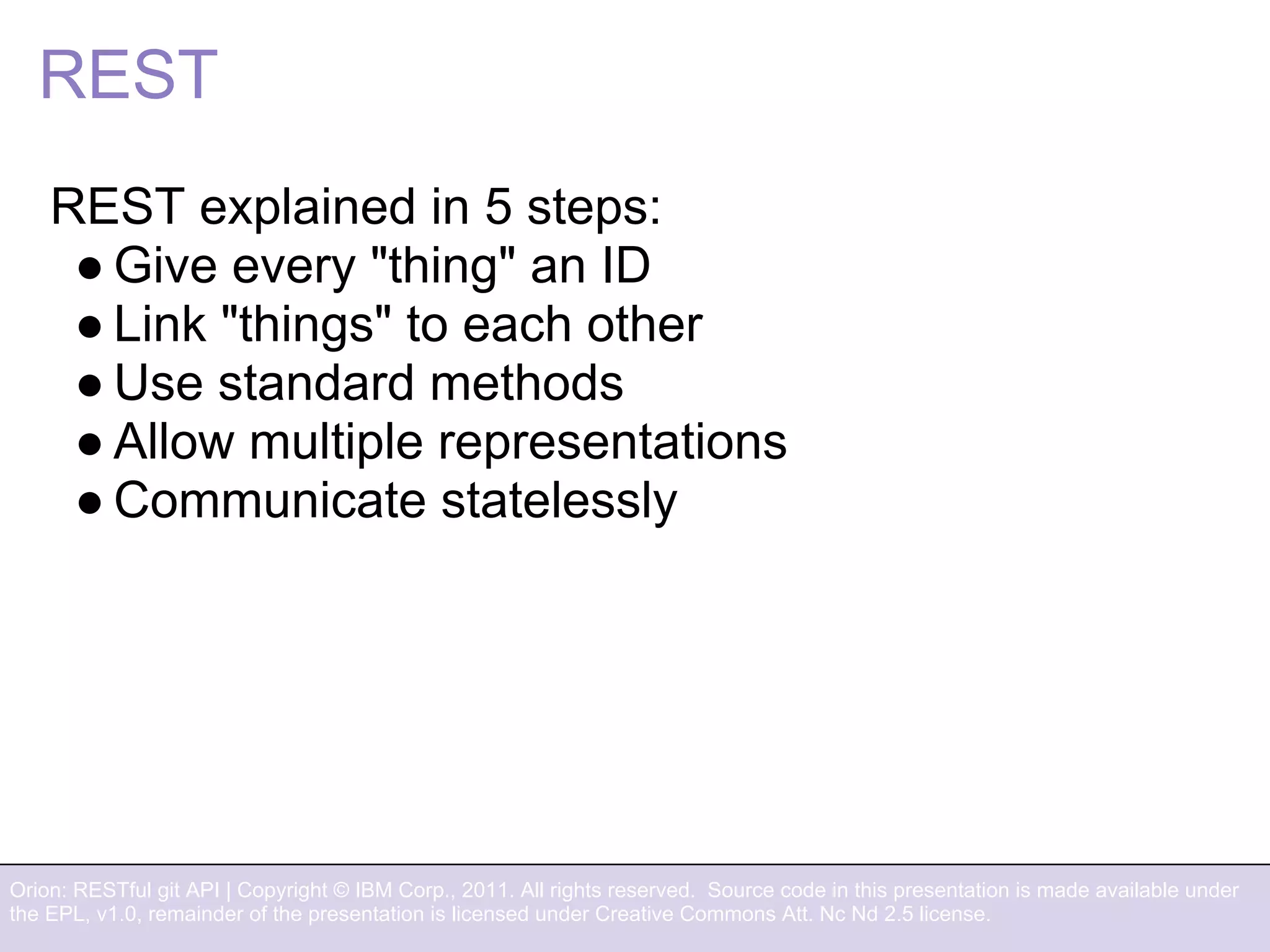

REST
REST explained in 5 steps:
● Give every "thing" an ID
● Link "things" to each other
● Use standard methods
● Allow multiple representations
● Communicate statelessly

3. Orion: RESTful git API | Copyright © IBM Corp., 2011. All rights reserved. Source code in this presentation is made available under
the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license.

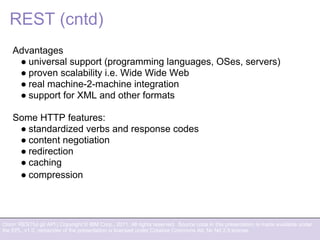

REST (cntd)
Advantages
● universal support (programming languages, OSes, servers)
● proven scalability i.e. Wide Wide Web
● real machine-2-machine integration
● support for XML and other formats
Some HTTP features:
● standardized verbs and response codes
● content negotiation
● redirection
● caching
● compression

4. Orion: RESTful git API | Copyright © IBM Corp., 2011. All rights reserved. Source code in this presentation is made available under
the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license.
Server
● Jetty 6.1.x / javax.servlet 2.5
● org.eclipse.equinox.http.registry.servlets / OSGi HttpService
○ class
○ alias

5. Orion: RESTful git API | Copyright © IBM Corp., 2011. All rights reserved. Source code in this presentation is made available under
the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license.

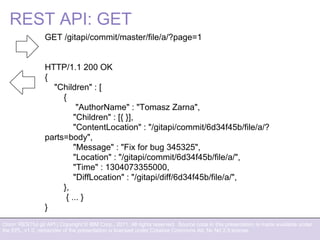

REST API: GET
GET /gitapi/commit/master/file/a/?page=1
HTTP/1.1 200 OK
{
"Children" : [
{
"AuthorName" : "Tomasz Zarna",
"Children" : [{ }],
"ContentLocation" : "/gitapi/commit/6d34f45b/file/a/?
parts=body",
"Message" : "Fix for bug 345325",
"Location" : "/gitapi/commit/6d34f45b/file/a/",
"Time" : 1304073355000,
"DiffLocation" : "/gitapi/diff/6d34f45b/file/a/",
},
{ ... }
}

6. Orion: RESTful git API | Copyright © IBM Corp., 2011. All rights reserved. Source code in this presentation is made available under
the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license.

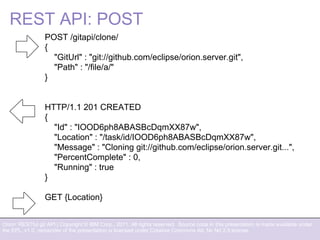

REST API: POST
POST /gitapi/clone/
{
"GitUrl" : "git://github.com/eclipse/orion.server.git",
"Path" : "/file/a/"
}
HTTP/1.1 201 CREATED
{
"Id" : "IOOD6ph8ABASBcDqmXX87w",
"Location" : "/task/id/IOOD6ph8ABASBcDqmXX87w",
"Message" : "Cloning git://github.com/eclipse/orion.server.git...",
"PercentComplete" : 0,
"Running" : true
}
GET {Location}

7. Orion: RESTful git API | Copyright © IBM Corp., 2011. All rights reserved. Source code in this presentation is made available under
the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license.

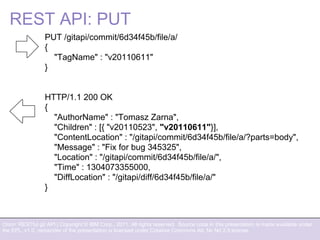

REST API: PUT
PUT /gitapi/commit/6d34f45b/file/a/
{
"TagName" : "v20110611"
}
HTTP/1.1 200 OK
{
"AuthorName" : "Tomasz Zarna",
"Children" : [{ "v20110523", "v20110611"}],
"ContentLocation" : "/gitapi/commit/6d34f45b/file/a/?parts=body",
"Message" : "Fix for bug 345325",
"Location" : "/gitapi/commit/6d34f45b/file/a/",
"Time" : 1304073355000,
"DiffLocation" : "/gitapi/diff/6d34f45b/file/a/"
}

8. Orion: RESTful git API | Copyright © IBM Corp., 2011. All rights reserved. Source code in this presentation is made available under
the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license.

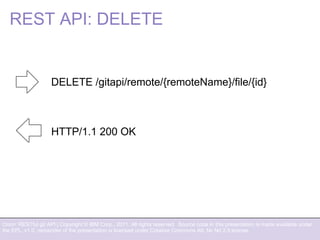

REST API: DELETE
DELETE /gitapi/remote/{remoteName}/file/{id}
HTTP/1.1 200 OK

9. Orion: RESTful git API | Copyright © IBM Corp., 2011. All rights reserved. Source code in this presentation is made available under
the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license.
git commands
git-add git-commit git-mv git-show pack-pack-refs git-count-object
git-am git-describe git-notes git-stash git-prune git-difftool
git-archive git-diff git-pull git-status git-reflog git-fsck
git-bisect git-fetch git-push git-submodule git-relink git-get-tar-commit-id
git-branch git-format-patch git-rebase git-tag git-remote git-help
git-bundle git-gc git-reset git-config git-repack git-merge-tree
git-checkout git-grep git-rebase git-fast-export git-replace git-rerere
git-cherry-pick git-init git-revert git-fast-import git-annotate git-rev-parse
git-clean git-log git-rm gt-filter-branch git-blame git-verify-tag
git-clone git-merge git-shortlog git-mergetool git-cherry git-whatchanged

10. Orion: RESTful git API | Copyright © IBM Corp., 2011. All rights reserved. Source code in this presentation is made available under
the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license.

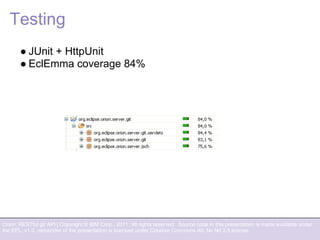

Testing
● JUnit + HttpUnit
● EclEmma coverage 84%

11. Orion: RESTful git API | Copyright © IBM Corp., 2011. All rights reserved. Source code in this presentation is made available under
the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license.
Testing
● JUnit + HttpUnit
● EclEmma coverage 84%

12. Orion: RESTful git API | Copyright © IBM Corp., 2011. All rights reserved. Source code in this presentation is made available under
the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license.
That's all folks

13. Orion: RESTful git API| Copyright © IBM Corp., 2011. All rights reserved. Source code in this presentation is made available under
the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license.

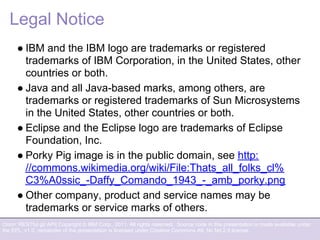

Legal Notice
