Oracle EBS R12.2 - Deployment and System Administration

The document outlines a comprehensive training program on Oracle E-Business Suite R12.2.x, focusing on deployment and system administration. Presented by MD Mozammel Hoque, it aims to enhance operational efficiency and minimize maintenance downtimes while covering topics like technology architecture, performance tuning, and IT service continuity management. The training also includes practical lab sessions, case studies, and highlights the significant benefits of the Oracle E-Business Suite technology for enterprises.

Embed presentation

Downloaded 620 times
1 / 123
2 / 123
3 / 123
4 / 123
5 / 123
6 / 123
7 / 123
8 / 123
9 / 123
10 / 123
11 / 123
12 / 123
13 / 123
14 / 123
15 / 123
16 / 123
17 / 123
18 / 123
19 / 123
20 / 123
21 / 123
22 / 123
23 / 123
24 / 123
25 / 123
26 / 123
27 / 123
28 / 123
29 / 123
30 / 123
31 / 123
32 / 123
33 / 123
34 / 123
35 / 123
36 / 123
37 / 123
38 / 123
39 / 123
40 / 123
41 / 123
42 / 123
43 / 123
44 / 123
45 / 123
46 / 123
47 / 123
48 / 123
49 / 123
50 / 123
51 / 123
52 / 123
53 / 123
54 / 123
55 / 123
56 / 123
57 / 123
58 / 123
59 / 123
60 / 123
61 / 123
62 / 123
63 / 123
64 / 123
65 / 123
66 / 123
67 / 123
68 / 123
69 / 123
70 / 123
71 / 123
72 / 123
73 / 123
74 / 123
75 / 123
76 / 123
77 / 123
78 / 123
79 / 123
80 / 123
81 / 123
82 / 123
83 / 123
84 / 123
85 / 123
86 / 123
87 / 123
88 / 123
89 / 123
90 / 123
91 / 123
92 / 123
93 / 123
94 / 123
95 / 123
96 / 123
97 / 123
98 / 123
99 / 123
100 / 123
101 / 123
Most read
102 / 123
103 / 123
104 / 123
105 / 123
106 / 123
107 / 123
108 / 123
109 / 123
Most read
110 / 123
111 / 123
112 / 123
113 / 123
114 / 123
115 / 123
116 / 123
117 / 123
118 / 123
119 / 123
Most read
120 / 123
121 / 123
122 / 123
123 / 123
InfraOptimization A Comprehensive Training on Oracle E-Business Suite R12.2.x: Deployment and System Administration Presented by: Md Mozammel Hoque , CEO & BPO Consultant at InfraOptimization Hosted by: PHP Family

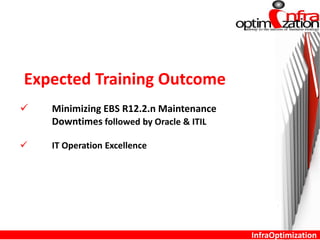

Expected Training Outcome  Minimizing EBS R12.2.n Maintenance Downtimes followed by Oracle & ITIL  IT Operation Excellence InfraOptimization

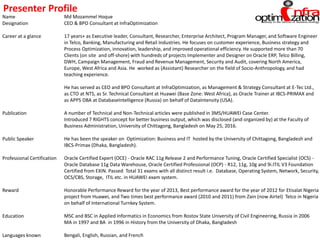

Name Md Mozammel Hoque Designation CEO & BPO Consultant at InfraOptimization Career at a glance 17 years+ as Executive leader, Consultant, Researcher, Enterprise Architect, Program Manager, and Software Engineer in Telco, Banking, Manufacturing and Retail Industries. He focuses on customer experience, Business strategy and Process Optimization, innovation, leadership, and improved operational efficiency. He supported more than 70 Clients (on site and off-shore) with hundreds of projects Implementer and Designer on Oracle ERP, Telco Billing, DWH, Campaign Management, Fraud and Revenue Management, Security and Audit, covering North America, Europe, West Africa and Asia. He worked as (Assistant) Researcher on the field of Socio-Anthropology, and had teaching experience. He has served as CEO and BPO Consultant at InfraOptimization, as Management & Strategy Consultant at E-Tec Ltd., as CTO at NTS, as Sr. Technical Consultant at Huawei (Base Zone: West Africa), as Oracle Trainer at IBCS-PRIMAX and as APPS DBA at DatabaseIntelligence (Russia) on behalf of DataIntensity (USA). Publication A number of Technical and Non-Technical articles were published in 3MS/HUAWEI Case Center. Introduced 7 RIGHTS concept for better business output, which was disclosed (and organized by) at the Faculty of Business Administration, University of Chittagong, Bangladesh on May 25, 2016. Public Speaker He has been the speaker on Optimization: Business and IT hosted by the University of Chittagong, Bangladesh and IBCS-Primax (Dhaka, Bangladesh). Professional Certification Oracle Certified Expert (OCE) - Oracle RAC 11g Release 2 and Performance Tuning, Oracle Certified Specialist (OCS) - Oracle Database 11g Data Warehouse, Oracle Certified Professional (OCP) - R12, 11g, 10g and 9i.ITIL V3 Foundation Certified from EXIN. Passed Total 31 exams with all distinct result i.e. Database, Operating System, Network, Security, OCS/CBS, Storage, ITIL etc. in HUAWEI exam system. Reward Honorable Performance Reward for the year of 2013, Best performance award for the year of 2012 for Etisalat Nigeria project from Huawei, and Two times best performance award (2010 and 2011) from Zain (now Airtel) Telco in Nigeria on behalf of International Turnkey System. Education MSC and BSC in Applied Informatics in Economics from Rostov State University of Civil Engineering, Russia in 2006 MA in 1997 and BA in 1996 in History from the University of Dhaka, Bangladesh Languages known Bengali, English, Russian, and French Presenter Profile
Our Philosophy Learn from Learners & Feel it. - What to Know | Do - Why to know | Do - How to Know | Do InfraOptimization Process: Key Learning Principle Procedure

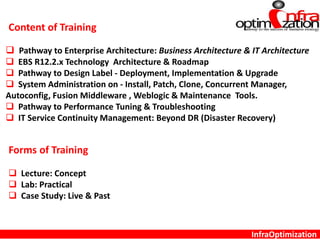

InfraOptimization Content of Training  Pathway to Enterprise Architecture: Business Architecture & IT Architecture  EBS R12.2.x Technology Architecture & Roadmap  Pathway to Design Label - Deployment, Implementation & Upgrade  System Administration on - Install, Patch, Clone, Concurrent Manager, Autoconfig, Fusion Middleware , Weblogic & Maintenance Tools.  Pathway to Performance Tuning & Troubleshooting  IT Service Continuity Management: Beyond DR (Disaster Recovery) Forms of Training  Lecture: Concept  Lab: Practical  Case Study: Live & Past

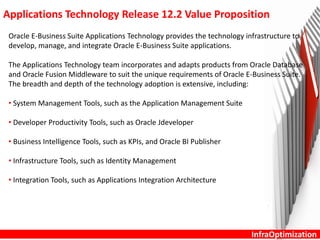

InfraOptimization Applications Technology Release 12.2 Value Proposition Oracle E-Business Suite Applications Technology provides the technology infrastructure to develop, manage, and integrate Oracle E-Business Suite applications. The Applications Technology team incorporates and adapts products from Oracle Database and Oracle Fusion Middleware to suit the unique requirements of Oracle E-Business Suite. The breadth and depth of the technology adoption is extensive, including: • System Management Tools, such as the Application Management Suite • Developer Productivity Tools, such as Oracle Jdeveloper • Business Intelligence Tools, such as KPIs, and Oracle BI Publisher • Infrastructure Tools, such as Identity Management • Integration Tools, such as Applications Integration Architecture

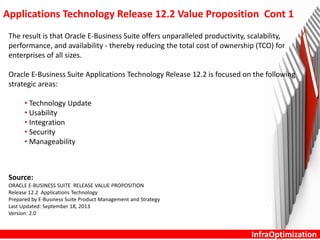

InfraOptimization Applications Technology Release 12.2 Value Proposition Cont 1 The result is that Oracle E-Business Suite offers unparalleled productivity, scalability, performance, and availability - thereby reducing the total cost of ownership (TCO) for enterprises of all sizes. Oracle E-Business Suite Applications Technology Release 12.2 is focused on the following strategic areas: • Technology Update • Usability • Integration • Security • Manageability Source: ORACLE E-BUSINESS SUITE RELEASE VALUE PROPOSITION Release 12.2 Applications Technology Prepared by E-Business Suite Product Management and Strategy Last Updated: September 18, 2013 Version: 2.0

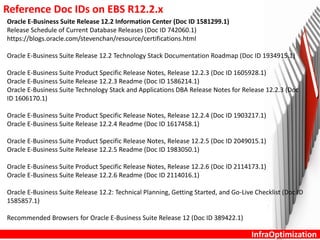

InfraOptimization Reference Doc IDs on EBS R12.2.x Oracle E-Business Suite Release 12.2 Information Center (Doc ID 1581299.1) Release Schedule of Current Database Releases (Doc ID 742060.1) https://blogs.oracle.com/stevenchan/resource/certifications.html Oracle E-Business Suite Release 12.2 Technology Stack Documentation Roadmap (Doc ID 1934915.1) Oracle E-Business Suite Release Notes, Release 12.2 (Doc ID 1320300.1) Oracle E-Business Suite Product Specific Release Notes, Release 12.2.3 (Doc ID 1605928.1) Oracle E-Business Suite Release 12.2.3 Readme (Doc ID 1586214.1) Oracle E-Business Suite Technology Stack and Applications DBA Release Notes for Release 12.2.3 (Doc ID 1606170.1) Oracle E-Business Suite Product Specific Release Notes, Release 12.2.4 (Doc ID 1903217.1) Oracle E-Business Suite Release 12.2.4 Readme (Doc ID 1617458.1) Oracle E-Business Suite Product Specific Release Notes, Release 12.2.5 (Doc ID 2049015.1) Oracle E-Business Suite Release 12.2.5 Readme (Doc ID 1983050.1) Oracle E-Business Suite Product Specific Release Notes, Release 12.2.6 (Doc ID 2114173.1) Oracle E-Business Suite Release 12.2.6 Readme (Doc ID 2114016.1) Oracle E-Business Suite Release 12.2: Technical Planning, Getting Started, and Go-Live Checklist (Doc ID 1585857.1) Recommended Browsers for Oracle E-Business Suite Release 12 (Doc ID 389422.1)

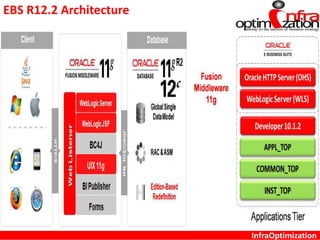

InfraOptimization EBS R12.2 Architecture

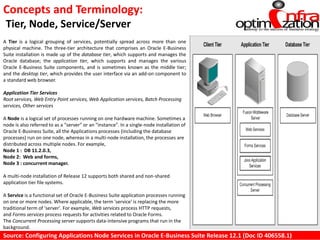

A Tier is a logical grouping of services, potentially spread across more than one physical machine. The three-tier architecture that comprises an Oracle E-Business Suite installation is made up of the database tier, which supports and manages the Oracle database; the application tier, which supports and manages the various Oracle E-Business Suite components, and is sometimes known as the middle tier; and the desktop tier, which provides the user interface via an add-on component to a standard web browser. Application Tier Services Root services, Web Entry Point services, Web Application services, Batch Processing services, Other services A Node is a logical set of processes running on one hardware machine. Sometimes a node is also referred to as a "server" or an "instance". In a single-node installation of Oracle E-Business Suite, all the Applications processes (including the database processes) run on one node, whereas in a multi-node installation, the processes are distributed across multiple nodes. For example, Node 1 : DB 11.2.0.3, Node 2: Web and forms, Node 3 : concurrent manager. A multi-node installation of Release 12 supports both shared and non-shared application tier file systems. A Service is a functional set of Oracle E-Business Suite application processes running on one or more nodes. Where applicable, the term 'service' is replacing the more traditional term of 'server'. For example, Web services process HTTP requests, and Forms services process requests for activities related to Oracle Forms. The Concurrent Processing server supports data-intensive programs that run in the background. Concepts and Terminology: Tier, Node, Service/Server Source: Configuring Applications Node Services in Oracle E-Business Suite Release 12.1 (Doc ID 406558.1)

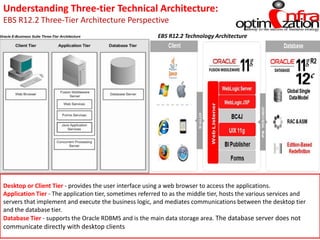

Understanding Three‐tier Technical Architecture: EBS R12.2 Three-Tier Architecture Perspective EBS R12.2 Technology Architecture Desktop or Client Tier - provides the user interface using a web browser to access the applications. Application Tier - The application tier, sometimes referred to as the middle tier, hosts the various services and servers that implement and execute the business logic, and mediates communications between the desktop tier and the database tier. Database Tier - supports the Oracle RDBMS and is the main data storage area. The database server does not communicate directly with desktop clients

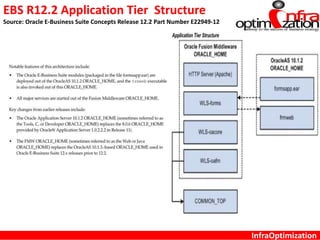

InfraOptimization EBS R12.2 Application Tier Structure Source: Oracle E-Business Suite Concepts Release 12.2 Part Number E22949-12
EBS R12.2 Application Tier Services at-a-glance Service Group Service(s) Service Control Script Root Service Node Manager adnodemgrctl.sh Web Administration WebLogic Admin Server adadminsrvctl.sh Web Entry Point Services Oracle HTTP Server adapcctl.sh Oracle Process Manager adopmnctl.sh Web Application Services oacore admanagedsrvctl.sh oafm forms forms-c4ws Batch Processing Services Oracle TNS Listener adalnctl.sh Concurrent Manager adcmctl.sh Fulfillment Server jtffmctl.sh Oracle ICSM ieoicsm.sh Other Services Forms Server adformsrvctl.sh Oracle MWA Service mwactlwrpr.sh Most notably, the Web Administration service group contains WebLogic Administration server, and - unlike other service groups - can be enabled only on one of the Application tier nodes. In other words, it is not supported to enable WebLogic Administration server on any other Application tier node except the node on which it was enabled during Rapid Install. InfraOptimization

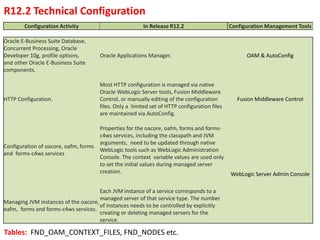

R12.2 Technical Configuration Tables: FND_OAM_CONTEXT_FILES, FND_NODES etc. Configuration Activity In Release R12.2 Configuration Management Tools Oracle E-Business Suite Database, Concurrent Processing, Oracle Developer 10g, profile options, and other Oracle E-Business Suite components. Oracle Applications Manager. OAM & AutoConfig HTTP Configuration. Most HTTP configuration is managed via native Oracle WebLogic Server tools, Fusion Middleware Control, or manually editing of the configuration files. Only a limited set of HTTP configuration files are maintained via AutoConfig. Fusion Middleware Control Configuration of oacore, oafm, forms and forms-c4ws services Properties for the oacore, oafm, forms and forms- c4ws services, including the classpath and JVM arguments, need to be updated through native WebLogic tools such as WebLogic Administration Console. The context variable values are used only to set the initial values during managed server creation. WebLogic Server Admin Console Managing JVM instances of the oacore, oafm, forms and forms-c4ws services. Each JVM instance of a service corresponds to a managed server of that service type. The number of instances needs to be controlled by explicitly creating or deleting managed servers for the service.

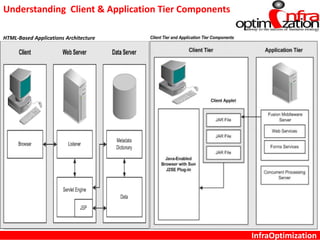

InfraOptimization Understanding Client & Application Tier Components HTML-Based Applications Architecture
InfraOptimization EBS Release 12.2 Technology Stack End User FM 11g

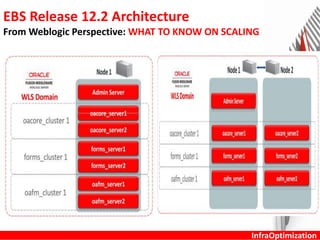

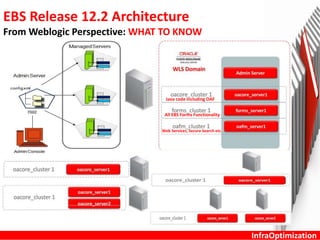

InfraOptimization EBS Release 12.2 Architecture From Weblogic Perspective: WHAT TO KNOW Java code including OAF All EBS Forms Functionality Web Services, Secure Search etc.
InfraOptimization EBS Release 12.2 Architecture From Weblogic Perspective: WHAT TO KNOW ON SCALING

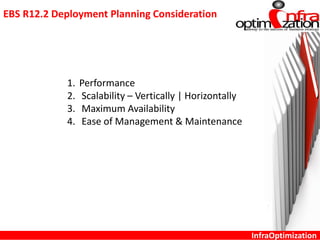

InfraOptimization EBS R12.2 Deployment Planning Consideration 1. Performance 2. Scalability – Vertically | Horizontally 3. Maximum Availability 4. Ease of Management & Maintenance

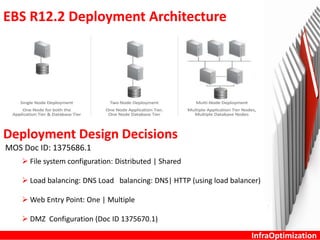

InfraOptimization EBS R12.2 Deployment Architecture Deployment Design Decisions MOS Doc ID: 1375686.1  File system configuration: Distributed | Shared  Load balancing: DNS Load balancing: DNS| HTTP (using load balancer)  Web Entry Point: One | Multiple  DMZ Configuration (Doc ID 1375670.1)

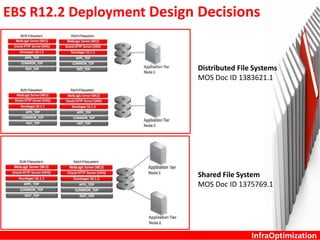

InfraOptimization EBS R12.2 Deployment Design Decisions Distributed File Systems MOS Doc ID 1383621.1 Shared File System MOS Doc ID 1375769.1
InfraOptimization EBS R12.2 Deployment Design Decisions MOS Doc ID 1375686.1

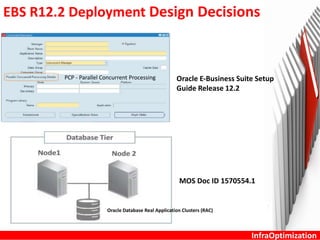

InfraOptimization EBS R12.2 Deployment Design Decisions MOS Doc ID 1570554.1 Oracle E‐Business Suite Setup Guide Release 12.2 Oracle Database Real Application Clusters (RAC) PCP - Parallel Concurrent Processing

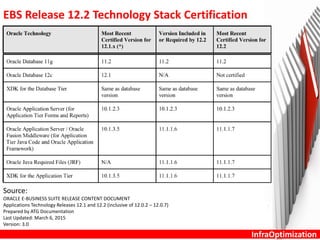

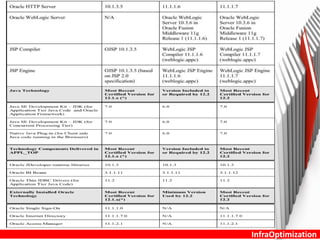

InfraOptimization EBS Release 12.2 Technology Stack Certification Source: ORACLE E-BUSINESS SUITE RELEASE CONTENT DOCUMENT Applications Technology Releases 12.1 and 12.2 (inclusive of 12.0.2 – 12.0.7) Prepared by ATG Documentation Last Updated: March 6, 2015 Version: 3.0
InfraOptimization

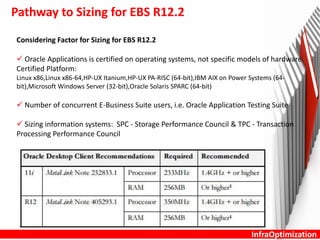

InfraOptimization Pathway to Sizing for EBS R12.2 Considering Factor for Sizing for EBS R12.2  Oracle Applications is certified on operating systems, not specific models of hardware. Certified Platform: Linux x86,Linux x86-64,HP-UX Itanium,HP-UX PA-RISC (64-bit),IBM AIX on Power Systems (64- bit),Microsoft Windows Server (32-bit),Oracle Solaris SPARC (64-bit)  Number of concurrent E-Business Suite users, i.e. Oracle Application Testing Suite  Sizing information systems: SPC - Storage Performance Council & TPC - Transaction Processing Performance Council

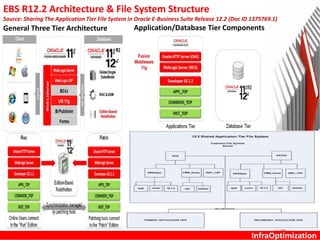

InfraOptimization EBS R12.2 Architecture & File System Structure Source: Sharing The Application Tier File System in Oracle E-Business Suite Release 12.2 (Doc ID 1375769.1) General Three Tier Architecture Application/Database Tier Components
InfraOptimization EBS R12.2 File System Structure Source: https://docs.oracle.com/cd/E26401_01/doc.122/e22949/T120505T120509.htm (Part Number E22949-12)

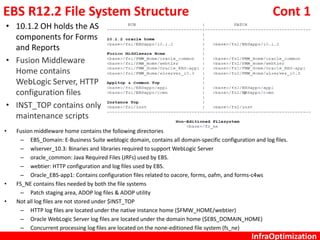

InfraOptimization EBS R12.2 File System Structure Cont 1 • 10.1.2 OH holds the AS components for Forms and Reports • Fusion Middleware Home contains WebLogic Server, HTTP configuration files • INST_TOP contains only maintenance scripts • Fusion middleware home contains the following directories – EBS_Domain: E-Business Suite weblogic domain, contains all domain-specific configuration and log files. – wlserver_10.3: Binaries and libraries required to support WebLogic Server – oracle_common: Java Required Files (JRFs) used by EBS. – webtier: HTTP configuration and log files used by EBS. – Oracle_EBS-app1: Contains configuration files related to oacore, forms, oafm, and forms-c4ws • FS_NE contains files needed by both the file systems – Patch staging area, ADOP log files & ADOP utility • Not all log files are not stored under $INST_TOP – HTTP log files are located under the native instance home ($FMW_HOME/webtier) – Oracle WebLogic Server log files are located under the domain home ($EBS_DOMAIN_HOME) – Concurrent processing log files are located on the none-editioned file system (fs_ne)

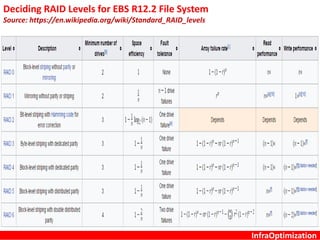

InfraOptimization Deciding RAID Levels for EBS R12.2 File System Source: https://en.wikipedia.org/wiki/Standard_RAID_levels
InfraOptimization Oracle Applications Technology Layer The Oracle Applications technology layer is an integrated collection of components whose functionality is applicable to all Oracle Applications modules, i.e. CRM, HRMS, Financials, Manufacturing. Components in the Oracle Applications technology layer include: Applications DBA (AD) Set of tools for administration Application Object Library (FND)  Consists of a collection of reusable code, programs, and database objects that provides common functionality across all products. Applications Utilities (AU)  To maintain the Oracle Applications system. Workflow (WF)  To Model and maintain your business processes using a graphical workflow builder. Alert (ALR)  To email system notifications to users when an exception or event occurs. OA Framework (OAF/FWK)  A Java and XML-based development method to develop HTML-based applications Oracle XML Publisher (XDO)  To produce output reports in the desired format.

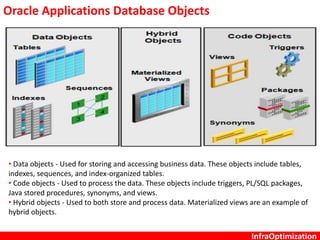

InfraOptimization Oracle Applications Database Objects • Data objects - Used for storing and accessing business data. These objects include tables, indexes, sequences, and index-organized tables. • Code objects - Used to process the data. These objects include triggers, PL/SQL packages, Java stored procedures, synonyms, and views. • Hybrid objects - Used to both store and process data. Materialized views are an example of hybrid objects.

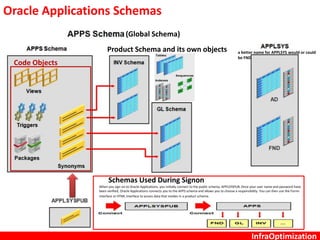

InfraOptimization Oracle Applications Schemas Product Schema and its own objects Code Objects Schemas Used During Signon When you sign on to Oracle Applications, you initially connect to the public schema, APPLSYSPUB. Once your user name and password have been verified, Oracle Applications connects you to the APPS schema and allows you to choose a responsibility. You can then use the Forms interface or HTML interface to access data that resides in a product schema. (Global Schema) a better name for APPLSYS would or could be FND

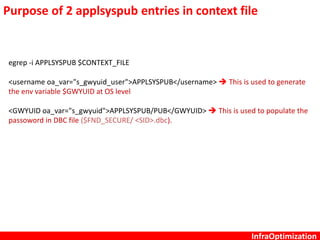

InfraOptimization Purpose of 2 applsyspub entries in context file egrep -i APPLSYSPUB $CONTEXT_FILE <username oa_var="s_gwyuid_user">APPLSYSPUB</username>  This is used to generate the env variable $GWYUID at OS level <GWYUID oa_var="s_gwyuid">APPLSYSPUB/PUB</GWYUID>  This is used to populate the passoword in DBC file ($FND_SECURE/ <SID>.dbc).

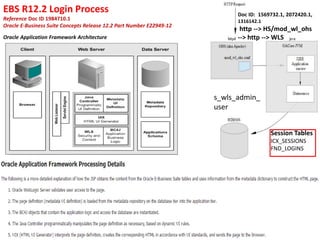

EBS R12.2 Login Process Reference Doc ID 1984710.1 Oracle E-Business Suite Concepts Release 12.2 Part Number E22949-12 Doc ID: 1569732.1, 2072420.1, 1316142.1 http --> HS/mod_wl_ohs --> http --> WLS s_wls_admin_ user Session Tables ICX_SESSIONS FND_LOGINS Oracle Application Framework Architecture
EBS R12.2 Login Process Reference Doc ID 1984710.1  When a HTTP request is made for EBS, the request is received by the Oracle HTTP Server (OHS). ($FMW_Home/webtier/instances/EBS_web_<instance_name>_OHS1/config/OHS/E BS_web_<instance_name>/httpd.conf)  When the configuration of OHS is for a resource that needs to be processed by Java, such as logging into EBS, the OHS configuration will redirect the request to the Web Logic Server (WLS) Java process (OACore in this case).  WLS determines the J2EE application that should deal with the request, which is called "oacore".  This J2EE application needs to be deployed and available for processing requests in order for the request to succeed. The J2EE application needs to access a database and does this via a datasource which is configured within WLS. All code must access the data model via the APPS synonym! Doc ID: 1569732.1, 2072420.1, 1316142.1 http --> HS/mod_wl_ohs --> http --> WLS s_wls_admin_ user Session Tables ICX_SESSIONS ICX_PARAMETERS FND_LOGINS

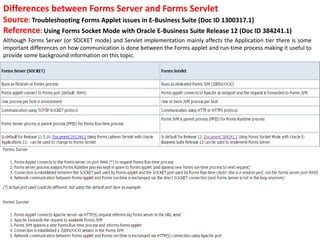

Differences between Forms Server and Forms Servlet Source: Troubleshooting Forms Applet issues in E-Business Suite (Doc ID 1300317.1) Reference: Using Forms Socket Mode with Oracle E-Business Suite Release 12 (Doc ID 384241.1) Although Forms Server (or SOCKET mode) and Servlet implementation mainly affects the Application tier there is some important differences on how communication is done between the Forms applet and run-time process making it useful to provide some background information on this topic.

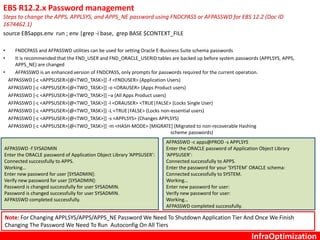

InfraOptimization EBS R12.2.x Password management Steps to change the APPS, APPLSYS, and APPS_NE password using FNDCPASS or AFPASSWD for EBS 12.2 (Doc ID 1674462.1) source EBSapps.env run ; env |grep -i base, grep BASE $CONTEXT_FILE • FNDCPASS and AFPASSWD utilities can be used for setting Oracle E-Business Suite schema passwords • It is recommended that the FND_USER and FND_ORACLE_USERID tables are backed up before system passwords (APPLSYS, APPS, APPS_NE) are changed • AFPASSWD is an enhanced version of FNDCPASS, only prompts for passwords required for the current operation. AFPASSWD [-c <APPSUSER>[@<TWO_TASK>]] -f <FNDUSER> (Application Users) AFPASSWD [-c <APPSUSER>[@<TWO_TASK>]] -o <ORAUSER> (Apps Product users) AFPASSWD [-c <APPSUSER>[@<TWO_TASK>]] –a (All Apps Product users) AFPASSWD [-c <APPSUSER>[@<TWO_TASK>]] -l <ORAUSER> <TRUE|FALSE> (Locks Single User) AFPASSWD [-c <APPSUSER>[@<TWO_TASK>]] -L <TRUE|FALSE> (Locks non-essential users) AFPASSWD [-c <APPSUSER>[@<TWO_TASK>]] -s <APPLSYS> (Changes APPLSYS) AFPASSWD [-c <APPSUSER>[@<TWO_TASK>]] -m <HASH-MODE> [MIGRATE] (Migrated to non-recoverable Hashing scheme passwords) AFPASSWD -f SYSADMIN Enter the ORACLE password of Application Object Library ‘APPSUSER’: Connected successfully to APPS. Working… Enter new password for user [SYSADMIN]: Verify new password for user [SYSADMIN]: Password is changed successfully for user SYSADMIN. Password is changed successfully for user SYSADMIN. AFPASSWD completed successfully. AFPASSWD -c apps@PROD -s APPLSYS Enter the ORACLE password of Application Object Library ‘APPSUSER’: Connected successfully to APPS. Enter the password for your ‘SYSTEM’ ORACLE schema: Connected successfully to SYSTEM. Working… Enter new password for user: Verify new password for user: Working… AFPASSWD completed successfully. Note: For Changing APPLSYS/APPS/APPS_NE Password We Need To Shutdown Application Tier And Once We Finish Changing The Password We Need To Run Autoconfig On All Tiers

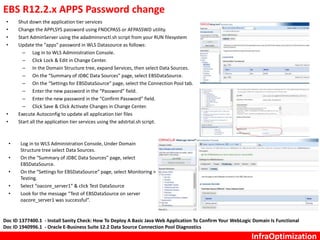

InfraOptimization EBS R12.2.x APPS Password change • Shut down the application tier services • Change the APPLSYS password using FNDCPASS or AFPASSWD utility. • Start AdminServer using the adadminsrvctl.sh script from your RUN filesystem • Update the “apps” password in WLS Datasource as follows: – Log in to WLS Administration Console. – Click Lock & Edit in Change Center. – In the Domain Structure tree, expand Services, then select Data Sources. – On the “Summary of JDBC Data Sources” page, select EBSDataSource. – On the “Settings for EBSDataSource” page, select the Connection Pool tab. – Enter the new password in the “Password” field. – Enter the new password in the “Confirm Password” field. – Click Save & Click Activate Changes in Change Center. • Execute Autoconfig to update all application tier files • Start all the application tier services using the adstrtal.sh script. • Log in to WLS Administration Console, Under Domain Structure tree select Data Sources. • On the “Summary of JDBC Data Sources” page, select EBSDataSource. • On the “Settings for EBSDataSource” page, select Monitoring > Testing. • Select “oacore_server1” & click Test DataSource • Look for the message “Test of EBSDataSource on server oacore_server1 was successful”. Doc ID 1377400.1 - Install Sanity Check: How To Deploy A Basic Java Web Application To Confirm Your WebLogic Domain Is Functional Doc ID 1940996.1 - Oracle E-Business Suite 12.2 Data Source Connection Pool Diagnostics
InfraOptimization OAM Generic Collection Service concurrent manager Source: How To Determine The Current Value and Set The Retention Time To Keep the Runtime Instance Data Of Table FND_OAM_FORMS_RTI In The Database? (Doc ID 1600075.1) & What Are .RTI And .FLI Files? (Doc ID 470850.1) How To Find The IP Address Of The Client Machine From Where A Particular Forms User Is Connected ? (Doc ID 879092.1) env|grep FORMS_RTI_DIR 1. To determine the current retention time, run the following select: select FCQ.CONCURRENT_QUEUE_NAME, FCQS.SERVICE_PARAMETERS from FND_CONCURRENT_QUEUES FCQ, FND_CONCURRENT_QUEUE_SIZE FCQS where FCQ.CONCURRENT_QUEUE_NAME like 'OAMGCS%' AND FCQ.APPLICATION_ID = FCQS.QUEUE_APPLICATION_ID AND FCQ.CONCURRENT_QUEUE_ID = FCQS.CONCURRENT_QUEUE_ID; 2. To Manually change the time: a. Navigate: (Responsibility) System Administrator > Concurrent > Manager > Define > Query out record 'OAM Generic Collection Service%' b. Click button 'Work Shifts' > Edit the value of 'Parameter' and save. Notes: Data in table FND_OAM_FORMS_RTI is populated by the OAM Generic Collection Service concurrent manager and the information is cleaned up and repopulated by the same program. The OAM Generic Collection Service takes these parameters: NODE: the name of the node on which the service runs. LOADINTERVAL: the load interval for periodic runtime instance information uploading. ORACLE_HOME: the ORACLE_HOME in which the Forms Listener runs. RTI_KEEP_DAYS: the number of days to keep the runtime instance data in the database. FRD_KEEP_DAYS: the number of days to keep Forms Runtime Log files.

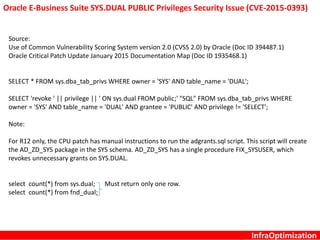

InfraOptimization Oracle E-Business Suite SYS.DUAL PUBLIC Privileges Security Issue (CVE-2015-0393) Source: Use of Common Vulnerability Scoring System version 2.0 (CVSS 2.0) by Oracle (Doc ID 394487.1) Oracle Critical Patch Update January 2015 Documentation Map (Doc ID 1935468.1) SELECT * FROM sys.dba_tab_privs WHERE owner = 'SYS' AND table_name = 'DUAL'; SELECT 'revoke ' || privilege || ' ON sys.dual FROM public;' "SQL" FROM sys.dba_tab_privs WHERE owner = 'SYS' AND table_name = 'DUAL' AND grantee = 'PUBLIC' AND privilege != 'SELECT'; Note: For R12 only, the CPU patch has manual instructions to run the adgrants.sql script. This script will create the AD_ZD_SYS package in the SYS schema. AD_ZD_SYS has a single procedure FIX_SYSUSER, which revokes unnecessary grants on SYS.DUAL. select count(*) from sys.dual; Must return only one row. select count(*) from fnd_dual;
InfraOptimization Monitoring & Auditing User Activity E-Business Applications Performance Basic Skills Cookbook (Doc ID 1516355.1) Concurrent Request Data Gathering (Doc ID 740770.1) APXINWKB APP-10771 Could Not Reserve Records Due to Database Record Lock (Doc ID 140969.1) How To Kill Inactive Sessions Based on the Information in the Monitor User Form (Doc ID 103516.1) Oracle Critical Patch Update January 2015 Documentation Map (Doc ID 1935468.1) Use of Common Vulnerability Scoring System version 2.0 (CVSS 2.0) by Oracle (Doc ID 394487.1) Oracle Database Security Assessment Tool (DBSAT) (Doc ID 2138254.1) How to find or see the requests ran in a module or a responsibility or by a user or for a specific period (Doc ID 2098951.1) Monitor Users: System Administrator Responsibility  Security: Users > Monitor  CTL + F11 Enable User Tracking – Setting the Sign-On: Audit Level profile option: Log in to Oracle APPS with system administrator responsibility Navigate to Profile > System Make sure the Site option is checked. Navigate to Profile and search for sign > Click Find Select the “Sign-On: Audit Level” > Click Find Change its value to be Form From the Menu bar click File > Save
InfraOptimization Technology Stack Registration oraInst.loc inventory_loc=/etc/oraInventory oraInst.loc Under /etc on Linux and AIX Under /var/opt/oracle on Solaris and HP-UX Global and Local Inventory explained (Doc ID 360079.1) FAQs on Central Inventory and Oracle Home Inventory (Local Inventory) in Oracle RDBMS (Doc ID 564192.1) How To Create, Update or Rebuild The Central Inventory For Oracle Applications E-Business Suite Release 12 ? (Doc ID 742477.1)

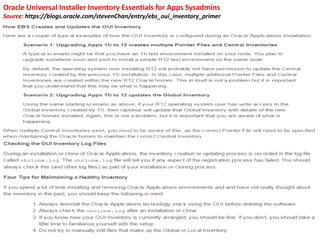

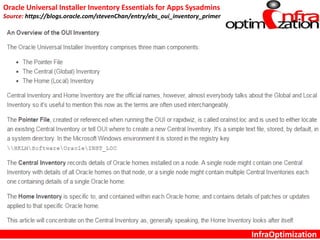

Oracle Universal Installer Inventory Essentials for Apps Sysadmins Source: https://blogs.oracle.com/stevenChan/entry/ebs_oui_inventory_primer InfraOptimization
Oracle Universal Installer Inventory Essentials for Apps Sysadmins Source: https://blogs.oracle.com/stevenChan/entry/ebs_oui_inventory_primer
Oracle Universal Installer Inventory Essentials for Apps Sysadmins Source: https://blogs.oracle.com/stevenChan/entry/ebs_oui_inventory_primer

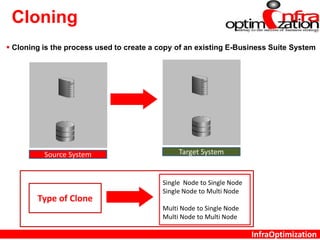

InfraOptimization Cloning  Cloning is the process used to create a copy of an existing E-Business Suite System Source System Target System Single Node to Single Node Single Node to Multi Node Multi Node to Single Node Multi Node to Multi Node Type of Clone
InfraOptimization Pre-Requisite Before Cloning Reference Doc ID: 1383621.1 Before cloning to a new system, you must first prepare the Source System by following the below steps:  Verify disk space requirements on Source System  Verify OS requirements on Target System  Verify Inventory Requirements /* It is required and must be identified by the value defined in oraInst.loc file */  Verify Source and Target System software components and versions: Source and Target must be on the same Operating System (OS) and patch level  Apply required patches  Check for in-progress online patching cycle: On the Source system, there should not be any in-progress online patching cycle, i.e. cleanup and fs_clone should be run.  Run AutoConfig on the application tier (Optional)  Synchronize appsutil on the database tier nodes (Optional)  Run AutoConfig on the database tier (Optional)  Run EBS Technology Codelevel Checker (ETCC) (Doc ID 2008451.1) on DB and APPS tier (Optional)  Maintain snapshot information of APPL_TOP (adadmin tool): Current view snapshots & Named snapshots  You must run this task once for each APPL_TOP before you can apply any patch that contains a "compatible feature prereq" line on that APPL_TOP  A complete snapshot is required for the automatic prerequisite patch checking feature to operate  APPL_TOP snapshot information is stored in the AD_SNAPSHOTS, AD_SNAPSHOT_FILES, and AD_SNAPSHOT_BUGFIXES tables

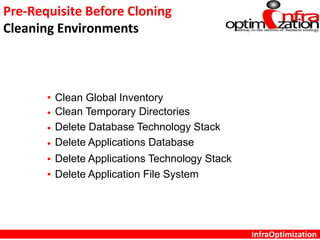

InfraOptimization Clean Global Inventory Clean Temporary Directories Delete Database Technology Stack Delete Applications Database Delete Applications Technology Stack Delete Application File System Pre-Requisite Before Cloning Cleaning Environments

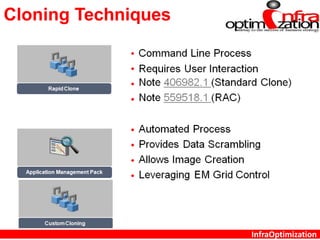

InfraOptimization Cloning Techniques
InfraOptimization Cloning Techniques

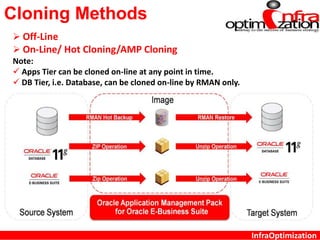

InfraOptimization Cloning Methods  Off-Line  On-Line/ Hot Cloning/AMP Cloning Note:  Apps Tier can be cloned on-line at any point in time.  DB Tier, i.e. Database, can be cloned on-line by RMAN only.

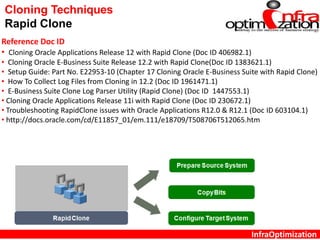

InfraOptimization Cloning Techniques Rapid Clone Reference Doc ID • Cloning Oracle Applications Release 12 with Rapid Clone (Doc ID 406982.1) • Cloning Oracle E-Business Suite Release 12.2 with Rapid Clone(Doc ID 1383621.1) • Setup Guide: Part No. E22953-10 (Chapter 17 Cloning Oracle E-Business Suite with Rapid Clone) • How To Collect Log Files from Cloning in 12.2 (Doc ID 1961471.1) • E-Business Suite Clone Log Parser Utility (Rapid Clone) (Doc ID 1447553.1) • Cloning Oracle Applications Release 11i with Rapid Clone (Doc ID 230672.1) • Troubleshooting RapidClone issues with Oracle Applications R12.0 & R12.1 (Doc ID 603104.1) • http://docs.oracle.com/cd/E11857_01/em.111/e18709/T508706T512065.htm
Cloning Techniques Rapid Clone at EBS Application Tier Up To R12.2.x-4 Critic on this Clone Architecture: Repetitive Task 1. Clone (Source RUN FS): Source to Target 2. Clone (Target RUN FS): Target RUN FS to Target PATCH FS. From R12.2.5-6 1. Clone (Source RUN FS): Source to Target perl adcfgclone.pl appsTier dualfs RUN /appsprod/fs2 RUN /appstest/fs2 /appsprod/fs1 PATCH /appstest/fs1 PATCH Source Target InfraOptimization

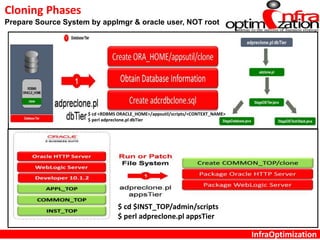

InfraOptimization Cloning Phases Prepare Source System by applmgr & oracle user, NOT root $ cd $INST_TOP/admin/scripts $ perl adpreclone.pl appsTier $ cd <RDBMS ORACLE_HOME>/appsutil/scripts/<CONTEXT_NAME> $ perl adpreclone.pl dbTier

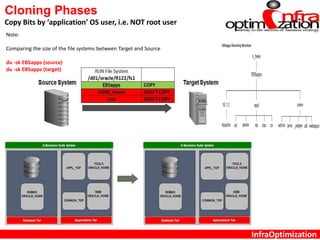

InfraOptimization Cloning Phases Copy Bits by ‘application’ OS user, i.e. NOT root user Note: Comparing the size of the file systems between Target and Source du -sk EBSapps (source) du -sk EBSapps (target)
Cloning Phases Configure Target System ## As Oracle User cd $ORACLE_HOME/appsutil/clone/bin perl adcfgclone.pl dbTier /* perl adcfgclone.pl <component> [context] */ ## As applmgr user …/EBSapps/comn/clone/bin perl adcfgclone.pl appsTier WHERE: <component> on Apps Node : { appsTier | atTechStack | dev10gHome | fmwHome | wlsConfig | ohsConfig | appltop } <component> on DB Node : { dbTier | dbTechStack | database | dbconfig | addracnode } <context> : Target Context File

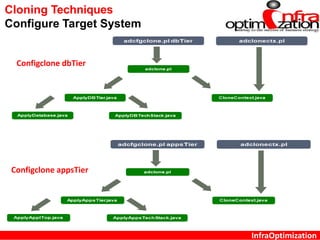

InfraOptimization Cloning Techniques Configure Target System Configclone appsTier Configclone dbTier

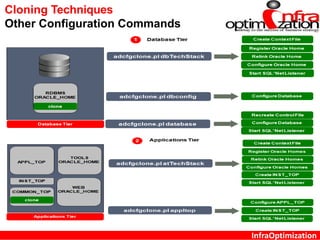

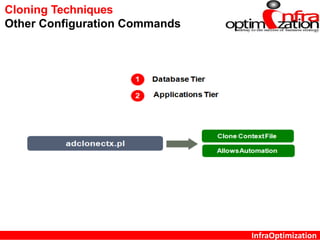

InfraOptimization Cloning Techniques Other Configuration Commands
InfraOptimization Cloning Techniques Other Configuration Commands

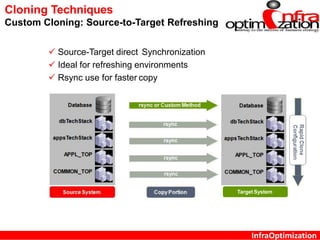

InfraOptimization Cloning Techniques Custom Cloning: Source-to-Target Refreshing Target System  Source-Target direct Synchronization  Ideal for refreshing environments  Rsync use for faster copy

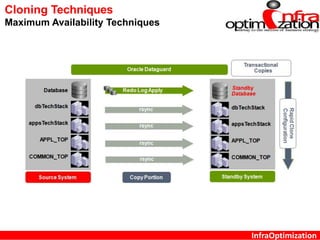

InfraOptimization Cloning Techniques Maximum Availability Techniques Target System

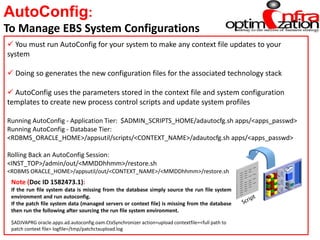

AutoConfig: To Manage EBS System Configurations  You must run AutoConfig for your system to make any context file updates to your system  Doing so generates the new configuration files for the associated technology stack  AutoConfig uses the parameters stored in the context file and system configuration templates to create new process control scripts and update system profiles Running AutoConfig - Application Tier: $ADMIN_SCRIPTS_HOME/adautocfg.sh apps/<apps_passwd> Running AutoConfig - Database Tier: <RDBMS_ORACLE_HOME>/appsutil/scripts/<CONTEXT_NAME>/adautocfg.sh apps/<apps_passwd> Rolling Back an AutoConfig Session: <INST_TOP>/admin/out/<MMDDhhmm>/restore.sh <RDBMS ORACLE_HOME>/appsutil/out/<CONTEXT_NAME>/<MMDDhhmm>/restore.sh Note (Doc ID 1582473.1): If the run file system data is missing from the database simply source the run file system environment and run autoconfig. If the patch file system data (managed servers or context file) is missing from the database then run the following after sourcing the run file system environment. $ADJVAPRG oracle.apps.ad.autoconfig.oam.CtxSynchronizer action=upload contextfile=<full path to patch context file> logfile=/tmp/patchctxupload.log

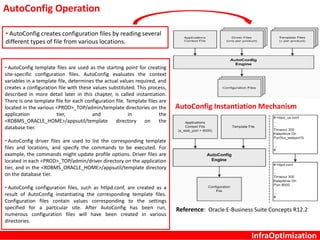

InfraOptimization AutoConfig Instantiation Mechanism AutoConfig Operation • AutoConfig template files are used as the starting point for creating site-specific configuration files. AutoConfig evaluates the context variables in a template file, determines the actual values required, and creates a configuration file with these values substituted. This process, described in more detail later in this chapter, is called instantiation. There is one template file for each configuration file. Template files are located in the various <PROD>_TOP/admin/template directories on the application tier, and in the <RDBMS_ORACLE_HOME>/appsutil/template directory on the database tier. • AutoConfig driver files are used to list the corresponding template files and locations, and specify the commands to be executed. For example, the commands might update profile options. Driver files are located in each <PROD>_TOP/admin/driver directory on the application tier, and in the <RDBMS_ORACLE_HOME>/appsutil/template directory on the database tier. • AutoConfig configuration files, such as httpd.conf, are created as a result of AutoConfig instantiating the corresponding template files. Configuration files contain values corresponding to the settings specified for a particular site. After AutoConfig has been run, numerous configuration files will have been created in various directories. • AutoConfig creates configuration files by reading several different types of file from various locations. Reference: Oracle E-Business Suite Concepts R12.2

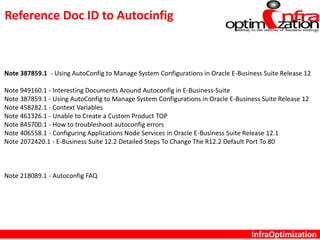

InfraOptimization Reference Doc ID to Autocinfig Note 387859.1 - Using AutoConfig to Manage System Configurations in Oracle E-Business Suite Release 12 Note 949160.1 - Interesting Documents Around Autoconfig in E-Business-Suite Note 387859.1 - Using AutoConfig to Manage System Configurations in Oracle E-Business Suite Release 12 Note 458282.1 - Context Variables Note 461326.1 - Unable to Create a Custom Product TOP Note 845700.1 - How to troubleshoot autoconfig errors Note 406558.1 - Configuring Applications Node Services in Oracle E-Business Suite Release 12.1 Note 2072420.1 - E-Business Suite 12.2 Detailed Steps To Change The R12.2 Default Port To 80 Note 218089.1 - Autoconfig FAQ
InfraOptimization Net Services Topology Data Model The Net Services Topology Data Model stores the entire topological information about a single Oracle Application instance. The data model stores information about each node in the Oracle Applications instance which is then used to generate the Net Service configuration files (for example tnsnames.ora). AutoConfig seeds the data model with relevant data. The Net Services Topology Data Model stores the following information: On the database tier: Hostname, Database SID, Database Name, Instance Name, TNS Descriptors..... On the application tier: Hostname, FNDFS and FNDSM alias descriptors......... The Net Services Topology Data Model is seeded every time you run AutoConfig on the respective tier. Every time you run AutoConfig on the database tier, the relevant data is seeded/updated for the database tier. Respectively, every time you run AutoConfig on the application tier, the relevant data is seeded/updated for the application tier. To deregister the current application tier from the Net Services Topology Data Model, invoke the following command: $ perl <AD_TOP>/bin/adgentns.pl appspass=<APPSpwd> contextfile=<CONTEXT> -removeserver To deregister the current database tier from the Net Services Topology Data Model, invoke the following command: $ perl <RDBMS ORACLE_HOME>/appsutil/bin/adgentns.pl appspass=< APPSpwd> contextfile=<CONTEXT> - removeserver

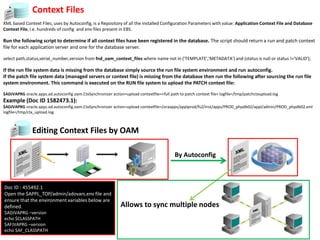

Context Files XML based Context Files, uses by Autoconfig, is a Repository of all the installed Configuration Parameters with value: Application Context File and Database Context File, i.e. hundreds of config and env files present in EBS. Run the following script to determine if all context files have been registered in the database. The script should return a run and patch context file for each application server and one for the database server. select path,status,serial_number,version from fnd_oam_context_files where name not in ('TEMPLATE','METADATA') and (status is null or status !='VALID'); If the run file system data is missing from the database simply source the run file system environment and run autoconfig. If the patch file system data (managed servers or context file) is missing from the database then run the following after sourcing the run file system environment. This command is executed on the RUN file system to upload the PATCH context file: $ADJVAPRG oracle.apps.ad.autoconfig.oam.CtxSynchronizer action=upload contextfile=<full path to patch context file> logfile=/tmp/patchctxupload.log Example (Doc ID 1582473.1): $ADJVAPRG oracle.apps.ad.autoconfig.oam.CtxSynchronizer action=upload contextfile=/oraapps/applprod/fs2/inst/apps/PROD_phpdb02/appl/admin/PROD_phpdb02.xml logfile=/tmp/ctx_upload.log Editing Context Files by OAM By Autoconfig Allows to sync multiple nodes Doc ID : 455492.1 Open the $APPL_TOP/admin/adovars.env file and ensure that the environment variables below are defined. $ADJVAPRG –version echo $CLASSPATH $AFJVAPRG –version echo $AF_CLASSPATH

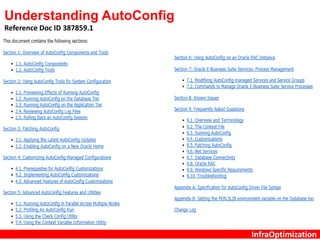

InfraOptimization Understanding AutoConfig Reference Doc ID 387859.1

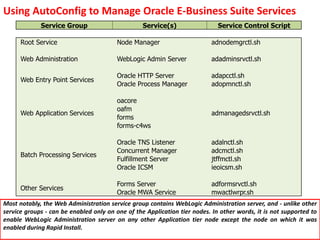

Using AutoConfig to Manage Oracle E-Business Suite Services Service Group Service(s) Service Control Script Root Service Node Manager adnodemgrctl.sh Web Administration WebLogic Admin Server adadminsrvctl.sh Web Entry Point Services Oracle HTTP Server adapcctl.sh Oracle Process Manager adopmnctl.sh Web Application Services oacore admanagedsrvctl.sh oafm forms forms-c4ws Batch Processing Services Oracle TNS Listener adalnctl.sh Concurrent Manager adcmctl.sh Fulfillment Server jtffmctl.sh Oracle ICSM ieoicsm.sh Other Services Forms Server adformsrvctl.sh Oracle MWA Service mwactlwrpr.sh Most notably, the Web Administration service group contains WebLogic Administration server, and - unlike other service groups - can be enabled only on one of the Application tier nodes. In other words, it is not supported to enable WebLogic Administration server on any other Application tier node except the node on which it was enabled during Rapid Install.

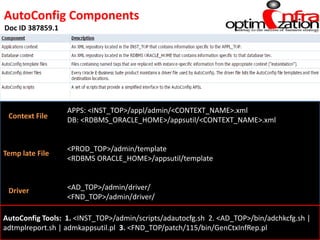

AutoConfig Components Doc ID 387859.1 APPS: <INST_TOP>/appl/admin/<CONTEXT_NAME>.xml DB: <RDBMS_ORACLE_HOME>/appsutil/<CONTEXT_NAME>.xml <PROD_TOP>/admin/template <RDBMS ORACLE_HOME>/appsutil/template <AD_TOP>/admin/driver/ <FND_TOP>/admin/driver/ Context File Temp late File Driver AutoConfig Tools: 1. <INST_TOP>/admin/scripts/adautocfg.sh 2. <AD_TOP>/bin/adchkcfg.sh | adtmplreport.sh | admkappsutil.pl 3. <FND_TOP/patch/115/bin/GenCtxInfRep.pl
InfraOptimization AutoConfig Check Utility Tool & Performance Profiler The check config utility is a great method for analyzing the impact of AutoConfig. Simply execute the utility and review the HTML output file. Another utility, the Performance Profiler will allow you to review and resolve performance related issues that are experienced during the execution of autoconfig. Like the check config utility, you run the tool and analyze the HTML output file. Both tools allow you to refine and tune autoconfig executions. • Review the affects of executing AutoConfig • HTML file is generated by the Check Config Utility • Execute Check Config Tool: $AD_TOP/bin/adchkcfg.sh Previewing AutoConfig Changes on All Tiers • Review the timings of executing AutoConfig • HTML file is generated by the Performance Profiler Utility • Execute Performance Profile Utility: perl $AD_TOP/bin/adconfig.pl contextfile=<CtxFile> [product=<product_top>] –profile Optimizing AutoConfig Performance Through Profiling: Identifying AutoConfig Performance Bottlenecks

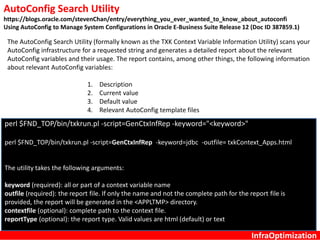

InfraOptimization AutoConfig Search Utility https://blogs.oracle.com/stevenChan/entry/everything_you_ever_wanted_to_know_about_autoconfi Using AutoConfig to Manage System Configurations in Oracle E-Business Suite Release 12 (Doc ID 387859.1) The AutoConfig Search Utility (formally known as the TXK Context Variable Information Utility) scans your AutoConfig infrastructure for a requested string and generates a detailed report about the relevant AutoConfig variables and their usage. The report contains, among other things, the following information about relevant AutoConfig variables: 1. Description 2. Current value 3. Default value 4. Relevant AutoConfig template files perl $FND_TOP/bin/txkrun.pl -script=GenCtxInfRep -keyword="<keyword>" perl $FND_TOP/bin/txkrun.pl -script=GenCtxInfRep -keyword=jdbc -outfile= txkContext_Apps.html The utility takes the following arguments: keyword (required): all or part of a context variable name outfile (required): the report file. If only the name and not the complete path for the report file is provided, the report will be generated in the <APPLTMP> directory. contextfile (optional): complete path to the context file. reportType (optional): the report type. Valid values are html (default) or text

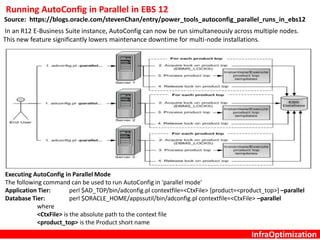

InfraOptimization Running AutoConfig in Parallel in EBS 12 Source: https://blogs.oracle.com/stevenChan/entry/power_tools_autoconfig_parallel_runs_in_ebs12 In an R12 E-Business Suite instance, AutoConfig can now be run simultaneously across multiple nodes. This new feature significantly lowers maintenance downtime for multi-node installations. Executing AutoConfig in Parallel Mode The following command can be used to run AutoConfig in 'parallel mode' Application Tier: perl $AD_TOP/bin/adconfig.pl contextfile=<CtxFile> [product=<product_top>] –parallel Database Tier: perl $ORACLE_HOME/appssutil/bin/adconfig.pl contextfile=<CtxFile> –parallel where <CtxFile> is the absolute path to the context file <product_top> is the Product short name

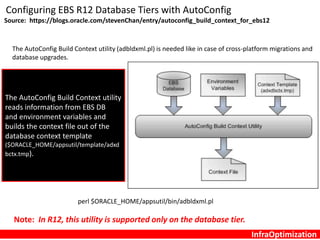

InfraOptimization Configuring EBS R12 Database Tiers with AutoConfig Source: https://blogs.oracle.com/stevenChan/entry/autoconfig_build_context_for_ebs12 The AutoConfig Build Context utility (adbldxml.pl) is needed like in case of cross-platform migrations and database upgrades. perl $ORACLE_HOME/appsutil/bin/adbldxml.pl Note: In R12, this utility is supported only on the database tier. The AutoConfig Build Context utility reads information from EBS DB and environment variables and builds the context file out of the database context template ($ORACLE_HOME/appsutil/template/adxd bctx.tmp).

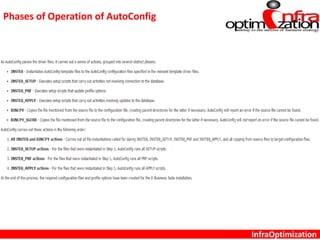

InfraOptimization Phases of Operation of AutoConfig
InfraOptimization Oracle EBS R12.2: Concurrent Processing Server
Concurrent Processing Server Most user interactions with Oracle Applications data are conducted via the HTML interface or the Forms interface. However, some reporting and updating programs may need to be run either periodically or on an ad hoc basis. As these programs may require a large number of computations, they are run in the background at a time, and with a priority, such that the work of interactive users is not impeded. Such programs are run on the Concurrent Processing server. You submit a request to run a concurrent program through an Oracle Applications form. The request inserts a row into a database table, specifying the program to be run. Concurrent managers read the applicable requests in the table and start the relevant concurrent programs. Note: Log and output files from concurrent programs are generated on the Concurrent Processing server. These should be monitored for errors, and archived or deleted when no longer needed. Failure to do so will eventually result in a shortage of disk space. InfraOptimization

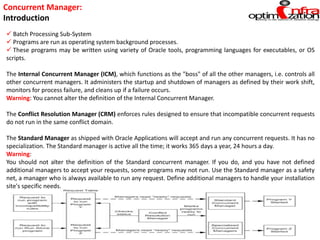

Concurrent Manager: Introduction  Batch Processing Sub-System  Programs are run as operating system background processes.  These programs may be written using variety of Oracle tools, programming languages for executables, or OS scripts. The Internal Concurrent Manager (ICM), which functions as the "boss" of all the other managers, i.e. controls all other concurrent managers. It administers the startup and shutdown of managers as defined by their work shift, monitors for process failure, and cleans up if a failure occurs. Warning: You cannot alter the definition of the Internal Concurrent Manager. The Conflict Resolution Manager (CRM) enforces rules designed to ensure that incompatible concurrent requests do not run in the same conflict domain. The Standard Manager as shipped with Oracle Applications will accept and run any concurrent requests. It has no specialization. The Standard manager is active all the time; it works 365 days a year, 24 hours a day. Warning: You should not alter the definition of the Standard concurrent manager. If you do, and you have not defined additional managers to accept your requests, some programs may not run. Use the Standard manager as a safety net, a manager who is always available to run any request. Define additional managers to handle your installation site's specific needs.
Monitoring Concurrent Manager Concurrent > Manager >Administer Are the Managers up and running ?

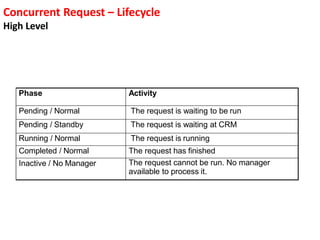

Concurrent Request – Lifecycle High Level Phase Activity Pending / Normal The request is waiting to be run Pending / Standby The request is waiting at CRM Running / Normal The request is running Completed / Normal The request has finished Inactive / No Manager The request cannot be run. No manager available to process it.

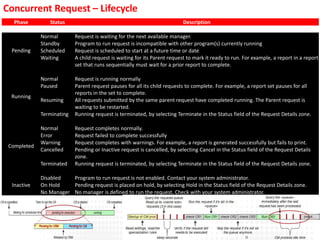

Concurrent Request – Lifecycle Phase Status Description Pending Normal Request is waiting for the next available manager. Standby Program to run request is incompatible with other program(s) currently running Scheduled Request is scheduled to start at a future time or date Waiting A child request is waiting for its Parent request to mark it ready to run. For example, a report in a report set that runs sequentially must wait for a prior report to complete. Running Normal Request is running normally Paused Parent request pauses for all its child requests to complete. For example, a report set pauses for all reports in the set to complete. Resuming All requests submitted by the same parent request have completed running. The Parent request is waiting to be restarted. Terminating Running request is terminated, by selecting Terminate in the Status field of the Request Details zone. Completed Normal Request completes normally. Error Request failed to complete successfully Warning Request completes with warnings. For example, a report is generated successfully but fails to print. Cancelled Pending or Inactive request is cancelled, by selecting Cancel in the Status field of the Request Details zone. Terminated Running request is terminated, by selecting Terminate in the Status field of the Request Details zone. Inactive Disabled Program to run request is not enabled. Contact your system administrator. On Hold Pending request is placed on hold, by selecting Hold in the Status field of the Request Details zone. No Manager No manager is defined to run the request. Check with your system administrator.

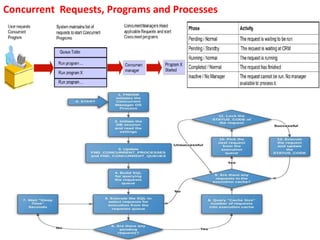

Concurrent Requests, Programs and Processes

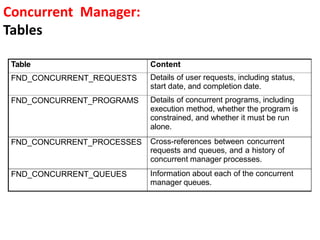

Concurrent Manager: Tables Table Content FND_CONCURRENT_REQUESTS Details of user requests, including status, start date, and completion date. FND_CONCURRENT_PROGRAMS Details of concurrent programs, including execution method, whether the program is constrained, and whether it must be run alone. FND_CONCURRENT_PROCESSES Cross-references between concurrent requests and queues, and a history of concurrent manager processes. FND_CONCURRENT_QUEUES Information about each of the concurrent manager queues.

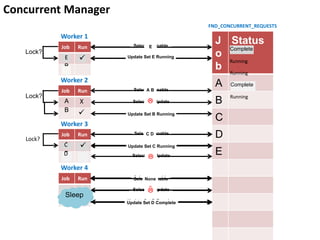

 Select for Update Select for Update Select for Update Select for Update Select for Update Select for Update     J o b Status A B C D E Job Run Job Run Job Run Job Run Select Runnable Select Runnable Select Runnable Select Runnable A B A B A B A B A B A B A B A B A B A B A B A B Lock? Lock? Lock? Lock? Running  X X X Select for Update Select for Update Select for Update     Running X X Update Set A Running Update Set B Running Running Select Runnable Select Runnable C D C D C D C D C D C D   Lock? Lock? Update Set C Running X Running Select Runnable Select for Update Update Set A Complete Running  Select for Update Select Runnable Complete Update Set D Running E EE Update Set E Running Lock?  Running Update Set D Complete Complete None Worker 1 Worker 2 Worker 3 Worker 4 FND_CONCURRENT_REQUESTS Sleep Concurrent Manager

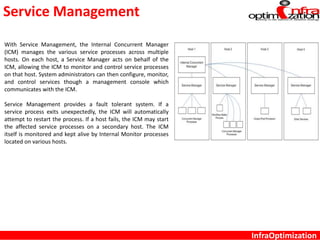

Service Management InfraOptimization With Service Management, the Internal Concurrent Manager (ICM) manages the various service processes across multiple hosts. On each host, a Service Manager acts on behalf of the ICM, allowing the ICM to monitor and control service processes on that host. System administrators can then configure, monitor, and control services though a management console which communicates with the ICM. Service Management provides a fault tolerant system. If a service process exits unexpectedly, the ICM will automatically attempt to restart the process. If a host fails, the ICM may start the affected service processes on a secondary host. The ICM itself is monitored and kept alive by Internal Monitor processes located on various hosts.

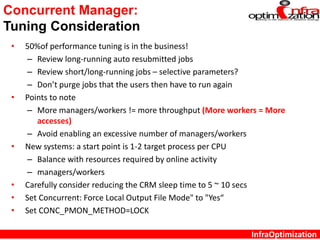

InfraOptimization Concurrent Manager: Tuning Consideration • 50%of performance tuning is in the business! – Review long-running auto resubmitted jobs – Review short/long-running jobs – selective parameters? – Don’t purge jobs that the users then have to run again • Points to note – More managers/workers != more throughput (More workers = More accesses) – Avoid enabling an excessive number of managers/workers • New systems: a start point is 1-2 target process per CPU – Balance with resources required by online activity – managers/workers • Carefully consider reducing the CRM sleep time to 5 ~ 10 secs • Set Concurrent: Force Local Output File Mode" to "Yes“ • Set CONC_PMON_METHOD=LOCK

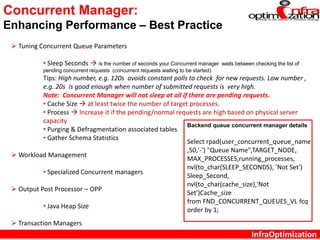

InfraOptimization Concurrent Manager: Enhancing Performance – Best Practice  Tuning Concurrent Queue Parameters • Sleep Seconds  is the number of seconds your Concurrent manager waits between checking the list of pending concurrent requests (concurrent requests waiting to be started). Tips: High number, e.g. 120s avoids constant polls to check for new requests. Low number , e.g. 20s is good enough when number of submitted requests is very high. Note: Concurrent Manager will not sleep at all if there are pending requests. • Cache Size  at least twice the number of target processes. • Process  Increase it if the pending/normal requests are high based on physical server capacity • Purging & Defragmentation associated tables • Gather Schema Statistics  Workload Management • Specialized Concurrent managers  Output Post Processor – OPP • Java Heap Size  Transaction Managers Backend queue concurrent manager details Select rpad(user_concurrent_queue_name ,50,'-') "Queue Name",TARGET_NODE, MAX_PROCESSES,running_processes, nvl(to_char(SLEEP_SECONDS), 'Not Set') Sleep_Second, nvl(to_char(cache_size),'Not Set')Cache_size from FND_CONCURRENT_QUEUES_VL fcq order by 1;

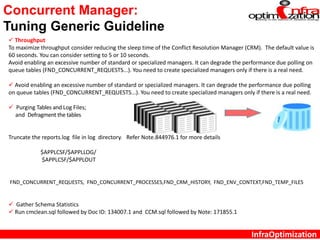

InfraOptimization Concurrent Manager: Tuning Generic Guideline  Throughput To maximize throughput consider reducing the sleep time of the Conflict Resolution Manager (CRM). The default value is 60 seconds. You can consider setting to 5 or 10 seconds. Avoid enabling an excessive number of standard or specialized managers. It can degrade the performance due polling on queue tables (FND_CONCURRENT_REQUESTS...). You need to create specialized managers only if there is a real need.  Avoid enabling an excessive number of standard or specialized managers. It can degrade the performance due polling on queue tables (FND_CONCURRENT_REQUESTS...). You need to create specialized managers only if there is a real need.  Purging Tables and Log Files; and Defragment the tables Truncate the reports.log file in log directory. Refer Note.844976.1 for more details $APPLCSF/$APPLLOG/ $APPLCSF/$APPLOUT FND_CONCURRENT_REQUESTS, FND_CONCURRENT_PROCESSES,FND_CRM_HISTORY, FND_ENV_CONTEXT,FND_TEMP_FILES  Gather Schema Statistics  Run cmclean.sql followed by Doc ID: 134007.1 and CCM.sql followed by Note: 171855.1

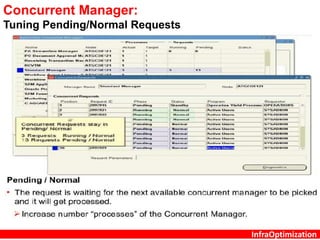

InfraOptimization Concurrent Manager: Tuning Pending/Normal Requests
InfraOptimization Concurrent Manager: Tuning Pending/Standby Requests

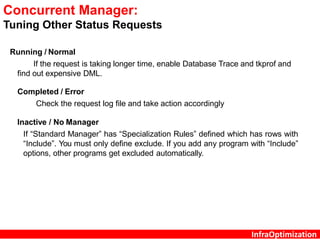

InfraOptimization Concurrent Manager: Tuning Other Status Requests Running / Normal If the request is taking longer time, enable Database Trace and tkprof and find out expensive DML. Completed / Error Check the request log file and take action accordingly Inactive / No Manager If “Standard Manager” has “Specialization Rules” defined which has rows with “Include”. You must only define exclude. If you add any program with “Include” options, other programs get excluded automatically.

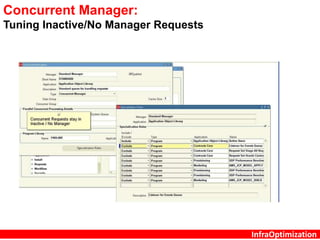

InfraOptimization Concurrent Manager: Tuning Inactive/No Manager Requests

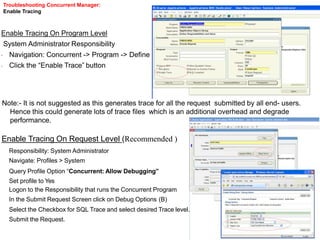

Troubleshooting Concurrent Manager: Enable Tracing Enable Tracing On Program Level System Administrator Responsibility • • Navigation: Concurrent -> Program -> Define Click the “Enable Trace” button Note:- It is not suggested as this generates trace for all the request submitted by all end- users. Hence this could generate lots of trace files which is an additional overhead and degrade performance. Enable Tracing On Request Level (Recommended ) Responsibility: System Administrator Navigate: Profiles > System Query Profile Option “Concurrent: Allow Debugging” Set profile to Yes Logon to the Responsibility that runs the Concurrent Program In the Submit Request Screen click on Debug Options (B) Select the Checkbox for SQL Trace and select desired Trace level. Submit the Request.
InfraOptimization Concurrent Manager: Tuning Options Sleep Seconds • Sleep Seconds - is the number of seconds your Concurrent manager waits between checking the list of pending concurrent requests (concurrent requests waiting to be started). A manager only sleeps if there are no runnable jobs in the queue. Tip: During peak time, when the number of requests submitted is expected to be high, Set the sleep time to a reasonable wait time(e.g. 30 seconds) dependent on the average run time and to prevent backlog. Otherwise set the sleep time to a high number (e.g. 2 minutes) . This avoids constant polls to check for new requests. • If you have multiple manager processes, sleep time is the max time to wait until the new request is picked up from the queue. • e.g. 5 Standard managers, sleep time 60 saeconds = average time to pick up the new request from the queue if all managers are idle: 60/5 = ~12 seconds. • Guideline for tuning: • Set «sleep seconds» = avg requirement * processes * (1 - utilization) • Example 1: Req = 20s, util =20%, proc = 3 – 20 * 3 * (1 - 0.2) = 20 * 3 * .8 = 48 seconds • Example 2: Req = 20s, util =90%, proc = 3 – 20 * 3 * (1 - 0.9) = 20 * 3 * .1 = 6 seconds , less then requirement? The problem is somewhere else!

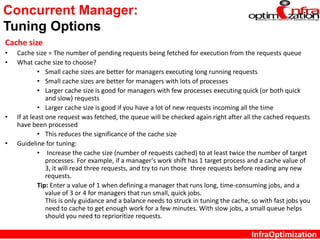

InfraOptimization Concurrent Manager: Tuning Options Cache size • Cache size = The number of pending requests being fetched for execution from the requests queue • What cache size to choose? • Small cache sizes are better for managers executing long running requests • Small cache sizes are better for managers with lots of processes • Larger cache size is good for managers with few processes executing quick (or both quick and slow) requests • Larger cache size is good if you have a lot of new requests incoming all the time • If at least one request was fetched, the queue will be checked again right after all the cached requests have been processed • This reduces the significance of the cache size • Guideline for tuning: • Increase the cache size (number of requests cached) to at least twice the number of target processes. For example, if a manager's work shift has 1 target process and a cache value of 3, it will read three requests, and try to run those three requests before reading any new requests. Tip: Enter a value of 1 when defining a manager that runs long, time-consuming jobs, and a value of 3 or 4 for managers that run small, quick jobs. This is only guidance and a balance needs to struck in tuning the cache, so with fast jobs you need to cache to get enough work for a few minutes. With slow jobs, a small queue helps should you need to reprioritize requests.

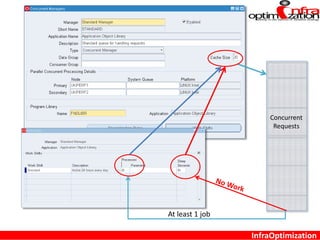

InfraOptimization Concurrent Requests At least 1 job

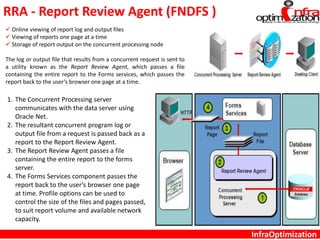

RRA - Report Review Agent (FNDFS ) 1. The Concurrent Processing server communicates with the data server using Oracle Net. 2. The resultant concurrent program log or output file from a request is passed back as a report to the Report Review Agent. 3. The Report Review Agent passes a file containing the entire report to the forms server. 4. The Forms Services component passes the report back to the user’s browser one page at time. Profile options can be used to control the size of the files and pages passed, to suit report volume and available network capacity. InfraOptimization  Online viewing of report log and output files  Viewing of reports one page at a time  Storage of report output on the concurrent processing node The log or output file that results from a concurrent request is sent to a utility known as the Report Review Agent, which passes a file containing the entire report to the Forms services, which passes the report back to the user’s browser one page at a time.

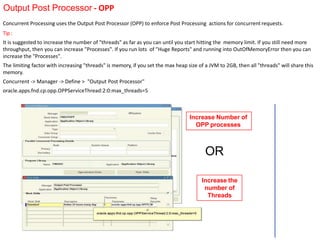

Output Post Processor - OPP Increase Number of OPP processes Increase the number of Threads OR Concurrent Processing uses the Output Post Processor (OPP) to enforce Post Processing actions for concurrent requests. Tip : It is suggested to increase the number of "threads" as far as you can until you start hitting the memory limit. If you still need more throughput, then you can increase "Processes". If you run lots of "Huge Reports" and running into OutOfMemoryError then you can increase the "Processes". The limiting factor with increasing "threads" is memory, if you set the max heap size of a JVM to 2GB, then all "threads" will share this memory. Concurrent -> Manager -> Define > "Output Post Processor" oracle.apps.fnd.cp.opp.OPPServiceThread:2:0:max_threads=5

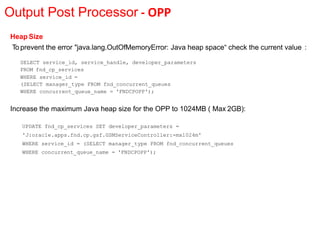

Output Post Processor - OPP Heap Size To prevent the error "java.lang.OutOfMemoryError: Java heap space“ check the current value : SELECT service_id, service_handle, developer_parameters FROM fnd_cp_services WHERE service_id = (SELECT manager_type FROM fnd_concurrent_queues WHERE concurrent_queue_name = 'FNDCPOPP'); Increase the maximum Java heap size for the OPP to 1024MB ( Max 2GB): UPDATE fnd_cp_services SET developer_parameters = 'J:oracle.apps.fnd.cp.gsf.GSMServiceController:-mx1024m' WHERE service_id = (SELECT manager_type FROM fnd_concurrent_queues WHERE concurrent_queue_name = 'FNDCPOPP');

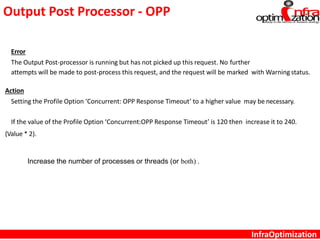

Output Post Processor - OPP InfraOptimization Error The Output Post-processor is running but has not picked up this request. No further attempts will be made to post-process this request, and the request will be marked with Warning status. Action Setting the Profile Option ‘Concurrent: OPP Response Timeout’ to a higher value may be necessary. If the value of the Profile Option ‘Concurrent:OPP Response Timeout’ is 120 then increase it to 240. (Value * 2). Increase the number of processes or threads (or both) .

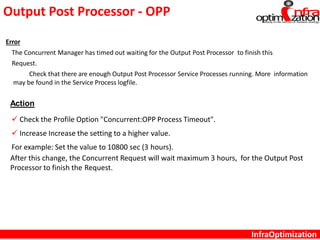

Output Post Processor - OPP InfraOptimization Error The Concurrent Manager has timed out waiting for the Output Post Processor to finish this Request. Check that there are enough Output Post Processor Service Processes running. More information may be found in the Service Process logfile. Action  Check the Profile Option "Concurrent:OPP Process Timeout".  Increase Increase the setting to a higher value. For example: Set the value to 10800 sec (3 hours). After this change, the Concurrent Request will wait maximum 3 hours, for the Output Post Processor to finish the Request.
InfraOptimization Oracle EBS R12.2 Data Model

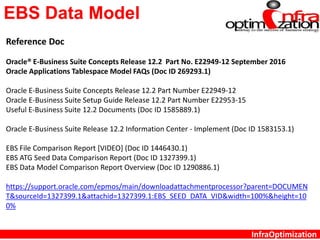

InfraOptimization EBS Data Model Reference Doc Oracle® E-Business Suite Concepts Release 12.2 Part No. E22949-12 September 2016 Oracle Applications Tablespace Model FAQs (Doc ID 269293.1) Oracle E-Business Suite Concepts Release 12.2 Part Number E22949-12 Oracle E-Business Suite Setup Guide Release 12.2 Part Number E22953-15 Useful E-Business Suite 12.2 Documents (Doc ID 1585889.1) Oracle E-Business Suite Release 12.2 Information Center - Implement (Doc ID 1583153.1) EBS File Comparison Report [VIDEO] (Doc ID 1446430.1) EBS ATG Seed Data Comparison Report (Doc ID 1327399.1) EBS Data Model Comparison Report Overview (Doc ID 1290886.1) https://support.oracle.com/epmos/main/downloadattachmentprocessor?parent=DOCUMEN T&sourceId=1327399.1&attachid=1327399.1:EBS_SEED_DATA_VID&width=100%&height=10 0%

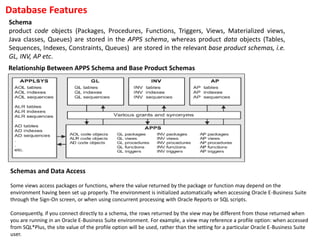

Database Features Schema product code objects (Packages, Procedures, Functions, Triggers, Views, Materialized views, Java classes, Queues) are stored in the APPS schema, whereas product data objects (Tables, Sequences, Indexes, Constraints, Queues) are stored in the relevant base product schemas, i.e. GL, INV, AP etc. Relationship Between APPS Schema and Base Product Schemas Schemas and Data Access Some views access packages or functions, where the value returned by the package or function may depend on the environment having been set up properly. The environment is initialized automatically when accessing Oracle E-Business Suite through the Sign-On screen, or when using concurrent processing with Oracle Reports or SQL scripts. Consequently, if you connect directly to a schema, the rows returned by the view may be different from those returned when you are running in an Oracle E-Business Suite environment. For example, a view may reference a profile option: when accessed from SQL*Plus, the site value of the profile option will be used, rather than the setting for a particular Oracle E-Business Suite user.

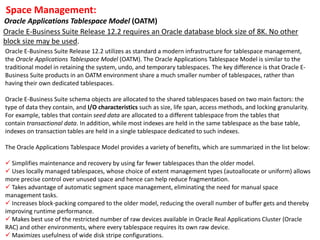

Space Management: Oracle Applications Tablespace Model (OATM) Oracle E-Business Suite Release 12.2 utilizes as standard a modern infrastructure for tablespace management, the Oracle Applications Tablespace Model (OATM). The Oracle Applications Tablespace Model is similar to the traditional model in retaining the system, undo, and temporary tablespaces. The key difference is that Oracle E- Business Suite products in an OATM environment share a much smaller number of tablespaces, rather than having their own dedicated tablespaces. Oracle E-Business Suite schema objects are allocated to the shared tablespaces based on two main factors: the type of data they contain, and I/O characteristics such as size, life span, access methods, and locking granularity. For example, tables that contain seed data are allocated to a different tablespace from the tables that contain transactional data. In addition, while most indexes are held in the same tablespace as the base table, indexes on transaction tables are held in a single tablespace dedicated to such indexes. The Oracle Applications Tablespace Model provides a variety of benefits, which are summarized in the list below:  Simplifies maintenance and recovery by using far fewer tablespaces than the older model.  Uses locally managed tablespaces, whose choice of extent management types (autoallocate or uniform) allows more precise control over unused space and hence can help reduce fragmentation.  Takes advantage of automatic segment space management, eliminating the need for manual space management tasks.  Increases block-packing compared to the older model, reducing the overall number of buffer gets and thereby improving runtime performance.  Makes best use of the restricted number of raw devices available in Oracle Real Applications Cluster (Oracle RAC) and other environments, where every tablespace requires its own raw device.  Maximizes usefulness of wide disk stripe configurations. Oracle E-Business Suite Release 12.2 requires an Oracle database block size of 8K. No other block size may be used.

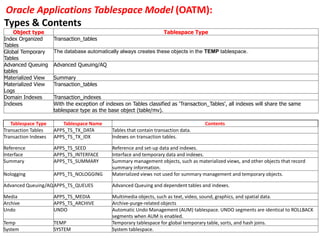

Oracle Applications Tablespace Model (OATM): Types & Contents Tablespace Type Tablespace Name Contents Transaction Tables APPS_TS_TX_DATA Tables that contain transaction data. Transaction Indexes APPS_TS_TX_IDX Indexes on transaction tables. Reference APPS_TS_SEED Reference and set-up data and indexes. Interface APPS_TS_INTERFACE Interface and temporary data and indexes. Summary APPS_TS_SUMMARY Summary management objects, such as materialized views, and other objects that record summary information. Nologging APPS_TS_NOLOGGING Materialized views not used for summary management and temporary objects. Advanced Queuing/AQAPPS_TS_QUEUES Advanced Queuing and dependent tables and indexes. Media APPS_TS_MEDIA Multimedia objects, such as text, video, sound, graphics, and spatial data. Archive APPS_TS_ARCHIVE Archive-purge-related objects Undo UNDO Automatic Undo Management (AUM) tablespace. UNDO segments are identical to ROLLBACK segments when AUM is enabled. Temp TEMP Temporary tablespace for global temporary table, sorts, and hash joins. System SYSTEM System tablespace. Object type Tablespace Type Index Organized Tables Transaction_tables Global Temporary Tables The database automatically always creates these objects in the TEMP tablespace. Advanced Queuing tables Advanced Queuing/AQ Materialized View Summary Materialized View Logs Transaction_tables Domain Indexes Transaction_indexes Indexes With the exception of indexes on Tables classified as 'Transaction_Tables', all indexes will share the same tablespace type as the base object (table/mv).
InfraOptimization Online Patching: Pathway to Minimizing Planned Downtime
InfraOptimization  Using the Online Patching Readiness Report in Oracle E-Business Suite Release 12.2 (Doc ID 1531121.1)  Oracle E-Business Suite Release Notes, Release 12.2 (Doc ID 1320300.1)  Oracle E-Business Suite Developer's Guide Release 12.2 Part Number E22961-14  Online Patching with Oracle E-Business Suite 12.2 Kevin Hudson Senior Director, Applications Technology, Oracle E-Business Suite Development September 22, 2016  Oracle E-Business Suite Release 12.2: Online Patching FAQ (Doc ID 1583902.1) Online Patching: References

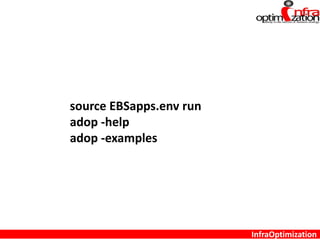

InfraOptimization source EBSapps.env run adop -help adop –examples Oracle Patch Application Assistant (PAA):admsi.pl perl $AD_TOP/bin/admsi.pl -patch_top=<patch-top-directory> -appspass=<apps-password>

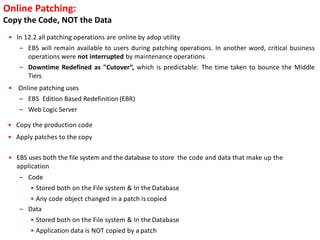

• In 12.2 all patching operations are online by adop utility – EBS will remain available to users during patching operations. In another word, critical business operations were not interrupted by maintenance operations – Downtime Redefined as "Cutover“, which is predictable: The time taken to bounce the Middle Tiers • Online patching uses – EBS Edition Based Redefinition (EBR) – Web Logic Server Online Patching: Copy the Code, NOT the Data • Copy the production code • Apply patches to the copy • EBS uses both the file system and the database to store the code and data that make up the application – Code • Stored both on the File system & In the Database • Any code object changed in a patch is copied – Data • Stored both on the File system & In the Database • Application data is NOT copied by a patch

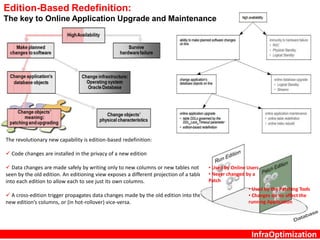

InfraOptimization Edition-Based Redefinition: The key to Online Application Upgrade and Maintenance The revolutionary new capability is edition-based redefinition:  Code changes are installed in the privacy of a new edition  Data changes are made safely by writing only to new columns or new tables not seen by the old edition. An editioning view exposes a different projection of a table into each edition to allow each to see just its own columns.  A cross-edition trigger propagates data changes made by the old edition into the new edition’s columns, or (in hot-rollover) vice-versa. • Used by Online Users • Never changed by a Patch • Used by the Patching Tools • Changes do no affect the running Application

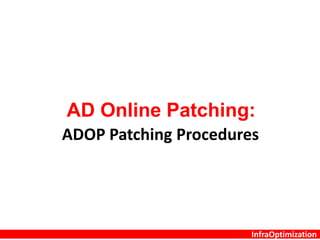

InfraOptimization AD Online Patching: ADOP Patching Procedures
Adop Phase Scope Prepare Gets patching filesystem ready to apply a patch. Checks that ETCC has been run against the database Oracle Home and that all required patches are applied. synchronize filesystems - If any configuration changes have been made, this will cause the prepare phase to initiate a fs_clone of the current run filesystem to the patch filesystem. run autoconfig if necessary. check tablespaces for sufficient free space before starting. check APPS_FNDFS listener to make sure concurrent requests will launch. launch concurrent request - "Online Patching In Progress" (ADZDPATCH). synchronize snapshots between run and patch filesystems. Apply merging patches - ADOP determines correct options automatically. patch repository location. ADOP log directories. how to run ADOP unattended by passing the required passwords into the ADOP command. how to use adctrl with ADOP. viewing the ADOP patch log file while ADOP is running. Finalize compiles invalids objects in the patch edition. determines DDL statements to execute at cutover. validates that the system is ready for a cutover. gathers statistics for performance. Cutover once started, the abort phase can not be issued. runs the finalize phase if it was missed. cancels concurrent request - "Online Patching In Progress" (ADZDPATCH). shuts down the internal concurrent manager. stops any processes that may have been started on the patch filesystem. stops the RUNNING applications tiers. executes the DDL statements prepared during the finalize phase. loads jar files into the database. synchronizes snapshots between run and patch filesystems. broadcasts a message to local users that a cutover is taking place and to re-source their working environment. Cleanup cleans up old editions explains the three methods of cleanup. QUICK cleanup performs removal of obsolete crossedition triggers and seed data. STANDARD cleanup performs removal of obsolete crossedition triggers and seed data, drops (removes) obsolete editioned code objects (covered objects). (DEFAULT MODE) FULL cleanup performs maximum cleanup, which drops all obsolete code and data from earlier editions

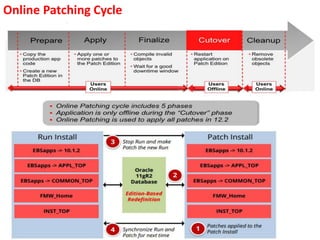

Online Patching Cycle

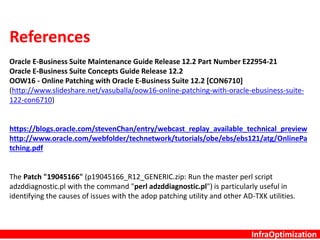

InfraOptimization References Oracle E-Business Suite Maintenance Guide Release 12.2 Part Number E22954-21 Oracle E-Business Suite Concepts Guide Release 12.2 OOW16 - Online Patching with Oracle E-Business Suite 12.2 [CON6710] (http://www.slideshare.net/vasuballa/oow16-online-patching-with-oracle-ebusiness-suite- 122-con6710) https://blogs.oracle.com/stevenChan/entry/webcast_replay_available_technical_preview http://www.oracle.com/webfolder/technetwork/tutorials/obe/ebs/ebs121/atg/OnlinePa tching.pdf The Patch "19045166" (p19045166_R12_GENERIC.zip: Run the master perl script adzddiagnostic.pl with the command "perl adzddiagnostic.pl") is particularly useful in identifying the causes of issues with the adop patching utility and other AD-TXK utilities.
Monitoring: Online Patching Session InfraOptimization

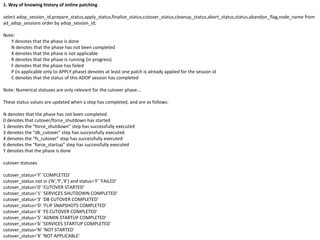

1. Way of knowing history of online patching select adop_session_id,prepare_status,apply_status,finalize_status,cutover_status,cleanup_status,abort_status,status,abandon_flag,node_name from ad_adop_sessions order by adop_session_id; Note: Y denotes that the phase is done N denotes that the phase has not been completed X denotes that the phase is not applicable R denotes that the phase is running (in progress) F denotes that the phase has failed P (is applicable only to APPLY phase) denotes at least one patch is already applied for the session id C denotes that the status of this ADOP session has completed Note: Numerical statuses are only relevant for the cutover phase... These status values are updated when a step has completed, and are as follows: N denotes that the phase has not been completed 0 denotes that cutover/force_shutdown has started 1 denotes the "force_shutdown" step has successfully executed 3 denotes the "db_cutover" step has successfully executed 4 denotes the "fs_cutover" step has successfully executed 6 denotes the "force_startup" step has successfully executed Y denotes that the phase is done cutover statuses cutover_status='Y' 'COMPLETED' cutover_status not in ('N','Y','X') and status='F' 'FAILED' cutover_status='0' 'CUTOVER STARTED' cutover_status='1' 'SERVICES SHUTDOWN COMPLETED' cutover_status='3' 'DB CUTOVER COMPLETED' cutover_status='D' 'FLIP SNAPSHOTS COMPLETED' cutover_status='4' 'FS CUTOVER COMPLETED' cutover_status='5' 'ADMIN STARTUP COMPLETED' cutover_status='6' 'SERVICES STARTUP COMPLETED' cutover_status='N' 'NOT STARTED' cutover_status='X' 'NOT APPLICABLE'

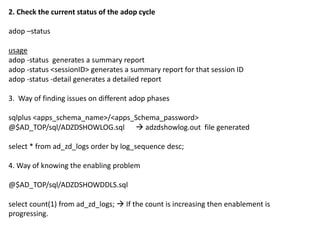

2. Check the current status of the adop cycle adop –status usage adop -status generates a summary report adop -status <sessionID> generates a summary report for that session ID adop -status -detail generates a detailed report 3. Way of finding issues on different adop phases sqlplus <apps_schema_name>/<apps_Schema_password> @$AD_TOP/sql/ADZDSHOWLOG.sql  adzdshowlog.out file generated select * from ad_zd_logs order by log_sequence desc; 4. Way of knowing the enabling problem @$AD_TOP/sql/ADZDSHOWDDLS.sql select count(1) from ad_zd_logs;  If the count is increasing then enablement is progressing.
5. Way of knowing which patches were applied in each ADOP_SESSION_ID (patching cycle) select * from ad_adop_session_patches order by end_date desc; or set pagesize 200; set linesize 160; column adop_session_id format 999999999999; column bug_number format a15; column status format a15; column applied_file_system_base format a23; column patch_file_system_base format a23; column adpatch_options format a15; column node_name format a15; column end_date format a15; column clone_status format a15; select adop_session_id, bug_number, status, applied_file_system_base, patch_file_system_base, adpatch_options, node_name, end_date, clone_status from ad_adop_session_patches order by end_date desc; Note: STATUS N - Not Applied In the current node but applied in other nodes R - Patch Application is going on. H - Patch failed in the middle. (Hard Failure) F - Patch failed in the middle but user tried to skip some failures. S - Patch Application succeeded after skipping the failed jobs. Y - Patch Application succeeded. C - Reserved for clone and config_clone. Indicates clone completed select ADOP_SESSION_ID,BUG_NUMBER,CLONE_STATUS,STATUS,NODE_NAME from AD_ADOP_SESSION_PATCHES order by ADOP_SESSION_ID;

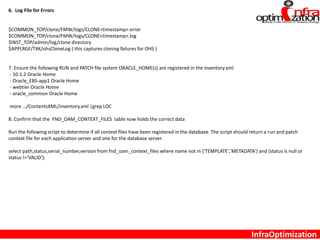

6. Log File for Errors $COMMON_TOP/clone/FMW/logs/CLONE<timestamp>.error $COMMON_TOP/clone/FMW/logs/CLONE<timestamp>.log $INST_TOP/admin/log/clone directory $APPLRGF/TXK/ohsCloneLog ( this captures cloning failures for OHS ) 7. Ensure the following RUN and PATCH file system ORACLE_HOME(s) are registered in the inventory.xml - 10.1.2 Oracle Home - Oracle_EBS-app1 Oracle Home - webtier Oracle Home - oracle_common Oracle Home more …/ContentsXML/inventory.xml |grep LOC 8. Confirm that the FND_OAM_CONTEXT_FILES table now holds the correct data Run the following script to determine if all context files have been registered in the database. The script should return a run and patch context file for each application server and one for the database server. select path,status,serial_number,version from fnd_oam_context_files where name not in ('TEMPLATE','METADATA') and (status is null or status !='VALID'); InfraOptimization

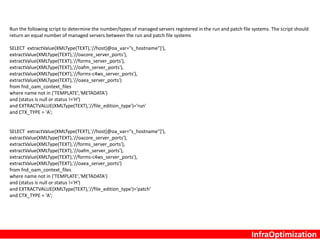

Run the following script to determine the number/types of managed servers registered in the run and patch file systems. The script should return an equal number of managed servers between the run and patch file systems SELECT extractValue(XMLType(TEXT),'//host[@oa_var="s_hostname"]'), extractValue(XMLType(TEXT),'//oacore_server_ports'), extractValue(XMLType(TEXT),'//forms_server_ports'), extractValue(XMLType(TEXT),'//oafm_server_ports'), extractValue(XMLType(TEXT),'//forms-c4ws_server_ports'), extractValue(XMLType(TEXT),'//oaea_server_ports') from fnd_oam_context_files where name not in ('TEMPLATE','METADATA') and (status is null or status !='H') and EXTRACTVALUE(XMLType(TEXT),'//file_edition_type')='run' and CTX_TYPE = 'A'; SELECT extractValue(XMLType(TEXT),'//host[@oa_var="s_hostname"]'), extractValue(XMLType(TEXT),'//oacore_server_ports'), extractValue(XMLType(TEXT),'//forms_server_ports'), extractValue(XMLType(TEXT),'//oafm_server_ports'), extractValue(XMLType(TEXT),'//forms-c4ws_server_ports'), extractValue(XMLType(TEXT),'//oaea_server_ports') from fnd_oam_context_files where name not in ('TEMPLATE','METADATA') and (status is null or status !='H') and EXTRACTVALUE(XMLType(TEXT),'//file_edition_type')='patch' and CTX_TYPE = 'A'; InfraOptimization
InfraOptimization
Thank you InfraOptimization

More Related Content

PPTX
Oracle Ebiz R12.2 Features -- Ravi Sagaram
byravisagaram

PPT
OEBS R12 Presentation.ppt
byMohd Haireeen

PDF
Oracle apps-technical-tutorial
byCheikh Ahmadou Bamba DIOP

PDF
EBS-technical_upgrade_best_practices 12.1 or 12.2
byBerry Clemens

PDF
Oracle EBS r12-2-6 New Features
byFeras Ahmad

PDF
Preparing for EBS R12.2-upgrade-full
byBerry Clemens

PPTX
Oracle Solution Presentation
byPrudence Technology

PPTX
Oracle E-Business Suite 12.2 - The Upgrade to End All Upgrades
byShiri Amit

Oracle Ebiz R12.2 Features -- Ravi Sagaram
byravisagaram

OEBS R12 Presentation.ppt
byMohd Haireeen

Oracle apps-technical-tutorial
byCheikh Ahmadou Bamba DIOP

EBS-technical_upgrade_best_practices 12.1 or 12.2
byBerry Clemens

Oracle EBS r12-2-6 New Features
byFeras Ahmad

Preparing for EBS R12.2-upgrade-full
byBerry Clemens

Oracle Solution Presentation
byPrudence Technology

Oracle E-Business Suite 12.2 - The Upgrade to End All Upgrades
byShiri Amit


What's hot

PDF
Ebs 12.2 con9021_pdf_9021_0001
byjucaab

PPT
Oracle Applications R12 architecture
bySekhar Byna

PDF
10 Tips for Successful 12.2 Upgrade
byOAUGNJ

PPT
Oracle R12 Financials New Features Overview
byiWare Logic Technologies Pvt. Ltd.

DOC
Oracle EBS R12 Self service user manual
byFeras Ahmad

PPT
ORACLE EBS R12 UPGRADE
byDinesh Gupta

PPTX
Oracle BI publisher intro
byAdil Arshad

PDF
Oracle data guard for beginners
byPini Dibask

PDF
Oracle Enterprise Manager Cloud Control 13c for DBAs
byGokhan Atil

PPTX
Oracle ebs db platform migration
bymaaz khan

DOCX
Oracle EBS R 12 Core hr user manual
byFeras Ahmad

PDF
Oracle db performance tuning
bySimon Huang

PPTX
Oracle DBA
byshivankuniversity

PPTX
Automating Your Clone in E-Business Suite R12.2
byMichael Brown

PPTX
What to Expect From Oracle database 19c
byMaria Colgan

PPT
Customizing Oracle EBS OA Framework
byiWare Logic Technologies Pvt. Ltd.

PDF
AutoUpgrade and Best Practices
byJitendra Singh

PPTX
Oracle EBS Apps HRMS Presentation
byFeras Ahmad

PDF
Maximum Availability Architecture - Best Practices for Oracle Database 19c
byGlen Hawkins

PPTX
Oracle architecture ppt
byDeepak Shetty

Ebs 12.2 con9021_pdf_9021_0001
byjucaab

Oracle Applications R12 architecture
bySekhar Byna

10 Tips for Successful 12.2 Upgrade
byOAUGNJ

Oracle R12 Financials New Features Overview
byiWare Logic Technologies Pvt. Ltd.

Oracle EBS R12 Self service user manual
byFeras Ahmad

ORACLE EBS R12 UPGRADE
byDinesh Gupta

Oracle BI publisher intro
byAdil Arshad

Oracle data guard for beginners
byPini Dibask

Oracle Enterprise Manager Cloud Control 13c for DBAs
byGokhan Atil

Oracle ebs db platform migration
bymaaz khan

Oracle EBS R 12 Core hr user manual
byFeras Ahmad

Oracle db performance tuning
bySimon Huang

Oracle DBA
byshivankuniversity

Automating Your Clone in E-Business Suite R12.2
byMichael Brown

What to Expect From Oracle database 19c
byMaria Colgan

Customizing Oracle EBS OA Framework
byiWare Logic Technologies Pvt. Ltd.

AutoUpgrade and Best Practices
byJitendra Singh

Oracle EBS Apps HRMS Presentation
byFeras Ahmad

Maximum Availability Architecture - Best Practices for Oracle Database 19c
byGlen Hawkins

Oracle architecture ppt
byDeepak Shetty


Viewers also liked

PPT
Oracle Weblogic for EBS and obiee (R12.2)
byBerry Clemens

PDF
Oracle E-Business Suite R12.2.5 on Database 12c: Install, Patch and Administer
byAndrejs Karpovs

PPTX
E business suite r12.2 changes for database administrators
bySrinivasa Pavan Marti

PPTX
Report Manager in Oracle EBS R12
byPrithis Das, PMP, OCS ☁️

PPTX
Oracle EBS Upgrade to 12.2.5.1
byAmit Sharma

PDF
Oracle inventory-latest
bykishoak

PDF
Oracle Inventory Complete Implementation Setups.
byMuhammad Mansoor Ali

PPTX
Oracle ERP Introduction
byNitin Maheshwari

PPTX
What’s New in Oracle E-Business Suite R12.2 for Database Administrators?
byvasuballa

PPTX
Supporting References in Oracle EBS R12
byPrithis Das, PMP, OCS ☁️

PDF
OOW15 - Advanced Architectures for Oracle E-Business Suite
byvasuballa

PDF
Oracle e-business suite (ebs) r12.2.6 - new functionality
byMatthew Bezuidenhout

PDF
Ora fin r11i - v4.1
byAli Ibrahim

PDF
Oracle Fixed assets ivas
byAli Ibrahim

PPT
Basics of Oracle Purchasing
byshravan kumar chelika

PPT
Oracle ebs overview 1
bySovanlal Das

PPS
Oracle XML Publisher / BI Publisher
byEdi Yanto

PPTX
Mastering DevOps With Oracle
byKelly Goetsch

PDF
Oracle Payables R12 ivas
byAli Ibrahim

PPT
Introduction to Oracle ERP
byBalaji Parsewar

Oracle Weblogic for EBS and obiee (R12.2)
byBerry Clemens

Oracle E-Business Suite R12.2.5 on Database 12c: Install, Patch and Administer
byAndrejs Karpovs

E business suite r12.2 changes for database administrators
bySrinivasa Pavan Marti

Report Manager in Oracle EBS R12
byPrithis Das, PMP, OCS ☁️

Oracle EBS Upgrade to 12.2.5.1
byAmit Sharma

Oracle inventory-latest
bykishoak

Oracle Inventory Complete Implementation Setups.
byMuhammad Mansoor Ali

Oracle ERP Introduction
byNitin Maheshwari

What’s New in Oracle E-Business Suite R12.2 for Database Administrators?
byvasuballa

Supporting References in Oracle EBS R12
byPrithis Das, PMP, OCS ☁️

OOW15 - Advanced Architectures for Oracle E-Business Suite
byvasuballa

Oracle e-business suite (ebs) r12.2.6 - new functionality
byMatthew Bezuidenhout

Ora fin r11i - v4.1
byAli Ibrahim

Oracle Fixed assets ivas
byAli Ibrahim

Basics of Oracle Purchasing
byshravan kumar chelika

Oracle ebs overview 1
bySovanlal Das

Oracle XML Publisher / BI Publisher
byEdi Yanto

Mastering DevOps With Oracle
byKelly Goetsch

Oracle Payables R12 ivas
byAli Ibrahim

Introduction to Oracle ERP
byBalaji Parsewar


Similar to Oracle EBS R12.2 - Deployment and System Administration

PDF
OOW16 - Getting Optimal Performance from Oracle E-Business Suite [CON6711]
byvasuballa

PDF
OOW16 - Deploying Oracle E-Business Suite for On-Premises Cloud and Oracle Cl...
byvasuballa

PDF
OOW16 - Oracle E-Business Suite: What’s New in Release 12.2 Beyond Online Pat...
byvasuballa

PPT
Edu 0003 (2)
byAsad Nawaz Khan PMP, CMA

PDF
OOW16 - Planning Your Upgrade to Oracle E-Business Suite 12.2 [CON1423]
byvasuballa

PDF
OOW16 - Planning Your Upgrade to Oracle E-Business Suite 12.2 [CON1423]
byvasuballa

PDF
CON6324_EBS_122_Beyond_Online_Patching_OOW2017_PUBLISHED.pdf
bymbkapps1

PDF
OOW15 - Getting Optimal Performance from Oracle E-Business Suite
byvasuballa

PDF
Aioug2017 deploying-ebs-on-prem-and-on-oracle-cloud v2
bypasalapudi

PDF
EBS 12.1 and 12.2 strategy-roadmap-given
byBerry Clemens

PDF
Ebs strategy-roadmap-given
byBerry Clemens

PDF
OOW15 - Customer Success Stories: Upgrading to Oracle E-Business Suite 12.2
byvasuballa

PDF
OOW15 - Oracle E-Business Suite Technology: Latest Features and Roadmap
byvasuballa

PDF
Best practices for_large_oracle_apps_r12_implementations
byAjith Narayanan

PDF
Business Advantages of Oracle Software & Systems Running Together
byMario Derba

PDF
OOW15 - Planning Your Upgrade to Oracle E-Business Suite 12.2
byvasuballa

PDF
Fusion techie - iBANK.UK.COM 07474222079
byibankuk

PDF
Best practices for large oracle apps r12 implementations apps14
byAjith Narayanan

PDF
Zero Downtime for Oracle E-Business Suite on Oracle Exalogic
byPaulo Fagundes

PPT
Managing EBS Testing, Performance, Configurations, Change & User experience
byInSync Conference

OOW16 - Getting Optimal Performance from Oracle E-Business Suite [CON6711]
byvasuballa

OOW16 - Deploying Oracle E-Business Suite for On-Premises Cloud and Oracle Cl...
byvasuballa

OOW16 - Oracle E-Business Suite: What’s New in Release 12.2 Beyond Online Pat...
byvasuballa

Edu 0003 (2)
byAsad Nawaz Khan PMP, CMA

OOW16 - Planning Your Upgrade to Oracle E-Business Suite 12.2 [CON1423]
byvasuballa

OOW16 - Planning Your Upgrade to Oracle E-Business Suite 12.2 [CON1423]
byvasuballa

CON6324_EBS_122_Beyond_Online_Patching_OOW2017_PUBLISHED.pdf
bymbkapps1

OOW15 - Getting Optimal Performance from Oracle E-Business Suite
byvasuballa

Aioug2017 deploying-ebs-on-prem-and-on-oracle-cloud v2
bypasalapudi

EBS 12.1 and 12.2 strategy-roadmap-given
byBerry Clemens

Ebs strategy-roadmap-given
byBerry Clemens

OOW15 - Customer Success Stories: Upgrading to Oracle E-Business Suite 12.2
byvasuballa

OOW15 - Oracle E-Business Suite Technology: Latest Features and Roadmap
byvasuballa

Best practices for_large_oracle_apps_r12_implementations
byAjith Narayanan

Business Advantages of Oracle Software & Systems Running Together
byMario Derba

OOW15 - Planning Your Upgrade to Oracle E-Business Suite 12.2
byvasuballa

Fusion techie - iBANK.UK.COM 07474222079
byibankuk

Best practices for large oracle apps r12 implementations apps14
byAjith Narayanan

Zero Downtime for Oracle E-Business Suite on Oracle Exalogic
byPaulo Fagundes

Managing EBS Testing, Performance, Configurations, Change & User experience
byInSync Conference


More from Mozammel Hoque

PDF
Performance improvement method
byMozammel Hoque

PDF
Driving decisions with data and analytics
byMozammel Hoque

PPTX
Opening doors to professionalism:Path to Success
byMozammel Hoque

DOCX
A roadmap to build future workforce towards vision 2041
byMozammel Hoque

PPTX
Strengthening the connection between technical education and employment
byMozammel Hoque

PPTX
Opening Doors to Professionalism:Understanding the Organizational Behavior
byMozammel Hoque

PPTX
Performance optimization: A combination of User Experience, Business and IT
byMozammel Hoque

PPTX
Pathway to Market Insights
byMozammel Hoque

PPTX
Business process analysis and optimization: A pragmatic approach to business ...
byMozammel Hoque

Performance improvement method
byMozammel Hoque

Driving decisions with data and analytics
byMozammel Hoque

Opening doors to professionalism:Path to Success
byMozammel Hoque

A roadmap to build future workforce towards vision 2041
byMozammel Hoque

Strengthening the connection between technical education and employment
byMozammel Hoque

Opening Doors to Professionalism:Understanding the Organizational Behavior
byMozammel Hoque

Performance optimization: A combination of User Experience, Business and IT
byMozammel Hoque

Pathway to Market Insights
byMozammel Hoque

Business process analysis and optimization: A pragmatic approach to business ...
byMozammel Hoque


Recently uploaded

PDF
Adapt.com Seed Fundraising Deck | The AI Computer for Business
byashley459565

PDF
Getting Started with Apache Spark: Big Data Made Simple [Free Meetup]
byHaim Michael

PDF
Dev Dives: Build and deploy agentic automations - the unified way
byUiPathCommunity

PDF
React Mastery: Visual Mental Models to Understand React Deeply
byThomas Gaye

PPTX
Jisc Equipment Data Service Update Workshop 3 December 2025
byJisc

PPTX
TechSprint Inauguration at SJB Institute of Technology held on 18 December 2025
bysuhasspgdg

PDF
"Painless Major Upgrade: A Strategy for Updating Large Codebases", Andrii Yat...
byFwdays

PDF
ICT500 - CRITICAL AND CREATIVE THINKING FOR INFORMATION TECHNOLOGY SOLUTIONS:...
by2024432452

PDF
"When every team does things "right", but together it turns into chaos", Yozh...
byFwdays

PDF
Title Installing Windows, Linux, MacOS.pdf
byGeraldAbadajos

PDF
Agentic-Document-Extraction-2026-Presentation.pdf
byTamanna

PDF
The Enterprise Web3 Landscape - a view from Kaleido based on the past 10 year...
byPeter Broadhurst

PDF
Supercharge Your Copilot-Driven Collaboration with Microsoft 365 Agents SDK
byAntti Koskela

PDF
Real-Time AI at Scale Masterclass: Feature Store at Scale
byScyllaDB

PDF
OpenCharacter AI Reviews: Features, Plans, and Best Alternative
byOpenCharacter AI

PDF
Pneumatic Pressure Pump PPP01 for Calibration & Testing
bySERRAX TECHNOLOGIES LLP

PDF
EU regulations for the North American book supply chain - Tech Forum 2026
byBookNet Canada

PDF
TrustArc Webinar - From Zero to Privacy Hero: Launching Your Program Right an...
byTrustArc

PDF
What Thema can do: Leveraging metadata to support the discoverability of Firs...
byBookNet Canada

PDF
January 2026 OpenMetadata Community Spotlight - OpenMetadata @ Wix.pdf
byOpenMetadata

Adapt.com Seed Fundraising Deck | The AI Computer for Business
byashley459565

Getting Started with Apache Spark: Big Data Made Simple [Free Meetup]
byHaim Michael

Dev Dives: Build and deploy agentic automations - the unified way
byUiPathCommunity

React Mastery: Visual Mental Models to Understand React Deeply
byThomas Gaye

Jisc Equipment Data Service Update Workshop 3 December 2025
byJisc

TechSprint Inauguration at SJB Institute of Technology held on 18 December 2025
bysuhasspgdg

"Painless Major Upgrade: A Strategy for Updating Large Codebases", Andrii Yat...
byFwdays

ICT500 - CRITICAL AND CREATIVE THINKING FOR INFORMATION TECHNOLOGY SOLUTIONS:...
by2024432452

"When every team does things "right", but together it turns into chaos", Yozh...
byFwdays

Title Installing Windows, Linux, MacOS.pdf
byGeraldAbadajos

Agentic-Document-Extraction-2026-Presentation.pdf
byTamanna

The Enterprise Web3 Landscape - a view from Kaleido based on the past 10 year...
byPeter Broadhurst

Supercharge Your Copilot-Driven Collaboration with Microsoft 365 Agents SDK
byAntti Koskela

Real-Time AI at Scale Masterclass: Feature Store at Scale
byScyllaDB

OpenCharacter AI Reviews: Features, Plans, and Best Alternative
byOpenCharacter AI

Pneumatic Pressure Pump PPP01 for Calibration & Testing
bySERRAX TECHNOLOGIES LLP

EU regulations for the North American book supply chain - Tech Forum 2026
byBookNet Canada

TrustArc Webinar - From Zero to Privacy Hero: Launching Your Program Right an...
byTrustArc

What Thema can do: Leveraging metadata to support the discoverability of Firs...
byBookNet Canada

January 2026 OpenMetadata Community Spotlight - OpenMetadata @ Wix.pdf
byOpenMetadata


Oracle EBS R12.2 - Deployment and System Administration

  • 1.
    InfraOptimization A Comprehensive Trainingon Oracle E-Business Suite R12.2.x: Deployment and System Administration Presented by: Md Mozammel Hoque , CEO & BPO Consultant at InfraOptimization Hosted by: PHP Family
  • 2.
    Expected Training Outcome Minimizing EBS R12.2.n Maintenance Downtimes followed by Oracle & ITIL  IT Operation Excellence InfraOptimization
  • 3.
    Name Md MozammelHoque Designation CEO & BPO Consultant at InfraOptimization Career at a glance 17 years+ as Executive leader, Consultant, Researcher, Enterprise Architect, Program Manager, and Software Engineer in Telco, Banking, Manufacturing and Retail Industries. He focuses on customer experience, Business strategy and Process Optimization, innovation, leadership, and improved operational efficiency. He supported more than 70 Clients (on site and off-shore) with hundreds of projects Implementer and Designer on Oracle ERP, Telco Billing, DWH, Campaign Management, Fraud and Revenue Management, Security and Audit, covering North America, Europe, West Africa and Asia. He worked as (Assistant) Researcher on the field of Socio-Anthropology, and had teaching experience. He has served as CEO and BPO Consultant at InfraOptimization, as Management & Strategy Consultant at E-Tec Ltd., as CTO at NTS, as Sr. Technical Consultant at Huawei (Base Zone: West Africa), as Oracle Trainer at IBCS-PRIMAX and as APPS DBA at DatabaseIntelligence (Russia) on behalf of DataIntensity (USA). Publication A number of Technical and Non-Technical articles were published in 3MS/HUAWEI Case Center. Introduced 7 RIGHTS concept for better business output, which was disclosed (and organized by) at the Faculty of Business Administration, University of Chittagong, Bangladesh on May 25, 2016. Public Speaker He has been the speaker on Optimization: Business and IT hosted by the University of Chittagong, Bangladesh and IBCS-Primax (Dhaka, Bangladesh). Professional Certification Oracle Certified Expert (OCE) - Oracle RAC 11g Release 2 and Performance Tuning, Oracle Certified Specialist (OCS) - Oracle Database 11g Data Warehouse, Oracle Certified Professional (OCP) - R12, 11g, 10g and 9i.ITIL V3 Foundation Certified from EXIN. Passed Total 31 exams with all distinct result i.e. Database, Operating System, Network, Security, OCS/CBS, Storage, ITIL etc. in HUAWEI exam system. Reward Honorable Performance Reward for the year of 2013, Best performance award for the year of 2012 for Etisalat Nigeria project from Huawei, and Two times best performance award (2010 and 2011) from Zain (now Airtel) Telco in Nigeria on behalf of International Turnkey System. Education MSC and BSC in Applied Informatics in Economics from Rostov State University of Civil Engineering, Russia in 2006 MA in 1997 and BA in 1996 in History from the University of Dhaka, Bangladesh Languages known Bengali, English, Russian, and French Presenter Profile
  • 4.
    Our Philosophy Learn fromLearners & Feel it. - What to Know | Do - Why to know | Do - How to Know | Do InfraOptimization Process: Key Learning Principle Procedure
  • 5.
    InfraOptimization Content of Training Pathway to Enterprise Architecture: Business Architecture & IT Architecture  EBS R12.2.x Technology Architecture & Roadmap  Pathway to Design Label - Deployment, Implementation & Upgrade  System Administration on - Install, Patch, Clone, Concurrent Manager, Autoconfig, Fusion Middleware , Weblogic & Maintenance Tools.  Pathway to Performance Tuning & Troubleshooting  IT Service Continuity Management: Beyond DR (Disaster Recovery) Forms of Training  Lecture: Concept  Lab: Practical  Case Study: Live & Past
  • 6.
    InfraOptimization Applications Technology Release12.2 Value Proposition Oracle E-Business Suite Applications Technology provides the technology infrastructure to develop, manage, and integrate Oracle E-Business Suite applications. The Applications Technology team incorporates and adapts products from Oracle Database and Oracle Fusion Middleware to suit the unique requirements of Oracle E-Business Suite. The breadth and depth of the technology adoption is extensive, including: • System Management Tools, such as the Application Management Suite • Developer Productivity Tools, such as Oracle Jdeveloper • Business Intelligence Tools, such as KPIs, and Oracle BI Publisher • Infrastructure Tools, such as Identity Management • Integration Tools, such as Applications Integration Architecture
  • 7.
    InfraOptimization Applications Technology Release12.2 Value Proposition Cont 1 The result is that Oracle E-Business Suite offers unparalleled productivity, scalability, performance, and availability - thereby reducing the total cost of ownership (TCO) for enterprises of all sizes. Oracle E-Business Suite Applications Technology Release 12.2 is focused on the following strategic areas: • Technology Update • Usability • Integration • Security • Manageability Source: ORACLE E-BUSINESS SUITE RELEASE VALUE PROPOSITION Release 12.2 Applications Technology Prepared by E-Business Suite Product Management and Strategy Last Updated: September 18, 2013 Version: 2.0
  • 8.
    InfraOptimization Reference Doc IDson EBS R12.2.x Oracle E-Business Suite Release 12.2 Information Center (Doc ID 1581299.1) Release Schedule of Current Database Releases (Doc ID 742060.1) https://blogs.oracle.com/stevenchan/resource/certifications.html Oracle E-Business Suite Release 12.2 Technology Stack Documentation Roadmap (Doc ID 1934915.1) Oracle E-Business Suite Release Notes, Release 12.2 (Doc ID 1320300.1) Oracle E-Business Suite Product Specific Release Notes, Release 12.2.3 (Doc ID 1605928.1) Oracle E-Business Suite Release 12.2.3 Readme (Doc ID 1586214.1) Oracle E-Business Suite Technology Stack and Applications DBA Release Notes for Release 12.2.3 (Doc ID 1606170.1) Oracle E-Business Suite Product Specific Release Notes, Release 12.2.4 (Doc ID 1903217.1) Oracle E-Business Suite Release 12.2.4 Readme (Doc ID 1617458.1) Oracle E-Business Suite Product Specific Release Notes, Release 12.2.5 (Doc ID 2049015.1) Oracle E-Business Suite Release 12.2.5 Readme (Doc ID 1983050.1) Oracle E-Business Suite Product Specific Release Notes, Release 12.2.6 (Doc ID 2114173.1) Oracle E-Business Suite Release 12.2.6 Readme (Doc ID 2114016.1) Oracle E-Business Suite Release 12.2: Technical Planning, Getting Started, and Go-Live Checklist (Doc ID 1585857.1) Recommended Browsers for Oracle E-Business Suite Release 12 (Doc ID 389422.1)
  • 9.
  • 10.
    A Tier isa logical grouping of services, potentially spread across more than one physical machine. The three-tier architecture that comprises an Oracle E-Business Suite installation is made up of the database tier, which supports and manages the Oracle database; the application tier, which supports and manages the various Oracle E-Business Suite components, and is sometimes known as the middle tier; and the desktop tier, which provides the user interface via an add-on component to a standard web browser. Application Tier Services Root services, Web Entry Point services, Web Application services, Batch Processing services, Other services A Node is a logical set of processes running on one hardware machine. Sometimes a node is also referred to as a "server" or an "instance". In a single-node installation of Oracle E-Business Suite, all the Applications processes (including the database processes) run on one node, whereas in a multi-node installation, the processes are distributed across multiple nodes. For example, Node 1 : DB 11.2.0.3, Node 2: Web and forms, Node 3 : concurrent manager. A multi-node installation of Release 12 supports both shared and non-shared application tier file systems. A Service is a functional set of Oracle E-Business Suite application processes running on one or more nodes. Where applicable, the term 'service' is replacing the more traditional term of 'server'. For example, Web services process HTTP requests, and Forms services process requests for activities related to Oracle Forms. The Concurrent Processing server supports data-intensive programs that run in the background. Concepts and Terminology: Tier, Node, Service/Server Source: Configuring Applications Node Services in Oracle E-Business Suite Release 12.1 (Doc ID 406558.1)
  • 11.
    Understanding Three‐tier TechnicalArchitecture: EBS R12.2 Three-Tier Architecture Perspective EBS R12.2 Technology Architecture Desktop or Client Tier - provides the user interface using a web browser to access the applications. Application Tier - The application tier, sometimes referred to as the middle tier, hosts the various services and servers that implement and execute the business logic, and mediates communications between the desktop tier and the database tier. Database Tier - supports the Oracle RDBMS and is the main data storage area. The database server does not communicate directly with desktop clients
  • 12.
    InfraOptimization EBS R12.2 ApplicationTier Structure Source: Oracle E-Business Suite Concepts Release 12.2 Part Number E22949-12
  • 13.
    EBS R12.2 ApplicationTier Services at-a-glance Service Group Service(s) Service Control Script Root Service Node Manager adnodemgrctl.sh Web Administration WebLogic Admin Server adadminsrvctl.sh Web Entry Point Services Oracle HTTP Server adapcctl.sh Oracle Process Manager adopmnctl.sh Web Application Services oacore admanagedsrvctl.sh oafm forms forms-c4ws Batch Processing Services Oracle TNS Listener adalnctl.sh Concurrent Manager adcmctl.sh Fulfillment Server jtffmctl.sh Oracle ICSM ieoicsm.sh Other Services Forms Server adformsrvctl.sh Oracle MWA Service mwactlwrpr.sh Most notably, the Web Administration service group contains WebLogic Administration server, and - unlike other service groups - can be enabled only on one of the Application tier nodes. In other words, it is not supported to enable WebLogic Administration server on any other Application tier node except the node on which it was enabled during Rapid Install. InfraOptimization
  • 14.
    R12.2 Technical Configuration Tables:FND_OAM_CONTEXT_FILES, FND_NODES etc. Configuration Activity In Release R12.2 Configuration Management Tools Oracle E-Business Suite Database, Concurrent Processing, Oracle Developer 10g, profile options, and other Oracle E-Business Suite components. Oracle Applications Manager. OAM & AutoConfig HTTP Configuration. Most HTTP configuration is managed via native Oracle WebLogic Server tools, Fusion Middleware Control, or manually editing of the configuration files. Only a limited set of HTTP configuration files are maintained via AutoConfig. Fusion Middleware Control Configuration of oacore, oafm, forms and forms-c4ws services Properties for the oacore, oafm, forms and forms- c4ws services, including the classpath and JVM arguments, need to be updated through native WebLogic tools such as WebLogic Administration Console. The context variable values are used only to set the initial values during managed server creation. WebLogic Server Admin Console Managing JVM instances of the oacore, oafm, forms and forms-c4ws services. Each JVM instance of a service corresponds to a managed server of that service type. The number of instances needs to be controlled by explicitly creating or deleting managed servers for the service.
  • 15.
    InfraOptimization Understanding Client &Application Tier Components HTML-Based Applications Architecture
  • 16.
    InfraOptimization EBS Release 12.2Technology Stack End User FM 11g
  • 17.
    InfraOptimization EBS Release 12.2Architecture From Weblogic Perspective: WHAT TO KNOW Java code including OAF All EBS Forms Functionality Web Services, Secure Search etc.
  • 18.
    InfraOptimization EBS Release 12.2Architecture From Weblogic Perspective: WHAT TO KNOW ON SCALING
  • 19.
    InfraOptimization EBS R12.2 DeploymentPlanning Consideration 1. Performance 2. Scalability – Vertically | Horizontally 3. Maximum Availability 4. Ease of Management & Maintenance
  • 20.
    InfraOptimization EBS R12.2 DeploymentArchitecture Deployment Design Decisions MOS Doc ID: 1375686.1  File system configuration: Distributed | Shared  Load balancing: DNS Load balancing: DNS| HTTP (using load balancer)  Web Entry Point: One | Multiple  DMZ Configuration (Doc ID 1375670.1)
  • 21.
    InfraOptimization EBS R12.2 DeploymentDesign Decisions Distributed File Systems MOS Doc ID 1383621.1 Shared File System MOS Doc ID 1375769.1
  • 22.
    InfraOptimization EBS R12.2 DeploymentDesign Decisions MOS Doc ID 1375686.1
  • 23.
    InfraOptimization EBS R12.2 DeploymentDesign Decisions MOS Doc ID 1570554.1 Oracle E‐Business Suite Setup Guide Release 12.2 Oracle Database Real Application Clusters (RAC) PCP - Parallel Concurrent Processing
  • 24.
    InfraOptimization EBS Release 12.2Technology Stack Certification Source: ORACLE E-BUSINESS SUITE RELEASE CONTENT DOCUMENT Applications Technology Releases 12.1 and 12.2 (inclusive of 12.0.2 – 12.0.7) Prepared by ATG Documentation Last Updated: March 6, 2015 Version: 3.0
  • 25.
  • 26.
    InfraOptimization Pathway to Sizingfor EBS R12.2 Considering Factor for Sizing for EBS R12.2  Oracle Applications is certified on operating systems, not specific models of hardware. Certified Platform: Linux x86,Linux x86-64,HP-UX Itanium,HP-UX PA-RISC (64-bit),IBM AIX on Power Systems (64- bit),Microsoft Windows Server (32-bit),Oracle Solaris SPARC (64-bit)  Number of concurrent E-Business Suite users, i.e. Oracle Application Testing Suite  Sizing information systems: SPC - Storage Performance Council & TPC - Transaction Processing Performance Council
  • 27.
    InfraOptimization EBS R12.2 Architecture& File System Structure Source: Sharing The Application Tier File System in Oracle E-Business Suite Release 12.2 (Doc ID 1375769.1) General Three Tier Architecture Application/Database Tier Components
  • 28.
    InfraOptimization EBS R12.2 FileSystem Structure Source: https://docs.oracle.com/cd/E26401_01/doc.122/e22949/T120505T120509.htm (Part Number E22949-12)
  • 29.
    InfraOptimization EBS R12.2 FileSystem Structure Cont 1 • 10.1.2 OH holds the AS components for Forms and Reports • Fusion Middleware Home contains WebLogic Server, HTTP configuration files • INST_TOP contains only maintenance scripts • Fusion middleware home contains the following directories – EBS_Domain: E-Business Suite weblogic domain, contains all domain-specific configuration and log files. – wlserver_10.3: Binaries and libraries required to support WebLogic Server – oracle_common: Java Required Files (JRFs) used by EBS. – webtier: HTTP configuration and log files used by EBS. – Oracle_EBS-app1: Contains configuration files related to oacore, forms, oafm, and forms-c4ws • FS_NE contains files needed by both the file systems – Patch staging area, ADOP log files & ADOP utility • Not all log files are not stored under $INST_TOP – HTTP log files are located under the native instance home ($FMW_HOME/webtier) – Oracle WebLogic Server log files are located under the domain home ($EBS_DOMAIN_HOME) – Concurrent processing log files are located on the none-editioned file system (fs_ne)
  • 30.
    InfraOptimization Deciding RAID Levelsfor EBS R12.2 File System Source: https://en.wikipedia.org/wiki/Standard_RAID_levels
  • 31.
    InfraOptimization Oracle Applications TechnologyLayer The Oracle Applications technology layer is an integrated collection of components whose functionality is applicable to all Oracle Applications modules, i.e. CRM, HRMS, Financials, Manufacturing. Components in the Oracle Applications technology layer include: Applications DBA (AD) Set of tools for administration Application Object Library (FND)  Consists of a collection of reusable code, programs, and database objects that provides common functionality across all products. Applications Utilities (AU)  To maintain the Oracle Applications system. Workflow (WF)  To Model and maintain your business processes using a graphical workflow builder. Alert (ALR)  To email system notifications to users when an exception or event occurs. OA Framework (OAF/FWK)  A Java and XML-based development method to develop HTML-based applications Oracle XML Publisher (XDO)  To produce output reports in the desired format.
  • 32.
    InfraOptimization Oracle Applications DatabaseObjects • Data objects - Used for storing and accessing business data. These objects include tables, indexes, sequences, and index-organized tables. • Code objects - Used to process the data. These objects include triggers, PL/SQL packages, Java stored procedures, synonyms, and views. • Hybrid objects - Used to both store and process data. Materialized views are an example of hybrid objects.
  • 33.
    InfraOptimization Oracle Applications Schemas ProductSchema and its own objects Code Objects Schemas Used During Signon When you sign on to Oracle Applications, you initially connect to the public schema, APPLSYSPUB. Once your user name and password have been verified, Oracle Applications connects you to the APPS schema and allows you to choose a responsibility. You can then use the Forms interface or HTML interface to access data that resides in a product schema. (Global Schema) a better name for APPLSYS would or could be FND
  • 34.
    InfraOptimization Purpose of 2applsyspub entries in context file egrep -i APPLSYSPUB $CONTEXT_FILE <username oa_var="s_gwyuid_user">APPLSYSPUB</username>  This is used to generate the env variable $GWYUID at OS level <GWYUID oa_var="s_gwyuid">APPLSYSPUB/PUB</GWYUID>  This is used to populate the passoword in DBC file ($FND_SECURE/ <SID>.dbc).
  • 35.
    EBS R12.2 LoginProcess Reference Doc ID 1984710.1 Oracle E-Business Suite Concepts Release 12.2 Part Number E22949-12 Doc ID: 1569732.1, 2072420.1, 1316142.1 http --> HS/mod_wl_ohs --> http --> WLS s_wls_admin_ user Session Tables ICX_SESSIONS FND_LOGINS Oracle Application Framework Architecture
  • 36.
    EBS R12.2 LoginProcess Reference Doc ID 1984710.1  When a HTTP request is made for EBS, the request is received by the Oracle HTTP Server (OHS). ($FMW_Home/webtier/instances/EBS_web_<instance_name>_OHS1/config/OHS/E BS_web_<instance_name>/httpd.conf)  When the configuration of OHS is for a resource that needs to be processed by Java, such as logging into EBS, the OHS configuration will redirect the request to the Web Logic Server (WLS) Java process (OACore in this case).  WLS determines the J2EE application that should deal with the request, which is called "oacore".  This J2EE application needs to be deployed and available for processing requests in order for the request to succeed. The J2EE application needs to access a database and does this via a datasource which is configured within WLS. All code must access the data model via the APPS synonym! Doc ID: 1569732.1, 2072420.1, 1316142.1 http --> HS/mod_wl_ohs --> http --> WLS s_wls_admin_ user Session Tables ICX_SESSIONS ICX_PARAMETERS FND_LOGINS
  • 37.
    Differences between FormsServer and Forms Servlet Source: Troubleshooting Forms Applet issues in E-Business Suite (Doc ID 1300317.1) Reference: Using Forms Socket Mode with Oracle E-Business Suite Release 12 (Doc ID 384241.1) Although Forms Server (or SOCKET mode) and Servlet implementation mainly affects the Application tier there is some important differences on how communication is done between the Forms applet and run-time process making it useful to provide some background information on this topic.
  • 38.
    InfraOptimization EBS R12.2.x Passwordmanagement Steps to change the APPS, APPLSYS, and APPS_NE password using FNDCPASS or AFPASSWD for EBS 12.2 (Doc ID 1674462.1) source EBSapps.env run ; env |grep -i base, grep BASE $CONTEXT_FILE • FNDCPASS and AFPASSWD utilities can be used for setting Oracle E-Business Suite schema passwords • It is recommended that the FND_USER and FND_ORACLE_USERID tables are backed up before system passwords (APPLSYS, APPS, APPS_NE) are changed • AFPASSWD is an enhanced version of FNDCPASS, only prompts for passwords required for the current operation. AFPASSWD [-c <APPSUSER>[@<TWO_TASK>]] -f <FNDUSER> (Application Users) AFPASSWD [-c <APPSUSER>[@<TWO_TASK>]] -o <ORAUSER> (Apps Product users) AFPASSWD [-c <APPSUSER>[@<TWO_TASK>]] –a (All Apps Product users) AFPASSWD [-c <APPSUSER>[@<TWO_TASK>]] -l <ORAUSER> <TRUE|FALSE> (Locks Single User) AFPASSWD [-c <APPSUSER>[@<TWO_TASK>]] -L <TRUE|FALSE> (Locks non-essential users) AFPASSWD [-c <APPSUSER>[@<TWO_TASK>]] -s <APPLSYS> (Changes APPLSYS) AFPASSWD [-c <APPSUSER>[@<TWO_TASK>]] -m <HASH-MODE> [MIGRATE] (Migrated to non-recoverable Hashing scheme passwords) AFPASSWD -f SYSADMIN Enter the ORACLE password of Application Object Library ‘APPSUSER’: Connected successfully to APPS. Working… Enter new password for user [SYSADMIN]: Verify new password for user [SYSADMIN]: Password is changed successfully for user SYSADMIN. Password is changed successfully for user SYSADMIN. AFPASSWD completed successfully. AFPASSWD -c apps@PROD -s APPLSYS Enter the ORACLE password of Application Object Library ‘APPSUSER’: Connected successfully to APPS. Enter the password for your ‘SYSTEM’ ORACLE schema: Connected successfully to SYSTEM. Working… Enter new password for user: Verify new password for user: Working… AFPASSWD completed successfully. Note: For Changing APPLSYS/APPS/APPS_NE Password We Need To Shutdown Application Tier And Once We Finish Changing The Password We Need To Run Autoconfig On All Tiers
  • 39.
    InfraOptimization EBS R12.2.x APPSPassword change • Shut down the application tier services • Change the APPLSYS password using FNDCPASS or AFPASSWD utility. • Start AdminServer using the adadminsrvctl.sh script from your RUN filesystem • Update the “apps” password in WLS Datasource as follows: – Log in to WLS Administration Console. – Click Lock & Edit in Change Center. – In the Domain Structure tree, expand Services, then select Data Sources. – On the “Summary of JDBC Data Sources” page, select EBSDataSource. – On the “Settings for EBSDataSource” page, select the Connection Pool tab. – Enter the new password in the “Password” field. – Enter the new password in the “Confirm Password” field. – Click Save & Click Activate Changes in Change Center. • Execute Autoconfig to update all application tier files • Start all the application tier services using the adstrtal.sh script. • Log in to WLS Administration Console, Under Domain Structure tree select Data Sources. • On the “Summary of JDBC Data Sources” page, select EBSDataSource. • On the “Settings for EBSDataSource” page, select Monitoring > Testing. • Select “oacore_server1” & click Test DataSource • Look for the message “Test of EBSDataSource on server oacore_server1 was successful”. Doc ID 1377400.1 - Install Sanity Check: How To Deploy A Basic Java Web Application To Confirm Your WebLogic Domain Is Functional Doc ID 1940996.1 - Oracle E-Business Suite 12.2 Data Source Connection Pool Diagnostics
  • 40.
    InfraOptimization OAM Generic CollectionService concurrent manager Source: How To Determine The Current Value and Set The Retention Time To Keep the Runtime Instance Data Of Table FND_OAM_FORMS_RTI In The Database? (Doc ID 1600075.1) & What Are .RTI And .FLI Files? (Doc ID 470850.1) How To Find The IP Address Of The Client Machine From Where A Particular Forms User Is Connected ? (Doc ID 879092.1) env|grep FORMS_RTI_DIR 1. To determine the current retention time, run the following select: select FCQ.CONCURRENT_QUEUE_NAME, FCQS.SERVICE_PARAMETERS from FND_CONCURRENT_QUEUES FCQ, FND_CONCURRENT_QUEUE_SIZE FCQS where FCQ.CONCURRENT_QUEUE_NAME like 'OAMGCS%' AND FCQ.APPLICATION_ID = FCQS.QUEUE_APPLICATION_ID AND FCQ.CONCURRENT_QUEUE_ID = FCQS.CONCURRENT_QUEUE_ID; 2. To Manually change the time: a. Navigate: (Responsibility) System Administrator > Concurrent > Manager > Define > Query out record 'OAM Generic Collection Service%' b. Click button 'Work Shifts' > Edit the value of 'Parameter' and save. Notes: Data in table FND_OAM_FORMS_RTI is populated by the OAM Generic Collection Service concurrent manager and the information is cleaned up and repopulated by the same program. The OAM Generic Collection Service takes these parameters: NODE: the name of the node on which the service runs. LOADINTERVAL: the load interval for periodic runtime instance information uploading. ORACLE_HOME: the ORACLE_HOME in which the Forms Listener runs. RTI_KEEP_DAYS: the number of days to keep the runtime instance data in the database. FRD_KEEP_DAYS: the number of days to keep Forms Runtime Log files.
  • 41.
    InfraOptimization Oracle E-Business SuiteSYS.DUAL PUBLIC Privileges Security Issue (CVE-2015-0393) Source: Use of Common Vulnerability Scoring System version 2.0 (CVSS 2.0) by Oracle (Doc ID 394487.1) Oracle Critical Patch Update January 2015 Documentation Map (Doc ID 1935468.1) SELECT * FROM sys.dba_tab_privs WHERE owner = 'SYS' AND table_name = 'DUAL'; SELECT 'revoke ' || privilege || ' ON sys.dual FROM public;' "SQL" FROM sys.dba_tab_privs WHERE owner = 'SYS' AND table_name = 'DUAL' AND grantee = 'PUBLIC' AND privilege != 'SELECT'; Note: For R12 only, the CPU patch has manual instructions to run the adgrants.sql script. This script will create the AD_ZD_SYS package in the SYS schema. AD_ZD_SYS has a single procedure FIX_SYSUSER, which revokes unnecessary grants on SYS.DUAL. select count(*) from sys.dual; Must return only one row. select count(*) from fnd_dual;
  • 42.
    InfraOptimization Monitoring & AuditingUser Activity E-Business Applications Performance Basic Skills Cookbook (Doc ID 1516355.1) Concurrent Request Data Gathering (Doc ID 740770.1) APXINWKB APP-10771 Could Not Reserve Records Due to Database Record Lock (Doc ID 140969.1) How To Kill Inactive Sessions Based on the Information in the Monitor User Form (Doc ID 103516.1) Oracle Critical Patch Update January 2015 Documentation Map (Doc ID 1935468.1) Use of Common Vulnerability Scoring System version 2.0 (CVSS 2.0) by Oracle (Doc ID 394487.1) Oracle Database Security Assessment Tool (DBSAT) (Doc ID 2138254.1) How to find or see the requests ran in a module or a responsibility or by a user or for a specific period (Doc ID 2098951.1) Monitor Users: System Administrator Responsibility  Security: Users > Monitor  CTL + F11 Enable User Tracking – Setting the Sign-On: Audit Level profile option: Log in to Oracle APPS with system administrator responsibility Navigate to Profile > System Make sure the Site option is checked. Navigate to Profile and search for sign > Click Find Select the “Sign-On: Audit Level” > Click Find Change its value to be Form From the Menu bar click File > Save
  • 43.
    InfraOptimization Technology Stack Registration oraInst.loc inventory_loc=/etc/oraInventory oraInst.loc Under/etc on Linux and AIX Under /var/opt/oracle on Solaris and HP-UX Global and Local Inventory explained (Doc ID 360079.1) FAQs on Central Inventory and Oracle Home Inventory (Local Inventory) in Oracle RDBMS (Doc ID 564192.1) How To Create, Update or Rebuild The Central Inventory For Oracle Applications E-Business Suite Release 12 ? (Doc ID 742477.1)
  • 44.
    Oracle Universal InstallerInventory Essentials for Apps Sysadmins Source: https://blogs.oracle.com/stevenChan/entry/ebs_oui_inventory_primer InfraOptimization
  • 45.
    Oracle Universal InstallerInventory Essentials for Apps Sysadmins Source: https://blogs.oracle.com/stevenChan/entry/ebs_oui_inventory_primer
  • 46.
    Oracle Universal InstallerInventory Essentials for Apps Sysadmins Source: https://blogs.oracle.com/stevenChan/entry/ebs_oui_inventory_primer
  • 47.
    InfraOptimization Cloning  Cloning isthe process used to create a copy of an existing E-Business Suite System Source System Target System Single Node to Single Node Single Node to Multi Node Multi Node to Single Node Multi Node to Multi Node Type of Clone
  • 48.
    InfraOptimization Pre-Requisite Before Cloning ReferenceDoc ID: 1383621.1 Before cloning to a new system, you must first prepare the Source System by following the below steps:  Verify disk space requirements on Source System  Verify OS requirements on Target System  Verify Inventory Requirements /* It is required and must be identified by the value defined in oraInst.loc file */  Verify Source and Target System software components and versions: Source and Target must be on the same Operating System (OS) and patch level  Apply required patches  Check for in-progress online patching cycle: On the Source system, there should not be any in-progress online patching cycle, i.e. cleanup and fs_clone should be run.  Run AutoConfig on the application tier (Optional)  Synchronize appsutil on the database tier nodes (Optional)  Run AutoConfig on the database tier (Optional)  Run EBS Technology Codelevel Checker (ETCC) (Doc ID 2008451.1) on DB and APPS tier (Optional)  Maintain snapshot information of APPL_TOP (adadmin tool): Current view snapshots & Named snapshots  You must run this task once for each APPL_TOP before you can apply any patch that contains a "compatible feature prereq" line on that APPL_TOP  A complete snapshot is required for the automatic prerequisite patch checking feature to operate  APPL_TOP snapshot information is stored in the AD_SNAPSHOTS, AD_SNAPSHOT_FILES, and AD_SNAPSHOT_BUGFIXES tables
  • 49.
    InfraOptimization Clean Global Inventory CleanTemporary Directories Delete Database Technology Stack Delete Applications Database Delete Applications Technology Stack Delete Application File System Pre-Requisite Before Cloning Cleaning Environments
  • 50.
  • 51.
  • 52.
    InfraOptimization Cloning Methods  Off-Line On-Line/ Hot Cloning/AMP Cloning Note:  Apps Tier can be cloned on-line at any point in time.  DB Tier, i.e. Database, can be cloned on-line by RMAN only.
  • 53.
    InfraOptimization Cloning Techniques Rapid Clone ReferenceDoc ID • Cloning Oracle Applications Release 12 with Rapid Clone (Doc ID 406982.1) • Cloning Oracle E-Business Suite Release 12.2 with Rapid Clone(Doc ID 1383621.1) • Setup Guide: Part No. E22953-10 (Chapter 17 Cloning Oracle E-Business Suite with Rapid Clone) • How To Collect Log Files from Cloning in 12.2 (Doc ID 1961471.1) • E-Business Suite Clone Log Parser Utility (Rapid Clone) (Doc ID 1447553.1) • Cloning Oracle Applications Release 11i with Rapid Clone (Doc ID 230672.1) • Troubleshooting RapidClone issues with Oracle Applications R12.0 & R12.1 (Doc ID 603104.1) • http://docs.oracle.com/cd/E11857_01/em.111/e18709/T508706T512065.htm
  • 54.
    Cloning Techniques Rapid Cloneat EBS Application Tier Up To R12.2.x-4 Critic on this Clone Architecture: Repetitive Task 1. Clone (Source RUN FS): Source to Target 2. Clone (Target RUN FS): Target RUN FS to Target PATCH FS. From R12.2.5-6 1. Clone (Source RUN FS): Source to Target perl adcfgclone.pl appsTier dualfs RUN /appsprod/fs2 RUN /appstest/fs2 /appsprod/fs1 PATCH /appstest/fs1 PATCH Source Target InfraOptimization
  • 55.
    InfraOptimization Cloning Phases Prepare SourceSystem by applmgr & oracle user, NOT root $ cd $INST_TOP/admin/scripts $ perl adpreclone.pl appsTier $ cd <RDBMS ORACLE_HOME>/appsutil/scripts/<CONTEXT_NAME> $ perl adpreclone.pl dbTier
  • 56.
    InfraOptimization Cloning Phases Copy Bitsby ‘application’ OS user, i.e. NOT root user Note: Comparing the size of the file systems between Target and Source du -sk EBSapps (source) du -sk EBSapps (target)
  • 57.
    Cloning Phases Configure TargetSystem ## As Oracle User cd $ORACLE_HOME/appsutil/clone/bin perl adcfgclone.pl dbTier /* perl adcfgclone.pl <component> [context] */ ## As applmgr user …/EBSapps/comn/clone/bin perl adcfgclone.pl appsTier WHERE: <component> on Apps Node : { appsTier | atTechStack | dev10gHome | fmwHome | wlsConfig | ohsConfig | appltop } <component> on DB Node : { dbTier | dbTechStack | database | dbconfig | addracnode } <context> : Target Context File
  • 58.
    InfraOptimization Cloning Techniques Configure TargetSystem Configclone appsTier Configclone dbTier
  • 59.
  • 60.
  • 61.
    InfraOptimization Cloning Techniques Custom Cloning:Source-to-Target Refreshing Target System  Source-Target direct Synchronization  Ideal for refreshing environments  Rsync use for faster copy
  • 62.
  • 63.
    AutoConfig: To Manage EBSSystem Configurations  You must run AutoConfig for your system to make any context file updates to your system  Doing so generates the new configuration files for the associated technology stack  AutoConfig uses the parameters stored in the context file and system configuration templates to create new process control scripts and update system profiles Running AutoConfig - Application Tier: $ADMIN_SCRIPTS_HOME/adautocfg.sh apps/<apps_passwd> Running AutoConfig - Database Tier: <RDBMS_ORACLE_HOME>/appsutil/scripts/<CONTEXT_NAME>/adautocfg.sh apps/<apps_passwd> Rolling Back an AutoConfig Session: <INST_TOP>/admin/out/<MMDDhhmm>/restore.sh <RDBMS ORACLE_HOME>/appsutil/out/<CONTEXT_NAME>/<MMDDhhmm>/restore.sh Note (Doc ID 1582473.1): If the run file system data is missing from the database simply source the run file system environment and run autoconfig. If the patch file system data (managed servers or context file) is missing from the database then run the following after sourcing the run file system environment. $ADJVAPRG oracle.apps.ad.autoconfig.oam.CtxSynchronizer action=upload contextfile=<full path to patch context file> logfile=/tmp/patchctxupload.log
  • 64.
    InfraOptimization AutoConfig Instantiation Mechanism AutoConfigOperation • AutoConfig template files are used as the starting point for creating site-specific configuration files. AutoConfig evaluates the context variables in a template file, determines the actual values required, and creates a configuration file with these values substituted. This process, described in more detail later in this chapter, is called instantiation. There is one template file for each configuration file. Template files are located in the various <PROD>_TOP/admin/template directories on the application tier, and in the <RDBMS_ORACLE_HOME>/appsutil/template directory on the database tier. • AutoConfig driver files are used to list the corresponding template files and locations, and specify the commands to be executed. For example, the commands might update profile options. Driver files are located in each <PROD>_TOP/admin/driver directory on the application tier, and in the <RDBMS_ORACLE_HOME>/appsutil/template directory on the database tier. • AutoConfig configuration files, such as httpd.conf, are created as a result of AutoConfig instantiating the corresponding template files. Configuration files contain values corresponding to the settings specified for a particular site. After AutoConfig has been run, numerous configuration files will have been created in various directories. • AutoConfig creates configuration files by reading several different types of file from various locations. Reference: Oracle E-Business Suite Concepts R12.2
  • 65.
    InfraOptimization Reference Doc IDto Autocinfig Note 387859.1 - Using AutoConfig to Manage System Configurations in Oracle E-Business Suite Release 12 Note 949160.1 - Interesting Documents Around Autoconfig in E-Business-Suite Note 387859.1 - Using AutoConfig to Manage System Configurations in Oracle E-Business Suite Release 12 Note 458282.1 - Context Variables Note 461326.1 - Unable to Create a Custom Product TOP Note 845700.1 - How to troubleshoot autoconfig errors Note 406558.1 - Configuring Applications Node Services in Oracle E-Business Suite Release 12.1 Note 2072420.1 - E-Business Suite 12.2 Detailed Steps To Change The R12.2 Default Port To 80 Note 218089.1 - Autoconfig FAQ
  • 66.
    InfraOptimization Net Services TopologyData Model The Net Services Topology Data Model stores the entire topological information about a single Oracle Application instance. The data model stores information about each node in the Oracle Applications instance which is then used to generate the Net Service configuration files (for example tnsnames.ora). AutoConfig seeds the data model with relevant data. The Net Services Topology Data Model stores the following information: On the database tier: Hostname, Database SID, Database Name, Instance Name, TNS Descriptors..... On the application tier: Hostname, FNDFS and FNDSM alias descriptors......... The Net Services Topology Data Model is seeded every time you run AutoConfig on the respective tier. Every time you run AutoConfig on the database tier, the relevant data is seeded/updated for the database tier. Respectively, every time you run AutoConfig on the application tier, the relevant data is seeded/updated for the application tier. To deregister the current application tier from the Net Services Topology Data Model, invoke the following command: $ perl <AD_TOP>/bin/adgentns.pl appspass=<APPSpwd> contextfile=<CONTEXT> -removeserver To deregister the current database tier from the Net Services Topology Data Model, invoke the following command: $ perl <RDBMS ORACLE_HOME>/appsutil/bin/adgentns.pl appspass=< APPSpwd> contextfile=<CONTEXT> - removeserver
  • 67.
    Context Files XML basedContext Files, uses by Autoconfig, is a Repository of all the installed Configuration Parameters with value: Application Context File and Database Context File, i.e. hundreds of config and env files present in EBS. Run the following script to determine if all context files have been registered in the database. The script should return a run and patch context file for each application server and one for the database server. select path,status,serial_number,version from fnd_oam_context_files where name not in ('TEMPLATE','METADATA') and (status is null or status !='VALID'); If the run file system data is missing from the database simply source the run file system environment and run autoconfig. If the patch file system data (managed servers or context file) is missing from the database then run the following after sourcing the run file system environment. This command is executed on the RUN file system to upload the PATCH context file: $ADJVAPRG oracle.apps.ad.autoconfig.oam.CtxSynchronizer action=upload contextfile=<full path to patch context file> logfile=/tmp/patchctxupload.log Example (Doc ID 1582473.1): $ADJVAPRG oracle.apps.ad.autoconfig.oam.CtxSynchronizer action=upload contextfile=/oraapps/applprod/fs2/inst/apps/PROD_phpdb02/appl/admin/PROD_phpdb02.xml logfile=/tmp/ctx_upload.log Editing Context Files by OAM By Autoconfig Allows to sync multiple nodes Doc ID : 455492.1 Open the $APPL_TOP/admin/adovars.env file and ensure that the environment variables below are defined. $ADJVAPRG –version echo $CLASSPATH $AFJVAPRG –version echo $AF_CLASSPATH
  • 68.
  • 69.
    Using AutoConfig toManage Oracle E-Business Suite Services Service Group Service(s) Service Control Script Root Service Node Manager adnodemgrctl.sh Web Administration WebLogic Admin Server adadminsrvctl.sh Web Entry Point Services Oracle HTTP Server adapcctl.sh Oracle Process Manager adopmnctl.sh Web Application Services oacore admanagedsrvctl.sh oafm forms forms-c4ws Batch Processing Services Oracle TNS Listener adalnctl.sh Concurrent Manager adcmctl.sh Fulfillment Server jtffmctl.sh Oracle ICSM ieoicsm.sh Other Services Forms Server adformsrvctl.sh Oracle MWA Service mwactlwrpr.sh Most notably, the Web Administration service group contains WebLogic Administration server, and - unlike other service groups - can be enabled only on one of the Application tier nodes. In other words, it is not supported to enable WebLogic Administration server on any other Application tier node except the node on which it was enabled during Rapid Install.
  • 70.
    AutoConfig Components Doc ID387859.1 APPS: <INST_TOP>/appl/admin/<CONTEXT_NAME>.xml DB: <RDBMS_ORACLE_HOME>/appsutil/<CONTEXT_NAME>.xml <PROD_TOP>/admin/template <RDBMS ORACLE_HOME>/appsutil/template <AD_TOP>/admin/driver/ <FND_TOP>/admin/driver/ Context File Temp late File Driver AutoConfig Tools: 1. <INST_TOP>/admin/scripts/adautocfg.sh 2. <AD_TOP>/bin/adchkcfg.sh | adtmplreport.sh | admkappsutil.pl 3. <FND_TOP/patch/115/bin/GenCtxInfRep.pl
  • 71.
    InfraOptimization AutoConfig Check UtilityTool & Performance Profiler The check config utility is a great method for analyzing the impact of AutoConfig. Simply execute the utility and review the HTML output file. Another utility, the Performance Profiler will allow you to review and resolve performance related issues that are experienced during the execution of autoconfig. Like the check config utility, you run the tool and analyze the HTML output file. Both tools allow you to refine and tune autoconfig executions. • Review the affects of executing AutoConfig • HTML file is generated by the Check Config Utility • Execute Check Config Tool: $AD_TOP/bin/adchkcfg.sh Previewing AutoConfig Changes on All Tiers • Review the timings of executing AutoConfig • HTML file is generated by the Performance Profiler Utility • Execute Performance Profile Utility: perl $AD_TOP/bin/adconfig.pl contextfile=<CtxFile> [product=<product_top>] –profile Optimizing AutoConfig Performance Through Profiling: Identifying AutoConfig Performance Bottlenecks
  • 72.
    InfraOptimization AutoConfig Search Utility https://blogs.oracle.com/stevenChan/entry/everything_you_ever_wanted_to_know_about_autoconfi UsingAutoConfig to Manage System Configurations in Oracle E-Business Suite Release 12 (Doc ID 387859.1) The AutoConfig Search Utility (formally known as the TXK Context Variable Information Utility) scans your AutoConfig infrastructure for a requested string and generates a detailed report about the relevant AutoConfig variables and their usage. The report contains, among other things, the following information about relevant AutoConfig variables: 1. Description 2. Current value 3. Default value 4. Relevant AutoConfig template files perl $FND_TOP/bin/txkrun.pl -script=GenCtxInfRep -keyword="<keyword>" perl $FND_TOP/bin/txkrun.pl -script=GenCtxInfRep -keyword=jdbc -outfile= txkContext_Apps.html The utility takes the following arguments: keyword (required): all or part of a context variable name outfile (required): the report file. If only the name and not the complete path for the report file is provided, the report will be generated in the <APPLTMP> directory. contextfile (optional): complete path to the context file. reportType (optional): the report type. Valid values are html (default) or text
  • 73.
    InfraOptimization Running AutoConfig inParallel in EBS 12 Source: https://blogs.oracle.com/stevenChan/entry/power_tools_autoconfig_parallel_runs_in_ebs12 In an R12 E-Business Suite instance, AutoConfig can now be run simultaneously across multiple nodes. This new feature significantly lowers maintenance downtime for multi-node installations. Executing AutoConfig in Parallel Mode The following command can be used to run AutoConfig in 'parallel mode' Application Tier: perl $AD_TOP/bin/adconfig.pl contextfile=<CtxFile> [product=<product_top>] –parallel Database Tier: perl $ORACLE_HOME/appssutil/bin/adconfig.pl contextfile=<CtxFile> –parallel where <CtxFile> is the absolute path to the context file <product_top> is the Product short name
  • 74.
    InfraOptimization Configuring EBS R12Database Tiers with AutoConfig Source: https://blogs.oracle.com/stevenChan/entry/autoconfig_build_context_for_ebs12 The AutoConfig Build Context utility (adbldxml.pl) is needed like in case of cross-platform migrations and database upgrades. perl $ORACLE_HOME/appsutil/bin/adbldxml.pl Note: In R12, this utility is supported only on the database tier. The AutoConfig Build Context utility reads information from EBS DB and environment variables and builds the context file out of the database context template ($ORACLE_HOME/appsutil/template/adxd bctx.tmp).
  • 75.
  • 76.
  • 77.
    Concurrent Processing Server Mostuser interactions with Oracle Applications data are conducted via the HTML interface or the Forms interface. However, some reporting and updating programs may need to be run either periodically or on an ad hoc basis. As these programs may require a large number of computations, they are run in the background at a time, and with a priority, such that the work of interactive users is not impeded. Such programs are run on the Concurrent Processing server. You submit a request to run a concurrent program through an Oracle Applications form. The request inserts a row into a database table, specifying the program to be run. Concurrent managers read the applicable requests in the table and start the relevant concurrent programs. Note: Log and output files from concurrent programs are generated on the Concurrent Processing server. These should be monitored for errors, and archived or deleted when no longer needed. Failure to do so will eventually result in a shortage of disk space. InfraOptimization
  • 78.
    Concurrent Manager: Introduction  BatchProcessing Sub-System  Programs are run as operating system background processes.  These programs may be written using variety of Oracle tools, programming languages for executables, or OS scripts. The Internal Concurrent Manager (ICM), which functions as the "boss" of all the other managers, i.e. controls all other concurrent managers. It administers the startup and shutdown of managers as defined by their work shift, monitors for process failure, and cleans up if a failure occurs. Warning: You cannot alter the definition of the Internal Concurrent Manager. The Conflict Resolution Manager (CRM) enforces rules designed to ensure that incompatible concurrent requests do not run in the same conflict domain. The Standard Manager as shipped with Oracle Applications will accept and run any concurrent requests. It has no specialization. The Standard manager is active all the time; it works 365 days a year, 24 hours a day. Warning: You should not alter the definition of the Standard concurrent manager. If you do, and you have not defined additional managers to accept your requests, some programs may not run. Use the Standard manager as a safety net, a manager who is always available to run any request. Define additional managers to handle your installation site's specific needs.
  • 79.
    Monitoring Concurrent Manager Concurrent> Manager >Administer Are the Managers up and running ?
  • 80.
    Concurrent Request –Lifecycle High Level Phase Activity Pending / Normal The request is waiting to be run Pending / Standby The request is waiting at CRM Running / Normal The request is running Completed / Normal The request has finished Inactive / No Manager The request cannot be run. No manager available to process it.
  • 81.
    Concurrent Request –Lifecycle Phase Status Description Pending Normal Request is waiting for the next available manager. Standby Program to run request is incompatible with other program(s) currently running Scheduled Request is scheduled to start at a future time or date Waiting A child request is waiting for its Parent request to mark it ready to run. For example, a report in a report set that runs sequentially must wait for a prior report to complete. Running Normal Request is running normally Paused Parent request pauses for all its child requests to complete. For example, a report set pauses for all reports in the set to complete. Resuming All requests submitted by the same parent request have completed running. The Parent request is waiting to be restarted. Terminating Running request is terminated, by selecting Terminate in the Status field of the Request Details zone. Completed Normal Request completes normally. Error Request failed to complete successfully Warning Request completes with warnings. For example, a report is generated successfully but fails to print. Cancelled Pending or Inactive request is cancelled, by selecting Cancel in the Status field of the Request Details zone. Terminated Running request is terminated, by selecting Terminate in the Status field of the Request Details zone. Inactive Disabled Program to run request is not enabled. Contact your system administrator. On Hold Pending request is placed on hold, by selecting Hold in the Status field of the Request Details zone. No Manager No manager is defined to run the request. Check with your system administrator.
  • 82.
  • 83.
    Concurrent Manager: Tables Table Content FND_CONCURRENT_REQUESTSDetails of user requests, including status, start date, and completion date. FND_CONCURRENT_PROGRAMS Details of concurrent programs, including execution method, whether the program is constrained, and whether it must be run alone. FND_CONCURRENT_PROCESSES Cross-references between concurrent requests and queues, and a history of concurrent manager processes. FND_CONCURRENT_QUEUES Information about each of the concurrent manager queues.
  • 84.
     Select for Update Selectfor Update Select for Update Select for Update Select for Update Select for Update     J o b Status A B C D E Job Run Job Run Job Run Job Run Select Runnable Select Runnable Select Runnable Select Runnable A B A B A B A B A B A B A B A B A B A B A B A B Lock? Lock? Lock? Lock? Running  X X X Select for Update Select for Update Select for Update     Running X X Update Set A Running Update Set B Running Running Select Runnable Select Runnable C D C D C D C D C D C D   Lock? Lock? Update Set C Running X Running Select Runnable Select for Update Update Set A Complete Running  Select for Update Select Runnable Complete Update Set D Running E EE Update Set E Running Lock?  Running Update Set D Complete Complete None Worker 1 Worker 2 Worker 3 Worker 4 FND_CONCURRENT_REQUESTS Sleep Concurrent Manager
  • 85.
    Service Management InfraOptimization With ServiceManagement, the Internal Concurrent Manager (ICM) manages the various service processes across multiple hosts. On each host, a Service Manager acts on behalf of the ICM, allowing the ICM to monitor and control service processes on that host. System administrators can then configure, monitor, and control services though a management console which communicates with the ICM. Service Management provides a fault tolerant system. If a service process exits unexpectedly, the ICM will automatically attempt to restart the process. If a host fails, the ICM may start the affected service processes on a secondary host. The ICM itself is monitored and kept alive by Internal Monitor processes located on various hosts.
  • 86.
    InfraOptimization Concurrent Manager: Tuning Consideration •50%of performance tuning is in the business! – Review long-running auto resubmitted jobs – Review short/long-running jobs – selective parameters? – Don’t purge jobs that the users then have to run again • Points to note – More managers/workers != more throughput (More workers = More accesses) – Avoid enabling an excessive number of managers/workers • New systems: a start point is 1-2 target process per CPU – Balance with resources required by online activity – managers/workers • Carefully consider reducing the CRM sleep time to 5 ~ 10 secs • Set Concurrent: Force Local Output File Mode" to "Yes“ • Set CONC_PMON_METHOD=LOCK
  • 87.
    InfraOptimization Concurrent Manager: Enhancing Performance– Best Practice  Tuning Concurrent Queue Parameters • Sleep Seconds  is the number of seconds your Concurrent manager waits between checking the list of pending concurrent requests (concurrent requests waiting to be started). Tips: High number, e.g. 120s avoids constant polls to check for new requests. Low number , e.g. 20s is good enough when number of submitted requests is very high. Note: Concurrent Manager will not sleep at all if there are pending requests. • Cache Size  at least twice the number of target processes. • Process  Increase it if the pending/normal requests are high based on physical server capacity • Purging & Defragmentation associated tables • Gather Schema Statistics  Workload Management • Specialized Concurrent managers  Output Post Processor – OPP • Java Heap Size  Transaction Managers Backend queue concurrent manager details Select rpad(user_concurrent_queue_name ,50,'-') "Queue Name",TARGET_NODE, MAX_PROCESSES,running_processes, nvl(to_char(SLEEP_SECONDS), 'Not Set') Sleep_Second, nvl(to_char(cache_size),'Not Set')Cache_size from FND_CONCURRENT_QUEUES_VL fcq order by 1;
  • 88.
    InfraOptimization Concurrent Manager: Tuning GenericGuideline  Throughput To maximize throughput consider reducing the sleep time of the Conflict Resolution Manager (CRM). The default value is 60 seconds. You can consider setting to 5 or 10 seconds. Avoid enabling an excessive number of standard or specialized managers. It can degrade the performance due polling on queue tables (FND_CONCURRENT_REQUESTS...). You need to create specialized managers only if there is a real need.  Avoid enabling an excessive number of standard or specialized managers. It can degrade the performance due polling on queue tables (FND_CONCURRENT_REQUESTS...). You need to create specialized managers only if there is a real need.  Purging Tables and Log Files; and Defragment the tables Truncate the reports.log file in log directory. Refer Note.844976.1 for more details $APPLCSF/$APPLLOG/ $APPLCSF/$APPLOUT FND_CONCURRENT_REQUESTS, FND_CONCURRENT_PROCESSES,FND_CRM_HISTORY, FND_ENV_CONTEXT,FND_TEMP_FILES  Gather Schema Statistics  Run cmclean.sql followed by Doc ID: 134007.1 and CCM.sql followed by Note: 171855.1
  • 89.
  • 90.
  • 91.
    InfraOptimization Concurrent Manager: Tuning OtherStatus Requests Running / Normal If the request is taking longer time, enable Database Trace and tkprof and find out expensive DML. Completed / Error Check the request log file and take action accordingly Inactive / No Manager If “Standard Manager” has “Specialization Rules” defined which has rows with “Include”. You must only define exclude. If you add any program with “Include” options, other programs get excluded automatically.
  • 92.
  • 93.
    Troubleshooting Concurrent Manager: EnableTracing Enable Tracing On Program Level System Administrator Responsibility • • Navigation: Concurrent -> Program -> Define Click the “Enable Trace” button Note:- It is not suggested as this generates trace for all the request submitted by all end- users. Hence this could generate lots of trace files which is an additional overhead and degrade performance. Enable Tracing On Request Level (Recommended ) Responsibility: System Administrator Navigate: Profiles > System Query Profile Option “Concurrent: Allow Debugging” Set profile to Yes Logon to the Responsibility that runs the Concurrent Program In the Submit Request Screen click on Debug Options (B) Select the Checkbox for SQL Trace and select desired Trace level. Submit the Request.
  • 94.
    InfraOptimization Concurrent Manager: Tuning Options SleepSeconds • Sleep Seconds - is the number of seconds your Concurrent manager waits between checking the list of pending concurrent requests (concurrent requests waiting to be started). A manager only sleeps if there are no runnable jobs in the queue. Tip: During peak time, when the number of requests submitted is expected to be high, Set the sleep time to a reasonable wait time(e.g. 30 seconds) dependent on the average run time and to prevent backlog. Otherwise set the sleep time to a high number (e.g. 2 minutes) . This avoids constant polls to check for new requests. • If you have multiple manager processes, sleep time is the max time to wait until the new request is picked up from the queue. • e.g. 5 Standard managers, sleep time 60 saeconds = average time to pick up the new request from the queue if all managers are idle: 60/5 = ~12 seconds. • Guideline for tuning: • Set «sleep seconds» = avg requirement * processes * (1 - utilization) • Example 1: Req = 20s, util =20%, proc = 3 – 20 * 3 * (1 - 0.2) = 20 * 3 * .8 = 48 seconds • Example 2: Req = 20s, util =90%, proc = 3 – 20 * 3 * (1 - 0.9) = 20 * 3 * .1 = 6 seconds , less then requirement? The problem is somewhere else!
  • 95.
    InfraOptimization Concurrent Manager: Tuning Options Cachesize • Cache size = The number of pending requests being fetched for execution from the requests queue • What cache size to choose? • Small cache sizes are better for managers executing long running requests • Small cache sizes are better for managers with lots of processes • Larger cache size is good for managers with few processes executing quick (or both quick and slow) requests • Larger cache size is good if you have a lot of new requests incoming all the time • If at least one request was fetched, the queue will be checked again right after all the cached requests have been processed • This reduces the significance of the cache size • Guideline for tuning: • Increase the cache size (number of requests cached) to at least twice the number of target processes. For example, if a manager's work shift has 1 target process and a cache value of 3, it will read three requests, and try to run those three requests before reading any new requests. Tip: Enter a value of 1 when defining a manager that runs long, time-consuming jobs, and a value of 3 or 4 for managers that run small, quick jobs. This is only guidance and a balance needs to struck in tuning the cache, so with fast jobs you need to cache to get enough work for a few minutes. With slow jobs, a small queue helps should you need to reprioritize requests.
  • 96.
  • 97.
    RRA - ReportReview Agent (FNDFS ) 1. The Concurrent Processing server communicates with the data server using Oracle Net. 2. The resultant concurrent program log or output file from a request is passed back as a report to the Report Review Agent. 3. The Report Review Agent passes a file containing the entire report to the forms server. 4. The Forms Services component passes the report back to the user’s browser one page at time. Profile options can be used to control the size of the files and pages passed, to suit report volume and available network capacity. InfraOptimization  Online viewing of report log and output files  Viewing of reports one page at a time  Storage of report output on the concurrent processing node The log or output file that results from a concurrent request is sent to a utility known as the Report Review Agent, which passes a file containing the entire report to the Forms services, which passes the report back to the user’s browser one page at a time.
  • 98.
    Output Post Processor- OPP Increase Number of OPP processes Increase the number of Threads OR Concurrent Processing uses the Output Post Processor (OPP) to enforce Post Processing actions for concurrent requests. Tip : It is suggested to increase the number of "threads" as far as you can until you start hitting the memory limit. If you still need more throughput, then you can increase "Processes". If you run lots of "Huge Reports" and running into OutOfMemoryError then you can increase the "Processes". The limiting factor with increasing "threads" is memory, if you set the max heap size of a JVM to 2GB, then all "threads" will share this memory. Concurrent -> Manager -> Define > "Output Post Processor" oracle.apps.fnd.cp.opp.OPPServiceThread:2:0:max_threads=5
  • 99.
    Output Post Processor- OPP Heap Size To prevent the error "java.lang.OutOfMemoryError: Java heap space“ check the current value : SELECT service_id, service_handle, developer_parameters FROM fnd_cp_services WHERE service_id = (SELECT manager_type FROM fnd_concurrent_queues WHERE concurrent_queue_name = 'FNDCPOPP'); Increase the maximum Java heap size for the OPP to 1024MB ( Max 2GB): UPDATE fnd_cp_services SET developer_parameters = 'J:oracle.apps.fnd.cp.gsf.GSMServiceController:-mx1024m' WHERE service_id = (SELECT manager_type FROM fnd_concurrent_queues WHERE concurrent_queue_name = 'FNDCPOPP');
  • 100.
    Output Post Processor- OPP InfraOptimization Error The Output Post-processor is running but has not picked up this request. No further attempts will be made to post-process this request, and the request will be marked with Warning status. Action Setting the Profile Option ‘Concurrent: OPP Response Timeout’ to a higher value may be necessary. If the value of the Profile Option ‘Concurrent:OPP Response Timeout’ is 120 then increase it to 240. (Value * 2). Increase the number of processes or threads (or both) .
  • 101.
    Output Post Processor- OPP InfraOptimization Error The Concurrent Manager has timed out waiting for the Output Post Processor to finish this Request. Check that there are enough Output Post Processor Service Processes running. More information may be found in the Service Process logfile. Action  Check the Profile Option "Concurrent:OPP Process Timeout".  Increase Increase the setting to a higher value. For example: Set the value to 10800 sec (3 hours). After this change, the Concurrent Request will wait maximum 3 hours, for the Output Post Processor to finish the Request.
  • 102.
  • 103.
    InfraOptimization EBS Data Model ReferenceDoc Oracle® E-Business Suite Concepts Release 12.2 Part No. E22949-12 September 2016 Oracle Applications Tablespace Model FAQs (Doc ID 269293.1) Oracle E-Business Suite Concepts Release 12.2 Part Number E22949-12 Oracle E-Business Suite Setup Guide Release 12.2 Part Number E22953-15 Useful E-Business Suite 12.2 Documents (Doc ID 1585889.1) Oracle E-Business Suite Release 12.2 Information Center - Implement (Doc ID 1583153.1) EBS File Comparison Report [VIDEO] (Doc ID 1446430.1) EBS ATG Seed Data Comparison Report (Doc ID 1327399.1) EBS Data Model Comparison Report Overview (Doc ID 1290886.1) https://support.oracle.com/epmos/main/downloadattachmentprocessor?parent=DOCUMEN T&sourceId=1327399.1&attachid=1327399.1:EBS_SEED_DATA_VID&width=100%&height=10 0%
  • 104.
    Database Features Schema product codeobjects (Packages, Procedures, Functions, Triggers, Views, Materialized views, Java classes, Queues) are stored in the APPS schema, whereas product data objects (Tables, Sequences, Indexes, Constraints, Queues) are stored in the relevant base product schemas, i.e. GL, INV, AP etc. Relationship Between APPS Schema and Base Product Schemas Schemas and Data Access Some views access packages or functions, where the value returned by the package or function may depend on the environment having been set up properly. The environment is initialized automatically when accessing Oracle E-Business Suite through the Sign-On screen, or when using concurrent processing with Oracle Reports or SQL scripts. Consequently, if you connect directly to a schema, the rows returned by the view may be different from those returned when you are running in an Oracle E-Business Suite environment. For example, a view may reference a profile option: when accessed from SQL*Plus, the site value of the profile option will be used, rather than the setting for a particular Oracle E-Business Suite user.
  • 105.
    Space Management: Oracle ApplicationsTablespace Model (OATM) Oracle E-Business Suite Release 12.2 utilizes as standard a modern infrastructure for tablespace management, the Oracle Applications Tablespace Model (OATM). The Oracle Applications Tablespace Model is similar to the traditional model in retaining the system, undo, and temporary tablespaces. The key difference is that Oracle E- Business Suite products in an OATM environment share a much smaller number of tablespaces, rather than having their own dedicated tablespaces. Oracle E-Business Suite schema objects are allocated to the shared tablespaces based on two main factors: the type of data they contain, and I/O characteristics such as size, life span, access methods, and locking granularity. For example, tables that contain seed data are allocated to a different tablespace from the tables that contain transactional data. In addition, while most indexes are held in the same tablespace as the base table, indexes on transaction tables are held in a single tablespace dedicated to such indexes. The Oracle Applications Tablespace Model provides a variety of benefits, which are summarized in the list below:  Simplifies maintenance and recovery by using far fewer tablespaces than the older model.  Uses locally managed tablespaces, whose choice of extent management types (autoallocate or uniform) allows more precise control over unused space and hence can help reduce fragmentation.  Takes advantage of automatic segment space management, eliminating the need for manual space management tasks.  Increases block-packing compared to the older model, reducing the overall number of buffer gets and thereby improving runtime performance.  Makes best use of the restricted number of raw devices available in Oracle Real Applications Cluster (Oracle RAC) and other environments, where every tablespace requires its own raw device.  Maximizes usefulness of wide disk stripe configurations. Oracle E-Business Suite Release 12.2 requires an Oracle database block size of 8K. No other block size may be used.
  • 106.
    Oracle Applications TablespaceModel (OATM): Types & Contents Tablespace Type Tablespace Name Contents Transaction Tables APPS_TS_TX_DATA Tables that contain transaction data. Transaction Indexes APPS_TS_TX_IDX Indexes on transaction tables. Reference APPS_TS_SEED Reference and set-up data and indexes. Interface APPS_TS_INTERFACE Interface and temporary data and indexes. Summary APPS_TS_SUMMARY Summary management objects, such as materialized views, and other objects that record summary information. Nologging APPS_TS_NOLOGGING Materialized views not used for summary management and temporary objects. Advanced Queuing/AQAPPS_TS_QUEUES Advanced Queuing and dependent tables and indexes. Media APPS_TS_MEDIA Multimedia objects, such as text, video, sound, graphics, and spatial data. Archive APPS_TS_ARCHIVE Archive-purge-related objects Undo UNDO Automatic Undo Management (AUM) tablespace. UNDO segments are identical to ROLLBACK segments when AUM is enabled. Temp TEMP Temporary tablespace for global temporary table, sorts, and hash joins. System SYSTEM System tablespace. Object type Tablespace Type Index Organized Tables Transaction_tables Global Temporary Tables The database automatically always creates these objects in the TEMP tablespace. Advanced Queuing tables Advanced Queuing/AQ Materialized View Summary Materialized View Logs Transaction_tables Domain Indexes Transaction_indexes Indexes With the exception of indexes on Tables classified as 'Transaction_Tables', all indexes will share the same tablespace type as the base object (table/mv).
  • 107.
  • 108.
    InfraOptimization  Using theOnline Patching Readiness Report in Oracle E-Business Suite Release 12.2 (Doc ID 1531121.1)  Oracle E-Business Suite Release Notes, Release 12.2 (Doc ID 1320300.1)  Oracle E-Business Suite Developer's Guide Release 12.2 Part Number E22961-14  Online Patching with Oracle E-Business Suite 12.2 Kevin Hudson Senior Director, Applications Technology, Oracle E-Business Suite Development September 22, 2016  Oracle E-Business Suite Release 12.2: Online Patching FAQ (Doc ID 1583902.1) Online Patching: References
  • 109.
    InfraOptimization source EBSapps.env run adop-help adop –examples Oracle Patch Application Assistant (PAA):admsi.pl perl $AD_TOP/bin/admsi.pl -patch_top=<patch-top-directory> -appspass=<apps-password>
  • 110.
    • In 12.2all patching operations are online by adop utility – EBS will remain available to users during patching operations. In another word, critical business operations were not interrupted by maintenance operations – Downtime Redefined as "Cutover“, which is predictable: The time taken to bounce the Middle Tiers • Online patching uses – EBS Edition Based Redefinition (EBR) – Web Logic Server Online Patching: Copy the Code, NOT the Data • Copy the production code • Apply patches to the copy • EBS uses both the file system and the database to store the code and data that make up the application – Code • Stored both on the File system & In the Database • Any code object changed in a patch is copied – Data • Stored both on the File system & In the Database • Application data is NOT copied by a patch
  • 111.
    InfraOptimization Edition-Based Redefinition: The keyto Online Application Upgrade and Maintenance The revolutionary new capability is edition-based redefinition:  Code changes are installed in the privacy of a new edition  Data changes are made safely by writing only to new columns or new tables not seen by the old edition. An editioning view exposes a different projection of a table into each edition to allow each to see just its own columns.  A cross-edition trigger propagates data changes made by the old edition into the new edition’s columns, or (in hot-rollover) vice-versa. • Used by Online Users • Never changed by a Patch • Used by the Patching Tools • Changes do no affect the running Application
  • 112.
  • 113.
    Adop Phase Scope Prepare Getspatching filesystem ready to apply a patch. Checks that ETCC has been run against the database Oracle Home and that all required patches are applied. synchronize filesystems - If any configuration changes have been made, this will cause the prepare phase to initiate a fs_clone of the current run filesystem to the patch filesystem. run autoconfig if necessary. check tablespaces for sufficient free space before starting. check APPS_FNDFS listener to make sure concurrent requests will launch. launch concurrent request - "Online Patching In Progress" (ADZDPATCH). synchronize snapshots between run and patch filesystems. Apply merging patches - ADOP determines correct options automatically. patch repository location. ADOP log directories. how to run ADOP unattended by passing the required passwords into the ADOP command. how to use adctrl with ADOP. viewing the ADOP patch log file while ADOP is running. Finalize compiles invalids objects in the patch edition. determines DDL statements to execute at cutover. validates that the system is ready for a cutover. gathers statistics for performance. Cutover once started, the abort phase can not be issued. runs the finalize phase if it was missed. cancels concurrent request - "Online Patching In Progress" (ADZDPATCH). shuts down the internal concurrent manager. stops any processes that may have been started on the patch filesystem. stops the RUNNING applications tiers. executes the DDL statements prepared during the finalize phase. loads jar files into the database. synchronizes snapshots between run and patch filesystems. broadcasts a message to local users that a cutover is taking place and to re-source their working environment. Cleanup cleans up old editions explains the three methods of cleanup. QUICK cleanup performs removal of obsolete crossedition triggers and seed data. STANDARD cleanup performs removal of obsolete crossedition triggers and seed data, drops (removes) obsolete editioned code objects (covered objects). (DEFAULT MODE) FULL cleanup performs maximum cleanup, which drops all obsolete code and data from earlier editions
  • 114.
  • 115.
    InfraOptimization References Oracle E-Business SuiteMaintenance Guide Release 12.2 Part Number E22954-21 Oracle E-Business Suite Concepts Guide Release 12.2 OOW16 - Online Patching with Oracle E-Business Suite 12.2 [CON6710] (http://www.slideshare.net/vasuballa/oow16-online-patching-with-oracle-ebusiness-suite- 122-con6710) https://blogs.oracle.com/stevenChan/entry/webcast_replay_available_technical_preview http://www.oracle.com/webfolder/technetwork/tutorials/obe/ebs/ebs121/atg/OnlinePa tching.pdf The Patch "19045166" (p19045166_R12_GENERIC.zip: Run the master perl script adzddiagnostic.pl with the command "perl adzddiagnostic.pl") is particularly useful in identifying the causes of issues with the adop patching utility and other AD-TXK utilities.
  • 116.
  • 117.
    1. Way ofknowing history of online patching select adop_session_id,prepare_status,apply_status,finalize_status,cutover_status,cleanup_status,abort_status,status,abandon_flag,node_name from ad_adop_sessions order by adop_session_id; Note: Y denotes that the phase is done N denotes that the phase has not been completed X denotes that the phase is not applicable R denotes that the phase is running (in progress) F denotes that the phase has failed P (is applicable only to APPLY phase) denotes at least one patch is already applied for the session id C denotes that the status of this ADOP session has completed Note: Numerical statuses are only relevant for the cutover phase... These status values are updated when a step has completed, and are as follows: N denotes that the phase has not been completed 0 denotes that cutover/force_shutdown has started 1 denotes the "force_shutdown" step has successfully executed 3 denotes the "db_cutover" step has successfully executed 4 denotes the "fs_cutover" step has successfully executed 6 denotes the "force_startup" step has successfully executed Y denotes that the phase is done cutover statuses cutover_status='Y' 'COMPLETED' cutover_status not in ('N','Y','X') and status='F' 'FAILED' cutover_status='0' 'CUTOVER STARTED' cutover_status='1' 'SERVICES SHUTDOWN COMPLETED' cutover_status='3' 'DB CUTOVER COMPLETED' cutover_status='D' 'FLIP SNAPSHOTS COMPLETED' cutover_status='4' 'FS CUTOVER COMPLETED' cutover_status='5' 'ADMIN STARTUP COMPLETED' cutover_status='6' 'SERVICES STARTUP COMPLETED' cutover_status='N' 'NOT STARTED' cutover_status='X' 'NOT APPLICABLE'
  • 118.
    2. Check thecurrent status of the adop cycle adop –status usage adop -status generates a summary report adop -status <sessionID> generates a summary report for that session ID adop -status -detail generates a detailed report 3. Way of finding issues on different adop phases sqlplus <apps_schema_name>/<apps_Schema_password> @$AD_TOP/sql/ADZDSHOWLOG.sql  adzdshowlog.out file generated select * from ad_zd_logs order by log_sequence desc; 4. Way of knowing the enabling problem @$AD_TOP/sql/ADZDSHOWDDLS.sql select count(1) from ad_zd_logs;  If the count is increasing then enablement is progressing.
  • 119.
    5. Way ofknowing which patches were applied in each ADOP_SESSION_ID (patching cycle) select * from ad_adop_session_patches order by end_date desc; or set pagesize 200; set linesize 160; column adop_session_id format 999999999999; column bug_number format a15; column status format a15; column applied_file_system_base format a23; column patch_file_system_base format a23; column adpatch_options format a15; column node_name format a15; column end_date format a15; column clone_status format a15; select adop_session_id, bug_number, status, applied_file_system_base, patch_file_system_base, adpatch_options, node_name, end_date, clone_status from ad_adop_session_patches order by end_date desc; Note: STATUS N - Not Applied In the current node but applied in other nodes R - Patch Application is going on. H - Patch failed in the middle. (Hard Failure) F - Patch failed in the middle but user tried to skip some failures. S - Patch Application succeeded after skipping the failed jobs. Y - Patch Application succeeded. C - Reserved for clone and config_clone. Indicates clone completed select ADOP_SESSION_ID,BUG_NUMBER,CLONE_STATUS,STATUS,NODE_NAME from AD_ADOP_SESSION_PATCHES order by ADOP_SESSION_ID;
  • 120.
    6. Log Filefor Errors $COMMON_TOP/clone/FMW/logs/CLONE<timestamp>.error $COMMON_TOP/clone/FMW/logs/CLONE<timestamp>.log $INST_TOP/admin/log/clone directory $APPLRGF/TXK/ohsCloneLog ( this captures cloning failures for OHS ) 7. Ensure the following RUN and PATCH file system ORACLE_HOME(s) are registered in the inventory.xml - 10.1.2 Oracle Home - Oracle_EBS-app1 Oracle Home - webtier Oracle Home - oracle_common Oracle Home more …/ContentsXML/inventory.xml |grep LOC 8. Confirm that the FND_OAM_CONTEXT_FILES table now holds the correct data Run the following script to determine if all context files have been registered in the database. The script should return a run and patch context file for each application server and one for the database server. select path,status,serial_number,version from fnd_oam_context_files where name not in ('TEMPLATE','METADATA') and (status is null or status !='VALID'); InfraOptimization
  • 121.
    Run the followingscript to determine the number/types of managed servers registered in the run and patch file systems. The script should return an equal number of managed servers between the run and patch file systems SELECT extractValue(XMLType(TEXT),'//host[@oa_var="s_hostname"]'), extractValue(XMLType(TEXT),'//oacore_server_ports'), extractValue(XMLType(TEXT),'//forms_server_ports'), extractValue(XMLType(TEXT),'//oafm_server_ports'), extractValue(XMLType(TEXT),'//forms-c4ws_server_ports'), extractValue(XMLType(TEXT),'//oaea_server_ports') from fnd_oam_context_files where name not in ('TEMPLATE','METADATA') and (status is null or status !='H') and EXTRACTVALUE(XMLType(TEXT),'//file_edition_type')='run' and CTX_TYPE = 'A'; SELECT extractValue(XMLType(TEXT),'//host[@oa_var="s_hostname"]'), extractValue(XMLType(TEXT),'//oacore_server_ports'), extractValue(XMLType(TEXT),'//forms_server_ports'), extractValue(XMLType(TEXT),'//oafm_server_ports'), extractValue(XMLType(TEXT),'//forms-c4ws_server_ports'), extractValue(XMLType(TEXT),'//oaea_server_ports') from fnd_oam_context_files where name not in ('TEMPLATE','METADATA') and (status is null or status !='H') and EXTRACTVALUE(XMLType(TEXT),'//file_edition_type')='patch' and CTX_TYPE = 'A'; InfraOptimization
  • 122.
  • 123.

Editor's Notes

  • #15 Reference Oracle Doc IDs R12: Oracle EBS Context Variables (Doc ID 458282.1) Using AutoConfig to Manage System Configurations in Oracle E-Business Suite Release 12 (Doc ID 387859.1) Release 12.2 OHS configuration File maintenance (Doc ID 1676430.1) E-Business Suite 12.2 Detailed Steps To Change The R12.2 Default Port To 80 (Doc ID 2072420.1)
