This is a presentation that Eric Gazoni (CEO Adimian) gave at the first edition of FOSDEMx, at the University of Brussels on May, 3rd 2018. The intent is to scratch the surface of what it takes to do CPU performance optimisation in Python, and give students a few first tools to get started.

1. Optimizing
Python
-
FOSDEMx
2018 - 05 - 03

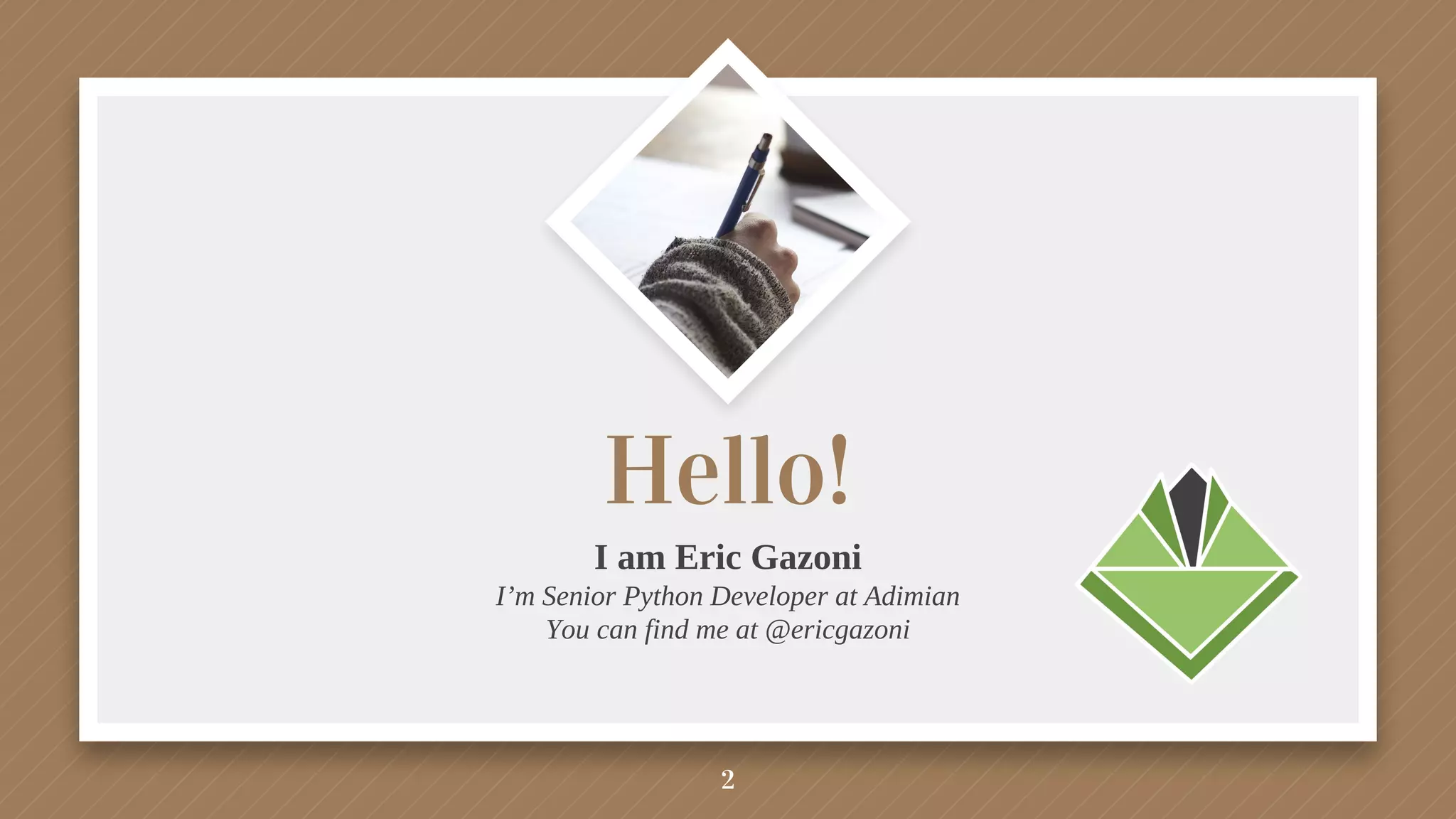

2. Hello!
I am Eric Gazoni
I’m Senior Python Developer at Adimian
You can find me at @ericgazoni
2

3. Why optimizing ?
And what to optimize

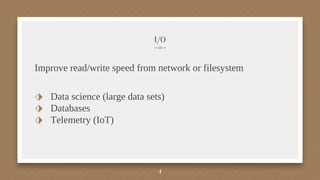

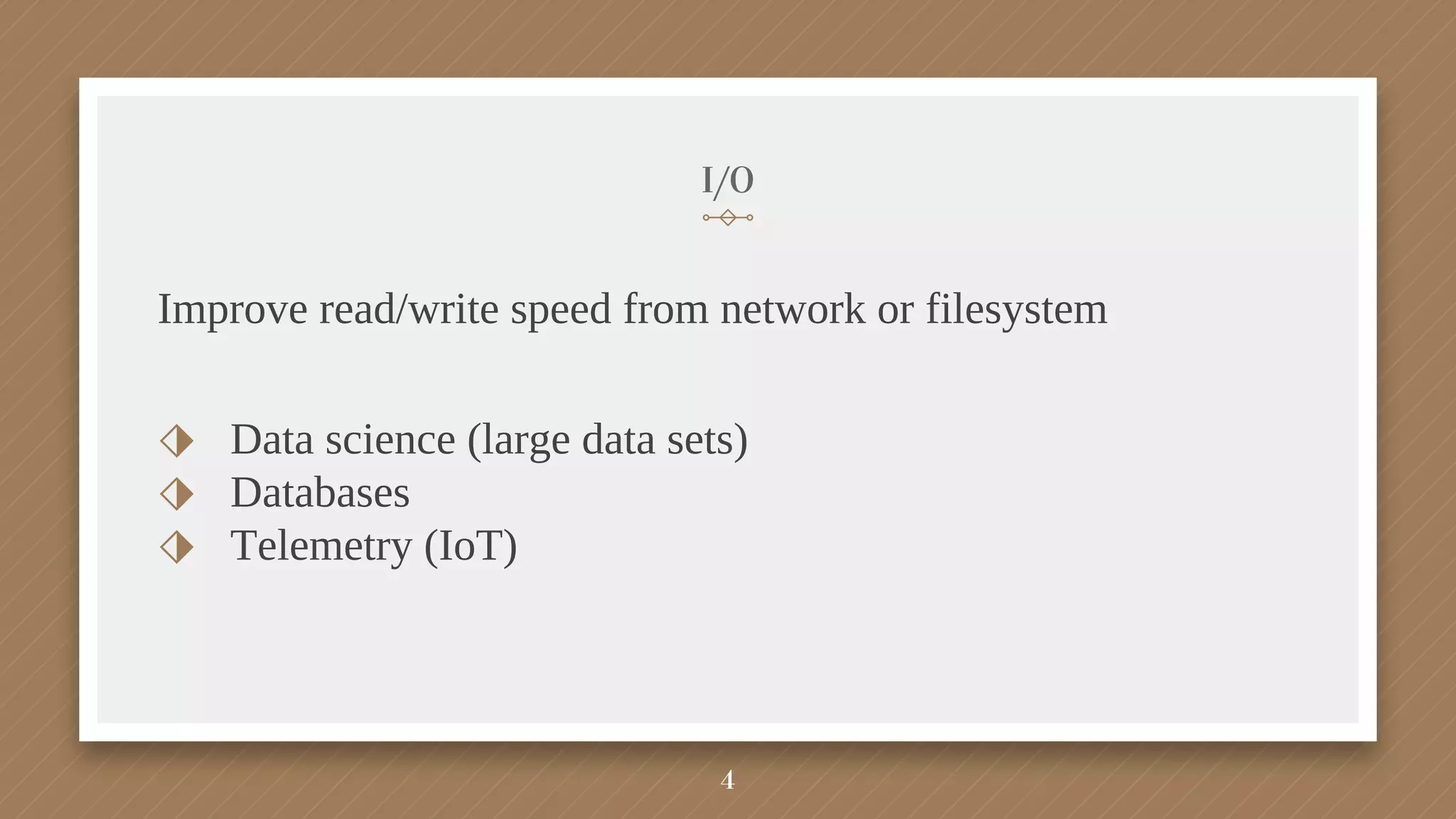

4. I/O
Improve read/write speed from network or filesystem
⬗ Data science (large data sets)
⬗ Databases
⬗ Telemetry (IoT)
4

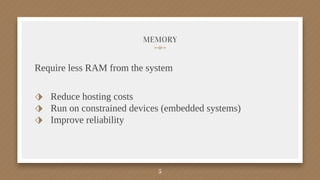

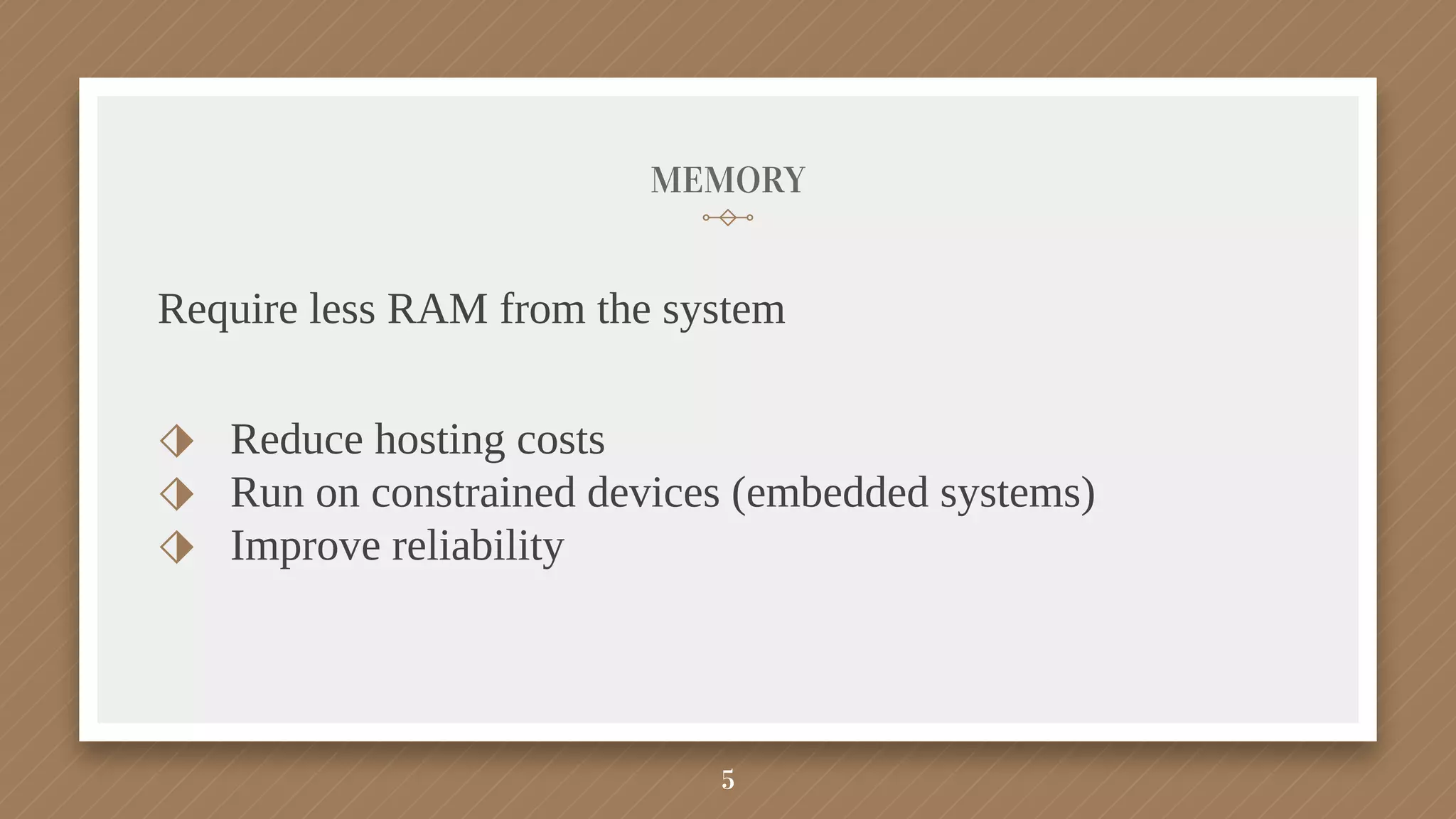

5. MEMORY
Require less RAM from the system
⬗ Reduce hosting costs
⬗ Run on constrained devices (embedded systems)
⬗ Improve reliability
5

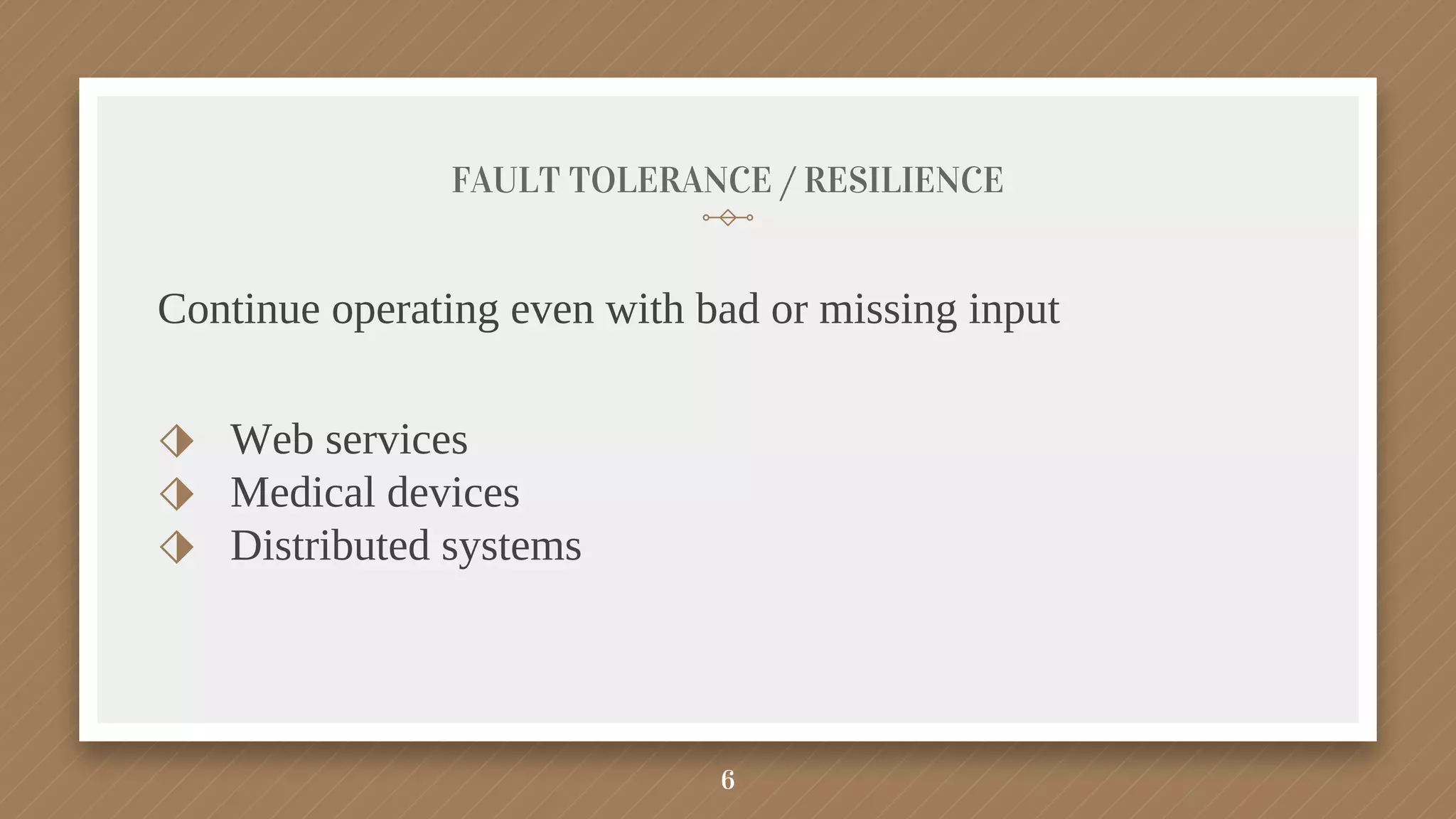

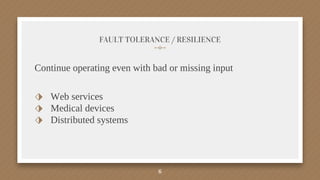

6. FAULT TOLERANCE / RESILIENCE
Continue operating even with bad or missing input
⬗ Web services
⬗ Medical devices
⬗ Distributed systems
6

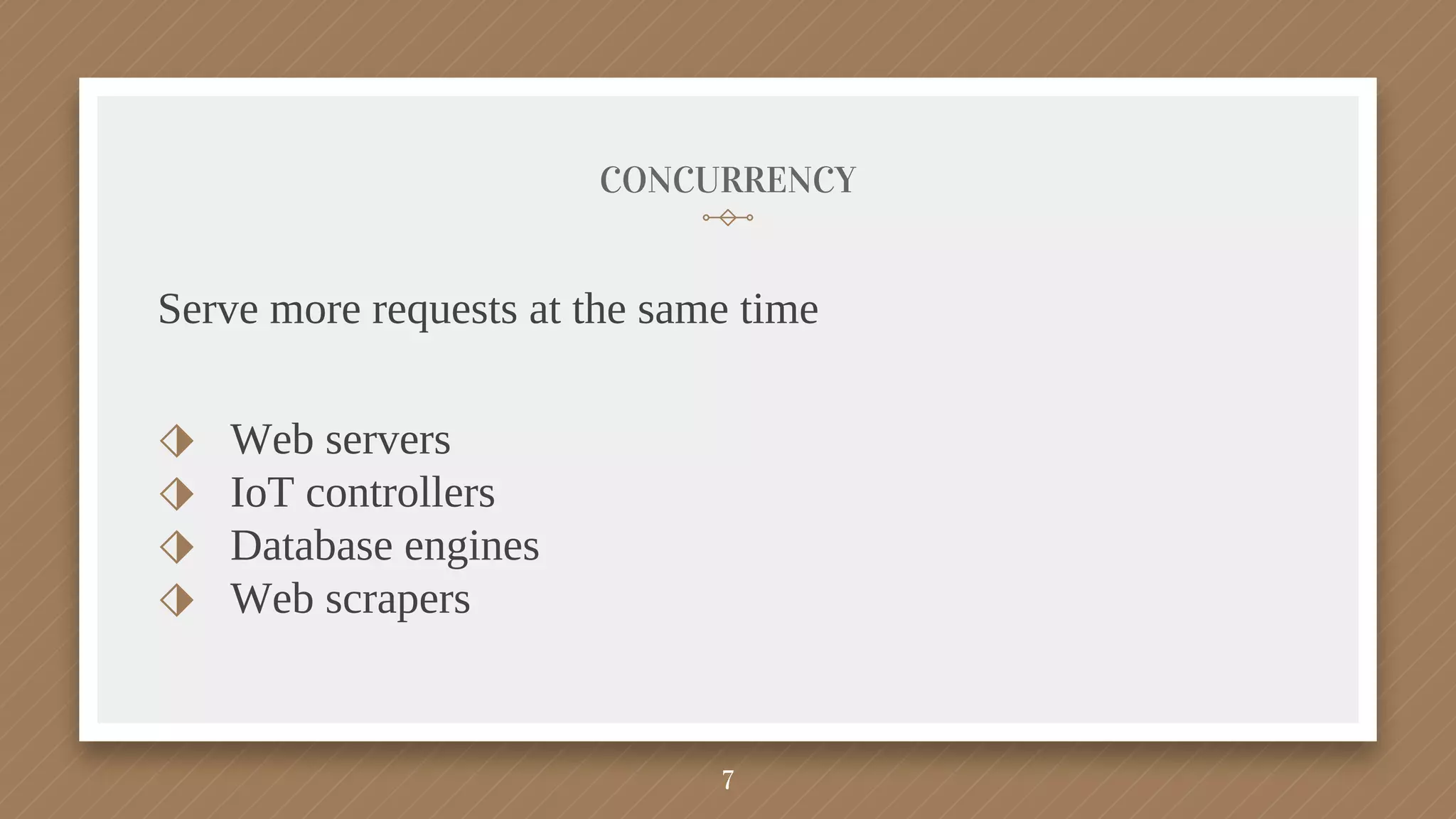

7. CONCURRENCY
Serve more requests at the same time
⬗ Web servers
⬗ IoT controllers
⬗ Database engines
⬗ Web scrapers
7

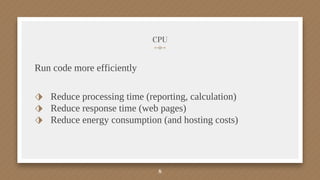

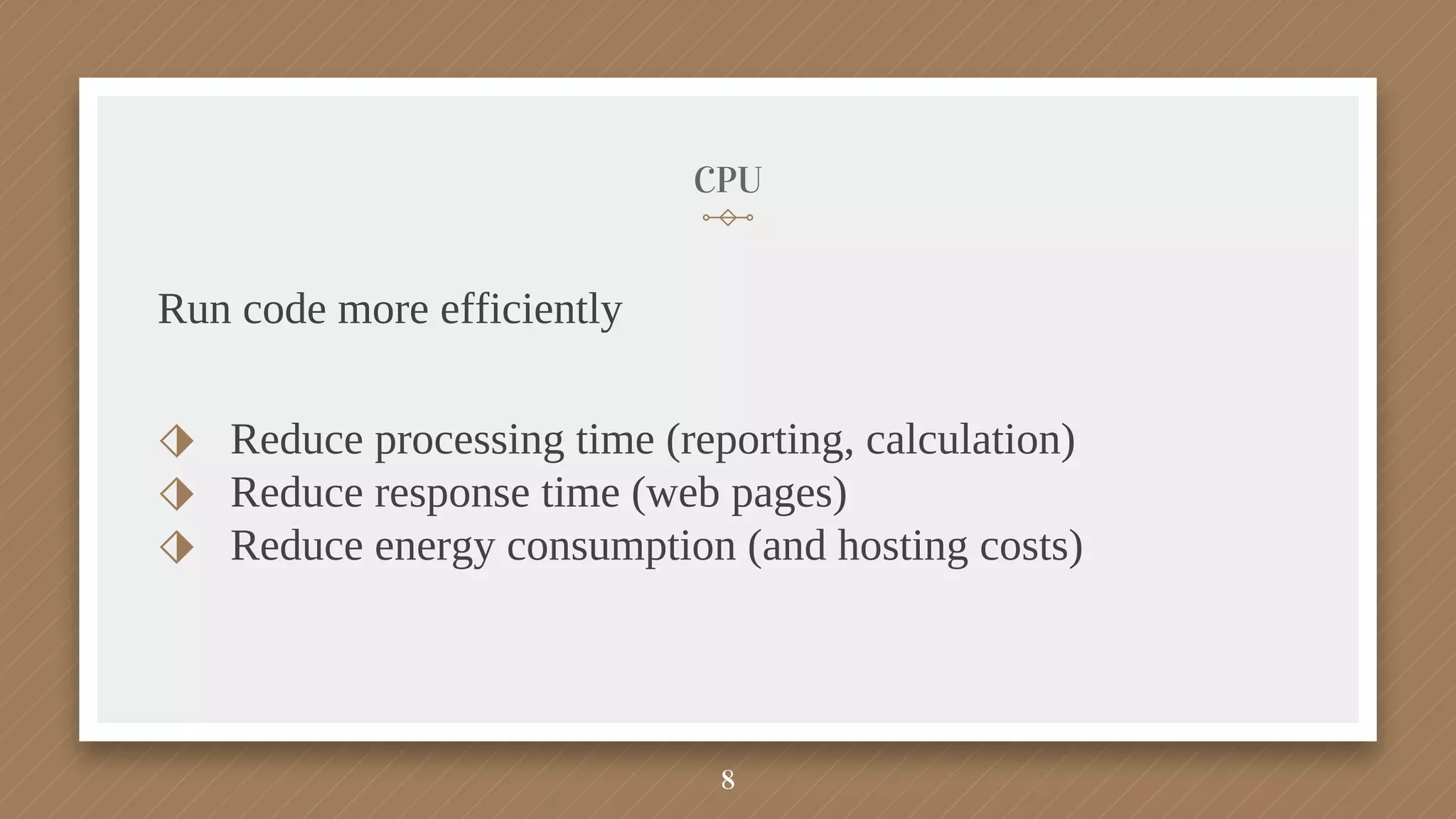

8. CPU
Run code more efficiently
⬗ Reduce processing time (reporting, calculation)
⬗ Reduce response time (web pages)
⬗ Reduce energy consumption (and hosting costs)
8

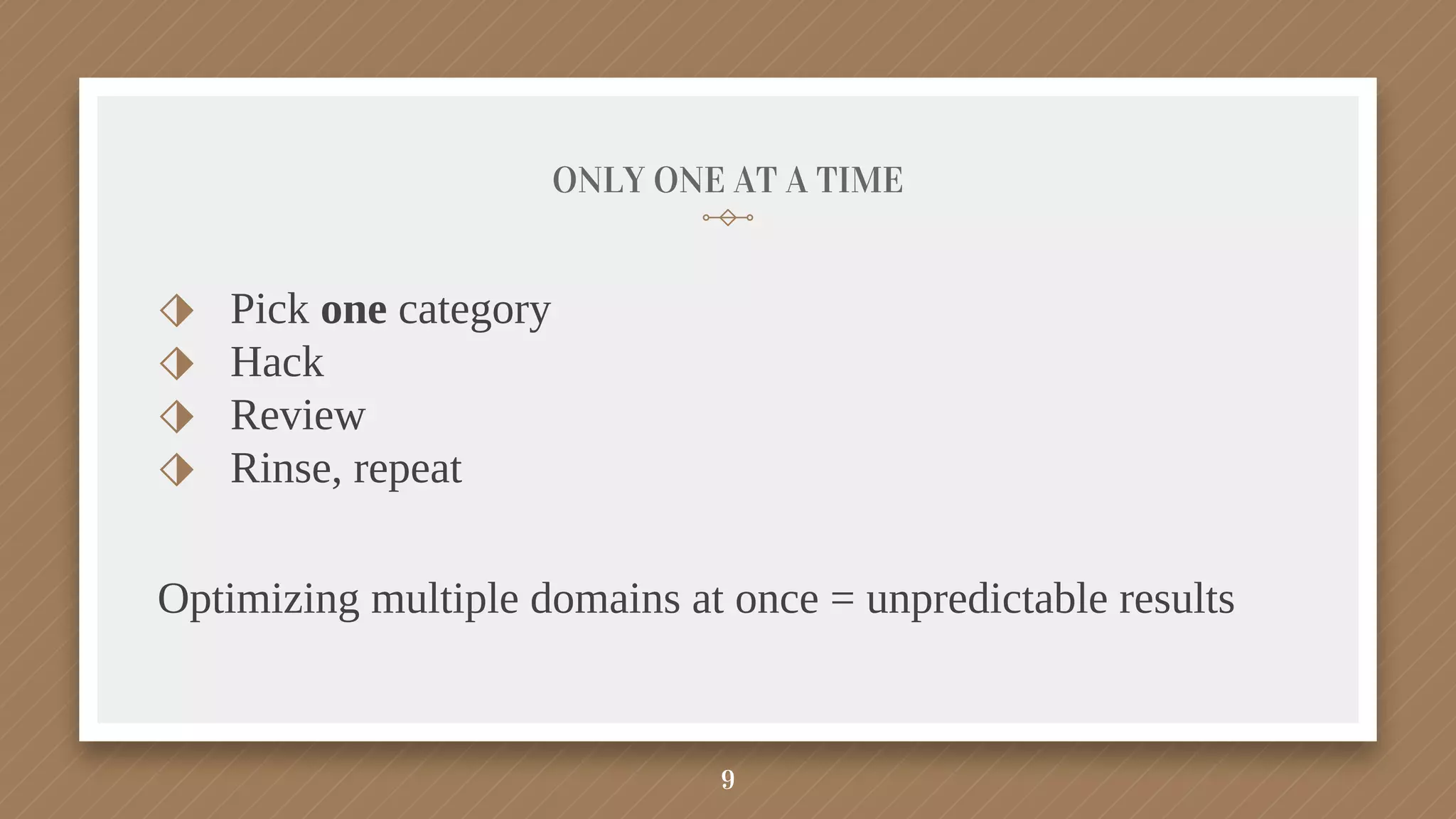

9. ONLY ONE AT A TIME
⬗ Pick one category
⬗ Hack
⬗ Review
⬗ Rinse, repeat
Optimizing multiple domains at once = unpredictable results
9

10. General rules of
optimization
Applies to all categories

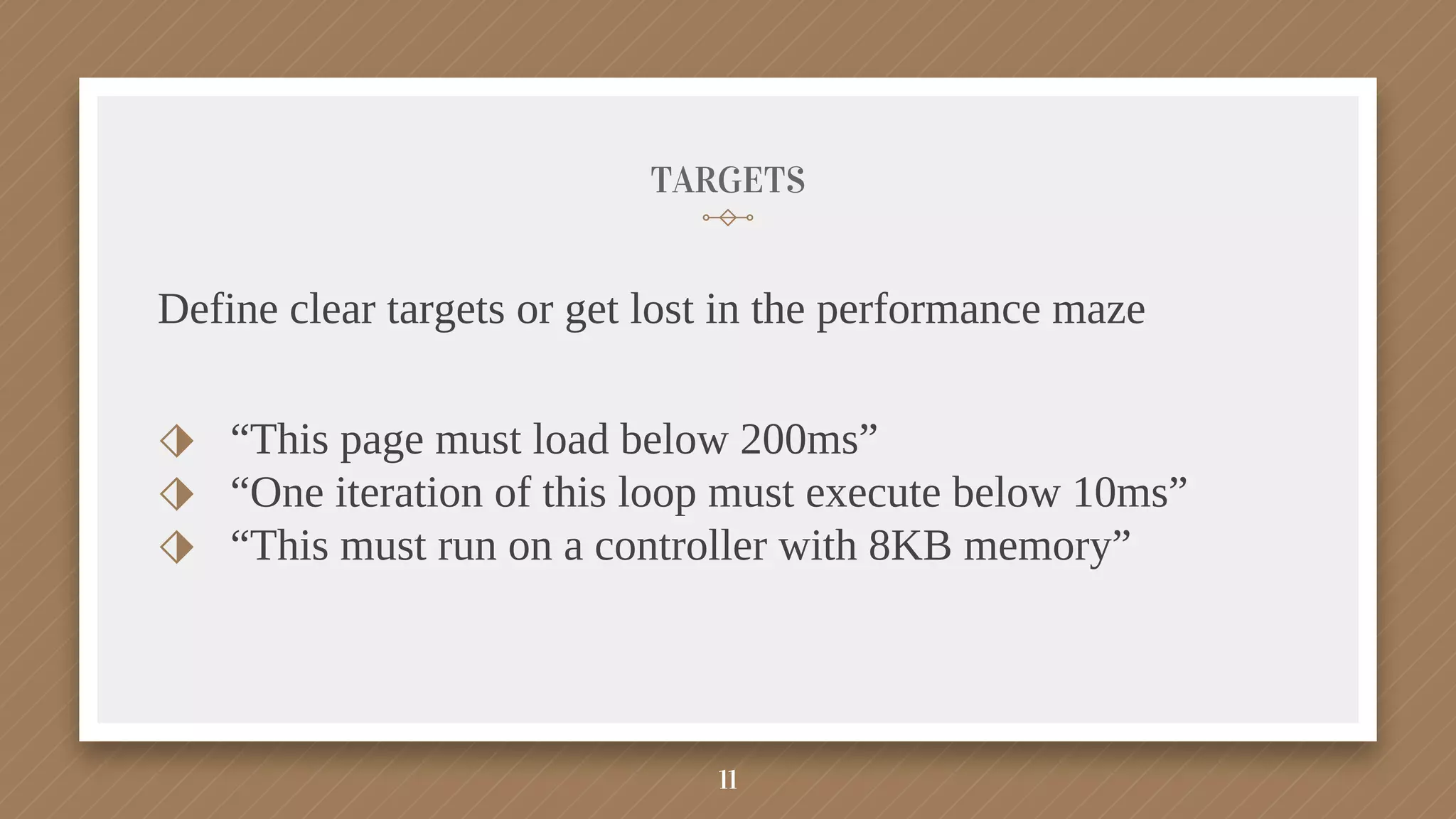

11. TARGETS
Define clear targets or get lost in the performance maze
⬗ “This page must load below 200ms”
⬗ “One iteration of this loop must execute below 10ms”
⬗ “This must run on a controller with 8KB memory”
11

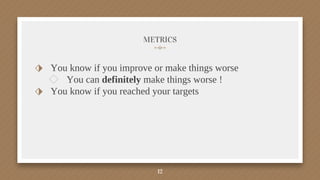

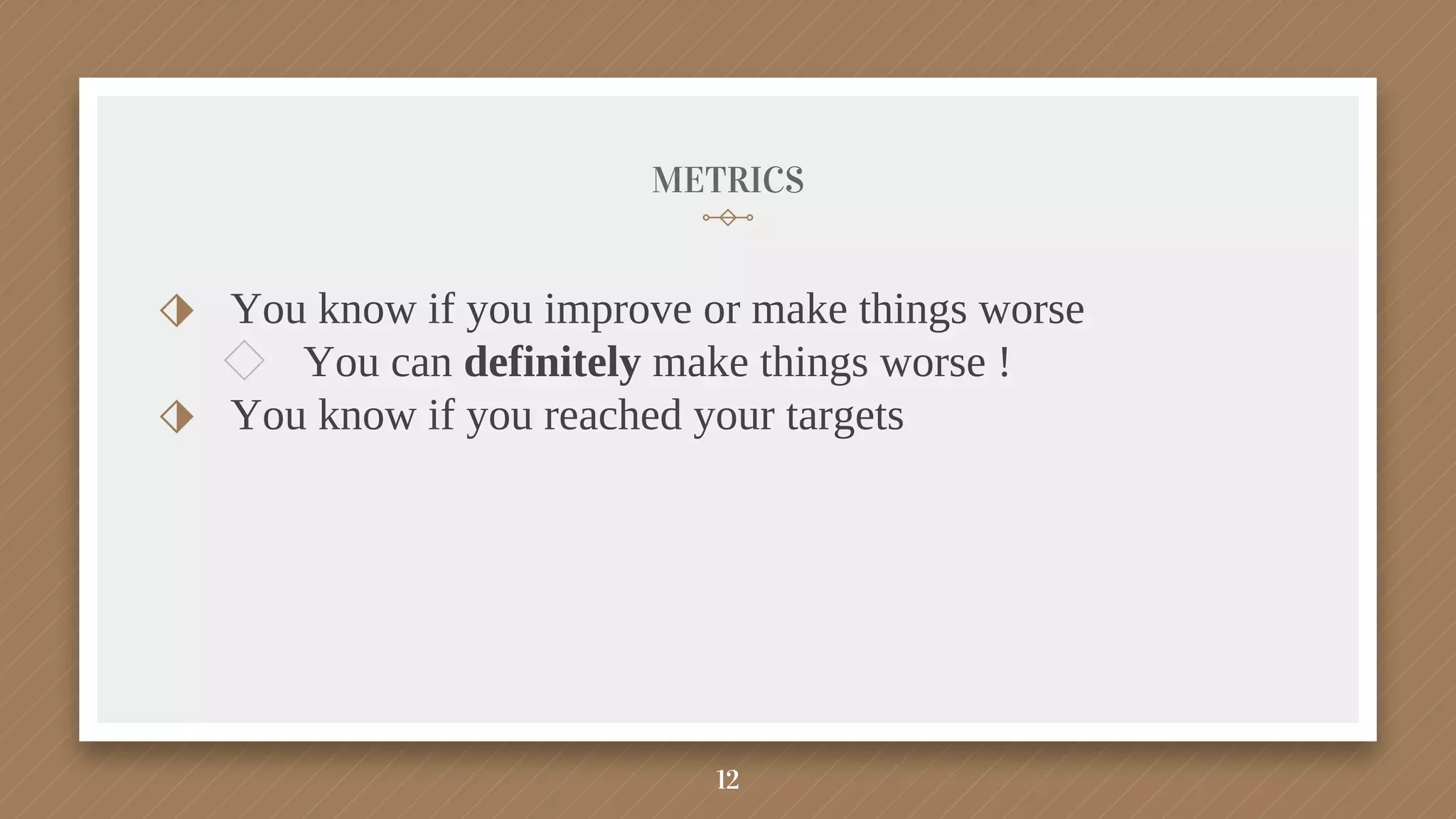

12. METRICS
⬗ You know if you improve or make things worse
◇ You can definitely make things worse !
⬗ You know if you reached your targets
12

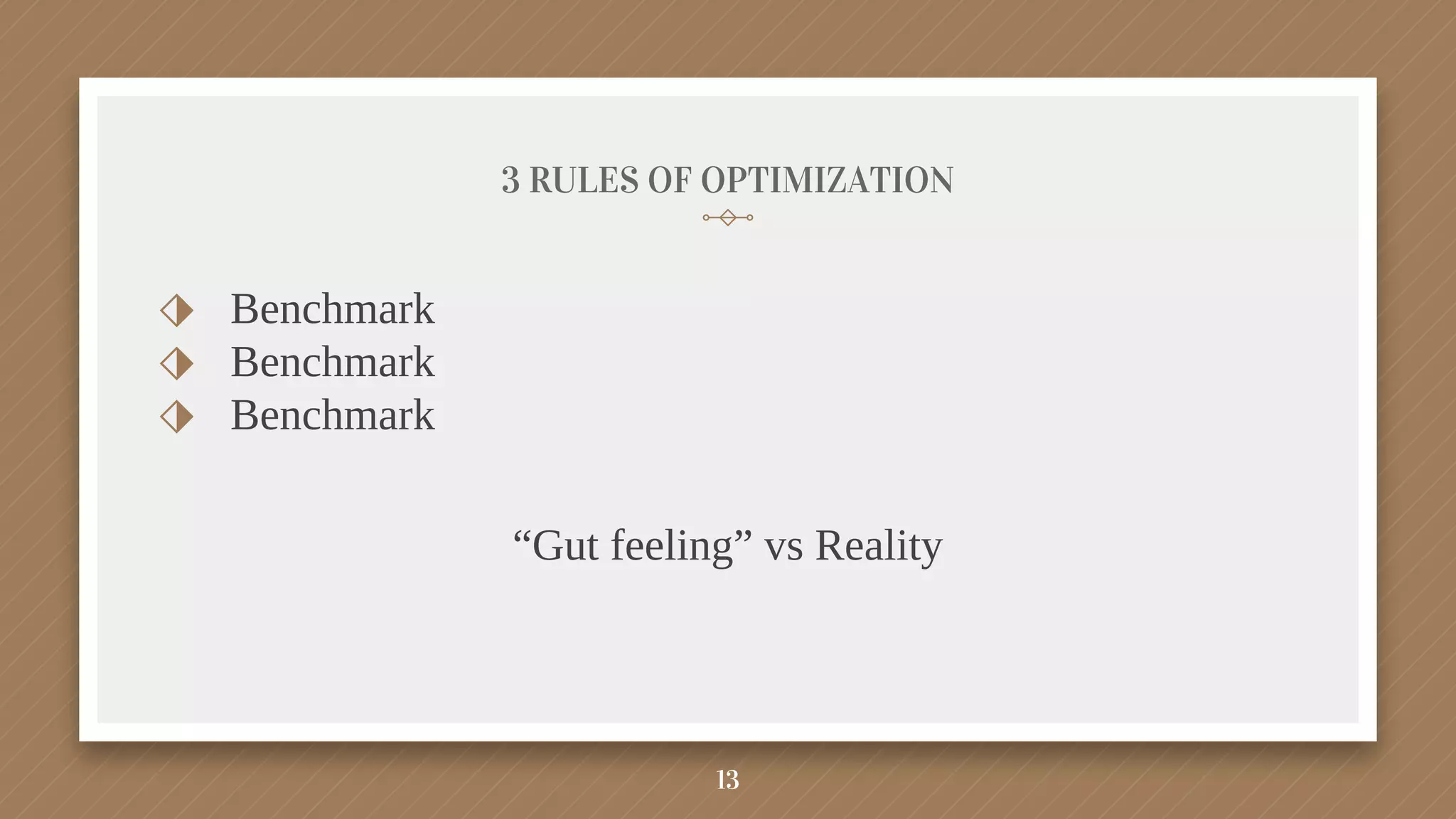

13. 3 RULES OF OPTIMIZATION
⬗ Benchmark
⬗ Benchmark
⬗ Benchmark
“Gut feeling” vs Reality
13

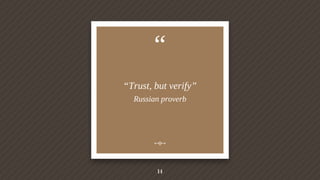

14. “
“Trust, but verify”
Russian proverb
14

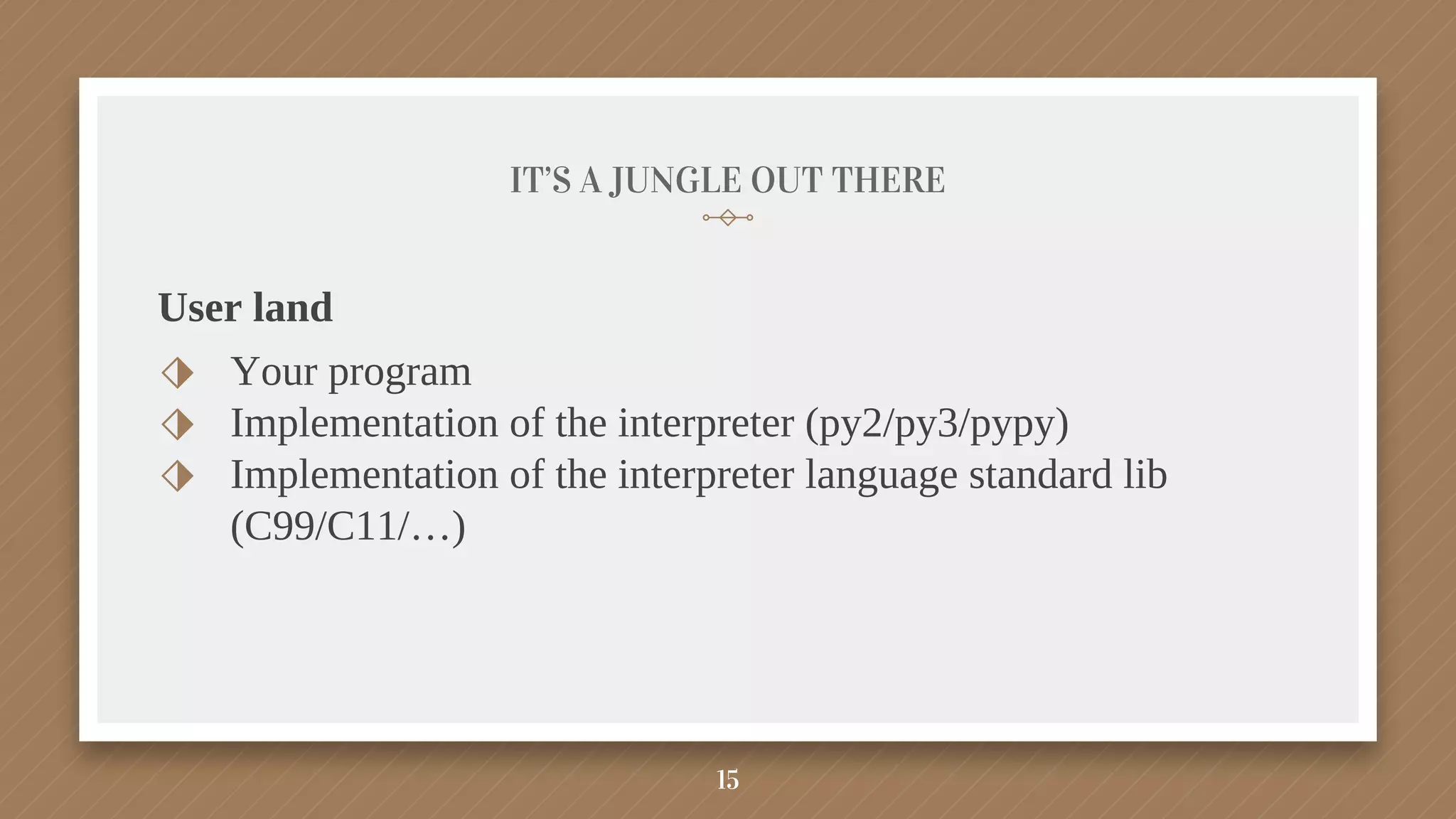

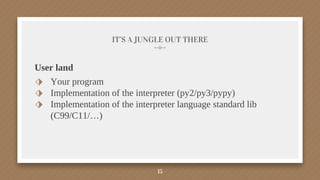

15. IT’S A JUNGLE OUT THERE
15
User land
⬗ Your program
⬗ Implementation of the interpreter (py2/py3/pypy)
⬗ Implementation of the interpreter language standard lib
(C99/C11/…)

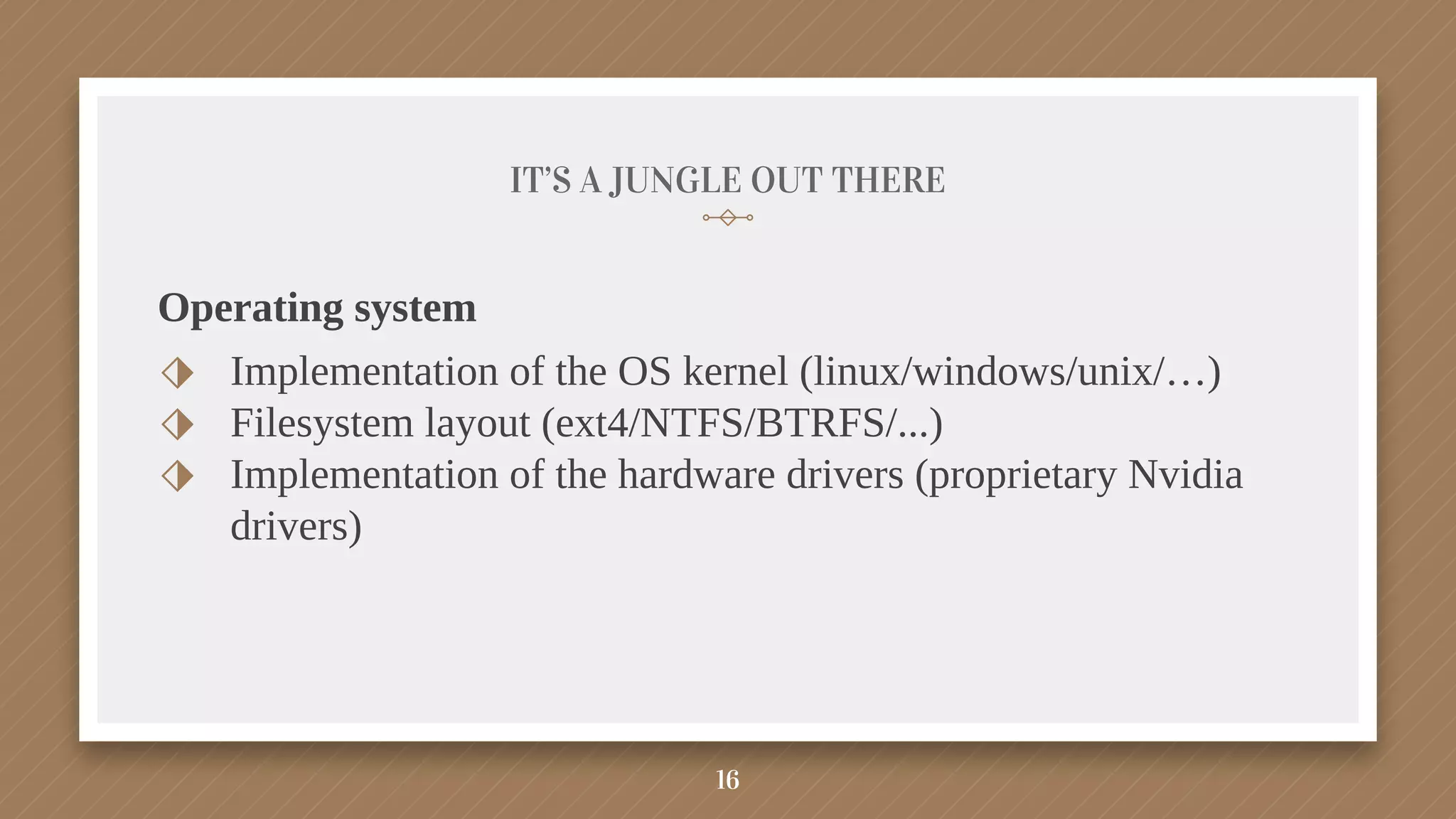

16. IT’S A JUNGLE OUT THERE
16
Operating system
⬗ Implementation of the OS kernel (linux/windows/unix/…)
⬗ Filesystem layout (ext4/NTFS/BTRFS/...)
⬗ Implementation of the hardware drivers (proprietary Nvidia
drivers)

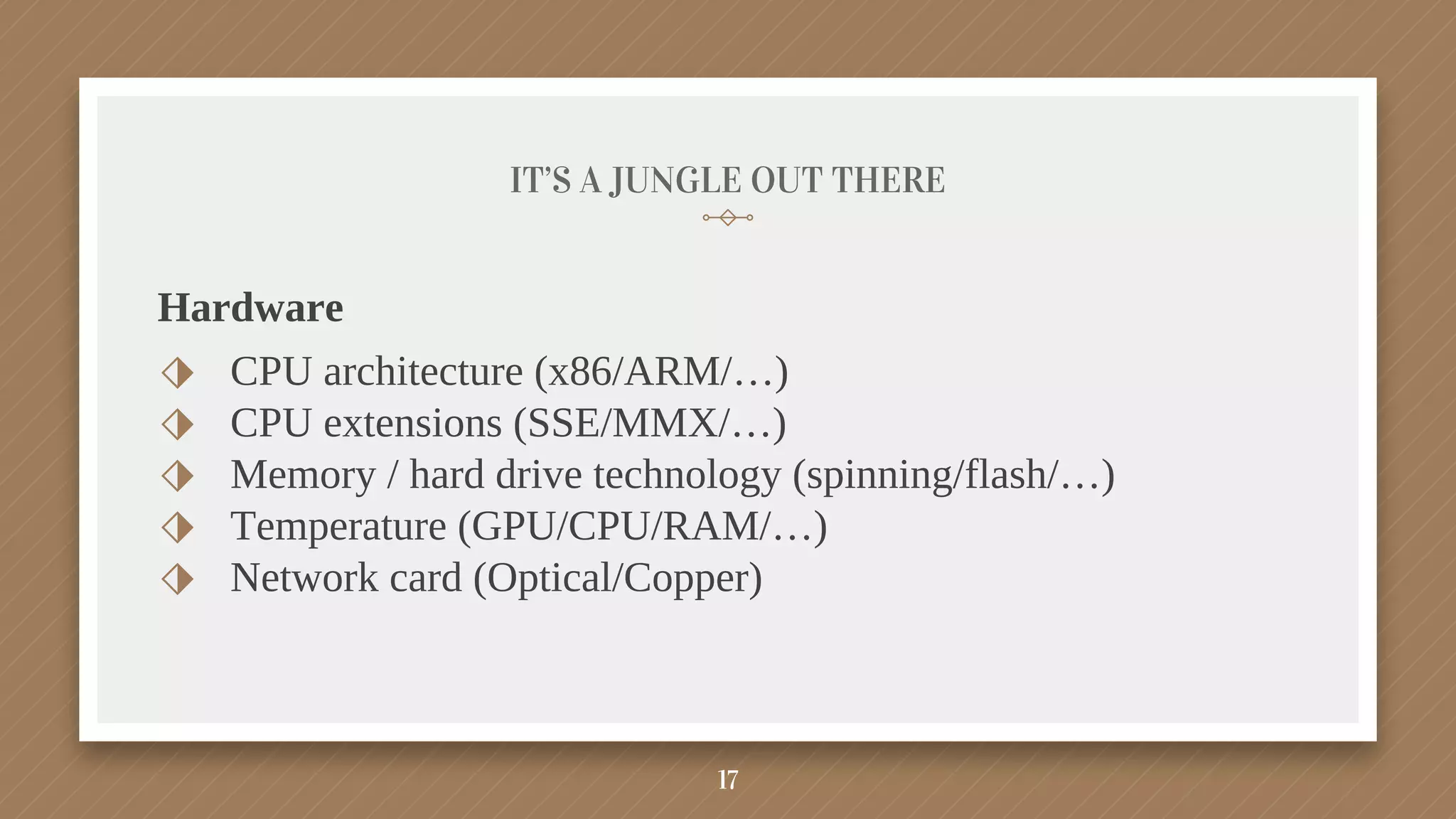

17. IT’S A JUNGLE OUT THERE
17
Hardware
⬗ CPU architecture (x86/ARM/…)
⬗ CPU extensions (SSE/MMX/…)
⬗ Memory / hard drive technology (spinning/flash/…)
⬗ Temperature (GPU/CPU/RAM/…)
⬗ Network card (Optical/Copper)

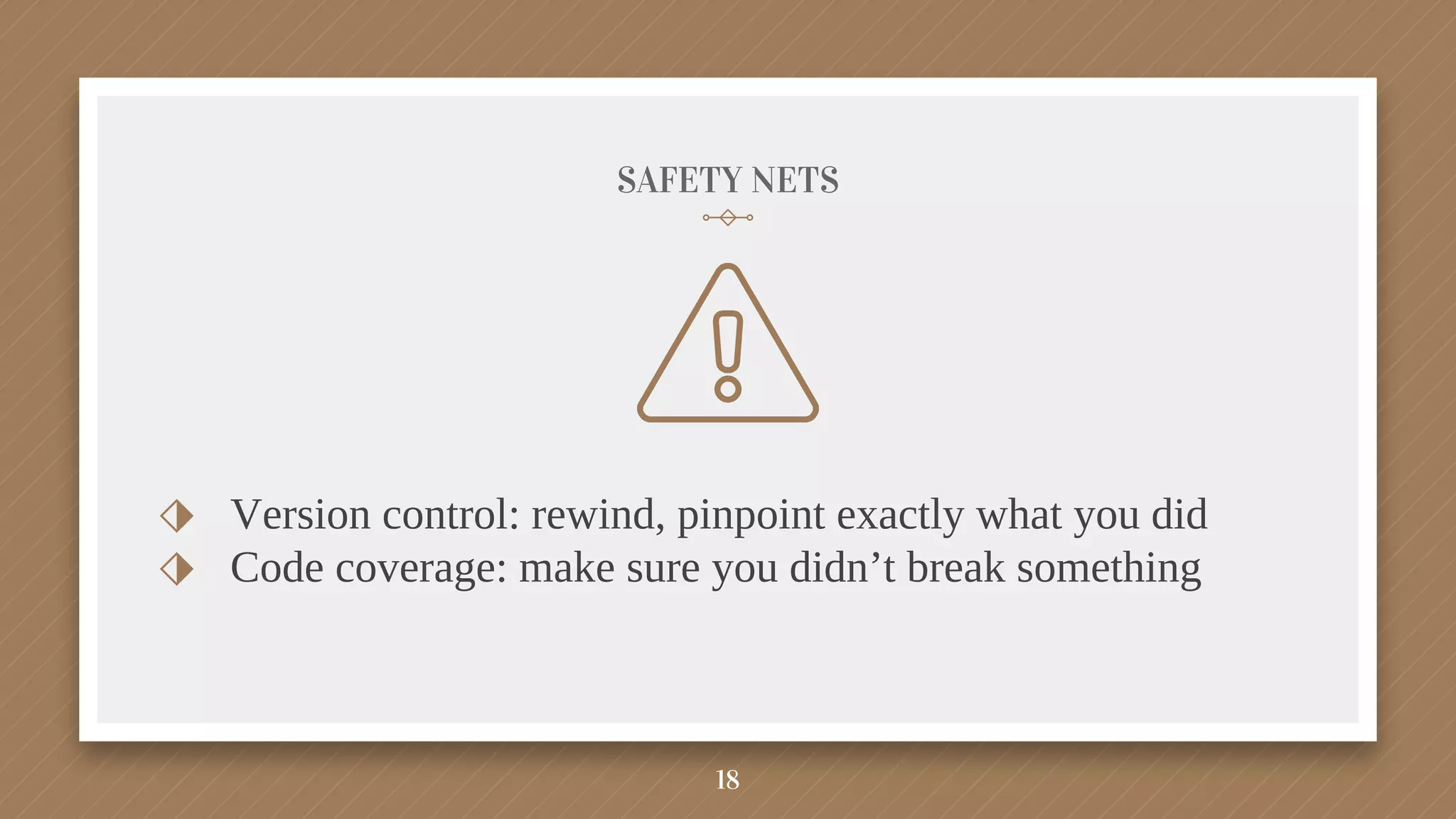

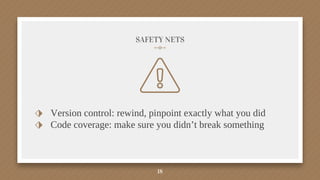

18. SAFETY NETS
⬗ Version control: rewind, pinpoint exactly what you did
⬗ Code coverage: make sure you didn’t break something
18

19. 19

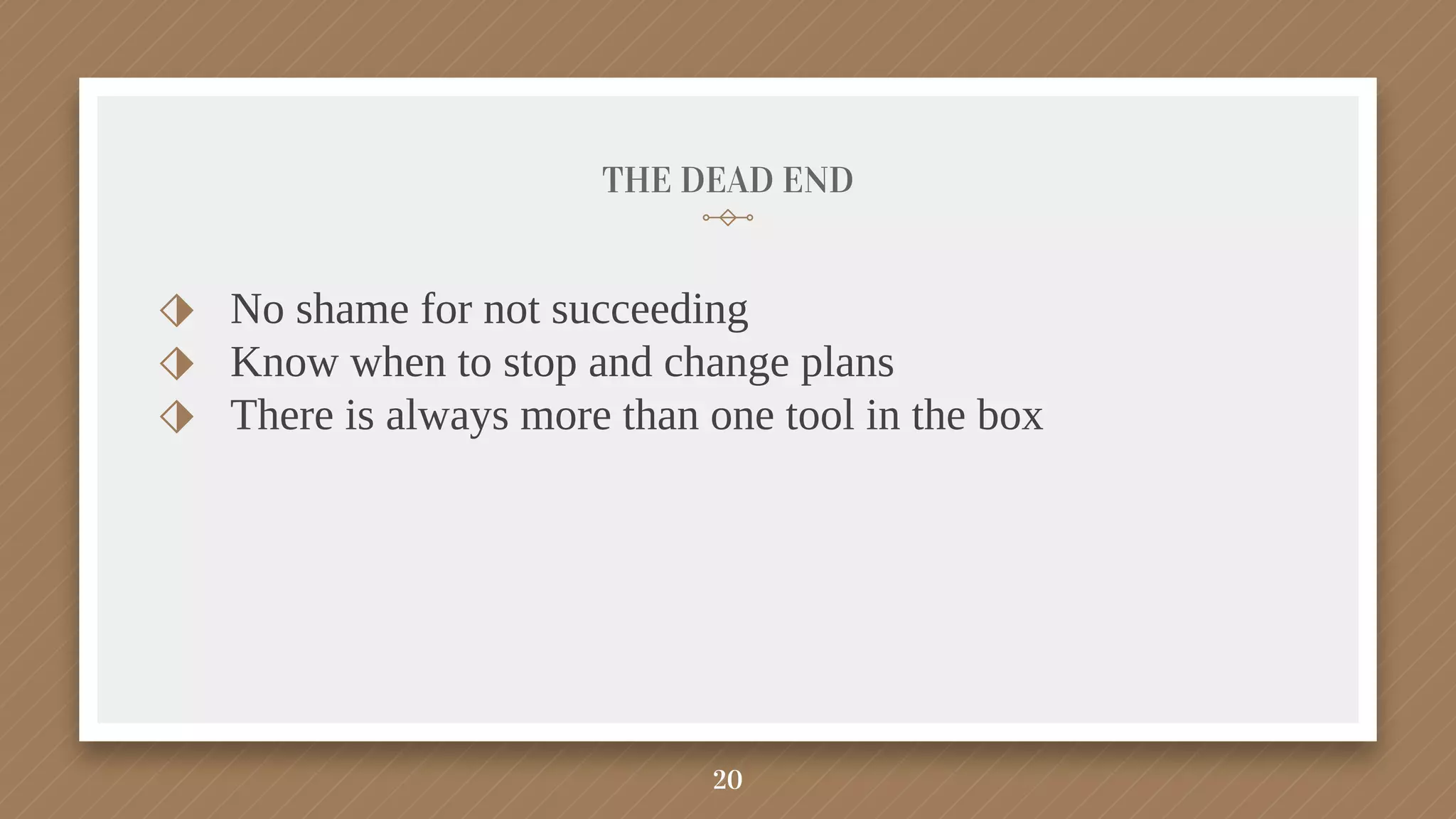

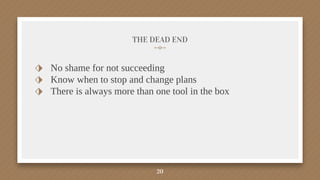

20. THE DEAD END
⬗ No shame for not succeeding
⬗ Know when to stop and change plans
⬗ There is always more than one tool in the box
20

21. Optimizer tools

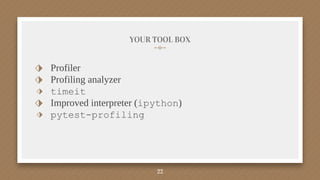

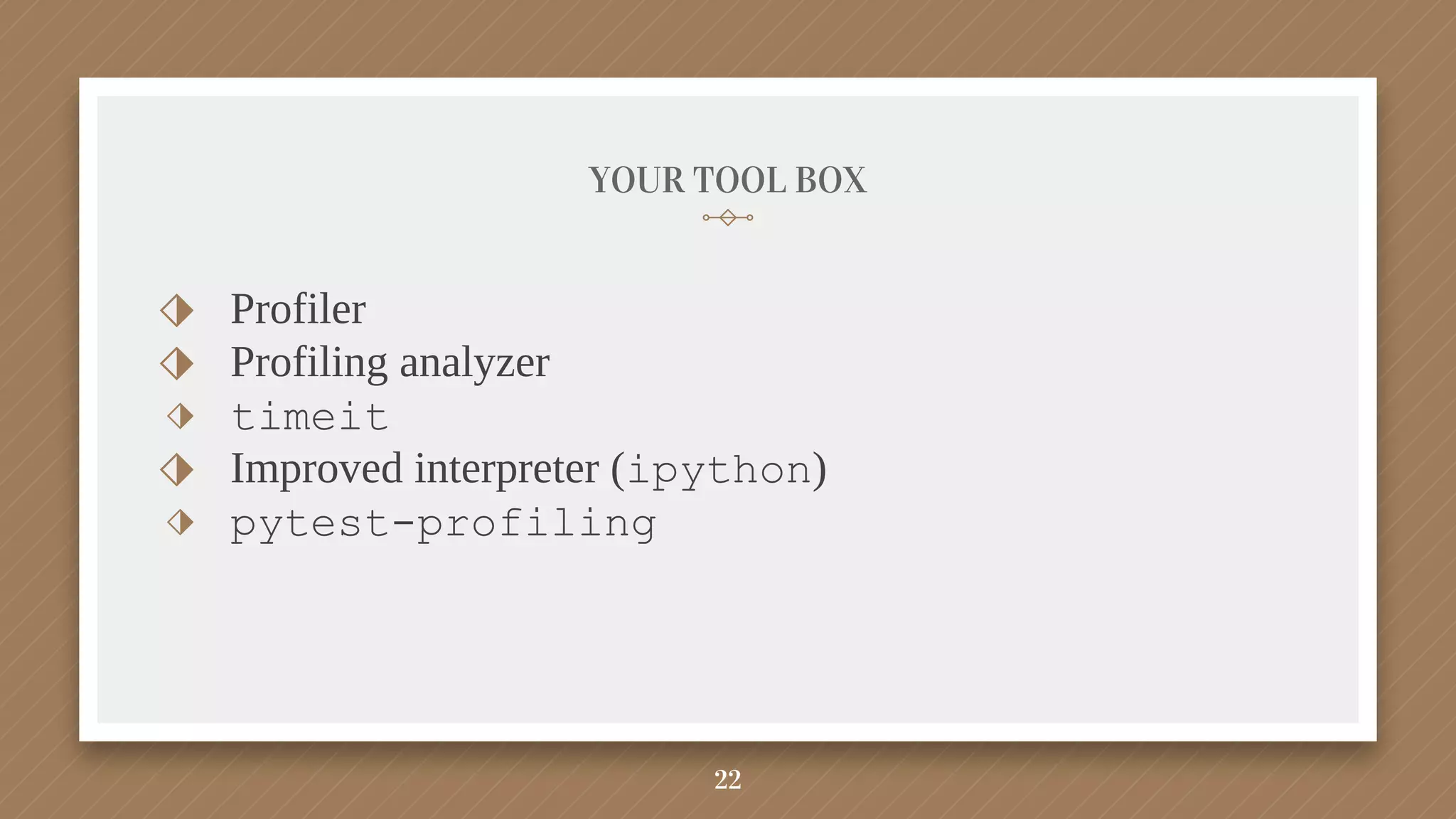

22. YOUR TOOL BOX
⬗ Profiler
⬗ Profiling analyzer
⬗ timeit
⬗ Improved interpreter (ipython)
⬗ pytest-profiling
22

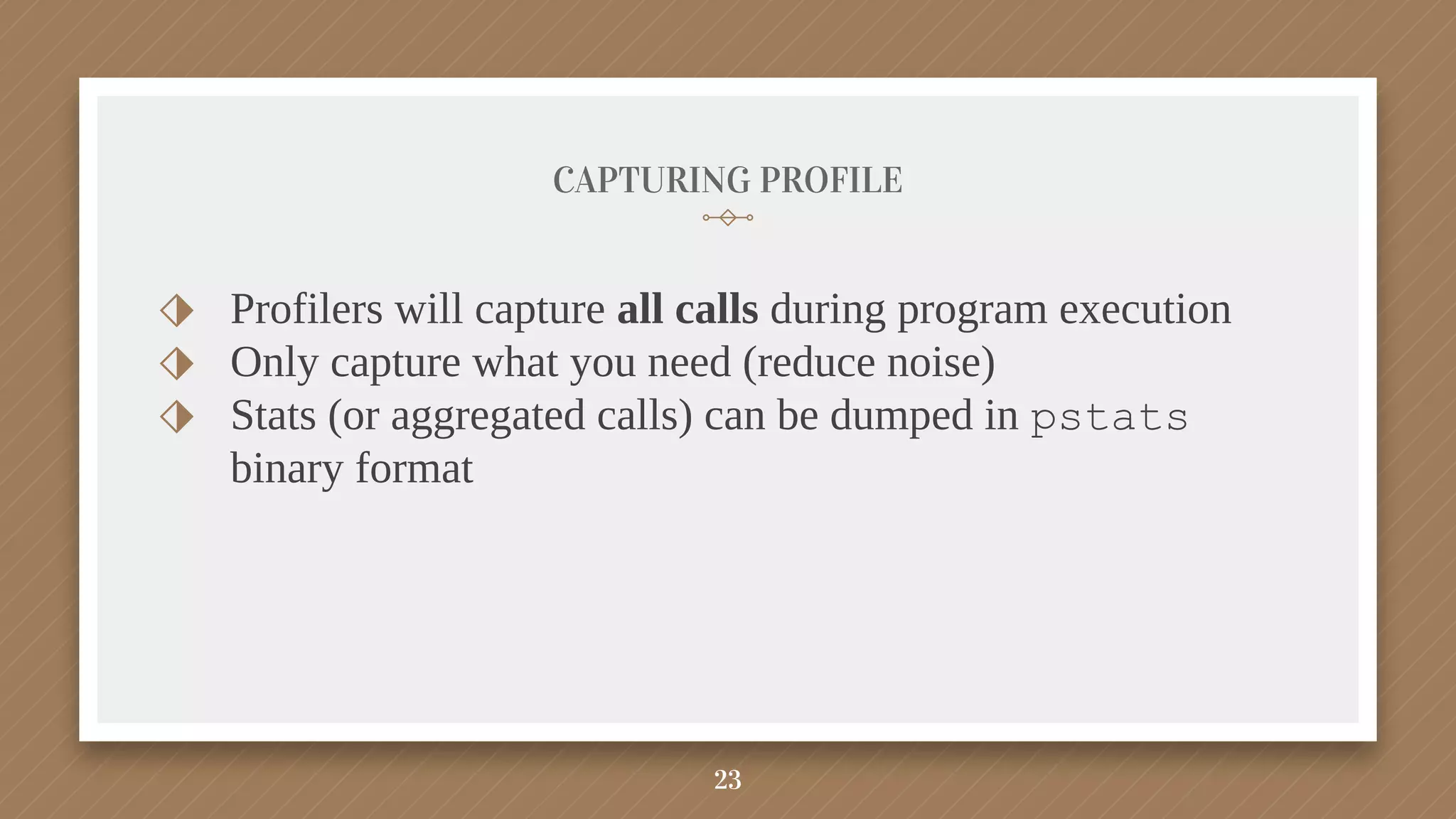

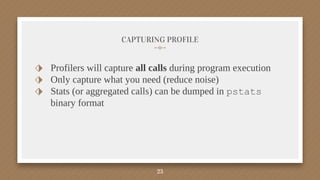

23. CAPTURING PROFILE
⬗ Profilers will capture all calls during program execution
⬗ Only capture what you need (reduce noise)
⬗ Stats (or aggregated calls) can be dumped in pstats
binary format
23

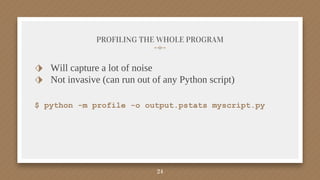

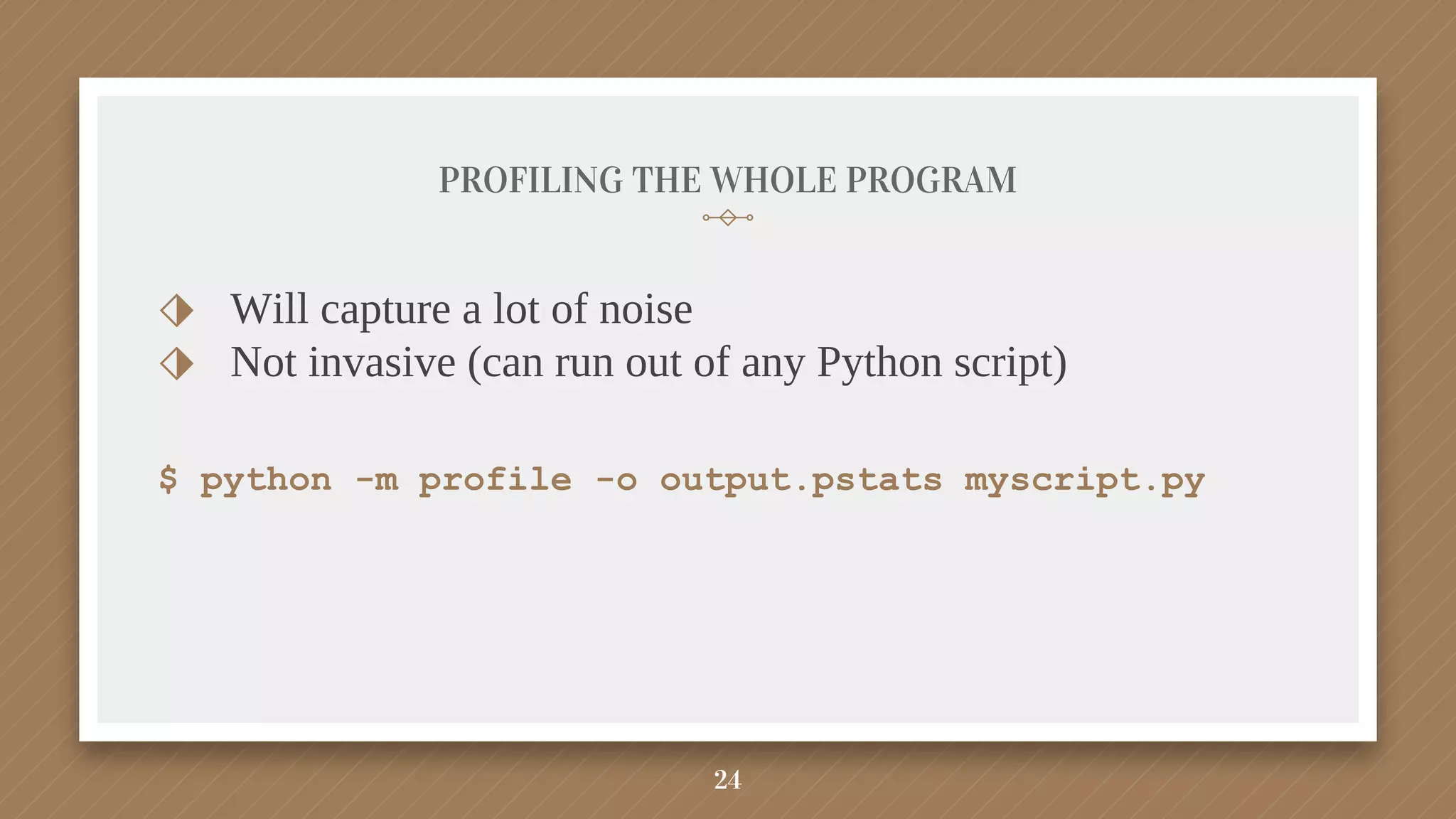

24. PROFILING THE WHOLE PROGRAM
⬗ Will capture a lot of noise
⬗ Not invasive (can run out of any Python script)
$ python -m profile -o output.pstats myscript.py
24

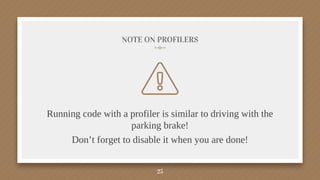

25. NOTE ON PROFILERS
25
Running code with a profiler is similar to driving with the
parking brake!
Don’t forget to disable it when you are done!

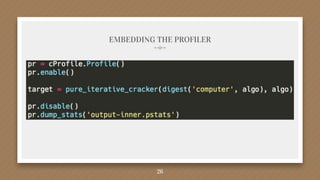

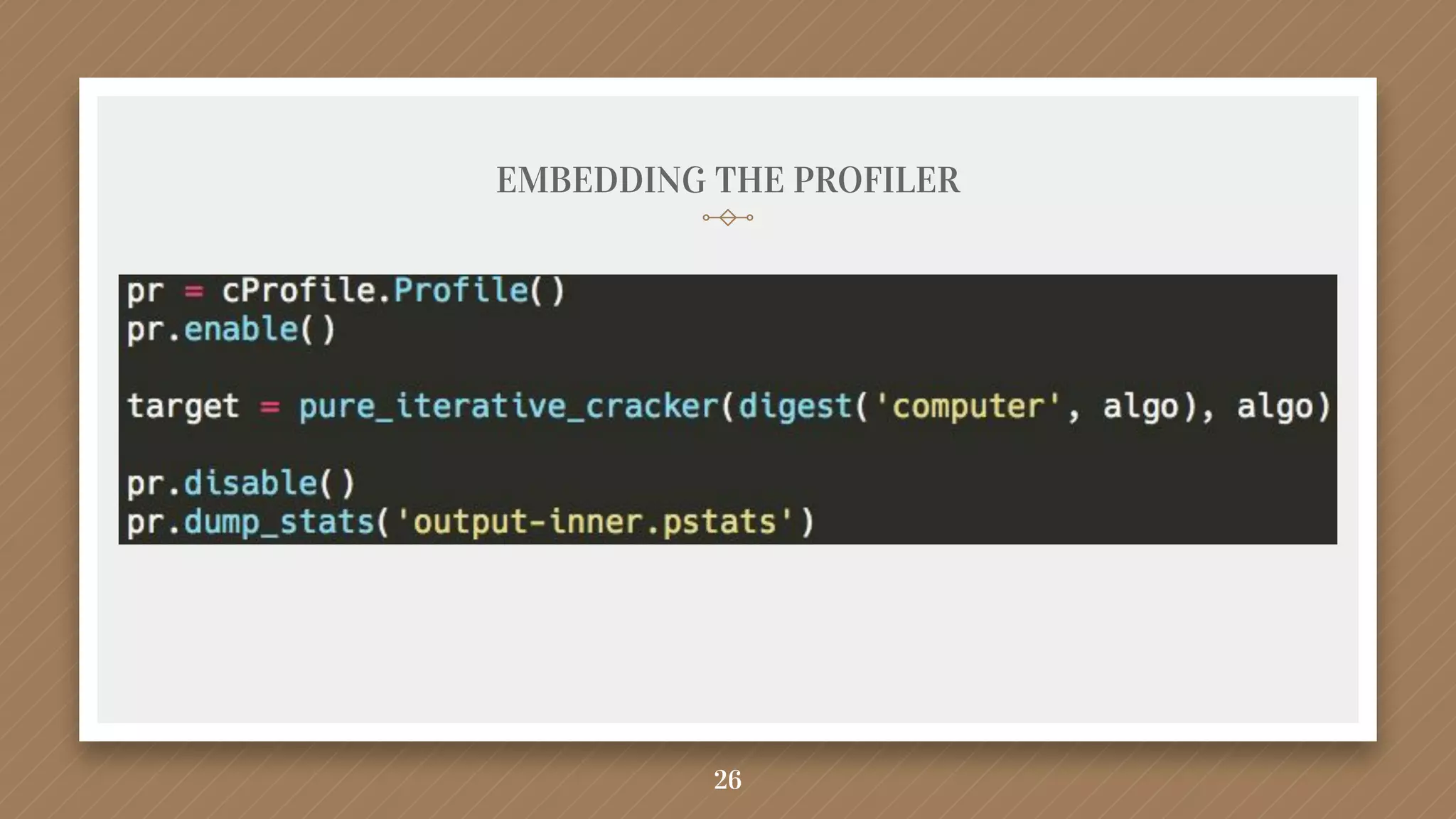

26. EMBEDDING THE PROFILER
26

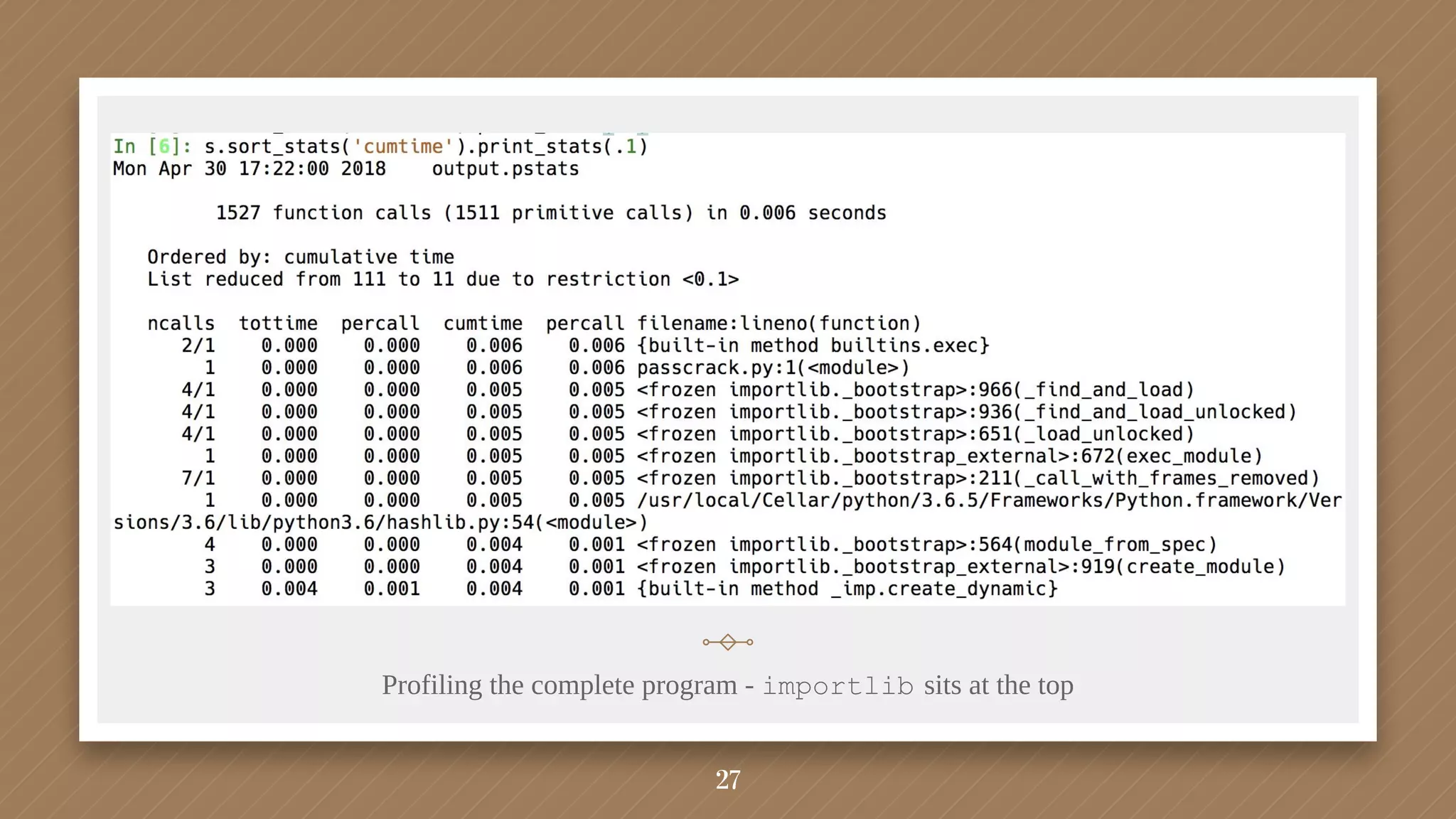

27. Profiling the complete program - importlib sits at the top
27

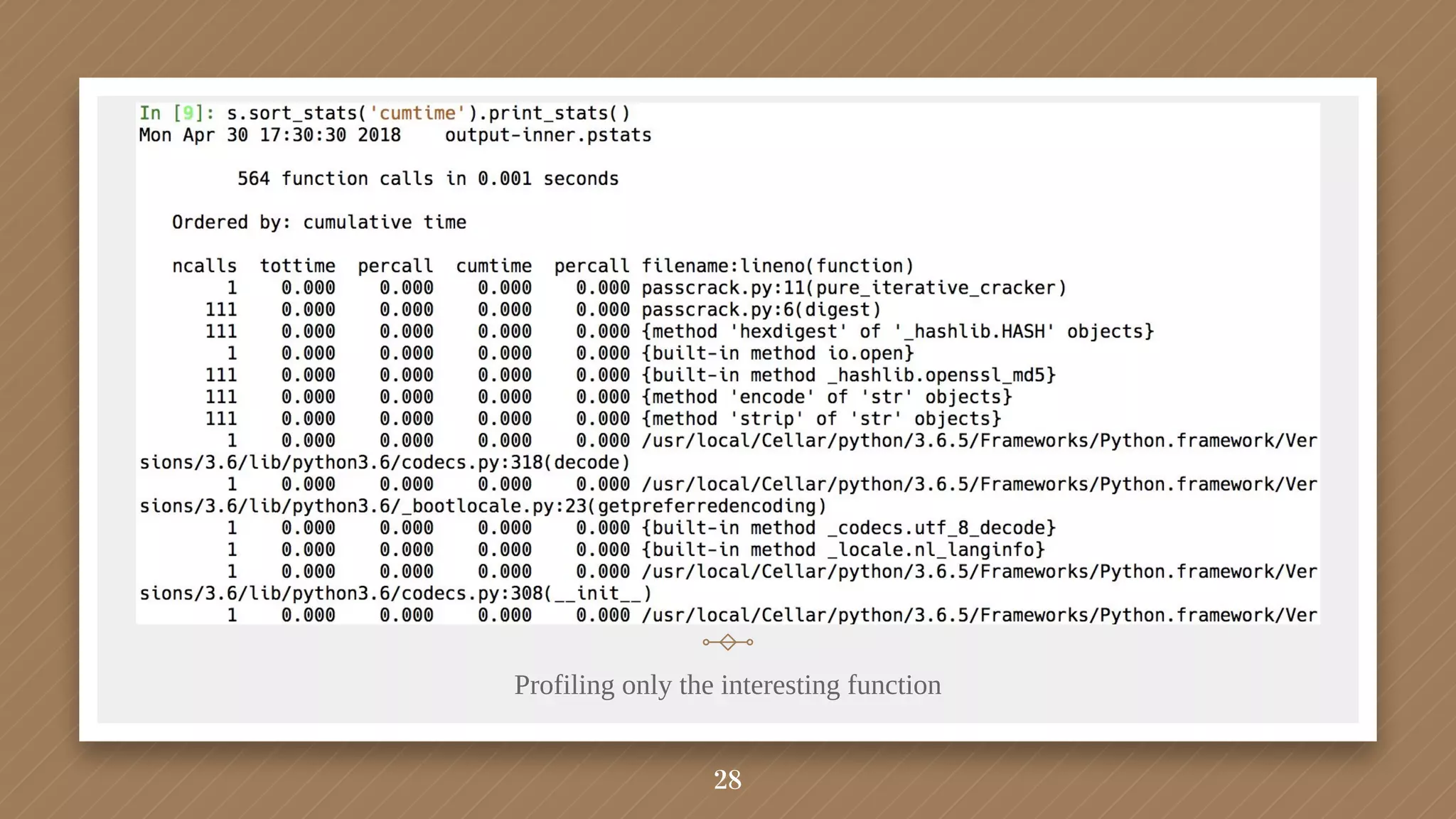

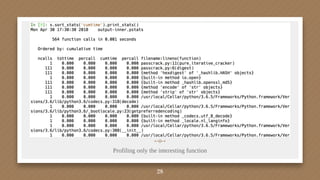

28. Profiling only the interesting function
28

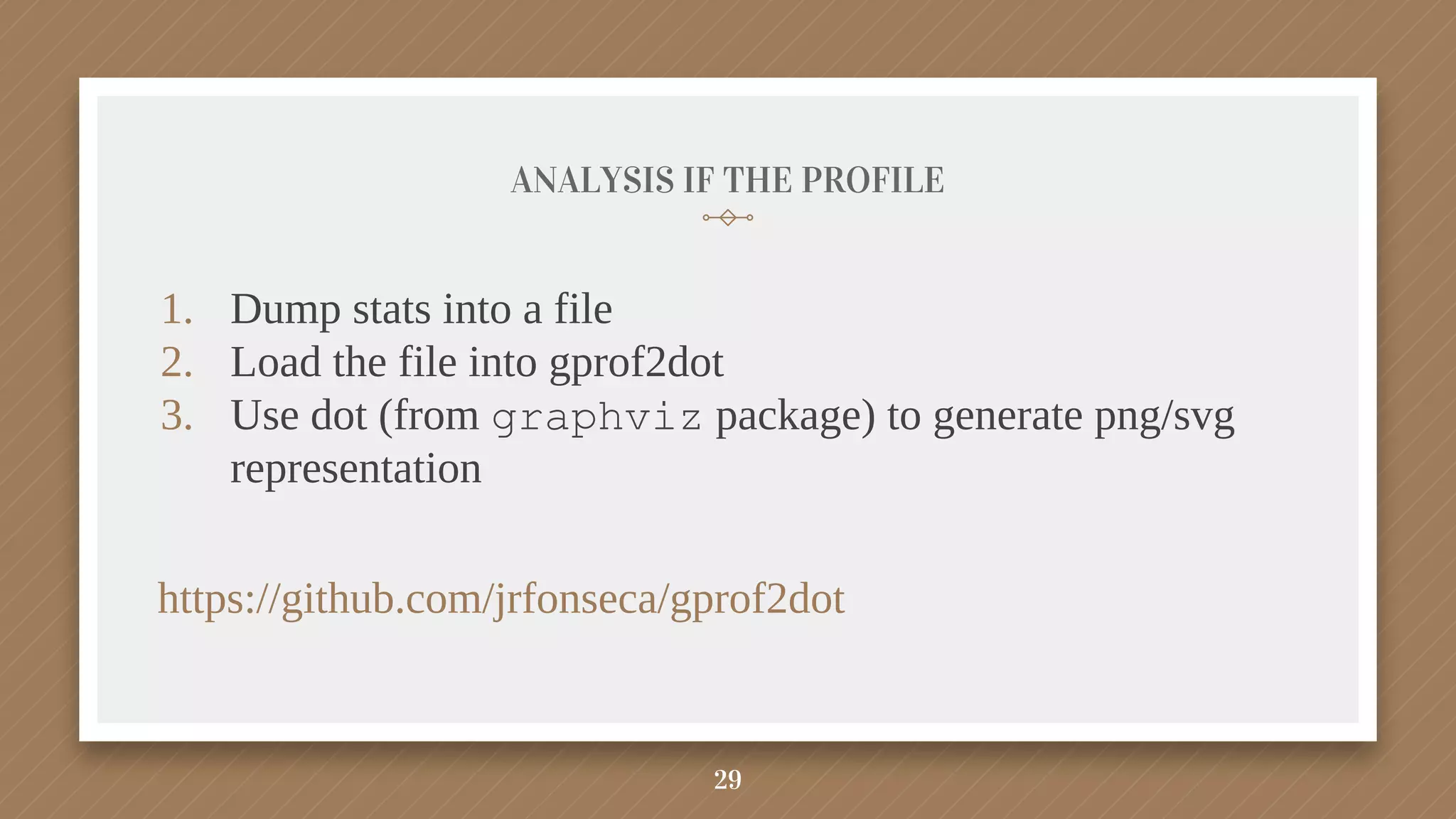

29. ANALYSIS IF THE PROFILE
1. Dump stats into a file
2. Load the file into gprof2dot
3. Use dot (from graphviz package) to generate png/svg
representation
https://github.com/jrfonseca/gprof2dot
29

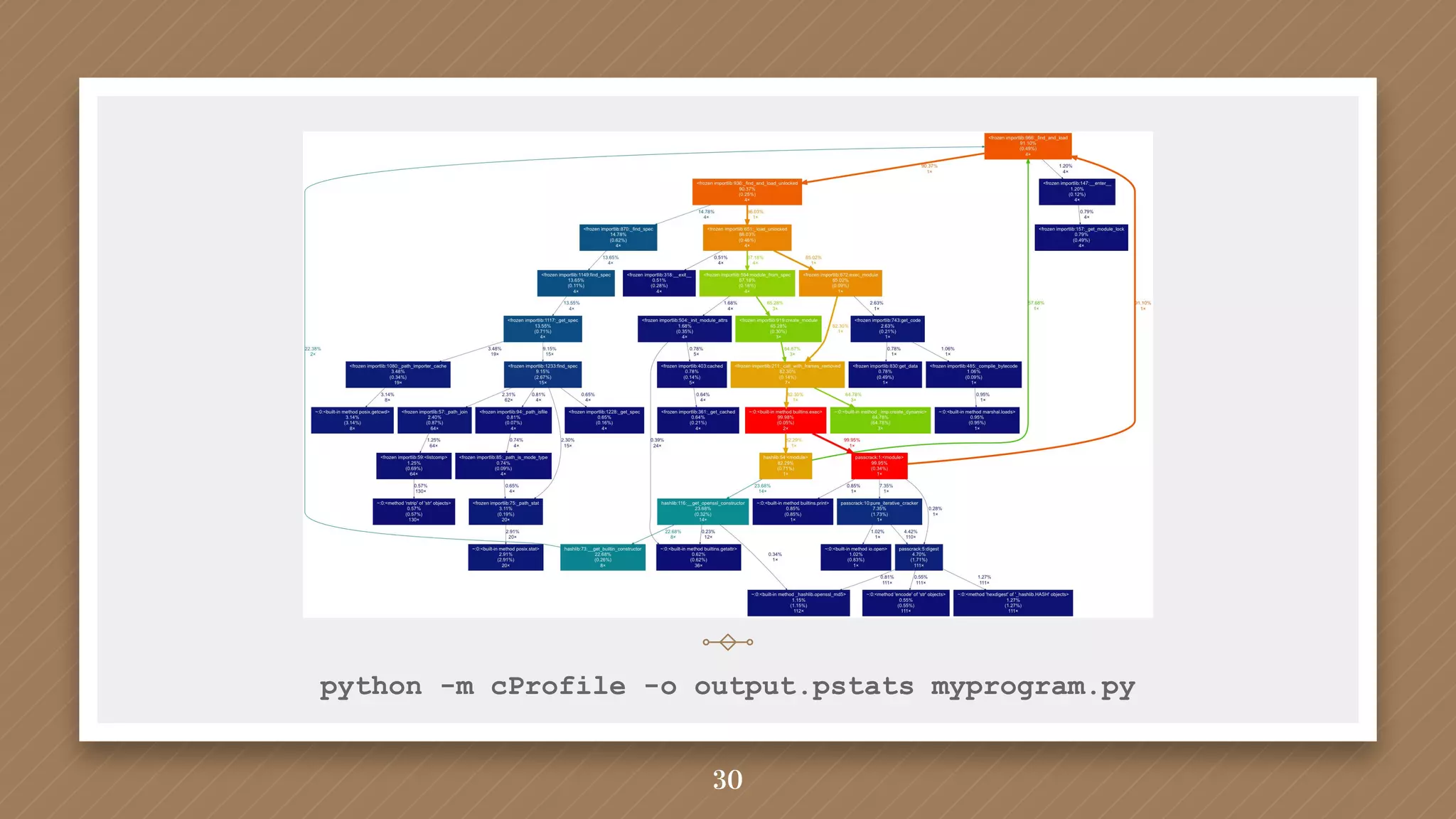

30. python -m cProfile -o output.pstats myprogram.py
30

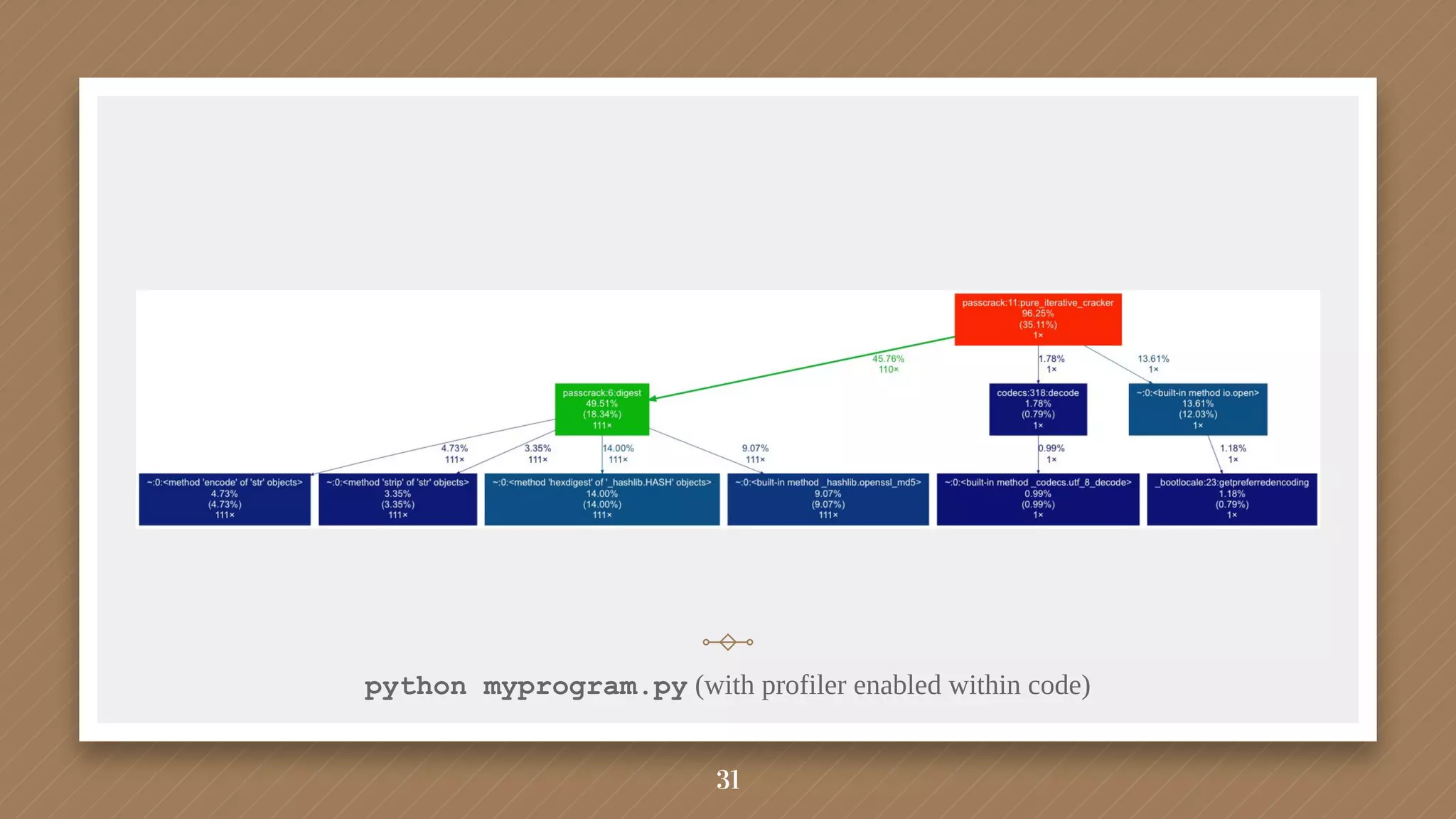

31. python myprogram.py (with profiler enabled within code)
31

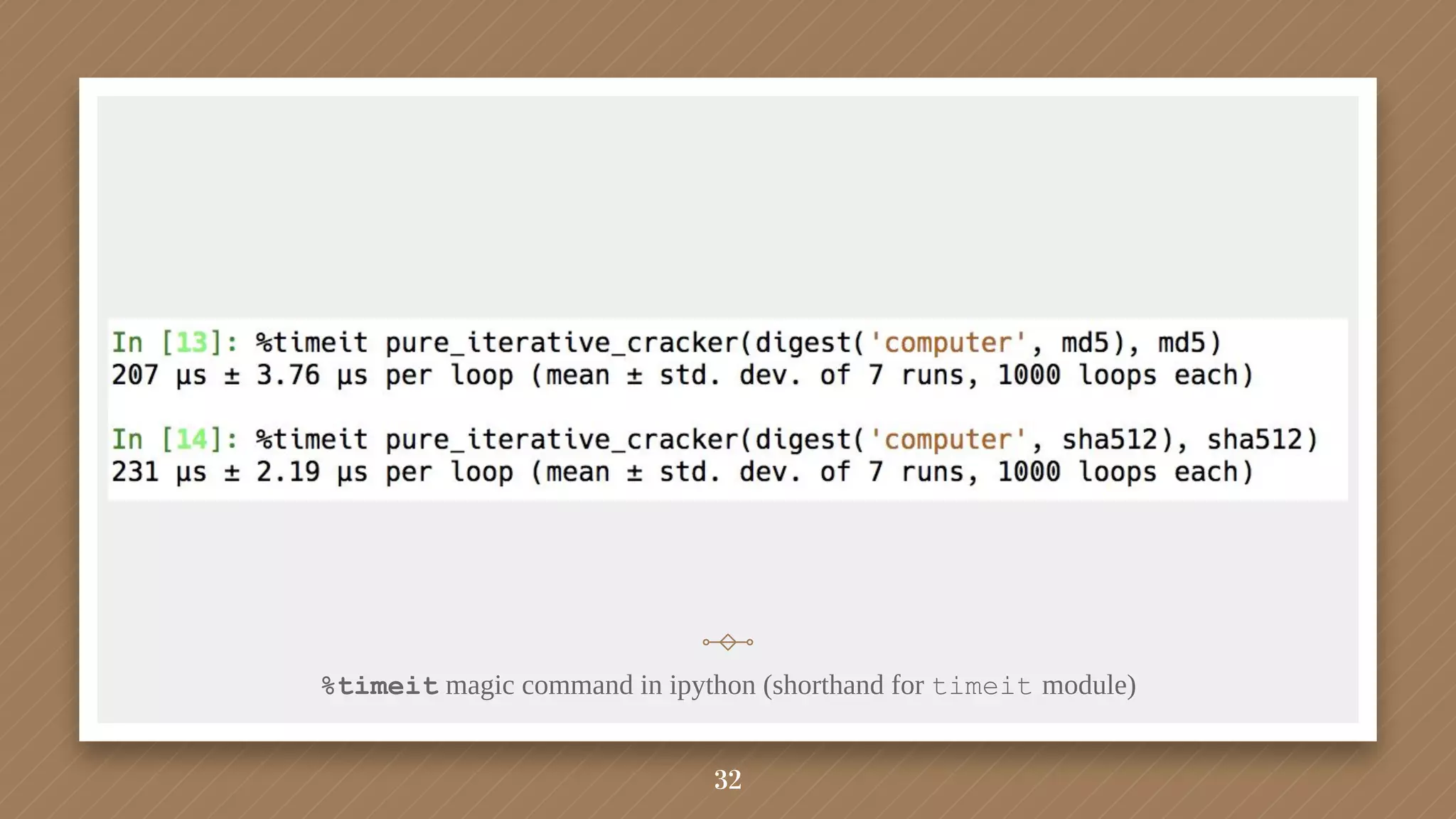

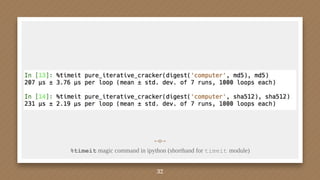

32. %timeit magic command in ipython (shorthand for timeit module)
32

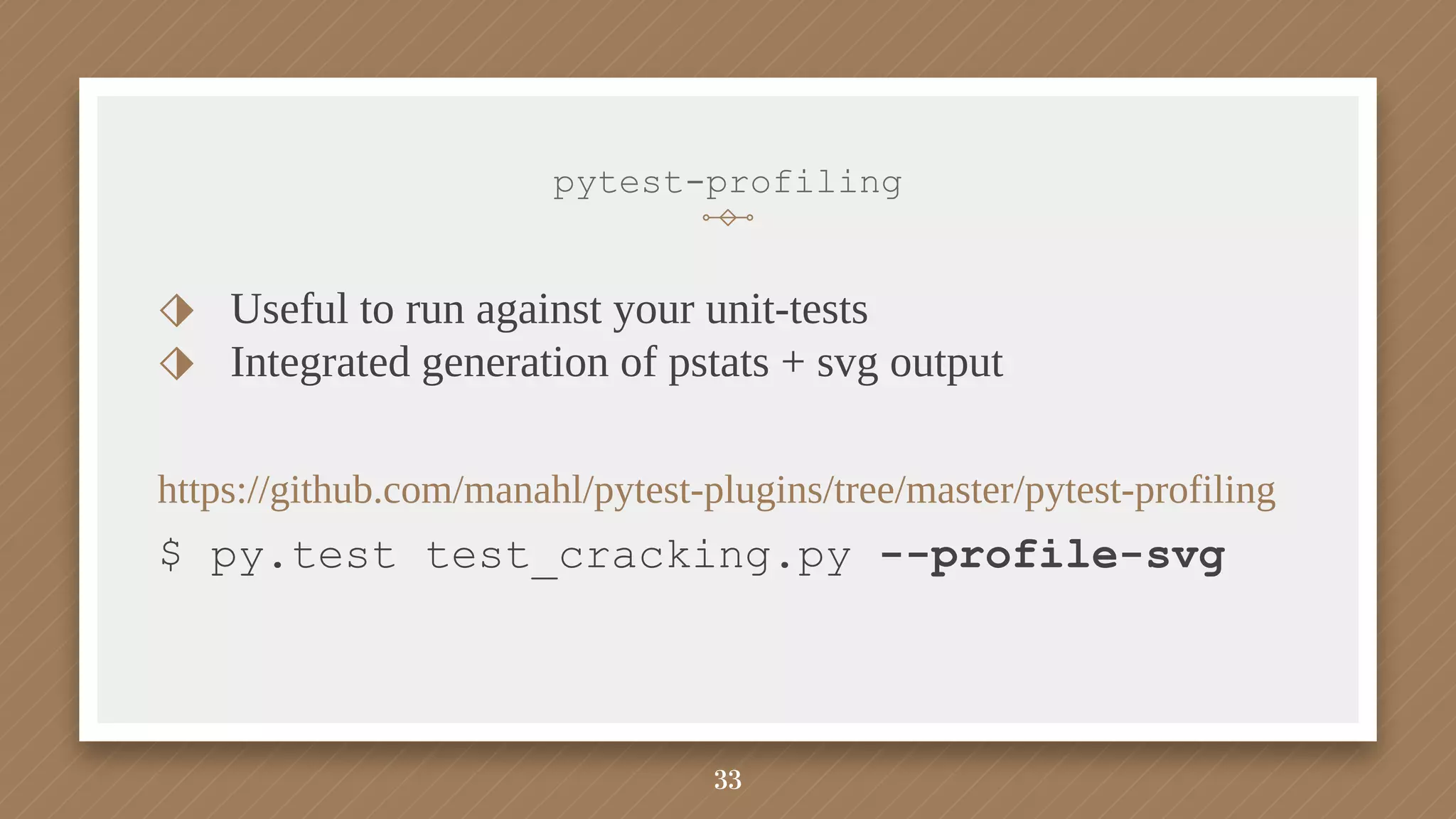

33. pytest-profiling
⬗ Useful to run against your unit-tests
⬗ Integrated generation of pstats + svg output
https://github.com/manahl/pytest-plugins/tree/master/pytest-profiling
$ py.test test_cracking.py --profile-svg
33

34. Statical analysis
The “low hanging fruits”

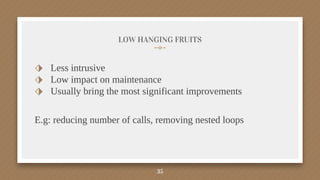

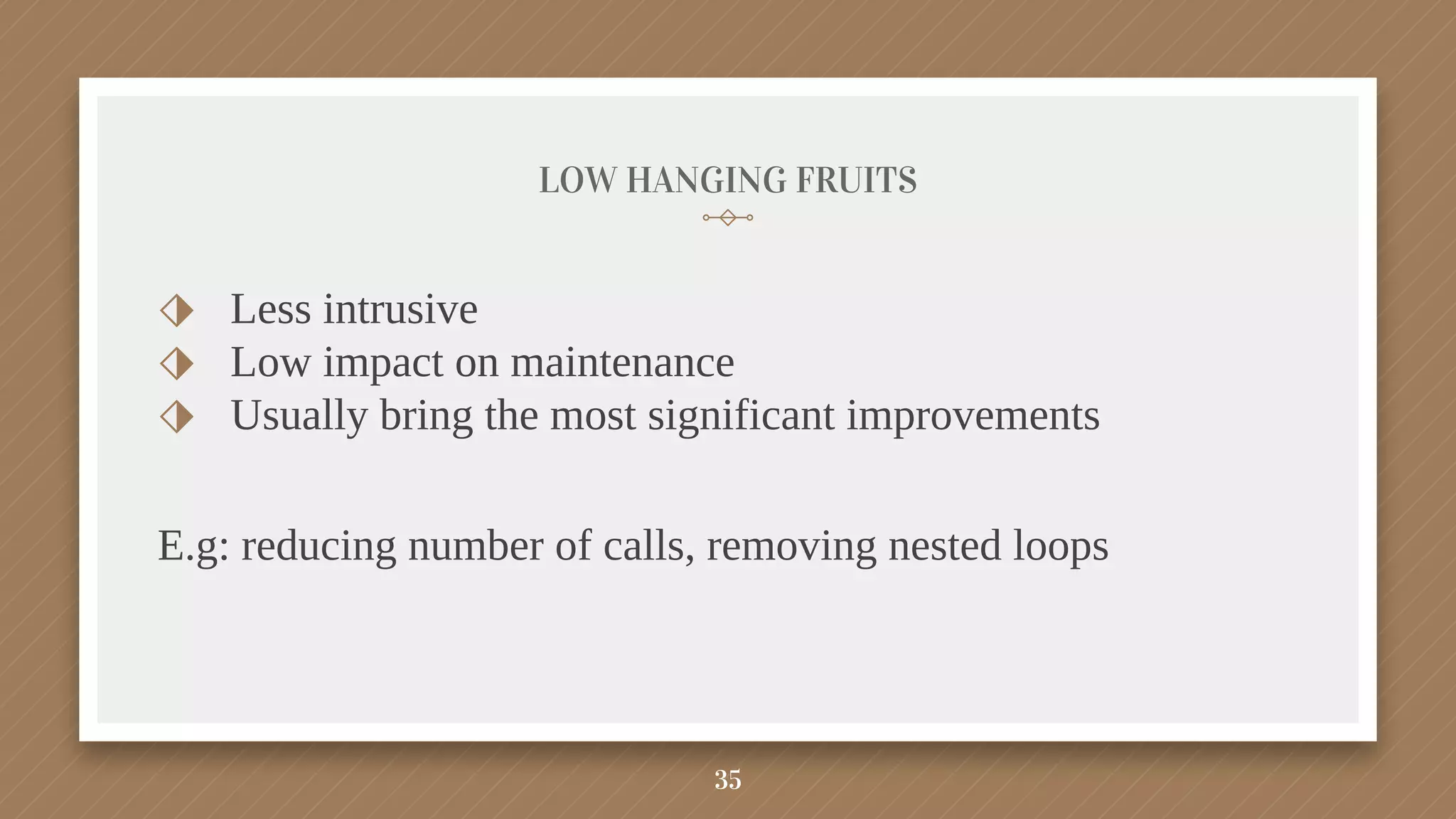

35. LOW HANGING FRUITS
⬗ Less intrusive
⬗ Low impact on maintenance
⬗ Usually bring the most significant improvements
E.g: reducing number of calls, removing nested loops
35

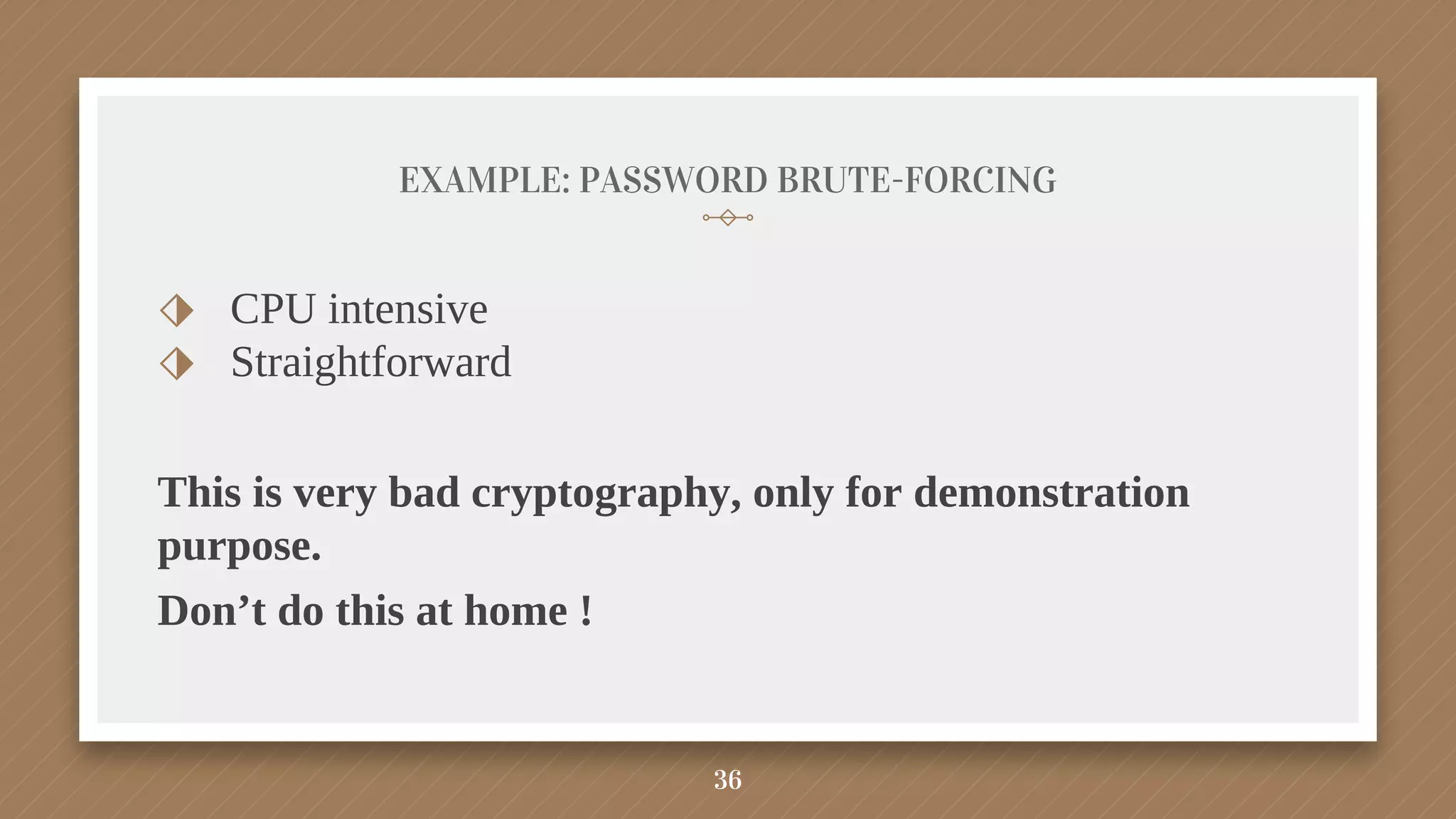

36. EXAMPLE: PASSWORD BRUTE-FORCING
36
⬗ CPU intensive
⬗ Straightforward
This is very bad cryptography, only for demonstration
purpose.
Don’t do this at home !

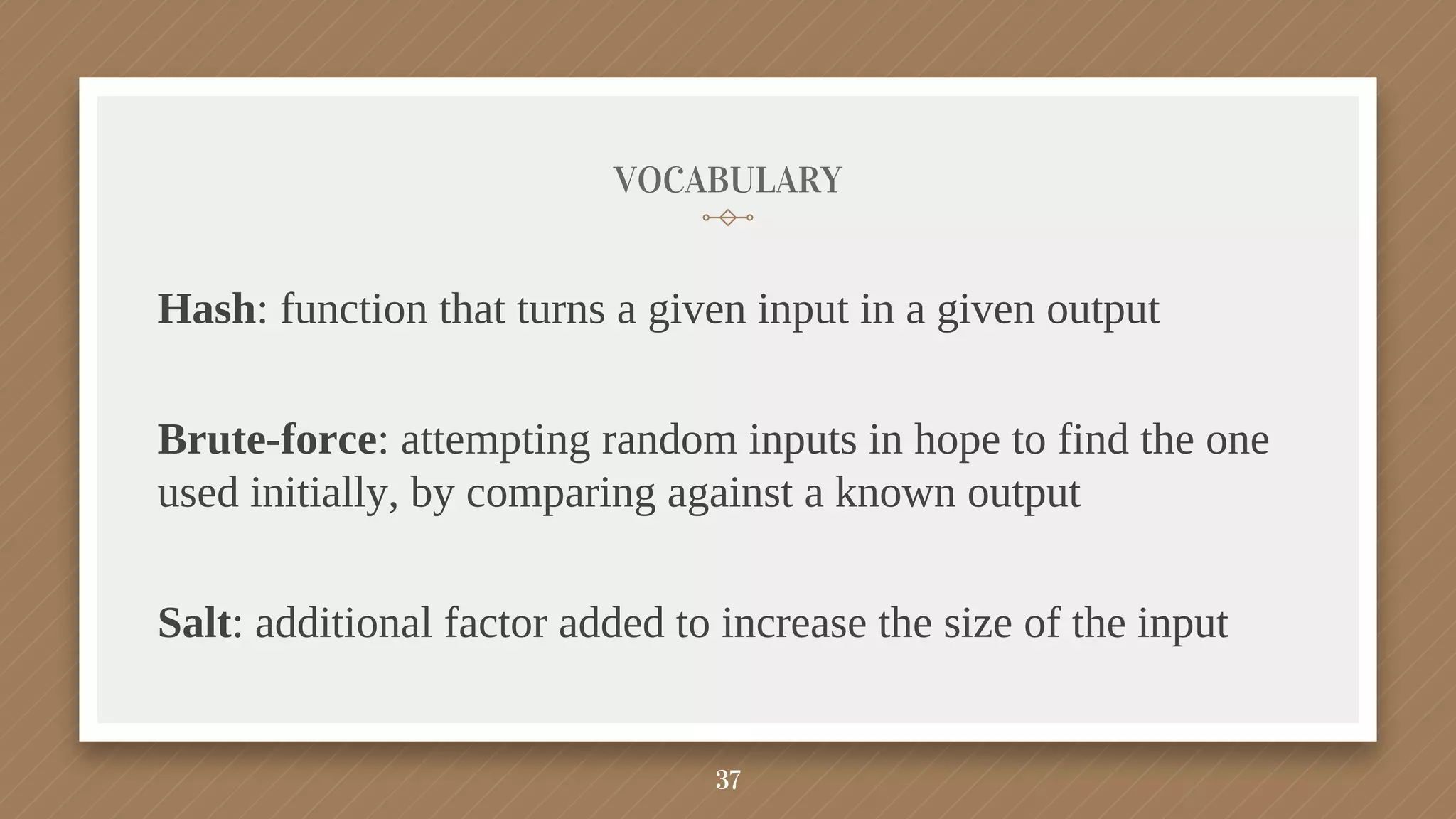

37. VOCABULARY
Hash: function that turns a given input in a given output
Brute-force: attempting random inputs in hope to find the one
used initially, by comparing against a known output
Salt: additional factor added to increase the size of the input
37

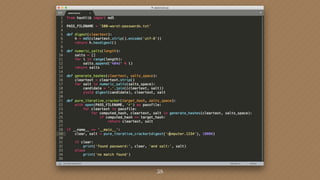

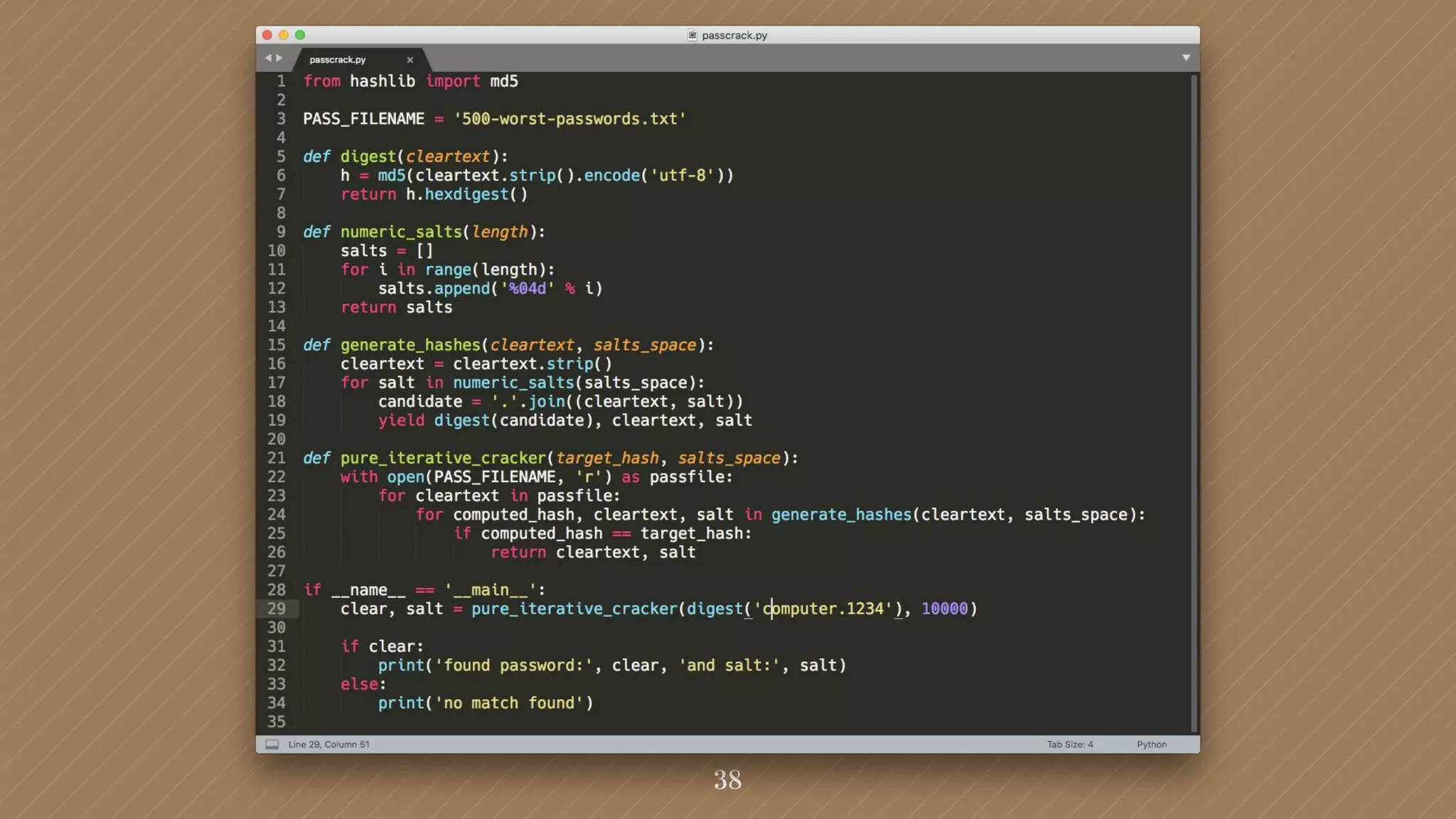

38. EXAMPLE
38

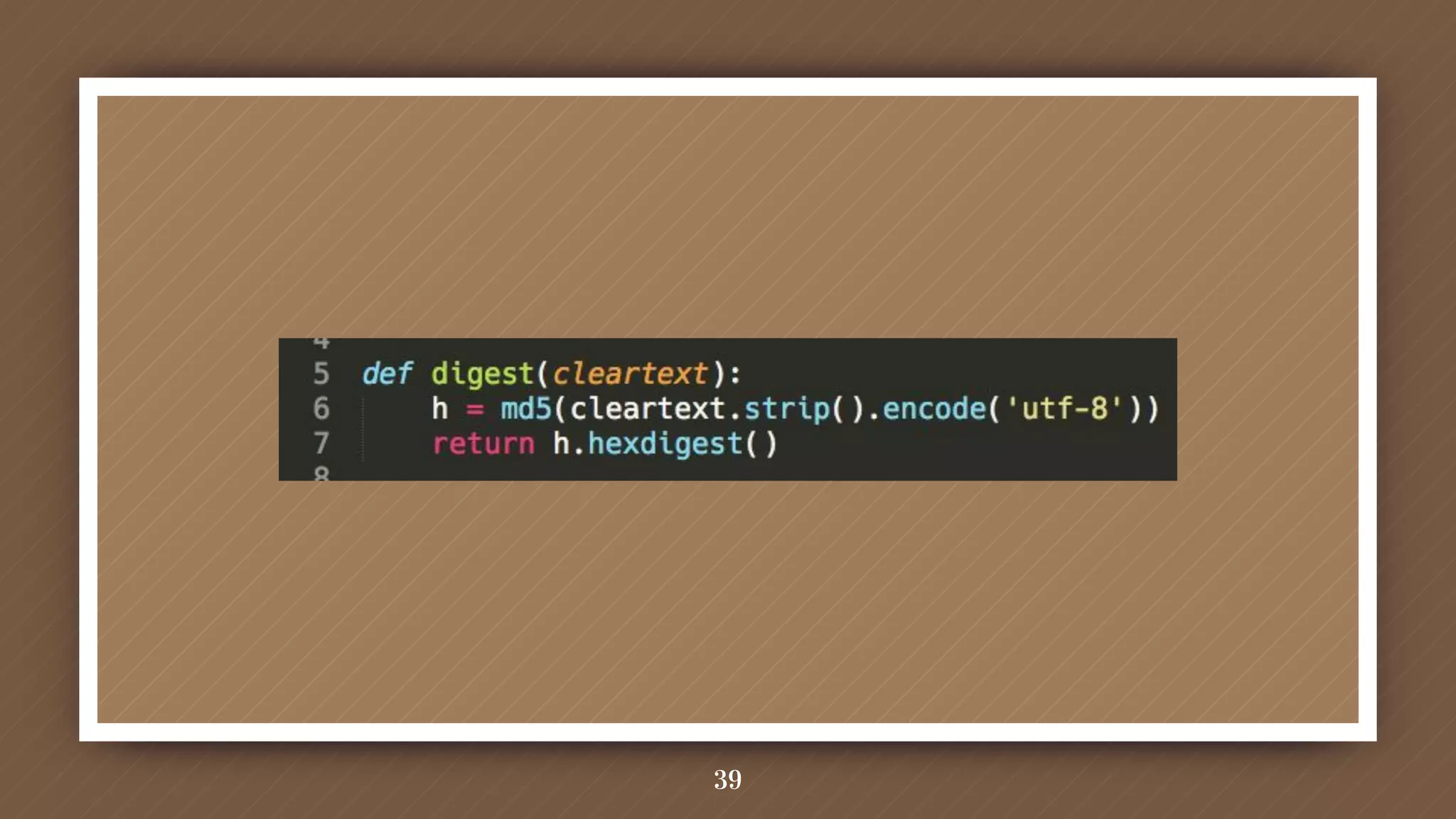

39. 39

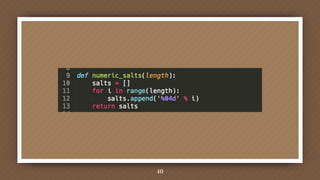

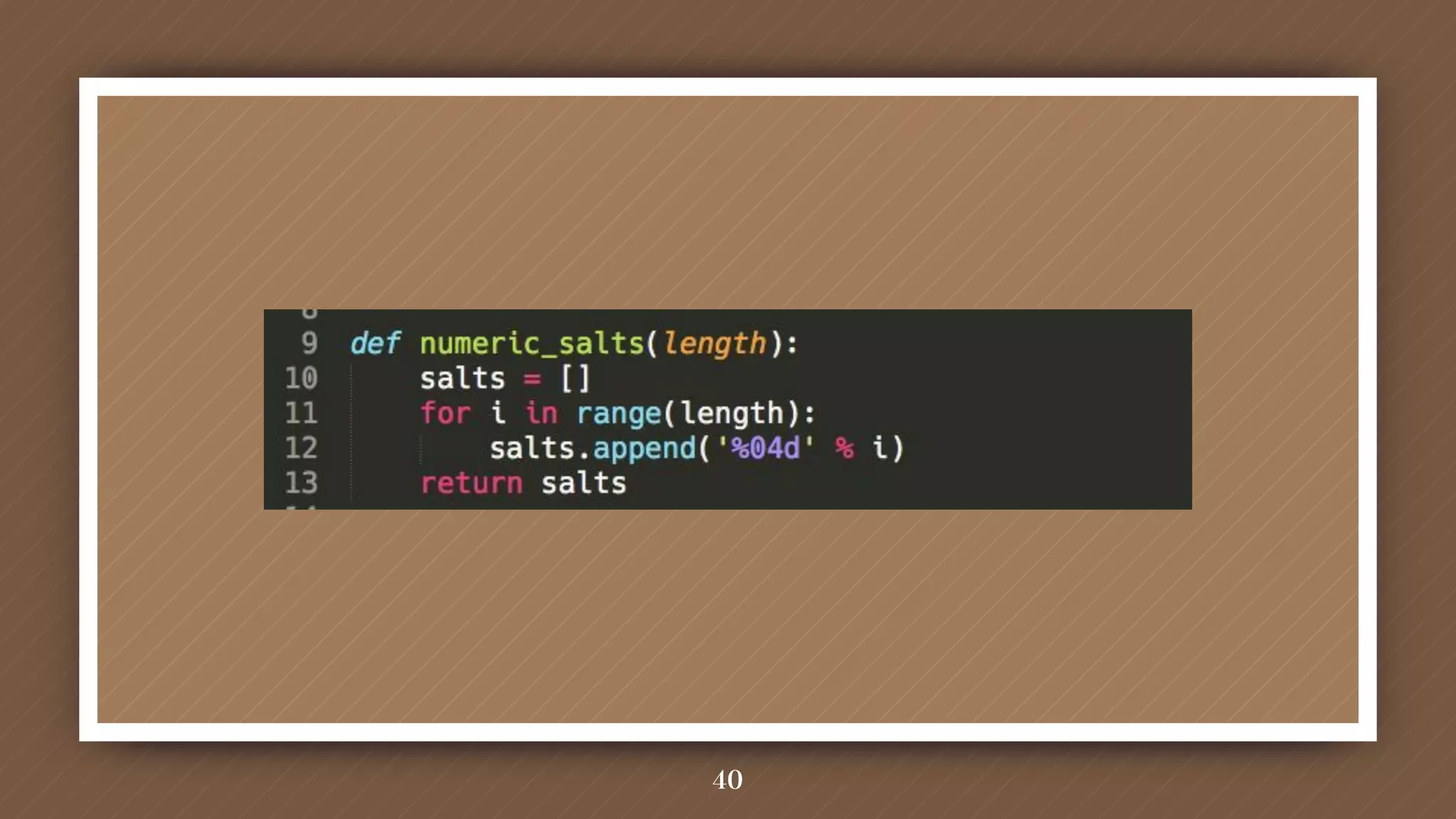

40. 40

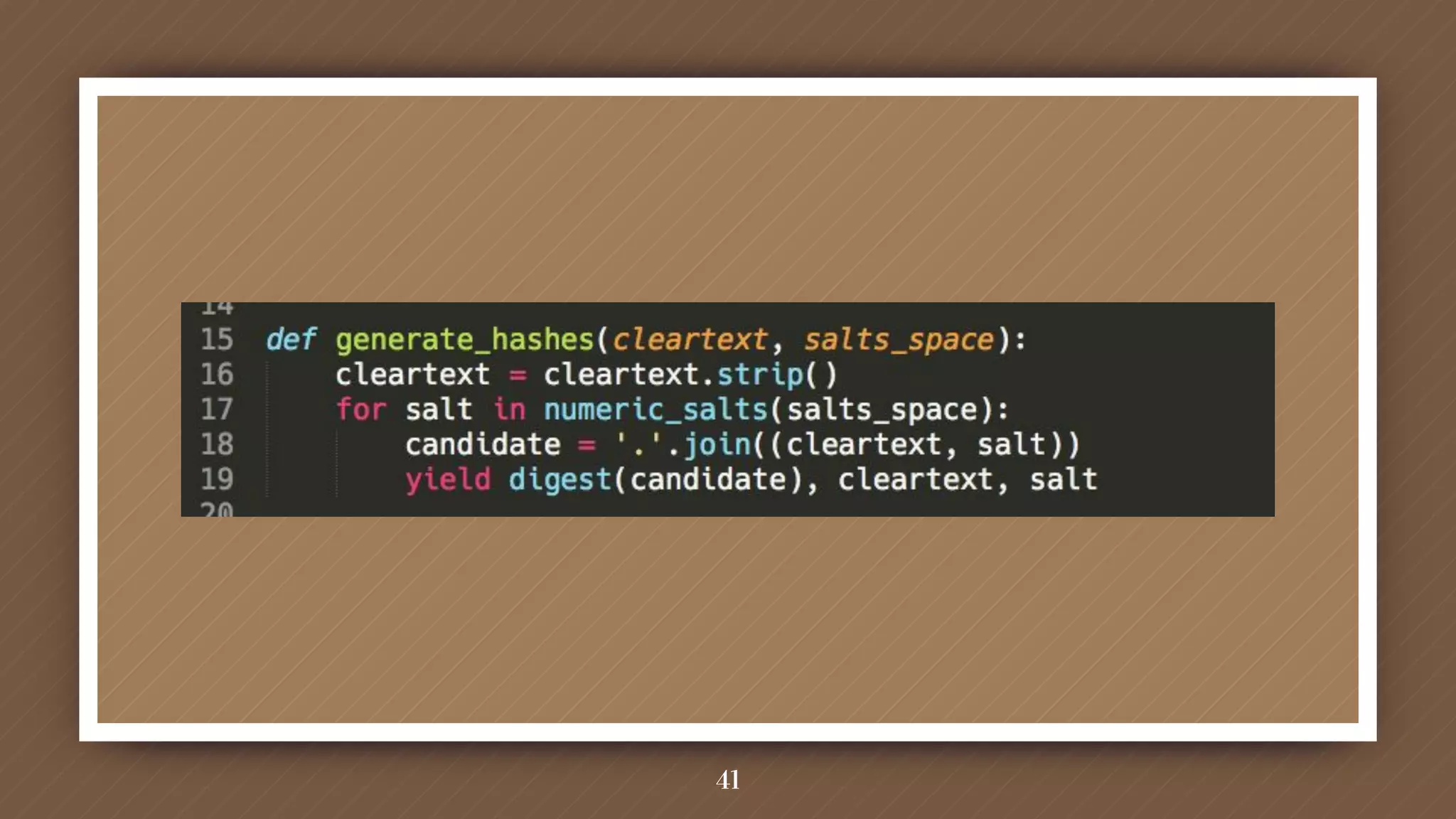

41. 41

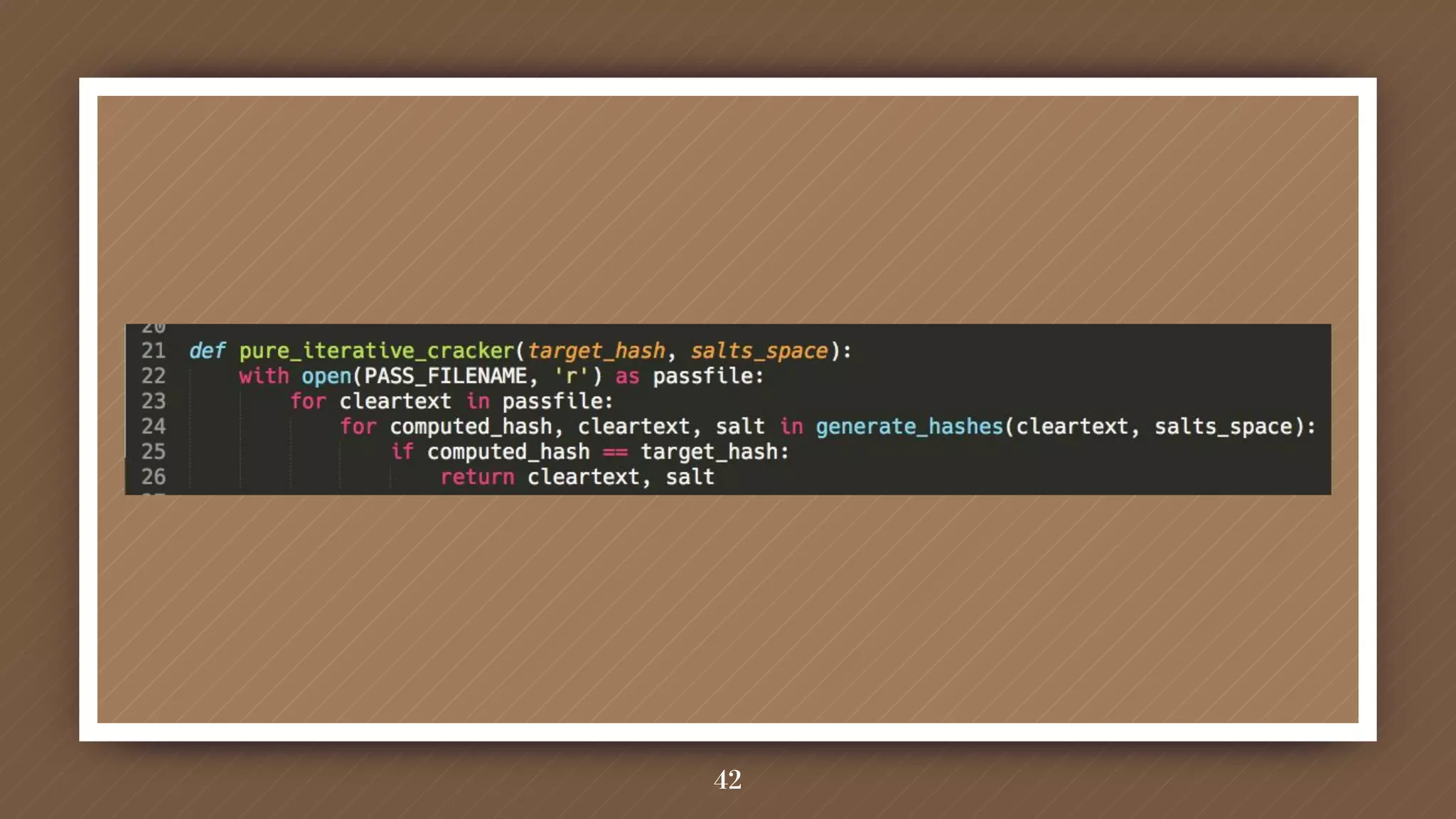

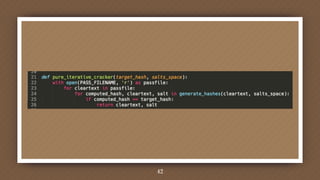

42. 42

43. 43

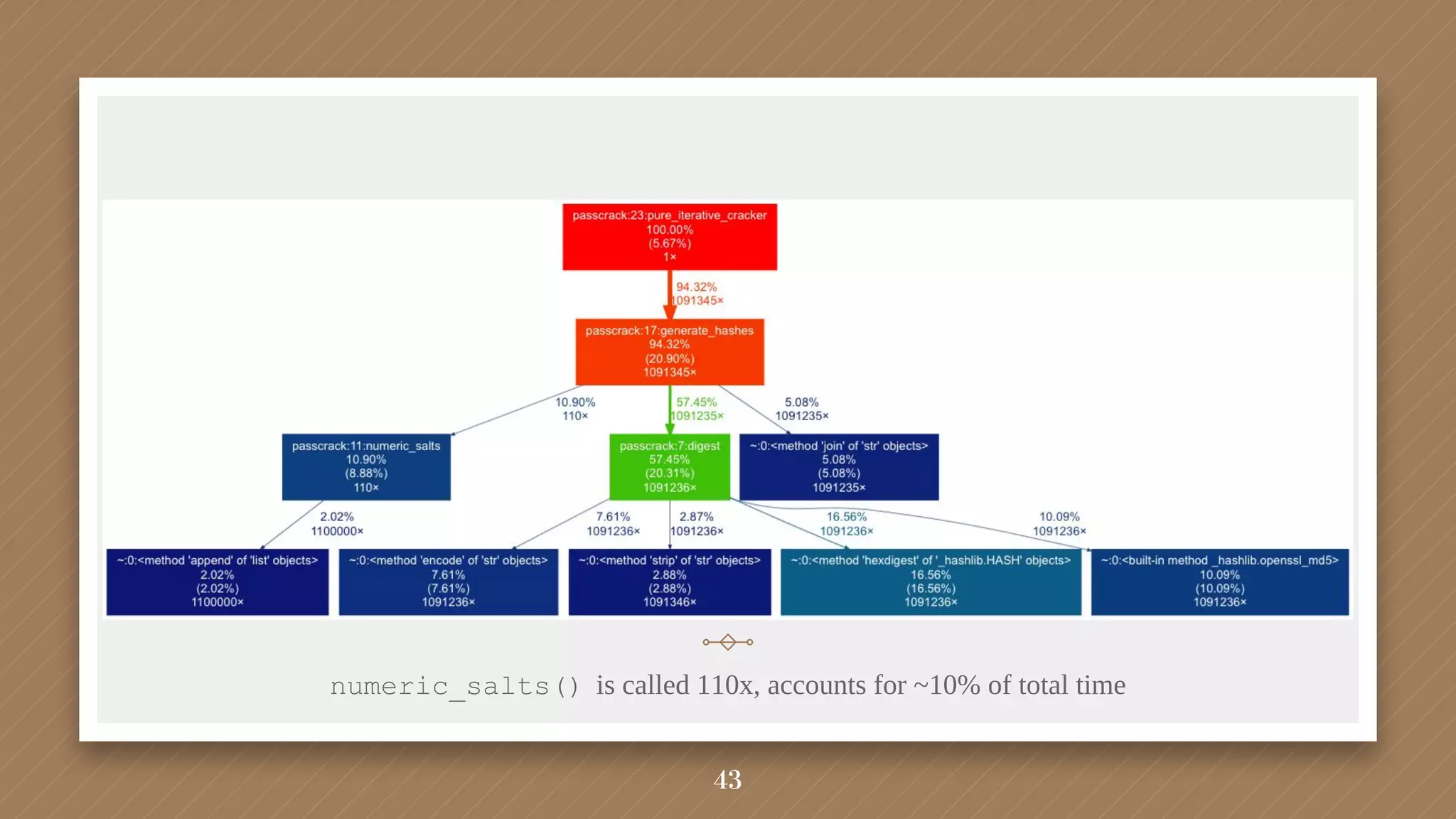

numeric_salts() is called 110x, accounts for ~10% of total time

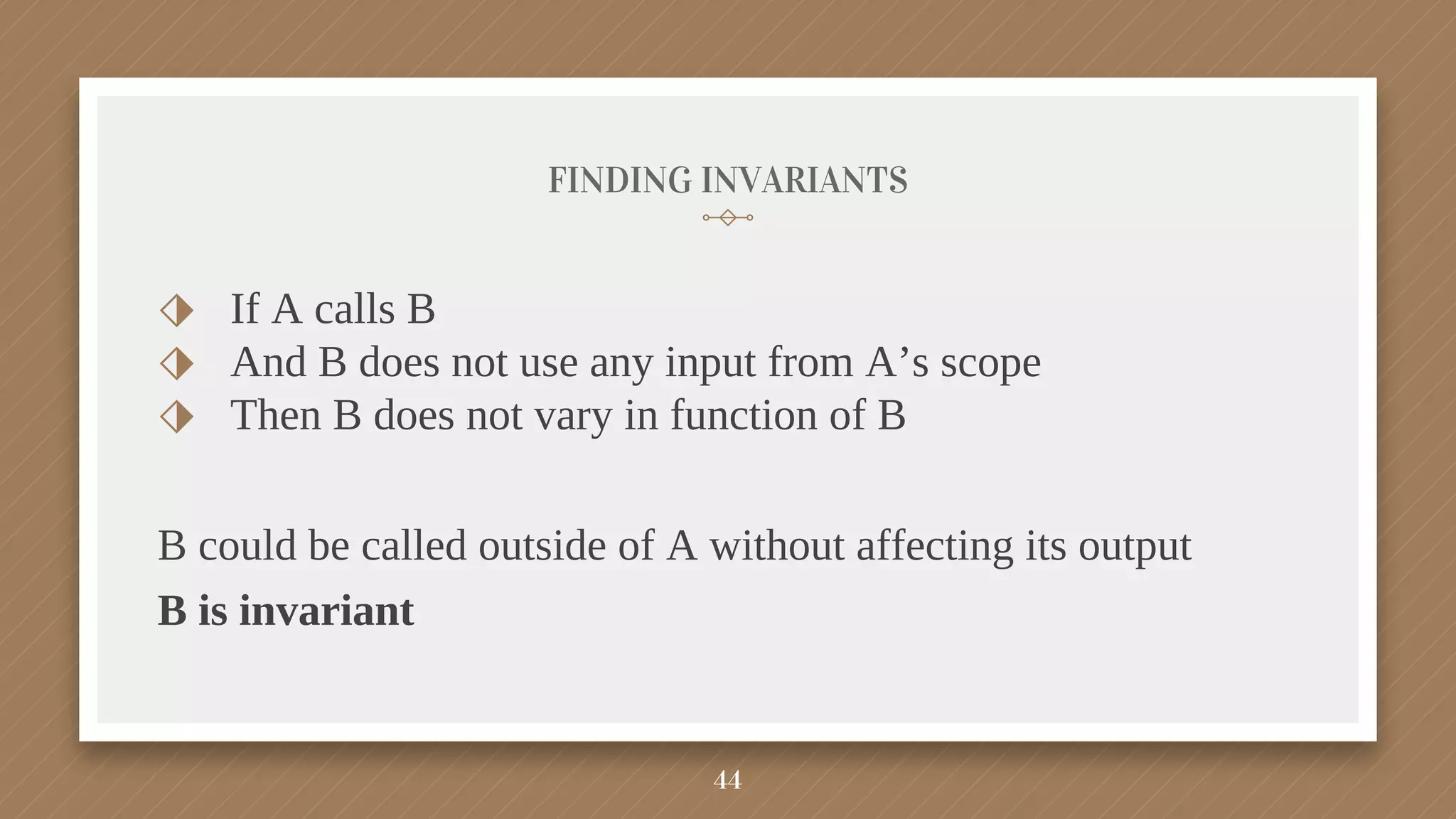

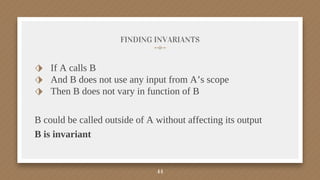

44. FINDING INVARIANTS
⬗ If A calls B
⬗ And B does not use any input from A’s scope
⬗ Then B does not vary in function of B
B could be called outside of A without affecting its output
B is invariant
44

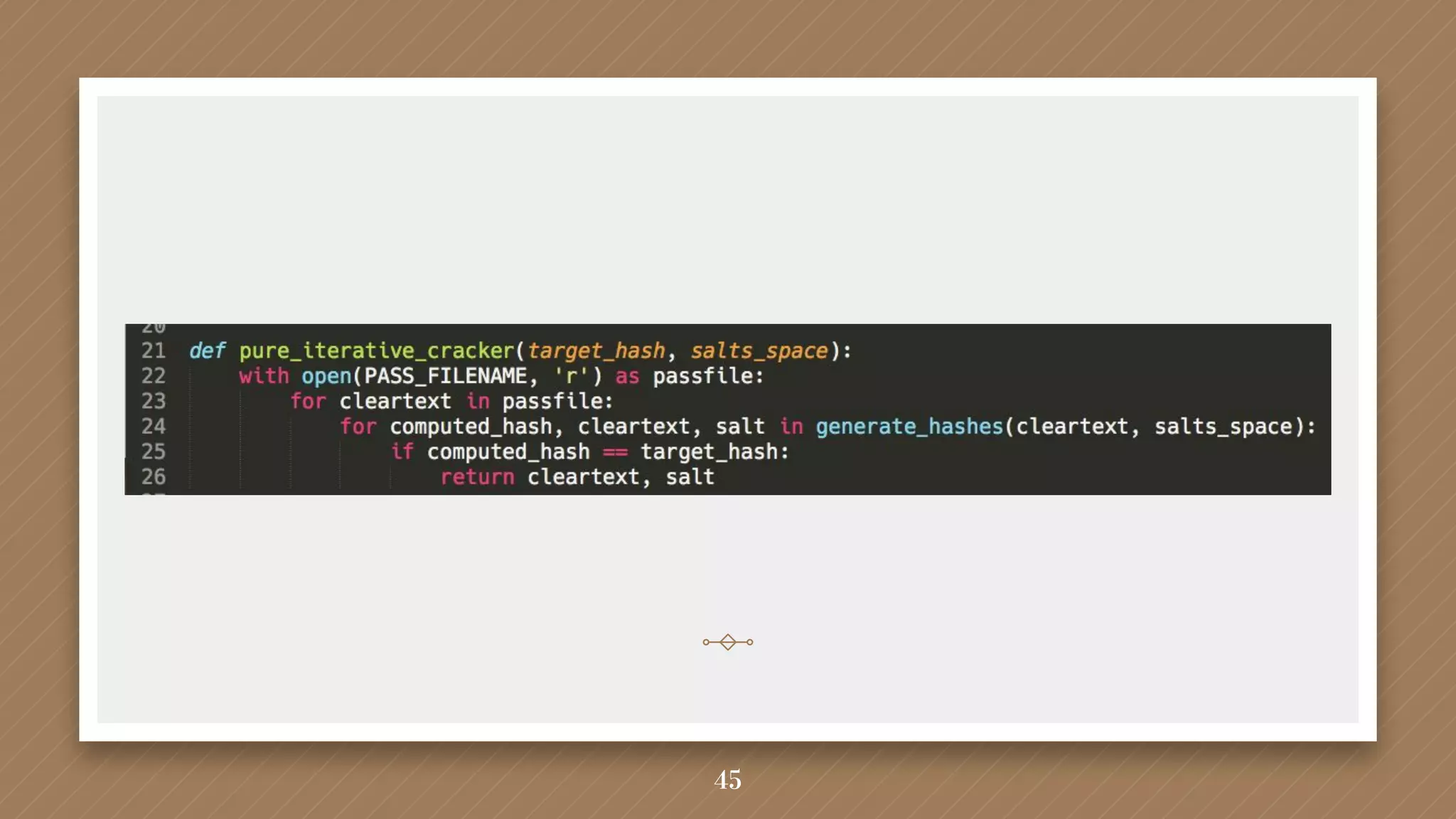

45. 45

46. 46

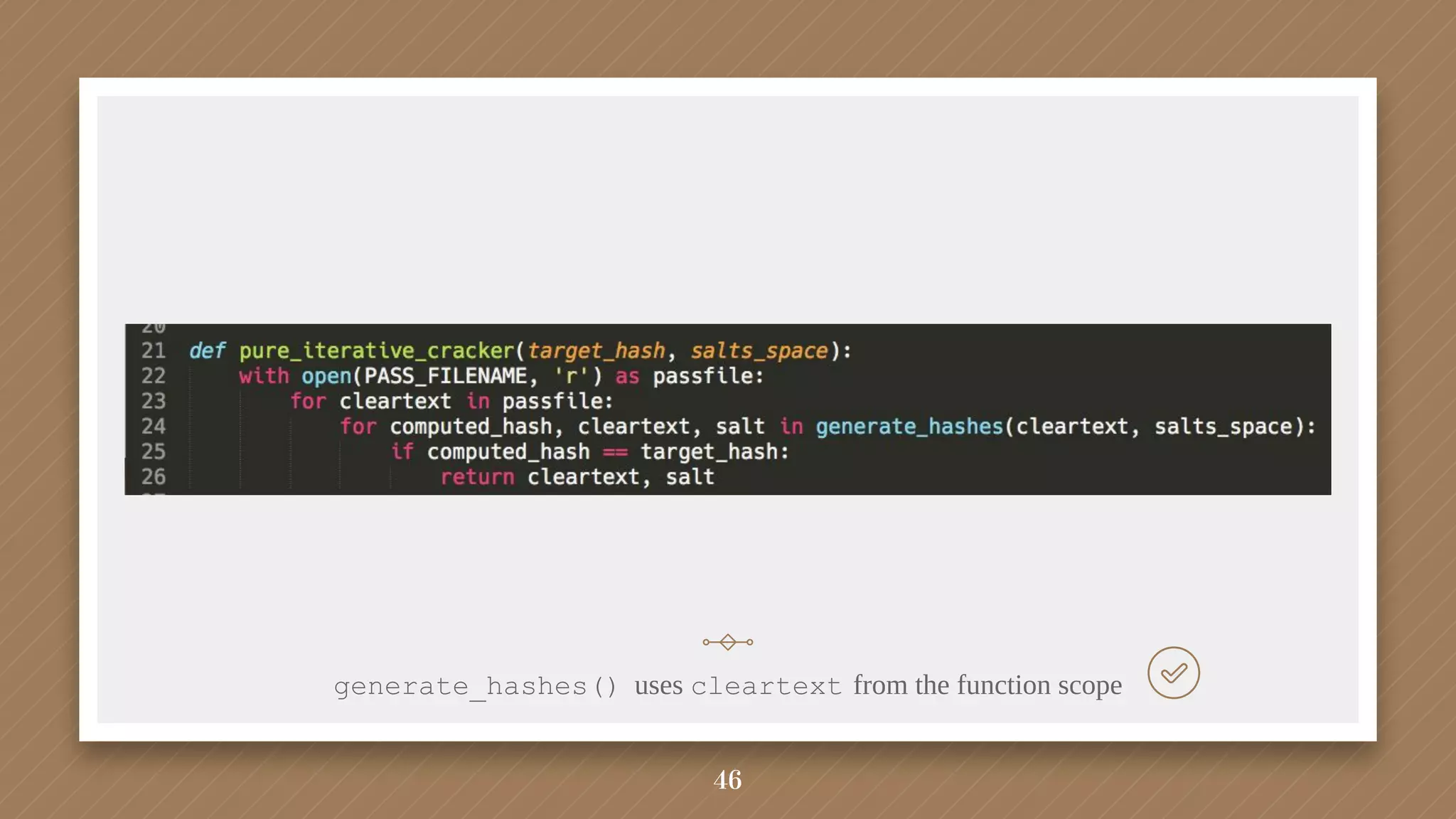

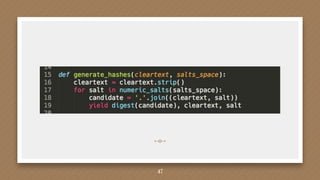

generate_hashes() uses cleartext from the function scope

47. 47

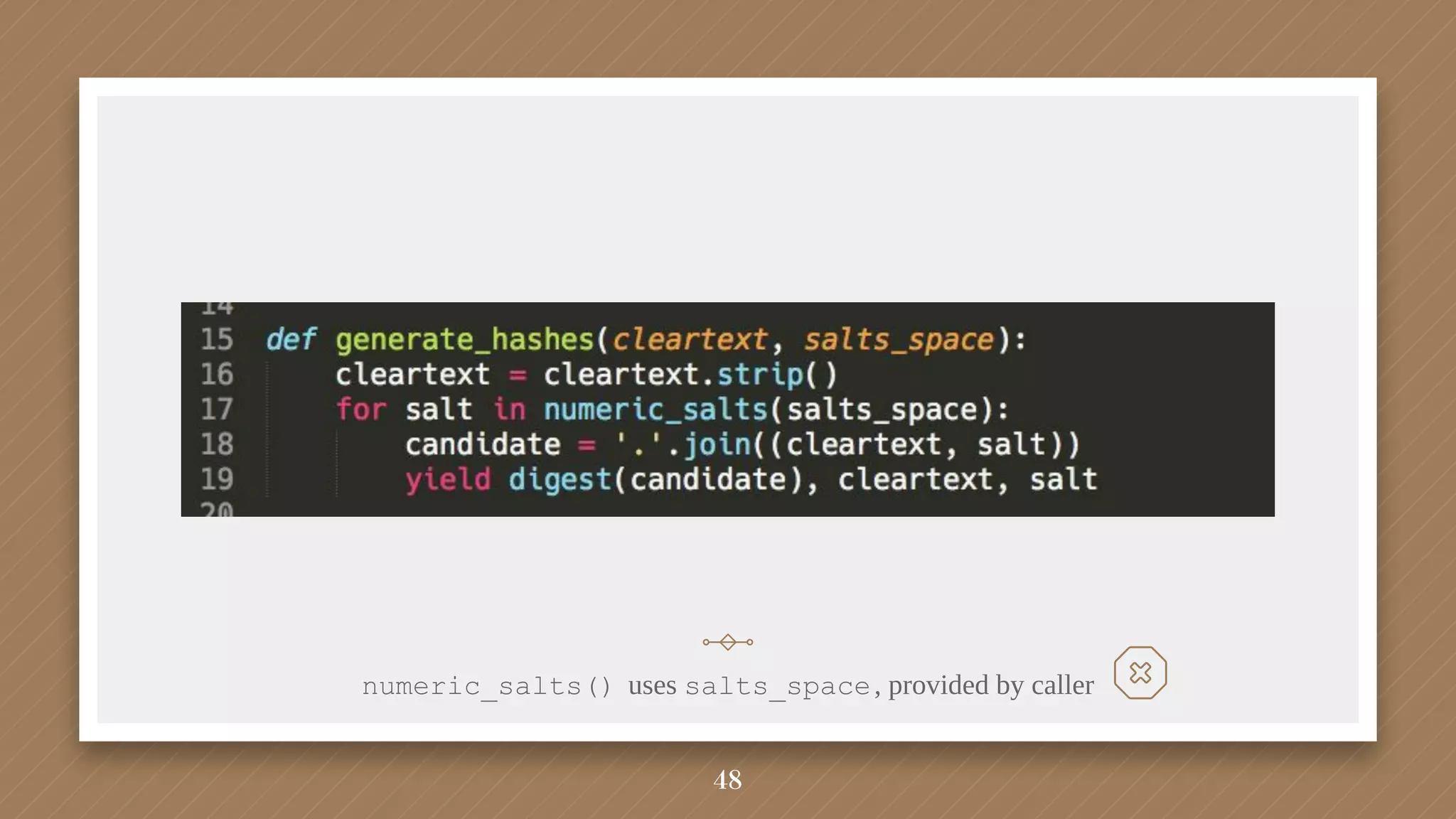

48. 48

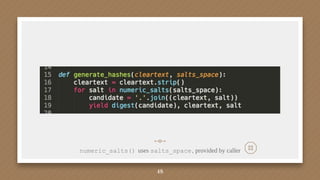

numeric_salts() uses salts_space, provided by caller

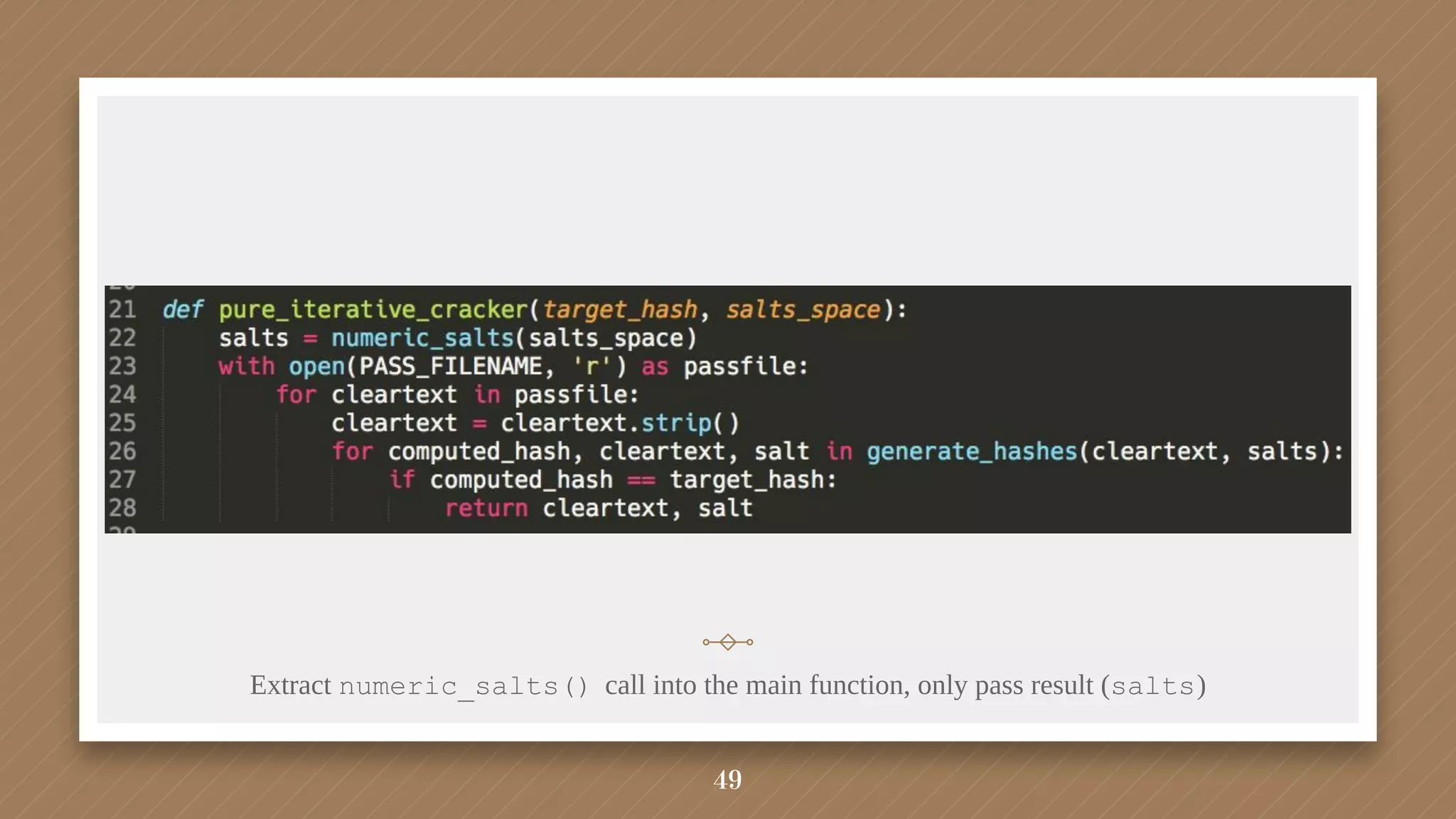

49. Extract numeric_salts() call into the main function, only pass result (salts)
49

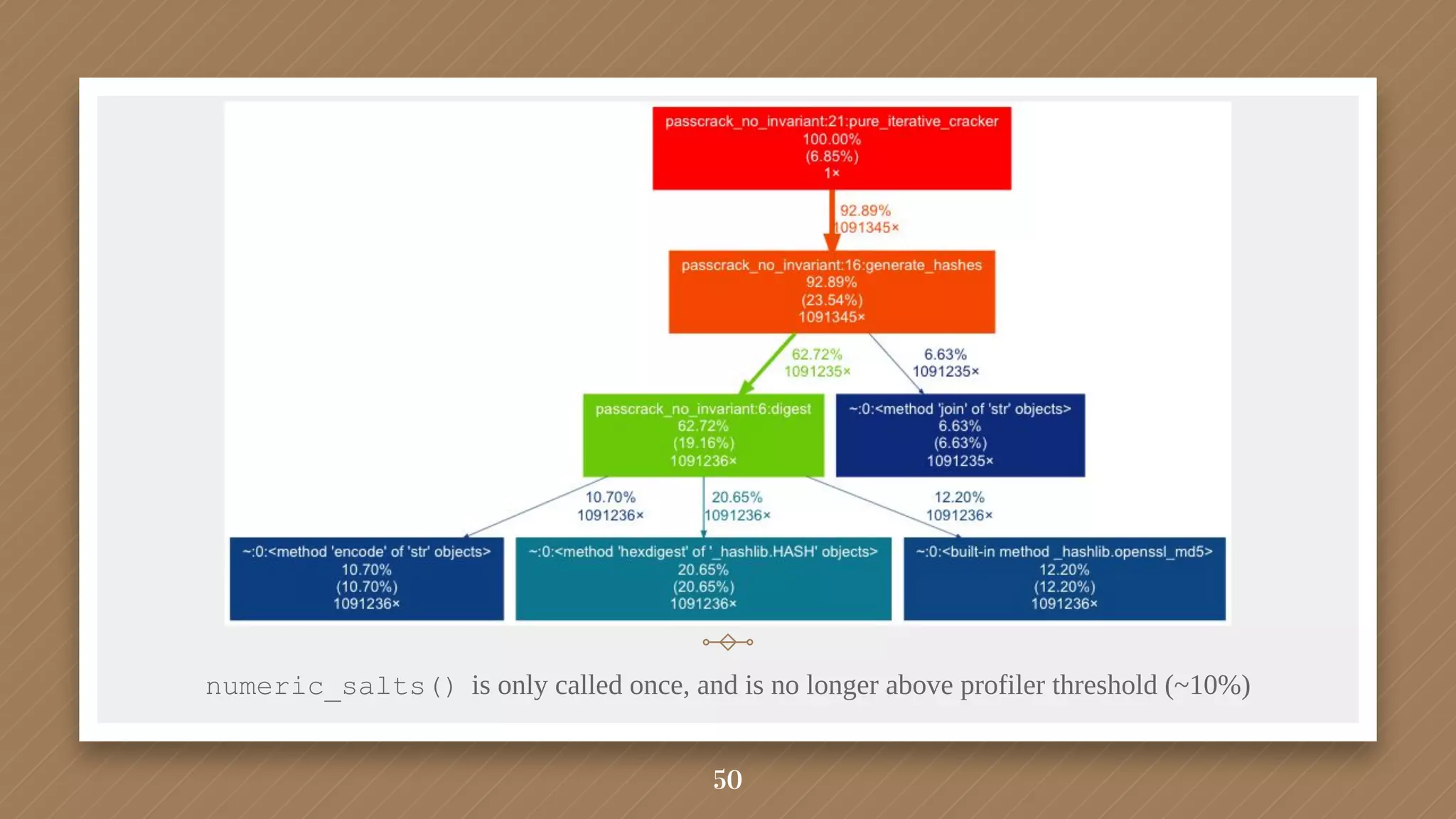

50. numeric_salts() is only called once, and is no longer above profiler threshold (~10%)
50

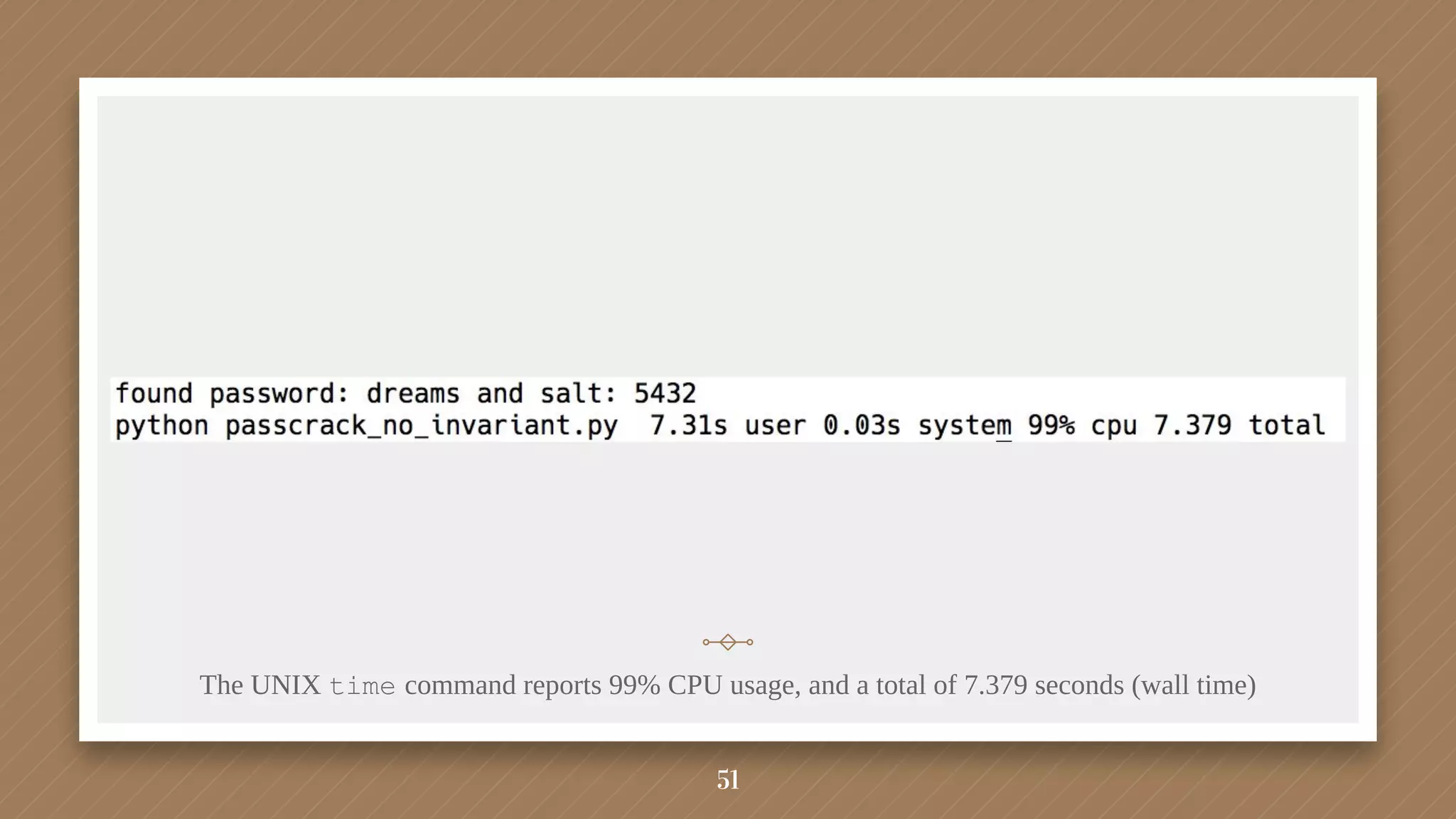

51. The UNIX time command reports 99% CPU usage, and a total of 7.379 seconds (wall time)
51

52. Parallel
computing

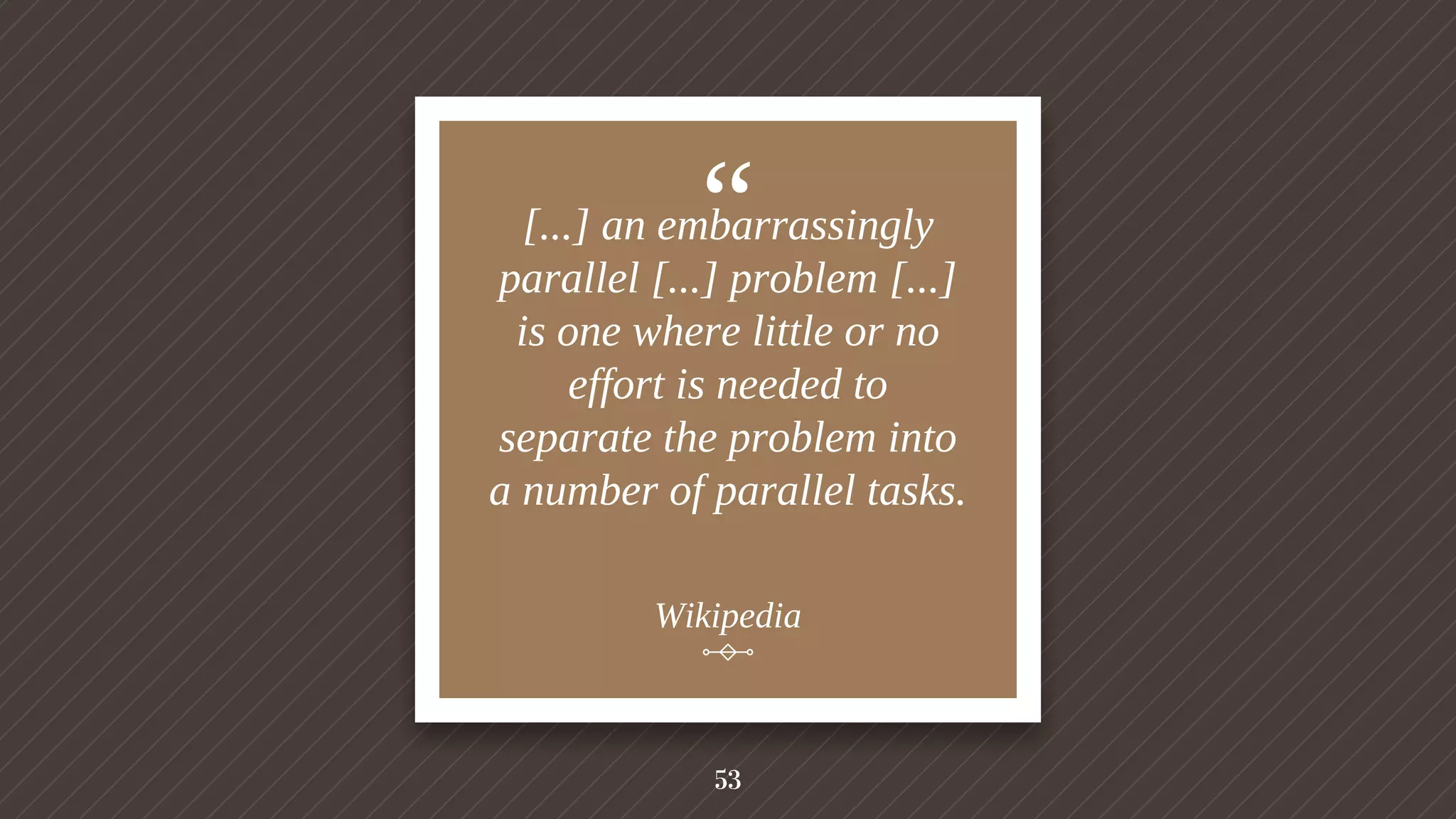

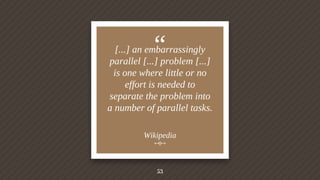

53. “[...] an embarrassingly
parallel [...] problem [...]
is one where little or no
effort is needed to
separate the problem into
a number of parallel tasks.
Wikipedia
53

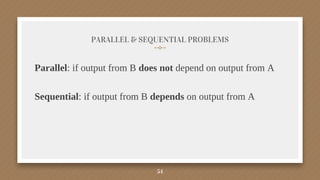

54. PARALLEL & SEQUENTIAL PROBLEMS
Parallel: if output from B does not depend on output from A
Sequential: if output from B depends on output from A
54

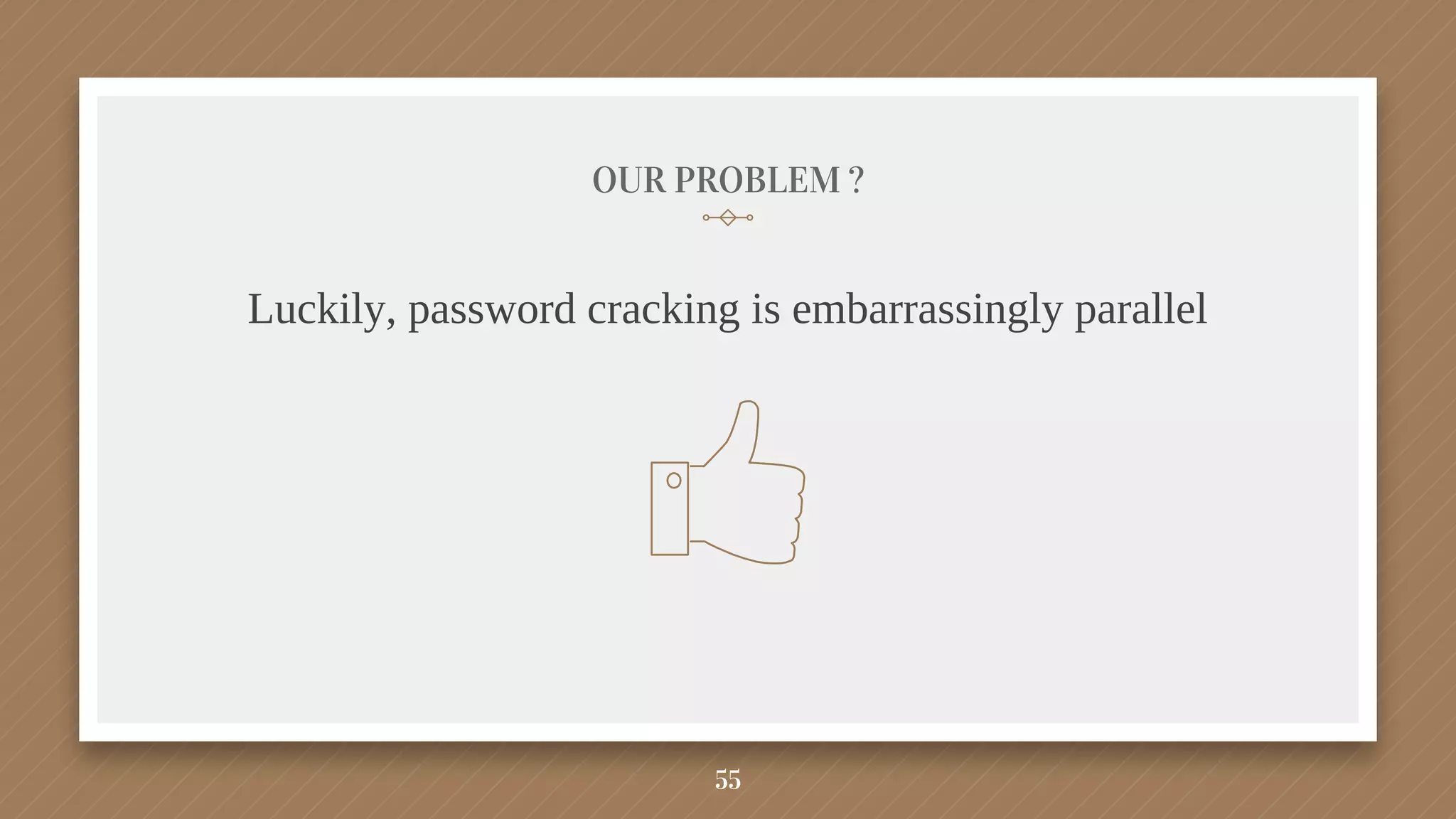

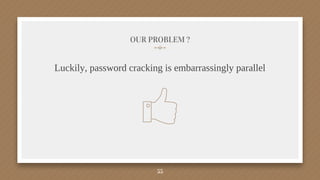

55. OUR PROBLEM ?
Luckily, password cracking is embarrassingly parallel
55

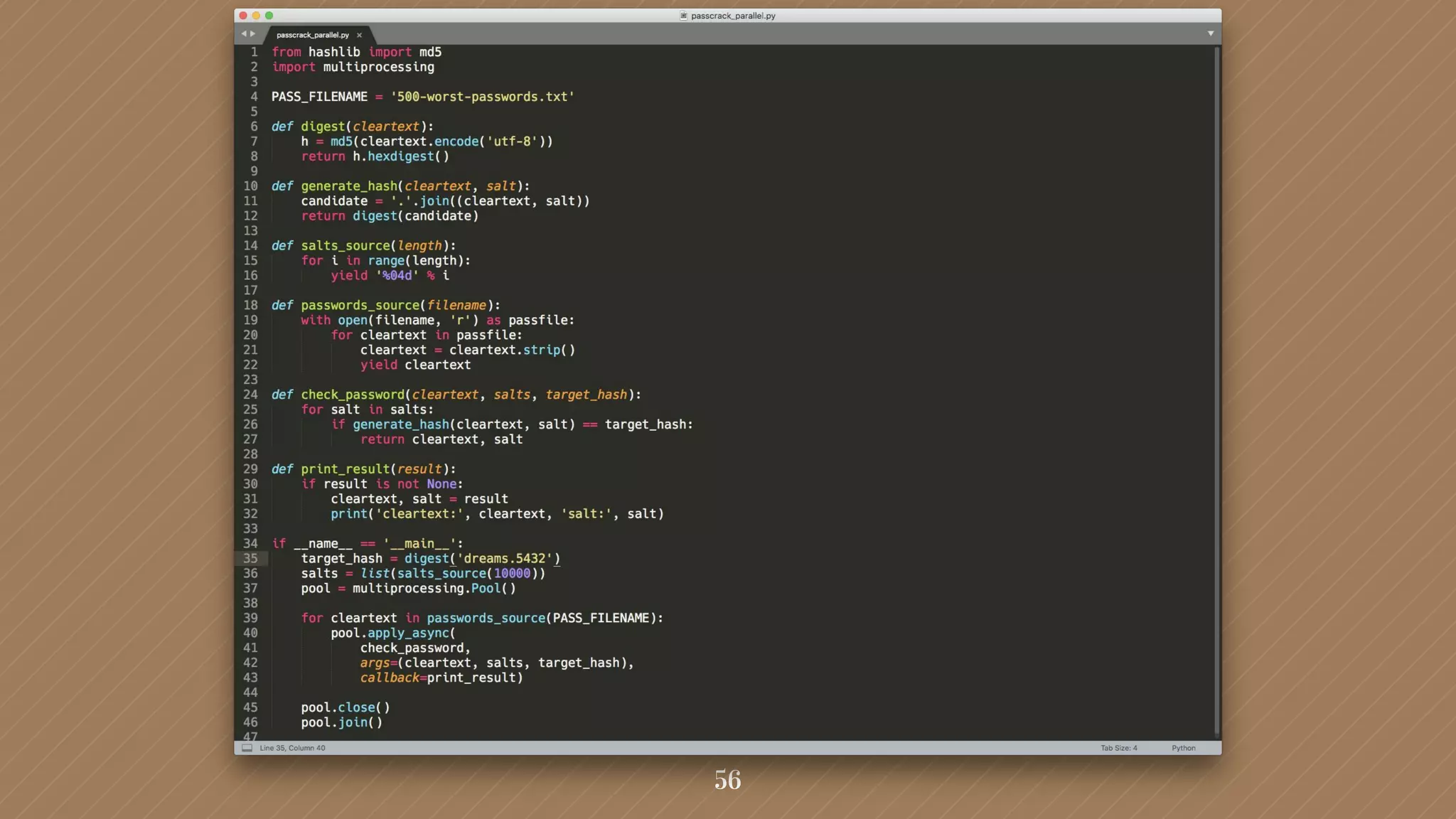

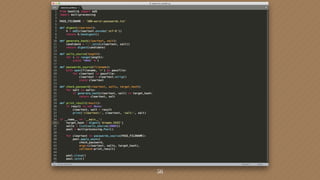

56. 56

57. 57

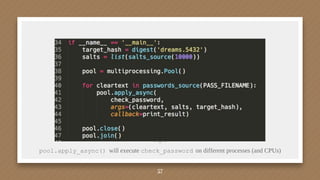

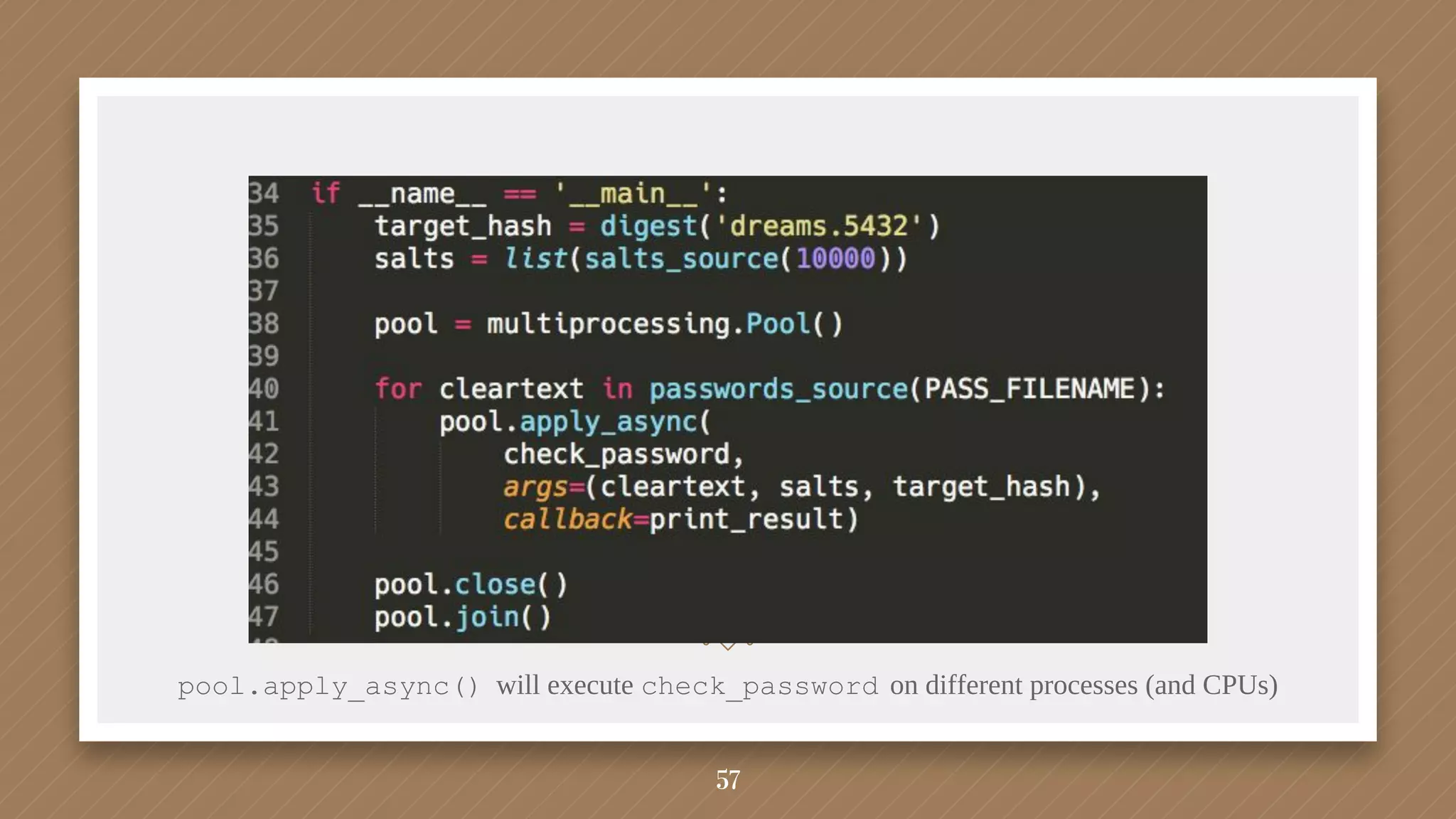

pool.apply_async() will execute check_password on different processes (and CPUs)

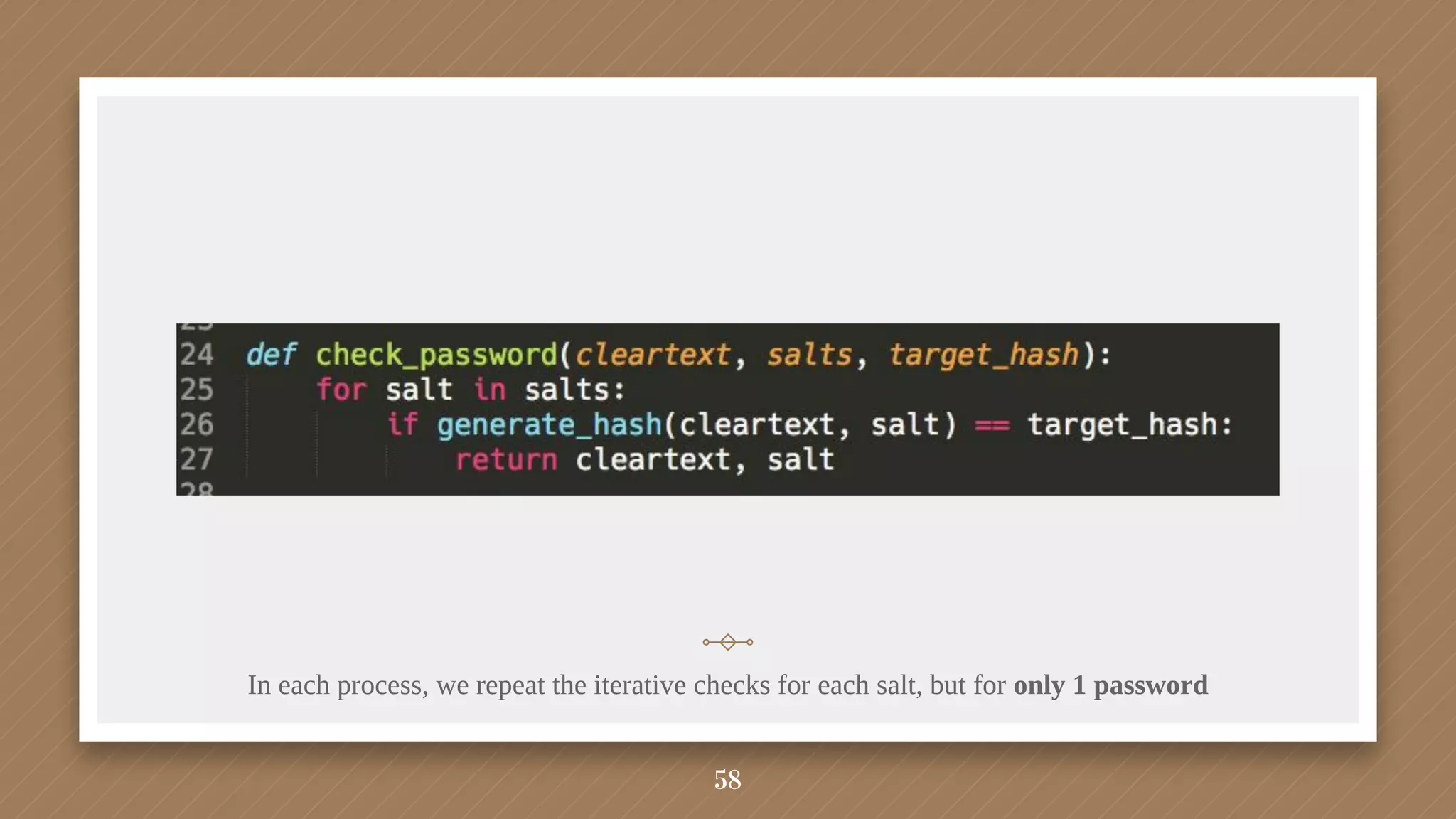

58. 58
In each process, we repeat the iterative checks for each salt, but for only 1 password

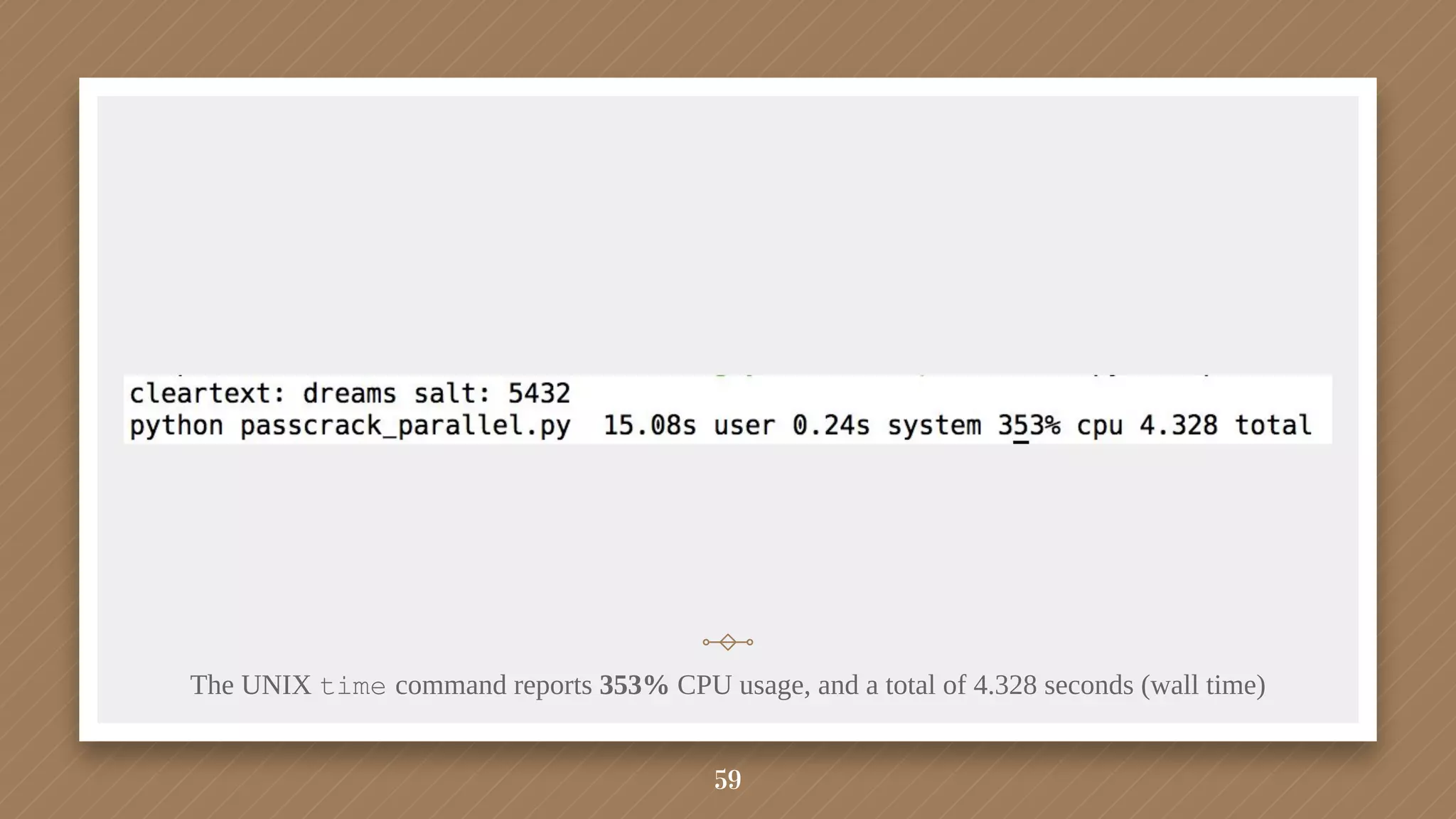

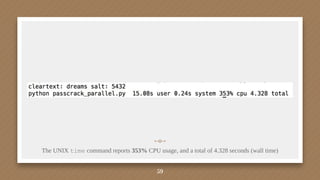

59. The UNIX time command reports 353% CPU usage, and a total of 4.328 seconds (wall time)
59

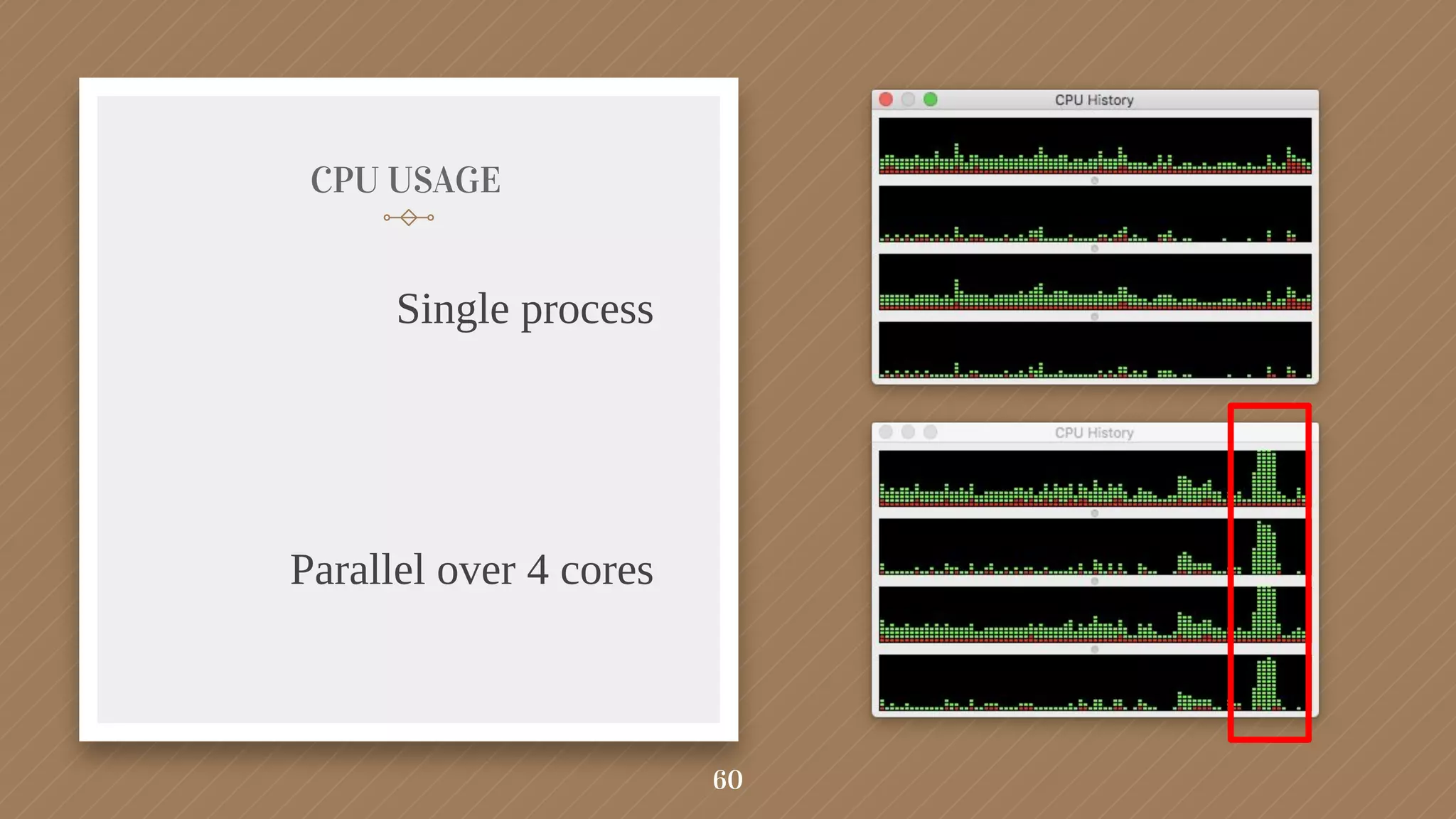

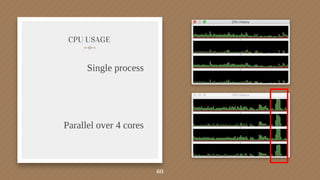

60. CPU USAGE
Single process
Parallel over 4 cores
60

61. Throwing more
hardware at it
Effective, but often overlooked

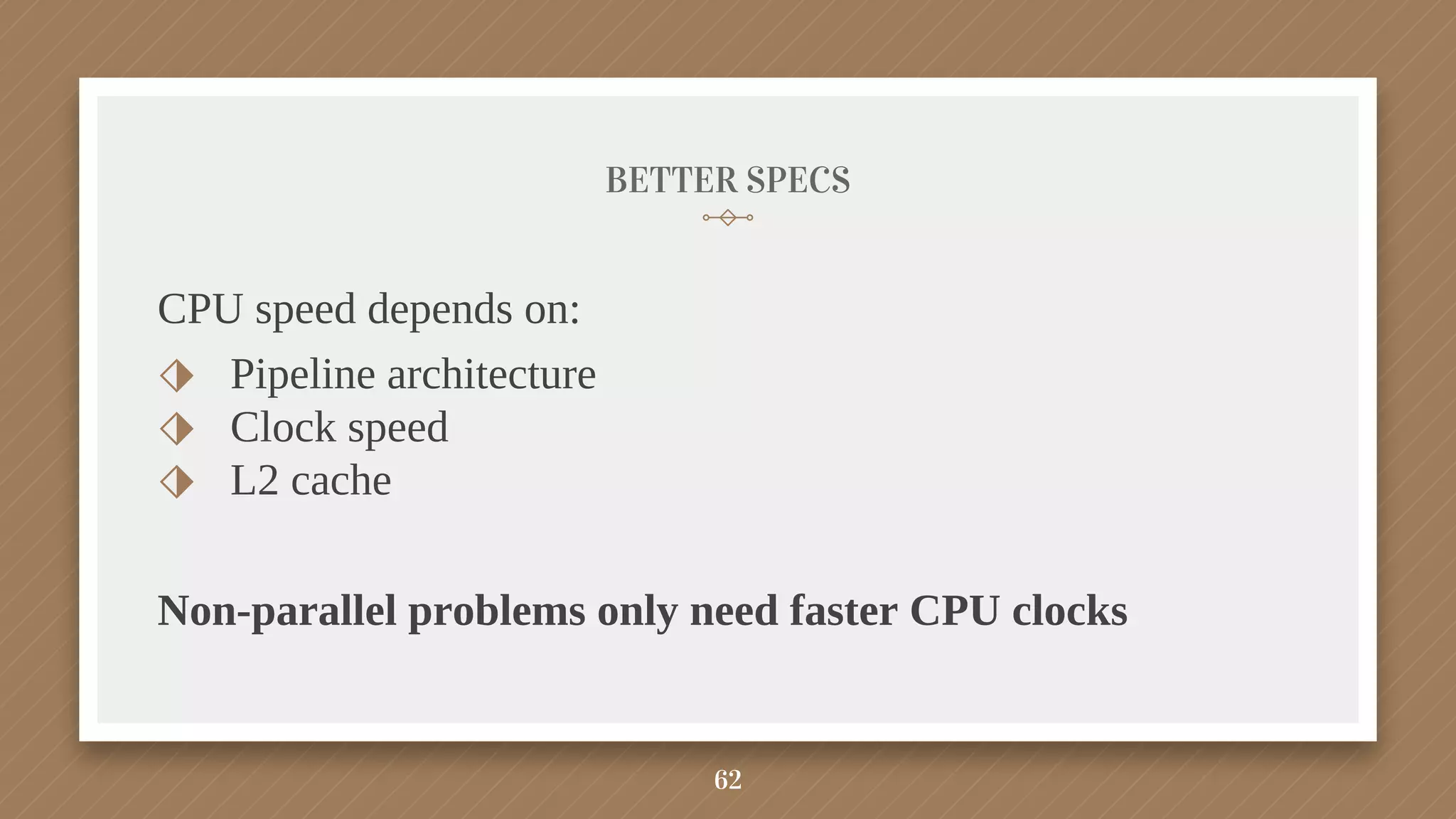

62. BETTER SPECS
CPU speed depends on:
⬗ Pipeline architecture
⬗ Clock speed
⬗ L2 cache
Non-parallel problems only need faster CPU clocks
62

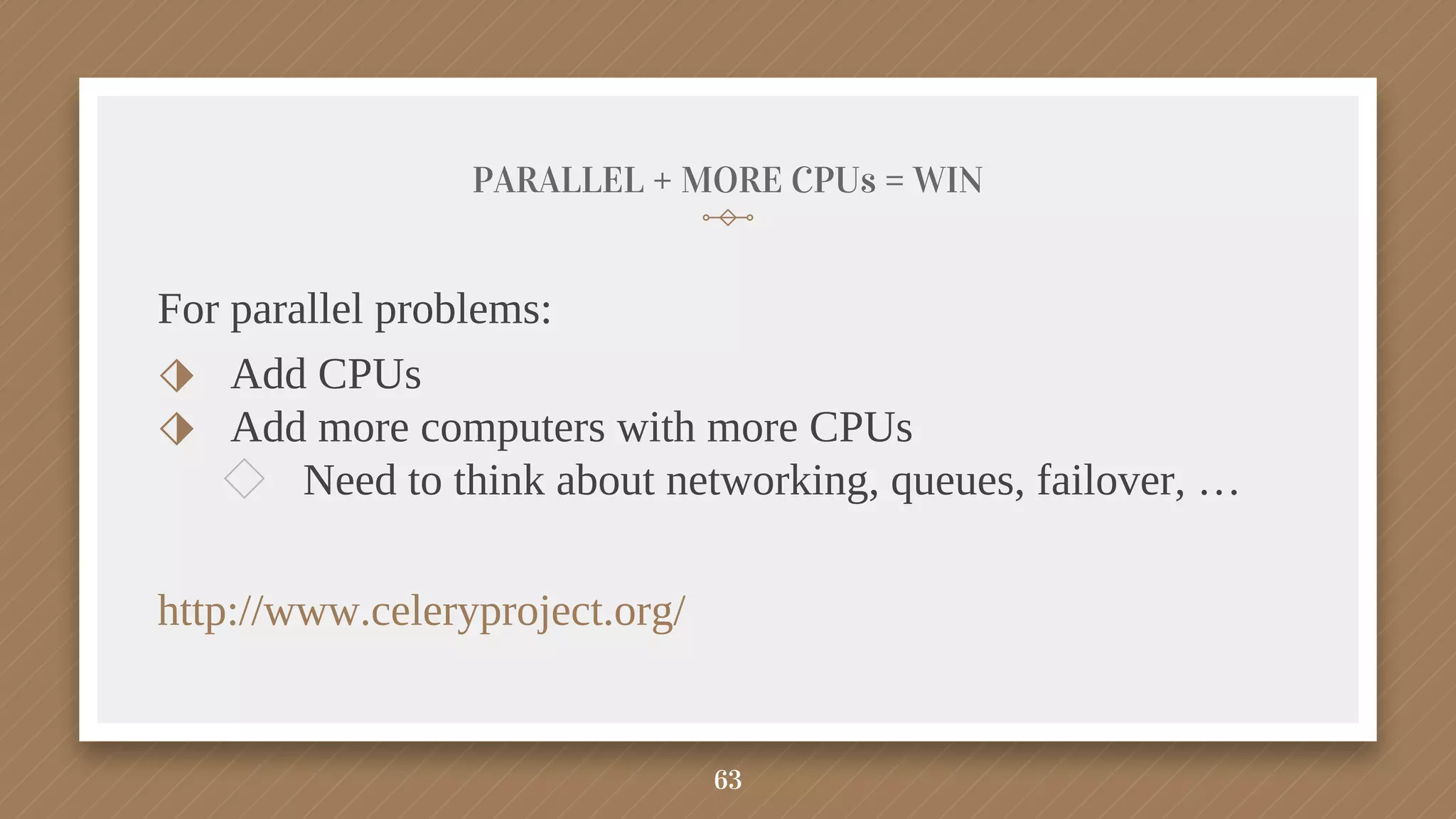

63. PARALLEL + MORE CPUs = WIN
For parallel problems:
⬗ Add CPUs
⬗ Add more computers with more CPUs
◇ Need to think about networking, queues, failover, …
http://www.celeryproject.org/
63

64. High performance
libraries
Not reinventing the wheel

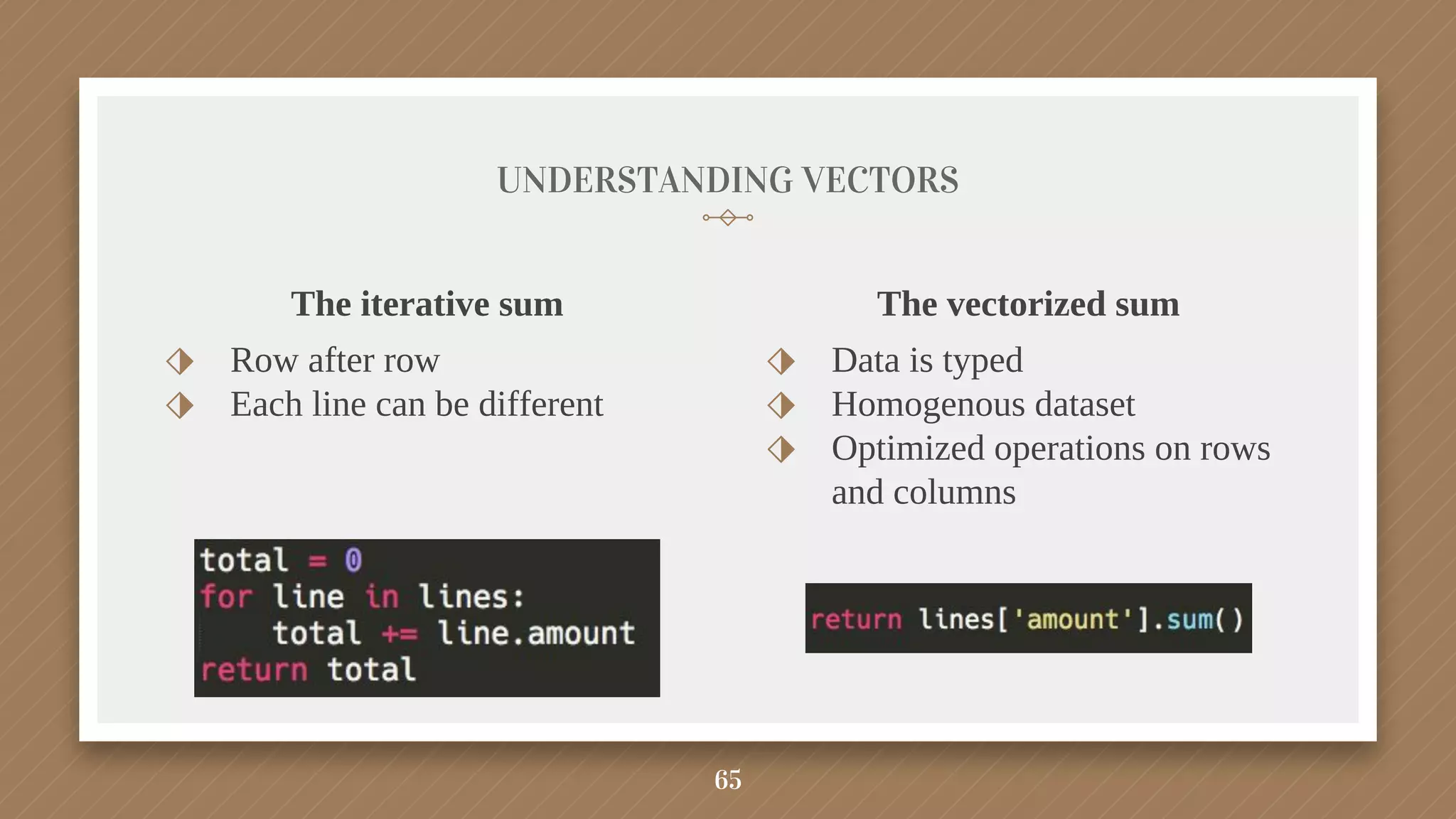

65. UNDERSTANDING VECTORS
The iterative sum
⬗ Row after row
⬗ Each line can be different
65
The vectorized sum
⬗ Data is typed
⬗ Homogenous dataset
⬗ Optimized operations on rows
and columns

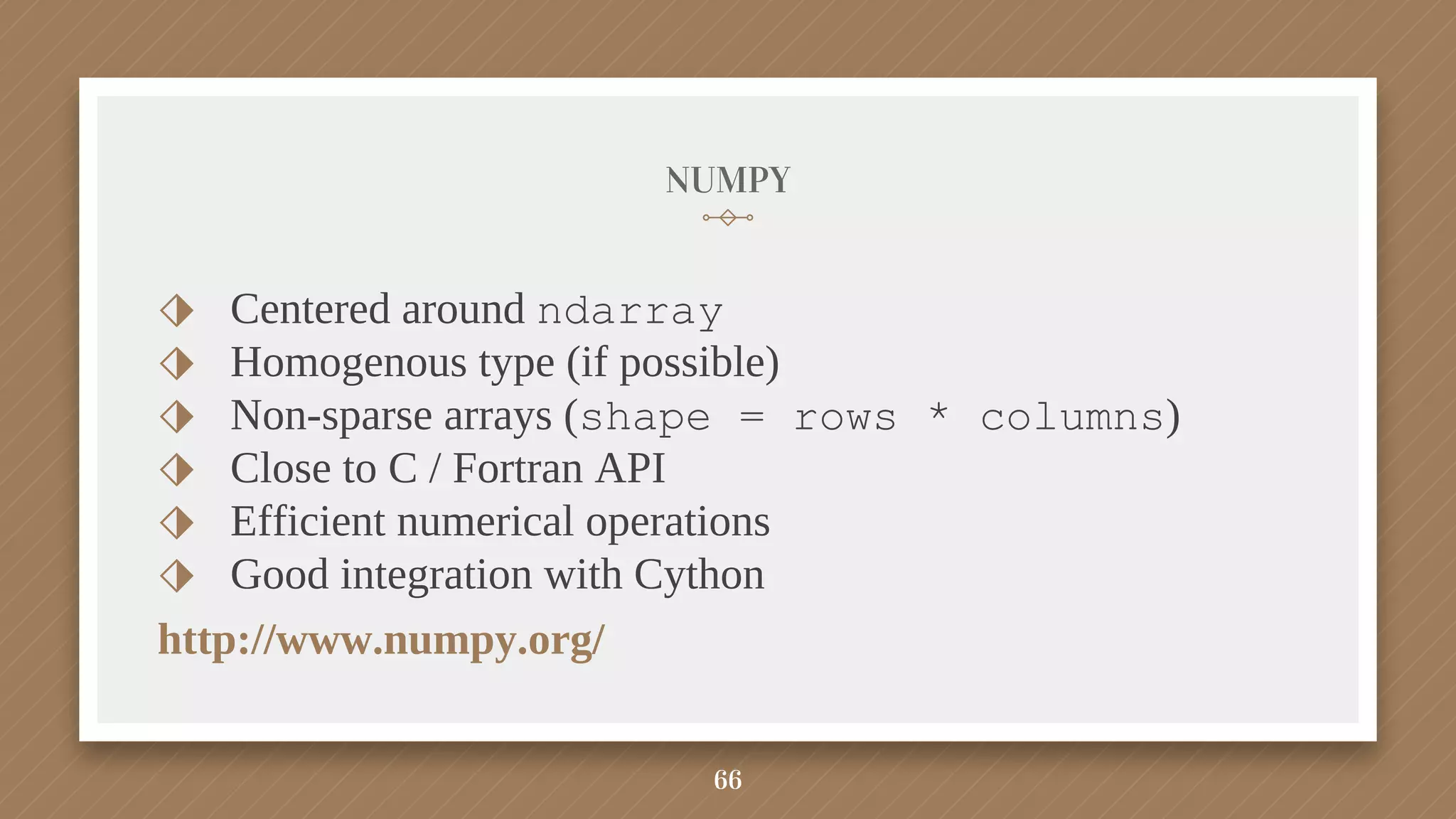

66. NUMPY
⬗ Centered around ndarray
⬗ Homogenous type (if possible)
⬗ Non-sparse arrays (shape = rows * columns)
⬗ Close to C / Fortran API
⬗ Efficient numerical operations
⬗ Good integration with Cython
http://www.numpy.org/
66

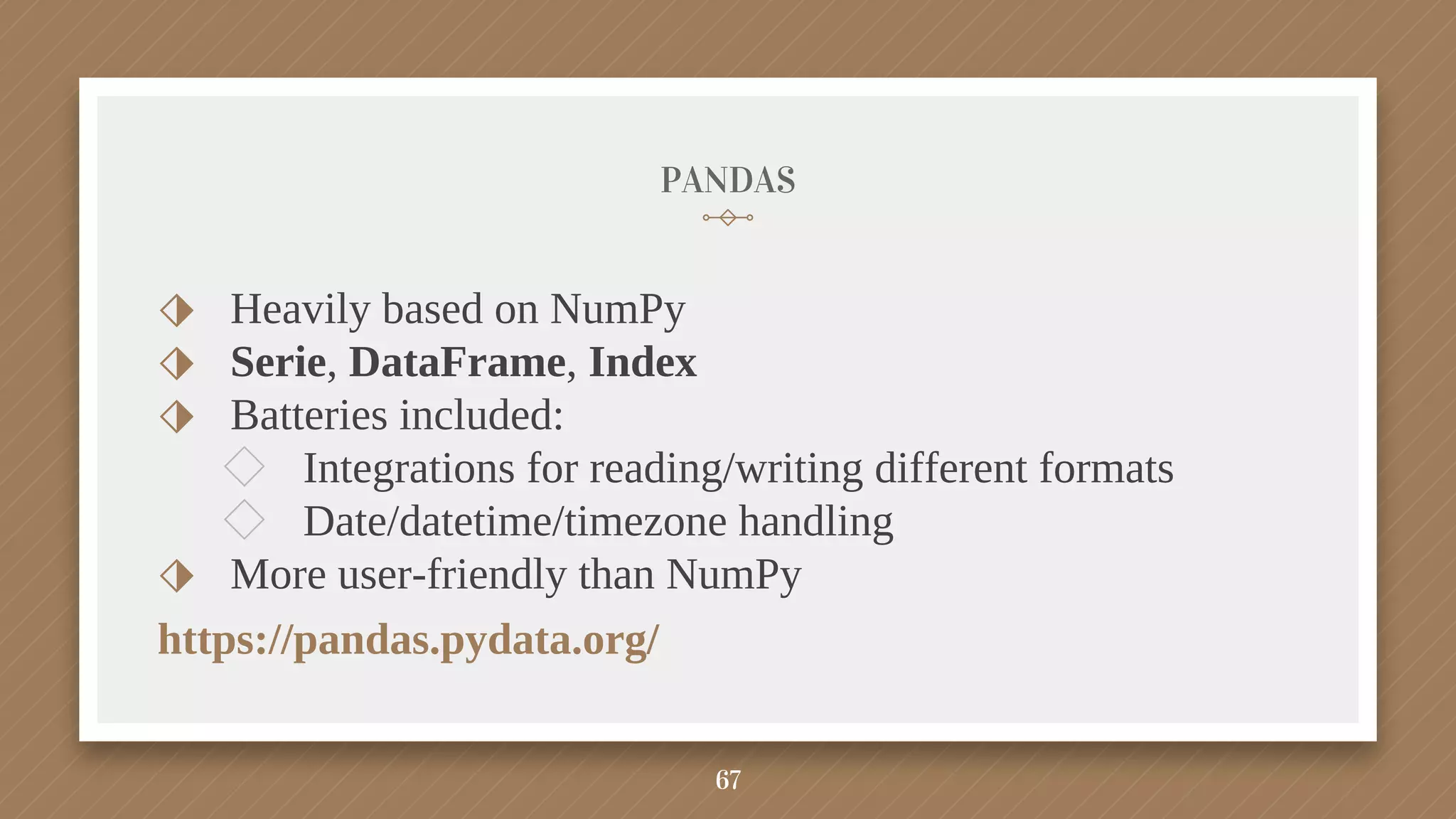

67. PANDAS
⬗ Heavily based on NumPy
⬗ Serie, DataFrame, Index
⬗ Batteries included:
◇ Integrations for reading/writing different formats
◇ Date/datetime/timezone handling
⬗ More user-friendly than NumPy
https://pandas.pydata.org/
67

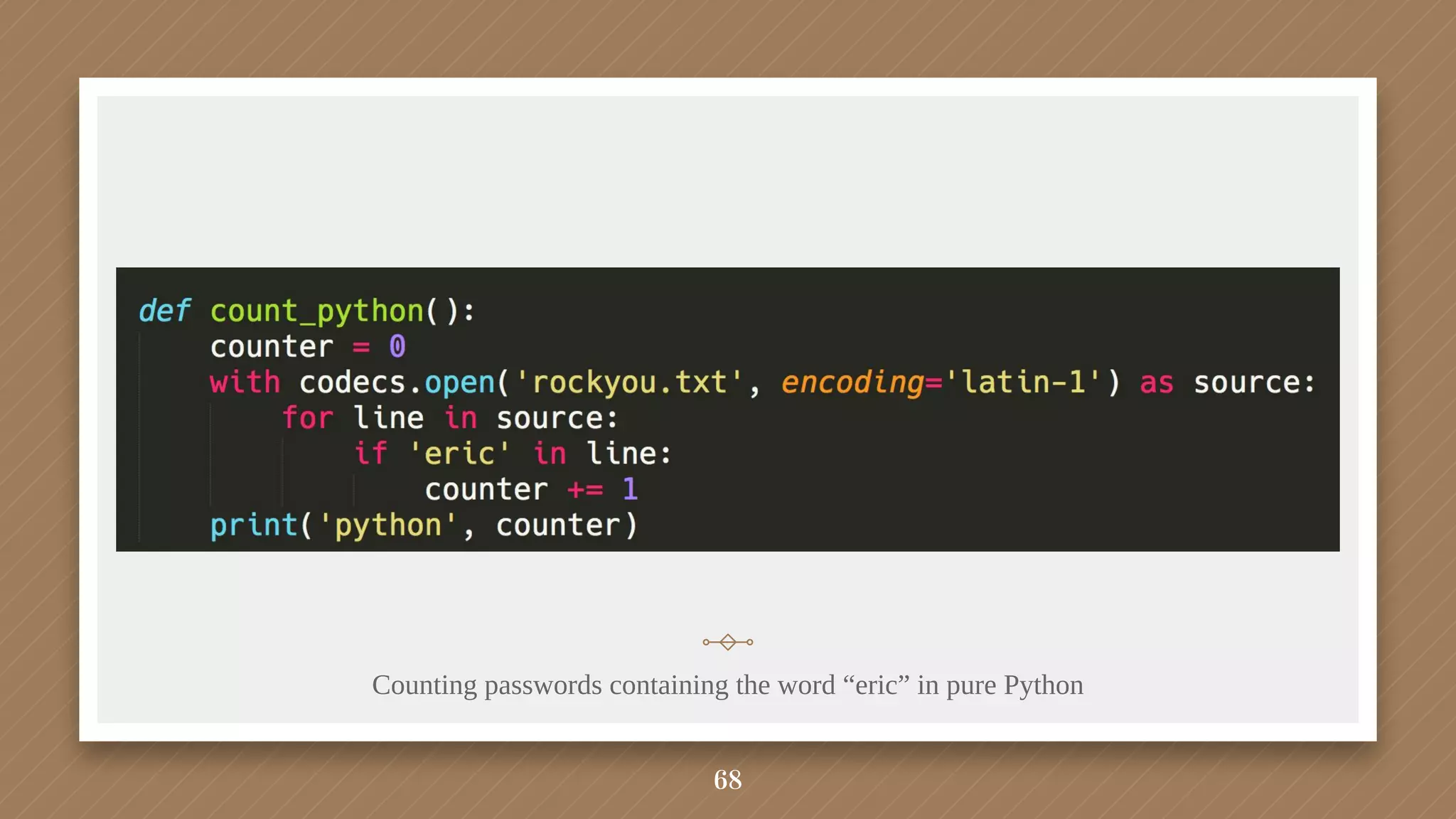

68. Counting passwords containing the word “eric” in pure Python
68

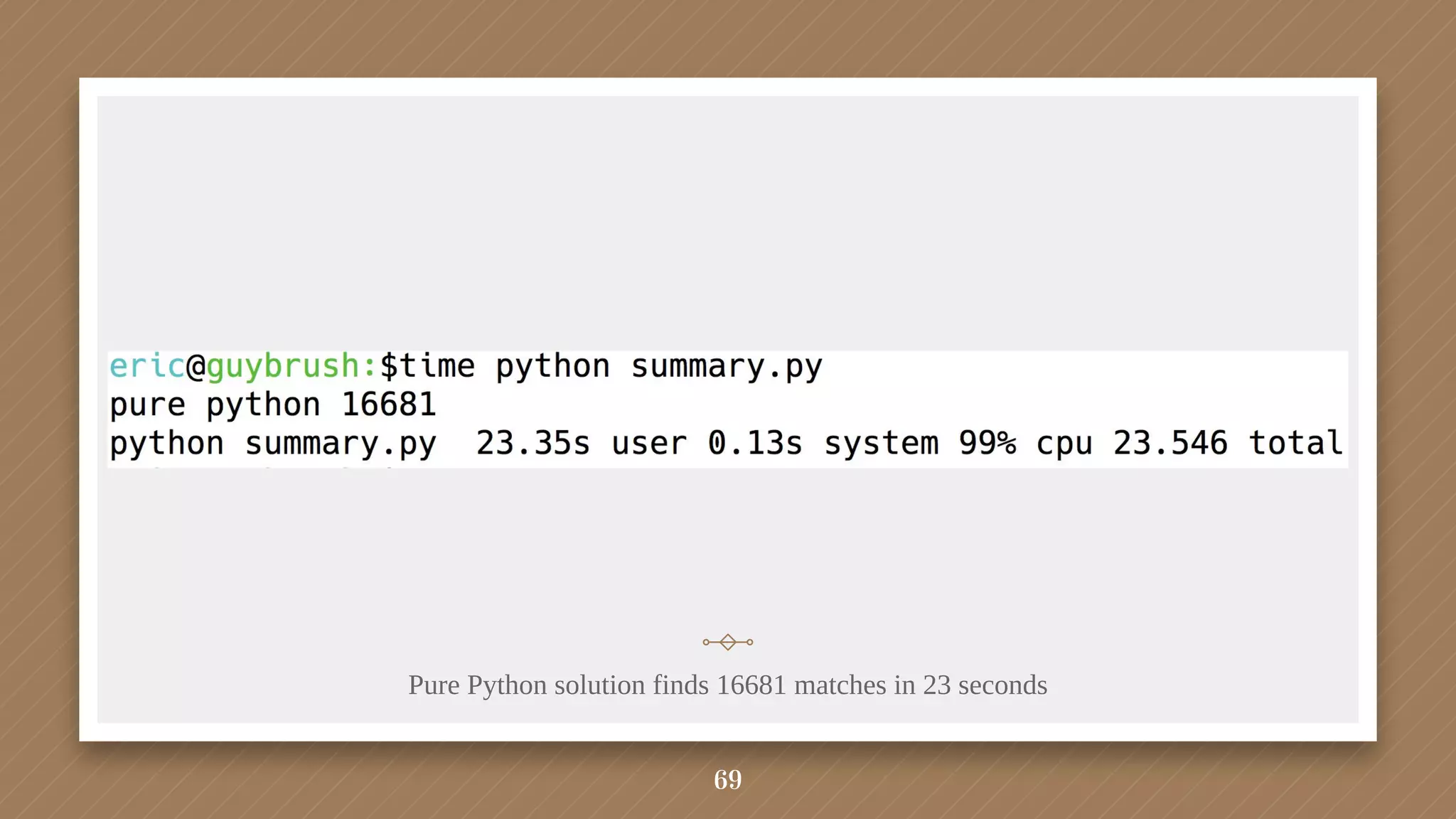

69. Pure Python solution finds 16681 matches in 23 seconds
69

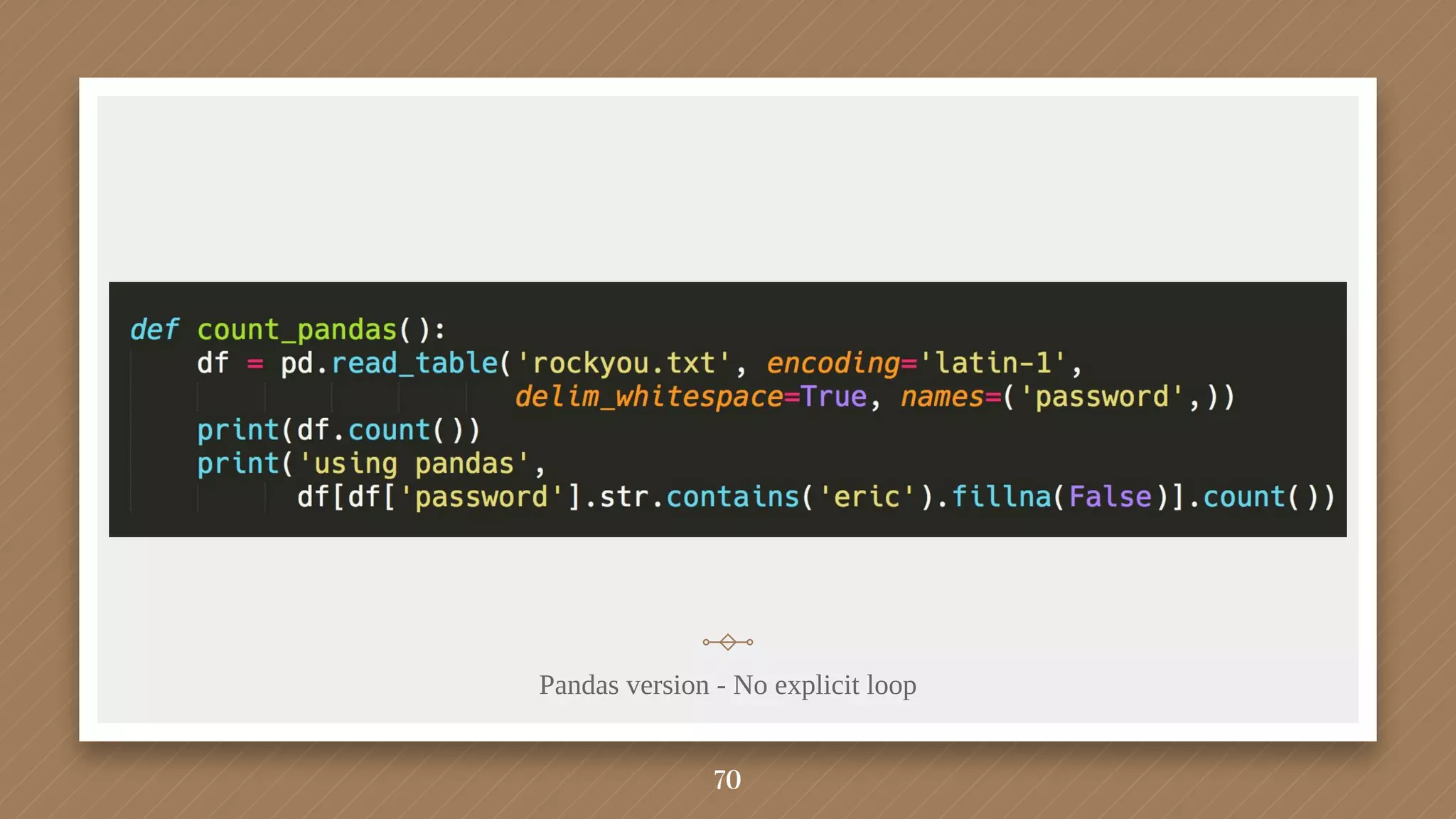

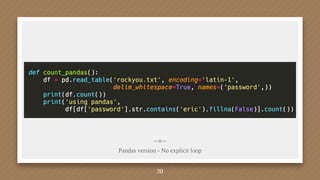

70. Pandas version - No explicit loop
70

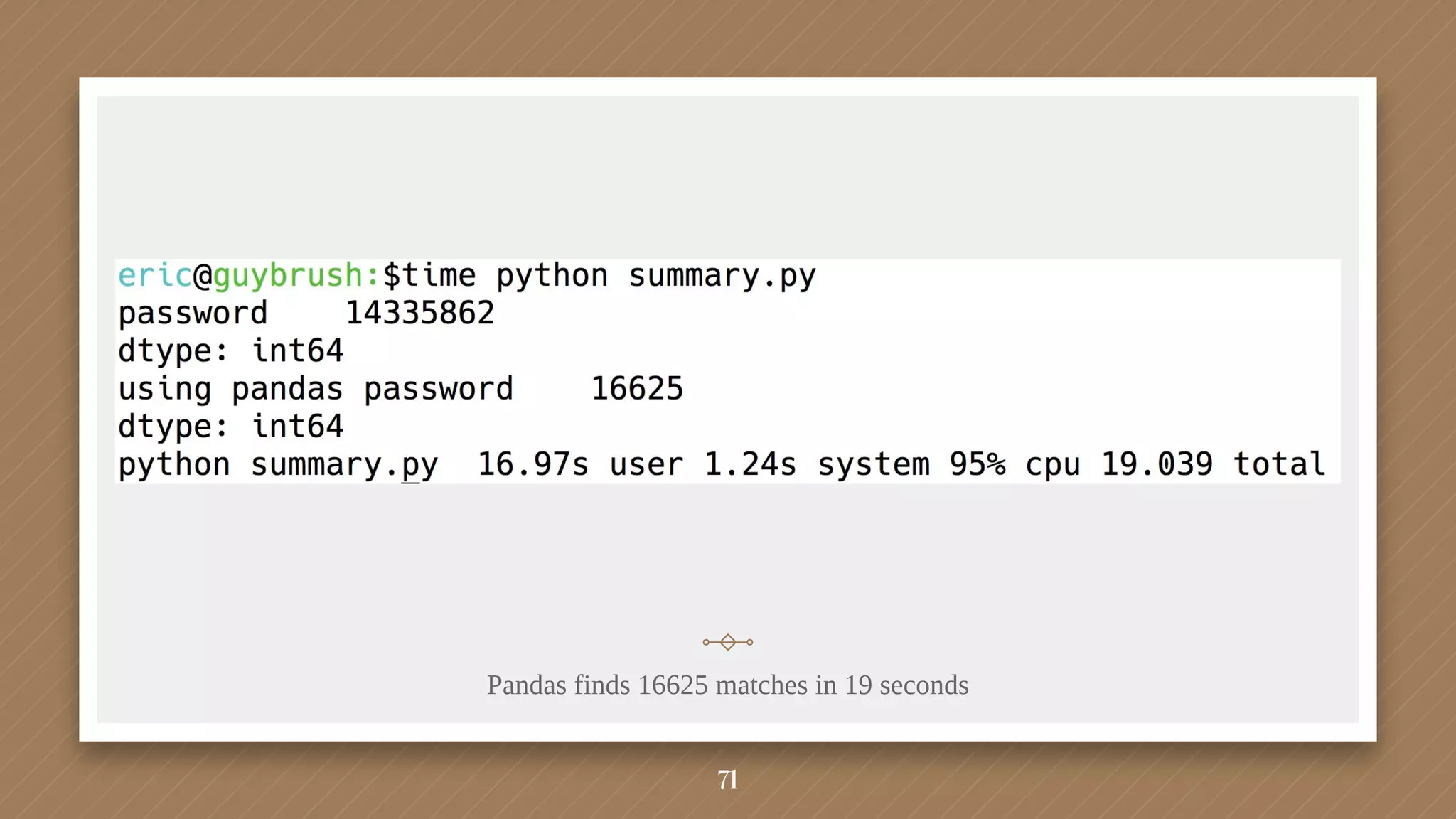

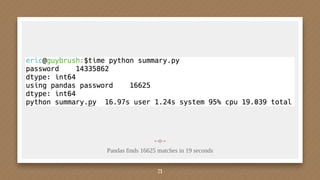

71. Pandas finds 16625 matches in 19 seconds
71

72. Cython
Reinventing the wheel

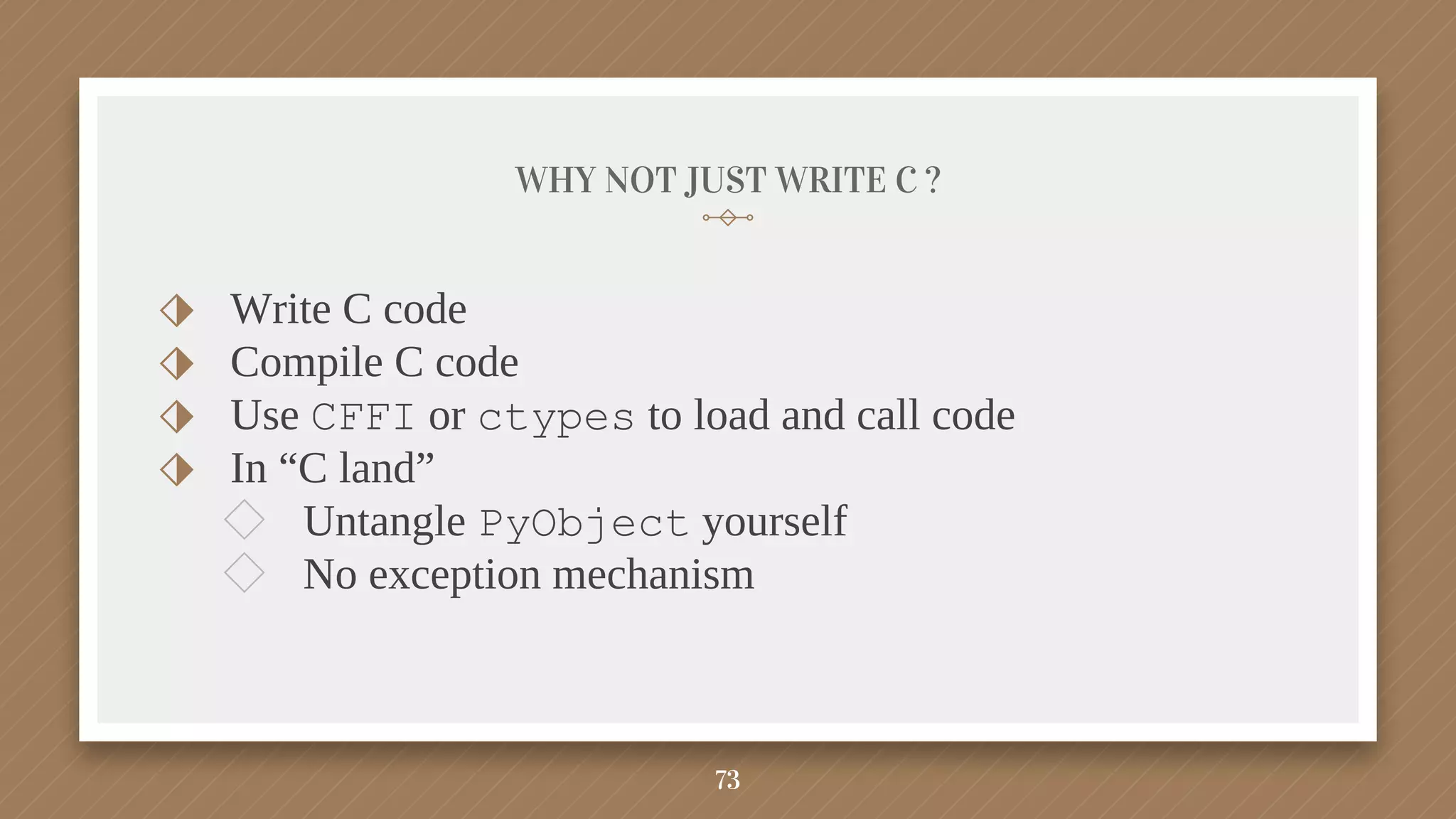

73. WHY NOT JUST WRITE C ?
⬗ Write C code
⬗ Compile C code
⬗ Use CFFI or ctypes to load and call code
⬗ In “C land”
◇ Untangle PyObject yourself
◇ No exception mechanism
73

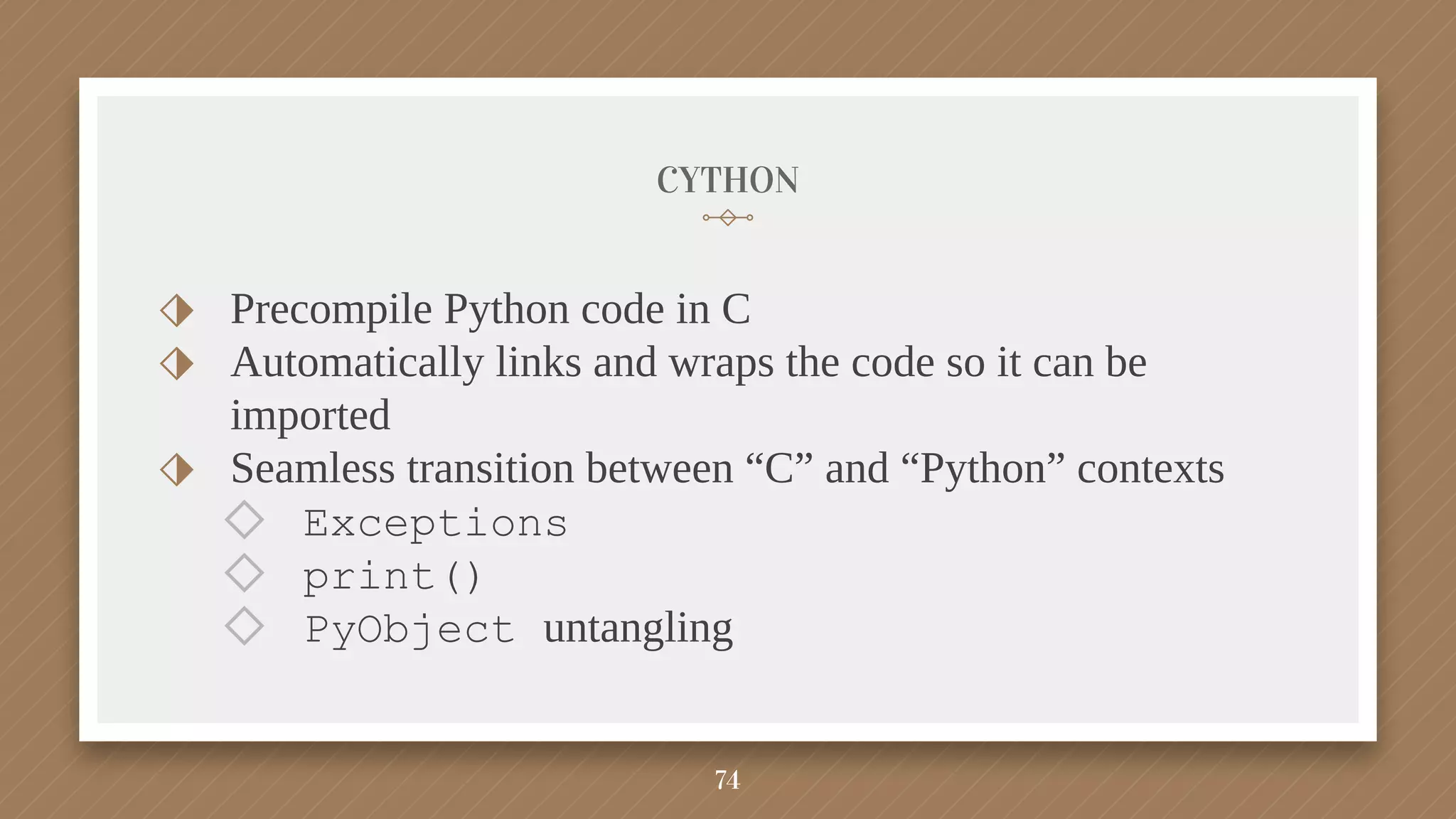

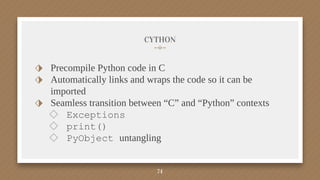

74. CYTHON
⬗ Precompile Python code in C
⬗ Automatically links and wraps the code so it can be
imported
⬗ Seamless transition between “C” and “Python” contexts
◇ Exceptions
◇ print()
◇ PyObject untangling
74

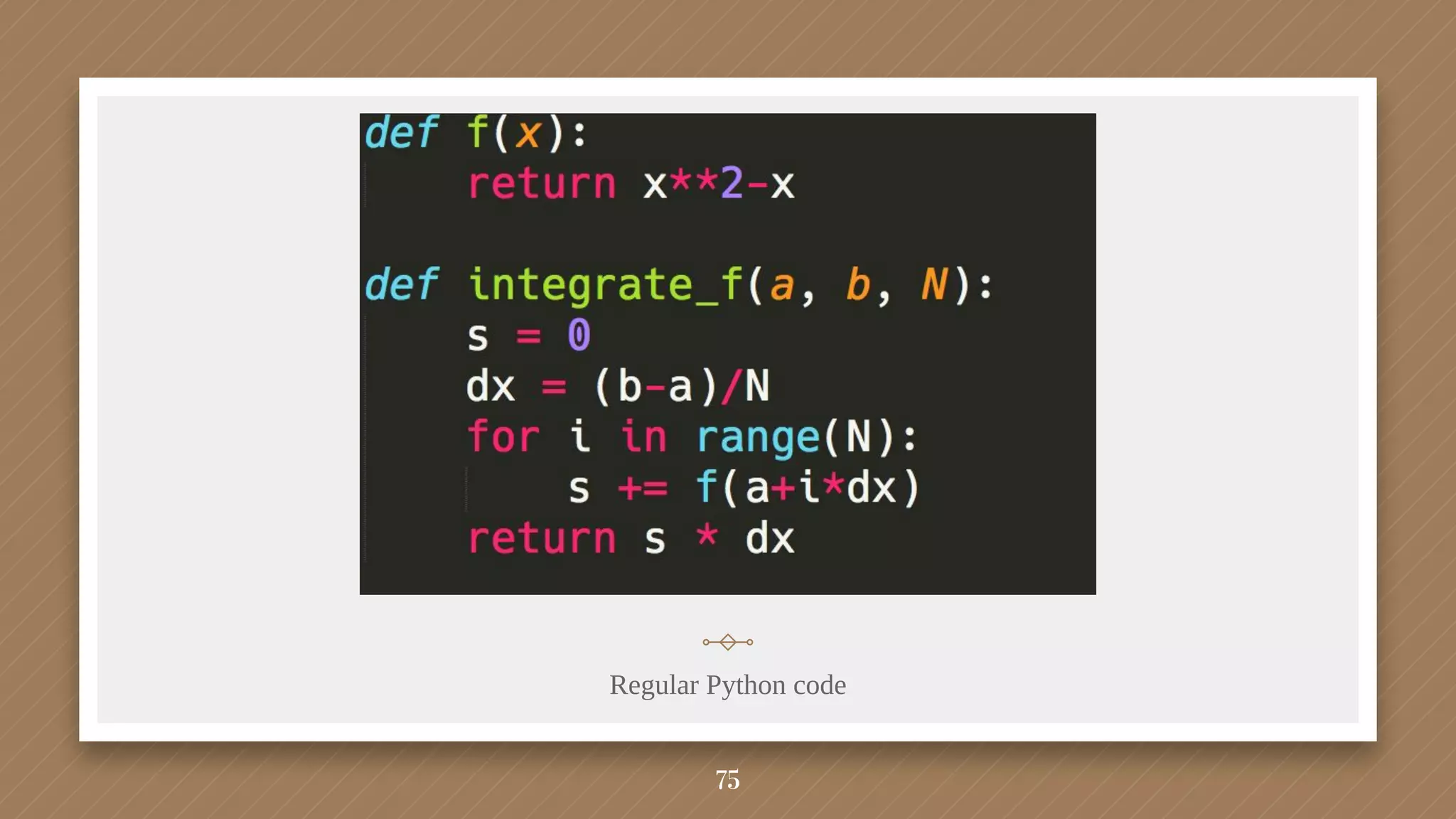

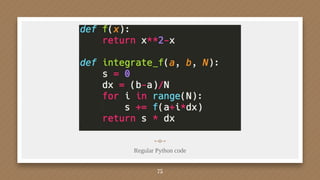

75. Regular Python code
75

76. C-typing variables
76

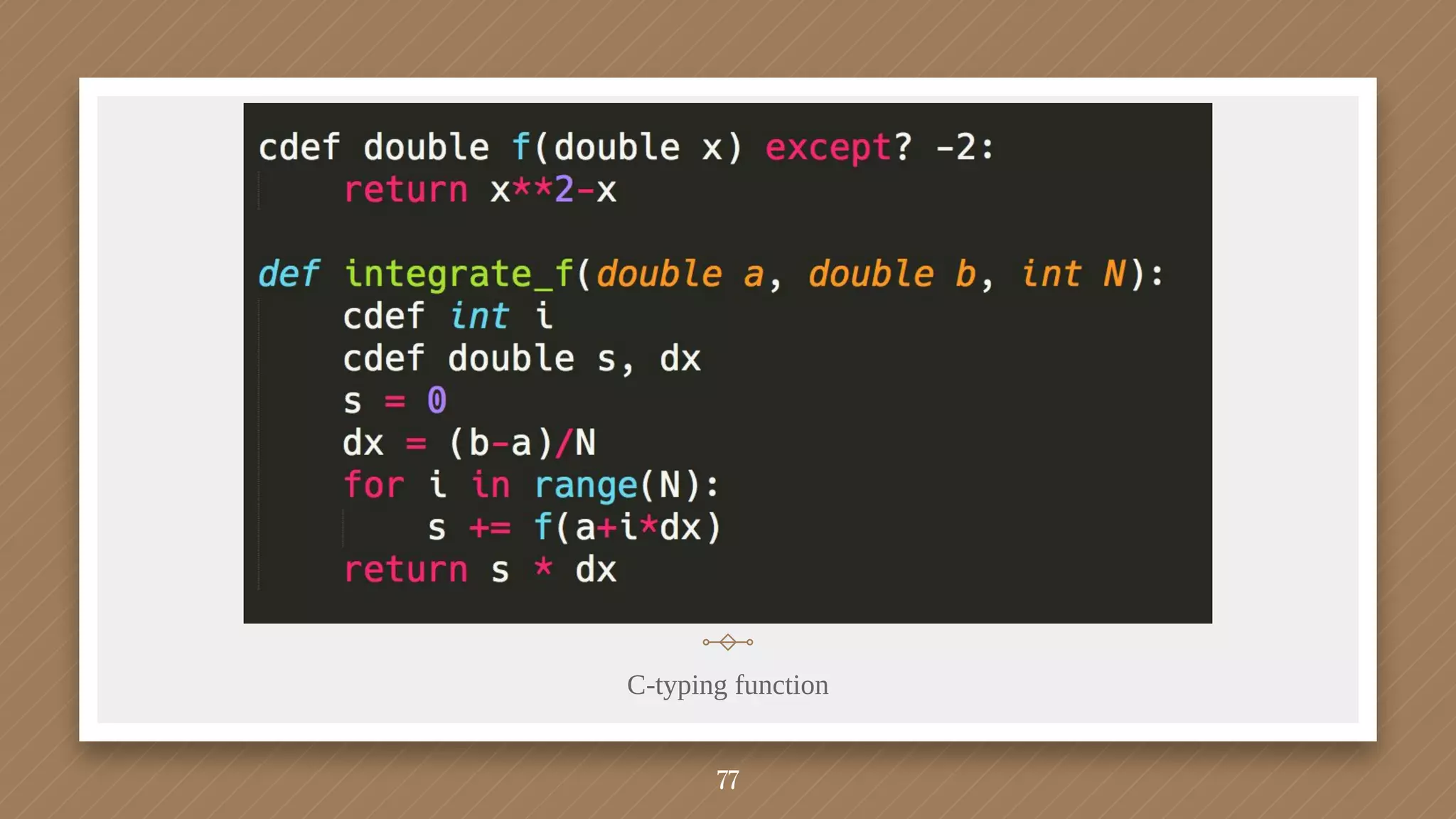

77. C-typing function
77

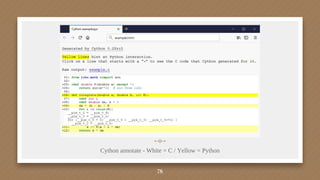

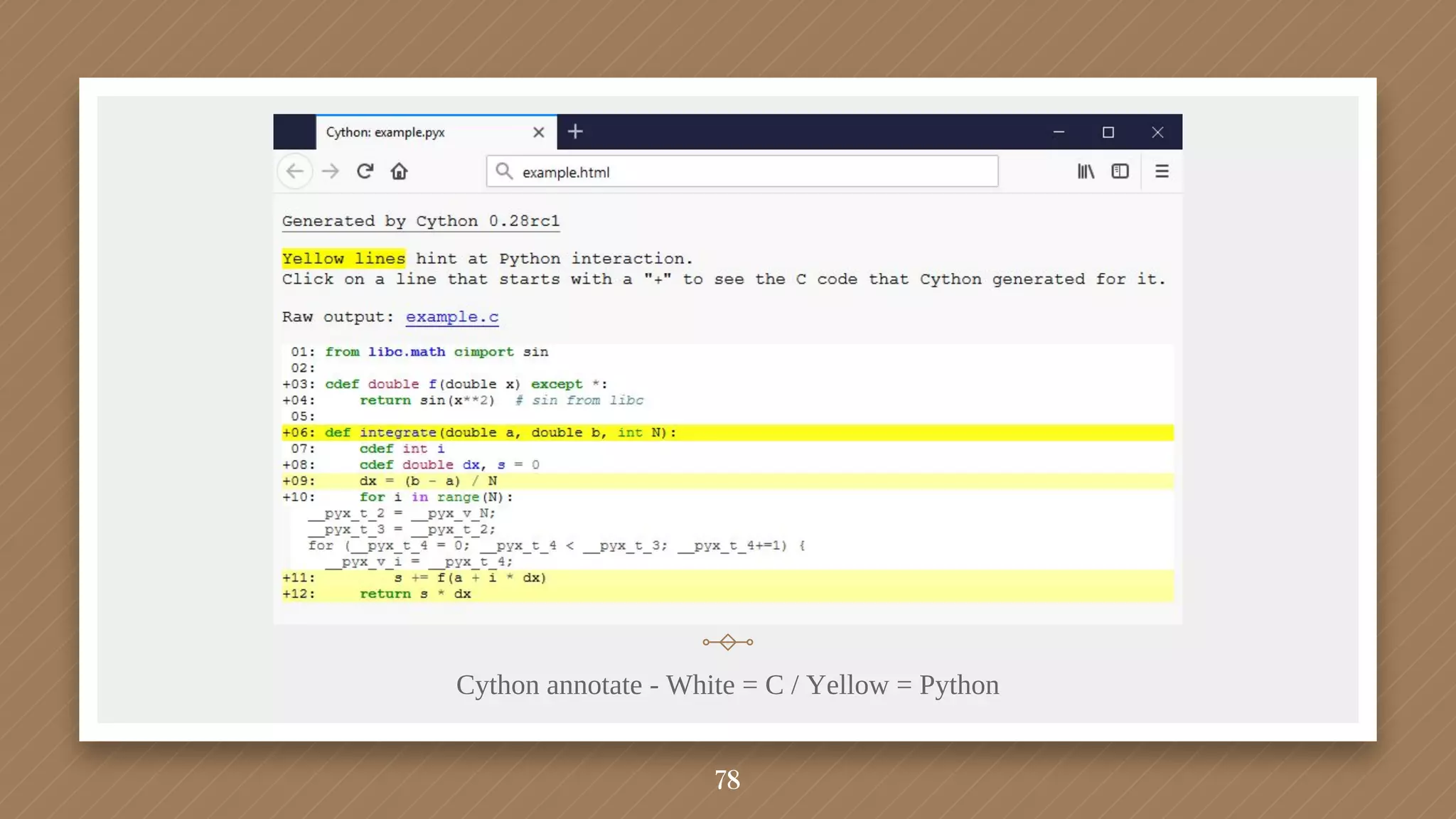

78. Cython annotate - White = C / Yellow = Python
78

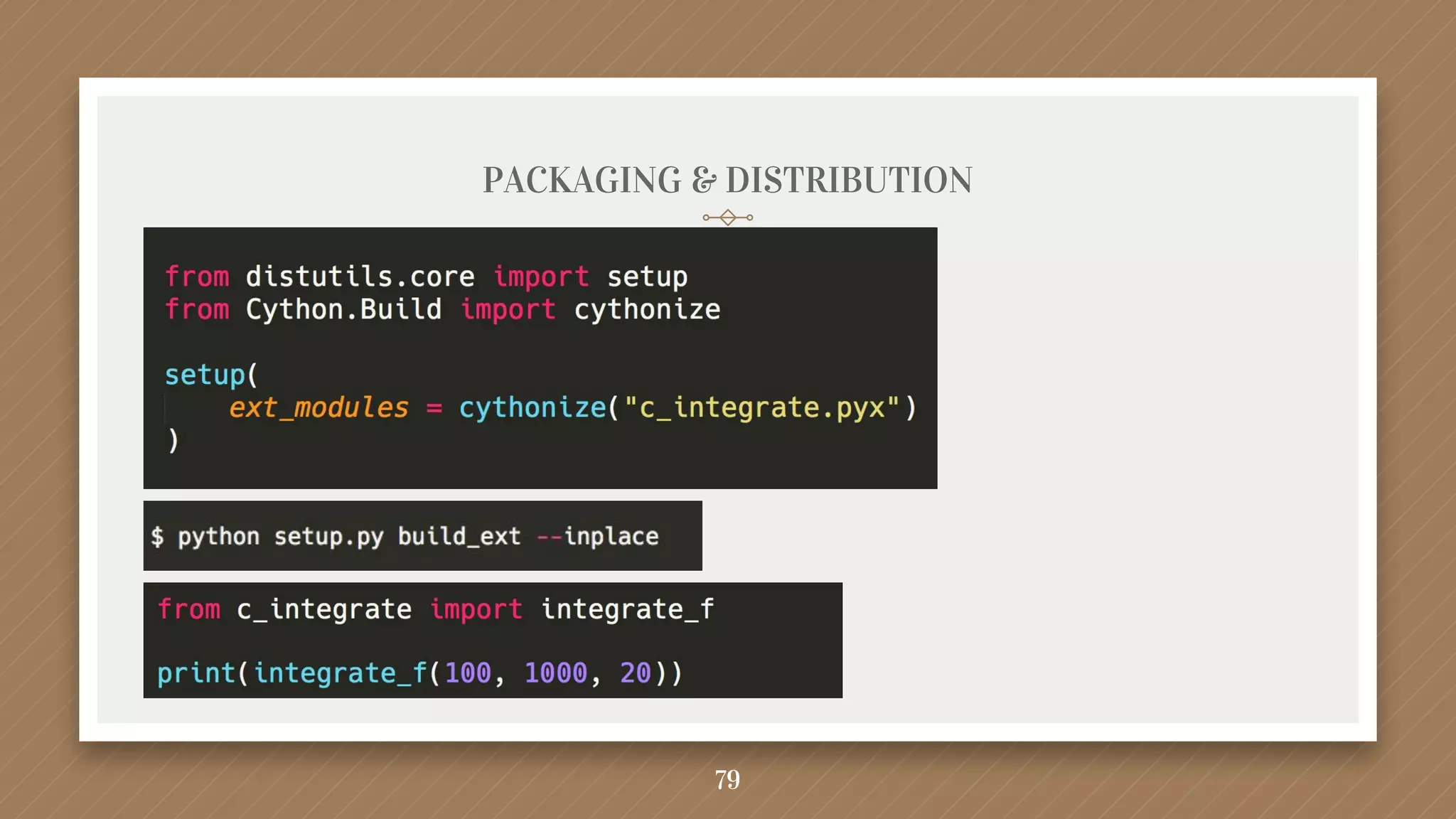

79. PACKAGING & DISTRIBUTION
79

80. PyPy
Just in time to save the day

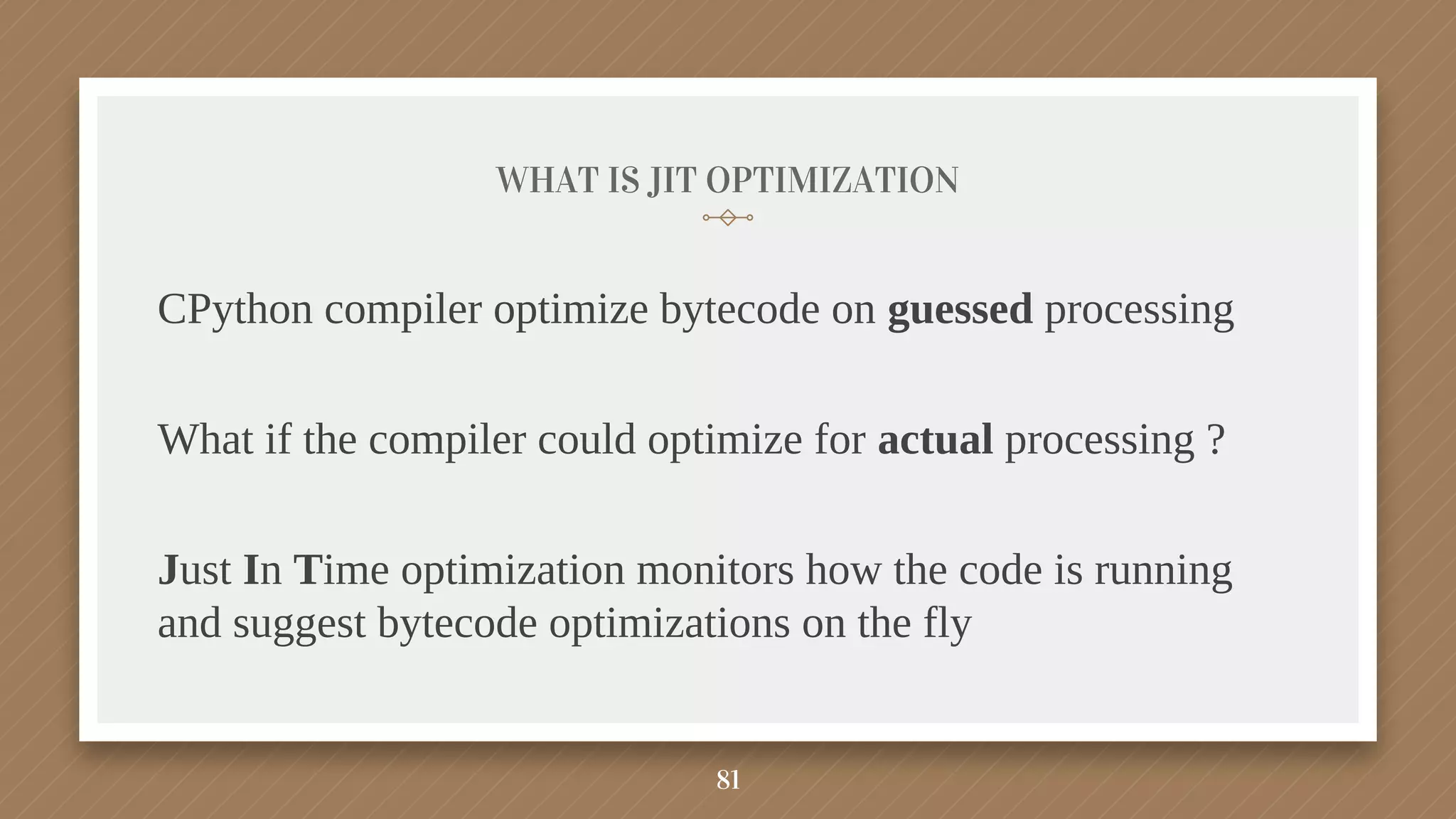

81. WHAT IS JIT OPTIMIZATION
CPython compiler optimize bytecode on guessed processing
What if the compiler could optimize for actual processing ?
Just In Time optimization monitors how the code is running
and suggest bytecode optimizations on the fly
81

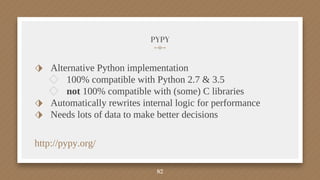

82. PYPY
⬗ Alternative Python implementation
◇ 100% compatible with Python 2.7 & 3.5
◇ not 100% compatible with (some) C libraries
⬗ Automatically rewrites internal logic for performance
⬗ Needs lots of data to make better decisions
http://pypy.org/
82

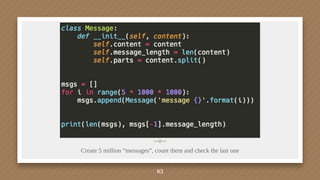

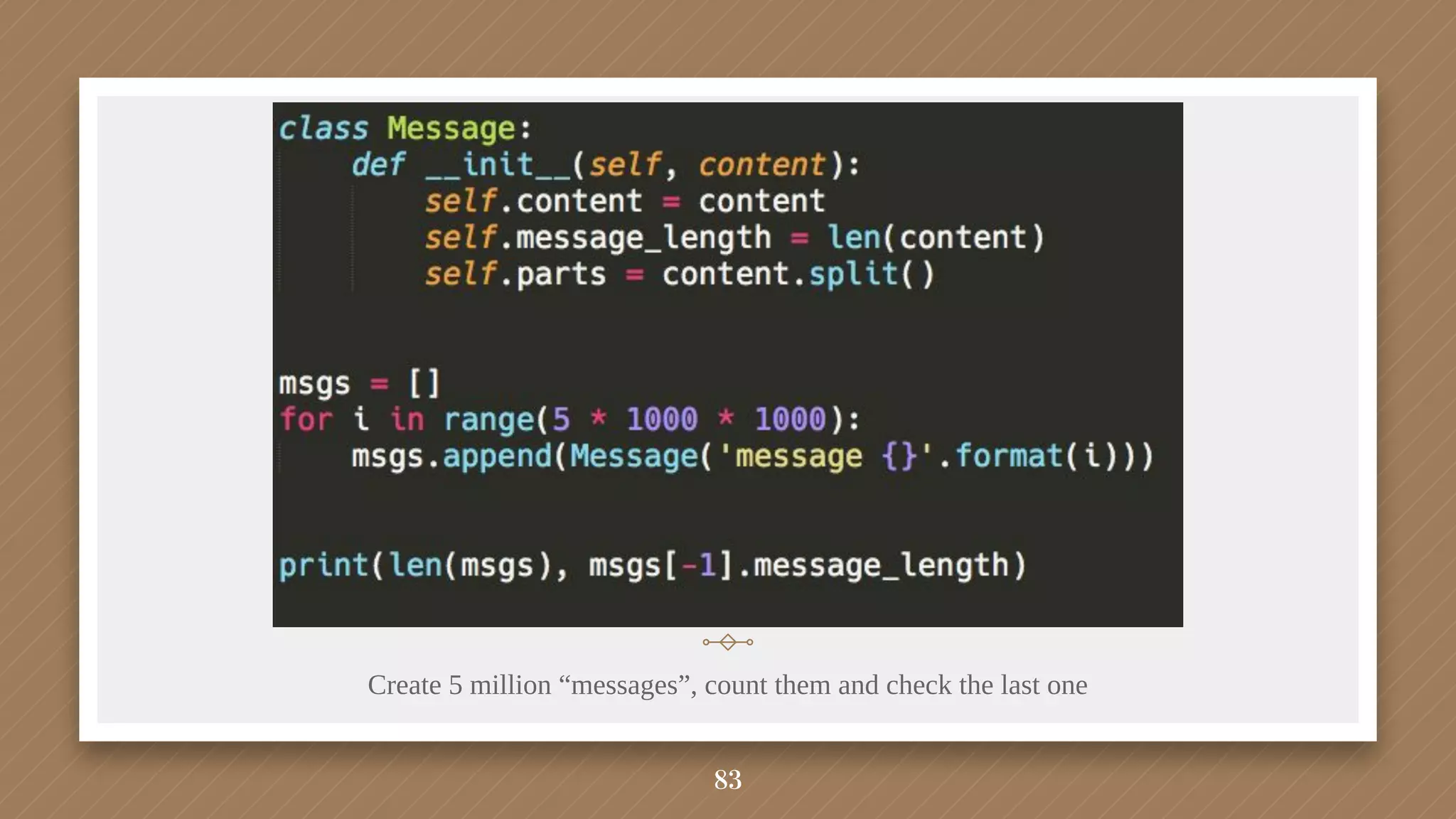

83. Create 5 million “messages”, count them and check the last one
83

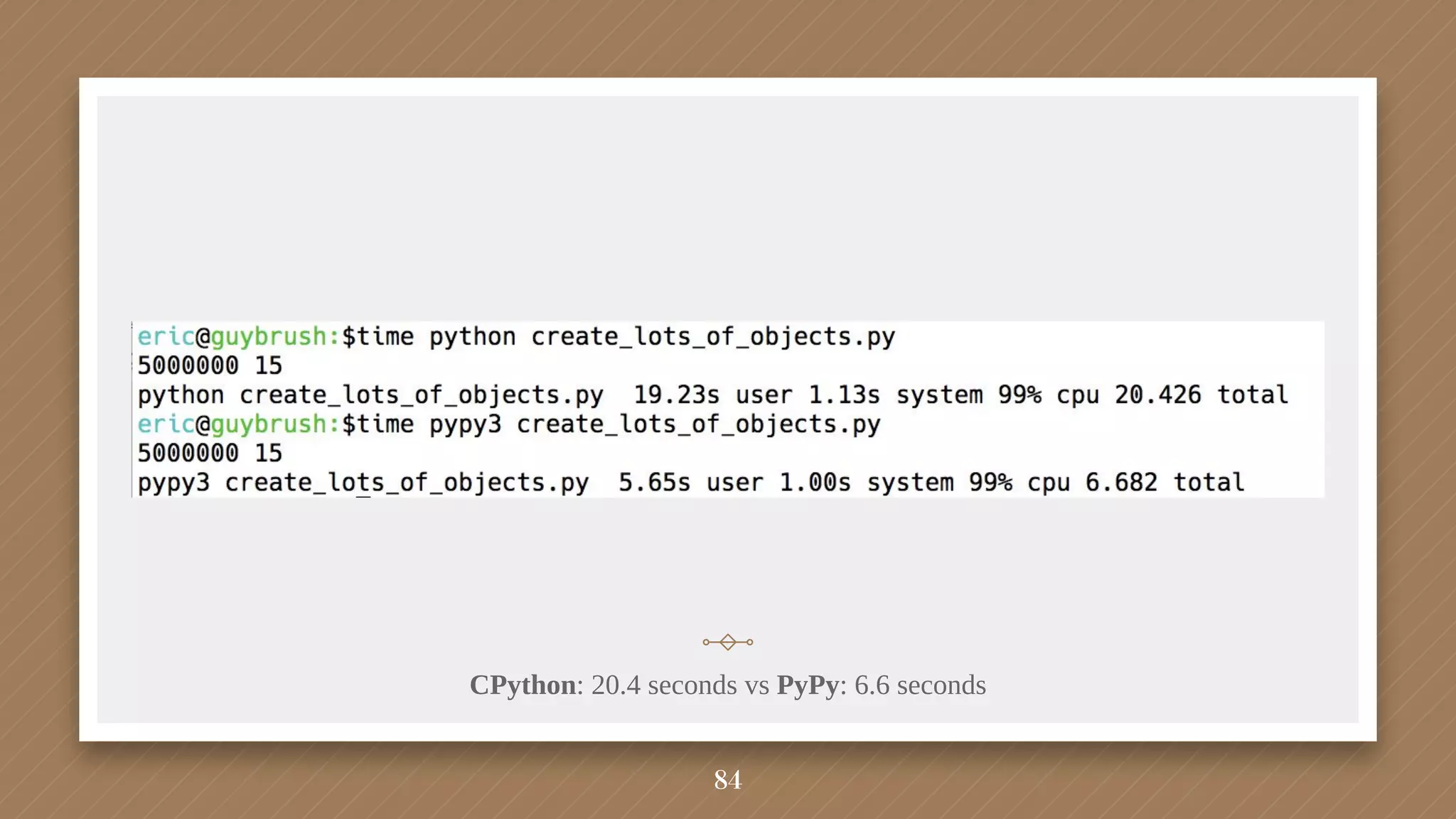

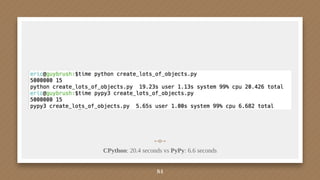

84. CPython: 20.4 seconds vs PyPy: 6.6 seconds
84

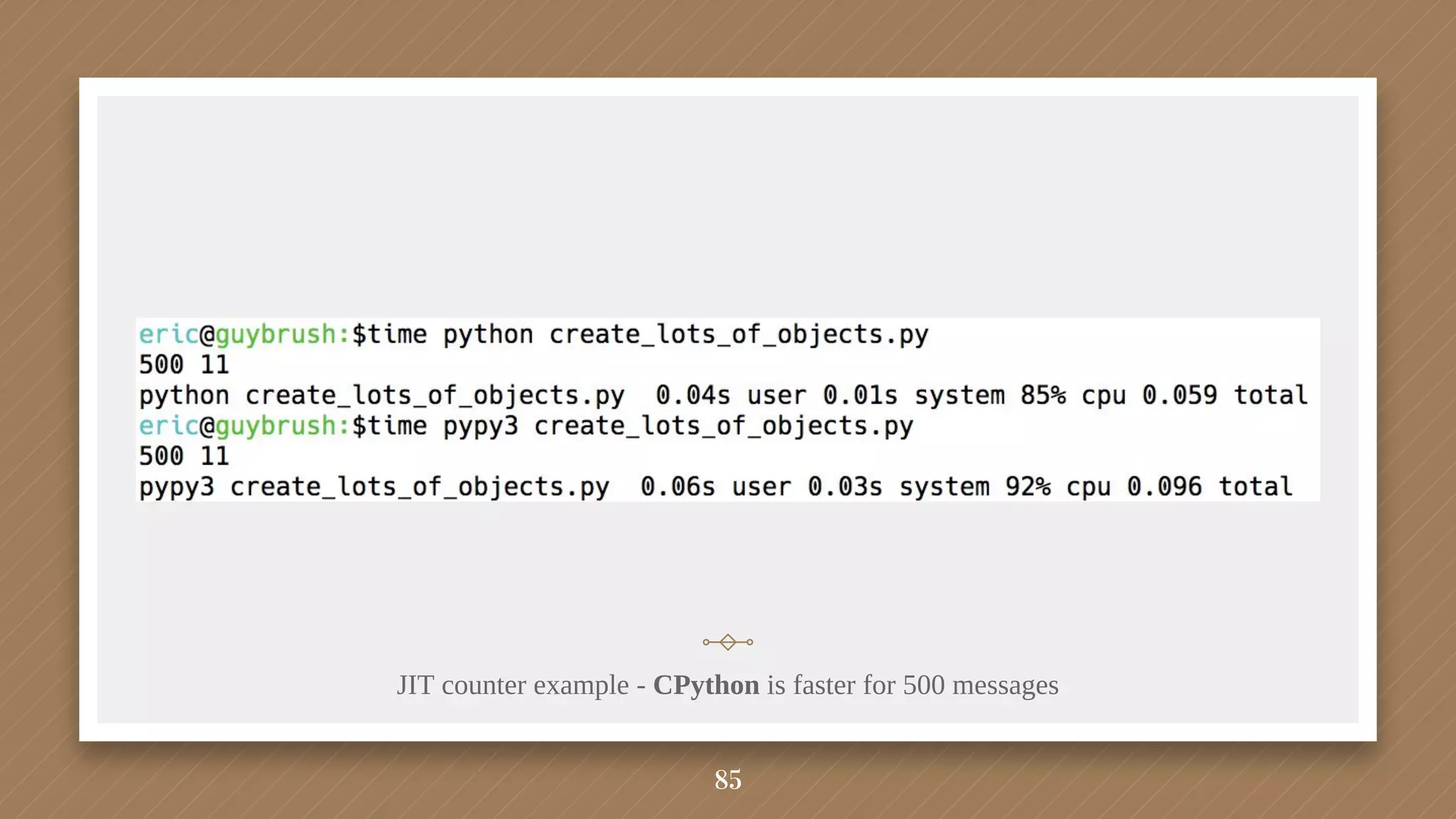

85. JIT counter example - CPython is faster for 500 messages
85

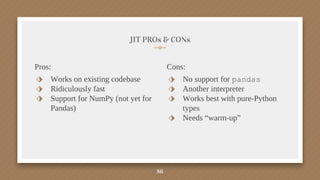

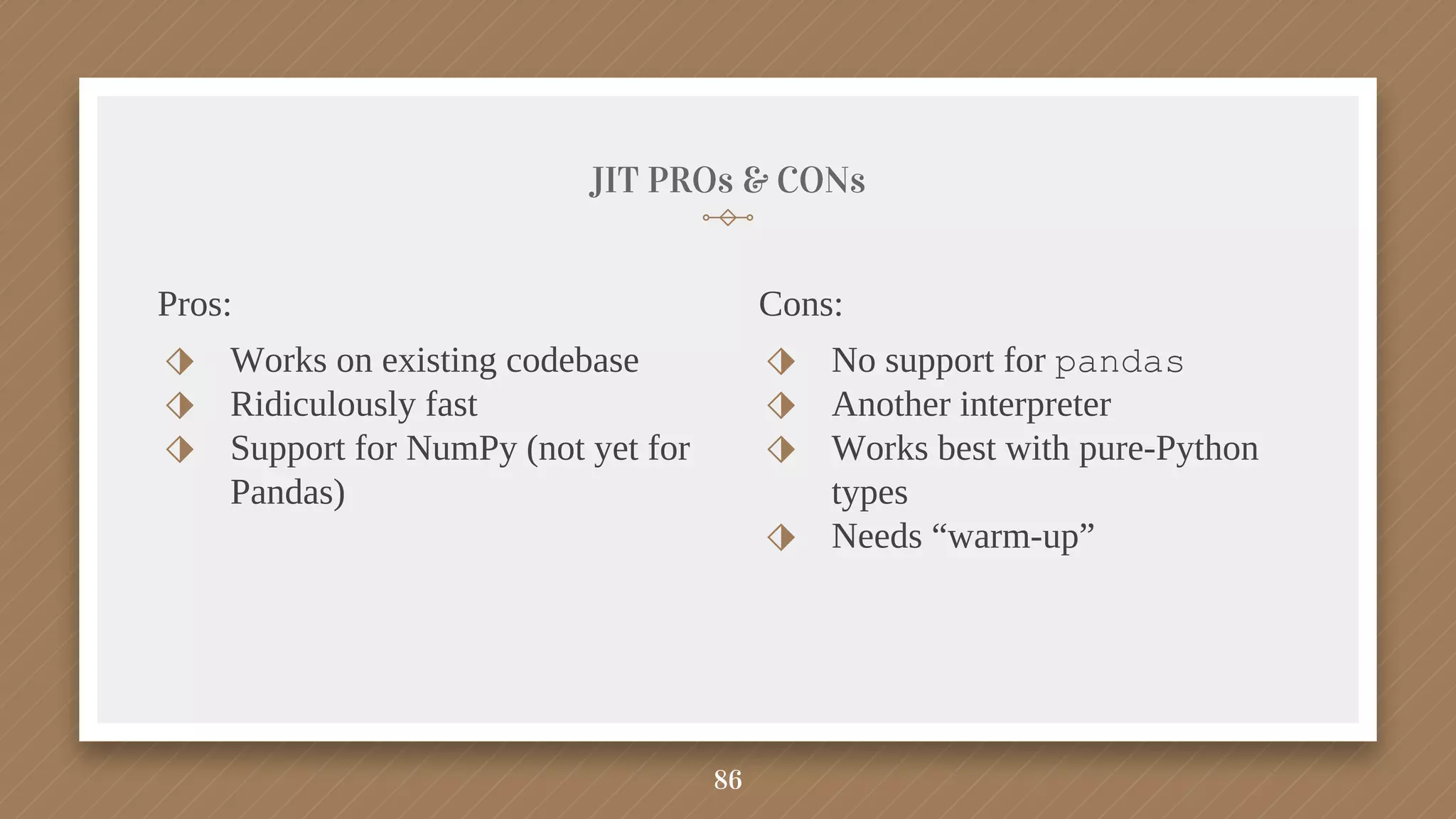

86. JIT PROs & CONs
Pros:
⬗ Works on existing codebase
⬗ Ridiculously fast
⬗ Support for NumPy (not yet for
Pandas)
Cons:
⬗ No support for pandas
⬗ Another interpreter
⬗ Works best with pure-Python
types
⬗ Needs “warm-up”
86

87. YOU CAN’T HAVE IT ALL
Optimization is always a trade-off with maintainability
87

88. Summary

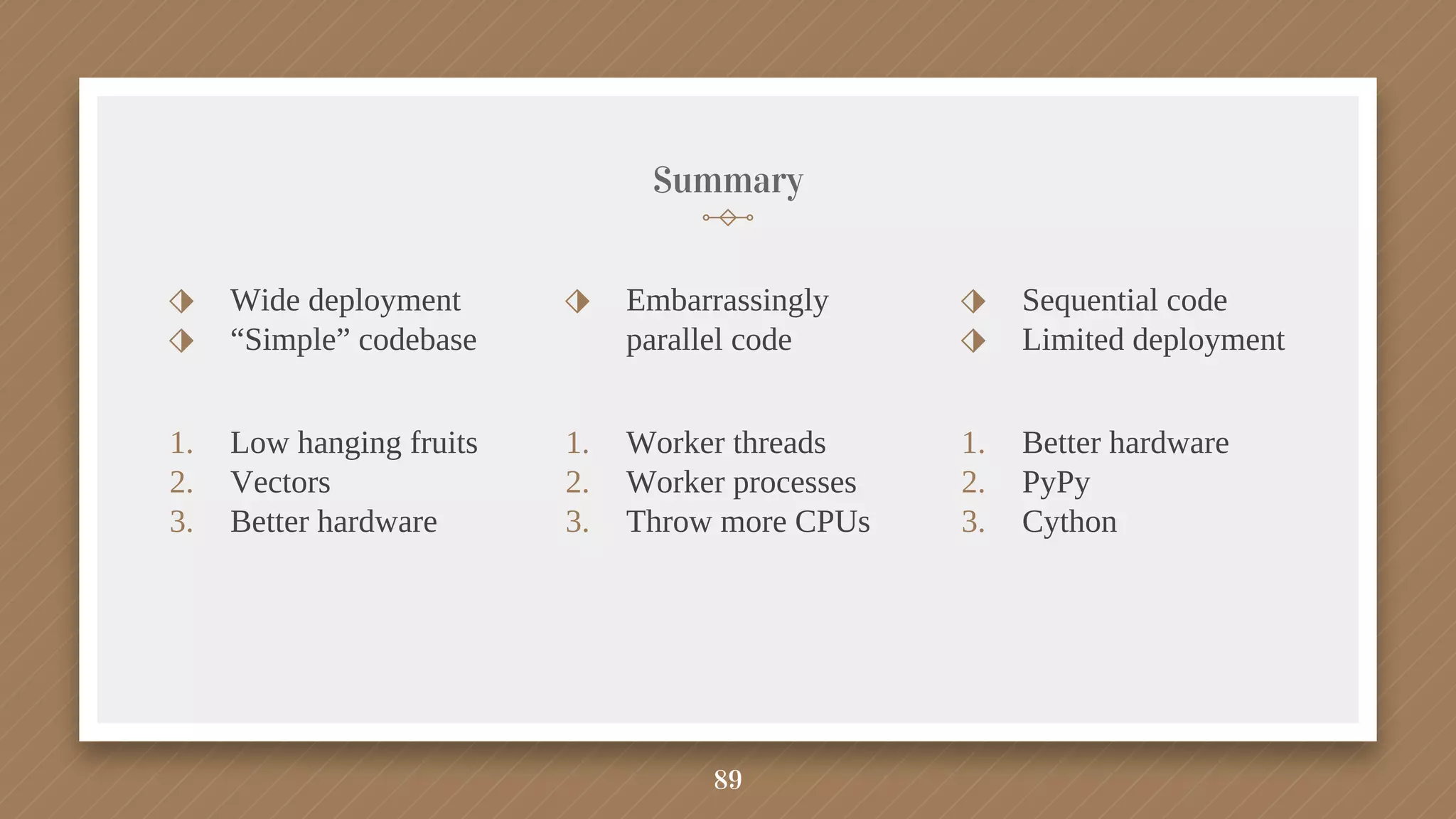

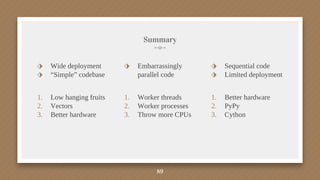

89. Summary
⬗ Wide deployment
⬗ “Simple” codebase
1. Low hanging fruits
2. Vectors
3. Better hardware
⬗ Sequential code
⬗ Limited deployment
1. Better hardware
2. PyPy
3. Cython
⬗ Embarrassingly
parallel code
1. Worker threads
2. Worker processes
3. Throw more CPUs
89

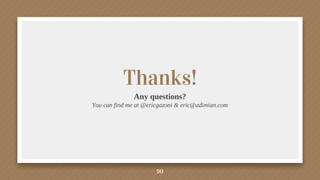

90. 90
Thanks!
Any questions?
You can find me at @ericgazoni & eric@adimian.com

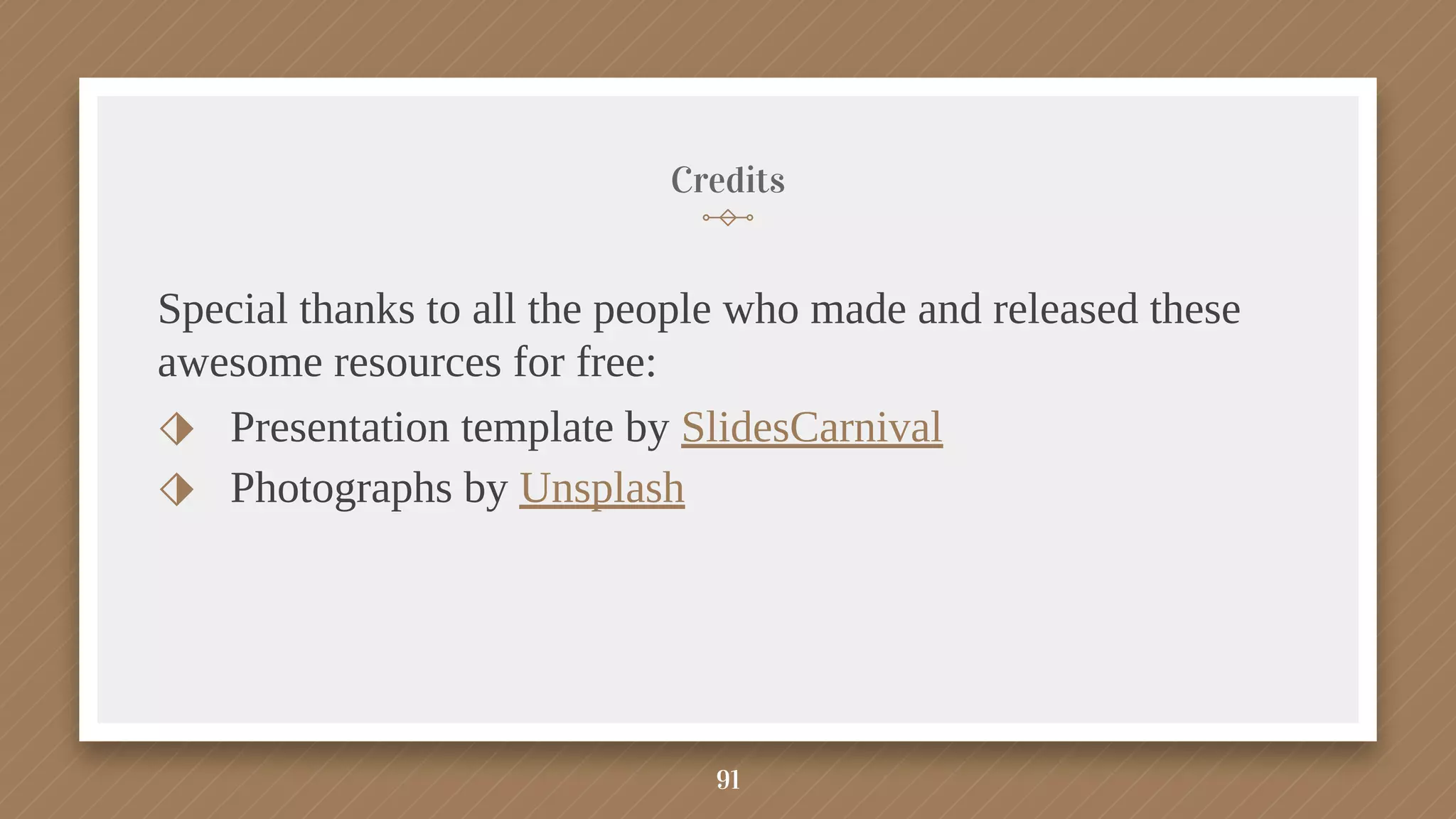

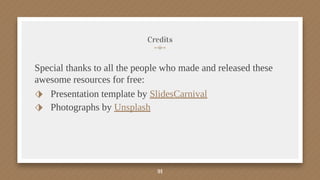

91. Credits
Special thanks to all the people who made and released these
awesome resources for free:
⬗ Presentation template by SlidesCarnival
⬗ Photographs by Unsplash
91
