Operating System : Ch4 b threads

1. Silberschatz, Galvin and Gagne 20025.1Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.1
1 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21
O P E R A T I N G S Y S T E M S
Module 4b : Thread
• Overview
• Multithreading Models
• Threading Issues
• Pthreads
• Solaris 2 Threads
• Windows 2000 Threads
• Linux Threads
• Java Threads

2. Silberschatz, Galvin and Gagne 20025.2Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.2
2 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21

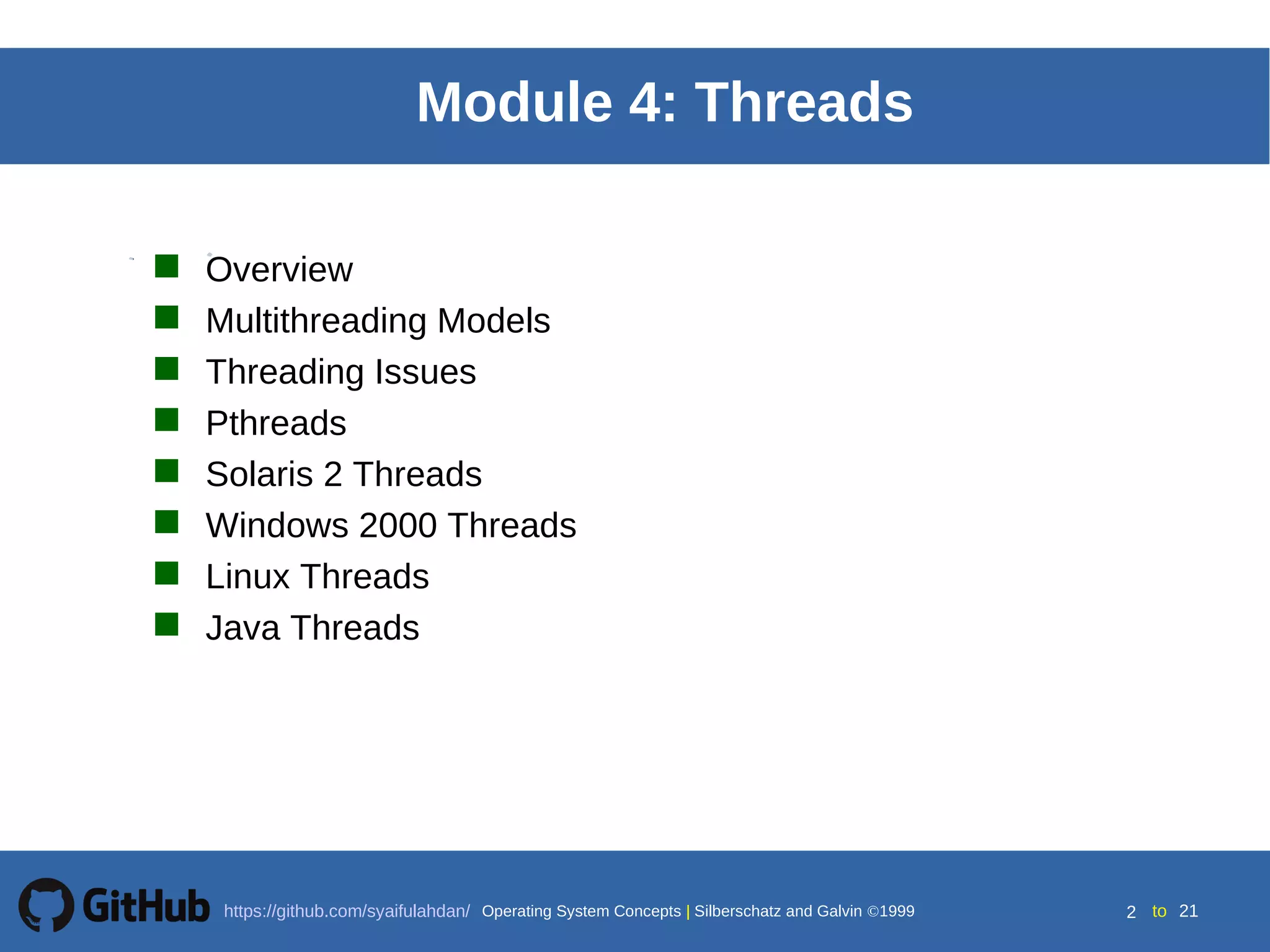

Module 4: Threads
 Overview
 Multithreading Models
 Threading Issues
 Pthreads
 Solaris 2 Threads
 Windows 2000 Threads
 Linux Threads
 Java Threads

3. Silberschatz, Galvin and Gagne 20025.3Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.3
3 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21

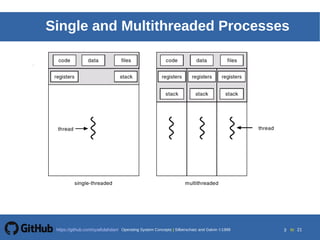

Single and Multithreaded Processes

4. Silberschatz, Galvin and Gagne 20025.4Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.4
4 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21
Benefits
 Responsiveness
 Resource Sharing
 Economy
 Utilization of MP Architectures

5. Silberschatz, Galvin and Gagne 20025.5Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.5
5 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21
User Threads
 Thread management done by user-level threads library
 Examples
- POSIX Pthreads
- Mach C-threads
- Solaris threads

6. Silberschatz, Galvin and Gagne 20025.6Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.6
6 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21
Kernel Threads
 Supported by the Kernel
 Examples
- Windows 95/98/NT/2000
- Solaris
- Tru64 UNIX
- BeOS
- Linux

7. Silberschatz, Galvin and Gagne 20025.7Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.7
7 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21

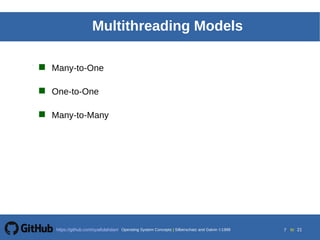

Multithreading Models
 Many-to-One
 One-to-One
 Many-to-Many

8. Silberschatz, Galvin and Gagne 20025.8Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.8
8 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21

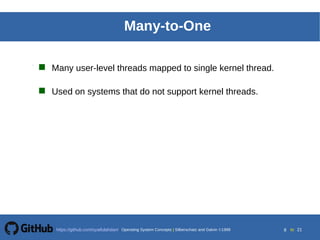

Many-to-One
 Many user-level threads mapped to single kernel thread.
 Used on systems that do not support kernel threads.

9. Silberschatz, Galvin and Gagne 20025.9Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.9
9 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21

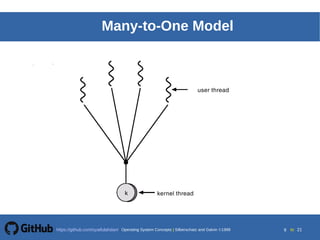

Many-to-One Model

10. Silberschatz, Galvin and Gagne 20025.10Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.10
10 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21
One-to-One
 Each user-level thread maps to kernel thread.
 Examples
- Windows 95/98/NT/2000
- OS/2

11. Silberschatz, Galvin and Gagne 20025.11Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.11
11 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21
One-to-one Model

12. Silberschatz, Galvin and Gagne 20025.12Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.12
12 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21
Many-to-Many Model
 Allows many user level threads to be mapped to many
kernel threads.
 Allows the operating system to create a sufficient
number of kernel threads.
 Solaris 2
 Windows NT/2000 with the ThreadFiber package

13. Silberschatz, Galvin and Gagne 20025.13Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.13
13 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21

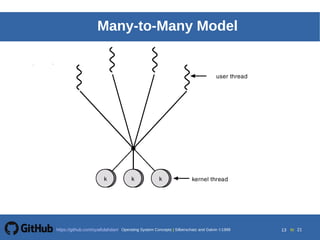

Many-to-Many Model

14. Silberschatz, Galvin and Gagne 20025.14Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.14
14 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21
Threading Issues
 Semantics of fork() and exec() system calls.
 Thread cancellation.
 Signal handling
 Thread pools
 Thread specific data

15. Silberschatz, Galvin and Gagne 20025.15Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.15
15 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21
Pthreads
 a POSIX standard (IEEE 1003.1c) API for thread creation
and synchronization.
 API specifies behavior of the thread library,
implementation is up to development of the library.
 Common in UNIX operating systems.

16. Silberschatz, Galvin and Gagne 20025.16Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.16
16 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21
Solaris 2 Threads

17. Silberschatz, Galvin and Gagne 20025.17Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.17
17 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21
Solaris Process

18. Silberschatz, Galvin and Gagne 20025.18Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.18
18 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21

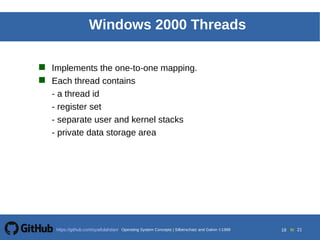

Windows 2000 Threads
 Implements the one-to-one mapping.
 Each thread contains
- a thread id
- register set
- separate user and kernel stacks
- private data storage area

19. Silberschatz, Galvin and Gagne 20025.19Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.19
19 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21
Linux Threads
 Linux refers to them as tasks rather than threads.
 Thread creation is done through clone() system call.
 Clone() allows a child task to share the address space of
the parent task (process)

20. Silberschatz, Galvin and Gagne 20025.20Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.20
20 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21

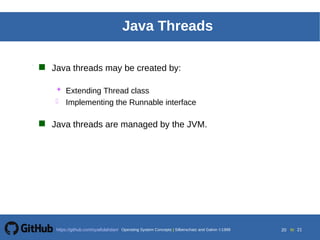

Java Threads
 Java threads may be created by:
 Extending Thread class
 Implementing the Runnable interface
 Java threads are managed by the JVM.

21. Silberschatz, Galvin and Gagne 20025.21Operating System ConceptsOperating System Concepts Silberschatz and Galvin 19994.21
21 toOperating System Concepts | Silberschatz and Galvin 1999https://github.com/syaifulahdan/ 21
Java Thread States
