This document proposes a model and architecture for opening learner profiles across heterogeneous applications. It summarizes existing approaches that have low abstraction levels and lack mechanisms for exchanging profiles. The proposed approach uses a UML-based model with a core profile composed of sub-profiles. It is based on the WBEM standard and includes a service-oriented architecture with a tracking manager and profile service to facilitate collecting and accessing profiles distributed across different systems.

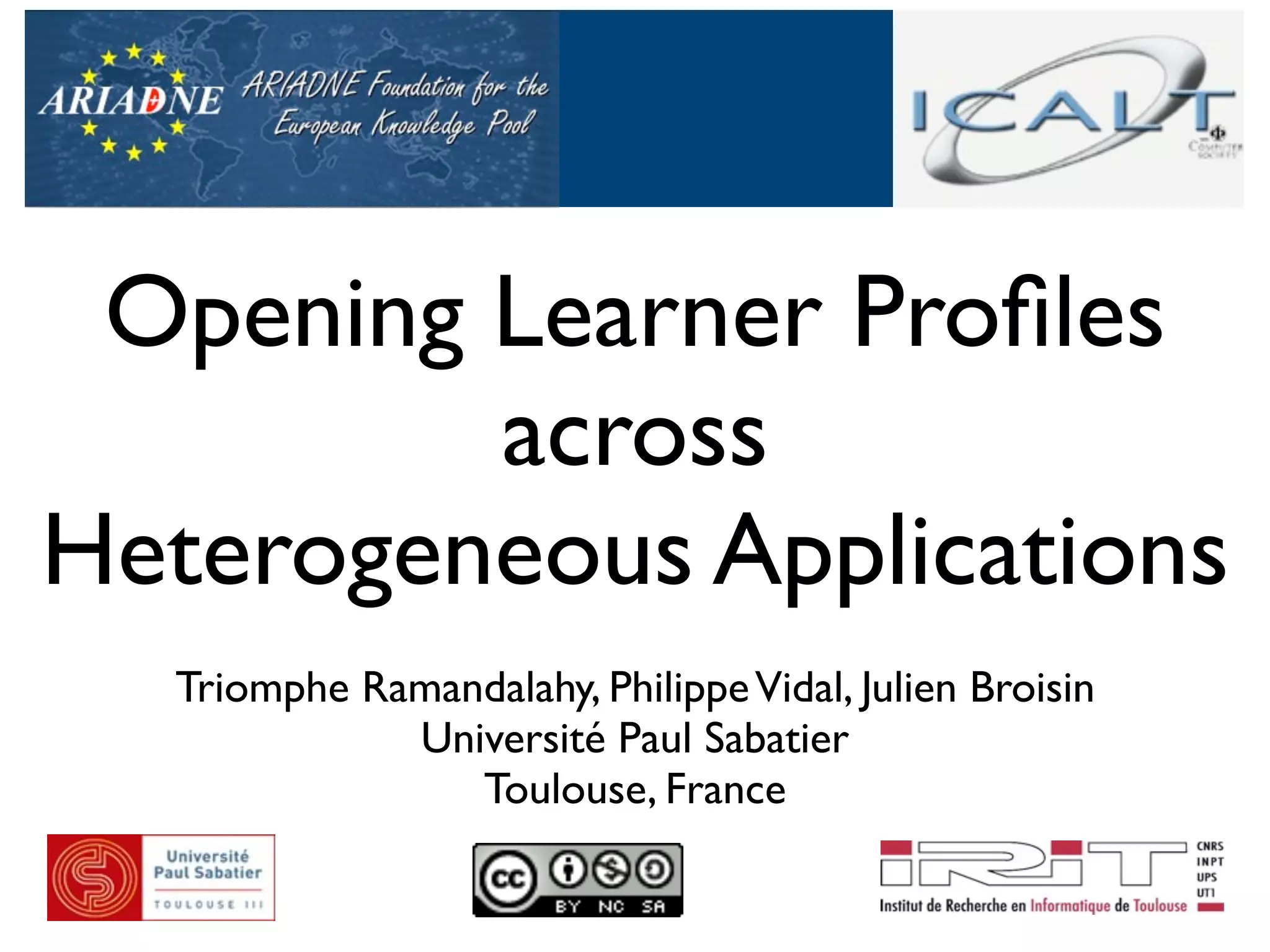

1. Opening Learner Profiles
across
Heterogeneous Applications
Triomphe Ramandalahy, Philippe Vidal, Julien Broisin
Université Paul Sabatier
Toulouse, France

2. Context
๏ Personalization of Web-based Learning Environments
๏ There is a need for collecting data about learning tools
and resources, users and activities
๏ We focus on ACTORS, and specially LEARNERS
ICALT 2009, July 16, 2009, Riga, Latvia 2

3. Issues to solve
๏ Learner profile: set of information related to a user or a
set of users
๏ Various information describing learners from various
points of view
๏ Information is distributed across heterogeneous
systems and applications
ICALT 2009, July 16, 2009, Riga, Latvia 3

4. Issues to solve
๏ Learner profile: set of information related to a user or a
set of users
๏ Various information describing learners from various
points of view
๏ Information is distributed across heterogeneous
systems and applications
๏ How to gather the whole information characterizing a
learner? How to share and reuse it?
➡Uniformely represent information to collect
➡Federate the various sources of information
ICALT 2009, July 16, 2009, Riga, Latvia 3

5. Outline
๏ Existing approaches
๏ Our proposal
๏ A model dedicated to learner profile
๏ A service oriented architecture
๏ Conclusions and future works
ICALT 2009, July 16, 2009, Riga, Latvia 4

6. Standardized approaches
๏ IEEE Personal And Private Information (PAPI - 2002)
‣ Personal information, competences, relations,
portfolio, security, ...
๏ IMS Learner Information Package (LIP - 2005)
‣ Additional information such as history, preferences,
affiliations or activities
ICALT 2009, July 16, 2009, Riga, Latvia 5

7. Specific approaches
๏ Reuse of External Profiles (REPro) [Eyssautier 08]
‣ Date of birth, living place, school year, first year (or
not) in this curriculum
๏ cosyQTY [Lazarinis 07]
‣ Personal information, objectives, knowledge, usage
of the sytem
๏ ...and many more
ICALT 2009, July 16, 2009, Riga, Latvia 6

8. Some lacks
๏ Low abstraction level
๏ No query language (or specific)
๏ No mechanism to exchange learner profiles between
heterogeneous applications
ICALT 2009, July 16, 2009, Riga, Latvia 7

9. Some lacks
๏ Low abstraction level
๏ No query language (or specific)
๏ No mechanism to exchange learner profiles between
heterogeneous applications
๏ Nearly impossible to define additional information
required for a specific learning application
๏ Very hard to share and reuse learner profiles
ICALT 2009, July 16, 2009, Riga, Latvia 7

10. Outline
๏ Existing approaches
๏ Our proposal
๏ A model dedicated to learner profile
๏ A service oriented architecture
๏ Conclusions and future works
ICALT 2009, July 16, 2009, Riga, Latvia 8

11. A model-driven approach...
๏ A UML-based modeling of learner profiles
‣ High abstraction level (extensibility)
‣ A core profile composed of several sub-profiles
๏ A system dedicated to the storage of learner profiles
๏ A service to modify/extend the learner profile
๏ A service to facilitate access to the dedicated storage
system
ICALT 2009, July 16, 2009, Riga, Latvia 9

12. ...based on an existing
standard
๏ Reuse of the “de facto” Web-Based Enterprise
Management (WBEM) standard elaborated by the
Distributed Management Task Force (DMTF)
๏ Natively dedicated to system, network and application
management
๏ The main advantages
‣ A Common Information Model (CIM)
‣ Some query languages (CQL and WQL)
‣ Some protocols to ensure communication between
heterogeneous applications and systems
‣ Several open source implementations
ICALT 2009, July 16, 2009, Riga, Latvia 10

13. Outline
๏ Existing approaches
๏ Our proposal
๏ A model dedicated to learner profile
๏ A service oriented architecture
๏ Conclusions and future works
ICALT 2009, July 16, 2009, Riga, Latvia 11

14. The global learner profile
๏ Based on the existing CIM User model
ICALT 2009, July 16, 2009, Riga, Latvia 12

15. A Technology Enhanced
Learning (TEL) core profil
๏ To represent any
TEL actor
(learner, teacher,
tutor, ...)
ICALT 2009, July 16, 2009, Riga, Latvia 13

16. A core profil for learners
ICALT 2009, July 16, 2009, Riga, Latvia 14

17. The cognitive sub-profile
๏ Integrates IMS LIP
categories
ICALT 2009, July 16, 2009, Riga, Latvia 15

18. The preference sub-profil
๏ Integrates interests,
preferences and
relationships
ICALT 2009, July 16, 2009, Riga, Latvia 16

19. The identification sub-
profile
๏ CIM User
๏ Additional information
ICALT 2009, July 16, 2009, Riga, Latvia 17

20. The metacognitive sub-
profile
๏ Various information
specified by
psychologists
ICALT 2009, July 16, 2009, Riga, Latvia 18

21. Outline
๏ Existing approaches
๏ Our proposal
๏ A model dedicated to learner profile
๏ A service oriented architecture
๏ Conclusions and future works
ICALT 2009, July 16, 2009, Riga, Latvia 19

22. The 3/3 architecture
ICALT 2009, July 16, 2009, Riga, Latvia 20

23. The 3/3 architecture
LEARNING ENVIRONMENT
LEARNING
SYSTEM 1
LEARNING
SYSTEM 2
LEARNING
SYSTEM N
ICALT 2009, July 16, 2009, Riga, Latvia 20

24. The 3/3 architecture
LEARNING ENVIRONMENT TRACKING ENVIRONMENT
LEARNING WBEM
TRACKING MANAGER
SYSTEM 1 framework
LEARNING
SYSTEM 2
LEARNING
TRACKING
SYSTEM N
ICALT 2009, July 16, 2009, Riga, Latvia 20

25. The 3/3 architecture
LEARNING ENVIRONMENT INTERMEDIATE TRACKING ENVIRONMENT
LAYER
AGENT
LEARNING WBEM
TRACKING MANAGER
SYSTEM 1 LEARNER framework
PROFILE
SERVICE
AGENT
LEARNING
SYSTEM 2
MODEL
PROFILE
AGENT
LEARNING SERVICE TRACKING
SYSTEM N
ICALT 2009, July 16, 2009, Riga, Latvia 20

26. Collecting the whole profile
from various applications
INTERMEDIATE
LEARNING ENVIRONMENT TRACKING ENVIRONMENT
LAYER
LEARNING AGENT WBEM
TRACKING MANAGER
SYSTEM 1 LEARNER framework
PROFILE
SERVICE
AGENT
LEARNING
SYSTEM 2
MODEL
PROFILE
AGENT
VIS. SERVICE
TOOL TRACKING
ICALT 2009, July 16, 2009, Riga, Latvia 21

27. The profil visualization tool
ICALT 2009, July 16, 2009, Riga, Latvia 22

28. Outline
๏ Existing approaches
๏ Our proposal
๏ A model dedicated to learner profile
๏ A service oriented architecture
๏ Conclusions and future works
ICALT 2009, July 16, 2009, Riga, Latvia 23

29. Conclusions
๏ Standardized approach: WBEM is natively integrated
within Microsoft and Linux operating systems
๏ The learner model
‣ High abstraction level (extensible)
‣ Integrates existing profils (IMS LIP, IEEE PAPI)
‣ Integrates metacognitive properties
๏ The management services
‣ Facilitate access to the tracking repository
‣ Make it easy to take into account additional
information
‣ Promote sharing and reusing of learner profiles
ICALT 2009, July 16, 2009, Riga, Latvia 24

30. Future works
๏ Experimentation with students of the Institute of
Technology in computer science (should have been
done this year but...)
๏ Automated extraction of users data enclosed within
the WBEM component of Microsoft Windows XP and
Vista
๏ Providing an intelligent helping system
‣ Detection of difficulty
‣ Analyse (data mining)
‣ Triggering contextual help
ICALT 2009, July 16, 2009, Riga, Latvia 25

31. Questions?
http://www.irit.fr/~Julien.Broisin
broisin@irit.fr
Thanks!
ICALT 2009, July 16, 2009, Riga, Latvia 26
