1. Scaling Storage Without
Compromising on Features
Bryan Badger, CEO
Integral Networks

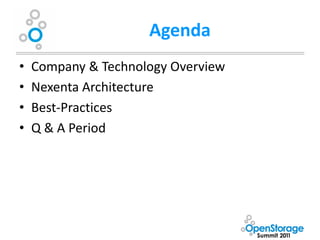

2. Agenda
• Company & Technology Overview
• Nexenta Architecture
• Best-Practices
• Q & A Period

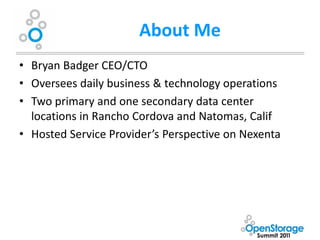

3. About Me
• Bryan Badger CEO/CTO
• Oversees daily business & technology operations
• Two primary and one secondary data center
locations in Rancho Cordova and Natomas, Calif
• Hosted Service Provider’s Perspective on Nexenta

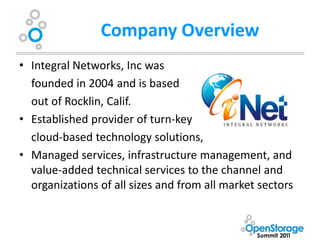

4. Company Overview
• Integral Networks, Inc was
founded in 2004 and is based
out of Rocklin, Calif.
• Established provider of turn-key
cloud-based technology solutions,
• Managed services, infrastructure management, and
value-added technical services to the channel and
organizations of all sizes and from all market sectors

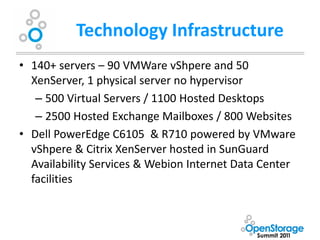

5. Technology Infrastructure
• 140+ servers – 90 VMWare vShpere and 50
XenServer, 1 physical server no hypervisor
– 500 Virtual Servers / 1100 Hosted Desktops
– 2500 Hosted Exchange Mailboxes / 800 Websites
• Dell PowerEdge C6105 & R710 powered by VMware
vShpere & Citrix XenServer hosted in SunGuard
Availability Services & Webion Internet Data Center
facilities

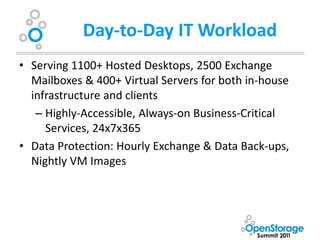

6. Day-to-Day IT Workload
• Serving 1100+ Hosted Desktops, 2500 Exchange
Mailboxes & 400+ Virtual Servers for both in-house
infrastructure and clients
– Highly-Accessible, Always-on Business-Critical
Services, 24x7x365
• Data Protection: Hourly Exchange & Data Back-ups,
Nightly VM Images

7. Previous Storage Platform
• NetApp FAS2020 – Backend SAN
– Unable to keep up with I/O load; caused poor
performance
– Storage costs per gigabyte almost 20x more than
NexentaStor solution
• Dell EqualLogic PS5000/6000 Series – Backend SAN
– Cost-prohibitive scale-out solution as business
needs out-grew capacity
– Finite amount of storage per head node

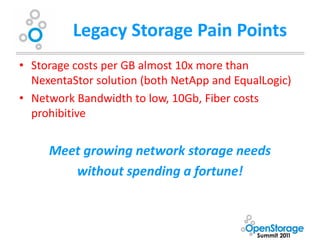

8. Legacy Storage Pain Points
• Storage costs per GB almost 10x more than
NexentaStor solution (both NetApp and EqualLogic)
• Network Bandwidth to low, 10Gb, Fiber costs
prohibitive
Meet growing network storage needs
without spending a fortune!

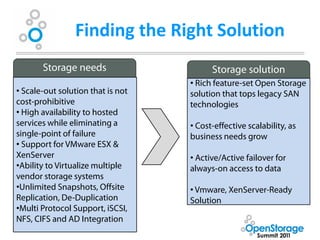

9. Finding the Right Solution
Storage needs Storage solution
• Rich feature-set Open Storage
• Scale-out solution that is not solution that tops legacy SAN
cost-prohibitive technologies
• High availability to hosted
services while eliminating a • Cost-effective scalability, as
single-point of failure business needs grow
• Support for VMware ESX &
XenServer • Active/Active failover for
•Ability to Virtualize multiple always-on access to data
vendor storage systems
•Unlimited Snapshots, Offsite • Vmware, XenServer-Ready
Replication, De-Duplication Solution
•Multi Protocol Support, iSCSI,
NFS, CIFS and AD Integration

10. The Business Value of Nexenta for High Availability
Nexenta Architecture
IT Infrastructure • vShpere Cluster •XenServer •ISO & File
• 400+ VMs Cluster Repository
• AD, DB,Exchange •1100+ Desktops •VM Templates
NFS NFS NFS/CIFS
10Gb Networking
Community Edition
Enterprise Edition
• Replication • Snapshots

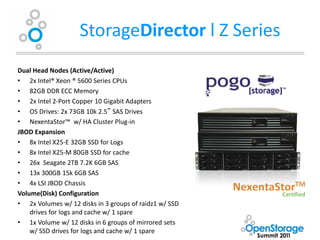

11. StorageDirector l Z Series
Dual Head Nodes (Active/Active)
• 2x Intel® Xeon ® 5600 Series CPUs
• 82GB DDR ECC Memory
• 2x Intel 2-Port Copper 10 Gigabit Adapters
• OS Drives: 2x 73GB 10k 2.5” SAS Drives
• NexentaStor™ w/ HA Cluster Plug-in
JBOD Expansion
• 8x Intel X25-E 32GB SSD for Logs
• 8x Intel X25-M 80GB SSD for cache
• 26x Seagate 2TB 7.2K 6GB SAS
• 13x 300GB 15k 6GB SAS
• 4x LSI JBOD Chassis
Volume(Disk) Configuration
• 2x Volumes w/ 12 disks in 3 groups of raidz1 w/ SSD
drives for logs and cache w/ 1 spare
• 1x Volume w/ 12 disks in 6 groups of mirrored sets
w/ SSD drives for logs and cache w/ 1 spare

12. Enterprise Storage w/o the Cost
Technology Benefits
 Unlimited Snapshots
 TBD
 TBD
 Community Edition
Business Benefits
 Scalable solution that’s 20x
less than legacy SAN
 Ability to add HA &
virtualization

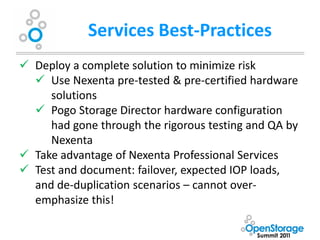

13. Services Best-Practices
 Deploy a complete solution to minimize risk
 Use Nexenta pre-tested & pre-certified hardware
solutions
 Pogo Storage Director hardware configuration
had gone through the rigorous testing and QA by
Nexenta
 Take advantage of Nexenta Professional Services
 Test and document: failover, expected IOP loads,
and de-duplication scenarios – cannot over-
emphasize this!

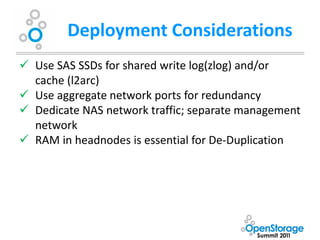

14. Deployment Considerations
 Use SAS SSDs for shared write log(zlog) and/or
cache (l2arc)
 Use aggregate network ports for redundancy
 Dedicate NAS network traffic; separate management
network
 RAM in headnodes is essential for De-Duplication
