![#include "stdafx.h"
#include "opencv2/highgui/highgui.hpp"
#include <iostream>
using namespace cv;
using namespace std;
int main(int argc, char* argv[])
{
VideoCapture cap(0); // open the video camera no. 0
if (!cap.isOpened()) // if not success, exit program
{
cout << "Cannot open the video file" << endl;
return -1;
}
double dWidth = cap.get(CV_CAP_PROP_FRAME_WIDTH); //get the width of frames of the video
double dHeight = cap.get(CV_CAP_PROP_FRAME_HEIGHT); //get the height of frames of the video
cout << "Frame size : " << dWidth << " x " << dHeight << endl;
namedWindow("MyVideo", CV_WINDOW_AUTOSIZE); //create a window called “MyVideo”
Mat frame;
while (1)
{
bool bSuccess = cap.read(frame); // read a new frame from video
if (!bSuccess) //if not success, break loop
{
cout << "Cannot read a frame from video file" << endl;
break;
}
imshow("MyVideo", frame); //show the frame in “MyVideo” window
if (waitKey(30) == 27) //wait for ‘esc’ key press for 30ms. If ‘esc’ key is pressed, break loop
{
cout << "esc key is pressed by user" << endl;
break;
}
}
return 0;
}
Sample Code
For Codes:
http://pastebin.com/fVzH4QcL](https://image.slidesharecdn.com/opencvwin-150204082523-conversion-gate01/75/OpenCV-installation-in-windows-visual-studio-30-2048.jpg)

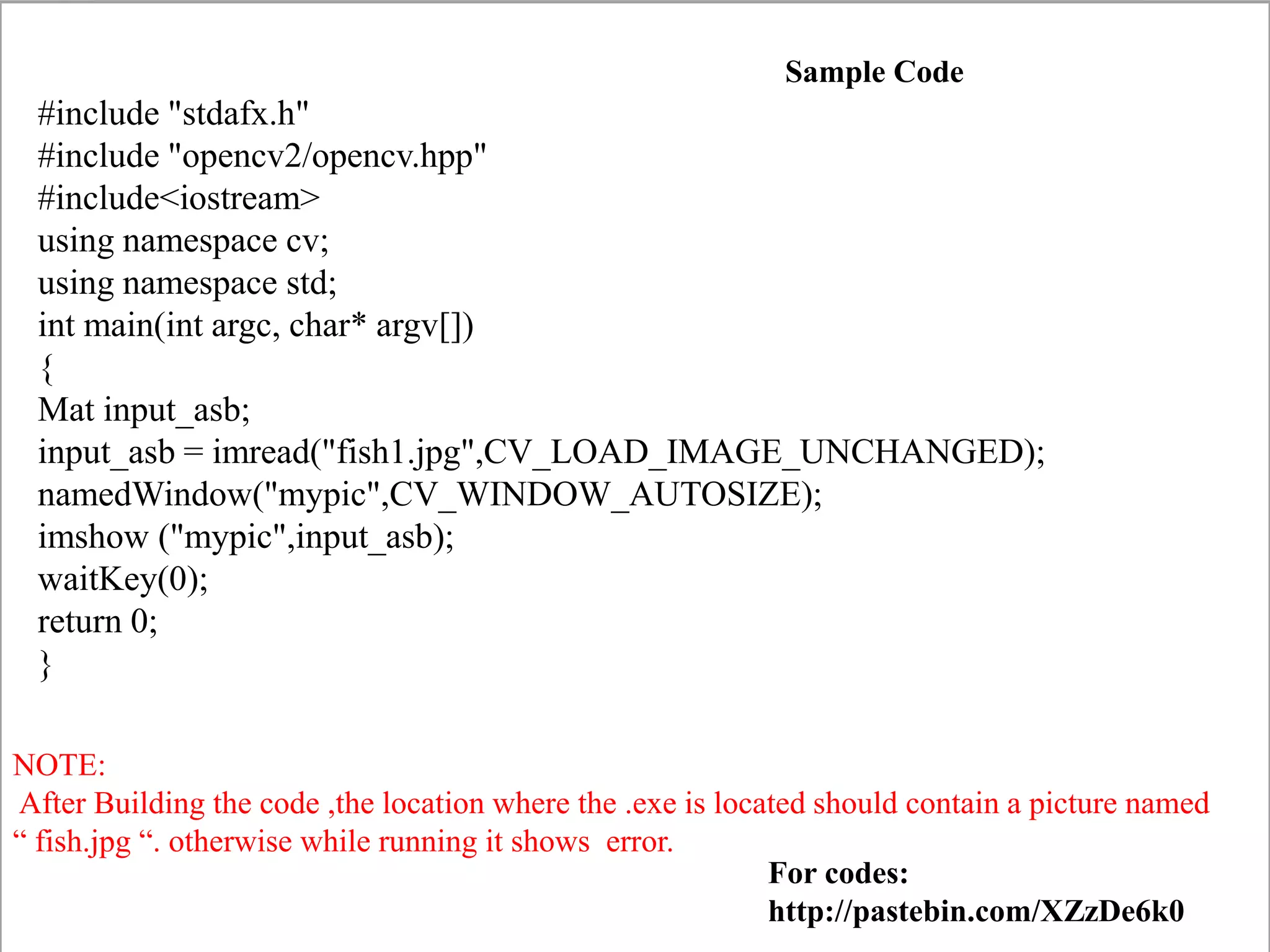

![NOTE:
After Building the code ,the location where the .exe is located should contain a picture named
“ fish.jpg “. otherwise while running it shows error.
#include "stdafx.h"
#include "opencv2/opencv.hpp"
#include<iostream>
using namespace cv;
using namespace std;
int main(int argc, char* argv[])
{
Mat input_asb;
input_asb = imread("fish1.jpg",CV_LOAD_IMAGE_UNCHANGED);
namedWindow("mypic",CV_WINDOW_AUTOSIZE);
imshow ("mypic",input_asb);
waitKey(0);
return 0;
}
Sample Code
For codes:
http://pastebin.com/XZzDe6k0](https://image.slidesharecdn.com/opencvwin-150204082523-conversion-gate01/75/OpenCV-installation-in-windows-visual-studio-31-2048.jpg)
Uploaded byPeter Jose
OpenCV installation in windows visual studio
This document provides instructions for setting up OpenCV 2.4.9 on Windows with Visual Studio 2013 for 64-bit systems. It includes steps for configuring project properties for include directories and libraries. Code samples are provided to read from a video camera and display frames, and to read and display an image file. Notes are included for adapting the instructions for 32-bit systems and different OpenCV/Visual Studio versions.
More Related Content
Similar to OpenCV installation in windows visual studio
OpenCV installation in windows visual studio
- 1.

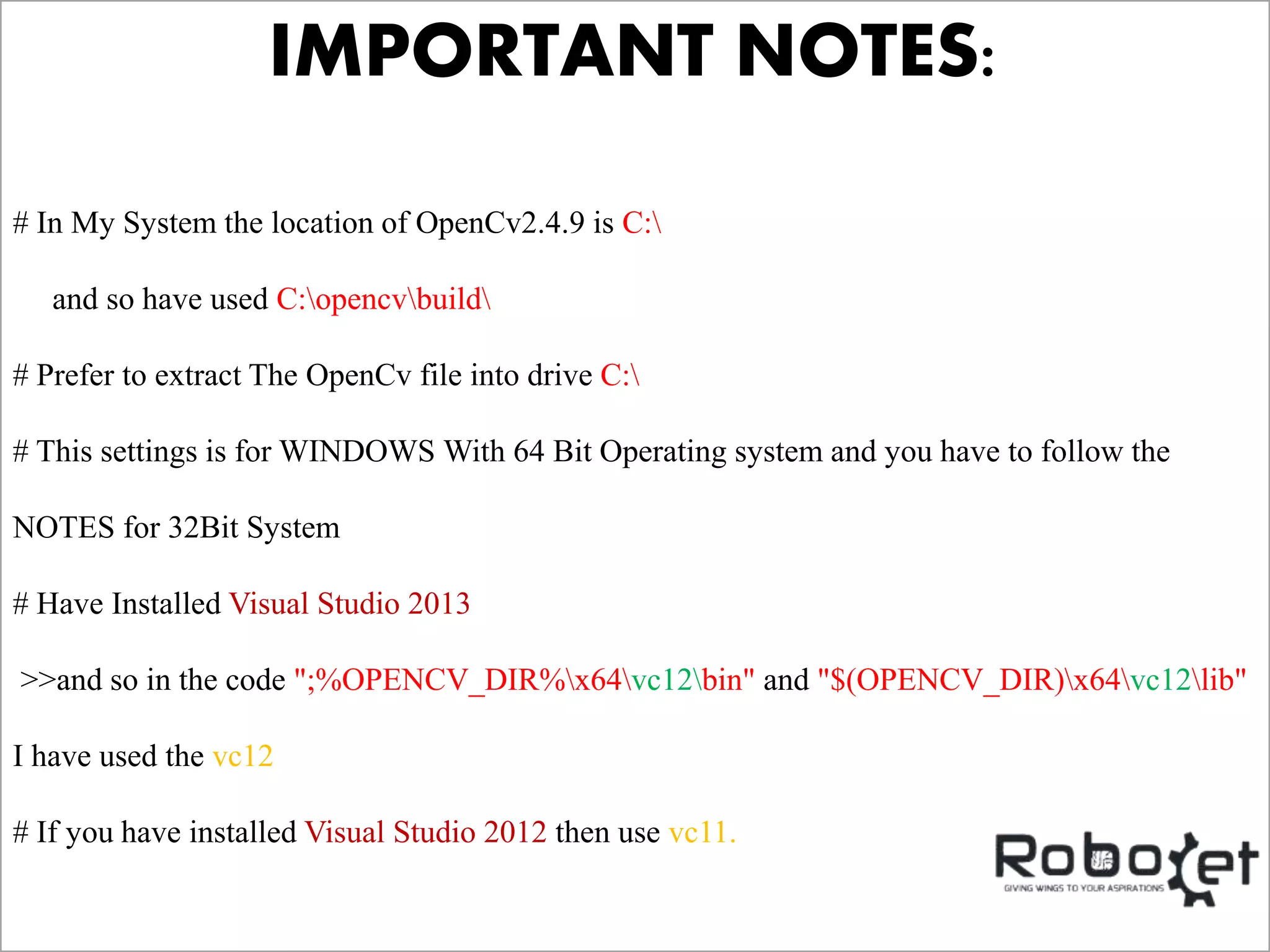

- 2. IMPORTANT NOTES: # InMy System the location of OpenCv2.4.9 is C: and so have used C:opencvbuild # Prefer to extract The OpenCv file into drive C: # This settings is for WINDOWS With 64 Bit Operating system and you have to follow the NOTES for 32Bit System # Have Installed Visual Studio 2013 >>and so in the code ";%OPENCV_DIR%x64vc12bin" and "$(OPENCV_DIR)x64vc12lib" I have used the vc12 # If you have installed Visual Studio 2012 then use vc11.

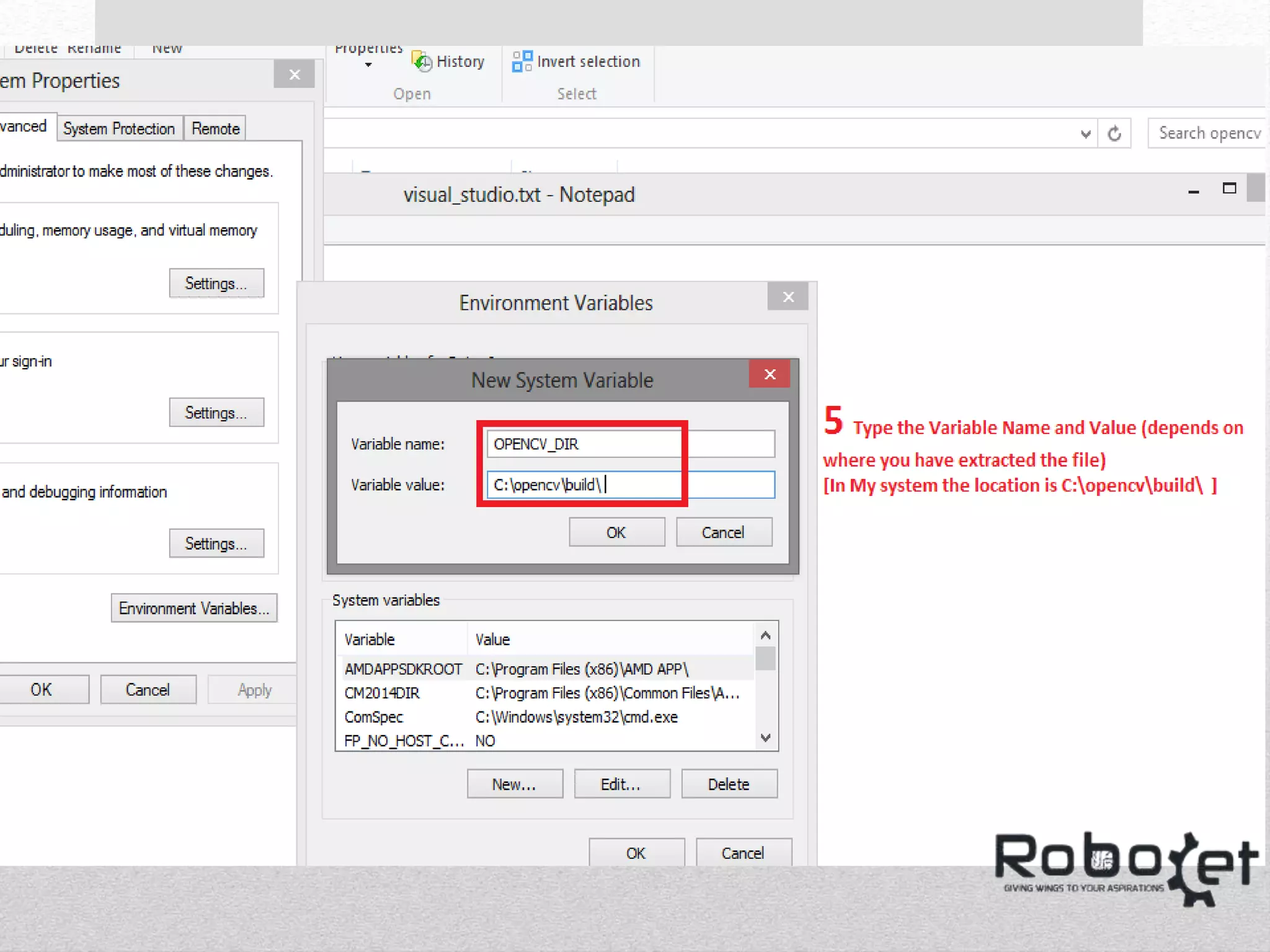

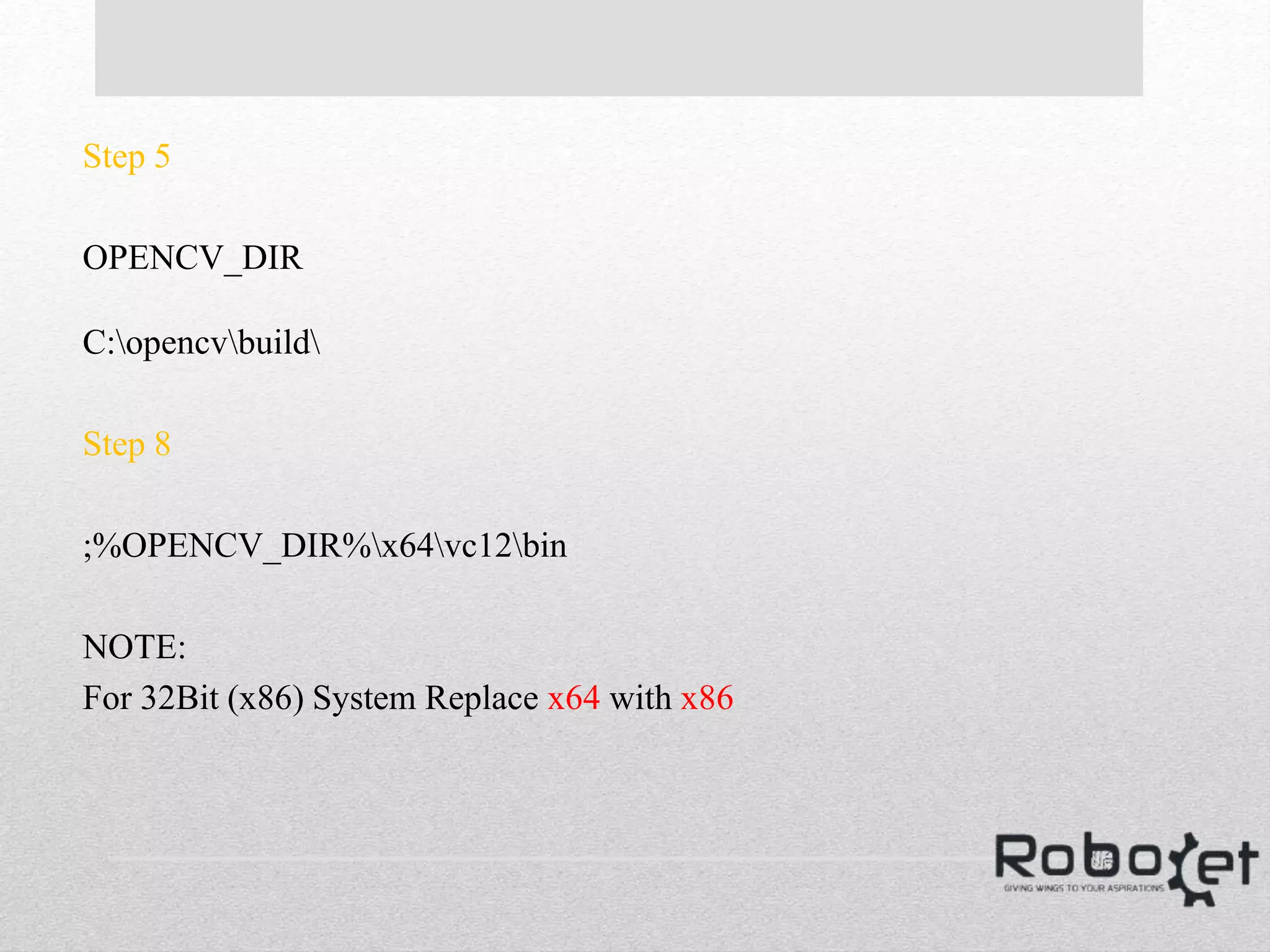

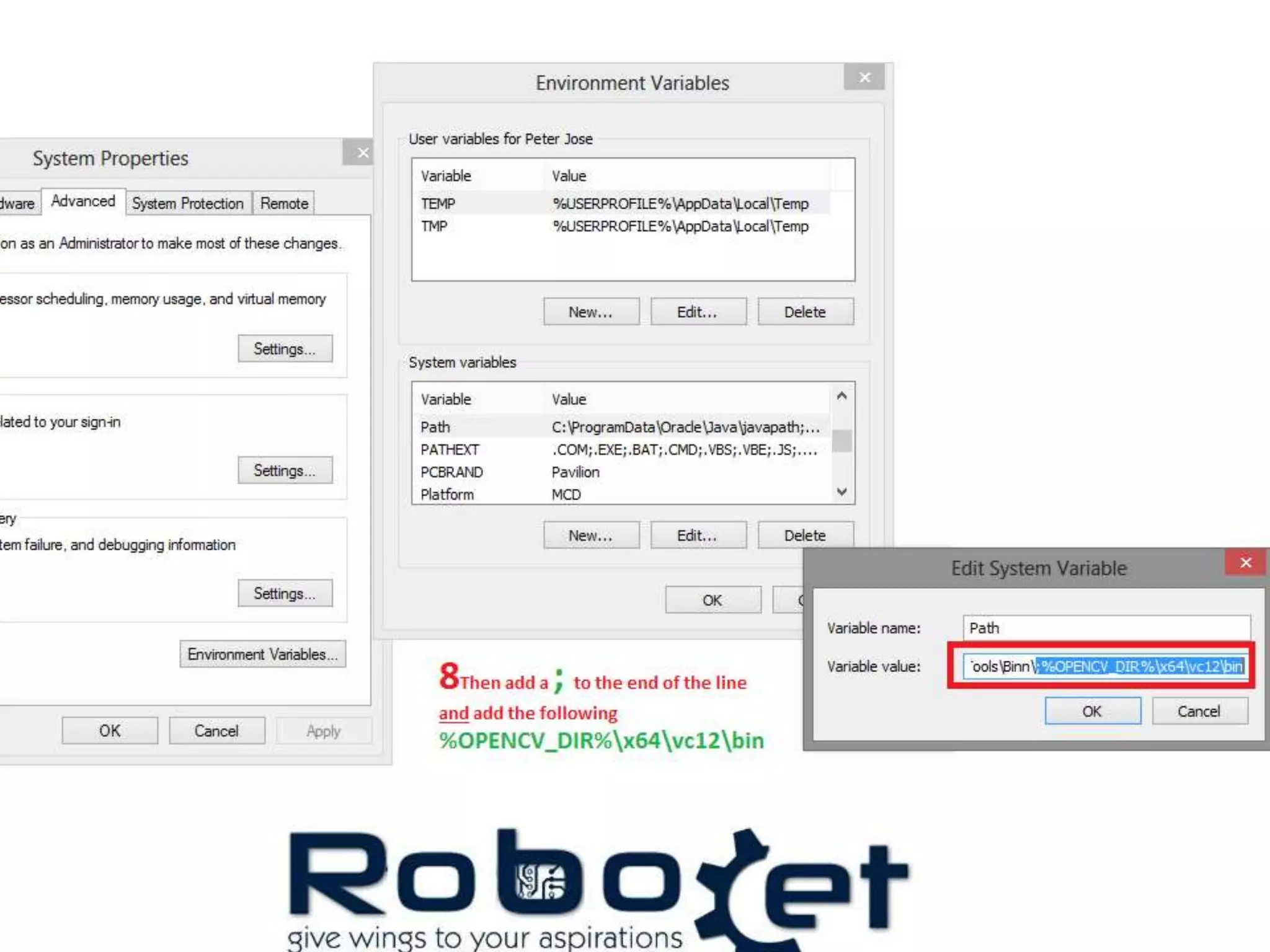

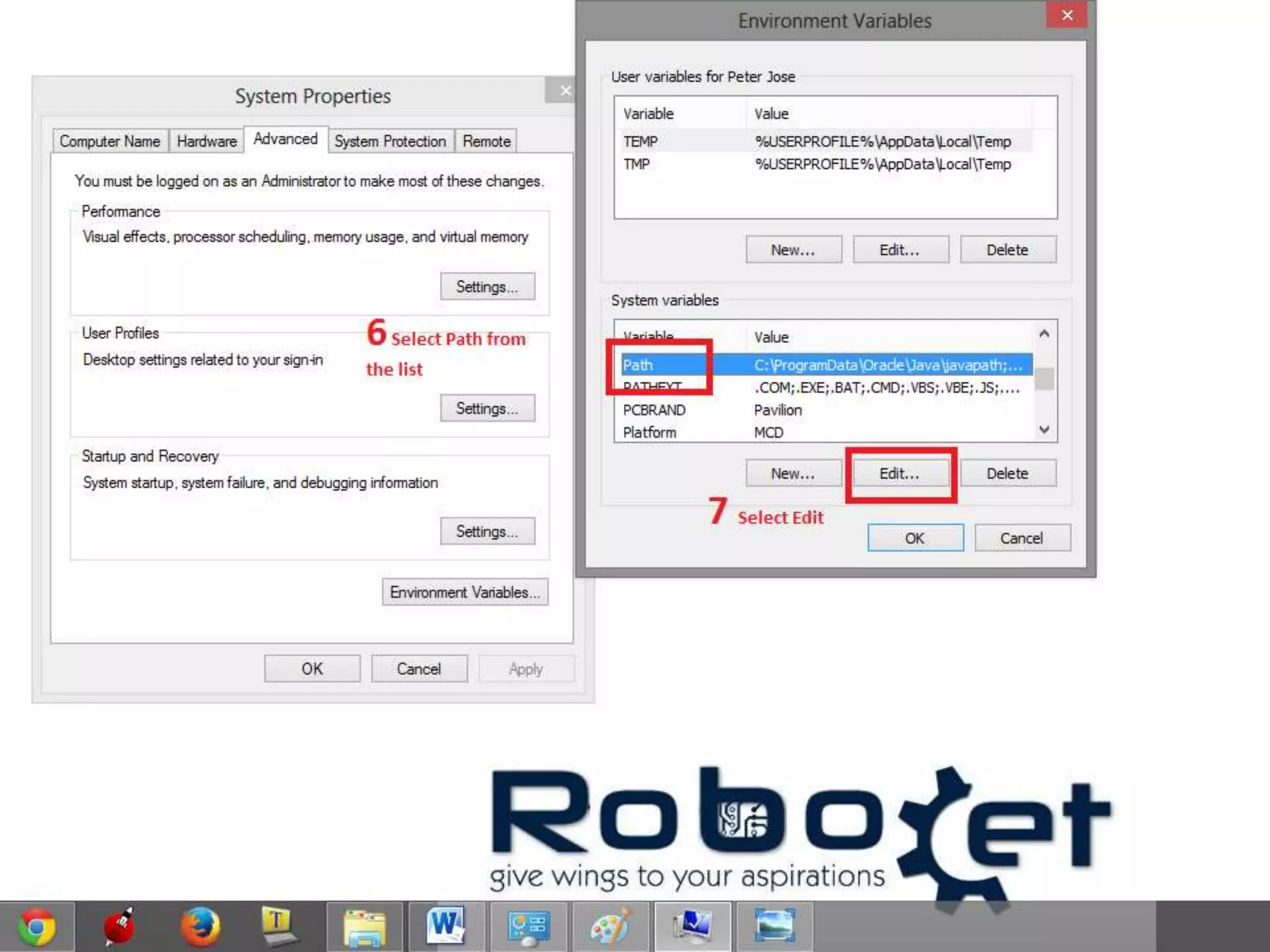

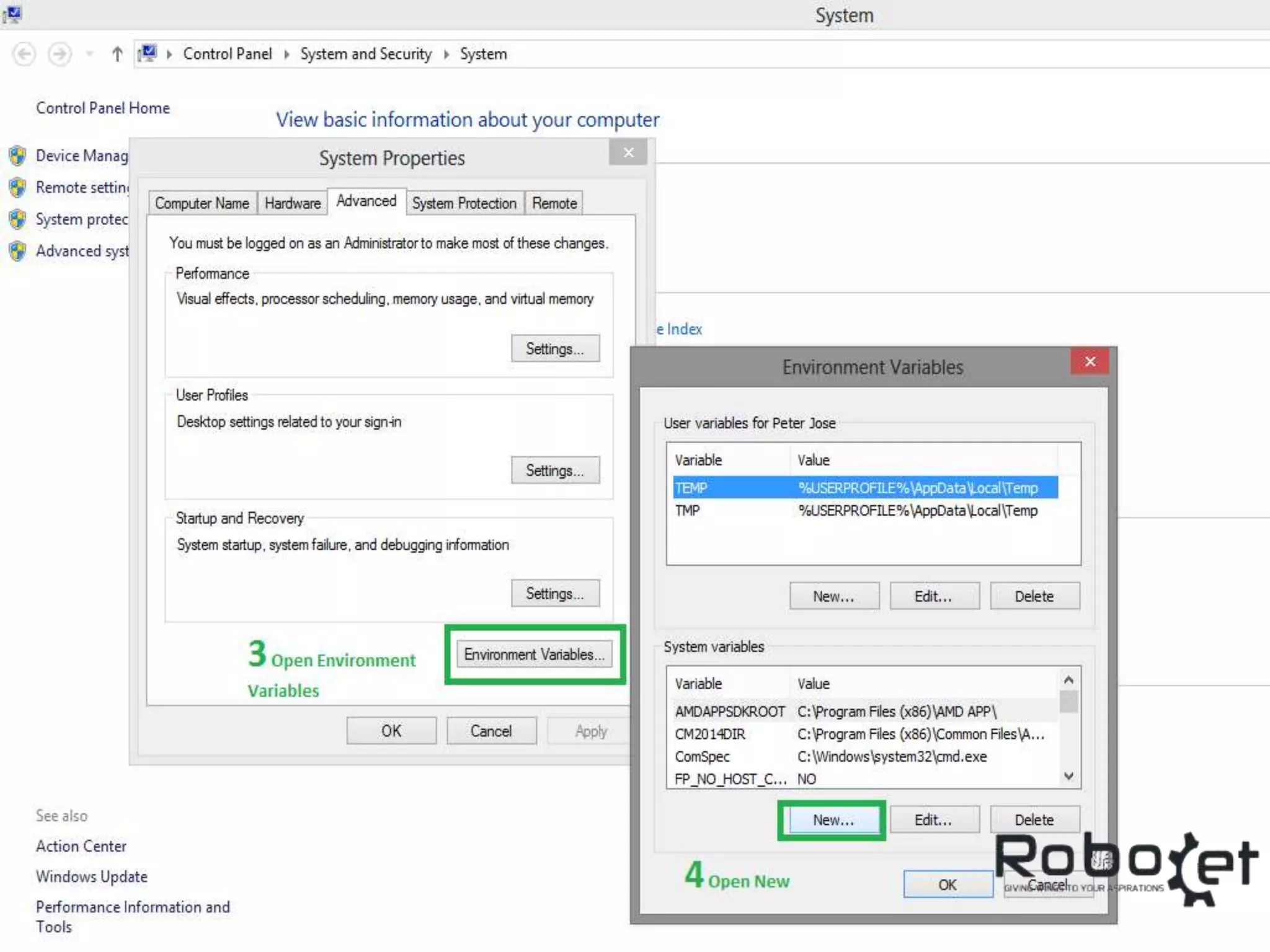

- 5. Step 5 OPENCV_DIR C:opencvbuild Step 8 ;%OPENCV_DIR%x64vc12bin NOTE: For32Bit (x86) System Replace x64 with x86

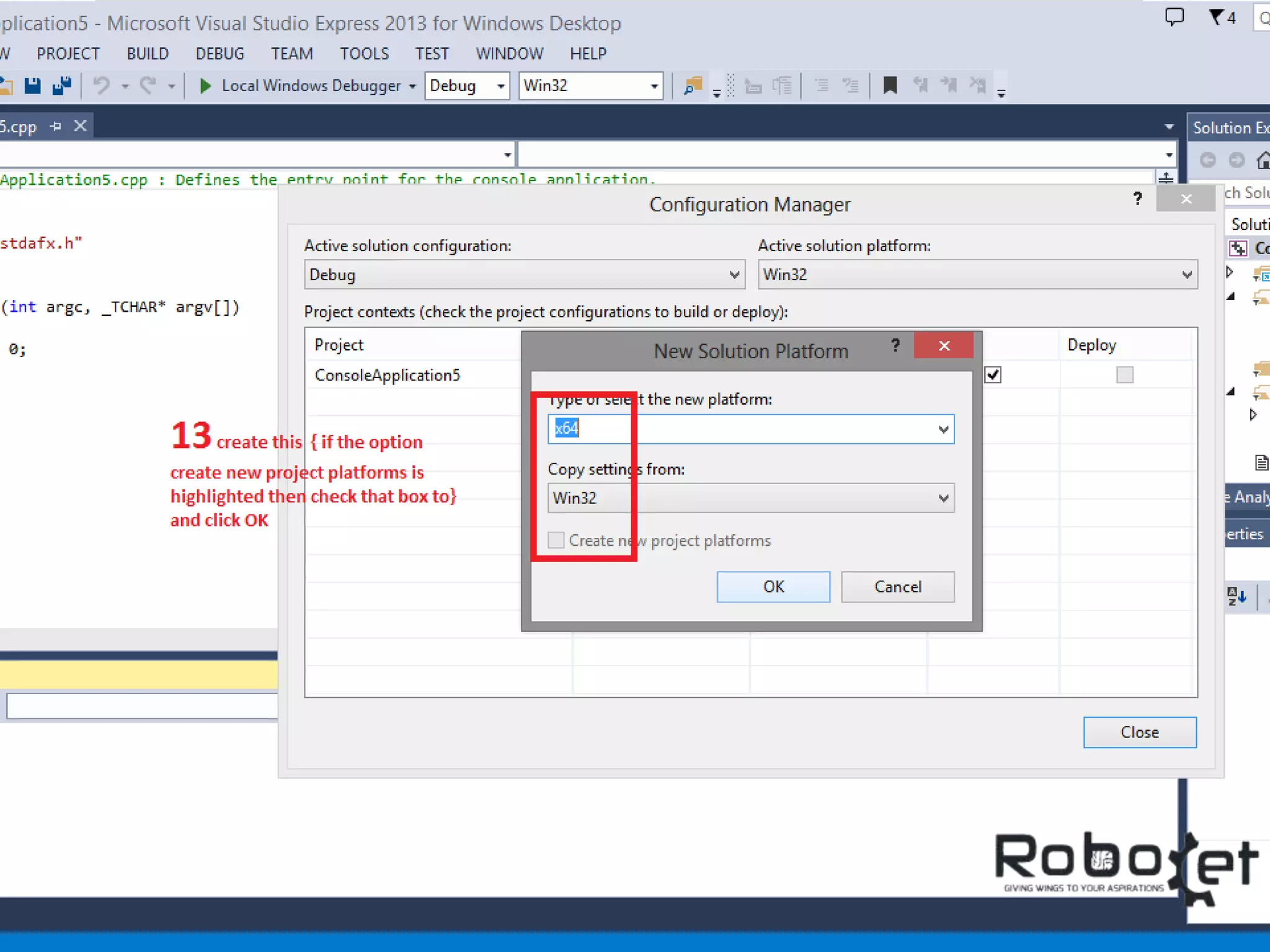

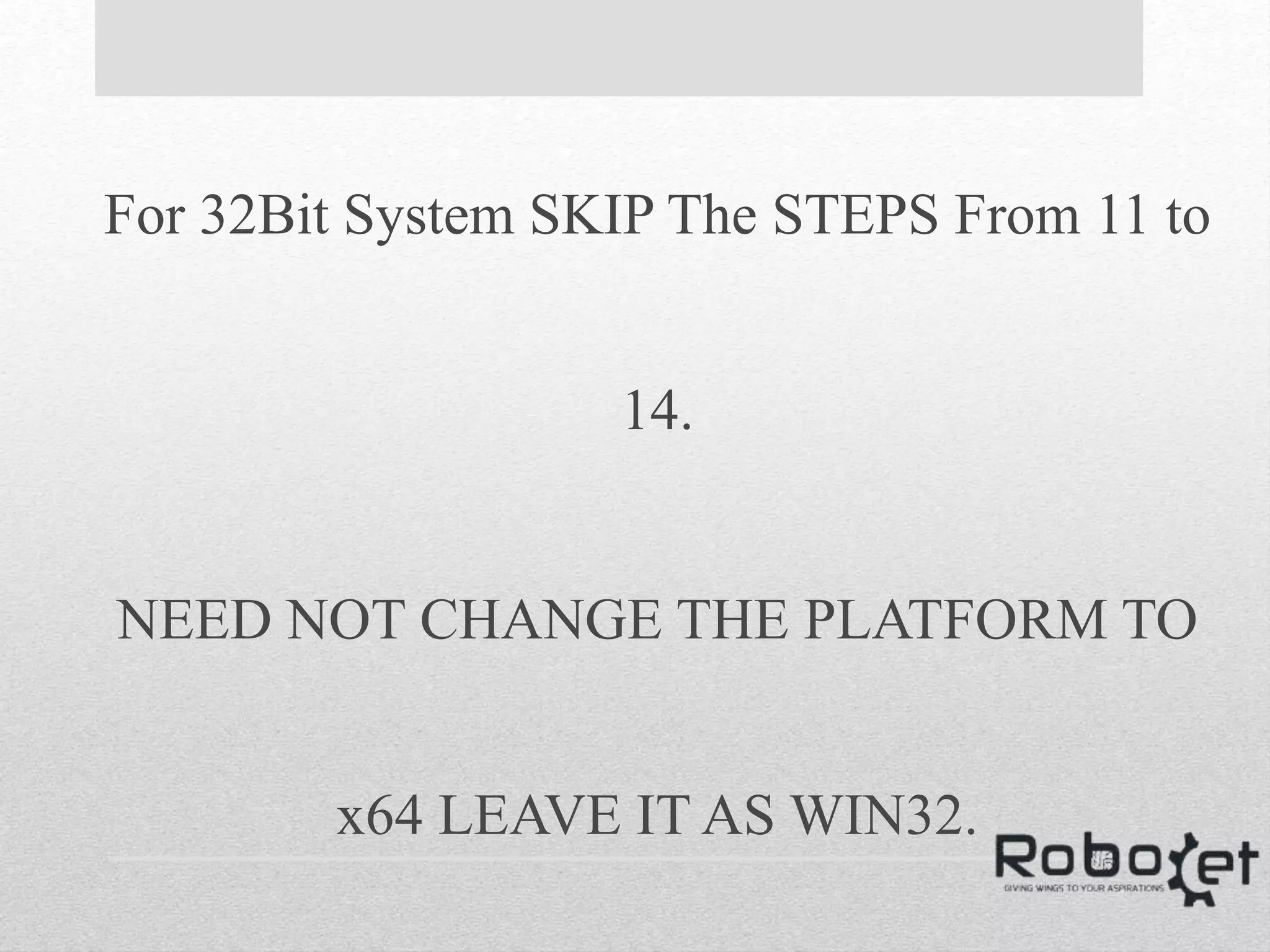

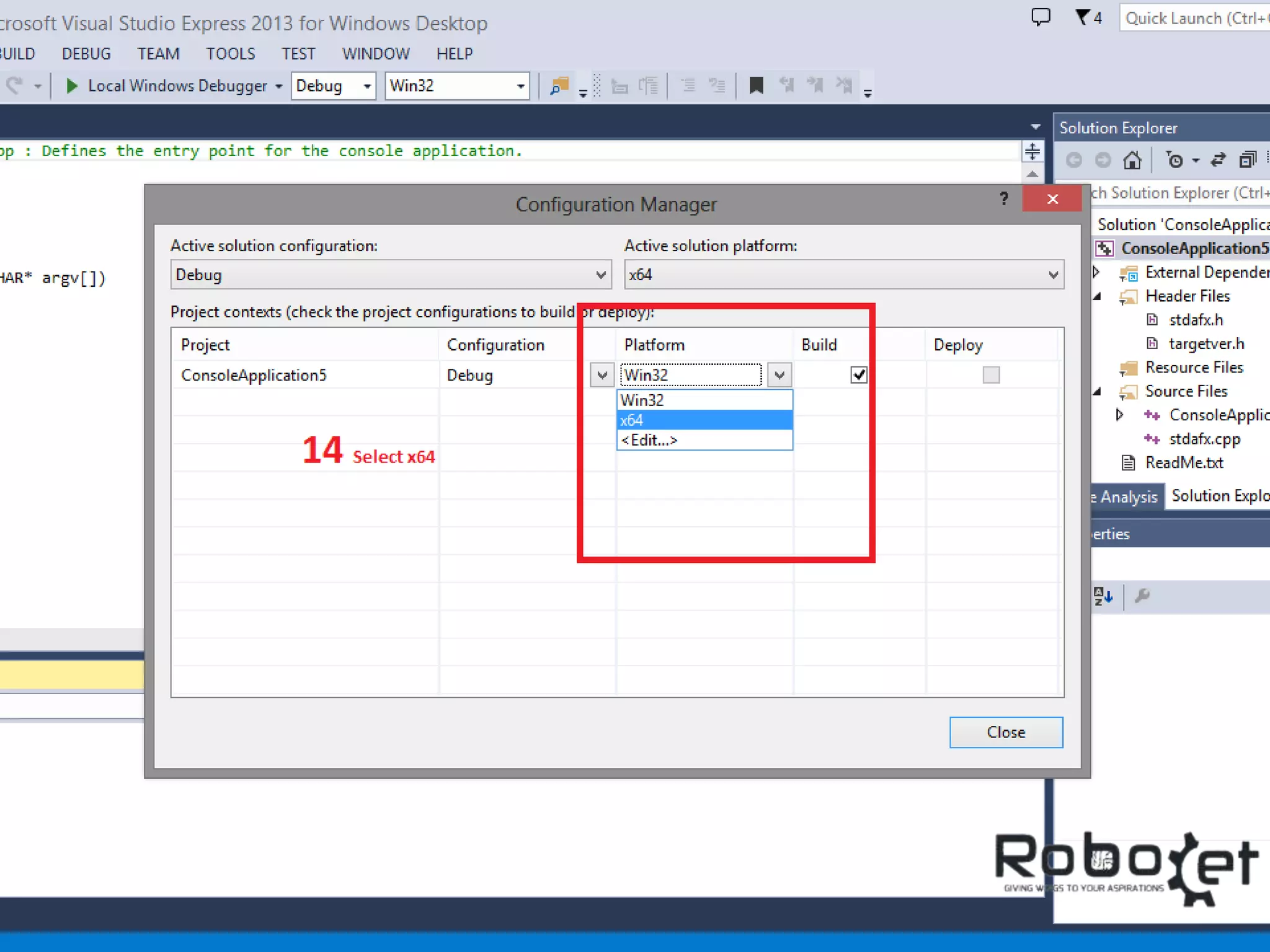

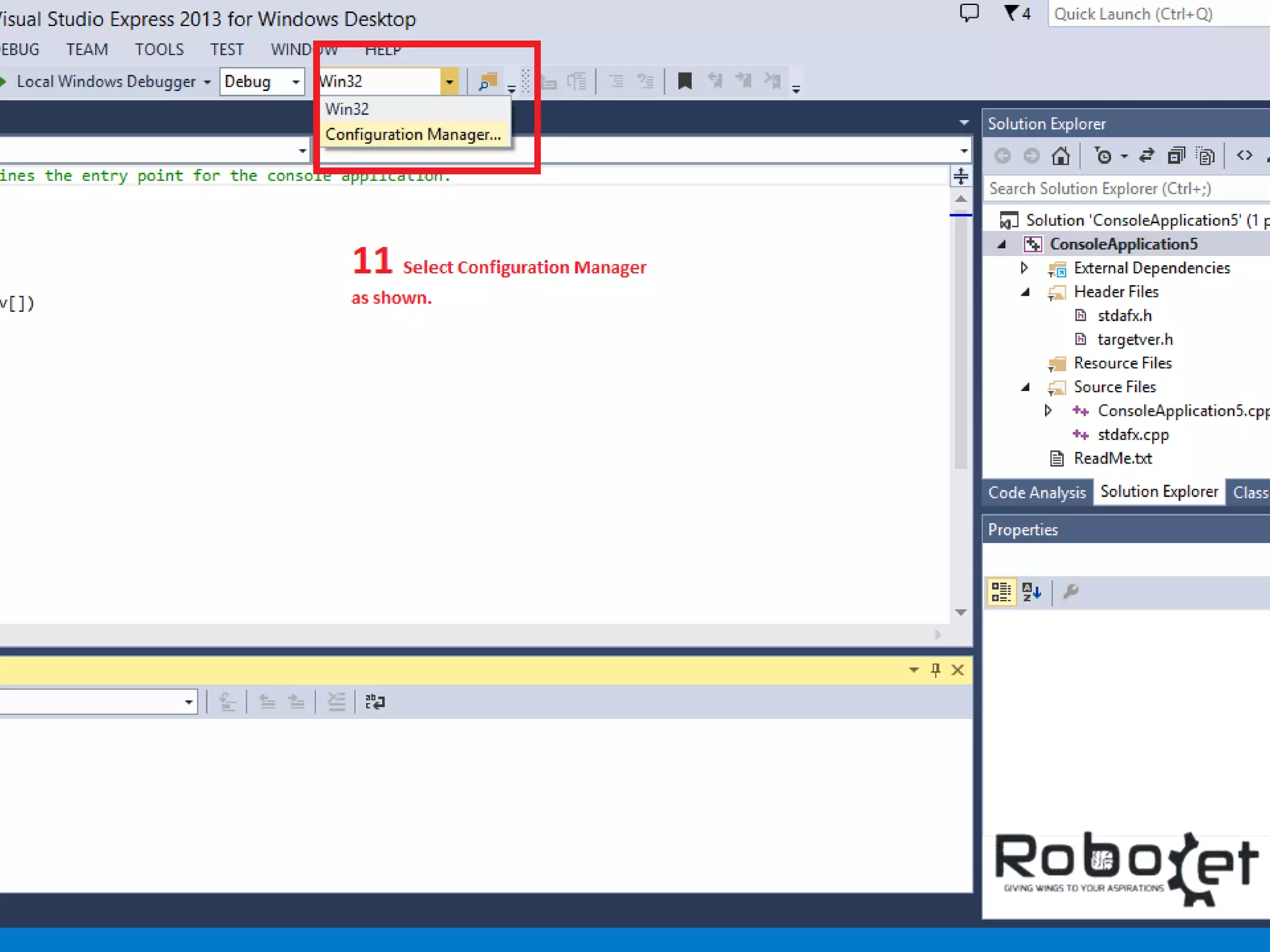

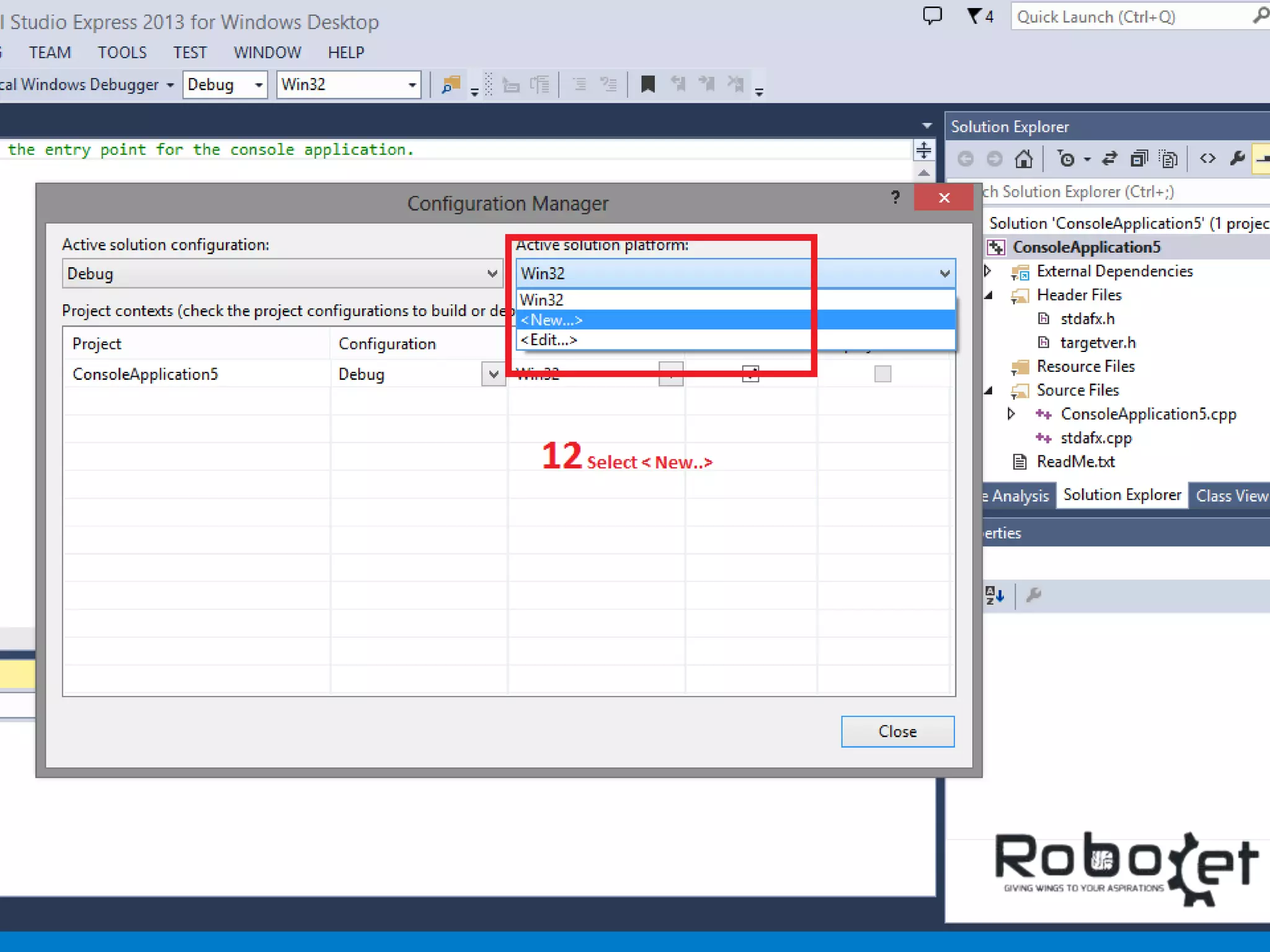

- 11. For 32Bit SystemSKIP The STEPS From 11 to 14. NEED NOT CHANGE THE PLATFORM TO x64 LEAVE IT AS WIN32.

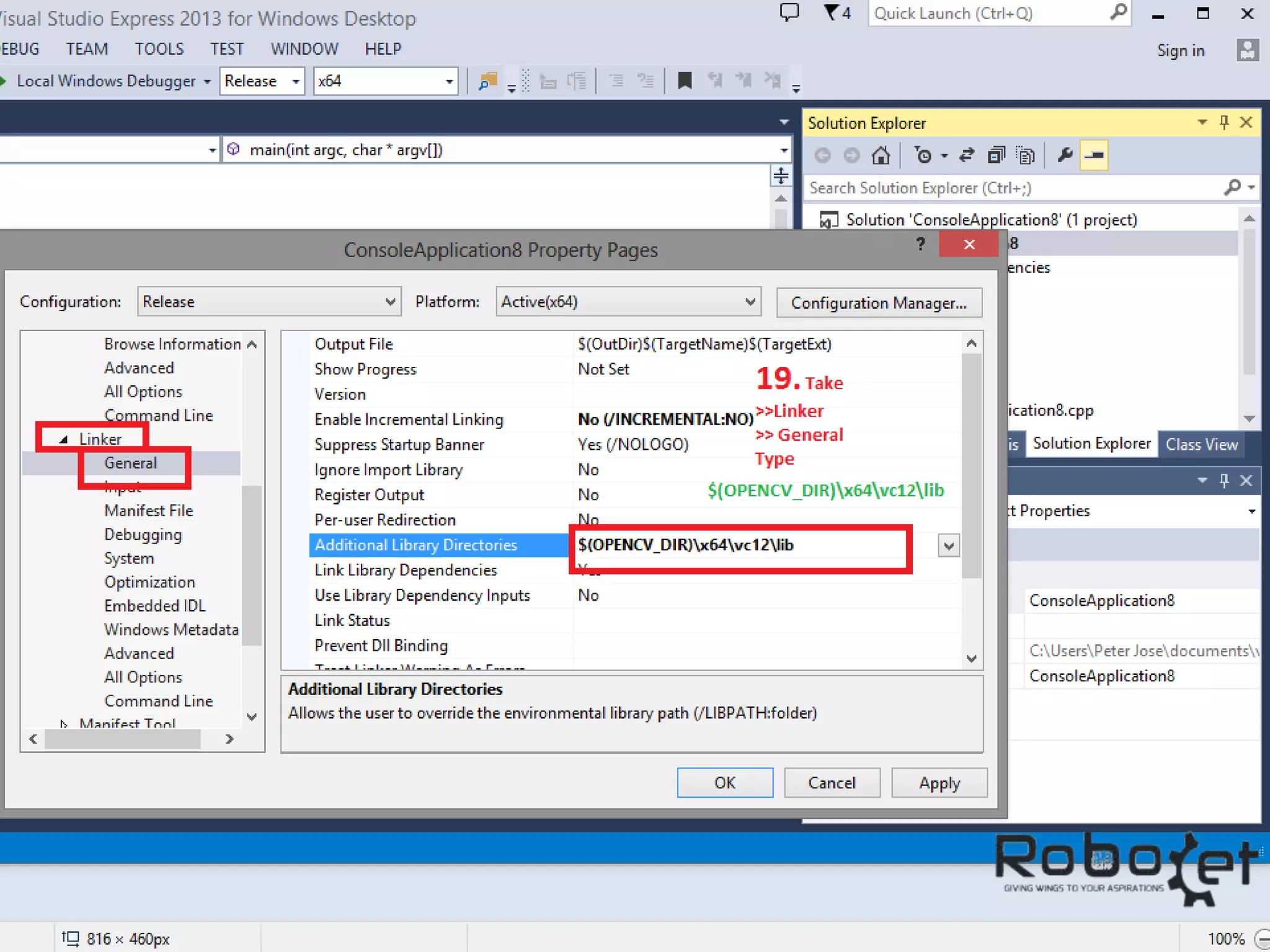

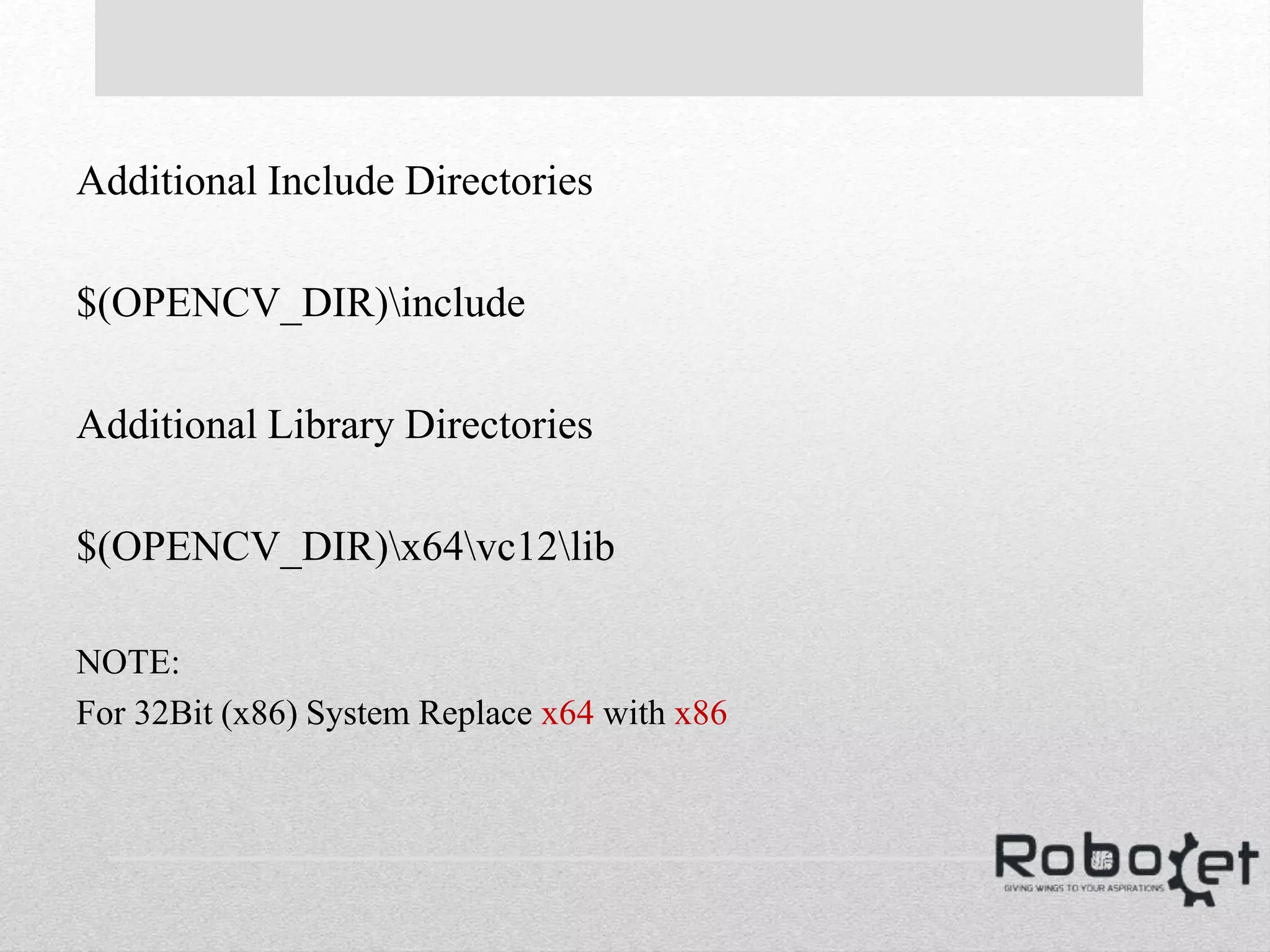

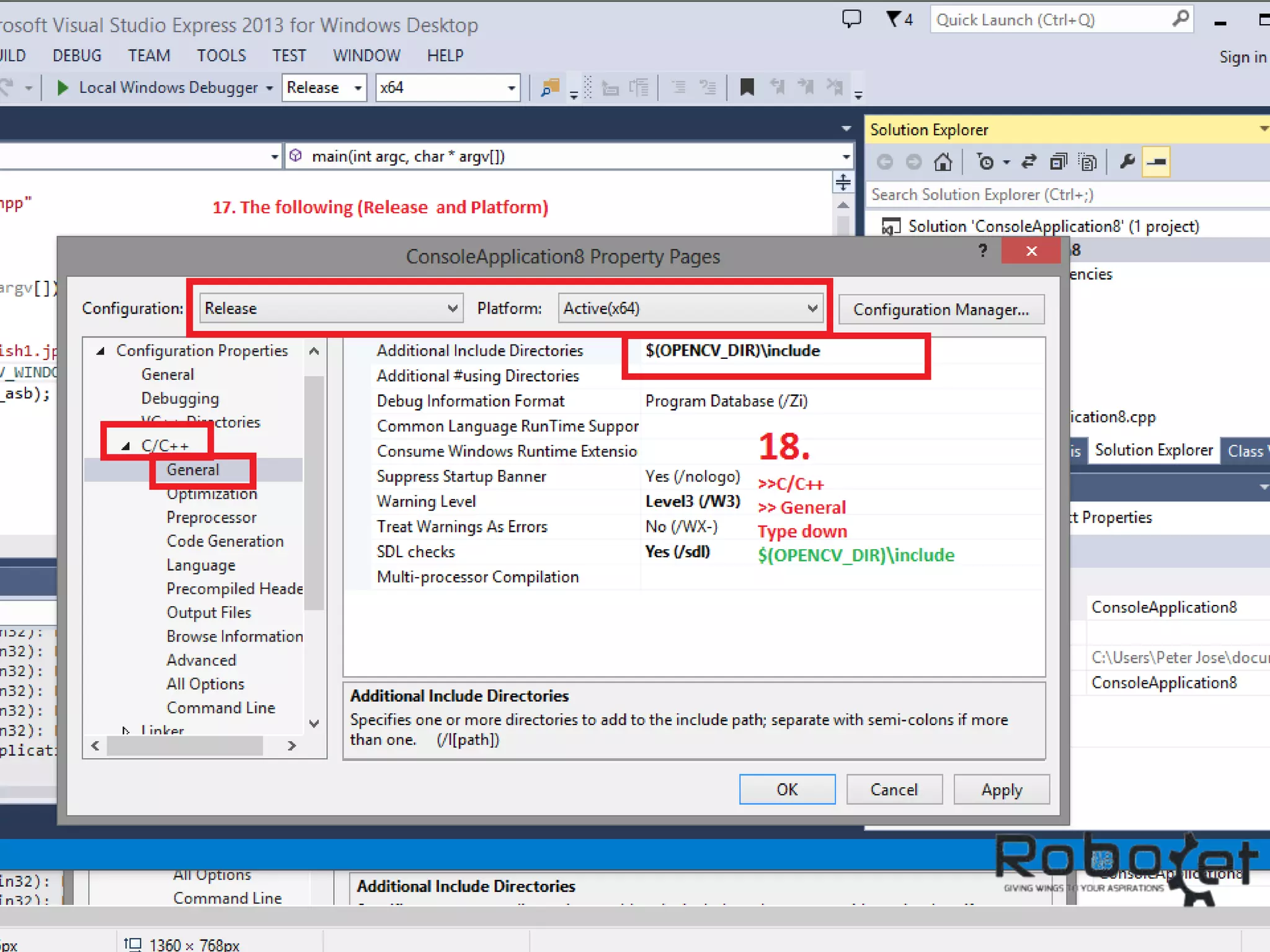

- 18. Additional Include Directories $(OPENCV_DIR)include AdditionalLibrary Directories $(OPENCV_DIR)x64vc12lib NOTE: For 32Bit (x86) System Replace x64 with x86

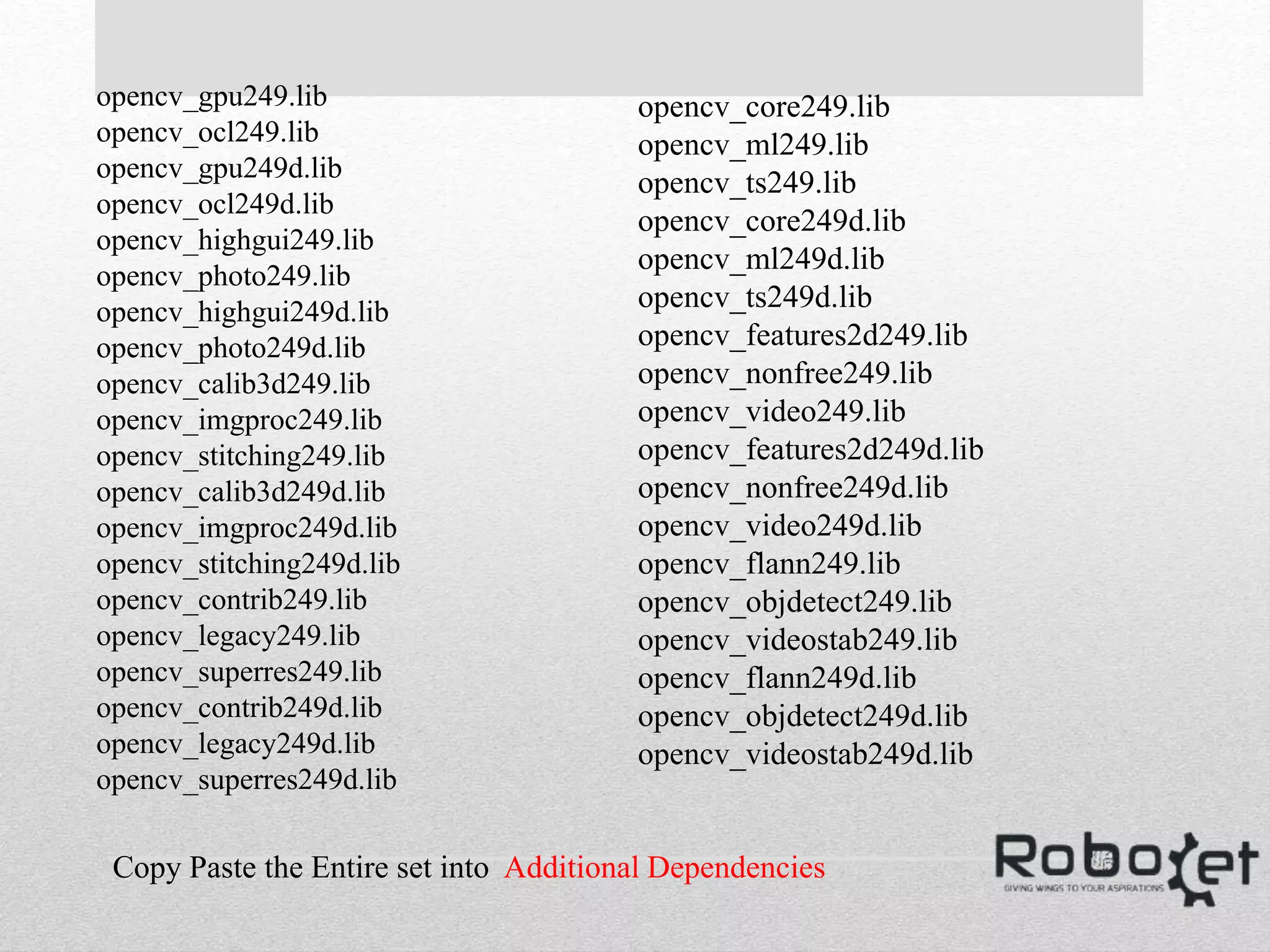

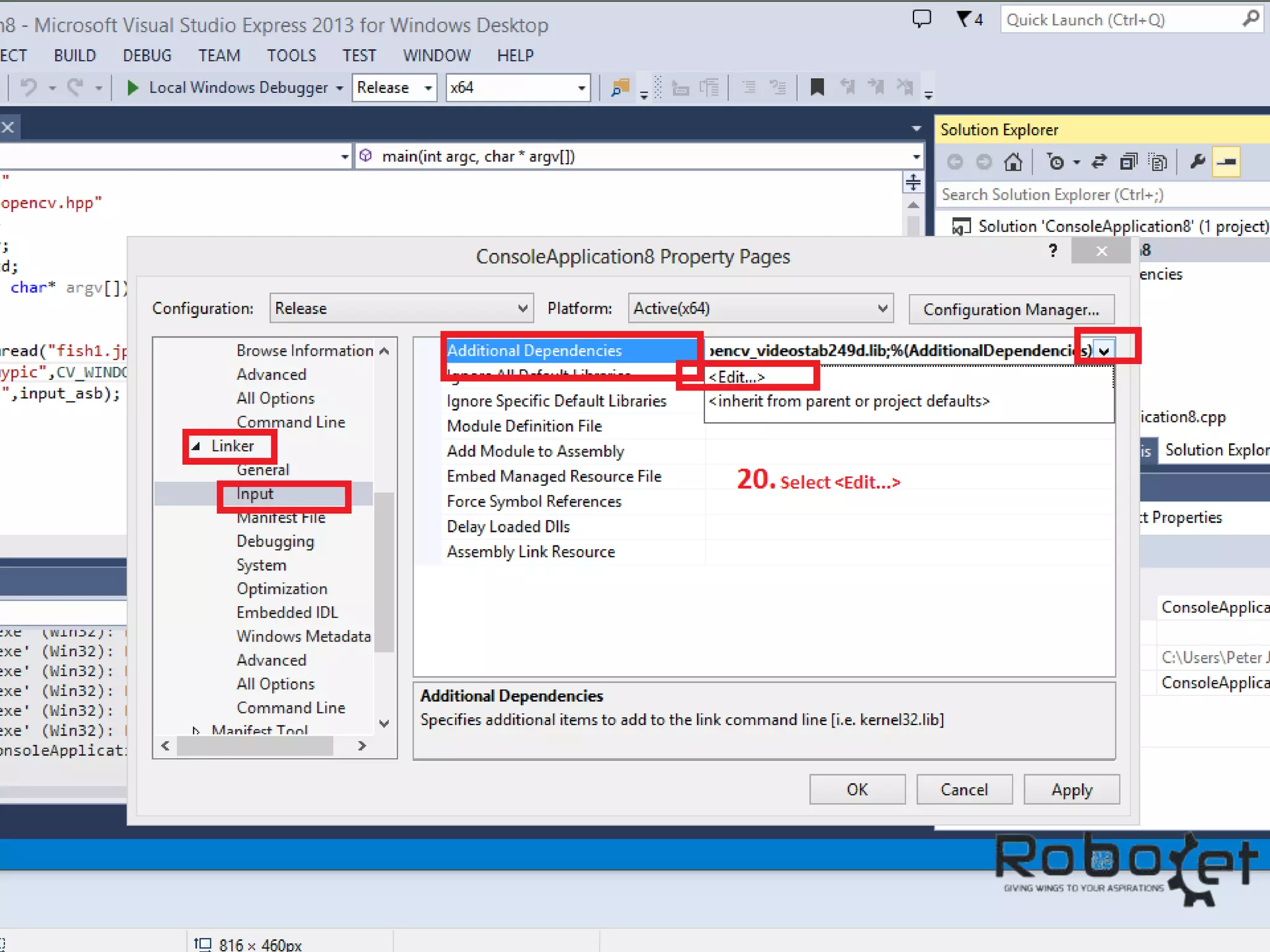

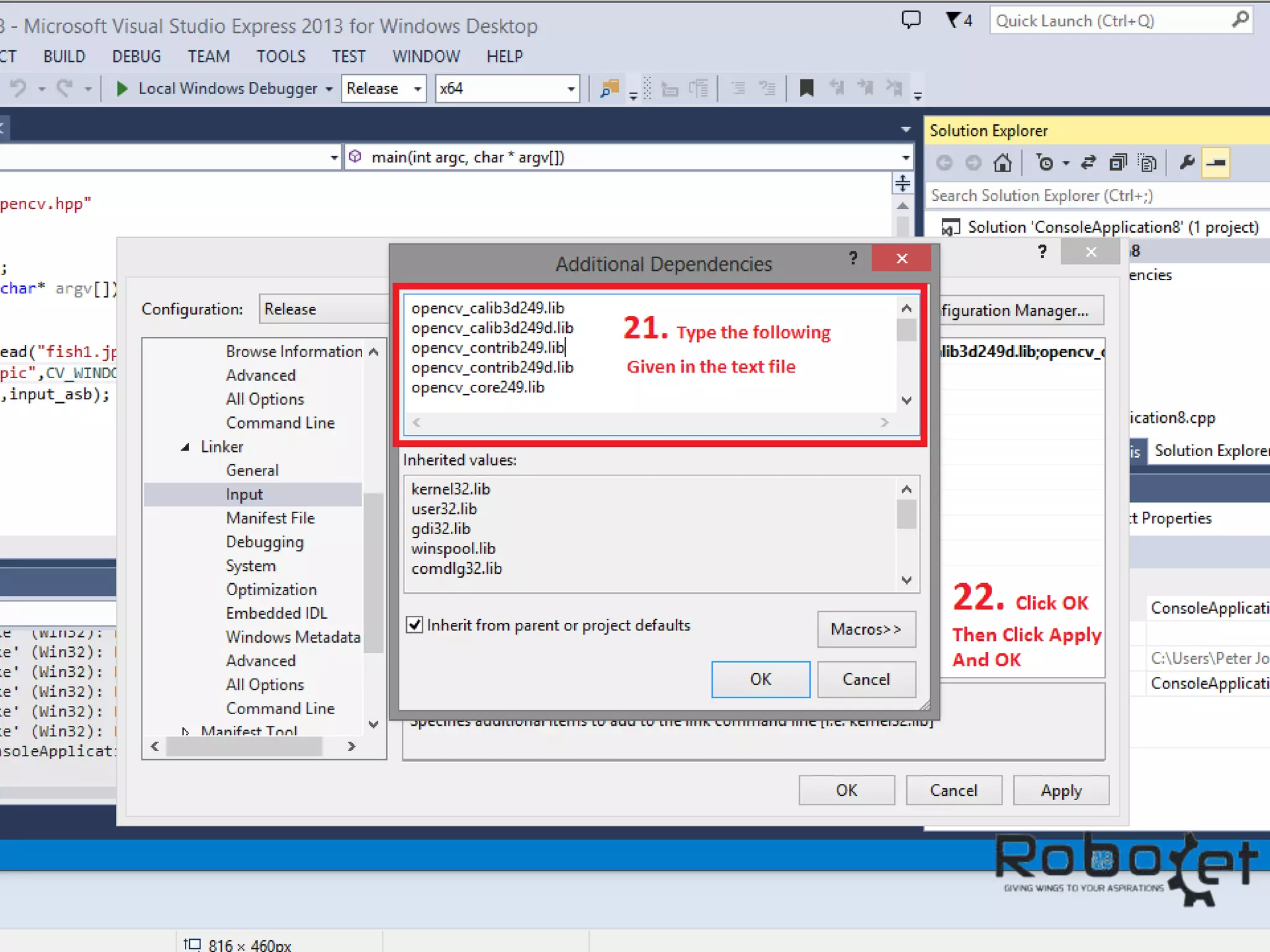

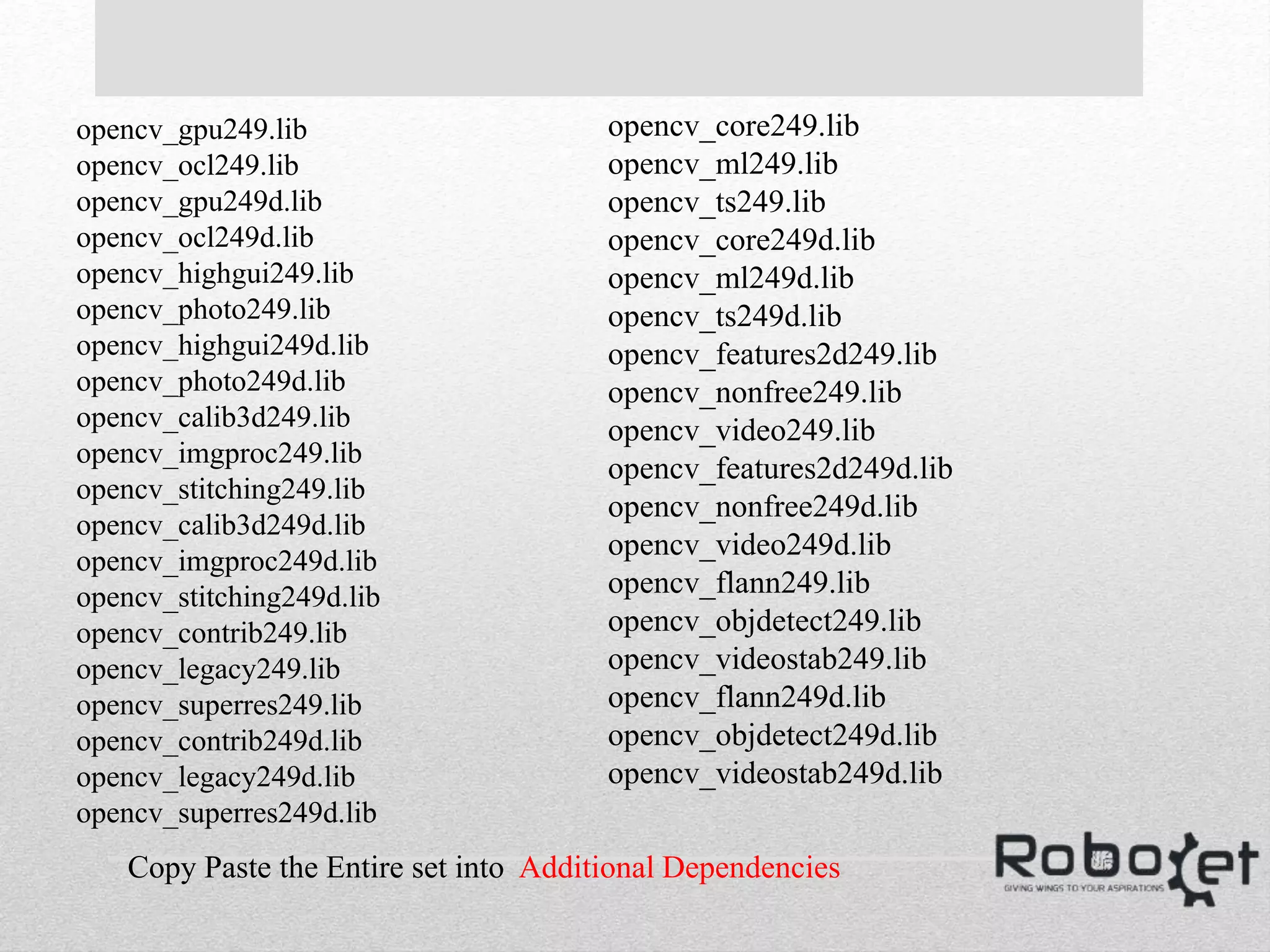

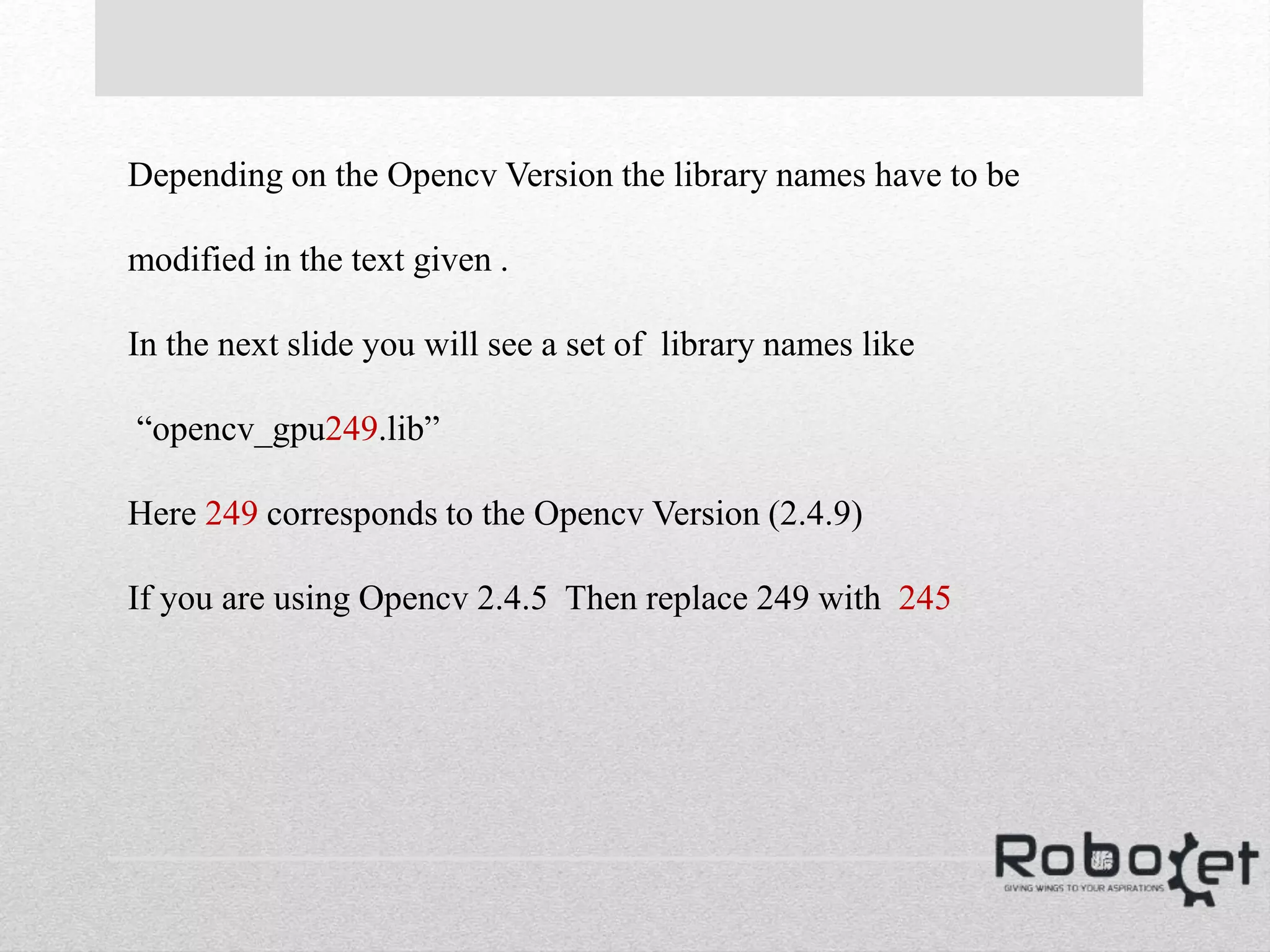

- 22. Depending on theOpencv Version the library names have to be modified in the text given . In the next slide you will see a set of library names like “opencv_gpu249.lib” Here 249 corresponds to the Opencv Version (2.4.9) If you are using Opencv 2.4.5 Then replace 249 with 245
- 23.

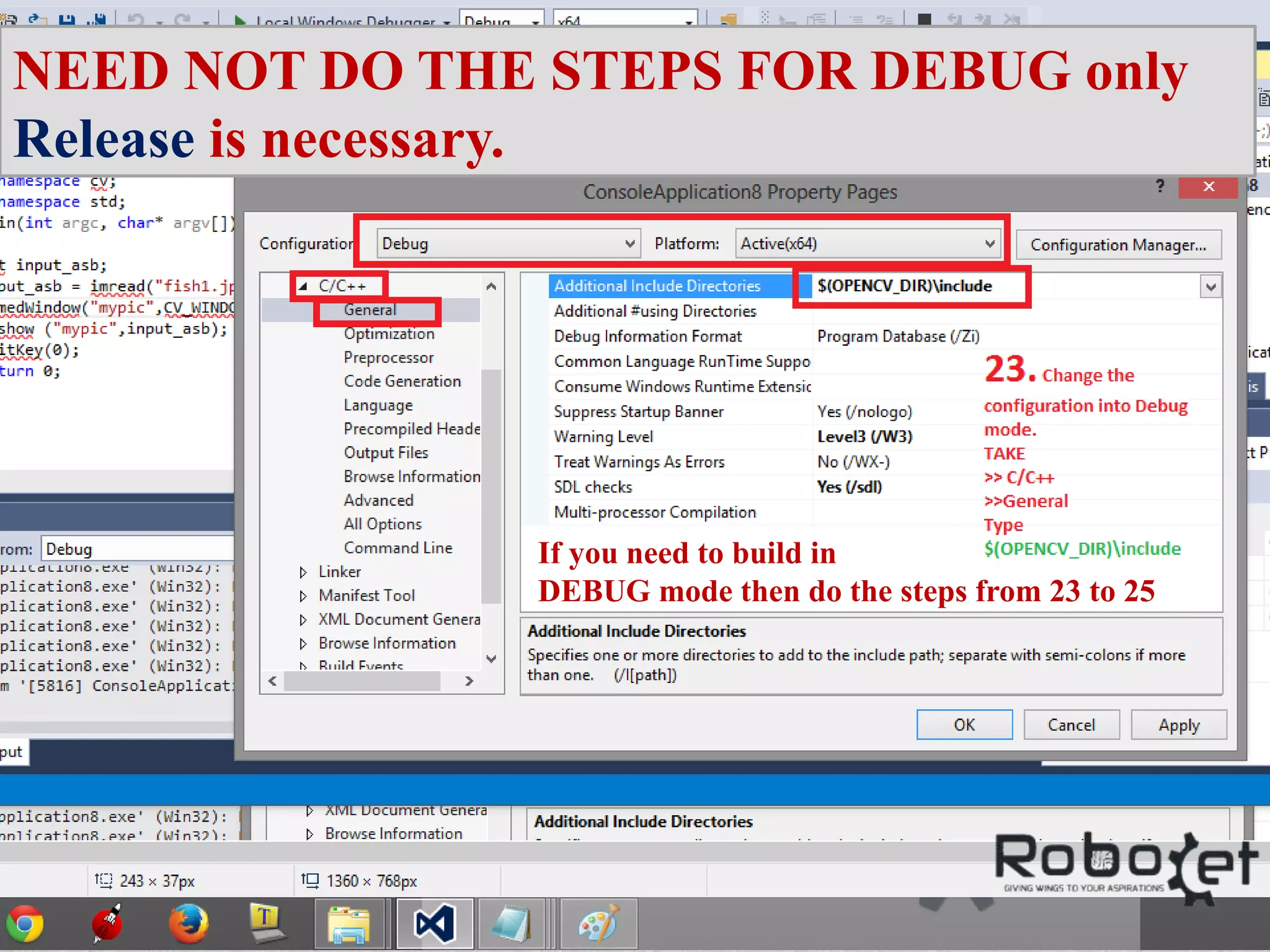

- 24. NEED NOT DOTHE STEPS FOR DEBUG only Release is necessary. If you need to build in DEBUG mode then do the steps from 23 to 25

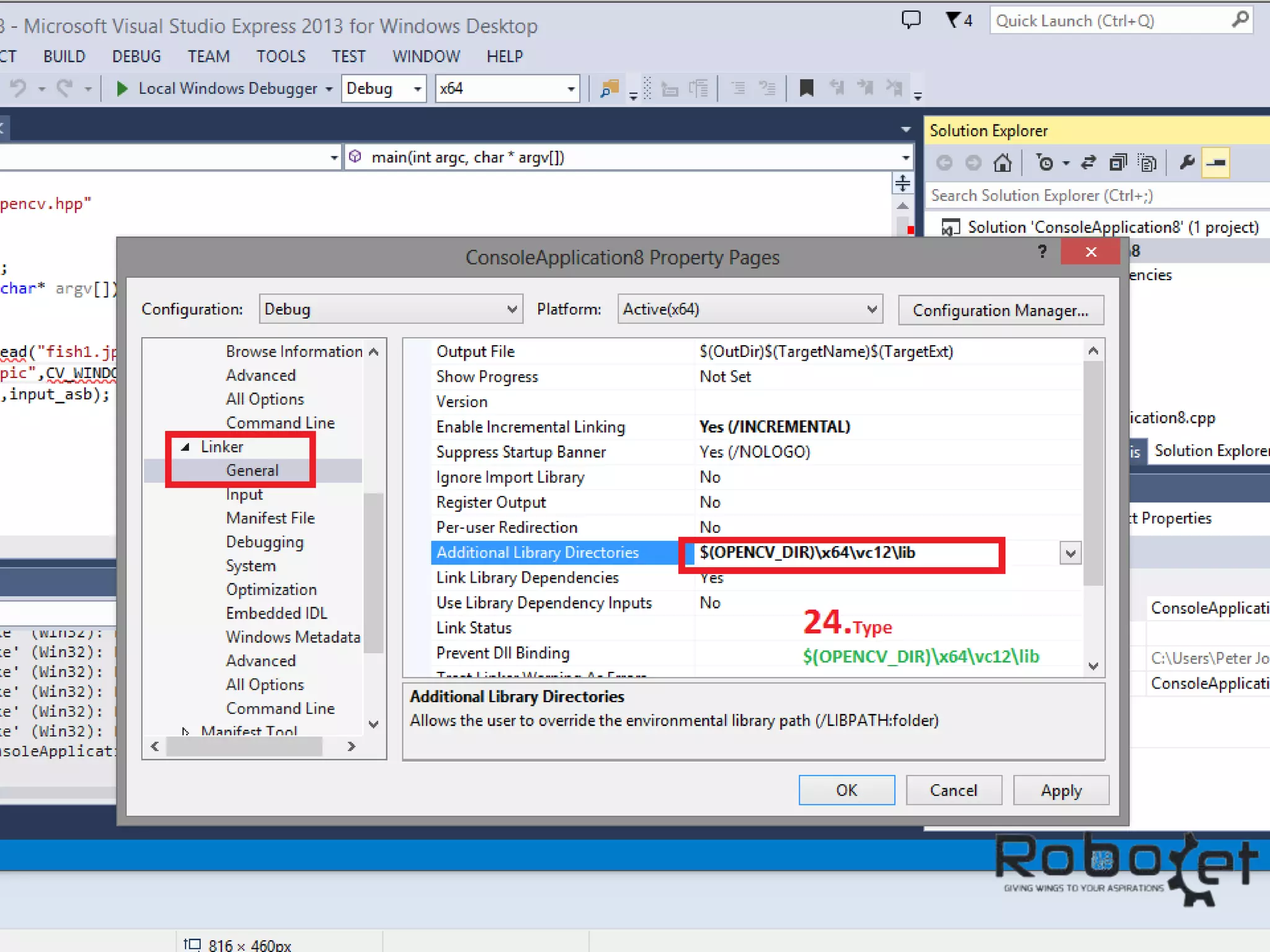

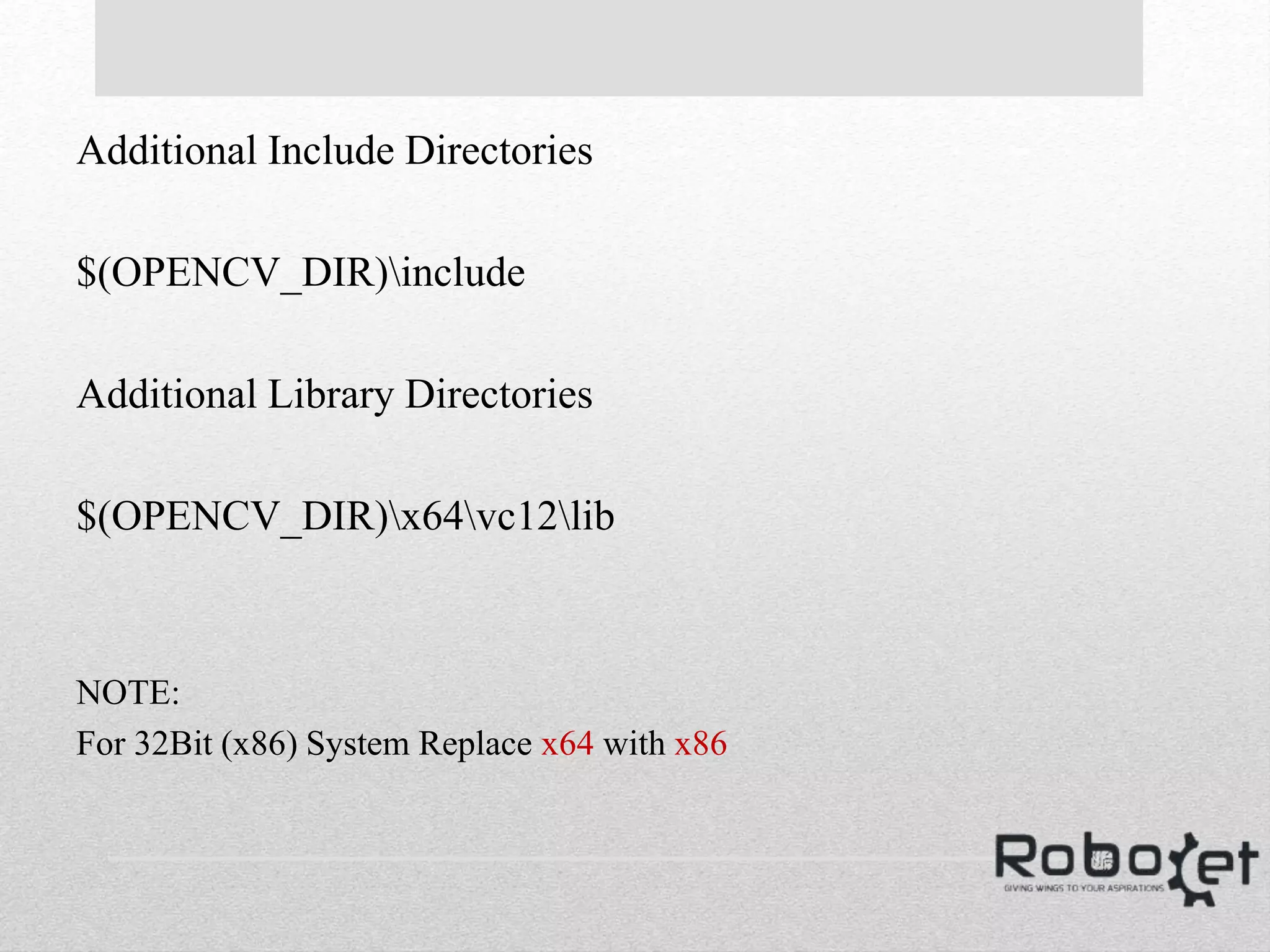

- 25. Additional Include Directories $(OPENCV_DIR)include AdditionalLibrary Directories $(OPENCV_DIR)x64vc12lib NOTE: For 32Bit (x86) System Replace x64 with x86
- 28.

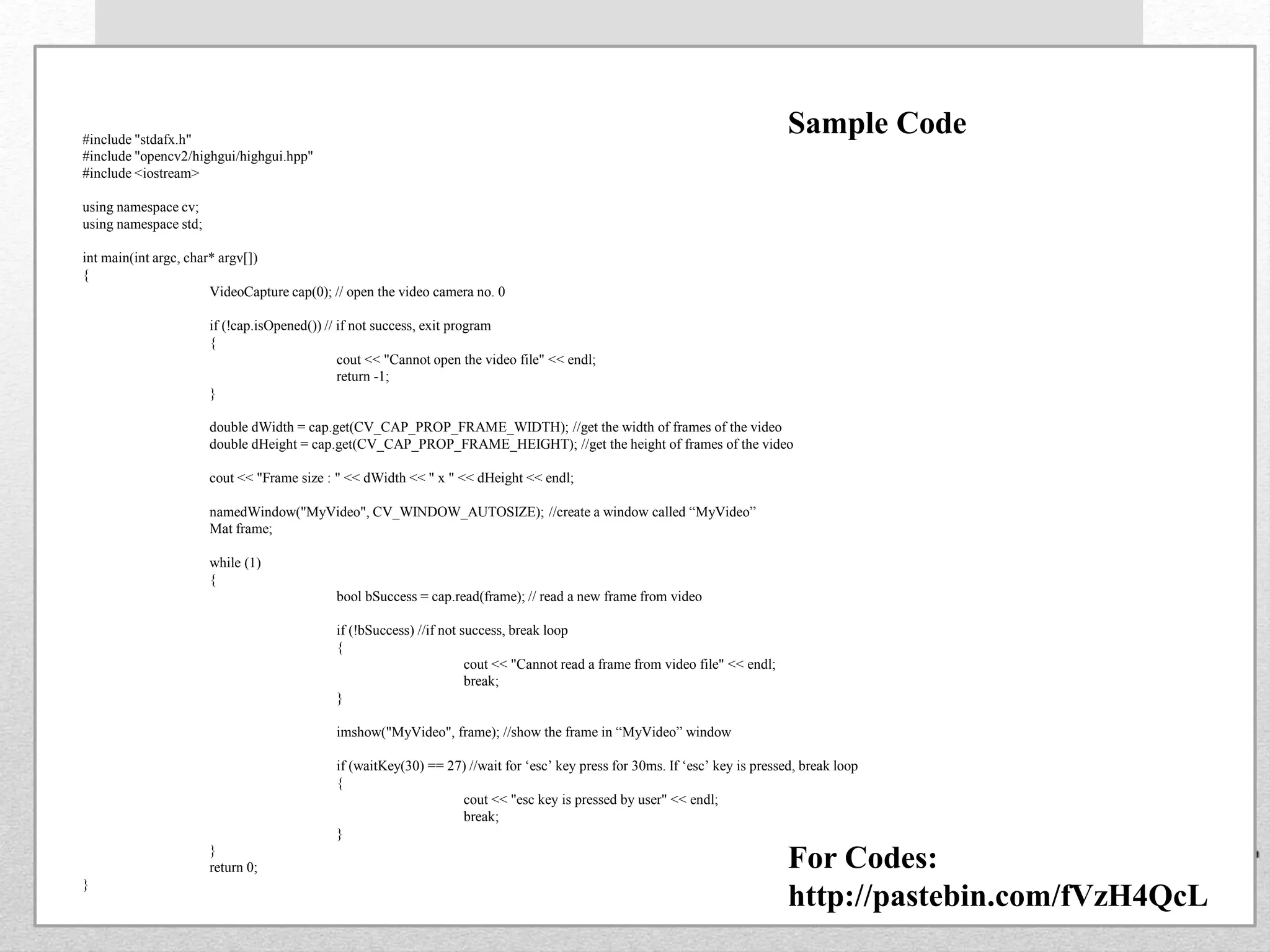

- 30. #include "stdafx.h" #include "opencv2/highgui/highgui.hpp" #include<iostream> using namespace cv; using namespace std; int main(int argc, char* argv[]) { VideoCapture cap(0); // open the video camera no. 0 if (!cap.isOpened()) // if not success, exit program { cout << "Cannot open the video file" << endl; return -1; } double dWidth = cap.get(CV_CAP_PROP_FRAME_WIDTH); //get the width of frames of the video double dHeight = cap.get(CV_CAP_PROP_FRAME_HEIGHT); //get the height of frames of the video cout << "Frame size : " << dWidth << " x " << dHeight << endl; namedWindow("MyVideo", CV_WINDOW_AUTOSIZE); //create a window called “MyVideo” Mat frame; while (1) { bool bSuccess = cap.read(frame); // read a new frame from video if (!bSuccess) //if not success, break loop { cout << "Cannot read a frame from video file" << endl; break; } imshow("MyVideo", frame); //show the frame in “MyVideo” window if (waitKey(30) == 27) //wait for ‘esc’ key press for 30ms. If ‘esc’ key is pressed, break loop { cout << "esc key is pressed by user" << endl; break; } } return 0; } Sample Code For Codes: http://pastebin.com/fVzH4QcL

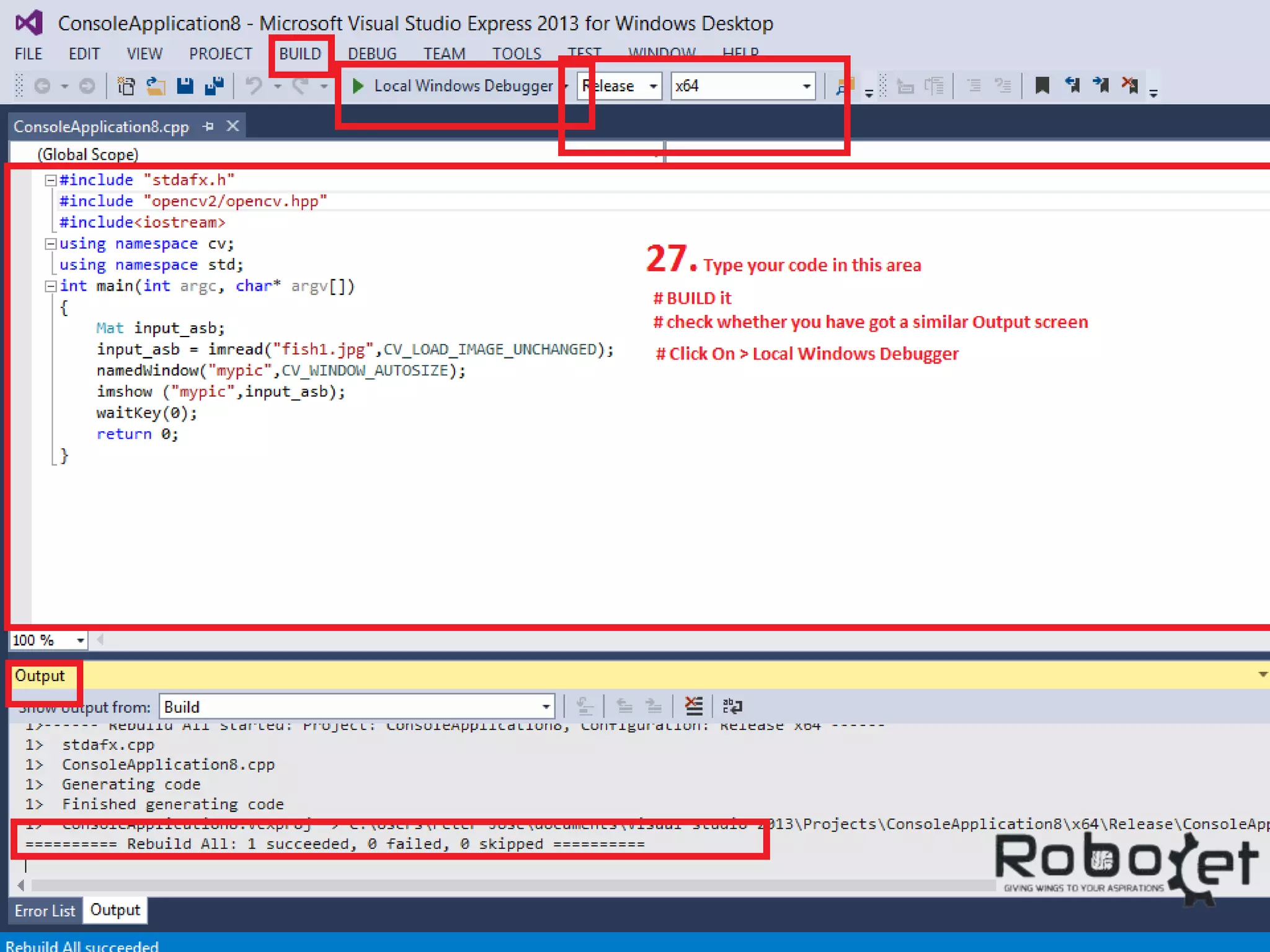

- 31. NOTE: After Building thecode ,the location where the .exe is located should contain a picture named “ fish.jpg “. otherwise while running it shows error. #include "stdafx.h" #include "opencv2/opencv.hpp" #include<iostream> using namespace cv; using namespace std; int main(int argc, char* argv[]) { Mat input_asb; input_asb = imread("fish1.jpg",CV_LOAD_IMAGE_UNCHANGED); namedWindow("mypic",CV_WINDOW_AUTOSIZE); imshow ("mypic",input_asb); waitKey(0); return 0; } Sample Code For codes: http://pastebin.com/XZzDe6k0
- 32.
