Onubha brochure

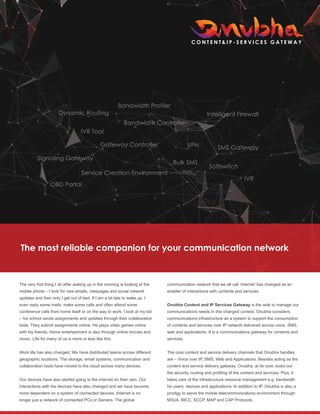

1. The very first thing I do after waking up in the morning is looking at the
mobile phone – I look for new emails, messages and social network
updates and then only I get out of bed. If I am a bit late to wake up, I
even reply some mails, make some calls and often attend some
conference calls from home itself or on the way to work. I look at my kid
– his school sends assignments and updates through their collaboration
tools. They submit assignments online. He plays video games online
with his friends. Home entertainment is also through online movies and
music. Life for many of us is more or less like this.
Work life has also changed. We have distributed teams across different
geographic locations. The storage, email systems, communication and
collaboration tools have moved to the cloud across many devices.
Our devices have also started going to the internet on their own. Our
interactions with the devices have also changed and we have become
more dependent on a system of connected devices. Internet is no
longer just a network of connected PCs or Servers. The global
communication network that we all call ‘internet’ has changed as an
enabler of interactions with contents and services.
Onubha Content and IP Services Gateway is the aide to manage our
communications needs in this changed context. Onubha considers
communications infrastructure as a system to support the consumption
of contents and services over IP network delivered across voice, SMS,
web and applications. It is a communications gateway for contents and
services.
The core content and service delivery channels that Onubha handles
are – Voice over IP, SMS, Web and Applications. Besides acting as the
content and service delivery gateway, Onubha, at its core, looks out
the security, routing and profiling of the content and services. Plus, it
takes care of the infrastructure resource management e.g. bandwidth
for users, devices and applications. In addition to IP, Onubha is also a
prodigy to serve the mobile telecommunications environment through
M3UA, BICC, SCCP, MAP and CAP Protocols.
C O N T E N T & I P - S E R V I C E S G A T E W A Y
The most reliable companion for your communication network

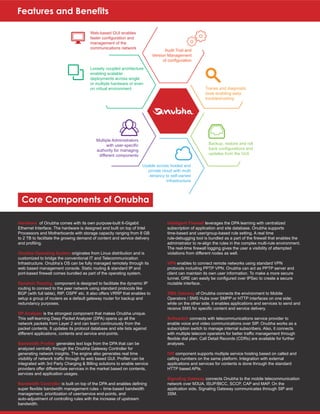

2. Hardware of Onubha comes with its own purpose-built 6-Gigabit
Ethernet Interface. The hardware is designed and built on top of Intel
Processors and Motherboards with storage capacity ranging from 8 GB
to 2 TB to facilitate the growing demand of content and service delivery
and profiling.
Onubha Operating System originates from Linux distribution and is
customized to bridge the conventional IT and Telecommunication
Infrastructure. Onubha’s OS can be fully managed remotely through its
web based management console. Static routing & standard IP and
port-based firewall comes bundled as part of the operating system.
Dynamic Routing component is designed to facilitate the dynamic IP
routing to connect to the peer network using standard protocols like
BGP (with full table), RIP, OSPF etc. It also offers VRRP that enables to
setup a group of routers as a default gateway router for backup and
redundancy purposes.
DP Analyzer is the strongest component that makes Onubha unique.
This self-learning Deep Packet Analyzer (DPA) opens up all the
network packets from Layer 2 and can learn continuously from the
packet contents. It updates its protocol database and site lists against
different applications, contents and service end-points.
Bandwidth Profiler generates text logs from the DPA that can be
analyzed centrally through the Onubha Gateway Controller for
generating network insights. The engine also generates real time
visibility of network traffic through its web based GUI. Profiler can be
integrated with 3rd Party Charging & Billing solutions to enable service
providers offer differentiate services in the market based on contents,
services and application usages.
Bandwidth Controller is built on top of the DPA and enables defining
super flexible bandwidth management rules – time-based bandwidth
management, prioritization of user/service end-points, and
auto-adjustment of controlling rules with the increase of upstream
bandwidth.
Core Components of Onubha
Intelligent Firewall leverages the DPA learning with centralized
subscription of application and site database. Onubha supports
time-based and user/group-based rule setting. A real time
rule-debugging tool is bundled as a part of the firewall that enables the
administrator to re-align the rules in the complex multi-rule environment.
The real-time firewall logging gives the user a visibility of attempted
violations from different nodes as well.
VPN enables to connect remote networks using standard VPN
protocols including PPTP VPN. Onubha can act as PPTP server and
client can maintain its own user information. To make a more secure
tunnel, GRE can easily be configured over IPSec to create a secure
routable interface.
SMS Gateway of Onubha connects the environment to Mobile
Operators / SMS Hubs over SMPP or HTTP interfaces on one side;
while on the other side, it enables applications and services to send and
receive SMS for specific content and service delivery.
Softswitch connects with telecommunications service provider to
enable voice and video communications over SIP. Onubha works as a
subscription switch to manage internal subscribers. Also, it connects
with multiple telecom operators for better traffic management through
flexible dial plan. Call Detail Records (CDRs) are available for further
analyses.
IVR component supports multiple service hosting based on called and
calling numbers on the same platform. Integration with external
applications and services for contents is done through the standard
HTTP based APIs.
Signaling Gateway connects Onubha to the mobile telecommunication
network over M3UA, ISUP/BICC, SCCP, CAP and MAP. On the
application side, Signaling Gateway communicates through SIP and
3SM.
Usable across hosted and
private cloud with multi
-tenancy to self-owned
infrastructure
Audit Trail and
Version Management
of configuration
Traces and diagnostic
tools enabling easy
troubleshooting
Backup, restore and roll
back configurations and
updates from the GUI.
Loosely coupled architecture
enabling scalable
deployments across single
or multiple hardware or even
on virtual environment
Web-based GUI enables
faster configuration and
management of the
communications network
Multiple Administrators
with user-specific
authority for managing
different components
Features and Benefits

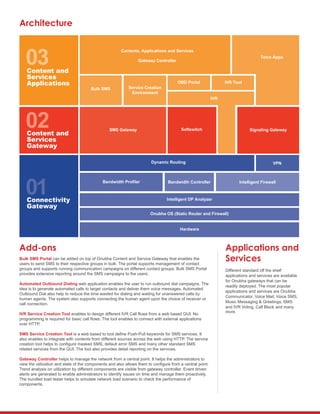

3. Architecture
Contents, Applications and Services
Gateway Controller
Telco Apps
Bulk SMS
SMS Gateway
Dynamic Routing
Bandwidth Profiler
Intelligent DP Analyzer
Bandwidth Controller
Onubha OS (Static Router and Firewall)
Hardware
Intelligent Firewall
VPN
Service Creation
Environment
OBD Portal
IVR
Softswitch Signaling Gateway
IVR Tool
Content and
Services
Applications
Content and
Services
Gateway
Connectivity
Gateway
Applications and
Services
Different standard off the shelf
applications and services are available
for Onubha gateways that can be
readily deployed. The most popular
applications and services are Onubha
Communicator, Voice Mail, Voice SMS,
Music Messaging & Greetings, SMS
and IVR Voting, Call Block and many
more.
Add-ons
Bulk SMS Portal can be added on top of Onubha Content and Service Gateway that enables the
users to send SMS to their respective groups in bulk. The portal supports management of contact
groups and supports running communication campaigns on different contact groups. Bulk SMS Portal
provides extensive reporting around the SMS campaigns to the users.
Automated Outbound Dialing web application enables the user to run outbound dial campaigns. The
idea is to generate automated calls to target contacts and deliver them voice messages. Automated
Outbound Dial also help to reduce the time wasted for dialing and waiting for unanswered calls by
human agents. The system also supports connecting the human agent upon the choice of receiver or
call connection.
IVR Service Creation Tool enables to design different IVR Call flows from a web based GUI. No
programming is required for basic call flows. The tool enables to connect with external applications
over HTTP.
SMS Service Creation Tool is a web based to tool define Push-Pull keywords for SMS services. It
also enables to integrate with contents from different sources across the web using HTTP. The service
creation tool helps to configure masked SMS, default error SMS and many other standard SMS
related services from the GUI. The tool also provides detail reporting on the services.
Gateway Controller helps to manage the network from a central point. It helps the administrators to
view the utilization and state of the components and also allows them to configure from a central point.
Trend analysis on utilization by different components are visible from gateway controller. Event driven
alerts are generated to enable administrators to identify issues on time and manage them proactively.
The bundled load tester helps to simulate network load scenario to check the performance of
components.

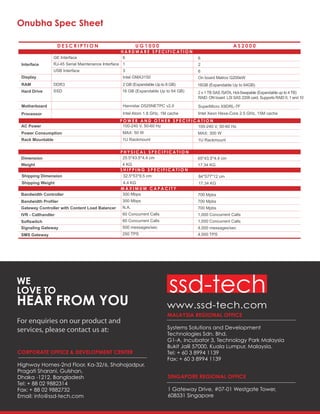

4. Onubha Spec Sheet
WE
LOVE TO
HEAR FROM YOU www.ssd-tech.com
For enquiries on our product and
services, please contact us at:
CORPORATE OFFICE & DEVELOPMENT CENTER
Highway Homes-2nd Floor, Ka-32/6, Shahajadpur,
Pragati Sharani, Gulshan,
Dhaka -1212, Bangladesh
Tel: + 88 02 9882314
Fax: + 88 02 9882732
Email: info@ssd-tech.com
MALAYSIA REGIONAL OFFICE
Systems Solutions and Development
Technologies Sdn. Bhd.
G1-A, Incubator 3, Technology Park Malaysia
Bukit Jalil 57000, Kuala Lumpur, Malaysia.
Tel: + 60 3 8994 1139
Fax: + 60 3 8994 1139
SINGAPORE REGIONAL OFFICE
1 Gateway Drive, #07-01 Westgate Tower,
608531 Singapore
H A R D W A R E S P E C I F I C A T I O N
U G 1 0 0 0 A S 2 0 0 0D E S C R I P T I O N
Interface
Display
RAM
Hard Drive
Motherboard
Processor
AC Power
Power Consumption
Rack Mountable
Dimension
Weight
P O W E R A N D O T H E R S P E C I F I C A T I O N
P H Y S I C A L S P E C I F I C A T I O N
Shipping Dimension
Shipping Weight
Bandwidth Controller
Bandwidth Profiler
Gateway Controller with Content Load Balancer
IVR - Callhandler
Softswitch
Signaling Gateway
S H I P P I N G S P E C I F I C A T I O N
M A X I M U M C A P A C I T Y
GE Interface
RJ-45 Serial Maintenance Interface
USB Interface
DDR3
SSD
6
1
3
Intel GMA3150 On board Matrox G200eW
2 GB (Expandable Up to 8 GB)
16 GB (Expandable Up to 64 GB)
16GB (Expandable Up to 64GB)
Hannstar D525NETPC v2.0 SuperMicro X9DRL-7F
100-240 V, 50-60 Hz 100-240 V, 50-60 Hz
MAX: 50 W MAX: 300 W
1U Rackmount 1U Rackmount
25.5*43.5*4.4 cm 65*43.5*4.4 cm
32.5*53*9.5 cm 84*577*12 cm
300 Mbps 700 Mpbs
300 Mbps 700 Mpbs
N.A. 700 Mpbs
60 Concurrent Calls 1,000 Concurrent Calls
60 Concurrent Calls 1,000 Concurrent Calls
500 messages/sec 4,000 messages/sec
SMS Gateway 250 TPS 4,000 TPS
4.4 KG 17.34 KG
4 KG 17.34 KG
Intel Atom 1.8 GHz, 1M cache Intel Xeon Hexa-Core 2.5 GHz, 15M cache
2 x 1 TB SAS /SATA, Hot-Swapable (Expandable up to 4 TB)
RAID: ON board LSI SAS 2208 card, Supports RAID 0, 1 and 10
6
2
6
